Structure-Function of the Human WAC Protein in GABAergic Neurons: Towards an Understanding of Autosomal Dominant DeSanto-Shinawi Syndrome

1. Introduction

Rare disease syndrome genes have increasingly been identified as an underlying cause of neuropsychiatric and neurological symptoms, with over one thousand genes suggested to contribute to neurodevelopment [1]. The protein products of these genes work together at the synapse, during cellular signaling, or have a role in epigenetic and transcriptional regulation [2]. However, some gene products have not yet been functionally assessed to determine cellular roles, so understanding how they impact neurodevelopment is absent, preventing potential therapeutic interventions. Having approaches to characterize these genes and their protein products is critical for advancing sequencing into clinical utility [3]. Here we provide an example of developing screening tools for an underexplored neurodevelopment gene, elucidating novel molecular functions that could impact neural cell types.

The WW domain containing adaptor with coiled-coil (WAC) gene is associated with DeSanto-Shinawi syndrome (DESSH). Those diagnosed with DESSH have symptoms of cranial dysmorphia and hypotonia with comorbidities including attention deficit hyperactivity disorder (ADHD), autism, and seizure susceptibility [4,5,6,7,8]. Moreover, WAC variants rank it as a high-confidence autism spectrum disorder risk gene [9,10]. The WAC protein has a few characteristic conserved domains, yet most of the protein is structurally disordered and not yet characterized. Notably, the WAC protein is often enriched in the nucleus of cells [11,12], but no nuclear localization signal (NLS) has been defined in the protein due to no sequences matching classical NLS signals. While implicated in cellular signaling and nuclear regulation [12,13,14,15], it is unclear how regions of the WAC protein modulate cellular distribution and how human variants could alter these functions to impact critical brain cell types. Therefore, we applied a computational screen combined with cell assays to define further the domains and disorder motifs of the WAC protein, serving as an example of characterizing underexplored neurodevelopment genes.

To ascertain the structure-function of WAC in a model cell type, we examined the cellular distribution of the protein in cells recently implicated in WAC phenotypes, cortical GABAergic interneurons [16], with the rationale that cell types sensitive to WAC mutations would have the most translatable value. Thus, we chose to utilize mouse medial ganglionic eminence (MGE) cells, which give rise to the majority of GABAergic cortical interneurons [17], as a model system to examine the impact of WAC protein domain mutants on cellular distribution. This approach offers a unique ability to screen the functional regions of a protein in a relevant neural cell type, a critical need for the field of neurodevelopmental genetics. Our analyses uncovered a unique bipartite nuclear localization signal in the amino terminus with an additional C-terminal nuclear export signal. Notably, these regions are enriched for human clinical variants. This suggests that nuclear localization is critical for proper WAC function, and its dysfunction results in DESSH. Further, a high number of conserved motifs within the disordered regions of the protein, where clinical variants fall, suggest that posttranslational modifications and cellular signaling are influential aspects of WAC function.

2. Materials and Methods

2.1. Bioinformatics

The bioinformatics of WAC was assessed using a combination of previously published tools [18,19]. In short, sequences of vertebrate WAC protein were extracted from NCBI Gene Ortholog [20] during Oct 2022 and aligned with NCBI Cobalt [21]. UniProt annotations [22], gnomAD version 2 variants [23], ClinVar variants [24], and Geno2MP (http://geno2mp.gs.washington.edu) variants were extracted during Nov 2022. WAC protein structure was from AlphaFold prediction [25]. The human WAC protein sequence was assessed for linear motifs through the Eukaryotic Linear Motif (ELM) server [26]. WAC gene expression was annotated from GTEx human broad tissues, the Allen Brain Atlas BrainSpan [27] of different ages vs. regions of human brain, and the Allen Brain Atlas Human MTG 10X (SEA-AD) single cell dataset [28].

2.2. Animals

A colony of WT CD-1 mice were bred to generate the embryos used for primary cultures. Experimenters were blind to the parameters. All mouse procedures were performed in accordance with NIH Guidelines for the Care and Use of Laboratory Animals and were approved by the Michigan State University Institutional Animal Care and Use Committee.

2.3. DNA vector generation

The CMV-GFP-hWAC DNA vector was generated by amplifying human WAC cDNA from a DNASU plasmid (hsCD00442491) and cloning in frame to the 3’ end of GFP in a previously described GFP expressing plasmid [29]; WAC was cloned into 5’ BsrGI and 3’ BamHI restriction enzymes sites. We subsequently edited a 3’ deletion of two adenosines in the WAC coding domain to produce the correct full-length clone. The following primers were used to generate the full length and mutants: WAC forward 5’-GAGATGTACAAGATGGTAATGTATGCGAGG-3’, WAC reverse 5’-GAGAGGATCCTCACACCATGAAGGAATTC-3’. Forward primers contained a BsrGI restriction site and reverse primers a BamHI restriction site (underlined); numbers denote amino acids of WAC.

W90 Forward 5’-GAGATGTACATTGATGGTGGGACCAGTTAC-3’

W166 Forward 5’-GAGATGTACATTGAACAGAGACAAAAAGAAGC-3’

W576 Forward 5’-GAGATGTACATTGATCATGCAGAGAAGCAG’3’

W89 Reverse 5’-GAGAGGATCCTCACCTCTCTCTAACTCTGTG-3’

W165 Reverse 5’-GAGAGGATCCTCATCTTTCAAGCCACTCTTTTGG-3’

W575 Reverse 5’-GAGAGGATCCTCATGCAGGCCATCCTTGAAC-3’

The WW domain deletion construct was generated by obtaining a synthesized gene block from integrated DNA technologies (IDT) of a partial WAC coding domain that lacked the WW DNA sequence (encoding amino acids 133-165) with flanking 5’ BsrGI and internal 3’ NsiI restriction sites that were used to ligate in the GFP-WAC vector described above.

2.4. Immuno-fluorescence labeling and imaging

Primary neurons were washed in phospho-buffered saline containing 0.3% Triton-X100, blocked in the same solution containing 5% bovine serum albumin and then incubated in primary antibodies for 1-2 hours. They were washed 3 times and then incubated with secondary antibodies containing fluorophores for 1 hour before 3 final washes. A Leica DM2000 microscope (DFC3000G camera) captured primary cell images for quantification and Zeiss LSM800 confocal microscope used to attain representative images for figures.

2.5. MGE primary cultures

We generated MGE primary cultures as described in [30,31]. Briefly, we cultured MGE cells in Dulbecco’s modified Eagle medium supplemented with 10% fetal bovine serum and penicillin/streptomycin from time of seeding until one day in vitro. The cells were then transfected with the GFP-fusion vectors using Lipofectamine^TM 2000 (ThermoFisher 11668027) on day one and after four hours, replaced with neurobasal media, supplemented with B27, glucose, glutamax and penicillin/streptomycin. Cells grew in this media for five days in vitro, then fixed in 4% paraformaldehyde and assessed via immuno-fluorescence labeling.

2.6. Statistics and cell assessments

Graphpad Prism 7 was used to calculate statistical significance; a p value of <0.05 was considered significant. For non-parametric data sets (proportions), we used a Chi-squared test to determine significance.

2.7. Western blotting

DNA plasmids were transfected into HEK293T cells using Lipofectamine^TM 2000. After 48 hours, cells were collected and lysed in standard RIPA buffer with protease and phosphatase inhibitors and combined with Laemmli buffer (BioRad 1610737EDU) containing 2-Mercaptoethanol and incubated at 95ºC for 5 minutes. Equal amounts of protein lysates were separated on 10% SDS-PAGE gels and then transferred to nitrocellulose membranes. The membranes were washed in Tris-buffered saline containing Triton X-100 (TBST) and blocked for 1 hour in TBST containing 5% non-fat dry milk (blotto, sc-2324 SantaCruz biotechnology). Membranes were incubated with primary antibodies overnight at 4ºC, washed 3 times with TBST, incubated with secondary antibodies for 1 hour at room temperature and then washed 3 more times with TBST. Membranes were incubated in ECL solution (BioRad Clarity substrate 1705061) for 5 minutes and chemiluminescent images obtained with a BioRad Chemidoc™ MP imaging system. Antibodies (all used at 1:4,000 dilution): rabbit anti-GFP (ThermoFisher A6455), rabbit anti-WAC (abCam ab109486), rabbit anti-GAPDH (Cell Signaling Technology 2118), as well as goat anti-rabbit HRP (BioRad 170-6515).

3. Results

3.1. Functional domain and motif annotations of WAC

The WAC protein contains an internal WW domain, known for protein-protein interactions with proline rich regions [32]. At the carboxy-terminus, the WAC protein has two coiled-coil domains, which can have many functions, including dimerizing with similar structures [33]. Between these regions of the WAC protein is highly disorder protein annotations with no known functions. Using 364 vertebrate WAC protein sequences, we identified regions with high conservation (Figure 1). While UniProt only annotates the WW domain and Coiled-Coil region of WAC with the majority predicted to be disordered, there is a surprising high level of conserved polar basic (blue, top panel Figure 1A), polar acidic (red, top panel Figure 1A), and Serine/Threonine (orange, top panel Figure 1A) conservation. Many of these conserved sites are found outside of the WW and coiled-coil annotations, suggesting an under annotated role of disordered motifs in WAC. Many of the conserved amino acids fall outside the annotated domains/motifs within unstructured regions of WAC (Figure 1B).

According to the Human Protein Atlas (https://www.proteinatlas.org/ENSG00000095787-WAC/subcellular), WAC is localized within the nucleus of cells but lacks an annotated nuclear localization domain. We screened the WAC sequence with multiple NLS bioinformatic screening tools, without a single tool returning a potential NLS. Suprisingly, a large portion of the linear motif predictions of WAC are also identified to be within the nuclear cell compartment, suggesting sequence convergence to nuclear function. These nuclear motifs include conserved sites for DOC_MAPK_gen_1 (169-178, 606-614), LIG_FHA_2 (307-313, 618-624), DEG_SPOP_SBC_1 (322-326), DOC_CYCLIN_yClb5_NLxxxL_5 (357-366), DEG_APCC_DBOX_1 (363-371), DOC_CYCLIN_yCln2_LP_2 (366-372), DOC_PP2A_B56_1 (383-388, 611-617), LIG_PCNA_PIPBox_1 (400-409), LIG_EH1_1 (413-421), LIG_CtBP_PxDLS_1 (437-441), LIG_14-3-3_CanoR_1 (454-458, 517-526), DOC_CKS1_1 (455-460, 469-474), DEG_SCF_FBW7_1 (468-475), DOC_CKS1_1 (469-474), DOC_PP1_RVXF_1 (623-629), LIG_UBA3_1 (626-634). It should be noted that several of these regulation motifs are linked to similar neurodevelopmental disorders including MAPK dysfunction and the DEG_SCF_FBW7_1 observed modified in multiple individuals with MED13 related neurodevelopmental disorder [34]. In addition, DEG_SPOP_SBC_1 suggests the protein localizes to nuclear puncta via the Cul3-RING ubiquitin ligase complex and multiple motifs suggest the protein has cell cycle and DNA damage impacts through destruction motifs and phospho signaling.

Polar basic amino acids are often critical for nuclear localization, where WAC has the highest density of conserved polar basic residues from amino acids 77-85. Polar basic amino acids 57, 60, 61, 68, 75, 79, 82, 84, 85, 87, and 89 are conserved in greater than 90% of sequences analyzed (DPSPPNKMLRRSDSPENKYSDSTGHSKAKNVHTHRVRERDGGTSYSPQENSHNHSALHSS). Near this region is an ELM annotated MOD_SUMO_rev_2 site (amino acids 62-70), a SUMOylation modification site found within nuclear proteins. Additionally, a TRG_NES_CRM1_1 nuclear export signal (NES) is found within amino acids 604-616, which is flanked by a MOD_SUMO_rev_2 site (amino acids 599-608). This suggests that nuclear localization is potentially regulated by both the N and C-terminal regions through nonclassical motifs.

3.2. Human clinical variants annotated to functional motifs of WAC

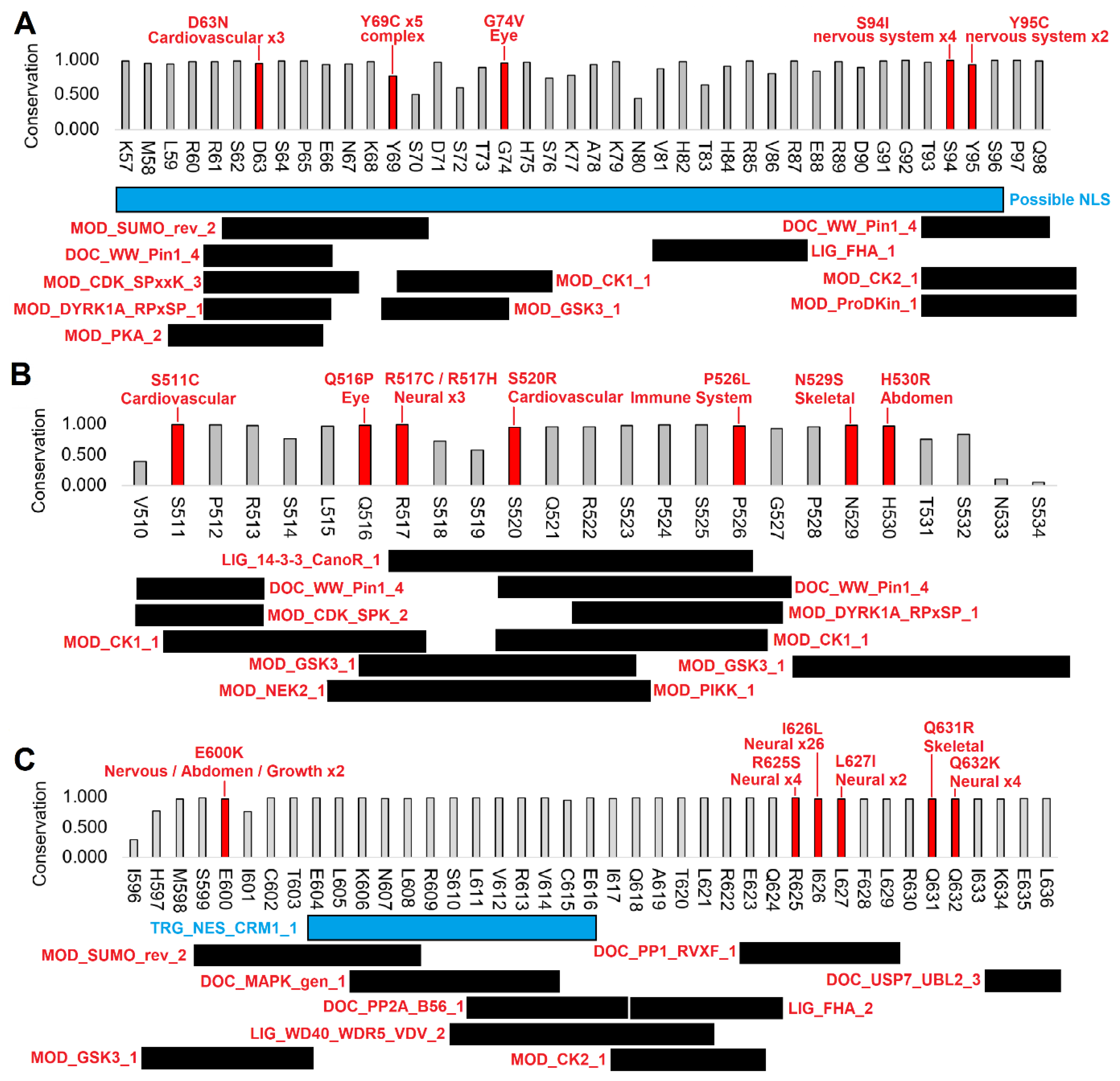

There are multiple rare disease variants that fall within the newly identified motifs of WAC (Figure 1A). Within ClinVar, there are loss-of-function variants (LoF), suggesting that truncation of the protein results in disease. Few ClinVar missense variants have been identified to date. Yet, a large number of clinical phenotypes for rare disease patients can be observed for variants within the Geno2MP database. There is an enrichment for nervous system abnormalities (Figure 1C) of clinical variants with annotated phenotypes from Geno2MP predicted to have high pathogenic CADD scores (>20). We further analyzed three regions with clinical variants within functional motifs (Figure 2).

Within and adjacent to the possible polar basic N-terminal region of WAC that may regulate nuclear localization, five variants are found at conserved sites in Geno2MP. Two variants, S94I and Y95C, are observed multiple times in affected individuals with nervous system phenotypes. This site is a potential phosphorylation switch. The S94I variant is found homozygous in three individuals, with pastic paraplegia, abnormality of brain morphology, and intellectual disability. One individual heterozygous for the variant exhibited seizures. The Y95C variant is heterozygous in one affected individual with encephalocele. It should be noted that none of the polar basic amino acids observed in Geno2MP individuals varied.

A second conserved motif of WAC (510-534) contains multiple phosphorylation sites and a 14-3-3 interaction motif, a site that requires phosphorylation for interaction to occur. The critical amino acid R517 for 14-3-3 interaction has two variants within Geno2MP connected to neurological phenotypes. The R517C variant is found heterozygous in two affected individuals with epileptic encephalopathy and R517H is found heterozygous in an individual with neurodevelopmental abnormality. 14-3-3 signaling has been suggested to have neuroprotective function with elevation in seizure model systems [35].

The most surprising motif with functional variants connected to neurological phenotypes in Geno2MP is the C-terminal region with the nuclear export signal (WAC 596-636). This region, in addition to the nuclear export signal, has a SUMOylation motif, several phosphorylation sites, and multiple protein interaction sites. None of the Geno2MP variants are found in the nuclear export signal, rather, they flank this site. E600K is found within the SUMOylation motif and in two individuals with nervous system abnormalities. The other variants fall within a DOC_PP1_RVXF_1 motif, which is a dephosphorylation site. R625S is found homozygous in three affected individuals, one with seizures and one with abnormality of the nervous system. Four affected individuals are heterozygous for R625S with two having abnormality of brain morphology and one with intellectual disability. I626L is the most common homozygous Geno2MP variant, with 16 affected individuals annotated with abnormal brain morphology, four with spastic paraplegia, and three with intellectual disability. The variant is absent in gnomAD and TOPmed databases, suggesting a significant enrichment in neurological disease. L627I was found heterozygous in two affected individuals with spastic paraplegia and Q632K was found heterozygous in four affected individuals with abnormality of brain morphology. Overall, this suggests that N and C-terminal regions with nuclear localization and export signals are critical for neurological development and associated with human variants of neurological phenotypes.

3.3. Expression of WAC within human brain and neural cell types

To identify cell types that WAC may impact, we performed an analysis of expression datasets (Figure 3). In the GTEx database of broad human tissue expression, several protein isoforms are observed to be expressed for WAC (Figure 3A). The longest isoform, codes for a 647 amino acid protein, with highest expression in all tissues and enriched within the brain. Smaller isoforms with spliced exons (602 and 544 amino acids) are also highly expressed in the brain and have all three of the annotated domains (Figure 3B). The BrainSpan human developmental brain atlas shows that WAC expression is relatively the same throughout post coital weeks (pcw), with higher variability later in life (Figure 3C). Multiple regions of the brain also show high expression of WAC (Figure 3D). From human single cell brain expression, both GABAergic and glutamatergic neurons express WAC, while most non-neuronal cell types have significantly lower expression (Figure 3E).

3.4. Generation and structure/function of GFP-WAC mutant fusion proteins

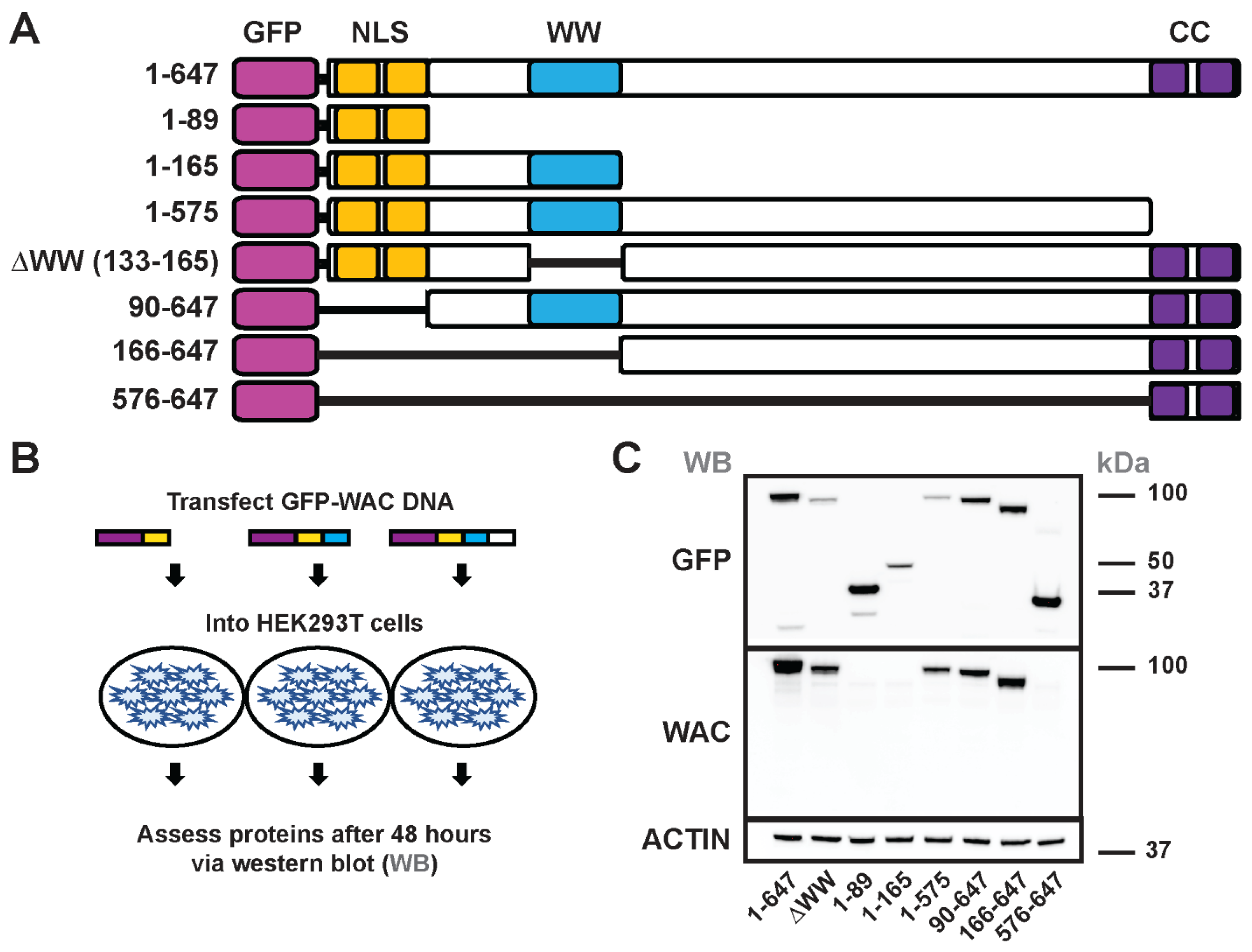

To assess the contribution of WAC protein domains to cellular localization and subcellular distribution, we generated a series of mutant WAC-expressing plasmids that included an amino-terminal GFP fusion; amino-terminal fusion of a different epitope was used to study WAC protein localization [11], suggesting this would be a feasible approach. The plasmids included protein domain deletions to assess whether specific regions were necessary and/or sufficient for nuclear localization and protein domain fusions to test sufficiency to localize in neurons (Schema of plasmids, Fig 4A).

We first assessed whether these GFP-WAC expression plasmids generated protein products of the predicted molecular weight via western blot. These assays assessed the GFP fusion proteins and whether the same mutant proteins were recognized by a functional commercial antibody raised against WAC. To this end, we expressed the plasmids in HEK293T cells and collected protein lysates at 48 hours for western blot analyses (Figure 4B). Notably, each of the expressed proteins exhibited GFP+ bands via western blot at the expected sizes (Figure 4C, upper panel), suggesting that these fusion proteins could be properly expressed, and the deletion mutants were stable enough to be detected via this method.

We also used a commercial (abCam ab109486) antibody raised against the WAC protein on the deletion mutants to detect where the epitope may reside in WAC (Figure 4C, lower panel). This antibody only detected protein when amino acids 166-575 were present, suggesting the antibody epitope resides within this region. The faint bands found in all lanes are likely the endogenous WAC protein isoforms expressed by the HEK293T cells. Overall, these data demonstrated that we could express the various WAC mutant proteins and determine the epitope region used to develop a reliable commercial WAC antibody.

3.5. WAC deletion mutant proteins exhibit differential targeting and aggregation in neurons

We expressed the GFP-WAC full length gene and mutant versions in brain derived MGE cells. We collected and cultured embryonic day (E)13.5 MGE cells. The cells were transfected with the GFP fusions at 24 hours and allowed to develop for 5 days, a time when their morphology would allow us to decipher cytoplasmic vs. nuclear localization of the proteins. To this end, we found multiple phenotypes related to the necessity or sufficiency of these protein domains related to nuclear/cytoplasmic localization as well as distinct sequestration/puncta-like distribution in neurons expressing each mutant.

Consistent with a previous study [11], full length GFP-WAC preferentially localized to the nucleus in MGE cells (Figure 5A, 5A’, 5I). To determine the role of distinct domains in cellular localization and distribution, we quantified whether various GFP-WAC deletion proteins localized in the nucleus and/or cytoplasm, as well as in discrete puncta within the neurons. Importantly, all mutant proteins that contained the N-terminal region localized preferentially to the nucleus (Figure 5B-5E, 5B’-5E’, 5I), suggesting that the predicted NLS in this region may be functional. Notably, that region alone was sufficient to localize GFP to the nucleus (Figure 5B, 5B’, 5I). In agreement with this observation, the proteins that lacked the N-terminal region were found in the cytoplasm (Figure 5F-5H, 5F’-5H’, 5I), suggesting nuclear sequestration of WAC is dependent on the N-terminal basic amino acid-enriched region.

In addition to nuclear sequestration of WAC, we also noticed a puncta appearance of the protein when certain domains were present. For example, the full-length protein and WW deletion mutant both have a distinct punctate pattern in the nucleus (Figure 5A, 5A’, 5E, 5E’, 5J), suggesting the WW domain is dispensable for this phenotype. Consistent with the WW domain having no impact on the punctate distribution of WAC, neither the putative NLS nor the CC domains seemed to have any influence over this distribution. The region of the protein that seems important for this punctate localization resides between amino acids 166-575 (Figure 5J), the region predicted earlier to contain several linear motifs with potential phospho targets. Thus, while we have determined the contribution of many of WAC’s conserved domains on cellular localization, there is still more to be learned about this unique syndromic protein.

4. Discussion

Dysfunction of the WAC gene underlies DESSH as well as several comorbid neurological symptoms, including autism spectrum disorder, ADHD and seizures [4,5,7,8]. This dysfunction likely arises from genetic variants within key conserved regions of the WAC gene and/or loss of function, some of these observations have elevated WAC to be considered a high-confidence autism risk gene [9,10], conveying the importance of understanding how the gene, protein and downstream effectors are changed and potential inroads into therapeutics to remedy these alterations. Our structure-function approach begins to delve into how these regions of the WAC protein may be involved in these processes and provide a template for future work examining the role of genetic variants and other phenotypic outcomes that WAC underlies.

The WAC protein has several conserved domains and unexplored regions. The WW and CC domains have been reported in previous reports [11,14] but how WAC localizes to the nucleus and whether other regions may dictate functions have yet to be addressed. Herein, we found that the amino terminus of WAC was enriched for basic amino acids and this region was both necessary and sufficient for nuclear sequestration. Defining the region in WAC for nuclear localization will be crucial moving forward as human genetic variants in this region are assessed. In addition, the WAC protein has a punctate pattern in neurons, suggesting some type of localization to cellular compartments. This was observed in the nucleus and the cytoplasm of various deletion mutants, suggesting some part of the WAC protein can mediate this observation. While future studies are needed to assess how this punctate pattern manifests, our data suggest that amino acids 166-575 may be responsible for this cellular pattern. This region is highly conserved but lacks the conventional known conserved WW and CC domains. Instead, this region is mainly linear in nature and contains several amino acids that could act as phospho-switches. Interestingly, it adds another level of regulation to this important protein and suggests that other cellular events may be involved in WAC functions.

Our assessments herein focused on GABAergic neurons due to our previous data suggesting some of these neurons were susceptible to Wac loss of function [16]. We also performed an assessment of Wac expression in brain cell types and found a preferential enrichment for both GABAergic and glutamatergic neurons. Unfortunately, Wac deletion is embryonic lethal but conditional mutants may be able to uncover further functions of this gene in both GABAergic and glutamatergic neurons in future studies. The role of WAC’s conserved regions reported here is a strong starting point in understanding various mechanisms by which this protein regulates each neuron subtype. We predict that while the localization of this protein may be similar between cell types, the functional partners may differ and thus phenotypes may be distinct within each brain cell type. To this end, the same WAC deletion mutants had similar localization patterns in HEK293T cells (HCR and DV, data not shown).

Wac is an important developmental gene with relatively few known functions. Herein, we developed the first assessment of this important protein’s conserved regions in cellular localization. These studies will help to interpret the growing number of genetic variants in Wac associated with neurodevelopmental disorders, including autism [9,10]. In addition, we found unique roles for uncharacterized regions in the WAC protein that will be assessed in future studies, which may provide unique roles for how WAC operates and the cellular pathways that utilize WAC for various functions.
