Plant Polyphenol Gossypol Induced Cell Death and Its Associ-ation with Gene Expression in Mouse Macrophages

A peer-reviewed article of this preprint also exists.

Submitted:

11 February 2023

Posted:

13 February 2023

You are already at the latest version

Abstract
Gossypol is a complex plant polyphenol reported to be cytotoxic and anti-inflammatory, but little was known about its effect on gene expression in macrophages. The objective was to explore gossypol’s toxicity and its effect on gene expression involved in inflammatory responses, glucose transport and insulin signaling pathway in mouse macrophages. Mouse RAW264.7 macrophages were treated with multiple concentrations of gossypol for 2-24 h. Gossypol toxicity was estimated by MTT assay and soluble protein content. qPCR analyzed the expression of anti-inflammatory tristetraprolin family (TTP/ZFP36), proinflammatory cytokine, glucose transporter (GLUT) and insulin signaling genes. Cell viability was greatly reduced by gossypol, accompanied with dra-matic reduction of soluble protein content in the cells. Gossypol treatment resulted in an increase of TTP mRNA level 6-20 fold and increased ZFP36L1, ZFP36L2 and ZFP36L3 mRNA levels by 26-69 fold. Gossypol increased proinflammatory cytokine TNF, COX2, GM-CSF, INFγ and IL12b mRNA levels up to 39-458 fold. Gossypol treatment upregulated mRNA levels of GLUT1, GLUT3 and GLUT4 genes as well as INSR, AKT1, PIK3R1 and LEPR but not APP genes. This study demonstrated that gossypol induced macrophage death and reduced soluble protein content that was accom-panied with massive stimulation of anti-inflammatory TTP family and proinflammatory cytokine gene expression as well as elevation of gene expression involved in glucose transport and insulin signaling pathway in mouse macrophages.
Keywords:
cytokine
;
gene expression
;
glucose transport
;
gossypol
;
inflammation
;
insulin signaling
;
plant polyphenol
;
toxicity
;
tristetraprolin
Subject:
Biology and Life Sciences  -   Biochemistry and Molecular Biology

1. Introduction

Plant bioactive extracts have been used for disease prevention and treatment since ancient history. One group of the major bioactive compounds in plant extracts are plant polyphenols [1]. They are produced from the plant flavonoid biosynthetic pathway and used naturally for plant defenses against predators [2]. Plant polyphenols are present in most diet and beneficial to human health [3,4,5,6].
Gossypol is a complex plant polyphenol with six OH groups and six CH3 groups in its molecule, found in the small intercellular pigment glands in cotton plants especially in the glanded cottonseed (Figure 1) [7]. Long-term consumption of cottonseed oil with high concentration of gossypol contributes to its toxicity resulting in male infertility [8]. High concentration of gossypol in cottonseed meal (protein products) also limits its uses [9,10]. Therefore, gossypol is traditionally regarded as unsafe for most animals and human consumption. However, recent studies have demonstrated that gossypol and related compounds have anticancer activities, including breast cancer [11], colon cancer [12], pancreatic cancer [13,14] and prostate cancer [15,16]. These discoveries suggest potential nutritional and/or medical utilization of gossypol and related compounds.
It was reported that gossypol has anti-inflammatory activities in cultured macrophages [17,18]. However, this area of research was poorly studied and little was known about its inflammatory effects in mammalian cells. Recent, it was shown that tristetraprolin/zinc finger protein 36 (TTP/ZFP36) family proteins are anti-inflammatory [19,20]. These RNA-binding proteins regulate gene expression at the posttranscriptional level by destabilizing proinflammatory cytokine mRNA molecules in mammalian cells. TTP family proteins bind to AU-rich elements (AREs) in proinflammatory cytokine mRNAs and destabilize those molecules [21,22]. TTP knockout mice accumulate proinflammatory cytokines and develop a severe systemic inflammatory syndrome including arthritis, autoimmunity and myeloid hyperplasia [23,24]. Upregulation of TTP decreases inflammatory responses in macrophages [25]. These data suggest that TTP is an anti-inflammatory protein and arthritis suppressor. Chemicals that can increase TTP gene expression may have therapeutic value for the prevention and/or treatment of inflammation-related diseases. However, nothing was done to relate gossypol to TTP-mediated anti-inflammatory effects.
Plant polyphenols have been shown to regulate mammalian gene expression in numerous studies. For example, green tea polyphenols regulate gene expression in rats with metabolic syndrome caused by a high fructose diet feeding [26,27]. Cinnamon polyphenols regulate the expression of genes coding for proteins in the insulin signaling pathway, inflammatory responses and lipid metabolism [28,29,30,31]. However, little was known if gossypol regulates gene expression involved in glucose transport and insulin signaling
The objective of this study was to explore the toxicity and molecular effects of gossypol on the expression of genes involved in inflammatory responses, glucose transport and insulin signaling pathway in mouse RAW264.7 macrophages, a well-characterized cell model for inflammatory research (Figure 1). The targets of gene expression analysis included anti-inflammatory TTP family genes (TTP/ZFP36, ZFP36L1, ZFP36L2 and ZFP36L3) [32,33] and proinflammatory cytokine genes, such as tumor necrosis factor (TNF/TNFα) [21], cyclooxygenase 2/prostaglandin-endoperoxide synthase 2 (COX2/PGES2 ) [34], granulocyte-macrophage colony stimulating factor (GM-CSF/CSF2) [35], interferon gamma (INFγ) [36] and interleukin 12 (IL12) [37] (Figure 1). Other targets included glucose transporter family (GLUT1, GLUT2, GLUT3 and GLUT4) critically important for host immunity [38,39] and some components in the insulin signaling pathway including insulin receptor (INSR) and protein kinases AKT1, GSK3β and PIK3R1 which are shown to be important in insulin resistance in macrophages [26,40] (Figure 1). The results showed that gossypol (input) induced macrophage death, reduced protein content, and stimulated the expression of genes coding for anti-inflammatory TTP family, proinflammatory cytokines, GLUT family and insulin signaling pathway components in mouse RAW264.7 macrophages (output).

2. Materials and Methods

2.1. Cell line, chemicals and reagents

Mouse RAW264.7 macrophages were from American Type Culture Collection (Manassas, VA). Cell culture reagents were from Gibco BRL (Thermo Fisher). Gossypol (G8761-100MG) and dimethylsulfoxide (DMSO) were from Sigma (St. Louis, MO). TRIzol was from Thermo Fisher. SuperScript II reverse transcriptase, oligo(dT)12–18 primer, random primers, dNTPs, DTT and RNaseOUT were from Life Technologies. CFX96 real-time system-C1000 Thermal Cycler, 1× iQ SYBR Green Supermix and qPCR assay accessories were from Bio-Rad. PCR primers were designed using Primer Express software (Thermo Fisher) and synthesized by Biosearch Technologies (Petaluma, CA) (Table 1).

2.2. Cell culture and treatment

Mouse macrophages were maintained at 37°C in a water jacket CO2 incubator with 5% CO2 in DMEM containing 4.5 mg/mL (25 mM) glucose supplemented with 10% (v:v) fetal bovine serum, 100 units/mL penicillin, 100 µg/mL streptomycin and 2 mM L-glutamine as described. The experiments were started with the same number of RAW macrophages (0.5 mL, 1 x 105 cells/mL) subcultured in 24-well cell plate. Raw macrophages were treated with various concentrations of gossypol for different times as detailed below. The control and all treatments contained 1% DMSO in the culture medium.

2.3. Cell toxicity assay

MTT based-In Vitro Toxicology Assay Kit (TOX1-1KT, Sigma, St. Louis, MO) was used to determine mouse macrophage toxicity as described previously [41]. MTT assay is based on the conversion of water soluble MTT (thiazolyl blue tetrazolium bromide) to an insoluble formazan product by viable cells with active metabolism. Dead cells lose this ability and therefore show no signal. The more metabolic activity in the sample, the higher the signal. Selection of gossypol concentration and duration of treatment was based on our previous study using human colon cancer cells [42,43]. Mouse macrophages were treated with up to 100 µg/mL of gossypol and incubated at 37°C, 5% CO2 for 2-24 h. MTT assay reagent was added to the media and incubated at 37 C, 5% CO2 for 2 h before adding MTT solubilization solution to each well, shaken at room temperature overnight. The color density in the wells was recorded by Epoch microplate spectrophotometer at A570 nm.

2.4. Protein determination

Mouse macrophages were treated with gossypol (100 mg/mL) for 2-24 h. Cell extracts were prepared according to a previously described procedure [44]. Protein concentrations were determined with the Bradford method using the Bio-Rad reagent (Bio-Rad) [45].

2.5. RNA extraction, cDNA synthesis and real-time qPCR analysis

The qPCR assays followed the MIQE guidelines: minimum information for publication of quantitative real-time PCR experiments [46]. The qPCR assays were described in detail previously [47]. Raw macrophages were treated with up to 100 µg/mL of gossypol for 2-24 h. RNAs were isolated from macrophages using TRIzol reagent. The cDNAs were synthesized from total RNAs essentially as described [48]. SYBR Green qPCR reaction mixtures and the thermal cycle conditions were identical to those described [48]. The ΔΔCT method of relative quantification was used to determine the fold change in gene expression [49]. First, the cycle of threshold (CT) was obtained from 3-6 independent samples. Second, the first delta CT value (ΔCT) was obtained by subtracting the CT value of the internal reference control (mouse 60S ribosome protein 32, Rpl32) [50] from the CT value of the target mRNA (ΔCT = CTTarget - CTref). Third, the second delta CT value (ΔΔCT) was obtained by subtracting the ΔCT of the calibrator (1% DMSO control in the figures or Ttp in Table 4) from the ΔCT of the target mRNA (ΔΔCT= ΔCTTarget - ΔCTcal). Finally, the fold change in expression was obtained using the equation 2-ΔΔCT.

2.6. Statistics

The data represent the mean and standard deviation of 3-6 independent samples. They were analyzed using ANOVA with SigmaStat 3.1 software (Systat Software). Multiple comparisons among the treatments with various concentrations of gossypol in each treatment time were performed with Student-Newman-Keuls Method. “*” and “**”displayed in the Tables and Figures represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.

3. Results

3.1. Gossypol inhibited mouse macrophages growth

Macrophage viability was measured by visualization and with MTT assay after cells were treated with the cytotoxic compound gossypol. Gossypol exhibited significant inhibitory effect on mouse macrophage growth under higher concentration (10-100 µg/mL for 2 h) or longer time treatment (5-100 µg/mL for 24 h) (Figure 2 and Table 2). Gossypol treatment significantly reduced RAW macrophage viability to 20% of the control by 100 µg/mL for 2 h or less than 10% of the control by 5-100 µg/mL for 24 h (Table 2). The higher concentration treatment resulted in lower A570 nm, means less viable/metabolic active cells under higher concentration treatment (Table 2).

3.2. Gossypol reduced soluble protein content in mouse macrophages

Another indication for gossypol toxicity on macrophage was its effect on soluble protein content in mouse macrophages since it is generally accepted that the total soluble protein content in the cell reflects the overall health status of cellular metabolism. The soluble protein content was dramatically reduced by 16, 17, 38 and 97% in cells treated with gossypol for 2, 4, 8 and 24 h, respectively, although the protein content recovered in the pellet was slightly higher in gossypol-treated macrophages (Table 3). Gossypol treatment resulted in the reduction of total protein by 17 and 76% in macrophages treated for 8 and 24 h, respectively (Table 3). Both MTT assay and protein determination indicated that gossypol was toxic to mouse RAW264.7 macrophages.

3.3. Relative expression levels of selected genes in mouse macrophages

For better comparison studies, we first used quantitative real-time PCR to evaluate the relative mRNA levels of the selected genes in mouse RAW264.7 cells treated with 1% DMSO control for 24 h using RPL32 as the internal control and TTP/ZFP36 as the calibrator (Table 4). TTP/ZFP36 family genes including ZFP36L1, ZFP36L2 and ZFP36L3 were expressed at approximately 0.40, 1.11 and 0.05 fold of TTP, respectively, in the DMSO-treated macrophages (Table 4). The mRNA levels of proinflammatory cytokine genes including TNF, COX2, GM-CSF, IFNγ and IL12b were 0.05, 0.02, 0.14, 0.13 and 0.10 fold of TTP, respectively (Table 4). Although macrophages are not model cells for glucose transport and insulin signaling research, significant amounts of mRNAs coding for GLUT family and insulin signaling components were detected in the mouse macrophages (Table 4). GLUT1, GLUT2, GLUT3 and GLUT4 were approximately 0.14, 0, 0.29 and 0.001 fold of TTP, respectively. INSR, PIK3R1 and LEPR mRNAs were 0.32, 0.37 and 0.08 fold of TTP and those of AKT1 and APP were 2.16 and 4.76 fold of TTP, respectively (Table 4).
Table 4. Basal Levels of mRNAs Analyzed in Mouse Macrophages.
Table 4. Basal Levels of mRNAs Analyzed in Mouse Macrophages.
mRNA cycle of threshold (CT ± SD) cycle of threshold (CT) CTTarget - Ctref (ΔCT) ΔCTTarget - ΔCTcal (ΔΔCT ) fold
(Ttp =1 )
Rpl32 17.82 ± 0.81 17.82 0.00
Ttp/Zfp36/Tis11 24.76 ± 1.12 24.76 6.94 0.00 1.00
Akt1 23.65 ± 1.69 23.65 5.83 -1.11 2.16
App 22.51 ± 0.81 22.51 4.69 -2.25 4.76
Cox2 30.15 ± 2.38 30.15 12.33 5.39 0.02
Glut1/Slc2a1 27.55 ± 1.49 27.55 9.73 2.79 0.14
Glut3/Slc2a3 26.54 ± 0.75 26.54 8.72 1.78 0.29
Glut4/Slc2a4 34.68 ± 1.20 34.68 16.86 9.92 0.001
Gm-csf 27.58 ± 2.06 27.58 9.76 2.82 0.14
Ifnγ 27.70 ± 2.42 27.70 9.88 2.94 0.13
Il12b 28.03 ± 1.89 28.03 10.21 3.27 0.10
Insr 26.39 ± 073 26.39 8.57 1.63 0.32
Lepr 28.33 ± 2.11 28.33 10.51 3.57 0.08
Pik3r1 26.21 ± 0.58 26.21 8.39 1.45 0.37
Tnf 29.19 ± 2.68 29.19 11.37 4.43 0.05
Zfp36l1/Tis11b 26.07 ± 0.35 26.07 8.25 1.31 0.40
Zfp36l2/Tis11d 24.61 ± 1.03 24.61 6.79 -0.15 1.11
Zfp36l3 29.20 ± 1.13 29.20 11.38 4.44 0.05

3.4. Gossypol increased TTP family gene expression in mouse macrophages

Mouse TTP family genes have four members coding for anti-inflammatory TTP and its three TTP homologues: ZFP36L1, ZFP36L2 and ZFP36L3. Gossypol significantly increased TTP mRNA levels in mouse macrophages (Figure 3A). TTP mRNA levels were increased more than 6 fold by gossypol after 2 h treatment, and the effect was sustained after 8 h treatment (> 6 fold) and even stronger stimulation after 24 h treatment (about 20 fold) (Figure 3A). Gossypol increased ZFP36L1 mRNA levels approximately 2 fold under 2 and 8 h treatment but significantly increased its mRNA levels up to 58 fold under 24 h treatment (increased 10, 19, 58 and 33 fold by 5, 10, 50 and 100 µg/mL of gossypol treatment, respectively) (Figure 3B). ZFP36L2 mRNA levels were also significantly increased by gossypol treatment under longer time or higher concentration (increased 4, 6, 15 and 26 fold by 5, 10, 50 and 100 µg/mL of gossypol treatment, respectively) (Figure 3C). The stimulatory effect of gossypol on ZFP36L3 gene expression was stronger than the other TTP family members under longer time treatment (Figure 3D). ZFP36L3 mRNA levels were not affected by gossypol after 2 h treatment but modestly increased by higher concentration of gossypol under 8 h treatment (14 fold increase by 100 µg/mL of gossypol) and increased much higher in 24 h treatment (15-69 fold by 5-50 µg/mL of gossypol) (Figure 3D).

3.5. Gossypol increased proinflammatory cytokine gene expression in mouse macrophages

TTP is a mRNA destabilizing factor for a number of proinflammatory cytokines, such as TNF, COX2, GM-CSF, INFγ and IL12b [32]. Therefore, expression of these proinflammatory cytokine genes was investigated in RAW264.7 macrophages after being treated with gossypol. Gossypol exhibited less than 3 fold of increase in TNF mRNA levels in RAW cells treated for 2 h but increased its level to 12, 27, 39 and 30 fold after 24 h treatment with 5, 10, 50 and 100 µg/mL gossypol, respectively (Figure 4A). TNF mRNA levels were slightly but significantly increased by 5 and 10 µg/mL gossypol treatment for 2 h. However, TNF mRNA levels were dramatically increased by 10, 50 and 100 µg/mL gossypol treatment for 24 h (Figure 4A). Gossypol exhibited a much higher induction of COX2 gene expression to 9, 30, 177 and 458 fold after 24 h treatment with 5, 10, 50 and 100 µg/mL gossypol, respectively, although its effect on COX2 was less than 8 fold without statistical significance after 2 h treatment (Figure 4B). COX2 mRNA levels were significantly increased by 100 µg/mL gossypol treatment for 24 h (Figure 4B). Similarly, gossypol stimulation on GM-CSF mRNA levels was less than 5 fold under 2 h treatment but increased to 9, 18, 136 and 36 fold after 24 h treatment with 5, 10, 50 and 100 µg/mL gossypol, respectively (Figure 4C). GM-CSF mRNA levels were significantly increased by 50 µg/mL gossypol treatment for 2 or 24 h (Figure 4C). INFγ mRNA levels were increased to 8, 13, 62 and 41 fold after 24 h treatment with 5, 10, 50 and 100 µg/mL gossypol, respectively, but with less than 4 fold under 2 h treatment without statistical significance (Figure 4D). INFγ mRNA levels were significantly increased by 50 and 100 µg/mL gossypol treatment for 24 h (Figure 4D). IL12b gene expression was less than 4 fold after 2 h treatment without statistical significance but increased to 19, 25, 103 and 51 fold after 24 h treatment with 5, 10, 50 and 100 µg/mL gossypol, respectively (Figure 4E). IL12b mRNA levels were significantly increased by 50 µg/mL gossypol treatment for 24 h (Figure 4E).

3.6. Gossypol increased GLUT family gene expression in mouse macrophages

Glucose is the major metabolic substrate critically important for host immunity [38,39]. Glucose uptake in mammalian cells is facilitated by glucose transporter (GLUT) family proteins [51]. Gossypol slightly increased GLUT1 mRNA levels after 2 h treatment by approximately 2 - 3 fold of the control under 50 and 100 µg/mL treatment, respectively (Figure 5A). After 24 h treatment, GLUT1 mRNA levels in RAW cells were dramatically increased by 6, 12, 41 and 27 fold of the control under 30, 40, 50 and 100 µg/mL treatment, respectively (Figure 5A). Gossypol had minor effect on GLUT3 mRNA levels under 2 h treatment (less than 2 fold of the control) but exhibited significant effect by 12, 18, 61 and 31-fold of the control after 24 h treatment under 30, 40, 50 and 100 µg/mL treatment, respectively (Figure 5B). The effect of gossypol on GLUT4 mRNA levels was less with less than 3 fold of the control under 2 h treatment and increased only 3 and 12 fold of the control after 24 h treatment under 50 and 100 µg/mL treatment, respectively (Figure 5C). GLUT2 was undetectable in its basal stage or under gossypol treatment in mouse macrophages (data not shown).

3.7. Gossypol increased insulin signaling pathway gene expression in mouse macrophages

It was shown recently that macrophages express insulin receptors whose downstream signaling networks share a number of knots allowing insulin to enhance or attenuate both proinflammatory and anti-inflammatory macrophage responses [40]. A few targets were therefore selected to determine if gossypol exhibited any effect on the expression of components involved in insulin signaling pathway, including INSR, AKT1, GSK3β and PIK3R1 (Figure 6). The effect of gossypol on INSR mRNA levels showed minimal effect after 2h treatment but increased significantly with up to 39 and 32 fold of the control under 50 and 100 µg/mL treatment, respectively (Figure 6A). Gossypol did not appear to have significant effect on AKT1 mRNA levels under 2 h treatment and increased less than 3 fold of the control after 24 h treatment under various treatment (Figure 6B). The effect of gossypol on PIK3R1 mRNA levels were 6 and 8 fold of the control after 24 h treatment under 50 and 100 µg/mL treatment, respectively (Figure 6C). GSK3β mRNA levels were too low to be undetected in macrophages under DMSO control or various gossypol treatment (data not shown).
Preprints 68555 g004
Figure 4. Effect of gossypol on proinflammatory cytokine gene expression. (A) TNF mRNA, (B) COX2 mRNA, (C) GM-CSF mRNA, (D) IFNγ mRNA, (E) IL12b mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2-24 h. The data represent the mean and standard deviation of three independent samples. “*” and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Figure 4. Effect of gossypol on proinflammatory cytokine gene expression. (A) TNF mRNA, (B) COX2 mRNA, (C) GM-CSF mRNA, (D) IFNγ mRNA, (E) IL12b mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2-24 h. The data represent the mean and standard deviation of three independent samples. “*” and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Preprints 68555 g004
Preprints 68555 g005
Figure 5. Effect of gossypol on glucose transporter gene expression. (A) GLUT1 mRNA, (B) GLUT3 mRNA, (C) GLUT4 mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2 and 24 h. The data represent the mean and standard deviation of three independent samples. “*” and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Figure 5. Effect of gossypol on glucose transporter gene expression. (A) GLUT1 mRNA, (B) GLUT3 mRNA, (C) GLUT4 mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2 and 24 h. The data represent the mean and standard deviation of three independent samples. “*” and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Preprints 68555 g005

3.8. Gossypol effect on APP and LEPR gene expression in mouse macrophages

Since gossypol increased so many gene expression in mouse macrophages, we analyzed two unrelated genes for comparison, including APP and LEPR (Figure 6). APP gene expression was unresponsive to gossypol treatment under various concentrations for 2 or 24 with its mRNA levels less than 2 fold of the control (Figure 6D). On the other hand, gossypol effect on LEPR gene response was less than 3 fold of the control after 2 h treatment but significantly increased up to 12, 23, 74 and 54 fold of the control under 5, 10, 50 and 100 µg/mL treatment, respectively (Figure 6E).
Preprints 68555 g006
Figure 6. Effect of gossypol on insulin signaling pathway and other gene expression. (A) INSR mRNA, (B) AKT1 mRNA, (C) PIK3R1 mRNA, (D) APP mRNA, (E) LEPR mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2 and 24 h. The data represent the mean and standard deviation of three independent samples. “*” and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Figure 6. Effect of gossypol on insulin signaling pathway and other gene expression. (A) INSR mRNA, (B) AKT1 mRNA, (C) PIK3R1 mRNA, (D) APP mRNA, (E) LEPR mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2 and 24 h. The data represent the mean and standard deviation of three independent samples. “*” and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Preprints 68555 g006

4. Discussion

In this study, we examined the effects of gossypol from cottonseed on the cell viability, protein accumulation and mRNA levels of anti-inflammatory TTP family genes (coding for mRNA-destabilizing proteins) and some TTP-mediated proinflammatory cytokine genes in mouse macrophages. We also evaluated gossypol effects on the expression of genes coding for glucose transporters and insulin signaling pathway components in mouse macrophages. Our results showed that gossypol inhibited cell growth and reduced soluble protein content which was associated with elevated levels of mRNAs coding for proteins involved in inflammatory responses, glucose transport and insulin signaling pathway as highlighted with “Green” color of the diagram (Figure 1).
The results from this study and several previous studies suggest that gossypol is a strong stimulator of gene expression in mouse macrophages for the following reasons: 1) Gossypol increases mRNA destabilizing anti-inflammatory TTP family gene expression (TTP/ZFP36L1, ZFP36L2, ZFP36L2 and ZFP36L3) (this study); 2) Gossypol increases proinflammatory cytokine gene expression (this study); 3) Gossypol increases mRNA stabilizing human antigen R (HuR) gene expression [52]; 4) Gossypol increases vascular endothelial growth factor (VEGF) gene expression [53]; 5) Gossypol increases glucose transporter gene expression (this study); 6) Gossypol increases insulin signaling pathway gene expression (INSR, AKT1 and PIK3R1) (this study); 7) Gossypol increases diacylglycerol acyltransferase (DGAT) gene expression [48]. However, since gossypol induced cell death at the same time, it is still to be determined if gene expression effect was due to direct or indirect effect of gossypol in the cells.
We consistently observed that gossypol caused cell death and dramatically reduced soluble protein content in the mouse macrophages. Gossypol (5-100 µg/mL) decreased mitochondrial activity by 90% after 24 h treatment. Gossypol treatment (100 µg/mL, 24 h) also decreased total soluble protein content to 3% of the control in macrophages. MTT assay is based on the conversion of water soluble MTT to an insoluble formazan product by viable cells with active metabolism. Assuming more active cells would have more soluble protein, it’s expected that gossypol decreasing cellular activity corresponds with reducing soluble protein in the cells. This reduction of soluble protein content is not necessary in contradictory to the elevated levels of mRNAs coding for important but minor protein components in the inflammatory response, glucose transport and insulin signaling pathway. These results from both MTT assay and protein determination indicated that gossypol was toxic to mouse RAW264.7 macrophages under high concentration and/or long time treatment. Our results agreed with most of the previous reports [54,55]. Deng at al. (2013) showed that RAW macrophages were almost completely inhibited by 40 µmol/L of gossypol (corresponding to 20.74 µg/mL) for 24 h treatment by MTT assay at 490 nm [54]. Lin et al. (2016) also reported that 80% of RAW macrophages were inhibited by 20 µmol/L of gossypol (corresponding to 10.37 µg/mL) for 5 h treatment by propidium iodide assay measuring Pi incorporation [55]. The toxic effect of gossypol on cell growth is also supported by its ability to inhibit human colon cancer cell viability [42]. It is unknown why Huo et al. (2013) did not observe similar inhibitory effect of gossypol on RAW macrophages [17].
The novel finding of the current study was that gossypol significantly increased anti-inflammatory TTP family and proinflammatory cytokine gene expression in mouse macrophages. The effect of gossypol stimulation of TTP gene expression was sustained and became much stronger over longer time treatment. The magnitude of gossypol-stimulation of TTP gene expression was increased from approximately 6 fold after 2-8 h treatment to 20 fold after 24 h treatment. Gossypol also increased TTP homologues ZFP36L1, ZFP36L2 and ZFP36L3 mRNA levels by 58, 26 and 69 fold in 24 h-treated macrophages, respectively. In addition, gossypol markedly increased the expression of a number of TTP-targeted proinflammatory cytokine mRNAs in mouse RAW264.7 macrophages including TNF, COX2/PGES2, GM-CSF, INFγ and IL12 up to 39, 458, 136, 103 and 62 fold, respectively.
The patterns of gossypol effect on anti- and proinflammatory gene expression were similar but not identical to those of the bacterial endotoxin lipopolysaccharides (LPS) and plant polyphenols from green tea leaves and cinnamon bark. It was shown previously that LPS rapidly induced TTP mRNA but only had minor effects on the expression of the three TTP homologues (ZFP36L1, ZFP36L2 and ZFP36L3) in mouse RAW264.7 macrophages [30,44]. LPS also induced proinflammatory cytokine gene expression including TNF, COX2 and IL6 in the macrophages [30]. Cinnamon polyphenolic extract also increased the levels of mRNAs coding for both anti-inflammatory TTP and proinflammatory cytokines including TNF, COX2 and IL6 in mouse RAW264.7 macrophages [30] and 3T3-L1 adipocytes [31]. However, green tea polyphenols increased TTP gene expression but decreased TNF gene expression in rats with metabolic syndrome caused by feeding with a high fructose diet [27]. The results presented here does not necessary support the earlier proposal that gossypol has anti-inflammatory properties.
It is not uncommon that agents induce both anti- and proinflammatory gene expression at the same time. The anti-inflammatory TTP mRNA is induced by a number of agents, including growth factors [56,57], cytokines (TNFα, GM-CSF and INFγ) [21,25,57,58], zinc [59], and plant nutritional products (cinnamon and green tea) [27,30]. TTP gene expression is also induced by tumor promoters [56,58], bacterial endotoxin LPS [21,44] and viral infection [60]. It was proposed that TTP regulates proinflammatory cytokine mRNA stability through a feedback inhibition mechanism and/or autoregulation [21]. Agents that induce TTP gene expression may have potential therapeutic value for the prevention and/or treatment of inflammation-related diseases. However, the fact that most of these agents also increase the expression levels of proinflammatory cytokines such as TNFα in the same cells and/or tissues [21] may limit the therapeutic potential of these agents. Therefore, it is still important to search for other agents with the potential to favor anti-inflammatory and reduce proinflammatory gene expression.
Another important finding of this study was that gossypol treatment resulted in elevated expression of glucose transporter and insulin signaling pathway genes. Glucose is critically important for host immunity [38,39]. Glucose uptake in mammalian cells is facilitated by GLUT family proteins [51]. These effects of gossypol are similar to those of the other plant polyphenols. For example, green tea polyphenols regulate gene expression in rats under a high fructose diet feeding [26]. Cinnamon polyphenols regulate the expression of genes coding for glucose transporter and proteins in the insulin signaling pathway [29,30]. Additionally, macrophages express insulin receptors and initiate a cascade of signaling event which are important by either enhancing or attenuating both proinflammatory and anti-inflammatory macrophage responses [40]. These results suggest that gossypol might be able to affect cell immunity by promoting glucose uptake and increasing insulin sensitivity in the immunologically important macrophages.
Future work needs to be done to confirm gossypol effects on gene expression at the protein levels and post-transcriptional levels such as phosphorylation status as well as the potential mechanism. Unlike insulin, gossypol can penetrate cell membranes and enter the cell but little is known about the mechanism of its regulation of gene expression at the current time. Comprehensive metabolic analyses would be ideal to yield more direct evidence for gossypol’s role in mediating carbohydrate and lipid metabolism. It is also necessary to determine if the effect of gossypol on gene expression was the cause leading to cell death or caused by cell death in the mouse macrophages. Finally, it is important to confirm these results observed in mouse macrophages with primary macrophages as well as animals before practical uses. Nevertheless, the results reported here illustrate a potent effect of cottonseed-derived plant polyphenol gossypol in cell growth and gene expression in mouse macrophages.

5. Conclusions

This study demonstrated that gossypol induced macrophage death and reduced protein content that was accompanied with elevated levels of anti-inflammatory TTP family and proinflammatory cytokine gene expression as well as glucose transporter and insulin signaling pathway gene expression in mouse macrophages. We recently showed that gossypol strongly stimulated DGAT, HuR and VEGF gene expression in mouse macrophages [48, 52, 53]. Taking together, these studies indicate that gossypol derived from cottonseed may be a powerful stimulator of gene expression involved in inflammatory responses, glucose transport, insulin signaling and lipid biosynthesis in mouse macrophages, regardless its direct or indirect effects. The results suggest that gossypol may have therapeutical potential for modulating inflammation, glucose transport and insulin signaling-related diseases such as arthritis, diabetes and obesity, albeit more research is needed to confirm the findings at the mRNA levels with protein and metabolite levels as well as using animal models.”

Author Contributions

Conceptualization, H.C.; methodology, H.C. and K.S.; software, H.C.; validation, H.C. and K.S.; formal analysis, H.C.; investigation, H.C. and K.S.; resources, H.C.; data curation, H.C.; writing—original draft preparation, H.C.; writing—review and editing, H.C.; visualization, X.X.; supervision, H.C.; project administration, H.C.; funding acquisition, H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the USDA-ARS Quality and Utilization of Agricultural Products National Program 306 through CRIS 6054-41000-103-00-D and 6054-41000-113-00-D. Mention of trade names or commercial products in this publication is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture. USDA is an equal opportunity provider and employer.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated during the current study are available in the NIH Gene Expression Omnibus (GEO) Database, accession number GSE203027. (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE203027).

Acknowledgments

We thank Dr. K. Thomas Klasson for critical reading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Yang CS, Landau JM, Huang MT, Newmark HL. Inhibition of carcinogenesis by dietary polyphenolic compounds. AnnuRevNutr. 2001;21:381-406. 21/1/381 [pii]. [CrossRef]
  2. Dixon RA, Xie DY, Sharma SB. Proanthocyanidins--a final frontier in flavonoid research? New Phytol. 2005;165(1):9-28. Epub 2005/02/22. [CrossRef] [PubMed]
  3. Prior RL, Gu L. Occurrence and biological significance of proanthocyanidins in the American diet. Phytochemistry. 2005;66(18):2264-80. Epub 2005/05/21. [CrossRef] [PubMed]
  4. Hazafa A, Rehman KU, Jahan N, Jabeen Z. The Role of Polyphenol (Flavonoids) Compounds in the Treatment of Cancer Cells. Nutr Cancer. 2020;72(3):386-97. Epub 2019/07/10. [CrossRef] [PubMed]
  5. 5. Mileo AM, Nistico P, Miccadei S. Polyphenols: Immunomodulatory and Therapeutic Implication in Colorectal Cancer. Front Immunol. 2019;10:729. Epub 2019/04/30. [CrossRef] [PubMed] [PubMed Central]
  6. Long J, Guan P, Hu X, Yang L, He L, Lin Q, et al. Natural Polyphenols as Targeted Modulators in Colon Cancer: Molecular Mechanisms and Applications. Front Immunol. 2021;12:635484. Epub 2021/03/06. [CrossRef] [PubMed] [PubMed Central]
  7. Kenar JA. Reaction chemistry of gossypol and its derivatives. J Am Oil Chem Soc. 2006;83(4):269-302. [CrossRef]
  8. Coutinho EM. Gossypol: a contraceptive for men. Contraception. 2002;65(4):259-63. S0010782402002949 [pii]. [CrossRef]
  9. He Z, Zhang D, Cao H. Protein profiling of water and alkali soluble cottonseed protein isolates. Sci Rep. 2018;8(1):9306. [CrossRef]
  10. He Z, Zhang H, Olk DC. Chemical composition of defatted cottonseed and soy meal products. PLoS ONE. 2015;10(6):e0129933. [CrossRef]
  11. Zhong S, Leong J, Ye W, Xu P, Lin SH, Liu JY, et al. (-)-Gossypol-enriched cottonseed oil inhibits proliferation and adipogenesis of human breast pre-adipocytes. Anticancer Res. 2013;33(3):949-55. doi: 33/3/949 [pii].
  12. Chien CC, Ko CH, Shen SC, Yang LY, Chen YC. The role of COX-2/PGE2 in gossypol-induced apoptosis of colorectal carcinoma cells. JCell Physiol. 2012;227(8):3128-37. [CrossRef]
  13. Yuan Y, Tang AJ, Castoreno AB, Kuo SY, Wang Q, Kuballa P, et al. Gossypol and an HMT G9a inhibitor act in synergy to induce cell death in pancreatic cancer cells. Cell DeathDis. 2013;4:e690. [CrossRef]
  14. Thakur A, Lum LG, Schalk D, Azmi A, Banerjee S, Sarkar FH, et al. Pan-Bcl-2 inhibitor AT-101 enhances tumor cell killing by EGFR targeted T cells. PLoS ONE. 2012;7(11):e47520. [CrossRef]
  15. Pang X, Wu Y, Wu Y, Lu B, Chen J, Wang J, et al. (-)-Gossypol suppresses the growth of human prostate cancer xenografts via modulating VEGF signaling-mediated angiogenesis. MolCancer Ther. 2011;10(5):795-805. [CrossRef]
  16. Huang YW, Wang LS, Dowd MK, Wan PJ, Lin YC. (-)-Gossypol reduces invasiveness in metastatic prostate cancer cells. Anticancer Res. 2009;29(6):2179-88. doi: 29/6/2179 [pii].
  17. Huo M, Gao R, Jiang L, Cui X, Duan L, Deng X, et al. Suppression of LPS-induced inflammatory responses by gossypol in RAW 264.7 cells and mouse models. IntImmunopharmacol. 2013;15(2):442-9. [CrossRef]
  18. Oskoueian E, Abdullah N, Hendra R, Karimi E. Bioactive compounds, antioxidant, xanthine oxidase inhibitory, tyrosinase inhibitory and anti-inflammatory activities of selected agro-industrial by-products. IntJMolSci. 2011;12(12):8610-25. ijms-12-08610 [pii]. [CrossRef]
  19. Fu M, Blackshear PJ. RNA-binding proteins in immune regulation: a focus on CCCH zinc finger proteins. NatRevImmunol. 2017;17(2):130-43. nri.2016.129 [pii]. [CrossRef]
  20. Patial S, Blackshear PJ. Tristetraprolin as a Therapeutic Target in Inflammatory Disease. Trends PharmacolSci. 2016;37(10):811-21. S0165-6147(16)30079-7 [pii]. [CrossRef]
  21. Carballo E, Lai WS, Blackshear PJ. Feedback inhibition of macrophage tumor necrosis factor-alpha production by tristetraprolin. Science. 1998;281(5379):1001-5. [CrossRef]
  22. Lai WS, Carballo E, Thorn JM, Kennington EA, Blackshear PJ. Interactions of CCCH zinc finger proteins with mRNA. Binding of tristetraprolin-related zinc finger proteins to Au-rich elements and destabilization of mRNA. JBiolChem. 2000;275(23):17827-37. [CrossRef]
  23. Phillips K, Kedersha N, Shen L, Blackshear PJ, Anderson P. Arthritis suppressor genes TIA-1 and TTP dampen the expression of tumor necrosis factor alpha, cyclooxygenase 2, and inflammatory arthritis. ProcNatlAcadSciUSA. 2004;101(7):2011-6. [CrossRef]
  24. Taylor GA, Carballo E, Lee DM, Lai WS, Thompson MJ, Patel DD, et al. A pathogenetic role for TNF alpha in the syndrome of cachexia, arthritis, and autoimmunity resulting from tristetraprolin (TTP) deficiency. Immunity. 1996;4(5):445-54. [CrossRef]
  25. Sauer I, Schaljo B, Vogl C, Gattermeier I, Kolbe T, Muller M, et al. Interferons limit inflammatory responses by induction of tristetraprolin. Blood. 2006;107(12):4790-7. [CrossRef]
  26. Cao H, Hininger-Favier I, Kelly MA, Benaraba R, Dawson HD, Coves S, et al. Green tea polyphenol extract regulates the expression of genes involved in glucose uptake and insulin signaling in rats fed a high fructose diet. JAgricFood Chem. 2007;55(15):6372-8. [CrossRef]
  27. Cao H, Kelly MA, Kari F, Dawson HD, Urban JF, Jr., Coves S, et al. Green tea increases anti-inflammatory tristetraprolin and decreases pro-inflammatory tumor necrosis factor mRNA levels in rats. JInflamm(Lond). 2007;4(1):1. [CrossRef]
  28. Cao H, Polansky MM, Anderson RA. Cinnamon extract and polyphenols affect the expression of tristetraprolin, insulin receptor, and glucose transporter 4 in mouse 3T3-L1 adipocytes. ArchBiochemBiophys. 2007;459(2):214-22. [CrossRef]
  29. Cao H, Graves DJ, Anderson RA. Cinnamon extract regulates glucose transporter and insulin-signaling gene expression in mouse adipocytes. Phytomedicine. 2010;17(13):1027-32. [CrossRef]
  30. Cao H, Urban JF, Jr., Anderson RA. Cinnamon polyphenol extract affects immune responses by regulating anti- and proinflammatory and glucose transporter gene expression in mouse macrophages. J Nutr. 2008;138(5):833-40. [CrossRef]
  31. Cao H, Anderson RA. Cinnamon polyphenol extract regulates tristetraprolin and related gene expression in mouse adipocytes. JAgricFood Chem. 2011;59(6):2739-44. [CrossRef]
  32. Blackshear PJ. Tristetraprolin and other CCCH tandem zinc-finger proteins in the regulation of mRNA turnover. BiochemSocTrans. 2002;30(6):945-52. [CrossRef]
  33. Blackshear PJ, Phillips RS, Ghosh S, Ramos SB, Richfield EK, Lai WS. Zfp36l3, a rodent X chromosome gene encoding a placenta-specific member of the tristetraprolin family of CCCH tandem zinc finger proteins. BiolReprod. 2005;73(2):297-307. [CrossRef]
  34. Cha HJ, Lee HH, Chae SW, Cho WJ, Kim YM, Choi HJ, et al. Tristetraprolin downregulates the expression of both VEGF and COX-2 in human colon cancer. Hepatogastroenterology. 2011;58(107-108):790-5.
  35. Carballo E, Lai WS, Blackshear PJ. Evidence that tristetraprolin is a physiological regulator of granulocyte-macrophage colony-stimulating factor messenger RNA deadenylation and stability. Blood. 2000;95(6):1891-9. [CrossRef]
  36. Kontoyiannis D, Boulougouris G, Manoloukos M, Armaka M, Apostolaki M, Pizarro T, et al. Genetic dissection of the cellular pathways and signaling mechanisms in modeled tumor necrosis factor-induced Crohn's-like inflammatory bowel disease. J Exp Med. 2002;196(12):1563-74. [CrossRef]
  37. Molle C, Zhang T, Ysebrant de LL, Gueydan C, Andrianne M, Sherer F, et al. Tristetraprolin regulation of interleukin 23 mRNA stability prevents a spontaneous inflammatory disease. JExpMed. 2013;210(9):1675-84. jem.20120707 [pii]. [CrossRef]
  38. Gamelli RL, Liu H, He LK, Hofmann CA. Augmentations of glucose uptake and glucose transporter-1 in macrophages following thermal injury and sepsis in mice. J Leukoc Biol. 1996;59(5):639-47. Epub 1996/05/01. [CrossRef] [PubMed]
  39. Sala-Vila A, Barbosa VM, Calder PC. Olive oil in parenteral nutrition. Curr Opin Clin Nutr Metab Care. 2007;10(2):165-74. Epub 2007/02/08. [CrossRef] [PubMed]
  40. Puschel GP, Klauder J, Henkel J. Macrophages, Low-Grade Inflammation, Insulin Resistance and Hyperinsulinemia: A Mutual Ambiguous Relationship in the Development of Metabolic Diseases. J Clin Med. 2022;11(15). Epub 2022/08/13. [CrossRef] [PubMed] [PubMed Central]
  41. Cao H, Sethumadhavan K, Bland JM. Isolation of cottonseed extracts that affect human cancer cell growth. SciRep. 2018;8(1):10458. [CrossRef]
  42. Cao H, Sethumadhavan K, Cao F, Wang TTY. Gossypol decreased cell viability and down-regulated the expression of a number of genes in human colon cancer cells. Sci Rep. 2021;11(1):5922. Epub 2021/03/17. [CrossRef] [PubMed] [PubMed Central]
  43. Cao H, Sethumadhavan K. Identification of Bcl2 as a Stably Expressed qPCR Reference Gene for Human Colon Cancer Cells Treated with Cottonseed-Derived Gossypol and Bioactive Extracts and Bacteria-Derived Lipopolysaccharides. Molecules. 2022;27(21):7560. Epub 2022/11/12. [CrossRef] [PubMed] [PubMed Central]
  44. Cao H, Tuttle JS, Blackshear PJ. Immunological characterization of tristetraprolin as a low abundance, inducible, stable cytosolic protein. JBiolChem. 2004;279(20):21489-99. [CrossRef]
  45. Cao H. Expression, purification, and biochemical characterization of the antiinflammatory tristetraprolin: a zinc-dependent mRNA binding protein affected by posttranslational modifications. Biochemistry. 2004;43(43):13724-38. [CrossRef]
  46. Bustin SA, Benes V, Garson JA, Hellemans J, Huggett J, Kubista M, et al. The MIQE guidelines: minimum information for publication of quantitative real-time PCR experiments. ClinChem. 2009;55(4):611-22. [CrossRef]
  47. Cao H, Shockey JM. Comparison of TaqMan and SYBR Green qPCR methods for quantitative gene expression in tung tree tissues. J AgricFood Chem. 2012;60(50):12296-303. [CrossRef]
  48. Cao H, Sethumadhavan K. Cottonseed extracts and gossypol regulate diacylglycerol acyltransferase gene expression in mouse macrophages. JAgricFood Chem. 2018;66(24):6022-30. [CrossRef]
  49. Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods. 2001;25(4):402-8. [CrossRef]
  50. Cao H, Cao F, Roussel AM, Anderson RA. Quantitative PCR for glucose transporter and tristetraprolin family gene expression in cultured mouse adipocytes and macrophages. In Vitro Cell DevBiolAnim. 2013;49(10):759-70. [CrossRef]
  51. Fukuzumi M, Shinomiya H, Shimizu Y, Ohishi K, Utsumi S. Endotoxin-induced enhancement of glucose influx into murine peritoneal macrophages via GLUT1. Infect Immun. 1996;64(1):108-12. Epub 1996/01/01. [CrossRef] [PubMed] [PubMed Central]
  52. Cao H, Sethumadhavan K. Gossypol but not cottonseed extracts or lipopolysaccharides stimulates HuR gene expression in mouse cells. Journal of Functional Foods. 2019;59:25-9. [CrossRef]
  53. Cao H, Sethumadhavan K, Wu X, Zeng X. Cottonseed-derived gossypol and ethanol extracts differentially regulate cell viability and VEGF gene expression in mouse macrophages. Sci Rep. 2021;11(1):15700. Epub 2021/08/05. [CrossRef] [PubMed] [PubMed Central]
  54. Deng S, Yuan H, Yi J, Lu Y, Wei Q, Guo C, et al. Gossypol acetic acid induces apoptosis in RAW264.7 cells via a caspase-dependent mitochondrial signaling pathway. J VetSci. 2013;14(3):281-9. jvs.2013.046 [pii]. [CrossRef]
  55. Lin QR, Li CG, Zha QB, Xu LH, Pan H, Zhao GX, et al. Gossypol induces pyroptosis in mouse macrophages via a non-canonical inflammasome pathway. ToxicolApplPharmacol. 2016;292:56-64. S0041-008X(15)30173-3 [pii]. [CrossRef]
  56. Lai WS, Stumpo DJ, Blackshear PJ. Rapid insulin-stimulated accumulation of an mRNA encoding a proline-rich protein. JBiolChem. 1990;265(27):16556-63. [CrossRef]
  57. DuBois RN, McLane MW, Ryder K, Lau LF, Nathans D. A growth factor-inducible nuclear protein with a novel cysteine/histidine repetitive sequence. JBiolChem. 1990;265(31):19185-91. [CrossRef]
  58. Varnum BC, Lim RW, Kujubu DA, Luner SJ, Kaufman SE, Greenberger JS, et al. Granulocyte-macrophage colony-stimulating factor and tetradecanoyl phorbol acetate induce a distinct, restricted subset of primary- response TIS genes in both proliferating and terminally differentiated myeloid cells. MolCellBiol. 1989;9(8):3580-3. [CrossRef]
  59. Cousins RJ, Blanchard RK, Popp MP, Liu L, Cao J, Moore JB, et al. A global view of the selectivity of zinc deprivation and excess on genes expressed in human THP-1 mononuclear cells. Proc Natl Acad Sci U S A. 2003;100(12):6952-7. Epub 2003/05/21. [CrossRef] [PubMed] [PubMed Central]
  60. Taddeo B, Zhang W, Roizman B. The U(L)41 protein of herpes simplex virus 1 degrades RNA by endonucleolytic cleavage in absence of other cellular or viral proteins. ProcNatlAcadSciUSA. 2006;103(8):2827-32. [CrossRef]
Preprints 68555 g001

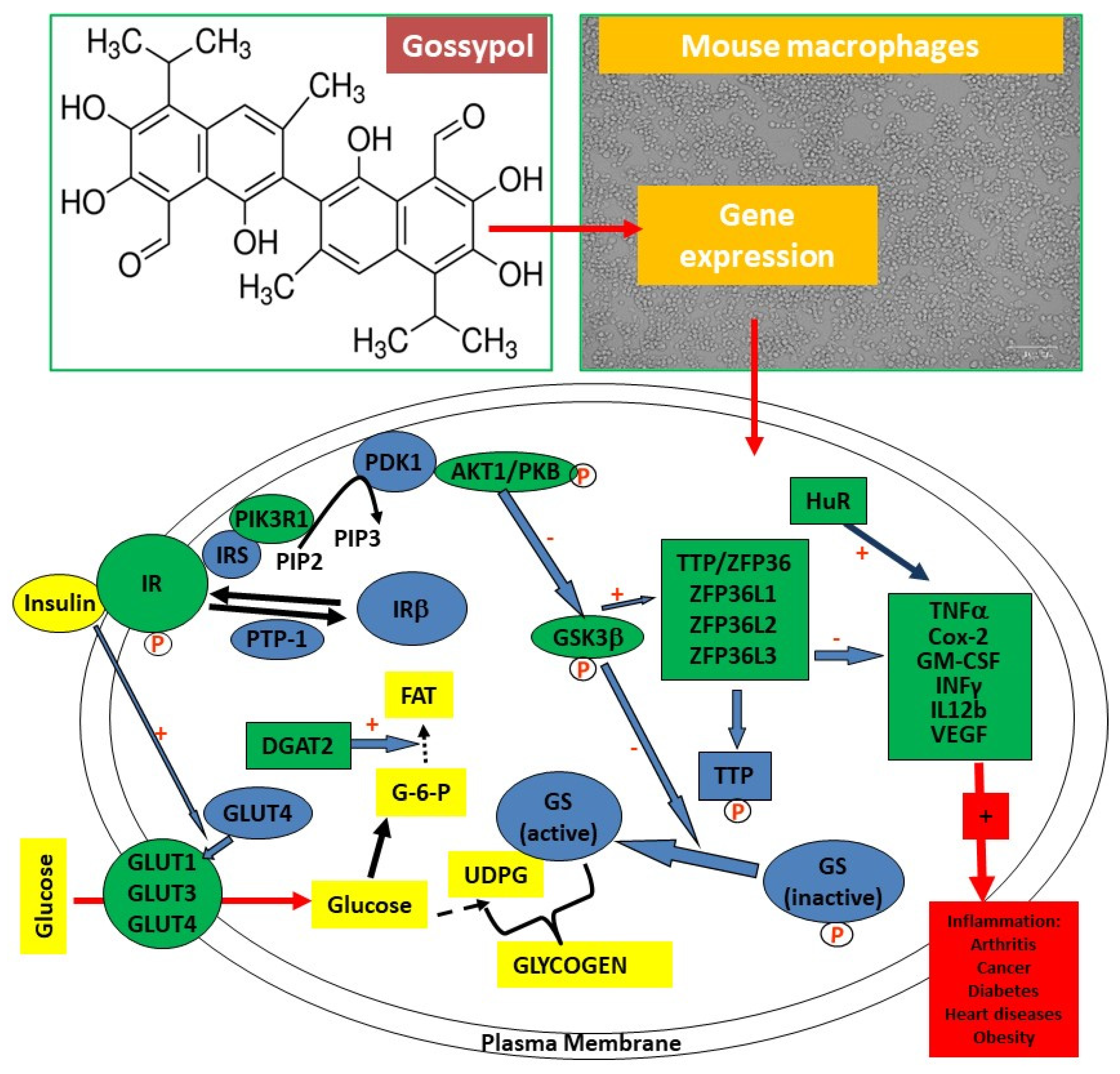

Figure 1. Gossypol, mouse RAW264.7 macrophages and biomarkers analyzed by qPCR. (Top left) Gossypol is a plant polyphenol with six -OH groups and six -CH3 groups. (Top right) Mouse RAW264.7 macrophages used in the study. (Bottom) Gene targets analyzed by qPCR in this study (highlighted in green color).
Figure 1. Gossypol, mouse RAW264.7 macrophages and biomarkers analyzed by qPCR. (Top left) Gossypol is a plant polyphenol with six -OH groups and six -CH3 groups. (Top right) Mouse RAW264.7 macrophages used in the study. (Bottom) Gene targets analyzed by qPCR in this study (highlighted in green color).
Preprints 68555 g001
Preprints 68555 g002
Figure 2. Gossypol effect on cell viability. Mouse RAW264.7 macrophages were treated with various concentrations of gossypol for 24 h (triplicate). MTT assay reagent was added to the media and incubated for 2 h before adding MTT solubilization solution.
Figure 2. Gossypol effect on cell viability. Mouse RAW264.7 macrophages were treated with various concentrations of gossypol for 24 h (triplicate). MTT assay reagent was added to the media and incubated for 2 h before adding MTT solubilization solution.
Preprints 68555 g002
Preprints 68555 g003
Figure 3. Effect of gossypol on TTP family gene expression. (A) TTP/ZFP36 mRNA, (B) ZFP36L1 mRNA, (C) ZFP36L2 mRNA, (D) ZFP36L3 mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2-24 h. The SYBR Green qPCR reaction mixtures contained 5 ng of RNA-equivalent cDNAs from each sample and 200 nM of each primer. The 2-ΔΔCT method of relative quantification was used to determine the fold change in expression using RPL32 mRNA as the reference mRNA. The data represent the mean and standard deviation of three independent samples. “*”and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Figure 3. Effect of gossypol on TTP family gene expression. (A) TTP/ZFP36 mRNA, (B) ZFP36L1 mRNA, (C) ZFP36L2 mRNA, (D) ZFP36L3 mRNA. RAW264.7 macrophages were treated with gossypol (0-100 µg/mL) for 2-24 h. The SYBR Green qPCR reaction mixtures contained 5 ng of RNA-equivalent cDNAs from each sample and 200 nM of each primer. The 2-ΔΔCT method of relative quantification was used to determine the fold change in expression using RPL32 mRNA as the reference mRNA. The data represent the mean and standard deviation of three independent samples. “*”and “**” displayed in the Figure represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Preprints 68555 g003
Table 1. Sequence Information of qPCR Primers.
Table 1. Sequence Information of qPCR Primers.
mRNA accession no. amplicon (bp) forward primer (5´ to 3´) reverse primer (5´ to 3´)
TTP family
Ttp/Zfp36/Tis11 NM_011756 70 GGTACCCCAGGCTGGCTTT ACCTGTAACCCCAGAACTTGGA
Zfp36l1/Tis11b NM_007564 60 TGCGAACGCCCACGAT CTTCGCTCAAGTCAAAAATGG
Zfp36l2/Tis11d NM_001001806 77 GAGGGCACCTCCCAACCT TGACAGAAGTGTGGTCGACATTT
Zfp36l3 NM_001009549 70 CGAACTGCGTACCCTGTCAAG GCCAACGCTGTGGAAGGT
Cytokines
Gm-csf/Csf2 NM_009969 71 CACCCGCTCACCCATCAC GGAGGTTCAGGGCTTCTTTGA
Cox2/Ptgs2 NM_011198 106 CCACCTCTGCGATGCTCTTC CATTCCCCACGGTTTTGACATG
Ifnγ NM_008337 81 TGGCATAGATGTGGAAGAAAAGAG TGCAGGATTTTCATGTCACCAT
Il12b NM_008352 79 GACCAGAGACATGGAGTCATAGG TGTACTGGCCAGCATCTAGAAACT
Tnf/Tnfα NM_013693 74 GCTGTCGCTACATCACTGAACCT TGACCCGTAGGGCAATTACA
GLUT family
Glut1 (Slc2a1) M13979 123 CGTGCTTATGGGTTTCTCCAAA GACACCTCCCCCACATACATG
Glut2 (Slc2a2) NM_012879 80 TTTGCAGTAGGCGGAATGG GCCAACATGGCTTTGATCCTT
Glut3 (Slc2a3) NM_017102 112 TGAAGCCATGAGCTTTGTCTGT GCCCTGGCTGAAGAGTTCAG
Glut4 (Slc2a4) NM_012751 87 CAACTGGACCTGTAACTTCATCGT ACGGCAAATAGAAGGAAGACGTA
Insulin signaling
Insr NM_017071 137 CAAAAGCACAATCAGAGTGAGTATGAC ACCACGTTGTGCAGGTAATCC
Akt1/Pkb NM_033230 90 TGGACTACTTGCACTCCGAGAA TTATCTTGATATGCCCGTCCTT
GSK3β NM_032080 106 TTAAGGAAGGAAAAGGTGAATCGA CCAAAAGCTGAAGGCTGCTG
Pik3r1 NM_013005 118 CCTCTCCTTATAAAGCTCCTGGAA GATCACAATCAAGAAGCTGTCGTAA
Other mRNA
App NM_007471 70 GTTGCCTAGTTGGTGAGTTTGT TCCTGGTGTAGGAACTTGCACTTG
Lepr NM_146146 92 TGACCAGTGTAACAGTGCTAACTTCTC CATATTTAACTGAGGGTTGTCTCTGACA
Rpl32 (reference) NM_172086 66 AACCGAAAAGCCATTGTAGAAA CCTGGCGTTGGGATTGG
Table 2. Gossypol Induced Cell Death of Mouse Macrophage. Mouse macrophages were treated with various concentrations of gossypol for 2 and 24 h. Cellular toxicity was determined with MTT based-In Vitro Toxicology Assay. The data represent the mean ± standard (n = 3). “*” and “**” displayed in the Table represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Table 2. Gossypol Induced Cell Death of Mouse Macrophage. Mouse macrophages were treated with various concentrations of gossypol for 2 and 24 h. Cellular toxicity was determined with MTT based-In Vitro Toxicology Assay. The data represent the mean ± standard (n = 3). “*” and “**” displayed in the Table represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
gossypol concentration (µg/mL). A570 nm ± SD (2 h) (% of control) A570 nm ± SD (24 h) (% of control)
0 100.0 ± 8.1 100.0 ± 18.5
0.1 110.2 ± 9.0 92.8 ± 3.2
0.5 93.6 ± 4.8 90.4 ± 5.5
1 99.2 ± 1.3 88.3 ± 11.5
5 92.7 ± 4.9 7.6 ± 0.4 **
10 85.7 ± 7.4 * 7.6 ± 0.4 **
50 69.3 ± 2.4 ** 8.6 ± 0.5 **
100 20.0 ± 0.6 ** 8.5 ± 3.2 **
Table 3. Gossypol Reduced Soluble Protein Content in Mouse Macrophages. Mouse macrophages were treated with gossypol (100 µg/mL) for 2, 4, 8 and 24 h. Protein content was determined with the Bradford method. The data represent the mean ± standard deviation (n = 3 ). “*” and “**” displayed in the Table represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
Table 3. Gossypol Reduced Soluble Protein Content in Mouse Macrophages. Mouse macrophages were treated with gossypol (100 µg/mL) for 2, 4, 8 and 24 h. Protein content was determined with the Bradford method. The data represent the mean ± standard deviation (n = 3 ). “*” and “**” displayed in the Table represent significant difference between the control and the treatment at p < 0.05 and p < 0.01, respectively.
treatment time (h) supernatant protein pellet protein total protein
concentration (µg/µL) amount (mg) ratio (%) concentration (µg/µL) amount (mg) ratio (%) amount (mg) ratio (%)
control 2 7.78 ± 0.36 3.89 100 22.05 ± 0.21 1.1 100 4.99 100
gossypol 2 6.56 ± 0.39 * 3.28 84 23.67 ± 0.22 ** 1.18 107 4.47 90
gossypol 4 6.45 ± 0.38 * 3.22 83 31.47 ± 0.15 ** 1.57 143 4.80 96
gossypol 8 4.85 ± 0.32 ** 2.42 62 34.21 ± 0.45 ** 1.71 155 4.13 83
gossypol 24 0.21 ± 0.18 ** 0.11 3 22.12 ± 0.45 1.11 101 1.22 24
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
bsky
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

Privacy Settings

© 2025 MDPI (Basel, Switzerland) unless otherwise stated
