Abstract

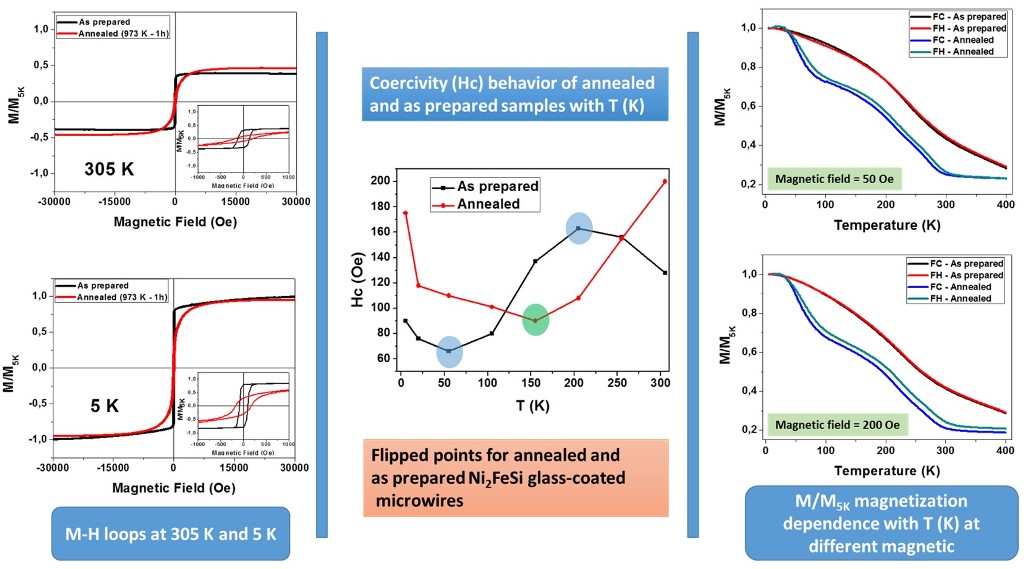

We studied the effect of annealing and the applied magnetic field from 50 Oe to 20 kOe on the magneto-structural behavior of Ni2FeSi-based Heusler microwires fabricated by using Taylor-Ulitovsky technique. Using the XRD analysis, a strong effect of annealing, manifested as the development of the crystallization process, was observed. The average grain size and crystalline phase content of annealed sample increase from 21.3 nm and 34 % to 32.8 nm and 79%, respectively, as-compared to the as-prepared one. In addition, upon annealing phase transforms into a monoclinic martensitic structure with modulation 10M were observed, which cannot be found in the as-prepared sample. Concerning the magnetic properties, both samples show ferromagnetic behavior below and above the room temperature, where the Curie temperature of Ni2FeSi is higher than room temperature. The induced secondary phases have a noticeable effect on the magnetic behavior of the annealed sample, where a high normalized saturation magnetization (NMs) and low normalized reduced remenance (Mr = M/M5K), compared to the as- prepared have been detected. Additionally, the coercivity of annealed sample shows one flipping point at 155 K where it behavior with temperature is changed. Meanwhile, the as-prepared sample show two flipped point at 205 K and 55 K. A mismatch between field cooling (FC) and field heating (FH) magnetization curves with temperature has been detected for annealed sample at low applied magnetic field. In addition the FC and FH curves shows different slopes with variation the temperature and the magnetic field. By increasing the external magnetic field higher than 200 Oe and up to 20 kOe a gradual changing in the magnetic behavior has been detected, where the mismatch and different slopes disappeared at applying magnetic field about 20 kOe. The difference in magnetic and structure behavior of Ni2FeSi microwires sample is discussed considering the effect of induced internal stresses by the presence of a glass coating and the recrystallization and stresses relaxation upon annealing.
Keywords
Heusler alloys; glass-coated microwires; magnetic field; annealing; Taylor-Ulitovsky
Subject
Chemistry and Materials Science, Electronic, Optical and Magnetic Materials
