Preprint Article Version 1 Preserved in Portico This version is not peer-reviewed

An Experimental Study on the Performance of Corrugated Cardboard as a Sustainable Sound-Absorbing and Insulating Material

Version 1 : Received: 8 April 2021 / Approved: 9 April 2021 / Online: 9 April 2021 (14:46:49 CEST)

A peer-reviewed article of this Preprint also exists.

Kang, C.-W.; Kim, M.K.; Jang, E.-S. An Experimental Study on the Performance of Corrugated Cardboard as a Sustainable Sound-Absorbing and Insulating Material. Sustainability 2021, 13, 5546. Kang, C.-W.; Kim, M.K.; Jang, E.-S. An Experimental Study on the Performance of Corrugated Cardboard as a Sustainable Sound-Absorbing and Insulating Material. Sustainability 2021, 13, 5546.

Journal reference: Sustainability 2021, 13, 5546
DOI: 10.3390/su13105546

Abstract

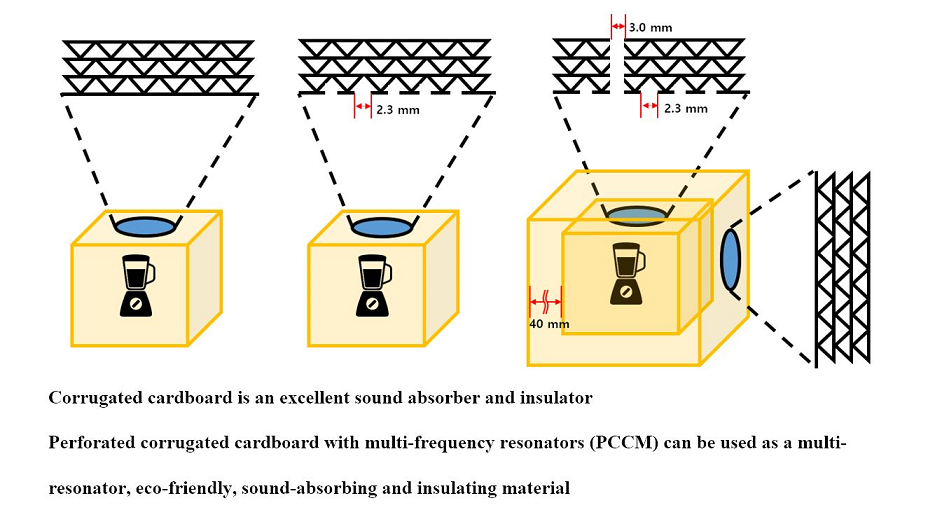

The continuing development of industrialization and increasing population density has led to the emergence of noise as an increasingly common problem, requiring various types of sound absorption and insulation methods to address it. Meanwhile, the recycling of resources to ensure a sustainable future for the planet and mankind is also required. Therefore, this study investigates the potential of corrugated cardboard as a resource for noise reduction. The sound absorption and insulation performance of non-perforated corrugated cardboard (NPCC) were measured, and modified corrugated boards were fabricated by drilling holes either through the surface of the corrugated board alone or through the corrugated board in its entirety. The sound absorption/insulation performance both of perforated corrugated cardboard (PCC), and perforated corrugated cardboard with multi frequency resonators (PCCM) were measured using the transfer function method and the transmission matrix method. To determine the effectiveness of NPCC, PCC, and PCCM in noise reduction, the sound pressure level was analyzed by applying it to a home blender. The results showed PCCM’s sound absorption and insulation performance to be excellent. On the basis of these findings, we propose the use of PMMC as an eco-friendly noise reduction material.

Keywords

eco-friendly sound-absorbing material; corrugated cardboard; perforated corrugated cardboard; sound absorption coefficient; sound transmission loss

Subject

PHYSICAL SCIENCES, Acoustics
