Ultimate Compressive Strength of Stiffened Panel: An Empirical Formulation for Flat-bar Type

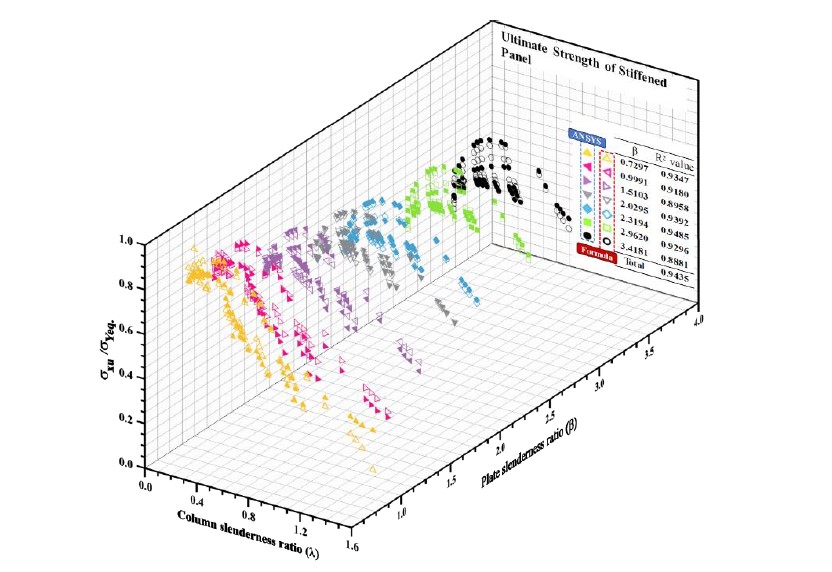

This research aims to study the ultimate limit state (ULS) behaviour of stiffened panel under longitudinal compression by non-linear finite element method (NLFEM). There are different types of stiffeners being used in shipbuilding i.e. T-bar, flat-bar and angle-bar. However, this research focuses on the ultimate compressive strength behaviour of flat-bar stiffened panel. A total of 420 of reliable scenarios of flat-bar stiffened panel are selected for numerical simulation by ANSYS NLFEM. The ultimate strength behaviours obtained were used as data for the development of closed form shape empirical formulation. Recently, Kim et al. [1] proposed for advanced empirical formulation for T-bar stiffened panel and the applicability of the proposed formulation to flat-bar stiffened panel will be confirmed by this study. The accuracy of the empirical formulation obtained for flat-bar stiffened panel has been validated by FE simulation results of statistical analysis (R2 = 0.9435). The outcome obtained will be useful for ship structural designers in predicting the ultimate strength performance of flat-bar type stiffened panel under longitudinal compression.
