Microfluidic Long-Term Gradient Generator with Axon Separation Prototyped by 185 nm Diffused Light Photolithography of SU-8 Photoresist

Version 1 : Received: 15 November 2018 / Approved: 16 November 2018 / Online: 16 November 2018 (11:19:18 CET)

A peer-reviewed article of this Preprint also exists.

Futai, N.; Tamura, M.; Ogawa, T.; Tanaka, M. Microfluidic Long-Term Gradient Generator with Axon Separation Prototyped by 185 nm Diffused Light Photolithography of SU-8 Photoresist. Micromachines 2019, 10, 9. Futai, N.; Tamura, M.; Ogawa, T.; Tanaka, M. Microfluidic Long-Term Gradient Generator with Axon Separation Prototyped by 185 nm Diffused Light Photolithography of SU-8 Photoresist. Micromachines 2019, 10, 9.

Journal reference: Micromachines 2018, 10, 9
DOI: 10.3390/mi10010009

Abstract

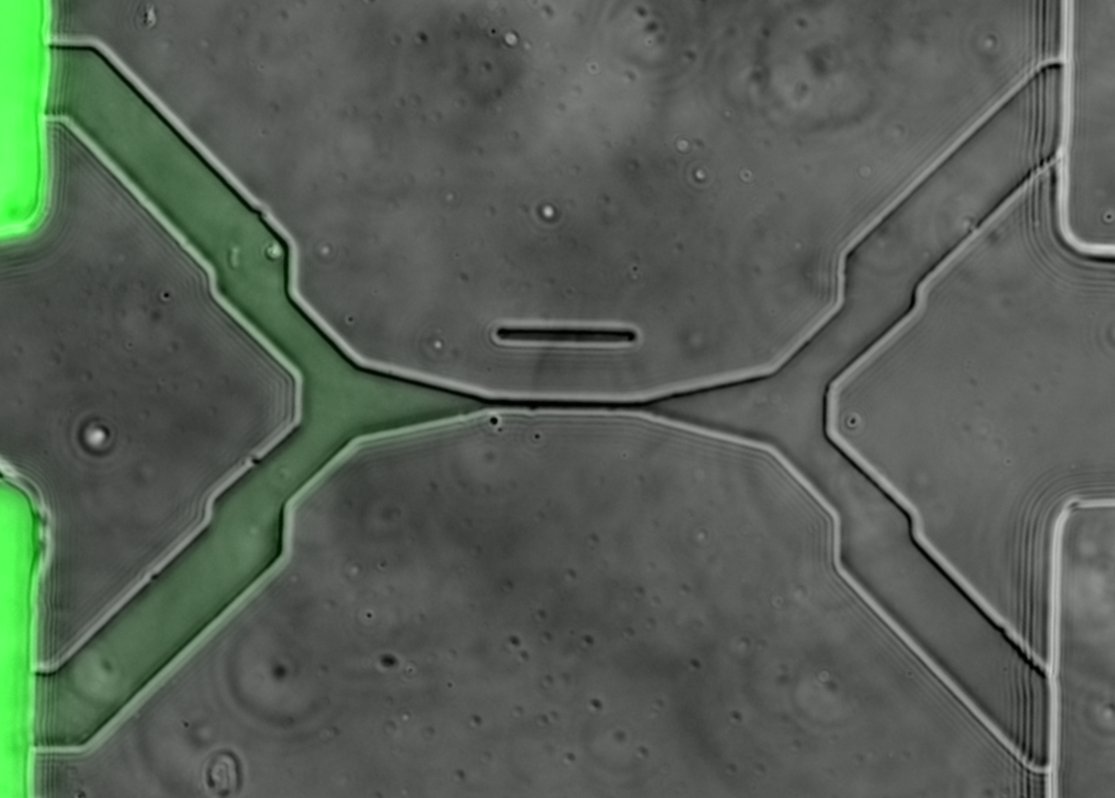

We have developed a cast microfluidic chip for concentration gradient generation that contains a thin (~5 μm^2 crosssectional area) microchannel. Durable 2 μm-high microchannel mold features with a smooth bell-shaped sidewall were fabricated by exposing SU-8 photoresist to diffused 185 nm UV light emitted by a low-cost ozone lamp from the backside of the substrate to ensure sufficient crosslinking of small regions of the SU-8 photoresist. An H-shaped microfluidic configuration was used, in which the thin channel was able to maintain constant diffusion fronts beyond purely static diffusion confirmed with experiment. We also demonstrated the long-term effects of a gradient of nerve growth factor on axon elongation by primary neuronal cells cultured in the microfluidic channel.

Subject Areas

SU-8, microchannel, prototyping, microfluidic gradient generator, axon elongation
