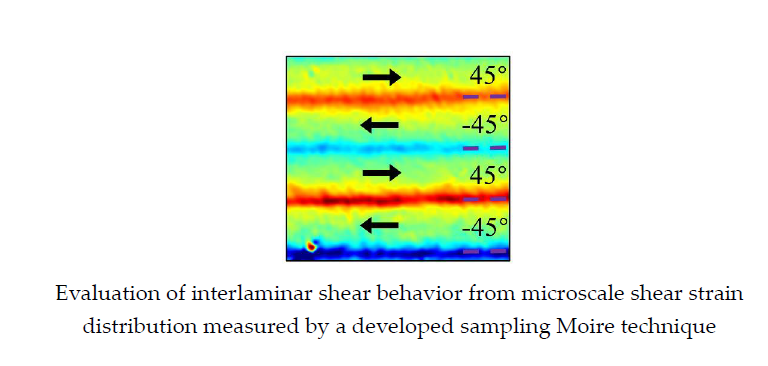

Interlaminar Shear Behavior of Laminated Carbon Fiber Reinforced Plastic from Microscale Strain Distributions Measured by Sampling Moire Technique

Version 1 : Received: 3 August 2018 / Approved: 3 August 2018 / Online: 3 August 2018 (12:26:29 CEST)

A peer-reviewed article of this Preprint also exists.

Wang, Q.; Ri, S.; Tsuda, H.; Takashita, Y.; Kitamura, R.; Ogihara, S. Interlaminar Shear Behavior of Laminated Carbon Fiber Reinforced Plastic from Microscale Strain Distributions Measured by Sampling Moiré Technique. Materials 2018, 11, 1684. Wang, Q.; Ri, S.; Tsuda, H.; Takashita, Y.; Kitamura, R.; Ogihara, S. Interlaminar Shear Behavior of Laminated Carbon Fiber Reinforced Plastic from Microscale Strain Distributions Measured by Sampling Moiré Technique. Materials 2018, 11, 1684.

Journal reference: Materials 2018, 11, 1684
DOI: 10.3390/ma11091684

Abstract

The interlaminar shear behavior of a [±45°] laminated carbon fiber reinforced plastic (CFRP) specimen was investigated utilizing microscale strain mapping in a wide field of view. A three-point bending device was developed under a laser scanning microscope, and the full-field strain distributions including normal, shear and principal strains of CFRP in a three-point bending test were measured using a developed sampling Moire technique. The microscale shear strain concentrations at interfaces between each two adjacent layers were successfully detected and found to be positive-negative alternately distributed before damage occurrence. The 45° layers slipped to the right relative to the -45° layers, visualized from the revised Moire phases and shear strain distributions of the angle-ply CFRP under different loads. The absolute values of the shear strain at interfaces gradually rose with the increase of the bending load, and the sudden decrease of the shear strain peak value implied the occurrence of interlaminar damage. The evolution of the shear strain concentrations is useful in the quantitative evaluation of the potential interlaminar shear failure.
