Mechanical Properties of Ti-alloy Joint with Ti₂₀Zr₂₀Cu_60-xNi_x (x = 10, 20, 30, 40 and 50) Filler Metal

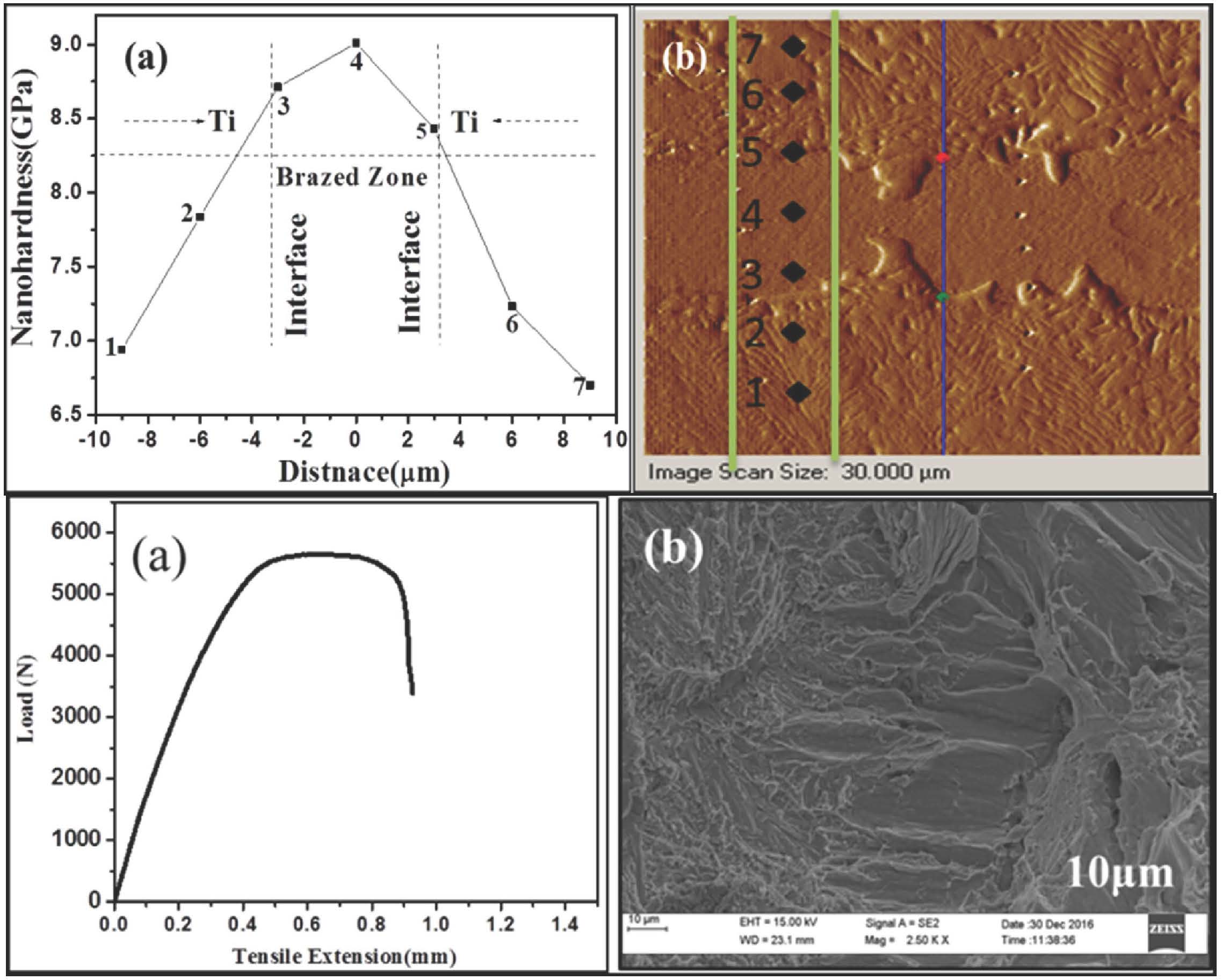

The developed microstructure features a long with mechanical properties in vacuum brazing of commercially pure Ti-alloy using Ti₂₀Zr₂₀Cu_60-x-Ni_x (x=10, 20, 30, 40 and 50) metallic filler. Brazing temperatures and holding times employed in this study were 1240-1279 K (967-1006^oC) for a period of 10 min, respectively. The mechanical properties of brazed joints were evaluated by nanoindention at a constant peak load of 5000 μN and tensile tests. The number of intermetallic phase, such as NiTi₂, Ti₂Cu, (Ti, Zr)₂Cu, (Ti, Zr)₂Ni, β(Ti, Zr), α-Ti and NiTi. The solid solution matrix have been identified at 1279 K out of these different regions the NiTi₂ rich region had the highest nanohardness of 17 GPa, It is interesting to note that among five different glasses, the Ti₂₀Zr₂₀Cu₁₀Ni₅₀ has the highest yield strength of 17 GPa, which is mainly due to NiTi₂ phase. Based on the tensile test results all cracks propagate along the brittle intermetallic compounds like NiTi₂ in the reaction layer the reduction of the strength of the joints and fracture behaviour upon propagation of the crack, which shows the morphological cleavage including facets characteristics.
