Preprint Article Version 1 This version is not peer-reviewed

Graphene Oxide as Foam Stabilizing Agent for CO2 EOR

Version 1 : Received: 8 June 2018 / Approved: 11 June 2018 / Online: 11 June 2018 (11:10:46 CEST)

A peer-reviewed article of this Preprint also exists.

Barrabino, A.; Holt, T.; Lindeberg, E. An Evaluation of Graphene Oxides as Possible Foam Stabilizing Agents for CO2 Based Enhanced Oil Recovery. Nanomaterials 2018, 8, 603. Barrabino, A.; Holt, T.; Lindeberg, E. An Evaluation of Graphene Oxides as Possible Foam Stabilizing Agents for CO2 Based Enhanced Oil Recovery. Nanomaterials 2018, 8, 603.

Journal reference: Nanomaterials 2018, 8, 603
DOI: 10.3390/nano8080603

Abstract

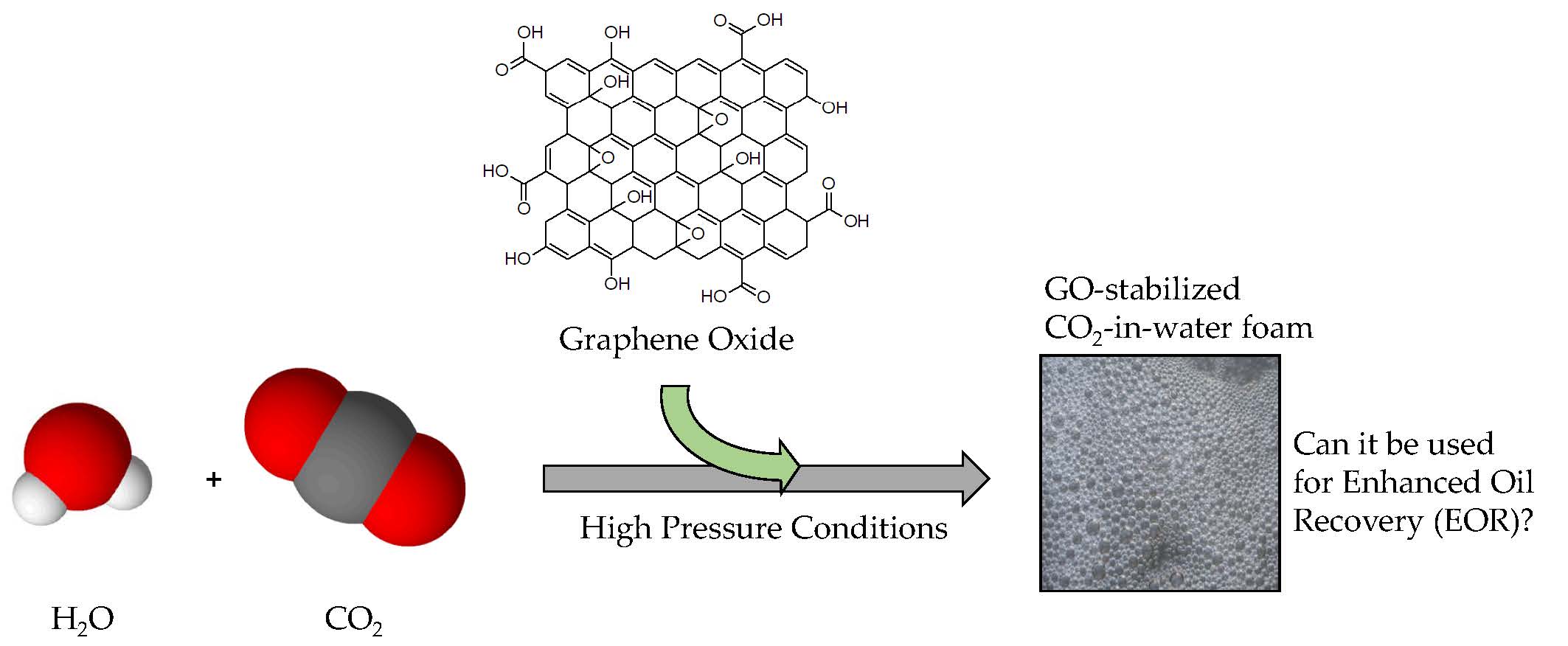

Graphene oxide (GO), nanographene oxide (nGO) and partially reduced graphene oxide (rGO) have been studied as possible foam stabilizing agents for CO2 based enhanced oil recovery (EOR). GO was able to stabilize CO2/synthetic sea water foams. rGO was not able to stabilize foams likely due to the high reduction degree of the material. Particle size had a strong influence on foamability and stability. GO hydrophilicity increased as the particle size decreased and no foams were created when particle size was below 1 µm (nGO). GO brine dispersions showed immediate gel formation, which improved foam stability. Particle growth due to layer stacking was also observed. This mechanism was detrimental for foam formation and stabilization. nGO dispersed in synthetic sea water rapidly formed hydrogels and was not filterable. This work indicates that the particles studied are not suitable for CO2 EOR purposes.

Subject Areas

EOR; graphene oxide; CO2 foam; aquifer storage; mobility control
