Hyperpressed Brick Based on Marbleized Limestone Processing Waste

1. Introduction

Resource and energy conservation in the production of construction materials has become one of the key priorities of modern construction materials science. Among the promising approaches to addressing this challenge is the development of manufacturing technologies based on high-pressure compaction. One such technology is the production of hyperpressed bricks, which enables the fabrication of high-strength masonry units while minimizing energy consumption by eliminating the high-temperature firing stage.

In the city of Tekeli (Almaty Region, Kazakhstan), marbleized limestone from the Ekpendinsky deposit is extensively quarried and processed for the manufacture of architectural and decorative building products. During the cutting and finishing of stone blocks into facing slabs and wall and floor tiles, substantial quantities of by-products are generated in the form of sand- and dust-sized particles with varying granulometric compositions. At present, the accumulated volume of these processing wastes is estimated to be approximately 500,000 t.

The utilization of marbleized limestone processing waste (MLPW) as a raw material for construction products offers significant environmental and economic benefits. Its incorporation into industrial production can reduce the demand for virgin mineral resources, decrease the land area required for waste disposal, and mitigate air and water pollution associated with waste stockpiles. Consequently, the development of a technology for manufacturing facing hyperpressed bricks using MLPW represents a promising approach to producing sustainable wall materials with improved aesthetic appearance, enhanced decorative properties, and increased durability of buildings, while simultaneously promoting the recycling of industrial waste in accordance with the principles of the circular economy.

Hyperpressed bricks are manufactured from finely ground natural or artificial mineral aggregates combined with a cementitious binder. The incorporation of inorganic pigments into the mixture enables the production of bricks in a wide range of colors, making them suitable not only for structural masonry but also for architectural façade cladding. Unlike conventional fired clay bricks, hyperpressed bricks do not require high-temperature firing. Instead, they are produced by compacting the mixture in steel molds under high pressure, typically exceeding 40 MPa. At this pressure level, the greatest increase in mechanical strength is achieved, as the mixture reaches an optimal degree of densification without damaging the aggregate particles. Consequently, a dense and homogeneous microstructure is formed, providing high compressive strength, improved frost resistance, and low water absorption. Under high-pressure compaction, the mineral particles and cement binder are forced into close contact, minimizing interparticle voids. The resulting increase in frictional and contact interactions promotes strong interparticle bonding at both the molecular and crystalline levels, leading to the formation of a highly compact and durable composite structure [1].

To expand the raw material base and improve the performance characteristics of hyperpressed bricks, numerous studies have focused on the incorporation of natural and industrial waste materials into their compositions. The authors of Patent [2] developed a pressing mold and a manufacturing method for producing construction blocks by high-pressure compaction. Two concrete mixture compositions were investigated. The first mixture consisted of 12 wt.% M400 Portland cement, 73 wt.% granulated slag, and 15 wt.% thermal power plant water-treatment sludge. The second mixture contained 15 wt.% M400 Portland cement, 65 wt.% quartz sand, and 20 wt.% thermal power plant water-treatment sludge. The mixtures, with a moisture content of 7–8%, were compacted under a pressure of 30 MPa. The molded blocks were subsequently subjected to steam curing following a 2 + 6 + 2 h regime with an isothermal holding temperature of 80 °C. The resulting products exhibited compressive strength grades ranging from M35 to M100, an average density of approximately 2200 kg/m³, and frost resistance of 25–35 freeze–thaw cycles.

In the study reported in [3], limestone crushing screenings with a fineness modulus of 2.31 were used as the aggregate for the production of hyperpressed products, while CEM II/A-S 32.5 N (M400) Portland cement served as the binder. The specimens were cured by steam treatment in a curing chamber following a 1–6–1 h regime at an isothermal temperature of 60 °C. The compressive strength of the hyperpressed specimens ranged from 22 to 30 MPa. The authors concluded that the optimum mixture composition consisted of 80–85 wt.% limestone sand and 15–20 wt.% Portland cement.

Researchers at the Laboratory of Construction Materials of the East Siberian State Technological University developed mixture compositions for wall materials based on the principles of hyperpressing technology using various natural and industrial aggregates and fillers incorporated into semi-dry cement mixtures [4]. Portland cement grade M400, coal fly ash from thermal power plants, open-hearth furnace slag, boiler slag, and volcanic slag were investigated as raw materials for producing masonry units. The specimens were compacted under a pressure of 40 MPa. After curing, the products exhibited the following properties: specimens containing fly ash with a cement content of 185 kg/m³ achieved an average density of 1300 kg/m³, a compressive strength of 10 MPa, and a frost resistance of 25 freeze–thaw cycles; specimens incorporating open-hearth slag with a cement content of 180 kg/m³ reached an average density of 1800 kg/m³, a compressive strength of 8.5 MPa, and a frost resistance of 25 cycles; while specimens produced with volcanic slag and a cement content of 170 kg/m³ exhibited an average density of 1730 kg/m³, a compressive strength of 13.2 MPa, and a frost resistance of 25 cycles.

In the same laboratory, the feasibility of producing hyperpressed bricks using granite and dolomite quarry screenings (0–10 mm fraction) obtained from the crushing and screening plant of the Tugnuisky open-pit mine was also investigated [5]. Facing bricks with strength grades M150 and M175 were successfully produced using M400 Portland cement, dolomite chips, and dolomite powder. The optimized mixture composition comprised 5–7 wt.% Portland cement, 63–80 wt.% dolomite chips, and 15–30 wt.% dolomite powder. The bricks were formed under a compaction pressure of 40 MPa. After curing, the products exhibited an average density of 2200–2300 kg/m³, a flexural strength of 6.2–8.9 MPa, and a compressive strength ranging from 13.4 to 30 MPa.

In the study reported in [6], hyperpressed bricks were produced using carbonate rock crushing screenings (<5 mm) obtained from the Novotoryalsky quarry in the Mari El Republic. CEM I 42.5B (PC 500 D0) Portland cement, manufactured by JSC Mordovcement, was used as the binder. To enhance the properties of the carbonate aggregate, the chemical admixtures Penetron Admix and RheoFIT 774 were incorporated into the mixtures. The cement-to-carbonate screening ratios were 10:90 and 20:80 by mass. The specimens were compacted on a hydraulic hyperpress under a pressure of 18 MPa and subsequently subjected to hydrothermal curing at 40 ± 5 °C for 48 h. Following curing, the specimens achieved compressive strengths in the range of 21.1–24.7 MPa, exhibited a water-resistance coefficient of 0.84–0.97, and demonstrated frost resistance of 50 freeze–thaw cycles.

According to the study reported in [7], cement is a key constituent in the production of hyperpressed bricks, serving as the primary binding material. High-strength Portland cement (M500) is typically used to prepare the compaction mixture. A conventional mixture for hyperpressed bricks consists of approximately 84 wt.% mineral aggregate, 8–15 wt.% Portland cement, 8 wt.% water, and approximately 1 wt.% pigment. For the production of paving slabs, the cement content is increased to 20 wt.%, while the aggregate content is reduced to approximately 64 wt.%. For masonry units intended for construction in seismic regions, the aggregate content is typically 75 wt.%, whereas the cement content is maintained at approximately 12 wt.%, with the use of Portland cement of at least grade M500.

The same study also investigated the bond strength between hyperpressed bricks and cement mortar in comparison with ceramic bricks produced by semi-dry and plastic forming. Masonry mortar with a compressive strength of 100 kg/cm² at 28 days was used. The bond strength measured after 28 days was 1.60 kg/cm² for semi-dry pressed ceramic bricks, 1.88 kg/cm² for plastic-formed ceramic bricks, and 3.28 kg/cm² for hyperpressed bricks. These results indicate that hyperpressed bricks possess compressive strengths approximately 50–70% higher than those of conventional ceramic bricks, while the bond strength of masonry constructed with hyperpressed bricks exceeds that of ceramic brick masonry by approximately 50–60% when the same cement mortar is used.

The inventors of Patent [8] proposed a raw mixture for manufacturing construction products consisting of cement, a superplasticizer, a mineral component, and water. The distinguishing feature of the proposed composition is the use of crushed waste brick as the mineral component. The particle size distribution of the recycled brick aggregate includes fractions of 0–0.315 mm (16–18 wt.%), 0.315–0.63 mm (6–8 wt.%), 0.63–1.25 mm (10–12 wt.%), 1.25–2.5 mm (11–13 wt.%), and 2.5–5 mm (18–20 wt.%). The overall mixture composition comprises 18–20 wt.% cement, 0.0013–0.0024 wt.% superplasticizer, 58–69 wt.% crushed brick waste, and the remaining amount of water. The mineral component may consist of crushed ceramic brick waste, crushed calcium silicate brick waste, masonry demolition waste containing mortar fragments, or combinations of these recycled materials. Pigments may also be incorporated to obtain decorative products.

The proposed mixture is intended for the manufacture of masonry bricks, facing bricks, small concrete blocks, facing tiles, roofing tiles, and related construction products. Plastic mixtures are consolidated by vibration, whereas stiff mixtures are compacted under pressures ranging from 26 to 102 MPa. The molded products are subsequently steam-cured in curing chambers. Concrete specimens produced by high-pressure compaction exhibited an average density of 1890–1920 kg/m³ and a compressive strength of 9.65–15.3 MPa.

As reported in [9], the production of hyperpressed bricks and paving blocks incorporating carbonate rock quarry waste and industrial by-products has been established in several regions of Russia. Such manufacturing facilities operate in Rostov-on-Don (Zarechensky Reinforced Concrete Products Plant and Spetsstroy), Novorossiysk (R-N-D LLC), Stavropol (Brick Field LLC), Gelendzhik, and other cities. The resulting products are characterized by high mechanical performance and excellent decorative properties and are widely used in the construction of both multi-storey residential buildings and premium housing, as well as auxiliary structures such as garages, warehouses, retail buildings, and cafés.

Facing bricks manufactured by R-N-D LLC using waste from the crushing of Upper Cretaceous carbonate rocks, cement production waste, and M500 Portland cement exhibited the following properties: a compressive strength of 25 MPa, a flexural strength of 2.34 MPa, an average density of 1934 kg/m³, a water absorption of 7.5%, and a frost resistance of 35 freeze–thaw cycles. The bricks were produced by high-pressure compaction at an average molding pressure of 40 MPa.

The authors of Patent [10] proposed a monolithic polygonal wall brick manufactured from a semi-dry mixture with a moisture content of 4%. The mixture consists of limestone with a maximum particle size of 8 mm and Portland cement of at least grade M400 as the binder. The composition contains 77–85 wt.% limestone and 15–23 wt.% Portland cement. The bricks are produced by pressing under a pressure of not less than 21 MPa for a minimum of 10 s, followed by either steam curing or natural curing until at least 50% of the specified design strength is achieved. The mixture may additionally contain pigments in an amount of up to 9 wt.% of the binder mass. The developed wall bricks exhibit a compressive strength of at least 15 MPa and a frost resistance of not less than 35 freeze–thaw cycles. Furthermore, the exposed surface of the brick may be manufactured with a textured relief having surface irregularities with a height of at least 25 mm, thereby enhancing its architectural appearance.

According to [11], one of the most promising compaction techniques developed in recent decades is high-pressure pressing at stress levels exceeding the conventional range of 20–40 MPa. This technology, commonly referred to as hyperpressing, was initially introduced to enable the utilization of low-quality and unconventional raw materials, including low-reactivity binders, alkali-activated slag binders, and soil–cement mixtures. Subsequently, the application of hyperpressing expanded to the production of advanced construction materials with enhanced functional properties, such as ultra-high-strength hot-pressed products and materials exhibiting exceptional water impermeability.

The application of hyperpressing to cement-based mixtures containing chalky or carbonate raw materials only slightly reduces the water demand of the mixtures. However, it significantly alters their microstructure and mesostructure, resulting in a denser and less porous material. These structural improvements are primarily attributed to particle redistribution during intensive mixing and to particle rearrangement and packing under high compaction pressures. Consequently, the effectiveness of the hyperpressing process depends largely on the capabilities of the compaction equipment, which must ensure the uniform distribution of all mixture constituents, including the thin water films surrounding individual particles.

The development of modern high-performance plasticizers has further expanded the potential of hyperpressing technology. Although the mechanisms governing their action have not yet been fully elucidated, these admixtures make it possible to produce cementitious composites with mechanical strengths exceeding those of conventional structural steels. Such materials represent a fundamentally new class of composites, characterized by a particle size distribution in which the maximum particle size generally does not exceed 1.25–0.63 mm, together with a significant proportion of fine dust-like particles. In these systems, achieving an optimum balance between coarse and fine fractions is essential, as the packing density and resulting mechanical performance strongly depend on the particle size distribution. The required granulometric composition is typically achieved through the controlled combination of pre-crushed aggregate fractions.

The authors of Patent [12] developed a raw mixture for the production of non-fired construction products consisting of 65–86 wt.% limestone with a maximum particle size of 5 mm, 5–9 wt.% Portland cement of at least grade M400, and 5–30 wt.% cement kiln dust. The products were manufactured by high-pressure compaction at pressures of not less than 30 MPa. After natural curing under sealed indoor conditions, the specimens achieved compressive strengths ranging from 180 to 250 kg/cm² and frost resistance of 25–50 freeze–thaw cycles.

In the study reported in [13], compacted cementitious products were manufactured using soft chalk and chalk-like carbonate rocks as the primary aggregate together with Portland cement as the binder. The experimental mixtures were prepared with a chalk-to-cement ratio (M) of 1:4, a molding moisture content of 8 wt.% (based on the dry constituents), and a compaction pressure of 25 MPa. Following 28 days of curing, the specimens exhibited an average density of 1872–1940 kg/m³ and a compressive strength ranging from 6.16 to 12.46 MPa. The incorporation of the hydrophobic plasticizing admixture Murasan BWA-21 and the silicone emulsion KOE significantly improved the material performance, yielding specimens based on crushed chalk with compressive strengths of up to 15 MPa and a softening coefficient of 0.85. The experimental results confirmed the feasibility of producing high-pressure compacted materials using M400–M500 Portland cement at a dosage of 20–25 wt.% of the dry mixture, provided that the compaction pressure is not less than 25 MPa and appropriate chemical admixtures are incorporated into the formulation.

Salamanova M. Sh. [14] investigated the mechanisms governing the development of the structure and properties of pressed cement-based concrete products manufactured from fine-grained concrete incorporating modified mineral aggregates. The study employed crushing screenings obtained from the Argun quarry together with locally available fine sands, while M500-D0 Portland cement was used as the binder. Particular attention was devoted to the technology of non-fired high-pressure compaction, in which the concrete mixture is consolidated under pressures of up to 40 MPa without thermal treatment. The author demonstrated that the use of activated and surface-modified mineral aggregates, including those containing surface-active admixtures and microfillers, enhances the interfacial bond between the cement matrix and aggregate particles, thereby promoting the formation of a dense and homogeneous microstructure. The developed pressed concrete specimens exhibited an average density of 2190–2320 kg/m³ and compressive strengths ranging from 51.6 to 61.8 MPa at a cement content of 20–30 wt.%.

Patent [15] proposes a raw mixture for the manufacture of hyperpressed concrete bricks containing a filler derived from hard, polishable rocks. The mixture comprises cement, water, mineral aggregate, plasticizing admixtures, and hydrophobic additives. The binder may consist of white Portland cement, gray Portland cement, slag Portland cement, or any combination thereof. The aggregate is represented by crushed hard rock with a minimum compressive strength of 600 kgf/cm² and a maximum particle size of 4 mm. Suitable rock types include marble, travertine, marbleized limestone, marbleized dolomite, quartzite, quartzitic sandstone, granite, basalt, gabbro, or any combination of quartzite, quartzitic sandstone, granite, basalt, and gabbro. The proposed composition is intended to produce high-strength hyperpressed concrete bricks with enhanced decorative properties, excellent surface polishability, and improved durability.

The authors of Patent [16] developed a raw mixture for the production of wall masonry units comprising 68–78 wt.% gley (thermally altered clay rock) with a particle size of 0–5 mm, 8–17 wt.% cement, 0.3–0.5 wt.% chemical modifier (based on the cement mass), and the remaining amount of water. The mixture was compacted under pressures of 20–32 MPa until a compaction coefficient of 1.59–1.64 was achieved. The molded products were cured on pallets under a waterproof membrane in two consecutive stages. During the first stage, the specimens were maintained at 35–45 °C for at least 12 h, followed by a second curing stage at 20–35 °C for an additional 12 h. After curing, the developed wall materials exhibited an average density of 1630–1785 kg/m³, compressive strengths ranging from 13.6 to 26 MPa, and thermal conductivity values of 0.459–0.546 W/(m·K).

The study reported in [17] demonstrated that calcium carbonate particles act as microfillers, forming a three-dimensional granular framework that creates a microconcrete-like structure within the cementitious matrix. This represents the physical contribution of calcium carbonate to the structural development of cement-based composites. In addition to this physical effect, calcium carbonate may also participate in chemical interactions during cement hydration. The principal mechanisms proposed for the strength development of carbonate–cement composites include: (i) the formation of scawtite (6CaO·6SiO₂·CaCO₃·2H₂O; Ca₇Si₆O₁₈(CO₃)₂·H₂O) through the incorporation of CaCO₃ into the calcium silicate hydrate (C–S–H) structure; (ii) the formation of basic calcium carbonates (CaCO₃·Ca(OH)₂·mH₂O) in the presence of calcium hydroxide; (iii) the formation of hydrated calcium bicarbonates (CaCO₃·6H₂O·CO₂); and (iv) the formation of calcium carboaluminate hydrates, including 6CaO·Al₂O₃·CaCO₃·11H₂O and 3CaO·Al₂O₃·CaCO₃·31H₂O, resulting from the interaction between calcium carbonate and the aluminate phases of Portland cement. The formation of these hydration products contributes to the development of a denser and more rigid internal framework, thereby enhancing the mechanical performance and durability of hyperpressed bricks.

Researchers from Australia [18] investigated the production of ultra-compacted earth blocks stabilized with aqueous solutions of animal glue and xanthan gum. For comparison, specimens without stabilizing binders were also prepared. Cylindrical specimens were compacted under pressures of 20, 200, and 400 MPa and cured for 28 days, after which their density and compressive strength were determined. The results demonstrated that increasing the compaction pressure from 20 to 200 MPa significantly increased the average density, reaching 2358.25 kg/m³ for the unstabilized specimens, 2303.28 kg/m³ for specimens stabilized with animal glue, and 2308.70 kg/m³ for specimens containing xanthan gum. The highest compressive strength (11.85 MPa) was achieved by the specimens compacted at 200 MPa and stabilized with animal glue, followed by 10.49 MPa for specimens compacted at 400 MPa with the same stabilizer, and 9.23 MPa for specimens compacted at 200 MPa and stabilized with xanthan gum.

Overall, the available literature indicates that a wide variety of natural and anthropogenic materials can be successfully utilized in the production of hyperpressed bricks. These include hard and soft carbonate rocks, thermally altered clay rocks, finely crushed mineral aggregates, and waste generated during the cutting and processing of natural stone for facing slabs, as well as crushed ceramic and calcium silicate brick waste. White and gray Portland cements of grades M400 and M500 are the most commonly used binders, while inorganic pigments may be incorporated to produce colored masonry units. The curing of hyperpressed bricks is generally performed either by steam curing or by moist curing under controlled conditions for 3–5 days. Among the various technological parameters, compaction pressure is the most critical factor governing the performance of hyperpressed bricks. According to the published studies, pressures of 20–40 MPa or higher are generally required to produce dense, durable, and high-strength products with a well-developed microstructure.

2. Materials and Methods

Marbleized limestone processing waste (MLPW), generated during the manufacture of dimension stone and facing products from the Ekpendinsky marbleized limestone deposit, was used as the primary raw material in this study. The waste is produced during the cutting and finishing of marbleized limestone blocks and consists mainly of fine particles generated during sawing and polishing operations.

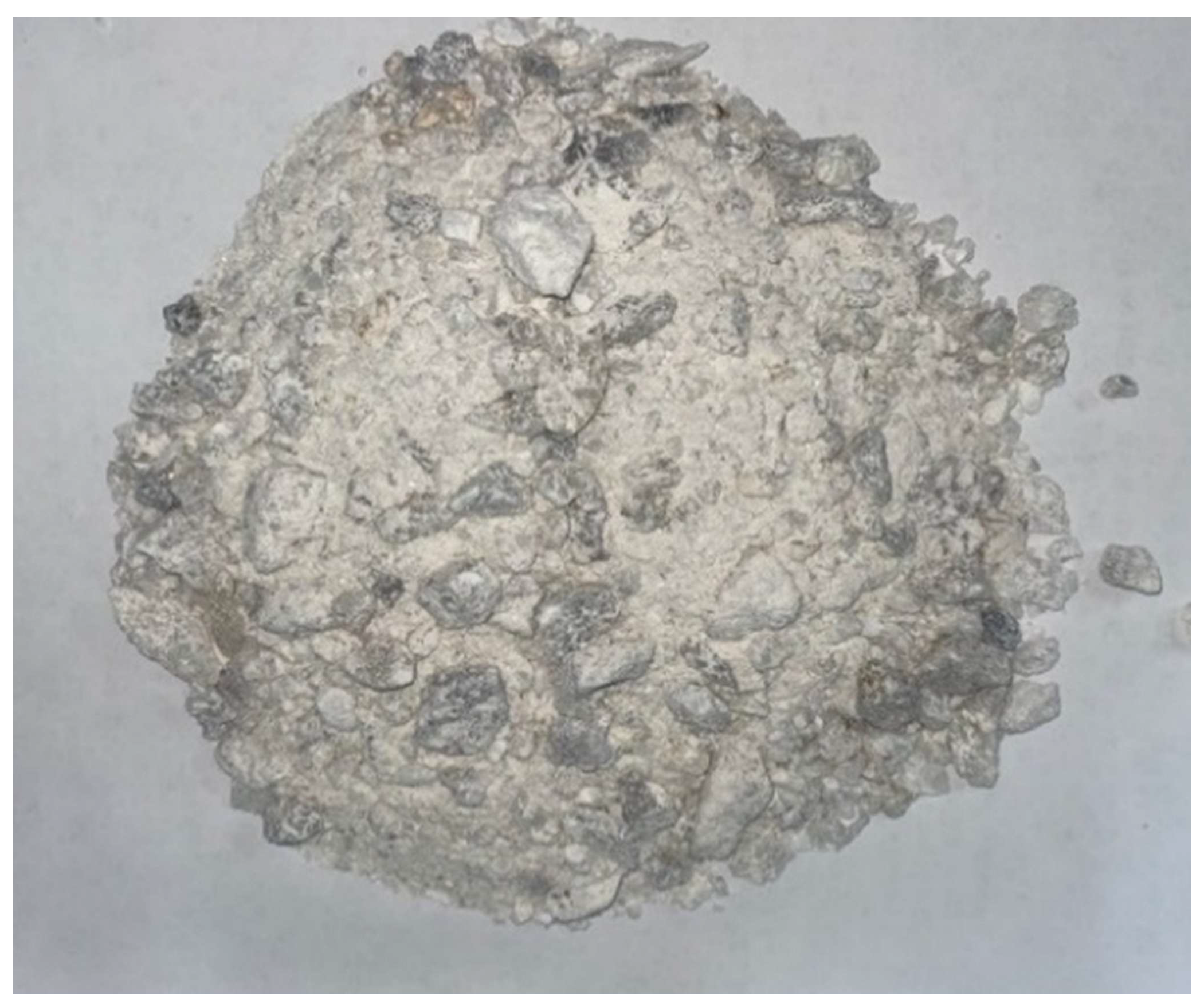

Figure 1. Appearance of marbleized limestone processing waste (MLPW).

Figure 1. Appearance of marbleized limestone processing waste (MLPW).

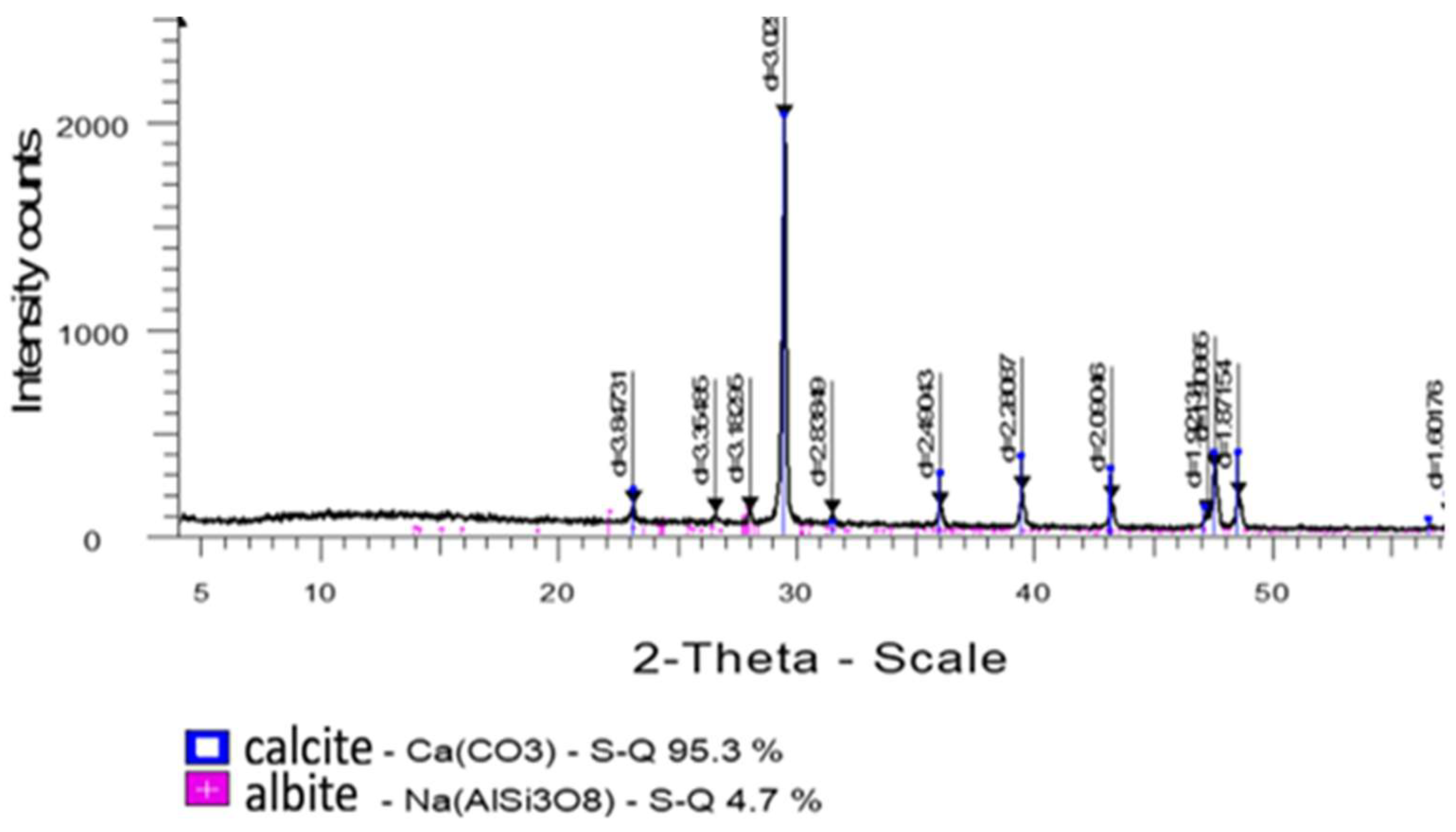

Figure 2. X-ray diffraction (XRD) pattern of marbleized limestone processing waste (MLPW).

Figure 2. X-ray diffraction (XRD) pattern of marbleized limestone processing waste (MLPW).

According to the X-ray diffraction (XRD) analysis, the mineralogical composition of the marbleized limestone processing waste (MLPW) from the Ekpendinsky deposit is dominated by calcite (95.3 wt.%), with feldspar accounting for 4.7 wt.%. The chemical composition of the MLPW, expressed as oxide contents (wt.%), is as follows: CaO – 53.4; SiO₂ – 0.30; TiO₂ – 0.052; K₂O – 0.026; Na₂O – 0.020; Al₂O₃ – 0.17; Fe₂O₃ – 0.06; MgO – 0.40; and P₂O₅ – 0.008.

The particle size distribution of the MLPW was determined by sieve analysis using a standard set of sieves with mesh openings of 10, 5, 2.5, 1.25, 0.63, 0.315, and 0.16 mm. Particles larger than 5 mm were removed and were not used in the preparation of the hyperpressed brick specimens. Based on its fineness modulus, the MLPW was classified as medium-grained sand. The bulk density of the material was 1824 kg/m³.

Two types of Portland cement were used as binders: CEMIX White Portland Cement PCB-1-500-D0 (M500) and ZhambylCement CEM I 42.5 N gray Portland cement (M450).

The marbleized limestone processing waste (MLPW) was used without additional treatment after sieving through a 5 mm sieve to remove oversized particles and other impurities. The particle size distribution of the MLPW was determined by sieve analysis using a standard set of sieves with mesh openings of 5, 2.5, 1.25, 0.63, 0.315, and 0.16 mm.

After weighing the required amounts of MLPW and Portland cement, the dry constituents were mixed for 3 min. The predetermined amount of water was then added, and mixing was continued for an additional 2–3 min until a homogeneous mixture was obtained. To evaluate the properties of the developed materials, specimens in the form of miniature bricks (120 × 60 × 30 mm) were produced. The mixtures were compacted using an IP-1A-500 hydraulic press under compaction loads of 200 kN (approximately 28 MPa) and 300 kN (approximately 41 MPa). The molded specimens were cured for 7 days in a sealed humid environment using a water-lock curing chamber to maintain a high relative humidity throughout the curing period.

The chemical composition of the marbleized limestone processing waste was determined using an EDX-7000 X-ray fluorescence (XRF) spectrometer.

The phase composition of the MLPW was characterized by X-ray diffraction (XRD) using a DRON-3 automated diffractometer equipped with CuKα radiation and a β-filter. The diffraction patterns were recorded under the following operating conditions: tube voltage 35 kV, tube current 20 mA, θ–2θ scanning geometry, and a scanning rate of 2° min⁻¹.

The obtained diffraction patterns were interpreted using the ICDD Powder Diffraction File (PDF-2, Release 2022) database in conjunction with HighScore Plus software.

The microstructure of the hyperpressed brick specimens was examined using scanning electron microscopy (SEM) coupled with energy-dispersive X-ray spectroscopy (EDS). SEM analysis was performed to investigate the morphology and compactness of the cementitious matrix, the interfacial bonding between the binder and aggregate particles, and the distribution of hydration products, while EDS was employed to determine the elemental composition of selected microstructural regions.

To assess the suitability of the marbleized limestone processing waste (MLPW) for the production of construction materials, the material was subjected to radiological testing to determine the specific activity of naturally occurring radionuclides. The measurements were carried out by an accredited radiological laboratory. The results confirmed that the specific activity of natural radionuclides in the MLPW is below the permissible regulatory limits. Therefore, the material satisfies radiological safety requirements and may be used without restrictions in the construction of residential buildings.

Determination of bulk density. The bulk density of marbleized limestone processing waste (MLPW) was determined from the mass and volume of a sample dried to constant mass, poured into a measuring vessel without compaction from a specified height. The bulk density of the MLPW, ρ_b (kg/m³), was calculated with an accuracy of 10 kg/m³ according to the formula given in reference [19]. The maximum permissible difference between the results of two tests shall not exceed 5%.

The compressive strength and average density of the hyperpressed product specimens were determined according to [20]. The compressive strength was determined using an IP-1A-500 hydraulic press. The average compressive strength value was calculated from the test results of three specimens.

3. Results

In this section, mixture compositions for the production of hyperpressed bricks were developed by preparing mixtures with different proportions of marbleized limestone processing waste (MLPW) and white Portland cement (M500). The specimens were manufactured by high-pressure compaction under a pressing load of 200 kN (corresponding to a compaction pressure of 28 MPa). The water-to-cement ratio (w/c) was maintained constant at 0.25 for all mixtures.

Table 1 presents the mixture compositions and the results of the physical and mechanical properties of the specimens after 7 days of curing under moist conditions.

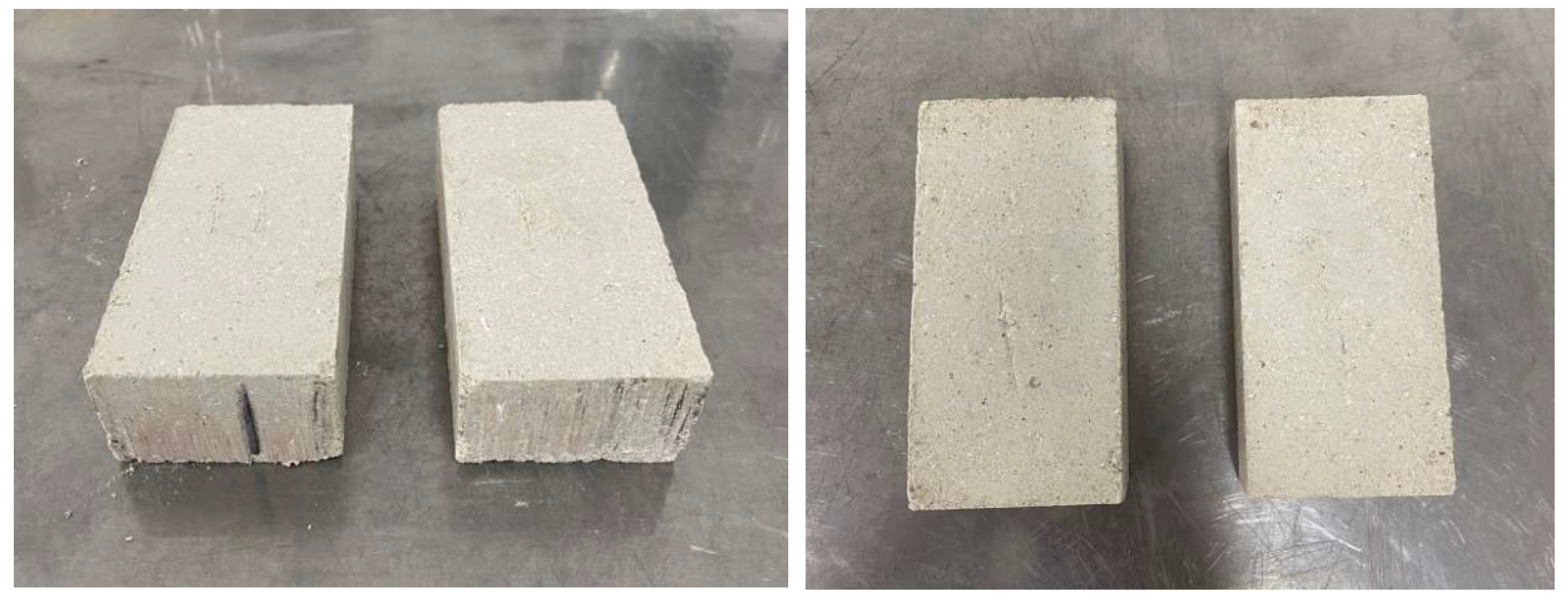

Figure 3 shows photographs of the hyperpressed brick specimens.

As can be seen from Table 1, the compressive strength values of the specimens are relatively high and correspond to brick grades M350 and M400. When considered as concrete specimens, they correspond to concrete strength classes B25, B27.5, and B30.

An increase in the content of marbleized limestone processing waste (MLPW) in the mixtures, and consequently a decrease in the cement content, resulted in a reduction in compressive strength from 43.1 MPa to 34.1 MPa, while the average density increased from 2108.1 kg/m³ to 2145.1 kg/m³ (Fig. 5). The latter is associated with the higher bulk density of the marbleized limestone processing waste (MLPW) compared with that of cement.

The specimens corresponding to Compositions 2 and 3 exhibited the most favorable strength characteristics. In addition, the MLPW content in these mixtures, excluding the amount of water, was 79–83 wt.%. The compressive strength of these specimens corresponded to brick grades M400 and M350, respectively.

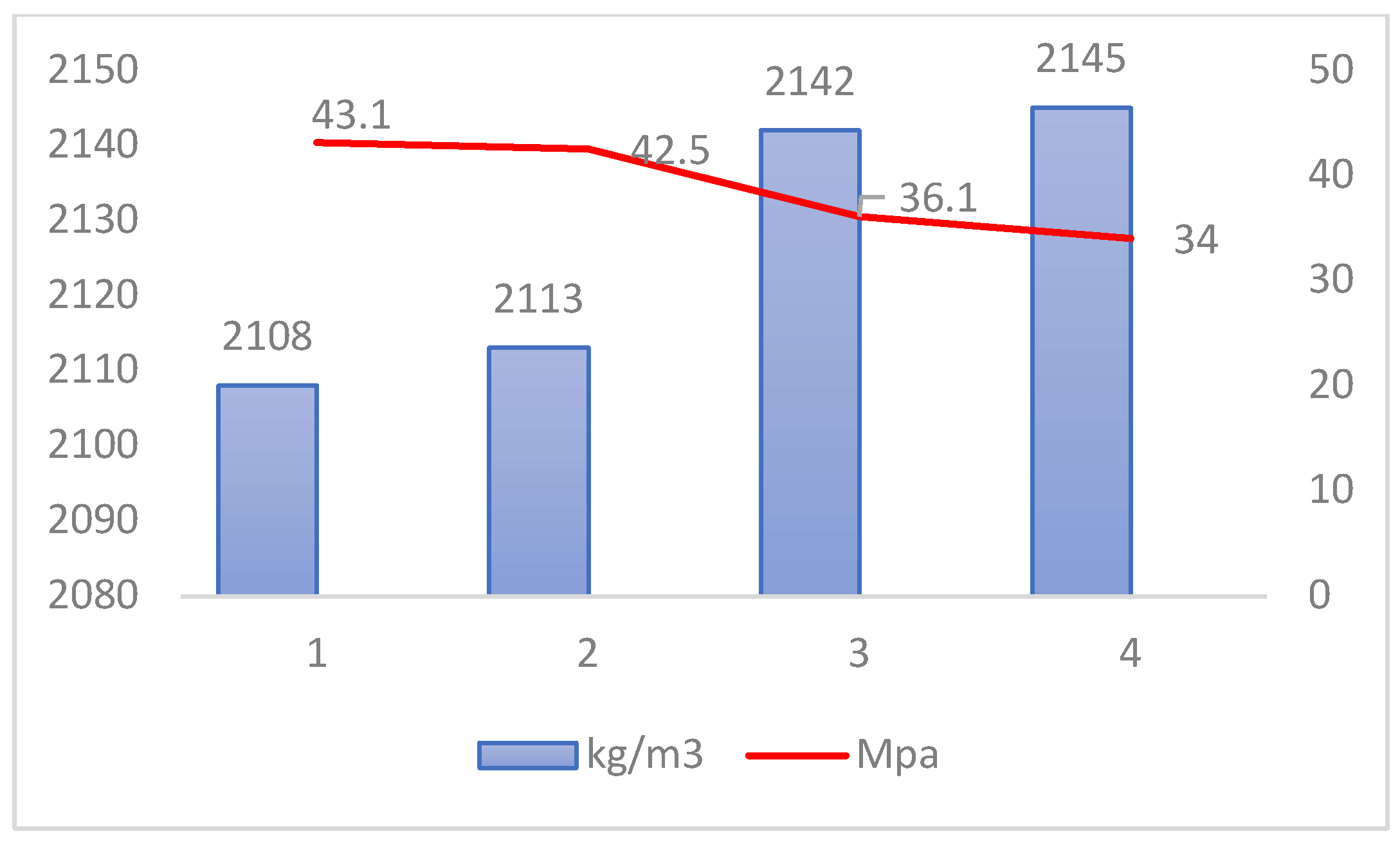

Figure 4. Average density and compressive strength of the specimens produced with gray Portland cement and molded under a compaction load of 200 kN.

Figure 4. Average density and compressive strength of the specimens produced with gray Portland cement and molded under a compaction load of 200 kN.

Figure 5 shows the microstructure of a hyperpressed brick specimen manufactured by compaction under a pressing load of 200 kN and fractured during the compressive strength test.

Figure 5. SEM micrographs of the microstructure of the hyperpressed brick specimen (Composition 2) manufactured by compaction under a pressing load of 200 kN.

Figure 5. SEM micrographs of the microstructure of the hyperpressed brick specimen (Composition 2) manufactured by compaction under a pressing load of 200 kN.

The SEM image at low magnification (a) (×50, scale bar: 500 μm) shows the overall microstructure of the fractured hyperpressed brick specimen manufactured under a compaction load of 200 kN. The matrix consists of a dense cement stone uniformly surrounding the particles of the marbleized limestone processing waste (MLPW). Despite the high degree of compaction, large and small intergranular pores are observed in several areas (Fig. 5a, b). Their formation is associated with the local incomplete packing of aggregate particles and the non-uniform distribution of cement hydration products. The surface of the large MLPW particles exhibits the characteristic layered fracture morphology of calcite. No cracks typical of materials subjected to compressive failure are observed in the specimen. Overall, the microstructure is highly compact, which is attributed to the intensive compaction pressure providing close contact between the components of the composite.

The SEM image (b) (×200, scale bar: 100 μm) clearly reveals a coarse aggregate particle with a relatively smooth surface, which is typical of carbonate rocks after mechanical fracture. The aggregate surface is almost completely covered by cement hydration products, indicating good bonding between the aggregate and the cementitious matrix. A dense layer of hardened cement paste has formed in the immediate vicinity of the aggregate particle. No visible gaps or signs of debonding are observed at the aggregate–matrix interface, indicating strong interfacial adhesion achieved as a result of the high compaction pressure.

Figure 5c (×2300, scale bar: 10 μm) shows the detailed microstructure of the cement matrix. The high-magnification SEM image reveals a dense cement stone structure composed predominantly of calcium silicate hydrate (C–S–H) gel. The C–S–H phase is uniformly distributed throughout the matrix and interconnects the individual hydration products. Small intergranular spaces remain between the hydration products owing to the incomplete filling of micropores by the hydrated phases. Overall, the microstructure is dense and homogeneous. The hardened calcium silicate hydrate crystals completely bind the aggregate particles into a continuous monolithic structure, which accounts for the high compressive strength of the hyperpressed brick specimen.

Figure 5d (×2700, scale bar: 5 μm) illustrates the hydration products of the white Portland cement. At higher magnification, the principal cement hydration products are clearly distinguishable. The dominant phase is the amorphous gel-like calcium silicate hydrate (C–S–H), which forms a dense three-dimensional network surrounding the aggregate particles. In addition, a relatively small amount of plate-like portlandite (Ca(OH)₂) crystals, a typical product of free CaO hydration, is observed. The C–S–H gel fills the intergranular spaces and binds the individual portlandite crystals into a continuous monolithic structure, indicating the predominance of a fine-dispersed calcium silicate hydrate network that contributes to the high strength of the material.

In this section, the preparation of the molding mixtures and the proportions of the raw materials were identical to those used for the mixtures described in Section 3.1. The specimens were molded at a constant water-to-cement ratio (w/c) of 0.25 and a compaction load of 300 kN.

Table 2 presents the mixture compositions and the results of the determination of the physical and mechanical properties of the specimens after 7 days of curing under moist conditions.

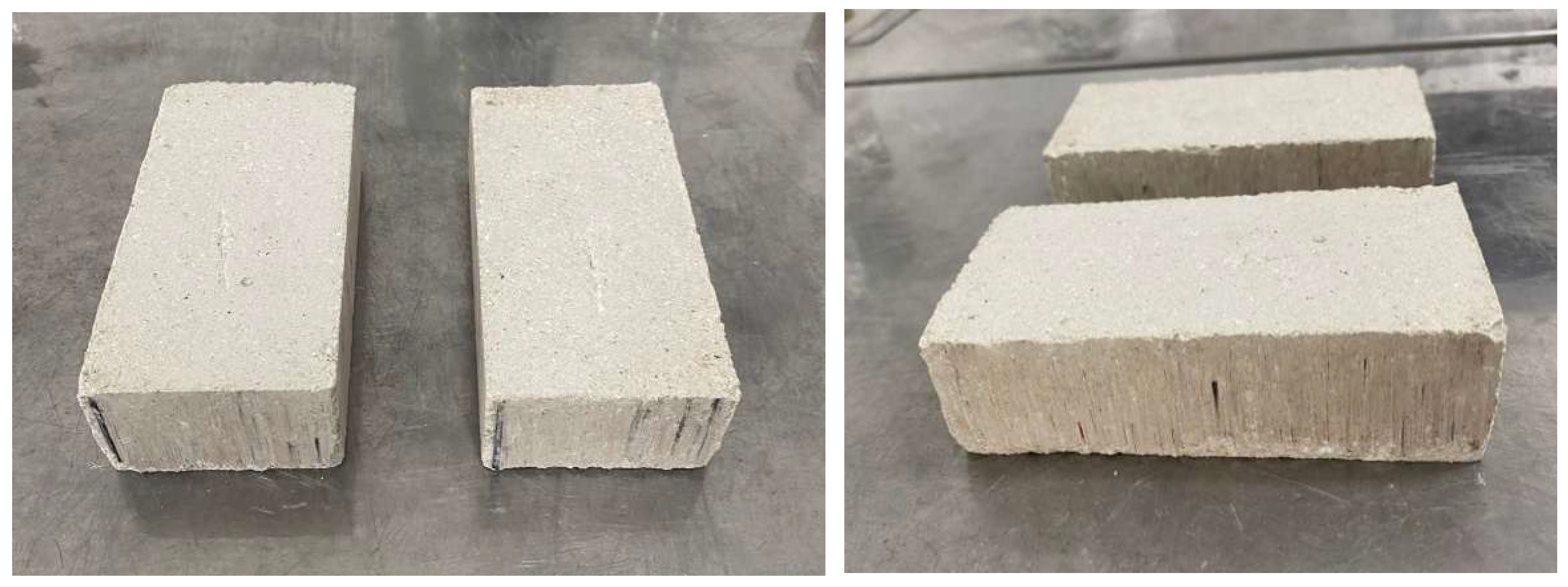

Figure 6 shows photographs of the hyperpressed brick specimens manufactured by compaction under a 300 kN pressing load.

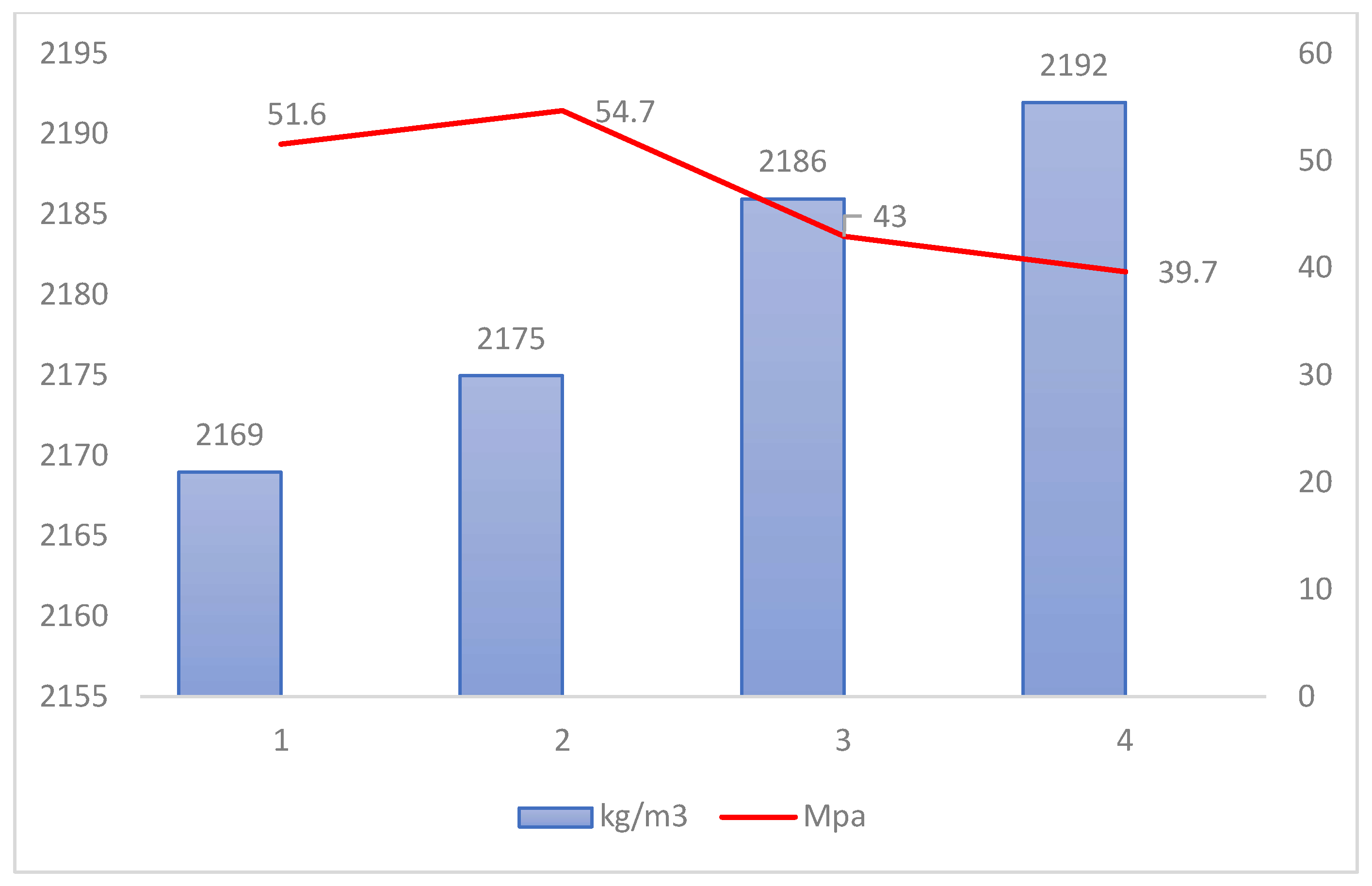

As can be seen from the data presented in Table 2 and Figure 7, increasing the compaction load from 200 kN to 300 kN resulted in a slight increase in the average density and a significant improvement in the compressive strength of the specimens. Specifically, the average density increased by 43.3–61.5 kg/m³ (an increase of 2.02–2.90%) compared with the specimens manufactured under a compaction load of 200 kN.

The average density of the specimens of all compositions exceeded 2100 kg/m³, which makes it possible to classify the obtained products as heavyweight concrete according to [21].

Compared with the specimens manufactured under a compaction load of 200 kN, the compressive strength increased by 1.6–12.2 MPa, corresponding to an increase of 4.7–28.7%. Only a slight increase in strength was observed for Composition 4. In our opinion, this is associated with the low content of binder in the mixture of this composition.

As noted previously, Compositions 2 and 3 exhibited the most favorable strength characteristics. The MLPW content in these mixtures, excluding the water content, was 75–80 wt.%, and their compressive strength corresponded to brick grades M550 and M400, respectively.

Figure 8 shows the microstructure of a hyperpressed brick specimen manufactured under a compaction load of 300 kN and fractured during the compressive strength test.

The SEM image (a) at low magnification (×45, scale bar: 500 μm) shows the overall microstructure of the fractured hyperpressed brick specimen manufactured under a compaction load of 300 kN. The marble aggregate particles exhibit relatively smooth surfaces and are densely surrounded by cement hydration products. The interfacial transition zone (ITZ) between the aggregate and the cement matrix is weakly pronounced, indicating good mechanical bonding between the components. The specimen is characterized by fracture cracks formed during the compressive strength test. The hydration products almost completely fill the space between the aggregate particles, forming a dense and continuous cementitious matrix. The absence of large pores confirms the high degree of densification achieved under the 300 kN compaction load.

Image (b) (×70, scale bar: 200 μm) shows the interface between a coarse marble aggregate particle and the surrounding cement matrix. The aggregate surface is characterized by a relatively smooth texture resulting from the calcitic nature of the rock. Despite the comparatively low surface roughness of the aggregate, the cement hydration products exhibit good adhesion to its surface, as the applied compressive load did not disrupt the integrity of the interfacial transition zone (ITZ). Furthermore, this indicates that the effective bond was achieved not only through adhesion but also as a result of the high compaction pressure applied during the hyperpressing process. Narrow fracture cracks are observed within the cement matrix, having formed during the compressive strength test of the specimen.

At higher magnification, Figure 8c (×1000, scale bar: 10 μm) more clearly reveals the microstructure of the interfacial transition zone (ITZ) between the surface of the marbleized limestone processing waste (MLPW) aggregate and the cement stone. The surface of the MLPW particles is covered with a dense layer of hydration products, predominantly consisting of fibrous and gel-like calcium silicate hydrate (C–S–H). The interfacial transition zone exhibits a high degree of integration without pronounced voids, indicating strong mechanical bonding between the aggregate and the cement matrix. A localized microcrack is observed within the cement stone, most likely formed as a result of shrinkage stresses during drying or during specimen preparation for SEM analysis. This crack does not propagate along the phase boundary, indicating the high strength of the contact zone between the aggregate and the cement matrix.

The high-magnification SEM image (d) (×3500, scale bar: 5 μm) illustrates the morphology of the hydration products of white Portland cement (M500). The cement matrix is predominantly composed of amorphous calcium silicate hydrate (C–S–H) gel, which forms a dense three-dimensional network between the hydration products. In addition, plate-like crystals of calcium hydroxide (Ca(OH)₂), characteristic of Portland cement hydration, are observed. Small intergranular spaces remain between the individual hydration products; however, their limited size indicates a high degree of structural densification. The uniform distribution of calcium silicate hydrate (C–S–H) throughout the matrix, on the aggregate surfaces, and within the intergranular spaces produces a dense microstructure and contributes to the high compressive strength of the hyperpressed brick specimen.

Thus, mixture compositions for the production of hyperpressed bricks were developed, and the properties and microstructure of the resulting specimens were investigated. Manufacturing the specimens under a compaction load of 200 kN produced compressive strengths ranging from 34.1 to 43.1 MPa, corresponding to concrete strength classes B25–B30. Increasing the compaction load to 300 kN resulted in compressive strengths of 39.7–51.6 MPa, corresponding to concrete strength classes B27.5–B40. The specimens containing 75–80 wt.% marbleized limestone processing waste (MLPW) exhibited the most favorable performance characteristics (Table 3 and Table 4). Microstructural analysis showed that compaction under higher pressure produced specimens with a denser microstructure and a stronger contact zone between the aggregate particles and the cement matrix. Consequently, the manufactured products satisfied the performance requirements for hyperpressed bricks.

The results of this study demonstrate that the production of high-strength hyperpressed products incorporating marbleized limestone processing waste (MLPW) is governed by two principal factors. The first and most important factor is the compaction pressure, which should be at least 300 kN. The second factor is the cement grade, which should be not lower than M450. Under such a high compaction load, the mineral aggregate particles and the cement binder are forced into close contact, effectively filling the voids between them. At the same time, intensive internal friction and interparticle contact are generated, promoting strong bonding between the particles at both the molecular and crystalline levels.

In this section, the properties of hyperpressed brick specimens produced using gray Portland cement (M450) were investigated. To ensure comparable experimental conditions and results, the same mixture compositions previously used for the specimens produced with white Portland cement were adopted (Table 5). As demonstrated by the experimental results, the highest performance of the specimens produced with white cement was achieved at a compaction load of 300 kN. Therefore, the same compaction load was used for manufacturing the specimens with gray Portland cement.

Table 3 presents the mixture compositions and the results of the physical and mechanical properties of the specimens after 7 days of curing under moist conditions.

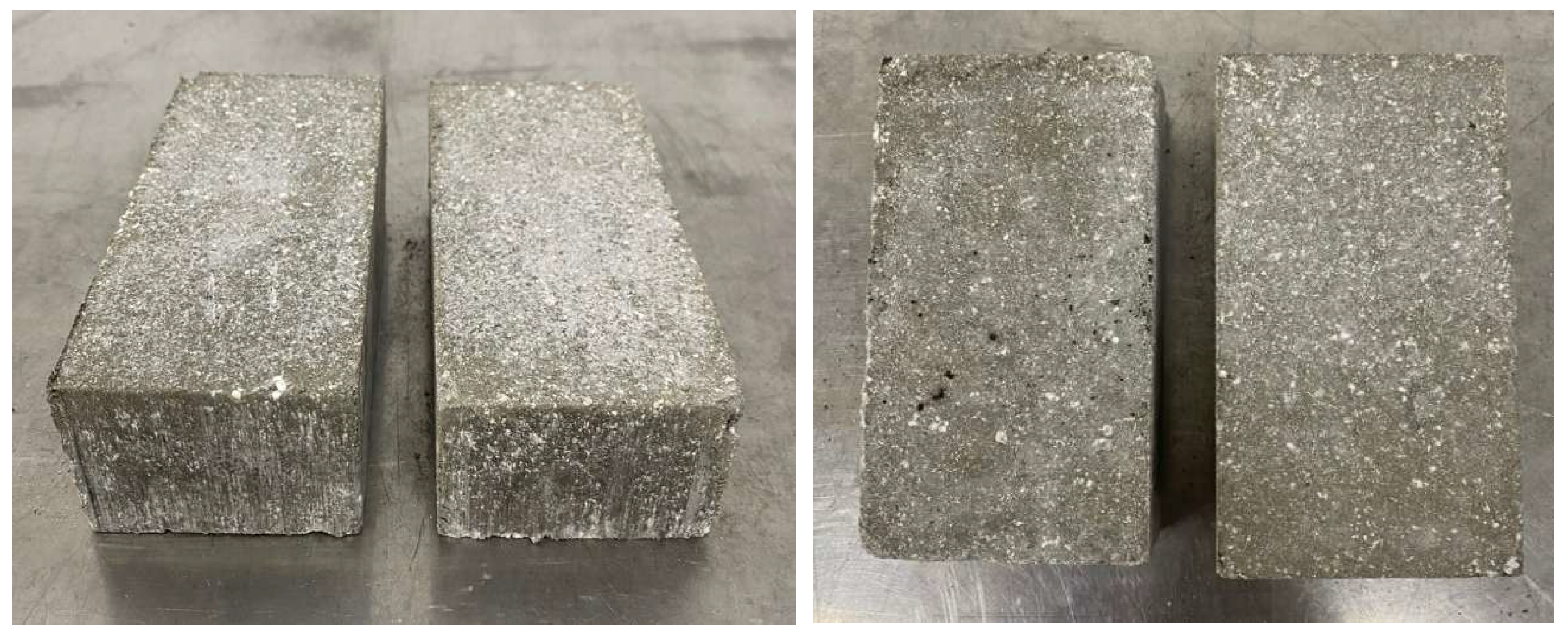

Figure 9. Hyperpressed brick specimens produced with gray Portland cement and molded under a compaction load of 300 kN.

Figure 9. Hyperpressed brick specimens produced with gray Portland cement and molded under a compaction load of 300 kN.

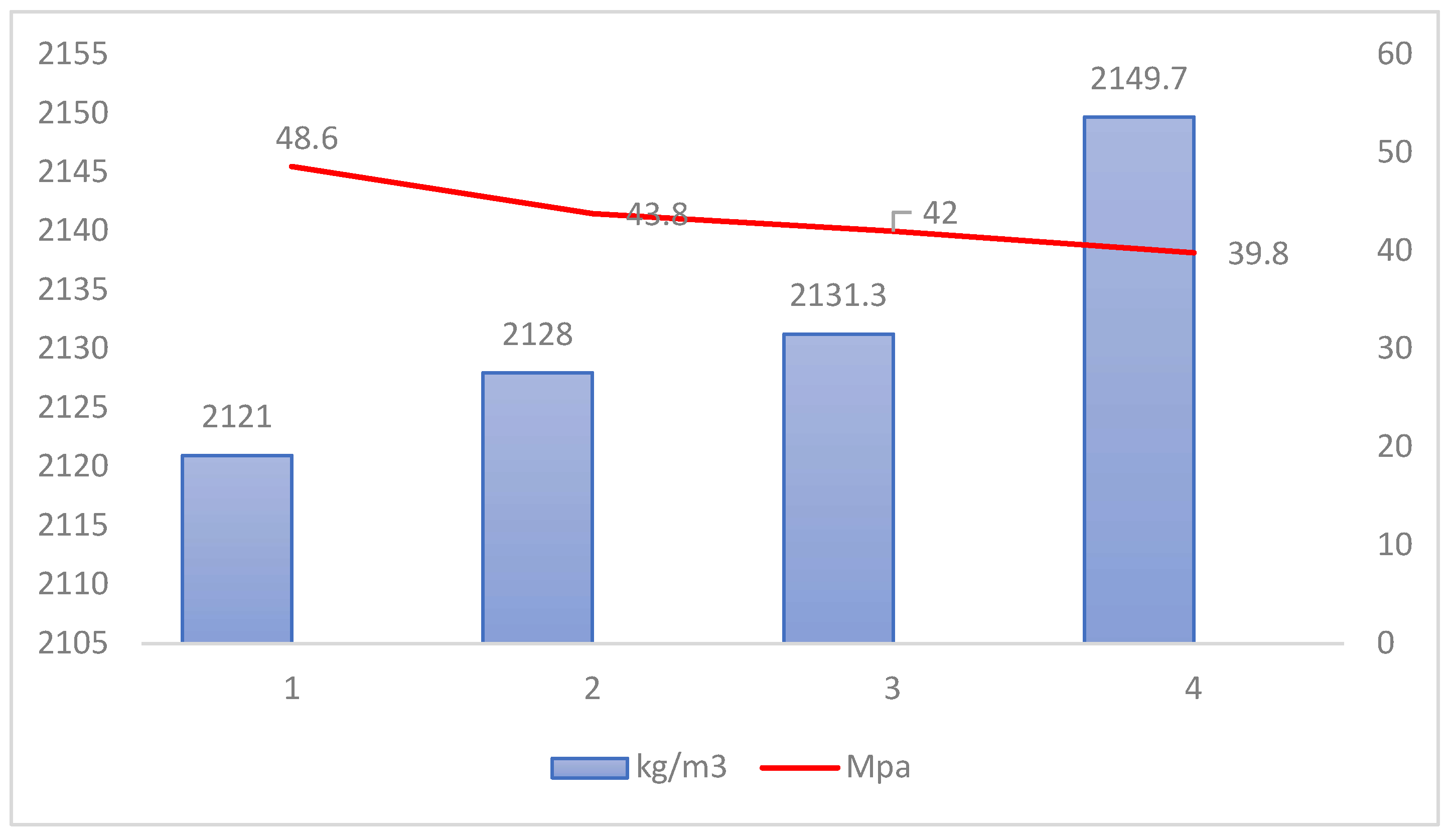

Figure 10. Average density and compressive strength of the specimens produced with gray Portland cement and molded under a compaction load of 300 kN.

Figure 10. Average density and compressive strength of the specimens produced with gray Portland cement and molded under a compaction load of 300 kN.

The experimental results presented in Table 6 show that, after 7 days of curing, the specimens achieved compressive strengths corresponding to brick grades M450 and M400, which also represent high strength levels for hyperpressed bricks. The strength characteristics are slightly lower than those of the specimens produced with white Portland cement, which can be attributed to the higher strength grade of the latter. The increase in average density and the decrease in compressive strength follow the same trends as those observed for the specimens produced with white Portland cement.

Figure 11 shows the microstructure of a hyperpressed brick specimen produced with gray Portland cement, manufactured under a compaction load of 300 kN, and fractured during the compressive strength test.

The SEM image (a) (×110, scale bar: 100 μm) shows the contact interface between the surface of the marbleized limestone processing waste (MLPW) aggregate and the cement matrix. The surface of the MLPW particles is covered with cement hydration products, forming a continuous layer around the aggregate. A microcrack is observed within the cement stone, propagating predominantly through the cement matrix rather than along the phase boundary. This indicates that the adhesion between the aggregate and the cement matrix remains satisfactory, whereas the crack is most likely associated with shrinkage deformation or localized stress concentrations generated during the compressive failure of the specimen.

Image (b) (×500, scale bar: 50 μm) illustrates the interfacial transition zone (ITZ) between the marble aggregate and the cement matrix. The MLPW particles are almost completely encapsulated by cement hydration products, forming a continuous three-dimensional structure. The cement matrix exhibits a dense, fine-grained morphology with a minimal amount of open porosity. The hydration products are uniformly distr ibuted around the aggregate surface, providing strong bonding between the two phases. Virtually no evidence of significant debonding between the cement matrix and the aggregate or the development of microcracks is observed, indicating the beneficial effect of the 300 kN compaction load on the formation of a dense microstructure in the hyperpressed brick specimen.

The high-magnification image (c) (×1500, scale bar: 10 μm) reveals the microstructure of the cement matrix. The matrix is predominantly composed of gel-like calcium silicate hydrate (C–S–H), which forms a three-dimensional network interconnecting the individual particles of the material. In addition to C–S–H, plate-like crystals of calcium hydroxide (Ca(OH)₂), characteristic hydration products of Portland cement, are observed. In several localized regions, needle-like crystalline formations are also present, which may be attributed to ettringite, formed during the early stages of cement hydration and retained within the hardened cement matrix. Small pores remain between the hydration products, indicating a slightly less compact cement matrix than that observed in the specimens manufactured under higher compaction pressure.

The high-magnification image (d) (×3000, scale bar: 5 μm) shows the microstructure of the cement hydration products. The cement matrix is predominantly composed of a dense amorphous calcium silicate hydrate (C–S–H) gel, which surrounds the marble aggregate particles. In addition to the C–S–H gel, isolated plate-like hydrated crystals are uniformly distributed throughout the cement matrix. This combination of amorphous gel and plate-like crystalline hydrates contributes to structural densification and reduces capillary porosity. No large voids are observed between the hydration products, indicating a high degree of cement hydration and effective densification of the material.

4. Discussion

The obtained results demonstrate that the physical and mechanical performance of hyperpressed bricks is primarily governed by the degree of structural densification achieved through the applied compaction pressure. Increasing the pressing load from 200 to 300 kN resulted in both a higher average density and a significant improvement in compressive strength, indicating more efficient packing of marbleized limestone processing waste (MLPW) particles and a reduction in the volume of intergranular voids. A similar relationship between structural densification and mechanical performance has been reported in previous studies [22], where the incorporation of waste glass promoted the formation of a denser ceramic matrix through pore reduction and enhanced particle bonding. Although the densification mechanisms differ, involving liquid-phase sintering in ceramics and high-pressure compaction in cement-based composites, both approaches demonstrate that increasing structural compactness is the primary factor responsible for improving mechanical performance.

An important outcome of the present study is the identification of an optimal MLPW content of 75–80 wt.%, at which the most favorable combination of compressive strength and density was achieved. At lower MLPW contents, the potential for utilizing secondary mineral resources is not fully realized, whereas a further increase in waste content is accompanied by a reduction in cement content, resulting in an insufficient amount of hydration products to form a continuous cementitious matrix. This behavior is consistent with the findings reported for zeolite-modified cement composites [25], where the highest compressive strength was also obtained only at an optimum replacement level. The authors attributed this behavior to the achievement of an optimal balance among particle packing, hydration kinetics, and the amount of reactive cementitious material, whereas excessive replacement caused the dilution effect to dominate, leading to a reduction in strength. A similar mechanism is likely responsible for the behavior of the hyperpressed composites investigated in the present study.

The SEM observations further confirm the close relationship between microstructure and the mechanical performance of the developed materials. Specimens manufactured under a compaction load of 300 kN exhibited a denser cementitious matrix, almost complete filling of the intergranular space by hydration products, a weakly pronounced interfacial transition zone (ITZ), and an absence of large pores. In contrast, the specimens produced at 200 kN contained isolated intergranular voids and exhibited a less homogeneous microstructure. These observations indicate that increasing the compaction pressure not only mechanically densifies the composite but also promotes the formation of a more continuous network of hydration products, thereby improving the structural integrity of the cement matrix. Similar relationships between reduced porosity, a more homogeneous microstructure, and enhanced mechanical performance have previously been reported for waste-glass-modified ceramic materials [22] and zeolite-containing cementitious composites [25], where improvements in compressive strength were likewise associated with the formation of denser and more uniform microstructures.

Another factor influencing the mechanical performance of the hyperpressed bricks is the type of cement used. White Portland cement (M500) produced higher compressive strengths than gray Portland cement (M450) under identical mixture proportions and compaction conditions. This behavior can be attributed to the higher hydraulic activity of the white cement, which promotes more intensive hydration and the formation of a larger amount of calcium silicate hydrate (C–S–H), resulting in a stronger cementitious matrix and improved bonding with the MLPW particles. Similar mechanisms have been reported for various cement-based composite materials, where increasing the reactivity of the binder accelerated microstructural development and enhanced mechanical performance [23,24]. Nevertheless, the results of the present study also demonstrate that high-strength hyperpressed bricks can be successfully produced using gray Portland cement, provided that an appropriate compaction pressure is applied, highlighting the significant role of hyperpressing in compensating for the lower activity of the binder.

Overall, the obtained results demonstrate that the performance of hyperpressed bricks is controlled by the combined effects of compaction pressure, MLPW content, and cement activity. Increasing the compaction load to 300 kN provides the most favorable balance between particle packing, hydration development, and microstructural densification, while an MLPW content of 75–80 wt.% ensures both high mechanical performance and maximum utilization of secondary raw materials. These findings are consistent with current trends in the development of sustainable construction materials based on the efficient utilization of industrial waste and confirm the potential of marbleized limestone processing waste as the principal aggregate for the production of high-strength hyperpressed bricks.

5. Conclusions

1. At present, approximately 500,000 tons of waste have accumulated in disposal sites near Tekeli (Almaty Region) as a result of the extraction and sawing of marbleized limestone from the Ekpendinsky deposit. Therefore, the development of a technology for manufacturing facing wall materials based on marbleized limestone processing waste (MLPW) and local clay raw materials, aimed at improving the appearance, decorative properties, and durability of residential buildings, is an important and relevant task.

2. The mineralogical composition of the marbleized limestone processing waste from the Ekpendinsky deposit consists of 95.3 wt.% calcite and 4.7 wt.% feldspar. No Ca(OH)₂ was detected in the MLPW. Based on a fineness modulus of 3.1, the MLPW is classified as a medium sand.

3. Mixtures containing 70–85 wt.% MLPW and 12–24 wt.% white Portland cement (M500) or gray Portland cement (M450) were prepared. Hyperpressed brick specimens were molded under compaction loads of 200 kN and 300 kN, followed by curing under moist conditions for 7 days.

4. It was demonstrated that increasing the compaction load from 200 kN to 300 kN resulted in higher average density and compressive strength. The average density increased by 43.3–61.5 kg/m³ (an increase of 2.02–2.90%), while the compressive strength increased by 1.6–12.2 MPa, corresponding to an improvement of 4.7–28.7%. As the MLPW content increased, the average density increased whereas the compressive strength decreased, the latter being associated with the reduced cement content in the mixtures.

5. At present, there is no GOST standard specifically regulating hyperpressed bricks. In the present study, the specimens manufactured under a compaction load of 300 kN exhibited an average density of 2169.6–2192.2 kg/m³ and compressive strengths of 39.7–51.6 MPa, corresponding to brick grades M400–M550 according to the applicable standards. The average density of all specimens exceeded 2100 kg/m³, allowing the products to be classified as heavyweight concrete.

6. When gray Portland cement (M450) was used as the binder, while maintaining the same MLPW proportions, w/c ratio, and a compaction pressure of 41 MPa, the specimens exhibited average densities of 2121.0–2149.7 kg/m³. Their compressive strength ranged from 39.8 to 48.6 MPa, corresponding to brick grades M400–M450, which also represent high strength levels for hyperpressed bricks. The variations in density and strength followed the same trends as those observed for the specimens produced with white Portland cement.

7. The experimental results obtained for the physical properties of the hyperpressed brick specimens produced with both white and gray Portland cement are in good agreement with the results of the SEM microstructural analysis. The SEM micrographs obtained at different magnifications demonstrated that the highest degree of structural densification was achieved at a compaction load of 300 kN.

8. Fracture of the specimens during the compressive strength test occurred through the cement matrix rather than along the aggregate–cement interface. This indicates a high level of adhesion between the surface of the marbleized limestone aggregate and the cement matrix.

9. The results of this study demonstrate that the production of high-strength hyperpressed products incorporating marbleized limestone processing waste (MLPW) is governed by two principal factors. The most important factor is the compaction load, which should be at least 300 kN. The second significant factor is the cement grade, which should be not lower than M450. Under such compaction conditions, the mineral aggregate particles and cement binder are brought into extremely close contact, effectively filling the interparticle voids. This process intensifies internal friction and contact interaction between the mixture components, resulting in strong interparticle bonding at both the molecular and crystalline levels.

10. Based on the experimental results, the feasibility of manufacturing hyperpressed bricks using marbleized limestone processing waste from the Ekpendinsky deposit has been demonstrated. The produced hyperpressed brick specimens exhibited high mechanical performance, with properties comparable to those reported for hyperpressed products in the published literature.
