Investigating the Deinking of Polyethylene Post-Consumer Waste Flakes Using Industrially Applicable Surfactants

1. Introduction

Among the packaging solutions produced in and imported into the EU28+2, flexible polyolefin packaging has the highest capacity with around 11 Mt in 2020, with 9 Mt amounting to PE only [1]. The vast range of options for introducing functional layers (e.g. barriers against moisture, light, and oxygen), excellent printability, and low cost render flexible PE the preferred choice for many packaging applications [2,3,4,5]. Given that the lifespan of flexible packaging is typically limited to a few weeks, it constitutes the predominant PCW flow in terms of quantity [6,7]. However, functional layers cause great inhomogeneity of this waste flow, including foreign polymers such as polypropylene (PP), polyethylene terephthalate (PET), and ethylene vinyl alcohol (EVOH) as well as metal barriers, and printing inks [7,8,9]. These foreign materials, together with non-intentionally added substances (NIAS), cause a plethora of undesired side effects and reactions during mechanical recycling, limiting the recycling materials to applications of low requirement [10].

The packaging and packaging waste regulation (PPWR) restricts the use of many foreign materials and requires the increased implementation of mono-material solutions [11,12,13,14]. While the PPWR will expectedly minimise the challenges posed by some foreign materials, no regulations for printing inks are included. These generally make up 2 to 4 wt.% of flexible packaging and serve marketing purposes as well as the mandatory product and consumer informations [15,16]. Current printing inks predominantly contain nitrocellulose (NC) as a binding agent, which is known to degrade at temperatures above 160 °C, yielding volatile organic compounds (VOC) as well as substances that are dark in colour, and, more importantly, harmful to health [17,18,19,20].

Consequently, the complete removal of printing inks prior to regranulation offers the potential to produce recyclates of superior quality in terms of mechanical and optical properties as well as odour [21,22,23]. The deinking of film flakes has attracted considerable attention in recent years, with multiple research groups investigating washing parameters and unravelling the mechanisms of ink removal [5,23,24,25,26]. In 2007, Chotipong et al. proposed the deinking mechanism using a cationic surfactant in alkaline media which was further described in 2023 by Guo et al. as shown in Figure 1 [24,27].

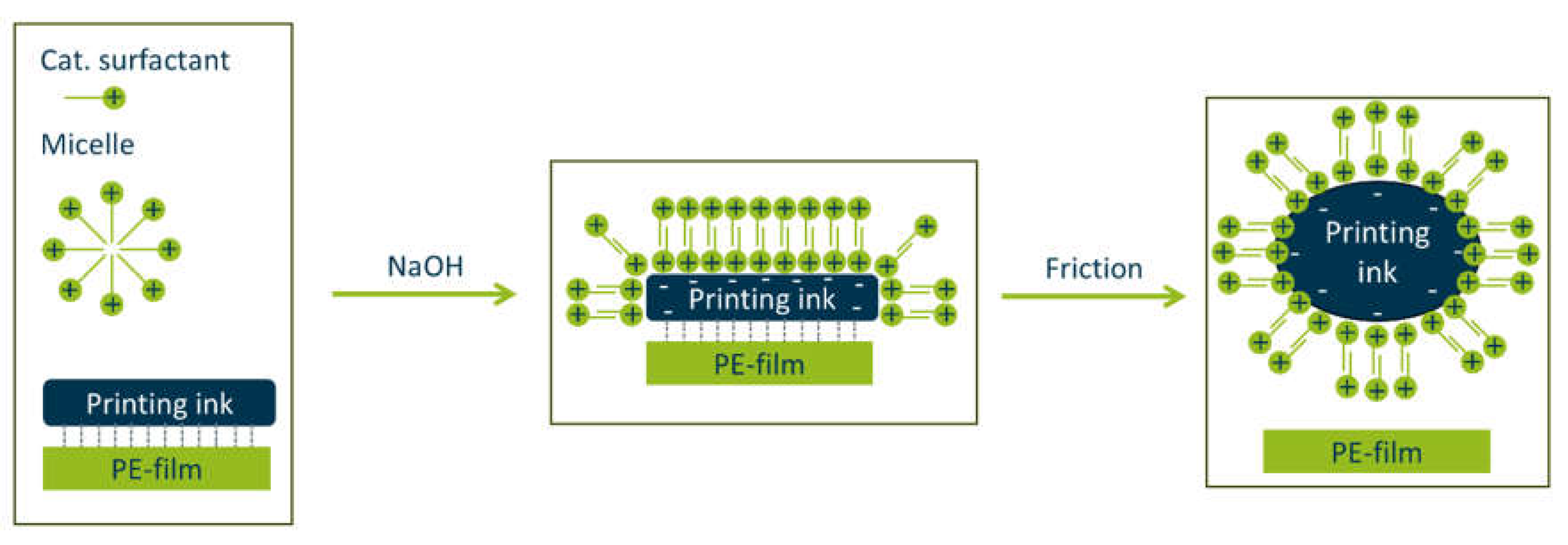

Since 2024, the DIN SPEC 91496 proposes a methodological procedure for deinking experiments on the laboratory scale. Deinking efficiency heavily depends on washing parameters such as friction, pH, surfactant formulation, and water temperature [5,22,24]. Likewise, film properties as the type of binding agent and general printing ink formulation as well as the occurrence of functional layers (e.g. metal barriers, laminations) can influence deinking [28].

In consideration of the PPWR’s requested minimum amounts of post-consumer recyclate (PCR) use for plastic packaging, ranging from 10% for contact-sensitive packaging to 35% for other single-use packaging products, the investigation of deinking on PCW flakes is highly aspired both in the scientific and the industrial field. However, the deinking of printed films has so far only been systematically investigated and evaluated using surface-printed mono-layer model films. This experiment design allows for quick and simple evaluation of ink removal but compromises on the applicability to real-life PCW flakes, namely the influence of contaminants from waste residues on the deinking and the non-transferable evaluation process [2,29]. The International Commission on Illumination Lab (CIELab) method, used to calculate the deinking efficiency, utilises an unprinted film sample as reference. This is hardly applicable to inhomogeneous (i.e. printed, transparent, laminated, mass-coloured) PCW flakes that come in the form of rolled-up, torn and folded flakes [5,24,29].

Recently, our group presented a methodology for the straight-forward quantification of ink removal that allows the comparison of deinking experiments on PCW flakes while still allowing a lab-scale approach [29]. This was achieved by scanning small amounts of flakes with transmitted light and converting the images to the 8-bit grey scale. Higher grey values are an indicator for higher flake transparency. Consequently, grey value distributions can be statistically evaluated and correlated to the efficiency of a deinking experiment. The method proved reproducible and robust despite the flakes’ inhomogeneous structure and film design. Within the parameters investigated, there was a significant shift towards higher grey values (i.e. higher flake transparency) for higher water temperatures (30°C < 60°C < 80°C) and longer washing times (15 min < 60 min < 120 min). This study investigates whether the presented evaluation method contributes to the transfer of comprehensive deinking insights to industrial deinking applications on PCW flakes. The deinking of PCW flakes is systematically investigated using cetrimonium chloride (CTAC), which is the proposed surfactant in the DIN SPEC 91496, as well as additional cationic and non-ionic surfactants that are industrially available. Furthermore, lye concentration and washing parameters are varied with the aim of identifying beneficial parameters for the deinking of PCW flakes. The full factorial design is statistically analysed by a multiple linear regression, allowing a deeper understanding of the deinking mechanism on PCW flakes. These findings may serve as a basis for adapting industrial washing processes, thereby enabling the production of recycled materials with improved qualities through effective deinking.

2. Materials and Methods

This chapter includes the utilised materials, the pre-treatment of the PCW flakes, the deinking procedure, and the evaluation of the ink removal.

2.1. Materials and Pre-Treatment of PCW Flakes

PCW flakes from the “DSD310” fraction were kindly provided by Der Grüne Punkt GmbH & Co. KG, Cologne, Germany. In this fraction, household waste is sorted for flexible PE films. The films are shredded to a size of 40 to 60 mm and separated from coarse impurities and labels using a metal separator, air separator and dry mechanical cleaning. The flakes then undergo a cold washing step including a float-sink-separation and are collected before entering regranulation. The flakes were dried at 80 °C for 6 hours and cut to a target size of 10-20 mm using a MDSi 410/200 cutting mill from Hellweg Maschinenbau GmbH & Co. KG, Roetgen, Germany. NaOH was supplied from Carl Roth GmbH + Co. KG, Karlsruhe, Germany. CTAC was supplied from Thermo Fisher Scientific, Langerwehe, Germany. Cirkit Wash 01 was kindly provided by Siegwerk Druckfarben AG & Co. KGaA, Siegburg, Germany. TEGO CYCLE WA111 and TEGOMER DA850 were kindly provided by Evonik Industries AG, Essen, Germany.

2.2. Deinking Trials

The washing trials are based on the DIN SPEC 91496 but modified to account for the peculiarities of PCW flakes [29,30]. The water temperature and washing times varied in three steps (30 °C, 60 °C, 80 °C and 15 min, 60 min, 120 min, respectively). A single transparent virgin PE flake was added to each washing trial to detect recolouring of the flakes due to dissolved inks. Due to the relatively low concentrations of printing inks in PCW flake fractions compared to printed model films, no trial showed any signs of recolouring.

NaOH was used at concentrations of 1% and 2%. The surfactants were kept at a fixed concentration above the critical micelle concentration (cmc)[5,27] which was proposed by the DIN SPEC 91496 to 0.2 wt.% in the case of CTAC [30], or by the respective surfactant suppliers. Cirkit Wash 01 (hereafter referred to as CW01) was used at a concentration of 0.25%. Non-ionic surfactants TEGO CYCLE WA111 (hereafter referred to as WA111) and TEGOMER DA850 (hereafter referred to as DA850) were used at concentrations of 0.5% and 0.25%, respectively. The deinking parameters and surfactants are summarised in Table 1.

In a 2 L beaker, the respective surfactant was dissolved in a solution (1 L) of NaOH, and the mixture was held at the target temperature. 10 g of PCW flakes were stirred in the solution at 200 min⁻¹ for the target washing time. The flakes were then removed from the washing solution, rinsed with 0.5 L of water and dried in a convection oven at 80 °C for 6 hours.

2.3. Evaluation of Ink Removal

Transmission measurements are conducted on a Perfection V750 Pro from SEIKO Epson Corporation, Suwa, Japan. 2 g batches of the flakes are placed on the scanning surface and manually distributed to ensure an even distribution of flakes with minimal overlapping. This measurement is repeated with the next 2 g batch of flakes, yielding a total of 4 scans and 8 g of scanned flakes per experiment. Greyscale images of the scans are created and all pixels below a grey value threshold of 240 are evaluated. This ensures that only flake pixels and no background are evaluated [29]. Using grey values from all scans of a respective experiment, normalised distributions are extracted that can be quantitatively described via statistical characteristics.

2.4. Statistical Analysis

A previous study has already demonstrated that the median grey value Q2 allows for a quantitative comparison of deinking experiments [29]. A multiple linear regression is set up with Q2 as the target value using JMP Student Edition 19 (SAS Institute, Cary, USA). The investigated parameters (lye concentration, surfactant, washing time, and water temperature) from the full factorial design are considered. Main effects, corresponding to the respective parameters, and interactions between two or more parameters can be considered in the regression model. The model quality is evaluated using the coefficient of determination R². It indicates the proportion of the total variance in the median grey values that is explained by the respective regression model. High values of R² indicate a well-fitted model whereas lower values suggest a higher proportion of unexplained variance. The inclusion of third-order interactions increases R² but may lead to overfitting due to a loss of degrees of freedom in the linear regression model. The adjusted coefficient of determination R²adj accounts for the loss of degrees of freedom and must thus be considered to investigate whether the inclusion of third-order interactions proves beneficial for the description of the deinking effects [31]. Furthermore, the root mean squared error RMSE is used to indicate the mean deviation of the model values from the real values. Parameters are considered significant when the p value is below 0.05. The logworth, which is defined as -log₁₀(p), serves as transformation to visualise p values in a pareto diagram. Consequently, a logworth above log₁₀(0.05) = 1.30 indicates that the respective parameter is significant. Relevant effects are depicted in main effect and interaction diagrams with the least squares means (LSM) and the standard error that quantifies the prediction uncertainty of the calculated mean values [32,33,34].

3. Results and Discussion

The investigated effect terms and statistical parameters for the multiple linear regression model are listed in Table 2.

The inclusion of third-order interactions leads to a decrease in RMSE of 0.9464 and an increase in R² of 0.1031, indicating a better fitting model. More importantly, R²adj shows an increase of 0.0935, which indicates that the model extension does not lead to overfitting. It can be concluded that the inclusion of third-order interactions proves beneficial to describe the deinking effects [31]. Consequently, the statistical analysis was set up to include all relevant main effects and second-order as well as third-order interactions. Effect terms and their logworth are depicted as a pareto diagram in Figure 2.

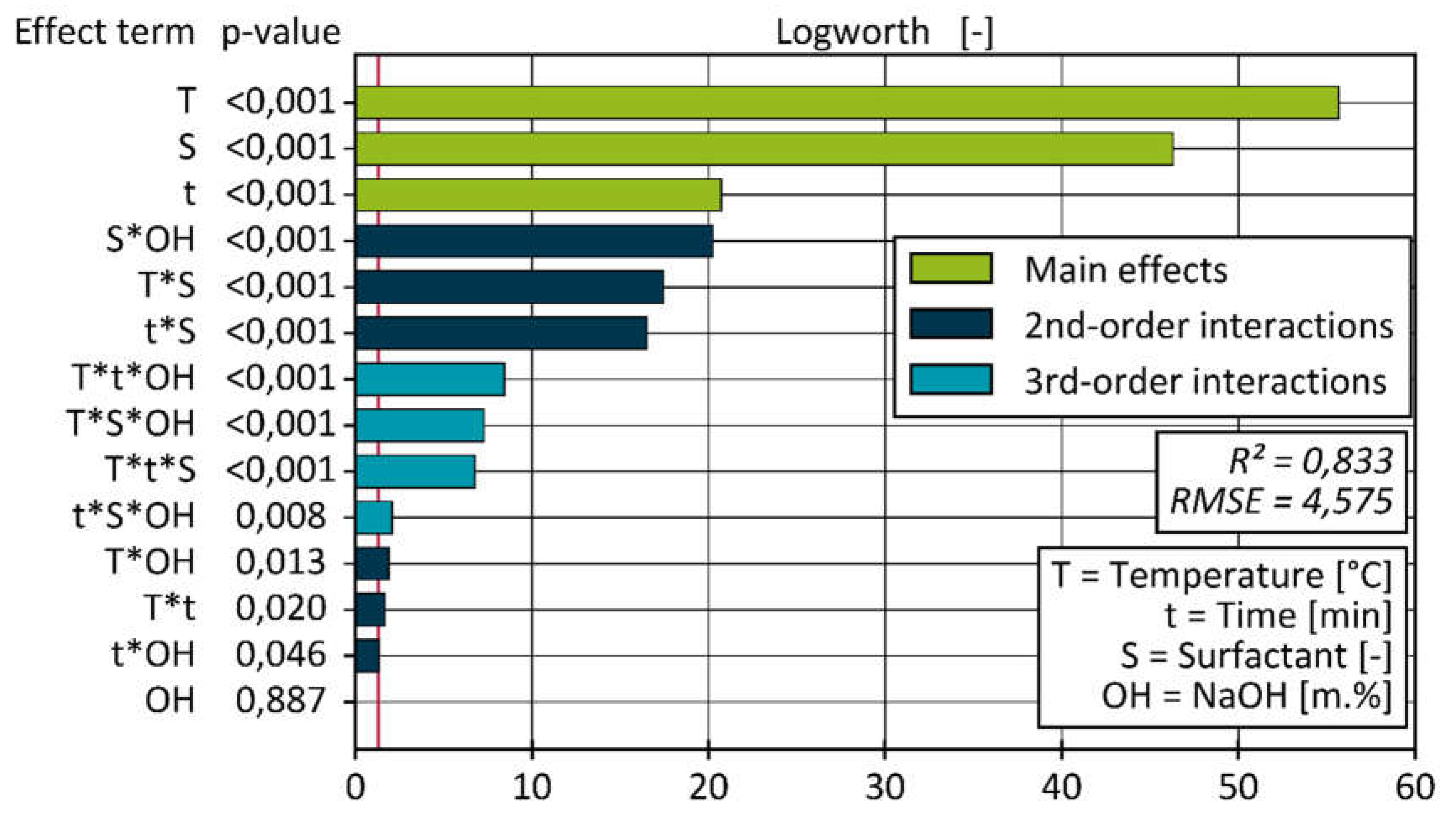

The transformation of p-values to the logworth allows to visualise the significance of the individual effect terms. As depicted in Figure 2, all main effects and interactions except for the concentration of NaOH are significant and thus included into the regression model. Since the interactions with the lye concentration are significant, the main effect is also kept in the model. LSM values with their respective standard errors are depicted in Figure 3.

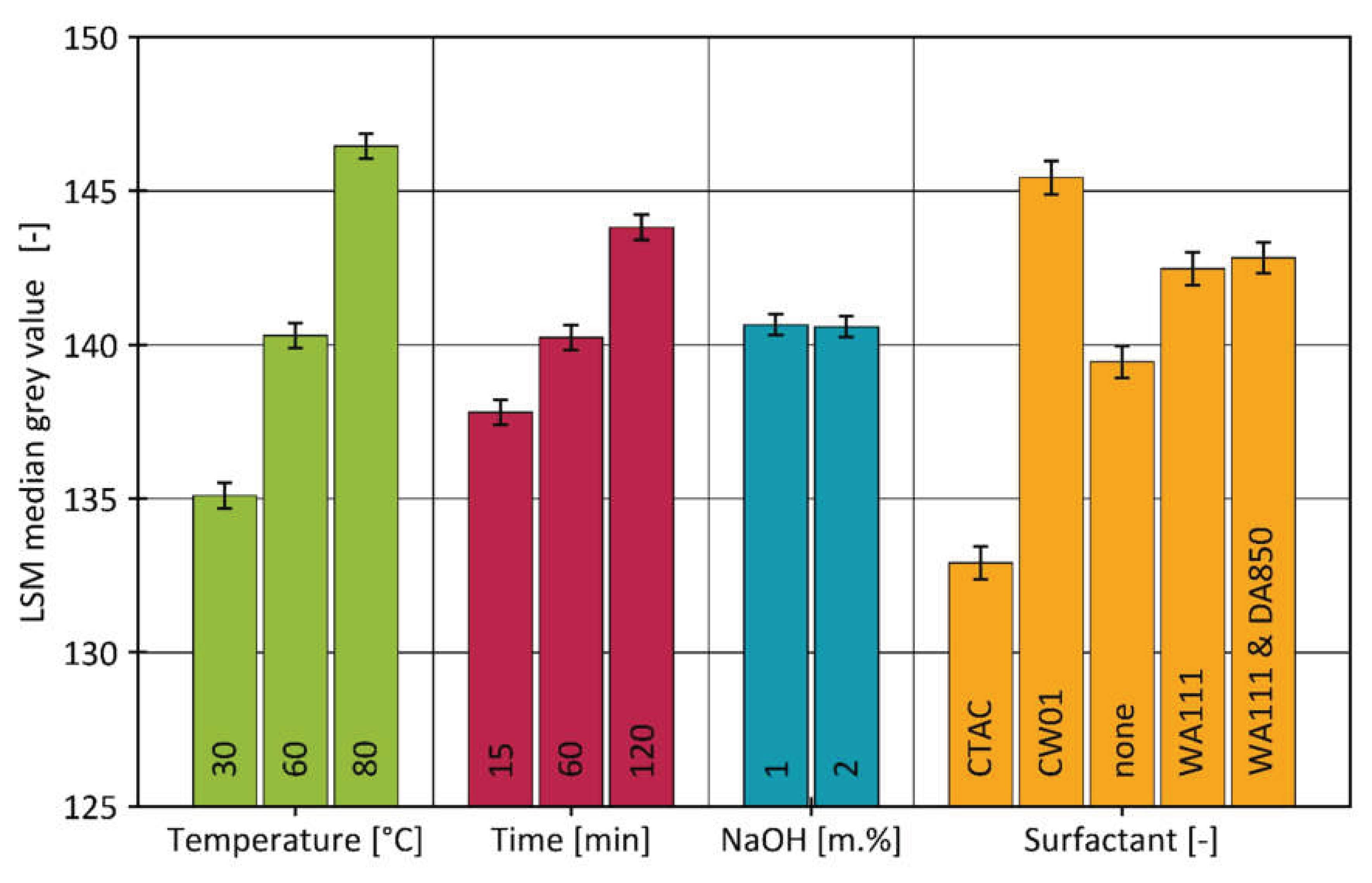

LSM median grey values depicted in Figure 3 are calculated from the means of the median grey values for all experiments at the respective factor level and therefore provide an overview of the relevant effects. Opposing interactions, such as those that may occur between a surfactant and the concentration of NaOH, can only be accounted for in interaction diagrams. The influence of the lye concentration is therefore discussed below in Figure 6. Both an increase in temperature and washing time yield higher LSM median grey values. The positive effect of increased temperatures on deinking efficiency has been demonstrated in various publications [24,35,36]. Furthermore, it was shown that the deinking of surface-printed films proceeds relatively quickly. Dissolved inks can reversibly interact with the flakes, causing staining and thus a recolouring of the flakes. Especially for experiments using uniformly printed model films, the high concentration of dissolved inks in the washing solution enables staining of the flakes with increased washing times and shifts the equilibrium towards stained flakes in comparison to PCW flakes [5,29,36,37].

Most deinking publications demonstrate the best deinking efficiencies for cationic surfactants. Quaternary ammonium-based surfactants like CTAC and its derivatives show consistently high deinking efficiencies, with CTAC being proposed in the DIN SPEC 91496 [5,24,30,35,36,38]. Among the parameters examined, CTAC shows the lowest deinking efficiency, with median grey values below the experiments that do not include any surfactant. This discrepancy indicates that the deinking of PCW flakes introduces additional factors that influence the ink removal compared to model films. Possibly, some waste residues on PCW flakes (fats, oils, etc.) have strong interactions with CTAC. If the formation of micelles with contaminants is energetically favoured compared to the adhesion and stabilisation of the binding agent, surfactant molecules are partially deactivated and cannot engage in the deinking mechanism. CW01 is a surfactant formulation based on CTAC, the zwitterionic lauryldimethylamine oxide (LDAO), which is known to be highly hydrophilic, and Poly(oxy-1,2-ethanediyl), α-(2-propylheptyl)-ω-hydroxy-, which is a non-ionic ethoxylated alcohol that is industrially used as a cleaning agent and degreaser [39,40,41,42]. It can be hypothesised that the high deinking efficiency of CW01 can be attributed to the combination of surfactants with different affinities that prove more robust to the various contaminants present in PCW flakes. The non-ionic surfactant formulations WA111 and WA111&DA850 show similar mean deinking efficiencies that are between those of CW01 and experiments with no surfactant added. The lower LSM median grey values are partially caused by the low deinking efficiencies of the non-ionic surfactants at lower temperatures which are outlined in Figure 4.

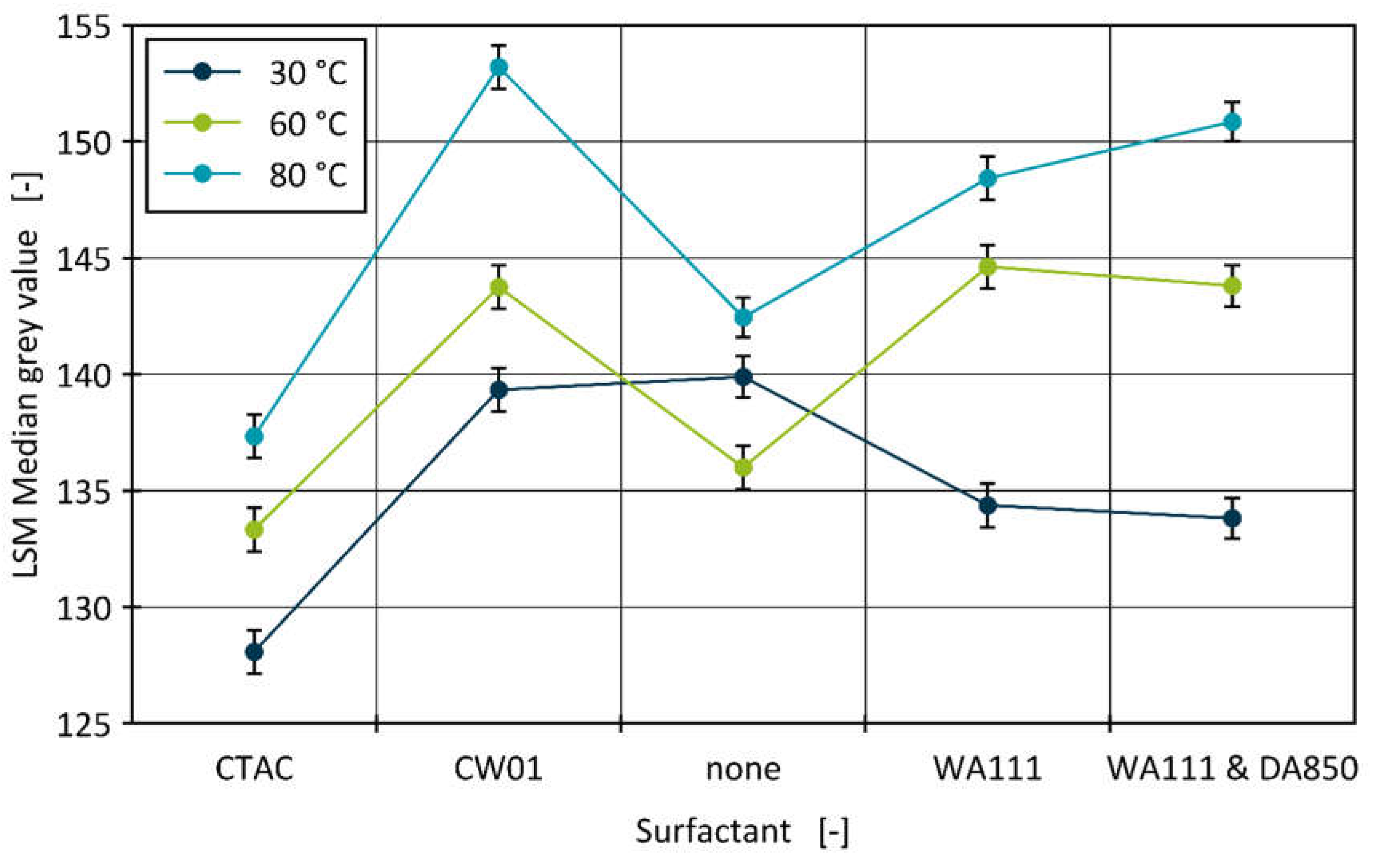

LSM median grey values depicted in Figure 4 widely confirm the trend discussed above that higher water temperatures lead to better deinking results, except for the points of 30 °C and 60 °C with no surfactant added. This reversed effect could be explained by the change in the deinking mechanism that results from the absence of surfactants. With only NaOH present in the washing solution, the hydrolysis of the binding agent’s covalent bonds is expected to be the dominating process for ink removal. This effect alone should lead to the same trend, with higher hydrolysis rates and, more importantly, higher diffusion rates of NaOH into the NC matrix with higher temperatures [24,43,44,45]. However, it is postulated that the glass transition or a similar phase transition of NC-based binding agents take place at temperatures around 50 °C [46,47,48]. A softening of the binding agent could lead to an increased adhesion on the flake surface or a slower diffusion of the washing solution that hinders its removal from the flake within this temperature range but is compensated for by the higher hydrolysis rate at 80 °C. The addition of a surfactant reduces the interfacial energy between flake and binding agent, which might explain why this anomaly can only be observed when no surfactants are added.

LSM median grey values of the non-ionic surfactant formulations at 30 °C are lower than the experiments with no surfactant added. This can be explained by a limited solubility of the polymer-based surfactant at that temperature, which was observable in the experiments in the form of a cloudy washing solution. This hypothesis is supported by the sharp increase of the LSM median grey values at 60 °C. The interactions of the washing time and surfactants are depicted in Figure 5.

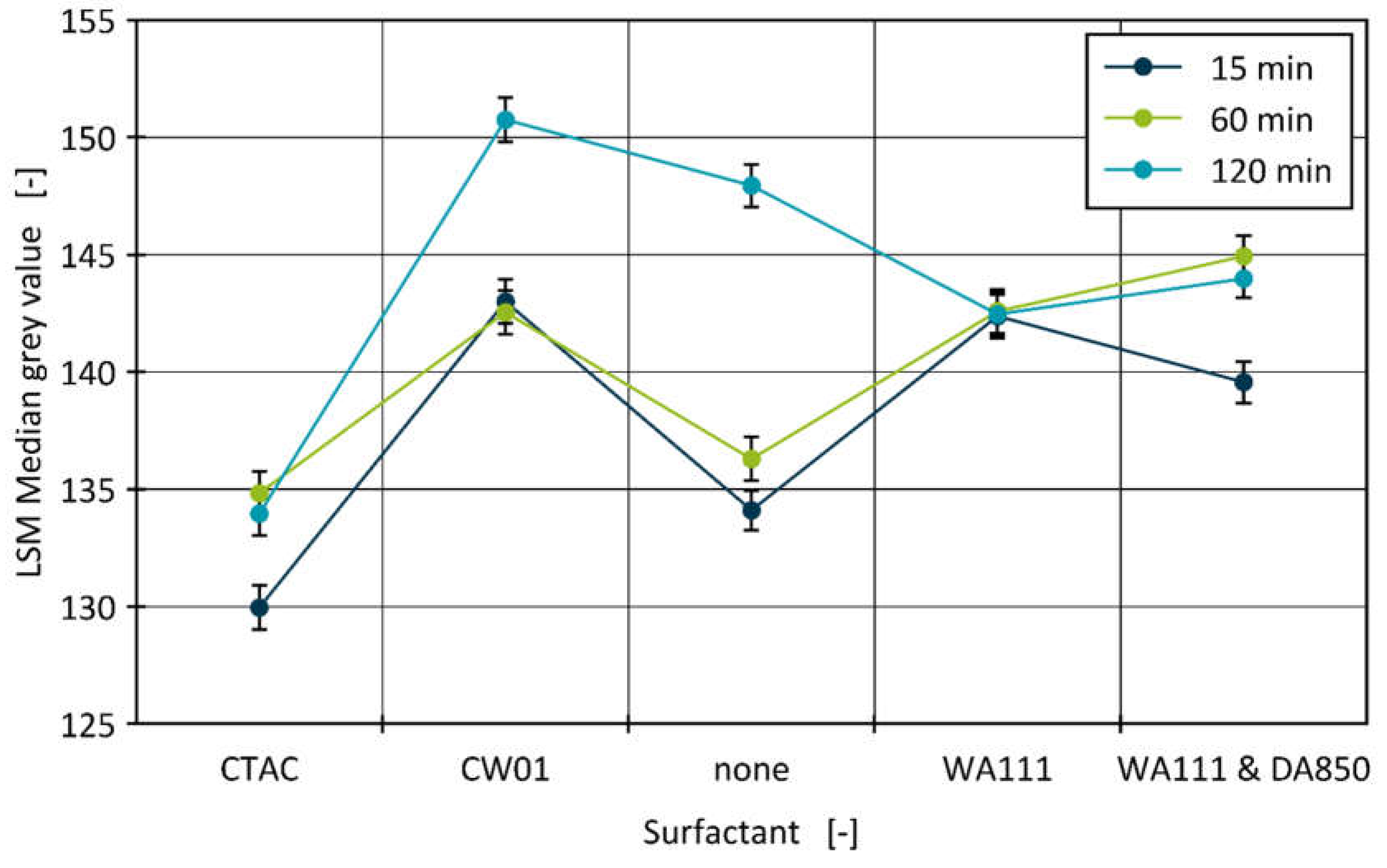

Within the parameters investigated, longer washing times generally lead to higher or equal LSM median grey values. Without staining taking place in the deinking process, a stable equilibrium should establish itself in which surfactant molecules are present in micelles, stabilising printing inks as well as waste residues, and adsorbed onto interfaces. The time required to reach the equilibrium state is determined by the rate of ink removal processes while the position of the equilibrium is determined by the surfactant’s ability to stabilise the dissolved inks. Consequently, significant increases in the LSM median grey values with increased washing time indicate that the deinking equilibrium is not yet established.

The non-ionic surfactant WA111 shows no change in deinking efficiency for increased washing times, indicating quick ink removal. With the addition of DA850, LSM median grey values are lower at 15 minutes but higher at 60 minutes and 120 minutes. Since DA850 is used to stabilise dissolved printing inks, it can be hypothesised that a greater amount of printing ink can be contained in micelles and the equilibrium is shifted to allow for greater ink removal. However, with multiple surfactants present, it is possible that the deinking rate decreases due to surfactant-surfactant interactions or steric hindrance at the printing ink interfaces. For CTAC, it is shown that LSM median grey values increase after 15 minutes but stay mostly unaffected after 60 minutes. The experiments with NaOH only show a slight increase after 60 minutes and a sharp increase after 120 minutes. With no surfactant present to decrease the interfacial energy, the diffusion of NaOH into the binding agent and the removal of the printing ink layer from the flake surface should proceed at a lower rate. With the diffusion being the rate-determining step and the hydrolysis mechanism being necessary for the establishment of the equilibrium, it can be concluded that the deinking rate decreases significantly when no surfactant is present [43,44,45]. A similar trend is observed for the experiments using CW01, although the same explanation cannot apply here. The LSM median grey values after 15 and 60 minutes are roughly equal, but a sharp increase is shown after 120 minutes. While it is possible that the hydrolysis of the binding agent allows for increased amounts of stabilised molecules in micelles, this effect should lead to an increase in the LSM median grey values also after 60 minutes. In the case of CW01, it is hypothesised that the trend shown in Figure 5 is overshadowed by the averaging of experiments conducted at different lye concentrations. This is due to the strong dependency of CW01 on the lye concentration, which is discussed in the following. The interactions of lye concentrations and surfactants are shown in Figure 6.

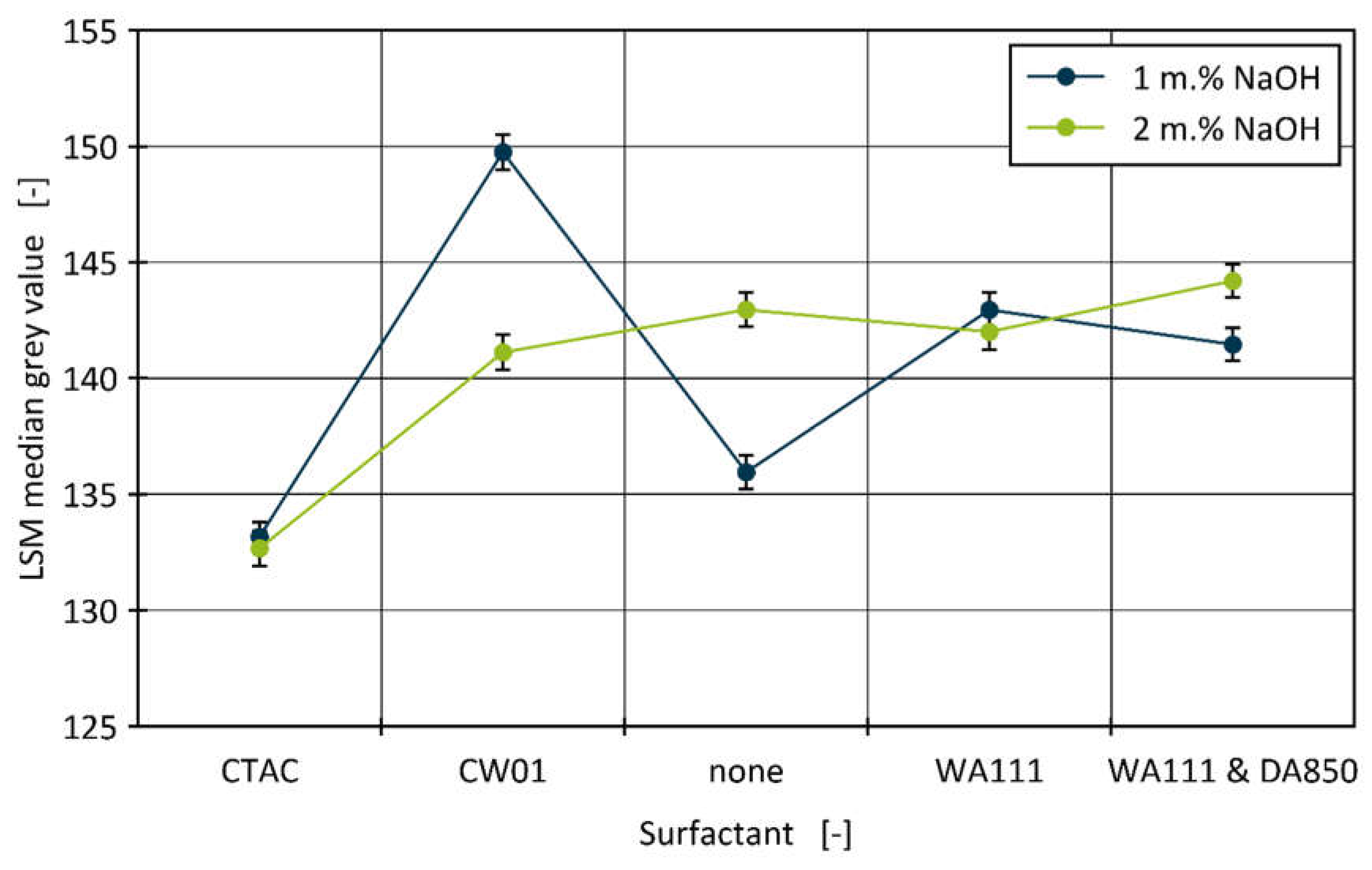

Figure 6. Least squares means of the median grey values and their respective standard errors for the interactions of the surfactants and the concentrations of sodium hydroxide.

Figure 6. Least squares means of the median grey values and their respective standard errors for the interactions of the surfactants and the concentrations of sodium hydroxide.

An increased concentration of NaOH leads to increased LSM median grey values for experiments with no surfactant added. This is in accordance with the hypothesis of the hydrolysis of the binding agent and more precisely the diffusion of the hydroxy ions into the binding agent matrix being the rate-determining step when no surfactant is present [43,44,45]. With the addition of non-ionic surfactants, the LSM median grey values at 1% NaOH increase significantly while the LSM median grey values at 2% NaOH are in a similar range to those with no surfactant added. Since these LSM median grey values are averaged for all washing times, these results show the positive effect of decreasing the interfacial energy on ink removal, especially at lower lye concentrations. For cationic surfactants, a different effect can be observed. The increase in lye concentration has no effect on the LSM median grey values in the experiments using CTAC and causes a decrease in the LSM median grey values in the experiments using CW01. This effect contrasts with the past experiments on model films in which higher concentrations of NaOH increase the deinking efficiency also for cationic surfactants [24,30,36]. Since the investigated PCW flakes contain an overall lower amount of printing inks compared to the model films used in literature, it can be hypothesised that there is an excess of hydroxy ions in the experiments using 2% NaOH. When the maximum amount of hydroxy ions interacting with the printing ink is reached, residual ions are likely to interact with the cationic surfactant. Since the cetrimonium ion cannot be deprotonated, the interaction would lead to an increase of micelle stability and thus increase the activation energy for the deposition of the cationic surfactant on the flake-ink interface. To investigate this hypothesis, the interactions of the washing time, water temperature, and lye concentration are depicted for the experiments in Figure 7.

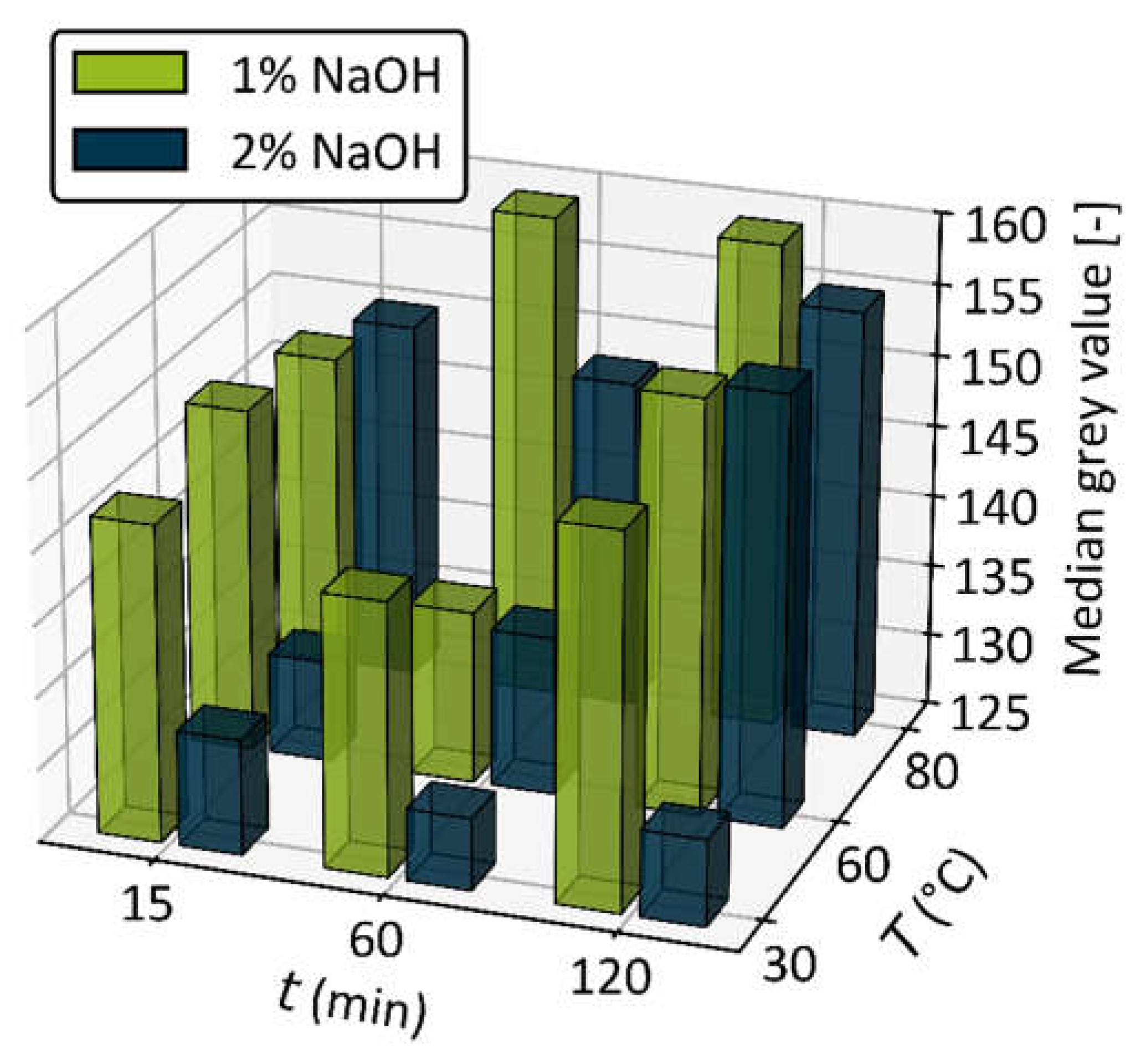

The comparison of the median grey values at different lye concentrations shows a stronger dependence on the washing time and water temperature for experiments at 2% NaOH. Especially at 30 °C, low median grey values between 130 and 133 are achieved. At 60 °C, higher grey values are achieved only at a washing time of 120 minutes, yielding 155. When compared with the dependencies discussed for the experiments using NaOH only, these results indicate that the hydrolysis of the printing ink is the dominating mechanism at 2% NaOH. This supports the hypothesis that at higher lye concentrations, cetrimonium ions are partially deactivated for deinking due to strong interactions with hydroxy ions. In Figure 8, the deinking mechanism is expanded to visualise this proposed effect.

4. Conclusions

The systematic investigation of the deinking of household PCW flakes at varying parameters (water temperature, washing time, and lye concentration) and using industrially available surfactants offers insights into the deinking mechanism on PCW flakes, that are valuable for adapting deinking processes on an industrial scale. The multiple linear regression model with an R² of 0.833 proved the significance of deinking parameters. In conjunction with the literature investigating the deinking on uniformly printed model films, higher water temperatures yield higher LSM median grey values (i.e. higher deinking efficiencies). Due to the overall lower amount of printing ink in PCW flakes compared to model films, no staining was observed. Consequently, higher washing times lead to higher LSM median grey values in the conducted experiments. Interactions between the respective surfactants and the deinking parameters provided insights into the deinking mechanism. In contrast with experiments on model films, the addition of CTAC showed overall poor deinking. This indicates that, without additional surfactants added, cetrimonium ions are deactivated due to strong interactions with residual contaminants present on the PCW flakes. In the range of the experiments conducted, the non-ionic surfactants showed overall good deinking results with a strong dependence on the water temperature only. This is most likely due to the limited solubility of the polymer-based surfactant molecules at lower temperatures. Experiments using the surfactant formulation CW01 showed the highest deinking efficiency achieved in this study, with a median grey value of 159 at 1% NaOH and 80 °C, both after 60 minutes and 120 minutes. While experiments conducted with 1% NaOH consistently yielded high median grey values, a strong dependence on the water temperature and washing time was observed for the experiments at 2% NaOH. It is indicated that this effect is again caused by the lower amount of printing inks in PCW flakes compared to model films. The addition of lye concentrations above 1%, which are common in the literature, causes an excess when deinking PCW flakes. Consequently, cationic cetrimonium surfactants might interact strongly with dissolved hydroxy ions, therefore limiting their availability for deinking.

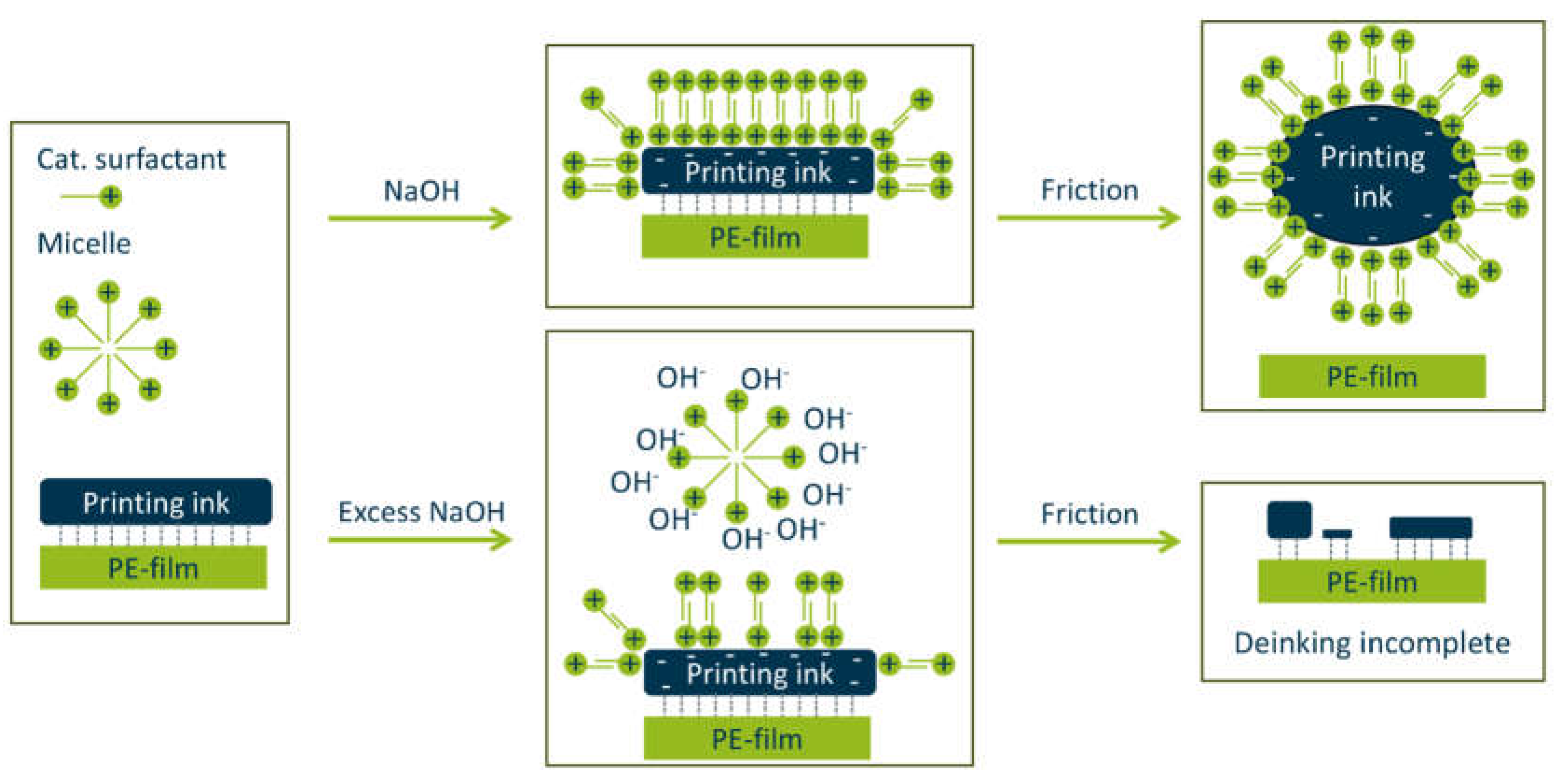

Building on these results, the necessity to adapt the lye concentration of deinking processes to the amount of printing ink in the given material flow becomes apparent. An optimisation of the lye concentration allows for benefiting from the hydrolysis of the binding agent molecules without sacrificing the reduction of the interfacial energy, introduced by the surfactant. However, since PCW is highly heterogeneous in their composition, and most importantly their amount of residues and printing ink, a continuous optimisation of deinking parameters is not feasible on an industrial scale. Based on the results discussed in this study, a deinking process should adapt the lye concentration to the estimated amount of printing inks present in the PCW material flow, combined with a surfactant formulation that proves robust in the range of deinking parameters used.
