Trimeric Class I Viral Fusion Protein Vaccine Immunogens Using a Trimeric Autotransporter in a Killed Whole-Cell Bacteria Vaccine Platform: Applications to HIV MPER

1. Introduction

Class I viral fusion proteins from many enveloped viruses, including coronaviruses, influenza viruses, and retroviruses [1], exist as trimers anchored in the viral envelope lipid bilayer. These proteins typically contain membrane-proximal trimeric coiled-coil regions and distal domains involved in receptor binding or membrane fusion. Following activation, they undergo conformational rearrangements that expose hydrophobic fusion peptides, which insert into the host cell membrane and initiate viral envelope–host cell membrane fusion. Antibodies targeting conserved stem/stalk regions can be broadly cross-protective for several viruses [2,3], and anti-stalk antibodies are indicators of protection [4]. However, these regions are often immunosubdominant, and vaccine development targeting these structures has been difficult.

The analogous region of the HIV-1 envelope glycoprotein gp41, the membrane-proximal external region (MPER), is a well-established target of broadly neutralizing antibodies, including 2F5, 4E10, and 10E8 [5,6,7,8]. However, MPER has remained one of the most challenging objectives for HIV vaccine development [9,10,11]. This difficulty arises from intrinsic properties of the region, including shielding by other regions of Env, the requirement that MPER be present in a vaccine immunogen in a close-to-native coiled-coil trimeric structure, partial embedding within the viral membrane, and potential immune tolerance mechanisms [12,13,14]. As a consequence, most MPER-based immunogens have elicited weak or non-neutralizing antibody responses, emphasizing the need for alternative strategies that present MPER in a carefully controlled, minimally flexible, well-exposed, close-to-native trimeric conformation [15,16]. The induction of significant neutralization in several studies required not only priming with isolated MPER immunogens, but also subsequent challenge infection with live virus [17,18,19,20], highlighting the challenging nature of MPER as a vaccine target [21,22].

Accumulating evidence indicates that epitope exposure and the details of immunogen structure, rather than sequence alone, are critical determinants of MPER immunogenicity [7,23,24,25]. In the native HIV-1 Env protein, MPER is a trimeric coiled-coil structure that is normally obscured by other regions of gp41, but becomes transiently accessible during conformational changes in Env that occur during viral entry [16,26]. An effective MPER immunogen may require re-creating a native MPER structure, including a trimeric coiled-coil structure, ideally adjacent to a lipid bilayer. The vaccine immunogen should be easily accessible to the cells of the immune system, in contrast to the location of MPER in the native Env structure [27,28,29,30], where the rest of Env makes MPER relatively hidden from the immune system. The challenges associated with developing an HIV-1 MPER vaccine are similar to the problems that have troubled the development of vaccines targeting the analogous stem/stalk structures of other class I viral fusion proteins, such as the influenza hemagglutinin and coronavirus spike proteins [4,31,32].

Bacterial surface-display vaccine platforms provide a versatile technology to systematically investigate multiple design strategies. In the Killed Whole-Cell Genome-Reduced Bacteria (KWC/GRB) vaccine platform, antigens are expressed on the surface of GRB by means of a Gram-negative autotransporter. New versions of candidate vaccines can be produced very rapidly and inexpensively, enabling systematic modulation of epitope density, geometry, and accessibility [33,34]. Initial proof-of-concept studies demonstrated that this platform could induce protective immune responses against viral antigens even in the absence of detectable antibody titers, highlighting its capacity to engage multiple immune mechanisms beyond conventional humoral readouts [33].

Subsequent work using the KWC/GRB platform established antigen surface exposure as a critical design parameter for humoral immunity. Using the HIV fusion peptide as a model antigen, Quintero et al. showed that progressive improvements in surface exposure achieved through multimerization, linker optimization, and incorporation of immunomodulatory elements resulted in substantial enhancements in antigen-specific antibody responses [34]. These findings showed that surface accessibility was required to induce a strong humoral immune response following vaccination with KWC/GRB vaccines.

The KWC/GRB approach was extended to MPER using scaffold MPER immunogens expressed using the AIDA-I monomeric autotransporter, leading to the demonstration that a KWC/GRB vaccine could induce the production of MPER-directed neutralizing activity. Carefully engineered production of a scaffolded MPER epitope, notably multimeric immunogens separated by long, rigid alpha helical linkers, along with added immunomodulators, enabled the induction of functional neutralizing antibodies, providing important validation that a KWC/GRB vaccine could induce neutralizing antibodies against a difficult target: MPER [35].

While scaffolded immunogens offer a means to present the immune system with an MPER structure designed to mimic the native structure, an alternative and potentially complementary strategy is to present native sequence MPER in a way that constrains the MPER sequence to assume a close-to-native conformation. Trimeric autotransporters provide an attractive means [36,37,38,39,40,41]. These proteins naturally assemble as homotrimers in the bacterial outer membrane, with a beta barrel consisting of three non-covalently associated elements, and mediate surface display of three passenger domains in an outward-projecting trimeric architecture. The structure of Hia bears a notable resemblance to the stem/stalk/MPER organization of envelope proteins from viruses with class I viral fusion proteins. These structural features make Hia and other members of the trimeric autotransporter subfamily well suited for testing coiled-coil stem/stalk-like immunogen designs [41,42]. The Hia autotransporter provides a stable trimeric display mechanism that can present heterologous antigens in an outward-projecting conformation from the bacterial outer membrane [43,44]. Together, previous findings with the KWC/GRB vaccine platform and the structural features of Hia and other trimeric autotransporters suggest that recombinant KWC/GRB vaccines using trimeric autotransporters may provide a new strategy to induce immune responses against native coiled-coil stem/stalk/MPER regions of viruses with class I fusion proteins.

In the present study, we generated a panel of native-sequence MPER vaccines displayed as homotrimers using the Hia trimeric autotransporter. The panel was designed to systematically evaluate how trimer stabilization, antigen valency, tandem-repeat spacing, and immunomodulatory modules influence MPER exposure, antibody binding, antibody induction following vaccination, and resulting neutralizing activity. By integrating structural prediction, monoclonal antibody binding, ELISA, and pseudovirus neutralization assays, this study defines design principles for optimizing native trimeric MPER immunogens within the KWC/GRB platform and may inform vaccine development against other class I viral fusion protein stem/stalk regions.

2. Materials and Methods

2.1. Vaccine Design

A panel of trimeric MPER vaccine candidates was designed to investigate how antigen architecture, trimeric stabilization, immunomodulatory elements, and antigen valency influence MPER surface exposure, anti-MPER antibody binding, antibody induction, and neutralizing activity. All vaccine designs encoded the native HIV-1 MPER sequence derived from gp41 and were displayed on the bacterial surface using the Hia trimeric autotransporter.

To enforce higher-order organization, selected designs incorporated trimerization domains to stabilize MPER as a homotrimer [45,46]. Immunomodulatory elements were included in a subset of designs, including the Pan-DR epitope (PADRE) [34,47,48,49], a non-cognate universal CD4⁺ T-helper epitope, and recombinant Group B streptococcal surface immunogenic protein (rSIP), a TLR2 and TLR4 agonist [34,50,51]. In the vaccine architecture, rSIP was positioned N-terminal to the trimerization and MPER modules, placing it distal to the Hia autotransporter and the bacterial outer membrane relative to the MPER-Hia junction. In addition, duplication of the MPER sequence was introduced in selected candidates to increase MPER antigen valency and potentially enhance avidity for low-affinity B-cell precursors, as previously observed with multimerized non-trimeric immunogens [34,35].

In later designs, additional structural features were introduced to spatially separate duplicated tandem MPER repeats within the trimeric immunogen. Vaccines were generated through six design stages, with new structural elements incorporated at each stage. The designs progressed from a baseline MPER-only candidate to increasingly complex configurations incorporating trimeric stabilization through heterologous trimerization domains, immunomodulatory elements, increased antigen valency through tandem duplication of the MPER sequence, and additional spacing elements to improve MPER accessibility. In design stage 5, an additional Foldon trimerization domain was introduced between the duplicated MPER regions to stabilize each MPER unit within the tandem trimeric assembly. In design stage 6, an extended Hia-derived spacer was added to further modulate the distance and accessibility of the MPER tandem array relative to the bacterial outer membrane lipid bilayer.

2.2. Three-Dimensional Structure Prediction

Structural models for each vaccine design were generated using AlphaFold2 v2.3.0 in multimer mode to predict homotrimer assemblies [52,53]. For trimeric candidates, three identical polypeptide chains corresponding to the same MPER domain sequence were provided as input to model homotrimer formation. In designs containing duplicated MPER sequences, both MPER copies were encoded within each chain as part of a single continuous polypeptide sequence. Five independent prediction runs were performed per candidate with template search enabled. For each vaccine design, the highest-confidence model, as determined by pLDDT and pTM scores, was selected and visualized using ChimeraX for figure preparation [54,55,56]. Structural predictions were used qualitatively to assess trimeric organization, domain orientation, relative spatial arrangement of MPER copies, and potential steric constraints within the assembly. The Hia barrel-envelope analysis described below was used as an additional operational geometric metric to compare the relative positioning of the Hia-proximal MPER repeat between design stages 5 and 6. No energetic interpretations or experimentally validated structural constraints were inferred from these models.

2.3. Hia Barrel-Envelope Structural Analysis

To quantify the relative positioning of the Hia-proximal MPER repeat, a barrel-envelope analysis was performed using the selected AlphaFold2 multimer models for design stages 5 and 6. The proximal MPER repeat corresponded to residues 217–244 in both designs. In design stage 5, Hia was defined as residues 245–308. In design stage 6, eHIAs corresponded to residues 245–252 and Hia was defined as residues 253–316. Chains A, B, and C were analyzed independently.

For each predicted trimer, Cα atoms from the Hia region were used to estimate the principal Hia barrel axis by principal component analysis. All non-hydrogen Hia atoms were then projected onto this axis to define the axial span and local radial envelope of the predicted barrel. Each proximal MPER residue was represented by its non-hydrogen atom centroid and classified relative to the Hia envelope. The local radial envelope was estimated using the 95th percentile of Hia radial distances within a ±4.0 Å axial window, with a 1.5 Å radial margin and a 1.0 Å axial margin. Residues within ±0.5 Å of the radial threshold were classified as boundary residues.

This analysis was used as an operational geometric metric to compare local MPER-Hia positioning between predicted models. It was not intended to infer energetic stability, membrane insertion, or experimentally validated residue burial.

2.4. Plasmid Construction

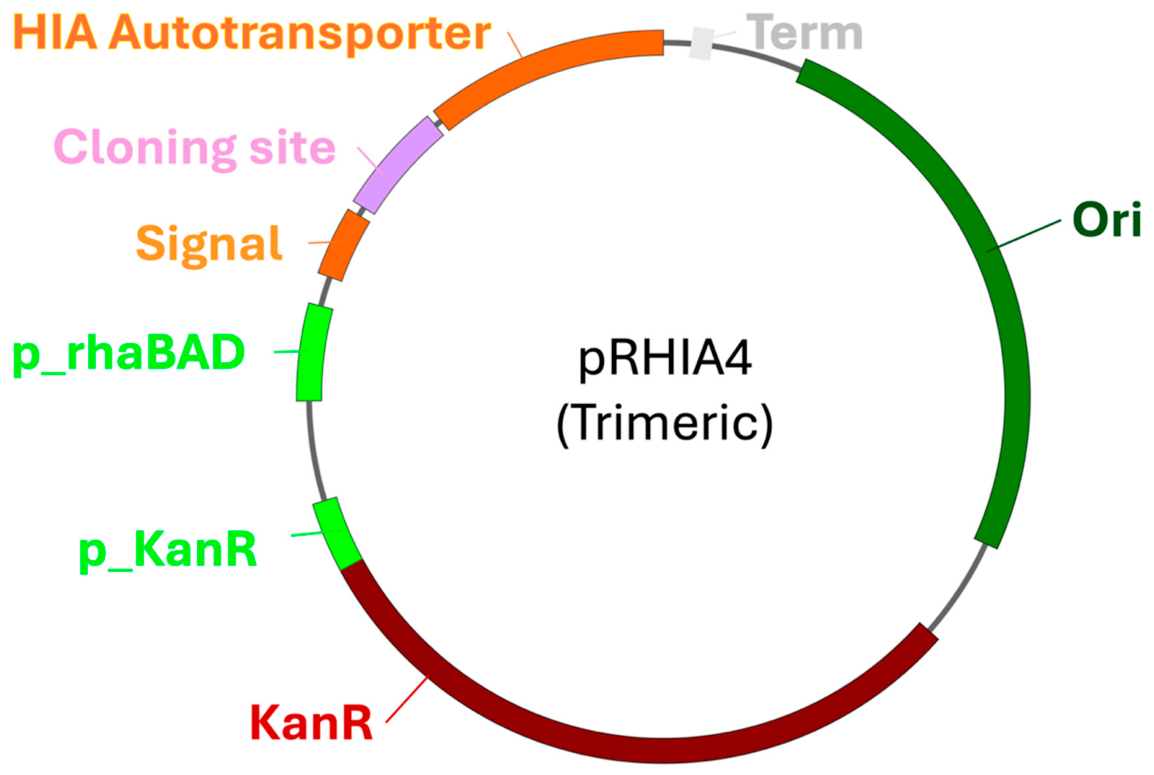

DNA sequences encoding the trimeric MPER vaccine constructs were commercially synthesized by Twist Bioscience (South San Francisco, CA, USA). Synthesized DNA fragments were cloned into the pRHIA4 expression vector and sequence verified before use. The pRHIA4 plasmid contains a rhamnose inducible promoter, a high copy origin of replication, a kanamycin resistance gene, a cloning site for insertion of vaccine immunogen sequences, an N terminal signal sequence, and the Hia autotransporter cassette, which mediates trimeric surface display of recombinant proteins through insertion into the bacterial outer membrane (Figure 1). The pRHIA4 sequence has been deposited in GenBank under accession number PZ132917.

2.5. Bacterial Strain and Transformation

The genome-reduced Escherichia coli strain ME5125, with 29.7% of its genome deleted, derived from E. coli MG1655, was obtained from Dr. Jun Kato (Tokyo Metropolitan University, Japan) through the National Bioresource Project [57,58]. The strain was routinely cultured in LB broth or on LB agar at 37 °C. Following transformation with pRHIA4-based expression constructs, cultures were maintained in media supplemented with kanamycin (50 µg/mL) for plasmid maintenance. To generate electrocompetent cells, ME5125 cultures were grown overnight at 37 °C, diluted 1:100 into fresh LB medium, and incubated until logarithmic growth was reached, as monitored by OD₆₀₀. Cells were washed sequentially with ice-cold distilled water and ice-cold water containing 10% glycerol, resuspended in water containing 10% glycerol, and electroporated with recombinant pRHIA plasmids using 0.1 cm cuvettes and a Gene Pulser Xcell™ system (Bio-Rad) at 1.8 kV, 25 µF, and 200 Ω. Following electroporation, cells were recovered for 1 h at 37 °C in SOC medium and plated on LB agar containing kanamycin for colony selection.

2.6. Colony PCR Verification

Successful transformation was verified by colony PCR. Three to five kanamycin-resistant colonies from each vaccine design were screened. A sterile pipette tip was used to gently touch each colony, which was then transferred into 5 mL of LB broth containing kanamycin (50 µg/mL) to initiate an overnight starter culture. The same tip was subsequently dipped into a 16 µL PCR reaction prepared using Phusion Flash High-Fidelity PCR Master Mix (Thermo Fisher Scientific) and the primer pair pRHIA4 forward (5′-CAGCATATGCACATGGAACA-3′) and pRHIA4 reverse (5′-CGAATAATCACTTTGCCGTTATAGG-3′). PCR cycling conditions were: 95 °C for 2 min, followed by 35 cycles of 95 °C for 45 s, 58 °C for 45 s, and 72 °C for 1 min 20 s, with a final extension at 72 °C for 5 min. Amplicons were resolved on 1.5% agarose/TAE gels and visualized under UV illumination. Colonies yielding amplicons of the expected size were selected for downstream vaccine production. Verified starter cultures were expanded overnight, and glycerol stocks were prepared by mixing cultures 1:1 with sterile 30% glycerol (final concentration 15%) and stored at −80 °C.

2.7. Vaccine Production and Chemical Inactivation

Overnight cultures were prepared in LB broth (Thermo Fisher Scientific) supplemented with kanamycin (50 µg/mL) and incubated at 37 °C with shaking at 210 rpm. The following day, cultures were diluted 1:10 into fresh LB medium and grown to an OD₆₀₀ of 0.5–0.6. Protein expression was induced by addition of L-rhamnose (Sigma-Aldrich) to a final concentration of 5 mM and continued for 3 h at 37 °C. Bacterial cells were harvested by centrifugation at 5,000 × g for 30 min at 4 °C and resuspended in Hank’s Balanced Salt Solution (HBSS; Gibco) containing 0.2% formalin. Chemical inactivation was carried out for 1 h at 37 °C with gentle agitation. Following inactivation, bacterial pellets were washed twice with 1× PBS (Gibco) to remove residual formalin. Final vaccine preparations were resuspended in PBS containing 20% glycerol, normalized to an OD₆₀₀ of 1.0 (corresponding to approximately 8 × 10⁸ bacteria/mL), aliquoted into sterile cryovials, and stored at −80 °C until use.

2.8. Post-Inactivation Sterility Testing

Sterility of inactivated vaccine preparations was assessed immediately following the final PBS wash. Triplicate 100 µL aliquots from each preparation were serially diluted (10⁰–10⁻⁴) and spread onto LB agar plates, which were incubated at 37 °C for 7 days. In parallel, 1 mL of each preparation was inoculated into 10 mL of LB broth and incubated statically at 37 °C for 14 days. Absence of colony formation and turbidity confirmed complete bacterial inactivation.

2.9. Flow Cytometry

Formalin-inactivated bacterial suspensions (5 × 10⁷ cells/mL) were blocked in PBS containing 10% fetal bovine serum (FBS; Gibco) for 30 min on ice. Samples were incubated with a serial dilution of the anti-HIV-1 MPER monoclonal antibody 2F5 for 30 min on ice. After washing with PBS supplemented with 2% FBS, cells were stained with Alexa Fluor 488-conjugated goat anti-human IgG (Invitrogen) at a dilution of 1:600 for an additional 30 min on ice. Data acquisition was performed using an Attune CytPix Flow Cytometer (Invitrogen), and analyses were conducted with FCS Express 7 software (De Novo Software). Gating was based on forward- and side-scatter parameters. Binding curves were generated from fluorescence values across the 2F5 dilution series and used to estimate EC₅₀ values by nonlinear least-squares fitting. EC₅₀ estimates were transformed to exposure_score (−log₁₀EC₅₀). In addition, the integrated flow cytometry signal (AUC(FLOW)) was calculated as the area under the fluorescence–antibody concentration curve. Experimental controls included untransformed ME5125 bacteria, isotype controls, secondary-only controls, and PBS blanks. All flow cytometry experiments were performed at the University of Virginia Flow Cytometry Core Facility.

2.10. Mouse Immunization

Quasi-outbred HET3 mice (F1[CByB6F1 × B6C3F1]; Jackson Laboratory, stock #036603) were obtained at six weeks of age and acclimated for at least 7 days under specific-pathogen-free conditions with a 12 h light/dark cycle and ad libitum access to food and water.

Animals were block-allocated into experimental groups corresponding to each vaccine candidate, along with control groups receiving either PBS or formalin-inactivated untransformed ME5125 bacteria. Each group consisted of five mice (three females and two males). Immunizations were administered intramuscularly in the quadriceps using 5 × 10⁹ inactivated bacteria in 50 µL PBS per dose.

All vaccine candidates were initially evaluated using a three-dose immunization regimen at weeks 0, 3, and 6. Following detection of neutralizing activity for design stage 5, this vaccine and the subsequently generated design stage 6/eHIAs derivative were evaluated using an extended five-dose regimen at weeks 0, 3, 6, 9, and 12. Blood samples were collected prior to immunization and at subsequent time points. At week 15, terminal cardiac exsanguination was performed under deep surgical anesthesia. Plasma was isolated by centrifugation and stored at −80 °C until analysis. Animals were monitored throughout the study for signs of local reactogenicity or systemic adverse effects.

2.11. Enzyme-Linked Immunosorbent Assay (ELISA)

High-binding 96-well plates (Thermo Fisher Scientific, Waltham, MA, USA) were coated overnight at 4 °C with recombinant HIV-1 MPER peptide corresponding to gp41 residues 656–683 (sequence: NEQELLELDKWASLWNWFDITNWLWYIK; Biomatik, Wilmington, DE, USA) at a final concentration of 1 µg/mL in phosphate-buffered saline (PBS; pH 7.4). Plates were washed three times with TBST (Tris-buffered saline containing 0.05% Tween-20; Thermo Fisher Scientific) and blocked for 1 h at room temperature with 3% bovine serum albumin (BSA; Sigma-Aldrich) prepared in TBST. Mouse plasma samples were serially diluted from 1:50 to 1:102,400 using a four-fold dilution series in 1% BSA/TBST, and each dilution was added to the plates in duplicate. After incubation for 1 h at room temperature, plates were washed and bound IgG was detected using HRP-conjugated goat anti-mouse IgG (Thermo Fisher Scientific) diluted 1:5,000 in 1% BSA/TBST and incubated for 1 h at room temperature. Following additional wash steps, plates were developed using TMB substrate (Thermo Fisher Scientific) and reactions were stopped with 1 N sulfuric acid. Absorbance was measured at 450 nm using an accuSkan FC microplate reader (Fisher Scientific, Hampton, NH, USA). Each assay included an eight-point standard curve generated with the 2F5 monoclonal antibody (starting concentration 1 µg/mL with three-fold serial dilutions) to verify assay performance and enable calculation of relative antibody units. ELISA titration curves were fitted using a four-parameter logistic model, and antibody binding responses were quantified as the area under the curve (AUC). Negative controls included wells without antigen, secondary-only controls, pre-immune plasma pools, and plasma from mice immunized with formalin-inactivated untransformed E. coli prepared in parallel with vaccine strains.

2.12. Neutralization Assays

Neutralization assays were performed at Duke University using HIV-1 Env pseudoviruses (25710-2.43, CNE55, MN.3, and X1632_S2_B10) and TZM-bl cells [59,60], following standard operating procedures routinely used for evaluation of vaccine-elicited neutralizing antibody responses. Mouse plasma samples were heat-inactivated at 56 °C for 15 min and serially diluted in cell culture medium. Diluted plasma samples were incubated with pseudovirus for 1 h at 37 °C and subsequently added to TZM-bl cells. After approximately 48 h, luciferase activity was measured. Neutralization titers were expressed as ID₅₀ and ID₈₀ values, defined as the reciprocal plasma dilutions at which relative luminescence units (RLUs) were reduced by 50% or 80%, respectively, compared with virus-only control wells after subtraction of background RLUs from cell-only controls. Samples that did not achieve 50% inhibition within the tested dilution range were reported as ID₅₀ below the lowest dilution tested. Virus-specific assay positivity ID₅₀ cutoffs were defined as the 90th percentile of ID₅₀ values obtained from all baselines (pre-immune) mouse plasma samples and were applied as follows: 84.2 for CNE55, 121 for X1632_S2_B10, 63 for 25710-2.43, and 45 for MN.3. A post-immunization sample was classified as neutralization-positive only when the post-immunization ID50 was equal to or greater than the virus-specific cutoff and the corresponding baseline sample was below that cutoff.

The HIV-1 pseudovirus panel included MN.3, a tier 1A virus, and the tier 2 viruses 25710-2.43, CNE55, and X1632_S2_B10. Thus, three of the four strains correspond to more difficult-to-neutralize tier 2 viruses, providing a stringent panel for evaluating virus-dependent neutralization activity across pseudoviruses of differing sensitivity.

2.13. Statistical Analysis

All statistical analyses were performed in R v4.4.1 using the packages tidyverse, ggplot2, psych, corrplot, AER, lmtest, car, broom, and pROC. The complete analysis workflow, including data preprocessing, statistical testing, and figure generation, was implemented using custom R scripts developed by the authors with assistance from ChatGPT (OpenAI, GPT-5 model). Fully annotated scripts and processed datasets are provided in the Supplementary Materials to ensure reproducibility.

Antibody binding responses were quantified using AUC(ELISA) values calculated from serial dilution curves fitted with a four-parameter logistic regression model. AUC values were computed at the individual animal-level and used for all downstream statistical comparisons. Flow-cytometry titration curves obtained with the monoclonal antibody 2F5 were fitted using nonlinear least-squares regression to estimate EC₅₀ values, which were transformed into an exposure_score (−log₁₀EC₅₀) as a metric of antigen accessibility. In parallel, the integrated flow-cytometry signal (AUC(FLOW)) was calculated as the area under the fluorescence–antibody concentration curve. Comparisons of antibody binding responses between vaccine groups and between successive design stages were conducted using the Wilcoxon rank-sum test, given the small group sizes and the absence of assumptions of normality. Effect sizes were quantified using Cliff’s delta, and 95% confidence intervals were estimated by bootstrap resampling. Stepwise comparisons between consecutive design stages were performed using animal-level AUC(ELISA) values to isolate the effect of individual architectural modifications. To assess the impact of trimerization strategy, Foldon-based and Zipper-based candidates were compared within design stages where both architectures were present, again using Wilcoxon rank-sum tests and Cliff’s delta to quantify effect magnitude. Neutralization data were analyzed per pseudovirus. For descriptive plotting and log10 transformation, ID50 values below the assay detection limit were assigned the corresponding virus-specific cutoff value. Categorical neutralization positivity was determined independently using the virus-specific cutoff and baseline rule described above. Neutralization outcomes were treated as categorical at the vaccine-level for interpretation of functional activity, given that detectable neutralization was restricted to a single vaccine design under the three-dose regimen. Associations between antigen exposure metrics (exposure_score and AUC(FLOW)) and antibody binding magnitude (mean AUC(ELISA) per vaccine) were evaluated using both Pearson correlation coefficients to assess linear relationships and Spearman rank correlations to capture monotonic trends. These analyses were performed at the vaccine-level, using mean ELISA AUC values to avoid pseudo replication. Unless otherwise stated, statistical comparisons of AUC(ELISA) across design stages were performed using plasma collected after the third immunization in the three-dose regimen. Unless otherwise stated, data are presented as mean ± SEM, and statistical significance was defined as p < 0.05. Given the exploratory nature of this study and the limited sample sizes inherent to animal vaccination experiments, effect sizes and confidence intervals were emphasized alongside p-values to support quantitative interpretation.

2.14. Ethics, Animal Welfare, and Biosafety

All animal procedures were conducted in accordance with the Guide for the Care and Use of Laboratory Animals and were approved by the University of Virginia Animal Care and Use Committee (protocol 41101224; approval date 05 November 2024; Unique ID 7018391). Recombinant DNA work and handling of formalin-inactivated bacterial vaccine preparations were performed under BSL-2 conditions approved by the University of Virginia Institutional Biosafety Committee (IBC protocol 4276-15).

3. Results

3.1. Vaccine Design, Composition, and Dataset Used for Analysis

We pursued a stepwise vaccine design strategy to evaluate how successive modifications of trimeric native coiled-coil MPER vaccine architecture affected antigen visibility, antibody binding, and neutralizing activity. Vaccines were grouped into design stages, where each stage represents a defined structural configuration evaluated experimentally.

Design features incorporated at successive stages were selected based on findings from prior KWC/GRB studies demonstrating that antigen surface exposure, multimeric organization, and immunomodulatory elements influence antibody responses and functional immunogenicity. Earlier studies using HIV fusion peptide and scaffolded MPER immunogens established antigen accessibility as an important design parameter and demonstrated that structural stabilization of MPER could enable induction of neutralizing activity [34,35].

The present study extended these observations by progressively modifying native-sequence MPER immunogens through incorporation of heterologous trimerization domains, immunomodulatory elements, tandem MPER duplication, and additional spacing elements intended to alter MPER presentation within the trimeric assembly.

Table 1 summarizes the vaccine components included in this study, detailing the presence or absence of trimerization domains, immunomodulatory elements, MPER valency modifications, and spacing elements. All vaccines evaluated across the study are listed in Table 2 and are referenced in the Results section.

All experimental readouts presented below were analyzed using the complete dataset summarized in Table 3, which includes flow cytometry measurements and neutralization results for all vaccines.

3.2. Design Stage 0: MPER-Only Baseline

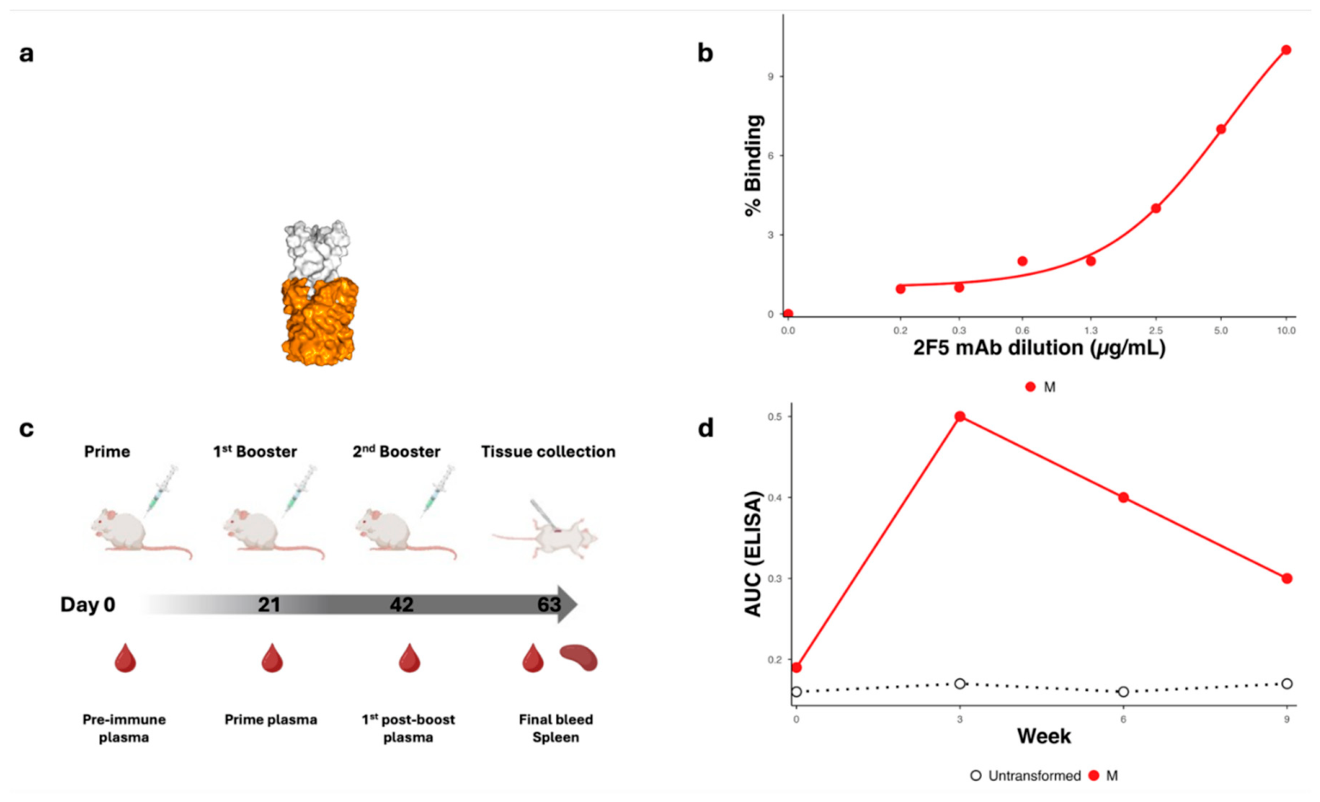

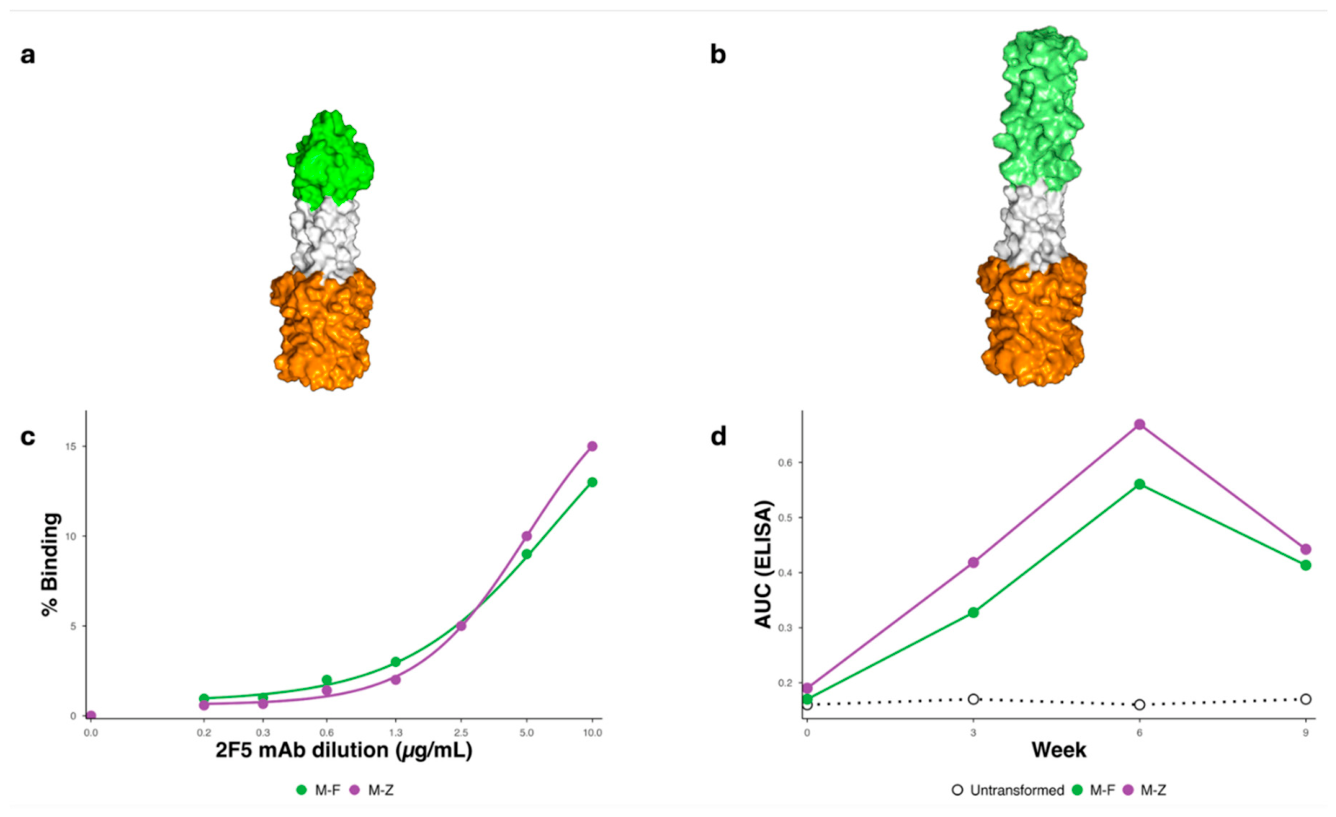

We first evaluated a baseline vaccine expressing trimeric MPER alone using the Hia trimeric autotransporter. Structural prediction suggested that, in the absence of dedicated trimerization domains, MPER is presented without additional structural stabilization beyond the Hia scaffold itself (Figure 2a). In addition, expression of a single MPER region alone may provide limited control over the lateral presentation of the MPER shaft, where several broadly neutralizing antibodies bind.

Flow cytometry analysis revealed low MPER surface exposure, with weak binding signals across dilution ranges (Figure 2b). Consistent with these findings, mice immunized with the MPER-only vaccine using the three-dose regimen exhibited detectable anti-MPER antibody responses by ELISA, but these responses showed only minimal increases after repeated immunization (Figure 2c,d). Neutralization assays performed using sera from these animals showed no detectable activity against any of the tested HIV-1 pseudoviruses.

3.3. Design Stage 1: Stabilization of MPER Coiled-Coil Homotrimers Using Trimerization Domains

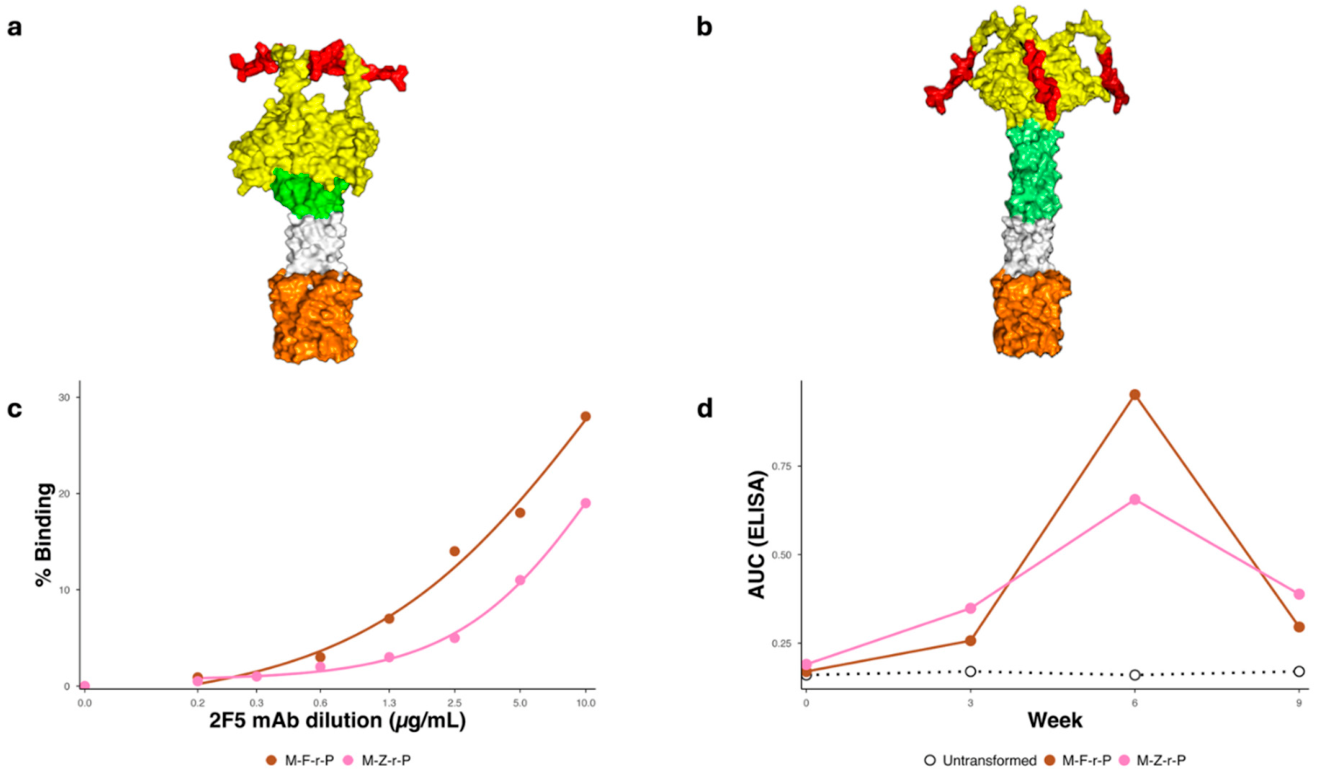

To assess whether additional trimer stabilization could improve the performance of Hia-displayed MPER immunogens, we evaluated vaccines incorporating either Foldon or Zipper trimerization domains [45,46]. Structural modeling indicated that adding either of the trimerization domains should help stabilize MPER designs compared with baseline MPER-only design (Figure 3a-b).

Flow cytometry binding curves demonstrated increased antigen exposure compared with design stage 0. Distinct binding profiles were observed between vaccines containing different trimerization domains (Figure 3c). ELISA AUC values were higher than those observed for the MPER design lacking an additional trimerization domain (Figure 3d). Neutralization assays performed after three immunizations did not detect neutralizing activity for any stage 1 design.

3.4. Design Stage 2: Addition of rSIP to Stabilized MPER Candidates

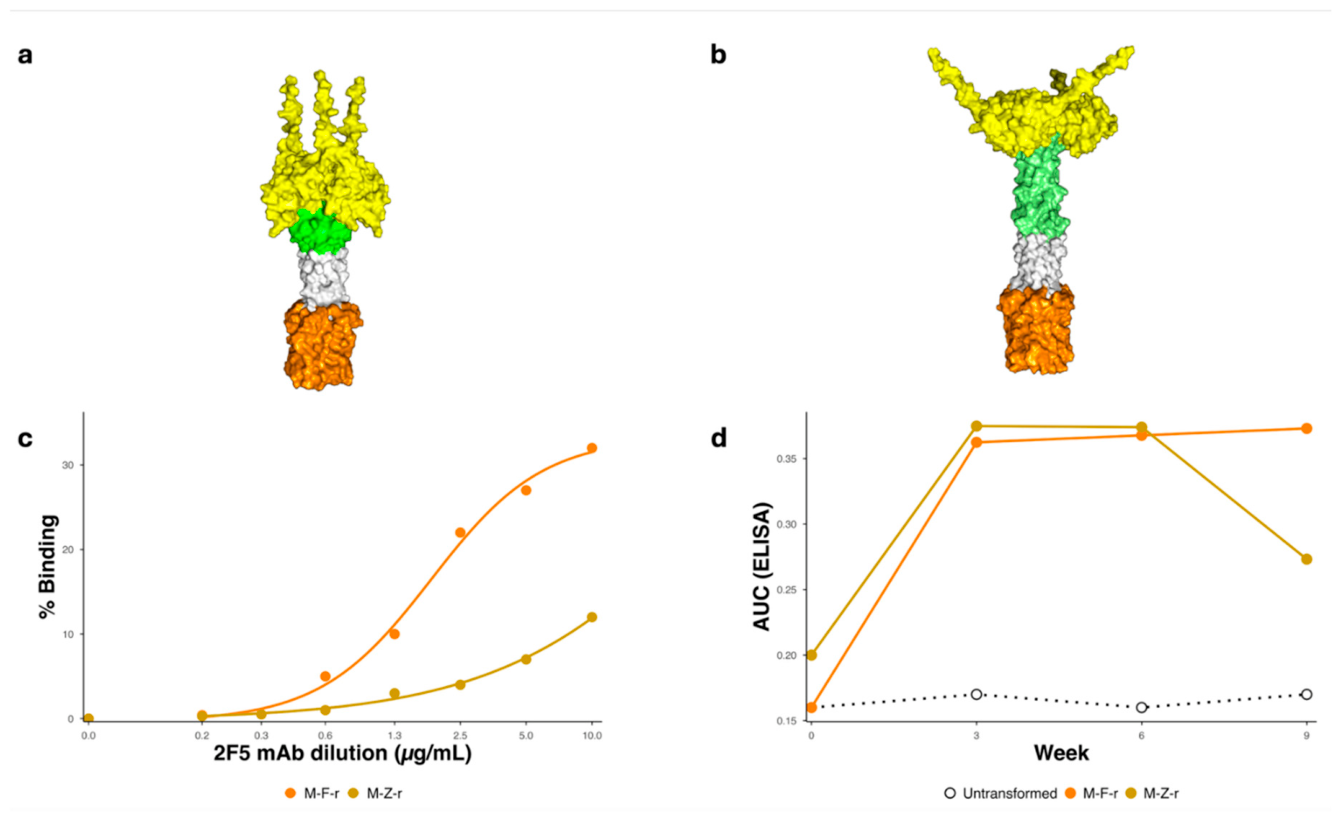

Design stage 2 examined MPER candidates containing an additional trimerization domain together with the incorporation of the rSIP immunomodulator (TLR-2 and -4 agonist). We hypothesized that adding rSIP to the MPER immunogen would enhance immune responses, as we had previously observed with a monomeric immunogen [34,35]. Structural modeling of these candidates revealed that the overall homotrimer organization of MPER was maintained, while rSIP was predicted to be positioned outside the MPER region, with the MPER region predicted to be accessible (Figure 4a-b).

Binding profiles obtained by flow cytometry showed altered antigen exposure relative to design stage 1 (Figure 4c). At the vaccine-level, both exposure_score and AUC(FLOW) indicated that several candidates in this design stage maintained or increased MPER accessibility compared with earlier stages. Antibody binding measured by ELISA yielded AUC values comparable to those observed for design stages 0 and 1 vaccines (Figure 4d). Neutralization assays performed after three immunizations did not detect neutralizing activity for any design stage 2 vaccine.

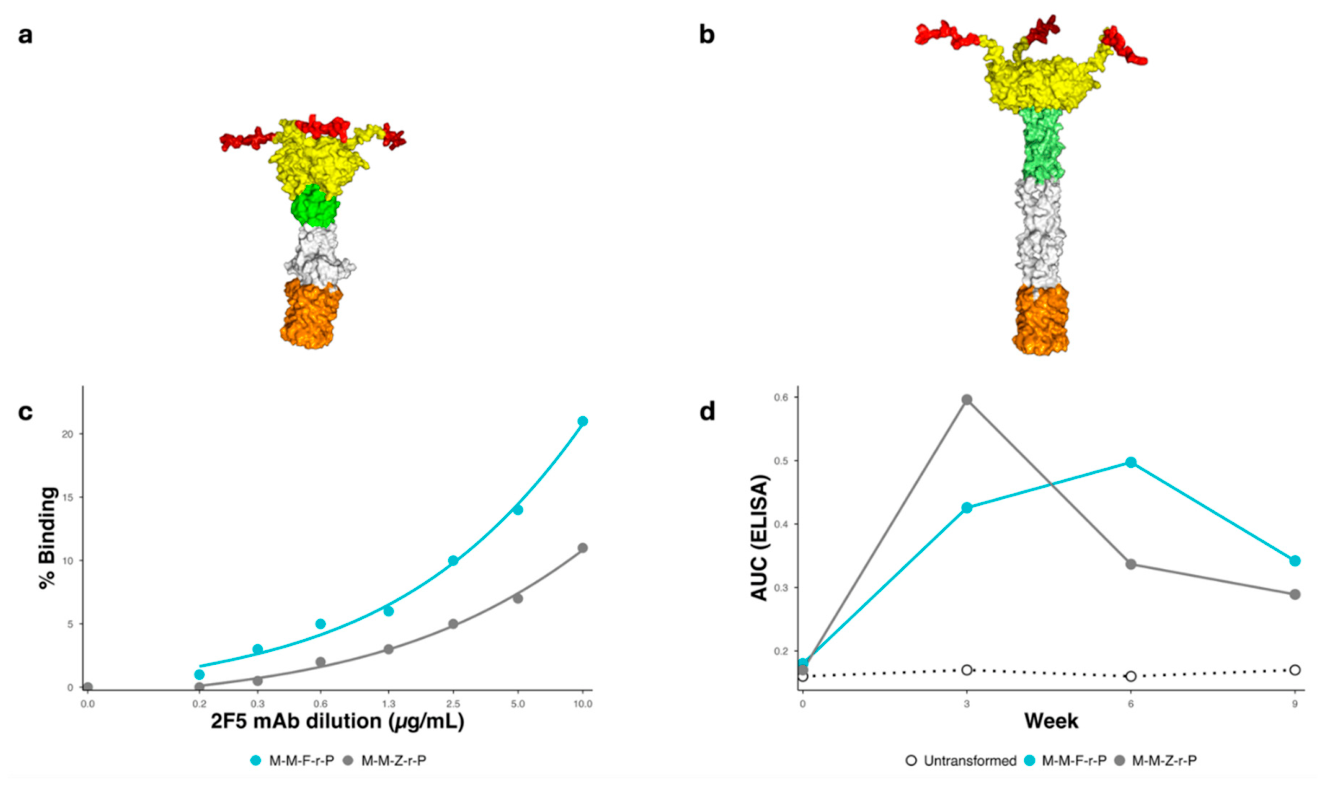

3.5. Design Stage 3: Incorporation of PADRE into rSIP-Containing MPER Vaccines

While the vaccines of design stage 1 induced the production of anti-MPER antibodies, the amount of antibody induced was relatively low. We therefore added immunomodulatory sequences that aimed to enhance the immune responses against the MPER. In design stage 3, PADRE was incorporated into MPER candidates that already included rSIP and an additional trimerization domain. Computational models indicated that MPER chains remained organized in a stabilized homotrimer coiled-coil configuration, with PADRE positioned away from the MPER regions and the MPER region remaining accessible (Figure 5a,b).

Flow cytometry analyses showed antigen exposure equal to or greater than that of earlier design stages (Figure 5c), with exposure_score and AUC(FLOW) values comparable to, or higher than, those measured for related candidates in design stage 2, suggesting that addition of PADRE did not adversely affect MPER accessibility. ELISA AUC measurements were similar to those obtained for previous design stages (Figure 5d). Neutralization assays conducted after three immunizations did not reveal detectable neutralizing activity for design stage 3 candidates.

3.6. Design Stage 4: Increased MPER Valency with Stabilized Homotrimer Immunogens

Design stage 4 evaluated vaccines containing tandem duplicated MPER sequences within the established coiled-coil homotrimer framework. We hypothesized that increasing MPER valency could enhance immunogenicity through several complementary mechanisms. First, tandem MPER repeats would increase the antigen dose presented on the bacterial surface. Second, repeated MPER units, if appropriately separated and stabilized, could increase avidity for low-affinity B-cell precursors [62,63]. These features, together with the inherent danger signal provided by a particulate immunogen [64], PADRE-mediated T-cell help, and high local peptide density [65], could support stronger B-cell activation, germinal center entry [66], affinity maturation [67], with development of the desired antibody response.

Structural prediction suggested that tandem duplication of MPER could be accommodated within the trimeric assembly and that the stacked tandem MPER regions were likely to be surface-exposed. However, the predicted structures also indicated that close spatial proximity between adjacent MPER repeats could influence the organization of the tandem MPER coiled-coil structure, particularly in the M-M-F-r-P design (Figure 6a,b). These observations suggested that simple duplication of the MPER region alone may not be sufficient to promote optimal presentation of tandem MPER repeats within the trimeric assembly.

Based on these structural predictions, we hypothesized that additional spacing or stabilization elements might be required to better separate adjacent MPER repeats and preserve a more favorable trimeric presentation. This rationale motivated the subsequent design stages incorporating an additional Foldon trimerization domain between tandem MPER regions.

Surface expression and accessibility of MPER were confirmed by flow cytometry binding curves for all vaccines evaluated at this stage (Figure 6c). AUC(FLOW) values were maintained or showed modest increases relative to design stage 3 with the presence of tandem duplicated MPER regions. However, the increase in surface exposure was less than might be expected from duplication of the MPER sequence alone, suggesting that tandem MPER duplication did not necessarily translate into proportionally improved epitope accessibility. These observations were consistent with the structural predictions indicating close spatial proximity between adjacent MPER regions within the trimeric assembly and imperfect maintenance of the native trimeric MPER coiled-coil structure over the length of the expressed protein.

ELISA AUC values remained within the range observed for earlier design stages (Figure 6d), indicating that tandem MPER duplication alone did not substantially improve antibody binding responses relative to previous vaccine configurations. Neutralization assays performed after three immunizations did not detect neutralizing activity for any design stage 4 vaccine. Together, these findings suggested that increased MPER valency alone was insufficient to improve functional immunogenicity and supported the need for additional structural elements to better spatially organize tandem MPER repeats and promote the maintenance of the desired native coiled-coil structure of the MPER regions within the trimeric assembly.

3.7. Design Stage 5: Tandem MPER Repeats Stabilized by an Intervening Foldon Trimerization Domain

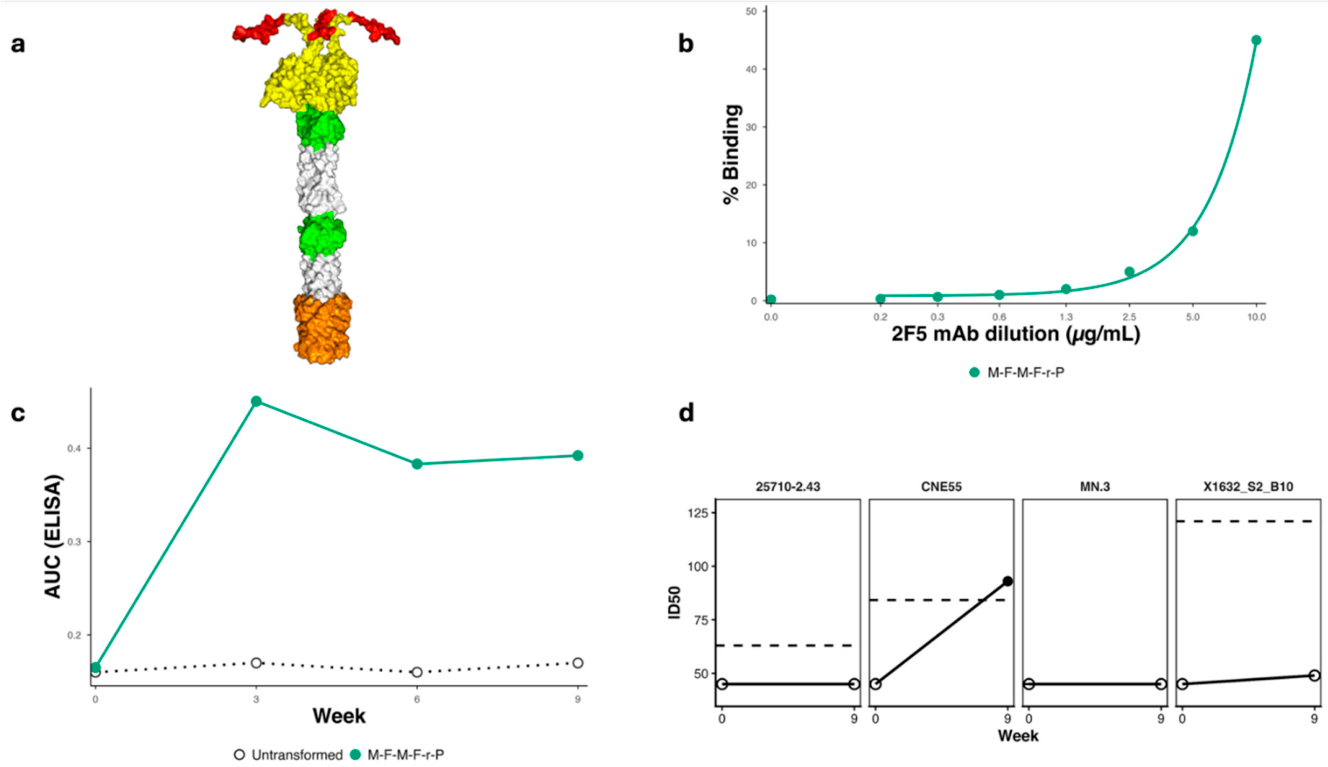

Because design stage 4 vaccines containing tandem MPER repeats did not induce neutralizing activity and structural predictions suggested close spatial proximity between adjacent MPER modules with imperfect maintenance of the desired native coiled-coil MPER, we hypothesized that each MPER repeat required additional stabilization and separation within the trimeric assembly. Design stage 5 therefore introduced an additional Foldon domain between the duplicated MPER sequences to separate the tandem MPER repeats and stabilize each MPER module in a coiled-coil configuration. Structural predictions suggested that this modification improved the spatial organization of the tandem MPER modules while preserving the overall trimeric architecture of the immunogen (Figure 7a).

The flow cytometry binding curve demonstrated higher antigen exposure relative to the preceding design stage (Figure 7b), and AUC(FLOW) values were increased accordingly. ELISA AUC values were similar between design stage 4 and design stage 5 (Figure 7c). In contrast to earlier design stages, neutralization assays performed after three immunizations showed that the stage 5 vaccine design could induce neutralizing activity against the CNE55 pseudovirus (Figure 7d).

3.8. Statistical Comparison Between Successive Design Stages

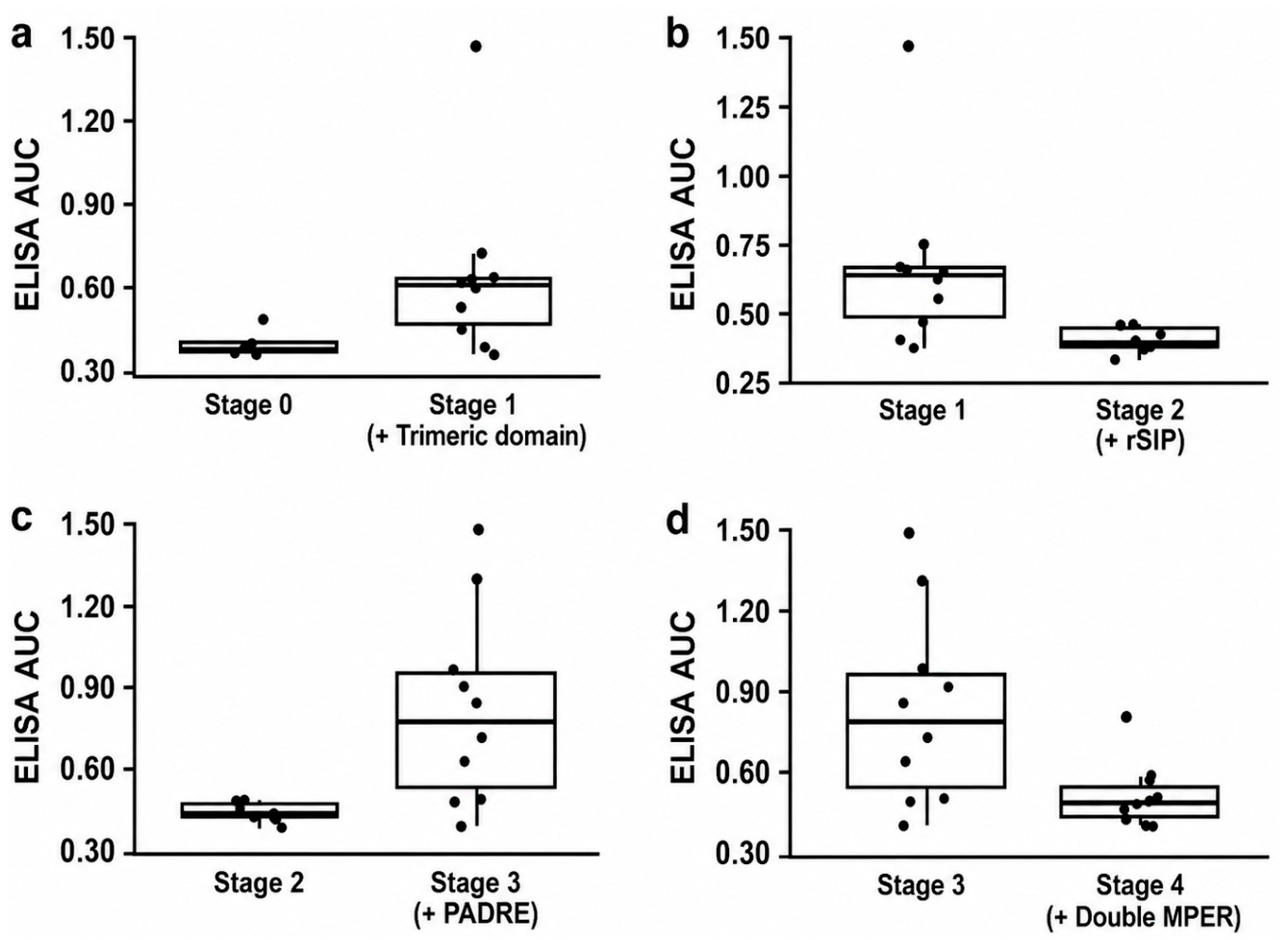

To quantitatively evaluate the effect of successive vaccine design modifications on antibody binding responses, ELISA AUC values measured after the third immunization (week 9, three dose regimen) were compared between design stages using animal-level data. All comparisons were performed using the Wilcoxon rank sum test, with effect sizes estimated by Cliff’s delta.

Introduction of trimerization domains at design stage 1 resulted in a significant increase in ELISA AUC relative to the MPER only baseline (Wilcoxon p = 0.032; Cliff’s delta = −0.72, 95% CI −0.95 to −0.01), consistent with improved antibody binding following stabilization of MPER within a trimeric assembly (Figure 8a).

In contrast, incorporation of rSIP at design stage 2 was associated with a significant reduction in ELISA AUC compared with design stage 1 (Wilcoxon p = 0.004; Cliff’s delta = −0.77, 95% CI −0.95 to −0.24) (Figure 8b), suggesting that addition of large proximal structural elements can negatively influence MPER immunogenicity despite maintained antigen exposure.

Addition of PADRE at design stage 3 reversed this effect, producing a significant increase in antibody binding responses relative to rSIP containing candidates lacking PADRE (Wilcoxon p = 0.013; Cliff’s delta = −0.67, 95% CI −0.93 to −0.04) (Figure 8c). These findings support the contribution of helper T cell stimulation to enhancement of MPER-directed antibody responses within the KWC/GRB platform.

Finally, increasing MPER valency through tandem duplication of the MPER sequence at design stage 4, without incorporation of the additional spacing elements introduced in later stages, resulted in a significant reduction in ELISA AUC relative to design stage 3 (Wilcoxon p = 0.031; Cliff’s delta = −0.58, 95% CI −0.87 to −0.01) (Figure 8d). Together with the structural predictions described above, these findings suggested that tandem MPER duplication alone was insufficient to improve immunogenicity and that additional structural organization of duplicated MPER regions would likely be required to support improved functional presentation.

3.9. Comparison of the Effects of Including Different Design Features

Because none of the vaccine designs evaluated in earlier stages induced detectable neutralizing activity, and because structural predictions suggested that tandem duplication of MPER alone resulted in close spatial proximity between adjacent MPER repeats and a potentially unfavorable tertiary/quaternary organization of the tandem MPER module, we introduced an additional Foldon trimerization domain between the two MPER units in design stage 5. The goal was to better separate the tandem MPER repeats and stabilize the trimeric coiled-coil conformation of each MPER region.

All other vaccine components were kept constant between design stage 4 and design stage 5, allowing direct evaluation of the effect of the additional Foldon spacing and trimerization element. ELISA AUC values did not differ significantly between the two design stages (Wilcoxon p = 0.29), although a moderate effect size was observed (Cliff’s delta = 0.44), with confidence intervals overlapping zero. In contrast to the comparable ELISA distributions, vaccine-level flow cytometry metrics differed between the two stages. Design stage 5 exhibited higher MPER exposure, with exposure_score increasing from −2.1 to −1.8 and AUC(FLOW) increasing from 133 to 169 relative to design stage 4.

Most importantly, neutralizing activity was detected exclusively in design stage 5, following three immunizations, whereas no neutralization was detected for design stage 4 under identical experimental conditions. The design stage 5 vaccine neutralized the tier 2 pseudovirus CNE55, while the corresponding design stage 4 vaccines, lacking the additional Foldon spacing and trimerization stabilization domain, remained non-neutralizing. These findings suggested that improved spatial organization and conformation stabilization of tandem MPER repeats, was able to induce neutralizing activity for in some mice, suggesting that this MPER immunogen conformation was better at eliciting neutralizing activity, with the quality of the antibody responses being more important for the development of neutralizing activity than induction of large amounts of antibody per se.

3.10. Comparative Statistical Analysis of Foldon- and Zipper-Based Designs

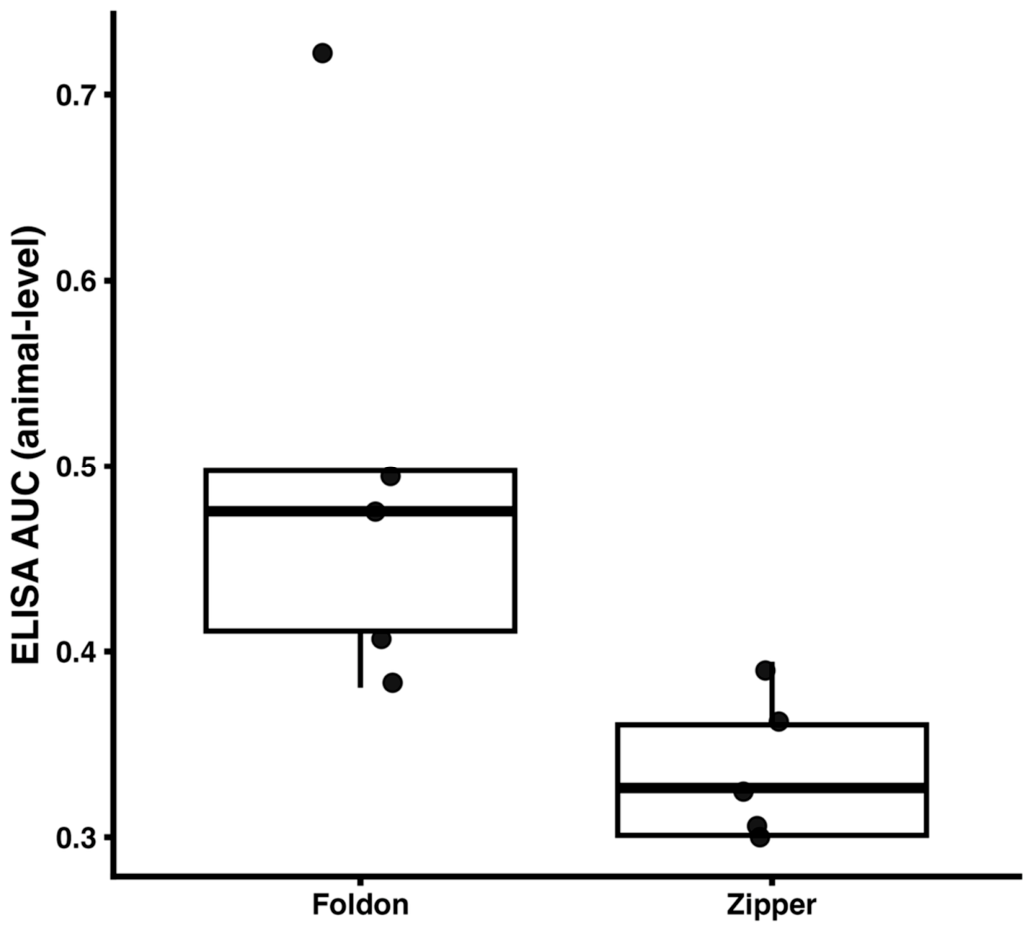

To assess the impact of trimerization stabilization on antibody binding responses, ELISA AUC values were compared between Foldon- and Zipper-containing candidates at design stages in which both architectures were evaluated. Analyses were performed using animal-level data and the Wilcoxon rank-sum test. At design stage 1, when Foldon and Zipper domains were first introduced to stabilize MPER homotrimers, ELISA AUC values were comparable between the two architectures (Wilcoxon p = 0.68), with only a small effect size (Cliff’s delta = 0.20). Following the addition of rSIP in design stage 2, antibody binding responses remained similar between Foldon- and Zipper-stabilized designs, with no statistically significant difference in ELISA AUC (Wilcoxon p = 0.84; Cliff’s delta = −0.12). A similar pattern was observed at design stage 3, which incorporated PADRE into stabilized MPER vaccines. At this stage, ELISA AUC values again did not differ significantly between designs (Wilcoxon p = 0.68), although the estimated effect size showed a modest directional trend favoring Foldon-based candidates (Cliff’s delta = 0.20).

By contrast, a clear effect emerged at design stage 4, corresponding to increased MPER valency through duplication of the MPER sequence. Under these conditions, designs that incorporated Foldon elicited significantly higher ELISA AUC values than designs that used the Zipper domain to stabilize the MPER trimer (Wilcoxon p = 0.021), with a large effect size favoring Foldon-based vaccines (Cliff’s delta = 0.92, 95% CI 0.52–0.99) (Figure 9).

3.11. Vaccine-Level Analysis of Antigen Exposure and Cross-Assay Relationships

To evaluate whether increased MPER surface exposure was associated with stronger antibody binding responses, flow cytometry metrics (exposure_score and AUC(FLOW)) were compared with mean ELISA AUC values across vaccine designs. Neither exposure_score nor AUC(FLOW) showed a significant association with mean ELISA AUC (Spearman ρ ≤ 0.35, p ≥ 0.36; Pearson r ≤ 0.24, p ≥ 0.54).

These findings indicated that increased MPER surface exposure alone did not predict the magnitude of antibody binding responses measured by ELISA. Instead, the overall structural organization of the antigen appeared to play an important role in determining vaccine immunogenicity. Together with the neutralization data, these results suggested that effective MPER vaccine design depends not only on antigen exposure, but also on how MPER is spatially presented within the trimeric assembly.

3.12. Extended Immunization Using MPER Vaccines of Design Stage 5

Following the detection of neutralizing activity for design stage 5 after three immunizations, we hypothesized that additional vaccinations would yield better neutralization responses, as had been observed for other immunogens [25], we evaluated the ability of design stage 5 vaccines to induce immune responses with an extended immunization regimen (Figure 10a). No changes to the vaccine design were introduced in these experiments.

ELISA AUC values were measured at later time points during the extended immunization regimen, revealing increased antibody binding responses over the course of five immunizations (Figure 10b). Neutralization assays performed after extended immunization showed continued neutralizing activity against CNE55 and the emergence of neutralization against an additional pseudovirus, 25710-2.43, with measurable ID50 values (Figure 10c).

3.13. Structural Refinement of Design Stage 5 Through Insertion of an eHIAs Spacer

Although design stage 5 induced detectable neutralizing activity and showed improved functional performance after extended immunization, inspection of the predicted trimeric structure suggested that further local optimization of MPER presentation might be possible. In particular, the MPER repeat positioned proximal to Hia appeared partially resident within the predicted Hia barrel envelope. Because this region is directly adjacent to the bacterial surface display scaffold, we reasoned that the spacing between the proximal MPER domain and Hia could influence outward projection and epitope accessibility of the MPER domain. We hypothesized that partial positioning of MPER within the Hia β-barrel envelope could reduce epitope accessibility and thereby limit antibody induction compared with designs in which MPER is projected farther beyond the Hia barrel.

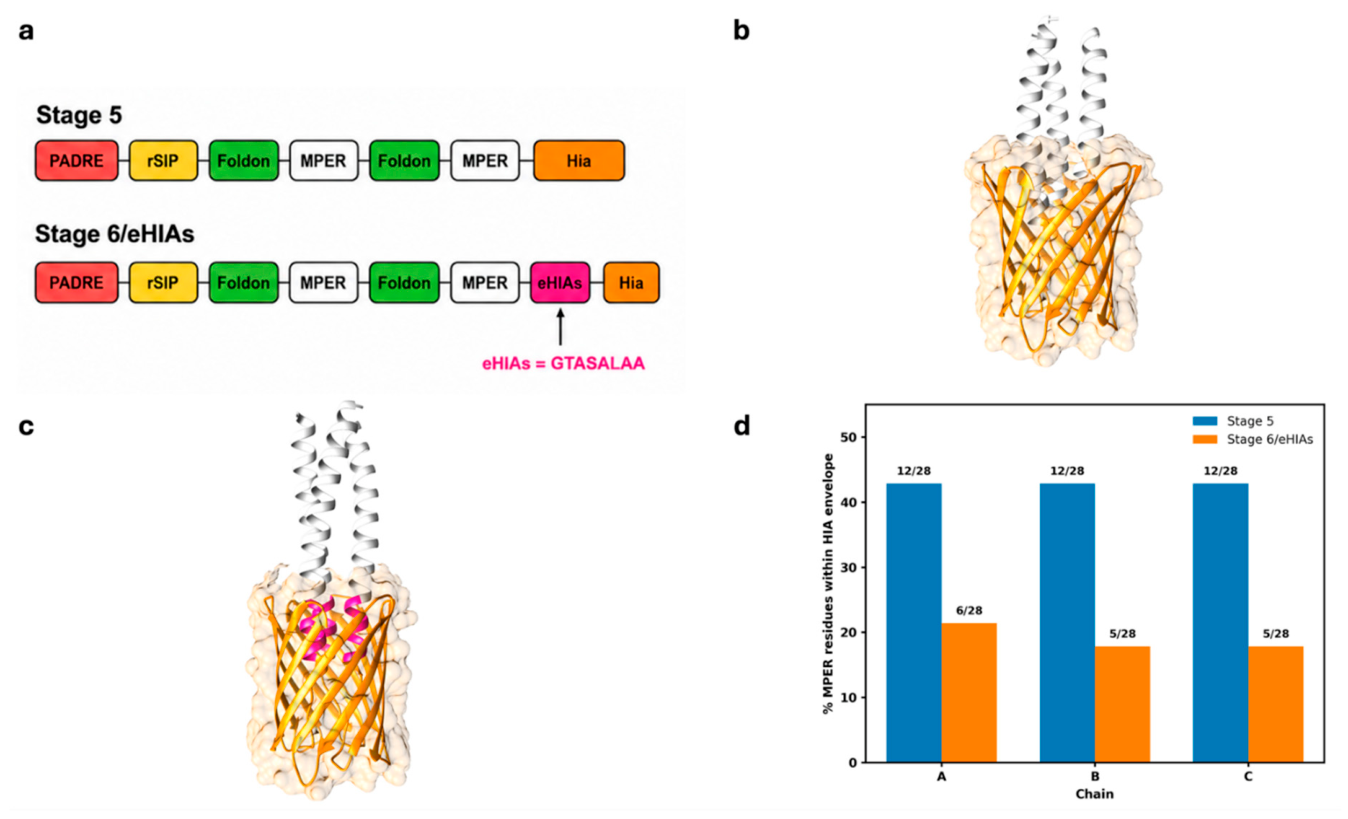

To address this potential structural limitation, we generated an otherwise identical derivative of the design stage 5 vaccine that contained an extra eight amino acid eHIAs spacer sequence, GTASALAA, inserted between the proximal MPER repeat and the Hia β-barrel/translocator domain. This candidate was defined as design stage 6 (Figure 11a). A structural comparison of the Hia-proximal region suggested that, in design stage 5, a portion of the proximal MPER repeat remained positioned within the predicted Hia barrel envelope (Figure 11b). In contrast, insertion of the 8 amino acid eHIAs shifted the membrane-proximal MPER repeat outward relative to the Hia barrel (Figure 11c).

To quantify this local structural change across the trimeric assembly, we performed an Hia barrel envelope analysis. The Hia region was used to define the predicted axial and radial envelope of the barrel, and each residue of the proximal MPER repeat was classified relative to this envelope in chains A, B, and C. In design stage 5, 12 of 28 MPER residues were positioned within the predicted Hia envelope in each protomer. In design stage 6, this value was reduced to 6 of 28 residues in chain A and 5 of 28 residues in chains B and C (Figure 11d). Consistent with this reduction, the mean axial position of the proximal MPER repeat shifted from 26.4 Å in design stage 5 to 37.2 Å in design stage 6, corresponding to an outward displacement of approximately 10.7 Å along the Hia barrel axis.

Together, these analyses indicated that eHIAs did not completely eliminate Hia-proximal inclusion of MPER but substantially reduced the fraction of the proximal MPER repeat positioned within the predicted Hia barrel envelope. These findings supported design stage 6 as a rational architectural refinement intended to improve outward presentation of the MPER module while preserving the design logic established in stage 5.

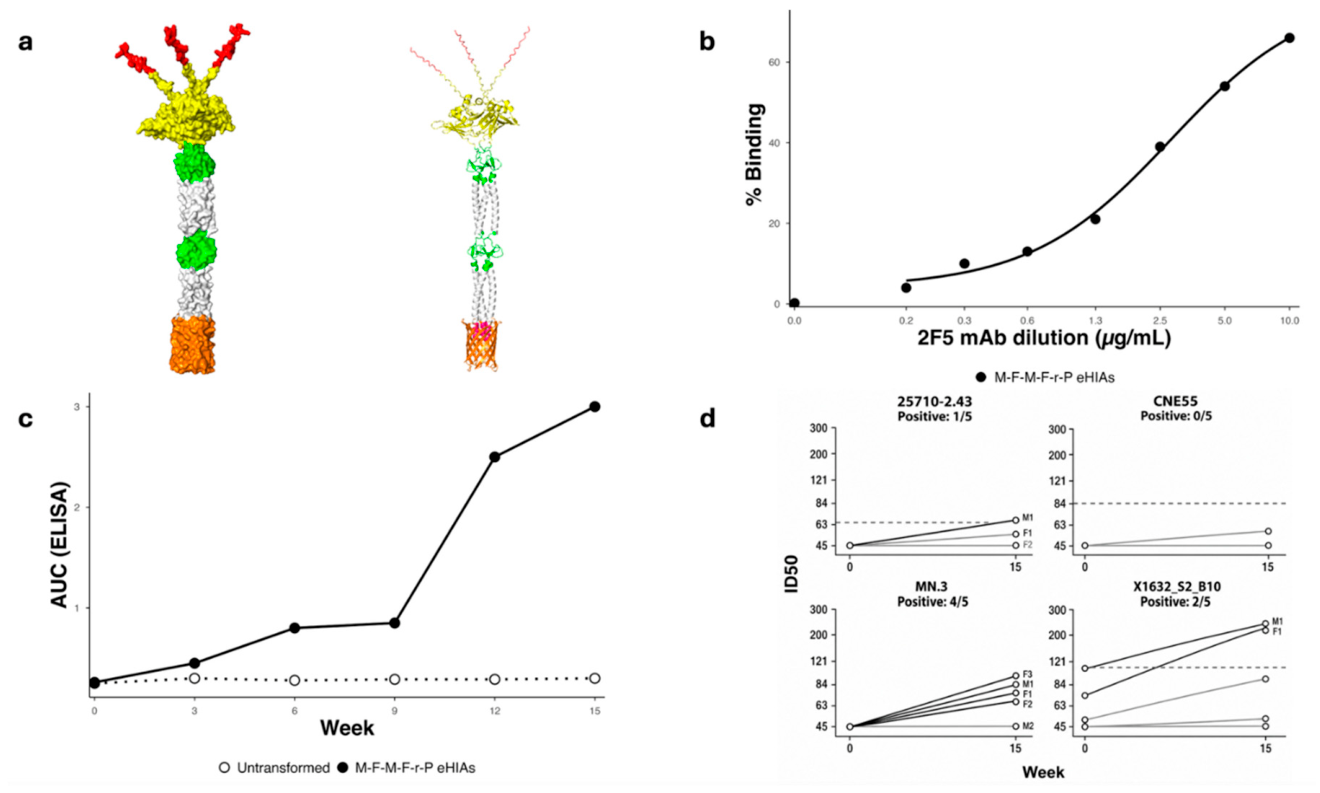

3.14. Design Stage 6 Enhances MPER Exposure, Increases Antibody Binding, and Reshapes Neutralization Activity

Based on the structural refinement described above, we next evaluated how insertion of the eHIAs spacer affected experimental performance. The design stage 6/eHIAs vaccine, M-F-M-F-r-P eHIAs, preserved the overall modular organization of design stage 5 while incorporating the eight amino acid eHIAs spacer between the proximal MPER repeat and Hia (Figure 12a). To visualize this design, the predicted structure is shown both as a surface/cartoon representation and as a cartoon model, allowing visualization of the Hia barrel, the repeated MPER helices, and the eHIAs region.

Flow cytometry analysis using the broadly neutralizing monoclonal antibody 2F5 showed strong MPER surface accessibility for the design stage 6/eHIAs vaccine (Figure 12b). Binding increased in a concentration-dependent manner across the 2F5 dilution range, indicating that the MPER epitope recognized by 2F5 remained accessible after insertion of the eHIAs spacer. These findings were consistent with the structural prediction that eHIAs shifted the Hia-proximal MPER repeat outward rather than disrupting the MPER-containing trimeric module.

We next evaluated MPER-specific antibody binding responses following the extended immunization regimen. ELISA AUC values increased progressively over time in mice immunized with the design stage 6/eHIAs vaccine, with the strongest responses observed after later booster doses (Figure 12c). In contrast, mice immunized with formalin-inactivated untransformed bacteria remained near baseline throughout the experiment. Thus, the eHIAs-containing vaccine induced a robust longitudinal MPER-specific antibody response under the five-dose regimen.

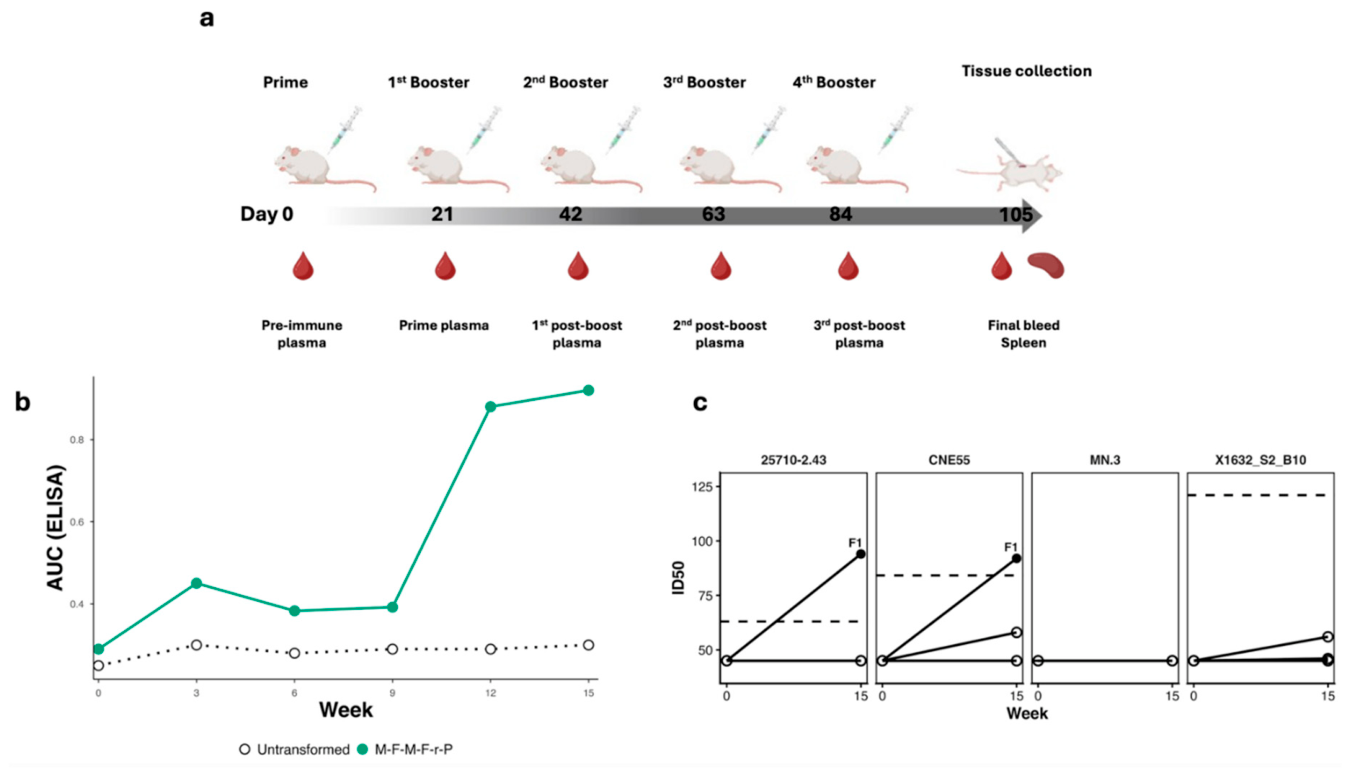

Finally, we evaluated the neutralizing activity of plasma from mice immunized with the design stage 6/eHIAs vaccine against a panel of HIV-1 Env pseudoviruses. Neutralization was virus dependent and differed from the profile observed previously for design stage 5. Using virus-specific positivity cutoffs, neutralizing activity was detected in 1 of 5 animals against 25710-2.43, 0 of 5 animals against CNE55, 4 of 5 animals against MN.3, and 2 of 5 animals against X1632_S2_B10 (Figure 12d). Therefore, eHIAs insertion did not simply increase neutralization uniformly across the panel but instead reshaped the functional activity of the antibody response, with detectable activity against multiple pseudoviruses.

Together, these results indicate that the design stage 6 eHIAs vaccine maintained strong MPER surface exposure, induced robust MPER-specific antibody binding after extended boosting, and generated a distinct neutralization profile across the tested HIV-1 pseudovirus panel. These findings support eHIAs-mediated Hia-proximal spacing as a tunable architectural parameter for improving MPER presentation in the KWC/GRB platform.

4. Discussion

The trimeric coiled-coil domains of envelope proteins from viruses with class I viral fusion proteins have been key targets for the development of vaccines intended to induce broadly neutralizing and/or variant-resistant immune responses. Although the existence of broadly neutralizing monoclonal antibodies targeting these regions demonstrates that such effective antibody responses can, in principle, be generated, the development of vaccines that reliably induce them has remained challenging. The HIV-1 gp41 membrane-proximal external region (MPER) remains an attractive but extremely challenging target within this broader class of potential immunogens. MPER is highly conserved and is recognized by several broadly neutralizing antibodies, but its native antigenic presentation depends on several structural features that are difficult to reproduce in a vaccine immunogen: MPER must exist in the native coiled-coil conformation, and ideally the MPER immunogen would be expressed in close proximity to the viral membrane, since some anti-MPER broadly neutralizing monoclonal antibodies interact not only with MPER itself, but also with the viral envelope lipid bilayer through long hydrophobic loops [6,8,13,14,61,68]. These features make MPER-directed immunogenicity highly dependent on how the epitope is displayed [69,70,71,72]. In this study, we used the KWC/GRB platform to express native-sequence MPER immunogens on the bacterial surface using a trimeric autotransporter in immediate proximity to the lipid bilayer of the bacterial outer membrane. In our immunogen design campaign, we progressively modified immunogen architecture through defined design stages. Building on prior KWC/GRB studies with viral fusion peptide and scaffolded MPER immunogens [33,34,35], our results demonstrate that successful MPER presentation depends not only on antigen exposure, but also on the spatial organization of MPER relative to trimerization domains, immunomodulatory elements, tandem antigen repeats, and the Hia display scaffold.

Across the sequential development of the KWC/GRB platform, prior studies established several principles that informed the present work. The initial coronavirus fusion peptide study demonstrated that genome-reduced bacteria could be used as a killed whole-cell chassis for surface display of conserved viral fusion epitopes and could induce protective immunity in a relevant animal model. Subsequent optimization using class I viral fusion peptides showed that surface exposure is a key determinant of humoral immunogenicity and that antigen multimerization, linker design, and incorporation of immunomodulatory elements can substantially increase antigen-specific antibody responses. The scaffolded MPER study then showed that structural stabilization of a difficult membrane-proximal epitope could enable the induction of neutralizing activity in the KWC/GRB platform. Together, those studies suggested that successful KWC/GRB vaccine design requires coordinated optimization of antigen exposure, structural constraint, modular immunostimulation, and epitope accessibility. The present study extends these principles to native-sequence MPER displayed as a trimeric coiled-coil immunogen and identifies additional requirements related to trimeric stabilization, tandem antigen spacing, and antigen-scaffold geometry.

The strategy of presenting MPER in a trimeric configuration has been explored previously, although in structural contexts distinct from the one used here. Soluble recombinant gp41-based immunogens designed to stabilize MPER within a trimeric coiled-coil, including constructs in which MPER and gp41 heptad-repeat regions were constrained by heterologous coiled-coil domains [73,74], were efficiently recognized by broadly neutralizing antibodies and elicited MPER-directed antibody responses in rabbits, but induced little or no HIV-1 neutralizing activity. Similarly, repetitive display of MPER on self-assembling protein nanoparticles built from pentameric and trimeric coiled-coil domains raised high MPER-specific titers without added adjuvant, yet did not induce detectable neutralization [75]. Trimeric gp41 stabilized in a prehairpin-like conformation and displayed on bacteriophage T4 capsids has also been engineered to expose the 2F5 and 4E10 epitopes [28]. Together, these studies indicate that trimerization of MPER, although important for approximating the native quaternary organization of the epitope, has generally been insufficient on its own to elicit neutralizing antibodies. To our knowledge, the present study is the first to display native-sequence MPER as a trimeric coiled-coil through a bacterial trimeric autotransporter on the surface of a killed whole-cell vaccine, positioning the epitope adjacent to a lipid bilayer and, in the most advanced designs, co-expressing it in a single genetically encoded construct with immunomodulatory elements. This configuration differs from prior soluble, nanoparticle, and phage-displayed trimeric MPER immunogens in both display geometry and membrane-proximal context and provides a distinct immunogen-display context associated with the detectable, virus-dependent neutralizing activity reported here.

A major conclusion from this work is that structural reinforcement of MPER within a trimeric coiled-coil context improves immunogen performance relative to an MPER-only baseline. Incorporation of heterologous trimerization domains increased 2F5 binding and enhanced MPER-specific antibody responses, supporting the idea that native-sequence MPER benefits from additional stabilization when displayed on the bacterial surface. This interpretation is consistent with structural and vaccine-design studies showing that Env and gp41 immunogenicity are strongly influenced by trimeric organization and conformational stabilization [27,28,29,30,76,77,78,79,80]. This effect became particularly important as immunogen complexity increased. Simple tandem duplication of MPER increased antigen valency but did not proportionally improve antibody binding or induce neutralization, indicating that repeated antigen units require appropriate spatial separation and stabilization. Structural predictions of simple duplicated, stacked MPER regions suggested that, without an intervening trimerization domain such as Foldon, the MPER repeats might not maintain favorable tertiary and quaternary organization. Thus, MPER valency alone was insufficient; the repeated MPER modules had to be organized and stabilized in a geometry compatible with epitope accessibility and functional antibody induction.

The comparison between Foldon- and Zipper-based designs further emphasizes that trimerization domains are not merely passive oligomerization tools. Although both domains supported MPER trimerization in early design stages, Foldon-based candidates performed better than Zipper-based candidates when MPER valency was increased. Foldon and zipper motifs have well-established trimerization properties, but their different structural characteristics can impose different geometric constraints on fused immunogens [45,46]. In this setting, Foldon may better preserve the spacing, rigidity, or relative orientation of tandem MPER units, thereby supporting a more favorable trimeric display. These findings highlight the importance of treating trimerization domains as architectural determinants of immunogen presentation rather than interchangeable structural accessories. Although Foldon outperformed Zipper in the designs tested here, these results do not imply that Foldon is the optimal trimerization or spacing domain. Rather, they suggest that trimerization domains can be engineered as functional spacing elements, and that future designs may benefit from alternative domains that better separate repeated MPER units, preserve coiled-coil organization, and promote productive B-cell receptor engagement, while ideally having minimal immunogenicity themselves.

The effects of immunomodulatory elements were more context-dependent. PADRE incorporation was associated with increased antibody binding responses, consistent with the expected benefit of enhanced helper T cell stimulation [47,48,49]. In contrast, rSIP-containing candidates showed reduced ELISA AUC values in some comparisons despite maintaining measurable MPER exposure by flow cytometry. This result does not necessarily indicate that rSIP is detrimental. rSIP has been described as an immunomodulatory protein with TLR2 and TLR4 agonist activity and potential adjuvant properties [50,51]. However, in the context of these MPER candidates, large accessory domains may also influence the magnitude, orientation, or specificity of the antibody response by changing the geometry of the displayed antigen. This may be especially relevant for MPER, because several MPER-directed broadly neutralizing antibodies recognize membrane-proximal or structurally constrained epitopes with specific angles of approach and, in some cases, membrane interactions [5,13,14,69,81,82,83,84]. Therefore, a reduction in total antibody binding does not necessarily imply poorer functional quality. Immunomodulatory sequences may help shape the immune response, but their effect appears to depend strongly on the structural context in which they are presented.

A recurring theme in this dataset is the dissociation between MPER accessibility, antibody magnitude, and neutralizing activity. Several vaccines displayed measurable 2F5 binding by flow cytometry and induced MPER-specific antibodies by ELISA yet failed to induce detectable neutralization after three immunizations. Conversely, design stage 5 induced neutralizing activity despite not being the strongest vaccine by every binding metric. These findings indicate that 2F5 binding and ELISA AUC are useful but incomplete predictors of functional immunogenicity, and that in vivo evaluation remains essential because current in vitro and in silico metrics do not yet fully predict functional neutralization. Flow cytometry reports whether a known neutralizing epitope is accessible on the bacterial surface, and ELISA measures the magnitude of MPER-specific antibody binding, but neither assay fully captures whether the induced antibodies recognize MPER in a geometry compatible with viral neutralization. Similar distinctions between antibody binding, epitope presentation, and neutralization have been emphasized in MPER and Env immunogen studies [69,70,84,85,86,87,88,89].

Design stage 5 represented the first functional breakthrough in this series. This candidate incorporated duplicated MPER repeats separated by an additional Foldon domain, thereby stabilizing each MPER module within a more organized trimeric arrangement. After three immunizations, design stage 5 induced neutralizing activity against CNE55, whereas earlier design stages remained non-neutralizing. Extending the immunization regimen increased MPER-specific antibody binding and expanded detectable neutralization to an additional pseudovirus, 25710-2.43. These results show that native-sequence MPER, when organized as a repeated trimeric coiled-coil on the KWC/GRB surface, can prime antibody responses with measurable antiviral function. They also suggest that repeated antigen exposure can amplify or mature functional responses that may initially be weak or restricted, consistent with broader HIV vaccine studies showing that sequential or repeated immunization can promote antibody maturation and functional activity [25,80,90,91,92].

The design stage 6 experiment extends this conclusion by showing that detailed antigen-scaffold geometry remains important even after tandem MPER repeats have been separated and stabilized by an intervening trimerization domain. Structural analysis of design stage 5 indicated that the MPER repeat proximal to Hia remained partially located within the predicted Hia barrel envelope. This observation motivated insertion of the short eHIAs spacer, GTASALAA, between the proximal MPER repeat and the Hia β-barrel/translocator domain. Barrel-envelope analysis showed that eHIAs reduced the fraction of proximal MPER residues positioned within the Hia envelope from 12 of 28 residues per protomer in design stage 5 to only 5–6 of 28 residues per protomer in design stage 6. The mean axial position of the proximal MPER repeat also shifted outward by approximately 10.7 Å. These structural analyses relied on AlphaFold-based predictions and visualization/analysis of predicted models, approaches that are valuable for immunogen design but should be interpreted cautiously in the absence of experimentally solved structures [52,53,54,55,56]. Thus, these predicted structural changes do not establish causality, but they provide a rational structural basis for why a minimal Hia-proximal spacer could alter MPER exposure and downstream immunogenicity without changing the MPER antigen sequence itself. These findings support further optimization of Hia-proximal spacing as a design variable for improving MPER presentation and functional antibody induction.

Experimentally, the design stage 6/eHIAs vaccine showed strong 2F5 binding, robust longitudinal MPER-specific ELISA responses, and a distinct neutralization profile. Importantly, eHIAs did not simply improve neutralization uniformly across all pseudoviruses. Instead, it reshaped the functional pattern of the antibody response, with detectable activity against 25710-2.43, MN.3, and X1632_S2_B10, but not CNE55 under the conditions tested. This virus-dependent pattern is informative because it suggests that small changes in Hia-proximal spacing can alter the antibody populations elicited by the vaccine. Therefore, eHIAs is best interpreted not as a universal enhancer of neutralization, but as an architectural refinement that changes MPER presentation and redirects the functional profile of the induced antibody response. Neutralization was assessed using established HIV pseudovirus neutralization approaches and virus-specific positivity cutoffs [59,60]. Although outside the scope of the present study, the virus-dependent neutralization patterns observed here raise the possibility that different trimeric MPER architectures may preferentially elicit partially distinct functional antibody populations. Future multivalent formulations combining complementary MPER immunogen architectures could therefore be evaluated as a strategy to broaden the neutralization profile.

Together, the design stage 5 and 6 findings support a working threshold-and-geometry model for MPER vaccine design in the KWC/GRB platform. Trimeric stabilization greatly improves the baseline organization of MPER, PADRE can enhance antibody binding responses, and Foldon-mediated separation of tandem MPER repeats can enable the emergence of neutralizing activity. However, even after these improvements, local junctional spacing between the antigen and the autotransporter scaffold remains a determinant of presentation. This interpretation is consistent with the biology of trimeric autotransporters and Hia, where trimerization, translocator architecture, and passenger-domain organization can influence surface display and stability [36,37,38,39,40,41,42,43,44]. The experiments with the eHIAs show that an eight amino acid spacer can substantially reduce Hia-proximal MPER inclusion within the predicted barrel envelope and is associated with altered functional antibody output. Thus, effective MPER display requires both appropriate global architecture and optimized local antigen-scaffold spacing. Future studies should determine whether systematic modulation of spacer length, composition, and rigidity can further improve MPER presentation and functional antibody induction.

This interpretation also helps explain why simple correlations between flow cytometry metrics and ELISA responses were weak. MPER exposure is necessary, but not sufficient, for functional immunogenicity. A vaccine can expose MPER in a way that allows binding by a monoclonal antibody or detection in ELISA yet still fail to induce antibodies with the appropriate specificity, orientation, or maturation trajectory for viral neutralization. Conversely, a vaccine with only modest differences in average binding metrics may present key epitopes in a more productive geometry. This distinction is particularly important for MPER, where neutralization depends on antibodies that recognize a structurally constrained, membrane-proximal epitope in a highly specific context [5,6,13,69,82,83,84]. Thus, the goal is not simply to maximize antigen display, but to engineer antigen presentation in a way that couples epitope accessibility, structural constraint and stabilization, and immunostimulatory context to favor functional antibody responses.

The present study has several strengths. First, it used an iterative design strategy in which individual architectural variables were evaluated while maintaining a common antigenic target and platform, extending principles previously developed with multimerized KWC/GRB immunogens displayed through the monomeric AIDA-I autotransporter [33,34,35]. Second, the study integrated contemporary immunogen-design principles with structural prediction, monoclonal antibody binding, ELISA, and neutralization assays, allowing each design stage to be evaluated at multiple complementary levels. Third, the progression from design stage 5 to design stage 6 illustrates how structural observations can guide minimal sequence modifications that are then tested experimentally. This design-build-test-learn workflow is a major advantage of the KWC/GRB platform and is consistent with prior use of the platform for rapid engineering of bacterial surface-displayed immunogens [33,34,35].

Although the vaccine designs evaluated in this study did not induce highly potent or broadly neutralizing responses in all animals, they induced detectable neutralization in subsets of mice using KWC/GRB vaccines without additional, external adjuvants. In previous studies, the induction of significant neutralization required not only priming with isolated MPER immunogens, but also subsequent challenge infection with live virus [17,18,19,20], so the ability of the stage 5 and 6 designs in the studies reported here can be considered to advance the field. The current findings provide a starting point for further optimization of trimeric Hia-displayed MPER immunogens. The use of quasi-outbred HET3 mice is also relevant because this model introduces greater host genetic diversity than standard inbred mouse strains, a potentially stricter evaluation criterion, although further studies will be required to determine how these responses translate across species.

The study also has limitations. The number of vaccine designs that induced neutralization was limited, preventing development of a rigorous predictive model for neutralizing activity. Neutralization was virus-dependent and should not be interpreted as broad neutralization. The structural analyses relied on predicted models rather than experimentally solved structures, and these models may not capture conformational dynamics, membrane-proximal flexibility, bacterial surface effects, or rare states relevant to B cell recognition [52,53]. In addition, flow cytometry and ELISA measure average binding behavior and may not detect minor antibody populations that disproportionately contribute to neutralization. Finally, the mouse model provides a useful comparative system for vaccine design, but further work will be required to determine whether these responses can be strengthened, broadened, and translated across species.

Future work should pursue two complementary directions. One is continued engineering of the trimeric KWC/GRB platform, including systematic modulation of MPER-Hia spacing, alternative trimerization domains, lower-immunogenicity structural elements, evaluation of additional immunomodulatory sequences, and strategies to increase MPER valency without inducing collapse of the MPER coiled-coil trimeric structure or steric occlusion. The second is development of heterologous immunization regimens combining trimeric MPER KWC/GRB vaccines with scaffolded MPER immunogens. Scaffolded MPER designs present the epitope in a structurally constrained but distinct context, whereas the trimeric KWC/GRB vaccines present native MPER as a repeated coiled-coil array adjacent to a bacterial surface scaffold. Prior MPER epitope-scaffold studies and scaffold-based immunofocusing approaches support the rationale for combining distinct MPER presentation formats [35,71,85,93,94]. Combining these approaches may improve antibody magnitude, diversify the responding B cell repertoire, and promote more consistent functional maturation. Additional strategies could include co-administration of external adjuvants, since the present study used only the immunomodulatory elements encoded within the expressed MPER immunogen and the intrinsic adjuvanticity of the bacterial chassis. Engineering improved bacterial chassis strains may provide an additional route to tune reactogenicity, antigen visibility, and immunogenicity.

In summary, this study demonstrates that native-sequence MPER can be engineered within the KWC/GRB platform to induce MPER-specific antibodies with detectable neutralizing activity. The data identify several design principles: MPER benefits from trimeric stabilization, increased valency requires controlled spatial organization, antibody binding magnitude alone does not predict neutralization, extended boosting can enhance functional activity, and Hia-proximal spacing is a tunable determinant of MPER display. The eHIAs spacer experiment is particularly important because it shows that a minimal local architectural change can substantially alter predicted MPER presentation and reshape the functional antibody response. These findings advance the rational development of MPER-targeted KWC/GRB vaccines and provide a framework for optimizing bacterial surface-displayed immunogens against structurally constrained viral epitopes.

5. Conclusions

This study demonstrates that the KWC/GRB vaccine platform can display native-sequence HIV-1 MPER immunogens in a trimeric coiled-coil configuration and induce MPER-specific antibodies with detectable, virus-dependent neutralizing activity. Through iterative immunogen engineering, we progressed from designs that induced binding antibodies without neutralization to architectures capable of generating functional anti-HIV activity. The results identify several key design principles: trimeric stabilization improves MPER presentation, increased MPER valency requires controlled spacing and stabilization, antibody binding magnitude alone does not predict neutralization, extended boosting can enhance functional responses, and Hia-proximal spacing is a tunable determinant of MPER display.

The identification of design stage 5 established that duplicated MPER repeats separated by Foldon can induce neutralization after three immunizations and expand functional activity after extended boosting. Further refinement with the design stage 6/eHIAs vaccine showed that a minimal spacer at the Hia-proximal junction can reduce predicted MPER inclusion within the Hia barrel envelope and reshape neutralization activity across the pseudovirus panel. Although the responses observed here do not yet represent broad neutralization, these findings provide a rational framework for further optimization of MPER-directed KWC/GRB vaccines.

The primary goal of developing a safe and effective HIV vaccine remains the prevention of new infections. Long-acting antiretroviral therapy and long-acting PrEP represent major advances in HIV treatment and prevention, but they do not eliminate the need for safe, durable, scalable, and affordable vaccines [95]. Drug-based prevention strategies require sustained healthcare infrastructure, repeated clinical access, reliable supply chains, and long-term implementation capacity, which can be difficult to maintain in under-resourced settings [96]. In this context, the KWC/GRB platform has potential practical advantages because it is rapidly adaptable, potentially compatible with low-cost manufacturing, and conceptually aligned with existing killed whole-cell vaccine production approaches. If further optimized to induce broader and more potent neutralization, a KWC/GRB MPER vaccine could contribute to HIV prevention strategies, particularly in regions where access to long-term biomedical interventions remains constrained.

More broadly, the design principles developed in this study may inform KWC/GRB vaccine engineering against other viruses with class I fusion proteins, including pathogens for which conserved membrane-proximal stem or stalk regions are attractive but difficult vaccine targets.
