A Simple Method to Evaluate the Length of Poly-A Tails in mRNA

1. Introduction

The synthesis of mRNA, such as that used in approved vaccines against SARS-CoV2 or Respiratory Syncytial Virus (RSV), as well as in many new drugs currently under development, is achieved by in vitro transcription (ivt) of a DNA template (1), initially using purified RNA polymerase (2) and, after 1984, recombinant RNA polymerase (3). The first report in 1984, on the functionality of synthetic mRNA described the use of mRNA encoding the Xenopus β-globin protein (4). On top of the coding sequence, this ivt mRNA contained the endogenous 5’ and 3’ untranslated regions (UTRs) of the Xenopus β-globin gene and a poly-A(23) C(30) tail. Since then, ivt mRNAs are based on this format and frequently contain globin 5’ and 3’ UTRs and poly-A tail encoded in the DNA. The first report demonstrating the possibility of expressing proteins in animals through injection of synthetic mRNA (5), as well as the initial studies showing vaccination in mice using direct injection of synthetic mRNA (6,7) and the first clinical studies, initiated in 2003, to evaluate ivt mRNA vaccines in humans (8,9), all employed this type of mRNA. Currently, in order to obtain the 3’ poly-A tail that is needed for the functionality of ivt mRNA, there are two distinct possibilities:

-

The poly-A sequence is contained in the DNA template. In this case the RNA polymerase will copy it into the neo-synthesized mRNA, however, it will not always incorporate all As: the RNA polymerase may stop on this homopolymeric sequence, particularly when the ATP pool is being reduced during transcription due to heightened consumption of the nucleotide at the beginning of the reaction. Therefore, the obtained mRNAs will all have poly-A tails of varying lengths, often lower than the length of the poly-A sequence in the DNA matrix.

-

The poly-A sequence is added on the ivt mRNA post-transcriptionally using a poly-A polymerase and ATP. In this case the number of adenosine residues added will depend on several factors: the concentration of ATP in the reaction, the efficacy of the poly-A polymerase, the accessibility of the 3’ end (i.e. it should not be sequestered within secondary or tertiary RNA structures), the amount of available 3’ ends (longer mRNAs provide less 3’ ends per microgram of mRNA), and the duration of the reaction. Commercial manufacturers provide protocols to introduce hundreds of As on average (https://www.neb.com/en/protocols/2014/08/13/poly-a-tailing-of-rna-using-e-coli-poly-a-polymerase-neb-m0276). Again, here some mRNA will have no As (due to failure of being elongated by the poly-A polymerase) and some will have more than 200 As (as a result of efficient elongation).

Therefore, regardless of the method used, the size of the poly-A tail in synthetic mRNA is not precisely predictable. In pharmaceutical production of ivt mRNA, there is a quality control step that must be performed to accurately measure the poly-A tail length (https://www.ema.europa.eu/en/documents/scientific-guideline/draft-guideline-quality-aspects-mrna-vaccines_en.pdf). Such a quality control measure to determine the poly-A tail length can be accomplished by reverse transcription and sequencing or cleavage of the poly-A tail followed by mass spectrometry or capillary electrophoresis analysis. These methods are complex and can be difficult to implement in research laboratories where researchers generate their own ivt mRNA. They are also labour-intensive and costly in pharmaceutical conditions for individualized anti-cancer therapies (where mRNAs are produced tailored for each patient).

We developed a simple and rapid method that evaluates the length of the poly-A tail in ivt mRNA samples using thiazole orange coupled to a poly-dT probe. Thiazole orange is a fluorescent dye that exhibits minimal fluorescence in its free state but shows a significant increase in fluorescence upon binding to nucleic acid (DNA or RNA) (10-12). This property makes it valuable for various applications in molecular biology, including the development of ECHO (Exciton-Controlled Hybridization-sensitive Fluorescent Oligonucleotide) probes (13). These probes utilize the unique fluorescence properties of thiazole orange or its derivatives for the detection of target nucleic acids. Biological applications of ECHO probes include: Fluorescence In Situ Hybridization (FISH) for visualizing specific nucleic acid sequences within cells or tissues, monitoring mRNA, lncRNA, and miRNA dynamics in living cells, Single Nucleotide Polymorphism (SNP), and pathogen detection (for example, in SARS-CoV-2 testing kits).

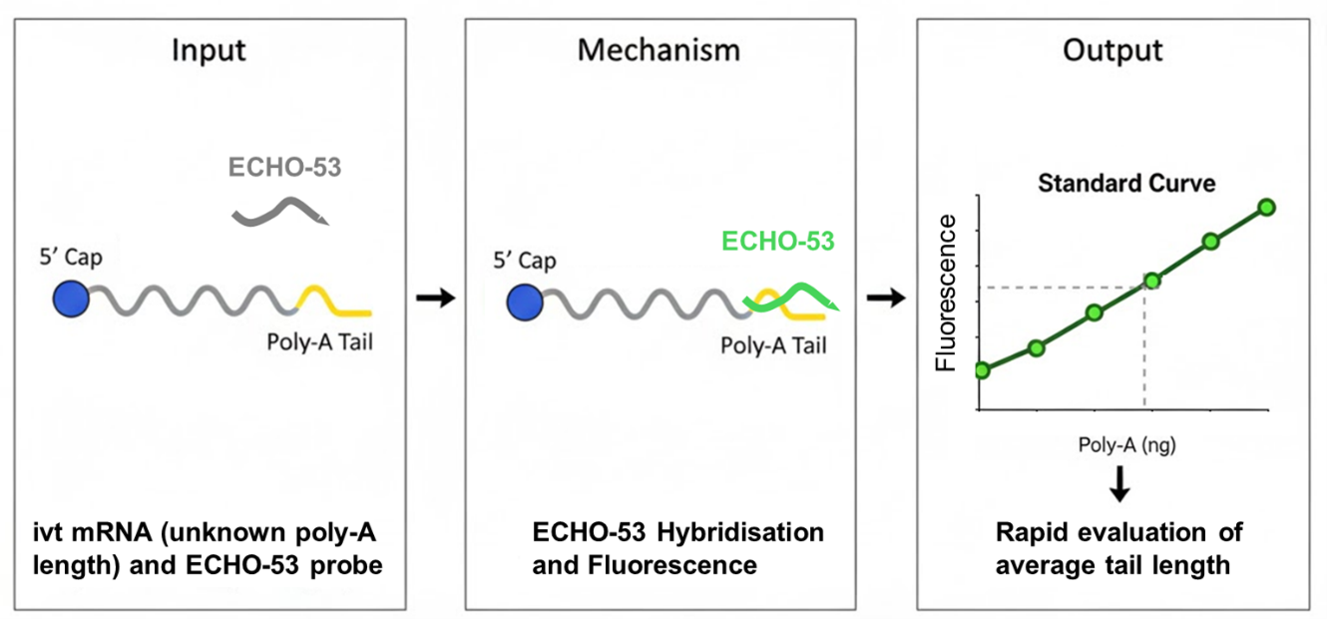

Here, we show that poly(dT)12 DNA oligonucleotides incorporating thiazole orange at the 5’ end, 3’ end or on both ends exhibit fluorescence upon hybridisation with complementary poly-A RNA sequences. Using a titration of defined amounts of synthetic poly-A(60) RNA against a fixed amount of the poly-dT oligonucleotide and measuring the resulting fluorescence signal, yielded reproducible standard curves. By applying this method to synthetic mRNA samples of unknown poly-A tail length in separate wells and using the resulting fluorescence signal, we are able to quantify, based on the previously generated standard curves, the amount of poly-A in each sample, allowing the estimation of the average poly-A tail length in the mRNA.

2. Materials and Methods

2.1. Oligonucleotides

The oligo-dT homopolymer consisting of 12 consecutive deoxythymidines was made on a chemical synthesizer and coupled with thiazole orange at its 5’ end or at its 3’ end or at both (Biosynth Inc, Califormia, USA). The oligo-A homopolymer consisting of 60 consecutive ribo-adenosine was also made on a chemical synthesizer (Microsynth, Zurich, Switzerland). All oligonucleotides were resuspended at 100 pmol per microliters in pure water and stored frozen. DNA primers for PCR were made on a chemical synthesizer (Microsynth, Zurich, Switzerland).

2.2. Production of Synthetic Messenger RNA by In Vitro Transcription

DNA templates were plasmids having the sequence of gaussia luciferase, firefly luciferase or mCherry in the “min” design (5’ CAAG UTR, no 3’ UTR (14)), an upstream modified T7 promoter accommodating the incorporation of the CleanCap® Reagent AG (TriLink BioTechnologies Inc., San Diego, CA, USA) and a downstream poly-A 120 sequence interrupted with a single G residue: A(60)GA(60). Unique restrictions sites were incorporated immediately after the stop codon or after the poly-A tail so that the plasmids could be used to make mRNA without a poly-A tail (plasmid linearised immediately after the stop codon) or with a poly-A tail (plasmid linearised immediately after the poly-A sequence). Synthetic mRNAs were produced by in vitro transcription using the HiScribe™ T7 mRNA kit (New England Biolabs, Ipswich, MA, USA). Therefore, the mRNAs made from plasmids linearised after the poly-A tail were co-transcriptionally poly-adenylated at the 3’ end using DNA templates having a defined stretch of 120 As. The transcription of mRNA was performed in the presence of 8 mM of each ATP, CTP, GTP, and methyl-1 pseudouridine triphosphate. After transcription, DNA was degraded by DNase I (New England Biolabs). Afterward, synthetic mRNA was recovered by LiCl precipitation. RNA was diluted in RNase-free water, and the concentration was adjusted to 1 mg/mL using a Nanodrop (Thermo Scientific). The quality and integrity of ivt mRNAs were checked using agarose gel electrophoresis. The mRNAs were stored at −20 °C.

3. Results

3.1. Optimization of ECHO Probe Fluorescence Conditions

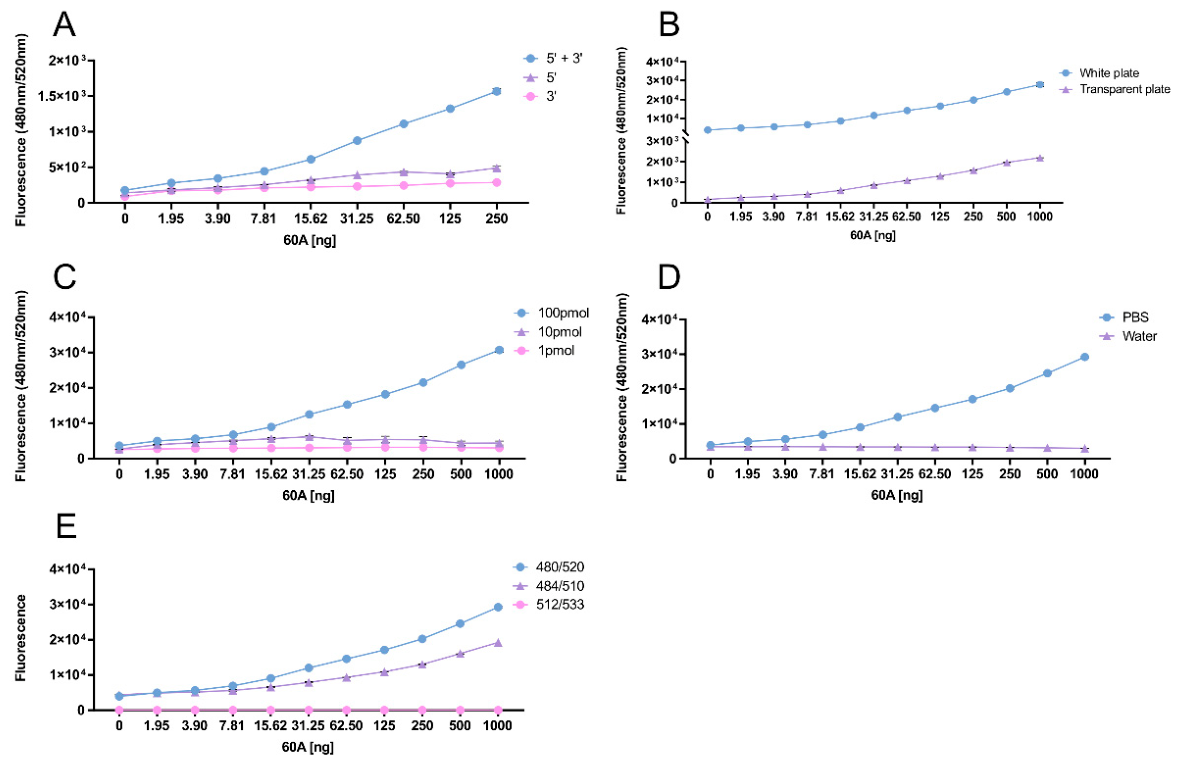

A deoxyoligonucleotide homopolymer consisting of 12 unmodified dT residues was synthesized and coupled at its 5’-, 3’- or both ends to thiazole orange. These oligonucleotides were resuspended at 100 pmol/µl . When mixed with increasing amounts of a poly-A RNA oligonucleotide of 60 nucleotides (poly-A (60) RNA) in a final volume of 100 µlof Phosphate Buffer Saline (PBS) containing a fixed amount of 100 pmol of ECHO probe, we recorded increasing fluorescence signals using the 480 nm excitation (“ex”) and 520 nm emission (“em”) channels on a spectrophotometer (Figure 1A). Emission in the presence of poly-A was higher when the ECHO probe had thiazole orange on both extremities compared to only either the 3’ or 5’ end. The ratio between autofluorescence (samples without poly-A) and fluorescence in the presence of 250 ng of poly-A (60) RNA was 491.5/140.5= 3.5 for the 5’ thiazole orange probe, 288/90= 3.2 for the 3’ thiazole orange probe and 1568/177.5= 8.8 for the 5’+3’ thiazole orange probe. Thus, subsequent experiments were performed using only the 5’+3’ thiazole orange oligo-dT(12) probe termed “ECHO-53”. Experiments were conducted in white or transparent 96 well plates, with the measured fluorescence being 10 fold greater from the former (Figure 1B). The required amount of ECHO-53 was 100 pmol with lower amounts showing little fluorescnce (Figure 1C). Successful hybridisation and the resulting fluorescent signal was only observed in PBS, with no signal obtained from using water, reflecting the need of salts to achieve hybridisation between complementary nucleic acids (Figure 1D). Thiazole orange fluorescence in the vicinity of nucleic acid is reported to take place optimally at the ex/em 512/533 (10,12,13). However, in our experiments, this setting did not give a detectable signal while 484/501 or even more 480/520 resulted in strong signals (Figure 1E).

3.2. Evaluating the Size of the poly-A Tail Length in Generated Ivt mRNA Using the ECHO Probe

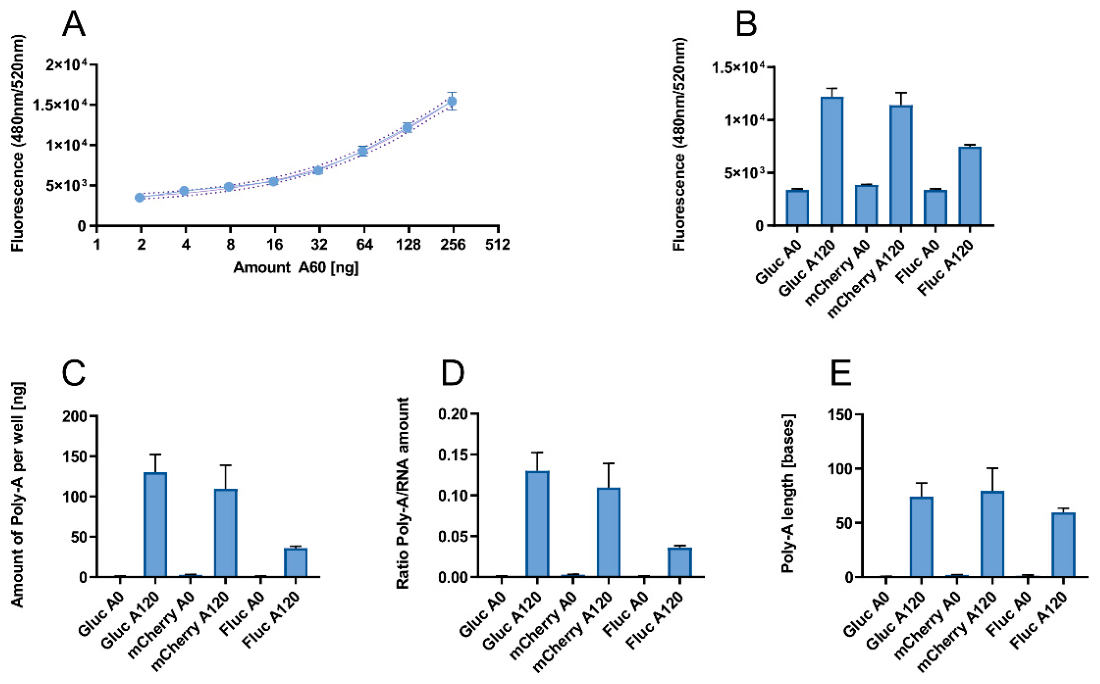

To evaluate the length of poly-A tails in synthetic mRNA, we used a range of 2 - 250 ng of Poly-A (60) RNA to generate a standard curve (Figure 2A) and in other wells 1 μg of ivt mRNA coding gaussia luciferase, firefly luciferase or mCherry were used. These mRNAs were made from DNA templates having no (“A0”) or 120 (“A120”) in their transcribed region. As shown in Figure 2B, inclusion of the poly-A sequence in the mRNA leads to increased fluorescence signal in the presence of ECHO-53. Using the established standard curve and interpolating the observed fluorescence values in a non-linear regression model using GraphPad Prism, allows the calculation of the amount of contained poly-A sequence in each well containing ivt mRNA. (Figure 2C). The percentage of A stretches was obtained by dividing the amount of poly-A sequences shown in Figure 2C by the amount of ivt mRNA used in each well (Figure 2D). Multiplying this ratio by the length of the mRNA (by taking the length without poly-A tail for simplifying the evaluation and accepting that this is an approximation: 569 nucleotides for Gluc, 723 nucleotides for mCherry and 1663 nucleotides for Fluc), we obtained an estimation of the average poly-A tail length in each sample (Figure 2E). The calculated average poly-A tail lengths ranged from 60 - 100 bases. This is consistent with the expectation that not all mRNAs contain a full-length poly-A sequence as encoded by the DNA template, likely reflecting premature disengagement of the RNA polymerase on homopolymeric stretches, particularly as ATP becomes limiting during transcription.

4. Discussion

The increasing prominence of ivt mRNA in vaccines and therapeutics necessitates the development of straightforward, cost-effective methods for quality control. One of the most critical quality attributes of synthetic mRNA is the length of its 3' poly-A tail, which is essential for ensuring mRNA stability and efficient translation. While traditional methods for measuring poly-A tail length, such as reverse transcription and sequencing or capillary electrophoresis, are highly precise, they are also convoluted , labour-intensive, and not practical for many research laboratories. Our study introduces a simple, rapid, and economical alternative for estimating the average poly-A tail length in ivt mRNA samples.

Our method is based on the distinctive properties of thiazole orange, a fluorescent dye that fluoresces intensely upon binding to nucleic acids (10-13). We engineered a poly-dT(12) oligonucleotide probe with thiazole orange molecules at both its 5' and 3' ends to create an ECHO probe (ECHO-53) that specifically hybridizes with the poly-A tail of mRNA. The resulting fluorescence signal is directly proportional to the amount of poly-A present in the sample. By generating a standard curve using known amounts of a poly-A (60) RNA oligonucleotide, we can easily and quickly translate the fluorescence signal from an mRNA sample into an estimated average poly-A tail length. This approach provides a significant advantage over existing technologies, enabling researchers and small-scale production facilities to perform rapid quality control checks without the need for specialized equipment or extensive expertise.

The primary advantage of our method is its simplicity and speed. The entire assay can be completed in minutes using a standard microplate reader, making it ideal for high-throughput screening or routine quality control. This is a stark contrast to techniques like sequencing, which can take days to yield results. Furthermore, the method is highly accessible, relying on a simple hybridization reaction in a common laboratory buffer. The use of the double-labelled probe (thiazole orange at both ends) was shown to significantly increase the signal-to-noise ratio, enhancing the sensitivity of the assay and allowing for reliable measurements with small amounts of mRNA.

Despite its clear advantages, our method provides an estimation rather than a precise measurement of poly-A tail length. The calculation of the average tail length relies on several approximations, including the use of an mRNA length that excludes the poly-A tail. This method evaluates the average length for the entire population of mRNA molecules in a sample and does not provide information on the distribution of poly-A tail lengths, as is possible with sequencing. For instance, a sample with a mix of very short and very long tails might yield the same average as a sample with a more uniform distribution.

The need for a reliable and efficient quality control method is paramount in the rapidly expanding field of mRNA-based medicine. The inherent variability in the poly-A tail length of ivt mRNA, whether from polymerase disengagement or post-transcriptional polyadenylation, makes routine quality assessment essential for ensuring product consistency and efficacy. Our method offers a practical solution for laboratories producing mRNA for research, pre-clinical studies, and even for personalized medicine applications where rapid, on-demand quality checks are crucial.

Future work could focus on further refining the assay to improve its precision and expand its utility. Validating the method against sequencing data for a broader range of mRNA constructs and poly-A lengths would provide a more robust understanding of its accuracy. Moreover, exploring the use of different probe lengths or chemistries could potentially improve the assay’s dynamic range and sensitivity. Ultimately, our simple and efficient method fills a critical gap in the quality control workflow for synthetic mRNA production, providing a valuable tool for accelerating the development of next-generation mRNA therapeutics.
