Sensorless Control of LC-Filtered PMSM Drives Using a SOGI-Assisted High-Order Extended State Observer

1. Introduction

The PMSM is widely used in various fields due to its advantages [1,2,3,4,5]. However, the use of the voltage source inverter (VSI) to drive a PMSM introduces output voltages with extremely high voltage change rates (du/dt) and abundant high-order harmonics due to the fast response of semiconductor devices [6]. This issue becomes particularly pronounced under specific operating conditions: for instance, in mining and deep-sea applications where long cables are required for power transmission, the combination of line impedance and pulsed voltages can easily induce overvoltages. This not only accelerates insulation aging in the motor but also gives rise to electromagnetic compatibility (EMC) issues, thus shortening the service life of the equipment [7].

To address the aforementioned challenges, inserting an LC filter is considered an effective solution. By means of this filter, the inverter output voltage is transformed into a sinusoidal waveform, thereby significantly suppressing du/dt and high-frequency harmonic voltages, protecting motor insulation, reducing bearing currents, and effectively mitigating motor vibration and noise. With the increasing application of wide-bandgap semiconductor devices (such as SiC and GaN) enabling higher switching frequencies, along with the growing number of long-cable transmission scenarios, the necessity of LC sine-wave filters has become increasingly prominent [8].

Nevertheless, adding an LC filter introduces new control challenges. The filter, together with the motor stator inductance, forms a high-order LCL network, which introduces an inherent resonant peak into the system. Without proper suppression, this can lead to system instability. Currently, the main methods for suppressing resonance include active damping (AD) and passive damping (PD) [9,10]. Since PD incurs additional power losses, research into AD has become particularly necessary. Among the proposed AD techniques, those employing feedback of a filter-state have proven to be more economical. In particular, CCFAD is widely adopted because it is easy to implement and effective resonance suppression [11]. However, in some special industrial applications where the inverter is located far from the motor, it is difficult to install additional current and position sensors to measure system state variables and position information. Therefore, achieving high-performance sensorless operation while ensuring system stability and effectively suppressing resonance has become a key technical issue that urgently needs to be resolved for the LC-filtered PMSM drive system.

By adding an LC filter, the overall order of the system is significantly increased and introduces noticeable phase delay and voltage drop between the inverter-side and the motor-side, making traditional sensorless control methods designed for filterless operation difficult to apply directly [12,13]. For example, in [14], a conventional algorithm based on a voltage-model rotor flux estimator was applied to a system equipped with an LC sine-wave filter. However, this approach requires the measurement of motor-side voltage and current, which not only increases hardware cost but also adversely affects system stability. Consequently, a method for reconstructing the rotor flux model based on LC filter parameters was proposed in [15], eliminating the need for additional voltage sensors and thereby reducing cost. Nevertheless, this approach, which relies on pure integration, introduces issues such as integrator drift. Similarly, in [16], the authors implemented a sensorless control system for an LC-filtered Interior PMSM (IPMSM) using an active flux observer. However, because the inverter-side voltage and current were directly used as substitutes for the motor terminal voltage and stator current, respectively, high-performance motor drive could not be achieved. Furthermore, in [17], the authors estimated the motor stator voltage and current using the filter output voltage and current. In [18], a virtual order reduction method was proposed to estimate the BEMF. By defining a weighted current from the inverter-side current and the motor-side current, the original third-order LCL model is reduced to a first-order virtual model, thereby simplifying the system. However, both [17] and [18] also require additional voltage or current sensors.

To reduce reliance on sensors, designing full-order observers is an effective approach. As proposed in [19], the adaptive full-order observer unifies the modeling of the LC filter and motor as a complete order-increasing system. By measuring only the inverter-side current, it achieves full-state estimation. What is more, at low speeds, the rotor position error is extracted through high-frequency signal injection to correct the adaptive full-order observer. Meanwhile, to simplify pole placement and observer structure in full-order state observers, a proportional-integral (PI) observer for surface-mounted permanent magnet synchronous motors (SPMSMs) is proposed in [20]. Furthermore, to enhance system robustness, full-order sliding mode observers are designed to estimate system states in [21] and [22], with adaptive gain matrices improving estimation accuracy and dynamic performance. However, the full-order sliding mode observer exhibits high dimensionality and requires the design of numerous sliding-mode gain parameters, leading to a complex tuning procedure.

In response to the above-mentioned problems, this paper proposes a sensorless control strategy based on a HOESO assisted by a SOGI for LC-filtered PMSMs. The main contributions of this paper are as follows:

(1) A HOESO that uniformly models the filter and PMSM is proposed. It requires only the measurement of the DC bus voltage and the inverter-side currents to estimate the motor current and the motor BEMF. Furthermore, through a pole placement approach, the gain parameters can be tuned solely by adjusting the observer bandwidth, and the stability of the observer is verified through its pole distribution map.

(2) CCFAD and current closed-loop feedback can be achieved using the estimated motor current. Furthermore, the orthogonal signal generation capability of the SOGI is employed to obtain the differential components of the input signal, which helps suppress high-frequency noise. Therefore, enhances the estimation accuracy of the motor current and BEMF by the HOESO.

2. Equivalent Model of the LC-Filtered PMSM

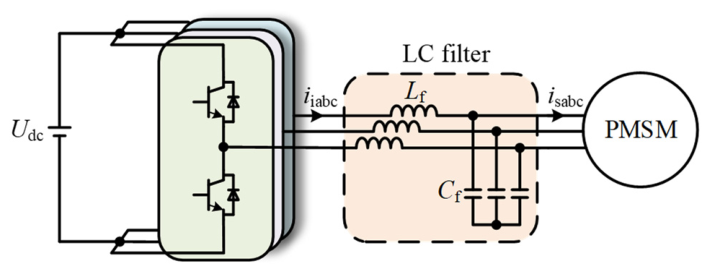

Figure 1 shows the configuration of the LC-filtered PMSM system. The LC filter is inserted between the inverter and the motor to improve the output voltage waveform, while the overall structure serves as the basis for the proposed control strategy and subsequent system analysis.

where U_dc is the DC bus voltage of the inverter, L_f and C_f are the inductor and capacitor of the LC filter, respectively, and i_iabc and i_sabc are the inverter-side and motor-side three-phase currents, respectively.

To reduce the model complexity of Interior Permanent Magnet Synchronous Motors (IPMSMs) in the two-phase stationary reference frame (αβ) caused by the salient-pole characteristic, the stator voltage equation based on active flux is expressed as [23]

(1)

(2)

where [u_sα, u_sβ]^T, [i_sα, i_sβ]^T, and [e_sα, e_sβ]^T are the stator voltages, stator currents, and the motor BEMF in the αβ-axes, i_sd is the current in the d-axis. R_s is the stator resistance, [L_d, L_q]^T are the inductances in the dq axes, p is the differential operator, ψ_af is the active flux oriented along the d-axis, ψ_f, θ_e, and ω_e are flux linkage, rotor angle, and synchronous angular velocity, respectively.

In the αβ axes, the equation of the LC filter can be expressed as

(3)

where [u_iα, u_iβ]^T and [i_iα, i_iβ]^T are the inverter-side voltages and currents in the αβ axes.

3. Proposed SOGI-Assisted HOESO Based CCFAD

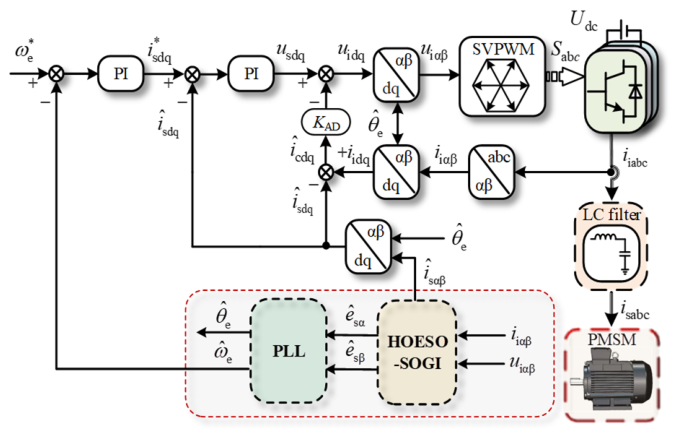

This section proposes an estimation method based on a HOESO assisted by a SOGI. Figure 2 illustrates its structure within a sensorless control system for an LC-filtered PMSM. According to the structure, motor currents and BEMF can be estimated solely from inverter-side current measurements, thereby reducing the number of sensors used and controlling the system cost.

3.1. The Construction of HOESO

According to (1) and (3), in the two-phase stationary reference frame, the mathematical model of the LC-filtered PMSM drive system can be derived as

(4)

Based on (4) and [24], the state variables x₁-x₃ can be defined as

(5)

Since the BEMF of the motor is not included in the above state variables, making it impossible to observe, the state variable x4 is further extended as

(6)

According to (4)-(6), a third-order integral series is established as

(7)

Subsequently, to estimate the states of the LC-filtered PMSM drive system, a HOESO is designed, whose expression is given as

(8)

where ε denotes the current estimation error, z₁-z₄ represent the estimates of the x₁-x₄, and h₁-h₄ are the respective adjustable gains.

For the sake of convenience in analysis, the HOESO parameters are set according to the pole configuration method described in [25], the adjustable gains h₁-h₄ can be selected as

(9)

where ω₀ is the bandwidth of the ESO.

According to (5)-(6) and (8), the estimated motor state variables can be expressed as

(10)

where “ˆ” represents the estimate variables.

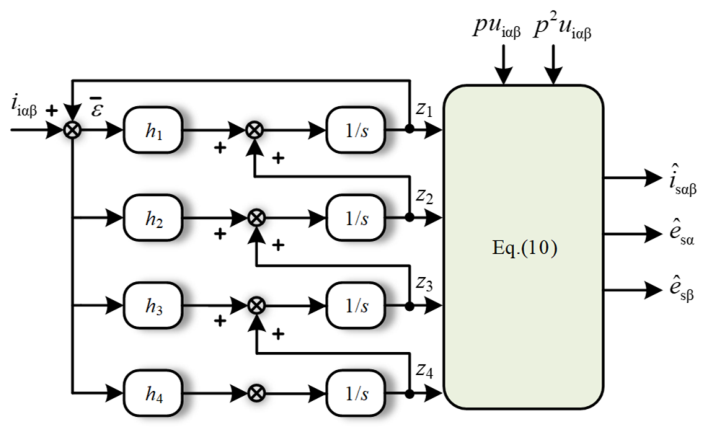

Figure 3 shows a structure diagram of the HOESO. Based on Figure 3 and (8), G_z1-G_z4 represent the relationships between state variables.

(11)

(12)

(13)

(14)

According to (2) and (10), the estimated BEMF can be expressed as

.

(15)

HOESO estimates that the BEMF contains a wealth of information regarding the rotor position. According to [26], this BEMF signal can be fed into a phase-locked loop (PLL) for phase locking and angle tracking, thereby enabling accurate estimation of the rotor electrical angle and providing a basis for sensorless estimation of the rotor position and speed.

After normalizing the BEMF, the error is output via the phase detector phase detector (PD)

(16)

A PI controller is adopted in the loop filter (LF) to generate the motor electrical angular velocity from the obtained equivalent position error. In this process, the proportional component improves the dynamic response of the system, whereas the integral component eliminates the steady-state error, thereby enhancing the accuracy of rotor position estimation. Subsequently, by integrating the estimated angular velocity, we can obtain the estimated position of the rotor. [27,28].

3.2. Stability Analysis

According to (5) and (6), the linear combination relationship between the true BEMF and state variables can be expressed as

(17)

It can be seen that both the actual BEMF and the estimated BEMF consist of two types of inputs: one based on the state variables of the HOESO, and the other related to u_iαβ. Moreover, they share the same form of feedforward term with respect to u_iαβ. Therefore, based on (10) and (17), the estimation error of the BEMF can be obtained as

(18)

From the above equation, it can be seen that the relevant u_iαβ terms are completely canceled out. The estimation error of the BEMF is solely related to the estimation error of the state variables (x_i-z_i). When the estimation error of the observer is zero, the estimated state variables converge to the actual state variables, meaning the estimated BEMF converges to the actual BEMF.

Therefore, the ratio of the estimated BEMF to the actual BEMF for the HOESO under input-independent conditions can be expressed as

(19)

According to (7), (11)-(14), and (19), the transfer function from the estimated BEMF to the actual BEMF under input-independent conditions can be expressed as

(20)

where D(s)=s⁴+h₁s³+h₂s²+h₃s+h₄, P₁(s)=h₁s³+h₂s²+h₃s+h₄, P₂(s)=h2s²+h₃s+h₄, P₃(s)=h₃s+h₄, P₄(s)=h₄.

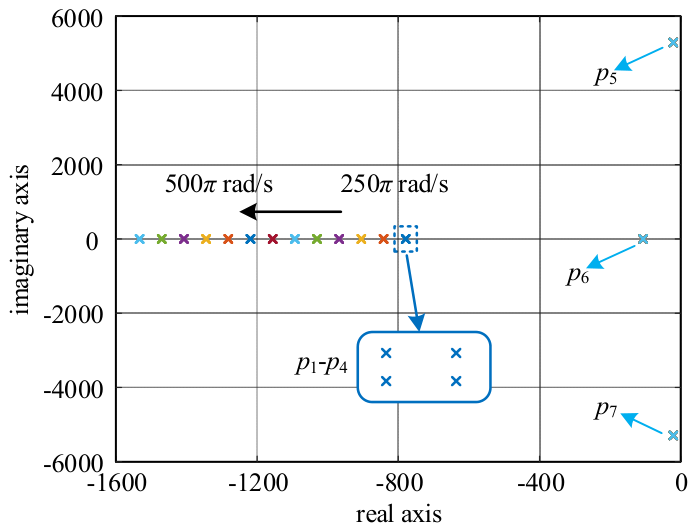

Figure 4 shows the pole movement trajectories plotted based on (20), which can be used for the stability analysis of the HOESO. The trajectories illustrate the movement of the poles as the bandwidth ω₀ varies from 250π rad/s to 500π rad/s. As seen in the figure, since all the poles of the transfer function lie to the left of the real axis, the observer is stable. Moreover, as ω₀ increases, the poles p₁ to p₄ consistently shift to the left. This movement enhances system stability and speeds up the response. However, excessive leftward pole displacement may amplify system noise.

3.3. Performance of CCFAD Using Estimated Current

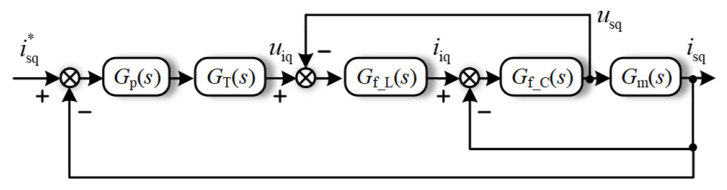

The equivalent block diagram of the LC-filtered PMSM current control loop is shown in Figure 5. Based on Figure 5, The formula for the system’s open-loop transfer function is

(21)

where G_p(s)=k_p+k_i/s, G_p(s) is the transfer function of the PI controller, k_p is the proportional coefficient, and k_i is the integral coefficient. G_T(s)=1/(1+sT_d), where T_d is the delay time. G_{f_L} (s)=1/(sL_f), G_{f_C}(s)=1/(sC_f), G_m(s)=1/(R_s+sL_q).

According to the transfer function in (21) and neglecting the stator terminal resistance of the PMSM during analysis to represent the system under the most severe undamped conditions, System frequency response for the LC-filtered PMSM current-control loop is shown in Figure 6. The figure reveals a resonance peak in the magnitude-frequency response curve at the resonant frequency ω_resq, significantly exceeding the 0 dB line. Correspondingly, the phase-frequency response curve crosses the -180° parallel line at this frequency. According to the Nyquist stability criterion, the closed-loop system of this current control loop is unstable.

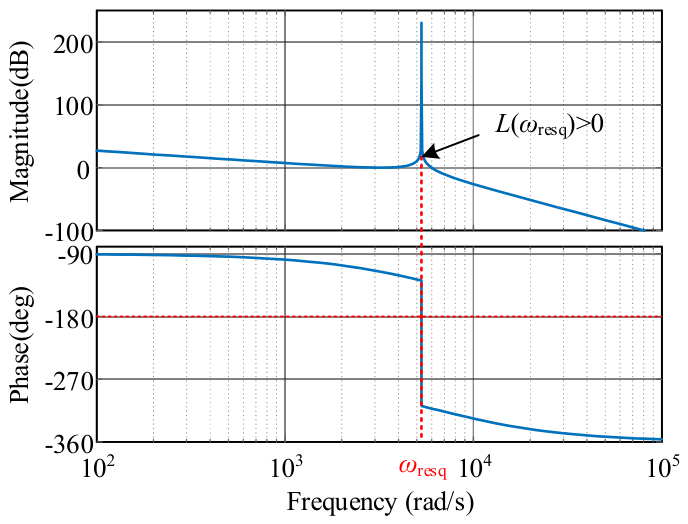

The AD method for suppressing resonance is considered simple and effective, particularly as CCFAD is widely adopted in the LC-filtered PMSM drive system. The equivalent block diagram of the current control loop based on CCFAD is shown in Figure 7.

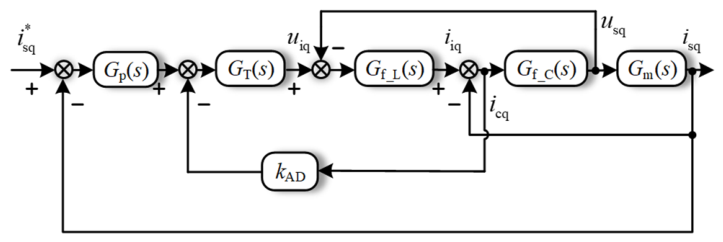

According to Figure 7, for the current loop with CCFAD, the open-loop transfer function is expressed as

(22)

where k_AD is the active damping coefficient.

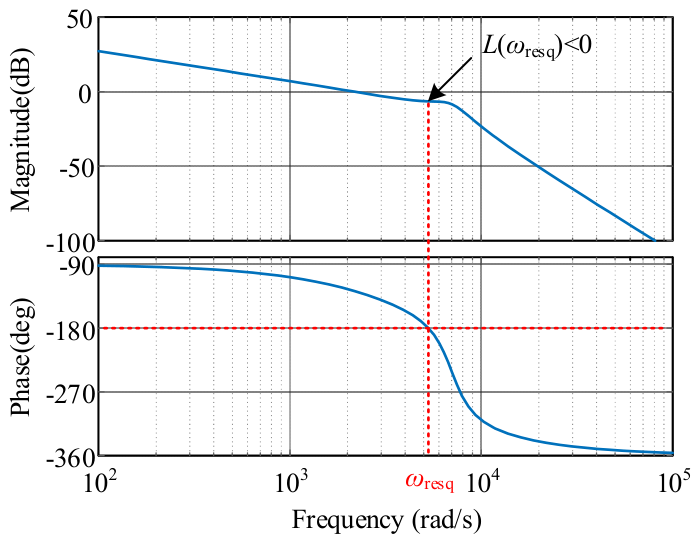

Based on the Bode diagram of the system’s open-loop transfer function from (22) shown in Figure 8, the figure indicates that the resonant peak has been reduced to below 0 dB. According to the Nyquist stability criterion, the system is stable. Therefore, suppressing resonance is essential to achieving stable operation of the LC-filtered PMSM drive system.

However, the implementation of CCFAD would ordinarily require an additional current sensor. Based on the HOESO designed above, precise estimation of the motor current can be achieved using only the inverter-side current sensor, thereby obtaining the capacitor current through subtraction to realize AD.

To verify the performance of the estimated current when it is feedback to the current-control loop, the estimated motor current obtained from (10) is

(23)

According to (11), (13), and (23), the transfer functions relating the estimated motor current to the inverter-side current and voltage, as well as their linear combination relationship, can be derived as

(24)

(25)

(26)

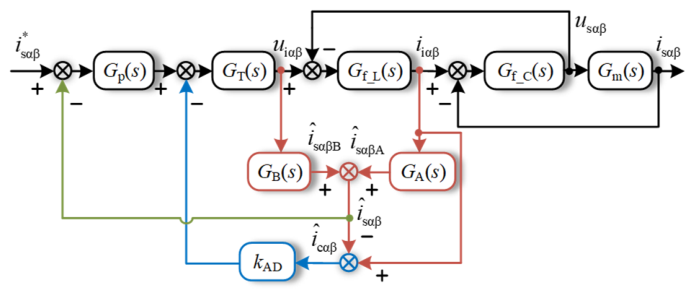

Figure 9 shows the equivalent block diagram of the current control loop with feedback based on the motor current estimated by the HOESO. Its open-loop transfer function can be expressed as

(27)

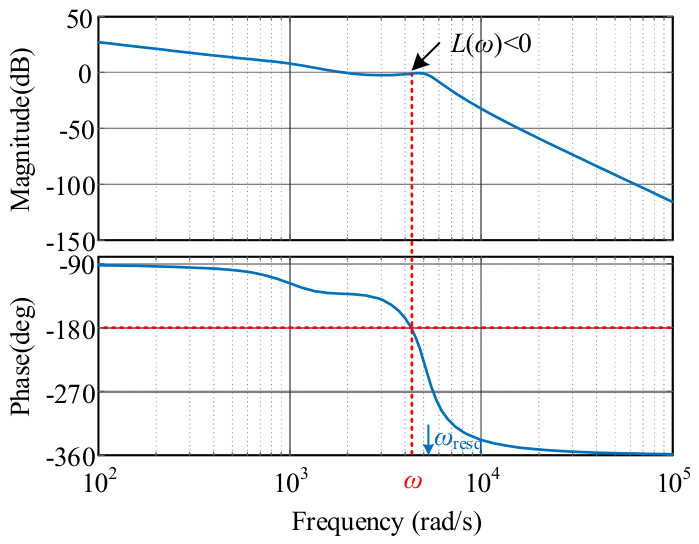

Figure 10 shows the Bode diagram of the system’s open-loop transfer function plotted according to (27). Based on the Nyquist stability criterion, it can be concluded that using the estimated motor current to implement both the current-loop feedback and CCFAD in the LC-filtered PMSM drive system is stable.

3.4. SOGI-Based Differential Extraction

As indicated by (10), obtaining the estimated motor current and BEMF requires first- and second-order differential signals of the inverter-side voltage. However, increasing the bandwidth of the HOESO leads to the issue of noise amplification, which consequently increases the estimation error for both the current and the BEMF.

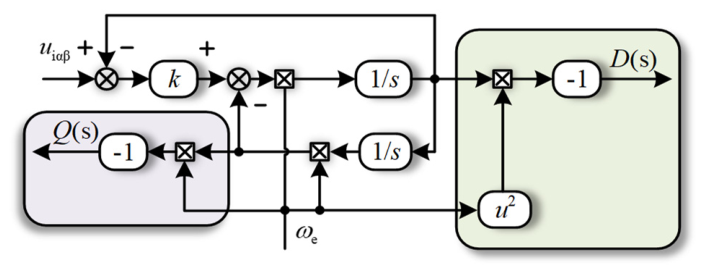

The structural block diagram for extracting differential signals using the SOGI is shown in Figure 11. The input signal can be decomposed by the SOGI into an in-phase component and a quadrature component. Therefore, the sinusoidal input signal u_iαβ can be processed by the SOGI to obtain its first- and second-order differential components, thereby reducing the estimation error.

The transfer functions from the SOGI output for the second-order differential component D(s) and the first-order differential component Q(s) are given by

(28)

(29)

where k₀ denotes the gain parameter and is set to 1.414 [29].

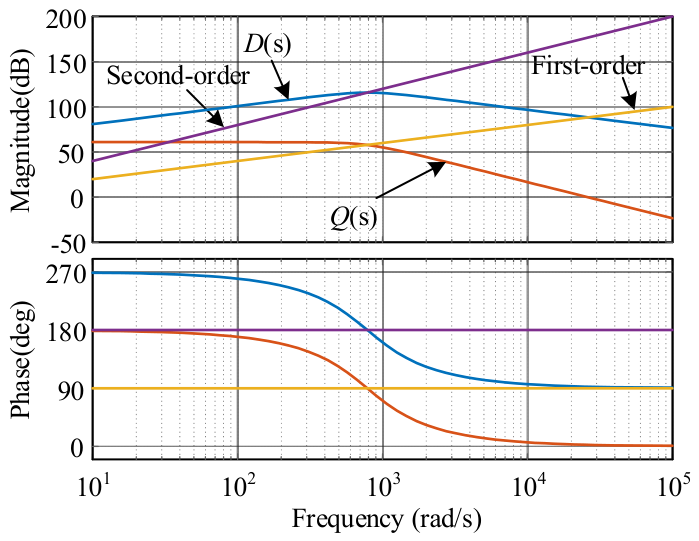

Figure 12 shows the frequency responses of D(s), Q(s), and the differentiator when the center frequency is ω_e.

As can be seen from Figure 12, direct differentiation further amplifies high-frequency noise, thereby degrading the estimation performance of the HOESO. In contrast, both the in-phase and quadrature outputs of the SOGI exhibit significant attenuation of high-frequency amplitudes. Using the SOGI to extract differential components can therefore effectively suppress high-frequency noise interference and improve the estimation performance of the HOESO.

4. Experimental Validation

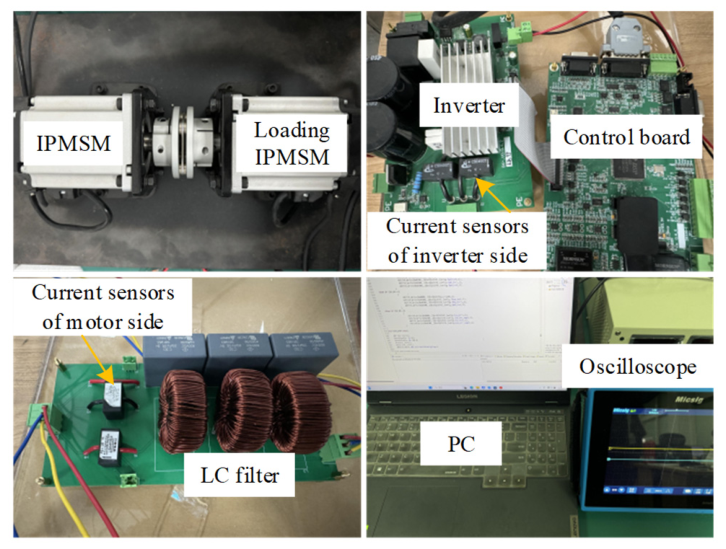

Figure 13 illustrates the LC-filtered PMSM experimental setup. To validate the proposed algorithm, extensive experiments were performed on this platform. Inverter-side and motor-side current sensors were installed to evaluate the current estimation performance of the HOESO, and an encoder was used to provide the actual rotor position. The necessary system parameters are presented in Table 1.

4.1. Performance Analysis of the SOGI-Assisted HOESO

The estimation performance of the proposed SOGI-assisted HOESO can be analyzed based on the experimental results shown in Figure 14. To evaluate the accuracy of the motor current and the position information contained in the BEMF, the first-order and second-order differential signals used in this section are those extracted by the SOGI.

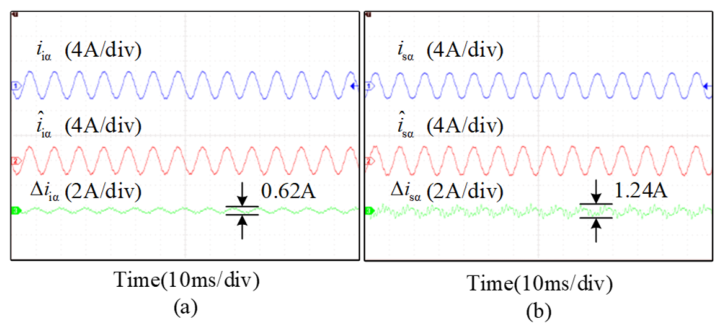

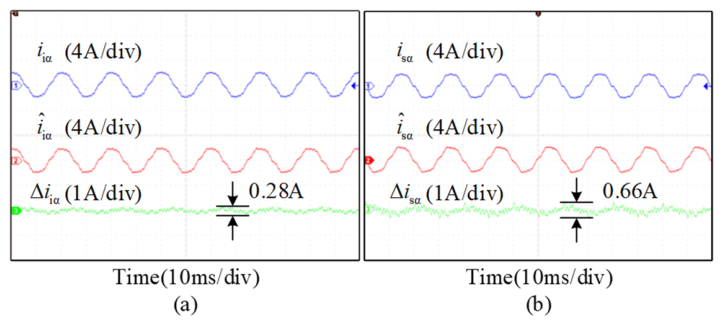

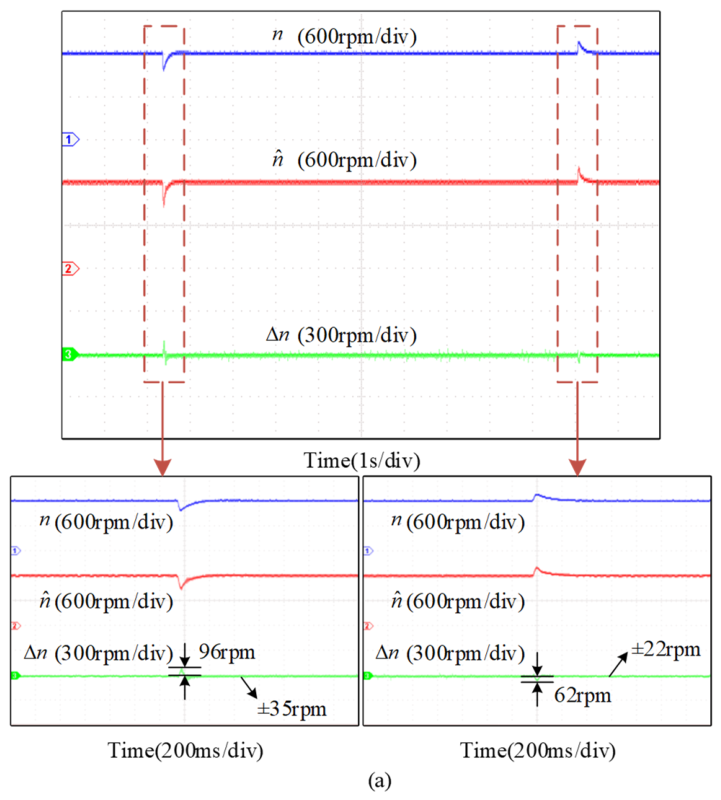

Figure 14 and Figure 15 respectively illustrate the current estimation performance of the HOESO at speeds of 600 rpm and 1200 rpm under the 0.8 N·m step load. Figure 14a and Figure 15a demonstrate that the estimated inverter-side currents are nearly identical to the actual currents under steady-state conditions, with maximum estimation errors of 0.28 A and 0.62 A, respectively. Figure 14b and Figure 15b indicate that the estimated motor-side currents are also nearly identical to the actual currents under steady-state conditions, with maximum estimation errors of 0.66 A and 1.24 A, respectively. Consequently, the proposed SOGI-assisted HOESO exhibits precise current estimation capability.

Figure 16 and Figure 17 show the experimental waveforms of the motor responding to a 0.8 N·m step load at different speeds.

As can be seen from Figure 16a, when the motor operates steadily at 600 rpm, the estimated speed is nearly identical to the actual speed, with the estimation error remaining within ±12 rpm. The deviation between the two is minimal, with no significant oscillation, indicating that the motor maintains stable operation. Upon the application of the 0.8 N·m load step, the maximum speed estimation error reaches 55 rpm, and under loaded operation, the speed estimation error fluctuates within ±19 rpm. When the load is removed, the maximum speed estimation error reaches 41 rpm, after which the motor returns to a steady operating state. Figure 16b shows how the estimated rotor position error responds to a load transient at 600 rpm. It can be clearly observed from the figure that during the motor loading and unloading process, the estimated rotor position error reaches a maximum of 31° but quickly recovers to within 6.6°, with no significant abrupt error variations. The estimated rotor position error remains relatively stable with high accuracy.

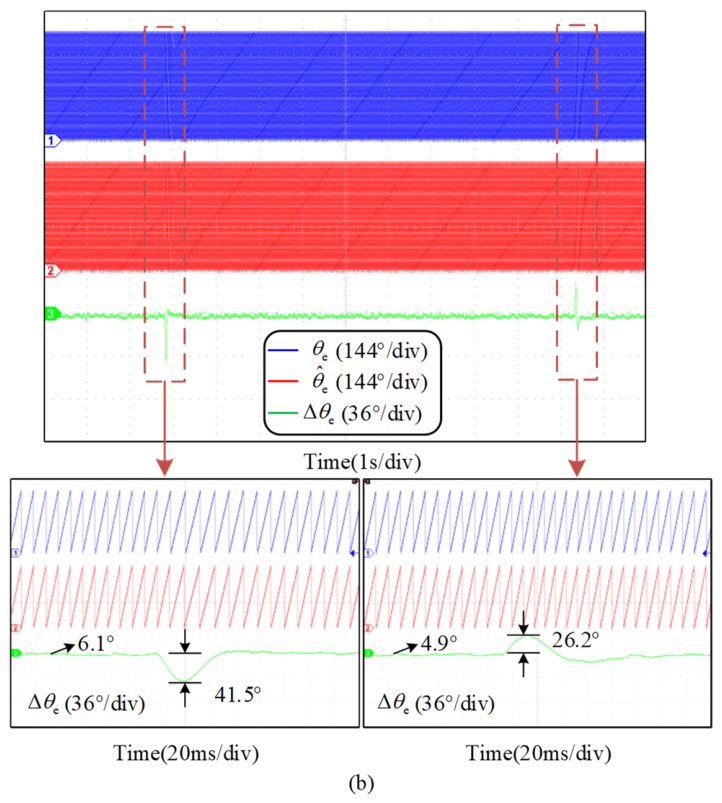

As can be observed from Figure 17, when the motor operates steadily at 1200 rpm, both the estimated speed error and the estimated rotor position error remain within acceptable ranges. This indicates that the proposed method can maintain stable operation under load disturbances.

4.2. Comparative Analysis of Differential Extraction Based on SOGI

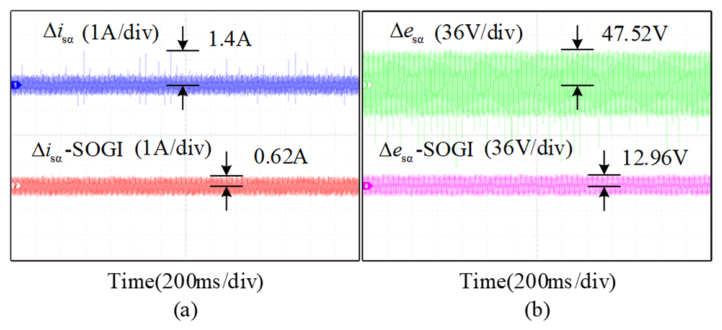

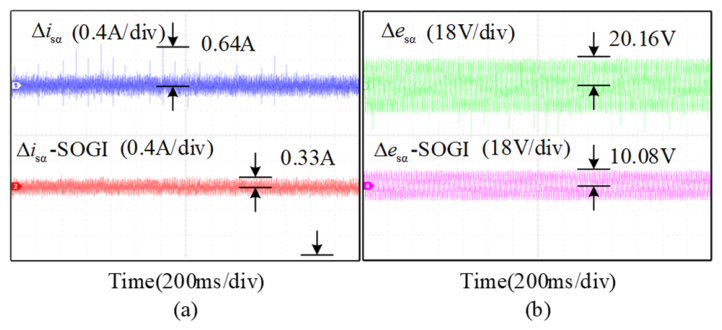

Figure 18 and Figure 19 present comparative experimental waveforms of the motor current estimation error and BEMF estimation error when differentials extracted by the SOGI are used, compared with direct differentiation, at motor speeds of 600 rpm and 1200 rpm, respectively.

Figure 18a and Figure 19a reveal that direct differentiation introduces spikes into the motor current estimation error, resulting in maximum errors of 0.64 A and 1.4 A, respectively. In contrast, the maximum motor current estimation errors using SOGI-extracted differentiation were 0.33A and 0.62A. The obtained results verify the capability of the proposed strategy to mitigate high-frequency noise interference and achieves higher estimation accuracy.

Figure 18b and Figure 19b show that direct differentiation caused maximum BEMF estimation errors of 20.16V and 47.54V, respectively. In contrast, the maximum BEMF estimation errors using SOGI-extracted differentials were 10.08V and 12.96V. This consequently reduces the estimated rotor position error, demonstrating that the proposed SOGI-assisted HOESO sensorless drive strategy achieves superior control performance.

5. Conclusion

This paper addresses the challenges of resonance and increased system order introduced by LC sine-wave filters, proposing a sensorless control strategy based on a SOGI-assisted HOESO. This method requires only the inverter-side currents to achieve high-precision simultaneous observation of motor currents and BEMF, significantly reducing system cost. Furthermore, the proposed HOESO structure allows for parameter tuning merely through bandwidth adjustment. By utilizing the differential signals extracted by the SOGI, high-frequency noise is effectively suppressed, enhancing observation accuracy. Experimental results demonstrate that the rotor position of an LC-filtered IPMSM can be accurately estimated under both steady-state and dynamic conditions.
