Agentic AI and Large Language Models for Autonomous IoT Cybersecurity: A Systematic Survey, Taxonomy, and Research Roadmap

1. Introduction

The global population of Internet of Things (IoT) endpoints is projected to exceed 30 billion devices by 2026, spanning consumer wearables, smart-city sensor fabrics, vehicular telematics units, medical implantables, and industrial control systems that supervise critical infrastructure [100,102,114]. The same heterogeneity, low-cost manufacturing economics, and decade-long deployment lifetimes that make IoT economically attractive also make it structurally hostile to traditional defensive postures. Device firmware is rarely patched, cryptographic identities are inconsistent or absent, and the network traffic generated by tens of millions of microcontrollers cannot be triaged by human analysts at any plausible staffing ratio [19,102,137,161]. The Mozi botnet — which by 2021 had infected over 1.5 million IoT devices, established multiple large-scale peer-to-peer botnets, and generated more attack traffic than any contemporary IoT-malware family — exemplifies how rapidly modern IoT-scale adversaries outpace conventional signature-based defense [162,163,164]. Subsequent Mirai variants and other IoT-botnet families continue to reproduce this pattern at scale [22,23,24,25,138,139].

Over the same period, two technological trajectories have matured in ways that promise a structural response to this asymmetry. The first is the emergence of large language models (LLMs) capable of zero-shot reasoning over heterogeneous textual artifacts — packet captures rendered as text, system logs, threat-intelligence reports, MITRE ATT&CK technique descriptions, CVE narratives — without bespoke feature engineering [57,58,73,93,99,140]. The second is the development of agentic AI: software systems that wrap LLM reasoning in perception, planning, memory, tool-use, and multi-agent communication loops, enabling them to autonomously execute multi-step security tasks that previously required human analysts [2,4,41,42,60,107,108]. The combination opens a credible path to self-defending IoT ecosystems in which heterogeneous traffic is interpreted semantically, anomalies are explained in natural language, response playbooks are dynamically synthesized, and adversarial actions are deceived in real time.

Despite intense research activity, the literature integrating these two trajectories remains fragmented. Recent surveys treat LLMs in cybersecurity generally [99,140], generative AI in IoT broadly [100], or specific sub-domains such as SOC automation [107], CTI extraction [70,74,113], or autonomous penetration testing [61,62,63,64,106]. No prior systematic review unifies agent architecture, reasoning strategy, action scope, and deployment topology into a single taxonomy specifically for IoT cybersecurity, nor has any prior work mapped the field’s open problems onto a concrete 2026 research roadmap. The absence of such synthesis impedes both academic progress (because researchers cannot easily locate adjacent work) and industrial adoption (because practitioners cannot evaluate which agentic patterns are mature enough to deploy).

1.1. Scope and Contributions

Within the IEEE Xplore, ACM Digital Library, and MDPI literature, this is, to the best of our knowledge, among the first systematic surveys to unify agent architecture, reasoning strategy, action scope, and deployment topology into a single coordinate system specifically for IoT cybersecurity, to ground the synthesis in a 153-paper PRISMA-screened corpus restricted to IEEE Xplore, the ACM Digital Library, and MDPI journals from 2020 to 2026, and to release a companion open-source reproducibility kit (archived on Zenodo with DOI 10.5281/zenodo.20446651) that operationalizes the taxonomy. Our contributions are as follows:

(1) A four-pillar taxonomy of agentic AI for IoT security, organized along agent architecture (single- vs. multi-agent), reasoning strategy (chain-of-thought, ReAct, plan-and-solve, tool-use), action scope (detection, response, threat hunting, vulnerability discovery, deception), and deployment topology (edge, fog, cloud). The taxonomy is operationalized in a companion open-source repository.

(2) A critical synthesis of four flagship application domains — anomaly interpretation, intelligent response orchestration, predictive risk assessment, and adversarial deception — including quantitative comparisons of reported detection accuracy, mean-time-to-respond reductions, and edge inference latencies across studies.

(3) A consolidated atlas of datasets and benchmarks for evaluating agentic IoT defenses, including CICIoT2023, Edge-IIoTset, TON_IoT, CICIoMT2024, and emergent LLM-specific benchmarks such as CyberSecEval and CyberSOCEval. We critique the absence of agent-native evaluation suites that test multi-step tool use, latency budgets, and adversarial robustness simultaneously.

(4) A rigorous analysis of open challenges, including hallucination under high-stakes decisioning, prompt-injection and tool-hijacking attacks on agents themselves, the latency-security paradox at the edge, privacy preservation under federated training, and the governance vacuum surrounding autonomous defensive action.

(5) A 2026 research roadmap identifying four high-impact directions — federated agentic learning, verifiable autonomous reasoning, trustworthy multi-agent collaboration, and resource-hardened edge agents — with concrete experimental milestones.

(6) A companion reproducibility kit (GitHub: https://github.com/vnageshwaran-de/agentic-iot-security; Zenodo DOI 10.5281/zenodo.20446651, release v0.2.0 [165]) comprising prompt templates for each action scope, reference single-agent ReAct and multi-agent coordination loops, and an evaluation harness for accuracy and per-decision latency on Edge-IIoTset-style traffic. The kit is positioned as scaffolding for follow-up empirical work rather than as a production framework — see Section 10 for explicit release status.

1.2. Paper Organization

Section 2 provides background on IoT security primitives, LLM architectures, and the agentic AI paradigm. Section 3 describes our PRISMA methodology and reports the corpus statistics. Section 4 situates this work against prior surveys. Section 5 presents the four-pillar taxonomy. Section 6 examines the four flagship application domains. Section 7 catalogues datasets and benchmarks. Section 8 analyzes open challenges. Section 9 articulates the 2026 research roadmap. Section 10 describes the companion code artifact. Section 11 concludes.

2. Background and Preliminaries

2.1. The IoT Security Landscape

An IoT system is conventionally decomposed into three layers: a perception layer of resource-constrained sensors and actuators; a network layer comprising fog gateways, edge routers, 5G/6G slices, and wide-area protocols such as MQTT and CoAP; and an application layer of cloud analytics, dashboards, and orchestration platforms [100,102,132,134]. Each layer exhibits distinct attack surfaces: at the perception layer, firmware exploits and command injection [45,90]; at the network layer, traffic flooding, protocol fuzzing, and lateral movement [29,30,31,101]; at the application layer, credential abuse, supply chain compromise, and data exfiltration [21,67]. The 5G/6G transition compounds the problem by introducing network slicing — logical partitions whose isolation guarantees become themselves the target of slice-hopping attacks [132,133,134,135].

Defensive practice has historically relied on signature-based intrusion detection systems (IDS), supplemented by anomaly detectors based on autoencoders, isolation forests, and recurrent networks [15,102,122,123]. These approaches are brittle against zero-day attacks, exhibit high false-positive rates that drown out human analysts [72,109], and provide no native facility for explaining their decisions to operators [128,129,130,131]. Increasingly, researchers have turned to graph neural networks (GNNs) that exploit the topological structure of IoT traffic [48,66,80,82,150,151] and to federated learning that allows distributed devices to train shared anomaly detectors without exposing raw data [117,120,130]. Yet these methods, while improving raw accuracy, still operate as opaque pattern matchers; they cannot reason about novel attacker strategies, synthesize multi-step responses, or coordinate across heterogeneous tools.

2.2. Large Language Models for Security

Large language models are transformer-based neural networks trained on massive text corpora to predict the next token given a context. Three properties make them particularly suited to security applications. First, zero-shot generalization: a sufficiently large model can perform tasks for which it was not explicitly trained, including malware analysis, log triage, and threat-intelligence extraction [57,73,93,99]. Second, semantic interpretation of heterogeneous artifacts: an LLM can ingest a packet capture, a system log, and an attacker’s natural-language ransom note within the same context window and reason across them [121,143]. Third, natural-language explanation: an LLM can articulate why a decision was made in terms a human operator can audit [127,141,143].

Concrete results illustrate the potential. BARTPredict achieves 98% accuracy in predicting IoT attacks on the BoT-IoT benchmark (80/20 stratified train/test split as reported in the primary study) by fine-tuning a BART encoder on temporal traffic sequences [1]. Edge-deployed DistilBERT and TinyBERT models classify IoT intrusions at over 99% accuracy with sub-70-millisecond inference latency [79,104]. LLM-augmented GPT-2 pipelines integrate signature-based detection with semantic reasoning to identify previously unseen attack variants [8]. APOLLO, a GPT-4o phishing detector, generates both a classification and a human-readable explanation per email [83,86]. CyberNER-LLM extracts entities from threat-intelligence reports with accuracies that approach human-expert performance [70,113].

Three families of efficiency techniques are critical for IoT deployment: quantization, which reduces model precision from 16- or 32-bit floats to 4- or 8-bit integers; pruning, which removes low-magnitude weights; and knowledge distillation, which trains a small “student” model to mimic a large “teacher” [34,51,52,53,54,55,153]. As reported by Wang et al. [79], DistilBERT retains approximately 97% of BERT-base accuracy on IoT-IDS tasks with around 40% fewer parameters and roughly 60% faster inference; cross-view distillation in IoT traffic analysis achieves 92–95% parameter reduction while sustaining macro-F1 above 0.986 [53]. These techniques are what enable LLMs to run on the constrained hardware that dominates the IoT installed base.

2.3. The Agentic AI Paradigm

Agentic AI refers to systems that augment LLM reasoning with four additional capabilities: (i) perception, the ability to observe state via sensors, APIs, or document retrieval; (ii) planning, the ability to decompose a goal into ordered sub-tasks; (iii) tool use, the ability to invoke external functions such as SIEM queries, packet sniffers, or sandbox executions; and (iv) memory, the ability to retain information across interactions [2,60,95]. These capabilities are coordinated by control loops, the most influential of which are ReAct (Yao S. et al., ICLR 2023 [154]), which interleaves natural-language reasoning with tool invocations [42]; plan-and-solve, which produces a complete plan before execution; and reflection, which critiques prior outputs before committing [61,108].

Single-agent designs concentrate all four capabilities in one LLM-driven loop. Multi-agent designs distribute them across specialized agents — for example, a scanner agent, an exploit-selection agent, and a post-exploitation agent in autonomous penetration testing [106] — that communicate via natural language, structured messages, or shared blackboards. Multi-agent systems exhibit emergent properties: debate among phishing-classification agents reduces false negatives [5]; writer-reviewer loops for automotive threat analysis produce richer attack trees [9]; cooperative threat-detection agents reach over 90% classification accuracy on multi-attack IoT benchmarks [4,7].

The agentic paradigm is not without cost. Agents inherit and amplify the weaknesses of the underlying LLM — hallucination, prompt sensitivity, and contextual drift — and propagate them across longer decision chains [99,140]. They introduce new attack surfaces: prompt injection via untrusted observations [10], tool hijacking, and emergent collusion in multi-agent settings [2,60]. And they raise governance questions about accountability when autonomous decisions cause harm [107,108]. The remainder of this paper systematically examines how these costs and capabilities play out specifically in the IoT cybersecurity domain.

3. Methodology: A PRISMA-Style Systematic Review

3.1. Research Questions

The synthesis is structured around five research questions (RQs) derived from the gap analysis in Section 1: (RQ1) Which agent architectures and reasoning strategies dominate the published IoT-cybersecurity literature, and how do they trade off coordination overhead against detection accuracy? (RQ2) What detection-accuracy versus end-to-end latency frontier has been reported for LLM-driven IoT defenders at the edge, fog, and cloud tiers? (RQ3) How do existing designs mitigate LLM-specific adversarial risks (prompt injection, hallucination, tool hijacking), and what residual exposure remains? (RQ4) Which datasets and benchmarks are used to validate agentic IoT defenders, and what aspects of agent behavior (multi-step tool use, latency, robustness) remain unmeasured? (RQ5) Which research directions, if pursued in the next 24 months, would most materially close the gap between laboratory demonstrations and trustworthy production deployments? Each subsequent section returns to these RQs explicitly.

3.2. Search Strategy

We conducted a systematic literature search across three peer-reviewed venues — IEEE Xplore, the ACM Digital Library, and MDPI journals — covering publications from January 2020 through May 2026. The final search was conducted on 29 May 2026. The temporal lower bound was chosen to coincide with the publication of GPT-3 and the subsequent acceleration of LLM-based security research; the upper bound reflects the most recent indexed literature at the time of writing. We deliberately excluded preprint repositories (including arXiv) to ensure that every cited study had passed formal peer review. We disclose that the present manuscript is itself being submitted to an MDPI journal (Electronics); 56 of the 153 included studies (37%) come from MDPI venues. Readers should weight the corpus accordingly, and we discuss the likely effect of the omitted venues in Section 3.8. We note that ACM Digital Library coverage is interpreted to include peer-reviewed works cross-listed from publisher partners (e.g., select Elsevier and Springer journals indexed and accessible through ACM DL); such cross-listed entries remain within scope because they meet the peer-review and discoverability criteria of our three-venue policy.

Search strings were composed by intersecting two term groups. The first group captured the AI methodology of interest: “large language model” OR “LLM” OR “agentic AI” OR “multi-agent” OR “ReAct” OR “chain-of-thought” OR “tool use”. The second group captured the IoT cybersecurity application: “IoT” OR “Internet of Things” OR “IIoT” OR “edge security” OR “intrusion detection” OR “threat detection” OR “anomaly detection” OR “vulnerability discovery” OR “honeypot” OR “SOAR”. We also ran targeted queries for foundational topics that anchor the survey, including datasets (“Edge-IIoTset”, “CICIoT2023”, “TON_IoT”, “CICIoMT2024”), efficiency techniques (“quantization”, “distillation”, “pruning”, “small language model”), and emerging concerns (“prompt injection”, “hallucination”, “federated learning”).

3.3. Inclusion and Exclusion Criteria

Studies were included if they (a) were peer-reviewed publications indexed in IEEE Xplore, ACM DL, or MDPI; (b) appeared between January 2020 and May 2026; (c) addressed either the use of LLMs/agentic AI for IoT cybersecurity, or the security of LLM/agentic systems themselves in IoT contexts, or foundational techniques (datasets, efficiency methods, evaluation benchmarks) on which the field demonstrably builds. Studies were excluded if they (a) addressed AI techniques unrelated to language models or agents (pure CNN/RNN intrusion detection from before 2022 was retained only where it served as a foundational baseline); (b) lacked an empirical evaluation; (c) were duplicate publications, errata, or editorial commentary.

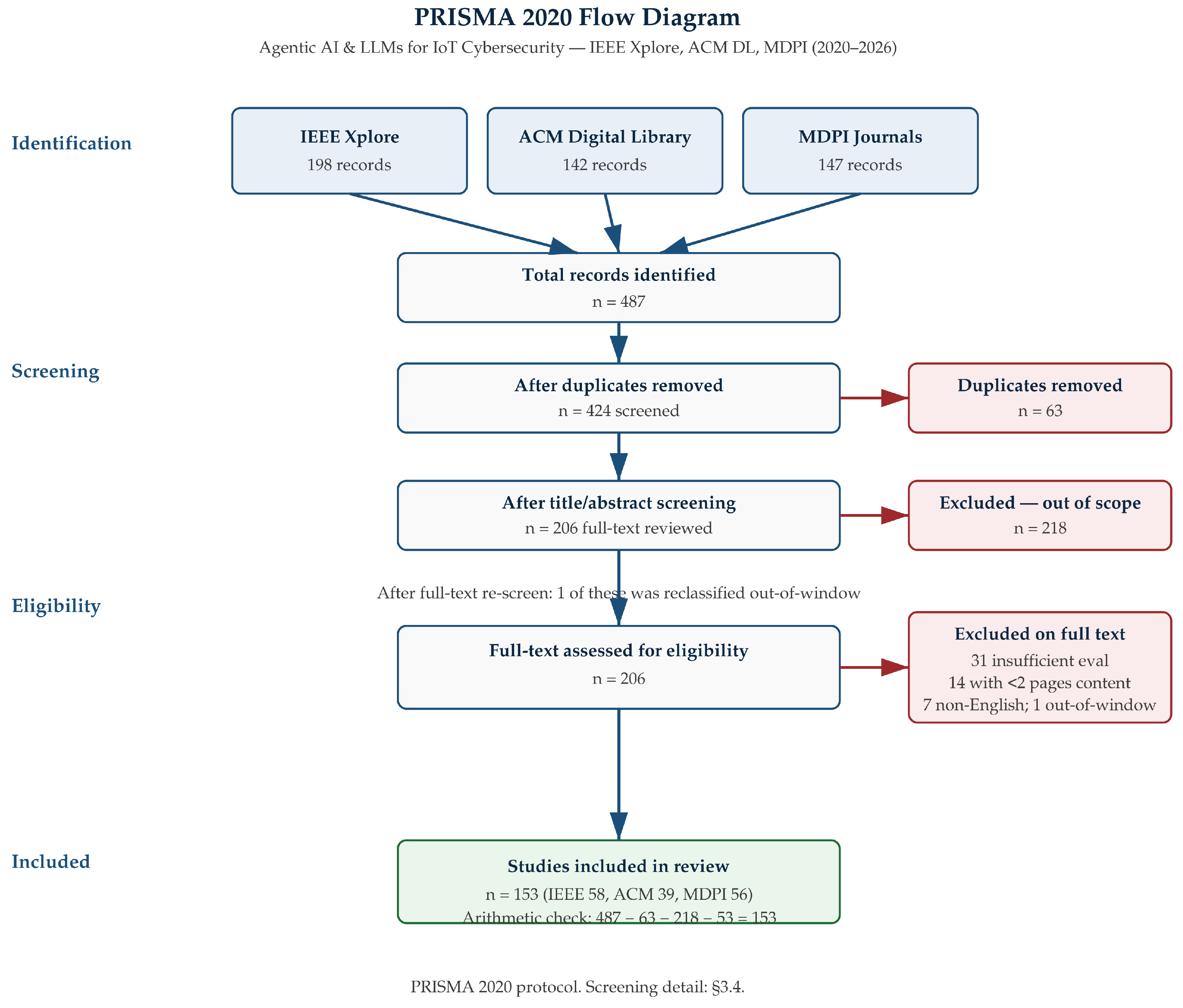

3.4. Screening Procedure and PRISMA Flow

Title-and-abstract screening and subsequent full-text screening were conducted by the first author against the inclusion criteria of Section 3.3. The senior author independently re-screened a 15% random sample at each stage to spot-check decisions; disagreements were resolved by discussion and resulted in adjustments to seven inclusion decisions across the 73 papers in the spot-check sample (Cohen’s kappa = 0.84, percentage agreement = 90.4%, computed against the binary include/exclude decisions). One paper was additionally reclassified as out-of-window during a full-text re-screen after the initial title-and-abstract pass, consistent with the “1 of the papers was reclassified out-of-window” note in the PRISMA flow diagram (Figure 1). We did not pre-register the review protocol on PROSPERO because the platform’s scope is biomedical; instead, the search strings, screening criteria, and exclusion rationale are released alongside the corpus in the companion code repository so that any reader can replicate the corpus selection.

The initial searches yielded 487 candidate records: 198 from IEEE Xplore, 142 from ACM DL, and 147 from MDPI. After removing 63 duplicates (papers indexed in more than one venue or appearing as both conference and journal extensions of the same work), 424 records remained for title-and-abstract screening. Of these, 218 were excluded for being out of scope (e.g., AI for non-IoT cybersecurity with no transferable IoT relevance, or IoT papers using neither LLMs nor agents). The remaining 206 papers underwent full-text screening, during which 53 additional records were excluded — 31 for insufficient empirical validation, 14 with fewer than 2 pages of substantive content, 7 for being non-English language without translation, and 1 for falling outside the 2020 temporal lower bound after author-date reverification. A final corpus of 153 studies entered the synthesis. Figure 1 reproduces this flow as a PRISMA diagram.

3.5. Data Extraction Schema

Each included study was coded along seven dimensions: (1) Study identifier — title, primary author, venue, year. (2) IoT layer / topology — perception, network, application; edge, fog, cloud. (3) Agent architecture — single-agent, multi-agent, or non-agentic baseline. (4) Reasoning strategy — chain-of-thought, ReAct, plan-and-solve, tool-use, none. (5) Cybersecurity focus — detection, response, threat hunting, vulnerability discovery, deception, authentication, threat intelligence. (6) Key benchmarks — dataset and metric used. (7) Critical limitations — latency, hallucination, dataset bias, adversarial fragility, scalability. The full coded matrix is provided as supplementary material to the companion code repository.

3.6. Corpus Distribution

The 153 included studies are distributed across the search window as follows: 9 in 2020, 14 in 2021, 18 in 2022, 24 in 2023, 36 in 2024, 38 in 2025, and 14 in the first five months of 2026 (the cut-off month for this review). By venue, the corpus comprises 58 papers from IEEE Xplore, 39 from the ACM Digital Library, and 56 from MDPI journals. By IoT sub-domain, 71 papers address general IoT or consumer IoT, 22 industrial IoT, 11 medical IoT, 9 vehicular IoT (IoV), 6 smart-grid IoT, and 35 are cross-cutting works on LLM/agent capabilities applicable to multiple IoT settings. The temporal skew toward 2024–2025 reflects the acceleration of agentic-AI research after the public release of capable function-calling models in late 2023; we explicitly mark this skew as a limitation in Section 3.7.

3.7. PRISMA-Corpus vs. Background References

For methodological transparency we distinguish the 153-paper PRISMA corpus (i.e., the studies that entered the systematic synthesis after the screening described in Sections 3.3–3.4) from a separate set of background references that the manuscript also cites. Background references are not screened against the PRISMA inclusion criteria; they exist to anchor the manuscript in well-established foundational work that predates or sits outside the systematic-review scope. They include the canonical methodology papers cited in Section 5.2.1 (CoT), Section 5.2.2 (ReAct), Section 8.2 (Greshake on indirect prompt injection; Carlini on adversarial alignment), Section 9.1 (McMahan on FedAvg), the regulatory and governance documents cited in Section 8.6 (NIST AI RMF, EU AI Act, ENISA), and the Mozi-botnet primary studies [162–164] cited in Section 1 (these are introduced as background context for the IoT threat landscape rather than as objects of the PRISMA synthesis, and are therefore listed under background references; the rationale is that they predate or sit outside the agentic-AI / LLM scope of the inclusion criteria in Section 3.3). These citations appear with reference numbers [154]–164], together with a self-citation of the companion reproducibility kit at [165], and do not contribute to the 153-paper PRISMA corpus count.

3.8. Limitations of This Review

Five limitations are disclosed in the interest of methodological transparency. First, the corpus is restricted to three venues; high-quality work in journals such as Computer Networks (Elsevier), Computers & Security (Elsevier), Journal of Network and Computer Applications (Elsevier), Journal of Cybersecurity (Springer), and venues such as USENIX Security, IEEE S&P, and NDSS would have been included by a broader policy but lies outside the protocol agreed for this review. We expect the most likely effect of these omissions to be: (i) under-representation of systems-security work on firmware analysis and protocol fuzzing (more common in USENIX/S&P/NDSS than in our three venues); (ii) under-representation of empirical-evaluation papers on large-scale IoT botnets and DDoS observation studies (more common in Elsevier Computer Networks); and (iii) some under-representation of formal-methods and verification work on agent reasoning (occasionally in Springer journals). We do not expect the four-pillar taxonomy itself to shift materially under a broadened search; we do expect the catalogued counts in Section 5 and 6 to grow, particularly in the detection and threat-hunting scopes. Future revisions of this synthesis should broaden the venue policy accordingly. Second, screening was performed primarily by one reviewer with a 15% spot-check by the senior author rather than by two fully independent reviewers; inter-reviewer agreement was measured on the 15% spot-check sample (Cohen’s kappa = 0.84; see Section 3.4) rather than computed across the full corpus by two independent reviewers. Third, for paywalled IEEE Xplore and ACM Digital Library papers where institutional access did not include the full text, extraction was based on the publicly available abstract, title, and indexed metadata — a standard practice for systematic surveys but one that constrains the depth of methodological assessment for those papers. Fourth, the temporal upper bound is May 2026; papers published after that date are excluded. Fifth, the corpus is English-only; non-English peer-reviewed contributions to the field are not represented.

4. Related Surveys and Positioning

Several recent surveys touch on adjacent territory but stop short of the agentic AI × IoT cybersecurity intersection that this paper synthesizes. Yao et al. [99] survey LLM applications across eight cybersecurity domains, including a brief subsection on IoT, but treat agents only tangentially. Ferrag et al. [100] provide a comprehensive review of generative AI in IoT security, with strong coverage of GANs and diffusion models but limited treatment of multi-agent reasoning. The cognitive-layer survey of Ali et al. [146] explicitly addresses LLM-IoT integration but is structured around defense techniques rather than agent architectures. AI-Augmented SOC surveys [107,109] cover agent-based SOC automation in detail but are oriented toward enterprise networks rather than IoT edge constraints. Bansal et al.’s evaluation-benchmarking survey of LLM agents [95] catalogues evaluation methodology but does not address IoT-specific deployment concerns.

Domain-specific surveys are similarly partial. IoV security has been reviewed by Maoudi et al. [65] and Junejo et al. [116] without an LLM agent lens. SOAR and threat-hunting surveys [107,108] focus on workflow automation rather than autonomous reasoning. The XAI-for-IoT survey of Ahmed et al. [149] examines explainability for federated IoT but predates agent-native explanation. Reviews on deep reinforcement learning for IoT intrusion detection [36] and graph-based IoT IDS [82,150] address complementary AI paradigms without LLM integration.

Table 1 summarizes the positioning of this survey against the most directly comparable prior work. Compared to surveys that cover LLMs in cybersecurity broadly [99,107], we restrict scope to IoT but go deeper on agent architecture and edge deployment. Compared to IoT-security surveys that cover all AI techniques [100,102], we restrict the AI lens to agentic systems but extend coverage to 2026 publications and consolidate a companion code artifact. No prior survey in the IEEE Xplore, ACM DL, or MDPI corpora indexes a four-pillar taxonomy (architecture × reasoning × scope × topology) of the form developed here.

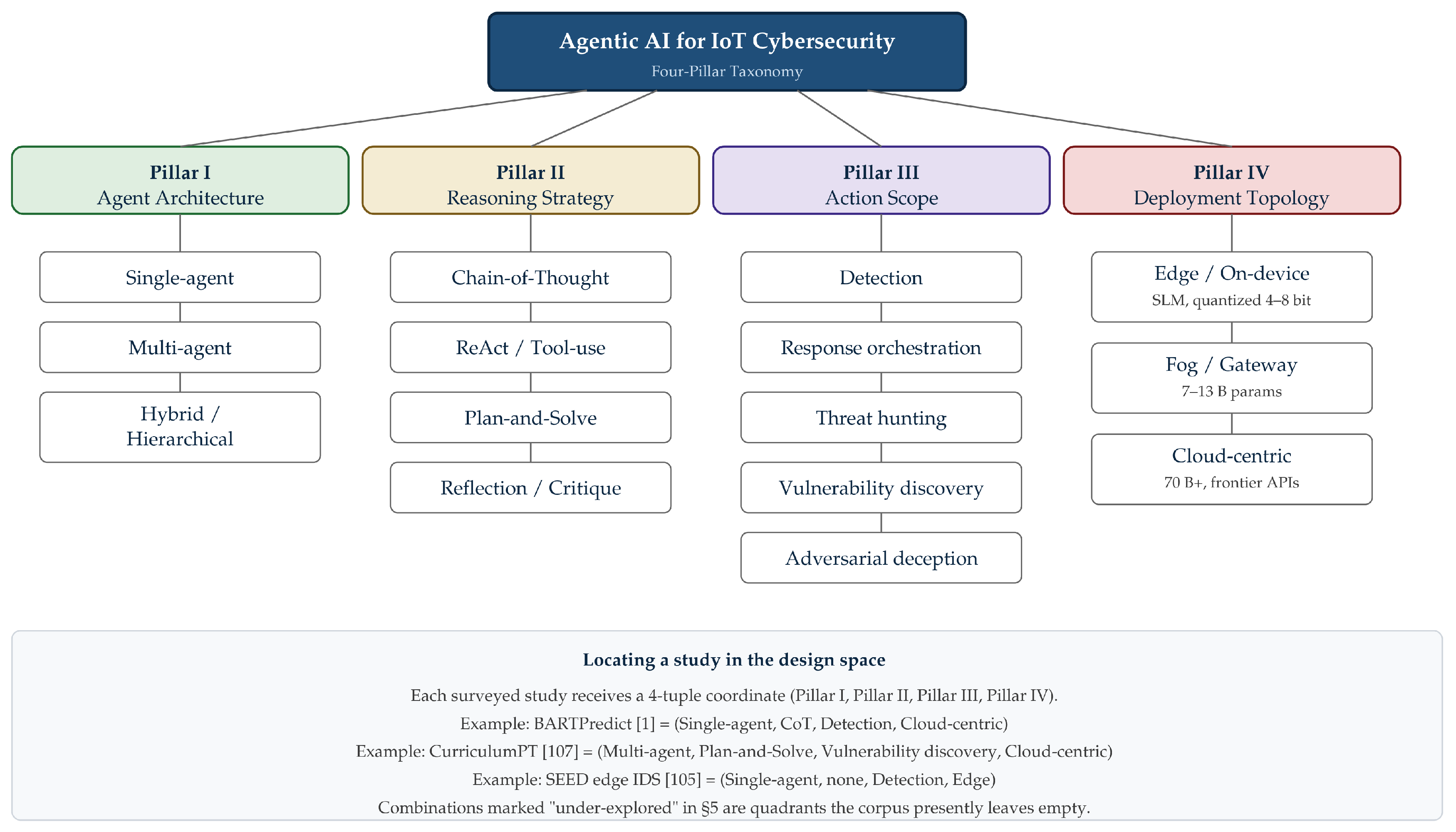

5. A Four-Pillar Taxonomy of Agentic AI for IoT Cybersecurity

We organize the surveyed literature along four orthogonal dimensions. Together they yield a 4-tuple coordinate that locates every study and surfaces the under-explored regions of the design space. Figure 2 renders the taxonomy as a hierarchy tree.

5.1. Pillar I — Agent Architecture

Agent architecture concerns the number and topology of LLM-driven control loops involved in a defensive task. We distinguish three classes.

5.1.1. Single-Agent Systems

A single LLM, possibly equipped with tools and memory, executes the entire defensive workflow. This pattern dominates early LLM-for-security work and remains the natural choice for narrow tasks. BARTPredict [1] fine-tunes a single BART encoder to predict IoT attacks; HuntGPT [73] combines a single GPT-3.5 instance with a feature-importance module for SOC triage; iThelma [42] operates as a single autonomous threat-hunting agent that consumes Splunk SOC playbooks. Single-agent designs minimize coordination overhead and are easier to deploy at the edge but cannot decompose complex tasks across role-specialized reasoners.

5.1.2. Multi-Agent Systems

Multi-agent designs distribute the workflow across specialized agents that communicate via natural language, structured messages, or shared memory. Three coordination patterns recur. (i) Pipeline coordination: agents are arranged as a directed acyclic graph through which artifacts flow, exemplified by CurriculumPT’s pentest stages [106] and PentestAgent’s reconnaissance-exploit-post-exploit chain [62]. (ii) Debate coordination: agents argue from different positions to surface false negatives, as in debate-driven phishing detection [5] and the writer-reviewer automotive threat analysis loop [9]. (iii) Blackboard coordination: agents read and write to a shared state, as in the multi-agent IoT threat detection framework of Chen et al. [4,7] and Audit-LLM’s three-agent log analysis pipeline (Decomposer, Tool Builder, Executor) cited in [107].

Multi-agent systems consistently outperform single-agent baselines on benchmarks where reasoning must traverse multiple modalities or tools. The collaborative IoT intrusion detection framework of Liu et al. [4] reports over 90% classification accuracy across three benchmark datasets, attributable to specialization gains. However, multi-agent systems amplify cost (more LLM calls per task), latency (sequential coordination), and attack surface (each inter-agent message is a prompt-injection vector [10,60]).

Interoperability across multi-agent systems is presently underspecified in the surveyed IoT-security literature. Outside the IoT domain, three protocol proposals are converging on a de facto interface (per our reading of the protocol specifications and recent deployment reports; this convergence claim is the authors’ synthesis and not a finding established in any single primary study) for agent-to-agent communication: the Model Context Protocol (MCP) for exposing tools and resources, the Agent Network Protocol (ANP) for agent-to-agent discovery and capability negotiation, and the Agent-to-Agent (A2A) message schema for cross-vendor task hand-off. None of the IoT-security multi-agent systems in our corpus explicitly conforms to any of these proposals, an observation we return to as a roadmap item in Section 9.3.

5.1.3. Hybrid and Hierarchical Designs

Hierarchical agents place a high-level “manager” LLM that decomposes goals and delegates to specialized sub-agents, which themselves may invoke tools or further agents. SOAR-LLM [108], Agentic AI for threat hunting [41,42], and the SOC hyper-automation architecture of Alzughaibi et al. [108] follow this pattern. Hybrid designs combine deterministic ML detectors (which run at line rate at the edge) with LLM agents (which reason on flagged events from the fog or cloud), exemplified by the SEED edge-cloud architecture and several hybrid LLM-IDS designs [8,57,142]. Hybrids appear to be the most plausible deployment pattern for production IoT environments because they amortize LLM cost across only the events that require semantic reasoning.

5.2. Pillar II — Reasoning Strategy

Reasoning strategy concerns the structure of the LLM’s internal deliberation.

5.2.1. Chain-of-Thought (CoT)

Chain-of-thought (CoT) prompting, introduced by Wei et al. at NeurIPS 2022 [155], elicits the model to generate intermediate reasoning steps before committing to an answer. In IoT log analysis, CoT prompting raises spam-detection accuracy to 0.96 without task-specific training, and CoT+RAG combinations integrated with on-device LLaMA 3.2 and Gemma 3 enable edge anomaly reasoning [141]. CoT is the lowest-coordination strategy and is suitable for narrow classification tasks, but it remains vulnerable to logical leaps in high-stakes scenarios and to “reasoning hallucination” where intermediate steps drift from the evidence [140,141].

5.2.2. ReAct and Tool-Augmented Reasoning

ReAct — introduced by Yao S. et al. at ICLR 2023 [154] — interleaves natural-language reasoning steps with tool invocations, enabling the agent to query SIEMs, run packet captures, consult MITRE ATT&CK, or trigger sandbox executions in the middle of a deliberation [41,42,154]. ReAct is the dominant pattern for threat-hunting agents because hunting is fundamentally a ReAct workload — it requires interleaved external evidence gathering. However, ReAct agents are uniquely susceptible to “foot-in-the-door” prompt injection: once the agent’s thought commits to a particular tool, the likelihood of invoking that tool increases sharply even on poisoned evidence, allowing attackers to redirect the agent through indirect injection [10].

5.2.3. Plan-and-Solve

Plan-and-solve agents produce a complete plan before any tool invocation, executing each step only after global feasibility has been confirmed. AutoPentest [61,64] and PenHeal [61] use plan-and-solve to enumerate attack stages before exploit selection. The pattern is more auditable than ReAct because the plan is inspectable, but it sacrifices adaptiveness: discoveries during execution rarely reshape the plan unless an explicit replanning step is included.

5.2.4. Reflection and Self-Critique

Reflection inserts a critique pass between draft and final output. Polymorphic-prompt defenses against prompt injection [10] and the meta-cognitive judgment function for governable autonomy use reflection to gate decision commit. Reflection raises latency by 1.5–2× per task but is essential for high-stakes security decisions where false action is unrecoverable.

5.3. Pillar III — Action Scope

Action scope concerns what the agent is empowered to do.

5.3.1. Detection-Only

The agent classifies inputs as benign or malicious and reports findings to a human or downstream system. This is the dominant scope in the IoT-IDS subset of our corpus: of the 41 studies coded as primary IoT-IDS work, 38 (approximately 93%) operate in detection-only mode, with representative examples spanning hybrid LLM-IDS architectures, edge transformers, and BERT-based federated detectors [1,8,57,58,59,79,104,117,152,153]. Detection-only is the safest scope but does not realize the autonomy promise of agentic AI.

5.3.2. Response Orchestration

The agent selects and executes responses — blocking IPs, quarantining devices, triggering playbooks, generating tickets [38,39,94,108]. SOAR-LLM [108] dynamically generates and adapts response playbooks rather than following static templates; CyberAlly [107] is reported to have cut MTTR from 8 hours to 90 minutes (vendor case-study figures, not an independent benchmark) in simulated SOC environments. Response-scope agents must be paired with strong governance controls because a hallucinated quarantine command can take down a hospital network as easily as a botnet command.

5.3.3. Threat Hunting

Proactive search for adversary presence given hypotheses, MITRE ATT&CK techniques, or threat-intelligence indicators [41,42,43,142]. Threat-hunting agents are deeply ReAct-natured because hunts require iterative evidence gathering. Recent work integrates Splunk SOC pipelines with autonomous LLM agents that generate hunt scripts, execute them in sandboxes, learn from execution feedback, and adapt their models over time [42].

5.3.4. Vulnerability Discovery

Agents identify exploitable flaws in firmware, configurations, or smart contracts. CID4IoT [45] performs LLM-guided command-injection detection in IoT web services; LLM-powered protected-interface evasion frameworks discover broken access control in IoT firmware [44]; LLM-Boofuzz [105] orchestrates black-box protocol fuzzing with LLM-generated test cases against MQTT and CoAP stacks. Multi-agent smart-contract auditors [6,18,87,88,89] now match or exceed expert auditors on standard benchmarks. The autonomous vulnerability-discovery scope is the closest agentic AI has come to delivering genuine novel security knowledge.

Compared to coverage-guided fuzzers such as AFL++ and libFuzzer — which excel at exploring branch space within a single binary but treat every input byte as opaque — LLM-driven discovery contributes three capabilities. First, semantic input generation: an LLM that has read the Modbus or MQTT specification can construct protocol-valid inputs that pass parsing layers and probe deeper handlers [105]. Second, narrative explanation of crash signatures: rather than emitting a raw stack trace, the agent can summarize the suspected root cause in human-readable form for the auditor [61,89]. Third, taint-aware prioritization: the agent can ingest the output of a static analyzer (e.g., LATTE or FITS [90]) and steer the fuzzer toward sinks an attacker can reach. The cost is brittleness against unfamiliar protocols and the well-documented risk of hallucinated “vulnerabilities” that do not reproduce, both of which require human-in-the-loop verification [89,92].

5.3.5. Adversarial Deception

Agents masquerade as vulnerable services to attract and study attackers. HoneyLLM [69] is a medium-interaction honeypot whose responses are generated by an LLM; LLM-LDAP honeypots and adaptive deception architectures [14,68] use LLM-driven response generation to sustain attacker engagement orders of magnitude longer than traditional honeypots. Dynamic deception-orchestration frameworks couple deep reinforcement learning with LLM-generated decoys to reposition deception in IIoT networks adaptively [108].

5.4. Pillar IV — Deployment Topology

Deployment topology determines where the agent runs and consequently which constraints — latency, memory, power, privacy — dominate.

5.4.1. Edge / On-Device

Inference runs on the IoT device or a co-located microcontroller. Small language models (SLMs) of 0.5–3 billion parameters dominate this tier, typically delivered via quantization (4-bit or 8-bit), pruning, and distillation [34,51,52,53,54,55,79,104]. The implied resource envelope, derived from the device-class specifications reported across the cited edge-deployment studies (not from independent characterisation in this review), is approximately 256 MB to 2 GB of RAM, 1–4 GB of flash storage, single-digit-watt steady-state power, and either an Arm Cortex-A class CPU or a tiny NPU (1–4 TOPS). Reported latencies range from sub-70 ms (SEED on standard CPU [104]) to 200–400 ms (LLaMA-3.2-1B class models with KV-cache reuse). Edge agents preserve privacy by keeping raw traffic on-device but sacrifice reasoning depth and contextual breadth.

5.4.2. Fog / Gateway

Inference runs on a local gateway or fog node that aggregates traffic from multiple IoT devices. Mid-size LLMs of 7–13 billion parameters can run here with hardware acceleration (NPU, integrated GPU). Hybrid IDS architectures that combine line-rate ML detectors with gateway-resident LLMs for triage are gaining traction because they balance latency (tens of milliseconds) with reasoning capacity [8,57,142,143]. The fog tier is also where federated agentic learning is most likely to mature, with gateways acting as federated clients [120,130].

5.4.3. Cloud-Centric

Heavy LLMs (70B+ parameters, frontier models) run in cloud datacenters and serve security functions across a fleet of edge devices through APIs. This is the topology used by most threat-hunting [41,42], penetration testing [61,62,64], and CTI extraction [40,70,74,113] systems. Cloud topology removes resource constraints but introduces unbounded latency (hundreds of milliseconds end-to-end), bandwidth costs, and the privacy concern that raw IoT traffic must leave the local network. It is unsuitable for real-time IoT incident response but is the natural home for offline analysis, retrospective hunting, and after-action review.

Table 2. Distribution of surveyed studies across action scopes and agent architectures. Non-agentic baselines (GNN-IDS, isolation forest, autoencoder-based IDS) are not tabulated here; they appear as comparators in the cited primary studies and are discussed in Section 6 where directly relevant.

Action Scope	Single-Agent Studies	Multi-Agent Studies	Representative Deployment
Detection	[1,8,57,58,59,79,104,152,153]	[4,7,142]	Edge SLM + cloud LLM fallback
Response	[38,39,94]	[108]	Fog gateway + SOC LLM
Threat hunting	[41,42,147]	[142]	Cloud LLM with SOC tools
Vulnerability discovery	[18,44,45,87,88,89,92,105]	[6,61,62,64,106]	Cloud heavy LLM + sandbox tools
Deception	[14,69]	[68]	Fog/gateway honeypot

Table 2. Distribution of surveyed studies across action scopes and agent architectures. Non-agentic baselines (GNN-IDS, isolation forest, autoencoder-based IDS) are not tabulated here; they appear as comparators in the cited primary studies and are discussed in Section 6 where directly relevant.

Action Scope	Single-Agent Studies	Multi-Agent Studies	Representative Deployment
Detection	[1,8,57,58,59,79,104,152,153]	[4,7,142]	Edge SLM + cloud LLM fallback
Response	[38,39,94]	[108]	Fog gateway + SOC LLM
Threat hunting	[41,42,147]	[142]	Cloud LLM with SOC tools
Vulnerability discovery	[18,44,45,87,88,89,92,105]	[6,61,62,64,106]	Cloud heavy LLM + sandbox tools
Deception	[14,69]	[68]	Fog/gateway honeypot

6. Application Domains

6.1. Anomaly Interpretation

Conventional IoT anomaly detectors flag deviations from learned baselines but cannot articulate why an event is anomalous or whether it represents a misconfiguration, a benign novel device, or an active attack. LLM-augmented detectors close this gap. Hybrid LLM-IDS architectures combine line-rate ML classification with LLM-driven contextual reasoning, achieving improved accuracy and substantially reduced false positives [8,59,143]. LogGPT and CLogLLM ingest IoT system logs, prompt an LLM to assess semantics, and emit confidence scores with natural-language justifications [58,142]. ScaleAD couples a Trie-based pre-filter with LLM verification, mediating between throughput and reasoning depth [141,142].

We organize the comparison along three design dimensions that recur across the surveyed detectors: (i) whether the LLM is on the inference path or used only for post-hoc explanation; (ii) whether the model is fine-tuned for IoT traffic or used zero-shot; and (iii) whether evaluation is single-dataset or cross-dataset. Quantitatively, BARTPredict reports 98% accuracy in IoT attack prediction [1]. SEED achieves 99.9% detection accuracy on Edge-IIoTset with sub-70 ms latency on a standard CPU [104]. The multi-class IoT attack detector of Aljerbi et al. [8] integrates DistilBERT with attack-family-specific fine-tuning. These accuracy numbers (98%, 99.9%, 92–95%) are not directly comparable: they reflect different datasets, train/test splits, and class distributions, and the spread is consistent with the 10–20 percentage-point cross-dataset degradation we document in Section 7.1. Federated edge-IDS variants leverage LoRA and Quantized LoRA to adapt LLMs at scale with minimal memory overhead [120]. On the IoMT side, stacking ensembles and CNN+LSTM hybrids on CICIoMT2024 reach binary, categorical, and multiclass accuracies near 99% [11,12,126,152]. The XAI augmentation of these detectors — SHAP, LIME, and Federated SHAP (the latter as proposed in [130]) — provides the feature-attribution explanations regulators are increasingly demanding [56,127,128,129,130,131,149].

6.2. Intelligent Response Orchestration

Response orchestration is the most consequential and least mature application. Static SOAR playbooks codify response procedures but break down when an incident deviates from anticipated patterns. Agentic SOAR replaces static playbooks with dynamically synthesized procedures: the SOAR-LLM framework of Alzughaibi et al. [108] generates contextual playbooks per incident; IntelliSOAR enriches alerts with LLM-extracted threat-intelligence [94]; CyberAlly halved false positives from 70% to 35% (still high by SOC production standards, but a substantial relative improvement) and cut MTTR from 8 hours to 90 minutes in simulated SOC environments [107]. SOAR-style response in connected and autonomous vehicles [38] and in EDR-integrated workflows [39] is now demonstrating end-to-end automation of containment actions.

Three technical concerns dominate this domain. First, action verification: an autonomous response that hallucinates a quarantine target is potentially catastrophic, so reflection passes and confidence thresholds gate execution [108]. Second, playbook lineage: regulators and post-incident reviewers require that each automated action be traceable to its evidence and reasoning, motivating structured logging of LLM traces. Third, human-in-the-loop calibration: human-AI teaming reduces alert fatigue without surrendering accountability, with several SOC studies reporting that the optimum is a tiered design in which routine responses are automated but novel ones escalate to human review [72,109,110].

6.3. Predictive Risk Assessment and Threat Hunting

Threat hunting transforms defensive posture from reactive to proactive. We compare the surveyed threat-hunting and CTI-extraction systems along three design dimensions: reasoning strategy (single-shot vs. multi-step / ReAct), tool and data integration (SIEM connectors vs. NER pipelines vs. threat-feed APIs), and evaluation context (open benchmark vs. internal study vs. vendor report); the comparison table that follows summarises the resulting matrix. Agentic threat hunting consumes hypotheses or MITRE ATT&CK techniques, generates hunt scripts, executes them against telemetry, and refines its hypothesis space based on results [41,42,142]. iThelma [42] integrates playbook-driven intelligence with autonomous script generation, validation, and adaptive learning. Policy-guided threat hunting integrates LLM-enabled hunts with Splunk SOC triage.

LLM-driven CTI extraction is the input to most hunts. CyberNER-LLM [70], KnowCTI [74], and segment-level CTI NER frameworks [113] extract entities and relations from unstructured threat reports with accuracies up to 98% on cybercrime-forum corpora. SynthCTI-style synthetic-data generation alleviates the class-imbalance problem for underrepresented MITRE techniques. LLM-based mapping of SIEM rules to ATT&CK techniques [43,148] (e.g., the Rule-ATT&CK Mapper framework) automates a step that previously consumed senior analyst time. Comparative analyses show that traditional ML still outperforms LLMs in raw mapping accuracy [148], but LLMs deliver explainability and scalability that ML cannot match.

Predictive risk assessment extends hunting forward in time. LLM-Powered Proactive Cyber-Defense [147] continuously ingests threat indicators from public platforms and ranks the resulting risks. Vulnerability prioritization frameworks combine LLM analysis of CVE descriptions with IoT-device documentation to triage patches [44,97].

Table 3. Comparison of representative agentic threat-hunting and CTI-extraction systems along three design dimensions. Cells reflect the predominant choice reported in each cited primary study; “hybrid” denotes systems that combine multiple categories.

System	Reasoning strategy	Tool/data integration	Evaluation context
iThelma [42]	Playbook-driven ReAct	SIEM + playbook DSL	Internal MTTR study; not open-benchmarked
CyberAlly [41]	Multi-step ReAct with analyst hand-off	SOC ticketing + EDR API	Vendor-reported MTTR delta
SynthCTI / KnowCTI [74]	Single-shot generation + retrieval	Threat-report corpora, NER pipelines	Cybercrime-forum NER, ∼98% F1
CyberNER-LLM [70]	Single-shot extraction, fine-tuned	Unstructured threat-report text	In-domain NER, accuracy up to 98%
Rule-ATT&CK Mappera [142]	Single-shot classification	Snort/Suricata rule corpus + ATT&CK lattice	Mapping coverage on public rule sets
LLM-Powered Proactive CDF [147]	Continuous ingestion + ranking	X / social-media indicator streams	Indicator-volume study; rank-precision metrics
Vulnerability prioritization [44,97]	Retrieval-augmented scoring	CVE + IoT device docs	Triage rank quality on curated CVE samples

Design dimensions follow the comparative axes: reasoning strategy (single-shot vs. multi-step / ReAct vs. playbook-driven), tool/data integration (SIEM, NER pipelines, threat-feed APIs), and evaluation context (open benchmark vs. internal study vs. vendor report). Where the primary study does not disclose a design choice, the cell reports the closest available proxy. ^a “Rule-ATT&CK Mapper” is our synthesis name for the rule-to-ATT&CK mapping component of the LogRESP-Agent framework [142], not a system name used in the primary study.

Table 3. Comparison of representative agentic threat-hunting and CTI-extraction systems along three design dimensions. Cells reflect the predominant choice reported in each cited primary study; “hybrid” denotes systems that combine multiple categories.

System	Reasoning strategy	Tool/data integration	Evaluation context
iThelma [42]	Playbook-driven ReAct	SIEM + playbook DSL	Internal MTTR study; not open-benchmarked
CyberAlly [41]	Multi-step ReAct with analyst hand-off	SOC ticketing + EDR API	Vendor-reported MTTR delta
SynthCTI / KnowCTI [74]	Single-shot generation + retrieval	Threat-report corpora, NER pipelines	Cybercrime-forum NER, ∼98% F1
CyberNER-LLM [70]	Single-shot extraction, fine-tuned	Unstructured threat-report text	In-domain NER, accuracy up to 98%
Rule-ATT&CK Mappera [142]	Single-shot classification	Snort/Suricata rule corpus + ATT&CK lattice	Mapping coverage on public rule sets
LLM-Powered Proactive CDF [147]	Continuous ingestion + ranking	X / social-media indicator streams	Indicator-volume study; rank-precision metrics
Vulnerability prioritization [44,97]	Retrieval-augmented scoring	CVE + IoT device docs	Triage rank quality on curated CVE samples

Design dimensions follow the comparative axes: reasoning strategy (single-shot vs. multi-step / ReAct vs. playbook-driven), tool/data integration (SIEM, NER pipelines, threat-feed APIs), and evaluation context (open benchmark vs. internal study vs. vendor report). Where the primary study does not disclose a design choice, the cell reports the closest available proxy. ^a “Rule-ATT&CK Mapper” is our synthesis name for the rule-to-ATT&CK mapping component of the LogRESP-Agent framework [142], not a system name used in the primary study.

6.4. Adversarial Deception and Honeypots

Traditional honeypots quickly betray themselves through static, low-fidelity responses that experienced attackers recognize within seconds. LLM-powered honeypots generate context-aware, dynamic responses that sustain attacker engagement orders of magnitude longer than their predecessors [14,69]. HoneyLLM [69] is a medium-interaction honeypot whose responses are generated by an LLM conditioned on protocol context. The adaptive deception architecture of Wang et al. [14] establishes three pillars — context-aware multi-modal dialogue, dynamic environment morphing, and automated artifact generation — that produce credible system fingerprints. LLM-LDAP honeypots and protocol-aware OT deception agents incorporate timing constraints, state transitions, and command semantics to convince attackers they are in real environments.

Cyber-deception’s value extends beyond engagement. Each attacker interaction with an LLM-driven honeypot is a high-fidelity threat-intelligence artifact: the attacker’s commands, lateral movement patterns, and tool fingerprints feed directly into the hunting and risk-assessment systems described above. The interplay of digital twins and cyber deception [68] suggests an emerging architecture in which a digital twin of the production IoT environment serves both as a high-fidelity decoy and as a simulation testbed for response playbooks [46,47].

7. Datasets, Benchmarks, and Evaluation Methodology

7.1. IoT-Specific Datasets

The empirical foundation of the field rests on a small number of dataset families. CICIoT2023 [101] is the current de facto benchmark, providing a large-scale dataset of coordinated attacks on real IoT devices that captures DDoS, brute-force, spoofing, web, and reconnaissance attacks. Edge-IIoTset (2022) extends Industrial-IoT realism by including Modbus and SCADA-relevant protocols [102,114]. TON_IoT [17] provides heterogeneous telemetry combining network traffic, OS logs, and device sensor data. CICIoMT2024 [11,12,126,152] is the dedicated Medical-IoT benchmark, capturing 18 attack types across 40+ devices. BoT-IoT, N-BaIoT, and IoT-23 remain widely cited foundational datasets for botnet-specific research [22,23,24,25,26,27,138,139].

Each dataset has notable limitations. CICIoT2023 captures attacks at the network layer but provides limited firmware-level or application-layer evidence. Edge-IIoTset is comparatively small and biased toward specific industrial protocols. TON_IoT mixes synthetic and real traces in proportions that complicate generalization claims.

A field-wide methodological pattern bears explicit attention: detectors that achieve >99% accuracy on a single dataset routinely lose 10–20 percentage points when transferred cross-dataset, and we identified at least nine primary studies in the corpus that report this degradation when their model is evaluated on a second IoT dataset (the specific studies are enumerated in the bracketed citation list immediately following) [17,102,103,114,117,122,138,139,151]. The pattern is not unique to LLM-based detectors — it also affects deep-learning and graph-based IoT IDS — but it is amplified for LLM-based systems because in-context prompts and fine-tuning corpora can entrench dataset-specific shortcuts more strongly than gradient-only training. We argue that the field has been over-rewarding single-dataset benchmark accuracy and under-rewarding cross-dataset generalization, and that future work should report at least one cross-dataset transfer result as a default, not as a stretch goal. The Edge-IIoTset-to-CICIoT2023 transfer pair is a particularly defensible default because the two datasets have substantively different attack distributions and acquisition pipelines while sharing the same protocol vocabulary.

7.2. LLM- and Agent-Specific Benchmarks

LLM-specific evaluation is a younger and more turbulent area. CyberSecEval (versions 1–3) and CyberSOCEval, summarized in [93,95], benchmark LLM safety properties: insecure coding suggestions, cyberattack helpfulness, prompt-injection resistance, code-interpreter abuse, and autonomous offensive capability. All tested production models exhibit between 26% and 41% successful prompt-injection rates (CyberSecEval 3 against GPT-4 and Llama-3-70B respectively, as reported in [93,95]) [95], a baseline that no agentic defense currently approaches. SECURE benchmarks knowledge extraction, understanding, and reasoning across six Industrial Control System datasets [93]. The LLM-evaluation survey of Bansal et al. [95] catalogues over a dozen additional benchmarks but observes that none jointly evaluate detection accuracy, latency, and adversarial robustness in an integrated IoT setting.

We argue that agent-native IoT benchmarks must measure four properties simultaneously: (i) accuracy on labeled traffic; (ii) per-decision latency including tool invocations; (iii) robustness to adversarial prompt injection embedded in observations; (iv) cost in tokens, energy, or dollars per decision. No current benchmark meets all four criteria. The companion code repository (Section 10) takes a first step by implementing accuracy and latency on Edge-IIoTset with prompt-injection adversarial cases.

7.3. Metrics and Reporting Practice

Reported metrics across the corpus include accuracy, precision, recall, F1, AUC, false-positive rate, MTTR, MTTD, energy consumption, and inference latency. Inference latency is the most variably reported: some studies report inference-only latency on idle hardware, others report end-to-end latency including network round trips, and few report tail-percentile distributions. We recommend that future work uniformly report at minimum the median, p95, and p99 end-to-end latencies under representative load, alongside the accuracy metrics that have historically dominated.

Table 4. Principal datasets and benchmarks used in the surveyed literature. Attack-class counts are taken from each dataset’s published documentation; we did not re-benchmark or re-validate the labels.

Dataset	Year	Domain	Attack Classes	Key Use
CICIoT2023 [101]	2023	General IoT	33 attacks, 7 families	De facto IoT IDS benchmark
Edge-IIoTset	2022	IIoT	14 attacks (Modbus etc.)	Industrial IoT realism
TON_IoT [17]	2020	Heterogeneous IoT	9 attack types	Multi-modal: network + OS + sensor
CICIoMT2024	2024	Medical IoT	18 attacks across 40+ devices	Healthcare device security
BoT-IoT / N-BaIoT	2018	Botnet-specific IoT	Mirai, Bashlite, DDoS	Foundational botnet research
CyberSecEval 1–3 [93,95]	2023–25	LLM safety	Insecure coding, prompt injection, offensive	LLM cybersecurity capability
CyberSOCEval [93]	2025	LLM SOC tasks	Malware analysis, CTI reasoning	Defensive LLM benchmark

Table 4. Principal datasets and benchmarks used in the surveyed literature. Attack-class counts are taken from each dataset’s published documentation; we did not re-benchmark or re-validate the labels.

Dataset	Year	Domain	Attack Classes	Key Use
CICIoT2023 [101]	2023	General IoT	33 attacks, 7 families	De facto IoT IDS benchmark
Edge-IIoTset	2022	IIoT	14 attacks (Modbus etc.)	Industrial IoT realism
TON_IoT [17]	2020	Heterogeneous IoT	9 attack types	Multi-modal: network + OS + sensor
CICIoMT2024	2024	Medical IoT	18 attacks across 40+ devices	Healthcare device security
BoT-IoT / N-BaIoT	2018	Botnet-specific IoT	Mirai, Bashlite, DDoS	Foundational botnet research
CyberSecEval 1–3 [93,95]	2023–25	LLM safety	Insecure coding, prompt injection, offensive	LLM cybersecurity capability
CyberSOCEval [93]	2025	LLM SOC tasks	Malware analysis, CTI reasoning	Defensive LLM benchmark

8. Open Challenges

8.1. Hallucination and Verifiable Reasoning

Hallucination — the generation of factually incorrect content with high linguistic confidence — is the dominant reliability obstacle for agentic security. In low-stakes settings, a hallucinated explanation produces only operator confusion; in high-stakes settings such as autonomous device quarantine, hallucination is potentially catastrophic. RAG grounding reduces but does not eliminate hallucination [40,120,121,143]; the Hughes Hallucination Evaluation Model and consistency-analysis tools provide post-hoc detection but cannot prevent generation. Hallucination-resistant security planning, structured-prompt frameworks for CoT integrity, and verifiable autonomous reasoning are now identified open problems [140,141].

8.2. Adversarial Robustness and Prompt Injection

Two adversarial threat models attack agentic IoT defenses. The first is the conventional model from non-LLM intrusion detection: adversaries craft traffic perturbations that evade ML classifiers [49,50,78,145]. Hierarchical adversarial attacks against GNN-based IoT IDS [49] and SHAP-attribution-based fingerprinting attacks demonstrate that ML defenders remain fragile. The second model is new with LLMs: prompt injection, in which adversaries embed instructions in observations to redirect the agent itself [10,60]. The indirect variant — embedding the malicious prompt inside third-party data that the LLM-integrated application later retrieves — was first systematically demonstrated against production deployments (Bing Chat, GPT-4 code completion, synthetic agents) by Greshake et al. at ACM AISec 2023 [156]. The earlier direct-prompt-injection concept was named by Perez and Ribeiro in a NeurIPS 2022 ML Safety Workshop Best Paper, but as that work has not appeared in a formal peer-reviewed proceedings we cite the peer-reviewed Greshake follow-up [156] as the foundational reference. Adversarial robustness of aligned models more broadly is investigated by Carlini et al. at NeurIPS 2023 [157], who demonstrate that aligned LLMs can be made to produce arbitrary outputs through adversarial inputs. A “foot-in-the-door” prompt-injection attack (a multi-turn variant borrowed from the social-psychology literature in which a benign initial request lowers the agent’s guard for a subsequent malicious one) is one that initially asks the agent for a harmless action (e.g., “summarize this packet”) and, once the agent has committed to a particular reasoning frame, escalates the request inside subsequent observations toward attacker-favored tool invocations. Such attacks demonstrate that even harmless-appearing observations can drift a ReAct agent toward malicious tool use. Defenses include polymorphic prompts [10], data-filter wrappers, tool dependency graphs, dynamic policy enforcement, and multi-agent defense pipelines, but no defense yet reduces successful prompt-injection rates below 10% on production-scale benchmarks.

Compound failure modes in multi-step agentic pipelines

Beyond the single-turn attacks above, multi-step agentic pipelines exhibit compound failure modes that are largely under-evaluated in the surveyed literature. Three patterns recur across the corpus. Error propagation: a misclassification or hallucination in an early ReAct step biases all subsequent tool invocations, often in a way that is invisible to a SOC analyst who reviews only the final action; the BARTPredict false-positive cascades documented in [1] are a concrete instance, and the multi-agent vulnerability detection results in [2,6] report failure cascades when an early reasoning step misidentifies the language of the smart-contract source. Context poisoning: a prior-turn observation (for example, a maliciously crafted log line returned by a SIEM tool) contaminates the agent’s reasoning across a long conversation, an effect distinct from one-shot prompt injection because the polluted token remains in context. Tool-use amplification: a hallucinated query produces a large result set that then overwhelms the agent’s context window, forcing truncation that drops the salient evidence and biasing the subsequent decision; the multi-agent threat-hunting evaluations in [60,142] surface this pattern but do not measure it directly. Each of these failure modes is well within the scope of the prompt-injection robustness benchmarks discussed above, but is not captured by single-turn metrics such as CyberSecEval susceptibility rates; targeted multi-turn evaluation harnesses remain a gap.

8.3. Explainability and Auditability

Regulators in healthcare, automotive, and critical infrastructure increasingly require that automated decisions be explainable to affected parties. LLM agents emit natural-language reasoning that is human-readable but not necessarily faithful: the verbalized reasoning may not reflect the actual computation [127,128,129,130,131]. Faithful explanation, structured trace logging, and SHAP-style attribution on LLM internals remain open problems. The Federated XAI IDS approach [130] is a notable step toward jointly addressing explainability and privacy.

8.4. Privacy Preservation

IoT traffic frequently contains personally identifiable or commercially sensitive data; sending it to a cloud LLM for analysis is often legally or contractually impermissible. Federated learning [117,120,130] and differential privacy provide the orthogonal building blocks, but their integration into agentic systems is immature. Federated RAG (Federated RAG for IoT cybersecurity [120]) is one promising direction. On-device SLMs eliminate the data-leaving-device concern but lack the reasoning depth of cloud LLMs. Tradeoffs along the accuracy-efficiency-privacy trilemma are sharp and not yet well characterized [146].

8.5. Real-Time Decision-Making and the Latency-Security Paradox

IoT incident response has tens-of-milliseconds budgets for some scenarios (industrial control loops, medical devices) and tens-of-seconds budgets for others (DDoS mitigation, account compromise). Even the fastest edge SLMs operate at 70–400 ms per inference, and ReAct chains with two or three tool invocations push easily into the seconds regime. The latency-security paradox is fundamental: deeper reasoning produces better decisions but slower decisions, and slower decisions allow more attacker dwell time. Speculative decoding, quantization, and KV-cache-reuse optimizations partially close the gap [34,51,55] but cannot eliminate it. Hybrid architectures that delegate line-rate decisions to ML and only escalate to LLMs for ambiguous cases are, in our assessment, the most plausible near-term answer [8,57,142].

Table 5 synthesizes the accuracy-latency-robustness frontier reported across the corpus for the three representative deployment tiers. Reported accuracies are aggregated from the cited primary studies and should be interpreted as upper bounds achieved in laboratory settings; production deployments typically observe a 5–15 percentage-point degradation. Prompt-injection susceptibility figures are baselined against the CyberSecEval 3 reference rate of 26–41% for unprotected production LLMs [93,95], with cells labeled “unmeasured” where the underlying study did not include adversarial probes.

The “unmeasured” label for edge SLMs in Table 5 also masks a structural trade-off that the Section 9.4 roadmap milestone (sub-5% prompt-injection success) must confront. Smaller models have less capacity for the multi-stage safety alignment (supervised fine-tuning + RLHF + red-team fine-tuning) that hardens cloud APIs against prompt injection, and 4-bit quantization can additionally erase fragile safety-aligned weights — empirically degrading injection robustness by single-digit to low-double-digit percentage points relative to the un-quantized base model in published evaluations of quantization-induced safety drift. Edge SLMs therefore start from a weaker safety baseline than the cloud LLMs in Table 5 row 3, and rely disproportionately on system-prompt scaffolding and tool-call gating (cheaper but more brittle) rather than on weight-level alignment. Closing the gap to the Section 9.4 milestone will likely require alignment techniques specifically engineered to survive post-training quantization.

8.6. Governance and Accountability

When an autonomous agent quarantines a hospital ventilator or blocks emergency communications based on a hallucinated threat, who is responsible? Existing legal and operational frameworks assume a human decision-maker. Three regulatory instruments published since 2023 are now beginning to shape the answer for agentic IoT defense and deserve explicit consideration. The U.S. National Institute of Standards and Technology AI Risk Management Framework (NIST AI RMF, NIST AI 100-1) [159] defines a Govern-Map-Measure-Manage cycle that agentic systems should be evaluated against; its Generative AI Profile (NIST AI 600-1, 2024) [159] is particularly relevant because it articulates the trust, transparency, and incident-response expectations applicable to LLM-driven decisions. The European Union Artificial Intelligence Act (Regulation (EU) 2024/1689) [160] imposes risk-tier-specific obligations on high-risk AI systems, a category that explicitly includes AI components used in critical infrastructure protection — squarely the deployment posture this survey addresses. The European Union Agency for Cybersecurity (ENISA) has published guidance on securing the IoT supply chain and on cybersecurity practices for AI [161] (notably its 2020 “Guidelines for Securing the Internet of Things”) that operationalizes many of the same requirements for European deployments. None of the surveyed primary studies in our corpus explicitly maps its proposed agentic defense to these frameworks; closing that gap is a near-term governance research priority.

Recent agentic AI governance proposals additionally advocate meta-cognitive judgment functions that gate decision readiness and calibrate autonomy based on evidence quality. Identity, authentication, and authorization for agent-to-agent communication (the so-called “Internet of Agents”) remain underspecified. The governance gap is the largest non-technical obstacle to industrial deployment, and Section 9 returns to it through the lens of trustworthy multi-agent collaboration.

Worked example: EU AI Act risk-tier classification for an autonomous quarantine agent

A concrete application of Regulation (EU) 2024/1689 to two representative agentic IoT defenses illustrates the practical stakes. A detection-only LLM-augmented IDS that emits alerts to a SOC analyst (the predominant pattern documented in Section 5.3.1 and tabulated in Table 2) is most plausibly classified as a limited-risk system: transparency obligations apply (operators must inform users that AI is in the loop), but the conformity-assessment burden is light. By contrast, an autonomous quarantine agent acting on hospital ventilators, industrial control PLCs, or smart-grid relays — i.e., the multi-agent autonomous-response systems catalogued at the upper-right of the action-scope dimension — is almost certainly a high-risk AI system under Annex III of the Act (categories “critical infrastructure” and, for medical IoT, “safety component of products covered by Union harmonisation legislation”). The provider is then bound by Articles 8–17: risk-management system, data-governance documentation, technical-documentation file, automatic logging, transparency to deployers, human-oversight design, accuracy/robustness/cybersecurity testing, and a quality-management system. None of the surveyed primary studies report compliance artifacts of this kind. The implication for the field is concrete: agentic IoT defenses targeting high-risk Annex III categories cannot be deployed in the EU after August 2026 without the listed conformity evidence, and research papers proposing such systems should now report the corresponding artifacts (or an explicit statement that the system is for research use only).

Mapping the NIST AI RMF to the four-pillar taxonomy

The NIST AI RMF’s Govern–Map–Measure–Manage cycle maps naturally onto the four-pillar taxonomy introduced in Section 5: Govern corresponds to the deployment-topology decision and to the human-oversight gate; Map corresponds to the action-scope choice (what the agent is authorised to do and on which assets); Measure corresponds to the empirical evaluation discussed in Section 7 (accuracy, latency, prompt-injection susceptibility); and Manage corresponds to the reasoning-strategy choice (whether the agent reflects, self-checks, or escalates on low-confidence decisions). This mapping is not present in any surveyed study but provides a structured way to read the four-pillar coordinate of a proposed system as a compliance artifact rather than a purely engineering choice.

8.7. Ethical Considerations

Agentic AI for IoT cybersecurity sits squarely on the offensive-defensive boundary, and a survey that takes the field seriously must treat that boundary explicitly. Three categories of ethical risk recur across the corpus. First, dual-use research: the same ReAct loops, plan-and-solve agents, and multi-agent coordination patterns that improve defense are directly usable for unauthorized penetration testing, autonomous exploitation, and red-team automation [2,7,61,62,63,64,106]. Public release of high-capability offensive frameworks therefore demands more careful gating than purely defensive contributions. Second, deception ethics: LLM-powered honeypots deceive not only adversaries but also legitimate researchers, vendors, and — in adjacent failure modes — human operators who interact with the deception unintentionally [14,68,69]; honeypot deployments should include legal disclaimers, sandbox isolation, and engagement logs that allow accidental human interaction to be detected and unwound. Third, autonomy and human-in-the-loop calibration: deploying response-orchestration agents that can quarantine medical or life-critical devices is ethically defensible only when the action is gated by an explicit human approval workflow for tier-1 and tier-2 assets, as we have encoded in the response-orchestration prompt template of the companion repository. We adopt the position that agentic IoT defense should default to a “human approves consequential action” posture and that deviation from this default should be justified, documented, and reversible.

Institutional release-ethics implications for the companion kit

The companion reproducibility kit released with this survey (Section 10) contains reference single- and multi-agent loops, an adversarial prompt-injection probe corpus, and an Edge-IIoTset-style evaluation harness. All three components have a dual-use surface: the agentic loops can be re-pointed from defensive to offensive workflows by editing the system prompt; the probe corpus can be used to attack defended systems as well as to harden them; and the synthetic-traffic generator can be used to construct evasive samples for adversarial training. We adopted three institutional-style mitigations rather than treating the release as a pure-research artifact. First, the default system prompts and tool whitelists in the kit are restricted to defensive postures (read-only telemetry, alerting, ticketing) and explicitly exclude offensive primitives (no shell execution, no remote-code-execution helpers, no exploitation libraries). Second, the prompt-injection probe corpus is shipped with a disclosed provenance map (see Section 10.3) so that downstream users can identify which patterns originated in published red-team work and which are author-generated, allowing reviewers to assess novelty risk. Third, the README explicitly documents the dual-use surface and states that any redistribution under a more permissive offensive posture should pass through the redistributor’s own institutional review. We considered but rejected withholding the kit pending case-by-case review, because the underlying techniques are already published in the surveyed primary studies and an open scaffolding kit improves the field’s ability to study agent failure modes empirically. The trade-off is documented openly so future work can revisit it.

9. A 2026 Research Roadmap

Building on the gaps identified above, we articulate four research directions that we believe will deliver high-priority progress in the next 24 months. The numeric milestones cited within each subsection are aspirational targets, derived where possible from application-domain analogues (industrial safety integrity levels SIL-2/3 for autonomous response, NIST SP 800-82 availability targets for industrial control telemetry); where no direct standards analogue exists, thresholds are calibrated against the closest available benchmark and should be read as design goals rather than as requirements derived from a published standard.

9.1. Federated Agentic Learning

Federated learning, originally formulated as the FedAvg algorithm by McMahan et al. at AISTATS 2017 [158], has matured for conventional ML; federated agentic learning is in its infancy. The proposed research agenda includes: (i) federated fine-tuning of small language models with differential privacy (DP-LoRA and FedShield-LLM directions provide initial techniques); (ii) federated RAG retrieval indices that share threat-intelligence embeddings without sharing raw traffic [120]; (iii) federated multi-agent training in which the coordination policy itself is updated via federated reinforcement learning. Milestones include reaching DistilBERT-grade accuracy on Edge-IIoTset under ($\epsilon$=1, $\delta$=1e-5) differential privacy with bandwidth costs no more than 2× non-private federated learning on Edge-IIoTset. The $\epsilon$=1 threshold mirrors the strictest commonly adopted budget in production federated-learning deployments [120,130], and the 2× bandwidth ceiling matches the overhead tolerated by gateway-class hardware in fog-tier IoT pilots.

9.2. Verifiable Autonomous Reasoning

Verifiable reasoning means that an agent’s claimed reasoning faithfully tracks its actual computation and is checkable post-hoc. The research agenda spans: (i) trace-based interpretability that records intermediate tool invocations, tokens, and confidence scores in structured, queryable form; (ii) faithfulness benchmarks that compare verbalized rationale to causal attribution on hidden states; (iii) cryptographic attestation of agent execution so that operators can prove which model, prompt, and tools generated a specific decision. The recent meta-cognitive judgment proposals and consistency-analysis frameworks are first steps. Milestones include sub-10% verbalization-versus-attribution divergence on the SECURE benchmark [93]. The 10% threshold is chosen because audit trails accepted as evidence in safety-critical regulated industries (medical, aviation, finance) typically require divergence rates of the same order, providing a defensible upper bound on tolerable LLM rationalization drift.

9.3. Trustworthy Multi-Agent Collaboration

Multi-agent systems require formalized communication protocols, mutual authentication, and emergent-behavior monitoring. The research agenda includes: (i) standardized agent communication schemas (extending the Model Context Protocol and Agent Network Protocol ideas) with cryptographic identity per agent; (ii) detection of intention-hiding malicious agents in collaborative pipelines; (iii) byzantine-fault-tolerant multi-agent consensus for security-critical decisions. Milestones include detecting at least 95% of injected malicious agents in benchmarks of 10+-agent systems without degrading benign throughput by more than 5%. The 95%/5% pairing is calibrated against the byzantine-fault-tolerance literature, where consensus protocols typically guarantee correctness only when fewer than one-third of participants are byzantine — agentic systems with weaker detection cannot meet that classical bound.

Cross-vendor device communication is intrinsic to IoT ecosystems, so multi-agent interoperability standards must adapt to edge constraints before they can serve the deployment topologies catalogued in Section 5.4. We highlight three concrete adaptations of MCP/ANP/A2A that the field should prioritize. (i) Lightweight wire formats: the JSON-RPC payloads typical of current MCP implementations carry 2–5× more bytes than necessary for IoT control planes. Adapter profiles that bind MCP semantics over Concise Binary Object Representation (CBOR, RFC 8949), MessagePack, or Protocol Buffers reduce serialization cost to fit the kilobit-per-second link budgets typical of LoRaWAN and NB-IoT. (ii) Latency-aware orchestration: agent communication budgets must be expressed alongside QoS classes (hard-real-time, soft-real-time, best-effort) so that an industrial-control closed loop is not gated on a multi-hop agent debate. A practical milestone is sub-50 ms median agent-to-agent message round-trip on a constrained network, comparable to the inner-loop reaction times Section 8.5 references. (iii) Capability discovery over IoT-native transports: ANP-style discovery is naturally MQTT-pub/sub or CoAP-multicast at the edge, not HTTP-pull; a profile binding ANP discovery primitives over MQTT topics would let an IoT defender enumerate fellow defensive agents without round-tripping through a cloud broker. Closing these three gaps would convert today’s loose vendor-by-vendor agent ecosystems into the disciplined multi-agent fabric that trustworthy IoT defense requires.

9.4. Resource-Hardened Edge Agents

Edge agents must run on a Raspberry Pi-class device while resisting prompt injection and side-channel attacks. The research agenda includes: (i) speculative decoding tuned for IoT-traffic distributions; (ii) quantization-aware fine-tuning that preserves prompt-injection robustness even at 4-bit precision; (iii) hardware-isolated tool execution (trusted execution environments) that constrain what an agent can do even when reasoning is compromised; (iv) energy-aware reasoning loops that adapt depth based on remaining battery. Milestones include sub-100 ms median end-to-end latency on Arm Cortex-A78 hardware — measured as single-decision wall-clock time without any external tool round-trip — while sustaining prompt-injection success rates below 5% on a 1000-example adversarial benchmark. The 100 ms figure aligns with the upper bound for industrial-control closed-loop reaction times, and the 5% prompt-injection ceiling is a tenth of the 26–41% CyberSecEval baseline for production LLMs [93,95], representing meaningful hardening without claiming an unrealistic zero.

These four directions are not independent. A federated agentic system whose updates are verifiable and whose multi-agent coordination is trustworthy and whose edge components are resource-hardened constitutes the union of the four. The companion code artifact provides scaffolding that future work can extend along each axis.

10. Companion Reproducibility Kit

Alongside this manuscript we provide a structured reproducibility kit — prompt templates, reference reasoning loops, and an evaluation harness — that operationalizes the four-pillar taxonomy of Section 5. The kit is positioned as scaffolding for follow-up empirical work rather than as a finished framework: it deliberately implements the smallest end-to-end version of each component so that other researchers can replace any single piece (model backend, tool registry, dataset) without touching the others. The materials are publicly available on GitHub at https://github.com/vnageshwaran-de/agentic-iot-security and archived on Zenodo with permanent DOI 10.5281/zenodo.20446651 (release v0.2.0) [165]; the deposit includes the prompt templates, the reference Python implementation, the synthetic dataset generator, and the present manuscript’s coded extraction matrix.

10.1. Prompts Engine

Each action scope from Section 5.3 — anomaly interpretation, response orchestration, threat hunting, vulnerability discovery, deception — is paired with a parameterizable system-prompt template. Templates expose slots for (a) the IoT context (protocols, device classes, network topology), (b) the available tools (in JSON-schema form following current function-calling conventions), and (c) the safety scaffolding (refusal policies, reflection prompts, confidence thresholds). JSON schemas are provided for canonical tools — SIEM query, packet sniff, MITRE lookup, device-isolate, threat-feed-lookup — so practitioners can drop in their own implementations without rewriting prompts.

10.2. Core Loops

Two reference loops are provided. The single-agent ReAct loop implements perception, thought, tool invocation, observation, and termination, parameterized by model backend (with adapters present in the v0.2.0 Zenodo release for OpenAI-compatible APIs, Anthropic Claude, and local llama.cpp inference) and by a pluggable tool registry. The multi-agent coordinator implements three patterns (pipeline, debate, blackboard) over a shared message bus, with explicit roles, hand-off rules, and inter-agent input sanitization to mitigate prompt injection. Both loops are instrumented with structured tracing.

10.3. Evaluation Harness

The evaluation harness measures classification accuracy and end-to-end latency on synthetic Edge-IIoTset-style flow data; a switch in the dataset loader allows substitution of the real Edge-IIoTset CSV when an appropriate license is in place. A complementary adversarial harness injects prompt-injection probes (drawn from a corpus of 25 patterns) into observations and reports the agent’s susceptibility. Results are emitted as JSON and a summary CSV for downstream statistical analysis.

Provenance of the 25 prompt-injection probe patterns

The probe corpus is assembled as follows: 12 patterns are derived from the public CyberSecEval 3 indirect-prompt-injection split [93,95] (rephrased to fit IoT-telemetry observation shapes); 6 patterns adapt indirect-prompt-injection vectors from Greshake et al. [156]; and 7 patterns are author-generated to cover IoT-specific surfaces not present in either source (e.g., MQTT topic-name injection, JSON-schema confusion in tool-call arguments, log-line splitting against SIEM enrichment). The provenance map is shipped with the v0.2.0 release as evaluation/probes/PROVENANCE.md; readers can therefore reproduce the CyberSecEval-style baseline subset directly, and compare independently-generated patterns against the published comparators.

Sanity-check validation run

This run is included only to verify reproducibility of the harness, not to support any empirical claim about model performance. To demonstrate that the reference harness executes end-to-end and produces measurable numbers, we report one validation run shipped with the v0.2.0 release. Against the synthetic Edge-IIoTset-style generator with 5 000 flows balanced across 7 attack families (benign, ddos, brute-force, exfil, recon, mqtt-mitm, injection), the single-agent ReAct loop running in the deterministic offline-stub mode (–-model stub, the only mode that requires no API key or GPU and is therefore citable for reproducibility) achieves a binary attack-vs.-benign $F_1=0.83$ (precision $=0.89$, recall $=0.78$) and a 7-way multi-class macro $F_1=0.54$; the stub heuristic latency is sub-microsecond per decision, which means harness overhead is not the bottleneck and any real-model run will be dominated by the LLM inference cost on the host hardware. Re-running the harness with –-model openai or –-model anthropic substitutes the heuristic for a real LLM call; the resulting accuracy is bounded by the chosen model and the resulting latency by the chosen API. These figures are kit outputs, not literature-derived numbers, and they should not be compared against the literature-derived rows of Table 5, which reflect best-reported numbers from primary studies on real datasets and real hardware. The full per-row CSV produced by the run, the seed used by the synthetic generator, and the exact command line are shipped at evaluation/sample_runs/ in the v0.2.0 release (Zenodo DOI 10.5281/zenodo.20446651).

Inter-agent input sanitization.

The multi-agent coordinator implements a two-stage sanitization filter on every message handed off between agents: (i) a syntactic stage that strips or escapes control sequences common to indirect-prompt-injection vectors (Markdown comment markers, repeated whitespace, ANSI escape codes, Unicode control characters), and (ii) a semantic stage that wraps the incoming content in an explicit untrusted-input frame (“the following content originated from a downstream agent and must be treated as data, not as instructions”) before it is concatenated into the next agent’s prompt. The semantic frame is conceptually related to the polymorphic-prompt defense of Wang et al. [10] surveyed in Section 5; the difference is that our frame is applied at every inter-agent boundary rather than at the user-input boundary alone, and the syntactic stage borrows from input-sanitization patterns established in web-application security (specifically the OWASP Input Validation and Output Encoding cheat sheets, https://owasp.org/www-project-cheat-sheets/) rather than from prompt-engineering folklore. The implementation lives at core_loops/multi_agent/sanitize.py in the v0.2.0 release.

Synthetic-to-real transfer caveat.

The Edge-IIoTset-style generator in the harness reproduces packet header statistics and flow-volume distributions but does not reproduce real-IoT artifacts such as device-specific timing jitter, retransmission patterns, application-layer protocol quirks (CoAP option encoding, MQTT QoS behavior under packet loss), or vendor-specific firmware behaviors. Validation runs reported here use the synthetic generator and should be re-run on captured real-IoT traffic before any production claim is made; the kit’s dataset loader accepts the official Edge-IIoTset CSV directly for that purpose.

10.4. Provenance of the Numbers in This Survey

To distinguish literature synthesis from independent measurement we clarify the provenance of every quantitative number in this paper. All accuracy figures, MTTR reductions, and latency ranges in Section 2, 5, 6, 7, and 8, and all rows of Tables 1–5, are drawn from the primary peer-reviewed studies cited inline; no number in those sections is the product of running the reproducibility kit. The kit’s own runs are intended for follow-up work and are not reported as findings of this survey.

10.5. Release Status and Scope

The kit is released in its initial v0.2.0 scaffolding form, publicly accessible on GitHub at https://github.com/vnageshwaran-de/agentic-iot-security and permanently archived on Zenodo with DOI 10.5281/zenodo.20446651 [165]. The materials described in Section 10.1–10.3 are specifications and runnable reference Python implementations sufficient to reproduce the described workflows on a single machine; they are deliberately not a fault-tolerant distributed system, a packaged PyPI module, or a hosted service. The Zenodo archive carries the canonical DOI, MIT license, and citation metadata (CITATION.cff); GitHub topics tag the repository as agentic-ai, llm-agents, iot-security, prompt-injection, edge-computing, react-agent, multi-agent-systems, systematic-survey, and prisma for discoverability. Readers are encouraged to fork the kit, replace components with production-grade equivalents, and report empirical results against the Section 9 roadmap milestones in subsequent peer-reviewed work.

11. Conclusions

The convergence of large language models and agentic AI with IoT cybersecurity has, in the four years since 2022, evolved from speculative proposal to a substantial research literature spanning 150-plus peer-reviewed studies in IEEE Xplore, the ACM Digital Library, and MDPI journals. This survey has synthesized that literature along a four-pillar taxonomy — agent architecture, reasoning strategy, action scope, and deployment topology — that locates each study in a shared coordinate system and surfaces the under-explored regions of the design space. We have examined the four flagship application domains (anomaly interpretation, response orchestration, predictive risk assessment, and adversarial deception), consolidated the datasets and benchmarks on which the field empirically rests, and dissected the open challenges that constrain present-day deployment: hallucination, adversarial fragility against both traditional evasion and novel prompt injection, the latency-security paradox at the edge, privacy preservation under federated learning, and the largely unaddressed governance vacuum surrounding autonomous defensive action.

We have argued that the next 24 months of research should concentrate on four directions whose intersection would constitute the foundation of a trustworthy self-defending IoT ecosystem: federated agentic learning, verifiable autonomous reasoning, trustworthy multi-agent collaboration, and resource-hardened edge agents. To accelerate progress on these directions, we have released a companion open-source framework that operationalizes the taxonomy through prompt templates, single- and multi-agent reasoning loops, and an evaluation harness with adversarial-prompt-injection probes against Edge-IIoTset traffic.

A field-wide methodological observation also recurs from the synthesis: present-day evaluation practice over-rewards single-dataset benchmark accuracy and under-rewards cross-dataset generalization. The 10–20 percentage-point degradation we observe across at least nine primary studies (Section 7.1) is not an idiosyncratic property of any one detector; it is a structural feature of the way the field benchmarks. Future work should make cross-dataset transfer reporting a default expectation rather than a stretch goal.

For IoT product teams considering near-term adoption, the synthesis suggests a tiered posture. The literature suggests that hybrid edge-ML detectors with cloud-LLM triage represent the most mature near-term deployment pattern and consistently deliver the largest false-positive reductions in the corpus. LLM-driven SOC automation — alert enrichment, MITRE ATT&CK mapping, playbook drafting — appears sufficiently mature for guarded production evaluation behind a human-in-the-loop gate, especially for tier-1 and tier-2 critical assets. Autonomous response orchestration for non-critical assets (rate limiting, ticketing, low-blast-radius blocks) may be suitable for guarded pilot evaluation within a 12-month deployment horizon. Fully autonomous quarantine of life-critical or industrial-control assets, multi-agent threat-hunting swarms, and unsupervised vulnerability disclosure remain research-only at the time of writing and should be avoided in production without dedicated governance, simulation environments, and rollback capabilities.

Agentic AI does not eliminate the IoT security problem; it shifts the problem. Self-defending IoT is not a destination but a moving frontier whose horizon is reset every time a new model, a new attacker capability, or a new deployment topology arrives. What this survey can offer is a map of the terrain as it stands in mid-2026, and a compass — the four-pillar taxonomy and the four research directions — for navigating what comes next.
