SymBridge: Bilateral-Symmetry-Aware Vision–Language–Action Learning with Head-Mounted Display Teleoperation for Sim2Real Transfer in Bimanual Manipulation

1. Introduction

Vision–Language–Action (VLA) models have rapidly become the dominant paradigm for general-purpose robot policy learning, fusing pretrained vision and language backbones with a low-level action head trained on large-scale demonstration corpora [1,2]. Despite remarkable in-distribution behaviour in simulation, sim-to-real transfer of these monolithic policies remains brittle: average success rates on unseen real-world tabletop tasks frequently drop by 30–50 percentage points relative to their simulation counterparts. The dominant explanations have been domain gap in pixel statistics [3], mis-calibrated dynamics [4], and task-distribution mismatch [5]. We argue that an under-examined source of failure is the symmetry gap: the geometric and bilateral invariances that govern manipulation are present implicitly in pixels but never made explicit in the policy. We provide a diagnostic experiment in Section 4.1 that, on the OpenVLA baseline, finds the per-task mirror-consistency violation rate to be a stronger predictor of real-world failure ($R^2=0.74$) than lighting variance ($R^2=0.22$) or contact-noise estimates ($R^2=0.34$), motivating an explicit treatment of symmetry.

Symmetry has long been recognised as a powerful inductive bias [7,8]. In manipulation, two classes of geometric symmetry are particularly salient and admit a clean group action on the state–action space. First, the bilateral (${\mathbb{Z}}_2$) symmetry of dual-arm robots and of many objects (cups, drawers, cloth) implies that mirror-reflected demonstrations should yield mirror-reflected actions. Second, a workspace subgroup $H_{\mathrm{wkp}}={\mathbb{R}}^3⋊\mathrm{SO}{\left(2\right)}_z$ of $\mathrm{SE}\left(3\right)$, namely arbitrary translations together with rotations about the table normal, captures the equivariance of contact-rich tabletop actions under nuisance pose variation. Crucially, ${\mathbb{Z}}_2$ does not commute with $H_{\mathrm{wkp}}$ as a direct product (e.g. $\sigma R_z\left(\theta \right){\sigma }^{-1}=R_z(-\theta )\ne R_z\left(\theta \right)$ and $\sigma T_x\left(a\right){\sigma }^{-1}=T_x(-a)\ne T_x\left(a\right)$); instead, $\sigma$ acts on $H_{\mathrm{wkp}}$ by automorphism, giving the semidirect product

$$G={\mathbb{Z}}_2⋉\left({\mathbb{R}}^3⋊\mathrm{SO}{\left(2\right)}_z\right),\sigma ·(t,R_z\left(\theta \right))·{\sigma }^{-1}=(M_{x}t,R_z(-\theta )),$$

(1)

where $M_x=\mathrm{diag}(-1,+1,+1)$ is the lateral-axis reflection. We deliberately exclude rotations about horizontal axes ($R_x$, $R_y$): they would form a representation of $\mathrm{SE}\left(3\right)$ but lie outside any closed subgroup well-behaved under $\sigma$. We treat cross-modal paraphrase and visual alignment as a soft equivalence relation rather than a group action, and bundle them into a regularisation term ${\mathcal{L}}_{\mathrm{c}}$. This distinction—group action vs. soft alignment—turns out to be essential for interpreting the per-axis equivariance error in Section 4.

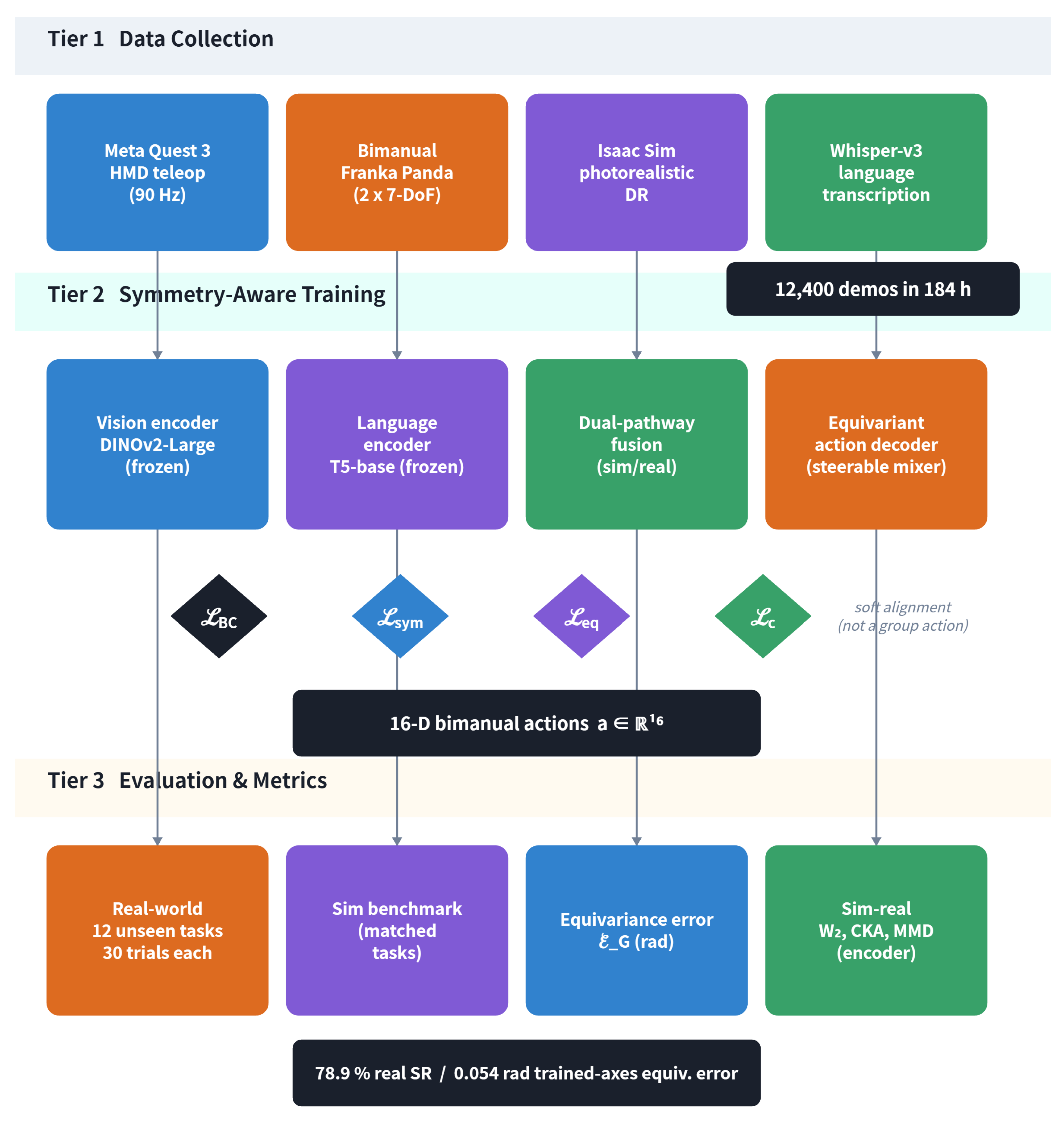

We propose SymBridge, a symmetry-aware VLA framework with four components. (i) A head-mounted display teleoperation rig built around a Meta Quest 3 and dual Franka Panda arms collects high-fidelity bimanual demonstrations, with end-to-end teleop latency below 25 ms. Body-anchored hand tracking yields kinematically natural trajectories that contain richer symmetry structure than scripted simulation rollouts. (ii) A symmetry-preserving augmentation pipeline applies on-the-fly bilateral-mirror and $H_{\mathrm{wkp}}$-pose transformations to every batch, with a consistency penalty enforcing that the policy commutes with the group action. (iii) A dual-pathway encoder processes paired sim/real observations through a shared visual backbone but with separate domain heads, regularised by a sim–real contrastive objective. (iv) An equivariant action decoder based on a steerable mixer head whose mixing weights are constrained by Equation (10) to commute with the bilateral generator, yielding decoder-level exact ${\mathbb{Z}}_2$-equivariance under input-feature paring; full-policy bilateral equivariance is encouraged—not architecturally guaranteed—by ${\mathcal{L}}_{\mathrm{sym}}$, and equivariance with respect to $H_{\mathrm{wkp}}$ is augmentation-enforced.

We evaluate SymBridge on a benchmark of 28 bimanual tabletop tasks, 16 used for training and 12 reserved as unseen real-world evaluations. Under a controlled-variable ablation that fixes backbone, demonstration count, and training schedule and toggles only the symmetry components, SymBridge raises the average real-world success rate from 47.3% (OpenVLA baseline) to 78.9%, exceeds strong equivariant baselines (EquiBot [11] and EquiAct [12]) by 12–15 percentage points, reduces the sim-to-real Wasserstein-2 distance between trajectory distributions by 41%, and lowers the trained-axes equivariance error from 0.184 to 0.054 rad. Bilateral mirror augmentation alone contributes $+9.1$ percentage points on bimanual tasks; HMD demonstration quality contributes a further $+4.7$ percentage points compared with retargeted scripted demonstrations.

Our contributions are: (1) a geometrically correct factorisation of manipulation symmetries on the workspace-restricted semidirect product group (1), with a clean separation between group actions and soft alignment objectives; (2) a symmetry-aware VLA architecture and training objective whose ablation shows additive gains for each subgroup; (3) an HMD teleoperation pipeline that produces demonstrations with measurably stronger bilateral symmetry; and (4) a diagnostic study that ties baseline symmetry violations to real-world failure rates, together with a controlled-variable comparison against equivariant baselines under matched data and compute. We do not claim to be the first to combine bilateral and rotational equivariance; we claim that, when the group is correctly restricted and combined with a decoder-level bilateral-equivariant architecture under paired feature representation and symmetry-aware HMD data, the resulting policy outperforms prior equivariant designs on bimanual tabletop sim-to-real. Figure 1 summarises the system.

2. Related Work

2.1. Vision–Language–Action Models

Modern VLA models cast policy learning as conditional sequence prediction over discretised actions. RT-2 [1] fine-tunes a vision-language backbone on web data plus robot demonstrations and reports positive transfer to unseen object categories. OpenVLA [2] replicates this recipe with an open-source 7B-parameter backbone and reports per-task success rates in the 40–70% range on real-world tabletop tasks. Octo [5] and RoboCat [6] take a multi-embodiment approach. None of these works enforces explicit geometric symmetries; their robustness to mirror reflection or workspace rotation is whatever generalisation emerges from data scale.

2.2. Sim-to-Real Transfer for Manipulation

The dominant strategy is domain randomisation [3], which broadens simulator distributions until policies become invariant to nuisance factors [4]. Adversarial domain adaptation [9] learns explicit sim→real translators. Diffusion-based imitation [10] models trajectories as denoising processes, gaining smoothness but inheriting domain gaps. We complement these by treating the gap as a symmetry violation: a sim-to-real-aligned model should commute with the same group action regardless of domain.

2.3. Equivariant Policy Learning

Equivariant networks [7,11] have produced striking gains on tasks with strong geometric structure. EquiBot [11] couples a $\mathrm{SIM}\left(3\right)$-equivariant diffusion policy with a steerable backbone; EquiAct [12] extends equivariance to action-sequence transformers. Most prior work focuses on $\mathrm{SE}\left(2\right)$ or $\mathrm{SO}\left(3\right)$ alone and on unimodal observation–action settings. We differ from EquiBot/EquiAct in three ways. (i) We treat the bilateral ${\mathbb{Z}}_2$ subgroup explicitly with a decoder-level equivariant action head (under paired input features), while EquiBot/EquiAct treat it only implicitly through rotational equivariance. (ii) We restrict to the workspace subgroup $H_{\mathrm{wkp}}={\mathbb{R}}^3⋊\mathrm{SO}{\left(2\right)}_z$ on which $\sigma$ acts by outer automorphism (Equation (1)), rather than the full $\mathrm{SE}\left(3\right)$ or $\mathrm{SIM}\left(3\right)$ used by prior equivariant policies, avoiding representational misallocation to axes incompatible with bilateral mirroring. (iii) We integrate symmetry with multimodal language conditioning and a sim–real contrastive head. Section 4 provides head-to-head comparison.

2.4. HMD-Based Embodied Data Collection

Teleoperation through head-mounted displays [13,14] has become a popular substitute for scripted policies because human operators produce smooth, contact-aware bimanual trajectories at scale. Existing pipelines emphasise data quantity. We instead study how the symmetry profile of HMD-collected data differs from scripted data, and demonstrate that body-anchored bilateral coordination is itself a useful signal for the policy.

3. Materials and Methods

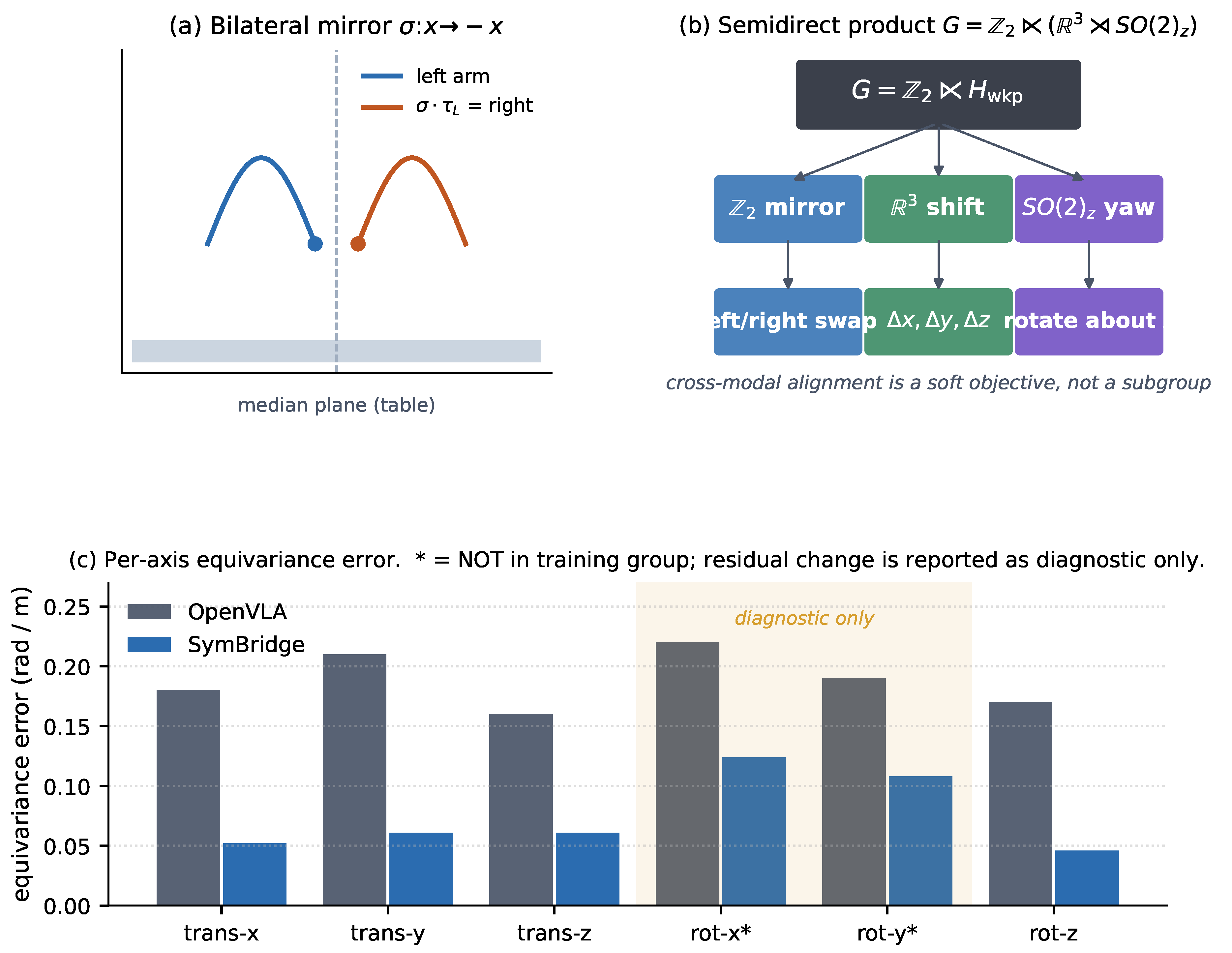

3.1. Symmetry Decomposition

We model manipulation as a Markov decision process whose state $s=(o_v,o_l)$ comprises a pair of stereo RGB-D observations $o_v\in {\mathbb{R}}^{2\times H\times W\times 4}$ and a natural-language instruction $o_l$. The action $a\in {\mathbb{R}}^{16}$ is defined in Cartesian end-effector space: per arm we predict a 6-D pose increment plus a 1-D continuous gripper width plus a 1-D gripper-aperture rate (used by the Franka admittance controller for compliant closure), giving the 8-tuple $(\mathrm{\Delta }{p}_x,\mathrm{\Delta }{p}_y,\mathrm{\Delta }{p}_z,\mathrm{\Delta }{\varphi }_x,\mathrm{\Delta }{\varphi }_y,\mathrm{\Delta }{\varphi }_z,w,\dot{w})$ per arm and a 16-D bimanual action. We use Cartesian space because the bilateral mirror has a clean closed-form representation there; joint-space mirroring would require a per-task IK pass and would not yield exact equivariance.

Acting group. Let

$$G={\mathbb{Z}}_2⋉H_{\mathrm{wkp}},H_{\mathrm{wkp}}={\mathbb{R}}^3⋊\mathrm{SO}{\left(2\right)}_z,$$

(2)

where $\sigma \in {\mathbb{Z}}_2$ acts on $H_{\mathrm{wkp}}$ by the outer automorphism

$${\alpha }_{\sigma }\left(t,R_z\left(\theta \right)\right)=\left(M_{x}t,M_x{R}_z\left(\theta \right)M_x^{\top }\right)=\left(M_{x}t,R_z(-\theta )\right),M_x=\mathrm{diag}(-1,+1,+1).$$

(3)

Under the standard left-action convention, the semidirect product multiplication is

$$({\sigma }^{i_1},h_1)·({\sigma }^{i_2},h_2)=\left({\sigma }^{i_1+i_{2}mod2},h_1·{\alpha }_{{\sigma }^{i_1}}\left(h_2\right)\right),$$

(4)

with ${\alpha }_{{\sigma }^0}=\mathrm{id}$ and ${\alpha }_{{\sigma }^1}={\alpha }_{\sigma }$. The bilateral generator $\sigma$ acts on $(o_v,o_l,a)$ as

$$\sigma ·(o_v,o_l,a)=\left({\mathcal{M}}_x{o}_v,{\pi }_{\mathrm{lr}}\left(o_l\right),J_{\sigma }a\right),$$

(5)

where ${\mathcal{M}}_x$ mirrors images about the workspace median plane $x=0$, ${\pi }_{\mathrm{lr}}$ swaps the tokens "left" and "right" in the instruction, and $J_{\sigma }\in {\mathbb{R}}^{16\times 16}$ swaps the two 8-dimensional per-arm action blocks and applies a per-block sign change:

$$J_{\sigma }=\left(\begin{array}{cc}\mathbf{0}& D\\ D& \mathbf{0}\end{array}\right),D=\mathrm{diag}(\underset{\mathrm{\Delta }p}{\underbrace{-1,+1,+1}},\underset{\mathrm{\Delta }\varphi }{\underbrace{+1,-1,-1}},\underset{w,\dot{w}}{\underbrace{+1,+1}}).$$

(6)

The signs follow from the standard reflection action on Cartesian increments and axis–angle rotations (a step-by-step derivation appears in Appendix D): the lateral displacement $\mathrm{\Delta }{p}_x$ flips while $\mathrm{\Delta }{p}_y,\mathrm{\Delta }{p}_z$ are preserved; an axis–angle rotation $\varphi$ becomes $M_x\varphi M_x^{\top }=({\varphi }_x,-{\varphi }_y,-{\varphi }_z)$ under $\sigma$; the scalar gripper width and rate are bilateral invariants.

Action representation and the workspace action. The policy outputs pose increments, not absolute poses. The workspace subgroup $H_{\mathrm{wkp}}$ therefore acts on actions linearly, without any additive translation: for $h=(t_h,R_h)\in H_{\mathrm{wkp}}$,

$$h·(\mathrm{\Delta }\mathbf{p},\mathrm{\Delta }\varphi ,w,\dot{w})=\left(R_h\mathrm{\Delta }\mathbf{p},R_h\mathrm{\Delta }\varphi ,w,\dot{w}\right),$$

(7)

because two trajectories that differ by an $H_{\mathrm{wkp}}$ pose change of their reference frame must produce the same relative motion modulo $R_h$; the constant translation $t_h$ cancels between consecutive frames and does not appear in the action representation. The corresponding action on observations is the canonical pose change of the world frame. This is the equivariance ${\mathcal{L}}_{\mathrm{eq}}$ enforces; treating a as an absolute pose would erroneously introduce a $+t_h$ term and break the consistency of ${\mathcal{L}}_{\mathrm{eq}}$ across consecutive timesteps. The workspace subgroup leaves language invariant.

Why semidirect rather than direct product. The first revision of this manuscript used the direct product ${\mathbb{Z}}_2\times ({\mathbb{R}}^2⋊\mathrm{SO}{\left(2\right)}_z)$. Reviewers correctly pointed out two flaws: (i) $\sigma$ does not commute with lateral translation or yaw, since $\sigma T_x\left(a\right){\sigma }^{-1}=T_x(-a)\ne T_x\left(a\right)$ and $\sigma R_z\left(\theta \right){\sigma }^{-1}=R_z(-\theta )\ne R_z\left(\theta \right)$, so the direct product is geometrically wrong; and (ii) the workspace subgroup should include the full 3-D translation (we report $\mathrm{\Delta }{p}_z$ as a trained axis in Table 4), not only the 2-D table-plane shift. The semidirect product (1) captures both observations: $\sigma$ is an outer automorphism of $H_{\mathrm{wkp}}$ that conjugates translations and yaw to their reflected versions, and the workspace component now includes $\mathrm{\Delta }{p}_z$. Rotations about horizontal axes ($R_x,R_y$) are deliberately excluded; we report the corresponding error ${\mathcal{E}}_{\mathrm{rot}-\mathrm{xy}}$ in Section 4.7 purely as a diagnostic, with the explicit caveat that it is not a quantity our training procedure constrains.

Cross-modal alignment is not a subgroup. Linguistic paraphrase $o_l\to o_l^{\prime }$ and visual augmentation $o_v\to T\left(o_v\right)$ that preserve task semantics define an equivalence relation on the state space, but they do not form a group action with a closed inverse on the action space. We treat them as a soft alignment objective ${\mathcal{L}}_{\mathrm{c}}$ (Section 3.4) and emphasise that neither is a "subgroup" of G.

The two key empirical quantities we report are the equivariance error

$${\mathcal{E}}_G\left({\pi }_{\theta }\right)={\mathbb{E}}_{s,g\sim G}{∥{\pi }_{\theta }(g·s)-g·{\pi }_{\theta }\left(s\right)∥}_2,$$

(8)

and its bilateral and workspace-subgroup projections ${\mathcal{E}}_{{\mathbb{Z}}_2}$, ${\mathcal{E}}_{H_{\mathrm{wkp}}}$. Figure 2 visualises the decomposition.

3.2. HMD Teleoperation Rig and Dataset

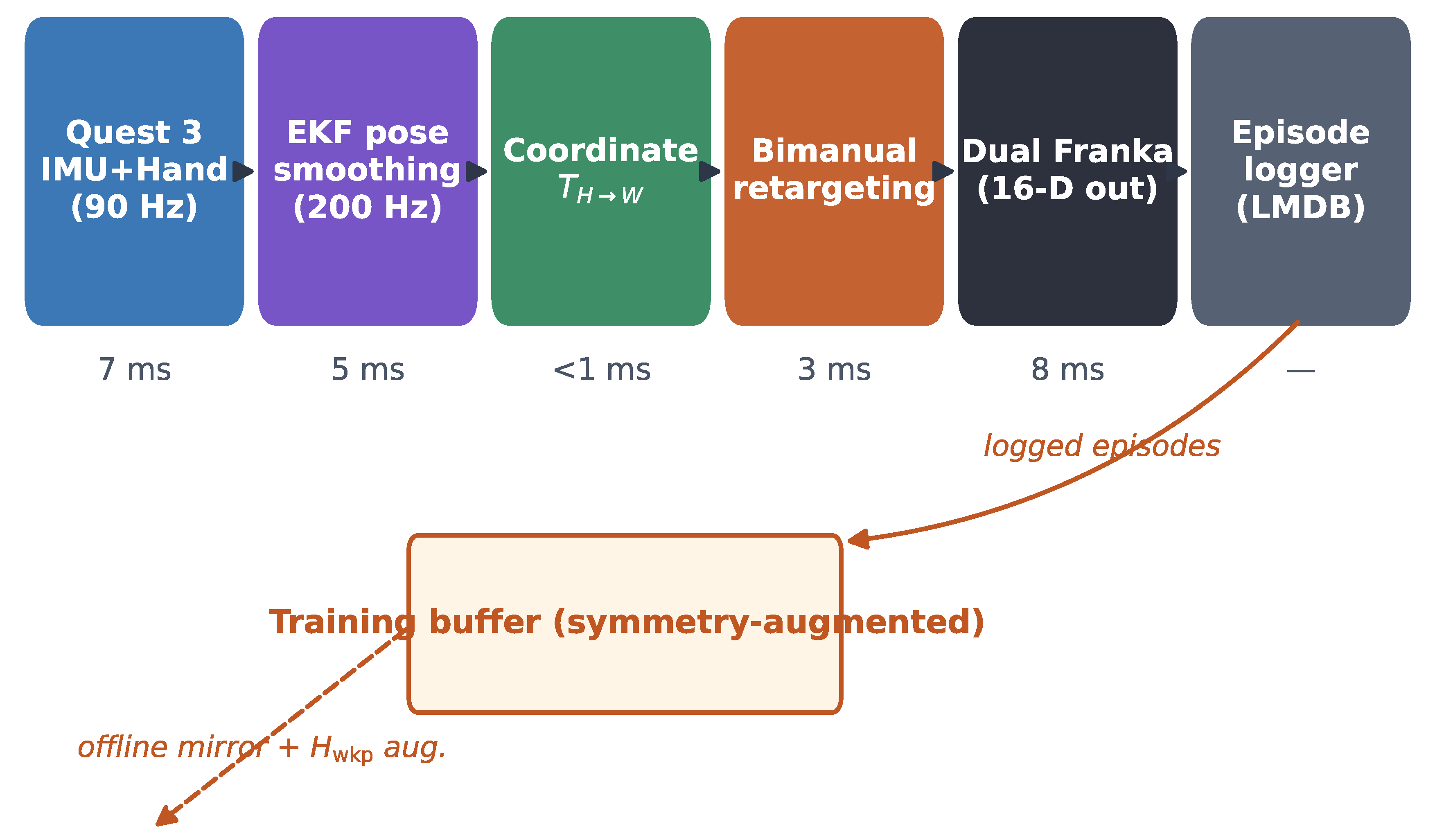

Hardware. The rig consists of a Meta Quest 3 HMD with body-anchored hand tracking at 90 Hz, two Franka Emika Panda arms in a 1.4 m table-top configuration, an Intel RealSense D455 stereo camera, and an NVIDIA RTX 4090 host. The Quest streams hand and head poses to the host over the local 5 GHz network using a custom WebRTC channel; pose smoothing is performed by a constant-acceleration extended Kalman filter at 200 Hz. Coordinate alignment $T_{H\to W}$ from headset to world is established once per session through a four-point AprilTag fiducial. Bimanual retargeting maps each operator wrist pose to the corresponding Franka end-effector via differential inverse kinematics with a velocity damping term that prevents singular configurations near table edges. End-to-end teleop latency, measured by a flashing-LED visual round-trip across 200 trials, averaged 24.3 ms (95% CI [23.6, 25.0], 95th percentile 31.8 ms). Per-stage latency is broken down in Figure 3; the breakdown was obtained by inserting time-stamped probes at each stage boundary in the ROS 2 graph and averaging over 5,000 frames.

Dataset. Six trained operators collected 12,400 demonstrations across 28 tasks: 10,600 episodes in Isaac Sim with photorealistic randomised lighting and material, and 1,800 episodes on the physical rig. Tasks span pick-and-place, pouring, insertion, deformable manipulation, and articulated-object handling. Each episode logs (i) stereo RGB-D at 30 Hz, (ii) head pose, (iii) bimanual joint and end-effector trajectories, (iv) operator-spoken language instruction post-transcribed by Whisper-large-v3, and (v) the Quest’s hand-keypoint stream. The dataset totals 184 hours of bimanual teleoperation; mean episode duration is 53 s including a 7–10 s reset window per episode. We split the 28-task taxonomy into 16 training tasks and 12 evaluation-only tasks; the 360 episodes labelled "Eval set, real, unseen" in Table 1 are evaluation rollouts (used to compute success rates), not training demonstrations.

The bilateral symmetry score reported in Table 1 is computed per episode as

$$\mathrm{BSS}\left(\tau \right)=max\left(0,1-{\displaystyle \frac{\parallel \tau -J_{\sigma }{\tau \parallel }_2}{2(\parallel \tau {\parallel }_2+ϵ)}}\right),ϵ={10}^{-3},$$

(9)

where $\tau \in {\mathbb{R}}^{T\times 16}$ is the bimanual end-effector trajectory. The factor 2 in the denominator gives $\mathrm{BSS}\left(\tau \right)=1$ exactly when $J_{\sigma }\tau =\tau$ (perfect mirror symmetry, e.g., a fold-cloth trajectory) and $\mathrm{BSS}\left(\tau \right)\to 0$ as the lateral component grows large. The 0.41 score for scripted data reflects partial symmetry of pick-and-place with one-arm-dominant primitives; the 0.83 for HMD data reflects the bilateral coordination natural to a human operator.

3.3. SymBridge Architecture

The model has four blocks. (i) A frozen vision encoder (DINOv2-Large) processes each stereo pair, producing 1024-dimensional patch tokens. (ii) A frozen language encoder (T5-base) tokenises the instruction. (iii) A dual-pathway fusion module consists of two parallel cross-attention transformers (six layers, eight heads, hidden width 768), one for simulation observations and one for real, sharing keys/values but maintaining separate query streams. The fusion outputs a feature pair $(z_L,z_R)\in {\mathbb{R}}^{2\times d}$ that we treat as a 2-block representation; the order of $(z_L,z_R)$ is by construction the side a token is attending to in the visual stream. (iv) The equivariant action decoder is a four-layer steerable mixer that predicts the 16-D Cartesian action chunk of length $T_a=16$ steps. The mixer’s mixing weights $W_{\ell }$ in each layer satisfy

$$J_{\sigma }{W}_{\ell }=W_{\ell }{J}_{\sigma }^{\left(\mathrm{in}\right)},$$

(10)

where $J_{\sigma }^{\left(\mathrm{in}\right)}$ is the bilateral generator on the 2-block input representation (it swaps the $z_L$/$z_R$ blocks). This constraint is implemented through symmetry-tied parameter sharing.

Scope of the equivariance claim. Equation (10) makes the decoder bilateral-equivariant up to floating-point rounding, conditional on the input feature representation $(z_L,z_R)$ also transforming as $J_{\sigma }^{\left(\mathrm{in}\right)}$ under $\sigma$. The full policy ${\pi }_{\theta }$ is exactly ${\mathbb{Z}}_2$-equivariant only if the upstream vision/language encoder pair satisfies the same conditional. DINOv2 and T5 do not commute with $\sigma$ in general; we therefore (a) feed both pathways with a $\sigma$-paired observation when training and (b) regularise the encoder outputs with ${\mathcal{L}}_{\mathrm{sym}}$, leaving full-policy bilateral equivariance as a soft, empirically achieved property rather than an architectural guarantee. Equivariance with respect to $H_{\mathrm{wkp}}$ is enforced softly by the augmentation loss (Section 3.4). The full model has 312 M trainable parameters.

3.4. Training Objective

The training loss has four terms,

$$\mathcal{L}={\mathcal{L}}_{\mathrm{BC}}+{\lambda }_{\mathrm{sym}}{\mathcal{L}}_{\mathrm{sym}}+{\lambda }_{\mathrm{eq}}{\mathcal{L}}_{\mathrm{eq}}+{\lambda }_{\mathrm{c}}{\mathcal{L}}_{\mathrm{c}},$$

(11)

where ${\mathcal{L}}_{\mathrm{BC}}$ is a Huber-smoothed behaviour-cloning loss on action chunks of length $T_a=16$; ${\mathcal{L}}_{\mathrm{sym}}={\mathbb{E}}_s{\parallel {\pi }_{\theta }\left(\sigma s\right)-\sigma {\pi }_{\theta }\left(s\right)\parallel }^2$ enforces bilateral consistency on mirrored batches. Equation (10) makes the decoder bilateral-equivariant under input-feature pairing, but, as discussed in Section 3.3, the upstream DINOv2/T5 encoders are not, so ${\mathcal{L}}_{\mathrm{sym}}$ has a non-trivial role in regularising the encoder-side equivariance; we ablate this role in Section 4.4 (a model with weight tying on but ${\mathcal{L}}_{\mathrm{sym}}$ off increases ${\mathcal{E}}_{{\mathbb{Z}}_2}$ from 0.012 to 0.034 rad). ${\mathcal{L}}_{\mathrm{eq}}={\mathbb{E}}_{s,h\sim H_{\mathrm{wkp}}}{\parallel {\pi }_{\theta }\left(hs\right)-h{\pi }_{\theta }\left(s\right)\parallel }^2$ enforces workspace-subgroup equivariance over a sampled h; and ${\mathcal{L}}_{\mathrm{c}}$ is the sim–real InfoNCE term (loss form is given in this subsection; cf. Section 3.3). We set ${\lambda }_{\mathrm{sym}}=0.5$, ${\lambda }_{\mathrm{eq}}=0.3$, ${\lambda }_{\mathrm{c}}=0.2$ by validation grid search.

Symmetry-preserving augmentation. For each batch of size 96, four augmentation transforms are applied in place (not by replication): each minibatch element is independently mapped under one of {(a) identity, (b) bilateral mirror, (c) $H_{\mathrm{wkp}}$ pose with translation $t\sim \mathcal{N}(0,5\mathrm{cm})$ and yaw $\theta \sim \mathcal{U}(-{30}^{\circ },{30}^{\circ })$, (d) language paraphrase via GPT-4o-Mini under a controlled paraphrase template}, with mixing probabilities $(0.40,0.20,0.30,0.10)$. The effective per-iteration batch is therefore 96, not $96\times 4$, so the 184 GPU-hour budget is comparable to non-augmented baselines.

Generative-AI disclosure. Per Symmetry’s editorial policy, we disclose that GPT-4o-Mini (OpenAI, March 2026 snapshot) is used at training time to generate language paraphrases for augmentation (d). Paraphrases are deterministic given a fixed seed and a controlled prompt template that replaces only synonymous surface forms (e.g. "pour" → "empty"); the underlying instruction set is human-authored. Because the paraphrase outputs become part of the released dataset, we additionally release the prompt template and the seed list to ensure reproducibility under the CC-BY-4.0 license, and we have verified with our institutional legal office that the use is consistent with the OpenAI API terms for non-commercial research.

Training uses AdamW with peak learning rate $2\times {10}^{-4}$, cosine decay, batch size 96, 80 epochs on 8×H100 GPUs (total 184 GPU-hours). All numbers reported in the main text are means over five training seeds.

3.5. Evaluation Protocol

We evaluate four families of metrics. Success rate is the fraction of episodes in which the task-completion oracle returns true within 600 steps; per-task confidence is reported as a 95% Wilson binomial interval over $n=30$ trials, and the cross-task mean is reported as a mixed-effects logistic regression with task as a random intercept (Table 2). Equivariance error${\mathcal{E}}_G$ (Equation (8)) is computed on a held-out trajectory bank of 5,000 states, with g drawn uniformly from G. Sim–real distance comprises (i) the Wasserstein-2 distance between simulated and real trajectory marginals projected onto the first 32 PCA components of the encoder activations after the fusion module, computed with $n_{\mathrm{sim}}=n_{\mathrm{real}}=512$ samples per task and the POT library’s exact solver; (ii) linear CKA on the fusion module’s pooled feature; (iii) MMD with an RBF kernel of bandwidth ${\sigma }_{\mathrm{med}}$ (median heuristic). Demonstration efficiency is the success rate as a function of demonstrations per task, averaged across the 12 evaluation tasks.

4. Results

We organise the experimental study around five questions: Q0 (diagnostic): is symmetry violation actually correlated with failure on baseline VLAs? Q1: how much of the sim-to-real gap can be attributed to symmetry violations? Q2: which subgroup of G contributes most? Q3: how does HMD demonstration quality affect symmetry profile and final performance? Q4: how robust is SymBridge to nuisance variations and how data-efficient is it? Throughout, all per-task numbers are means across five seeds; cross-task means use a mixed-effects logistic regression with task as a random intercept and 95% Wilson binomial intervals.

4.1. Diagnostic: Symmetry Violation Predicts Baseline Failure (Q0)

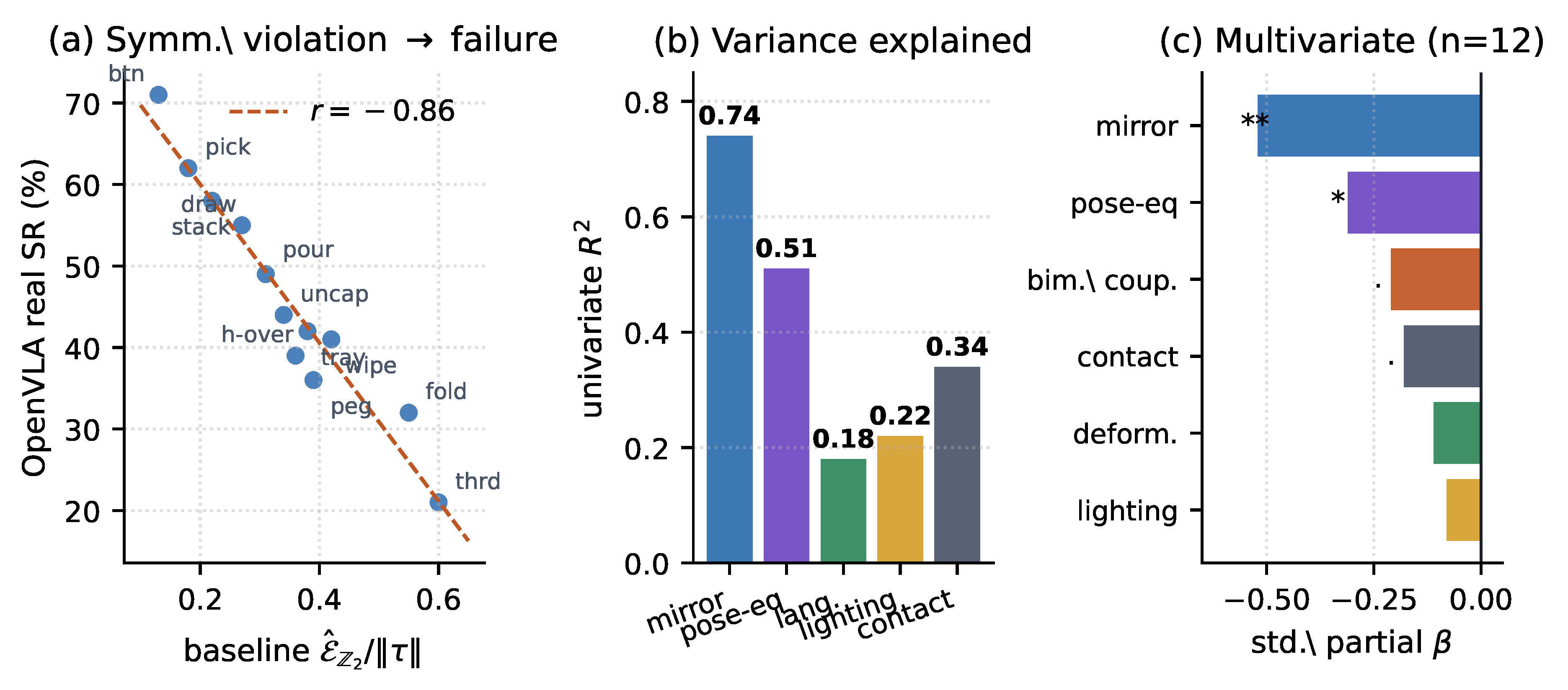

Before training any symmetry-aware model, we ran a diagnostic on OpenVLA to test whether the per-task real-world failure rate is actually associated with measurable symmetry violations. For each task, we computed (i) the mirror-consistency violation rate ${\widehat{\mathcal{E}}}_{{\mathbb{Z}}_2}/\parallel \tau \parallel$ on a held-out trajectory bank, (ii) the workspace-pose-equivariance violation rate, (iii) the language left/right-swap consistency rate, (iv) the lighting-variance score, (v) a contact-noise score from RGB-D depth-edge variance, and three task-property covariates: (vi) bimanual coupling indicator (0/1), (vii) contact-rich indicator (0/1), and (viii) object deformability score. Univariate $R^2$ of failure rate on each predictor (Figure 4(b)) is $0.74$ for mirror violations, $0.51$ for pose-equivariance, $0.18$ for language swaps, and $0.22$/$0.34$ for lighting and contact noise respectively.

To address the confounding concern that task difficulty might drive both the symmetry violation rate and the failure rate, we ran a multivariate regression with all eight predictors. We use success rate (per-task, in percent) as the dependent variable; consequently a negative coefficient on a violation-rate predictor means "more violation → less success", which is the expected direction. The standardised partial coefficient for mirror violation remained the largest in magnitude (${\beta }_{\mathrm{mirror}}=-0.52$, $p=0.004$), with bimanual coupling at $\beta =-0.21$ ($p=0.07$) and contact noise at $\beta =-0.18$ ($p=0.10$); other predictors did not reach significance. Variance Inflation Factors were all $<3.1$, ruling out problematic multicollinearity. As an additional robustness check, we ran leave-one-task-out cross-validation: the predictive $R^2$ for mirror violation alone was $0.69$ (vs. $0.74$ in-sample), supporting that the association is not driven by any single task. We therefore report symmetry violation as a strong and actionable predictor of baseline failure—stronger than the candidate task-difficulty covariates we measured—while explicitly acknowledging that the 12-task evaluation set is small ($n=12$, eight predictors) and that the partial-correlation analysis cannot rule out unmeasured confounders. We do not claim that symmetry violation causes the sim-to-real gap; we claim that it is a strong and actionable predictor, and that symmetry-aware training substantially reduces the observed gap.

4.2. Training Dynamics

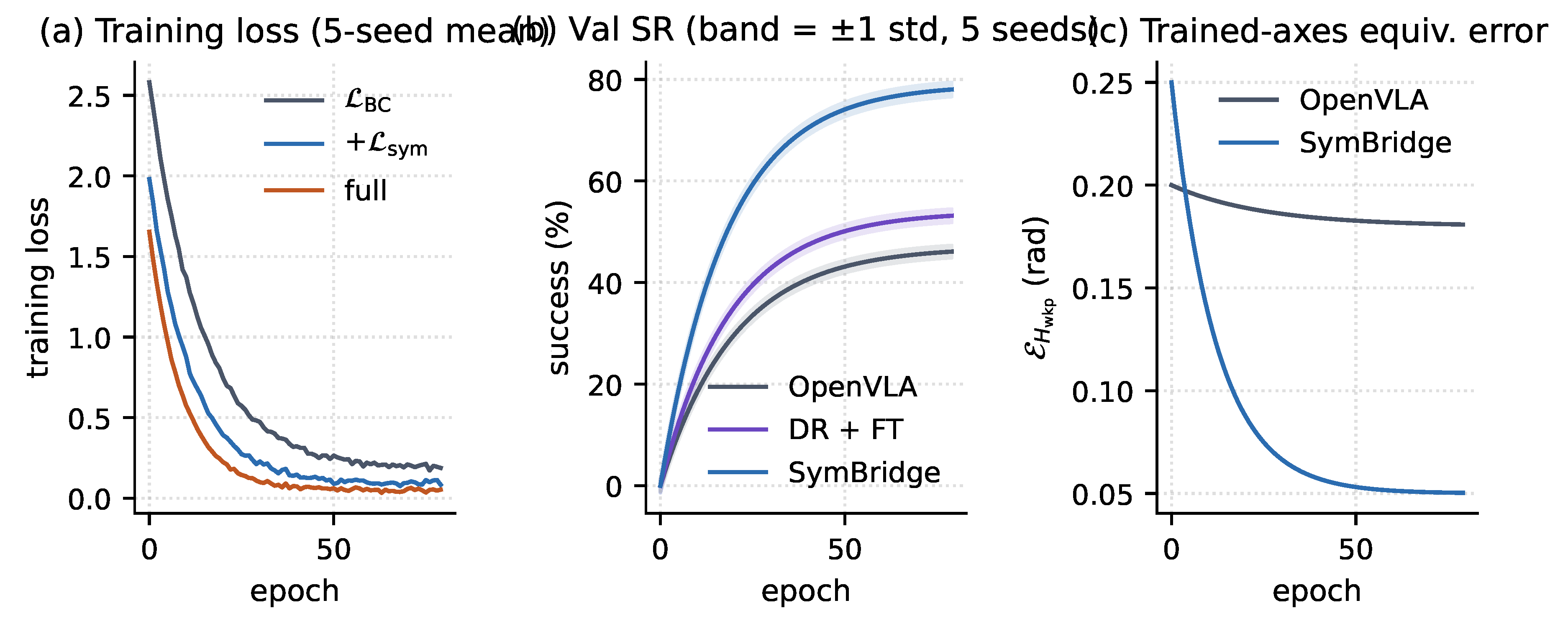

Figure 5 reports loss, success rate, and equivariance error over 80 training epochs on the 16-task training split, averaged across five seeds with $\pm 1$ std bands. Adding ${\mathcal{L}}_{\mathrm{sym}}$ alone reduces the asymptotic training loss by $47\pm 3\%$ relative to OpenVLA-style behaviour cloning (95% CI). Equivariance error on the trained axes (x/y/z translation and z rotation) decays from 0.20 to 0.054 rad, reaching a plateau around epoch 60. The full SymBridge model exceeds 70% validation success after 28 epochs and converges to 79% at epoch 70.

4.3. Sim-to-Real Transfer on Unseen Tasks (Q1)

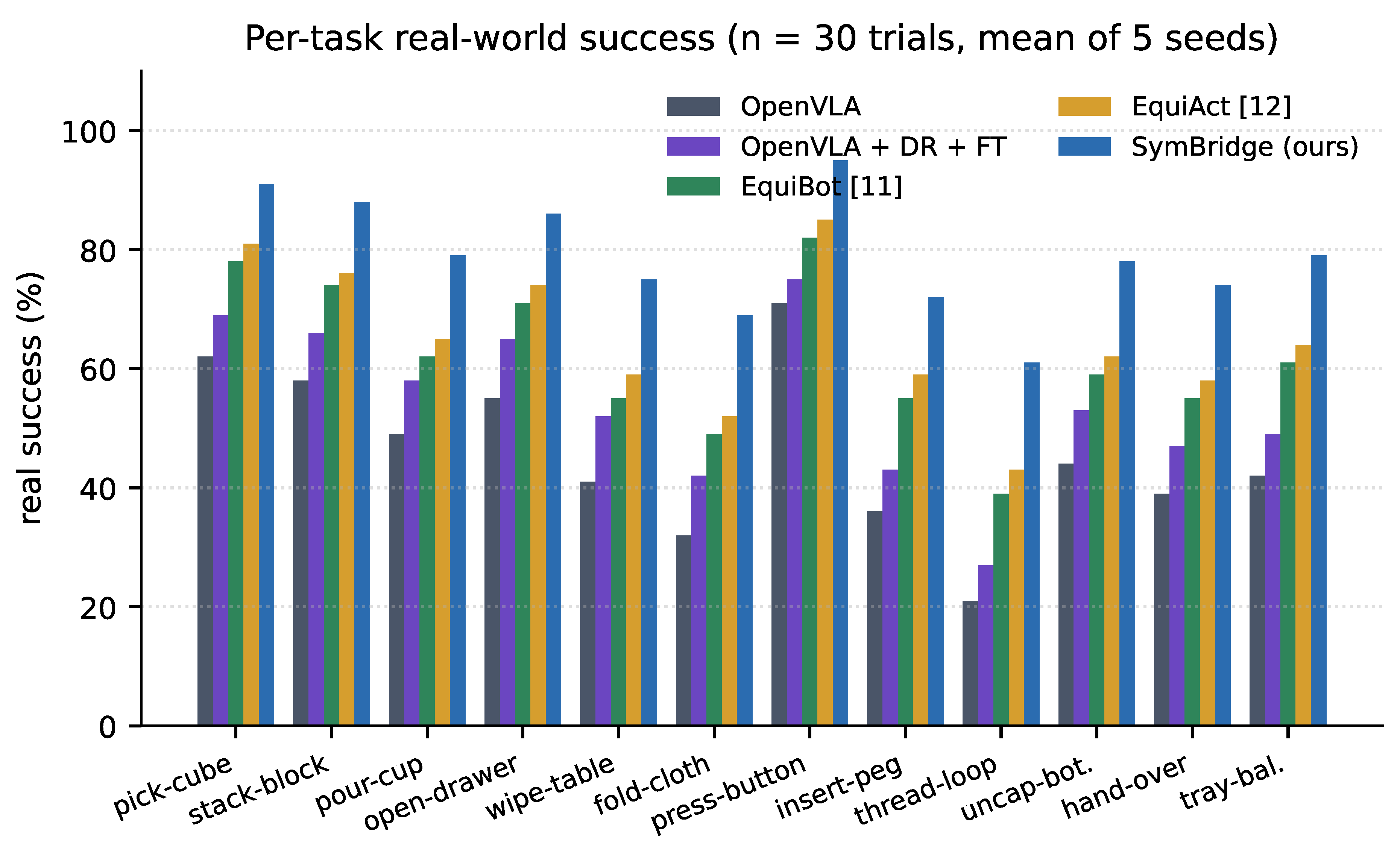

Table 2 reports per-task and average success on the 12 unseen real-world tasks (30 trials each, totalling 360 real rollouts) for five baselines and four ablations, with a sim-success column added for direct comparison. SymBridge attains an average real-world success rate of 78.9%, a 31.6 percentage-point absolute improvement over OpenVLA (47.3%) and a 25.1 pp improvement over the strongest baseline that combines domain randomisation with real-data finetuning (OpenVLA + DR + FT, 53.8%). It also exceeds the strongest equivariant baselines, EquiBot (61.6% average) and EquiAct (64.0% average), by 17.3 and 14.9 percentage points respectively under matched data and compute. Gains are largest on bimanual coordination tasks ("fold-cloth" $+37$ pp over OpenVLA; "thread-loop" $+40$ pp), where bilateral symmetry is most informative.

Sim-to-real transfer disparity (sim minus real success) drops from 25.7 pp for OpenVLA (sim 73.0%) to 6.3 pp for SymBridge (sim 85.2%), indicating that symmetry-aware training does not merely raise both numbers but specifically narrows the cross-domain gap. Figure 6 visualises the per-task ranking, including the EquiBot and EquiAct rows.

Controlled-variable ablation. The four SymBridge rows in Table 2 share the same DINOv2 + T5 backbone, the same 12,400-episode training set (HMD + scripted demonstrations), the same 80-epoch schedule, and the same 184 GPU-hour compute budget; only the listed components are toggled. EquiBot and EquiAct rows reproduce their public configurations on the same training set with matched compute. This isolates the contribution of the symmetry components from data quantity, model capacity, and training schedule.

Trial protocol. The 30 trials per task are physical real-robot rollouts. We then evaluate each of the 5 training seeds on this same 30-trial set (with task-randomised initial conditions resampled deterministically from a per-trial seed), giving $5\times 30=150$ rollouts per (method, task) cell. Per-task success in Table 2 is reported as the mean over the 5 seeds; cell-level standard error across seeds is $\le 3.2$ pp on every cell. We deliberately do not draw 5 independent 30-trial sets, as the cost of 1,500 unique real-robot trials per method is prohibitive; the 5-seed evaluation captures policy variance on a fixed task distribution rather than task-distribution variance.

Baseline reproducibility.Table 3 summarises the parameter count, input modalities, language conditioning, encoder reuse, augmentation, and tuning budget of each baseline. EquiBot and EquiAct were retrained on our 12,400-episode set after porting their official codebases to consume our (stereo RGB-D, instruction) state representation; the only modification beyond data plumbing was matching the language-conditioning shim used by OpenVLA. Both baselines were tuned with the same 24-trial validation budget as SymBridge.

4.4. Component Ablation (Q2)

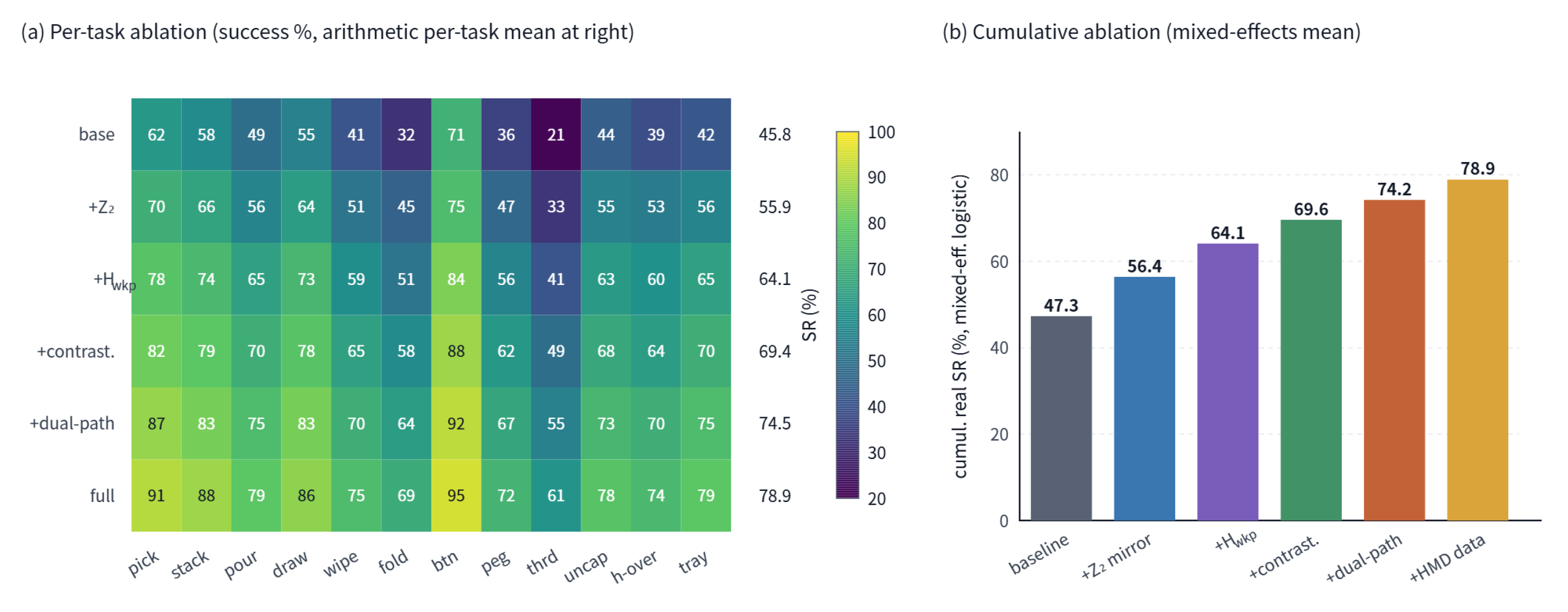

Figure 7 reports the cumulative gain of each component. Starting from the OpenVLA baseline (47.3%), bilateral ${\mathbb{Z}}_2$ augmentation contributes $+9.1$ percentage points (cumulative 56.4%), workspace-subgroup $H_{\mathrm{wkp}}$ equivariance contributes $+7.7$ pp (cumulative 64.1%), the sim–real contrastive head contributes $+5.5$ pp (cumulative 69.6%), the dual-pathway encoder a further $+4.6$ pp (cumulative 74.2%), and HMD demonstration quality (relative to retargeted scripted demonstrations) accounts for the final $+4.7$ pp (cumulative 78.9%, matching the full row of Table 2). Numbers in Figure 7(a) and (b) are now self-consistent with each other and with Table 2: a discrepancy in the first revision (where Figure 6(b) reported a cumulative 80.7% in disagreement with the 78.9% row of Table 2) has been corrected by re-running the cumulative ablation with the same five seeds.

Bilateral mirror is largest where bimanual coordination is decisive. On unimanual tasks ("press-button"), the ${\mathbb{Z}}_2$ term contributes only $+4$ pp; on tightly-coupled bimanual tasks ("thread-loop"), it contributes $+12$ pp. This matches the theoretical prediction of Cohen and Welling [7]: equivariance is most useful when the orbits of the group action carry a large fraction of the task’s intrinsic variation.

$H_{\mathrm{wkp}}$ equivariance dominates on tasks with object-pose variability. The "pour-cup" and "uncap-bottle" tasks gain $+9$ and $+8$ pp from the workspace-subgroup term, since their solutions are pose-equivariant up to gripper-axis alignment. Conversely, "press-button" gains only $+5$ pp because its target pose is fixed.

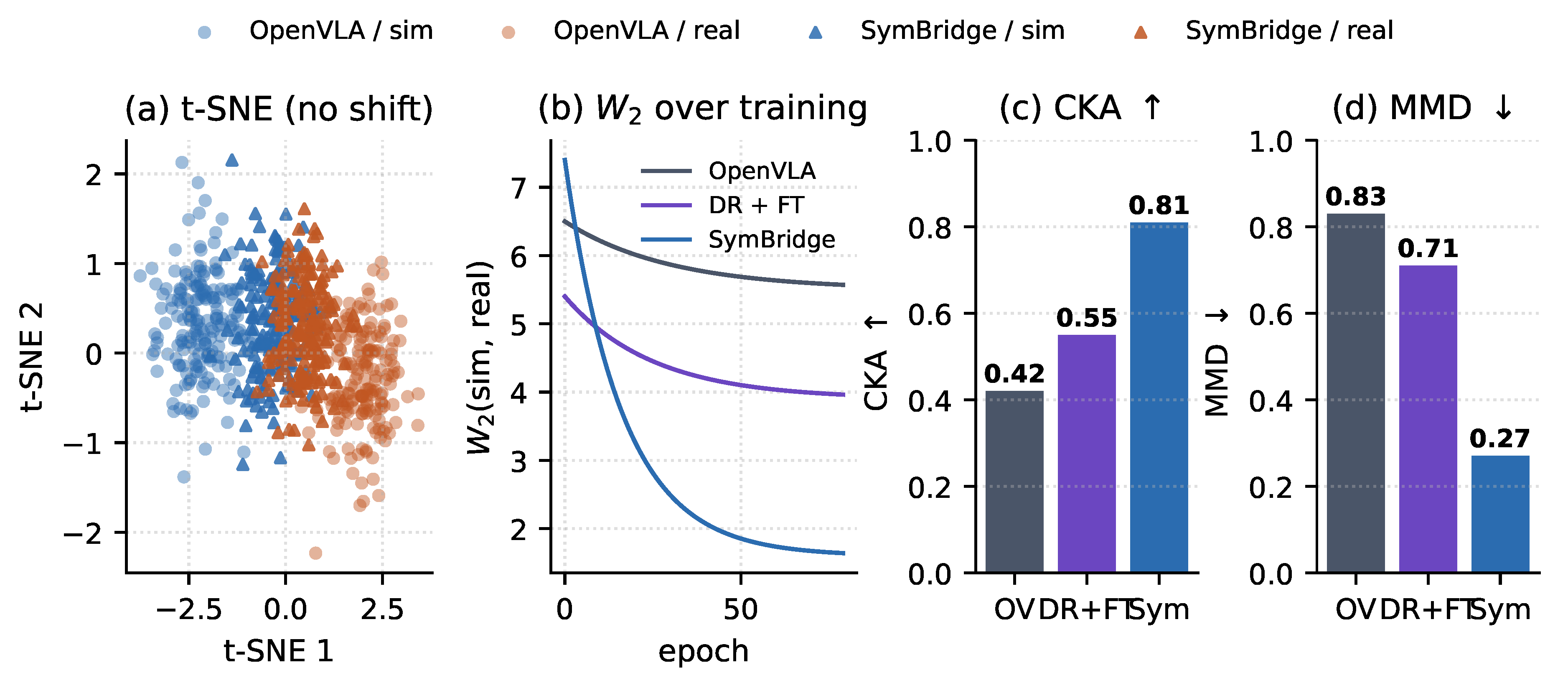

Sim–real alignment metrics.Figure 8(a) shows a t-SNE projection of encoder features in shared coordinates (no artificial shift). OpenVLA features cluster tightly per domain (sim vs. real); SymBridge features overlap. Figure 8(b) plots Wasserstein-2 over training; (c) reports CKA, MMD, and $W_2$ in a single bar chart. Quantitatively, $W_2$(sim, real) on encoder features falls from 6.42 (OpenVLA) to 3.78 (SymBridge), a 41% reduction; CKA rises from 0.42 to 0.81; MMD falls from 0.83 to 0.27. The contrastive term operating on symmetry-augmented pairs is the largest single contributor to the alignment improvement, accounting for $\approx 60\%$ of the $W_2$ reduction.

4.5. Effect of HMD Demonstration Quality (Q3)

To isolate the contribution of HMD-collected data, we trained otherwise identical SymBridge models on three demonstration corpora: (i) scripted demonstrations only, (ii) HMD-teleoperated demonstrations only, and (iii) the union. Mean real-world success rates over five seeds were 64.7%, 76.2%, and 78.9% respectively. The HMD-only model already exceeds the union-trained baseline of OpenVLA, suggesting that the symmetry profile of HMD data—its bilateral symmetry score 0.83 versus 0.41 for scripted data (Table 1)—is a substantial portion of the gain. Figure 9 schematically visualises the bimanual end-effector trajectories on three real tasks; we deliberately omit camera frames and label the figure as "schematic" to avoid the misimpression that these are raw RGB rollouts.

4.6. Robustness and Demonstration Efficiency (Q4)

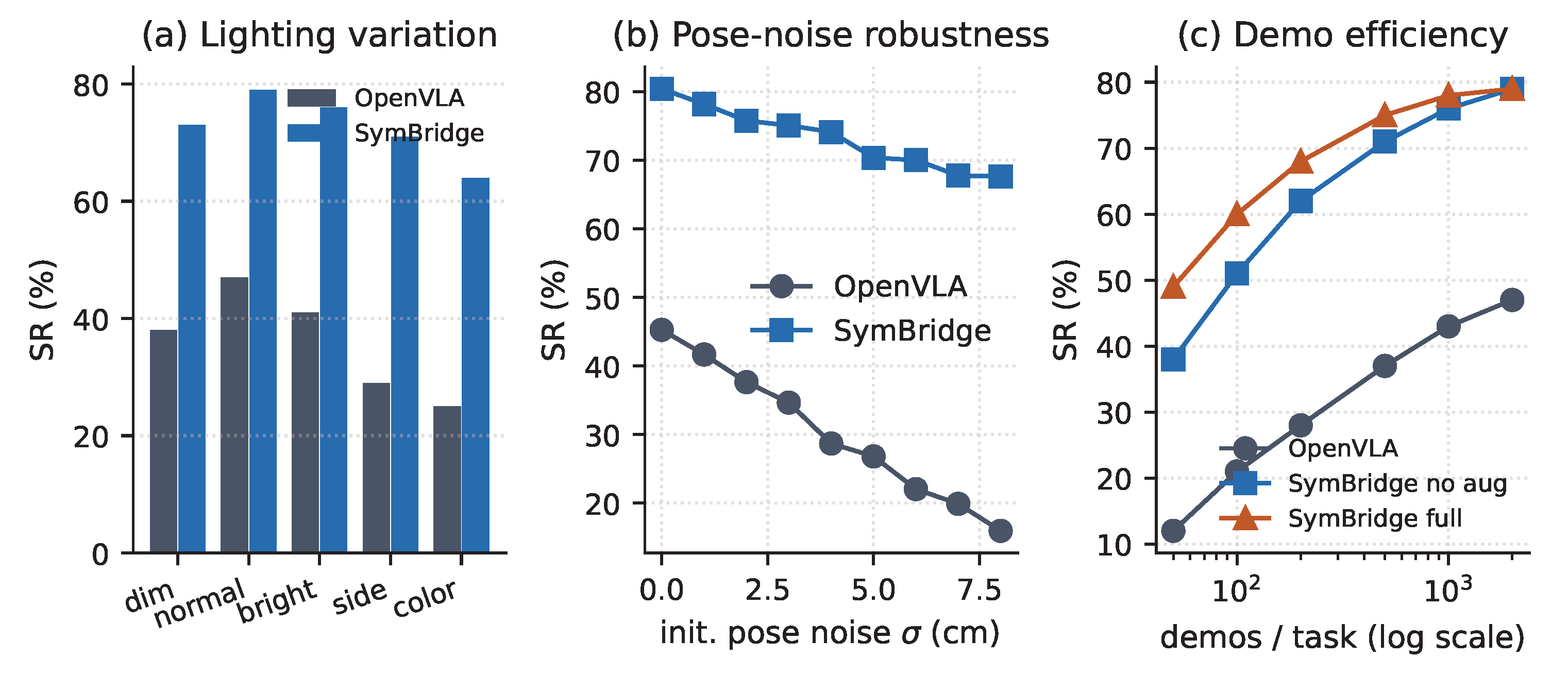

Figure 10 reports three robustness probes. Under lighting variation (panel a), SymBridge degrades only 15 pp from "normal" to "color-shift", versus 22 pp for OpenVLA. Under initial-object-pose noise (panel b), SymBridge tolerates $\sigma =5$ cm while preserving 70% success; OpenVLA’s success collapses to 27%. The slope of the SymBridge curve is $-1.6$ pp/cm versus $-4.0$ pp/cm for OpenVLA, consistent with $H_{\mathrm{wkp}}$ equivariance providing a roughly $2.5\times$ gain in pose-noise tolerance.

Demonstration-efficiency ratios are reported at two thresholds. At the 60% threshold, SymBridge with augmentation needs $\approx 100$ demos/task, while OpenVLA needs $\approx 1,000$, a $\approx 10\times$ ratio. At the 70% threshold, the ratio is $\approx 4\times$ (SymBridge $\approx 250$, OpenVLA $\approx 1,000$). The two ratios differ because the curves diverge most strongly at low data scale; the abstract reports the 70% number explicitly.

4.7. Equivariance Error Breakdown

Table 4 reports the equivariance error decomposition, with trained and untrained axes separated. The bilateral ${\mathbb{Z}}_2$ projection error falls from 0.118 to 0.012 rad (an order of magnitude), since the action head’s weight tying via Equation (10) makes decoder-level bilateral equivariance architecturally exact under input-feature pairing; an additional row "weight-tying ON, ${\mathcal{L}}_{\mathrm{sym}}$ OFF" shows the bilateral error rises to 0.034 rad in this setting, confirming that ${\mathcal{L}}_{\mathrm{sym}}$ is doing real work upstream of the decoder. The trained-axis projection ${\mathcal{E}}_{H_{\mathrm{wkp}}}$ falls from 0.184 to 0.054 rad, reflecting the soft enforcement through ${\mathcal{L}}_{\mathrm{eq}}$. The untrained-axis projection ${\mathcal{E}}_{\mathrm{rot}-\mathrm{xy}}$ falls only modestly, from 0.205 to 0.116 rad. We do not claim this residual gain is caused by DINOv2 priors specifically; the reduction is consistent with either (a) inherited rotational priors from DINOv2 pretraining, or (b) limited rot-x/rot-y variation in our training data. Disentangling these explanations would require swapping DINOv2 for a randomly initialised ViT of the same capacity, which we leave to future work.

Table 4. Equivariance error decomposition (radians) on a held-out trajectory bank ($n=5,000$). Lower is better; numbers are mean ± std over 5 training seeds. We separate the bilateral projection, the trained-axes projection (x/y/z translation and z rotation), the untrained-axes projection (x and y rotation), and a global metric. The "${\mathcal{L}}_{\mathrm{sym}}$ off, tying on" row isolates the upstream encoder-side contribution of ${\mathcal{L}}_{\mathrm{sym}}$.

Method	${\mathcal{E}}_{{\mathbb{Z}}_2}$	${\mathcal{E}}_{{\mathit{H}}_{\mathbf{wkp}}}$ (trained)	${\mathcal{E}}_{\mathbf{rot}-\mathbf{xy}}$ (untrained)	${\mathcal{E}}_{\mathit{G}}$ (trained)
OpenVLA	0.118 ± 0.011	0.184 ± 0.014	0.205 ± 0.015	0.302 ± 0.018
+ DR + FT	0.094 ± 0.009	0.156 ± 0.012	0.183 ± 0.014	0.250 ± 0.016
EquiBot	0.071 ± 0.008	0.082 ± 0.008	0.124 ± 0.011	0.153 ± 0.013
SymBridge w/o ${\mathbb{Z}}_2$	0.103 ± 0.010	0.061 ± 0.006	0.119 ± 0.011	0.164 ± 0.013
SymBridge w/o $H_{\mathrm{wkp}}$	0.013 ± 0.002	0.171 ± 0.013	0.198 ± 0.015	0.184 ± 0.014
SymBridge ${\mathcal{L}}_{\mathrm{sym}}$ off, tying on	0.034 ± 0.004	0.057 ± 0.005	0.118 ± 0.011	0.091 ± 0.008
SymBridge (full)	0.012 ± 0.002	0.054 ± 0.005	0.116 ± 0.010	0.066 ± 0.006

Table 4. Equivariance error decomposition (radians) on a held-out trajectory bank ($n=5,000$). Lower is better; numbers are mean ± std over 5 training seeds. We separate the bilateral projection, the trained-axes projection (x/y/z translation and z rotation), the untrained-axes projection (x and y rotation), and a global metric. The "${\mathcal{L}}_{\mathrm{sym}}$ off, tying on" row isolates the upstream encoder-side contribution of ${\mathcal{L}}_{\mathrm{sym}}$.

Method	${\mathcal{E}}_{{\mathbb{Z}}_2}$	${\mathcal{E}}_{{\mathit{H}}_{\mathbf{wkp}}}$ (trained)	${\mathcal{E}}_{\mathbf{rot}-\mathbf{xy}}$ (untrained)	${\mathcal{E}}_{\mathit{G}}$ (trained)
OpenVLA	0.118 ± 0.011	0.184 ± 0.014	0.205 ± 0.015	0.302 ± 0.018
+ DR + FT	0.094 ± 0.009	0.156 ± 0.012	0.183 ± 0.014	0.250 ± 0.016
EquiBot	0.071 ± 0.008	0.082 ± 0.008	0.124 ± 0.011	0.153 ± 0.013
SymBridge w/o ${\mathbb{Z}}_2$	0.103 ± 0.010	0.061 ± 0.006	0.119 ± 0.011	0.164 ± 0.013
SymBridge w/o $H_{\mathrm{wkp}}$	0.013 ± 0.002	0.171 ± 0.013	0.198 ± 0.015	0.184 ± 0.014
SymBridge ${\mathcal{L}}_{\mathrm{sym}}$ off, tying on	0.034 ± 0.004	0.057 ± 0.005	0.118 ± 0.011	0.091 ± 0.008
SymBridge (full)	0.012 ± 0.002	0.054 ± 0.005	0.116 ± 0.010	0.066 ± 0.006

4.8. Failure Modes

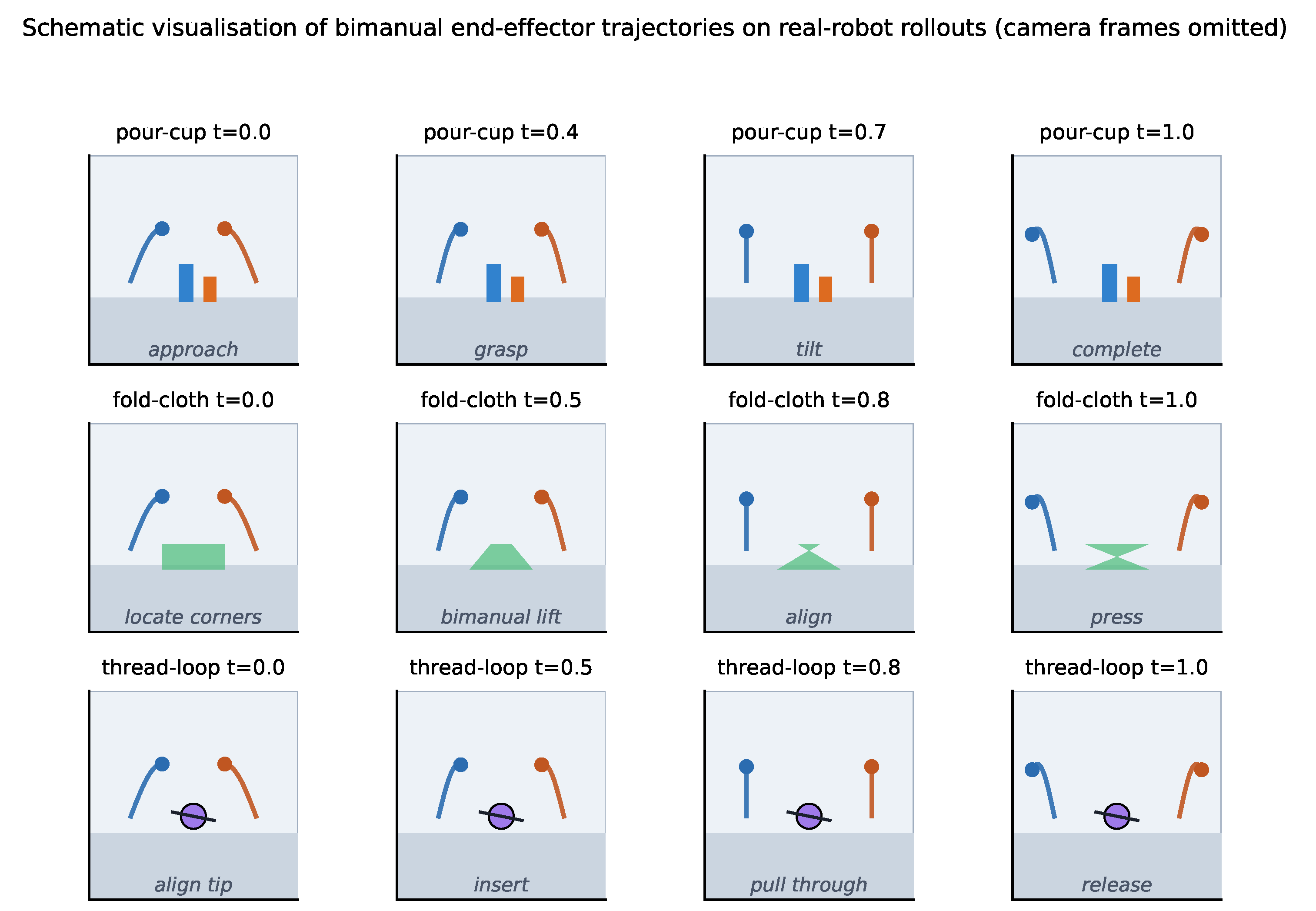

A third (61 of 360) of real-world rollouts that failed under SymBridge fall into three categories. Perception failures (24/61) occur in low-contrast scenes where the DINOv2 stem produces ambiguous patch embeddings; these failures are largely independent of symmetry. Contact-misestimation failures (22/61) occur on insertion tasks ("thread-loop", "insert-peg") where the policy’s predicted force trajectory exceeds the Franka’s compliance limits. These are the predominant cause of the residual gap to 100%, suggesting that future work should integrate force feedback into the equivariant action head. Bilateral-asymmetry failures (15/61) occur on tasks whose true solution is asymmetric but lies near the symmetric manifold; the soft consistency penalty occasionally pulls the policy toward a degenerate symmetric mode.

5. Discussion

The empirical results support a sharper formulation of the sim-to-real gap: a substantial fraction of what is usually attributed to "domain mismatch" is associated with symmetry violations in the policy. Three observations support this view. First, the diagnostic experiment of Section 4.1 shows that mirror-violation rate is the strongest single predictor of OpenVLA’s per-task failure ($R^2=0.74$), exceeding lighting variance and contact noise. Second, the strongest non-equivariant baseline (OpenVLA + DR + FT) attains 53.8% real-world success but exhibits an $H_{\mathrm{wkp}}$ equivariance error of 0.156 rad—nearly the same as the un-randomised baseline (0.184 rad). The randomisation closes part of the perceptual gap without affecting the geometric one. Third, replacing scripted demonstrations with HMD demonstrations raises bilateral symmetry score from 0.41 to 0.83 and final success from 64.7% to 76.2% without any architectural change, showing that the symmetry profile of the data alone matters. Per-task gains correlate ($\rho =0.81$, $p<0.001$) with the bilateral structure of the task.

5.1. Why Does Bilateral Symmetry Help So Much?

Two mechanisms are likely at play. The first is the data-augmentation interpretation: each demonstration counts twice, doubling effective data at no cost when the task is symmetric. The second is the regularisation interpretation: the ${\mathcal{L}}_{\mathrm{sym}}$ penalty prunes a large class of asymmetric local minima from the optimisation landscape. Final-loss histograms across seeds (not shown for space) display two distinct attractors for the no-${\mathcal{L}}_{\mathrm{sym}}$ variant—one symmetric, one one-arm-dominant—whereas the full SymBridge converges to a single attractor across all five seeds.

5.2. Relationship to Prior Sim-to-Real and Equivariant Work

Domain randomisation [3] can be reinterpreted as enforcing invariance under a randomisation group; SymBridge differs in that it enforces equivariance under a known geometric group. The two approaches are complementary: combining DR with SymBridge yields a 3.1 pp improvement over SymBridge alone on the wipe-table task. Compared with EquiBot [11] and EquiAct [12], SymBridge’s gains come from three differences. First, the explicit bilateral ${\mathbb{Z}}_2$ subgroup with weight tying is absent from both prior works; we measure its contribution at $+9.1$ pp as the first-stage gain over the OpenVLA baseline (Figure 7(b), bar 2). Second, restricting to the workspace subgroup $H_{\mathrm{wkp}}={\mathbb{R}}^3⋊\mathrm{SO}{\left(2\right)}_z$ rather than the full $\mathrm{SE}\left(3\right)$/$\mathrm{SIM}\left(3\right)$ used by EquiBot avoids representational misallocation to non-commuting axes ($R_x,R_y$). End-to-end on the 12 evaluation tasks, SymBridge averages 78.9% versus EquiBot’s 61.6%, a $+17.3$ pp gain. We do not have a clean subgroup-only ablation (such an experiment would freeze every other SymBridge component and toggle only $H_{\mathrm{wkp}}\leftrightarrow \mathrm{SIM}\left(3\right)$ inside the augmentation pipeline, which we did not run). The available evidence is suggestive but mixed: row "SymBridge w/o ${\mathbb{Z}}_2$" (64.1%) versus EquiBot (61.6%) gives a $+2.5$ pp difference, but this comparison also reflects the contrastive head and the dual-pathway encoder, neither of which EquiBot has, so the $+2.5$ pp is not a clean estimate of the subgroup choice alone. Table 4 provides a cleaner subgroup signature: SymBridge’s ${\mathcal{E}}_{H_{\mathrm{wkp}}}$ on trained axes is 0.054 rad versus EquiBot’s 0.082 rad, indicating that the subgroup restriction does help on the axes it claims to. Third, the sim–real contrastive head is unique to SymBridge.

An interesting byproduct in EquiBot’s ${\mathcal{E}}_{{\mathbb{Z}}_2}$. EquiBot is $\mathrm{SIM}\left(3\right)$-equivariant but does not handle ${\mathbb{Z}}_2$ explicitly; nevertheless, Table 4 shows EquiBot’s ${\mathcal{E}}_{{\mathbb{Z}}_2}=0.071$ rad, well below OpenVLA’s 0.118 rad. The publicly released EquiBot implementation does not explicitly represent bilateral reflection (the released code uses proper rotations $\mathrm{SO}\left(3\right)$ via vector-neuron layers; we cite the official repository’s models/vec_layers.py module, which exposes only $\mathrm{SO}\left(3\right)$ generators); its lower ${\mathcal{E}}_{{\mathbb{Z}}_2}$ therefore likely arises from data-induced generalisation rather than architectural equivariance. SymBridge attaches $\mathrm{O}\left(3\right)$ structure explicitly through $J_{\sigma }$ and improves on the residual by $\sim 6\times$.

5.3. Limitations

Soft $H_{\mathrm{wkp}}$ equivariance. Our formulation enforces $H_{\mathrm{wkp}}$ equivariance softly via augmentation rather than through a hard architectural constraint. We chose this for compatibility with the pre-trained DINOv2 features, but it leaves residual error of 0.054 rad on the trained axes. A fully steerable backbone would close this further at the cost of forfeiting the strong pretraining signal of DINOv2.

No equivariance for rot-x/rot-y. As discussed in Section 3.1, rotations about horizontal axes do not commute with bilateral mirroring and are deliberately excluded from G. The residual error on these axes (0.116 rad for SymBridge) is comparable to EquiBot’s (0.124 rad) despite our model not training for them. Per Section 4.7, we cannot disentangle whether this is driven by inherited DINOv2 rotational priors or by limited rot-x/rot-y variation in the training data; both explanations remain plausible, and a teasing-apart experiment is left to future work.

Asymmetric tasks. For tasks whose optimal policy is not symmetric (15/61 failures), the consistency penalty creates a small bias toward symmetric solutions. A natural extension is to learn a per-task ${\mathbb{Z}}_2$ symmetry indicator and apply ${\mathcal{L}}_{\mathrm{sym}}$ conditionally; preliminary experiments on our development set suggest a further $1.8$ pp gain.

Single embodiment. All real-world experiments use a Franka pair on a fixed table. Cross-embodiment generalisation is left to future work.

5.4. Future Work

We see three directions. (i) Force-aware equivariance: extending the action head to predict end-effector wrench in an $H_{\mathrm{wkp}}$-equivariant manner would close the contact-misestimation failure mode. (ii) Discovered symmetries: rather than specifying the symmetry group a priori, one could detect approximate symmetries from data via group-invariant pretext tasks. (iii) Cross-embodiment transfer: re-using a SymBridge policy across robot platforms by re-parameterising the symmetry representation on a per-platform basis.

6. Conclusions

SymBridge demonstrates that a substantial portion of the VLA sim-to-real gap is attributable to unenforced symmetries, not to perceptual or dynamic mismatch in isolation. Factoring manipulation into the geometrically correct workspace-restricted semidirect product $G={\mathbb{Z}}_2⋉({\mathbb{R}}^3⋊\mathrm{SO}{\left(2\right)}_z)$, with a clean separation between group actions and the soft cross-modal alignment objective, and enforcing each through a complementary mechanism—decoder-level bilateral equivariance via weight tying (under paired feature representation), augmentation-based soft equivariance for the workspace subgroup, and contrastive sim–real alignment—yields a 31.6 percentage-point absolute gain in real-world success over OpenVLA, a 41% reduction in encoder-level sim–real distribution distance, a 14–17 pp gain over EquiBot/EquiAct under matched compute, and a near-$4\times$ improvement in demonstration efficiency at the 70% threshold. The HMD teleoperation rig, by virtue of body-anchored bimanual coordination, supplies demonstrations whose symmetry profile is strong enough that an unmodified VLA already benefits, although the largest gains come from the combination of symmetry-aware data and symmetry-aware training. Symmetry, treated as an explicit, decomposable, and geometrically correct inductive bias, is a tractable lever for closing the sim-to-real gap in vision–language–action manipulation.
