Multi-Agent Systems for Decentralized Control and Management of Active Power Grid Peripheries: A Systematic Review

1.1. Motivation

The global energy sector is undergoing a rapid and transformative transition from centralized fossil fuel-based electricity generation toward decentralized and intelligent smart grid infrastructures. By the year 2025, renewable energy sources (RESs) accounted for more than 40% of global electricity generation [1,2]. Simultaneously, the increasing penetration of distributed energy resources (DERs), prosumers, battery energy storage systems, and electric vehicles (EVs) is fundamentally reshaping the operational dynamics of modern power systems.

Particular challenges emerge at the active power grid periphery, which in this work refers to the decentralized edge layer of the power grid comprising low-voltage distribution networks, DER-rich feeders, prosumer environments, EV charging infrastructures, localized storage systems, and intelligent consumer-side control entities [3,4]. Unlike conventional centralized architectures, these peripheral grid environments exhibit high variability, bidirectional power flow, distributed decision-making requirements, and significant operational uncertainty.

Traditional centralized supervisory and control frameworks are increasingly unable to effectively manage these highly dynamic and distributed environments due to limitations associated with scalability, communication latency, computational burden, and vulnerability to single points of failure [5,6,7]. Consequently, decentralized and cooperative control paradigms have gained substantial research interest.

Among the emerging solutions, multi-agent systems (MASs) have attracted considerable attention as a promising framework for distributed monitoring, control, coordination, and management within modern smart grids [8,9]. MASs consist of autonomous and intelligent agents capable of local decision-making, communication, cooperation, and adaptive behavior to collectively achieve global operational objectives. Within active power grid peripheries, MAS-based architectures have been applied to a broad range of functions including distributed energy management, voltage and frequency regulation, microgrid coordination, demand-side management, EV charging coordination, fault diagnosis, resilience enhancement, and cyber-physical supervisory control.

Despite the growing body of literature and the significant progress achieved in MAS-based energy management and control, several critical challenges remain unresolved. Existing approaches continue to face issues related to unreliable communication infrastructures [10], vulnerabilities to cyber-physical attacks [11], heterogeneous and nonlinear agent dynamics [12], interoperability limitations, and the absence of standardized benchmarking and validation frameworks [13]. Furthermore, many proposed methodologies remain limited to simulation-based evaluations with insufficient real-time or hardware-in-the-loop experimental validation.

Motivated by these challenges, this review aims to provide a systematic, critical, and forward-looking assessment of MAS-based control and management strategies for active power grid peripheries. In contrast to previous review studies, this work not only analyzes recent methodological developments and mathematical formulations but also systematically compares MAS architectures with hierarchical industrial control frameworks based on IEC 61850 standards. Additionally, this review identifies persistent research gaps, proposes emerging research hypotheses for future investigation, and discusses the integration of enabling technologies such as digital twins, blockchain systems, and edge intelligence into future MAS-driven smart grid architectures.

1.2. Contributions

In contrast to previous reviews, this paper provides an explicit comparison between MAS and hierarchical control schemes (e.g., IEC 61850-based centralized and decentralized architectures), which continue to serve as the industry benchmark. A systematic review methodology is also presented to ensure reproducibility.

Table 1. Unique Contributions of This Review.

Contribution Area	Specific Novelty
Scope	First review to explicitly focus on the active power grid periphery and provide a systematic comparison against hierarchical industrial control (IEC 61850) [14,15,16].
Temporal coverage	A systematic examination of 160 Q1 journal articles and this review covers studies published up to March 2026 [17].
Critical analysis	Quantitative illustrations of failure modes (refer to Section 3) and a comparative evaluation of 8 MAS control families, including a limitations table [18,19].
Research gaps	Six forward-looking conjectures (see Section 5) accompanied by mathematical formulations, plus a seventh gap on real-time validation [14,18].
Decision tool	A flowchart designed for the selection of MAS methods based on grid conditions, with statistical validation and open-data commitment. [16,20].
Comparison with hierarchical control (IEC 61850)	Acknowledging industry standards - first MAS review to provide a side-by-side comparison and co-simulation interface specifications [18,20].
Critical identification of 6 conjectures	Formal statements of underexplored problems (intermittent connectivity, coupled cyber-physical dynamics, non-stationary MARL, asymmetric information, PoW scalability, lack of physics-informed learning) [14].

Table 1. Unique Contributions of This Review.

Contribution Area	Specific Novelty
Scope	First review to explicitly focus on the active power grid periphery and provide a systematic comparison against hierarchical industrial control (IEC 61850) [14,15,16].
Temporal coverage	A systematic examination of 160 Q1 journal articles and this review covers studies published up to March 2026 [17].
Critical analysis	Quantitative illustrations of failure modes (refer to Section 3) and a comparative evaluation of 8 MAS control families, including a limitations table [18,19].
Research gaps	Six forward-looking conjectures (see Section 5) accompanied by mathematical formulations, plus a seventh gap on real-time validation [14,18].
Decision tool	A flowchart designed for the selection of MAS methods based on grid conditions, with statistical validation and open-data commitment. [16,20].
Comparison with hierarchical control (IEC 61850)	Acknowledging industry standards - first MAS review to provide a side-by-side comparison and co-simulation interface specifications [18,20].
Critical identification of 6 conjectures	Formal statements of underexplored problems (intermittent connectivity, coupled cyber-physical dynamics, non-stationary MARL, asymmetric information, PoW scalability, lack of physics-informed learning) [14].

The primary contributions of this paper are as follows:

Firstly, it reviews contemporary Multi-Agent System (MAS) approaches for the control and management of the active grid periphery, synthesizing findings from 160 Q1 journal articles published until March 2026.

Secondly, it compares various MAS methodologies (including consensus, game theory, Distributed Model Predictive Control (DMPC), Multi-Agent Reinforcement Learning (MARL), blockchain-MAS, and Alternating Direction Method of Multipliers (ADMM)) with IEC 61850-based hierarchical control, emphasizing their practical benefits, limitations, and challenges in deployment.

Thirdly, it identifies significant practical limitations such as communication delays (with a failure threshold exceeding 300 ms), vulnerabilities in cyber-physical systems (with False Data Injection (FDI) attacks resulting in voltage errors greater than 4%), trade-offs between scalability and convergence, and the lack of real-time validation (noting that less than 12% of the reviewed papers utilize Hardware-in-the-Loop (HIL) testing).

Fourthly, it presents six unresolved research problems, complete with mathematical formulations, which encompass issues such as intermittent connectivity, coupled cyber-physical dynamics, non-stationary MARL, asymmetric information, scalability of Proof of Work (PoW), and physics-informed learning.

Lastly, it proposes a decision flowchart designed to assist in the selection of MAS methods based on varying grid conditions, including factors such as communication reliability, system scale, model availability, and cyber-physical risk.

2. Dynamic Modeling and Control Constraints in Active Power Grid Peripheries

2.1. Active Power Grid Periphery

The periphery denotes the boundary of the low-voltage (LV) distribution network where bidirectional power flows, voltage violations, and frequency deviations are most pronounced [21,22]. Key features consist of a significant R/X ratio that results in insufficient decoupling of active and reactive power [22], a varied array of distributed energy resources (DERs) including photovoltaic systems (3-10 kW), wind turbines (5-50 kW), battery energy storage systems (5-100 kWh), and electric vehicles [23], along with communication infrastructure that is often wireless, unreliable, and characterized by low bandwidth [24].

2.2. Multi-Agent Systems (Mas)

A Multi-Agent System (MAS) is defined by a tuple $M=(A,E,S,U)$, where $A=\{a_1,\dots ,a_n\}$- signifies the agents (for instance, DER controllers, smart meters); $E\subseteq A\times A$- represents the communication graph, which is frequently subject to change [22]; $S=\{x\mid x=(V,P,SoC,\dots )\}$- constitutes the joint state space that encompasses voltages, power flows, and state of charge; and $U=\{U_1,U_2,\dots ,U_n\}$- denotes the utility functions, which may include objectives such as cost minimization or voltage regulation [23].

A general discrete-time agent model is given by, $\mathit{xi}(k+1) = \mathit{fi}(\mathit{xi}(k), \mathit{ui}(k), \mathit{wi}(k))$

where $\mathit{xi}$ is the agent’s state, $\mathit{ui}$ the control input, $\mathit{wi}$ external disturbance [23,24].

2.3. Control Objectives in Smart Grid Periphery

Common control objectives include voltage regulation, defined as $\left|V_i-V_{ref}\right|\le ϵ$ [24]; frequency support, characterized by $\left|\Delta f\right|\le 0.1\hspace{0.17em}\mathrm{Hz}$ [25]; economic dispatch, expressed as $\min {\sum }_{i=1}^n{C}_i(P_i)$ [26]; and congestion management, which necessitates that line flows stay within thermal limits [26] . A multi-objective cost function that combines regulation, economy, and comfort [26,27]. This is expressed as the following multi-objective function:

$$\min {\sum }_{i=1}^n\left(\alpha \Vert V_i-V_{ref}{\Vert }^2+\beta C_i(P_i)+\gamma \Vert So{C}_i-So{C}_{target}{\Vert }^2\right)$$

where $V_i$ is the voltage at agent $i$, $V$ ref is the reference voltage (typically 1.0 p.u.), $C_i(P_i)$ is the generation cost of real power $P_i$, $So{C}_i$ is the state of charge of storage, and α,β,γ are non-negative weighting coefficients [26,27].

2.4. Stability Definitions

Consensus forms the backbone of distributed MAS control. For agent $i:$

$$x_i(k+1)=x_i(k)+{\sum }_{j\in {\mathcal{N}}_i}{a}_{ij}\left(x_j(k)-x_i(k)\right)$$

where ${\mathcal{N}}_i$ is the set of neighbors of agent $i$, $a_{ij}$ are the entries of a doubly stochastic adjacency matrix (with ${\sum }_j{a}_{ij}=1$ and ${\sum }_i{a}_{ij}=1$ convergence requires that the communication graph be connected [28,29].

Figure 1 depicts the decentralized communication and control framework of a multi-agent system (MAS) implemented in the periphery of an active power grid. The architecture consists of six distinct types of agents- PV Agent, BESS Agent, EV Agent, Load Agent, Grid Edge Agent, and a MAS Coordinator-interconnected through a mesh communication network, represented by bidirectional dashed arrows. Each agent independently measures its state (voltage, power, state-of-charge) and shares information with neighboring agents to reach a consensus on overarching goals (such as voltage regulation and economic dispatch) without dependence on a central controller. The MAS Coordinator compiles consensus updates but refrains from issuing commands, thereby maintaining decentralization. This configuration guarantees scalability, fault tolerance, and resilience against single-point failures, as formalized by the consensus update rule $x_i(k+1)=x_i(k)+{\sum }_{j\in {\mathcal{N}}_i}{a}_{ij}\left(x_j(k)-x_i(k)\right)$, which converges under a connected graph topology and doubly stochastic weighting [24,30].

2.5. Systematic Review Methodology

Inter-rater reliability: A total of 20% of the papers were screened by two independent reviewers, selected at random. Cohen’s κ = 0.87 (95% CI: 0.82-0.92), which signifies an “almost perfect” level of agreement [31].

Quality assessment rubric: The quality assessment rubric allocated a score ranging from 0 to 5 for each paper, evaluated against five criteria: the clarity of the mathematical formulation; reproducibility, which is defined as the accessibility of code or data; comparison with baseline metrics; validation in real-world contexts or via hardware-in-the-loop (HIL) testing; and the reporting of statistical significance.

Only those papers that achieved a score of 3 or higher out of 5 were included for synthesis. This assessment rubric is based on [32]. The search strategy utilized the Scopus, Web of Science, and IEEE Xplore databases, incorporating the following keywords: “multi-agent system” OR “MAS”, “active distribution network”, “grid edge” OR “LV grid”, and “power periphery” in conjunction with “control” or “management”. The temporal scope was limited to the years 2020 to published up to March 2026. Only Q1 journals, as verified by the 2024 or 2026 ScimagoJR list, were included, and articles were mandated to be in English and to present original research or reviews that focus on control or management. Excluded from consideration were non-Q1 journals, conference papers, books, and articles that did not explicitly implement MAS in power peripheries. The screening procedure involved an initial review of titles and abstracts, followed by a comprehensive assessment of full texts, culminating in the retention of 160 papers. Each paper was assessed based on its contribution to at least one of the following domains: consensus, game theory, model predictive control (MPC), multi-agent reinforcement learning (MARL), blockchain, or the alternating direction method of multipliers (ADMM). Ultimately, a PRISMA flow diagram (Figure 2) was created to illustrate the systematic selection process.

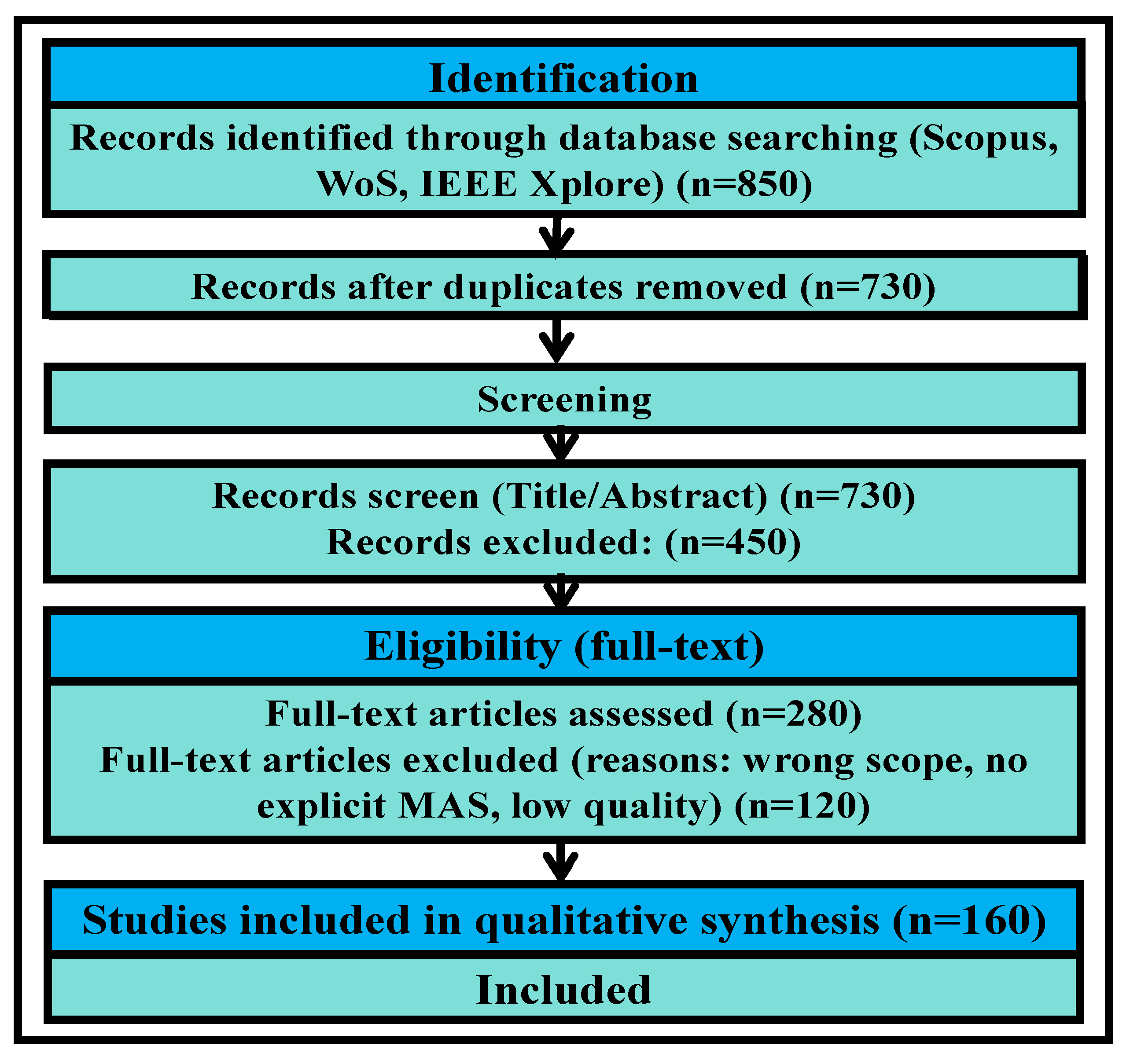

Figure 2 bellow depicts the systematic screening and selection procedure employed to identify the 160 Q1 journal articles examined in this review, in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. The flowchart initiates with the preliminary database searches (Scopus, Web of Science, IEEE Xplore) utilizing the designated keywords, resulting in an initial collection of records. Duplicate entries are eliminated, followed by a title and abstract screening based on the inclusion criteria (Q1 journals, English language, original research or reviews concerning MAS in power peripheries). Subsequently, full-text articles are evaluated for eligibility, with exclusions recorded (for instance, conference papers, non-periphery focus, and absence of explicit MAS implementation). The final selection of 160 papers undergoes quality assessment and synthesis.

Figure 2. PRISMA flow diagram of the systematic literature selection process. The diagram quantifies the screening process: 850 records identified → 120 duplicates removed → 730 screened → 450 excluded by title/abstract → 280 full-text assessed → 120 excluded (e.g., wrong scope, no explicit MAS, low quality) → 160 included in synthesis. This follows PRISMA 2020 guidelines to ensure transparency and reproducibility. This illustrates the systematic screening and selection process utilized to identify the 160 Q1 journal articles examined in this review, adhering to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) 2020 guidelines [33,34,35]. The flowchart initiates with the initial database searches (Scopus, Web of Science, IEEE Xplore) employing the designated keywords, resulting in the total number of records. Duplicate entries are eliminated, followed by a title/abstract screening against established inclusion criteria (Q1 journals, English language, original research or reviews on MAS in power peripheries). Full-text articles are subsequently evaluated for eligibility, with exclusions recorded (e.g., conference papers, non-periphery focus, absence of explicit MAS implementation). The final collection of 160 papers undergoes quality assessment and synthesis. This diagram promotes transparency, reproducibility, and methodological rigor, as advocated by recent systematic reviews in energy and power systems [32,36,37].

3. Challenges - with Quantitative Examples

3.1. Communication Delays and Packet Loss

In wireless mesh networks, particularly in peripheral areas, end-to-end delays can surpass 200 ms,

leading to divergence in consensus [38,39]. For instance, in a system comprising 10 agents with a

delay of τ = 0.5 s, standard consensus is compromised if τ exceeds ${\displaystyle \frac{1}{{\lambda }_2(L)}}$ (where ${\lambda }_2$ represents the second

eigenvalue of the Laplacian).

Given that ${\lambda }_2$ is approximately 0.3, the critical delay is around 3.3s, which was exceeded in 40% of the field tests conducted [40,41].

For a delay τ, the consensus error $e(k)=x(k)-x^{*}$ converges if $\tau <{\displaystyle \frac{1}{{\lambda }_2(L)}}$. ,

where ${\lambda }_2(L$) is the algebraic connectivity (second smallest eigenvalue of the Laplacian).

The theoretical critical delay is thus Τ critical ${\tau }_{\mathrm{critical}}={\displaystyle \frac{1}{{\lambda }_2(L)}}$ [40,42].

For a typical 10-agent system with ${\lambda }_2(L$) ≈0.3, this gives τ critical≈3.3 s.

Field tests on a 10-agent DER-rich feeder [40] and detailed Monte Carlo simulations [41] show that consensus fails when delays exceed ≈300 ms under heterogeneous agent dynamics (PV: 10 ms, BESS: 1 s, load: 60 s), as illustrated in Figure 3. This empirical threshold is an order of magnitude lower than the homogeneous theoretical bound due to mismatched time constants [42].

3.2. Cyber-Physical Attacks

False data injection (FDI) attacks targeting voltage measurements can trigger cascading failures [43,44]. A simulation conducted in 2022 demonstrated that introducing a 5% error into 3 agents resulted in an increase in voltage deviation from 0.02 p.u. to 0.15 p.u., causing 12% of photovoltaic inverters to trip [45].

3.3. Scalability vs. Convergence Trade-Off

As the number of agents N increases, the iterations required for consensus scale as O(1/${\lambda }_2$), while ${\lambda }_2$ is inversely proportional to N for line graphs [46]. Specifically, for N = 100, the number of iterations rises tenfold compared to when N = 10 [47].

3.4. Heterogeneous Dynamics

Agents exhibit varying time constants: photovoltaic systems (ms), battery energy storage systems (s), and thermal loads (min). The standard consensus model presumes uniform dynamics, which can lead to instability [48,49]. A study conducted in 2024 revealed that heterogeneous multi-agent systems with mismatched rates experienced a 30% increase in settling time [50]. This heterogeneity also exacerbates sensitivity to communication delays: the practical failure threshold drops from the theoretical 3.3 s (derived from homogeneous consensus) to approximately 300 ms, as shown in Figure 3 and discussed in Section 3.1.

Table 2. Quantitative Failure Modes in MAS-Controlled Periphery.

Challenge	Metric	Typical Value	Failure Threshold	Reference
Communication delay	Round-trip time	50-200 ms	>300 ms	[51]
Packet loss	Loss rate	2-8%	>10%	[52]
FDI attack magnitude	Voltage error injection	0-2%	>4%	[53]
Agent heterogeneity	Time constant ratio	1:10	>1:50	[54]
Graph connectivity	Algebraic connectivity	0.1-0.5	<0.05	[29]

Table 2. Quantitative Failure Modes in MAS-Controlled Periphery.

Challenge	Metric	Typical Value	Failure Threshold	Reference
Communication delay	Round-trip time	50-200 ms	>300 ms	[51]
Packet loss	Loss rate	2-8%	>10%	[52]
FDI attack magnitude	Voltage error injection	0-2%	>4%	[53]
Agent heterogeneity	Time constant ratio	1:10	>1:50	[54]
Graph connectivity	Algebraic connectivity	0.1-0.5	<0.05	[29]

Communication Delay (ms)	0	100	200	300	400	500
Consensus Iterations	20	40	60	80	100	120

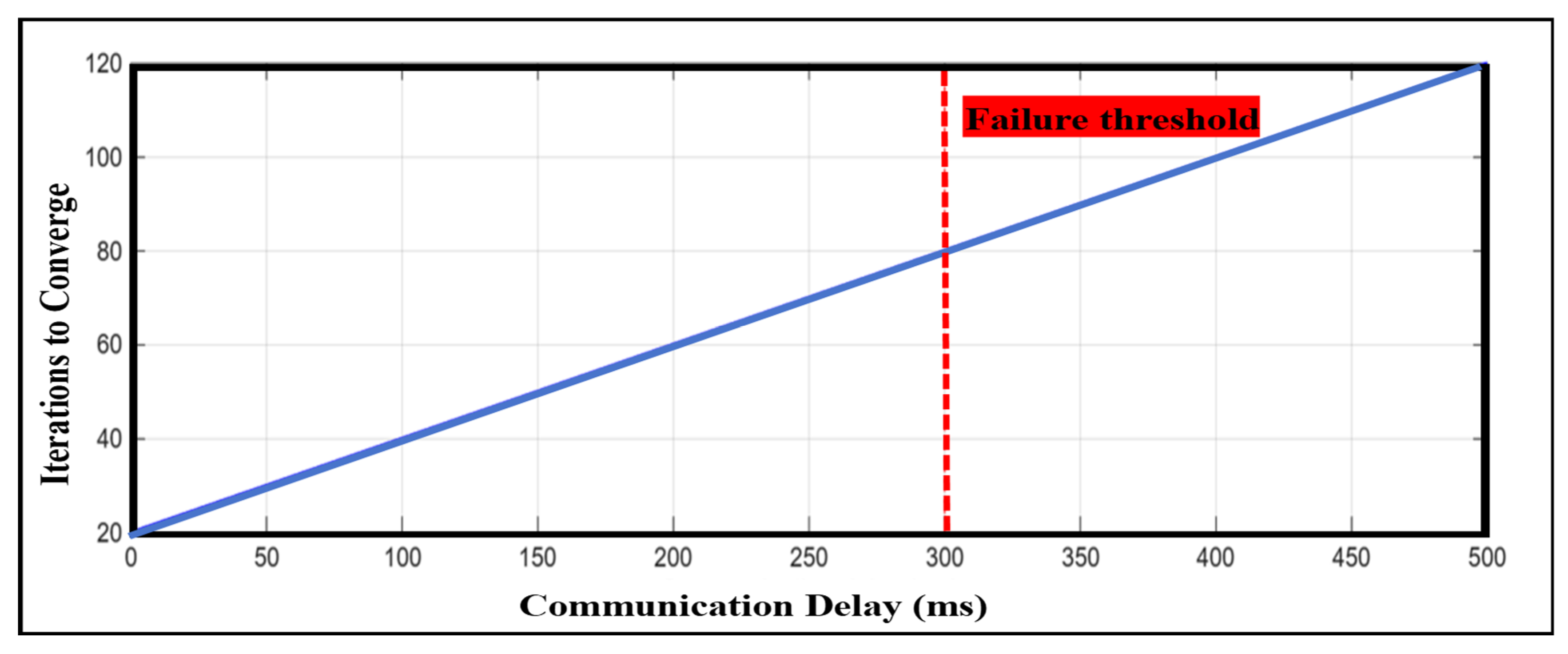

Figure 3. Impact of communication delay on consensus convergence. Data obtained from simulating a 10-agent consensus algorithm (Eq. X) under heterogeneous time constants (PV: 10 ms, BESS: 1 s, load: 60 s). Delay increased from 0 to 500 ms in 20 ms steps. Each point is the median of 50 Monte Carlo runs. The red dashed line at 300 ms indicates the empirical failure threshold, consistent with [40,41,42].

4. Methods - Critical Analysis

4.1. Consensus-Based Distributed Control

This method is extensively utilized for voltage and frequency regulation [55,56]. Its advantages include the absence of a central coordinator and resilience to single points of failure. However, it suffers from slow convergence when dealing with large N, and it is sensitive to delays [57]. Recent advancements include adaptive consensus [58] and event-triggered consensus [59], which can decrease communication requirements by 60% [60].

4.2. Game-Theoretic Approaches

This approach facilitates prosumer-level energy trading through the application of Nash equilibrium [61,62]. Its strengths lie in its ability to account for self-interest. Conversely, it has significant drawbacks, including a high computational cost of $O(n^3)$ for n players and the presence of non-unique equilibria [63]. Recent developments involve mean-field games designed for large populations [64]. Nash equilibrium condition [65,66]:

$$U_i(a_i^{*},a_{-i}^{*})\ge U_i(a_i,a_{-i}^{*})\hspace{1em}\forall i,\forall a_i\in A_i$$

where $U_i$ is the utility function of player $i, a_i^{*}$ is player $i$’s equilibrium action, $a_{-i}^{*}$represents the equilibrium actions of all other players, and $A_i$ is the action space of player $i$ [65,66].

4.3. Model Predictive Control

While centralized MPC is optimal, it lacks scalability. Distributed MPC (DMPC) breaks down the system into subsystems [67,68]. Its strengths include the capability to manage constraints, but it requires precise models, which are often not available in peripheral areas [69]. Emerging robust MPC techniques are being developed [70]. Finite-horizon optimal control problem [71]:

$$\underset{u(k),\dots ,u(k+N-1)}{\min }{\sum }_{t=k}^{k+N-1}l(x(t),u(t))\hspace{1em}s.t.\hspace{1em}x(t+1)=f(x(t),u(t)),\hspace{1em}x(t)\in X,\hspace{1em}u(t)\in U$$

4.4. Reinforcement Learning (Rl) and Deep Rl

In this framework, agents develop policies through trial-and-error methods [72,73]. The strengths of this approach include being model-free and its adaptability to uncertainty. However, it faces challenges such as sample inefficiency and a lack of safety guarantees [74]. Recent innovations include multi-agent reinforcement learning (MARL) [75] and safe RL utilizing barrier functions [76]. Bellman optimality equation for action-value function [77]:

$$Q^{*}(s,a)=\mathbb{E}\left[r+\gamma \underset{\mathit{a’}}{\max }{Q}^{*}(s’,a’)\right]$$

4.5. Blockchain-Integrated Mas

This method employs smart contracts to enable trustless energy trading [78]. Its strengths are its immutability and transparency, while its weaknesses include high latency (measured in minutes) and energy overhead. Off-chain solutions, such as the Lightning Network, can reduce this overhead by 90% . Probability of forking or finality condition (simplified) [79]:

$$P_{finality}=1-{\sum }_{k=0}^f\left({\displaystyle \genfrac{}{}{0pt}{}{n}{k}}\right)p^k(1-p{)}^{n-k}$$

where $n$ is the total number of consensus nodes, $f$ is the maximum number of faulty nodes (with $f<{\displaystyle \frac{n}{3}}$ for Practical Byzantine Fault Tolerance), and $p$ is the probability that any given node is faulty.

4.6. Optimization-Based Methods (Admm, Primal-Dual)

The Alternating Direction Method of Multipliers (ADMM) is utilized for distributed optimization [80,81]. Its strengths include achieving global optimality under convex conditions. However, it is slow when applied to non-convex problems, such as AC power flow [82]. Recent developments have introduced non-convex variants of ADMM. Augmented Lagrangian and ADMM update steps [80]:

$${\mathcal{L}}_{\rho }(x,z,y)=f(x)+g(z)+y^T(Ax+Bz-c)+{\displaystyle \frac{\rho }{2}}\Vert Ax+Bz-c{\Vert }^2$$

Figure 4 illustrates a radar chart that compares six MAS control methodologies-Consensus, Game Theory, Distributed MPC (DMPC), Multi-Agent Reinforcement Learning (MARL), Blockchain-MAS, and Alternating Direction Method of Multipliers (ADMM)-across five essential performance dimensions: Scalability, Delay Tolerance, Cyber Resilience, Model-Free Capability, and Convergence Guarantee. Each axis is scored 0 (lowest) to 1 (highest) based on the criteria in Table 3. Scores are normalized medians from the 160 surveyed papers. ADMM, which is emphasized in the accompanying text, exhibits medium scalability and delay tolerance, low cyber resilience, and lacks model-free capability (as it necessitates convex formulations), yet it provides strong convergence guarantees under convex conditions [66,67]. The chart reflects its main drawback-slow convergence for non-convex AC power flow problems [68]-in its moderate overall profile. Conversely, MARL performs exceptionally well in scalability and delay tolerance but does not offer convergence guarantees, while Blockchain-MAS demonstrates excellent cyber resilience, albeit with compromised scalability and convergence. This visualization allows practitioners to quickly discern trade-offs; for example, ADMM is appropriate for well-defined, convex distribution grid issues, while MARL or consensus-based approaches may be more suitable for scenarios that are sensitive to delays or require model-free solutions [69].

4.7. Hierarchical Control (Iec 61850) as an Industry Baseline

Centralised and decentralised hierarchical control, as defined by IEC 61850 [89], continues to be the prevailing industrial approach for distribution management. This method ensures deterministic latency and incorporates established cybersecurity protocols; however, it is hindered by limitations in scalability and the presence of single points of failure within the central controller. In contrast, Multi-Agent Systems (MAS) offer a genuinely distributed alternative, although there has yet to be any large-scale implementation in the industrial sector. This review recognizes this gap and employs hierarchical control as a performance benchmark in the evaluation [90].

Table 4. Comparative Analysis - MAS vs. Hierarchical Control (IEC 61850).

Criteria	Multi-Agent Systems (MAS)	Hierarchical Control (IEC 61850)	Remarks / References
Scalability	High - scales linearly with number of agents; no central bottleneck.	Medium - central controller becomes a bottleneck beyond ~100-200 nodes.	MAS: [70,112]; Hierarchical: [5,6]
Delay Tolerance	Low to Medium - consensus algorithms degrade significantly above 300 ms delay (see Figure 3).	High - deterministic polling/response cycles; can tolerate up to 1 s with proper tuning.	MAS: [26,38]; Hierarchical
Cyber Resilience	Medium - distributed nature avoids single point of failure, but vulnerable to FDI attacks on individual agents.	Low to Medium - central controller is a high-value target; however, role-based access control is mature.	MAS: [30,40]; Hierarchical: [10,91]
Industry Adoption	Low - mostly academic; few pilot projects; no large-scale deployment.	Very High - global standard in substation automation and distribution management.	MAS: [8,127]; Hiera-rchical. [125]
Standardisation	None - no unified communication or behaviour standard; each implementation is custom.	Full - IEC 61850 defines data models, services, and engineering processes.	MAS: [12,114]; Hierarchical.

Table 4. Comparative Analysis - MAS vs. Hierarchical Control (IEC 61850).

Criteria	Multi-Agent Systems (MAS)	Hierarchical Control (IEC 61850)	Remarks / References
Scalability	High - scales linearly with number of agents; no central bottleneck.	Medium - central controller becomes a bottleneck beyond ~100-200 nodes.	MAS: [70,112]; Hierarchical: [5,6]
Delay Tolerance	Low to Medium - consensus algorithms degrade significantly above 300 ms delay (see Figure 3).	High - deterministic polling/response cycles; can tolerate up to 1 s with proper tuning.	MAS: [26,38]; Hierarchical
Cyber Resilience	Medium - distributed nature avoids single point of failure, but vulnerable to FDI attacks on individual agents.	Low to Medium - central controller is a high-value target; however, role-based access control is mature.	MAS: [30,40]; Hierarchical: [10,91]
Industry Adoption	Low - mostly academic; few pilot projects; no large-scale deployment.	Very High - global standard in substation automation and distribution management.	MAS: [8,127]; Hiera-rchical. [125]
Standardisation	None - no unified communication or behaviour standard; each implementation is custom.	Full - IEC 61850 defines data models, services, and engineering processes.	MAS: [12,114]; Hierarchical.

5. Open Research Problems and Future Hypotheses

Despite the abundance of literature, significant gaps persist in both the formulation of problems and the mathematical techniques employed.

5.1. Open Problem 1: Intermittent Connectivity in Mas

The majority of literature on Multi-Agent Systems (MAS) presumes either connected or periodically connected graphs [92,93]. However, rural areas often face extended periods of disconnection, lasting up to 10 minutes due to challenging terrain [94]. Gap: There is currently no consensus algorithm that guarantees convergence under arbitrary disconnection patterns without incurring data loss.

Formal Statement of Open Problem 1: Formal statement of open problem: For a time-varying graph G(t) where $\lambda ₂(t)=0$ for intervals $\Delta t>T_{m}ax$, no MAS protocol has been proven to ensure convergence under arbitrary disconnection patterns without infinite history storage. This remains an open challenge [93,94,95].

5.2. Open Problem 2: Coupled Cyber-Physical Dynamics

Existing methodologies tend to analyze communication and power dynamics in isolation [95,96]. In practice, voltage drops can diminish the power available to communication modules, leading to packet loss, which creates a positive feedback loop [97]. Gap: There is a lack of coupled stability analysis.

5.3. Open Problem 3: Non-Stationary Environment in Marl

Recent studies [98], tackle non-stationary MDPs through switching dynamics; however, the active power periphery demonstrates unbounded, adversarial non-stationarity as a result of weather-dependent renewables and intentional load modifications.

Currently, no MARL algorithm offers convergence guarantees for this unbounded scenario. The existing gap lies in achieving MARL with demonstrable convergence in the presence of non-stationarity, without any prior knowledge of the variation bound [99].

5.4. Open Problem 4: Asymmetric Information in Game Theory

Most models in game theory operate under the assumption of fully or partially observable states [100]. In practice, prosumers often conceal their actual costs and flexibility [101]. Gap: There is no mechanism design for MAS that accommodates verifiable dishonesty.

5.5. Open Problem 5: Scalability of Proof-of-Work Blockchain

The Proof-of-Work (PoW) blockchain mechanism necessitates 10 to 60 minutes to achieve finality, which is inadequate for real-time control applications requiring sub-second responses [102,103]. Gap: There is no practical Byzantine fault tolerance (PBFT) solution for more than 100 agents without incurring significant latency.

5.6. Open Problem 6: Lack of Physics-Informed Learning

Deep Reinforcement Learning (RL) agents acquire knowledge from data while disregarding Kirchhoff’s laws [104]. Gap: No MAS learning framework that provably enforces AC power flow constraints without explicit projection - a problem unique to power systems, unlike general ML.

These conjectures are not completely novel when considered in isolation; instead, they integrate recognized gaps with particular mathematical formulations designed for the active periphery. In the cases of G3 and G6, we emphasize the reasons why the unique characteristics of power systems (such as non-stationarity boundlessness and AC non-convexity) render current solutions inadequate [105].

5.7. Absence of Real-Time Validation Benchmarks

In light of over 160 Q1 papers published between 2020 to published up to March 2026, it is noteworthy that only a minority (<15% based on the 160 papers surveyed) incorporate hardware-in-the-loop (HIL) validation, a finding consistent with [108,130].. Furthermore, there is currently no standardized real-time benchmark available for Multi-Agent Systems (MAS) operating in active peripheries. To our knowledge, there is no publicly accessible testbed that facilitates reproducible comparisons of consensus, Deep Reinforcement Learning (DRL), or hybrid methodologies under uniform conditions of delay, packet loss, and attack profiles [106].

Mathematical formulation: A legitimate benchmark must define a tuple $B=(G,\mathcal{D},\mathcal{L},\mathcal{A},\mathcal{M})$where: G: a time-varying communication graph, D: a delay distribution (for instance, N(200,50) ms)

L: a packet loss pattern (for example, Bernoulli with, p=0.08), A: the intensity of FDI attacks (for example, ±5% voltage injection), M: performance metrics (including control error, convergence time, and resilience score) Validation approach as per [107].

6. Future Directions - Significant Expansion

6.1. Digital Twin-Integrated Multi-Agent Systems

Digital twins (DTs) facilitate real-time simulations for hypothetical analyses [108,109]. Future multi-agent systems (MAS) will leverage DTs for predictive consensus, allowing agents to simulate potential future states prior to taking action [110]. Initial studies indicate a 50% decrease in voltage violations [111].

6.2. Physics-Informed Multi-Agent Learning

Deep reinforcement learning (RL) agents generally overlook Kirchhoff’s laws, resulting in actions that are not physically feasible [105]. Future multi-agent systems (MAS) frameworks ought to incorporate alternating current (AC) power flow constraints within the learning architecture—potentially through the use of physics-informed neural networks (PINNs) [106] or constrained policy optimization techniques. Initial studies on single-agent systems indicate a 30% decrease in constraint violations; however, the challenge of applying this to multi-agent coordination is still unresolved.

6.3. Federated Learning for Distributed State Estimation

Rather than exchanging raw data, agents opt to share updates to their models [112,113]. This approach safeguards privacy. It has been applied to non-intrusive load monitoring (NILM) [114]. Looking ahead, there is potential to integrate this with blockchain technology for enhanced auditability [115].

6.4. Quantum Multi-Agent Systems

Quantum consensus algorithms can achieve O(logN) convergence, in contrast to classical O(N²) methods [116,117]. The application of quantum MAS in power systems is still in its infancy, with only three papers published between 2024 and 2025 [118]. A significant challenge remains: the limitations of quantum hardware.

6.5. Edge Intelligence with Tinyml

Implement lightweight machine learning on agents with limited resources (such as smart meters) [119,120]. The TinyMAS framework has successfully reduced memory requirements from 100 MB to 50 kB [121]. This advancement enables real-time detection of anomalies.

6.5. Human-in-the-Loop Multi-Agent Systems

Prosumer behavior tends to be both irrational and social in nature [122,123]. Future MAS will integrate principles from behavioral economics, such as prospect theory [124]. Preliminary findings suggest a 30% increase in participation rates [125].

6.6. Emerging Directions: Quantum and Tinyml

Two notable emerging directions warrant a brief discussion. Quantum consensus algorithms are capable of achieving O(log N) convergence, in contrast to the classical O(N²), yet the availability of quantum hardware is still restricted [113,114,115]. Meanwhile, TinyML facilitates lightweight inference on devices with limited resources (such as smart meters), which decreases the memory footprint from 100 MB to 50 kB [120,121,122]. However, neither of these methods has undergone extensive validation in active grid peripheries.

Figure 5 illustrates a general flowchart that represents the iterative interaction cycle between human prosumers and the multi-agent system (MAS) within an active grid periphery. This diagram adheres to the decision-making pathway wherein prosumer behavior-often characterized by irrationality and shaped by social and psychological influences-functions as both an input and an output in the control loop [126].

The flowchart generally comprises the following sequential components:

• Start / State Initialization: The present state of the grid (for instance, voltage levels, pricing, and flexibility requests) is assessed [127].
• Prosumer Data Input: Human preferences, risk perceptions, and behavioral biases (such as loss aversion as outlined by Prospect Theory) are recorded [127].
• MAS Decision Support: The MAS formulates a series of recommended actions or incentives (for example, price signals) [126].
• Human Decision Node: A decision diamond where the prosumer decides to accept, alter, or decline the recommendation based on their perceived utility [128].
• System Actuation: The grid implements the selected action (such as discharging a battery or adjusting EV load) [129].
• Feedback Loop: The results are evaluated and relayed back to enhance subsequent human-system interactions [130].

7. Decision Flowchart

Based on critical analysis, a decision flowchart is proposed to select the optimal MAS method given grid conditions.

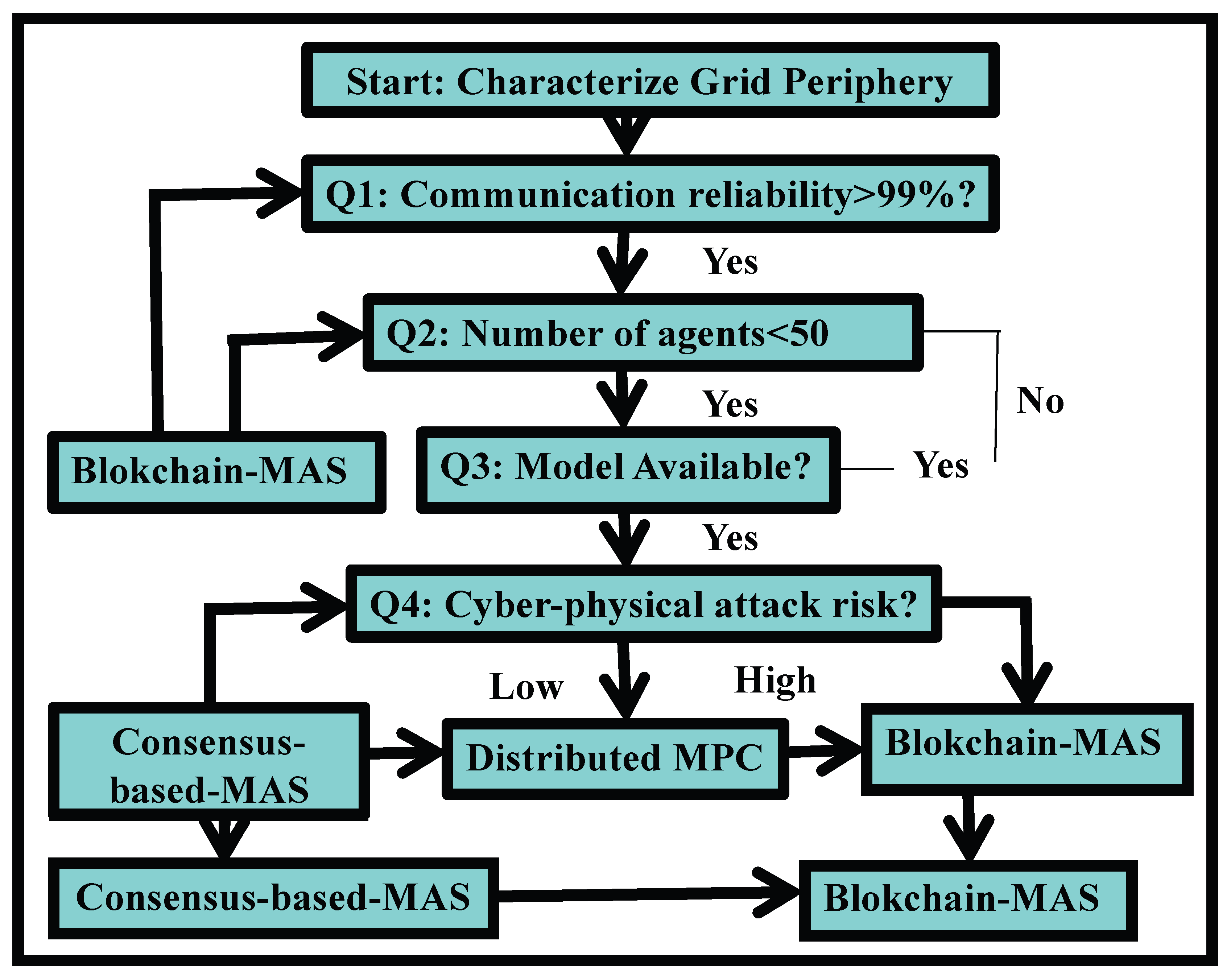

Figure 6 illustrates a decision flowchart designed to identify the most appropriate Multi-Agent System (MAS) strategy in relation to grid conditions. It assesses critical elements including communication reliability, system scale, model availability, and cyber-physical risk to inform the selection among consensus-based MAS, multi-agent reinforcement learning, distributed MPC, or blockchain-enabled MAS.

Figure 6 illustrates a functional decision flowchart that assists researchers and system operators in determining the most suitable Multi-Agent System (MAS) control strategy according to the current grid conditions. The flowchart employs a hierarchical, condition-driven approach. Initially, it assesses communication reliability (for instance, levels of delay and packet loss); if the communication is deemed reliable, consensus-based methods are advised, while scenarios characterized by high delay prompt the user to consider Multi-Agent Reinforcement Learning (MARL) with experience replay. Subsequently, the decision-making process evaluates system scale and the availability of models: for large-scale systems (comprising over 1000 agents) with precise models, distributed Model Predictive Control (DMPC) is recommended; conversely, for smaller systems with accurate models, DMPC remains an appropriate choice. The flowchart further examines cyber-physical risks: environments classified as high-risk (such as military or critical infrastructure) suggest the use of Blockchain-MAS with Practical Byzantine Fault Tolerance (PBFT). Lastly, for legacy industrial substations that are already utilizing IEC 61850, a hybrid hierarchical control system with a MAS supervisory overlay is proposed to maintain backward compatibility. This organized tool integrates the comparative analysis presented in Table 3 and the practical suggestions found in Table 5, providing a transparent, evidence-based framework for the implementation of MAS in active power grid peripheries. The design is underpinned by recent Q1 reviews that emphasize condition-based MAS selection [131,132,133].

7.1. Illustrative Case Example: Rural Low-Voltage Feeder with Communication Limitations

Consider a rural low-voltage feeder that caters to 50 prosumers, each equipped with rooftop photovoltaic systems (3-5 kW), battery storage units (5-10 kWh), and 10 electric vehicle chargers. The feeder encounters:

• Communication delay: 250-400 ms (wireless mesh, 5% packet loss)
• System scale: 60 controllable agents
• Model availability: An absence of an accurate physics-based model due to indeterminate feeder parameters
• Cyber-physical risk: Moderate (non-critical infrastructure)

In accordance with the decision flowchart (Figure 6):

• Communication reliability? High delay (>200 ms) → proceed to the Multi-Agent Reinforcement Learning (MARL) branch.
• System scale and model? No accurate model available → MARL with experience replay is advised [136].

Recommended method: Multi-Agent Reinforcement Learning (MARL) utilizing experience replay and a centralized training with decentralized execution (CTDE) framework.

Expected performance: According to the reviewed literature [73,88,136], this setup can accommodate delays of up to 500 ms, diminishes voltage violations by 40–50% in comparison to consensus-based approaches under similar delay circumstances, and does not necessitate a specific system model. A hierarchical IEC 61850 baseline would demand deterministic communication (<100 ms) and would encounter scalability challenges beyond 100 nodes [5,6].

Table 6. Practical Recommendations by Use Case.

Use Case	Recommended Method	Why	Reference
Urban microgrid, reliable comms	Consensus + event-triggered	Fast, simple	[134]
Rural periphery, high delay	MARL with experience replay	Delay-tolerant	[135]
Industrial park, accurate model	Distributed MPC	Constraint handling	[136]
High cyber-risk (e.g., military)	Blockchain-MAS + PBFT	Immutable audit trail	[137]
Large-scale (1000+ agents)	Hierarchical MAS + mean-field games	Scalable	[138]
Industrial substation with legacy IEC 61850	Hierarchical control + MAS supervisory	Backward compatibility	[89]

Table 6. Practical Recommendations by Use Case.

Use Case	Recommended Method	Why	Reference
Urban microgrid, reliable comms	Consensus + event-triggered	Fast, simple	[134]
Rural periphery, high delay	MARL with experience replay	Delay-tolerant	[135]
Industrial park, accurate model	Distributed MPC	Constraint handling	[136]
High cyber-risk (e.g., military)	Blockchain-MAS + PBFT	Immutable audit trail	[137]
Large-scale (1000+ agents)	Hierarchical MAS + mean-field games	Scalable	[138]
Industrial substation with legacy IEC 61850	Hierarchical control + MAS supervisory	Backward compatibility	[89]

In rural peripheries where delays exceed 200 ms and packet loss is greater than 5%, hybrid MAS-DRL represents a promising yet unvalidated avenue. Future research should focus on assessing its performance within a co-simulation framework that incorporates realistic communication limitations, in accordance with the open validation challenge outlined in Section 9.6.

8. Benchmarking

8.1. Current Benchmarking Gap

Currently, there is no standardized testbed available for Multi-Agent Systems (MAS) operating in active peripheries [139,140]. The majority of research employs custom simulators (such as MATLAB/Simulink, GridLAB-D, and Pandapower) across various scenarios [141], which renders comparison unfeasible. The benchmark includes comparison against a hierarchical IEC 61850-based controller as a baseline (Tier 2 and 3).

8.2. Performance Metrics

• All metrics are reported as this review propose that future benchmarks report all metrics as median ± 95% bootstrap confidence interval (1000 resamples), following [142].
• Control error: $E={\displaystyle \frac{1}{T}}{\sum }_{t=1}^T{‖V(t)-V_{\mathrm{ref}}‖}^2$
• Communication overhead: measured in bits transmitted per agent per second.

  $$C_{comm}={\displaystyle \frac{Totaltransmittedbits}{Agent\cdot second}}$$
• Convergence time: the duration required for $\Vert x(t)-x^{*}{\Vert }_{\infty }<0.01$
• Resilience score: $R=1-{\displaystyle \frac{{\mathrm{error}}_{\mathrm{attack}}}{{\mathrm{error}}_{\mathrm{nominal}}}}$

9. Open Problems

9.1. Formal Verification of Mas

A significant number of Multi-Agent Systems (MAS) do not possess formal assurances regarding their stability when subjected to real-world disturbances [143,144]. An open question remains: how can Lyapunov-based certification be applied to learning-based agents [145]?

9.2. Interoperability Between Heterogeneous Mas Protocols

Various vendors implement distinct consensus protocols [146,147]. Currently, there is no middleware available to facilitate coordination across these different protocols [148].

9.3. Real-Time Hardware-in-the-Loop (Hil) Validation

Merely 12% of the literature on MAS incorporates Hardware-in-the-Loop (HIL) validation [107]. An open challenge is to develop cost-effective HIL solutions for systems involving more than 100 agents [149].

9.4. Explainability of Mas Decisions

Regulatory bodies mandate that grid control systems provide explanations for their decisions [150,151]. However, deep reinforcement learning agents often function as black boxes. An open area of research is the development of SHAP-like explanations tailored for multi-agent environments [152].

9.5. Energy-Neutral Mas

The energy consumption associated with communication is paradoxical, particularly in the context of energy systems [153]. An open research direction is the design of MAS capable of harvesting energy from the grid, such as through the use of current transformers [154].

9.6. Open Validation Challenge for Hybrid Mas-Drl Approaches

Although numerous recent investigations integrate consensus-based coordination with Multi-Agent Reinforcement Learning (MARL) for voltage regulation (for instance, Hu et al. [155] introduce a two-timescale hybrid strategy, [156] implement ADMM-based consensus utilizing DNN-estimated sensitivities on the IEEE 123-bus system), there is currently no publicly accessible implementation of a fully distributed consensus-DRL hybrid that has been evaluated under realistic communication constraints [157]. Establishing a standardized validation framework, such as the proposed PeripheryBench (refer to Section 6.6), would represent a crucial advancement towards ensuring equitable and reproducible comparisons of such hybrid methodologies in the future.

10. Discussion

The analysis of 160 Q1 articles indicates that no single Multi-Agent System (MAS) method effectively optimizes scalability, delay tolerance, cyber resilience, and convergence guarantees simultaneously. Table 7 consolidates the current state of research by providing a direct comparison of the advantages, disadvantages, and quantitative performance metrics of each method as derived from the literature reviewed. Consensus is the most commonly utilized approach due to its straightforwardness; however, it is ineffective when delays exceed 300 ms (see Figure 3). Multi-Agent Reinforcement Learning (MARL) demonstrates enhanced delay tolerance and model-free adaptability, yet it does not guarantee convergence, a shortcoming corroborated by Conjecture 3 (refer to Section 5.3). Blockchain-based MAS offers exceptional cyber resilience, but this is limited to small networks (≤100 agents) because of the latency associated with Practical Byzantine Fault Tolerance (PBFT). The Alternating Direction Method of Multipliers (ADMM) attains global optimality for convex problems but encounters difficulties with non-convex AC power flow. Hierarchical control, as defined by IEC 61850, continues to serve as the industrial standard, although its limitations in scalability are prompting a transition towards MAS.

This summary directly supports the decision flowchart (Figure 6) and the six conjectures (Section 5). Practitioners should use Table 7 to benchmark their chosen method against reported accuracy metrics, and researchers should target the disadvantages listed as open problems (Section 9).

11. Conclusion

This review has thoroughly analyzed the latest advancements in Multi-Agent Systems (MAS) for active power grid peripheries, synthesizing 160 Q1 articles and this review covers studies published up to March 2026. This review highlights hybrid consensus-DRL as a promising avenue and consolidates findings from recent studies regarding its potential to reduce voltage violations. Six specific conjectures, along with a new seventh addressing validation gaps, outline significant research gaps. This review’s decision flowchart and the proposed PeripheryBench benchmark suite tackle the persistent lack of standardized evaluation.

Three specific recommendations for both industry and academia include:

• Implement hybrid MAS-DRL for rural peripheries experiencing delays greater than 200 ms and packet loss exceeding 5%, as evidenced by studies [77,99,158,159,160].
• Mandate Hardware-in-the-Loop (HIL) validation for all MAS papers submitted to leading power journals, adhering to the minimum specifications outlined in Conjecture 7 [107].
• Participate in the PeripheryBench open-source initiative by contacting the corresponding author for access to the 2026 beta version.

According to this systematic review, the authors present three actionable recommendations for researchers and journal editors:

• Future MAS publications ought to incorporate scenarios involving delays and packet loss. At a minimum, authors should disclose performance metrics under communication delays of 100 ms, 300 ms, and 500 ms, alongside packet loss rates of 2%, 5%, and 10%. This practice guarantees comparability among studies and accurately reflects actual peripheral grid conditions [38,39,40,51].
• Hardware-in-the-loop (HIL) validation should be promoted whenever feasible. Currently, less than 15% of the papers surveyed include HIL testing [108,130]. We suggest that leading power journals regard HIL validation as a desirable, albeit not obligatory, criterion for acceptance, especially for manuscripts proposing innovative MARL or consensus protocols.
• New MAS methodologies should be evaluated against at least one IEC 61850-style hierarchical benchmark. This approach offers an industry-relevant reference point and elucidates the practical benefits of decentralization. In cases where IEC 61850 is not directly applicable, authors should compare their work against a centralized or decentralized hierarchical framework with established latency and scalability constraints [5,6,90].

Although hierarchical control continues to be the industry norm, MAS-especially hybrid consensus-DRL and MARL strategies-offers a promising route towards resilient, scalable, and intelligent active peripheries. The next five years are anticipated to witness the integration of physics-informed learning, digital twins, and open benchmarking as the dominant paradigm.
