Accurately Identifying Staphylococcus argenteus Using Matrix-Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometry

1. Introduction

Staphylococcus argenteus is a coagulase-positive, Gram-positive coccus and a newly recognized species within the genus Staphylococcus. It was first isolated in Australia by McDonald et al. in 2006 [1]. Initially classified as a divergent lineage within the complex, it was established as a separate species in 2015 [2,3,4,5]. While S. schweitzeri remains largely restricted to animal hosts and possesses limited clinical relevance in humans [6], S. argenteus is a globally distributed pathogen capable of causing a wide spectrum of infections, ranging from skin and soft tissue infections to invasive diseases such as bacteremia and sepsis[7,8,9,10,11,12]. Despite exhibiting relatively low antimicrobial resistance, S. argenteus has emerged as a significant concern within the S. aureus complex. Its prevalence among isolates previously identified as MSSA has surged—rising from 0.2% in 2000 to 15.2% by 2012 [12]—and it has been associated with higher mortality rates in bloodstream infections compared to typical MSSA [7]. Accurate identification of S. argenteus is therefore essential for conducting epidemiological surveillance, monitoring antimicrobial resistance, and understanding its clinical significance.

Distinguishing S. argenteus from S. aureus presents a significant challenge within routine clinical laboratory settings[5]. From a morphological perspective, S. argenteus lacks the golden carotenoid pigment staphyloxanthin[13]. However, colony color alone is an unreliable differentiator, as some S. aureus isolates may also appear nonpigmented. Furthermore, both species exhibit remarkably similar profiles in routine biochemical characteristics and hemolytic activity. While most biochemical tests yield nearly identical results, the N-acetylglucosamine acidification test shows a notable divergence; approximately 28% of S. argenteus isolates test positive, compared to 98% of S. aureus[8]. Nevertheless, such variation remains insufficient to serve as a definitive criterion for clear species differentiation. At the genomic level, S. argenteus can be identified by the absence of the crtM pigment gene and the presence of a unique 340-bp nonribosomal peptide synthetase (NRPS) gene. In contrast, S. aureus typically possesses the crtM gene and yields a significantly shorter 160-bp NRPS PCR product[8]. PCR assays targeting the crtM gene and the NRPS gene can reliably identify S. argenteus; however, most clinical laboratories are not usually equipped to carry out these analyses. Moreover, where such capacity exists, these assays increase considerable cost and turnaround time.

Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) has revolutionized bacterial identification in clinical microbiology laboratories by facilitating rapid and accurate species-level identification. However, even with this method, differentiating between closely related species remains a challenge. Consistent with this limitation, the method often yields ambiguous results for S. argenteus and S. aureus, both species appearing among the top matches with comparable confidence scores[14]. Several studies have applied advanced computational approaches and developed customized databases to enhance the ability of MALDI-TOF MS to distinguish between closely related bacterial species [12,14]. However, although these strategies improve accuracy, they often require specialized software, extensive datasets, or bioinformatics expertise, and this limits their applicability in routine clinical settings[15,16]. A simple, practical, and reproducible MALDI-TOF MS–based method that can be readily adopted by clinical laboratories without major workflow modifications is therefore a necessity.

In this study, we developed a simple, MALDI-TOF MS–based approach that allows accurate identification of S. argenteus: by systematically analyzing mass spectral patterns from well-characterized clinical isolates, we identified a small number of distinct peaks that reliably differentiate S. argenteus from methicillin-sensitive S. aureus (MSSA). We further validated the performance of this peak-based model using independent validation isolates and assessed its applicability across different genetic backgrounds using multilocus sequence typing (MLST) and pulsed-field gel electrophoresis (PFGE). The validation results demonstrate that the MALDI-TOF MS method developed here is a practical solution to an important diagnostic challenge and enables improved recognition of S. argenteus in clinical microbiology laboratories.

2. Materials and Methods

2.1. Bacterial Isolates

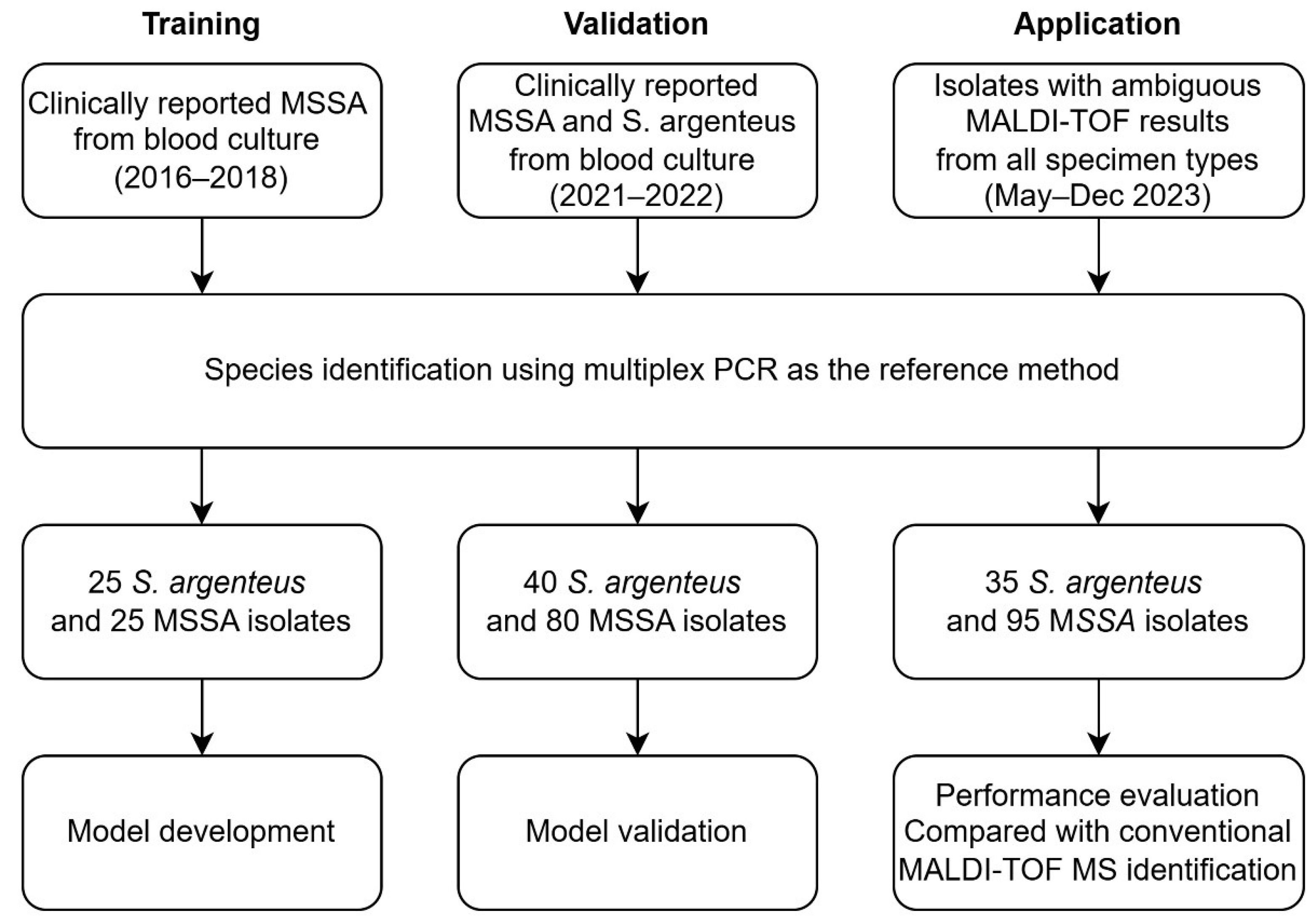

The clinical isolates included in this study were procured from the bacterial storage bank of Chang Gung Memorial Hospital and categorized into three functional phases: development, validation, and application. Isolates from all three phases were subcultured on blood agar plates and incubated overnight at 37 °C in 5% CO₂. Pure cultures were preserved at −70 °C in trypticase soy broth (Difco Laboratories, Detroit, MI, USA) supplemented with 15% glycerol.

The development phase comprised blood culture isolates collected between 2016 and 2018. During this period, S. argenteus was not included in the MALDI-TOF database. Because S. argenteus is typically methicillin-susceptible[11,12,17,18,19], we retrospectively screened MSSA isolates derived from blood cultures. The isolates were confirmed by multiplex PCR targeting the crtM and NRPS genes. Ultimately, 25 S. argenteus isolates and 25 MSSA isolates were collected in this phase.

The validation phase included blood culture isolates collected between 2021 and 2022. During this period, S. argenteus had been incorporated into the MALDI-TOF database. Therefore, 40 S. argenteus isolates and 80 MSSA isolates derived from blood cultures were retrospectively collected according to clinical microbiology reports. All isolates were confirmed by multiplex PCR targeting the crtM and NRPS genes.

In the application phase, conducted from May to December 2023, isolates from all culture sources with ambiguous MALDI-TOF scores meeting the predefined criterion were collected. The identification model was then applied to discriminate between S. argenteus and S. aureus, and species classification by multiplex PCR was performed as the reference standard. A total of 130 isolates were collected during this phase.

2.2. Multiplex PCR-Based Identification of S. argenteus

A multiplex PCR assay targeting the crtM and NRPS genes was established to differentiate S. argenteus from S. aureus. The NRPS primers used in the process were as described by Zhang et al.[8], whereas the crtM primers were newly designed in this study (Table 1). Amplification of the crtM gene using these newly designed primers generated a 526-bp product in S. aureus but not in S. argenteus (Figure 1).

To minimize nonspecific amplification, a step-down annealing protocol was employed: 10 cycles with an annealing temperature of 55 °C followed by 20 cycles at 45 °C, optimized for multiplex amplification of both targets. The PCR products were further separated by agarose gel electrophoresis.

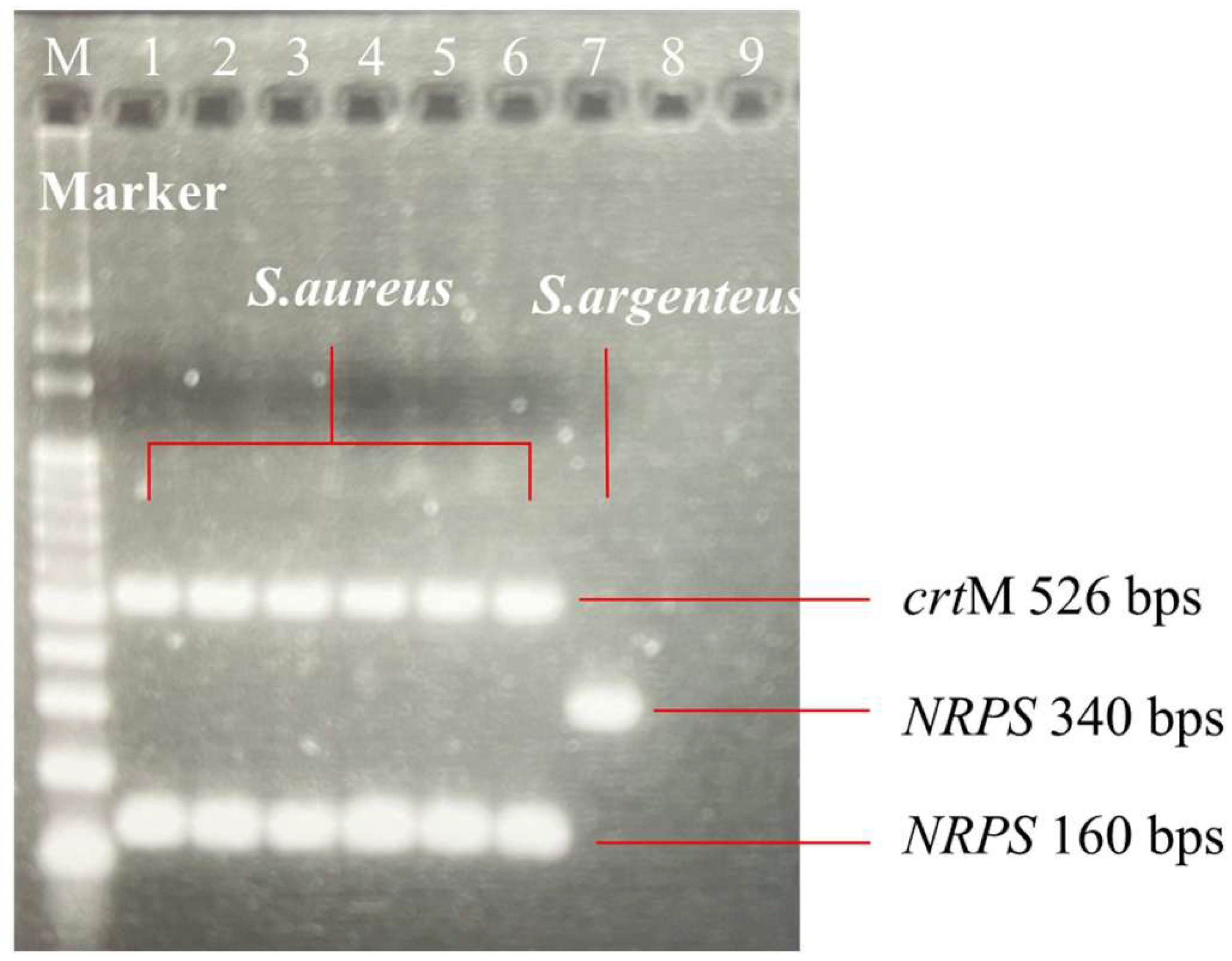

As shown in Figure 1, isolates producing both 160-bp (NRPS) and 526-bp (crtM) amplicons were classified as S. aureus, whereas isolates yielding only the 340-bp NRPS amplicon were classified as S. argenteus. Notably, although S. schweitzeri theoretically generates a PCR pattern identical to that of S. argenteus, it has minimal clinical relevance in humans; therefore, all clinically isolated strains exhibiting this pattern were regarded as S. argenteus in this study.

2.3. MALDI-TOF MS Analysis

Fresh colonies, from the overnight blood agar cultures of the isolates, were spotted onto a stainless-steel target plate using the direct smear method; formic acid (70%) was subsequently added to each spot, and the plate was air-dried. Each sample spot was overlaid with 1 μL of Bruker HCCA matrix (10 mg/mL), prepared in a standard solvent containing 50% acetonitrile, 47.5% water, and 2.5% trifluoroacetic acid. The spots were air-dried at ambient temperature to ensure uniform crystal formation. Spectra were acquired using a Bruker Microflex LH/SH MALDI-TOF mass spectrometer and analyzed using the Bruker Biotyper software (version 4.1) with the MBT 8468 MSP Library (Bruker Daltonics GmbH, Bremen, Germany) as the reference database. Identification scores ≥ 2.0 indicated species-level identification. Figure 2 illustrated the process flowchart of this study.

2.3.1. Development

Twenty-five PCR-confirmed S. argenteus isolates and 25 confirmed MSSA isolates were used to train the identification model. The MALDI-TOF MS spectra produced by these isolates were analyzed using ClinProTools 3.0 [20,21,22,23,24,25] and flexAnalysis software to identify peaks that differentiate S. argenteus from MSSA. Considering potential instrument-related variation under routine clinical use, a tolerance of ±5 m/z was applied when defining peak presence (e.g., signals detected within 5000–5010 m/z were considered positive for the 5005 m/z peak). The analytical workflow is shown in Figure 1.

2.3.2. Validation

The 40 PCR-confirmed S. argenteus isolates and 80 PCR-confirmed MSSA isolates were collected to validate the MALDI-TOF MS–based identification model. These isolates were run through the newly trained identification model, and the results were then compared with the reference PCR classification (Figure 2).

2.3.3. Application

In the application phase, the S. argenteus identification model was applied in the clinical laboratory of Chang Gung Memorial Hospital. The identification model was applied if the isolate met either of the following selection criteria: (1) a MALDI-TOF MS score > 2.0 with at least two potential identifications among S. aureus, S. argenteus, and S. schweitzeri; or (2) a MALDI-TOF MS score ranging from 2.0 to 2.3 with S. aureus as the sole reported species.

To evaluate the predictive performance, a total of 130 S. argenteus and MSSA isolates between May and December 2023 were retrospectively collected. The isolates in this phase were collected from all specimen types. All isolates were subjected to multiplex PCR to serve as the reference method for species confirmation. The sensitivity and specificity of the proposed identification model were subsequently determined. The predictive performance of conventional MALDI-TOF MS identification was also evaluated as a comparator. Under the conventional approach, isolates were classified according to the species with the highest MALDI-TOF MS score (Figure 2).

2.4. Phylogenetic Typing

2.4.1. Multilocus Sequence Typing (MLST)

To assess the performance of the identification model across diverse genetic backgrounds, MLST was performed on the 40 S. argenteus isolates collected in the second phase. Seven housekeeping genes commonly used in S. aureus MLST schemes (arcC, aroE, glpF, gmk, pta, tpi, and yqiL) were amplified and subsequently subjected to Sanger sequencing[26,27,28,29,30]. The standard MLST primers were used for arcC, gmk, and pta; however, redesigned primers were used for aroE, glpF, tpi, and yqiL owing to the poor or absent amplification associated with the corresponding standard versions used in MLST schemes. Sequence types (STs) were assigned using the S. aureus MLST database (https://pubmlst.org/organisms/Staphylococcus-aureus), with S. aureus as the reference species. The phylogenetic relationships and population structures of the STs were investigated using the goeBURST algorithm (version 1.2.1) implemented in PHYLOViZ [31]. Clonal complexes were defined as groups of STs linked by single-locus variants (SLVs). Primer sequences are listed in Table 1.

2.4.2. Pulsed-Field Gel Electrophoresis (PFGE)

PFGE was performed to assess genomic relatedness among S. argenteus isolates. In brief, isolates grown for 18–24 hours on blood agar plates were resuspended in 250 μl of 0.5× Tris-EDTA buffer and mixed with an equal volume of 1.6% agarose to form plugs. The plugs were placed in microcentrifuge tubes and lysed in lysis buffer (0.006 M Tris-HCl, 0.1 M EDTA, 1 M NaCl, 0.2% deoxycholate, and 0.5% sodium lauryl sulfate) containing lysozyme (1 mg/mL) and lysostaphin (0.05 mg/mL) at 37 °C for at least 6 hours. After removing the lysis buffer, the plugs were incubated overnight at 50 °C in ES buffer (0.5 M EDTA, 1% sodium lauryl sulfate) containing 1 mg/mL proteinase K. After removing the ES buffer, the plugs were washed with sterile water at 50 °C for 30 minutes, followed by three 30-minute washes with TE buffer at 37 °C. The plugs were then cut to an appropriate size and digested with SmaI restriction enzyme for at least 4 hours. The digested plugs were loaded into the wells of a 1.0% agarose gel and separated using a CHEF Mapper XA system (Bio-Rad Laboratories Inc., 94547 Hercules, CA, USA) [32,33,34]. Electrophoresis was performed at 200 V and 14 °C for 22 hours, with a pulse angle of 120° and pulse times ranging from 5 to 60 seconds. PFGE patterns were analyzed using BioNumerics software version 6.5 (BioMérieux, Marcy l’Etoile, France). Isolates with ≥80% similarity were considered the same PFGE type, while those with <80% similarity were classified as different PFGE types.

3. Results

3.1. MALDI-TOF MS Identification Model: Development

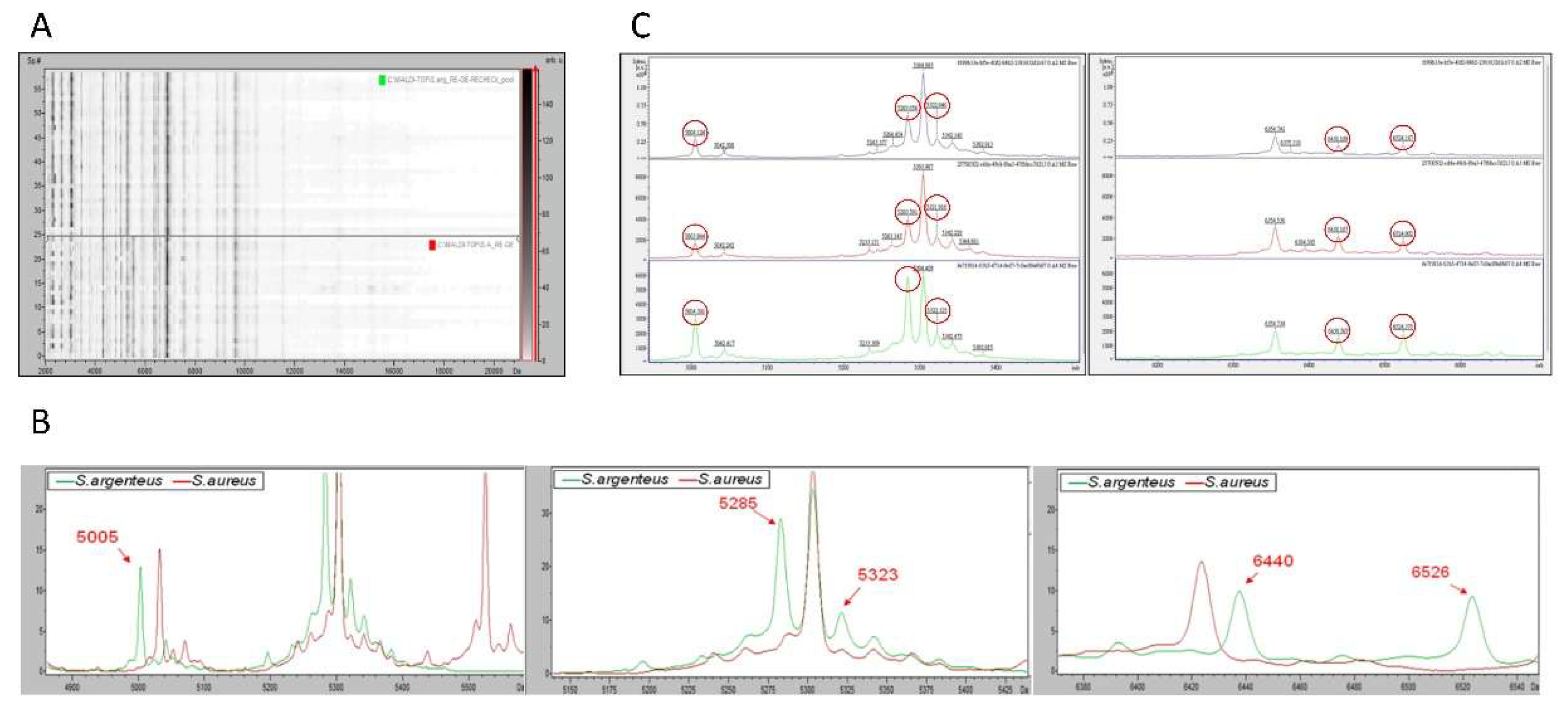

In the development phase, MALDI-TOF MS spectra from 25 PCR-confirmed S. argenteus isolates and 25 MSSA isolates were analyzed. Five characteristic peaks were identified and confirmed: 5005 ± 5, 5285 ± 5, 5323 ± 5, 6440 ± 5, and 6526 ± 5 (Figure 3). All 25 S. argenteus isolates exhibited four or five of these peaks, whereas all 25 S. aureus isolates exhibited fewer than four peaks.

Based on these findings, the MALDI-TOF MS identification criteria were defined as follows: the presence of at least four of the five characteristic peaks was considered indicative of S. argenteus, and the presence of less than four peaks was considered indicative of S. aureus. The detailed identification rules are summarized in Table 2.

3.2. MALDI-TOF MS Identification Model: Validation

All 40 S. argenteus isolates and all 80 MSSA isolates included in the validation analysis were correctly identified as S. argenteus and S. aureus, respectively, by the MALDI-TOF MS identification model. The model demonstrated excellent identification accuracy under controlled validation conditions, with 100% sensitivity and specificity (Table 3).

3.3. MALDI-TOF MS Identification Model: Clinical Application

Among the 130 isolates analyzed in the application phase, multiplex PCR revealed that the 130 isolates consisted of 35 S. argenteus and 95 S. aureus isolates. With conventional MALDI-TOF MS identification, 6 of the 35 S. argenteus isolates were misidentified as S. aureus, and conversely, 1 of the 95 S. aureus isolates were misidentified as S. argenteus. The sensitivity and specificity for identifying S. argenteus were 82.9% and 98.9%, respectively (Table 4).

In contrast, our identification model correctly identified all S. aureus and S. argenteus isolates in the application phase. The model achieved 100% sensitivity and 100% specificity for S. argenteus identification (Table 5).

3.4. MLST Analysis of S. argenteus

MLST, performed on the 40 S. argenteus isolates in the validation set, identified seven sequence types (STs): ST2250, ST1223, ST2198, ST2854, ST3326, ST2793, and ST7299 (Table 6).

MLST, multilocus sequence typing; ST, sequence type.

ST2250 was the most prevalent ST, followed by ST1223. Three isolates assigned to ST1223 exhibited sequence variation at the glpF locus compared with the reference ST1223 glpF allele; however, they were still classified as ST1223, based on database analysis. Similarly, two ST2854 isolates were found to harbor a variant glpF locus while maintaining their overall ST2854 classification.

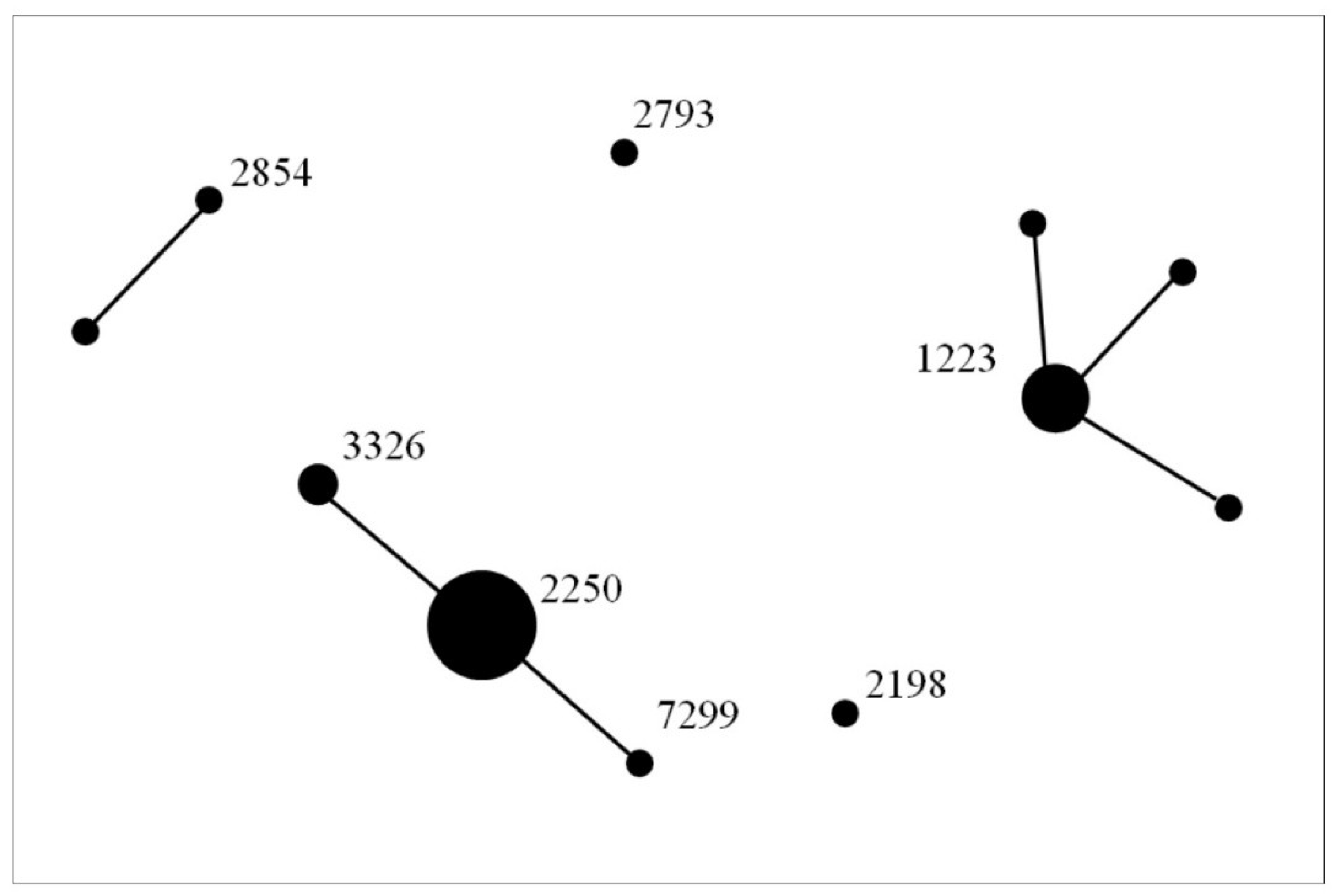

goeBURST analysis identified ST3326 and ST7299 as SLVs of ST2250. The remaining STs differed from ST2250 at three to four loci and from each other at two to three loci, indicating no direct evolutionary relationship (Figure 4).

PFGE Typing of ST2250 S. argenteus Isolates

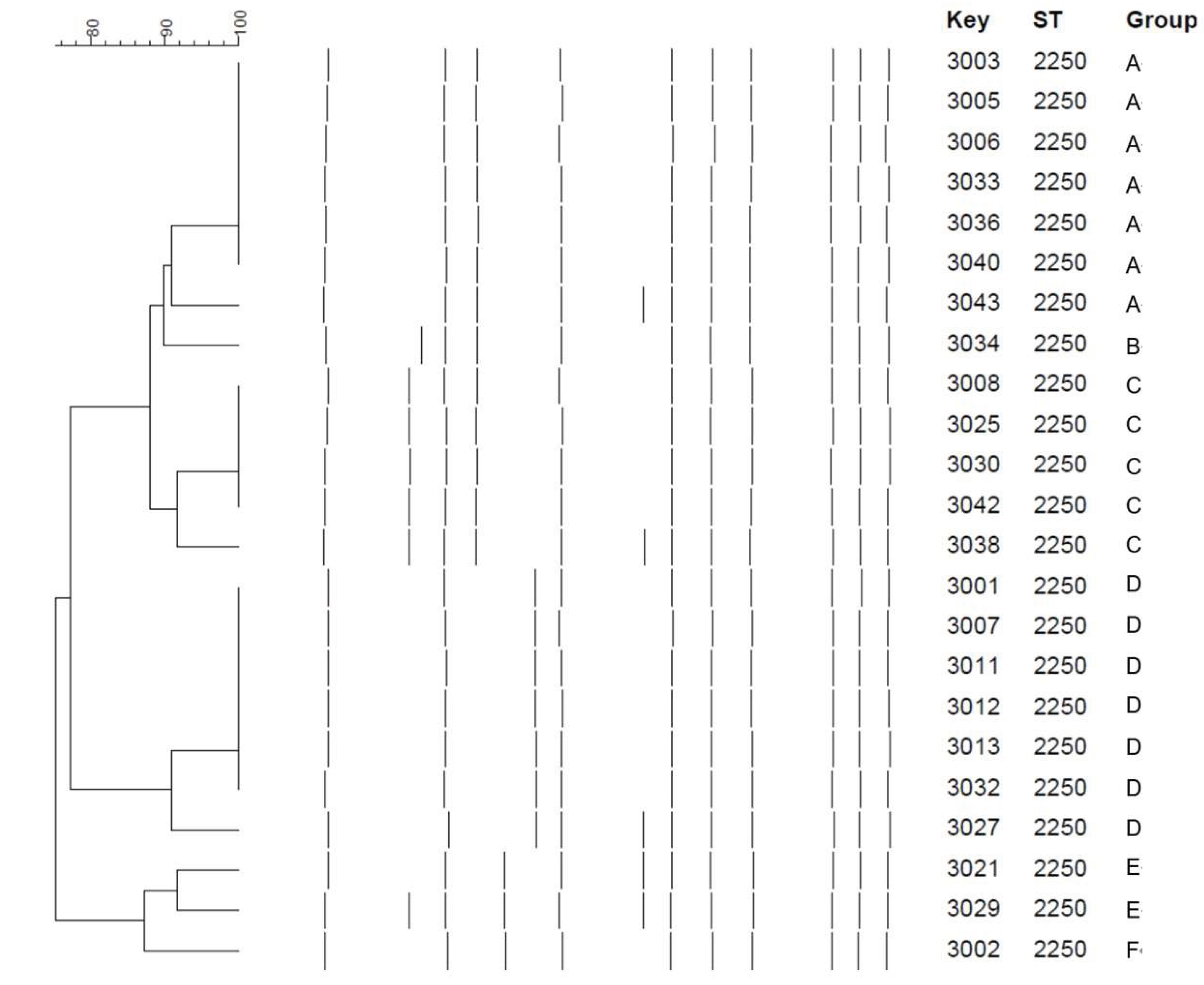

PFGE of the 23 ST2250 isolates—the most prevalent ST identified—revealed six distinct PFGE patterns (A–F) at a 80% similarity cutoff (Figure 5). Type A and type D were the most common, each comprising seven isolates, followed by type C (five isolates), type E (two isolates), and types B and F (one isolate each). These results indicate substantial genomic diversity within the ST2250 lineage of S. argenteus.

4. Discussion

In this study, we developed a simple and accurate MALDI-TOF MS–based model to distinguish S. argenteus from MSSA. We identified five characteristic mass spectral peaks (m/z 5005, 5285, 5323, 6440, and 6526) that differed consistently between the two species. Using the presence of at least four of these five peaks as the criterion for identifying S. argenteus, our model achieved 100% sensitivity and specificity in both the development set and an independent validation set. In the clinical application phase, the model correctly identified all isolates, whereas the conventional MALDI-TOF MS approach yielded several misidentifications. These findings demonstrate that the peak-based identification criterion can reliably resolve ambiguous MALDI-TOF MS results without the need for additional specialized software or confirmatory wet-laboratory assays.

Differentiating S. argenteus from S. aureus using standard methods has been challenging because the two species are nearly phenotypically identical. S. argenteus lacks the golden carotenoid pigment staphyloxanthin[13], but this difference is subtle and unreliable—some S. aureus strains can be nonpigmented. Automated biochemical systems and 16S rRNA sequencing cannot distinguish the two species owing to their high genetic similarity. Even MALDI-TOF MS, which has greatly improved routine bacterial identification, often fails to differentiate these species, frequently returning high-confidence identifications for both in the same analysis. Chen et al.[12] previously developed a MALDI-TOF MS–based classification model using machine learning to differentiate S. argenteus from S. aureus; however, this model showed limited sensitivity when applied to our dataset. In contrast, our method uses a straightforward peak-based identification rule that can be applied directly in routine clinical laboratories, without the need for complex computational tools—enhancing both accessibility and robustness.

Molecular PCR methods have been proposed as reference standards for identifying S. argenteus. Early assays targeted deletions in the NRPS gene, while others focused on the crtM gene involved in pigment synthesis. Single-target PCR assays, however, may yield indeterminate results due to amplification failure or gene absence. To address these limitations, we adopted a multiplex PCR strategy combining crtM and NRPS targets; this allows simultaneous confirmation of both species and minimizes false-negative interpretations. This multiplex PCR served as an efficient reference standard during model development. That said, although molecular methods are accurate, they are time-consuming and add cost to routine diagnostic workflows. The MALDI-TOF MS–based identification model, by contrast, leverages spectra already generated during routine identification, allowing immediate resolution of ambiguous results without additional laboratory procedures.

The peak-based discrimination model achieved 100% sensitivity and specificity in both development and validation phases. In the development set, all S. argenteus isolates exhibited at least four of the five characteristic peaks, whereas none of the MSSA isolates met this criterion. Chen et al.[12] reported several discriminatory MALDI-TOF MS peaks for identifying the two species, including m/z 5005.7, 6440.5, 6526.4, and 6635.9 for S. argenteus and m/z 5033.99 for S. aureus. In the present study, five peaks—m/z 5005, 5285, 5323, 6440, and 6526—were used as discriminatory indicators, with isolates classified as S. argenteus when at least four of the five peaks were detected. Of these, 3 peaks—m/z 5005, 6440, and 6526—were previously reported by Chen et al.; m/z 5285 and 5323 were characteristic peaks newly identified in this study. Lowering the identification threshold from all five peaks to four or more improved sensitivity without compromising specificity. When applied to the independent validation cohort, the model demonstrated complete concordance with PCR reference results. In clinical settings, this approach enables laboratory personnel to resolve ambiguous MALDI-TOF MS identifications by checking for the presence of a small set of predefined peaks, either visually or by simple calculation, without the need for additional procedures. This study is among the first to quantify the extent of S. argenteus misclassification in routine clinical MALDI-TOF MS workflows and to provide a practical and implementable solution.

Genetic characterization further supported the broad applicability of the discrimination model. MLST analysis revealed seven distinct STs among the S. argenteus isolates, with ST2250 being the predominant lineage, consistent with previous reports[12]. The MALDI-TOF MS identification model correctly identified S. argenteus across all STs observed, indicating that its performance is not limited to a specific genetic background. PFGE analysis of ST2250 isolates revealed additional genetic diversity within this lineage, further confirming that the training and validation sets encompassed multiple genetic backgrounds.

Several limitations of this study should be acknowledged. First, this was a single-center study, and the isolate collection may not fully represent the global diversity of S. argenteus. Second, the identification model was developed and tested using a single MALDI-TOF MS platform—performance may vary with different instruments or spectral databases. Third, whole-genome sequencing was not used as a reference standard, which represents a methodological limitation given its superior resolution for species confirmation. Future multicenter studies incorporating larger and more diverse isolate collections and multiple MALDI-TOF systems will be necessary to further validate and refine this approach. Despite these limitations, the findings of this study demonstrate that a simple, peak-based MALDI-TOF MS identification model can substantially improve the accurate identification of S. argenteus in routine clinical microbiology laboratories.

5. Conclusion

This study developed a simple MALDI-TOF MS peak–based identification model to distinguish S. argenteus from MSSA. The model achieved 100% sensitivity and specificity in both validation and clinical application phases, suggesting it is a practical diagnostic tool for clinical microbiology laboratories.
