Sensor Fusion and Perception for Autonomous Driving: A Critical Review of Modalities, AI Models, Algorithms, and Industry Configurations

1. Introduction

Autonomous driving systems are a major machine learning application because they require extracting actionable knowledge from high-dimensional, real-time sensor data and converting it into safe driving decisions. The field has advanced rapidly because of progress in perception, prediction, planning, and embedded computing, but reliable deployment is still limited by robustness, interpretability, and validation challenges [1,2,3,4,5]. The Society of Automotive Engineers (SAE) J3016 standard provides a useful framework for describing the progression from Level 0 to Level 5 automation and for positioning current systems within this broader technological landscape, as shown in Figure 1 and Table 1.

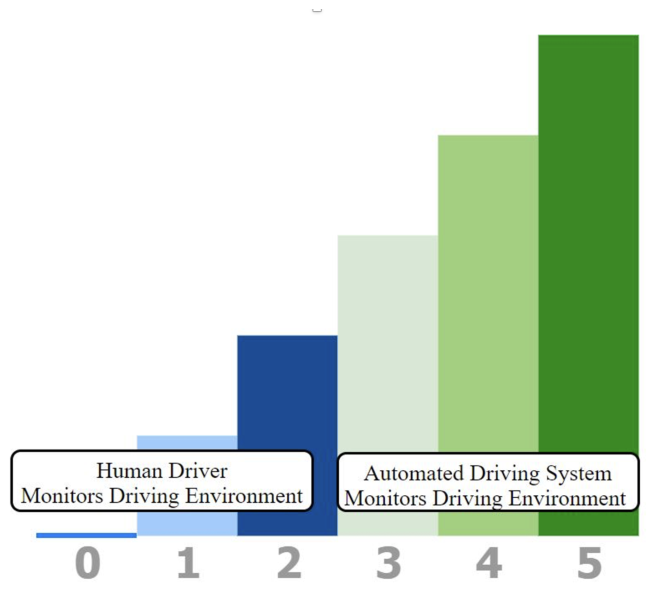

Advanced Driver Assistance Systems (ADAS) support drivers in tasks such as navigation and parking by using camera-based sensors without fully taking over the driving process. Their purpose is to reduce accidents by analyzing traffic conditions, congestion, road hazards, and other environmental factors. At the core of most ADAS platforms is a hardware accelerator responsible for interpreting the vehicle’s surroundings and identifying potential risks. These systems typically rely on four main perception sensors: LiDAR, radar, cameras, and ultrasonic sensors. The data collected from these sensors is processed through the accelerator and fused to detect nearby objects, including pedestrians, vehicles, lane markings, and traffic signs, before being passed to braking, steering, and throttle control. This overall workflow is illustrated in Figure 2 [8].

Recent advances in the field have been largely propelled by breakthroughs in deep learning models and the availability of specialized hardware accelerators [9,10]. Autonomous vehicles rely on a diverse sensor suite to capture a multi-modal representation of their environment [11,12]. Machine learning algorithms are then tasked with fusing this heterogeneous data to perform critical knowledge extraction tasks such as object detection, scene understanding, localization, and path planning. This evolution from traditional rule-based systems to end-to-end learning paradigms marks a significant shift in how intelligent vehicles interpret and navigate the world.

This review provides a critical examination of the machine learning and knowledge extraction techniques that underpin modern autonomous driving systems. Rather than offering only a descriptive survey, we analyze the autonomous stack from a data-centric perspective, compare modular and end-to-end architectures, and examine how leading industry players translate these ideas into practical systems. We also identify the main technical barriers that still prevent reliable deployment, with particular attention to model robustness, interpretability, and rare long-tail scenarios [13,14].

The main contribution of this paper is a structured and critical synthesis of autonomous driving from the perspective of machine learning and knowledge extraction. Specifically, we: (i) organize the sensor and software stack according to the role of each component in the data-processing pipeline; (ii) compare classical modular pipelines with end-to-end learning frameworks; (iii) review the hardware and simulation tools used to train and validate these systems; and (iv) identify the open problems that still prevent reliable Level 4 and Level 5 autonomy, especially long-tail edge cases, adverse-weather robustness, and explainability.

The remainder of the paper is organized as follows. Section 2 reviews the sensor stack. Section 3 discusses computing platforms. Section 4 presents the artificial-intelligence pipeline. Section 5 examines autonomous driving simulators. Section 6 examines industry case studies. Section 7 discusses challenges and future directions, and Section 8 concludes the paper.

2. Sensor Stack

The perception system of an autonomous vehicle begins with data acquisition. No single sensor modality is sufficient for safe operation in complex driving environments, so modern autonomous systems rely on a complementary sensor stack in which each modality compensates for the weaknesses of the others [15]. This multi-modal design is essential for redundancy, robustness, and reliable perception in safety-critical driving tasks. The core data acquisition technologies include cameras, LiDAR, radar, and supporting localization sensors such as GNSS and IMU. Table 2 summarizes how sensor choice varies across common ADAS applications.

2.1. Cameras: The Semantic Sensor

Cameras are the most ubiquitous perception sensors in autonomous driving because they are inexpensive and provide dense, high-resolution color and texture information that closely resembles human vision [17,18]. They are the primary source of semantic knowledge for machine learning models, especially for object classification, traffic light recognition, lane marking detection, and drivable-area segmentation. Table 3 lists commonly used camera models in the autonomous vehicle industry, while Table 4 summarizes representative stereo camera specifications.

The main limitation of camera-based perception is that it is inherently 2D. Depth estimation must be inferred rather than directly measured, which makes monocular perception difficult and computationally expensive [19]. In addition, camera performance degrades under poor lighting, glare, rain, and fog, which creates a major robustness challenge for vision-based systems [55]. This is one reason the industry remains divided between camera-centric strategies and multi-modal designs. Tesla Vision is a prominent example of the former, having shifted away from radar and LiDAR in favor of a vision-first architecture [20].

2.2. LiDAR: The Geometric Sensor

Light Detection and Ranging (LiDAR) sensors provide precise geometric information by emitting laser pulses and measuring their return time to build a detailed 3D point cloud of the environment [8]. This makes LiDAR a cornerstone of many Level 4 systems because it supports high-precision mapping, localization, and 3D object detection. Table 5 summarizes commonly used LiDAR models and their specifications.

LiDAR has two major advantages. First, it provides direct distance measurements with high spatial accuracy. Second, as an active sensor, it is less dependent on ambient light and can operate in darkness. Its main limitations are cost, data volume, and sensitivity to adverse weather, especially fog and heavy rain. The high dimensionality of LiDAR point clouds also requires specialized neural architectures such as PointNet- and voxel-based models for efficient processing [22]. These constraints explain why LiDAR is often used together with cameras and radar rather than as a standalone modality.

2.3. Radar: The Robust Sensor

Radar is a cornerstone sensor technology in autonomous vehicles because it can estimate distance, velocity, and angle by emitting and receiving reflected radio waves. It is especially valuable in adverse weather and poor lighting, where optical sensors are less reliable. Automotive radar systems are commonly deployed in the 24 GHz, 60 GHz, 77 GHz, and 79 to 81 GHz bands [24]. Their use can be grouped into four main classes.

• Short-Range Radar (SRR): Used for parking assistance, blind-spot detection, and collision avoidance at distances below 100 m with wide field of view.
• Medium-Range Radar (MRR): Used for lane change assistance and cross-traffic alerts at intermediate distances of 100 to 200 m.
• Long-Range Radar (LRR): Used for adaptive cruise control and forward collision warning at ranges up to 300 m.
• 4D Imaging Radar: Extends conventional radar by adding elevation information, which improves scene understanding and supports higher-resolution environmental modeling.

Radar offers three main benefits. It is robust in rain, fog, dust, and darkness. It provides direct velocity estimation through the Doppler effect. It is also generally less expensive than LiDAR. However, radar has lower angular resolution, limited object classification ability, and susceptibility to false positives and frequency interference in dense traffic. Because of these limitations, radar is best viewed as a complementary modality for motion estimation and redundancy rather than a standalone perception sensor.

Table 6. Radar manufacturers for autonomous vehicles and their power consumption [16].

Model	Power Consumption
Continental ARS 408-2	6.6 W
Bosch LRR3	4.0 W
Aptiv SRR2	6.0 W
Aptiv MRR	4.5 W
smartmicro UMRR-0A Type 29	3.7 W

Table 6. Radar manufacturers for autonomous vehicles and their power consumption [16].

Model	Power Consumption
Continental ARS 408-2	6.6 W
Bosch LRR3	4.0 W
Aptiv SRR2	6.0 W
Aptiv MRR	4.5 W
smartmicro UMRR-0A Type 29	3.7 W

2.4. Supporting Sensors for Localization

While cameras, LiDAR, and radar perceive the external environment, localization sensors estimate the vehicle’s own state. GNSS and IMU are the most important supporting sensors in this category [25]. GNSS provides a global position reference, while the IMU measures acceleration and angular motion. Together, they support vehicle localization, especially when fused with other sensors to reduce drift and improve robustness in tunnels, urban canyons, and other GNSS-degraded settings. Table 7 lists example GNSS receivers, and Table 8 lists example ultrasonic sensors used in autonomous vehicles.

Ultrasonic sensors are mainly used for short-range tasks such as parking and low-speed maneuvering. They are low cost and useful for near-field detection, but they have limited range and are sensitive to interference. For this reason, they are usually treated as supporting sensors rather than core perception sensors.

2.5. Sensor Fusion and Industry Configurations

The central machine learning problem in the sensor stack is not only sensing, but also fusion. Camera data provides semantics, LiDAR provides geometry, radar provides velocity and all-weather robustness, and GNSS/IMU provide vehicle state. The challenge is to combine these heterogeneous streams into a single representation that is accurate, low latency, and fault tolerant. Fusion can be implemented at the raw-data level, feature level, or decision level, and each strategy involves different trade-offs in complexity, latency, and interpretability [21,26].

Table 9 summarizes how failures in each sensor type can affect autonomous driving performance. This is important because the reliability of the overall system depends not only on the quality of individual sensors, but also on how gracefully the system handles degradation and redundancy.

Leading companies adopt different sensor philosophies, which reflects an ongoing debate about the best data acquisition strategy for autonomous driving. These configurations show the trade-off between cost, richness of sensing, and redundancy.

Overall, the sensor stack should be viewed as the data foundation of autonomous driving rather than as a list of hardware components. Its value lies in how effectively the vehicle converts raw sensory input into reliable information for perception, prediction, and planning.

Table 10. A comparative overview of sensor suite configurations from leading autonomous vehicle developers.

Company/Platform	Camera Count	LiDAR Count	Radar Count	Ultrasonic Count	Primary Philosophy
Waymo (6th Gen)	13	4	6	Yes	Multi-modal fusion for maximum redundancy
Tesla (Hardware 4)	8	0	1	12	Vision-centric, end-to-end learning
Baidu (Apollo RT6)	12	8	–	–	Dense LiDAR and camera suite for robotaxis
WeRide (Sensor Suite 5.0)	12	7 (solid-state)	–	–	Modular, lightweight design for various vehicles
Pony.ai (PonyAlpha X)	7	4	4	0	Multi-modal fusion with strong LiDAR and radar focus

Table 10. A comparative overview of sensor suite configurations from leading autonomous vehicle developers.

Company/Platform	Camera Count	LiDAR Count	Radar Count	Ultrasonic Count	Primary Philosophy
Waymo (6th Gen)	13	4	6	Yes	Multi-modal fusion for maximum redundancy
Tesla (Hardware 4)	8	0	1	12	Vision-centric, end-to-end learning
Baidu (Apollo RT6)	12	8	–	–	Dense LiDAR and camera suite for robotaxis
WeRide (Sensor Suite 5.0)	12	7 (solid-state)	–	–	Modular, lightweight design for various vehicles
Pony.ai (PonyAlpha X)	7	4	4	0	Multi-modal fusion with strong LiDAR and radar focus

3. Computing Platforms

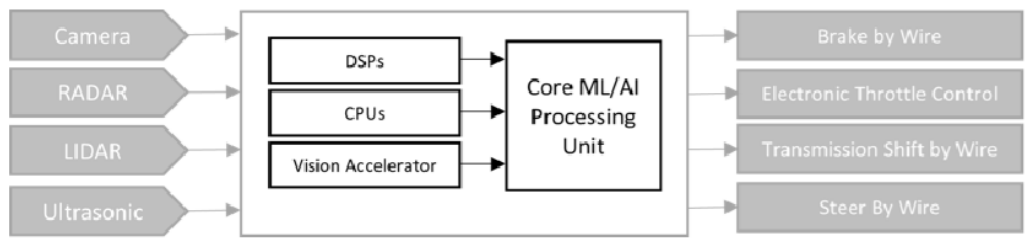

High-performance, low-latency processing is the backbone of every autonomous driving system. The perception, prediction, and planning pipeline must ingest multi-modal sensor streams, execute deep-learning inference, and produce deterministic actuation commands within a tight real-time budget. To meet these demands, modern autonomous vehicles rely on heterogeneous computing platforms that combine general-purpose processors with specialized accelerators [5,8].

3.1. General-Purpose CPUs and GPUs

Central Processing Units (CPUs) provide the flexibility required for system orchestration, sensor-data pre-processing, and safety-critical control loops. Multi-core ARM Cortex-A family or x86-64 cores are common in production vehicles because they support rich operating systems such as Linux and QNX and allow rapid software updates [5]. However, CPUs alone are not efficient enough for the computational burden of modern convolutional neural networks, especially when perception workloads must operate in real time.

For this reason, Graphics Processing Units (GPUs) are commonly integrated to accelerate deep-learning inference. Their large degree of parallelism makes them well suited to image processing, feature extraction, and tensor-heavy workloads. High-end automotive GPUs, such as NVIDIA Ampere-based devices used in the DRIVE Orin family, include thousands of CUDA cores and Tensor Cores that support mixed-precision computation and high-throughput matrix operations [8]. In practice, CPUs and GPUs are often used together, with the CPU handling system-level tasks and the GPU handling the bulk of neural inference.

3.2. Domain-Specific ASICs and Accelerators

Although GPUs offer strong flexibility, the demand for lower latency and better energy efficiency has driven the adoption of domain-specific accelerators. Field-Programmable Gate Arrays (FPGAs) provide a semi-customizable solution that allows engineers to tailor data paths, precision formats, and parallelism to specific neural network models. This makes FPGAs attractive for quantized or lightweight deep networks, where custom hardware mapping can significantly improve efficiency [28].

Application-Specific Integrated Circuits (ASICs) represent the most specialized end of the spectrum. These chips are designed for narrow classes of workloads, often focusing on matrix and vector operations used in deep learning. Their key advantage is that they deliver high performance at low power consumption, but this comes at the cost of flexibility. Once fabricated, an ASIC cannot be easily repurposed for new models or new workloads, which makes it best suited to stable, high-volume deployment scenarios [8,29].

In autonomous vehicles, ASICs are especially important for dedicated vision pipelines, neural-network inference, and sensor-specific pre-processing. They are often used when the objective is to maximize throughput while staying within strict thermal and power budgets.

4. Artificial-Intelligence Pipeline

Artificial intelligence is the software core of modern autonomous driving systems. Machine learning models extract patterns from sensor data, deep learning models perform perception on complex unstructured inputs, and generative methods can support synthetic data creation and scenario augmentation. In practice, the autonomy stack is usually organized as a modular pipeline in which perception, prediction, and motion planning are executed sequentially, with each stage contributing a distinct representation of the driving scene.

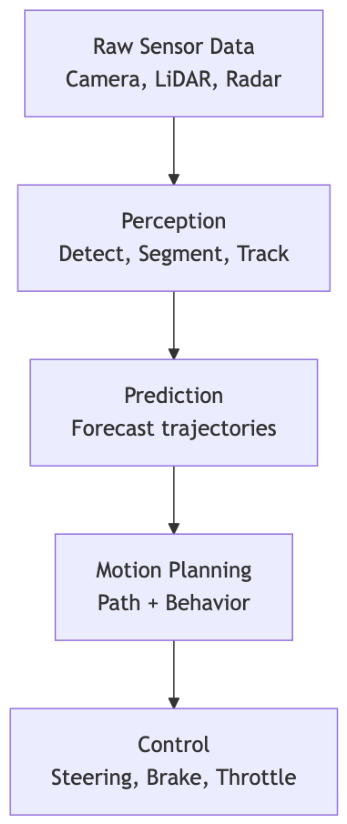

As shown in Figure 3, the classical AI pipeline transforms raw multi-modal sensor inputs into safe vehicle actions. The pipeline first constructs an environmental model, then forecasts the future behavior of other agents, and finally computes a trajectory for the ego-vehicle. This structure remains widely used because it is interpretable and allows each module to be tested separately.

4.1. Perception

Perception is the foundational layer of the AI pipeline. It processes raw data from cameras, LiDAR, and radar to build a structured, machine-readable representation of the surrounding world [30]. Because errors at this stage propagate to all downstream modules, perception quality has a direct impact on the safety of the complete system. Deep learning, especially convolutional neural networks, has largely replaced classical computer vision methods in this domain [2].

The main perception tasks are object detection and semantic segmentation. Object detection identifies and localizes relevant road users and infrastructure, including vehicles, pedestrians, cyclists, traffic lights, and signs. Semantic segmentation provides a denser understanding of the scene by assigning labels to every pixel or point, which is essential for identifying the drivable area and understanding scene context. State-of-the-art systems increasingly rely on multi-sensor fusion to improve robustness against the failure modes of individual modalities.

The large volume of sensor data also makes perception a hardware challenge, since these models must run in real time on embedded automotive platforms.

4.2. Prediction and Motion Planning

Once perception has established what is in the environment and where it is located, the next stages must determine what those objects are likely to do and how the ego-vehicle should respond [31]. Prediction is therefore responsible for forecasting the future motion of dynamic road users such as vehicles and pedestrians. Early systems often relied on simpler temporal models, while modern approaches use learned predictors that estimate multiple likely future trajectories for each actor, together with associated probabilities.

Motion planning uses the predicted scene evolution and the current environmental model to compute a safe, legal, and comfortable path for the vehicle [32]. This problem can be divided into global planning, which determines the overall route, and local planning, which selects immediate tactical actions based on the current scene [33,34]. In most systems, local planning is formulated as an optimization problem that balances collision avoidance, traffic-law compliance, and passenger comfort. Search-based approaches such as state lattices further discretize the problem into a graph-search formulation [35].

The output of this stage is a trajectory that can be executed by the vehicle control system as steering, acceleration, and braking commands.

4.3. End-to-End Learning

The classical modular pipeline is contrasted by the end-to-end learning paradigm. In this approach, a single neural network maps raw sensor inputs directly to vehicle control outputs, such as steering angle and acceleration, thereby collapsing perception, prediction, and planning into one learned model [20]. This approach is most closely associated with Tesla’s Full Self-Driving philosophy, which relies on large-scale fleet data and imitation learning to learn driving behavior from examples.

The main attraction of end-to-end learning is its ability to capture complex driving behavior that may be difficult to hand-engineer into a modular system. However, the approach also introduces major limitations that are central to the current debate in autonomous driving. Large neural networks are difficult to interpret and debug, which complicates safety validation. Their performance can also degrade in rare long-tail scenarios that were not adequately represented in training data. In addition, these models may learn spurious correlations instead of true causal relationships, which creates serious risks when they encounter unfamiliar situations.

For these reasons, the industry remains divided between modular architectures, which emphasize explicit safety constraints and interpretability, and end-to-end or hybrid approaches, which emphasize data-driven generalization.

4.4. Datasets for Autonomous Driving

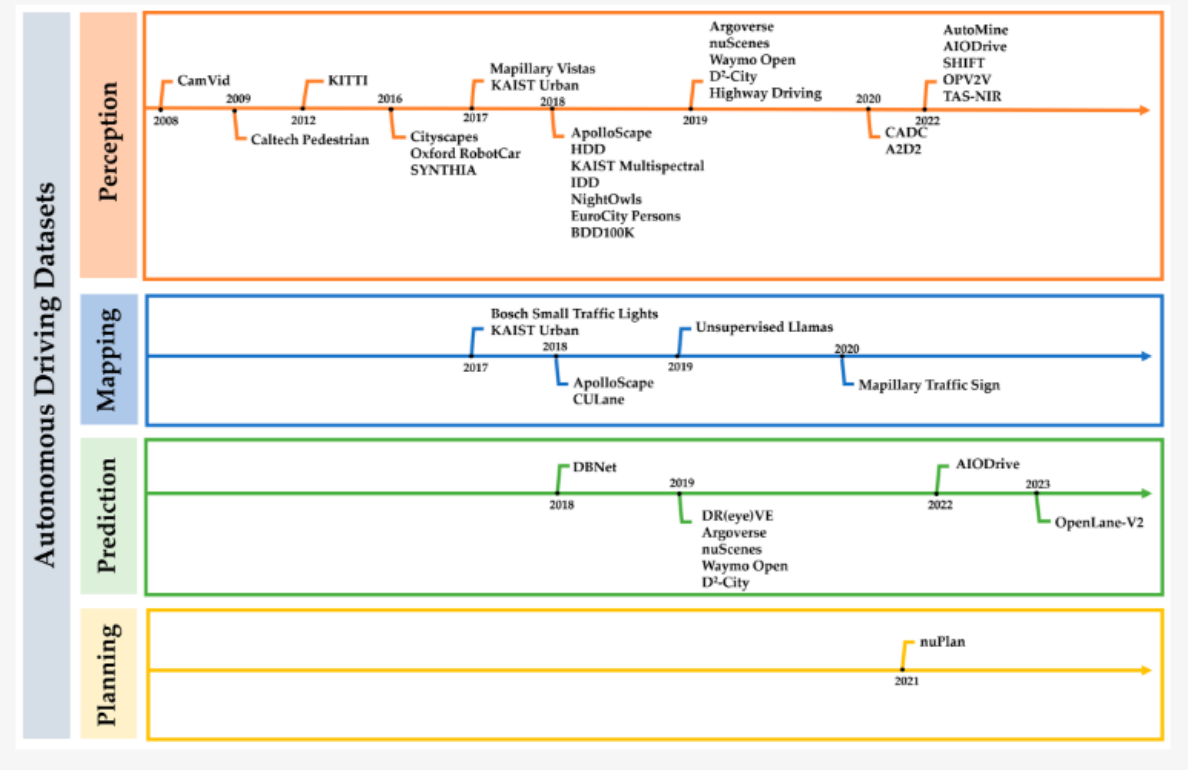

Publicly available datasets are essential for training and evaluating autonomous driving systems, and the most widely used ones are summarized in Table 11 [36]. These datasets cover perception, mapping, prediction, and planning tasks, and they differ in sensor setup, geography, and traffic conditions. They are indispensable for benchmarking model performance and improving generalization across urban, rural, and highway environments.

The datasets used in the field are typically grouped according to the tasks they support, including perception, mapping, prediction, and planning, as shown in Figure 4 [37]. Their diversity is useful, but it also means that many benchmarks remain biased toward well-structured driving scenes, leaving rare edge cases and difficult weather conditions underrepresented.

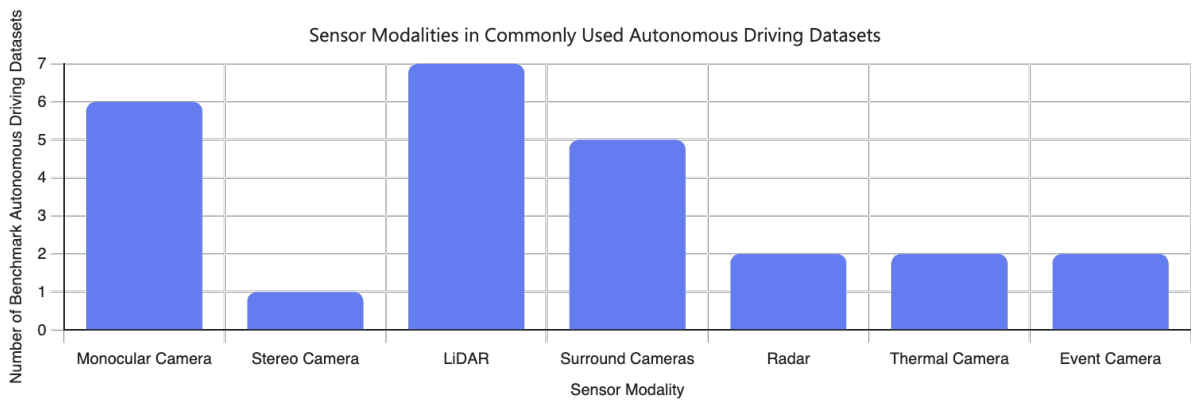

Figure 5 shows a distribution of sensor modalities across commonly used public autonomous-driving benchmark datasets. Each dataset is counted once per sensor modality it officially provides. The statistics reflect trends within widely adopted benchmarks rather than an exhaustive census of all released datasets. The datasets included are KITTI, Cityscapes, BDD100K, ApolloScape, Mapillary Vistas, nuScenes, Waymo Open Dataset, Argoverse, Argoverse2, PandaSet, SemanticKITTI, KAIST Multispectral, FLIR ADAS, DSEC, and MVSEC.

5. Autonomous Driving Simulators

Simulation platforms are essential tools in autonomous vehicle development because they enable repeatable, scalable, and safe testing in virtual environments that would be impractical or unsafe to reproduce on public roads. They are used for perception validation, planning evaluation, sensor testing, and scenario generation, and they play a central role in bridging the gap between offline development and real-world deployment. In practice, the simulator landscape is divided into open-source platforms, which are widely used in academic research, and proprietary commercial platforms, which are often used for industrial-scale validation.

5.1. Open-Source Simulators

5.1.1. AirSim

AirSim, developed by Microsoft, uses the Unreal Engine to provide high-fidelity visual and physical simulation for autonomous driving and robotics research [38]. Its modular architecture supports customizable environments, vehicle dynamics, sensor models, and hardware-in-the-loop testing, which makes it useful for perception and control experiments.

5.1.2. CARLA (Car Learning to Act)

CARLA is an open-source simulator jointly developed by Intel Labs and the Computer Vision Center for the development, training, and validation of autonomous systems [39]. Built on Unreal Engine 4, it supports photorealistic urban scenes, configurable traffic, pedestrians, weather conditions, and a broad sensor suite, making it one of the most widely used benchmarks for autonomous driving research.

5.1.3. Baidu Apollo

The Apollo ecosystem includes an integrated simulator for testing autonomous driving systems within its platform [40]. It provides open interfaces for vehicle hardware, sensor and compute specifications, and a cloud-based data pipeline that supports large-scale model training and virtual validation before deployment.

5.1.4. Autoware

Autoware is an open-source autonomous driving software stack built on the Robot Operating System (ROS) [41]. Its modular architecture includes dedicated components for perception, localization, planning, and control, and it is designed to support integration with real vehicle hardware for both simulation and on-road testing.

5.1.5. Gazebo

Gazebo is a general-purpose 3D robotics simulator used for testing autonomous vehicles and other robotic systems. It supports multiple physics engines, such as DART, ODE, and Bullet, and includes models for sensors such as cameras and LiDAR, which makes it useful for robotics-oriented autonomy research [42].

5.2. Proprietary and Commercial Simulators

5.2.1. CarCraft

CarCraft is Waymo’s proprietary simulation platform and is used exclusively for training and validating autonomous driving software. It is designed for large-scale scenario generation and closed-loop testing, allowing Waymo to accumulate extensive virtual driving experience by continuously creating and modifying traffic situations [43,44].

5.2.2. Ansys Autonomy

Ansys Autonomy supports real-time closed-loop simulation with multiple sensors, traffic objects, and dynamic environments. It provides physically accurate 3D scene modeling and can import high-precision maps such as OpenStreetMap to generate road networks for testing [45].

5.2.3. Cognata

Cognata is a cloud-based simulation platform that uses digital-twin concepts and deep learning to generate high-fidelity driving scenarios. It is designed to accelerate autonomous vehicle commercialization by enabling large-scale validation across diverse conditions, with a customizable library of scenes that users can modify [46].

5.2.4. MATLAB/Simulink

MATLAB and Simulink provide the Automated Driving Toolbox, which offers tools for perception development, sensor fusion, high-definition map access, and ADAS prototyping [37]. Its strength is its broader engineering ecosystem, which makes it useful for algorithm development, validation, and rapid integration with control and signal-processing workflows.

5.3. Critical Perspective

Overall, simulation platforms are indispensable because they support safe testing, repeatability, and long-tail scenario generation. Open-source tools are especially valuable for research flexibility and benchmarking, while proprietary platforms are stronger in scale, fidelity, and industrial validation. The main limitation across all simulators is the sim-to-real gap, meaning that performance in virtual environments does not always transfer directly to real-world driving conditions [37,43].

6. Industry Landscape and Leading Approaches

The autonomous vehicle industry is not advancing along a single technological path. Instead, leading companies are pursuing different combinations of sensor configuration, software architecture, and deployment strategy, creating a real-world comparison between sensor-rich modular systems and vision-centric end-to-end approaches [47,48]. These differences are not only technical choices, but also reflections of each company’s safety philosophy, target operational design domain, and commercialization strategy.

6.1. Waymo: The Multi-Modal Redundancy Approach

Waymo is one of the clearest examples of a safety-first, multi-modal strategy. Its platform is built around sensor redundancy, modular perception, and explicit planning and control layers, which together support interpretable and verifiable autonomy [49,50]. In this architecture, perception estimates the surrounding scene, prediction forecasts the behavior of other agents, and planning computes a safe trajectory under explicit constraints.

Perception in Waymo-style systems relies on deep learning models that process camera, LiDAR, and radar data to detect and track vehicles, pedestrians, traffic lights, and lane structure in real time. Prediction modules then estimate future trajectories by combining motion history with scene context, while planning and control apply rule-based logic and optimization to produce safe, comfortable vehicle motion. The strength of this approach is that each stage can be validated independently, which improves interpretability and safety assurance.

6.2. Tesla: The Vision-Centric, End-to-End Strategy

Tesla follows a different philosophy centered on camera-only perception and end-to-end learning. The core idea is to use large-scale fleet data and neural networks to map raw visual input directly to driving decisions, rather than relying on a fully modular perception-prediction-planning stack [20,48]. This strategy prioritizes scalability and data-driven generalization, but it also places greater pressure on the vision system to handle adverse weather, poor lighting, and rare edge cases.

Tesla’s hardware strategy still reflects a strong emphasis on compute redundancy and real-time inference. The FSD computer integrates multiple processing elements, including CPUs, GPUs, neural-network accelerators, and camera interfaces, to support sensor preprocessing and post-processing. However, the important architectural point for this section is not the exact chip specification, but the fact that Tesla couples a vision-centric sensing philosophy with tightly integrated onboard compute. That combination is what differentiates it from multi-modal modular competitors.

6.3. Leaders in China’s Rapid Deployment

China has emerged as a major autonomous driving market, with companies such as Baidu, WeRide, and Pony.ai advancing rapidly under supportive regulation and strong commercialization pressure [51]. These firms generally retain multi-modal sensing, but they differ in how much emphasis they place on LiDAR density, fusion strategy, and platform integration.

6.3.1. Baidu Apollo

Baidu Apollo is a leading robotaxi platform in China and has deployed Apollo Go in several major cities [52]. Its vehicles use multi-modal sensor suites that combine cameras, radar, and multiple LiDAR units to support robust 3D mapping, localization, and object detection. Compared with Tesla’s vision-centric model, Baidu’s approach remains closer to the redundancy-oriented philosophy used by Waymo.

6.3.2. WeRide

WeRide combines multi-sensor fusion with high-definition maps and a proprietary middleware layer to support scalable autonomy [22]. Its system is designed for reliable localization in challenging urban settings such as tunnels, bridges, and dense city streets. A notable feature of its approach is the use of dual fusion pipelines, one vision-centric and one LiDAR-centric, which improves resilience when one modality is degraded.

6.3.3. Pony.ai

Pony.ai also follows a multi-modal strategy, combining cameras, LiDAR, and radar with heterogeneous onboard computing to support both performance and redundancy [53,54]. Its architecture reflects a pragmatic production strategy: use multiple sensing modalities, pair them with dedicated compute resources, and maintain enough flexibility to operate across different vehicle platforms and operating environments.

6.4. Operational Design Domain Comparison

These companies also differ in their operational design domains, which helps explain why their technology choices diverge. Waymo is strongest in carefully mapped and highly controlled urban environments, Tesla targets broad consumer deployment with driver-supervised automation, and the Chinese robotaxi companies often focus on geofenced commercial deployment in selected cities.

Table 12. ODD characteristics for selected autonomous vehicle companies [55].

Vehicle Company	Country	Environment	Operational Conditions	Driving Scenarios
Waymo Driver	United States	Sunny, light rain/snow	Moderate traffic density	Lane changes, highway merging/exiting, multi-lane highways, rural roads, daytime/nighttime, dynamic route planning
Tesla Autopilot	United States	Clear weather	Limited traffic density, specific speed ranges	Lane markings, driver supervision required
Baidu Apollo	China	Clear weather, limited traffic density	Daytime, nighttime	Highways and city streets in specific zones, lane changes, highway merging/exiting, traffic light and stop sign recognition, intersection navigation, low-speed maneuvering
WeRide	China	Clear weather	Daytime, nighttime	Limited-access highways and urban streets, lane changes, highway merging/exiting, traffic light and stop sign recognition, intersection navigation, automated pick-up/drop-off
Pony.ai	China	Diverse weather, including heavy rain/snow	High traffic density, frequent stops and turns	Narrow city streets, residential areas, parking lots, low speeds, geo-fenced zones, pedestrian and cyclist detection

Table 12. ODD characteristics for selected autonomous vehicle companies [55].

Vehicle Company	Country	Environment	Operational Conditions	Driving Scenarios
Waymo Driver	United States	Sunny, light rain/snow	Moderate traffic density	Lane changes, highway merging/exiting, multi-lane highways, rural roads, daytime/nighttime, dynamic route planning
Tesla Autopilot	United States	Clear weather	Limited traffic density, specific speed ranges	Lane markings, driver supervision required
Baidu Apollo	China	Clear weather, limited traffic density	Daytime, nighttime	Highways and city streets in specific zones, lane changes, highway merging/exiting, traffic light and stop sign recognition, intersection navigation, low-speed maneuvering
WeRide	China	Clear weather	Daytime, nighttime	Limited-access highways and urban streets, lane changes, highway merging/exiting, traffic light and stop sign recognition, intersection navigation, automated pick-up/drop-off
Pony.ai	China	Diverse weather, including heavy rain/snow	High traffic density, frequent stops and turns	Narrow city streets, residential areas, parking lots, low speeds, geo-fenced zones, pedestrian and cyclist detection

Overall, the industry does not yet agree on a single best architecture for autonomy. The current landscape suggests three competing paths: redundant multi-modal sensing, vision-centric end-to-end learning, and hybrid systems that combine the interpretability of modular pipelines with the scale of neural learning [47]. Overall, the industry does not yet agree on a single best architecture for autonomy. The current landscape suggests three competing paths: redundant multi-modal sensing, vision-centric end-to-end learning, and hybrid systems that combine the interpretability of modular pipelines with the scale of neural learning [47].

7. Challenges and Outlook

Despite remarkable progress, the path to reliable Level 4 and Level 5 autonomy remains blocked by major technical, legal, and societal challenges. Overcoming these barriers is essential if autonomous vehicles are to deliver their promised gains in safety, efficiency, and mobility.

7.1. Safety Validation and Edge-Case Handling

The foremost challenge is demonstrating that an autonomous system is safer than a human driver. This requires more than functional competence, because safety claims must be supported by statistically meaningful evidence. Since rare crashes are difficult to observe at the scale required for on-road validation, companies rely heavily on simulation and large-scale virtual testing to evaluate performance under controlled but diverse conditions [56,57].

However, simulation cannot eliminate the reality gap. Virtual environments may approximate physics and traffic behavior, but they cannot fully reproduce the complexity of real-world driving [58]. This limitation becomes especially important for edge cases, which are rare, unexpected, and often unusual scenarios that fall outside the training distribution. These cases may involve unusual debris, ambiguous road geometry, or unpredictable human behavior. Because it is impossible to enumerate every possible driving situation, robust autonomy depends on generalization, diverse data collection, and scenario generation rather than exhaustive rule coverage [59].

Interpretability is another major obstacle. End-to-end deep learning models can be powerful, but their internal decision-making is often difficult to inspect. This black-box behavior complicates debugging, certification, and regulatory approval, because developers and authorities need to understand why a system produced a specific action.

7.2. Cybersecurity and Privacy

As connected cyber-physical systems, autonomous vehicles are exposed to security threats that go beyond traditional automotive risks.

• Cybersecurity Threats: Autonomous vehicles can be targeted through sensor spoofing, communication hijacking, software exploitation, and adversarial attacks against perception models. A defense-in-depth strategy is therefore required, including secure coding, encryption, penetration testing, redundancy, and continuous monitoring to detect and respond to malicious behavior.
• Data Privacy: Autonomous vehicles collect large volumes of sensitive data, including high-definition camera imagery, precise location history, and potentially in-cabin information. This creates important privacy concerns, especially when such data is used for training, validation, or fleet learning. Clear rules for data collection, storage, and access are necessary to maintain public trust.

7.3. Regulatory Gaps and Public Acceptance

The technical progress of autonomous driving has outpaced the legal and social frameworks needed to govern it. A major challenge is the lack of harmonized regulations for testing, deployment, and certification. In the United States, regulation remains fragmented across states, which creates a complex compliance landscape for companies operating at national scale. Liability is also unresolved: if a crash occurs, responsibility may rest with the owner, the manufacturer, the software developer, or some combination of the three.

Public acceptance remains equally important. Many users still express concern about system failure, cybersecurity, and the loss of human control. Building trust will require transparent reporting, clearly stated operational limits, and repeated demonstrations of real-world reliability.

7.4. Future Trends

Addressing these challenges will require continued innovation across models, data, and infrastructure.

• Advanced AI Paradigms: Researchers are exploring foundation models for driving and modular end-to-end planning frameworks. These approaches aim to improve generalization while preserving some of the interpretability and safety benefits of modular systems.
• Data Engines and Continuous Learning: Leading companies are building data engines that create a feedback loop between real-world operation, scenario mining, and model retraining. This allows the system to improve over time by focusing on the most informative and difficult cases.
• Infrastructure and Connectivity: Vehicle-to-Everything (V2X) communication and smart infrastructure can extend awareness beyond onboard sensors. By exchanging information with other vehicles and traffic infrastructure, autonomous systems can improve coordination, anticipate hazards earlier, and increase traffic efficiency.

Overall, the future of autonomous driving will depend on whether the field can combine robust machine learning, verifiable safety, secure system design, and supportive regulation into a deployable and trusted autonomy stack.

8. Conclusions

This review examined the artificial intelligence and machine learning foundations of modern autonomous driving systems, with emphasis on the sensor stack, compute platforms, AI pipeline, simulation tools, industry strategies, and open challenges. Across the stack, the central theme is clear: autonomous driving is not a single-model problem, but a multi-layered systems problem that requires robust sensing, efficient computation, reliable prediction, and safe decision-making.

Our analysis showed that no single sensor modality is sufficient on its own. Cameras, LiDAR, radar, GNSS, IMU, and ultrasonic sensors each contribute complementary information, which makes sensor fusion a core requirement for reliable perception. At the same time, industry practice is still split between modular, multi-modal systems such as Waymo’s and vision-centric, end-to-end strategies such as Tesla’s, while companies like Baidu, WeRide, and Pony.ai pursue hybrid approaches that balance redundancy with scalability.

The classical AI pipeline remains important because modular perception, prediction, and planning stages are easier to interpret, validate, and debug. End-to-end learning offers a powerful alternative, especially when large-scale fleet data is available, but it also introduces significant concerns related to interpretability, causal ambiguity, and rare edge cases. As a result, the current state of the field suggests that neither paradigm is universally superior, and future progress will likely come from hybrid systems that combine the strengths of both.

On the hardware side, autonomous vehicles are increasingly built on heterogeneous systems-on-chip that integrate CPUs, GPUs, and domain-specific accelerators to satisfy real-time and energy-efficiency constraints. Simulation platforms such as CARLA, AirSim, Gazebo, CarCraft, Cognata, and MATLAB/Simulink have also become indispensable for training, validation, and scenario generation, but they cannot fully eliminate the sim-to-real gap. For this reason, real-world deployment still depends on careful validation across both virtual and physical environments.

Several major challenges remain unresolved. Safety validation for Level 4 and Level 5 autonomy requires stronger statistical guarantees than current road testing can provide. Cybersecurity, privacy, regulation, and public acceptance also remain critical barriers to large-scale deployment. These issues make clear that autonomous driving is not only a technical challenge, but also a legal, ethical, and societal one.

Looking ahead, foundation models, modular end-to-end planning, continuous learning from fleet data, and vehicle-to-everything communication are likely to shape the next phase of development. The most successful autonomous systems will be those that combine the performance of deep learning with the interpretability, redundancy, and safety assurance of modular design. Progress toward full autonomy will depend on coordinated advances in algorithms, hardware, simulation, regulation, and trust.
