First Synthesis of Millimeter-Sized Single Crystals of High-Entropy Perovskite (La_0.25Pr_0.25Sm_0.25Gd_0.25)_1-xCa_xMnO₃ Oxides

1. Introduction

Since formally defined by Rost et al. in 2015, high-entropy oxides have become a research frontier in functional materials [1]. These materials consist of five or more cations occupying the same crystallographic site in equimolar or near-equimolar proportions, stabilizing a single-phase solid solution through high configurational entropy, and exhibiting core effects such as high-entropy effect, sluggish diffusion, severe lattice distortion, and cocktail effect [1,2]. To date, high-entropy oxides have been successfully prepared in various structural types, including rock-salt [3], fluorite [4], perovskite [5], spinel [6], pyrochlore [7], and olivine [8], demonstrating rich functional properties in areas such as ionic conductivity, dielectricity, catalysis, magnetism, and energy storage [9,10,11,12,13,14,15,16].

Among the numerous high-entropy oxide systems, perovskite-type high-entropy manganites occupy a special position due to their unique physical implications. The B-site is occupied by Mn ions, and the continuous modulation of the Mn³⁺/Mn⁴⁺ valence ratio can be achieved through A-site multi-element doping, thereby directly tuning the competition between double-exchange and superexchange interactions [17]. Variations in A-site ionic radii further modify the Mn–O–Mn bond angle and carrier bandwidth, providing multiple degrees of freedom for fine-tuning magnetoelectric properties [17]. It is this deep coupling between chemical complexity and strongly correlated electronic behavior that makes high-entropy manganite perovskites an ideal model system for exploring enhancement mechanisms of colossal magnetoresistance (CMR).

Indeed, significant progress has been made in engineering the magnetotransport properties of manganite perovskites using high-entropy design. Polycrystalline (Gd_0.25La_0.25Nd_0.25Sm_0.25)_0.7Sr_0.3MnO₃ prepared by Sarkar et al. via nebulized spray pyrolysis achieved a negative magnetoresistance exceeding 94% [18]; Mazza et al. demonstrated in La(Cr_0.2Mn_0.2Fe_0.2Co_0.2Ni_0.2)O₃ thin films that compositionally disordered systems can maintain magnetic uniformity, and that the type of magnetic order and critical temperature can be continuously tuned [19]. These works indicate that the local potential fluctuations and strain distributions introduced by high-entropy disorder may provide a new route, distinct from conventional single-doping approaches, for enhancing CMR by amplifying the spatial inhomogeneity of exchange pathways and intensifying the competition between double-exchange and superexchange.

However, the aforementioned studies are all based on polycrystalline or thin-film samples. In polycrystalline systems, grain boundaries, pores, and local compositional fluctuations are inevitable. These microstructural features couple with the high-entropy disorder effects, producing significant extrinsic magnetoresistance contributions that make it difficult to separate intrinsic bulk mechanisms from extrinsic grain-boundary effects. Core physical issues such as phase competition, carrier localization, and magnetoresistance anisotropy are difficult to address conclusively in polycrystalline samples.

In contrast, single crystals, by eliminating grain-boundary scattering and orientational averaging effects, exhibit transport and magnetoresistance behavior closer to the intrinsic response of the material, and can directly reveal the directionality of exchange pathways and the anisotropy of magnetoresistance [20,21]. In the history of research on conventional CMR manganites, single-crystal experiments have always served as the gold standard for distinguishing bulk mechanisms from grain-boundary contributions and for validating theoretical models [20,21]. Therefore, the study of high-entropy manganite perovskites from polycrystals to single crystals is very important. However, single-crystal growth of multi-component high-entropy systems is extremely challenging. During prolonged high-temperature growth, multiple principal elements are highly susceptible to segregation, compositional mismatch, and oxygen stoichiometry deviations, leading to secondary phase precipitation or poor crystal quality. This technical bottleneck has resulted in a long-standing absence of bulk single crystals of high-entropy perovskite manganites, severely hindering the field's progression from phenomenological description to intrinsic mechanistic elucidation. Based on the publicly searchable literature, there is currently no report on bulk high-entropy single-crystal manganites.

This work breaks through the above bottleneck. Using a flux method, we have for the first time successfully prepared millimeter-sized large bulk high-entropy single crystals of (La_0.25Pr_0.25Sm_0.25Gd_0.25)_1-xCa_xMnO₃ (x = 0.3, 0.4, 0.5). Through X-ray diffraction, scanning electron microscopy, and energy-dispersive spectroscopy, we systematically characterized the crystal structure, morphology, and compositional uniformity, confirming that the obtained crystals possess high-quality single-crystal character and excellent high-entropy solid-solution homogeneity. This achievement fills the gap in the field of high-entropy manganite perovskite single crystals and provides an urgently needed experimental platform for systematically investigating the intrinsic modulation mechanism of disorder on CMR and related magnetoelectric properties, free from grain-boundary interference.

2. Experimental Methods

2.1. Crystal Growth

Single crystals of (La_0.25Pr_0.25Sm_0.25Gd_0.25)_1-xCa_xMnO₃ (x = 0.3, 0.4, 0.5) were grown by a high-temperature flux method. High-purity La₂O₃, Pr₆O₁₁, Sm₂O₃, Gd₂O₃, CaCO₃, and MnO₂ powders were mixed in stoichiometric ratios and combined with a PbF₂/PbO/B₂O₃ flux system in a mass ratio of 1:7 (precursor: flux). The flux composition was PbF₂: PbO: B₂O₃ = 0.8 : 0.195 : 0.005 by weight. The mixture was thoroughly ground in an agate mortar for 2–3 hours, transferred into a platinum crucible, and placed in a muffle furnace. The temperature was raised to 1250 °C at a rate of 200 °C/h, held for 48 hours to ensure complete homogenization, then slowly cooled to 1000 °C at a rate of 0.5 °C/h, and finally naturally cooled to room temperature in the furnace.

2.2. Characterization

X-ray diffraction (XRD) patterns were collected using a diffractometer equipped with Cu Kα₁ radiation (λ = 0.15405 nm) over a 2θ range of 10–80° with a step size of 0.02°. Rietveld refinement was performed using the EXPGUI-GSAS software to obtain lattice parameters. Surface morphology was examined by scanning electron microscopy (SEM), and elemental composition and distribution were analyzed by energy-dispersive X-ray spectroscopy (EDS).

3. Results and Discussion

3.1. Crystal Structure

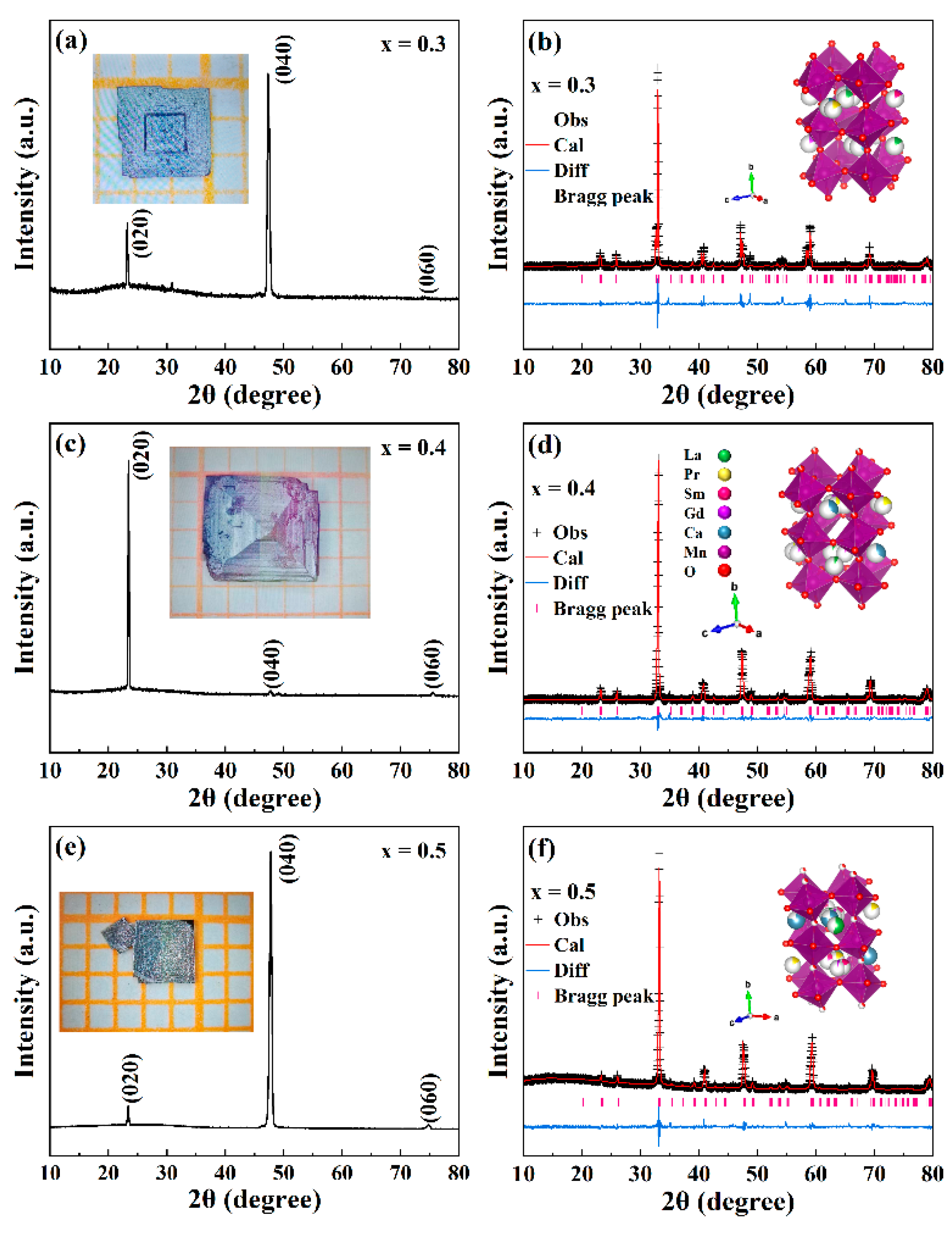

Figure 1 presents the XRD patterns, Rietveld refinement results, and corresponding photographs of the single crystals with x = 0.3, 0.4, and 0.5. The samples exhibit only three diffraction peaks, corresponding to the (020), (040), and (060) planes, indicating high orientation and good crystalline quality. Because the crystals grow preferentially along a specific crystallographic plane, the diffraction peaks of single-crystal samples are significantly reduced in number compared to the numerous peaks observed in polycrystalline samples, with regular angular intervals maintained between them. The main diffraction peak positions in Fig. 1 remain largely unchanged, indicating that the overall crystal structure does not undergo significant changes with varying Ca²⁺ doping levels. The photographs in the insets further show that the obtained crystals have relatively regular external morphology, well-defined facets, and dimensions all exceeding 2 mm, reflecting good single-crystal growth quality. The regular morphology and millimeter size attest to the high growth quality achieved by the flux method. Rietveld refinement was performed on ground crystal fragments. As shown in the refinement plots, the calculated patterns match well with the experimental data, and the low residual factors confirm that the samples are single-phase with an orthorhombic perovskite structure (space group Pnma).

3.2. Surface Morphology

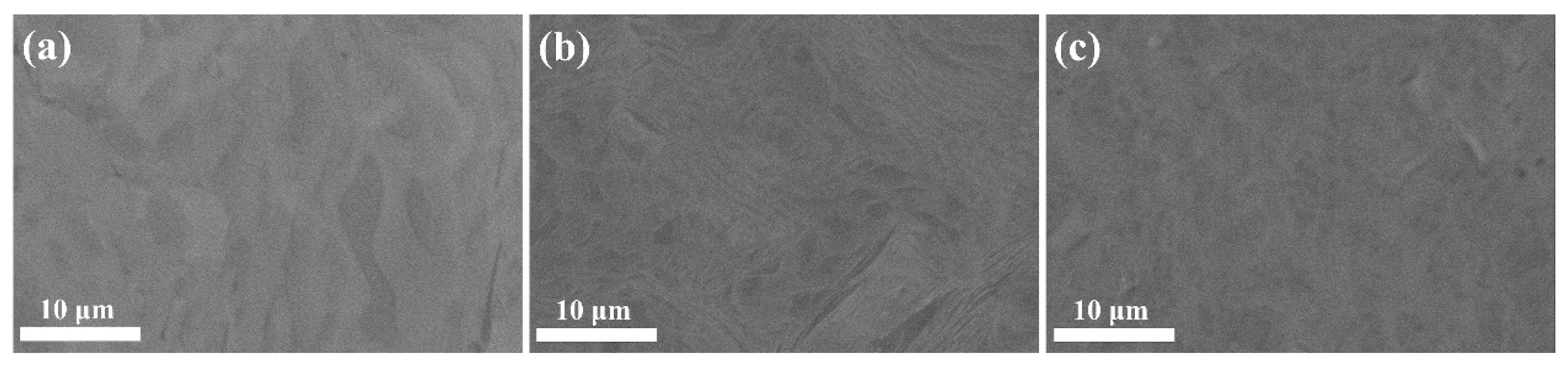

Figure 2 shows the surface micromorphology of the single crystals with x = 0.3, 0.4, and 0.5. The surfaces of all composition samples are generally dense, without the obvious grain-boundary features characteristic of polycrystalline samples. The absence of granular morphology, intergranular voids, and secondary phase inclusions serves as the key criterion for distinguishing single crystals from polycrystalline ceramics. Some step-like terraces and undulating features are visible on the crystal surfaces, which are associated with preferential faceted growth during the crystallization process and subsequent mechanical handling. The flux method employed in this work is capable of growing structurally integral, high-quality high-entropy perovskite manganite single crystals within a certain compositional range.

3.3. Elemental Homogeneity

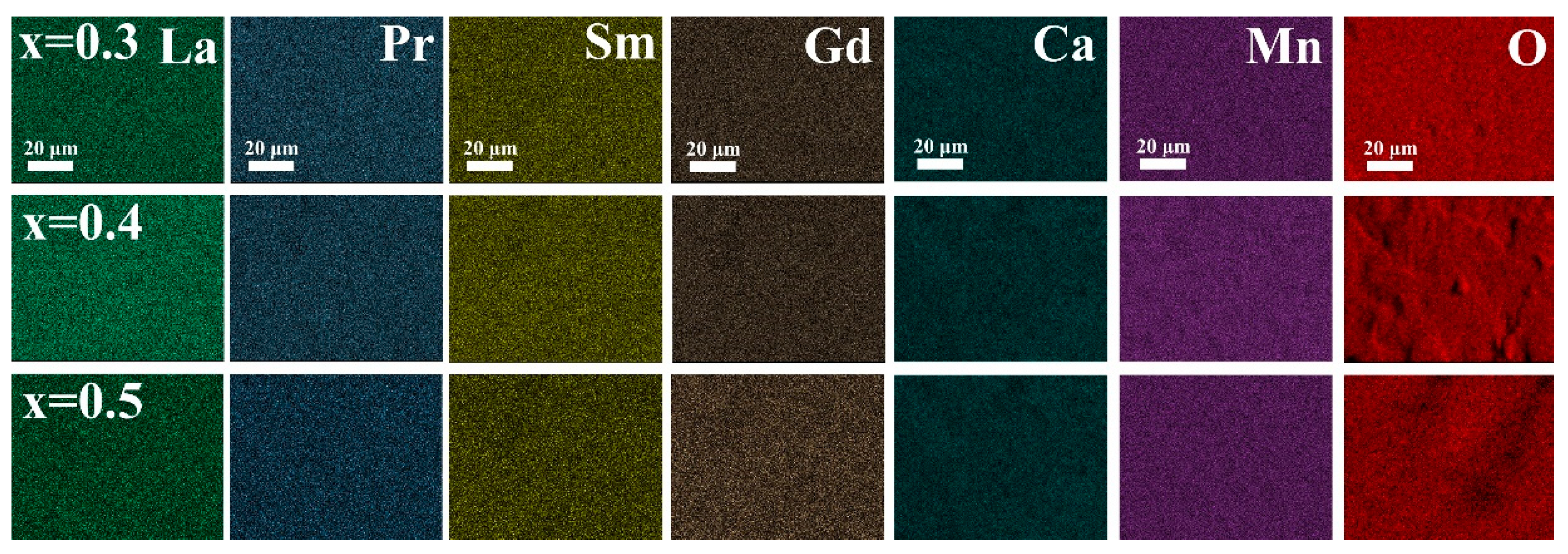

For a material to be classified as a high-entropy oxide, all constituent elements must be uniformly distributed within the detection limits of the characterization techniques, without compositional partitioning or secondary phase precipitation. Figure 3 presents the EDS elemental mapping results for single crystals with x = 0.3, 0.4, and 0.5. The elements La, Pr, Sm, Gd, Ca, Mn, and O are clearly detected across the surfaces of all three samples and are generally uniformly distributed, with no obvious large-scale elemental agglomeration or compositional separation observed. The uniform spatial distribution of the four rare-earth elements (La, Pr, Sm, Gd) together with Ca, Mn, and O provides direct evidence for the realization of a high-entropy solid solution in single-crystal form. The EDS results further indicate that the measured atomic ratios of the constituent elements are basically consistent with the nominal stoichiometric values, demonstrating the reliability of the flux method in preserving the target composition. This finding is significant. Elemental segregation during prolonged slow cooling represents one of the core challenges in high-entropy single-crystal growth. The successful suppression of segregation demonstrated in this work indicates that the PbF₂/PbO/B₂O₃ flux system provides a suitable chemical environment for maintaining multi-component homogeneity throughout the crystallization process.

3.4. Comparison with Existing Literature

To clearly present the novelty of this work, Table 1 summarizes the representative high-entropy perovskite oxide systems reported in the literature, comparing their morphology and crystalline form. There are abundant reports on high-entropy oxides, with more than 20 references cited in this paper alone. However, all previous reports on high-entropy perovskite manganites have been limited to polycrystalline or thin-film forms. To the best of our knowledge, this work represents the first realization of bulk single-crystalline high-entropy perovskite oxide synthesis. This breakthrough transcends the barrier that has long confined the study of high-entropy manganites to grain-boundary-containing systems (such as polycrystals, thin films, and heterojunctions). The successful preparation of bulk single crystals of high-entropy perovskite manganites holds profound significance for the field of strongly correlated oxides.

For high-entropy systems, the interplay between chemical disorder and Jahn-Teller distortions is expected to generate complex physical landscapes, and directional measurements along specific crystallographic axes are irreplaceable for distinguishing the contributions of disorder-induced localization from conventional scattering mechanisms. Systematic investigations on the magnetism, transport properties, and magnetoresistance of these single crystals are in progress and will be reported elsewhere. The successful synthesis reported in this work represents the crucial first step toward a deeper and more rigorous understanding of disorder-tuned magnetism and magnetotransport mechanisms in high-entropy perovskite oxides.

Table 1. Comparison of morphology among representative high-entropy perovskite oxides in the literature.

System/Composition	Morphology	Crystallinity	Reference
La(Cr0.2Mn0.2Fe0.2Co0.2Ni0.2)O3	Thin film	Polycrystalline	[19]
(Gd0.25La0.25Nd0.25Sm0.25)0.7Sr0.3MnO3	Ceramic	Polycrystalline	[18]
Bi(Zn0.2Mg0.2Al0.2Sn0.2Zr0.2)O3-based	Ceramic	Polycrystalline	[22]
Sr(Ti0.28Zr0.18Zn0.18Sn0.18Hf0.18)O3-σ	Ceramic	Polycrystalline	[23]
(La0.25Pr0.25Sm0.25Gd0.25)1-xCaxMnO3	Bulk crystal	Single crystal	this work

Table 1. Comparison of morphology among representative high-entropy perovskite oxides in the literature.

System/Composition	Morphology	Crystallinity	Reference
La(Cr0.2Mn0.2Fe0.2Co0.2Ni0.2)O3	Thin film	Polycrystalline	[19]
(Gd0.25La0.25Nd0.25Sm0.25)0.7Sr0.3MnO3	Ceramic	Polycrystalline	[18]
Bi(Zn0.2Mg0.2Al0.2Sn0.2Zr0.2)O3-based	Ceramic	Polycrystalline	[22]
Sr(Ti0.28Zr0.18Zn0.18Sn0.18Hf0.18)O3-σ	Ceramic	Polycrystalline	[23]
(La0.25Pr0.25Sm0.25Gd0.25)1-xCaxMnO3	Bulk crystal	Single crystal	this work

4. Conclusions

Using a PbF₂/PbO/B₂O₃ flux method, we have for the first time successfully synthesized millimeter-sized high-entropy perovskite manganite single crystals of (La_0.25Pr_0.25Sm_0.25Gd_0.25)_1-xCa_xMnO₃ (x = 0.3, 0.4, 0.5). The cross-validation of three characterization techniques, XRD patterns showing only (0k0) series reflections, SEM observation of dense grain-boundary-free morphology, and EDS mapping of uniform elemental spatial distribution, provides conclusive evidence for the single-crystal nature and the formation of a high-entropy solid solution. This is the first report worldwide on bulk single crystals of high-entropy perovskite oxides. This achievement breaks through the long-standing technical bottleneck in high-entropy single-crystal growth and establishes a new experimental paradigm for systematically investigating the intrinsic physical behavior of compositionally complex strongly correlated oxides, free from the interference of grain boundaries and microstructural inhomogeneities.
