Advances in Enantioselective Synthesis and Chiral Resolution of Insecticides

1. Introduction

Modern insecticide discovery stems from two contrasting historical trajectories: pyrethroids, derived from the natural pyrethrins found in chrysanthemum flowers, and neonicotinoids, inspired by the alkaloid nicotine. Natural pyrethrins have been used for centuries, but are photolabile. After their structures were elucidated in the 1940s and 1950s, chemists began to replicate and modify them. The first synthetic pyrethroid, allethrin, was invented by the USDA in 1949 and commercialized in 1953. Initially, its stereochemistry was not fully understood, illustrating how chirality in pyrethroids was overlooked during early development [1]. Subsequent generations of synthetic pyrethroids introduced bulky substituents (e.g., halogens, cyano groups) to enhance potency and photostability; these modifications also introduced multiple stereogenic centers, giving rise to complex mixtures of diastereomers and enantiomers. Neonicotinoids were developed decades later. They mimic the insecticidal properties of nicotine but avoid its mammalian toxicity. Introduced commercially in the early 1990s, neonicotinoids quickly became the largest class of insecticides worldwide because of their systemic action and high selectivity for insect nicotinic acetylcholine receptors (nAChRs). Their pharmacophores fall into three subclasses: N-nitroguanidines (e.g., imidacloprid, thiamethoxam, clothianidin, dinotefuran), nitromethylenes (e.g., nitenpyram), and N-cyanoamidines (e.g., acetamiprid) [2]. The electron-rich nitromethylene, nitroimine, or cyanoimine group interacts with the insect nAChR to confer potency and selectivity [2]. Some recent compounds, such as cycloxaprid and paichongding, are cis-locked neonicotinoids, which means that the nitro or cyano substituent and its adjacent moiety adopt a cis orientation within a bicyclic framework [2]. This structural constraint improves binding affinity but generates stereogenic centers, making the compounds chiral.

Chirality is increasingly recognized as a critical factor in agrochemicals. Roughly 25% of pesticides currently in use are chiral [3], and enantiomers often behave as distinct compounds: they can vary dramatically in acute toxicity to aquatic invertebrates and undergo enantioselective degradation in soils and sediments [3,4]. Yet most chiral insecticides are marketed as racemic mixtures because separating or synthesizing single enantiomers is expensive [3]. In pyrethroids, for example, specific stereoisomers confer most of the biological activity; other isomers may be inactive or even harmful, emphasizing the need for stereoselective synthesis and resolution strategies [4]. Similarly, chiral neonicotinoids display differences in insecticidal potency and environmental fate across enantiomers, as seen with cycloxaprid and dinotefuran derivatives [4]. Regulatory pressures further motivate the move toward enantiomerically pure insecticides. Widespread neonicotinoid use has been implicated in pollinator declines. The European Food Safety Authority (EFSA) concluded in 2013 that imidacloprid, clothianidin, and thiamethoxam pose an unacceptably high risk to bees; the European Union subsequently restricted these compounds on flowering crops and later banned them for all outdoor uses [2]. Health Canada and the U.S. Environmental Protection Agency followed with restrictions or cancellations of certain uses, and several U.S. states have legislated neonicotinoid limits [2]. At the same time, insect pests have developed resistance to neonicotinoids and pyrethroids, prompting interest in new scaffolds with different binding modes and reduced propensity for cross-resistance. These historical developments, the stereochemical complexity of both pyrethroids and cis-locked neonicotinoids, and the growing awareness that enantiomers differ in toxicity and environmental persistence collectively underscore the importance of stereoselective design. The remainder of this review, therefore, focuses on recent advances in asymmetric synthesis, enzymatic resolution, and chromatographic separation of chiral insecticides, with an emphasis on cycloxaprid/paichongding, dinotefuran derivatives, pyrethroid analogues (cypermethrin, fenvalerate, cycloprothrin), and the oxadiazine indoxacarb. Despite notable advances, the field of stereoselective insecticide synthesis remains unevenly developed, with significant progress in catalytic methodologies but limited integration with biological evaluation and industrial implementation.

2. Literature Search Strategy

A rigorous literature search strategy underpins this review. We systematically surveyed major bibliographic databases, including PubMed, Web of Science, Scopus, ScienceDirect, and Google Scholar, as well as specialized chemical and patent resources such as SciFinder, Reaxys, Espacenet, and Google Patents. Searches were conducted for publications from 1985 through 2025, a time span chosen to encompass the discovery of early neonicotinoids and pyrethroids and the development of contemporary chiral catalysts. We combined keywords related to chirality (“chiral,” “enantiomer,” “enantioselective,” “asymmetric synthesis,” “chiral resolution”) with specific compound names (“cycloxaprid,” “paichongding,” “dinotefuran,” “cypermethrin,” “fenvalerate,” “cycloprothrin,” “indoxacarb,” etc.) and general class descriptors (“neonicotinoid,” “pyrethroid,” “oxadiazine”). Reference lists of relevant papers and reviews were also inspected to capture additional sources. Records were included if they were peer-reviewed articles or patents written in English that reported synthetic or resolution methods for chiral insecticides; we excluded grey literature, conference abstracts, non-English publications, and studies focused solely on environmental fate, toxicology, or formulation without synthetic detail. This approach follows general guidance that literature searches should be systematic and organized to identify high-quality references [5]. No primary data were collected; rather, all information was extracted directly from the selected literature to provide a transparent and reproducible foundation for this review.

3. Chiral Neonicotinoids

3.1. Paichongding

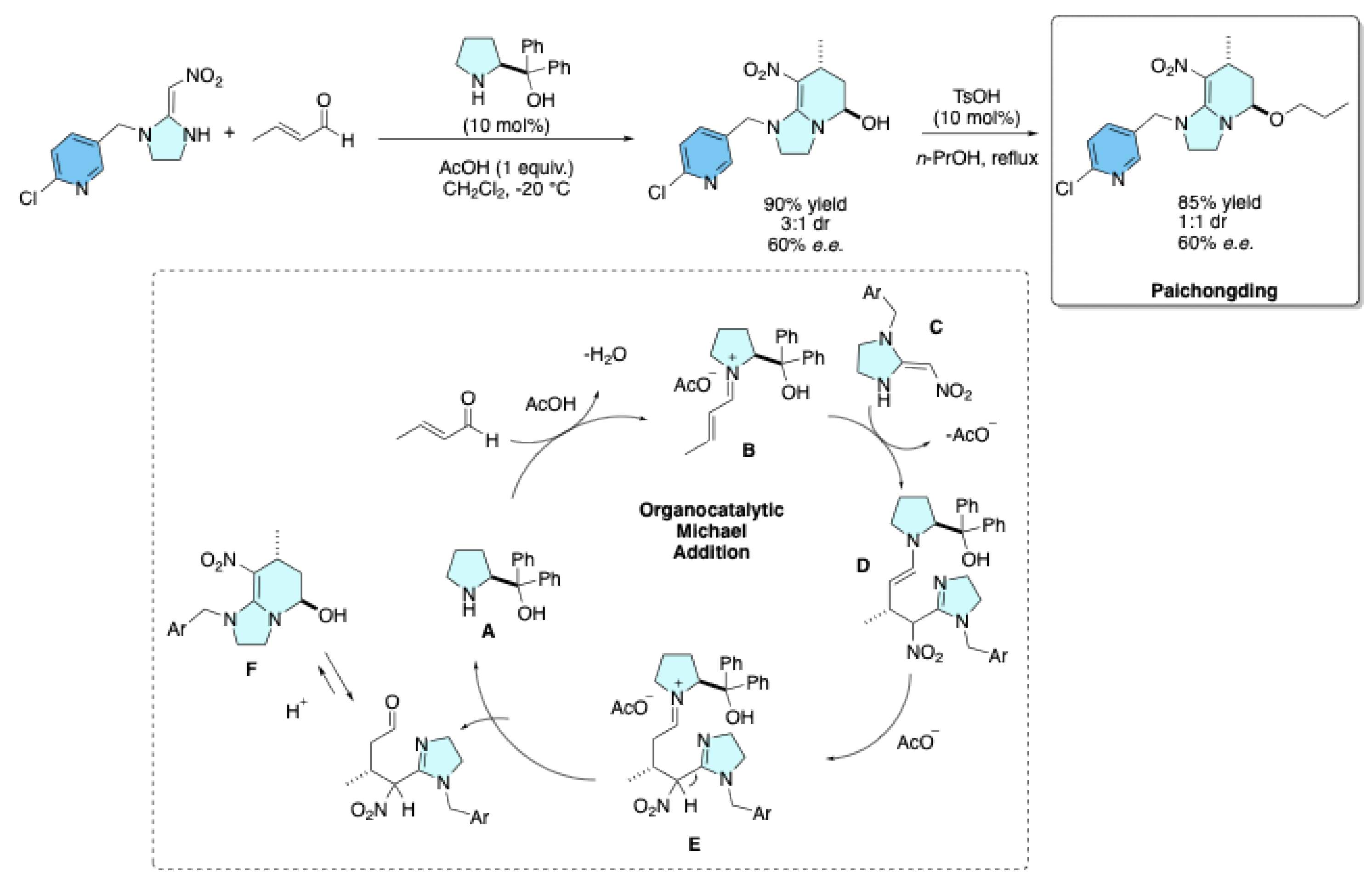

Paichongding has been synthesized enantioselectively through an organocatalytic route reported by Lou and co-workers in 2015 [6]. The key step involves a diphenylprolinol trimethylsilyl ether–catalyzed Michael addition of 2-nitromethylene imidazolidines to α,β-unsaturated aldehydes under mild conditions, affording hexahydroimidazo [1,2-a]pyridine scaffolds in high yield (up to 90%) with excellent enantioselectivity (up to 95% ee) and good diastereoselectivity. Subsequent acetal-amination/etherification steps facilitated structural confirmation, with X-ray analysis establishing the (5R,7R) configuration. A representative Michael adduct was then smoothly converted to cycloxaprid in a single step by refluxing in n-propanol with catalytic p-toluenesulfonic acid, giving the insecticide in 85% yield while retaining enantioenrichment (ca. 60% e.e.). Importantly, the method proved scalable to gram quantities without loss of stereocontrol, highlighting the practicality of this asymmetric organocatalytic approach for accessing enantiopure neonicotinoids (Figure 1).

As depicted in Figure 1, the α,β-unsaturated aldehyde is initially activated by catalyst A, generating iminium intermediate B. Subsequently, the Michael donor C attacks the iminium species from the Re face, thereby minimizing steric repulsion with the diarylsilyl ether substituent. The resulting intermediate D then undergoes isomerization to intermediate E, which, upon hydrolysis, affords the desired product F, while simultaneously regenerating the catalyst.

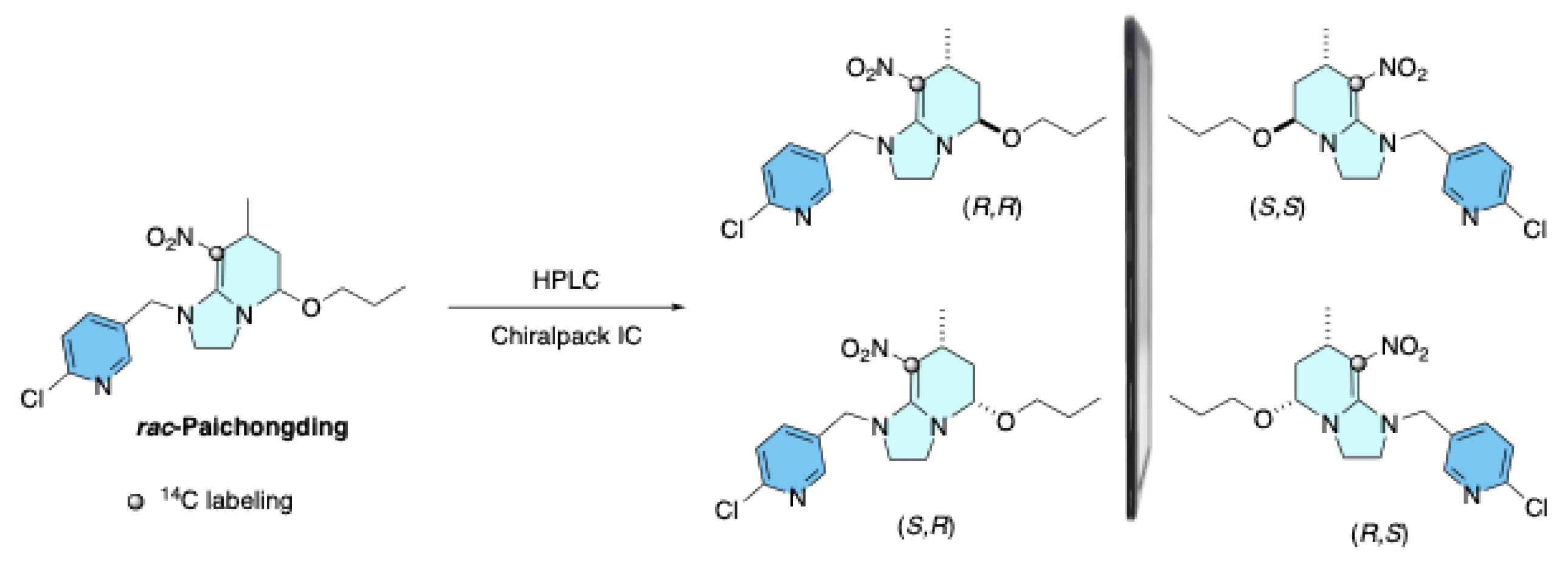

Another report by Li in 2013 describes that the racemic ¹⁴C-labeled Paichongding was separated into its four stereoisomers by preparative chiral HPLC using a Daicel Chiralpak IC column under isocratic ethanol elution. Baseline resolution was achieved, and the individual fractions were collected and identified through retention time, optical rotation, and comparison with authentic non-labeled standards. Each stereoisomer was obtained with high chemical purity (>98%) and radiochemical purity (>96%), providing enantiomerically well-defined samples for subsequent environmental fate investigations (Figure 2) [7].

3.2. Cycloxaprid

To the best of our knowledge, despite the well-recognized presence of two stereogenic centers in cycloxaprid, no studies have reported the application of modern asymmetric strategies, such as organocatalysis or metal-mediated enantioselective transformations, to construct the oxabridged cis-nitromethylene scaffold characteristic of this molecule. Consequently, the development of catalytic enantioselective approaches to cycloxaprid represents a significant, largely unexplored opportunity for innovation in agrochemical design.

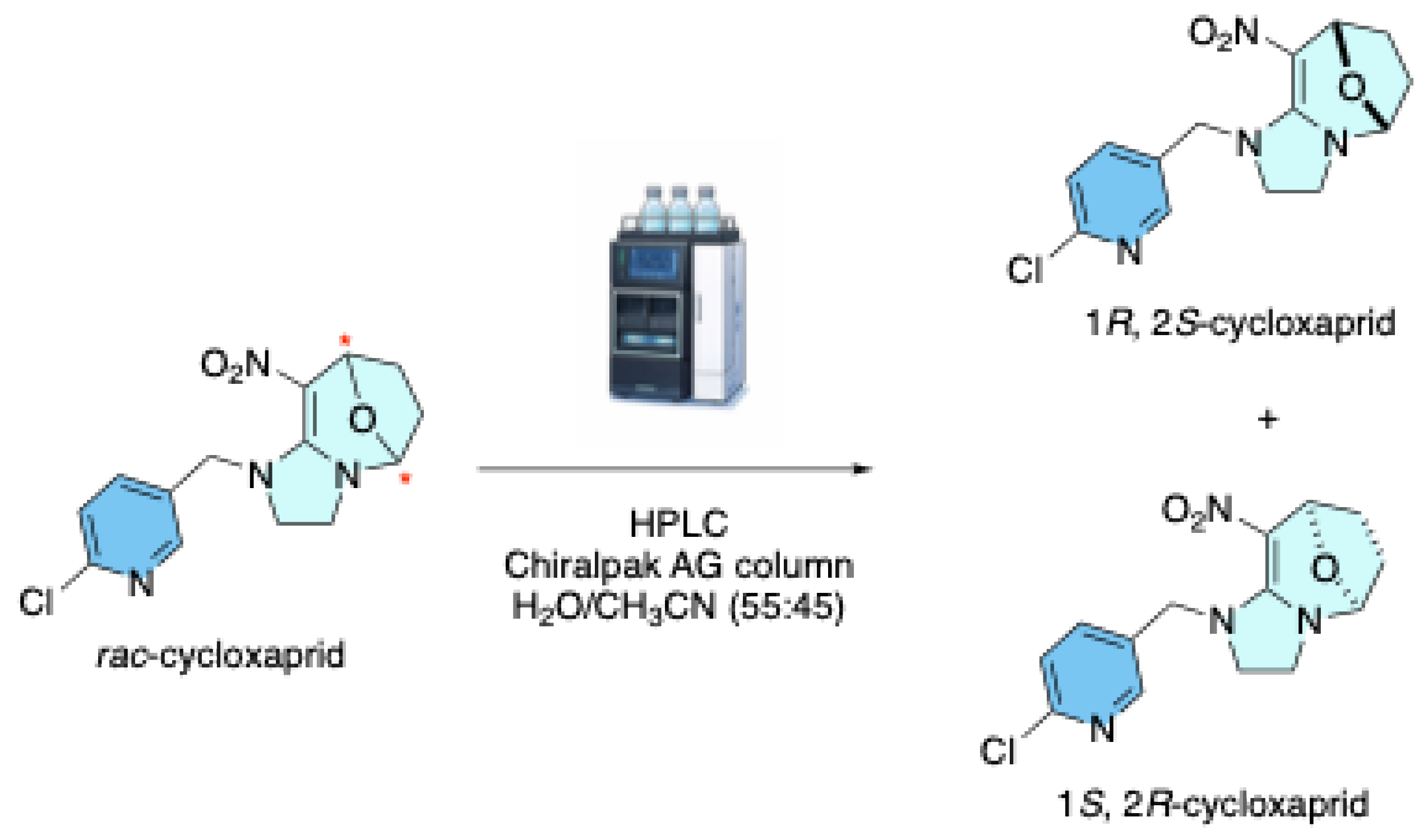

In contrast, Wu and co-workers in 2016 reported the enantiomeric resolution of racemic cycloxaprid via semipreparative high-performance liquid chromatography using polysaccharide-based chiral stationary phases, specifically amylose tris(3-chloro-5-methylphenylcarbamate) (e.g., Chiralpak AG columns) [8]. As shown in Figure 3, under reverse-phase conditions, employing a water/acetonitrile mixture (55:45, v/v) at a flow rate of approximately 1.0 mL·min⁻¹, baseline separation of the 1R,2S- and 1S,2R-enantiomers was achieved, enabling their isolation in optically pure form. This resolution arises from differential noncovalent interactions, primarily hydrogen bonding, π–π stacking, and steric complementarity, between the chiral selector and each enantiomer.

3.2. Dinotefuran Derivatives

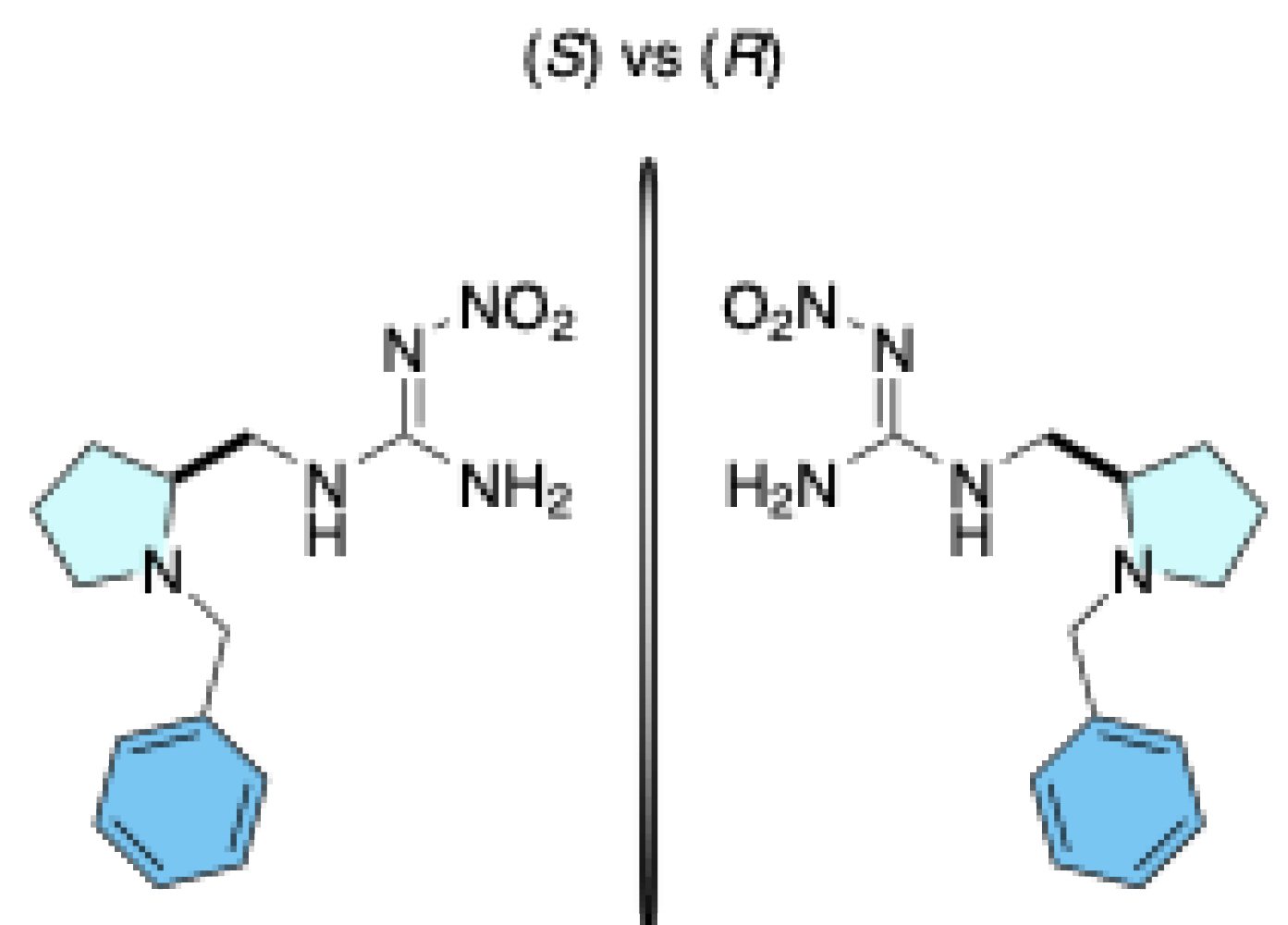

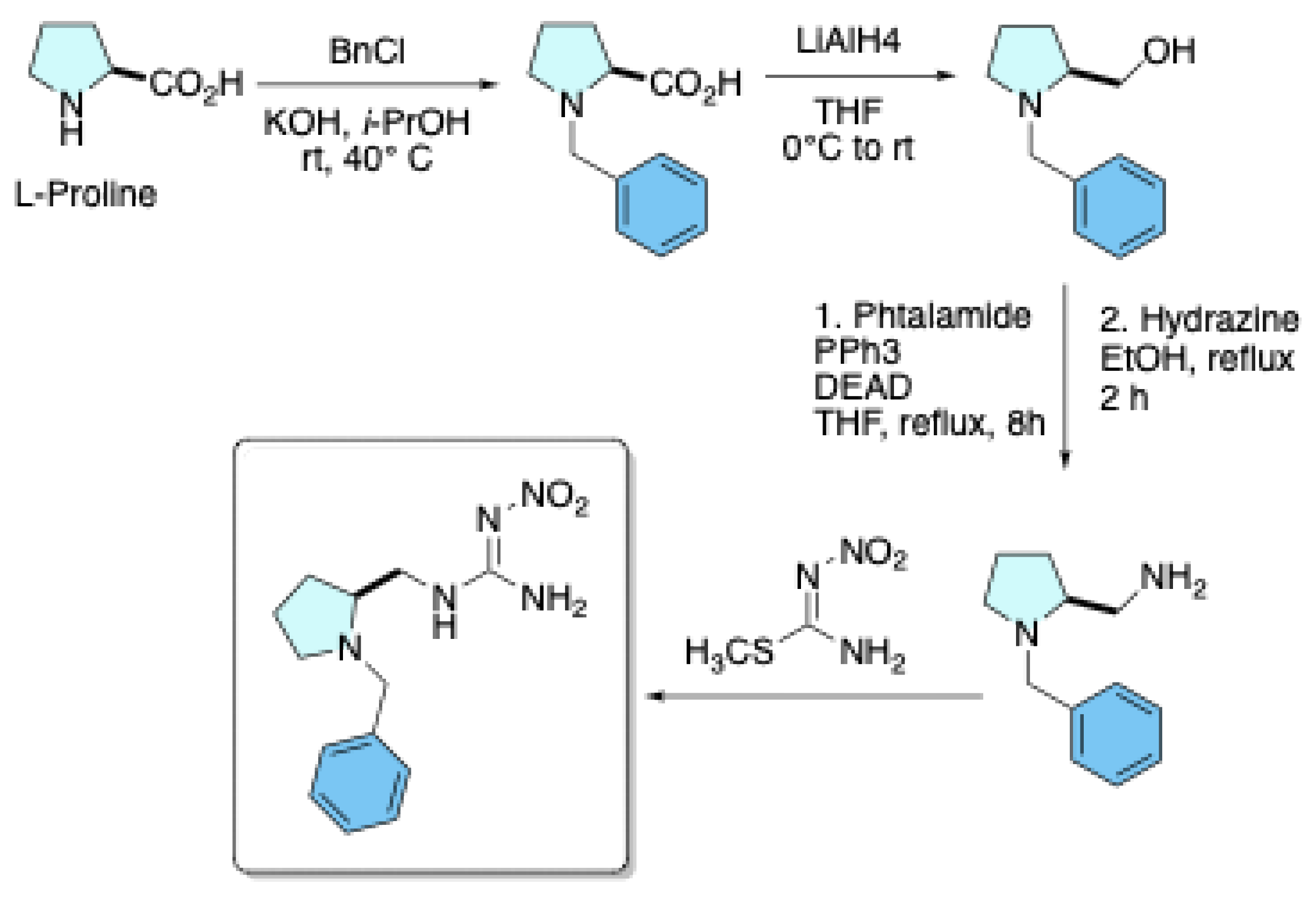

In a pioneering 2021 study, Olivares-Romero et al. reported the design and synthesis of a series of enantiopure neonicotinoid analogues derived from L-proline, using this natural amino acid as a predefined chiral scaffold to induce stereochemical control without the need for external asymmetric catalysis. As depicted in Figure 4, the synthetic strategy relied on the direct incorporation of L-proline into the nitroguanidine core, followed by sequential transformations including metal hydride reductions, Gabriel synthesis, and final couplings with nitroguanidine precursors, enabling the preparation of structurally diverse libraries with varying chain lengths and amine substitution patterns. Structural identification and characterization were carried out using ¹H and ¹³C NMR spectroscopy, measurement of specific optical rotation as evidence of enantiopurity, and high-resolution mass spectrometry (HRMS-ESI) to confirm molecular formulas. Preservation of chirality throughout the synthetic route allowed a direct evaluation of the influence of absolute configuration on biological activity. In insecticidal assays against Xyleborus affinis, the L-proline-derived analogue exhibited higher activity than the commercial insecticide dinotefuran, together with a reduced neurotoxic profile in murine models [9].

Dinotefuran-inspired chiral neonicotinoids were prepared enantioselectively through a chiral pool–based asymmetric strategy reported by Olivares-Romero et al. in 2024 [10] using (R)- and (S)-proline-derived amines as the source of molecular chirality. In this approach, the key step involves the incorporation of proline-based chiral amines into neonicotinoid frameworks structurally inspired by dinotefuran, enabling the direct synthesis of enantiomerically pure derivatives without the formation of racemic intermediates. The stereochemical information introduced from the starting chiral amino acid was preserved throughout the synthetic sequence, ensuring complete enantiocontrol without the need for post-synthetic resolution. Structural elucidation of the resulting enantiomers was achieved by ¹H and ¹³C NMR spectroscopy, supported by DEPTQ-135 experiments and high-resolution mass spectrometry (HRMS-QTOF). Biological evaluation revealed pronounced enantioselectivity, with clear differences in insecticidal activity, toxicity, and environmental behavior between the (R)- and (S)-configured derivatives (Figure 5).

Dinotefuran-related neonicotinoid derivatives were synthesized through a stepwise synthetic route based on chiral amine functionalization, as reported by Olivares-Romero et al. in 2021 [11]. The synthetic strategy relied on the structural modification of neonicotinoid cores using diverse amine substituents, including chiral amines, to generate a library of analogues without employing asymmetric catalysis or post-synthetic enantioseparation. Chirality in selected compounds was introduced by enantiomerically defined amines, allowing the preparation of derivatives with assigned absolute configuration. The synthesized compounds were structurally identified and characterized by comprehensive spectroscopic analysis, including ¹H and ¹³C NMR spectroscopy for structural confirmation and high-resolution mass spectrometry (HRMS) to verify molecular formulas. Biological assays revealed that a subset of compounds exhibited enhanced insecticidal activity relative to other analogues within the series. Notably, the derivatives with R configuration were identified as the compounds with the most favorable biological performance, highlighting the influence of amine structure and stereochemical configuration on the insecticidal efficacy of dinotefuran-inspired neonicotinoids (Figure 6).

4. Chiral Pyrethroids

4.1. Cypermethrin and Cypermethrin Analogues

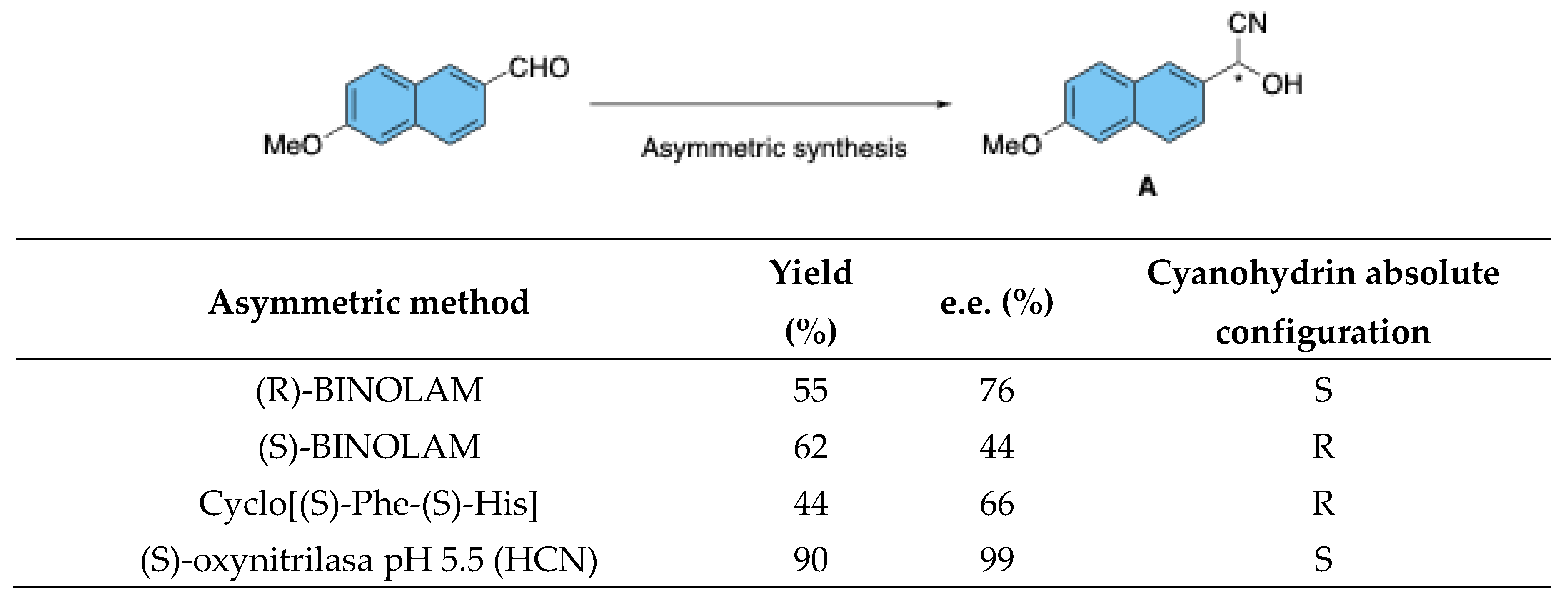

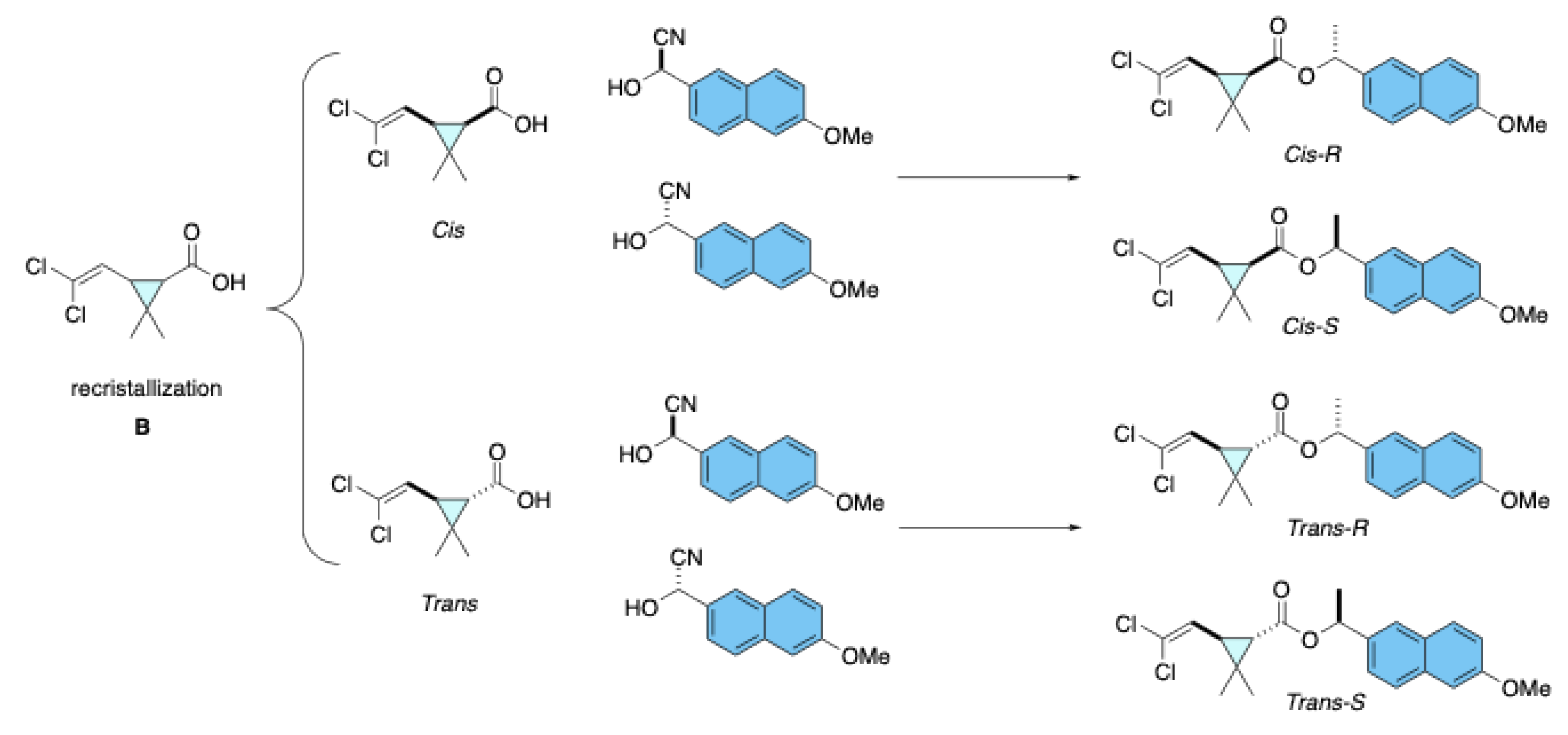

To obtain optically pure cypermethrin analogues, Huang and co-workers first synthesized enantioenriched cyanohydrins [(R)- or (S)-2-hydroxy-2-(6-methoxy-2-naphthyl)acetonitrile] through asymmetric cyanation of 6-methoxy-2-naphthaldehyde [12]. Among the methods evaluated, which include Lewis acid catalysis, organocatalysis, and biocatalysis, the most efficient method was the use of (S)-oxynitrilases from Prunus amygdalus or Manihot esculenta, which afforded cyanohydrins A with enantiomeric excesses exceeding 90% (Figure 7). These intermediates were subsequently esterified with optically pure cis or trans 3-(2,2-dichlorovinyl)-2,2-dimethylcyclopropane-1-carboxylic acid B, allowing the preparation of the individual cis- and trans-stereoisomers of cypermethrin fluorescent analogues. The products were isolated with high optical purity and structurally confirmed by chiral HPLC, GC/MS, NMR, and X-ray crystallography, thereby providing well-defined stereoisomers suitable for enzymatic and toxicological evaluation (Figure 8).

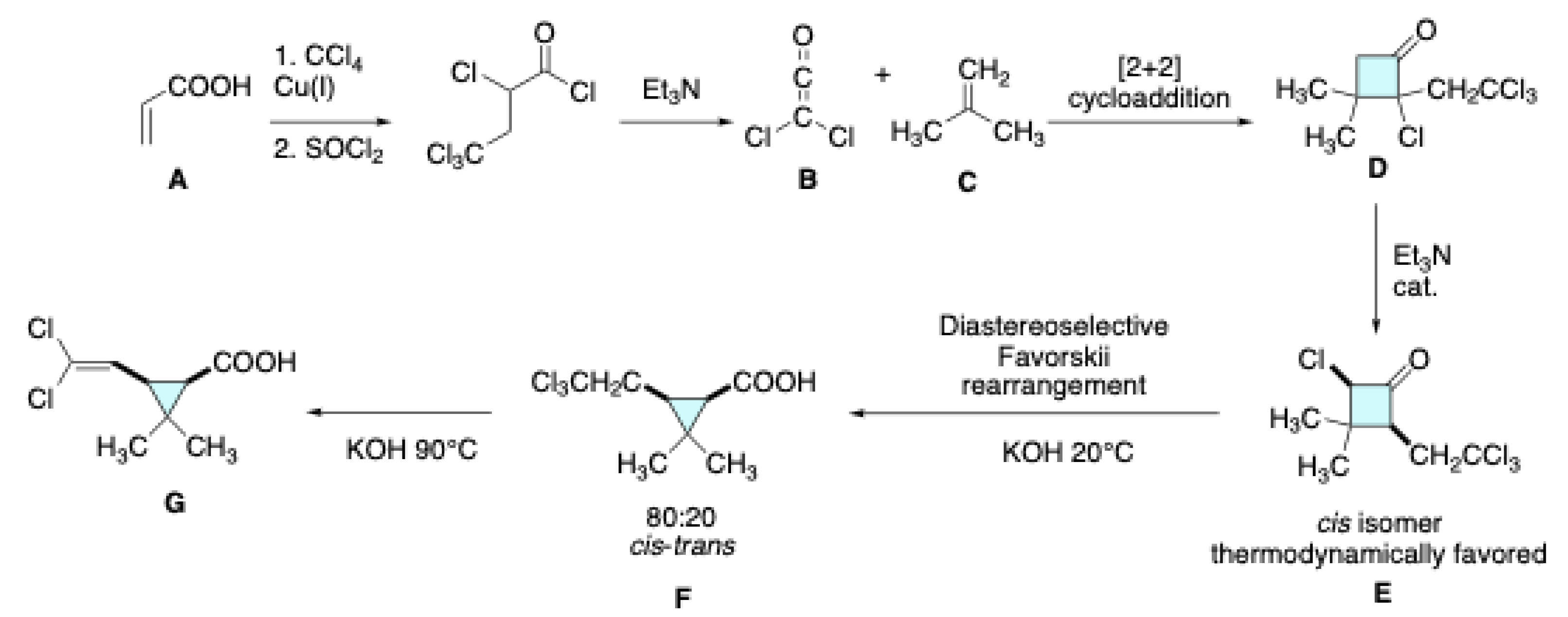

Martin, Greuter, and Belluš reported a short and efficient synthesis of 2,2-dimethyl-3-(2,2-dichlorovinyl)cyclopropane-1-carboxylic acid, the key acid moiety of modern pyrethroids such as permethrin and cypermethrin [13]. As shown in Figure 9, their approach involved the copper(I)-catalyzed addition of carbon tetrachloride to acrylic acid A, followed by conversion to ketene B and a [2+2] cycloaddition with isobutylene C to afford a 2-chlorocyclobutanone intermediate D. A novel triethylamine-catalyzed isomerization furnished the thermodynamically favored 2,4-cis isomer E, which underwent Favorskii rearrangement to give the target acid F in good overall yield and with an 80:20 preference for the biologically active cis isomer. This strategy offered a stereoselective and versatile entry to halovinylcyclopropanecarboxylic acids G, overcoming the limitations of previous multi-step or hazardous methods.

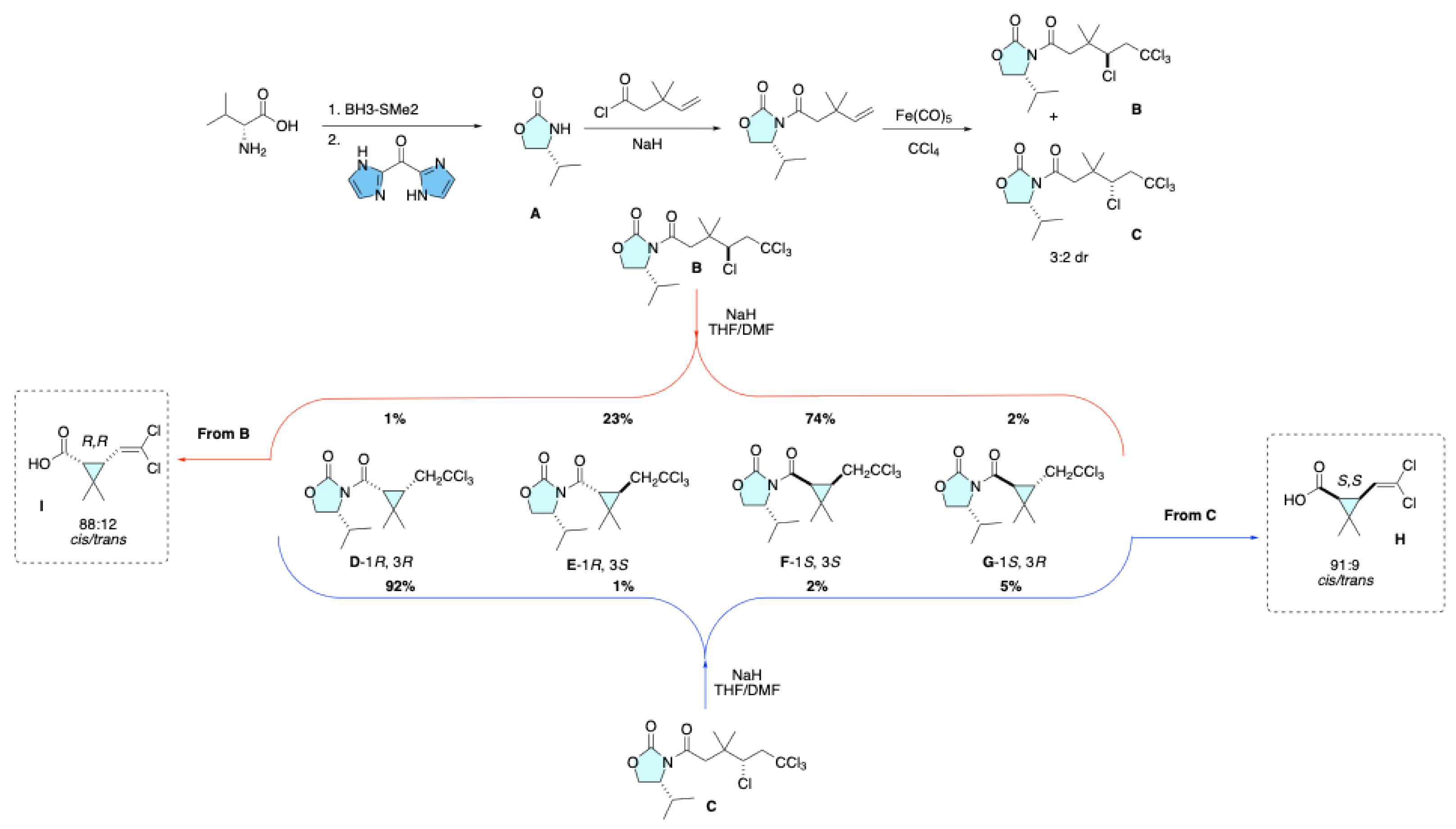

Kleschick and co-workers rendered the intramolecular alkylation approach enantioselective by employing a chiral Evans oxazolidinone auxiliary derived from (R)-valine to control both enolate facial selectivity and cyclopropanation outcome [14]. The auxiliary A was acylated and then subjected to Fe(CO)₅/CCl₄ addition to give tetrachloroacyl adducts B and C (3:2), which were separated by preparative HPLC. Base-promoted cyclization (NaH, THF/DMF) of C, where auxiliary bias and the preferred (Z)-enolate closure are matched, afforded a 92:1:2:5 mixture of cyclized products (D-G), dominated by the cis isomer; the mismatched isomer B gave 1:23:74:2. Subsequent methanolysis (LiOMe) and hydrolysis/dehydrochlorination (KOH) furnished the target acid H in 77% yield, with cis/trans 91:9 (from C) and acid I, 88:12 (from B); optical rotations corroborated formation of optically active (1R,3R)-I. These data support a model in which chiral enolate geometry and backside SN₂-type ring closure combine to deliver high cis stereoselectivity (Figure 10).

Kondo and co-workers patented a stereoselective route to synthesize cis-3-(2,2-dihalovinyl)-2,2-dimethylcyclopropanecarboxylic acids C, the acid moiety of cypermethrin [15]. Their strategy relied on stereoselective intramolecular carbenoid cyclization of diazoacetoacetates A to form bicyclic lactones B using the chiral Lewis acid D, followed by transformations such as Clemensen reduction to furnish the cis-cyclopropane framework C. Notably, they proposed obtaining enantioenriched products either from optically pure starting materials or by employing chiral copper catalysts during the cyclization, thereby constituting an early example of asymmetric synthesis applied to pyrethroid precursors (Figure 11).

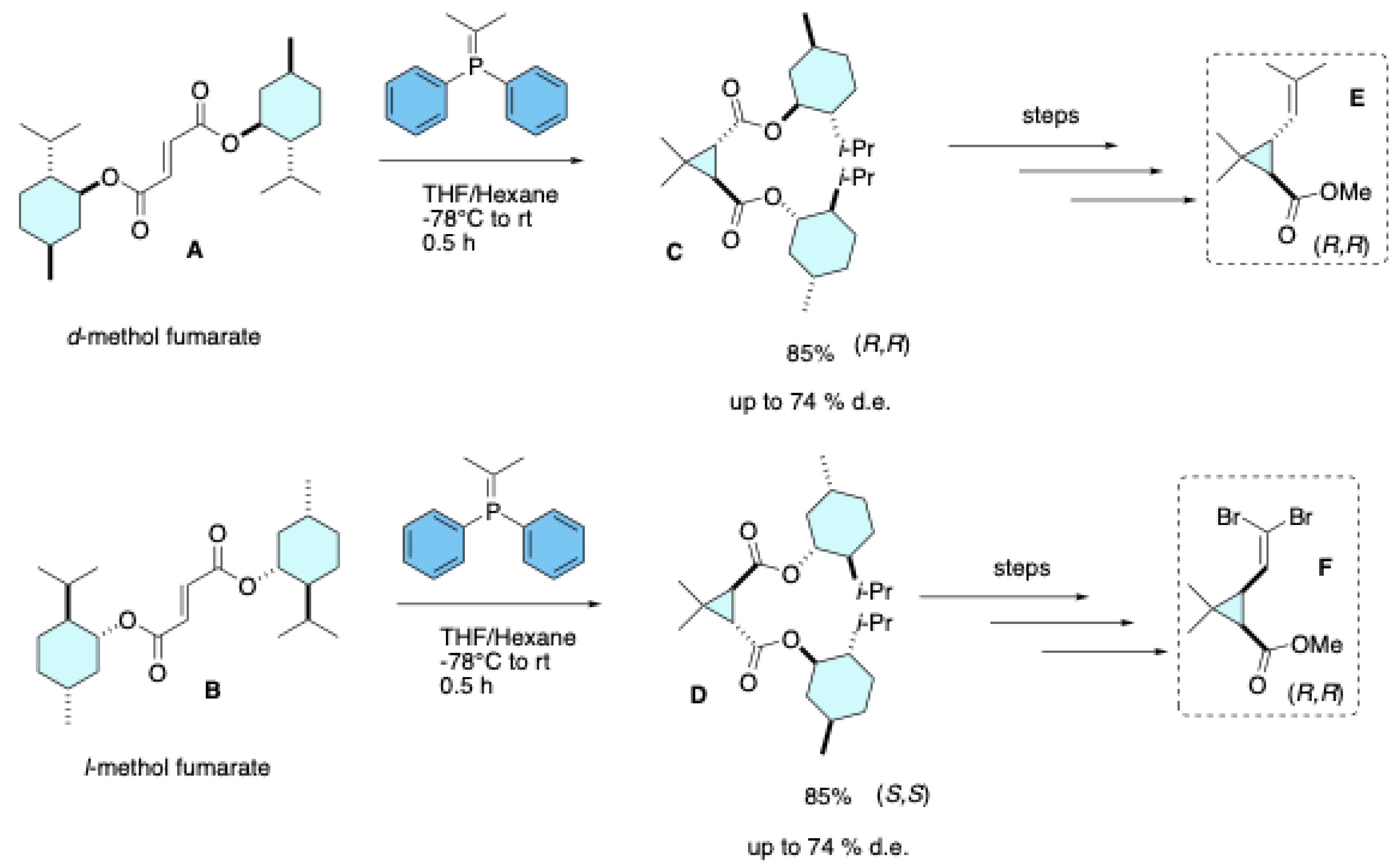

In their seminal work, De Vos and Krief reported one of the first examples of an enantioselective synthesis of pyrethroid precursors relevant to cypermethrin analogs [16]. The strategy centered on the preparation of (1R)-trans-chrysanthemic ester E and its (1R)-cis-dibromovinyl analogue F, the stereogenic acid fragments incorporated in highly active pyrethroids. As depicted in Figure 12, the key step involved the use of dimethyl fumarates A or B as chiral auxiliaries, which underwent cyclopropanation with isopropylidene triphenylphosphorane to furnish carboxylic diesters C and D in high yield (85%) and with significant diastereoselectivity (up to 74% d.e.). Subsequent transesterification and selective saponification provided enantiomerically enriched caronic acid derivatives E and F, which were then elaborated to the corresponding chrysanthemic esters. By applying this sequence, the authors achieved access to optically pure acid building blocks that could be esterified with α-cyano-3-phenoxybenzyl alcohol to yield enantioenriched cypermethrin-type pyrethroids. This pioneering asymmetric induction approach demonstrated the feasibility of constructing the cyclopropane core of pyrethroids in a stereocontrolled fashion, thereby laying the groundwork for the development of commercial single-enantiomer formulations such as esfenvalerate and stereochemically defined cypermethrin analogs.

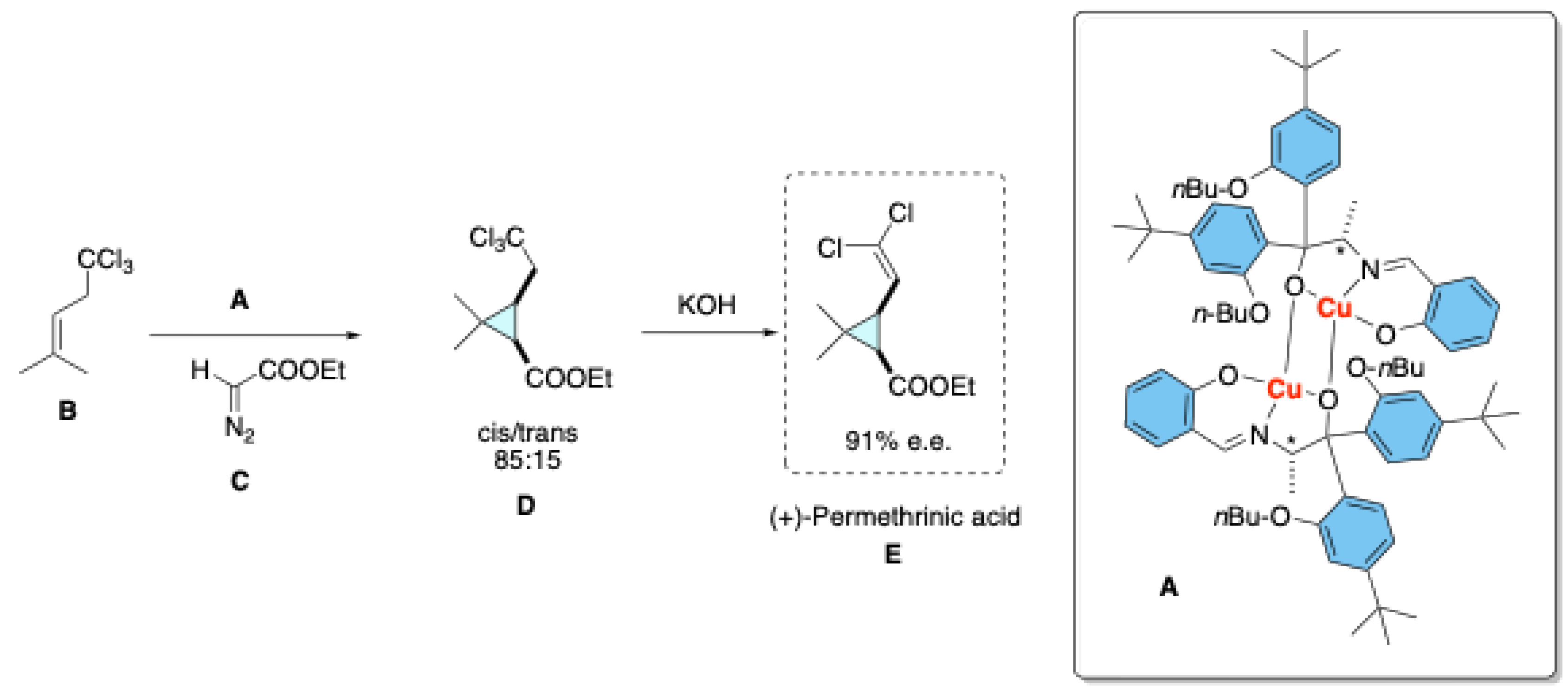

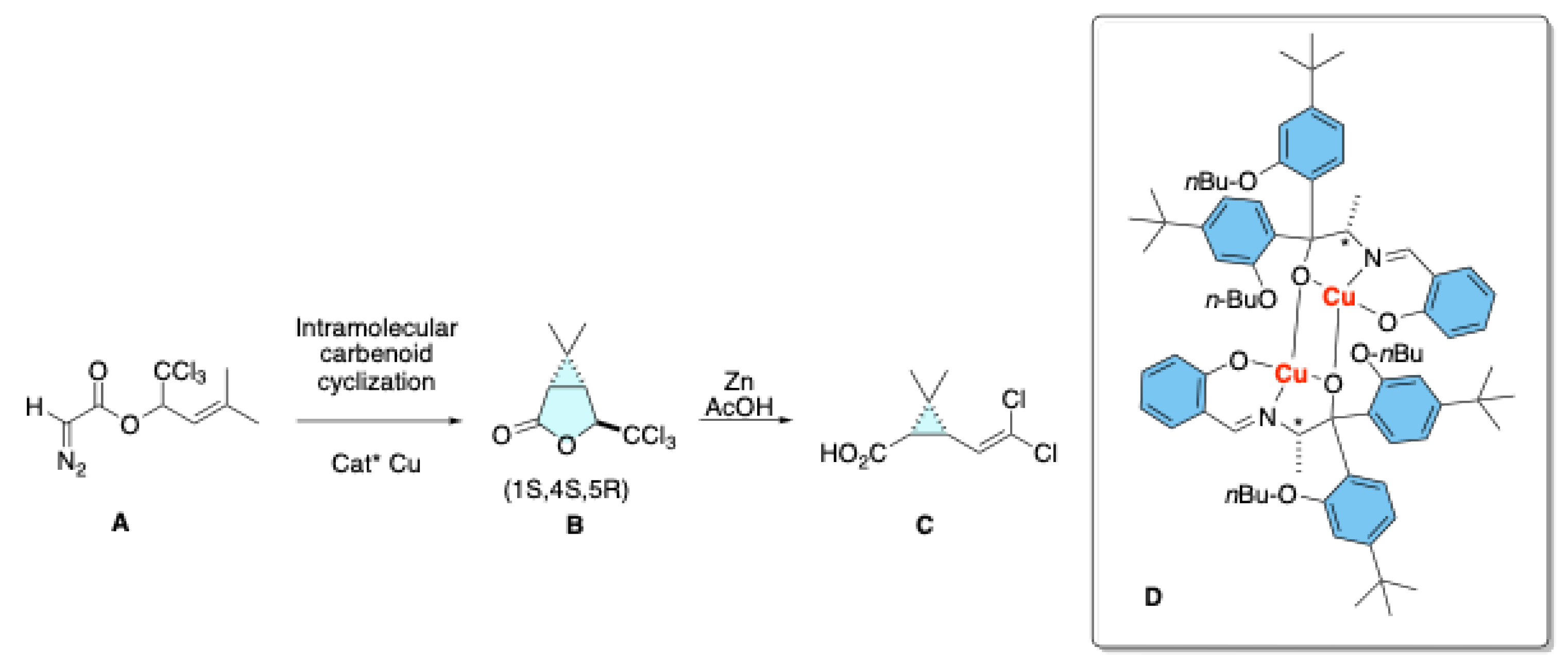

In this classic contribution, Aratani demonstrated the catalytic asymmetric synthesis of cyclopropane carboxylic acids, which are the acid fragments of pyrethroid insecticides such as cypermethrin and permethrin [17]. As shown in Figure 13, their approach relied on the use of chiral copper–Schiff base complexes A derived from optically active α-amino acids and bulky aryl Grignard reagents to catalyze the cyclopropanation of olefins B with alkyl diazoacetates C. By fine-tuning the steric environment of the copper complex, they achieved high enantioselectivities, with enantiomeric excesses exceeding 90% for the formation of chrysanthemic acid derivatives D. Importantly, this methodology was extended to the synthesis of permethrinic acid E, the cyclopropane acid component of cypermethrin, where the optimized catalyst furnished the (+)-cis isomer with a cis/trans ratio of 85:15 and an e.e. of 91%.

This work also provided one of the earliest catalytic asymmetric routes to the stereodefined cyclopropane carboxylic acids essential for the preparation of highly active pyrethroid insecticides, directly linking stereocontrolled organometallic methodology to industrially relevant agrochemicals.

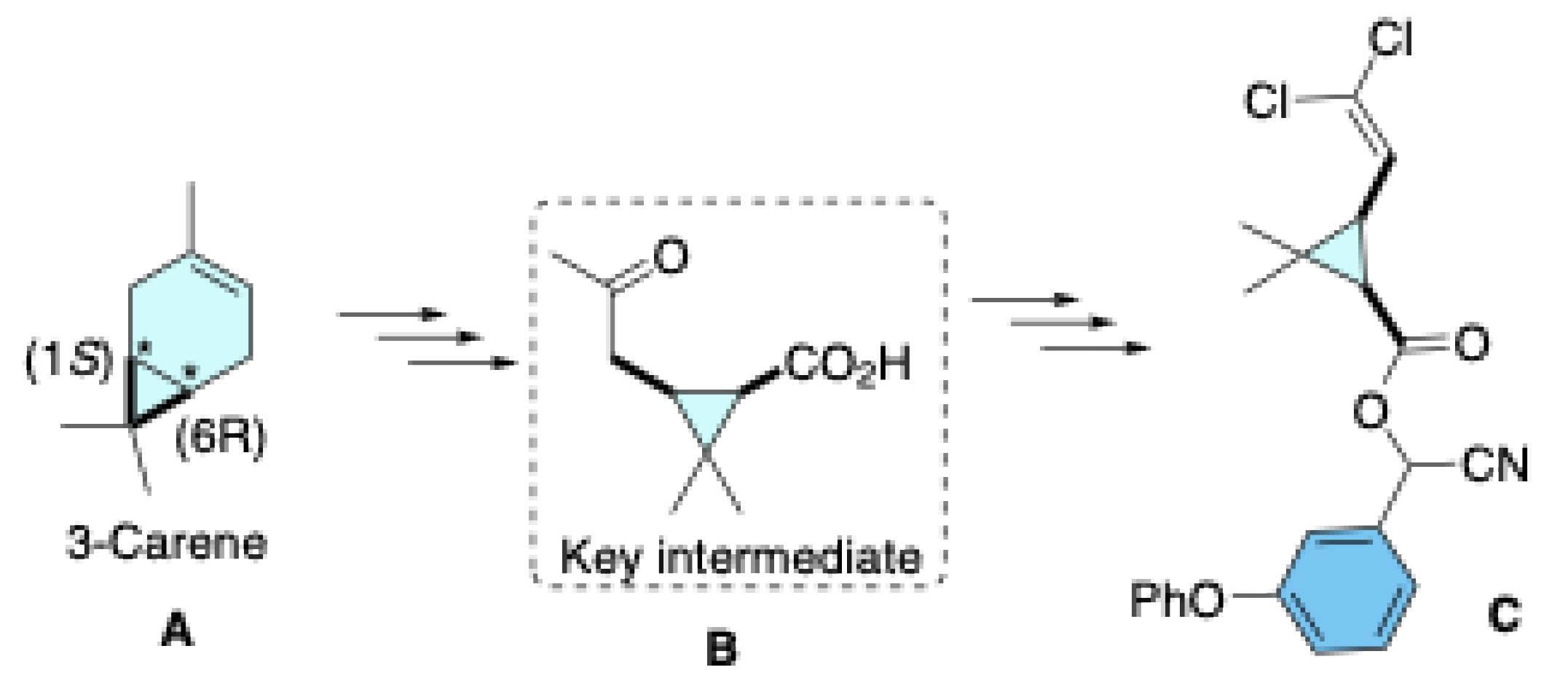

As depicted in Figure 14, Mandal and co-workers reported a novel asymmetric route to optically active pyrethroids, including cypermethrin, by exploiting the natural chirality of (+)-3-carene as a starting material [18]. Their approach began with the conversion of 3-carene A into functionalized bicyclic intermediates via epoxidation, rearrangement, and Baeyer–Villiger oxidation, yielding key cis-configured cyclopropane carboxylic acid derivatives B. These intermediates, inherently chiral due to the stereogenic centers derived from 3-carene, were further elaborated into the target insecticidal esters. For cypermethrin, the strategy involved esterification with 3-phenoxybenzyl alcohol and subsequent transformations introducing the dihalovinyl group, culminating in the preparation of (1R)-cis-(+)-cypermethrin C in optically enriched form. This route was significant because it avoided classical resolution techniques and instead used the chirality embedded in a natural terpene to achieve enantioenriched pyrethroids, thus demonstrating a scalable and conceptually elegant approach to stereodefined insecticides.

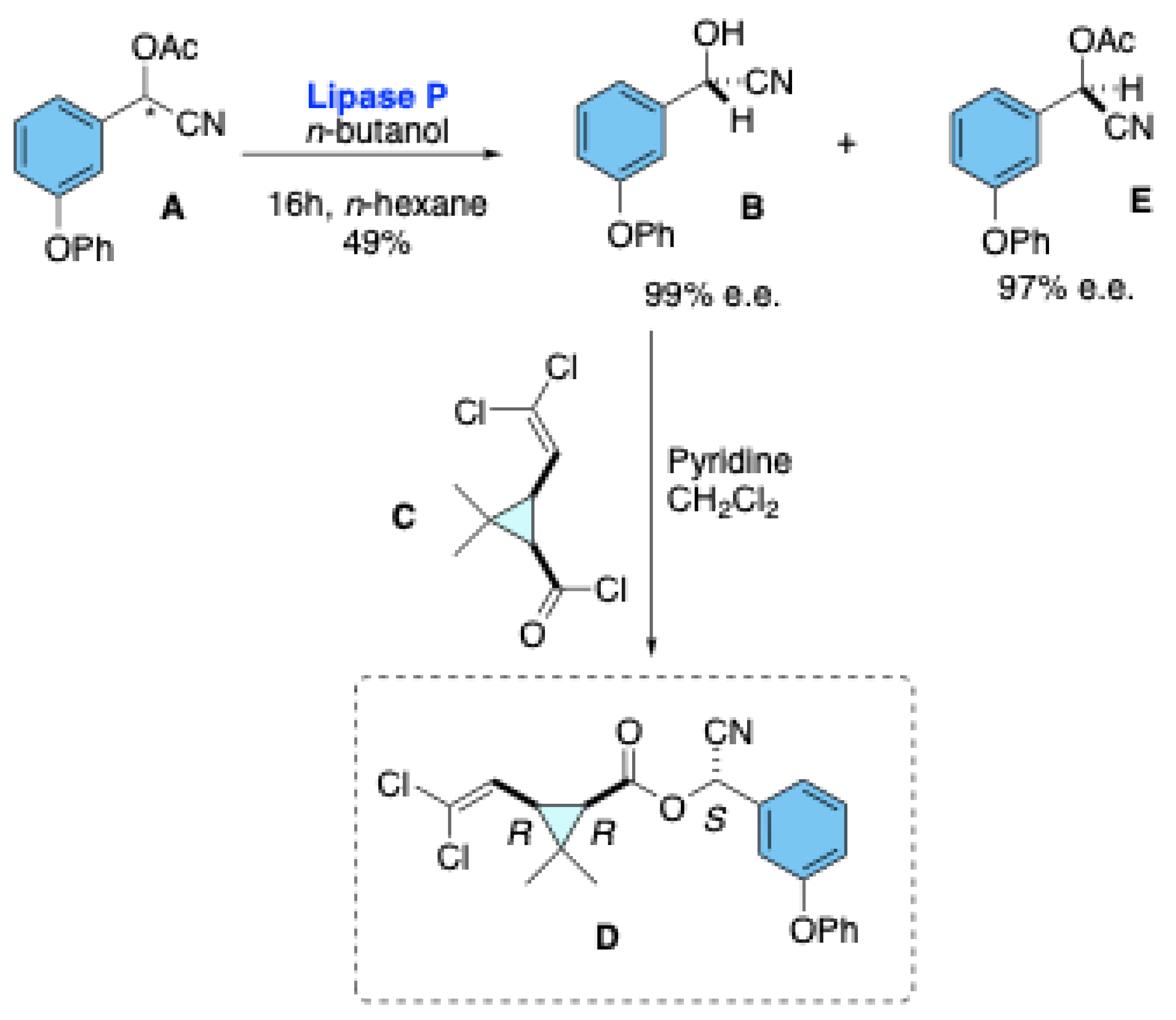

Roos, Stelzer, and Effenberger developed a practical procedure for obtaining enantiopure (1R,cis,αS)-cypermethrin, the stereoisomer with the highest biological activity [19]. Their strategy relied on the enzymatic kinetic resolution of racemic m-phenoxybenzaldehyde cyanohydrin acetate A using immobilized lipase P, which catalyzed the transesterification with n-butanol to afford the (S)-cyanohydrin B with >99% ee. This enantiomerically enriched intermediate was then directly acylated with the (1R,cis)-cyclopropanecarboxylic acid chloride C, producing (1R,cis,αS)-cypermethrin D with an optical purity of 99% d.e. The unreacted (R)-enantiomer E was recovered by distillation and racemized with triethylamine, allowing it to be recycled into the process, thereby establishing a continuous and efficient cycle. Overall, the method delivered the desired enantiopure insecticide in 80% total yield, providing a robust biocatalytic approach for the large-scale preparation of stereodefined pyrethroid (Figure 15).

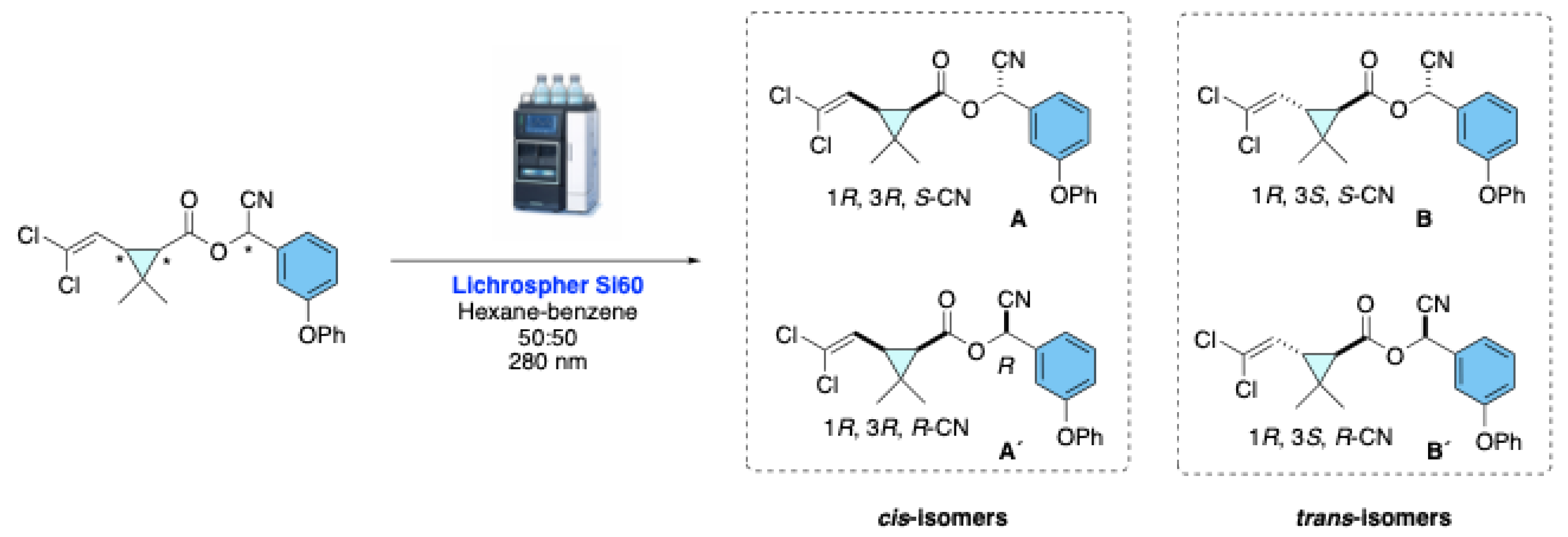

Navas-Díaz and Co-workers [20] describe that Cypermethrin stereoisomers were resolved by normal-phase HPLC on a Lichrospher Si60 column using hexane–benzene (50:50) as the mobile phase, with UV (280 nm) and diode-laser polarimetric detection in series. The method enabled the separation of cis- and trans-diastereomers by UV and the direct discrimination of the four enantiomers by polarimetry (Figure 16).

Cypermethrin stereoisomers were extracted by QuEChERS (Quick, Easy, Cheap, Effective, Rugged, and Safe) or QuOil (a QuEChERS modification for high-oil matrices), followed by d-SPE cleanup, and analyzed using LC–MS/MS on a Waters Cortecs UPLC C18 column with ESI+ detection. The method resolved the four enantiomeric pairs into distinct peaks, using a cellulose-tris(3,5-dimethylphenylcarbamate) stationary phase, and n-hexane/i-propanol as modifier. The method enables reliable quantification of cypermethrin and α-cypermethrin in diverse food matrices, while avoiding isomerization artifacts common in GC analysis [21,22].

Figure 17. HPLC resolution of cypermethrin stereoisomers.

Figure 17. HPLC resolution of cypermethrin stereoisomers.

4.2. Fenvalerate and Fenvalerate Analogues

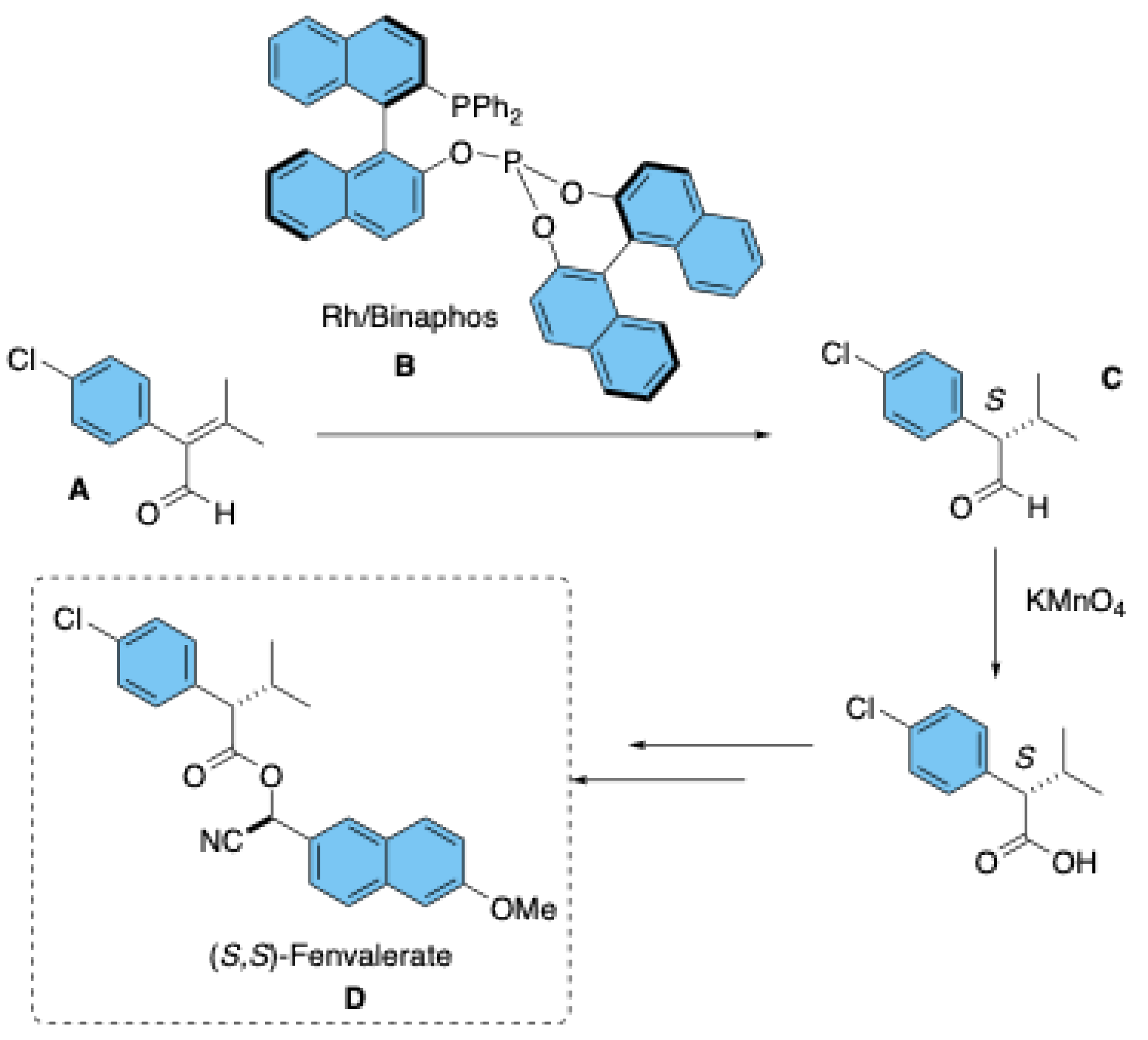

Fenvalerate is a non-cyclopropane synthetic pyrethroid characterized by the presence of two stereogenic centers. Among the four possible stereoisomers, the diastereomer in which both centers adopt the (S)-configuration displays the highest insecticidal potency. The optically active form corresponding to this configuration is commercially known as esfenvalerate. In this context, as shown in Figure 18, the enantioselective hydroformylation of 1-chloro-4-(2-methylprop-1-enyl)benzene A, catalyzed by rhodium carbonyl complexes B, offers a viable strategy for accessing (S)-2-(4-chlorophenyl)-3-methylbutanoic acid C, a key precursor in the synthesis of fenvalerate D [23].

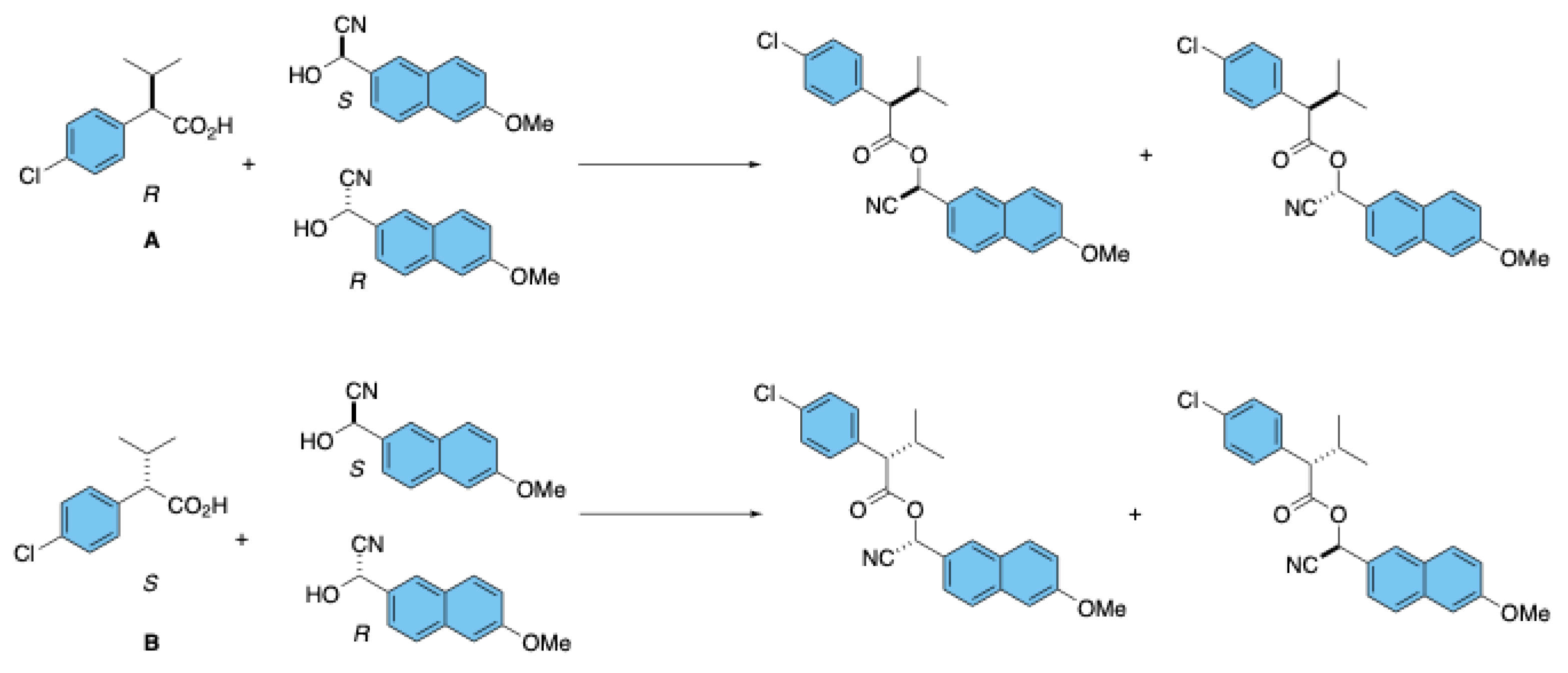

Another example of fenvalerate analogues synthesis followed a similar approach to that of the cypermethrin analogues. The optically pure cyanohydrins also served as chiral building blocks for esterification with the enantiomers (R) or (S) of 2-(4-chlorophenyl)-3-methyl butanoic acid, A and B, respectively (Figure 19) [12]. This route enabled access to the four distinct stereoisomers of fenvalerate fluorescent analogues. Chiral separation and stereochemical assignment were performed using a combination of chiral HPLC and NMR analysis, supported by crystallographic data. The resulting compounds exhibited enantiomeric excess values above 98%, demonstrating the effectiveness of the combined catalytic and enzymatic strategies for generating highly enantioenriched fenvalerate analogues. These optically defined products were subsequently used to investigate the stereoselective hydrolysis of fenvalerate by murine carboxylesterases.

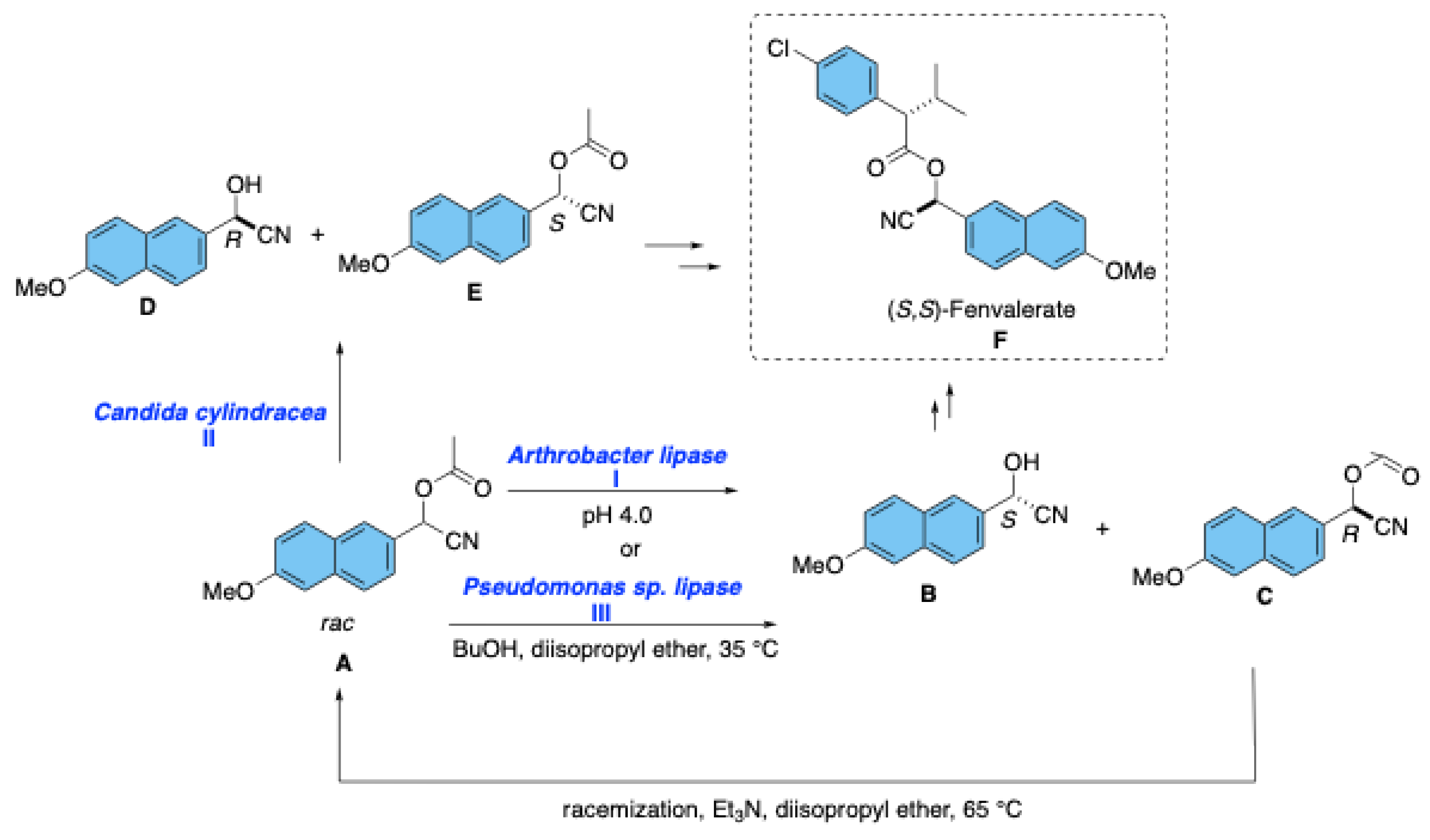

A recurrent stereoselective strategy toward fenvalerate-type pyrethroids has been the enzymatic kinetic resolution of racemic α-cyano-3-phenoxybenzyl acetate A, a direct precursor of the biologically relevant alcohol moiety. Mitsuda and co-workers showed that several microbial lipases preferentially hydrolyze the (S)-acetate, but Arthrobacter lipase was especially effective, affording optically pure (S)-α-cyano-3-phenoxybenzyl alcohol B under mildly acidic conditions (pH 4.0), while the unreacted (R)-acetate C could be racemized and recycled (Figure 20, I) [24]. Another process reported the isolation of the protected (S)-α-cyano-3-phenoxybenzyl acetate itself. The disclosed method used microbial lipase, particularly Candida cylindracea lipase [25], to asymmetrically hydrolyze the (R) ester from racemic α-cyano-3-phenoxybenzyl acetate A, leaving the (S) acetate E enriched and recoverable after separation from the corresponding alcohol D. Conceptually, this process is notable because it targets the stereodefined intermediates, which are flexible synthons for the subsequent assembly of fenvalerate (Figure 20, II). A more process-oriented advance was reported by Fishman and Zviely [26], who designed a scalable chemoenzymatic route to (S)- α -cyano-3-phenoxybenzyl acetate beginning from m-phenoxybenzaldehyde. Their sequence comprised racemic α -cyano-3-phenoxybenzyl acetate formation, Pseudomonas sp. lipase-mediated transesterification in organic solvent, separation of the enantiopure alcohol, and racemization of the undesired ester for recycling. Importantly, the use of organic medium minimized cyanohydrin decomposition and product racemization, while immobilized enzyme operation enabled both batch reuse and continuous processing (Figure 20, III).

4.3. Cycloprothrin and Cycloprothrin Analogues

Taniguchi and co-workers [27] reported the asymmetric synthesis of cycloprothrin analogues by constructing cyclopropane pyrethroids bearing two stereogenic centers on the cyclopropane ring. The key step involved the enantioselective ring-opening of chiral propylene oxides with 4-chlorobenzyl cyanide anion, followed by tosylation and an SN₂-type cyclopropanation. Using (R)- and (S)-propylene oxide, the authors accessed enantioenriched cyclopropane nitrile precursors with excellent optical purity (>98% e.e., confirmed by chiral HPLC). These intermediates were transformed into cyanohydrin esters and ether derivatives, enabling direct evaluation of structure–activity relationships. Biological assays against Culex pipiens pallens revealed clear chiral discrimination, as only the (1R,2R)-configured ether showed strong insecticidal activity, while the cyanohydrin esters were inactive. This work demonstrates how enantioselective cyclopropanation strategies can efficiently deliver optically pure cycloprothrin analogues, highlighting the critical role of stereochemistry in pyrethroid insecticidal activity (Figure 21).

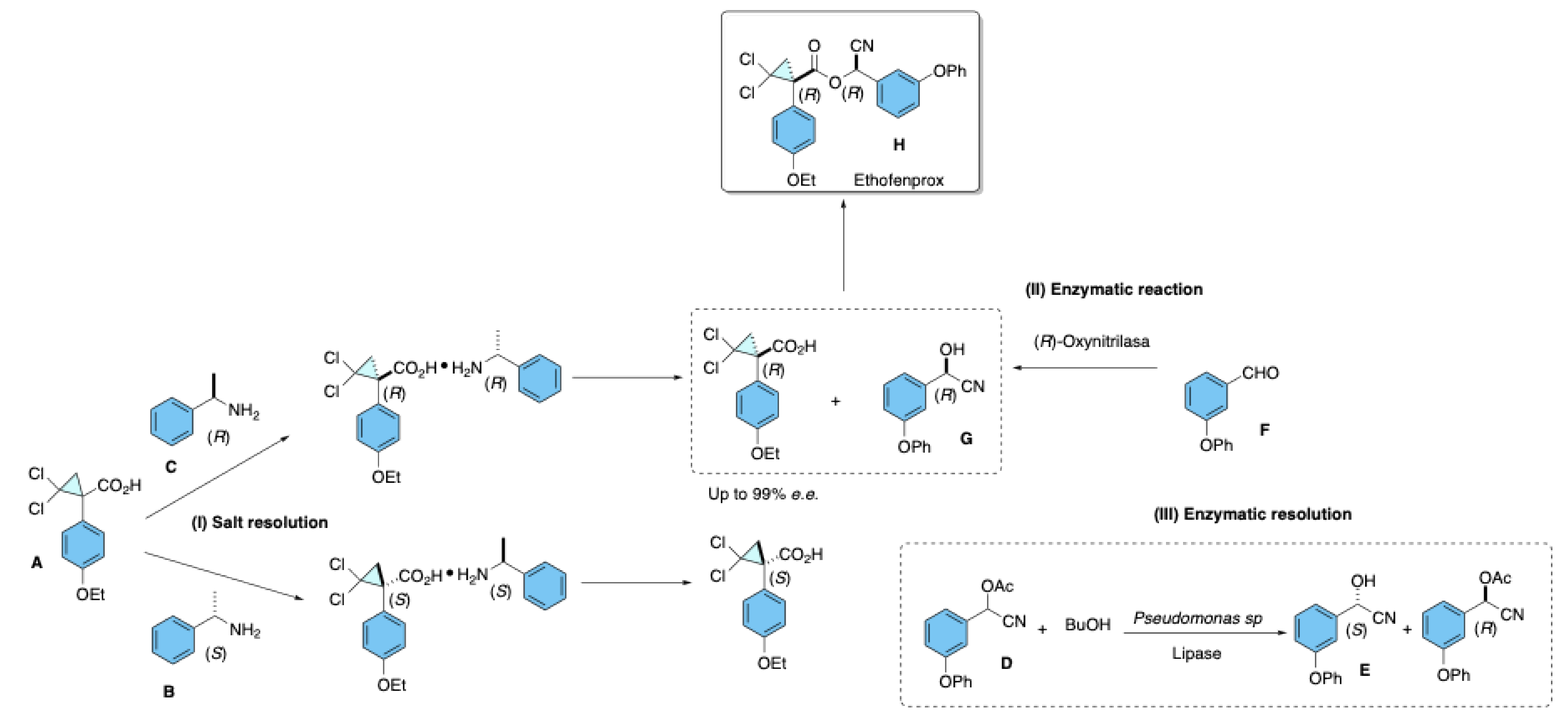

As depicted in Figure 22, Jiang and Co-workers [28,29] employed multiple asymmetric synthesis and resolution strategies to obtain optically active isomers of ethofenprox, demonstrating a deliberate application of chiral tools to enhance insecticidal activity. They first resolved the racemic acid intermediate, 1-(4-ethoxyphenyl)-2,2-dichlorocyclopropane-1-carboxylic acid A, using chiral amines such as S-(-)-α-methylbenzylamine or R-(+)-α-methylbenzylamine B or C, respectively, to form diastereomeric salts, which were then crystallized and acidified to yield enantiopure acids with high enantiomeric excess (e.e. ≈ 99.8%) [Figure 22, incise (I)]. For the alcohol segment, 2-hydroxy-2-(3-phenoxyphenyl)acetonitrile, they utilized both enzymatic and chemoenzymatic approaches: lipase from Pseudomonas sp. was used to kinetically resolve the racemic acetate D via transesterification to obtain the (S)-alcohol E [Figure 22, incise (III)], while an (R)-oxynitrilase extracted from bitter almonds catalyzed the enantioselective addition of hydrogen cyanide to 3-phenoxybenzaldehyde F to furnish the (R)-alcohol G [Figure 22, incise (II)]. Finally, these resolved chiral building blocks were coupled via esterification using condensing agents like DCC or EDCI, yielding a specific diastereomer of ethofenprox H. This strategic use of asymmetric synthesis and resolution enabled the authors to isolate isomers such as the highly active (R,R)-isomer, which showed significantly improved insecticidal potency compared to the racemic mixture [28,29].

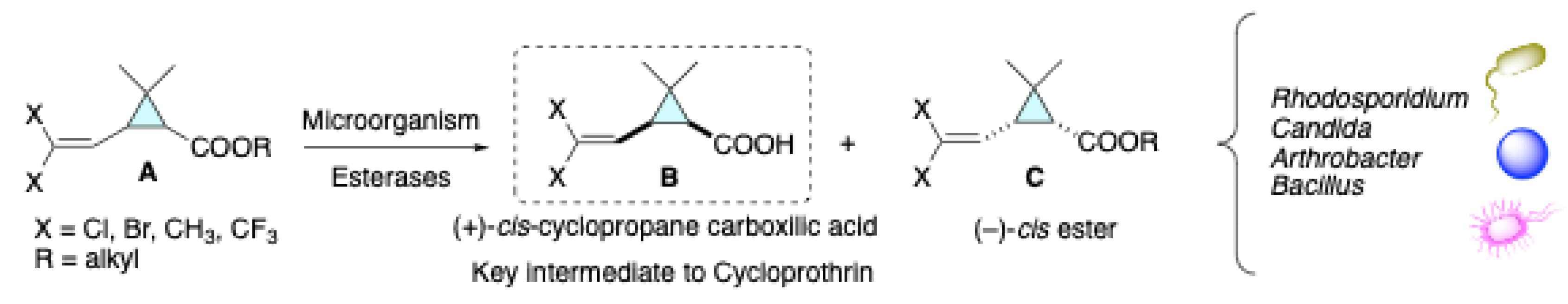

Nishizama and Co-workers [30] developed an enzymatic asymmetric hydrolysis process to obtain optically active cyclopropanecarboxylic acids, key intermediates for pyrethroid insecticides such as cycloprothrin. They utilized specific microorganisms or esterases derived therefrom, including strains from Rhodosporidium, Candida, Arthrobacter, Bacillus, and other genera, to selectively hydrolyze racemic cis-cyclopropanecarboxylic acid esters A. This biocatalytic approach preferentially cleaved the (+)-cis enantiomer B, leaving the (−)-cis ester C unchanged and enabling the isolation of the desired (+)-cis acid in high optical purity. The method offered significant improvements in yield and enantioselectivity over prior chemical or enzymatic methods, facilitating a more efficient and industrially viable route to these chiral building blocks (Figure 23).

5. Chiral Oxadiazines

5.1. Indoxacarb and Indoxacarb Analogues

Indoxacarb is a broad-spectrum oxadiazine insecticide that has become an important member of modern agrochemical arsenals due to its unique mode of action and favorable selectivity profile. It acts primarily as a voltage-dependent sodium channel blocker, leading to paralysis and death in a wide range of lepidopteran and other insect pests, while exhibiting comparatively low toxicity to mammals and beneficial organisms. Structurally, indoxacarb is characterized by a stereogenic center within its indane-derived moiety, making its biological activity enantioselective—only the (−)-enantiomer demonstrates potent insecticidal properties. This stereochemical requirement distinguishes indoxacarb from many earlier insecticides, where racemic mixtures were commonly commercialized, and highlights the importance of asymmetric synthesis in its development. The discovery and commercialization of indoxacarb thus represent a milestone, as they exemplify how enantioselective synthetic strategies can be directly linked to enhanced efficacy and safety in insecticide design, establishing a paradigm for the preparation of future chiral agrochemicals [31].

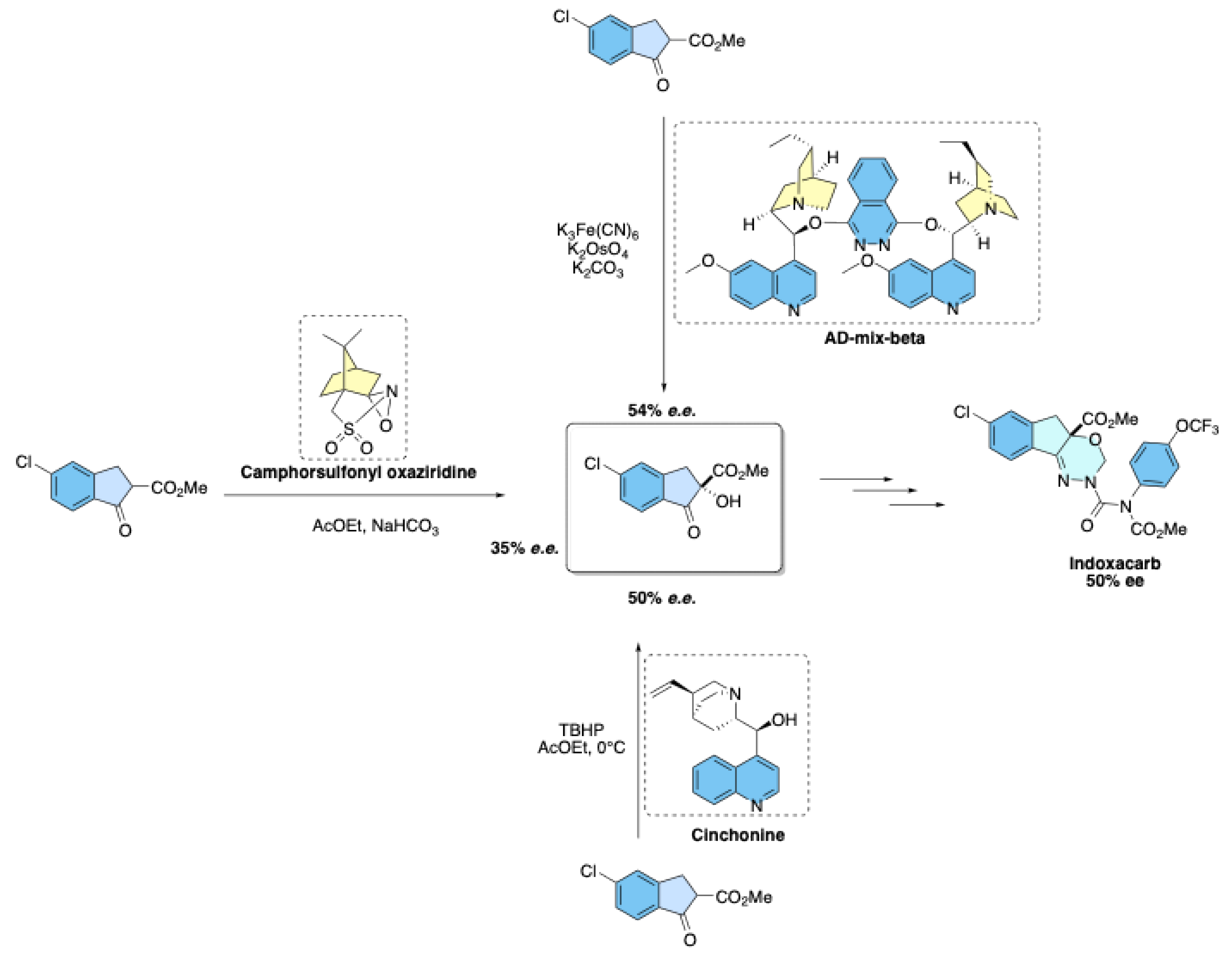

In this context, McCann and co-workers [32] demonstrated that asymmetric synthesis played a pivotal role in the development of indoxacarb, an oxadiazine insecticide, where only one enantiomer exhibited potent biological activity. The team introduced chirality at the stage of 2-carbomethoxyindanone hydroxylation, exploring several enantioselective methods. Sharpless asymmetric dihydroxylation provided hydroxyindanone intermediates with moderate enantioselectivity (~50% e.e.), while camphorsulfonyl oxaziridines gave slightly lower values. The most effective strategy employed a cinchonine-catalyzed hydroxylation with tert-butyl hydroperoxide, which reproducibly delivered the (−)-hydroxyindanone with ~50% e.e. on a preparative scale. Subsequent conversion of this intermediate through semicarbazone formation and O,N-acetal cyclization furnished the commercial product, (−)-indoxacarb, underscoring how asymmetric oxidation enabled the scalable preparation of a stereochemically defined agrochemical (Figure 24).

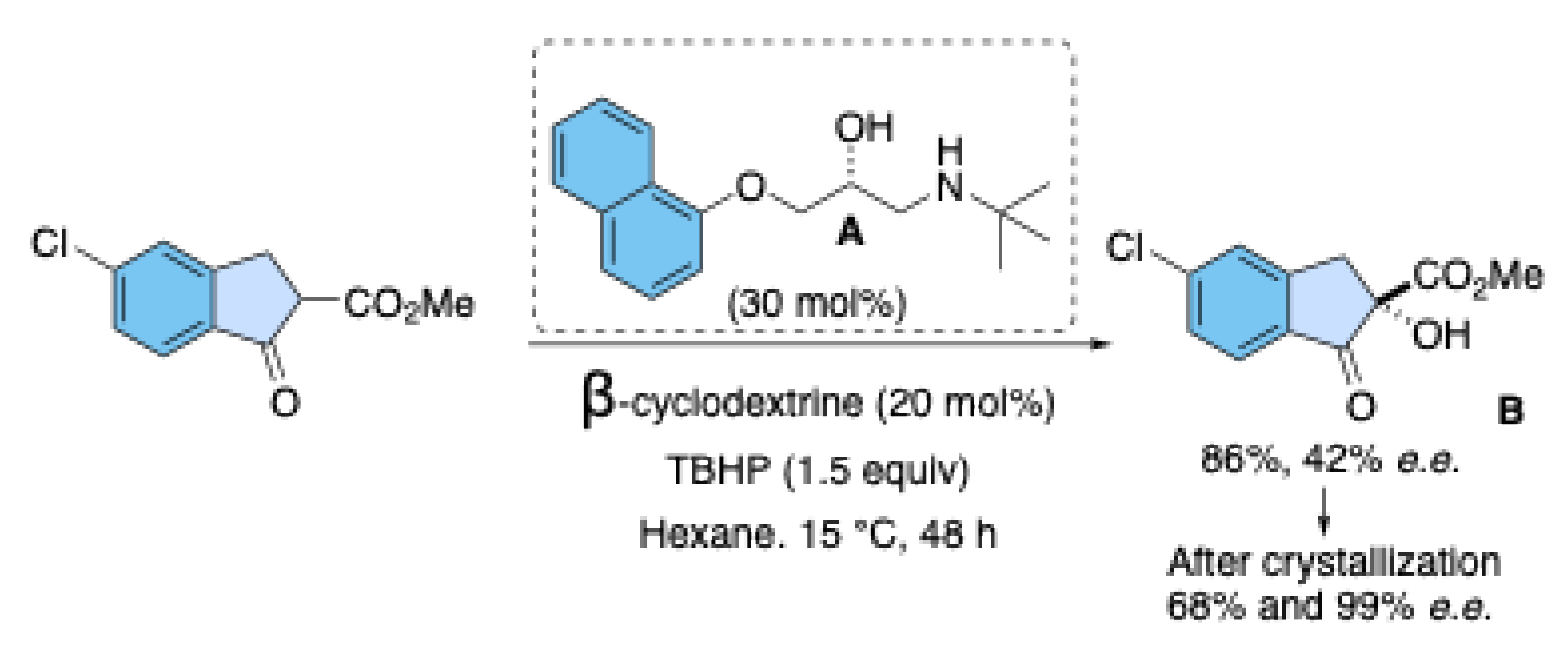

Gong and co-workers [33] reported an asymmetric synthetic strategy highly relevant for the preparation of indoxacarb’s chiral intermediates, specifically the α-hydroxylated indanone derivatives that serve as precursors to the insecticide. Their work employed commercially available chiral drugs as organocatalysts for the asymmetric α-hydroxylation of β-keto esters. Among the screened catalysts, timolol and propranolol showed promising enantioinduction (up to 32% and 18% e.e., respectively), which inspired the design of twelve analogues. The optimized catalyst, (R)-1-(tert-butylamino)-3-(2-naphthoxy)-2-propanol A, in combination with β-cyclodextrin as cocatalyst and tert-butyl hydroperoxide as oxidant, delivered the desired (S)-hydroxyindanone ester B with up to 42% e.e. and 86% yield. Importantly, a single recrystallization step raised the optical purity to >99% ee, with an isolated yield of 68% (Figure 25). This work illustrates how drug-inspired organocatalysts can provide a practical and scalable route to enantioenriched indanone building blocks, thus enabling the asymmetric synthesis of indoxacarb [28].

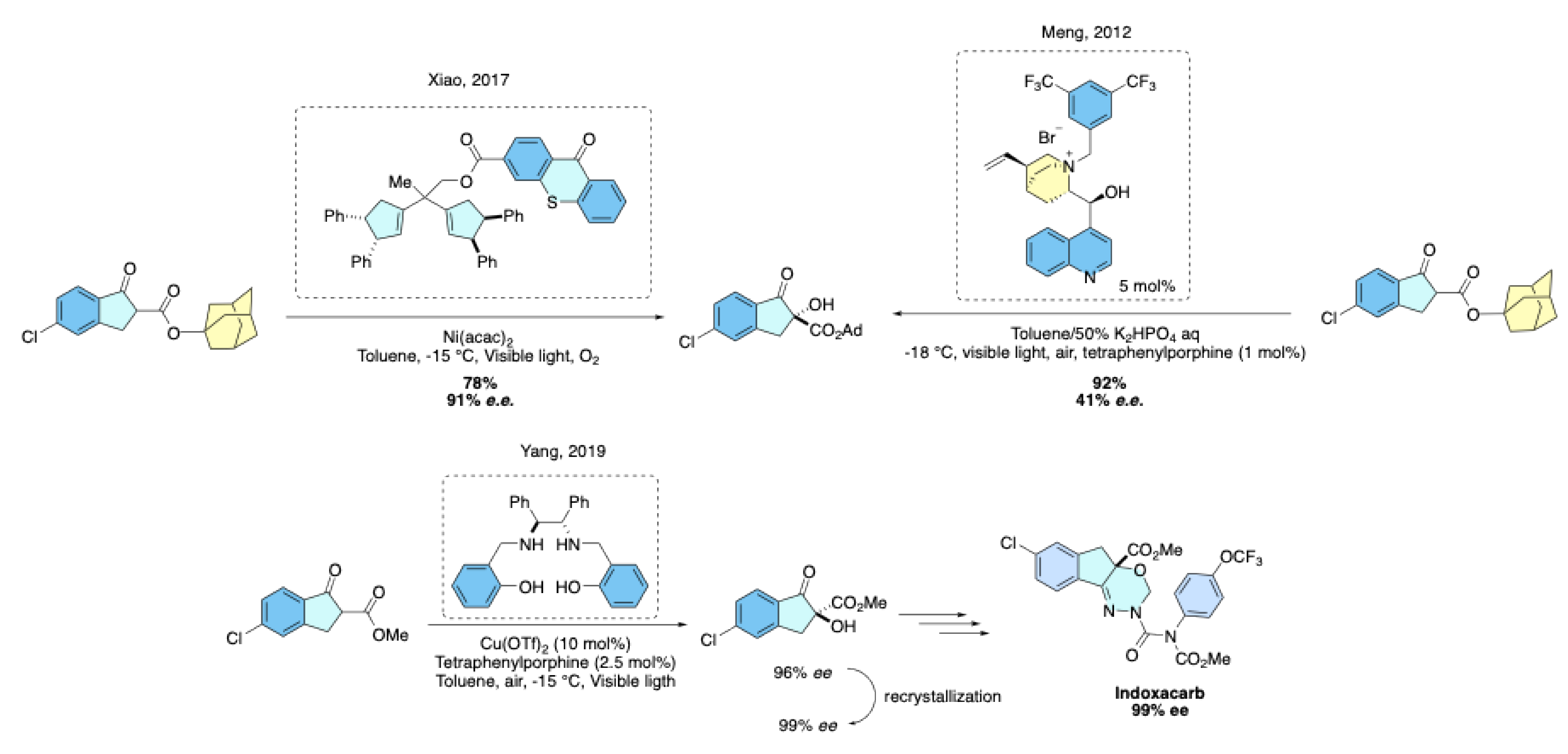

Other methodologies were reported by Lian and Ding [34,35] describing the α-hydroxylation of β-keto esters using phase transfer catalyst-visible light and bifunctional photocatalysis-Ni(II)-visible light, respectively. Subsequently, Yang and co-workers [36] introduced an innovative visible light-induced salan–copper(II)-catalyzed enantioselective α-hydroxylation of β-keto esters, a transformation directly relevant to the synthesis of indoxacarb’s chiral intermediates. Using tetraphenylporphyrin (TPP) as a photosensitizer to generate singlet oxygen from air, the system delivered α-hydroxy-β-keto esters in up to 95% yield and 96% e.e. under mild aerobic conditions. Importantly, substrates derived from indanone methyl esters, including 5-chloro-indanone esters, were efficiently hydroxylated to provide the (S)-configured intermediates, which, after straightforward derivatization, were converted into (S)-indoxacarb, the biologically active enantiomer. This methodology highlights how photoredox catalysis coupled with copper–salan complexes offers a sustainable and highly stereoselective approach to access key building blocks for enantiopure agrochemicals such as indoxacarb (Figure 26).

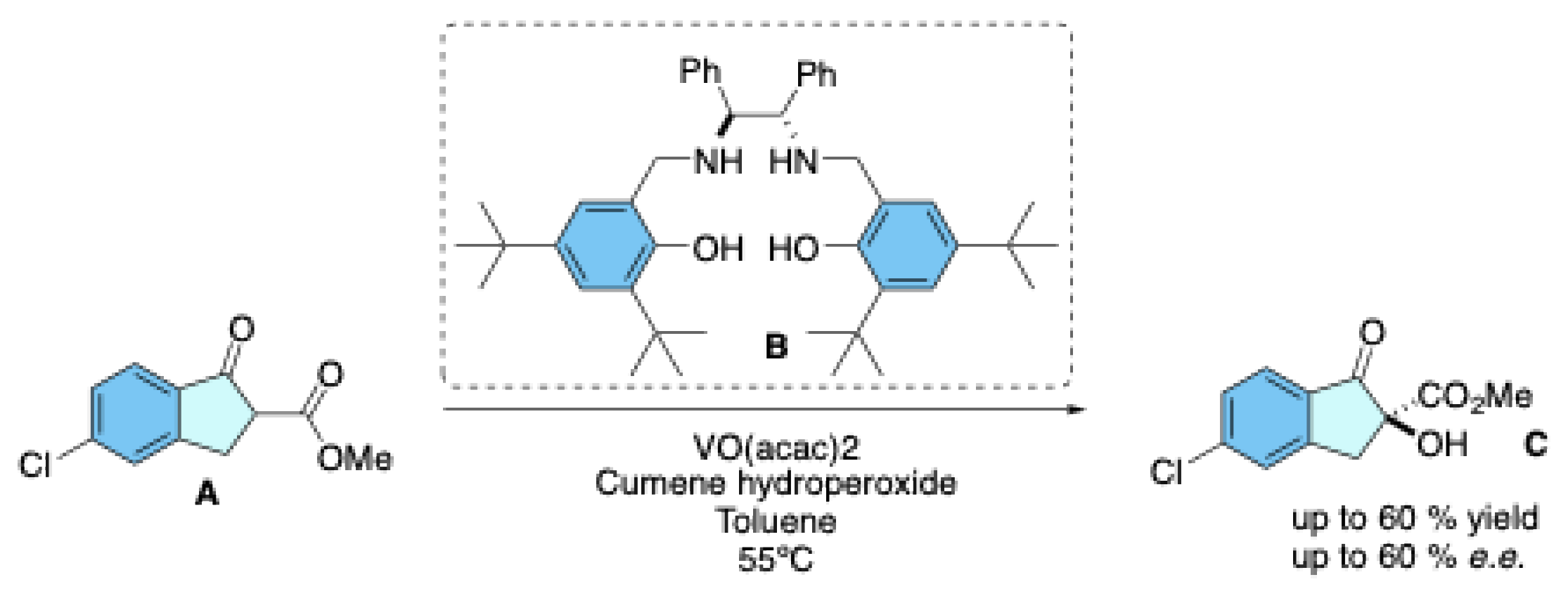

Since 2013, several patents have progressively advanced the asymmetric synthesis of S-indoxacarb, focusing on the α-hydroxylation of 5-chloro-2-methoxycarbonyl-1-indanone, the key chiral intermediate. The earliest report by Sun [37] discloses an asymmetric hydroxylation route from ester A to the key intermediate (S)-5-chloro-2-methoxycarbonyl-2-hydroxy-1-indanone C for indoxacarb. Using a chiral vanadyl–diamine complex B with cumene hydroperoxide as oxidant, the method provided the desired (S)-indanone C in ~57–60% yield with about 60% e.e., as confirmed by chiral HPLC analysis. Although the enantioselectivity is moderate, this process demonstrates a practical entry to the biologically active enantiomer of indoxacarb (Figure 27). More recently, Bo and Co-workers [38] refined these strategies by incorporating recyclable zirconium complexes that deliver consistently high optical purity and scalability, establishing a sustainable and cost-effective industrial route. Collectively, these inventions illustrate the evolution from moderate selectivity to robust, recyclable catalytic systems, cementing zirconium-based asymmetric hydroxylation as the current standard for large-scale production of enantiopure indoxacarb.

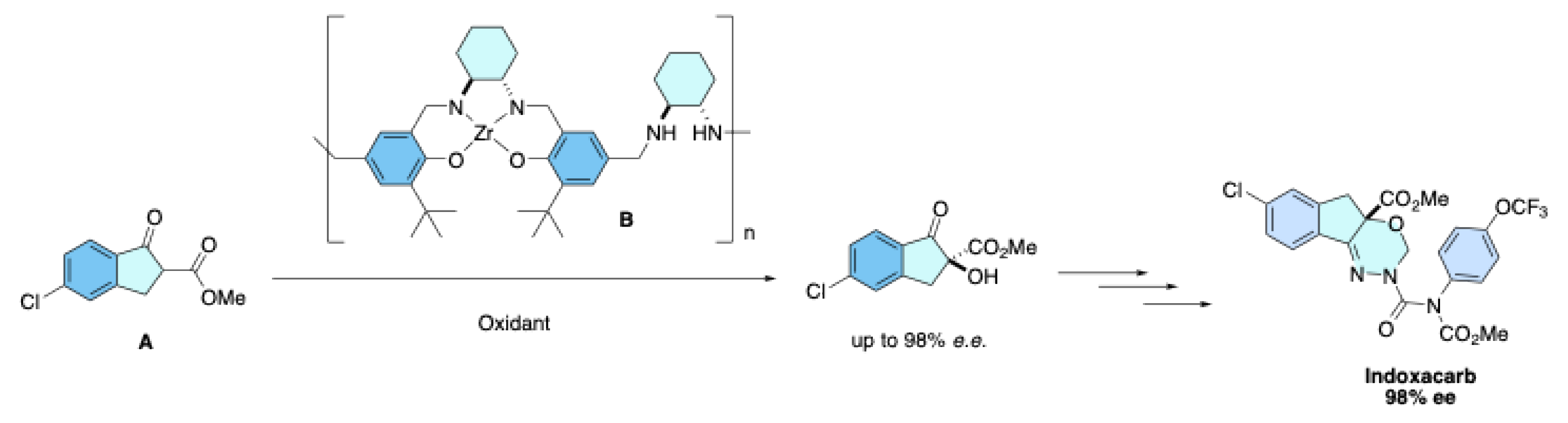

This method employs a zirconium-based chiral catalyst system B combined with peroxides under mild conditions to achieve the α-hydroxylation of the indanone substrate A. Compared with earlier vanadium- or cinchonine-catalyzed oxidations, the process delivers both higher enantioselectivity (e.e. >98%) and improved yields, while also enabling catalyst recovery and reuse of up to 10 cycles without a significant drop in either enantioselectivity or yield. These advances overcome the limitations of previous asymmetric hydroxylation strategies, providing a more practical and scalable synthesis suitable for the industrial production of enantiopure indoxacarb (Figure 28) [33].

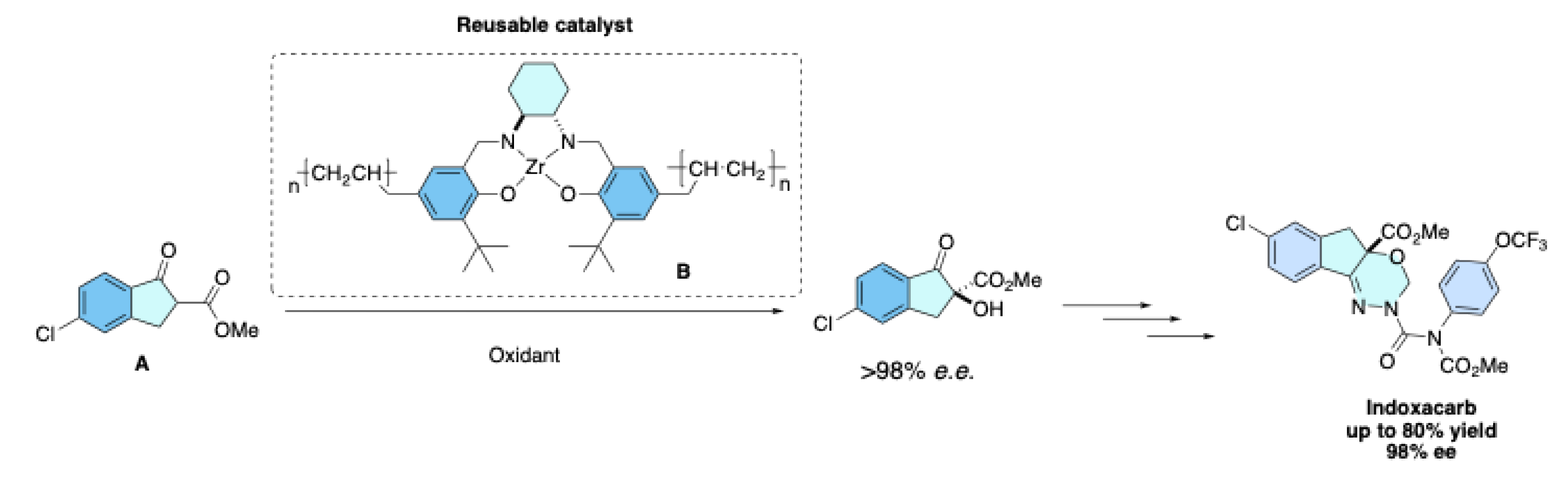

The 2024 U.S. patent [39] describes a further optimized process for preparing S-indoxacarb via asymmetric hydroxylation of 5-chloro-2-methoxycarbonyl-1-indanone A. The method employs recoverable zirconium-based chiral catalysts B, which improve both efficiency and sustainability of the transformation. Compared to earlier strategies, this invention achieves higher enantiomeric purity (>98% e.e.) while ensuring the catalyst can be recycled multiple times without significant loss of performance, thereby reducing production costs and environmental impact (Figure 29).

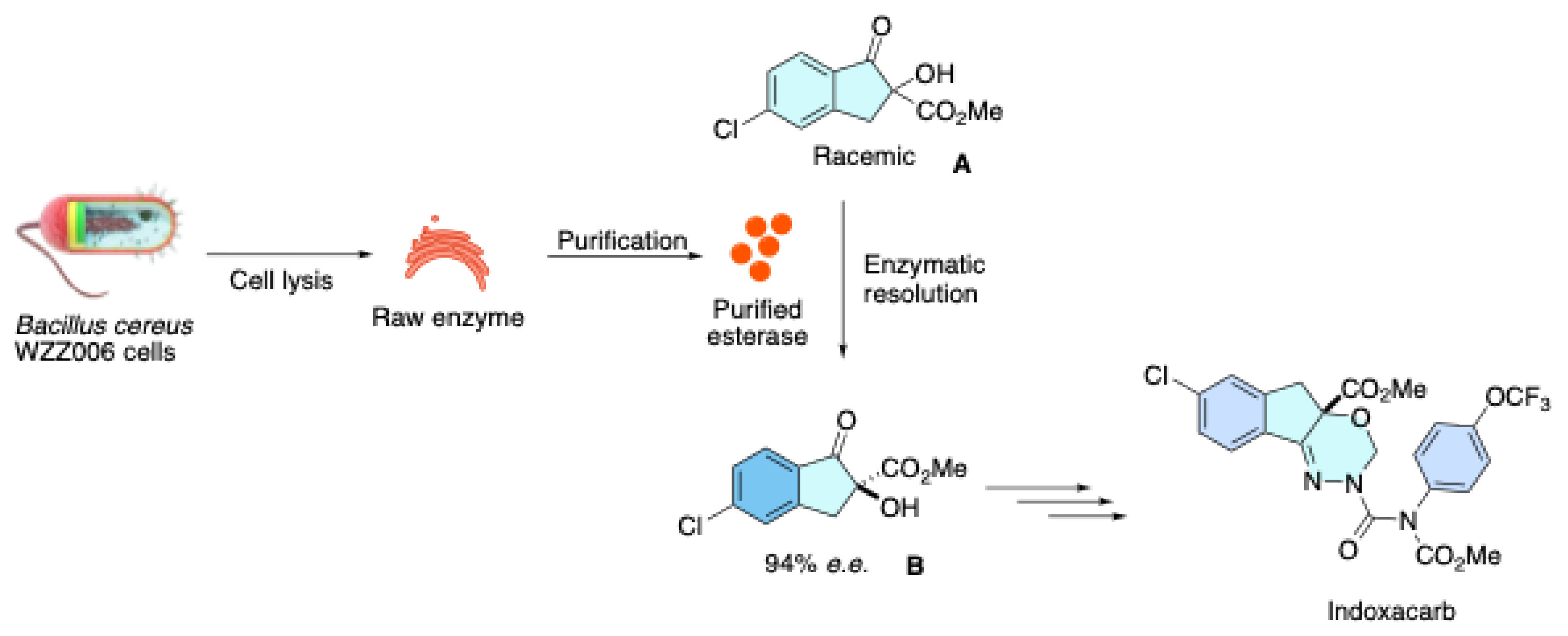

Zhang and co-workers [40] report an enzymatic asymmetric route to indoxacarb via enantioselective resolution of its key intermediate, (R,S)-5-chloro-1-oxo-2,3-dihydro-2-hydroxy-1H-indene-2-carboxylic acid methyl ester A. They purified a thermoalkaliphilic intracellular esterase (BCE) from Bacillus cereus WZZ006 (96 kDa; 89.5-fold purification; specific activity 1.79 U mg⁻¹), showing optimal activity at pH 8.5 and 50 °C. Using purified BCE, the kinetic resolution of racemic A achieved an enantiomeric excess of 94% at ~53% conversion in 3 h (E = 39.95), markedly shortening the process compared with whole-cell catalysis (36 h). Also, the performance was quantified by chiral HPLC and provided kinetic parameters (Km = 0.98 mM, kcat = 69.47 min⁻¹), underscoring BCE as a practical biocatalyst to access the (S)-configured indoxacarb intermediate B under mild, industry-relevant conditions (Figure 30).

6. Comparative Evaluation of Strategies for Enantioselective Synthesis of Insecticides

A wide range of methodologies has been developed for the preparation of enantiomerically enriched insecticides; however, their relative efficiency, scalability, and industrial applicability vary significantly. Broadly, these approaches can be classified into asymmetric catalysis (organocatalysis and metal catalysis), chiral pool strategies, biocatalysis, and resolution techniques. Organocatalytic methods, such as the diphenylprolinol-mediated Michael addition used in cycloxaprid synthesis, offer operational simplicity and avoid the use of metals, but often suffer from moderate scalability and, in some cases, incomplete enantiocontrol after downstream transformations. In contrast, transition metal–catalyzed processes, including zirconium- and copper-based systems, generally provide higher and more consistent enantioselectivities (often >90% e.e.) and are more amenable to industrial scale, particularly when catalyst recyclability is achieved. Chiral pool strategies, exemplified by proline-derived neonicotinoids, represent a highly efficient route to enantiopure compounds, as stereochemical information is introduced from inexpensive, naturally available starting materials. However, their applicability is inherently limited by the structural diversity of accessible chiral precursors. Biocatalytic approaches, including lipase-mediated resolutions and enzyme-catalyzed transformations, consistently deliver excellent enantioselectivity (>95% e.e.) under mild conditions and are particularly attractive for large-scale applications, although substrate scope and enzyme stability may limit their generality. In contrast, classical resolution techniques, such as chiral HPLC or diastereomeric salt formation, remain valuable for analytical purposes and small-scale preparation but are generally less efficient for industrial production due to material loss and additional processing steps. Overall, no single methodology universally satisfies all criteria for efficiency, sustainability, and scalability. Instead, the most effective strategies often involve hybrid approaches, combining asymmetric synthesis with selective resolution or biocatalytic refinement to achieve high optical purity and practical yields (Table 1).

Taken together, these findings highlight that future progress in stereoselective insecticide synthesis will depend not only on methodological innovation but also on the integration of synthetic, biological, and computational approaches.

7. Stereochemistry–Activity Relationships in Chiral Insecticides

The biological activity of chiral insecticides is strongly dependent on their absolute configuration, as enantiomers interact differently with biological targets such as nicotinic acetylcholine receptors (nAChRs) and voltage-gated sodium channels. As described before, only one stereoisomer is responsible for the desired insecticidal activity,10 while others contribute minimally or may even increase toxicity toward non-target organisms. In neonicotinoids, stereochemical constraints introduced by cis-locked frameworks, as observed in cycloxaprid and paichongding, enhance receptor binding affinity by favoring conformations that optimize interactions with nAChRs. Similarly, dinotefuran-derived chiral analogues exhibit pronounced enantioselectivity, where differences in configuration influence not only insecticidal potency but also toxicity profiles and environmental behavior. These findings highlight the importance of stereochemical control in modulating both efficacy and safety. Pyrethroids represent one of the most illustrative examples of stereochemistry-dependent activity. The insecticidal potency is often confined to specific stereoisomers, particularly those with defined configurations at the cyclopropane ring and the benzylic alcohol moiety. For instance, the (1R,cis,αS)-isomer of cypermethrin exhibits significantly higher biological activity compared to other stereoisomers, which has led to the development of enriched or single-isomer formulations such as esfenvalerate. Similar trends are observed in cycloprothrin analogues, where only specific stereochemical combinations display strong activity against target insect species. In the case of indoxacarb, stereochemistry plays a decisive role, as only one enantiomer exhibits potent insecticidal activity, while the opposite enantiomer is significantly less active. This clear enantiodiscrimination underscores the importance of asymmetric synthesis in maximizing efficacy and reducing unnecessary environmental load. Collectively, these examples demonstrate that stereochemistry is a key determinant of biological performance in insecticides. Future design strategies should therefore prioritize enantiomerically pure compounds and incorporate stereochemical considerations into early stages of molecular development. Across all classes, a consistent trend emerges in which stereochemical configurations that rigidify the molecular framework and optimize receptor alignment lead to enhanced activity, highlighting the importance of conformational control in insecticide design.

8. General Principles of Stereocontrol in Asymmetric Insecticide Synthesis

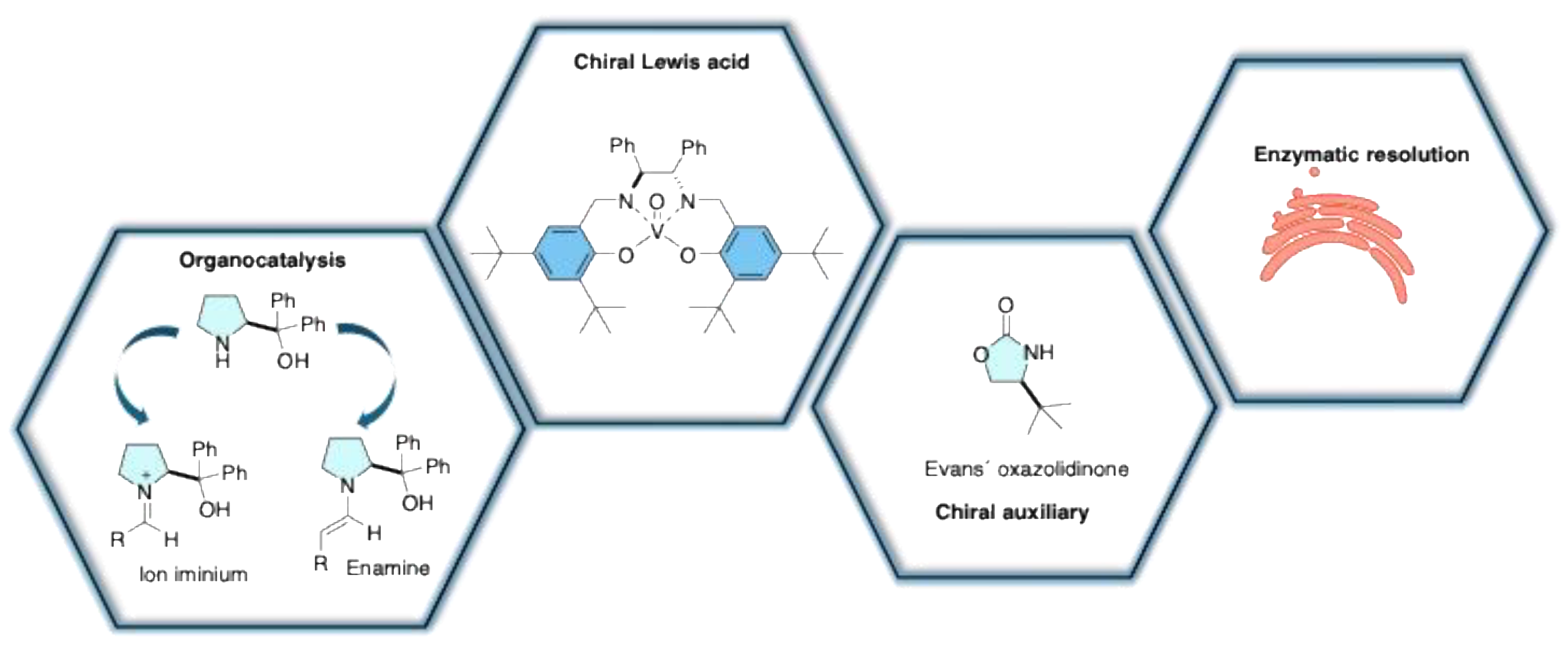

Despite the diversity of synthetic approaches, several common mechanistic principles govern enantioselectivity in insecticide synthesis. In organocatalytic systems, stereocontrol is typically achieved through iminium or enamine activation, where chiral secondary amines create a sterically defined environment that directs nucleophilic attack from a specific atom. On the other hand, transition metal catalysis relies on chiral ligands to control substrate orientation and transition-state geometry, enabling the selective formation of one enantiomer through coordination-driven pathways. Other methodologies, such as chiral auxiliaries, include the Evans oxazolidinones, which induce stereoselectivity by enforcing conformational bias during bond formation, often leading to high diastereoselectivity that can be translated into enantiopurity after auxiliary removal. Finally, in biocatalysis, enzyme active sites provide highly specific three-dimensional environments that discriminate between enantiotopic faces, resulting in exceptional selectivity under mild conditions Figure 31.

These mechanistic frameworks highlight that effective stereocontrol arises from the precise organization of reactive intermediates within chiral environments, regardless of whether the source of chirality is molecular, metallic, or biological.

9. Future Perspectives

The development of enantiomerically pure insecticides is expected to play a central role in next-generation agrochemical design, driven by increasing regulatory pressure and the need for improved environmental safety. Although significant advances have been achieved in asymmetric synthesis, future progress will depend on the integration of efficient, sustainable, and scalable methodologies. A key priority is the development of robust catalytic systems based on organocatalysis, earth-abundant metals, and engineered enzymes, capable of delivering high enantioselectivity under mild and industrially viable conditions. In parallel, the adoption of green chemistry approaches, including continuous-flow and mechanochemical processes, will be essential to reduce environmental impact and improve process efficiency. Another critical challenge is the limited understanding of the relationship between stereochemistry and biological performance. Future research should integrate synthetic chemistry with structure–activity relationships, toxicological evaluation, and environmental fate studies to enable the rational design of safer and more selective insecticides. The incorporation of computational tools and artificial intelligence offers a transformative opportunity to accelerate discovery. Techniques such as DFT, molecular modeling, and machine learning can support catalyst design, predict enantioselectivity, and reduce experimental workload. Finally, the transition from racemic mixtures to single-enantiomer formulations is likely to become a regulatory and industrial standard. Achieving this goal will require interdisciplinary strategies that bridge synthetic innovation with biological evaluation and scalable manufacturing.

10. Conclusions

The analysis presented in this review underscores the pivotal role of stereochemistry in shaping the next generation of insecticides. Across diverse chemical classes, including neonicotinoids, pyrethroids, and oxadiazines, enantioselectivity has been consistently shown to influence not only insecticidal potency but also environmental fate, selectivity toward non-target organisms, and resistance profiles. These findings reinforce the concept that enantiomers should be regarded as distinct functional entities rather than interchangeable forms of the same compound. Significant progress has been achieved in the development of stereoselective synthetic methodologies. Organocatalysis, transition metal catalysis, chiral pool strategies, and biocatalysis have each contributed valuable tools for accessing enantiomerically enriched insecticides. In particular, advances in photochemical activation, enzyme engineering, and recyclable catalytic systems have improved both efficiency and sustainability, while recent industrial patents demonstrate the feasibility of scaling asymmetric processes to meet commercial demands. Nevertheless, no single strategy has emerged as universally applicable, and many methods remain limited by cost, operational complexity, or substrate scope. A critical gap identified in the current literature is the insufficient integration of synthetic methodologies with structure–activity relationships and environmental impact studies. While numerous reports describe the preparation of chiral insecticides, fewer systematically correlate absolute configuration with biological performance, toxicity, and degradation behavior. Addressing this disconnect will be essential for the rational design of safer and more effective agrochemicals. Looking forward, the field is poised to benefit from the convergence of synthetic chemistry with emerging technologies. The application of computational chemistry, molecular docking, and machine learning offers new opportunities to predict enantioselectivity and optimize catalyst design. In parallel, the adoption of green chemistry principles, including solvent minimization, catalytic efficiency, and energy-efficient processes such as flow and mechanochemistry, will be crucial for developing sustainable manufacturing routes. In conclusion, the transition from racemic mixtures to enantiomerically pure insecticides represents both a scientific challenge and an opportunity for innovation. Continued interdisciplinary efforts will be required to bridge the gap between laboratory-scale discovery and industrial implementation, ultimately enabling the development of next-generation agrochemicals that combine high efficacy with reduced environmental impact.
