WorldPT: An Ontology-Driven, Directed Multilayer Repository for Computational Narratology, Structural Evaluation and Generative Modeling

1. Introduction

The systematic construction of expansive fictional universes, collectively known as worldbuilding, represents one of the most sophisticated cognitive tasks in human narratology. It requires the simultaneous orchestration of geographical, historical, socio-political, and metaphysical subsystems into a coherent, self-sustaining whole. In the era of Large Language Models (LLMs) and autonomous narrative agents, the challenge of maintaining long-range structural consistency across these subsystems has emerged as a critical bottleneck. While current generative architectures demonstrate remarkable local linguistic fluency, they frequently suffer from “ontological drift”, where the internal logic of the world is sacrificed for immediate textual probability [1,2].

To address this limitation, we posit that fictional worlds should be formalized not as sequences of natural language, but as Directed Multilayer Attributed Graphs. In this framework, world-coherence is a function of the integrity of directed dependencies between heterogeneous entities. However, the existing landscape of narrative datasets is largely bifurcated: on one hand, we find unstructured text corpora that lack explicit semantic grounding; on the other, specialized knowledge graphs (KGs) that focus on factual triples but fail to capture the hierarchical “grounding” essential for narrative depth [3].

In this paper, we introduce the WorldPT, a curated repository designed to bridge the gap between computational narratology and graph-based knowledge representation. A defining feature of the WorldPT is its construction entirely in Portuguese, a deliberate choice aimed at expanding the accessibility of advanced narrative resources. By providing a high-quality structural benchmark in Portuguese, we seek to empower the vibrant Lusophone research and creative communities. This initiative democratizes access to complex semantic reasoning tools, fostering richer, more linguistically diverse studies in narrative AI and enabling native creators to model their fictional universes without the friction of translation, aligning with broader calls for language-specific datasets to mitigate linguistic centralism in AI [4].

Our dataset formalizes world-consistency through a hexapartite layering system (Structural, Causal, Temporal, Social, Ontological, and Symbolic), providing a rigorous schema for inter-entity dependencies. We adopt a Grounding Directionality Axiom, where every edge $(u,v)$ denotes that the identity or function of entity u is semantically situated within the context of entity v. This ontological grounding ensures that the narrative graph remains an auditable and logically consistent structure, moving beyond simple co-occurrence toward formal narrative modeling [5,6,7].

Furthermore, by translating narrative lore into a topological framework, the WorldPT enables the direct application of Social Network Analysis (SNA) to storytelling [8,9]. We provide built-in evaluation pipelines that compute global and node-level narrative metrics. This transforms abstract literary critiques into quantifiable data, allowing researchers to diagnose the structural health of a fictional universe through metrics that reveal narrative rhythm and connectivity patterns [10].

The primary contributions of this work are fourfold: (i) we define a standardized schema for 13 ontological classes and their permissible directional relations, based on foundational principles of formal ontology [11], (ii) we introduce a method for disambiguating multifaceted relationships, separating physical containment from symbolic influence and causal triggers, treating the world as a multiplex network [12], (iii) we provide a versioned collection of canonical JSON-encoded worlds in Portuguese, validated for domain-range integrity and acyclic dependency, and (iv) we propose a suite of quantitative proxies for world-building quality based on SNA. These include measures of narrative density (sparsity vs. claustrophobia), fragmentation (isolated plot arcs), “small-world” interconnectivity (average path length), structural bottlenecks (critical bridges), and typological assortativity (world segregation).

By transitioning from text-centric to graph-centric world-modeling, we provide the computational community with a robust foundation for building more coherent, re-playable, and ontologically stable narrative experiences.

2. Formal Model and Ontology

To provide a rigorous framework for computational worldbuilding, we define the WorldPT using the formalism of directed multilayer attributed graphs. This approach allows for the representation of complex, non-linear dependencies while maintaining a clear separation between different types of narrative existence.

2.1. Mathematical Framework

A fictional world is modeled as a directed multiplex attributed graph $\mathcal{G}=(V,E,\mathcal{L},{\mathcal{T}}_V,\mathcal{R})$, where:

• V is a finite set of entities (nodes).
• ${\mathcal{T}}_V$ is the set of 13 ontological classes: Artifact, Figure, Race, Culture, Religion, Organization, Place, Event, Chronology, Politics, Economy, MagicSystem, Technology
• $\mathcal{L}$ is the set of six semantic layers: $\{L_{str},L_{cau},L_{tem},L_{soc},L_{ont},L_{sym}\}$.
• $E\subseteq V\times V\times \mathcal{L}\times \mathcal{R}$ is the set of directed edges, where $\mathcal{R}$ represents the specific relation type (e.g., belongs_to, influences).

Every node $v\in V$ is assigned a type via the mapping function $\tau :V\to {\mathcal{T}}_V$. An edge $e=(u,v,\ell ,r)$ connects a source node u to a target node v within a specific layer $\ell \in \mathcal{L}$ using a relation $r\in \mathcal{R}$.

2.2. The Grounding Directionality Axiom

The core innovation of the WorldPT is the Grounding Directionality Axiom. Unlike undirected graphs that merely denote association, our model enforces a strict semantic orientation:

For any directed edge $u\stackrel{\ell ,r}{\to }v$, the entity u is ontologically, structurally, or causally grounded in entity v. Thus, v provides the necessary context, constraint, or origin for the existence or role of u.

Formally, we define the dependence as a non-symmetric relation where the target node v acts as the independent variable (the context) and the source node u acts as the dependent variable (the entity situated within that context). This ensures that traversing the graph in the direction of the edges leads toward broader systemic structures (e.g., a Character → Organization → Politics).

2.3. The Hexapartite Layering System

To disambiguate the multifaceted nature of narrative relations, E is partitioned into six functional layers. Each layer ℓ governs specific types of $u\to v$ dependencies:

1.

Structural Layer ($L_{str}$): Defines spatial containment and institutional hierarchies.

$$\mathrm{Examples}\text{:}{\mathrm{Place}}_A\to {\mathrm{Place}}_B\left(\mathrm{inclusion}\right);\mathrm{Race}\to \mathrm{Local}\left(\mathrm{nativity}\right).$$

2.

Causal Layer ($L_{cau}$): Encodes mechanical triggers, technical materialization, and productive shifts.

$$\mathrm{Example}\text{:}\mathrm{Technology}\to \mathrm{Economy}\left(\mathrm{transformation}\right).$$

3.

Temporal Layer ($L_{tem}$): Manages the flow of time and chronological anchoring.

$$\mathrm{Example}\text{:}\mathrm{Event}\to \mathrm{Chronology}(\mathrm{temporal}\mathrm{marking}).$$

4.

Social Layer ($L_{soc}$): Captures interpersonal bonds, group memberships, and legitimacy.

$$\mathrm{Example}\text{:}\mathrm{Figure}\to \mathrm{Organization}\left(\mathrm{membership}\right).$$

5.

Ontological Layer ($L_{ont}$): Represents metaphysical laws, innate affinities, and system usage.

$$\mathrm{Example}\text{:}\mathrm{Figure}\to \mathrm{MagicSystem}\left(\mathrm{usage}\right).$$

6.

Symbolic Layer ($L_{sym}$): Maps the flow of meaning, cultural values, and ideological influence.

$$\mathrm{Example}\text{:}\mathrm{Religion}\to \mathrm{Culture}\left(\mathrm{molding}\right).$$

2.4. Consistency and Domain-Range Constraints

To maintain the integrity of the WorldPT, we enforce a strict schema where each relation $r\in \mathcal{R}$ has a defined domain $\mathrm{Dom}\left(r\right)\subseteq {\mathcal{T}}_V$ and range $\mathrm{Ran}\left(r\right)\subseteq {\mathcal{T}}_V$. An edge $(u,v,\ell ,r)$ is valid if and only if $\tau \left(u\right)\in \mathrm{Dom}\left(r\right)$ and $\tau \left(v\right)\in \mathrm{Ran}\left(r\right)$. This prevents "semantic noise", such as a Place being a member of a Figure, ensuring that the dataset is machine-verifiable.

3. Dataset Architecture

The WorldPT dataset is engineered to bridge the gap between creative worldbuilding and formal knowledge representation. The complete dataset used in this study is publicly available through the Zenodo repository (DOI: 10.5281/zenodo.18989735) [13]. Unlike traditional NLP datasets that rely on unstructured text, WorldPT implements a Graph-Object-Oriented (GOO) architecture, where narrative concepts are decoupled into atomic, machine-readable JSON entities. In its current version, the WorldPT repository contains a total of six fully catalogued fictional universes. Each world is structured according to the same ontological schema and directory hierarchy, allowing comparative analyses across different narrative settings. This multi-world design enables the dataset to function not only as a single-case structural model, but also as a scalable framework for cross-universe narratological studies. Future releases aim to expand this number to include additional literary and ludic universes.

3.1. Data Sources and Curation

The WorldPT dataset was constructed through a manual data curation process. Primary information was collected from publicly available franchise wikis and community-maintained encyclopedic repositories dedicated to each fictional universe. Entities were systematically identified and categorized according to the dataset ontology, including characters, locations, organizations, races, artifacts, technologies, cultural systems, and major narrative events. Each entity was manually reviewed and structured into the dataset schema to ensure semantic consistency and ontological alignment. Manual curation was intentionally adopted in order to preserve narrative fidelity. Fictional worlds frequently contain complex contextual relationships that are difficult to extract through automated scraping pipelines alone. Human-guided structuring therefore ensured that entity descriptions and classifications accurately reflect the canonical lore of each universe.

3.2. Ontological Taxonomy: The 13 Pillars

The selection of our 13 ontological categories (${\mathcal{T}}_V$) is not arbitrary; it follows a "Full-Spectrum Narrative Coverage" principle. These categories were chosen to minimize semantic overlap while ensuring that any element of a fictional universe has a dedicated class.

• Agents and Groups (Figure, Race, Organization): Define the Who. These categories handle agency and social stratification.
• Spatial and Temporal Anchors (Place, Event, Chronology): Define the Where and When. They provide the structural and linear backbone of the world.
• Societal Systems (Culture, Religion, Politics, Economy): Define the How of human (or non-human) interaction, governing the flow of symbols, power, and resources.
• Logical Constraints (MagicSystem, Technology, Artifact): Define the Laws of the world. These categories provide the "hard" rules that prevent narrative inconsistency.

3.3. The Multi-Parametric Relationship System

The core strength of WorldPT lies in its directed relationship model. In standard Knowledge Graphs (KGs), a triple $(u,r,v)$ is usually binary. In WorldPT, every edge $e\in E$ is a multi-parametric object defined as:

$$e=(u,v,\ell ,\omega ,\kappa ,r)$$

(1)

Where:

• Layer (ℓ): The hexapartite semantic layer ($L_{str},L_{cau},L_{tem},L_{soc},L_{ont},L_{sym}$) that disambiguates the context.
• Weight ($\omega \in [0,1]$): Represents the intensity or importance of the connection. For instance, a character’s relationship with a "King" might have a higher weight in the $L_{soc}$ layer than with a "Guard."
• Reliability ($\kappa \in [0,1]$): A measure of epistemic certainty. This allows for the modeling of "Unreliable Narrators" or legends—where a connection is documented in the lore but may not be factually true within the world’s internal logic.
• Relation Type (r): A specific string descriptor (e.g., "subordinate_to", "fueled_by").

This allows for complex queries, such as: "Find all figures connected to the Religion layer with high reliability but low social weight."

3.4. Physical Data Structure and Serialization

The physical organization of WorldPT follows a "Filesystem-as-Schema" approach. This ensures that the ontological class of an entity is intrinsically tied to its storage location, facilitating rapid filtering and batch processing without the overhead of a database engine. The dataset is rooted in a main directory, branching into specific universes, each containing 13 specialized sub-folders.

The directory structure is formalized in Table 1.

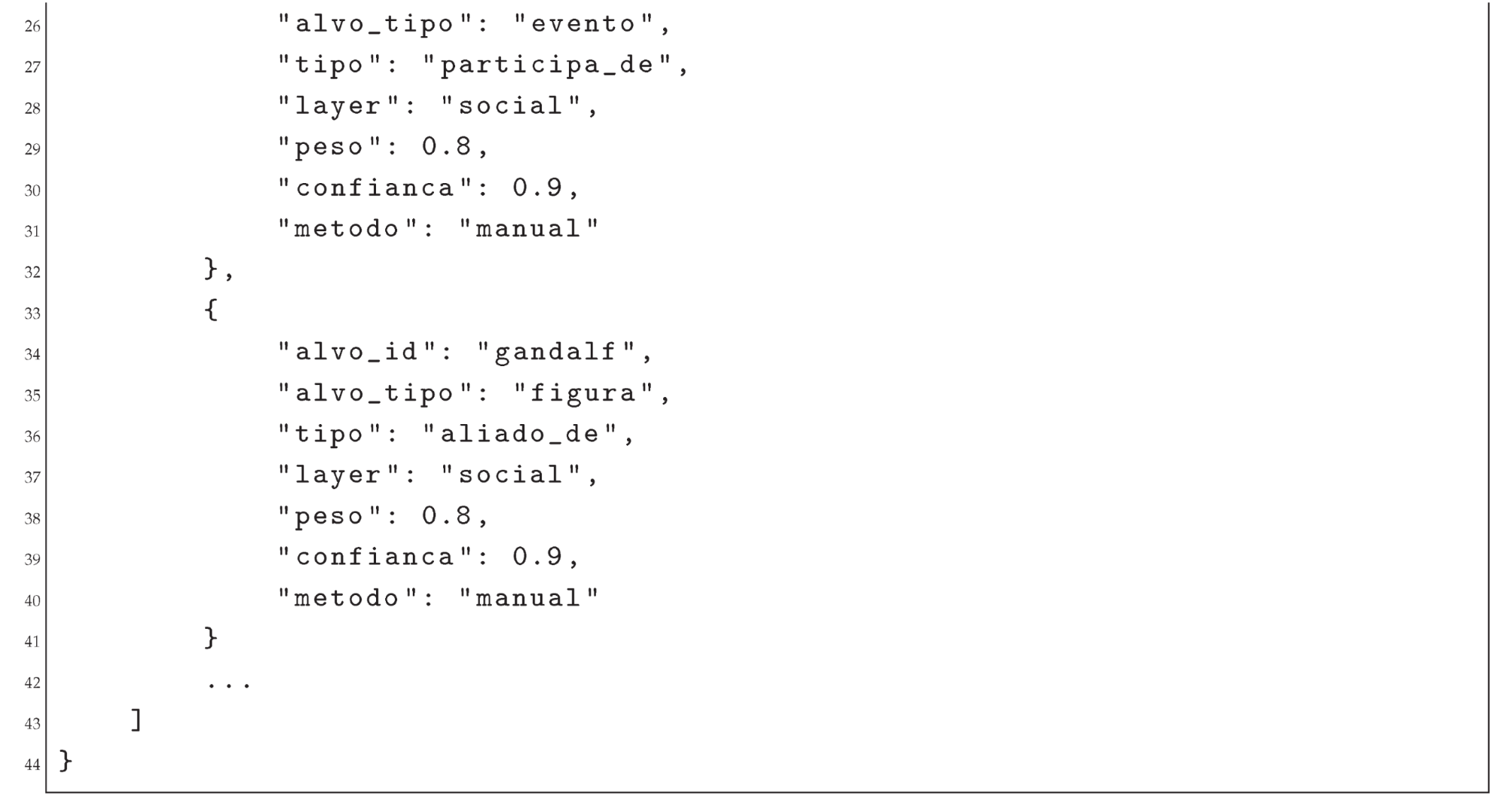

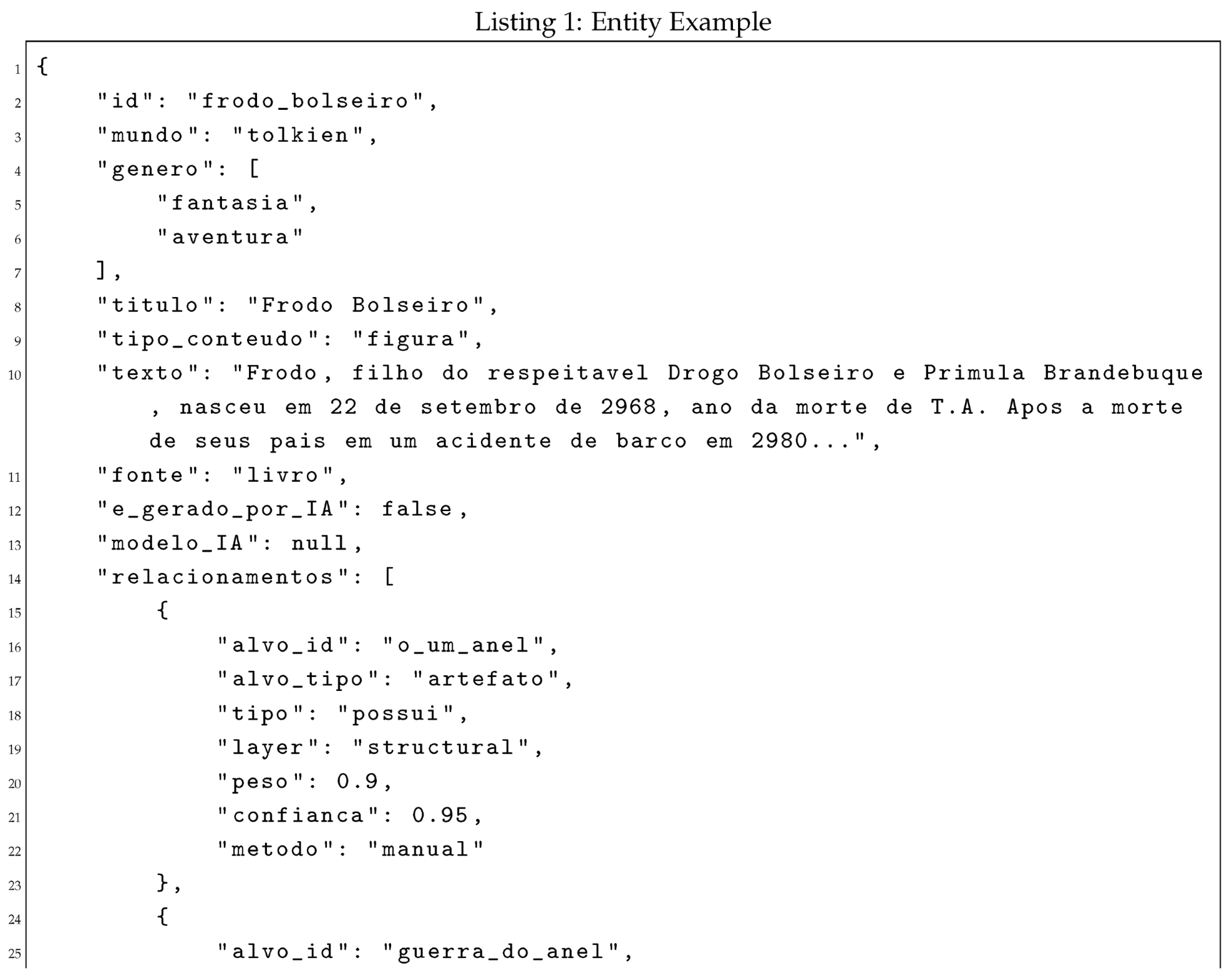

Each entity is serialized as a JSON object, ensuring interoperability with modern LLM pipelines and graph databases. The directory structure mirrors the ontology, acting as a "physical index" of the graph:

3.5. Architectural Advantages

The WorldPT structure offers three critical advantages over traditional narrative datasets:

1.

Modular Decoupling: Since each entity is a standalone file, worlds can be "mixed and matched". A user can import a MagicSystem from World A into World B without breaking the graph’s integrity, provided the IDs are mapped.

2.

Algorithmic Verifiability: The strict schema allows for automated "Inconsistency Detection". If a Figure is connected to a Place via an $L_{cau}$ (Causal) layer instead of $L_{str}$ (Structural), the system can flag a potential category error.

3.

LLM-Native Grounding: By providing a "Description" field, we give LLMs a natural language context to understand the node’s semantics, while the "Relationships" field provides the symbolic structure for RAG (Retrieval-Augmented Generation) applications.

4. Network-Theoretic Narrative Metrics

To evaluate the structural health and complexity of fictional universes within the WorldPT, we propose a suite of quantitative proxies based on Social Network Analysis (SNA) and Multilayer Network Theory. These metrics allow researchers to move beyond qualitative literary critique toward a verifiable "narrative diagnostic".

4.1. Ontological Authority: Weighted PageRank

We adapt the PageRank algorithm [14] to identify entities that serve as the "logical anchors" of a world. In our directed graph, a high PageRank does not merely denote popularity, but Ontological Authority: an entity whose existence is fundamental to the grounding of many others.

Given the weighted nature of WorldPT edges, the score for a node u is defined as:

$$PR\left(u\right)={\displaystyle \frac{1-d}{N}}+d\sum _{v\in {\mathcal{N}}_{in}\left(u\right)}{\displaystyle \frac{w_{vu}·PR\left(v\right)}{L_{out}\left(v\right)}}$$

(2)

where d is the damping factor (typically $0.85$), $w_{vu}$ is the product of base relation strength and information reliability, and $L_{out}\left(v\right)$ is the weighted out-degree of node v. Entities with high $PR$ are critical; their removal would cause the most significant "ontological collapse" in the narrative.

4.2. Narrative Density and Layer Specificity

The connectivity of a world is measured through its density $\rho$. While global density ${\rho }_{\mathcal{G}}$ provides an overview of how "claustrophobic" or "expansive" a world is [10], we further decompose this by the hexapartite layers:

$${\rho }_{\ell }={\displaystyle \frac{|E_{\ell }|}{\left|V\right|\left(\right|V|-1)}}$$

(3)

By comparing ${\rho }_{soc}$ (Social) with ${\rho }_{cau}$ (Causal), we can mathematically distinguish between a "character-driven drama" (high social density) and a "hard magic/technical setting" (high causal density).

4.3. Structural Robustness: Bridges and Bottlenecks

A narrative is robust if it possesses multiple redundant paths of meaning. We identify Critical Bridges—edges $e\in E$ such that the removal of e increases the number of connected components in the graph. In worldbuilding terms, these bridges represent "single points of failure" in the lore: connections that, if severed, would leave entire plot arcs or regions isolated and disconnected from the main world-logic.

4.4. Multidimensionality: Cross-Layer Coupling (CLC)

A unique contribution of the WorldPT is the Cross-Layer Coupling (CLC) metric. This measures the versatility of an entity across the hexapartite system, a concept derived from multiplex network coupling [15]. The CLC for a node u is defined as the cardinality of the set of layers in which u participates:

$$CLC\left(u\right)=\left|\right\{\ell \in \mathcal{L}\mid \exists v\in V,(u,v,\ell )\in E\vee (v,u,\ell )\in E\left\}\right|$$

(4)

A high $CLC$ score (max 6) identifies "multidimensional" entities such as a King who is simultaneously a political leader ($L_{str}$), a social figurehead ($L_{soc}$), and a religious symbol ($L_{sym}$). This metric allows for the automated identification of protagonists or central world-shifting elements. Figure 1 illustrates the theoretical architecture of the proposed hexapartite system. By calculating the vertical degree of a node (the dashed lines), we can quantitatively separate foundational world-building elements from superficial narrative actors.

The diagram visually confirms the quantitative findings. The horizontal planes show the intra-layer connections; the high density of the Social Layer is immediately apparent compared to the sparser Causal or Temporal layers, visually validating the "Social Drama" genre classification.

Crucially, the vertical dashed lines represent the ontological grounding in action. These lines act as the structural "glue" of the fictional universe. Entities with high CLC scores are not merely as nodes on a plane, but as vertical pillars transpiercing the entire system. Without these multi-layered entities anchoring the structure, the social narrative would risk disconnecting from the metaphysical laws ($L_{ont}$) and structural constraints ($L_{str}$), leading to the aforementioned "ontological drift".

4.5. Topological Small-Worldness and Assortativity

Finally, we calculate the average shortest path length L to determine the "degrees of separation" within the lore [16]. A "Small-World" narrative (low L) suggests that a change in one part of the world (e.g., a magic system shift) will rapidly propagate through the entire system. Furthermore, we measure Typological Assortativity to detect segregation [17]. A high assortativity coefficient indicates a "siloed" world where entities only interact with their own kind (e.g., Places only connecting to Places), whereas negative assortativity reveals a rich, heterogeneous ecosystem where figures, technologies, and ideologies are deeply intertwined.

5. Case Study

In this section, we present the empirical findings obtained by applying the WorldPT analysis framework to the case study universe: Tolkien’s Middle-Earth lore.

5.1. Network Topology and Visual Distribution

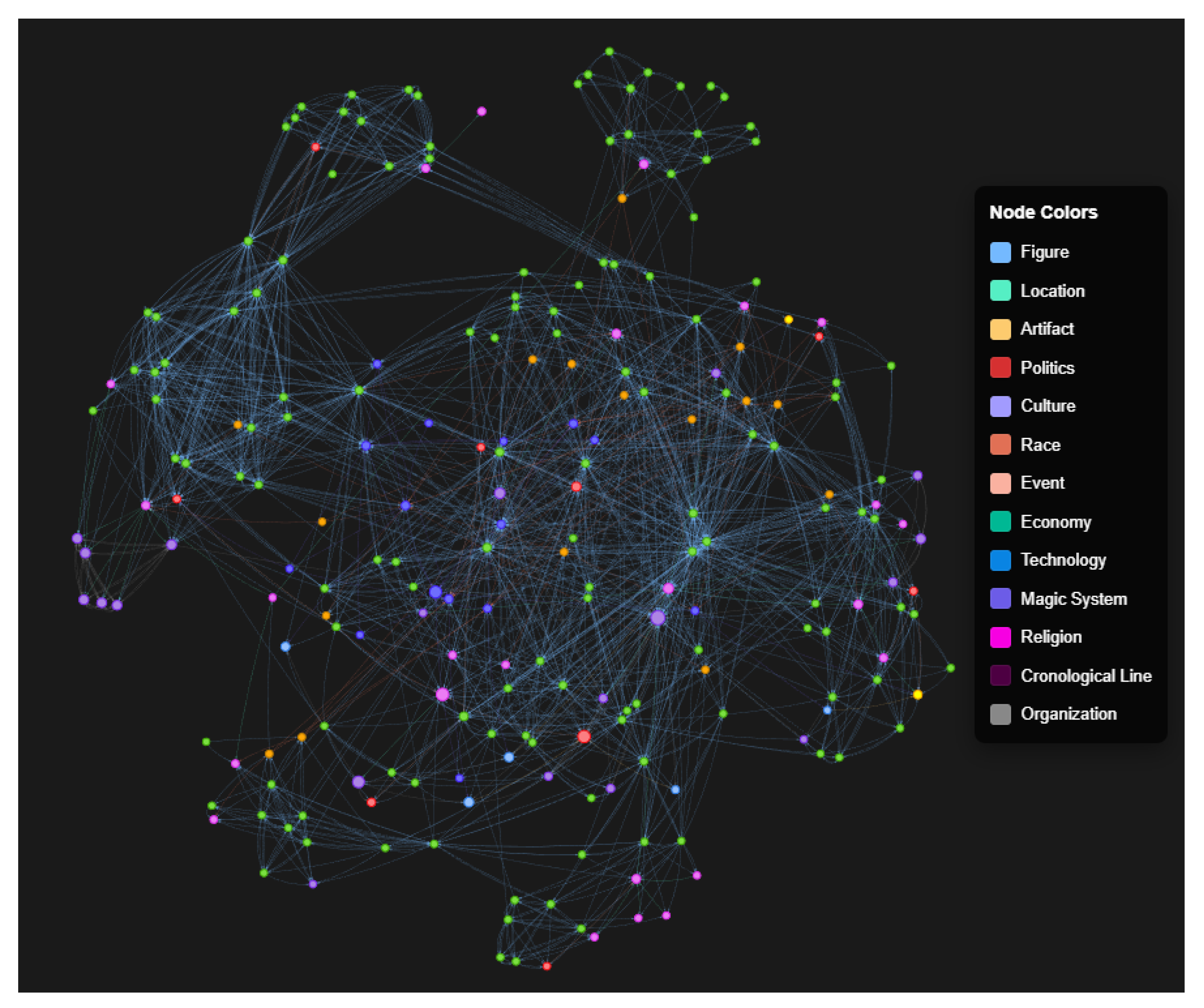

The global structure of the narrative was first visualized to identify clusters and isolated components. As shown in Figure 2, the world exhibits a centralized topology, with visible narrative cores that are slightly dispersed.

5.2. Global Network Statistics

The graph reconstruction of Tolkien lore resulted in a complex network with a total of $N=141$ nodes and $E=520$ directed relationships.

The global topological indicators presented in Table 2 reveal intrinsic structural properties that underpin the narrative cohesion of the Tolkien universe. The small-world phenomenon, evidenced by an Average Path Length (L) of only 2.68 steps, demonstrates remarkable causal efficiency, indicating that the propagation of events between distinct ontological layers occurs almost immediately. This average proximity suggests that the system lacks isolated narrative peripheries; on the contrary, any entity, however obscure, is less than three connections away from the central cores of authority, ensuring a systemic reactivity that is vital for maintaining tension in investigative horror settings.

A Global Density of 0.0477, while numerically low, characterizes a sparse yet highly functional network. In complex worldbuilding systems, excessive density would result in informational redundancy and the loss of mystery, whereas the density observed provides an ideal balance between systemic consistency and the cognitive gaps necessary for exploration and discovery. Complementarily, a Network Diameter of 6 steps establishes the network’s maximum separation limit, confirming that the scope of the setting is finite and controlled, thus preventing narrative drift where sub-plots lose relevance to the central canon.

The Typological Assortativity ($r=0.2087$) offers the deepest insight into the world’s social and ontological organization. The positive value indicates a trend of assortative mixing, where entities of similar categories tend to establish connections with one another, forming well-defined nuclei of identity. However, the moderate magnitude of this coefficient reveals that the world is not segregated into hermetic silos, there is a structural porosity that allows for integration between human agents, cursed locations, and metaphysical laws. Finally, the existence of a Total Connected Component of 1 confirms the ontological integrity of the analyzed universe, mathematically proving that all lore elements belong to a single, unified reality structure, devoid of logical fragments or isolated systemic contradictions.

The observed assortativity of 0.2087 indicates a slight assortative mixing. This suggests that while different ontological classes (e.g., Figures and Locations) are interconnected, there is a subtle tendency for entities of the same type to cluster.

5.3. Dominance and Narrative Trade-Offs

To identify the core elements of the world’s logic, we analyzed the interplay between absolute authority and topological versatility, as synthesized in Figure 3.

As shown in Panel 1, Terra-Média (Middle-Earth) (PR=0.08) serves as the absolute gravity center. However, the Cross-Layer Coupling (CLC) metric (Panel 2) reveals a different layer of importance. Entities like Guerra do Anel (War of the Ring), Sauron, and Anéis de Poder (Power Rings) achieve the maximum CLC score of 4, indicating they are "Lore-shifters" that connect Social, Ontological, Structural, and Causal layers simultaneously.

The Narrative Density Trade-off (Panel 3) demonstrates that the most "balanced" entities are those that combine institutional weight with cross-layer presence. Terra-Média (Middle-Earth) maintains the highest equilibrium (75.0), but the yellow bars in the chart highlight that elements like Guerra do Anel (War of the Ring) and Sauron possess superior versatility relative to their PageRank, acting as systemic pivots that bridge otherwise disparate narrative sectors.

5.4. Layer Density and Genre Fingerprinting

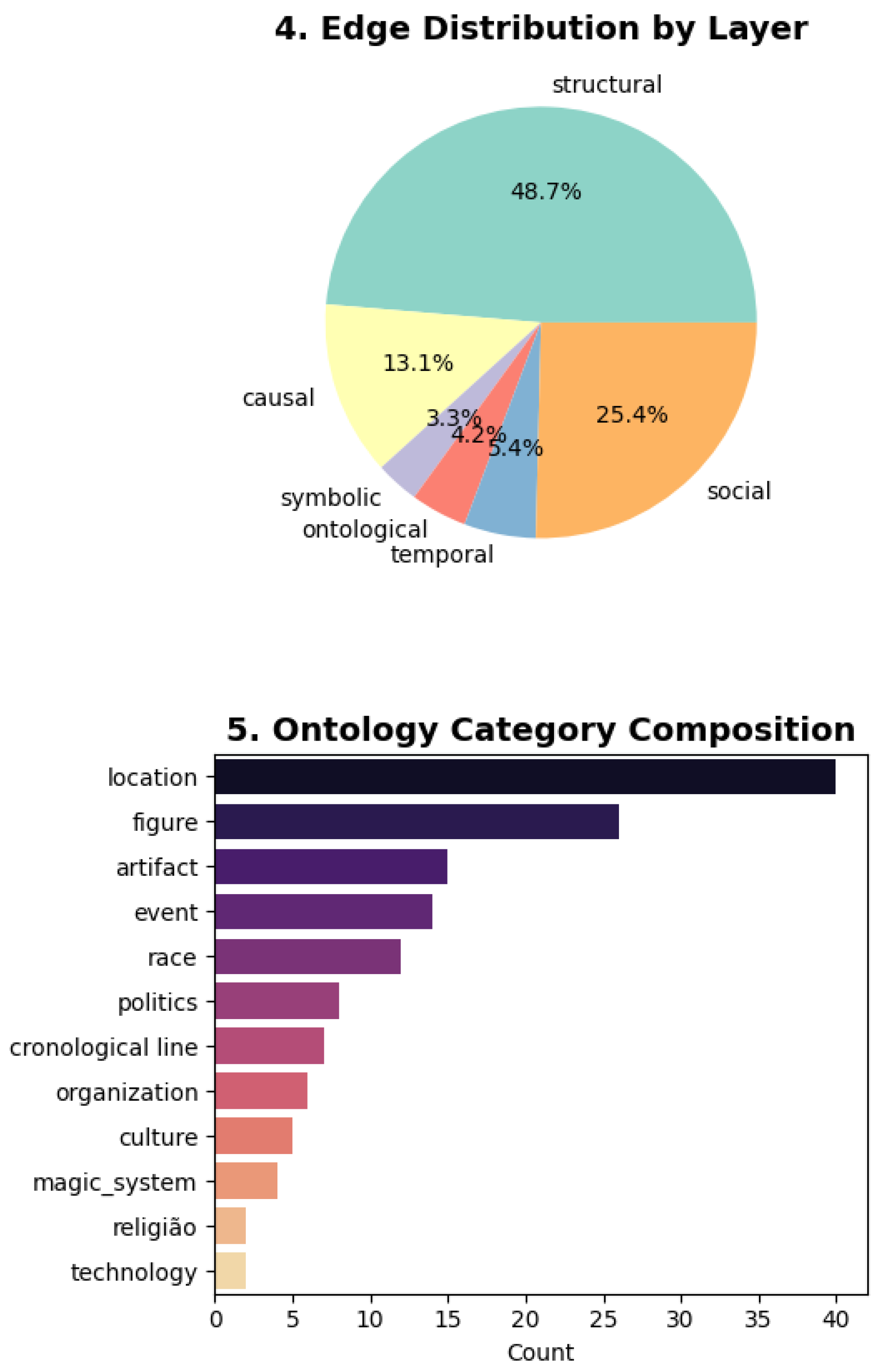

The nature of the universe is further defined by its categorical and semantic distribution, illustrated in Figure 4. The Edge Distribution by Layer (Panel 4) reveals that the Structural ($L_{str}$) layer accounts for 48.7% of connections. This dominance is explained by the Ontology Category Composition (Panel 5), where Location is the most frequent category.

This quantitative profile classifies the Tolkien universe as a Structurally-Driven Mythological Setting. The high Structural density (48.7%), combined with a significant Causal component (13.1%), indicates that the narrative world is primarily organized around ontological hierarchies, cosmological structures, and rule-based relationships between entities. Social interactions (25.4%) are relevant but do not dominate the relational landscape, suggesting that character dynamics operate within a broader mythological and systemic framework rather than serving as the primary driver of narrative tension.

5.5. Ontological Interaction Patterns

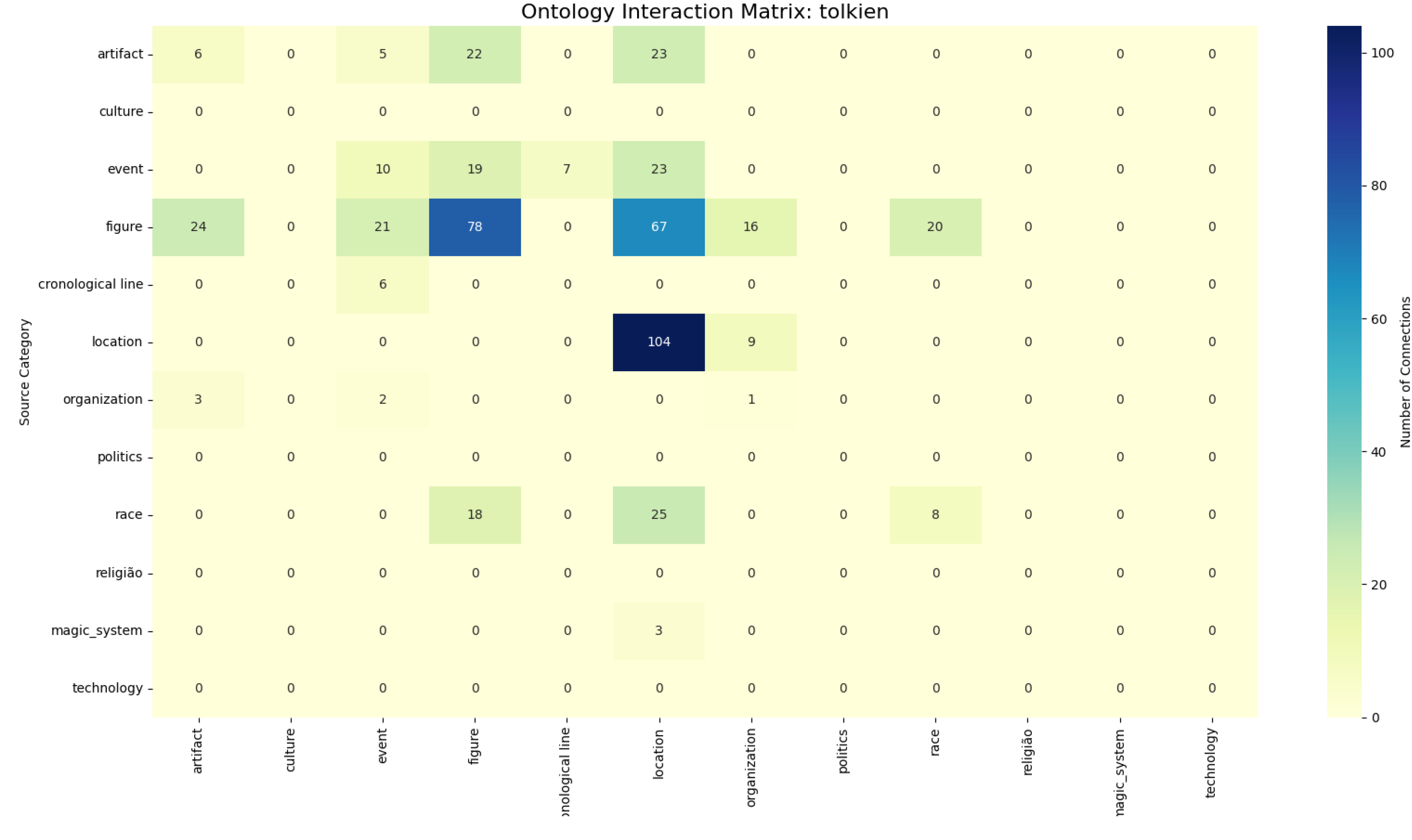

While the layer distribution identifies the "macro" genre of the world, the Ontological Interaction Matrix (Figure 5) reveals the "micro" dynamics of how these categories exchange information. This matrix is essential to verify if the world-building is balanced or concentrated in specific semantic silos.

The heatmap reinforces the structural profile identified in the quantitative analysis. The dominant interaction in the system is Location → Location (104), indicating that spatial and geographic relationships constitute a central organizing principle of the Tolkien universe. Rather than being driven primarily by interpersonal dynamics, the network reveals a strong emphasis on the configuration of places and the spatial structure of the world.

Character-related interactions remain significant but appear embedded within this broader structural framework. The interactions Figure → Figure (78) and Figure → Location (67) form the secondary layer of the network, suggesting that characters operate mainly as agents moving within an already well-defined geographic and ontological landscape. Additional contributions from Race → Location (25) and Race → Figure (18) further highlight the importance of lineage and group identity in structuring relationships.

Finally, the relatively sparse presence of categories such as Culture, Religion, and Technology indicates that these elements play a limited role in generating relational connections in the current dataset. Overall, the interaction matrix depicts a world where spatial structure, lineage, and hierarchical relations form the backbone of the narrative environment.

6. Conclusions

In this paper, we introduced WorldPT, a graph-centric framework and dataset designed to move computational narratology beyond the limitations of unstructured text and towards formal topological grounding. By modeling fictional universes as Directed Multilayer Attributed Graphs, we provided a rigorous alternative to the "ontological drift" often observed in large language models. The introduction of the Grounding Directionality Axiom and the hexapartite layering system allows for a machine-verifiable representation of narrative consistency, ensuring that every entity is semantically situated within a broader systemic context.

Our case study on Tolkien universe demonstrated the empirical utility of our Social Network Analysis (SNA) metrics. The discovery of a "Small-World" topology ($L=2.68$) and a dominant structural layer ($48.7\%$) provided a quantitative "genre fingerprint," classifying the setting as a Structurally-Driven story. Furthermore, the Cross-Layer Coupling (CLC) metric successfully identified systemic pivots, entities like Guerra do Anel (War of the Ring) and Sauron, whose high multidimensionality makes them more topologically versatile than traditional narrative anchors. This proves that WorldPT can effectively distinguish between institutional authority and narrative agency through objective graph metrics.

The choice of Portuguese as the primary language for WorldPT is a strategic contribution to the democratization of AI resources. By providing a high-quality structural benchmark for the Lusophone community, we enable researchers and creators to develop narrative agents and procedural worldbuilding tools that are linguistically native and ontologically stable.
