The Influence of Parameters on Surface Properties and the Optimization of HVOF-Sprayed NiCr/WC-Co Coatings

1. Introduction

Thermal spraying technology is a key component of surface engineering. This technology can impart a variety of functional properties to the surface of components, including wear resistance, corrosion resistance, high-temperature resistance, oxidation resistance, electrical conductivity, electrical insulation, and self-lubrication[1,2,3]. As a result, it enhances product quality and reliability, extends service life, and plays an increasingly critical role in the field of remanufacturing for industrial components.This technology encompasses various processes, including flame spraying, detonation spraying, HVOF spraying, arc spraying, plasma spraying and laser spraying [4,5,6]. HVOF spraying is a high-performance thermal spraying process which markedly improves the bonding strength, density and hardness of coatings, and reduces or even eliminates internal oxide content [7,8,9].The fuel and oxidiser are ignited within a combustion chamber or a bespoke nozzle to produce a supersonic flame (2000–3000 °C, >2100 m/s). The spray powder is then fed into the flame, where it becomes molten or partially molten particles that hit the surface of the substrate really fast to make a coating. In the process of surface modification by thermal spray, rapid solidification technology is of significant interest for the fabrication of non-equilibrium microstructures and extraordinary material properties. Its outstanding cooling rate (10³–10¹⁰ K/s) is far superior to that of conventional casting (less than 10² K/s)[10,11,12]. Due to these unique cooling conditions, undercooling and non-equilibrium phase transformations are induced, which suppresses equilibrium phases and promotes metastable phases, nanostructures and amorphous phases. This results in a refined microstructure and outstanding properties. Superior mechanical, physical, and chemical properties are conferred on materials by such microstructures, including enhanced hardness, strength, and corrosion resistance. Different spraying techniques can be used to achieve various coating functions, such as wear resistance, corrosion resistance, thermal insulation and electrical insulation[13,14,15]. HVOF coatings offer superior bonding strength and a higher density than those achieved with conventional flame coating techniques. HVOF spraying improves the performance of low-grade substrates by depositing ceramic, metallic and composite coatings to form protective layers that can withstand harsh environments[16,17,18]. Tungsten carbide-based coatings (WC/10Ni, WC/10Co and WC/10Co4Cr) offer exceptional resistance to wear and corrosion. The HVOF spraying process, which involves a low flame temperature and high particle velocity, prevents the oxidation and decomposition of WC when depositing such coatings. This preserves the wear resistance of WC and produces highly durable, wear-resistant coatings for a variety of industrial applications[19,20,21]. HVOF-sprayed coatings have attracted widespread attention due to their high hardness and excellent wear resistance. Unlike other thermal spraying processes, HVOF spraying accelerates molten powder particles to extremely high speeds, resulting in strong interparticle bonding. Extensive studies have been conducted to characterise the thermal conductivity, hardness, wear resistance and other key properties of HVOF-sprayed WC-Co coatings[22,23,24]. The mechanical behaviour of coatings produced by the HVOF spraying process is understood with the help of the aforementioned properties, but suitable parameters for predicting the optimal performance of the coating cannot yet be identified[25,26,27,28]. Nevertheless, WC-Co remains a widely studied core material for thermal spray coatings, yet most research has focused solely on their mechanical performance, while parameter-property correlation models have received little attention[29,30,31,32,33,34]. For HVOF-deposited WC-Co coatings, developing multivariate response models is extremely challenging due to the nature of the process and the variability of its parameters. In any case, it is widely recognised that the model of mechanical behaviour of HVOF-sprayed WC-Co coatings is not fully understood, which has limited their widespread application in industrial environments[35,36,37]. Consequently, the industry urgently needs to develop new methods for HVOF deposits that can meet highly diverse functional requirements.

Response surface methodology (RSM) consists of a group of techniques used in the empirical study of the relationship between a response and several input variables. Recently, many studies on response surface methodology in thermal barrier coatings have been undertaken. Lin et al. investigated the application of robust partially stabilized zirconia coatings in the plasma spraying process using response surface methodology and fractional factorial experiments. They proposed a two-stage experimental design that incorporates a nonlinear regression model. A quadratic response surface model was employed in conjunction with the proposed two-stage design strategy. Within the optimization model, several response plots were generated to examine the effects of parameters on profile hardness[38,39]. Singh et al. investigated the slurry erosion behaviour of HVOF-sprayed VC-TiC coatings and established empirical correlations between process parameters and erosion-induced mass loss using response surface methodology (RSM) combined with a face-centred central composite design (FCCD). This enabled the mathematical modelling and performance optimisation of coating erosion resistance under diverse slurry conditions to be realised [40,41,42]. Vignesh et al. conducted 32 experimental trials and used RSM to optimise HVOF spraying parameters, constructing empirical regression models to maximise hardness and minimise porosity in iron-based amorphous coatings[43,44,45]. Rannetbauer et al. evaluated the predictive performance of six machine learning models for HVOF coating properties using advanced statistical experimental design. They proposed a novel modelling framework that integrates statistical experimental design with linear models. This framework enables the accurate characterisation of the correlation between HVOF process parameters and coating deposition rate. The application examples cited in the literature demonstrate the versatility and flexibility of RSM in optimization processes, making it a powerful tool in engineering, science, and industry[46,47,48]. However, the adoption of the RSM method by the industry has led to the addressing of issues such as multi-parameter optimization, nonlinear modelling, and the prediction of process and product performance. Although it is widely used in fields such as biomedicine, environmental engineering, food processing and agricultural science, its application in the field of high-velocity oxygen fuel (HVOF) spraying remains limited[49,50,51,52]. This paper therefore proposes a statistical method based on RSM and Taguchi design to address the mechanical properties of tungsten-cobalt (WC-Co) coatings produced by HVOF spraying more effectively.

In this study, we applied response surface methodology (RSM), which helps to develop a suitable approximation of the true functional relationship between the independent and response variables, which may characterise the nature of the coatings. Also, The focus of this work was on exploring the microstructural evolution, phase constitution and microhardness of WC/Co with NiCr ingredients, as well as the surface properties of the coatings[53,54]. A Taguchi-based L18 orthogonal experimental design was employed to optimise HVOF spraying parameters, with the aim of achieving WC-Co coatings with improved hardness and microstructure. In addition, the effects of HVOF spraying parameters on the response performance of WC/Co coatings were assessed. A graphical approach was also adopted to analyse the response of the HVOF coating process , which helps to predict the hardness of the coating at any location within the experimental region. This was done through comparative testing with benchmark samples. A validation experiment was also performed. This was to verify the optimized results.

2. Experiments

2.1. Materials and Preparation

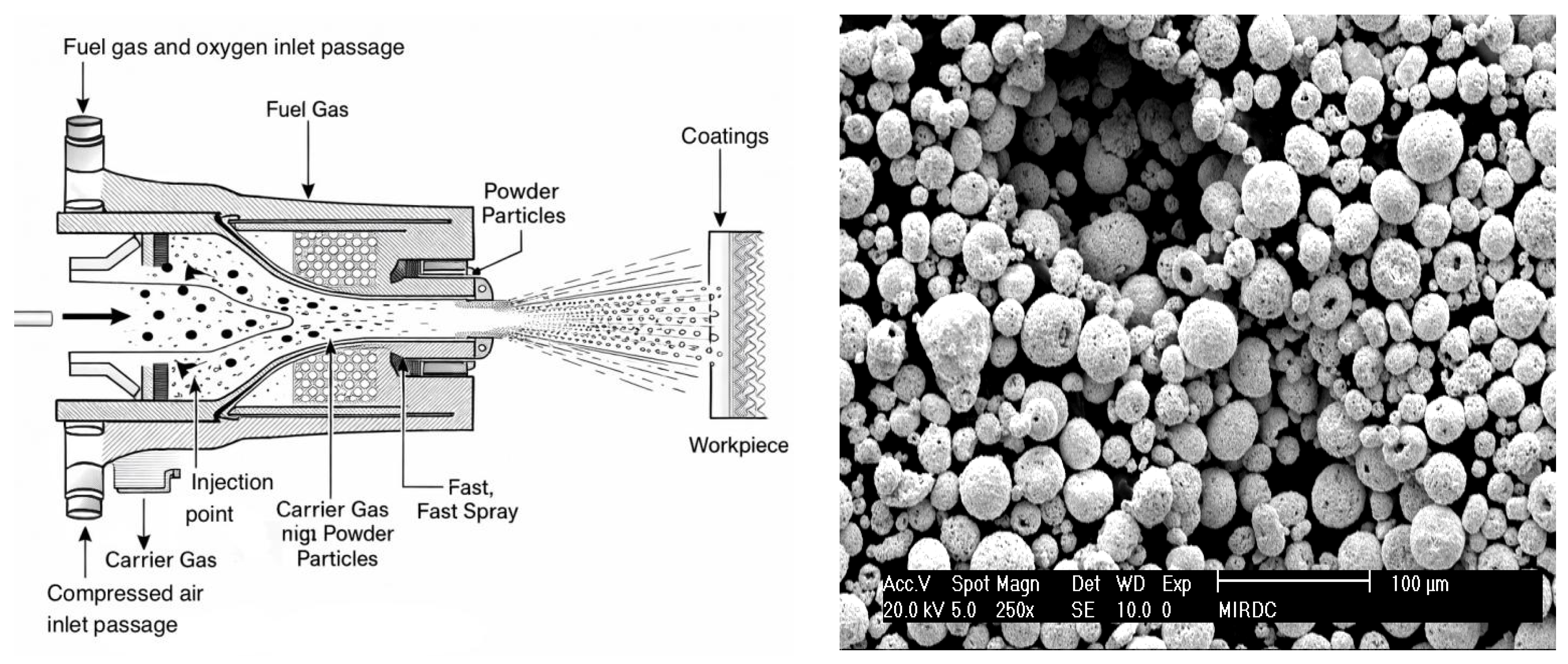

In this study, a technique called high-velocity oxygen-fuel (HVOF) spraying was used to prepare a NiCr interface layer and a WC/Co coating. The spraying of WC/Co powders was done using a HVOF system (DJ gun, Sulzer-Metco Inc.). The schematic diagram of the HVOF gun in Figure 1a illustrates how HVOF works and the flow paths of the gas and powder. The experiment involved using a WC/Co coatings and NiCr blinders, which was carried by a carrier gas and injected into a supersonic flame stream at the injection point. It is quickly heated to a semi-liquid or liquid state in the flame, where it goes very fast to hit the surface of the workpiece. This makes the plastic change shape, which makes a thin, flat film that quickly becomes hard, and sticks to the surface. The result of this layer-by-layer process is high-hardness, wear-resistant coatings that are characterised by high density, good bond strength and low porosity. Figure 1b shows the SEM morphology of the thermally sprayed WC-Co powder at 250× magnification. The powder particles are predominantly spherical, with sizes falling within the range of about 10 μm to 80 μm. The high sphericity ensures good flowability during powder feeding.The materials used in this study were WC/Co powders containing 7.8% cobalt, 5.3% carbon, and 0.06% iron by weight, which were employed in all L18 experiments.In this study, NiCr powder (Ni balance, Cr 18.9 wt.%, C 0.013 wt.%, Fe 0.064 wt.%, Si 0.83 wt.%, Mn 0.034 wt.%) was used in full factorial experiments, wherein 9 out of 18 test groups served as an interfacial layer between the substrate and the WC/Co coating.

The dimensions of the coated substrate are 40 mm × 40 mm × 10 mm, and it is made from ASTM mild-carbon steel. To ensure surface roughness (Ra) of between 4 and 5 µm, the substrate was sandblasted with aluminium oxide grit and then ultrasonically cleaned with acetone.The microstructure of the coatings was investigated using a Hitachi S-2600H scanning electron microscope (SEM), which included cross-sectional images obtained using an etchant (209 ml HNO₃, 3 ml HF and 80 ml water). The hardness profiles of the coatings were measured on the cross-sectional specimens using a Vickers hardness tester with a load of 300 g and a dwell time of 15 seconds. The data represents the average of the five readings, which are listed in Table 2. In addition, the X-ray diffraction (XRD) experiment was carried out using Cu Ka radiation in a Siemens D8A diffractometer that was operated at 40 kV and 25 mA.The surfaces of the coatings were scanned from 200 to 1000 in steps of 0.05.

3. Experimental Design and Analysis

3.1. Control Parameters and Their Levels

The robust design method, pioneered by Dr Genichi Taguchi[33], is a powerful framework for developing high-quality products and is widely used in industry. The Taguchi method uses orthogonal arrays to investigate the entire parameter space using only a fraction of the experiments required for a full factorial design.Using the Taguchi method with these arrays can significantly reduce the time and cost associated with experimental trials. These arrays provide a set of well-balanced experiments that can accommodate design factors simultaneously. Furthermore, Taguchi's signal-to-noise (SNR) ratios, which quantify quality by minimising performance variation, serve as objective functions for optimisation, facilitating data analysis and the prediction of optimal results.The process parameters were selected based on expert advice and literature [[3[–[5]. A total of eight operating variables were investigated, as detailed in Table 1. With the exception of coating type, which had two levels, all other parameters were tested at three levels.The experiment described in Table 2 used an orthogonal design comprising 18 experiments. It lists the parameters and their respective levels that were used in the experiment. Additionally, it presents the results of hard-facing hardness tests for HVOF-sprayed coatings, including five repeated tests and their respective mean values and standard deviations.The experiment described in Table 2 used an orthogonal design comprising 18 tests. It lists the test parameters and their respective levels that were used in the experiment. Additionally, there are experimental results for the hardness properties of the HVOF-sprayed coatings, including the values of the SNRs calculated from five repeated hardness tests, as well as the mean values and standard deviations.

Table 1. The eight controllable factors and their corresponding levels for the L18 orthogonal experimental design for the HVOF sprayed WC-Co experiment.

Symbol	Controllable factors	1	2	3
A	Coating type	WC	NiCr/WC	-
B	Surface Roughness(Ra)	8	10	12
C	Travel speed(m/min)	27	31	35
D	Methane flow rate(l/min)	35	40	45
E	Oxygen flow rate(l/min)	35	40	45
F	Spraying distance (cm)	17	20	23
G	Powder feed rate(g/min)	35	40	45
H	Carrier gas flow rate( l/min)	24	29	34

Table 1. The eight controllable factors and their corresponding levels for the L18 orthogonal experimental design for the HVOF sprayed WC-Co experiment.

Symbol	Controllable factors	1	2	3
A	Coating type	WC	NiCr/WC	-
B	Surface Roughness(Ra)	8	10	12
C	Travel speed(m/min)	27	31	35
D	Methane flow rate(l/min)	35	40	45
E	Oxygen flow rate(l/min)	35	40	45
F	Spraying distance (cm)	17	20	23
G	Powder feed rate(g/min)	35	40	45
H	Carrier gas flow rate( l/min)	24	29	34

Table 2. The L18 orthogonal array experimental results for HVOF-sprayed coatings, including eight control factors, five replicate hardness measurements, mean hardness, standard deviation, and signal-to-noise ratio (SNR).

No. of tests	Control factors								Hardness of coatings(Hv)					Performance Estimate
	A	B	C	D	E	F	G	H	Trial1	Trial2	Trial3	Trial4	Trial5	Mean	St. dev	SNRs
1	1	1	1	1	1	1	1	1	1105	1239	1091	1110	1413	1192	137.58	61.40
2	1	1	2	2	2	2	2	2	1197	965	946	1025	944	1016	106.75	60.03
3	1	1	3	3	3	3	3	3	1163	1589	1120	977	1320	1234	232.97	61.48
4	1	2	1	1	2	2	3	3	1108	1189	1424	1110	1352	1237	144.38	61.71
5	1	2	2	2	3	3	1	1	996	965	929	962	985	967	25.64	59.70
6	1	2	3	3	1	1	2	2	1789	1712	1452	1467	1631	1610	148.29	64.05
7	1	3	1	2	1	3	2	3	1002	1314	977	1489	1184	1193	215.41	61.21
8	1	3	2	3	2	1	3	1	1340	1605	1362	1356	1314	1395	118.81	62.83
9	1	3	3	1	3	2	1	2	1187	1206	1274	1548	1449	1333	158.64	62.35
10	2	1	1	3	3	2	2	1	1721	1478	1516	1580	1330	1525	143.03	63.57
11	2	1	2	1	1	3	3	2	1410	1052	1396	1189	1103	1230	165.48	61.61
12	2	1	3	2	2	1	1	3	1200	1115	1063	1343	1456	1235	162.58	61.66
13	2	2	1	2	3	1	3	2	1516	1125	1231	1493	1025	1278	219.51	61.82
14	2	2	2	3	1	2	1	3	1248	1184	1239	1054	1589	1263	197.98	61.80
15	2	2	3	1	2	3	2	1	1289	1327	1017	1296	1489	1284	170.06	61.96
16	2	3	1	3	2	3	1	2	1486	1372	1427	1176	1105	1313	164.65	62.19
17	2	3	2	1	3	1	2	3	1346	1386	1112	1010	1260	1223	158.43	61.56
18	2	3	3	2	1	2	3	1	1640	1584	1730	1684	1814	1690	87.58	64.53

Table 2. The L18 orthogonal array experimental results for HVOF-sprayed coatings, including eight control factors, five replicate hardness measurements, mean hardness, standard deviation, and signal-to-noise ratio (SNR).

No. of tests	Control factors								Hardness of coatings(Hv)					Performance Estimate
	A	B	C	D	E	F	G	H	Trial1	Trial2	Trial3	Trial4	Trial5	Mean	St. dev	SNRs
1	1	1	1	1	1	1	1	1	1105	1239	1091	1110	1413	1192	137.58	61.40
2	1	1	2	2	2	2	2	2	1197	965	946	1025	944	1016	106.75	60.03
3	1	1	3	3	3	3	3	3	1163	1589	1120	977	1320	1234	232.97	61.48
4	1	2	1	1	2	2	3	3	1108	1189	1424	1110	1352	1237	144.38	61.71
5	1	2	2	2	3	3	1	1	996	965	929	962	985	967	25.64	59.70
6	1	2	3	3	1	1	2	2	1789	1712	1452	1467	1631	1610	148.29	64.05
7	1	3	1	2	1	3	2	3	1002	1314	977	1489	1184	1193	215.41	61.21
8	1	3	2	3	2	1	3	1	1340	1605	1362	1356	1314	1395	118.81	62.83
9	1	3	3	1	3	2	1	2	1187	1206	1274	1548	1449	1333	158.64	62.35
10	2	1	1	3	3	2	2	1	1721	1478	1516	1580	1330	1525	143.03	63.57
11	2	1	2	1	1	3	3	2	1410	1052	1396	1189	1103	1230	165.48	61.61
12	2	1	3	2	2	1	1	3	1200	1115	1063	1343	1456	1235	162.58	61.66
13	2	2	1	2	3	1	3	2	1516	1125	1231	1493	1025	1278	219.51	61.82
14	2	2	2	3	1	2	1	3	1248	1184	1239	1054	1589	1263	197.98	61.80
15	2	2	3	1	2	3	2	1	1289	1327	1017	1296	1489	1284	170.06	61.96
16	2	3	1	3	2	3	1	2	1486	1372	1427	1176	1105	1313	164.65	62.19
17	2	3	2	1	3	1	2	3	1346	1386	1112	1010	1260	1223	158.43	61.56
18	2	3	3	2	1	2	3	1	1640	1584	1730	1684	1814	1690	87.58	64.53

3.2. Building Model

Response surface methodology (RSM), pioneered by Myers and Montgomery [36], represents a powerful statistical framework for enhancing product quality and process productivity in industrial applications.This technique is specifically designed to quantify the functional relationship between a response of interest and multiple influencing variables, with the core objective of optimizing the target response. RSM is a highly effective experimental approach that allows for the determination of the most suitable operating conditions for multivariable systems. This is achieved by employing statistical techniques to create and examine models of the response surface. As the hardness properties of HVOF-sprayed coatings are influenced by several factors, a statistical model is proposed as an alternative approach. The response surface method (RSM) was employed to analyse how parameters influence the properties of the hardened layer and predict these properties.The process parameters X_i were normalized to coded variables x_i. A Taguchi-based RSM design was used. This is detailed in Table 2. The following standard linear transformation was used:

The actual value of the i^th process parameter (i=1,2,…,4) is denoted by Xi, and the centre (zero-coded) value of the i^th parameter is denoted by X_i0. The half-interval of the i^th parameter range is denoted by ΔX_i. Because of the noise and the complicated system, we don't know what the process parameters and the response are really linked to. As a result, low-order polynomial models are extensively used to estimate this relationship. In this study, a second-order model is used within the experimental domain because it can capture both main and interactive/quadratic effects. The expression of the predicted second-order function is as follows:

$$\mathbf{Y}{=\beta }_0+X^{T}b+X^{T}BX+\epsilon$$

(2)

By minimizing the sum of squared errors, the vector of least-squares estimators,β, is derived, and the regression coefficients are subsequently determined. Furthermore, the fitted regression model,${\widehat{y}}_i$,is evaluated, and the least-squares fit of the model is established.

The first-order model is formulated as:

The second-order model is expressed as:

To optimize the predicted response in Eq. (4), the partial derivatives must be set to zero. The resulting point, denoted as x⁰=(x₁₀,x₂₀ ,…,x_k0), is defined as the stationary point, which can be classified as a maximum, minimum, or saddle point of the response surface.

3.3. Evaluation of the RSM Model

The predictive results derived from the RSM model have been validated using statistical methods. Also, this was done to evaluate the predictive results of the three models. More specifically, the analysis involved calculating not only the coefficient of determination (R²), but also the root mean square error, (RSME).The coefficient of determination R² and root mean square error (RSME) are employed to evaluate the predictive performance of the RSM model, defined as:

$${\mathrm{R}}^2=1-{\displaystyle \frac{{\sum }_{\mathrm{I}=1}^{\mathrm{n}}{({\mathrm{S}}_{\mathrm{Exp}}-{\mathrm{S}}_{\mathrm{Pre}})}^2}{{\sum }_{\mathrm{i}=1}^{\mathrm{n}}{({\mathrm{S}}_{\mathrm{Exp}}-\overline{{\mathrm{S}}_{\mathrm{Pre}}})}^2}}$$

(5)

$$\mathrm{RSME}=\sqrt{{\displaystyle \frac{1}{\mathrm{M}}}{{\sum }_{\mathrm{i}=1}^{\mathrm{M}}({\mathrm{S}}_{\mathrm{Exp} }-{\mathrm{S}}_{\mathrm{Pre}})}^2}$$

(6)

where SExp denotes the experimental measurement, SPr represents the RSM prediction, and M denotes the number of experiments. The R² value, which ranges from 0 to 1, indicates the strength of the predictive power of the model in explaining the variation in the data. A lower RSME indicates better agreement between the predicted and experimental results. Furthermore, based on standard statistical criteria, An absolute standardized residual value of less than 2 falls within the acceptable statistical range, indicating that the data point is not an outlier and the model’s prediction error for this point is within normal variation..

4. Experimental Results and Discussion

4.1. Hardness Analysis of Coatings

The variation in hardness, as shown in the cross-section in Figure 4, reveals three distinct regions: the coating, the intermediate layer, and the substrate. This reveals a curve showing how hardness varies with distance from the coating to the substrate. The WC-Co coating zone is characterised by a hardness ranging from 1000 to 1500 Hv, classifying it as a high-hardness carbide coating. The layer in the middle is made of NiCr bond coat, which is 450–600 Hv hard. This layer holds the other layers together. The substrate is formed by the bottom layer, which is mild steel with a hardness of 200–300 Hv. As can be seen from the curve above, hardness decreases progressively with distance from the coating to the substrate. In addition, the hardness values close to the coating surface in the cross-section were obtained by measuring the Vickers hardness indentation. This was achieved by applying a load of 300 g to the area of the coating surface. As shown in Table 2, the experimental results for HVOF-sprayed WC-Co coatings obtained using the L18 orthogonal array are summarised, including eight control factors, five replicate hardness measurements, mean hardness, standard deviation and signal-to-noise ratio (SNR). Mean hardness ranges from 967 Hv (test 5) to 1,690 Hv (test 18), while SNR ranges from 59.70 dB (test 5) to 64.53 dB (test 18). Additionally, Figure 3 shows the mean hardness and signal-to-noise ratio (SNR) of 18 groups of HVOF-sprayed WC-Co coatings, with error bars representing the standard deviation of hardness measurements. The black squares (mean values) represent the average hardness values for each test group, which consists of five replicate tests. The red triangles (SNR) represent the SNR for each test, reflecting the stability and robustness of the measurements. The black vertical bars represent the range of hardness errors, indicating the degree of data dispersion.The correlation between hardness and SNR is shown by the figure. The high SNR group (e.g. Tests 6, 8, 10 and 18) generally corresponds to higher, more consistent hardness values, which indicates good robustness of the process parameters and minimal fluctuations in hardness. By contrast, the low SNR group (e.g. Tests 2, 5 and 17) corresponds to lower hardness values, with greater variability and wider error bars. This indicates unstable process parameters and poor hardness repeatability. The most robust test group was Test 18, which had the highest hardness and the best stability (average hardness ≈ 1270 Hv, SNR ≈ 64.5 dB). Test 8 (average hardness ≈ 1550 Hv) was the hardest, but with an SNR of ≈ 63 dB, it showed significant dispersion, meaning that parameter optimisation is needed to improve stability. Test 5 (average hardness ≈1030 Hv, SNR ≈59.5 dB) exhibited low hardness and significant fluctuations, which corresponded to an imbalance in process parameters, such as a low methane flow rate and a long spraying distance. However, a microhardness value of 1273±153 Hv was obtained from the cross-section of the WC-Co coating produced by HVOF spraying, which is 3 to 4 times the hardness of the substrate. The results indicate that the WC-Co coating produced by HVOF exhibits excellent hardening properties.The findings are presented in Table 2. The average hardness of the WC-Co coating prepared via HVOF spraying without a NiCr interlayer was 1245±143 Hv. This value is quite close to the average hardness of 1284±172 Hv for the coating with a NiCr interlayer. Furthermore, the hardness values of all HVOF-sprayed WC-Co coating samples without a NiCr interface layer ranged from 97 to 1256 Hv, exhibiting marked variability.The high hardness of this coating is due to WC particles fracturing and refining during high-speed impact or rapid solidification. As a result, submicron- to micron-sized, fine-grained WC particles are uniformly embedded in the Co matrix. Not only does this significantly enhance hardness, but the uniform distribution of WC particles also effectively counteracts the work-hardening effect caused by plastic deformation.

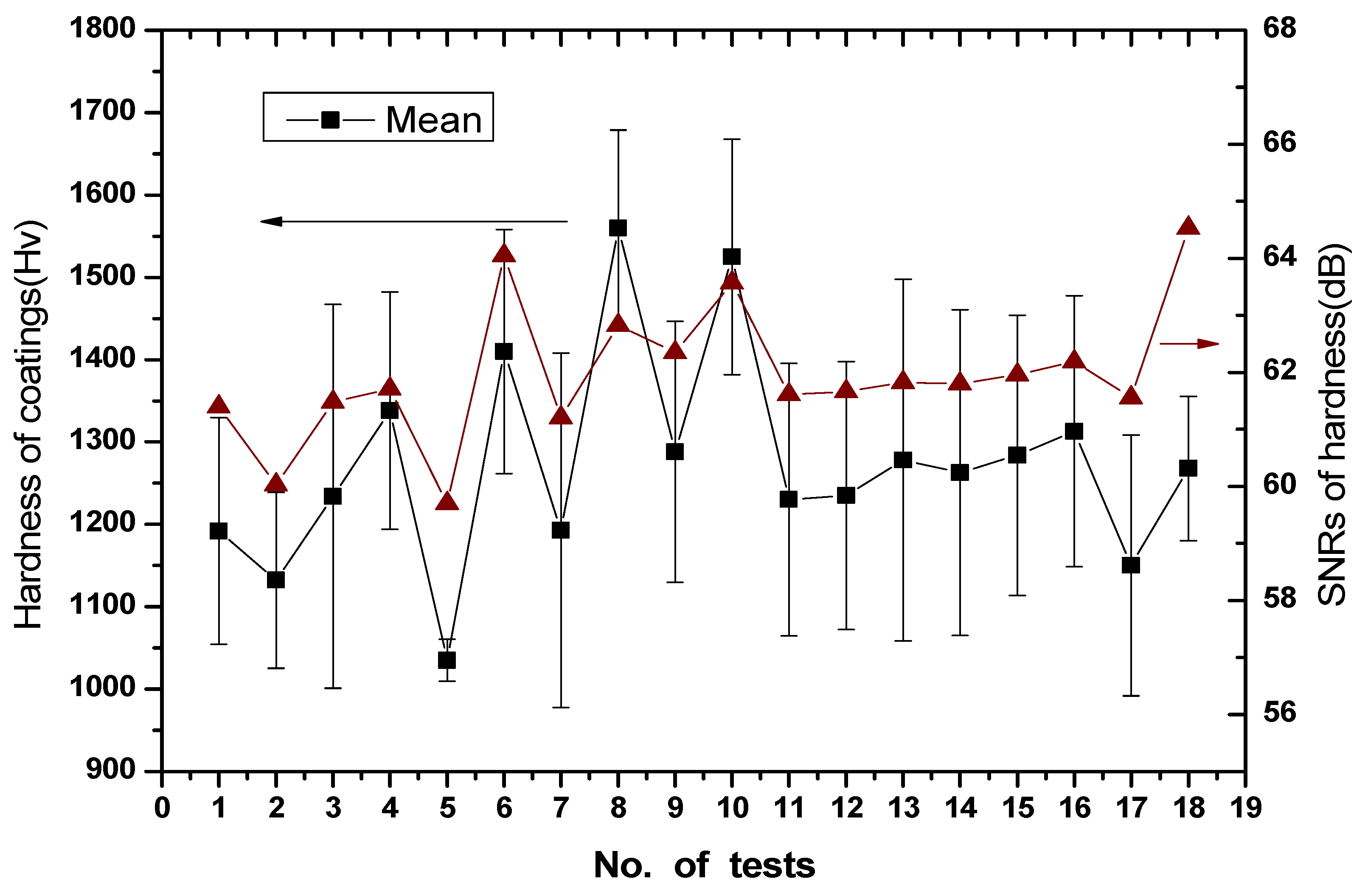

Figure 2. A diagram of the mean hardness, standard deviation and the corresponding SNR of the L18 experiments.

Figure 2. A diagram of the mean hardness, standard deviation and the corresponding SNR of the L18 experiments.

4.2. Metallography of HVOF Sprayed NiCr/WC-Co Coatings

Figure 3a illustrates the typical pattern of granular agglomeration and molten flattening that is characteristic of the coated surface. This surface texture is formed by numerous irregular, cluster-like particles that overlap and weld together.The distribution of particle sizes is broad, with large particles (20-30 μm) coexisting with fine secondary particles (5-10 μm). Locally, there are visible signs of incompletely flattened particles, such as the cluster slightly to the left of centre. This indicates that some of the powder was insufficiently melted in the plasma stream, or that it had limited impact kinetic energy. Figure 3b shows that the coated surface consists of a large number of irregular, cluster-like particles, which have a distribution of sizes ranging from 5 to 30 μm. The particles retain the near-spherical shape of the original powder in some cases, while in others, they exhibit clear signs of flattening and remelting, with smooth edges and intermingling. A comparison of Figure 3a and Figure 3b shows that the high density and complete fusion in Figure 3a correspond to a higher hardness (≥1400 Hv), while the lower density in Figure 3b corresponds to a slightly lower hardness (1100–1300 Hv). In addition, the low porosity and uniform particle distribution in Figure 1 can effectively suppress abrasive wear and fatigue spalling. This results in a lower wear rate. In contrast, the porosity and unfused particles in Figure 3b act as crack initiation sites. This leads to a higher wear rate. The wear resistance of the coating is significantly correlated with the hardness values mentioned above. These findings have been discussed and confirmed in many studies [28,31,38]. A large number of particles are predominantly clustered and spherical in shape, with very little flattening on the coating surface, as shown in Figure 1c. Many particles retain the spherical contours of the original powder and show almost no signs of melting and re-solidification along their edges. This suggests that the powder did not melt sufficiently in the plasma stream and lacked the necessary kinetic energy upon impact with the substrate to flatten adequately. The micrograph reveals a large number of relatively large, micron-scale pores and voids (black areas), with pore sizes ranging from approximately 5 to 15 μm. These pores are widely distributed and interconnected, and the porosity is visually estimated to be between 3% and 5%. The particles pack loosely together, with large clusters and distinct loose regions where unmelted particles can be found.A clustered, semi-molten structure is exhibited by the coating surface in Figure 1d. The edges of some particles are slightly flattened with traces of melting and re-solidification visible. It is indicated by this that a semi-molten state was reached by the powder in the flame jet and that some degree of flattening was undergone upon impact with the substrate; however, a near-spherical shape was retained by some particles, suggesting that the powder did not fully melt. The image reveals a large number of micron-sized pores (black areas), with pore sizes ranging from approximately 2 to 10 μm. These holes are located within the spaces between the layered particles, and the porosity is visually estimated to be around 2%–3%. None of the pores are large or interconnected. Most of the structure of coatings are stacked quite densely, and the gaps between clusters are visible, but they do not form extensive networks. Also, there is a small number of unmelted particles that are found in localised areas. A comparison of Figure 3c and Figure 3d shows that, in Figure 3c, the particles have hardly flattened at all, with much of the original powder's spherical shape being retained. There are almost no signs of melting or recrystallisation between agglomerates, and the proportion of unmelted particles is extremely high. In contrast, Figure 3d shows that the structure of the grains exhibits a certain degree of flattening. Traces of melting and deformation are visible along the edges of some grains, and there is slight bonding between clusters. The proportion of unmelted particles is significantly lower than in Figure 3c. As discussed above, it is evident that the denser the structure, the more completely the particles melt and the fewer pores there are. This results in higher hardness and better wear resistance. Conversely, there is a significant decrease in hardness and an increase in wear when there are many unmelted particles, numerous pores and a loose structure. To sum up, the microstructure of the coating is closely linked to its hardness and wear resistance.

Figure 3. The surface morphology of Scanning electron microscopy of HVOF-sprayed NiCr/WC-Co metal-ceramic coatings (a)trial 18 (b)trial 6 (c)trial 5 and (d)trial 17.

Figure 3. The surface morphology of Scanning electron microscopy of HVOF-sprayed NiCr/WC-Co metal-ceramic coatings (a)trial 18 (b)trial 6 (c)trial 5 and (d)trial 17.

4.3. Structure of Cross-Section for HVOF Sprayed NiCr/WC-Co Coatings

Figure 4 shows a cross-sectional image taken by SEM of a WC-Co-based thermal spray coating that has been etched. The image clearly reveals that the cobalt (Co) binder phase has been preferentially etched away, which has exposed the tungsten carbide (WC) hard phase along with the microstructure of the coating. As shown in Figure 4a, the cross-sectional morphology of the coating consists of flat, semi-molten particles that are tightly stacked together with smooth, clearly visible interlayers. The NiCr layer may be approximately 80 μm thick in localized areas, while the WC-Co layer is approximately 480 μm thick. The dark black region in the middle layer contains a molten NiCr structure that has fused with the dense WC-Co matrix, which is free from micro-pores, cracks and unmelted regions. The NiCr layer acts as a buffer to reduce thermal stress. No significant pores or unfused zones were observed within the layered stacking structure. As can be seen in Figure 4b, the cross-sectional morphology of the coating consists of tightly stacked layers of fused cobalt (Co) and partially fused tungsten carbide (WC) particles, with a surface undulation of 10–30 μm. The plate-like features measure approximately 5–20 μm in thickness and 20–50 μm in length and are oriented along the direction of spraying. The pores, ranging from approximately 0.5 to 5 μm in size, are distributed between layers, at particle boundaries, and in localized unfused regions, and their shapes are predominantly circular or irregular. The WC-Co layer, measuring 250–300 μm in thickness, consists of fused WC lamellar grains, along with microstructures such as corrosion pores, cracks, and Co fusion structures. The coating surface displays a morphology defined by a multitude of holes, depressions and fractured particles that are layered on top of each other. Voids and pores are present at the interface between the coating and the substrate, and the primary bonding mechanism is mechanical interlocking with no metallurgical bonding. This contributes to enhance density, hardness and bond strength of the coating.The cross-sectional morphology of the coating, as shown in Figure 4c, consists of layers of heavily fused cobalt (Co) and partially fused tungsten carbide (WC) particles stacked on top of each other, with distinct interlayer boundaries clearly visible. The WC-Co layer, which is approximately 50 μm thick, contains partially unfused WC lamellar grains, as well as microstructures such as etching pores, cracks, and fusion formations. The coating surface exhibits a morphology characterised by numerous pores, depressions and fractured particles in a stacked arrangement. The interface of the coating is uneven and irregular, with cracks in the substrate caused by impact, as well as localised gaps and unbound regions, present. Such features are typical of mechanical bonding. After etching treatment, this area reveals micro-pores, cracks and unfused interfaces more clearly. All of these features reflect the brittle fracture of the substrate, which is caused by high-speed particles of unmelted powder that impact the substrate. As shown in Figure 4d, the cross-sectional morphology of the coating consists of numerous layers. These layers of fused and partially fused particles are stacked on top of one another. Clearly visible interlayer boundaries are present. The dark part of the middle layer (NiCr) has some grains that have been joined together, as well as tiny holes, cracks and bits that have not been joined. The interface is uneven, with gaps and unfused areas, which is typical of mechanical bonding. The process of etching makes the micro-pores, cracks and unfused interfaces easier to see. This is because the brittle fracture is caused by high-speed unmelted particles hitting the substrate.Overall, there are visible microscopic pores, cracks and unfused interfaces at interlayer and particle boundaries and in localised areas. These reduce the density, hardness and bond strength of the coating. As a result, the coating does not do as well in resisting spalling, and its bond strength is lower than that of systems with a NiCr transition layer. This makes it more likely to fail under alternating loads or in high-temperature environments.

Figure 4. The SEM images of the etched tests showing the microstructure at the interface between the WC-Co coating and the substrate , with and without a NiCr interlayer (a) Trial 18, (b) Trial 6, (c) Trial 5 and (d) Trial 17.

Figure 4. The SEM images of the etched tests showing the microstructure at the interface between the WC-Co coating and the substrate , with and without a NiCr interlayer (a) Trial 18, (b) Trial 6, (c) Trial 5 and (d) Trial 17.

4.4. Variance Analysis

A variance analysis was conducted in this study based on the signal-to-noise ratio (S/N) at different surface hardness values of the coatings. The effects of various control factors on the hardness of HVOF-applied tungsten carbide-cobalt coatings were evaluated. This approach successfully identified the factors that most influence the quality of HVOF-applied coatings. Table 3 shows the results of the analysis of variance (ANOVA) for the hardness of HVOF-sprayed WC-Co coatings. The percentage contribution shows that factor C is the most significant parameter (28.43%), followed by factor D (22.08%). Together, these two factors account for over 50% of the total variation in hardness. Factors E and H have the least influence (contribution <3.5%), with F-values close to 1 indicating that they are non-significant. The error term contributes only 3.16%, which confirms the high repeatability of the experimental data. Based on an analysis of variance (ANOVA), the relative importance of each parameter on hardness was determined as detailed in Table 3. The contribution percentages in Table 3 can be used to identify the control factors that exhibit significant influence. It can be seen that factors C, D, F, and G are the most important impact, while factors A, B, E, and H exhibit relatively minor influence on the hardness of the surface coating in the HVOF-spraying process. On the other hand, The results indicate that factors C, D, F, and G together account for nearly 76.25% of the variability in coating hardness.These results identify the key parameters for process optimisation and validate the response surface model. Furthermore, these significant factors were then incorporated into the RSM model for the HVOF spraying process.

4.5. Computing Analysis of Empirical Model

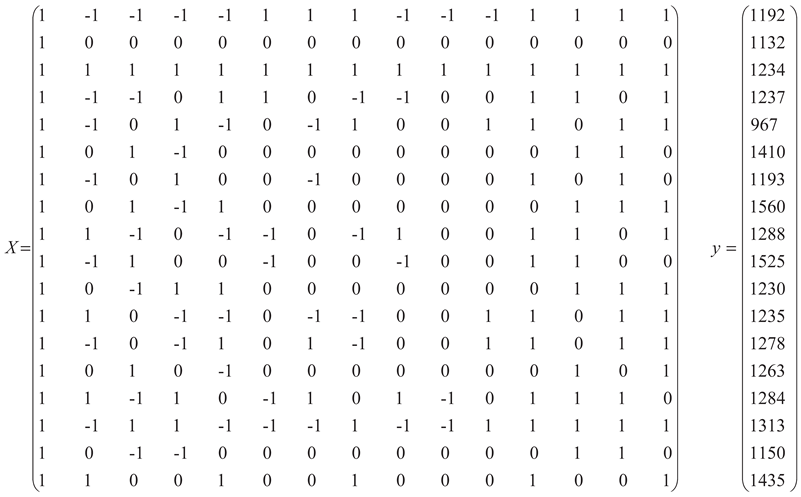

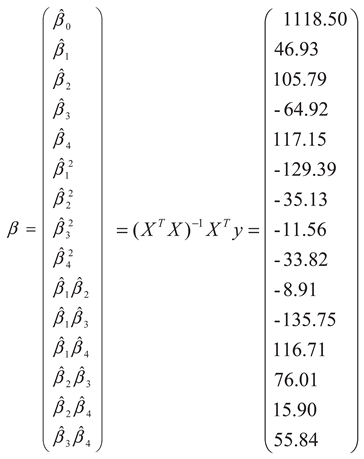

The regression models for the RSM design in this experiment were simulated based on the Taguchi experimental results, and the parameters for the regression models were selected based on the results of the analysis of variance. Table 4 presents the regression coefficients, standard errors, t-statistics, and p-values for the first-order, interaction, and second-order RSM models of coating hardness. The results of the analysis of variance (ANOVA) for fitting linear, interaction and quadratic models to the data obtained from the Taguchi experiments are shown. As shown in Table4, the findings revealed that the second-order model exhibited a significance F-value of 0.030 (P > 0.05) and an R² value of approximately 0.986. In contrast, the first-order model demonstrated a significance F-value of 0.099 (P > 0.05), with an R² value approaching 0.789. Additionally, the interaction model showed a significance F-value of 0.106 (P > 0.05) and an R² value close to 0.429, suggesting an inadequate fit, a conclusion that is further substantiated by the RMSE values. Overall, the ANOVA table shows that the 'Prob > F' values for the three models, as determined by the least squares method, were 0.099, 0.106 and 0.024 respectively. The corresponding quadratic model was confirmed to be statistically significant because its 'Prob > F' value was less than 0.05. Also, the coefficients of determination (R²) for both the first-order model and the interaction model were lower than that of the quadratic model. Therefore, the quadratic model in RSM is highly effective in predicting hardness properties. In this experiment, based on analysis of variance (ANOVA), the vector of least-squares estimates is obtained by minimizing the sum of squared errors. The regression coefficients can then be determined using a second-order model. Furthermore, the fitted regression model is evaluated, and the least-squares fit of the model is calculated according to Equations (3-4). The second-order regression model for coating hardness is derived using the least-squares method, with the coefficient vector β=(X^TX⁾⁻¹X^Ty. The predicted second-order function is calculated as follows:

where

To evaluate the influencing factors/variables in the first-order, interaction, and second-order models, a stepwise approach was used to reduce the number of variables further. Table 4 shows the full set of coefficients for the first-order, interaction and second-order models. As indicated by the “P-value”, values greater than 0.05 suggest that a given factor has a relatively small influence, leading to its removal. An analysis of variance (ANOVA) table was generated based on the quadratic regression function. The statistically significant factors in the ANOVA table were retained when the p-value was less than 0.05. in addition, Figure 5 shows the results of the regression analysis for the prediction model of the hardness of HVOF-sprayed WC-Co coatings, including coefficient estimates, standard errors, t-statistics, and p-values for three regression models including the first-order model, the interaction model, and the second-order model. The results show that in the first-order model, only the methane flow rate (D) is a significant term; this model cannot fully describe the nonlinear relationship between process parameters and coating hardness. Furthermore, the influence of interaction terms on hardness is weaker than that of main effects, while the model still lacks adequate fit. Thus, second-order terms must be introduced into the model. The second-order model exhibits a high R² value of 0.985 for the fit, which enables precise prediction of coating hardness. Consequently, the quadratic regression function for hardness of coatings by HVOF-spraying was established as shown in Equation (7).The findings demonstrate that the model is of great significance. This is the case whenever the "Prob>F" approach is employed for decision-making purposes.The effects of the second-order of X₁², X₂² and the first-order of X₂, X₃, X₄, and the pair-order of X₁X₂, X₃X₄ on surface hardness in the WC/Co coating are revealed. The equation for the fitted quadratic regression model for the hardness of coatings by HVOF spraying is as follows:

$$\widehat{y}=1118.5+46.93X_1+105.79X_2-64.92X_3+117.15X_4-129.39X_1{X}_2-33.82X_2{X}_3-135.75X_3{X}_4-35.13X_1{X}_3-11.56X_1{X}_4-8.91X_2{X}_4+116.71X_1{}^2+76.01X_2{}^2+\mathrm{15.9.}{X}_3{}^2+55.84X_4^2$$

(7)

A value of R² of 0.985 for the above model (7) indicates that approximately 98% of the total variation in coating hardness can be explained by the quadratic terms of these four significant control factors. Clearly, this model is a far superior fit to the linear and interaction models. Later in Table 6, we also use first-order and interactive models to compare their error percentages and RMSE with those of the second-order model.

Table 5. Regression coefficients, standard errors, t-statistics, and p-values for first-order, interaction, and second-order terms, indicating the significance of the effects of each factor and interaction term on the hardness.

Model		Coefficients	Standard error	t- Stat	P-value
	Intercept	1273.67	28.34	44.936	0.000
	C	28.29	37.11	0.762	0.460
First-order function	D	84.07	35.93	2.340	0.036
	F	-50.33	34.71	-1.450	0.171
	G	52.60	35.93	1.464	0.167
	Intercept	1285.51	24.95	51.532	0.000
	C	80.22	39.23	2.045	0.080
	D	118.89	31.99	3.717	0.007
	F	-15.00	32.07	-0.468	0.654
	G	80.10	31.42	2.549	0.038
Interaction function	CD	-83.73	44.06	-1.900	0.099
	CF	24.00	40.33	0.595	0.571
	CG	-45.07	36.54	-1.233	0.257
	DF	-95.21	67.18	-1.417	0.199
	DG	-55.82	72.96	-0.765	0.469
	FG	-86.40	45.29	-1.908	0.098
	Intercept	1118.50	33.01	33.88	0.00
	C;X1	46.93	27.79	1.69	0.19
	D;X2	105.79	18.41	5.75	0.01
	F;X3	-64.92	16.33	-3.98	0.03
	G;X4	117.15	14.44	8.12	0.00
	CD;X1X2	-129.39	19.20	-6.74	0.01
	CF;X1X3	-35.13	19.82	-1.77	0.17
Second-order function	CG;X1X4	-11.56	24.43	-0.47	0.67
	DF;X2X3	-33.82	36.96	-0.91	0.43
	DG;X2X4	-8.91	29.76	-0.30	0.78
	FG;X3X4	-135.75	34.20	-3.97	0.03
	C2;X12	116.71	24.19	4.82	0.02
	D2;X22	76.01	22.21	3.42	0.04
	F2;X32	15.90	29.97	0.53	0.63
	G2;X42	55.84	25.68	2.17	0.12

Table 5. Regression coefficients, standard errors, t-statistics, and p-values for first-order, interaction, and second-order terms, indicating the significance of the effects of each factor and interaction term on the hardness.

Model		Coefficients	Standard error	t- Stat	P-value
	Intercept	1273.67	28.34	44.936	0.000
	C	28.29	37.11	0.762	0.460
First-order function	D	84.07	35.93	2.340	0.036
	F	-50.33	34.71	-1.450	0.171
	G	52.60	35.93	1.464	0.167
	Intercept	1285.51	24.95	51.532	0.000
	C	80.22	39.23	2.045	0.080
	D	118.89	31.99	3.717	0.007
	F	-15.00	32.07	-0.468	0.654
	G	80.10	31.42	2.549	0.038
Interaction function	CD	-83.73	44.06	-1.900	0.099
	CF	24.00	40.33	0.595	0.571
	CG	-45.07	36.54	-1.233	0.257
	DF	-95.21	67.18	-1.417	0.199
	DG	-55.82	72.96	-0.765	0.469
	FG	-86.40	45.29	-1.908	0.098
	Intercept	1118.50	33.01	33.88	0.00
	C;X1	46.93	27.79	1.69	0.19
	D;X2	105.79	18.41	5.75	0.01
	F;X3	-64.92	16.33	-3.98	0.03
	G;X4	117.15	14.44	8.12	0.00
	CD;X1X2	-129.39	19.20	-6.74	0.01
	CF;X1X3	-35.13	19.82	-1.77	0.17
Second-order function	CG;X1X4	-11.56	24.43	-0.47	0.67
	DF;X2X3	-33.82	36.96	-0.91	0.43
	DG;X2X4	-8.91	29.76	-0.30	0.78
	FG;X3X4	-135.75	34.20	-3.97	0.03
	C2;X12	116.71	24.19	4.82	0.02
	D2;X22	76.01	22.21	3.42	0.04
	F2;X32	15.90	29.97	0.53	0.63
	G2;X42	55.84	25.68	2.17	0.12

4.6. Diffraction Phase Analysis of the XRD Patterns

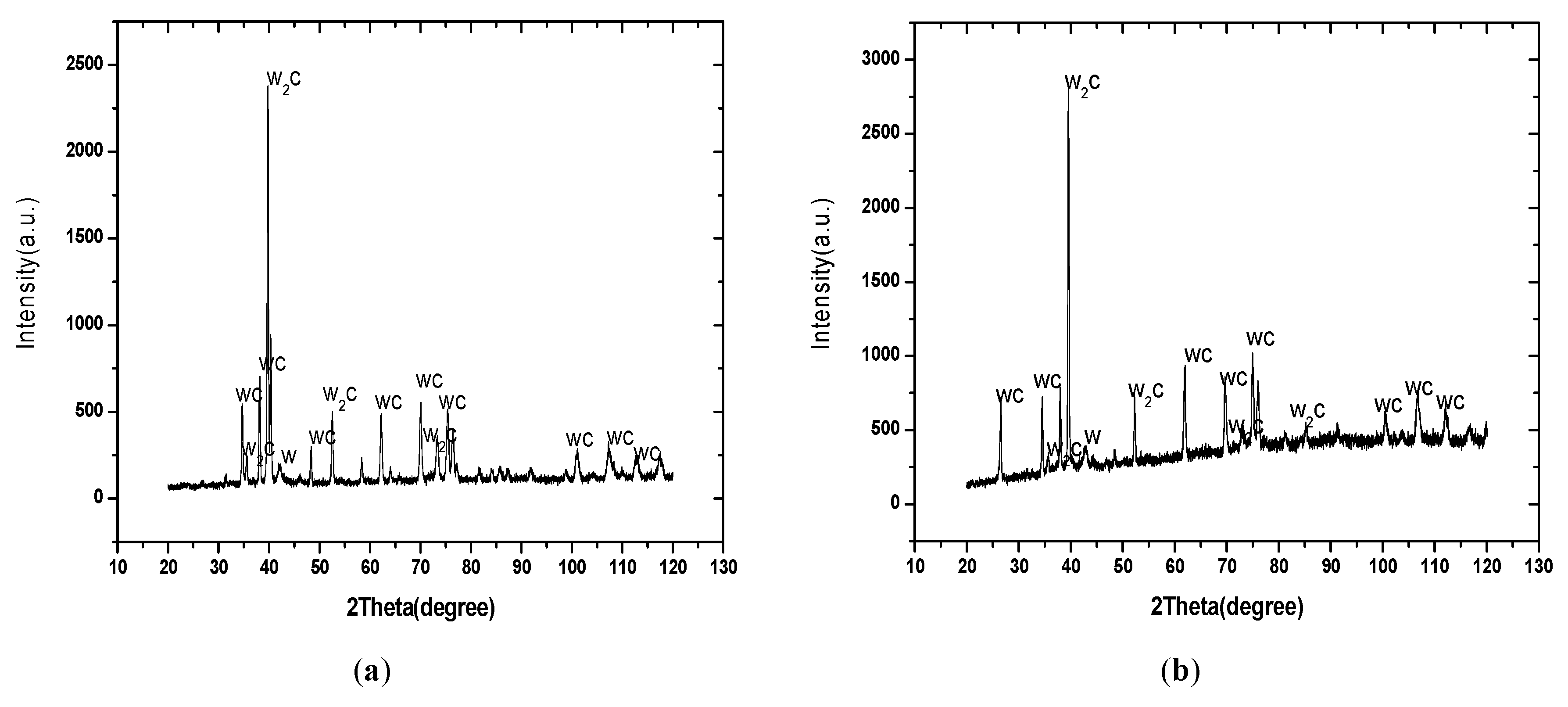

The XRD pattern in Figure 5a shows an extremely intense W₂C peak at approximately 2400 a.u., which is the strongest peak in the pattern, indicating that a remarkable decarburization phenomenon occurred in the coating (WC → W₂C + C). Meanwhile, the WC peak is clearly present in the 30°–120° range, suggesting that part of the original WC phase remains and has not completely decomposed. In contrast, the weak W peak indicates localized over-decarburization (W₂C → W + C), but its contribution is minimal.In conjunction with the XRD results, the microstructure of the coating shown in Figure (a) exhibits a dense, lamellar structure. In this structure, W₂C and WC form a continuous ceramic matrix in which the particles are fully melted, flattened and closely stacked. The matrix has low porosity (approximately 2–3%) and no obvious microcracks. This is primarily due to the high W₂C content, which is the result of the high energy input of the HVOF flame. This causes the WC particles to melt thoroughly as well as undergo decarburisation, thereby promoting particle flattening and dense stacking. Similar to Figure 5a, Figure 5b shows XRD patterns with an extremely high W₂C peak intensity (2800 a.u.), which is the strongest peak in the entire spectrum. This indicates significant decarburization of the WC matrix, the most pronounced among the four sets of patterns, though it did not reach the point of excessive decarburization. Although decarburization causes the WC matrix to fracture, generating soft metallic W, and simultaneously increases porosity and microcracks, thereby reducing structural integrity, there is no decrease in hardness. This may be attributed to stress concentration leading to structural defects, a sharp drop in load transfer efficiency, and increased coating brittleness. As shown in Figure 5a and Figure 5b, excessive decarburization has not occurred in any of the cases; therefore, the increased intensity of the W₂C peak directly corresponds to a significant improvement in coating hardness. Figure5 c shows that the XRD pattern is characterized by the weakest W₂C peak intensity (800 a.u.), a lower and broader main WC peak, and the absence of W or Co phases. This indicates that the degree of decarburization of WC is extremely low and that the ceramic phase has undergone insufficient recrystallization. This suggests that the HVOF-sprayed WC-Co coating was subjected to insufficient heat input during the spraying process. The XRD patterns and corresponding microstructures reveal that most powder particles were not fully melted or flattened, retaining their near-spherical original shapes. This results in a loose, stacked structure containing a large number of interconnected micron-scale pores (3%–5%) and unmelted coarse particles. The interface between the coating and the substrate exhibits only mechanical interlocking, with microcracks and localized delamination caused by the impact of unmelted particles. This phase-structure correlation is rooted in insufficient heat input during the HVOF process, which not only inhibits the decarburization reaction of WC but also hinders the plastic deformation and metallurgical bonding of the powder particles. Consequently, this coating exhibits the lowest microhardness (967 Hv) and a lower SNR (SNR = 59.70 dB) among all experimental groups, resulting in insufficient structural stability. Figure 5 d shows that the W₂C peak in the XRD pattern (1400 a.u.) is sharp in shape; its WC peak is sharp and well-defined without broadening; a faint peak of the Co binder phase is detectable; and no peaks of metallic W or oxide phases are observed, indicating mild decarburization of WC (only the WC→W₂C reaction occurred), partial melting and recrystallization of Co, and that all phases exhibit complete crystallinity without phase degradation. These phase characteristics fully correspond to a mixed microstructure of local densification and overall heterogeneity: some powder particles are in a semi-melted state and have flattened, forming layered regions including W₂C and crystalline Co, while the remaining particles retain a near-spherical, unmelted morphology, resulting in the misaligned stacking of these two types of particles without the formation of a continuous layered structure. The coating exhibits a moderate porosity of approximately 2%–3%, consisting of isolated micron-sized pores (2–10 μm) distributed in the gaps between flattened and spherical particles, with no interconnected channels. The interface between the coating and the substrate exhibits tighter mechanical interlocking accompanied by slight local metallurgical bonding, with no impact microcracks or extensive delamination observed. Unfused particles account for 10%–15% of the coating volume, most of which are enveloped by the molten cobalt phase, resulting in no significant stress concentration. In summary, the heterogeneous phase evolution observed in XRD is a macroscopic manifestation of the heterogeneous melting and stacking phenomena in the microstructure.

4.7. Predictions of RSM

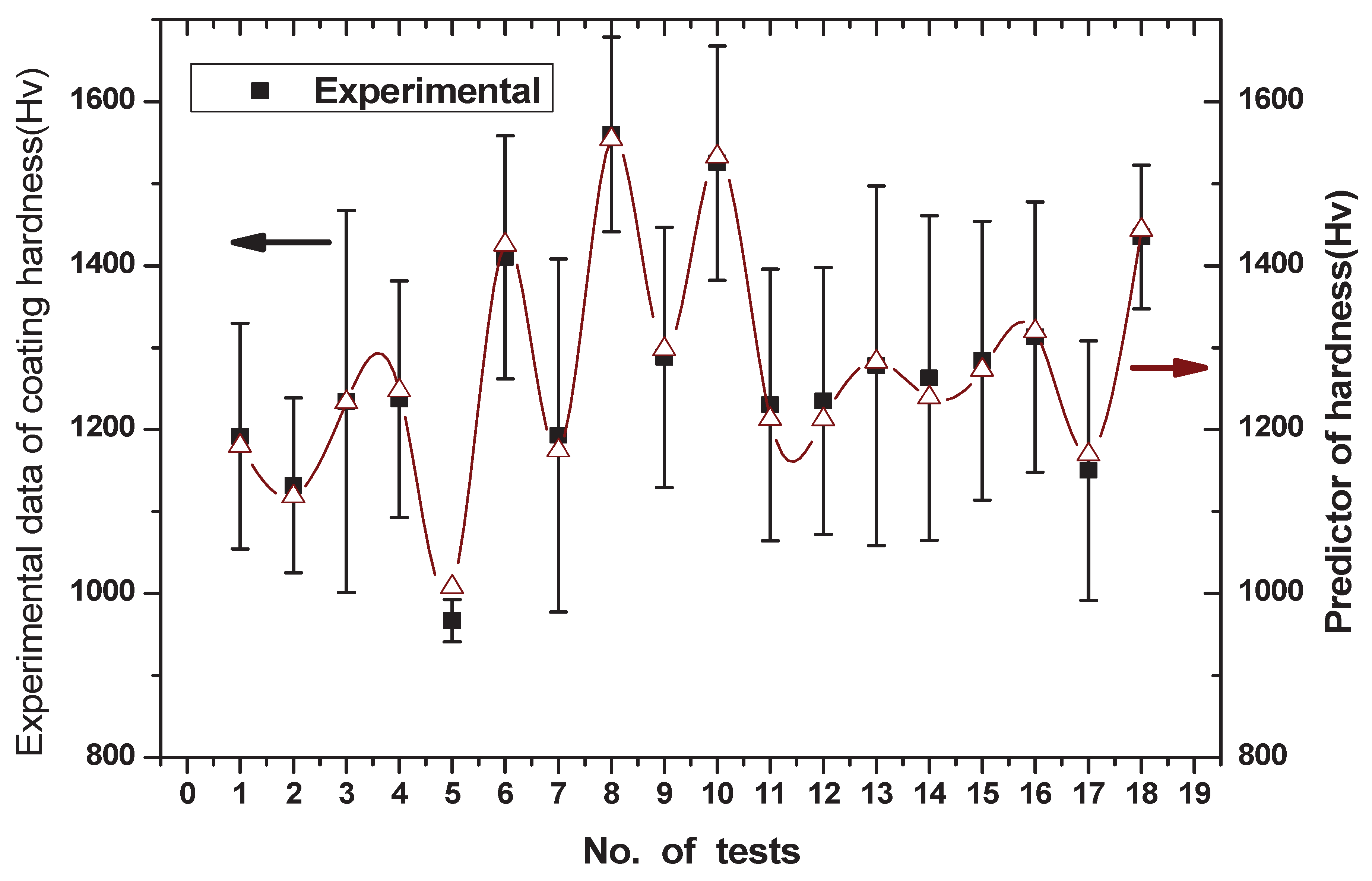

As shown in Table 6, the results of the evaluation of the standard residuals, estimation of the percentage error and root mean square error (RMSE) for the three models were obtained using the RSM model. Clearly, the standard residual values for all 18 groups of HVOF spraying experiments were less than 2.5 in absolute value, with no significant outliers observed. This suggests that the quadratic regression model established by RSM accurately describes the relationship between process parameters and coating hardness, and that the predictions made by the model are highly consistent with the actual experimental results. Additionally, the RMSE represents the root mean square error, which reflects the overall deviation between the model’s predicted values and the actual experimental values. A lower value indicates higher fitting accuracy. To evaluate the fitting accuracy of the first-order, interaction and second-order models for hardness of the coating, the RMSE and error % were used. The RMSE for the first-order, interaction, and second-order models of coating hardness was calculated as 6.68 Hv, 4.52 Hv, and 1.89 Hv, respectively. The results showed that the second-order model had the smallest RMSE , which was 71.7% and 58.3% lower than the RMSE of the first-order and interaction models, respectively. Additionally, the average error percentages for the first-, interaction-, and second-order models of the surface hardness of coatings were calculated to be 6.83%, 3.84%, and 1.16%, respectively. The findings indicate that the second-order model exhibited the lowest average percentage error, with a reduction of 83% and 69.7% compared to the first-order and interaction models, respectively.This suggests that the second-order regression model is better suited to describing the nonlinear relationship between HVOF process parameters and the hardness of the coating.

4.8. The Operating Parameters of Influence on HVOF Spraying Coatings

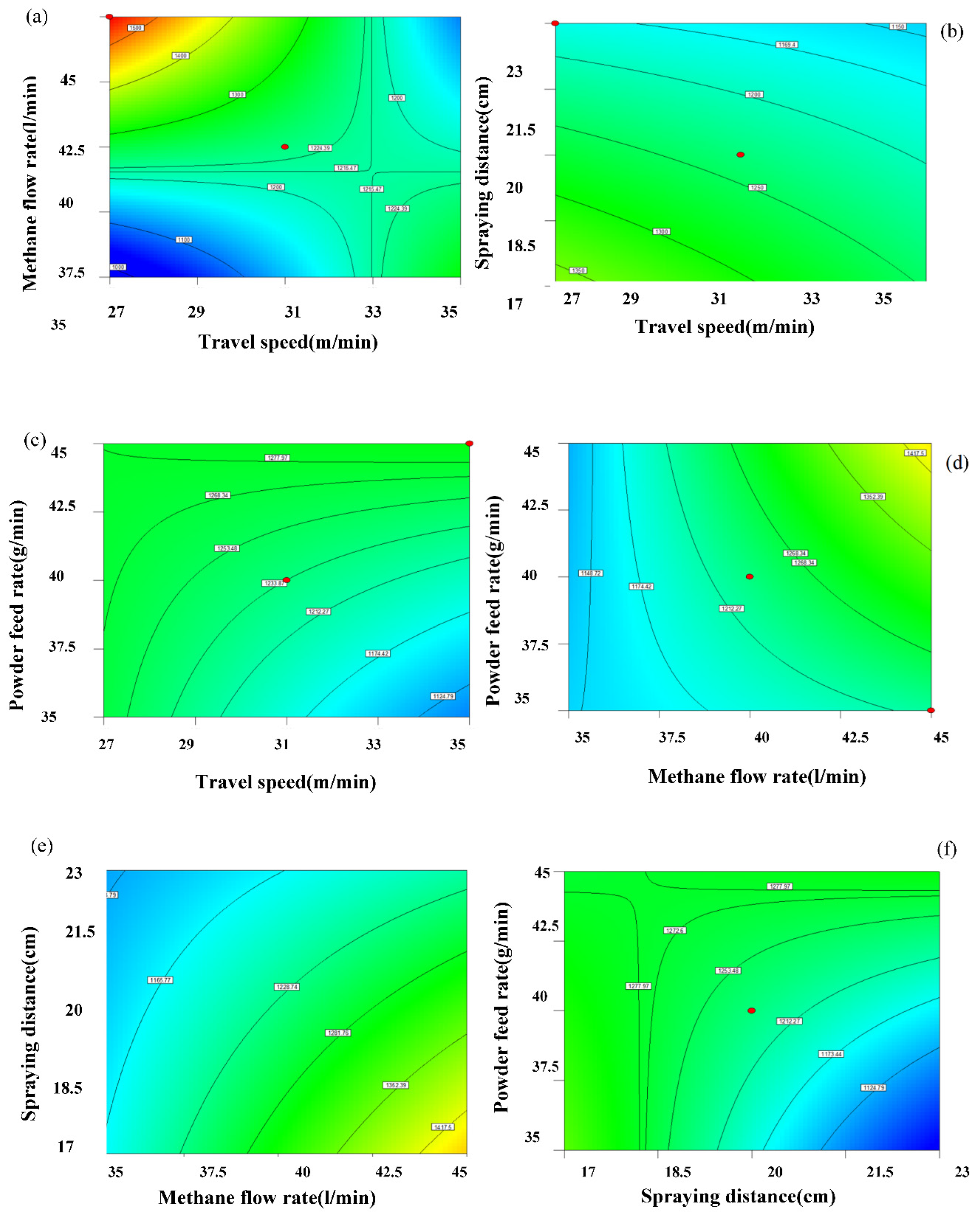

A contour plot of coating hardness is shown in Figure 6a. This was generated using the RSM, which demonstrates the interactive effects of travel speed and methane flow rate on coating hardness.The curved pattern of the contour lines indicates a nonlinear interaction between the two process parameters and hardness. The colours of the contour lines transition from blue (1000-1100 Hv) to green (1200-1300 Hv), and lastly to yellow/orange (1400-1500 Hv). This clearly demonstrates that a high hardness of 1400–1500 Hv can be achieved when the travel speed process parameter approaches 27 m/min and the methane flow rate approaches 45 l/min, which falls within the range of process optimisation. The influence of the process parameters (travel speed and spraying distance) on hardness is illustrated by the curved distribution of the contour lines, as shown in Figure 6b, which is derived from a second-order model. The colour gradient indicates a hardness range from 1150 Hv (blue) to 1350 Hv (yellow-green). The curved contour lines reveal the nonlinear interaction between the two parameters. This indicates that the high-hardness region in the lower left corner (1300-1350 Hv) is the optimal range for both parameters when the travel speed is close to 27 mm/s and the spraying distance is close to 17 mm. Figure 6c shows a contour plot of coating hardness generated using the RSM, which illustrates the influence of travel speed and powder feed rate on coating hardness.This colour-coded map illustrates the variation in hardness, ranging from 1124 Hv ( blue) to 1278 Hv ( bright green). The curved contour lines reveal the non-linear interaction between the two parameters. As can be seen, higher powder feed rates (42.5-45 g/min) combined with higher travel speeds (31-35 m/min) yield the highest hardness (1268-1278 Hv). In contrast, a low powder feed rate (35-37.5 g/min) combined with a high travel speed (33-35 m/min) results in a significant decrease in hardness (1124-1174 Hv). However, it is possible to achieve a high hardness of 1268-1278 Hv by using a high powder feed rate with a low/medium travel speed (27-31 m/min) or the maximum travel speed (35 m/min) with the maximum powder feed rate (45 g/min). This represents the optimised range for these two process parameters. Figure 6d illustrates the contour plot of the response surface for coating hardness with methane flow rate and powder feed rate.The contour lines rise sharply toward the high-methane region on the right, indicating that the effect of methane flow rate on hardness is the most significant. Figure 6d shows the response surface plot of coating hardness as a function of the methane and powder feed rates. The contour lines rise sharply towards the region of high methane flow rate on the top right, indicating that this has the most significant effect on hardness. It is only possible to significantly increase hardness by raising the powder feed rate under high methane flow conditions. The region of optimal hardness is located in the top right-hand corner of the figure, where a methane flow rate of 42.5-45 l/min and a powder feed rate of 42.5-45 g/min can achieve a hardness of 1417.5 Hv. Figure 6d shows a contour plot illustrating the effects of methane flow rate and spraying distance on coating hardness.The colour gradient illustrates the variation in hardness from 1165 Hv (blue) to 1417 Hv (yellow-green). The curved contour lines show that there is a high methane flow rate (42.5-45 L/min) when the spraying distance is short (17-18.5 cm), which results in the highest hardness (1352-1417 Hv). In contrast, a low methane flow rate (35-37.5 l/min) coupled with a long spraying distance (21.5-23 cm) means that the hardness is significantly reduced (1165-1179 Hv). This indicates that the methane flow rate is the dominant factor due to the contour lines clearly tilting towards the bottom right of the diagram, and that a short spraying distance can only enhance hardness under high methane flow conditions.This can be explained by analyzing the microscopic mechanisms of the coating. A high methane flow rate provides sufficient thermal input from the flame, while the short spraying distance minimizes heat loss during particle flight, thereby enabling the WC particles to melt fully and flatten, leading to the formation of a dense coating and a significant increase in hardness.The effect of spray distance and powder feed rate on the coating hardness contour plot, derived from the second-order RSM model, is shown in Figure 6e. The colour gradient illustrates the range of hardness values, from 1124 Hv (blue) to 1278 Hv (bright green). The contour lines indicate that a short spray distance (17-18.5 cm) combined with a high powder feed rate (42.5-45 g/min) leads to the highest hardness (1272-1278 Hv), while a long spray distance (21.5-23 cm) coupled with a low powder feed rate (35-37.5 g/min) results in a substantial reduction in hardness (1124-1173 Hv)as shown in Figure 6f. This indicates that spray distance is the dominant factor, as evidenced by the distinct sloping distribution of the contours. Additionally, the hardness of the material is only increased by a high powder feed rate when the distance from the nozzle is short. Based on interactive response surface analysis of the effects of methane flow rate, powder feed rate, spraying distance and travel speed on the hardness of HvOF-sprayed WC-Co coatings, the optimal region for maximum hardness is located where methane flow rate, powder feed rate are high, spraying distance is short, and travel speed is moderate. In other words, the multi-parameter optimization identified the best process conditions as follows: methane flow rate of 43 L/min, powder feed rate of 43 g/min, spraying distance of 18 cm, and traverse speed of 30 m/min, under which the coating can reach 1350–1400 HV with dense microstructure and low porosity. The short spraying distance and high methane flow rate ensure sufficient particle melting and low porosity, while the high powder feed rate and medium travel speed achieve optimised coating density and uniformity. Microstructural examinations and tests of performance verify that this combination of parameters can significantly improve coating hardness, making it the optimal solution within the limits of this study. In short, there is no need to conduct numerous experiments. Instead, researchers can identify the range with the highest hardness directly based on the colour of the contour lines. This enables them to swiftly determine the optimal parameters in experimental domains, thereby significantly reducing both costs and time.

4.9. Confirmation Experiments

To validate the statistical model more effectively and further understand the hardness properties of the coating, the contour lines of the RSM model are presented in equation (7). Figure 7 illustrates a comparative analysis of experimental values and model-predicted microhardness values for 18 sets of HVOF-sprayed NiCr/WC-Co coatings, where the error bars represent the standard deviation of the experimental measurements, and the trend line indicates the overall trend. As illustrated, the predicted hardness values exhibit an excellent correlation with the experimental results across the entire domain of the experiment, with an average percentage error of just 1.16%. The predicted trend line lies within the margin of error of the measured data points, with the exception of the fifth group. As seen above, Figure 6 clearly shows the response surface plot of deposit hardness behavior, which varies with different factor settings. The figures illustrate the relationship between the response and the control variables, as defined by Equation (6). The calculated results of the contour plots within the experimental region are presented graphically. Based on the figure above, response contour lines containing saddle points and central elliptical patterns can be obtained.By examining the contour plots of the fitted model, we can now understand the response surface of the hardness properties of the coating. Verification experiments were conducted under optimal conditions. The measured hardness was 1352.7 ± 75 HV when repeated three times, which was in close agreement with the predicted value of 1365.89 HV. This result had a relative error of 0.98%, which validates the reliability of the second-order model. This high similarity shows that the model is reliable, and tests done with the best settings show that it works well. Therefore, it can be concluded that the quadratic regression models perform satisfactorily. Furthermore, the microstructure and phase composition of the optimized coating were characterized by SEM and XRD, which revealed a dense lamellar structure with less decarburization, further confirming the excellent mechanical properties of the coating.

5. Conclusions

It has been experimentally shown that the response surface method (RSM) based on Taguchi experiments is an effective method for reliably predicting the hardness of HVOF-sprayed NiCr/WC-Co cermet coatings. A well-molten coating demonstrates a dense, lamellar microstructure with fine, flattened splats, whereas a partially molten counterpart exhibits fragmented surface features including open porosity, inter-particle gaps, and residual coarse powder particles.Based on microstructural observations of the etched cross-sections, regions containing the NiCr intermediate layer exhibit excellent interfacial adhesion. By contrast, areas without the NiCr layer exhibit significant porosity, unmelted particles, microcracks and poor interfacial bonding, which result in the coating easily delaminating.The analysis of variance (ANOVA) revealed four process parameters that significantly affect the response: traverse speed, methane flow rate, spray stand-off distance and powder feed rate. Together, these dominant factors account for 76.25% of the total variation. Also, the second-order response surface model exhibits strong predictive power, explaining 98.5% of the total experimental variance. Furthermore, verification experiments were conducted under optimal conditions. The measured hardness was 1352.7 ± 75 HV when repeated three times, which was in close agreement with the predicted value of 1365.89 HV. This result had a relative error of 0.98%, which validates the reliability of the second-order model. Clearly, the established second-order regression model is therefore well suited to describing the non-linear correlation between HVOF process parameters and the microhardness of WC-Co coatings. In addition, this study employs graphical analysis methods to investigate the response characteristics of the HVOF coating process, thereby enabling the prediction of coating hardness at any location within the experimental regions. This graphical method was also validated through experimental tests to confirm the optimization results obtained. On the whole, the predicted values are in close agreement with the experimental values.
