Prerpints.org logo
Preprint
Review

This version is not peer-reviewed.

Room-Temperature Air-Only Catalytic Oxidation of Indoor Volatile Organic Compounds: Mechanistic Insights and Emerging Catalysts

A peer-reviewed version of this preprint was published in:
Molecules 2026, 31(6), 1029. https://doi.org/10.3390/molecules31061029

Submitted:

20 February 2026

Posted:

27 February 2026

You are already at the latest version

Abstract
Driven by global urbanization and increasing emphasis on sustainable building practices, indoor volatile organic compounds (VOCs) have emerged as a major environmental and health challenge. This review specifically focuses on room-temperature air-only catalytic oxidation of representative indoor VOCs under, a recently matured and highly application-relevant research direction. Recent advances are systematically summarized, highlighting catalyst design strategies, air-phase reaction mechanisms, and performance of noble metal catalysts (NMCs), transition metal oxides (TMOs), bimetallic synergistic catalysts (BSCs), and single-atom catalysts (SACs). Emphasis is placed on thermodynamic feasibility, reaction kinetics, oxidation behavior of non-formaldehyde VOCs, and mechanistic insights associated with SACs interfacial synergy, which enable efficient O₂ activation, high selectivity, and operational stability without external oxidants even under high VOC concentrations. This review provides theoretical foundations and technical guidance for VOCs mitigation and supports the advancement of green, low-carbon, and safe indoor air purification strategies worldwide.
Keywords:
indoor air quality (IAQ)
;
volatile organic compounds (VOCs)
;
room-temperature catalytic oxidation in air
;
single-atom catalysts (SACs)
;
reaction mechanism
Subject:
Environmental and Earth Sciences  -   Environmental Science

1. Introduction

Rapid urbanization and industrialization have raised global concerns regarding indoor air quality (IAQ). Volatile organic compounds (VOCs), emitted from building materials, furniture, cleaning agents, and various consumer products have become the predominant indoor air pollutants posing serious threats to human health and environmental safety. Owing to their high vapor pressure, strong volatility, and diverse toxic and irritant effects under ambient conditions. VOCs such as formaldehyde, benzene, toluene, and ethyl acetate are widely detected in indoor environments. Long-term exposure to these compounds can lead to acute and chronic damage to respiratory, nervous, and endocrine systems. Several VOCs have been identified by the World Health Organization (WHO) as confirmed or suspected carcinogens, making them priority targets for indoor environmental management [1]. In response to the adverse impacts of indoor VOCs, international organizations and national regulatory authorities have progressively strengthened IAQ standards and emission limits. Some countries including Canada, United States, Belgium, and China [2,3,4,5] have successively issued updated guidelines, directives, and legislation aimed at tightening exposure thresholds and improving ventilation requirements. These regulatory efforts reflect a global consensus on the urgent need for efficient, safe, and sustainable VOC purification technologies to ensure healthy indoor environments in modern buildings.
Conventional VOC control technologies, for instance adsorption [6], photocatalysis [7], and bioremediation [8], have showed certain effectiveness in practical applications. However, these methods often suffer from limited VOCs removal efficiency, incomplete CO2 mineralization, and the risk of secondary pollution, which restrict their ability to meet the increasingly stringent requirements of green and healthy buildings environments. In particular, photocatalytic and advanced oxidation systems frequently rely on external energy input or strong oxidants, which may introduce safety concerns and undesirable byproducts. Some catalytic systems employ ozone or hydrogen peroxide as oxidants to enhance oxidation activity, but these oxidants are associated with toxicity, corrosion, and material degradation, limiting their applicability in indoor settings. In contrast, room-temperature air-only catalytic oxidation is defined herein as a catalytic process that utilizes ambient air as the sole oxidant at room-temperature (20-40 °C) without external energy input (e.g., light or electricity) or additional chemical oxidants (e.g., ozone or hydrogen peroxide). This approach has emerged as a promising and sustainable alternative for indoor VOCs removal, providing mild operating conditions, low energy consumption and high purification efficiency while avoiding the risks associated with strong oxidants. Consequently, it is particularly attractive for green buildings, intelligent residential environments, and low-carbon indoor air purification applications.
The core of room-temperature air-only catalytic oxidation lies in the rational design of highly active, selective, and durable catalysts capable of efficiently degrading VOCs under these mild conditions. A wide variety of catalyst systems have been developed, including noble metal catalysts (NMCs) [9,10], transition metal oxide catalysts (TMOs) [11], bimetallic synergistic catalysts (BSCs) [12,13,14], and single-atom catalysts (SACs) [15]. By regulating surface active oxygen species, oxygen vacancy concentrations, and electronic structures, these catalysts achieve effective VOC degradation at high space velocities while maintaining stable CO2 mineralization rates. Recent research trends increasingly emphasize tailoring catalyst structures to the molecular characteristics and physicochemical properties of different VOCs. Among indoor VOCs, formaldehyde, as a representative polar compound, has been the primary focus of research, with its catalytic mechanisms and kinetics being well established. In contrast, the oxidation of non-formaldehyde VOCs, particularly aromatic hydrocarbons and esters, has been less systematically summarized, and their room-temperature air-only reaction mechanisms are still not fully understood.
Distinct from existing reviews, this manuscript provides a comprehensive and integrative perspective on room-temperature air-only catalytic oxidation of indoor VOCs. Specifically, it systematically summarizes the current research status of both formaldehyde (HCHO) and non-formaldehyde VOCs, highlighting catalyst design strategies, reaction kinetics, and performance trends relevant to air-only oxidation. In addition, it presents mechanistic insights, including thermodynamic feasibility and the role of active-site configurations in controlling reaction rates and oxidation depth. The review also identifies technical challenges and future research directions, providing a forward-looking framework for advancing practical and sustainable indoor air purification technologies. By integrating these aspects, the present work offers a holistic understanding of air-only VOC oxidation at room temperature, bridging fundamental research, mechanistic insights, and practical application strategies.

2. Current Research Status on Room-Temperature Air-Only Catalytic Oxidation of Formaldehyde

Formaldehyde (HCHO) is one of the most prevalent and hazardous VOCs in indoor environments, primarily originating from plywood, furniture, coatings, and other construction and decorative materials. It is characterized by high chemical activity, toxicity, and long-term off-gassing, with even trace concentrations (<0.1 ppm) posing significant health risks. The WHO has classified HCHO as a Group I human carcinogen [16,17]. The room-temperature air-only catalytic oxidation has arisen as a promising strategy for the complete mineralization of HCHO into CO2 and H2O at ambient conditions, without external energy input or the formation of ozone byproducts, thereby preventing secondary pollution.
In recent years, extensive efforts have been devoted to the design and evaluation of catalytic systems for room-temperature air-only catalytic oxidation of HCHO. NMCs [18,19,20] and TMOs [21] have been extensively investigated due to their high catalytic performance and well-established preparation protocols. Meanwhile, BSCs [22,23] and SACs [24,25,26] have attracted growing attention because of their prominent activity, selectivity, and metal atomic utilization efficiency. In particular, composite systems combining noble and transition metals exhibit remarkable interfacial synergistic effects and tunable electronic structures, significantly boosting room-temperature air-only catalytic oxidation efficiency of HCHO degradation. Representative studies are summarized in Table 1.

2.1. NMCs

NMCs show exceptional performance in room-temperature air-only catalytic oxidation of HCHO, as a result of their high efficiency in oxygen activation and facile desorption of reaction intermediates. Catalysts such as Pt/Co3O4 [27], Pt/NiO [28], and Pt/SnOx [29] have achieved HCHO removal efficiencies exceeding 85% and near-complete CO2 mineralization under ambient conditions. The catalytic functions of noble metals depend on efficient O2 activation, promotion of intermediate transformation, and enhancement of interfacial synergy and nanoconfinement effects. Noble metals including Pt, Au, and Pd possess favorable electronic structures [39], which facilitate strong O2 adsorption and activation, leading to the formation of highly reactive atomic oxygen or peroxide species. Ultimately, their surface activity promotes the conversion of intermediates [28,40] (e.g., HCOO-, DOM), thereby increasing overall mineralization efficiency. Strong metal-support interactions (SMSI) between noble metals and oxide supports (e.g., CeO2, NiO) further enhance the redox properties of catalysts via electronic modulation, driving the formation of reactive oxygen species and surface hydroxyl groups. The construction of porous nanoarchitectures [41] enriches HCHO molecules and directs transformation of reactants, consequently improving catalytic efficiency and stability.

2.2. TMOs

TMOs, characterized by rich redox properties and tunable oxygen vacancy structures, have also demonstrated high activity for room-temperature air-only catalytic oxidation of HCHO. Compared with NMCs, TMOs like MnO2 [30] and NiCo2O4 [31] offer advantages including low cost, environmental friendliness, and abundant availability. Moreover, the diverse surface active oxygen species and variable valence states [42,43] of these catalysts contribute to their considerable activity. Some MnOx-based catalysts [32,33] retain HCHO removal efficiencies above 95% even under high gas hourly space velocities (200,000-300,000 mL·g-1·h-1) and elevated relative humidity (≥50%), indicating strong resistance to high load and moisture. However, CO2 mineralization rates of TMOs are generally lower than that of NMCs, which may result from the accumulation of intermediates on the catalyst surface, uneven distribution of active sites, or incomplete control of reaction pathways. To overcome these limitations, researchers need to optimize material composition and interfacial structures to improve overall catalytic performance.

2.3. BSCs

BSCs have been developed by loading noble metals (e.g., Pt, Au) or auxiliary metals (e.g., K) onto TMOs (e.g., NiCo2O4 [34], MnO2 [35] and functionalized supports such as zeolites [36] or layered double hydroxides (LDHs) [37]. Various bimetallic synergistic catalytic systems, typically Pt-Ni and Au-Co, have thus been constructed with remarkable catalytic activity, reaction selectivity, and operational stability. These systems exploit the synergistic interplay between support-mediated surface activity and bimetallic interactions, enabling stable HCHO removal efficiencies above 90% and CO2 mineralization rates approaching 100% even under high HCHO concentrations (≥150 ppm). Enhanced performance arises from the integration of the superior O2 activation ability of noble metals with the abundant oxygen vacancies and reversible redox properties of TMOs. Effective electronic synergy between bimetallic components is thus achieved, establishing strong interfacial coupling effects at the metal-support interface. [44] This synergy promotes HCHO adsorption, activation, and deep oxidation, achieving both high removal efficiency and CO2 selectivity, and positioning BSCs as a key direction for research on room-temperature air-only catalytic oxidation.

2.4. SACs

SACs have emerged as a rapidly growing research focus for room-temperature air-only catalytic oxidation of HCHO, owing to their exceptionally high metal atom utilization efficiency, well-defined active site structures, and impressive reaction selectivity. Especially, SAC systems constructed by anchoring noble metal single atoms on supports (e.g., MnOx, TiO2) [24,25,26] have possessed interfacial synergistic enhancement effects similar to those of BSCs. Benefiting from their unique electronic configurations and unsaturated coordination environments, these catalysts also can effectively activate reactive oxygen species, synergistically promoting HCHO adsorption and conversion through cooperation with the support. Meanwhile, metal aggregation is effectively suppressed, resulting in improved catalyst stability and recyclability. For example, Pt-MnOOH/MnO2 and Pt/Mn-TiO2 achieve over 98% HCHO removal efficiency and more than 85% CO2 mineralization at noble metal loadings below 1%, highlighting their distinguished catalytic activity, reaction selectivity, and regeneration capability. With continued advancements of atomic-scale structural characterization and regulation techniques, SACs are expected to find broader applications in engineering-oriented air-only purification systems.

3. Current Research Status on Room-Temperature Air-only Catalytic Oxidation of Non-Formaldehyde VOCs

With advances in room-temperature air-only catalytic oxidation technology, research efforts have expanded to the catalytic degradation of non-formaldehyde VOCs, including typical indoor pollutants like aromatic hydrocarbons, aldehydes, alcohols, and esters. Benzene, toluene, hexanal, and ethyl acetate are widely present in building materials, cleaning products, and furniture. These VOCs are characterized by low odor thresholds, moderate to high toxicity, and high volatility, and prolonged exposure may result in multi-system damage. Additionally, their stable molecular structures, high volatilization points, and widespread distribution at low concentrations significantly increase the challenges of achieving effective catalytic oxidation under room-temperature conditions.
To address the purification requirements of these VOCs, a range of catalytic systems suitable for room-temperature air-only catalytic oxidation of non-formaldehyde VOCs have been developed. Among them, SACs stand out due to their high activity, adaptability to elevated gas hourly space velocities, extraordinary removal efficiency, and recyclability. For instance, MnOx-based SACs [45,46,47] achieved nearly 100% removal efficiency under high gas hourly space velocities of 300-450 L·g-1·h-1 and low VOCs concentrations (≤15 ppm), with minimal loss in cyclic regeneration performance after continuous operation for 9.5-14 hours. Similarly, the Pd-0.5/MnO@C catalyst [47] exhibited a high removal capacity of ≥360 mg·g-1 for target pollutants such as hexanal and pentanal. Such performance was attributed to the high oxidation activity of Pd single atoms, the interfacial synergistic enhancement induced by MnO, and the hydrophobic confinement effect of the porous carbon structure.
The generation of ·OH radicals through H2O-assisted O2 activation plays a key role in the room-temperature air-only catalytic oxidation of non-formaldehyde VOCs. Ding et al. [48,49,50,51,52] constructed a series of room-temperature catalytic systems covering SACs, atomically dispersed bimetallic catalysts, and NMCs, investigating both their oxidation performance and the ·OH radical-involved reaction mechanisms. These systems achieved 99-100% removal efficiency of various non-formaldehyde VOCs within concentrations ranging from 15.5 to 265.4 ppm. Remarkably, a catalyst with 0.16 wt% Fe supported on N-doped porous carbon (Fe/NPC) was designed with highly active FeN4O2 sites, which activated O2 and H2O to generate ·OH radicals, achieving complete benzene removal with a CO2 mineralization rate of 81.7% and stable operation for 72 hours. This catalyst also proved broad applicability for the removal of toluene, xylene, ethyl acetate, and other VOCs. The superior performance was ascribed to the synergy among atomic-scale FeN4O2 active sites, a unique three-dimensional porous network structure, high surface hydroxyl density, and excellent redox properties. Density functional theory calculations further elucidated the oxidation pathway of benzene on Fe/NPC catalyst surface. The Fe-N/O coordination centers facilitate ·OH radical generation and electron transfer, significantly lowering the reaction energy barrier. Benzene undergoes stepwise dehydrogenation via ·OH to form C6H2*, followed by ring cleavage yielding linear C6H2OOH*, which subsequently cleaves into C3 intermediates and finally undergoes consecutive hydroxylation and dehydrogenation to be fully mineralized to CO2 and H2O.
In summary, SACs and atomically dispersed multi-metal catalysts exhibit exceptional activity at low temperatures, high gas hourly space velocity adaptability, and stable recyclability for the treatment of non-formaldehyde VOCs. By constructing highly active sites, introducing support defects, and enhancing interfacial synergistic effects, these catalysts achieve high VOCs removal efficiencies and deep CO2 mineralization. Notably, catalysts such as Fe/NPC, Pt/BCN, and Ni/NAC [48,49,50,51,52] were developed, exhibiting impressive performance in removal efficiency, mineralization depth, and operational stability, providing valuable insights for the design of high-performance catalyst and interface modulation strategies. Therefore, continuous optimization of catalyst structures and interface engineering lays a solid foundation for subsequent scale-up and practical applications in indoor air purification systems.

4. Thermodynamic, Kinetic and Mechanistic Insights into VOCs Oxidation Under Ambient Air-Only Conditions

4.1. Thermodynamic Analysis

Typical indoor VOCs, including formaldehyde, benzene, toluene, and ethyl acetate, present pronounced thermodynamic spontaneity during air-only catalytic oxidation at room temperature. Based on the Gibbs free energy equation (ΔG=ΔH-TΔS), the standard Gibbs free energy changes for the oxidation of these VOCs at 298.15 K and 100 kPa (gas phase) are strongly negative, indicating that these reactions are thermodynamically favorable under ambient air-only conditions. Taking benzene oxidation as a representative example (C6H6(g)+15/2 O2(g)→6CO2(g)+3H2O(g)), the standard enthalpy of formation and molar entropy of benzene are 82.9 kJ·mol−1 and 269.3 J·mol−1·K−1, respectively (NIST, 2025). By combining the thermodynamic parameters of all reactants and products, the Gibbs free energy change of this reaction at 298.15 K is estimated to be approximately -3182 kJ·mol-1. This large negative ΔG value reflects the strongly exothermic nature of the oxidation reaction and the net entropy increase associated with gas-phase product formation, jointly driving the reaction toward complete mineralization. Overall, thermodynamic analysis confirms that the air-only oxidation of typical indoor VOCs is intrinsically spontaneous at room temperature, providing a solid theoretical foundation for room-temperature air-only catalytic oxidation in indoor.

4.2. Kinetic Analysis

Although the air-only catalytic oxidation of typical indoor VOCs is thermodynamically spontaneous at room temperature, its practical efficiency is primarily constrained by kinetic barriers. In the absence of external energy input or auxiliary oxidants, the overall reaction rate is governed by activation energy and oxygen activation efficiency, making kinetic analysis essential for evaluating catalyst performance under ambient conditions. Room-temperature catalytic oxidation of VOCs generally follows three classical kinetic models: the Mars-van Krevelen (MVK), the Langmuir-Hinshelwood (L-H), and the Eley-Rideal (E-R) mechanisms. Among these models, MVK pathways dominate on TMOs through direct participation of lattice oxygen and vacancy regeneration, whereas L-H mechanisms are more common on NMCs involving adsorbed oxygen species. E-R pathways describe direct reactions between gaseous VOCs and adsorbed oxygen species, relevant to systems with rapid surface reaction rates [53,54]. The applicability of each kinetic model depends on catalyst type and VOCs properties, and the overall reaction rates are closely related to activation energies, which are influenced by catalyst structure, oxygen activation efficiency, and reaction pathways.
Representative activation energies for room-temperature air-only catalytic oxidation of formaldehyde have been reported on various catalysts, providing direct kinetic evidence that the reaction rate is governed by the activation barrier. BSCs such as Au-CeO2-R[12] exhibit an activation energy as low as 22.0 kJ·mol−1, while TMOs exemplified by 3D-MnO2[42] display slightly higher value (25.2 kJ·mol−1 at 50-78 °C). NMCs, such as Pd@TS-1[20], achieve very low activation energy of 10.8 kJ·mol−1 at room temperature, whereas SACs like Pt1/CeO2-S[15] present significantly reduced barriers of 14±2 kJ·mol−1. These differences in activation energy translate into markedly distinct reaction rates, confirming that NMCs and SACs possess superior kinetic performance for formaldehyde oxidation under ambient air-only conditions. However, kinetic data for non-formaldehyde VOCs under truly room-temperature air-only conditions remain scarce. Nevertheless, low-temperature studies conducted at 100-200 °C still provide valuable comparative insights into intrinsic kinetic barriers. Conventional NMCs[55,56,57,58] exhibit relatively high activation energies for benzene and toluene oxidation, ranging from 92-122 kJ·mol−1 and 73-128 kJ·mol−1, respectively, indicating kinetically constrained behavior under low-temperature air-only conditions. In contrast, nanostructured NMCs (e.g., Pt/TiO2[59], Au/meso-Co3O4[60]) and BSCs such as MnO2-CeOₓ[61] and Cu-Mn/HTS-1[62] display substantially lower activation energies (approximately 26-55 kJ·mol−1) for benzene, toluene, and ethyl acetate oxidation, reflecting the effectiveness of multi-metal synergy and interfacial engineering in reducing kinetic barriers. These findings provide valuable guidance for evaluating catalyst performance trends and inform the design of highly efficient air-only oxidation systems for non-formaldehyde VOCs under ambient conditions.
Overall, air-only catalytic oxidation of VOCs involves a sequence of diffusion, adsorption, surface reaction with active oxygen species, intermediate transformation, and product desorption, all of which are influenced by pollutant characteristics, catalyst structure, and operating conditions. By lowering activation barriers, enhancing oxygen activation, and optimizing reaction pathways, advanced catalysts, particularly noble metal, bimetallic, and single-atom systems, enable effective VOC removal under kinetically challenging ambient conditions. However, conventional kinetic models are often insufficient to fully describe the distinctive reaction pathways of emerging catalysts, especially SACs, whose isolated active sites and strong metal-support interactions. These features enable unconventional oxygen activation modes and reaction mechanisms.

4.3. Oxidation Mechanisms of VOCs Under Ambient Air-Only Conditions

4.3.1. Formaldehyde (HCHO) Oxidation Mechanisms

Formaldehyde (HCHO) catalytic oxidation at ambient temperature generally proceeds through surface-adsorbed intermediates and is highly sensitive to the nature of active sites, surface oxygen species, hydroxyl groups, and oxygen vacancies. Despite various catalyst systems have been developed, including NMCs, TMOs, BSCs, and SACs, their reaction mechanisms depend on catalytic features at the molecular level. While the overall reaction pathways can be broadly categorized based on dominant active species and observed intermediates across different catalyst systems, as shown in Figure 1.
(1) NMCs: Hydroxyl- and oxygen-assisted pathways
NMCs typically follow hydroxyl- and oxygen-assisted pathways, in which formate species (HCOO*) act as key surface intermediates. HCHO initially adsorbs on surface hydroxyl groups via hydrogen bonding, polarizing the C-H bond and facilitating nucleophilic attack by activated oxygen species. Molecular oxygen is dissociated on metallic noble metal sites into surface reactive oxygen species (ROS), which oxidize adsorbed HCHO into dioxymethylene (DOM) and formate (HCOO−) intermediates. The deep oxidation of formate to CO2 and H2O is widely recognized as the rate-determining step (RDS) at room temperature. Strong metal-support interactions (SMSI) enhance oxygen activation, stabilize highly dispersed metal species, and generate oxygen vacancies and surface hydroxyls near noble metal sites, thereby accelerating formate decomposition and enabling complete mineralization.
(2) TMOs: dynamic redox cycling mechanisms
TMOs predominantly operate via dynamic redox cycling mechanisms, where lattice oxygen directly participates in HCHO oxidation, forming DOM and formate intermediates and leaving surface vacancies. These vacancies, along with defect-rich sites, facilitate the activation of gaseous O2 and the continuous generation of ROS, including lattice oxygen (Olattice), chemisorbed oxygen (e.g., O-, O2-), and surface hydroxyl groups, which mediate the subsequent oxidation of intermediates into CO2 and H2O. Catalytic activity strongly correlates with lattice oxygen mobility, oxygen vacancy concentration, and redox couples (e.g., Mn3+/Mn4+, Co3+/Co2+). Defect-engineered TMOs, such as MOF-derived MnO2 and δ-MnO2, exhibit enhanced low-temperature activity and resistance to intermediate accumulation.
(3) BSCs: Dual-site synergy mechanisms
BSCs exhibit dual-site cooperative mechanisms, enable the coexistence and spatial coupling of multiple key active species, including activated oxygen, surface hydroxyls, and oxygen vacancies, under ambient conditions. Typically, noble metal sites facilitate efficient molecular oxygen activation, while oxide components supply abundant hydroxyl groups, oxygen vacancies, and redox-active centers for HCHO adsorption and intermediate stabilization. Such cooperative effects simultaneously accelerate HCHO activation, formate oxidation, and active site regeneration, thereby overcoming the kinetic limitations commonly observed in single noble metal or oxide catalysts and resulting in significantly enhanced overall reaction kinetics at ambient temperature.
(4) SACs: Single-atom oxygen activation mechanism
SACs represent a distinct mechanistic regime for ambient formaldehyde oxidation, in which catalytic activity is governed by atomically defined oxygen-hydroxyl-metal ensembles rather than metallic clusters, bulk lattice oxygen, or spatially separated synergistic sites. Isolated metal atoms anchored on reducible oxides modulate the local electronic structure, stabilizing adjacent oxygen vacancies and activating lattice hydroxyls (OlatticeH), thereby enabling continuous oxygen activation and directional oxygen transfer. Unlike NMCs, TMOs, or BSCs, SACs confine adsorption, intermediate conversion, and active-site regeneration within a single atomic-scale reaction unit, which stabilizes key transition states and effectively lowers the kinetic barrier for formate oxidation to CO2. Importantly, the superiority of SACs does not arise from introducing new oxygen species, but from reorganizing existing oxygen species into a highly efficient atomic-scale reaction architecture, enabling stable and efficient HCHO mineralization at or below room temperature.
Across different catalyst systems, a common kinetic feature emerges: the deep oxidation of formate intermediates is the rate-determining step. Catalysts that can simultaneously provide (i) highly active oxygen species, (ii) abundant surface hydroxyl groups, and (iii) fast oxygen vacancy regeneration exhibit superior low-temperature activity and long-term stability. Therefore, the design of advanced HCHO oxidation catalysts should focus on optimizing oxygen activation pathways, defect engineering, and metal–support interactions, rather than merely increasing surface area or noble metal loading.

4.3.2. Non-Formaldehyde VOCs Oxidation Mechanisms

Compared with formaldehyde, non-formaldehyde VOCs such as aromatic hydrocarbons, aldehydes, and esters exhibit higher molecular stability and more complex oxidation pathways. Oxidation over single-atom and atomic-scale catalysts follows a fundamentally different paradigm, dominated by radical-mediated, hydroxyl-driven mechanisms. These catalysts exhibit a consistent mechanistic feature: atomically dispersed metal centers (e.g., Pt, Pd, Fe, Ni, Ag) anchored on defect-rich supports, including oxides or heteroatom-doped carbons, form electronically asymmetric coordination environments that simultaneously activate molecular oxygen and interfacial water. This process continuously generates highly reactive hydroxyl radicals (·OH), which act as the primary oxidant, accompanied by superoxide (·O2−) and carbon-centered radicals (R·), without external energy input. ·OH initiates rapid, non-selective C-H bond abstraction, while the associated radicals sustain a self-propagating cycle that drives deep oxidation.
For aromatic VOCs, oxidation typically proceeds via a stepwise dehydrogenation, hydroxylation, ring-opening and decarboxylation, with aromatic ring cleavage constituting the rate-determining step, as illustrated by the room-temperature air-only catalytic oxidation pathway of benzene in Figure 2. Oxidation proceeds predominantly via gas-solid interfacial radical chemistry, where ·OH attacks C-H bonds or π systems to form carbon-centered radicals (R·). These radicals subsequently react with O2 to generate ROO· or ·QOOH intermediates, which rapidly decompose to regenerate ·OH, establishing a self-sustaining radical propagation cycle that drives deep oxidation, ring opening, and eventual mineralization to CO2 and H2O. In contrast, oxygenated VOCs such as aldehydes and esters undergo preferential C-O or C-C bond cleavage initiated by ·OH attack, forming short-chain oxygenated intermediates that are rapidly mineralized. Figure 3 shows the room-temperature air-only catalytic oxidation pathway of ethyl acetate. These oxygenated VOCs generally exhibit lower energy barriers and shorter reaction pathways than aromatic VOCs.
Overall, non-formaldehyde VOC oxidation over atomic-scale catalysts is governed by hydroxyl-radical-dominated pathways, rapid radical regeneration, and atomic-level oxygen activation, establishing a radical-driven mechanism distinct from that of formaldehyde oxidation. This mechanism circumvents the intrinsic kinetic limitations of surface-bound formate oxidation, which dominate formaldehyde systems, complements traditional kinetic models, and provides a mechanistic basis for the efficient oxidation of structurally stable VOCs under ambient air-only conditions.

5. Conclusions and Perspectives

5.1. Conclusions

The room-temperature air-only catalytic oxidation represents a green, efficient, and safe approach for VOCs removal, offering notable advantages and broad application potential for indoor air purification. Compared with conventional thermal catalysis or adsorption-based technologies, room-temperature air-only catalytic oxidation can achieve pollutant degradation under ambient conditions without external heating or secondary pollution, thus aligning with the goals of carbon neutrality and sustainable urban development. This review has summarized recent progress of room-temperature air-only catalytic oxidation for typical indoor VOCs, including both formaldehyde and non-formaldehyde species, with an emphasis on catalyst design strategies, thermodynamic and kinetic analyses, and novel reaction mechanisms. The collective understanding of these aspects provides a solid foundation for promoting next-generation catalytic materials and practical air-cleaning devices.
(1)Catalyst systems
NMCs, TMOs, BSCs and SACs each possess unique merits that determine their applicability in room-temperature air-only catalytic oxidation. NMCs (such as Pt, Pd, and Au) exhibit high intrinsic activity and stability, while TMOs provide tunable redox properties and abundant oxygen vacancies at lower cost. BSCs integrate complementary functionalities between two metallic components, improving oxygen activation and electron transfer efficiency. In particular, SACs show outstanding performance under high-concentration and complex VOC environments due to their atomically precise active sites and interface modulation capabilities, enabling both enhanced catalytic selectivity and long-term durability under realistic indoor air-only conditions.
(2)Non-formaldehyde VOCsremoval
For structurally stable VOCs such as benzene, toluene, and esters, constructing synergistic catalytic centers and defect-enriched interfaces has effectively enhanced low-temperature mineralization efficiency. Tailoring the surface electronic structure and optimizing the balance between adsorption and desorption capacities have proven essential for improving deep oxidation activity and maintaining catalyst stability under humidity variations. These developments highlight the importance of combining redox-active components with conductive or porous supports to facilitate the complete mineralization of non-formaldehyde VOCs.
(3) Reaction mechanisms
VOC oxidation reactions are strongly exothermic and thermodynamically spontaneous at ambient conditions, while their kinetics are primarily governed by catalyst structure and active-site configuration. Mechanistic studies have expanded from classical MVK and L-H models to non-classical synergistic pathways characteristic of SACs. Typically, room-temperature air-only catalytic oxidation of VOC involves adsorption of target gas molecules, water and oxygen species on the catalyst surface, followed by generation of reactive oxygen species, such as ·OH, R·, ·O2-. These radicals attack the adsorbed VOCs, producing intermediates that are further oxidized to CO2 and H2O, while the catalyst surface is regenerated. The efficiency of this pathway depends on the nature of the active sites, particularly their electronic structure, which governs ·OH formation.
(4)Thermodynamic and kinetic analyses
The oxidation reactions of numerous VOCs are strongly exothermic and accompanied by substantial entropy increases, confirming thermodynamic spontaneity at room temperature. Kinetic regulation through catalyst design remains critical for improving VOC removal efficiency and CO2 mineralization rates. In particular, lowering activation barriers and promoting rapid surface oxygen exchange are central to achieving complete oxidation under ambient, air-only conditions. Combining thermodynamic and kinetic principles will guide the design of catalysts capable of maintaining high activity, selectivity, and stability in real-world indoor environments.
Despite significant advances, several challenges persist for practical implementation of room-temperature air-only catalytic oxidation in real indoor environments. These include limited complete mineralization capacity of SACs, competitive and degradation mechanisms among multi-component VOCs, and issues regarding catalyst lifetime, regeneration, and cost at the engineering scale.

5.2. Perspectives

Future research directions should focus on achieving the comprehensive integration of atomic-level precision, scalable synthesis, multi-pollutant synergy, and intelligent system engineering to accelerate the practical deployment of room-temperature air-only catalytic oxidation technologies for indoor VOCs purification. Addressing these challenges requires cross-disciplinary innovation that bridges chemistry, materials science, artificial intelligence (AI), and environmental engineering.
(1) Dynamic evolution and interface regulation of catalytic active sites
Under realistic reaction conditions, the geometric configuration and electronic states of catalytic active sites undergo continuous dynamic evolution influenced by temperature, humidity, and reactant interactions. These transformations determine catalytic reactivity yet remain challenging to monitor in real time. Future research should prioritize interface engineering and atomically precise structural modulation strategies to stabilize transient active species and optimize oxygen activation. Designing dual-atom catalysts or fully exposed metal cluster catalysts is expected to enhance oxidation depth and durability through multi-metal synergistic effects, particularly under conditions of high humidity and gas hourly space velocity. In parallel, integrating in-situ/operando characterization (e.g., synchrotron spectroscopy) with density functional theory and machine learning will enable dynamic visualization of structure-activity relationships and guide the rational design of next-generation catalysts.
(2) Scalable and controllable synthesis of atomically dispersed materials
While SACs and sub-nanometer clusters exhibit exceptional catalytic performance, their large-scale synthesis remains a major bottleneck hindering industrial application. Current synthetic routes, such as atomic layer deposition, electrostatic adsorption, and defect anchoring, often suffer from limitations in yield, reproducibility, and long-term stability. Future work should focus on developing high-throughput, controllable, and cost-effective synthesis strategies capable of maintaining atomic dispersion at gram or kilogram scales, ensuring the practical applicability of room-temperature air-only catalytic oxidation for indoor VOC removal. Combining top-down and bottom-up fabrication approaches with continuous flow synthesis and aerosol-assisted methods may bridge laboratory precision with industrial scalability. Since VOC degradation in indoor environments typically involves low concentrations and large air volumes, it is also important to explore strategies for introducing atomically dispersed active sites onto the pores of structured support materials, thereby maintaining high activity, selectivity, and stability under realistic operating conditions.
(3) Construction of multi-pollutant synergistic degradation models
Indoor environments typically contain complex VOC mixtures where competitive adsorption and reaction intermediates significantly influence catalytic efficiency. Understanding the competitive and cooperative degradation pathways is essential for efficient co-removal of multiple VOCs. Future studies should establish multi-pollutant kinetic and mechanistic models integrating microscopic reaction pathways with macroscopic mass-transfer phenomena. Advanced simulations, such as kinetic Monte Carlo and reactive molecular dynamics, can elucidate the interactions among intermediates and active oxygen species, enabling rational design of catalysts that achieve both high removal efficiency and deep mineralization with minimal byproduct formation.
(4) Multi-scale structure correlation and cross-disciplinary convergence
Bridging the gap between microscopic structural features and macroscopic performance represents a central challenge. AI-assisted materials informatics offers powerful tools to accelerate catalyst discovery through database construction, high-entropy structure analysis, and predictive model validation. Establishing closed-loop frameworks that combine data-driven screening with experimental feedback can enable precise tailoring of catalytic and carbon-capture materials. This approach will facilitate the development of multifunctional catalysts coupling VOC oxidation with CO2 capture and conversion, contributing to carbon-neutral indoor environmental management.
(5) System integration and real-environment implementation
To achieve real-world applicability, room-temperature air-only catalytic oxidation technologies must evolve from isolated laboratory studies to integrated systems compatible with ventilation units, air purifiers, and building materials. Real-time monitoring under fluctuating humidity, temperature, and pollutant concentration is essential for optimizing performance and stability. Coupling air-only catalytic oxidation processes with smart control algorithms and self-regenerative functions can enhance energy efficiency and operational lifetime. The integration of these catalytic modules into smart building networks and devices like air conditioners will advance the synergistic development of healthy indoor environments and intelligent city infrastructures.
In summary, the development of room-temperature air-only catalytic oxidation has transitioned from empirical material discovery toward mechanism-guided and AI-assisted atomic-scale design. Through integration of advanced synthesis, dynamic characterization, and intelligent optimization, future research will accelerate the transition from laboratory-scale feasibility to large-scale engineering applications, supporting the sustainable development of next-generation indoor air purification technologies within a global carbon-neutral framework.

Author Contributions

Conceptualization, H.D.; writing-original draft, D.Z.; writing-review and editing, L.Z., Y.C. and Y.W.; supervision, H.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Independent Innovation Foundation of Tianjin University (No.2023XZH-0015).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
VOCs volatile organic compounds
NMCs noble metal catalysts
TMOs transition metal oxides
BSCs bimetallic synergistic catalysts
LDHs layered double hydroxides
SACs single-atom catalysts
WHO World Health Organization
IAQ indoor air quality
HCHO formaldehyde
RT room temperature
SMSI strong metal-support interactions
MVK Mars-van Krevelen
L-H Langmuir-Hinshelwood
E-R Eley-Rideal
ROS reactive oxygen species
DOM dioxymethylene
RDS rate-determining step
AI artificial intelligence

References

  1. Liu, R.; Wu, H.; Shi, J.H.; Xu, X.M.; Zhao, D.; Ng, Y. H.; Zhang, M.L.; Liu, S.J.; Ding, H. Recent progress on catalysts for catalytic oxidation of volatile organic compounds: a review. Catalysis Science & Technology 2022, 12, 6945–6991. [Google Scholar] [CrossRef]
  2. Indoor air reference levels for chronic exposure to volatile organic compounds. Available online: https://www.canada.ca/en/health-canada/services/publications/healthy-living/indoor-air-reference-levels-chronic-exposure-volatile-organic-compounds.html (accessed on 22 August 2025).
  3. ANSI/ASHRAE Standard 62.2-2025: Ventilation and acceptable indoor air quality in residential buildings. Available online: https://www.ashrae.org/technical-resources/bookstore/standards-62-1-62-2 (accessed on 22 August 2025).
  4. Legal framework regarding indoor air quality. Available online: https://www.health.belgium.be/en/closer-legal-framework-indoor-air-quality (accessed on 22 August 2025).
  5. Ministry of Housing and Urban-Rural Development of the People’s Republic of China. GB 55016-2021; General code for building environment. China Architecture & Building Press: Beijing, China, 2021; pp. 1–43.
  6. Jia, Y.S.; Chen, D.H.; Li, Y.; Li, E.; Zhao, L.; Guo, L.M. Study on the adsorption mechanism of polar and non-polar VOCs by the activated carbon with surface oxygen. Chemical Engineering Journal 2024, 490, 1–12. [Google Scholar] [CrossRef]
  7. Liu, B.Y.; Zhang, B.G.; Liu, B.Y.; Hu, Z.F.; Dai, W.J.; Zhang, J.R.; Feng, F.D.; Lan, B.; Zhang, T.; Huang, H.B. Surface hydroxyl and oxygen vacancies engineering in ZnSnAl LDH: Synergistic promotion of photocatalytic oxidation of aromatic VOCs. Environmental Science & Technology 2024, 58, 4404–4414. [Google Scholar]
  8. Wantz, E.; Kane, A.; Lhuissier, M.; Amran, A.; Audic, J.L.; Couvert, A. A mathematical model for VOCs removal in a treatment process coupling absorption and biodegradation. Chemical Engineering Journal 2021, 423, 1–8. [Google Scholar] [CrossRef]
  9. Cui, W.Y.; Xue, D.; Yuan, X.L.; Zheng, B.; Jia, M.J.; Zhang, W.X. Acid-treated TiO2 nanobelt supported platinum nanoparticles for the catalytic oxidation of formaldehyde at ambient conditions. Applied Surface Science 2017, 411, 105–112. [Google Scholar] [CrossRef]
  10. Ding, J.J.; Chen, J.S.; Rui, Z.B.; Liu, Y.L.; Lv, P.T.; Liu, X.K.; Li, H.Q.; Ji, H.B. Synchronous pore structure and surface hydroxyl groups amelioration as an efficient route for promoting HCHO oxidation over Pt/ZSM-5. Catalysis Today 2018, 316, 107–113. [Google Scholar] [CrossRef]
  11. Peng, S.; Yang, X.X.; Strong, J.; Sarkar, B.; Jiang, Q.; Peng, F.; Liu, D.F.; Wang, H.L. MnO2-decorated N-doped carbon nanotube with boosted activity for low-temperature oxidation of formaldehyde. Journal of Hazardous Materials 2020, 396, 1–10. [Google Scholar] [CrossRef]
  12. Bu, Y.B.; Chen, Y.F.; Jiang, G.M.; Hou, X.M.; Li, S.; Zhang, Z.T. Understanding of Au-CeO2 interface and its role in catalytic oxidation of formaldehyde. Applied Catalysis B: Environmental 2020, 260, 1–12. [Google Scholar] [CrossRef]
  13. Ding, J.J.; Rui, Z.B.; Lyu, P.T.; Liu, Y.L.; Liu, X.K.; Ji, H.B. Enhanced formaldehyde oxidation performance over Pt/ZSM-5 through a facile nickel cation modification. Applied Surface Science 2018, 457, 670–675. [Google Scholar] [CrossRef]
  14. Zhang, S.Y.; Li, Z.H.; Shen, X.D.; Shan, J.J.; Zhan, J.J.; Zhou, H.; Yi, X.L.; Lian, H.Y.; Liu, Y. Formulating the Li sites of Li-CoOx composites for achieving high-efficiency oxidation removal of formaldehyde over the Ag/Li-CoO catalyst under ambient conditions. Environmental Research 2023, 235, 1–16. [Google Scholar] [CrossRef]
  15. Zhang, L.N.; Bao, Q.Q.; Zhang, B.J.; Zhang, Y.B.; Wan, S.L.; Wang, S.; Lin, J.D.; Xiong, H.F.; Mei, D.H.; Wang, Y. Distinct role of surface hydroxyls in single-atom Pt1/CeO2 catalyst for room-temperature formaldehyde oxidation: Acid-base versus redox. Journal of the American Chemical Society Au 2022, 2, 1651–1660. [Google Scholar] [CrossRef] [PubMed]
  16. Torre, G.L.; Vitello, T.; Cocchiara, R.A.; Rocca, C. D. Relationship between formaldehyde exposure, respiratory irritant effects and cancers: a review of reviews. Public Health 2023, 218, 186–196. [Google Scholar] [CrossRef] [PubMed]
  17. Chai, L.M.; Zhai, W.J.; Liu, X.; Xing, G.; Zhang, B.; Zang, J.Q.; Yang, Y.F.; Ma, K.; Zhang, J.B. Room temperature catalysts for high effective degradation of formaldehyde: Research Progresses and Challenges. ChemistrySelect 2024, 9, 1–24. [Google Scholar] [CrossRef]
  18. Li, Y.B.; Zhang, C.B.; Ma, J.Z.; Chen, M.; Deng, H.; He, H. High temperature reduction dramatically promotes Pd/TiO2 catalyst for ambient formaldehyde oxidation. Applied Catalysis B: Environmental 2017, 217, 560–569. [Google Scholar] [CrossRef]
  19. Qi, L.F.; Cheng, B.; Ho, W.K.; Liu, G.; Yu, J.G. Hierarchical Pt/NiO hollow microspheres with enhanced catalytic performance. ChemNanoMat 2015, 1, 58–67. [Google Scholar] [CrossRef]
  20. Chen, H.X.; Zhang, R.D.; Wang, H.; Bao, W.J.; Wei, Y. Encapsulating uniform Pd nanoparticles in TS-1 zeolite as efficient catalyst for catalytic abatement of indoor formaldehyde at room temperature. Applied Catalysis B: Environmental 2020, 278, 1–14. [Google Scholar] [CrossRef]
  21. Qi, Q.P.; Zhang, W.R.; Zhang, Y.S.; Bai, G.G.; Wang, S.W.; Liang, P. Formaldehyde oxidation at room temperature over layered MnO2. Catalysis Communications 2021, 153, 1–5. [Google Scholar] [CrossRef]
  22. Yan, Z.X.; Xu, Z.H.; Yue, L.; Shi, L.; Huang, L.Y. Hierarchical Ni−Al hydrotalcite supported Pt catalyst for efficient catalytic oxidation of formaldehyde at room temperature. Chinese Journal of Catalysis 2018, 39, 1919–1928. [Google Scholar] [CrossRef]
  23. Cui, W.Y.; Yuan, X.L.; Wu, P.; Zheng, B.; Zhang, W.X.; Jia, M.J. Catalytic properties of γ-Al2O3 supported Pt–FeOx catalysts for complete oxidation of formaldehyde at ambient temperature. Royal Society of Chemistry Advances 2015, 5, 104330–104336. [Google Scholar] [CrossRef]
  24. Vikrant, K.; Chung, M.W.; Boukhvalov, D.W.; Heynderickx, P.M.; Kim, K.H.; Weon, S. A platinum ensemble catalyst for room-temperature removal of formaldehyde in the air. Chemical Engineering Journal 2023, 475, 1–14. [Google Scholar] [CrossRef]
  25. Chen, J.; Jiang, M.Z.; Xu, W.J.; Chen, J.; Hong, Z.X.; Jia, H.P. Incorporating Mn cation as anchor to atomically disperse Pt on TiO2 for low-temperature removal of formaldehyde. Applied Catalysis B: Environmental 2019, 259, 1–11. [Google Scholar] [CrossRef]
  26. Zheng, J.Y.; Zhou, K.L.; Zhao, L.; Wang, W.K.; He, Y.S.; Wang, J.D.; Wang, X.X.; Yan, H.; Han, C.B. Enhanced the synergistic degradation effect between active hydroxyl and reactive oxygen species for indoor formaldehyde based on platinum atoms modified MnOOH/MnO2 catalyst. Journal of Colloid and Interface Science 2022, 628, 359–370. [Google Scholar] [CrossRef] [PubMed]
  27. Yan, Z.X.; Xu, Z.H.; Cheng, B.; Jiang, C.J. Co3O4 nanorod-supported Pt with enhanced performance for catalytic HCHO oxidation at room temperature. Applied Surface Science 2017, 404, 426–434. [Google Scholar] [CrossRef]
  28. Huang, S.Y.; Zhu, X.F.; Cheng, B.; Yu, J.G.; Jiang, C.J. Flexible nickel foam decorated with Pt/NiO nanoflakes with oxygen vacancies for enhanced catalytic formaldehyde oxidation at room temperature. Environmental Science: Nano 2017, 4, 2215–2224. [Google Scholar] [CrossRef]
  29. Duan, Y.Y.; Song, S.Q.; Cheng, B.; Yu, J.G.; Jiang, C.J. Effects of hierarchical structure on the performance of tin oxide-supported platinum catalyst for room-temperature formaldehyde oxidation. Chinese Journal of Catalysis 2017, 38, 199–206. [Google Scholar] [CrossRef]
  30. Wu, Y.H.; Guo, Q.B.; Liu, H.; Wei, S.S.; Wang, L. Effect of Fe doping on the surface properties of δ-MnO2 nanomaterials and its decomposition of formaldehyde at room temperature. Journal of Environmental Chemical Engineering 2022, 10, 1–10. [Google Scholar] [CrossRef]
  31. Huang, Y.C.; Fan, W.J.; Long, B.; Li, H.B.; Qiu, W.T.; Zhao, F.Y.; Tong, Y.X.; Ji, H.B. Alkali-modified non-precious metal 3D-NiCo2O4 nanosheets for efficient formaldehyde oxidation at low temperature. Journal of Materials Chemistry A 2016, 4, 3648–3654. [Google Scholar] [CrossRef]
  32. Ji, J.; Lu, X.L.; Chen, C.; He, M.; Huang, H.B. Potassium-modulated δ-MnO2 as robust catalysts for formaldehyde oxidation at room temperature. Applied Catalysis B: Environmental 2020, 260, 1–12. [Google Scholar] [CrossRef]
  33. Chen, J.W.; Chen, W.; Huang, M.; Tang, H.Y.; Zhang, J.; Wang, G.; Wang, R.L. Metal organic frameworks derived manganese dioxide catalyst with abundant chemisorbed oxygen and defects for the efficient removal of gaseous formaldehyde at room temperature. Applied Surface Science 2021, 565, 1–10. [Google Scholar] [CrossRef]
  34. Wu, M.; Ye, J.W.; Cheng, B.; Yu, J.G.; Zhang, L.Y. Pt/NiCo2O4 nanowire arrays on Ni foam as catalysts for efficient formaldehyde oxidation at room temperature. Applied Surface Science 2023, 608, 1–9. [Google Scholar] [CrossRef]
  35. Ye, J.W.; Zhou, M.H.; Le, Y.; Cheng, B.; Yu, J.G. Three-dimensional carbon foam supported MnO2/Pt for rapid capture and catalytic oxidation of formaldehyde at room temperature. Applied Catalysis B: Environmental 2020, 267, 1–8. [Google Scholar] [CrossRef]
  36. Song, S.Q.; Wu, X.; Lu, C.J.; Wen, M.C.; Le, Z.G.; Jiang, S.J. Solid strong base K-Pt/NaY zeolite nano-catalytic system for completed elimination of formaldehyde at room temperature. Applied Surface Science 2018, 442, 195–203. [Google Scholar] [CrossRef]
  37. Li, S.P.; Ezugwu, C.I.; Zhang, S.P.; Xiong, Y.; Liu, S.W. Co-doped MgAl-LDHs nanosheets supported Au nanoparticles for complete catalytic oxidation of HCHO at room temperature. Applied Surface Science 2019, 487, 260–271. [Google Scholar] [CrossRef]
  38. Liu, F.; Zhang, S.Y.; Wan, L.; Hao, Y.J.; Li, J.; Wang, H.Q.; Li, Z.F.; Li, Q.L.; Cao, C. Attachment of facile synthesized NaCo2O4 nanodots to SiO2 nanoflakes for sodium-rich boosted Pt-dominated ambient HCHO oxidation. Journal of Hazardous Materials 2023, 458, 1–13. [Google Scholar] [CrossRef]
  39. Li, G.N.; Li, L. Highly efficient formaldehyde elimination over meso-structured M/CeO2 (M=Pd, Pt, Au and Ag) catalyst under ambient conditions. Royal Society of Chemistry Advances 2015, 5, 36428–36433. [Google Scholar] [CrossRef]
  40. Zhu, X.F.; Yu, J.G.; Jiang, C.J.; Cheng, B. Enhanced room-temperature HCHO decomposition activity of highly-dispersed Pt/Al2O3 hierarchical microspheres with exposed {110} facets. Journal of Industrial and Engineering Chemistry 2017, 45, 197–205. [Google Scholar] [CrossRef]
  41. Liu, W.; Liao, W.L.; Ning, Y.; Zheng, X.M.; Ji, Y.; Dai, Z.; Meng, Z.H.; Zhang, J.W.; Wei, J.F.; Zhang, H. Boosting formaldehyde catalytic oxidation of novel Au/mPVB fiber membrane with microreactor-like structure. Journal of Environmental Chemical Engineering 2023, 11, 1–13. [Google Scholar] [CrossRef]
  42. Rong, S.P.; Zhang, P.Y.; Yang, Y.J.; Zhu, L.; Wang, J.L.; Liu, F. MnO2 Framework for instantaneous mineralization of carcinogenic airborne formaldehyde at room temperature. American Chemical Society Catalysis 2017, 7, 1057–1067. [Google Scholar] [CrossRef]
  43. Wang, J.L.; Zhang, P.Y.; Li, J.G.; Jiang, C.J.; Yunus, R.; Kim, J. Room-temperature oxidation of formaldehyde by layered manganese oxide: Effect of water. Environmental Science & Technology 2015, 49, 12372–12379. [Google Scholar] [CrossRef]
  44. Gong, J.J.; Wang, X.Y.; H.B., W; Dong, X.X.; Li, J.; Yang, F.; Yuan, A.H.; Ji, H.B. MnCo-Layered double hydroxides nanosheets supported Pd nanoparticles for complete catalytic oxidation of formaldehyde at room temperature. Applied Surface Science 2022, 606, 1–9. [Google Scholar] [CrossRef]
  45. Zhang, H.Y.; Zheng, X.M.; Xu, T.Z.; Zhang, P.Y. Atomically dispersed Y or La on birnessite-type MnO2 for the catalytic decomposition of low-concentration toluene at room temperature. American Chemical Society Applied Materials & Interfaces 2021, 13, 17532–17542. [Google Scholar]
  46. Zhang, H.Y.; Sui, S.H.; Zheng, X.M.; Cao, R.R.; Zhang, P.Y. One-pot synthesis of atomically dispersed Pt on MnO2 for efficient catalytic decomposition of toluene at low temperatures. Applied Catalysis B: Environmental 2019, 257, 1–12. [Google Scholar] [CrossRef]
  47. Li, Y.X.; Zhang, P.Y.; Liu, Y. Single atom Pd anchored-MnO confined in porous carbon matrix for low-level VOCs removal at room temperature. Applied Catalysis B: Environment and Energy 2024, 355, 1–10. [Google Scholar] [CrossRef]
  48. Ding, H.; Xue, L.X.; Cui, J.H.; Wang, Y.Q.; Zhao, D.; Zhi, X.; Liu, R.; Fu, J.F.; Liu, S.J.; Fu, B.F.; Shi, J.H.; Xu, X.M.; Li, G.K. Catalytic degradation of benzene at room temperature over FeN4O2 sites embedded in porous carbon. Journal of Hazardous Materials 2023, 460, 1–9. [Google Scholar] [CrossRef]
  49. Zuo, X.; Zhang, L.S.; Gao, G.; Xin, C.H.; Fu, B.F.; Liu, S.J.; Ding, H. Catalytic oxidation of benzene over atomic active site AgNi/BCN catalysts at room temperature. Molecules 2024, 29, 1–15. [Google Scholar] [CrossRef]
  50. Gao, G.; Zhang, L.S.; Dai, C.L.; Zhao, Z.S.; Wu, X.C.; Wang, Q.; Bai, Y.C; Zhao, D.; Ding, H. Is it possible to realize the catalytic oxidation of toluene on the atomic active site ZnNi/SNC catalysts without external energy? Separation and Purification Technology 2025, 356, 1–12. [Google Scholar] [CrossRef]
  51. Zhang, L.S.; Gao, G.; Wu, X.C. Catalytic degradation of stable benzene molecules under room temperature conditions over Pt-loaded boron-carbon-nitride (Pt/BCN) catalysts. Separation and Purification Technology 2025, 358, 1–9. [Google Scholar] [CrossRef]
  52. Wu, X.C.; Dai, C.L.; Zhang, L.S.; Gao, G.; Shi, J.H.; Zhao, D.; Fu, B.F.; Liu, S.J.; Fu, J.F.; Ding, H. Catalytic degradation of ethyl acetate at room temperature over Ni/NAC monolithic catalyst. Journal of Environmental Chemical Engineering 2025, 13, 1–10. [Google Scholar] [CrossRef]
  53. Niu, J.R.; Liu, H.B.; Qian, H.L.; Liu, J.; Ma, M.Y.; Duan, E.; Yu, L. Preparation of metal-doped Cu–Mn/HTS-1 catalysts and their mechanisms in efficient degradation of toluene. Journal of Environmental Sciences 2020, 88, 260–272. [Google Scholar] [CrossRef]
  54. Esrafili, M.D.; Mousavian, P. Catalytic CO oxidation reaction over N-substituted graphene nanoribbon with edge defects. Journal of Molecular Graphics and Modelling 2021, 108, 1–7. [Google Scholar] [CrossRef]
  55. Morales-Torres, S.; Pérez-Cadenas, A.F.; Kapteijn, F.; Carrasco-Marín, F.; Maldonado-Hódar, F.J.; Moulijn, J.A. Palladium and platinum catalysts supported on carbon nanofiber coated monoliths for low-temperature combustion of BTX. Applied Catalysis B: Environmental 2009, 89, 411–419. [Google Scholar] [CrossRef]
  56. Ordóñez, S.; Bello, L.; Sastre, H.; Rosal, R.; Díez, F.V. Kinetics of the deep oxidation of benzene, toluene, n-hexane and their binary mixtures over a plati-num on γ-alumina catalyst. Applied Catalysis B: Environmental 2002, 38, 139–149. [Google Scholar] [CrossRef]
  57. Papaefthimiou, P.; Ioannides, T.; Verykios, X.E. Combustion of non-halogenated volatile organic compounds over group VIII metal catalysts. Applied Catalysis B: Environmental 1997, 13, 175–184. [Google Scholar] [CrossRef]
  58. Radic, N.; Grbic, B.; Terlecki-Baricevic, A. Kinetics of deep oxidation of n-hexane and toluene over Pt/Al2O3 catalysts. Applied Catalysis B: Environmental 2004, 50, 153–159. [Google Scholar] [CrossRef]
  59. Lu, A.; Sun, H.L.; Zhang, N.W.; Che, L.M.; Shan, S.Y.; Luo, J.; Zheng, J.B.; Yang, L.F.; Peng, D.L.; Zhong, C.J.; Chen, B.H. Surface partial-charge-tuned enhancement of catalytic activity of platinum nanocatalysts for toluene oxidation. ACS Catalysis 2019, 9, 7431–7442. [Google Scholar] [CrossRef]
  60. Liu, Y.X.; Dai, H.X.; Deng, J.G.; Xie, S.H.; Yang, H.G.; Tan, W.; Han, W.; Jiang, Y.; Guo, G.S. Mesoporous Co3O4-supported gold nanocatalysts: Highly active for the oxidation of carbon monoxide, benzene, toluene, and o-xylene. Journal of Catalysis 2014, 309, 408–418. [Google Scholar] [CrossRef]
  61. Xie, M.Y.; Wei, G.Q.; Wang, L.; Yao, W.S.; Yang, X.X.; Gao, Z.W.; Huang, Z.; Lu, J.F.; Kang, Z.X.; Yao, Y.C. Low-temperature catalytic oxidation of ethyl acetate over MnO2-CeOx composite catalysts: Structure-activity relationship and empirical modeling. Journal of Environmental Chemical Engineering 2025, 13, 1–10. [Google Scholar] [CrossRef]
  62. Niu, J.R.; Liu, H.B.; Qian, H.L.; Liu, J.; Ma, M.Y.; Duan, E.H.; Yu, L. Preparation of metal-doped Cu-Mn/HTS-1 catalysts and their mechanisms in efficient degradation of toluene. Journal of Environmental Sciences 2020, 88, 260–272. [Google Scholar] [CrossRef]
Preprints 199697 g001

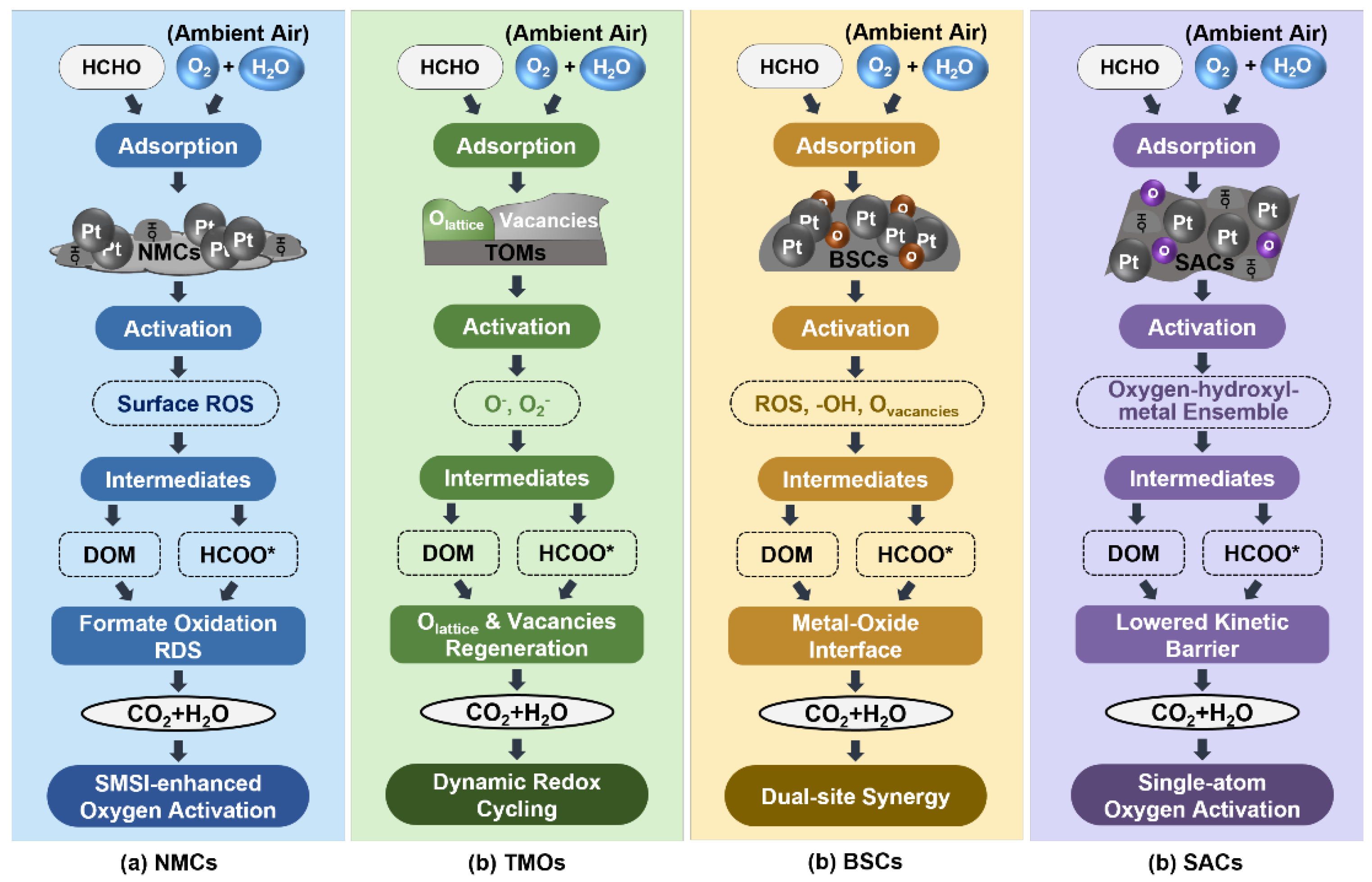

Figure 1. Room-temperature air-only catalytic oxidation pathway of NMCs, TMOs, BSCs, SACs.
Figure 1. Room-temperature air-only catalytic oxidation pathway of NMCs, TMOs, BSCs, SACs.
Preprints 199697 g001
Preprints 199697 g002

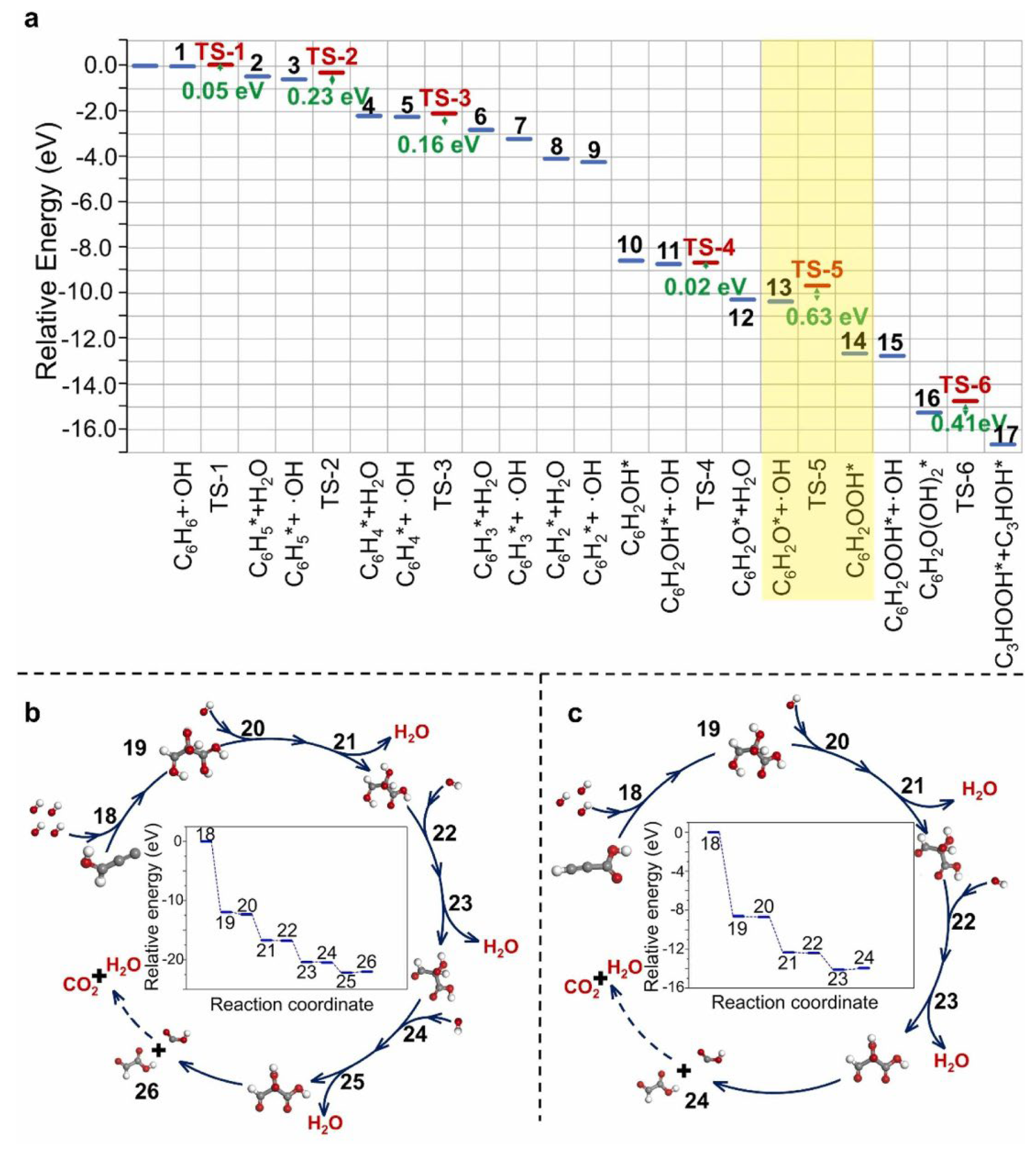

Figure 2. Room-Temperature Air-only Catalytic oxygen pathway diagram of benzene.
Figure 2. Room-Temperature Air-only Catalytic oxygen pathway diagram of benzene.
Preprints 199697 g002
Preprints 199697 g003

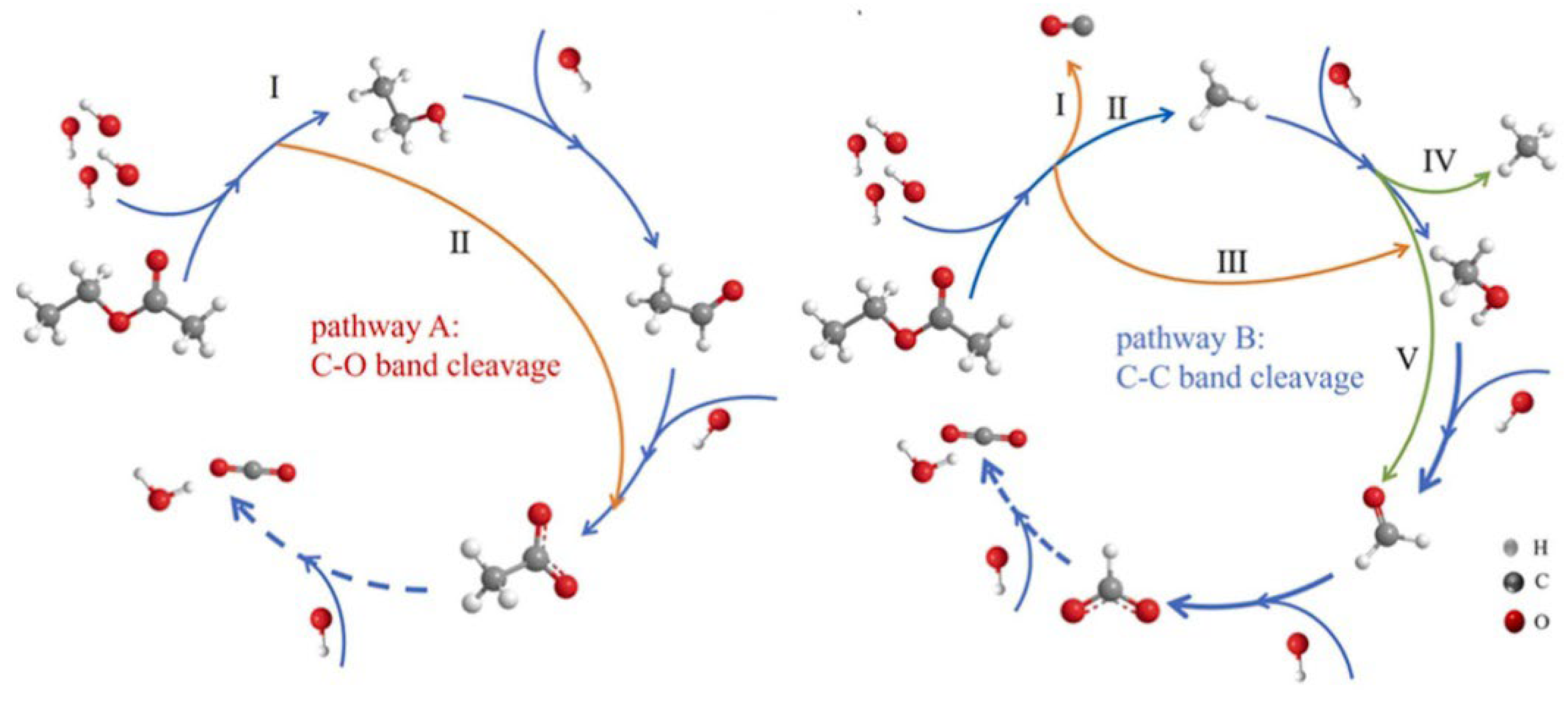

Figure 3. Room-Temperature Air-only Catalytic oxygen pathway diagram of ethyl acetate.
Figure 3. Room-Temperature Air-only Catalytic oxygen pathway diagram of ethyl acetate.
Preprints 199697 g003
Table 1. Summary of representative catalysts, reaction conditions, and performance for Room-Temperature Air-only Catalytic Oxidation of HCHO.
Table 1. Summary of representative catalysts, reaction conditions, and performance for Room-Temperature Air-only Catalytic Oxidation of HCHO.
Catalyst Type Catalyst Name Initial Concentration Reaction Temperature Gas Hourly Space Velocity Reaction Humidity Removal Efficiency CO2 Mineralization Rate Ref.
NMCs Pd/TiO2 140 ppm RT 95000 h-1 40% 100% - [18]
Pt/NiO 200 ppm RT 5-W fan - 89% 100% [19]
Pd@TS-1 100 ppm RT 100000 mL g-1h-1 35 % 100% - [20]
Pt/Co3O4 210 ppm RT 5-W fan - 91.4% 100% [27]
Pt/NiO 200 ppm RT 5-W fan 50% 90% 100% [28]
Pt/SnOx 172 ppm RT - - 87% 100% [29]
TMOs MnO2/NCNT 100 ppm 30 °C 30000 mLg-1h-1 - ≥95% ＜20% [11]
Fe/δ-MnO2 3.35 ppm 23-27 °C - 40 % 99.4 % - [30]
3D-NiCo2O4 200 ppm 25 °C 60000 h-1 - 95.3% 100% [31]
δ-MnO2 22 ppm 30 °C 200000 mL g-1h-1 50% 96% ＜50% [32]
MnO2-MOF 1 mg/m3 25 °C 300000 mL g-1h-1 50-55% 95% - [33]
BSCs Pt/NiCo2O4-NF 200 ppm RT 5-W fan - 90% 100% [34]
Pt/MnO2-CF 200 ppm 25 °C - - 91% 100% [35]
K-Pt/NaY 300 ppm 25 °C 5-W fan 35-51% 98% 100% [36]
Au/Co-LDH 200 ppm RT 5-W fan - 96.2% 100% [37]
Pt/HNaCo2O4/T2 150±5 ppm RT 5-W fan 50±5% >96% 100% [38]
SACs Pt-MnOOH/MnO2 15 ppm 25 °C 30000 mL g-1h-1 45% 98.4 % 85.70% [24]
Pt/Mn-TiO2 100 ppm 15-40 °C 60000 mL g-1h-1 50% 100 % 100% [25]
Ptn/TiO2 100 ppm RT 47771 mL g-1h-1 0% 100% 100% [26]
* RT: Room Temperature. * CO2 Mineralization Rate (%)=C’out/(Cin-Cout)×100%, where C’out denotes the gaseous CO2 concentration at the reactor outlet, Cin and Cout represent the inlet and outlet HCHO concentration, respectively.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
bsky
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

Privacy Settings

© 2026 MDPI (Basel, Switzerland) unless otherwise stated
