Potential of Wollastonite-Based Brushite Cement for the Conditioning of Radioactive Waste Contaminated by ⁹⁰Sr

1. Introduction

Aqueous radioactive waste, primarily contaminated with cesium and strontium, may be generated by cleaning operations carried out as part of the decommissioning of old nuclear facilities [1]. After a volume-reduction, typically involving evaporation, co-precipitation and filtration, or sorption onto ion exchange materials, the resulting low-level or intermediate-level radioactive waste is usually encapsulated in a cement-based matrix prior to disposal [2]. This conditioning step is intended to prevent waste dispersion, facilitate handling and transportation, and limit the release of hazardous elements that could endanger human health and the environment. Portland cement, possibly blended with supplementary cementitious materials such as blastfurnace slag or fly ash, is commonly used to design cement-based matrices [3]. This binder is indeed readily available, compatible with aqueous waste (as the water in the waste is used up for cement hydration), and generally exhibits good mechanical strength after hydration, long-term stability, and high alkalinity – favorable to the precipitation and confinement of many radionuclides, including actinides [3,4]. Nonetheless, its capacity to retain critical radionuclides, such as ¹³⁷Cs and ⁹⁰Sr, may be limited [5,6,7]. This study focuses on ⁹⁰Sr, a high-energy β-emitter, that is particularly toxic due to its chemical similarity to calcium, which allows it to readily bind to bone tissues [8,9]. The aim of this work is to evaluate the potential of a calcium phosphate binder as an alternative to Portland cement for enhancing strontium retention. Calcium phosphate cements are used in dentistry and orthopedic bone filling surgeries since they form products with chemical compositions similar to those of bones and teeth [10,11,12,13,14,15,16]. In particular, wollastonite-based brushite cement (WBC) is a phosphate binder prepared by mixing wollastonite, a natural meta-silicate mineral (CaSiO₃), with a solution containing phosphoric acid, boron and metallic cations (such as Al³⁺ and Zn²⁺) [17,18,19]. Wollastonite reacts through dissolution/precipitation, resulting in a multiphase material that includes brushite (CaHPO₄.2H₂O), amorphous calcium aluminophosphate, amorphous silica, and residual wollastonite [17]. Brushite (CaHPO₄.2H₂O) is well-known for its flexible structure, allowing for the substitution of strontium in place of calcium [20,21,22,23]. Additionally, as compared to other phosphate binders, WBC offers the advantage of being cost-effective due to the raw materials used and the ability to prepare it at room temperature.

The retention properties of solidified cement matrices used for the immobilization of radioactive waste are commonly assessed through leaching tests. In a previous study [24] where leaching experiments were conducted according to the ANS/ANSI-16.1 standard [25], we showed that strontium retention was significantly improved when using a commercial WBC binder compared to conventional Portland cement. The apparent diffusion coefficient (D_a) of strontium in WBC paste was found to be approximately three orders of magnitude lower than values typically reported for Portland cement-based matrices. These findings highlight the strong potential of WBC-based materials for effective strontium encapsulation.

However, beyond radionuclides retention challenges, another concern for cement-based materials devoted to radioactive waste conditioning is the hydrogen gas production resulting from radiolysis of water – either present as free water in the pore solution, or chemically bound to the cement hydrates [26,27,28,29,30]. Gas accumulation in the cemented waste packages may induce pressure built-up, finally leading to cracking, which decreases their mechanical and confining properties [31,32]. Besides, hydrogen gas may form combustible or explosive mixtures with atmospheric oxygen when its concentration exceeds 4%, which raises a major safety issue for disposal facilities.

To fully assess the suitability of WBC-based materials for radioactive waste conditioning, it is important to investigate their behavior under ionizing radiation, as would occur in the presence of radionuclides within encapsulated waste. Although strontium is a 100% β-emitter, it may be conditioned with other radionuclides emitting α or βγ radiations, which justifies focusing on γ-irradiation in this study. Accordingly, the first part of this work evaluates the response of a commercial WBC binder, along with its main crystalline hydrate, brushite, to external γ-irradiation using a ⁶⁰Co source. The total integrated dose (1 - 5 MGy) was representative of the dose that may be absorbed by a cement-waste form over its lifetime. The dihydrogen gas production was measured by gas chromatography, and possible structural damages in the solid phases were looked for using X-ray diffraction.

In addition to the behavior of WBC binders under irradiation, the influence of the formulation parameters on strontium retention also needs to be assessed, as the mineralogy of these binders depends on the composition of the mixing solution. Recent investigations by Laniesse et al. [18] examined how the concentrations of phosphoric acid, boron (added as borax or boric acid), and metallic cations (such as Al³⁺ and Zn²⁺) influence the setting time, mineralogy, and mechanical properties of WBC binders. Boron was found to delay the setting time of the cement paste and reduce its self-heating during hydration [18]. However, the resulting material exhibits poor mechanical properties. In contrast, metallic cations acted as setting accelerators. Specifically, zinc promoted the formation of scholzite (CaZn₂(PO₄)₂ . 2H₂O), a crystalline calcium zinc phosphate, while aluminum led to the formation of an amorphous calcium aluminophosphate [18]. Increasing the aluminum concentration in the mixing solution significantly improved the mechanical strength of the hardened material. Building on these results, Laniesse et al. [18] identified an optimal composition range for the mixing solution ([H₃PO₄] = 9 mol·L⁻¹, [Al³⁺] = 1.8 to 2.5 mol·L⁻¹, [B] = 0.2 to 0.6 mol·L⁻¹) that produces a material with suitable properties for waste conditioning, including a setting time between 4 and 48 hours, a compressive strength greater than 30 MPa, and a maximum heat flow below 5 mW/g.

While the effect of the mixing solution composition on the mineralogy and mechanical properties of WBC binders is well established, its influence on strontium retention remains unclear. To address this gap, the second part of this study investigates a WBC paste formulated with an optimized mixing solution ([H₃PO₄] = 9 mol·L⁻¹, [Al³⁺] = 2.5 mol·L⁻¹, [B] = 0.2 mol·L⁻¹). Leaching tests, conducted in accordance with the ANS/ANSI-16.1 standard procedure [25], were used to quantify strontium release and to determine the corresponding apparent diffusion coefficient (Dₐ) and leachability index (LI). The results are compared with those previously obtained for a commercial WBC binder [24] and for conventional cement-based matrices.

2. Experimental

2.1. Materials and Samples Preparation

To investigate the influence of WBC formulation on strontium retention, two cement pastes were studied in this work (Table 1). Both were prepared using the same commercial wollastonite powder (CaSiO₃, supplied by Sulitec), characterized by a specific surface area of 1.2 m²_·g⁻¹ and a particle size distribution of d₁₀ = 2.8 µm, d₅₀ = 15.2 µm, and d₉₀ = 48.3 µm. It was slightly carbonated, containing 2.1 ± 0.2 wt.% CaCO₃, as determined by thermogravimetry analysis (TGA), and contained trace amounts of quartz.

The first paste, referred to as WBC-C (Commercial formulation), was prepared using a commercial mixing solution (also provided by Sulitec), with the following composition: [H₃PO₄] = 9.3 mol·L⁻¹, [Al³⁺] = 1.6 mol·L⁻¹, [Zn²⁺] = 1.5 mol·L⁻¹, and [B] = 0.6 mol·L⁻¹ (added as borax). The second paste, referred to as WBC-O (Optimized formulation), was prepared using a synthetic mixing solution based on optimized compositions reported in [18], containing [H₃PO₄] = 9 mol·L⁻¹, [Al³⁺] = 2.5 mol·L⁻¹, and [B] = 0.2 mol·L⁻¹. Sr-doped WBC-C and Sr-doped WBC-O pastes were also prepared, as summarized in Table 1.

All pastes were prepared using a standardized mixer in accordance with European standard 196-1. The two components were mixed for 5 min at low speed, with a liquid-to-solid (L/S) weight ratio of 1.25, resulting in a Ca/P molar ratio also equal to 1.25. For leaching experiments, stable strontium was used as a surrogate for its radionuclide and was added to the mixing solution as Sr(NO₃)₂ (Merck, > 99% purity) at a concentration of [Sr²⁺] = 1 g·L⁻¹. Paste samples for leaching experiments were cast into polypropylene cylindrical containers (30 mL in volume) that were tightly sealed and cured for 28 d at room temperature. Those intended for irradiation tests were poured into 15 mL plastic centrifuge tubes (“SuperClear”, provided by VWR) that were immediately sealed to prevent desiccation and stored during 28 days at room temperature.

The WBC-C paste was used for both irradiation and leaching experiments.

Synthetic brushite (CaHPO₄.2H₂O) was used in some irradiation experiments. The brushite powder (d₁₀ = 3.0 µm, d₅₀ = 11.8 µm, d₉₀ = 27.8 µm, specific surface area = 1.4 ± 0.1 m².g^-1) was provided by Accros Organics. It contained 95.80 wt.% brushite, 2.05 wt.% monetite CaHPO₄ and 2.15 wt.% newberyite MgHPO₄.3H₂O, as determined in [33].

2.3. Irradiation Experiments

The WBC-C samples used for irradiation experiments consisted of small cylinders (15 mm in diameter, approximately 5.6 cm in height) containing 10 mL of cement paste and cured for 28 d in their airtight plastic tubes at room temperature. Prior to irradiation, the samples were demolded, weighed (~ 20 ± 2 g), introduced into 100 mL glass tubes, deaerated by applying 3 cycles of depressurization at 30 hPa and pressurization with argon, and finally flame-sealed under 900 hPa of pure argon (Alphagaz 1 of Air Liquide). A previous study showed that water loss due to desiccation during the sealing process was less than 1% of the total water content of the paste samples [34].

Irradiation experiments were also carried out on brushite powder. Samples of 1 ± 0.05 g were introduced in 100 mL glass tubes that were deaerated and sealed following the same protocol as for the cement pastes.

Gamma irradiations were performed in Steris Gammatec experimental irradiator located in Marcoule, France, and equipped with a ⁶⁰Co source (energy of 1.2 MeV). The temperature of the irradiation chamber was regulated between 20 and 25°C and the dose rate was close to 1000 Gy.h^-1. The integrated doses were equal to 100 kGy, 250 kGy, 500 kGy and 1 MGy for the cement pastes, and to 250 kGy, 500 kGy, 750 kGy, 1 MGy, 2.5 MGy and 5 MGy for brushite powder. The experiments were conducted in triplicate for pastes and in duplicate for powders.

In a recent study, Herin et al. [35] showed that hydrogen gas release from portlandite exposed to accelerated electrons or gamma irradiation occurs almost instantaneously for H₂ formed near or at the surface of the crystals, but continues, at a slower rate, over a two-month period for H₂ trapped within the bulk of the material. Based on these observations, the authors thus recommended to heat the sample at 180°C for 3 days to fully release the stored hydrogen. However, this thermal treatment was unsuitable for our samples, as it would cause significant thermal decomposition of the cement hydrates (see Section 3.1). Instead, the glass tubes were stored for three weeks after irradiation to allow hydrogen to diffuse through the cementitious materials. Calculations using a H₂ diffusion coefficient of 5×10^-9 m².s^-1 (which is typical for a Portland-cement based material [36]) and taking into account the small size of the samples showed that gas accumulation within the paste was negligible after this 3-week period. Subsequently, the dihydrogen content present in the gas phase was determined by gas chromatography (Agilent 7820A), using argon as the carrier gas, a capillary column, and a thermal conductivity detector. The H₂ concentration (in mol.kg^-1) was given by equation (Eq. 1):

$$\left[H_2\right]={\displaystyle \frac{P.f{(H}_2).V_t}{R.T.m_{sample}}}$$

(1)

where P (in Pa) is the gas pressure in the glass tube after irradiation, f(H₂) the volume fraction of H₂ determined by gas chromatography, V_t the volume of the glass tube (in m³), R (in J.mol^{- 1}.K^-1) the ideal gas constant, T (in K) the sample temperature and m_sample (in kg) the sample mass. The radiolytic yield of hydrogen G(H₂)_material (in mol.J^-1) was then given by the slope of the gas production versus absorbed dose D (in Gy) plot (Eq. 2).

$${G\left(H_2\right)}_{material}={\displaystyle \frac{\left[H_2\right]}{D}}$$

(2)

Therefore, G(H₂)_material represented the amount of hydrogen produced by the material for 1 J of absorbed energy. The experimental error associated to the determination of G(H₂)_material was close to 10% for radiolytic yields higher than 10^-9 mol.J^-1, but increased up to 50% for smaller yield values.

Since water was the only significant source of hydrogen in the irradiated samples, the hydrogen radiolytic yield G(H₂)_material was also standardized with respect to the total mass of water (w_water) present in the samples (Eq. 3):

$${G\left(H_2\right)}_{water}={\displaystyle \frac{{G\left(H_2\right)}_{material}}{w_{water}}}$$

(3)

This normalized radiolytic yield was useful to compare the H₂ production when the samples did not contain the same amount of water.

2.2. Leaching Experiments

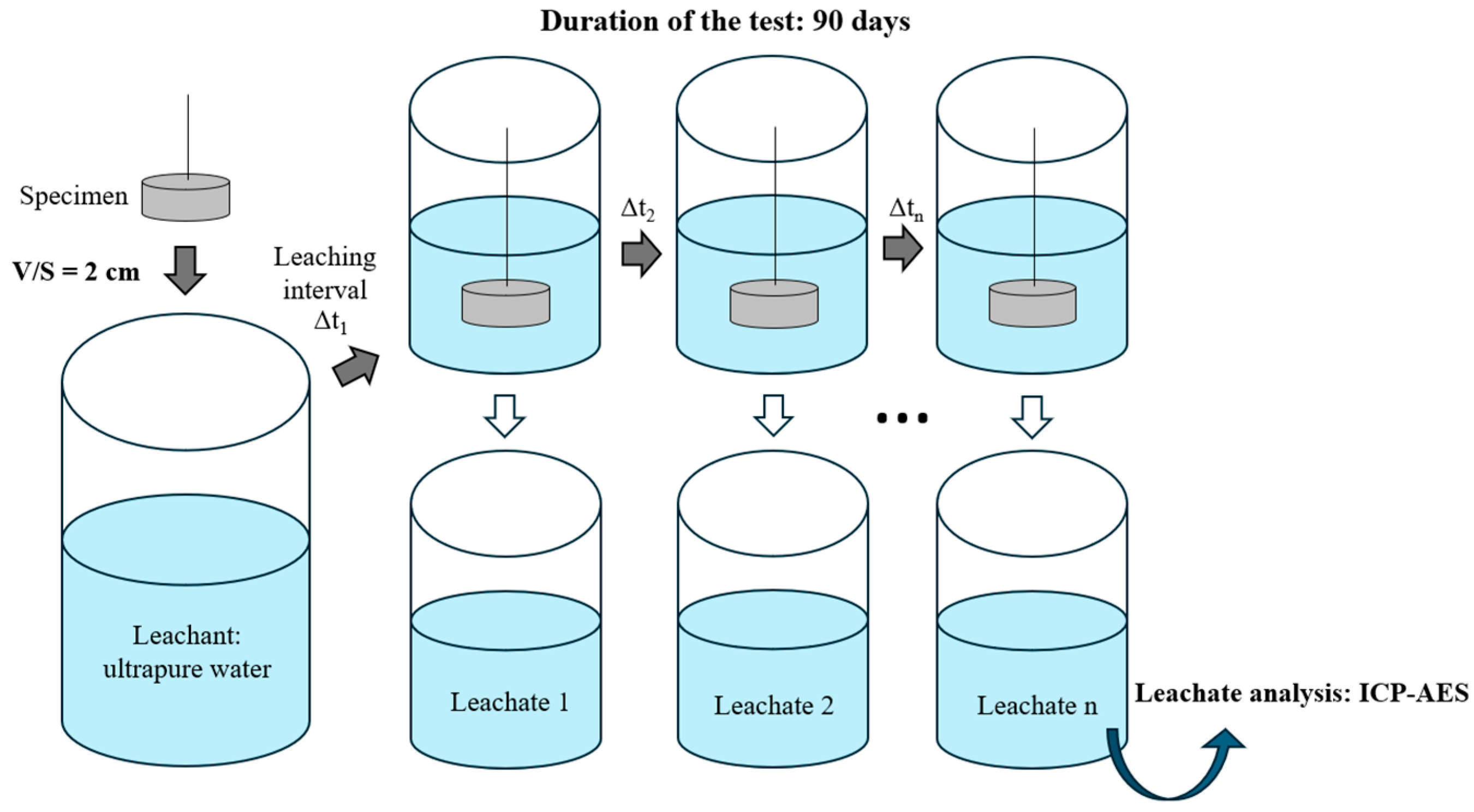

Leaching experiments were conducted following a protocol derived from ANSI/ANS-16.1 specification. The test was performed at room temperature (22 ± 2°C) by immersing a cylindrical paste specimen with a diameter of 27.4 mm and a height of 16.2 mm for 90 d in ultrapure water as the leachant for 90 d. The leachate was refreshed with new water nine times over the course of 3 months (at 2 h, 7 h, 24 h, 48 h, 5 d, 7 d, 14 d, 45 d, 90 d) to limit the accumulation of dissolved species (Figure 1). The volume of the leachant was set to 2 cm per unit of external geometric surface area of the specimen, rather than the recommended 10 cm. This reduction in leachant volume increased the concentration of strontium in the leachates, making it easier to detect. A previous attempt with the 10 cm ratio resulted in Sr concentrations below the detection limit (1 ppb) of the analytical method used. However, this change in the protocol also led to more significant changes in the leachant composition between renewals. Strontium ions, as well as the major elements of the cement matrix (Ca, P, Si, Al and Zn) released in the leachates, were analyzed using inductively-coupled plasma atomic emission spectroscopy (ICP-AES, ThermoFisher iCAP 3600 duo).

The cumulative fraction of strontium leached (CFL) was calculated following Eq. 4.

$$CFL={\displaystyle \frac{\sum A_n}{A_0}}$$

(4)

where A_n [g] is the amount of strontium released from the specimen during leaching interval n and A₀ [g] is its initial amount in the specimen.

2.4. Solid Phase Characterization

2.4.1. Hydration Stoppage

Before characterization, the pristine and irradiated cement pastes were submitted to hydration stoppage through solvent exchange with isopropanol following the procedure recommended by RILEM TC-238 SCM [37]. The residual isopropanol was then eliminated by gentle drying in a desiccator maintained at 20°C and 23% R.H. to prevent any thermal degradation of brushite [38].

2.4.2. X-Ray Diffraction

The pristine and irradiated paste samples were characterized by X-ray diffraction (XRD) using a Panalytical X’Pert Pro diffractometer. First, the samples were finely ground by hand at a particle size below 80 µm. Since wollastonite crystallizes as fine needles [39], the paste samples were analysed using the Debye-Scherer configuration (transmission mode). They were introduced in Lindeman tubes (Ф = 0.7 mm) and mounted on a rotating goniometric head during measurement to minimize the preferred orientation effect. Silicon (Alfa Aesar 99.5% metal basis, ≈ 40 µm), was added to the samples as an internal standard (at a content of 10 wt.%) when the different phases were quantified with the Rietveld method [40]. The XRD data were recorded by using copper radiation (λ_CuKα = 1.5418 Å) at room temperature in the 2-θ range 5-70° with a step size of 0.013° for a total counting time of 2 h. Diffrac.EVA software (Bruker-AXS; V4.3, 2010-2018) and PDF-2 database (Powder Diffraction File, version 2009) were used for phase identification. Structural refinement of the XRD pattern of pristine cement paste was based on the crystallographic structures of brushite, wollastonite (triclinic) and quartz (impurity in wollastonite) respectively established by Schofield et al. [41], Ohashi [42] and Antao et al. [43]. It was carried out with TOPAS software (Bruker-AXS; V6, 2016) using the fundamental parameters approach and the ICSD database (ICSD files n° 172258, 201537 and 162490 for brushite, wollastonite and quartz, respectively). For all adjustments, the refined parameters were the phase scale factors, sample displacement, background modelled by a Chebyshev polynomial (order 5) combined with a 1/X term, unit cell and microstructural parameters. The atomic positions, site occupancies and temperature factors were kept constant during the refinement. Preferred orientation of brushite and wollastonite in the samples was taken into account using the March-Dollase correction [44].

Brushite samples were analyzed using a D8 Advance powder X-ray diffractometer (Bruker, Germany) with a copper radiation source in the Bragg-Brentano geometry (reflexion mode). The instrument was operated in step-scan mode, between 5° and 120° (2θ) with 0.007° (2θ) step and 1 s per step. An automatic anti-scattering knife was used to reduce unwanted scattered radiation by the atmosphere at low angles from the main beam. In order to minimize preferential orientation, the powders were prepared on Si wafers as zero-background holders to improve the detection of a potential diffusion halo. The Rietveld refinements of brushite samples were performed following the method previously described.

2.4.3. Thermogravimetry

To determine the water content of cement pastes and brushite submitted to irradiation, thermogravimetric analyses (TGA) were carried out on ground samples using a TGA/DSC Netzsch STA 409 PC instrument operating under nitrogen (gas flow set at 50 mL.min^-1) at 10°C.min^-1 up to 1000°C. The curves were corrected from buoyancy effects by performing a blank subtraction.

2.4.4. X-Ray Fluorescence

X-ray fluorescence (XRF) measurements were carried out on the solid fraction of the pristine cement paste to determine its chemical composition. The ground powder was fused at 950°C with a sample-to-lithium metaborate ratio equal to 0.05. The pellet was then analyzed using a Bruker XRF instrument (S8 Tiger).

2.4.5. Porosity

Total porosity accessible to water of 28 d–old WBC pastes was determined following NF P 18-459 (2010). Three cylindrical paste samples (≈15 g per sample) were placed in a vacuum desiccator at 25 mbar for 4 h. Then, samples were covered with demineralized water while maintaining the vacuum pressure at 25 mbar for a minimum of 44 h. After the immersion period, suspended and saturated weights of samples were determined. Finally, samples were dried to a constant weight in an oven at 75°C to preserve the integrity of brushite, which is unstable at higher temperatures [38,45]. Pore size distribution was determined using Mercury Intrusion Porosimetry (MIP) with an AutoPore IV 9500 Porosimeter from Micromeritics Instrument Corporation, following ISO 15901-1 (2005) standard. MIP analyses were performed on small pieces of paste of approximately 1–3 g, after hydration stoppage and drying, as described in section 2.4.1. The mercury pressure varied from 0.0014 MPa to 400 MPa, and the pore entry size diameters were > 3 nm.

3. Results and Discussion

3.1. Characterization of Pristine WBC Paste Samples

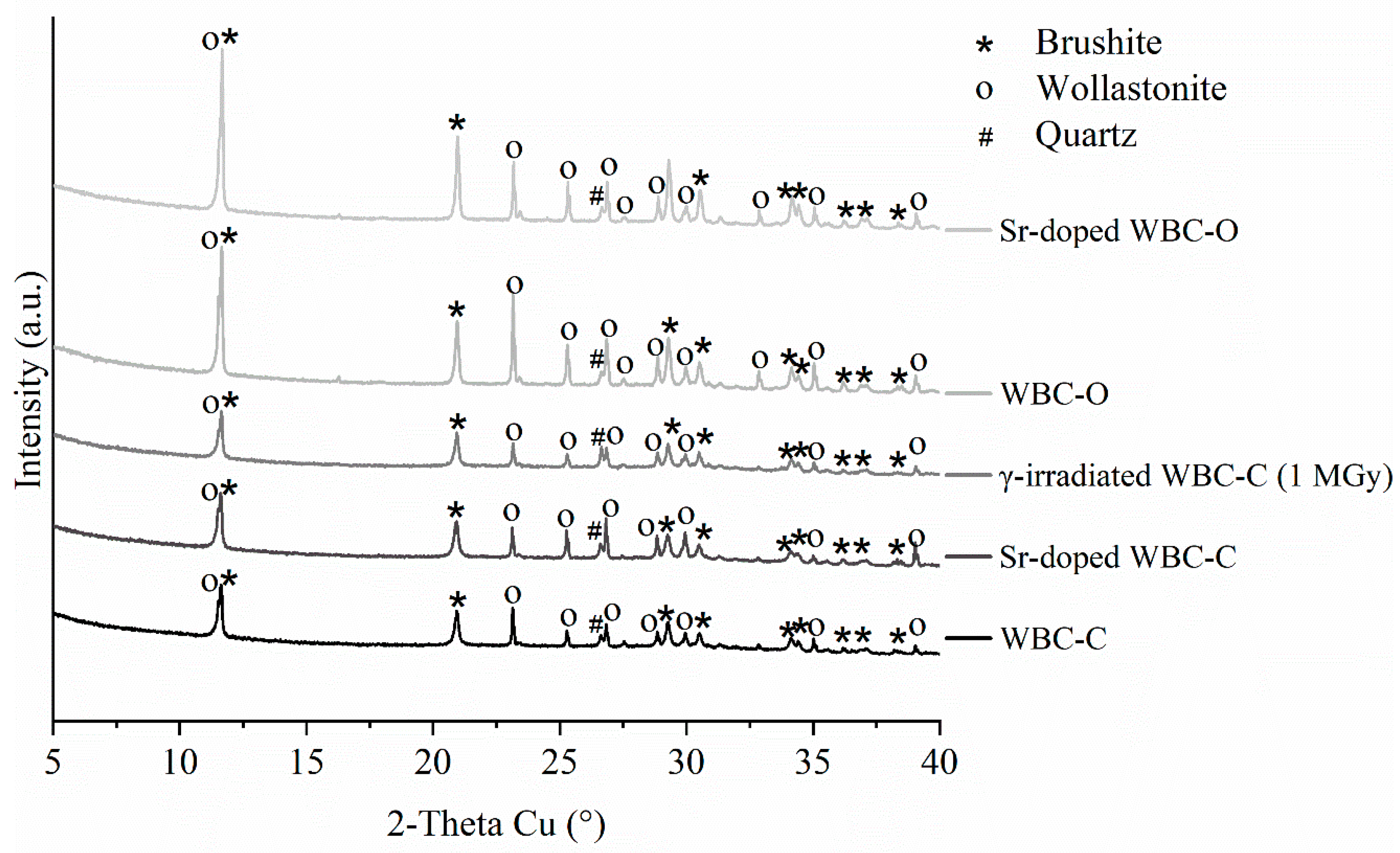

The pristine WBC-C and WBC-O paste samples exhibited very similar diffraction patterns after 28 days of curing under endogenous conditions (Figure 2). Both materials contained brushite (CaHPO₄·2H₂O) and residual wollastonite (CaSiO₃). Quartz, an impurity present in the wollastonite powder, was also evidenced. The corresponding Sr-doped pastes (Sr-doped WBC-C and Sr-doped WBC-O), displayed identical mineralogical features. No new crystalline phase related to the addition of strontium in the cement matrices was detected.

The weight fractions of each crystalline phase and of total amorphous were determined by Rietveld refinement. The results are presented hereafter for reference WBC-C and WBC-O pastes, but were very similar for Sr-doped samples due to their very low Sr content (0.09% of Sr(NO₃)₂). To calculate the mass of each phase at 28 d, it was first necessary to determine the mass of the solid fraction. This latter could not be simply obtained by adding the bound water content determined by TGA to the initial mass of cement since the reactions occurring during hydration not only consumed water, but also ions from the mixing solution (phosphate, aluminum, zinc, boron, sodium). A previous study showed that the pore solution contained very low concentrations of silicate (less than 2 mmol.L^-1), regardless of the characterization time [18]. As a first approximation, dissolved silica could therefore be neglected, and silicon was considered to be present only in the solid phase, in the form of amorphous silica, wollastonite and quartz. According to mass conservation equation (Eq. 5), the total mass of silicon in the solid phase at 28 d ($m_{Si}^{solid})$was thus assumed to be equal to the initial mass of silicon introduced via wollastonite and quartz.

$$m_{Si}^{solid}\approx m_{Si}^{init}$$

(5)

The mass of solid at 28 d ($m^{solid})$was then derived from Eq. 6:

$$m^{solid}={\displaystyle \frac{m_{Si}^{solid}}{f_{Si}^{solid}}}\approx {\displaystyle \frac{m_{Si}^{init}}{f_{Si}^{solid}}}$$

(6)

with $f_{Si}^{solid}$ the weight fraction of Si in the solid.

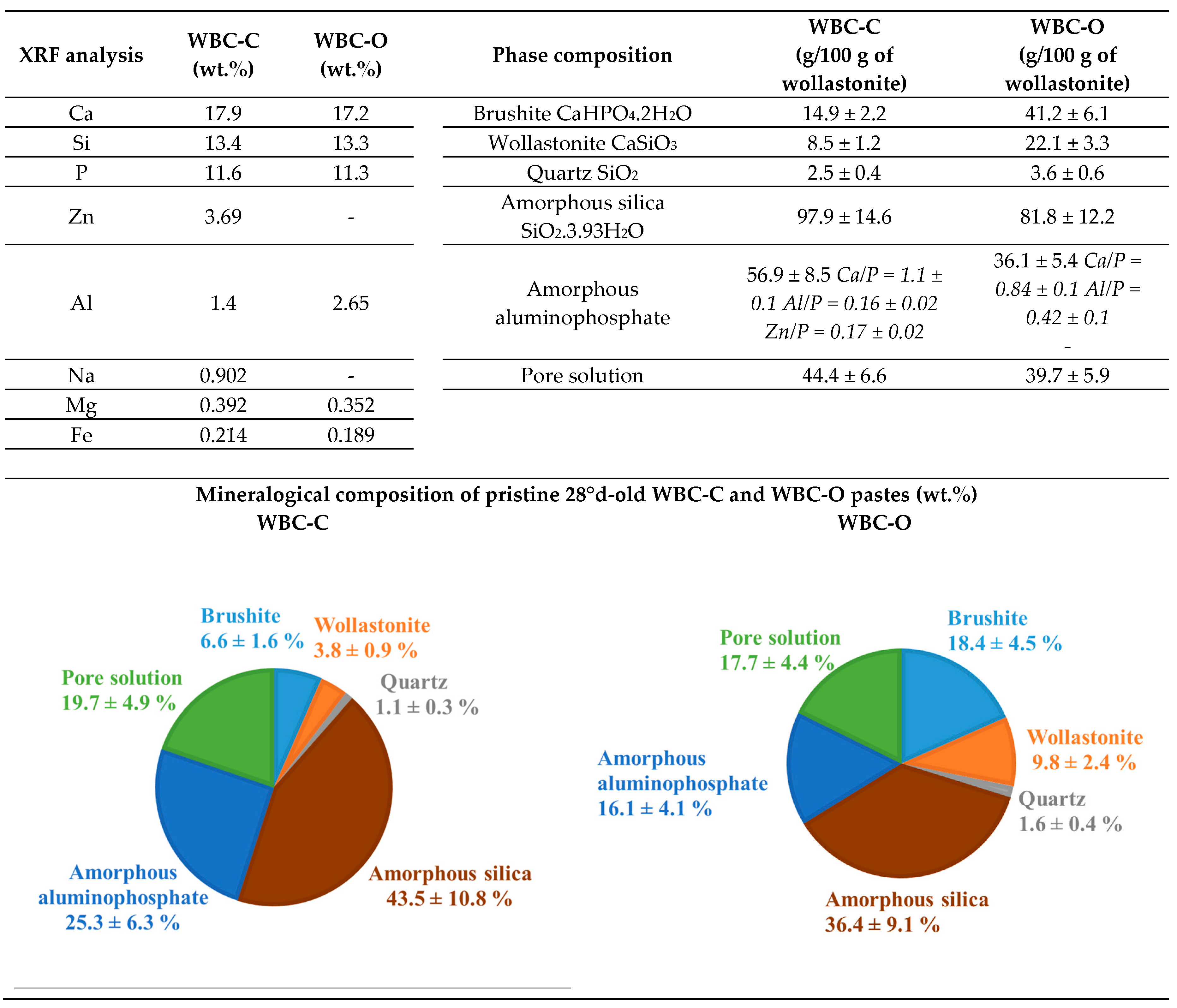

This latter was determined by XRF (Table 2). Then, knowing the mass of solid at 28 d, the mass of each crystalline phase was calculated using the Rietveld refinement results. The mass of amorphous silica ${(m}_{Si{O}_2\bullet 3.93H_{2}O})$was derived from mass balance equation (Eq. 7), considering SiO₂∙3.93H₂O stoichiometry established experimentally by Jdaini [46] in a 28 d-old WBC paste prepared with a mixing solution containing H₃PO₄ (9 mol.L^-1) and borax (0.05 mol.L^-1). Finally, the Ca/P, Zn/P and Al/P molar ratios in the amorphous phase were calculated using mass conservation (Table 2).

$$m_{Si{O}_2\bullet 3.93H_{2}O}=\left(m_{Si{O}_2}^{init}-m_{CaSi{O}_3}\times {\displaystyle \frac{M_{Si{O}_2}}{M_{CaSi{O}_3}}}\right)\left(1+3.93\times {\displaystyle \frac{M_{H_{2}O}}{M_{Si{O}_2}}}\right)$$

(7)

with $m_{CaSi{O}_3}$ the mass of wollastonite at 28 d, $M_{Si{O}_2}$, $M_{CaSi{O}_3}$ and $M_{H_{2}O}$ the molar weights of silica, wollastonite and water respectively.

The concentration of boron in the solid fraction of the cement paste could not be determined since lithium metaborate was used as a reagent for alkaline fusion. Its contribution to the mass balance was neglected in the calculations. However, it is worth noting that the mass fraction of boron in the cement pastes remained very low (0.54% for WBC-C and 0.18% for WBC-O).

Although referred as “brushite” cements, both pristine WBC-C and WBC-O paste samples were primarily composed of amorphous phases (aluminophosphate and hydrated silica). Brushite represented only 6.6 ± 1.6 wt.% of the 28 d-old WBC-C (including the pore solution), and 18.5± 4.5 wt.% of the 28 d-old WBC-O. The lower brushite content in WBC-C was consistent with the presence of zinc in the formulation, which is known to inhibit brushite formation [47]. The Zn/P and Al/P molar ratios of the aluminophosphate phase in WBC-C were consistent with those determined by Laniesse [47] on a similar material by SEM/EDX analyses (Zn/P = 0.15 ± 0.02, Al/P = 0.20 ± 0.02). A discrepancy was noticed concerning the Ca/P ratio (1.1 ± 0.1 in this study vs. 0.7 ± 0.05 in [47]). Nevertheless, Laniesse reported Ca/P values of 0.9 ± 0.1 for paste samples aged of 90 d, 180 d and 360 d, in better agreement with our finding.

WBC-O contained a higher amount of unreacted (residual) wollastonite (9.8 ± 2.4 wt.%) than WBC-C (3.8 ± 0.9 wt.%). This trend was also reported by Laniesse [47], who observed that increasing the initial aluminum concentration in the mixing solution resulted in a higher residual wollastonite content at 28 days. This effect can be attributed to the preparation protocol: aluminum is introduced as a metallic powder, which reacts with protons (Al + 3 H⁺ → Al³⁺ + 3/2 H₂) in the mixing solution. As more aluminum is added, the acidity decreases, which in turn slows down the dissolution of wollastonite.

Despite its lower initial aluminum content, WBC-C contained a larger fraction of amorphous aluminophosphate than WBC-O. This finding, also reported by Laniesse [47], may be related to the presence of zinc in WBC-C, which is absent in WBC-O. As previously discussed, Zn²⁺ is known to inhibit brushite crystallization [47], potentially promoting the formation of amorphous aluminophosphate instead. The Ca/P and Al/P molar ratios of the aluminophosphate phase in WBC-O were 0.84 ± 0.1 and 0.42 ± 0.1 respectively, consistent with values reported by Laniesse for similar WBC formulations [47].

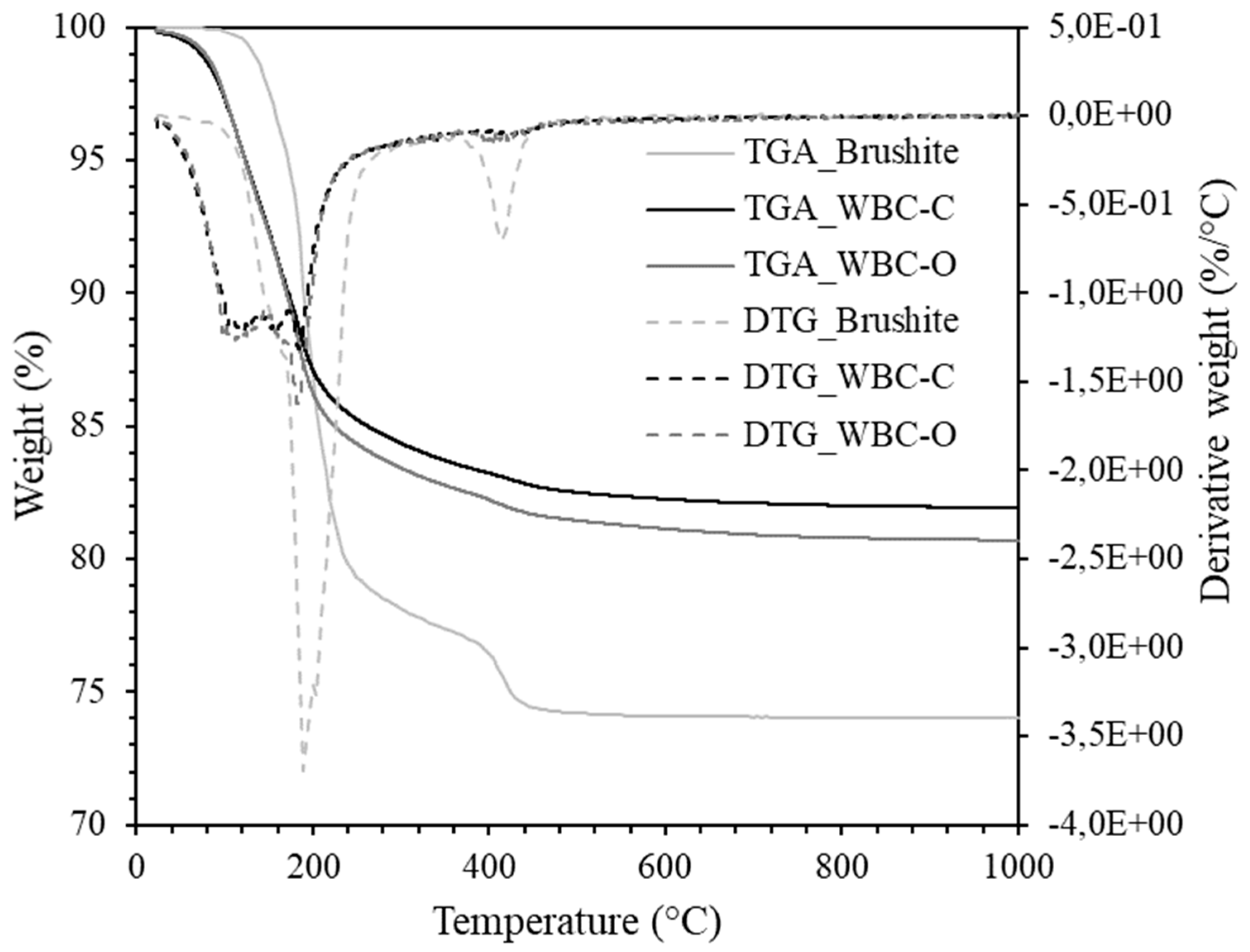

The thermograms and first derivatives of the pristine 28 d-old WBC-C and WBC-O paste samples are presented in Figure 3. For both materials, mass losses mainly occurred in three temperature ranges. In the 30°C – 170°C range, several thermal processes overlapped, including the evaporation of residual isopropanol (used for hydration stoppage) and physisorbed water, as well as the dehydration of amorphous silica (which occurs in the 45-100°C and 135°C-150°C intervals [48]) and aluminophosphate [18]. The weight loss observed between 170 and 220°C was mainly attributed to brushite dehydration [38,45]. A further weight loss between 400°C and 470°C resulted from the dehydroxylation and condensation of monetite (CaHPO₄) to form calcium pyrophosphate (Ca₂P₂O₇) [38]. Because this process did not overlap with other decomposition reactions, it was used to estimate the brushite content in the solid fraction of WBC-C and WBC-O pastes. The calculated values (12.8 ± 2.0 wt.% for WBC-C and 20.7 ± 2.7 wt.% for WBC-O) were in reasonable agreement with those derived from Rietveld refinement (8.2 ± 2.1 wt.% for WBC-C and 22.3 ± 5.6 wt.% for WBC-O). Both methods (TGA and XRD) consistently indicate a higher brushite content in the zinc-free WBC-O cement paste compared to WBC-C.

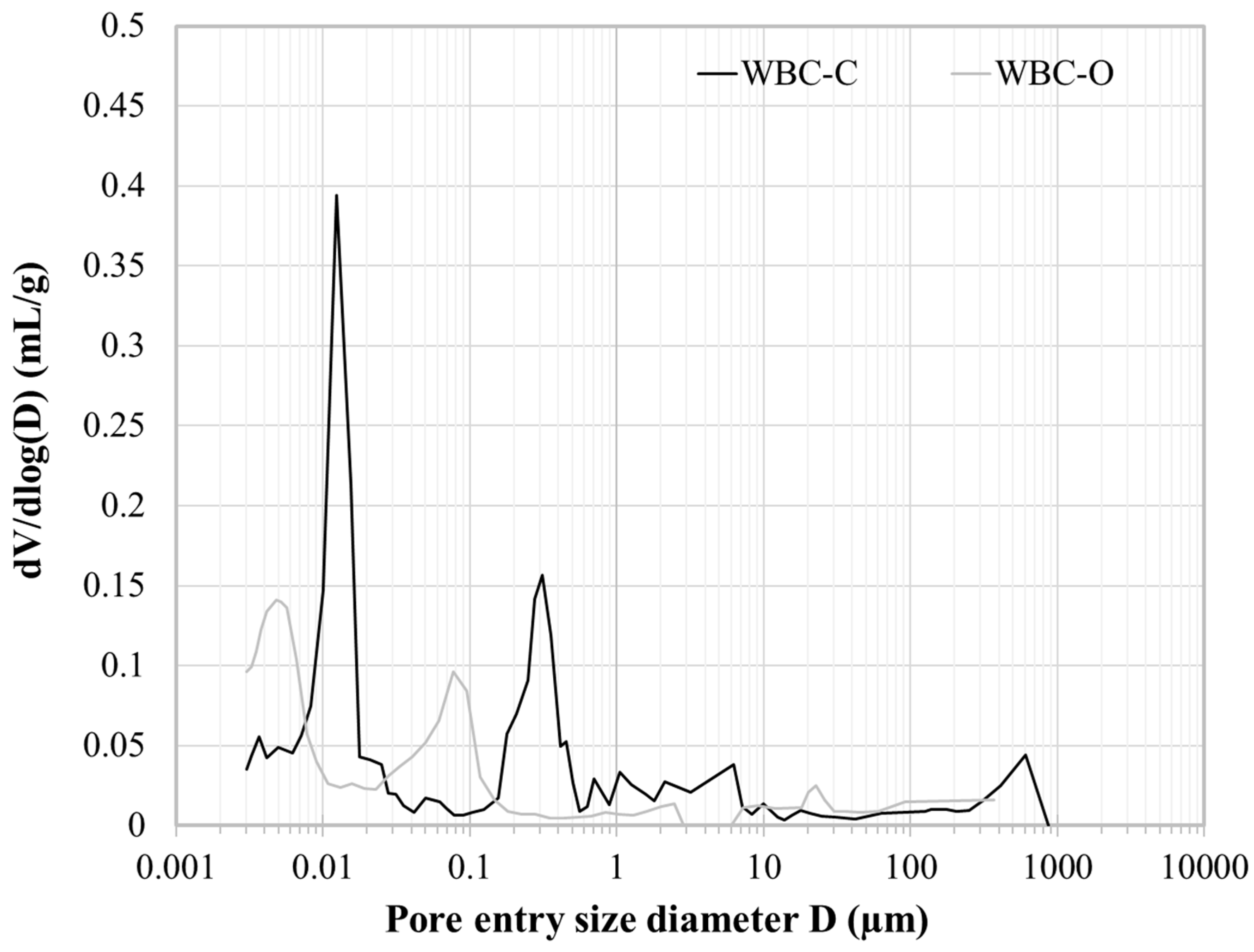

After 28 d of curing, WBC-C paste exhibited a total porosity accessible to water of 27.3 ± 0.7%, in good agreement with the total porosity accessible to mercury (28%). For comparison, Frizon et al. [36] reported a similar total porosity of 27% for a Portland cement paste with a water-to-cement (w/c) ratio of 0.35. The distribution of pore entry diameters (Figure 4) revealed that WBC-C paste presented two main modes centred at 0.012 µm and 0.3 µm, as well as a few macropores (mode at 600 µm) due to air entrapment, but also to the decarbonation of wollastonite in contact with the acidic mixing solution, which released carbon dioxide. In contrast, the WBC-O paste displayed its main pore size modes at finer diameters, around 0.005 µm and 0.08 µm. This refinement is consistent with the expected influence of aluminum on the pore structure. Laniesse et al. [18] showed that aluminum strongly influences the average diameter of mesopores: the higher its concentration, the smaller the pores. The average mesopore diameter of WBC-C (~107 Å at 90 d and ~80 Å at 180 d) was much larger than the values reported for WBC-O cement paste (~40 Å at 28 days) [18].

The porosity of WBC-C paste was less refined than that of a Portland cement paste at w/c = 0.35, where the peaks corresponding to capillary porosity and hydrate porosity were centred at 0.15 µm and 0.003 µm respectively [36].

3.2. Gamma Irradiation of WBC-C Paste

3.2.1. Hydrogen Gas Production

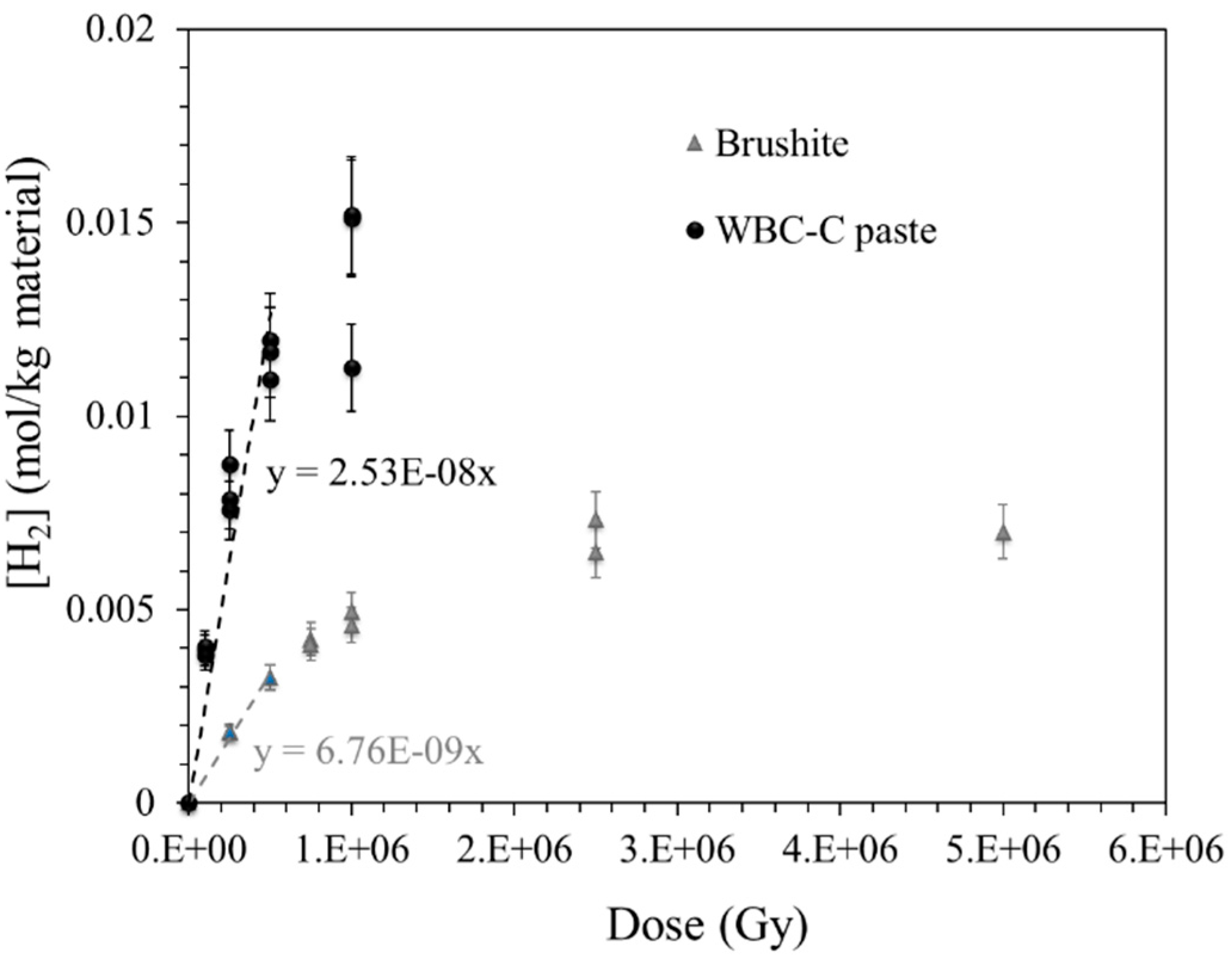

28 d-old WBC-C paste samples, as well as brushite, their main crystalline hydrate, were submitted to external gamma irradiation. Figure 5 plots the concentration of hydrogen gas released in the glass ampoules, normalized with respect to the weight of material, as a function of the integrated dose. In both cases, this concentration increased almost linearly up to 500 kGy, but tended to level off at higher doses, likely due to a recycling effect [27].

The radiolytic yields, G(H₂)_material, were given by the slopes of the regression lines in the 0 - 500 kGy dose range (Eq. 2) (Table 3 and Table 4). The yields were also normalized with respect to the total mass of water present in the materials following (Eq. 3).

The H₂ radiolytic yields measured for WBC paste were of the same order of magnitude as those reported for geopolymer [49], Portland [29,50] or calcium sulfoaluminate [29] cement pastes. In comparison, calcium aluminate and magnesium phosphate cement pastes had significantly lower yields [30,34]. It can be noted that G(H₂)_water measured for WBC-C paste (1.10 ± 0.11 x 10^-7 mol/J) was about three times higher than that reported for free water (0.44 ± 0.04 x 10^-7 mol/J [51]) (Table 3).

This could originate from the chemical composition of the pore solution, which contained a large panel of dissolved species (Al, Ca, P, Zn, B, Na) and a pH close to 6 [18]. Confinement of water within the cement matrix could also promote recombination of reductive species, leading to the formation of H_2, and / or an efficient energy transfer from the material to the neighboring -OH groups. Similar results were observed by Chupin on geopolymers [49], and were also reported in the case of C-S-H (Table 4) [52].

The H₂ radiolytic yield of brushite (CaHPO₄.2H₂O) given in Table 4 should be considered as indicative. Indeed, two main uncertainties were associated to its determination. (i) The sample was not dried before irradiation. Thus, uncontrolled sorption of water could lead to overestimate the H₂ production. (ii) The brushite sample purity was 95.8% only. Nevertheless, the G(H₂) value was of the same order of magnitude as those reported for portlandite, brucite and calcium monocarboaluminate hydrate (Table 4), but significantly higher than those reported for gibbsite and katoite, the two main hydrates of calcium aluminate cement that are known to exhibit good stability under irradiation [30].

If we assume, like Acher et al. [30], that the H₂ production yield of WBC paste is the sum of the yields of its hydrates and of free pore water, brushite, which accounts for 6.6 wt.% of the paste sample, would only contribute to 1.85% of the H₂ production. This suggests that water present in the amorphous hydrates and/or in the pore solution would be more prone to decompose into hydrogen gas under irradiation.

3.2.2. Mineralogy of Irradiated Materials

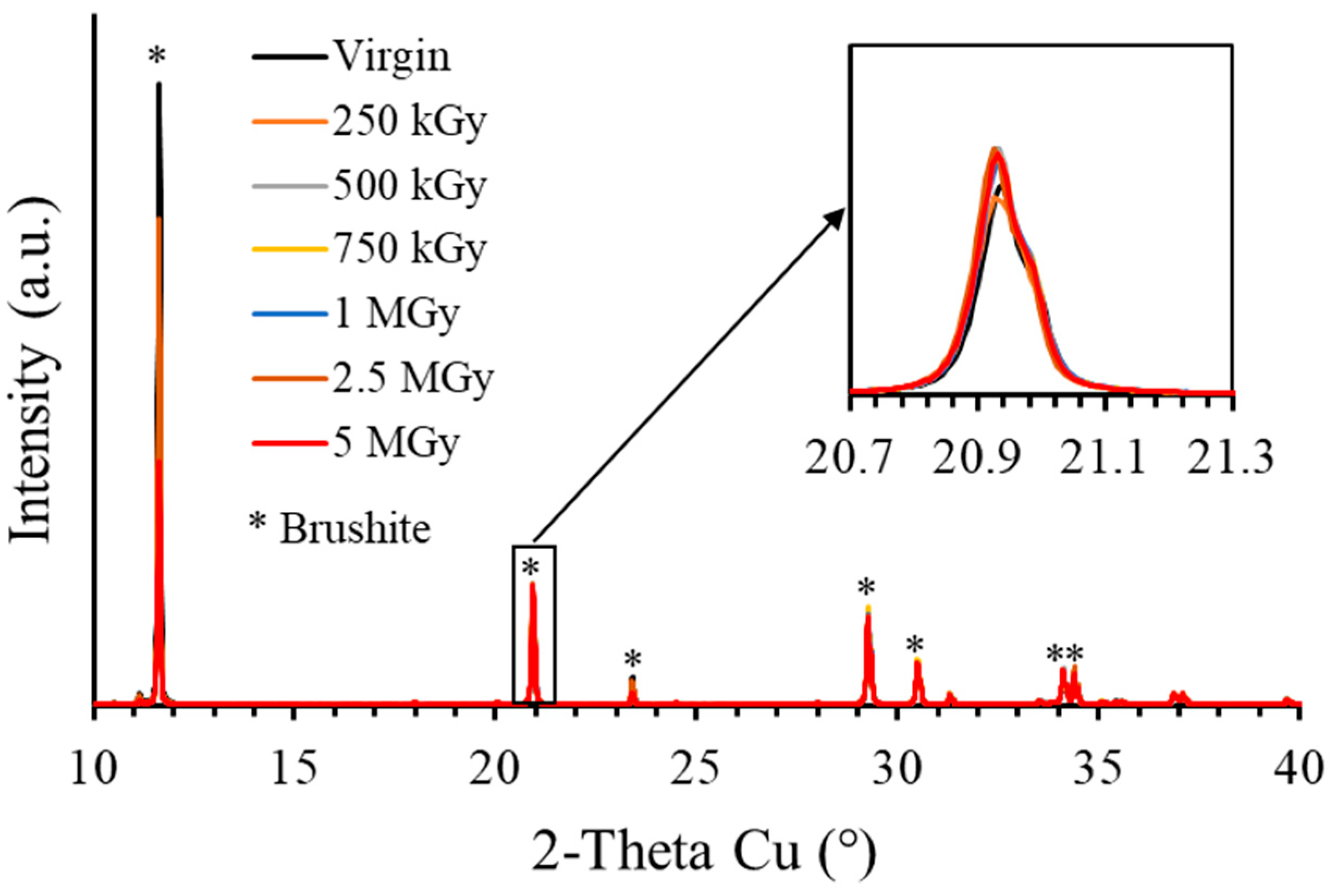

The mineralogy of WBC-C paste was characterized by XRD after irradiation at a dose of 1 MGy (Figure 2). Its X-ray diffraction pattern was very similar to that of the virgin sample. Both materials contained brushite, residual wollastonite and quartz. No new crystalline or amorphous phase that could produce a halo in the XRD pattern were observed. Moreover, the diffraction peaks did not show any broadening that could indicate the creation of defects in the crystalline phases induced by gamma irradiation. This was confirmed by investigating more specifically brushite, the main crystalline hydrate, after irradiation at doses ranging from 250 kGy to 5 MGy (Figure 6). No peak broadening was observed, nor the formation of new phases under irradiation. The crystal cell parameters of brushite were obtained from Rietveld refinement of the XRD patterns and showed no significant evolution with the integrated dose (Figure 7). The maximum relative volume change, ΔV/V = +0.073%, achieved by the unit cell of brushite under gamma irradiation (~ 1.2 MeV) at a dose of 5 MGy was approximately 3.57 times lower than the maximum expansion experienced by brushite under electron irradiation (2.5 MeV) at a much higher dose of 270 MGy, ΔV/V = +0.246% [55]. Amorphization of brushite into amorphous calcium pyrophosphate, which was observed under electron irradiation at doses higher than 270 MGy [33], was not observed in this study: the crystalline structure of brushite remained stable under gamma irradiation up to 5 MGy. Thus, WBC paste showed good stability under gamma irradiation in a range of doses relevant for LL- IL waste conditioning.

3.3. Leaching of Sr-Doped WBC Pastes

3.3.1. Characterization of the Leachates

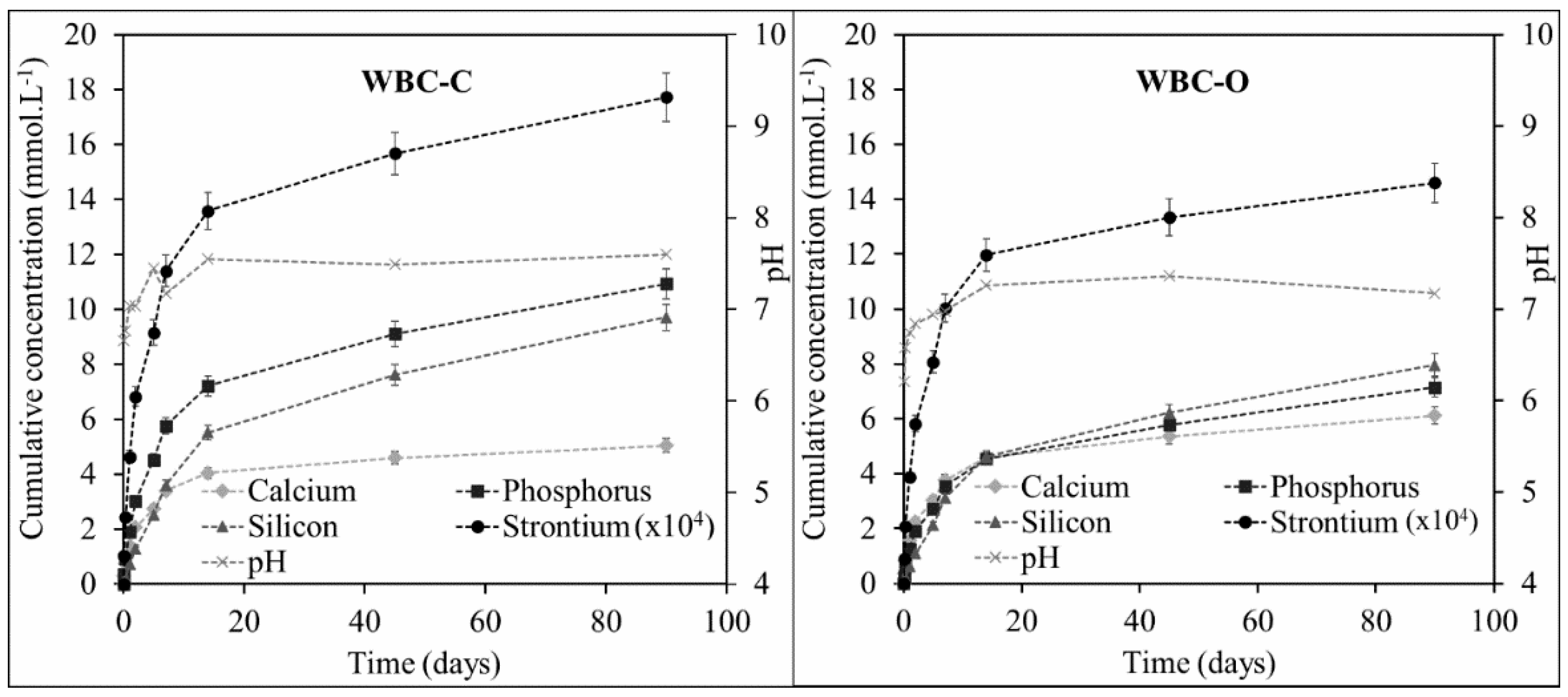

Leaching of Sr-doped WBC-C and WBC-O paste samples led to a release of Ca, Si, P and Sr into solution. This release was rapid in the first few days, and then gradually slowed down (Figure 8). Overall, slightly lower concentrations were measured for WBC-O compared to WBC-C, suggesting improved element retention in the optimized formulation. For both materials, the leached concentration of Sr was more than three orders of magnitude lower than those of Ca, Si and P. The Al and Zn concentrations always remained below the detection limit, indicating that the amorphous aluminophosphate phase exhibited better chemical durability than brushite under the investigated leaching conditions. The pH of the leachates, that was measured after each renewal, showed limited change over the test period, remaining within the range 6.5 - 7.5 (Figure 8).

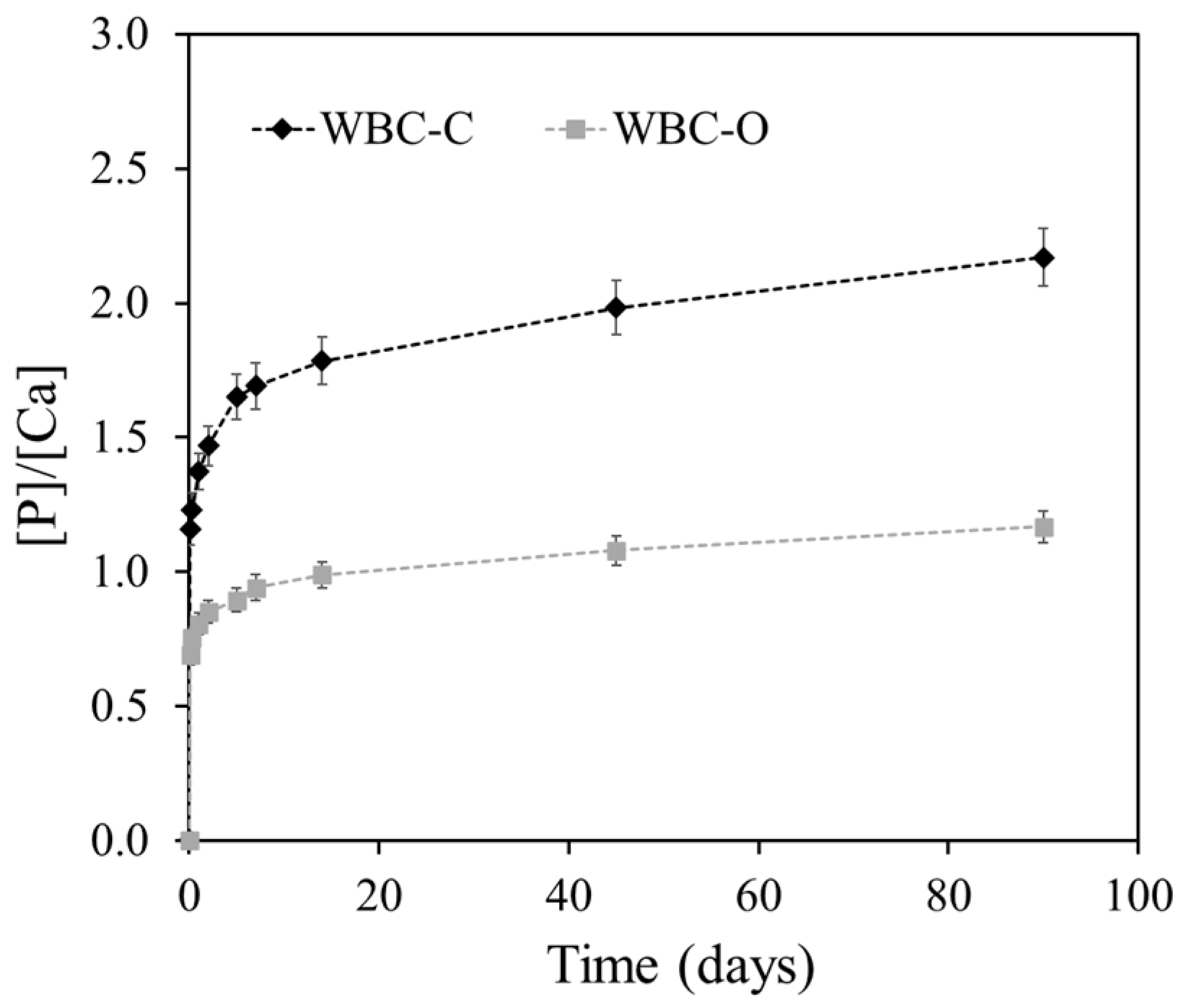

The evolution of the [P]/[Ca] concentration ratio in the leachates reveals distinct behaviors between the two cement pastes (Figure 9). For WBC-O, the ratio remained close to 1 throughout the test, suggesting a congruent dissolution of brushite (CaHPO₄·2H₂O). In contrast, WBC-C exhibited a progressive increase in the [P]/[Ca] ratio, that reached values close to 2 by the end of the test. This trend aligns with previous XRD results reported for the same material [24], which showed the precipitation of calcium-deficient hydroxyapatite (CDHA), Ca₉(HPO₄)(PO₄)₅(OH), on the exposed surface of leached WBC-C paste sample.

The cumulative fractions of strontium leached (CFL) from both Sr-doped WBC pastes over 90 d are presented in Figure 10. At the end of the test, CFL values reached (1.22 ± 0.06)×10^-3 for WBC-C and (9.96 ± 0.49)×10^-4 for WBC-O, corresponding to the leaching of approximately 0.12% and 0.10% of the initial Sr content in the paste samples, respectively. These results indicate slightly improved Sr retention in WBC-O compared to WBC-C. The obtained CFL values are more than one order of magnitude lower than the data reported for Portland cement paste, which exhibits a CFL of around 5×10^-2 at w/c = 0.5 [56].

3.3.2. Modelling the Leaching of Strontium from WBC Pastes: Evaluation of the Diffusion Coefficient and Leachability Index

According to the literature, leaching from cementitious materials typically occurs via three main processes: surface exchange phenomena, diffusion of dissolved species in the pore network, and matrix dissolution [57,58]. Côtê et al. [57] proposed a semi-empirical kinetic model that accounts for these mechanisms, incorporating contributions from surface wash-off (representing the “initial fraction leached”), diffusion and dissolution. The cumulative fraction leached (CFL) is described as a function of time using equation (Eq. 8).

$$CFL\left(t\right)={\displaystyle \frac{\sum A_n}{A_0}}=k_1\left(1-e^{-k_{2}t}\right)+k_3{t}^{1/2}+k_{4}t$$

(8)

To identify the dominant mechanisms controlling strontium leaching from WBC pastes, regression analysis was performed on the experimental CFL data using Eq. 8. Note that several assumptions were made to derive the leaching models leading to Eq. 8.

1. Time-invariant chemical environment: The leaching solution was periodically renewed to prevent accumulation of released species, and the pH remained relatively stable throughout the test.

2. Semi-infinite solid geometry: As defined by the ANS/ANSI 16.1 specification, the semi-infinite assumption is valid if the cumulative fraction leached is less than 20%. In this study, the cumulative fraction of strontium leached remained well below this threshold (~ 0.12% for WBC-C and 0.10% for WBC-O at the end of the test).

3. Zero surface concentration of strontium: The Sr concentrations in the leachates were consistently low (< 20 ppb), and the frequency of leachant renewal was high enough to support the boundary condition of zero surface concentration.

As a first approach, these assumptions were thus considered reasonably satisfied.

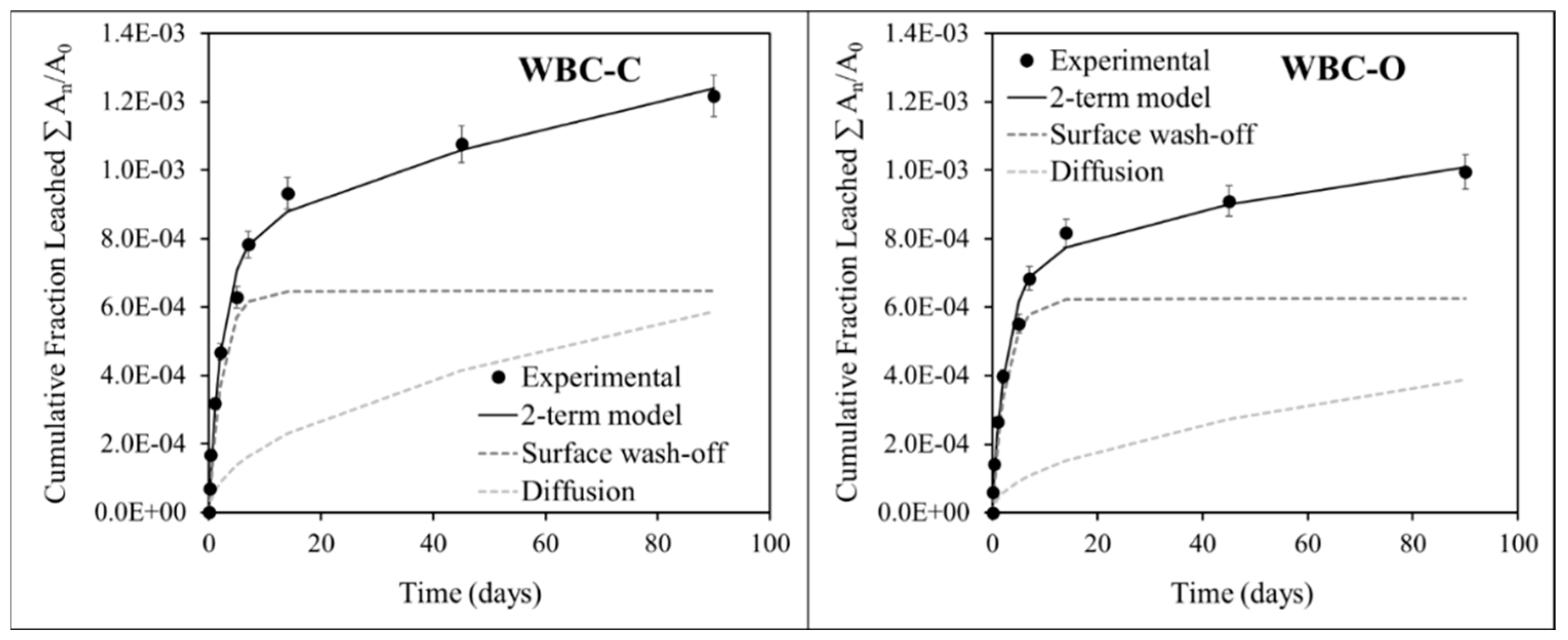

The optimized values of the model parameters are presented in Table 5 and Table 6 for Sr-doped WBC-C and Sr-doped WBC-O pastes, respectively. In both cases, model showed excellent agreement with the experimental data, with adjusted r² values of 0.992 for WBC-C and 0.991 for WBC-O. Notably, parameter k₄ associated with matrix dissolution, was not statistically different from zero at a 95% confidence level for either material. This means that leaching was governed primarily by surface wash-off and diffusion. As a result, the model was simplified by omitting the third term in Eq. 8 and parameters k₁, k₂ and k₃ were recalculated. Figure 10 compares the regression lines with the experimental CFL data for both paste samples. As expected, surface wash-off dominated during initial phase (day 1), followed by diffusion-controlled leaching over the remainder of the test.

The apparent diffusion coefficient D_a was derived from constant k₃ (Eq. 9) [57].

$$D_a=\pi {\left({\displaystyle \frac{k_{3}V}{2S}}\right)}^2$$

(9)

where S/V is the geometrical surface area-to-volume ratio of the specimen.

The WBC-O paste sample exhibited a lower Dₐ value ((2.1±1.2)×10⁻¹⁵ cm²·s⁻¹) compared to WBC-C ((4.8 ± 1.6)×10⁻¹⁵ cm²·s⁻¹) [24], indicating enhanced Sr retention in the optimized formulation. The improved performance is likely related to differences in the mineralogical assemblages of the two cement pastes, which result in distinct microstructural properties. As reported by Laniesse et al. [18], increasing the initial aluminum concentration in the mixing solution from 1.6 mol.L^-1 in WBC-C to 2.5 mol.L^-1 in WBC-O produces a denser matrix with finer mesoporosity. This refined microstructure slows down diffusion of Sr, thereby improving its retention in WBC-O.

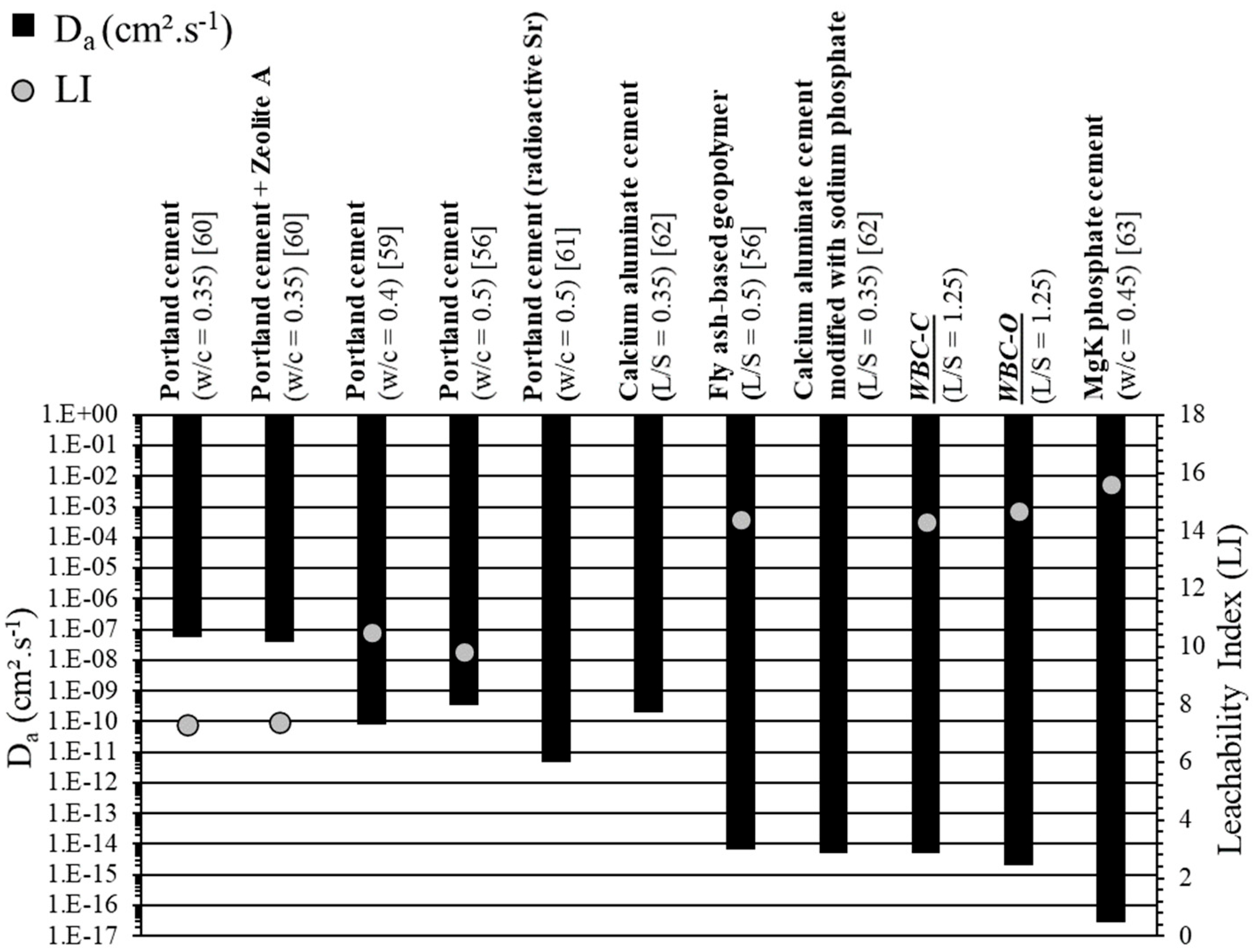

Both WBC-C and WBC-O exhibited apparent diffusion coefficients at least three orders of magnitude smaller than those reported for Portland cement-based materials, which typically range from 10^-8 to 10^-12 cm².s^-1, depending on the matrix formulation, testing protocol, and strontium concentration [56,59,60,61] (Figure 11). The Sr retention performance of the WBC pastes was comparable to those of calcium aluminate cement modified with sodium polyphosphate [62] and fly ash-based geopolymers [56]. The best retention, however, was reported for a magnesium potassium phosphate-based matrix [63].

According to ANSI specification, the leachability index (LI), defined by Eq. 10, can be used to evaluate the efficiency of radionuclide immobilization in the matrix.

$$LI=log\left({\displaystyle \frac{\beta }{D_a}}\right)$$

(10)

where β is a reference constant equal to 1 cm².s^-1.

The calculated LI values for the WBC pastes (LI = 14.3 ± 0.2 for WBC-C and LI = 14.7 ± 0.2 for WBC-O) largely exceeded the minimum threshold (LI = 6) recommended by the US Nuclear Regulatory Commission for radioactive waste disposal.

4. Conclusion

This study evaluated the potential of Wollastonite-based Brushite Cements (WBCs) for the conditioning of low- or intermediate-level radioactive wastes contaminated with strontium-90. Two formulations were investigated: a commercial reference (WBC-C) and an optimized binder (WBC-O). After 28 days of curing under endogenous conditions, both pastes primarily consisted of amorphous phases, including hydrated silica and an aluminophosphate phase, along with crystalline brushite, residual wollastonite, and quartz.

The stability of WBC-C paste was first investigated under γ-irradiation. Up to a cumulative dose of 1 MGy, irradiation mainly induced water radiolysis, with dihydrogen production rates comparable to those reported for Portland cement-based and geopolymer matrices. Complementary experiments on brushite, the main crystalline hydrate in WBC paste, confirmed its structural stability up to 5 MGy and indicated a radiolytic yield of H₂ close to that obtained for portlandite (Ca(OH)₂), brucite (Mg(OH)₂) and calcium monocarboaluminate (Ca₄Al₂(CO₃)(OH)₁₂.5H₂O).

The influence of paste mineralogy on Sr retention was also explored. WBC-O, formulated with a higher initial aluminum concentration (2.5 mol.L⁻¹vs. 1.6 mol.L⁻¹ in WBC-C), showed improved performance, with a diffusion coefficient nearly half that of WBC-C. This enhancement is attributed to finer mesoporosity resulting from higher aluminum content, which slows down diffusion of strontium in the pore network. The leaching of strontium from both WBC pastes was well described using the semi-empirical model of Côté and Constable [57]. Two dominant mechanisms were pointed out: surface wash-off (early stage) and diffusion (later age).

Overall, these results suggest that WBCs may represent a promising option for the immobilization of Sr-containing radioactive waste. Future research should consider assessing their long-term leaching performance under repository-relevant alkaline conditions, as concrete in repository environments may generate high-pH plumes upon resaturation, and further elucidating the mechanisms controlling strontium retention within WBC matrices.
