Desmin-p.L112Q Disturbs the Filament Formation and Is a Likely-Pathogenic Variant Associated with Dilated Cardiomyopathy

1. Introduction

We have read with great interest the manuscript ‘Genetic Profiling and Phenotype Spectrum in a Chinese Cohort of Pediatric Cardiomyopathy Patients’ [1]. The authors have genetically characterized a cohort of 55 pediatric Chinese patients with dilated, hypertrophic, restrictive and arrhythmogenic right ventricular cardiomyopathy [1]. One patient with dilated cardiomyopathy (DCM) diagnosed at the age 13 carried the genetic variant DES-p.L112Q (c.335T>A) [1], which is localized in a conserved hotspot region within the 1A domain of desmin [2]. The DES gene (OMIM, *125660) encodes the muscle specific intermediate filament protein desmin [3]. Desmin filaments connect different cellular substructures like the cardiac desmosomes, costameres and Z-disc [4,5]. Therefore, desmin is highly relevant for the structural integrity of cardiomyocytes [6].

It is known, that several pathogenic desmin mutations localized in close proximity to DES-p.L112Q disturb the filament assembly leading to aberrant cytoplasmic desmin aggregates [7,8,9,10,11,12,13]. Since the authors have not reported any functional data about DES-p.L112Q, we addressed here, if the desmin filament formation is affected by this novel mutation.

2. Materials and Methods

2.1. Plasmid Generation

The pEYFP-N1-DES plasmid has been previously described [10]. The mutation DES-p.L112Q was inserted into this expression plasmid using the Q5 Site Directed Mutagenesis Kit (New England Biolabs, Ipswich, USA) in combination with the two oligonucleotides 5’-GAAGGTGGAGCAGCAGGAGCTCAATG-3’ and 5’ TCGTTGGTGCGCGTGGTCAG-3’ (Microsynth, Balgach, CH). Plasmids were prepared using the GeneJET Miniprep Kit according to the manufacturer’s instructions (Thermo Fisher, Waltham, USA) and were verified by Sanger sequencing (Macrogen, Amsterdam, Netherlands).

2.2. Cell Culture and Transfection

SW-13 and H9c2 cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% fetal calf serum under standard conditions (37 °C, 5% CO₂). Induced pluripotent stem cells (iPSCs, NP00040-8, UKKi011-A, https://ebisc.org/UKKi011-A/) were kindly provided by Dr. Tomo Šarić (University of Cologne, Germany). The iPSCs were cultured in Essential 8 Medium (Thermo Fisher Scientific) on vitronectin-coated cell culture plates. One day before transfection, the cells were transferred to µ-Slide 8-Well chambers (ibidi, Gräfelfing, Germany). Transfections were performed using Lipofectamin 3000 according to the manufacturer’s instructions (Thermo Fisher).

2.3. Differentiation of Induced Pluripotent Stem Cells into Cardiomyocytes

iPSCs were differentiated into cardiomyocytes by modulation of the Wnt-pathway as previously described in detail [14]. For metabolic selection, iPSC-derived cardiomyocytes were selected with glucose-free RPMI 1640 Medium (Thermo Fisher Scientific) supplemented with 4 mM sodium-lactate for five days. iPSC-derived cardiomyocytes were cultured for maturation more than 100 days in cardio culture medium as previously described [14].

2.4. Fixation and Staining

Cells were washed with phosphate-buffered saline (PBS). Afterwards, the cells were fixated with 4% Histofix (Carl Roth, Karlsruhe, Germany) at room temperature (RT) for 15 min. After washing with PBS, the cells were permeabilized with 0.1% Triton-X-100 (solved in PBS) for 15 min at RT. F-actin and the nuclei were stained in SW-13 and H9c2 cells using phalloidin conjugated to Texas-Red (1:400, 40 min, RT, Thermo Fisher Scientific) and 4′,6-diamidino-2-phenylindole (1 µg/mL, 5 min, RT). iPSC-derived cardiomyocytes were incubated over night with with monoclonal mouse anti-α-actinin-2 antibodies (1:200, A7732, Sigma Aldrich, Burlington, USA) in combination with secondary polyclonal goat anti-mouse immunoglobulin G antibodies conjugated with Alexa Fluor 568 (1:200, A11004, Thermo Fisher Scientific).

2.5. Confocal Microscopy

Confocal microscopy in combination with deconvolution analysis was performed as previously described in detail [15]. 3D stacks were generated and are shown as maximum intensity projections.

2.6. Molecular Desmin Model

Recently, the molecular structure of the highly homologous intermediate filament protein vimentin has been previously published [16]. We used this structure to model the desmin anti-parallel tetramer structure using the SWISS-MODELL server (https://swissmodel.expasy.org/) [17]. The tetrameric desmin structure was visualized using PyMOL Molecular Graphics Systems (Schrödinger LLC, New York, USA).

2.7. Statistical Analysis

Cell transfections were performed in quadruplicate and filaments or aggregates were manually counted. GraphPad Prism 10 software (GraphPad Software, Boston, USA) was used for generation of pie or bar charts. All data are shown as mean values ± standard deviation. The non-parametric Mann-Whitney test was used for statistical analysis of aggregate and filament formation in transfected cells.

3. Results

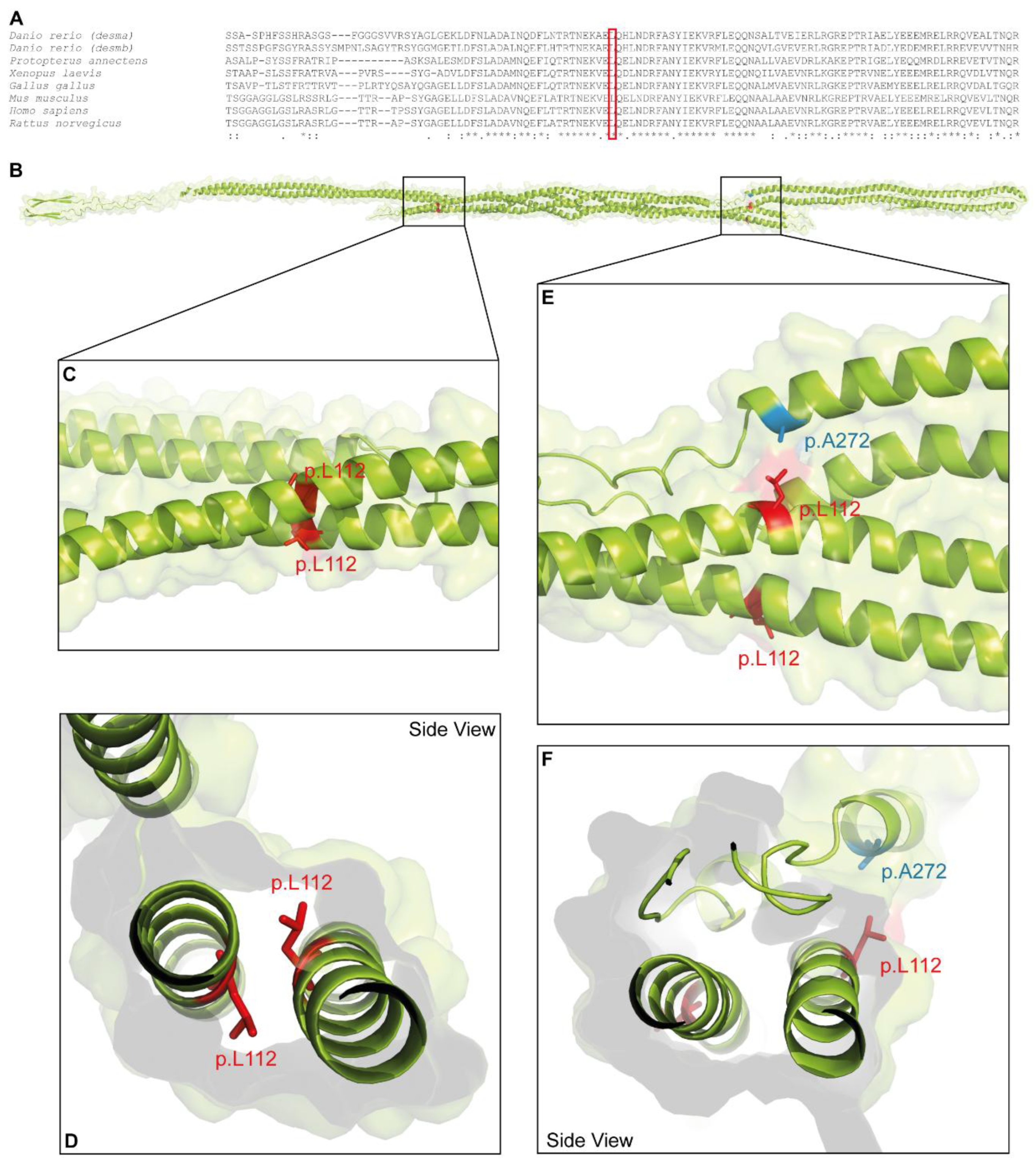

DES-p.L112Q is localized in a highly conserved stretch at the N-terminus of the 1A domain (Figure 1A). Leucine 112 is a hydrophobic amino acid contributing to the coiled-coil formation between the α-helices of the parallel dimer (Figure 1B-D) and mediates presumably hydrophobic interactions with alanine 272 of the antiparallel dimer (Figure 1E-F). Confocal microscopy revealed independent of the used cell type a filament assembly defect of desmin-p.L112Q. We used SW-13 cells, since this cell line does not express endogenous desmin or any other cytoplasmic intermediate filament proteins [18]. H9c2 and iPSC-derived cardiomyocytes express in contrast endogenous desmin [19]. Desmin-p.L112Q aggregates within the cytoplasm (Figure 2) indicating that the hydrophobic interactions within the dimer and tetramer structure of desmin may be disturbed by introducing a polar glutamine residue at position 112. In contrast, wild-type desmin forms filamentous structures of different size and shape (Figure 2).

4. Discussion

Recently, Xing et al. identified the novel variant DES-p.L112Q in a pediatric patient with DCM [1]. The authors classified this novel desmin variant according to the guidelines of the American College of Genetics and Genomics (ACMG) [20] as a variant of unknown significance (VUS) fulfilling the PM6, PM2 and PP3 criteria [1]. At the same amino acid position, a different likely pathogenic variant (p.L112R) cause an aberrant cytoplasmic desmin aggregation [2]. Our functional analysis showed a detrimental defect of desmin-p.L112Q similar to p.L112R. Mutant desmin forms aberrant cytoplasmic aggregates. Recently, we validated the filament assembly assay according the detailed guidelines of the ACMG [21] including twelve different positive and negative controls [15]. Therefore, functional studies indicate an additional strong criterion for the pathogenicity of DES-p.L112Q.

5. Conclusions

Here, we report that desmin-p.L112Q cause a filament assembly defect similar to other pathogenic DES mutations. Therefore, our functional data complement the data of Xing et al. [1] and support the re-classification of DES-p.L112Q as a likely pathogenic variant rather than a VUS. These findings may be relevant for clinical and genetic counselling of further patients carrying similar DES variants.
