A Multi-Layered AI-Driven E-Proctoring System Using Wearable EEG and Secure IoT Integration for Cheating Prevention and Cybersecurity in Online Exams

1. Introduction

The rapid shift to online learning and assessments, accelerated by the COVID-19 pandemic, has underscored the critical need for robust e-proctoring systems [1,2,3,4]. Ensuring academic integrity in remote settings presents unique challenges, including preventing cheating and securing sensitive data from cybersecurity threats [5,6,7]. Traditional proctoring methods, reliant on physical presence, are inadequate for online environments. Consequently, research efforts have focused on developing innovative e-proctoring solutions that leverage advanced technologies to address these challenges [8,9,10].

Relevant research on e-proctoring systems can be categorized into three key themes: system design, cheating prevention and detection, and security risks.

1. System Design: Existing research on e-proctoring system design explores various approaches to monitor exam environments and enhance academic integrity. Atoum et al. [11] developed a multimedia analytics system using webcams and microphones to detect cheating behaviors through continuous analysis of key behavior cues, including gaze estimation and phone detection. Attallah and Ilagure [12] investigated the feasibility of integrating wearable devices, such as Google Glass and Muse headbands, into e-proctoring systems to improve monitoring capabilities. Sabbah [13] proposed two e-exam models, one with human proctors and another utilizing continuous bimodal biometric authentication (fingerprints and keystrokes) for increased automation and scalability. Hietanen [14] focused on the security and scalability of various e-exam approaches, proposing a threat model based on the STRIDE methodology and outlining mitigation strategies for potential threats. Muzaffar et al. [15] conducted a comprehensive review of 53 research papers, identifying key features, tools, and algorithms for developing e-exam systems, emphasizing the importance of considering infrastructure and cost factors in system selection.

2. Cheating Prevention and Detection: Researchers have proposed various methods to counter cheating in online exams. Karim and Shukur [16] conducted a systematic review of user authentication methods, highlighting the advantages of biometric-based methods in preventing impersonation. Dawson [17] examined cheating vulnerabilities in the Bring-Your-Own-Device (BYOD) scenario, identifying five hacking techniques and suggesting mitigation strategies. Bawarith [18] developed an e-exam management system incorporating fingerprint authentication and eye tracking to detect cheating behaviors during the exam session. Karabaliev et al. [19] compared the security features of Safe Exam Browser (SEB) and LockDown Browser (LDB), recommending SEB for its stricter restrictions and Moodle integration. Tiong and Lee [20] proposed using machine learning algorithms, including DNN, LSTM, and Dense LSTM, to detect cheating based on IP address analysis and behavioral patterns.

3. Security Risks: Addressing security risks is crucial for ensuring the reliability and integrity of e-proctoring systems. Foster [21] identified privacy and cheating as the primary security concerns in online exams, recommending strategies such as test file protection and controlled browser environments to prevent fraud. Bandara et al. [22] proposed countermeasures for specific security risks, including brute force attacks, ARP poisoning, and cross-site scripting (XSS). Frankl et al. [23] described a secure exam environment at AAU, employing a LAN network, restricted operating systems, firewalls, and SEB to prevent unauthorized access and cheating. Slusky [5] explored cybersecurity vulnerabilities in both hybrid and fully automated e-proctoring systems, evaluating various authentication methods, including biometrics and blockchain technology. The study recommended technical controls such as lockdown browsers, endpoint security, VPNs, and VMs to mitigate risks associated with remote proctoring.

In addition to the above, research on EEG signal analysis has shown its potential for both cheating detection and user authentication. Koelstra et al. [24] developed the DEAP dataset for analyzing human affective states using EEG signals, demonstrating the feasibility of using EEG for emotion recognition. Rakhmatulin [25] employed deep learning and machine learning algorithms to classify alcoholism based on EEG data, highlighting the potential of EEG analysis for biometric identification.

This review of existing research reveals a growing body of work focused on developing secure and effective e-proctoring solutions. However, existing systems often face challenges in balancing scalability, security, and user privacy. This paper presents a novel e-proctoring system that integrates IoT devices, wearable technology, and AI algorithms with the Moodle LMS to create a comprehensive and secure platform for online examinations. The system combines cheating prevention and detection mechanisms, employing a specially designed examination device, monitoring cameras, and a Muse2 headband for EEG signal analysis. A robust multi-layered security model provides protection against potential cyber-attacks, ensuring data confidentiality, integrity, and availability.

2. System Architecture

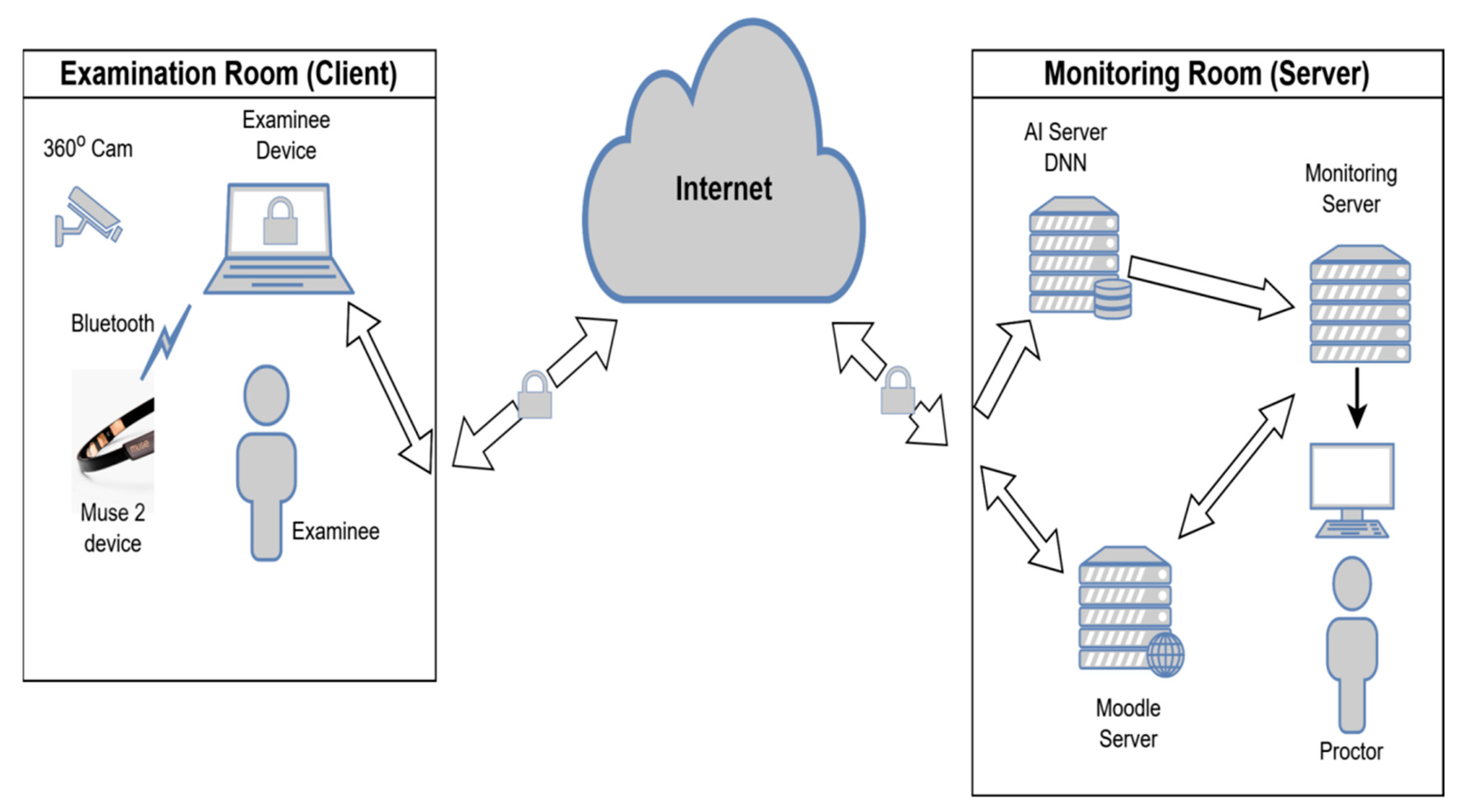

The proposed e-proctoring system, as illustrated in Figure 1, comprises two main units: the Examination Room and the Monitoring and Control Room, connected via the Internet.

2.1. Examination Room

The Examination Room environment includes the following components:

1. Monitoring Cameras: Two webcams are deployed for visual surveillance. The first webcam, integrated into the examination device, focuses on facial recognition and detecting suspicious head movements or facial expressions. The second webcam, a 360° camera, monitors the exam room environment to detect unauthorized individuals, devices, or resources. To conserve network bandwidth, video streams are transmitted randomly throughout the exam session and when the AI server flags suspicious activity.

2. Examination Device: A specially designed, locked, and restricted device (Figure 1) is provided solely for exam use. This device is configured during the registration phase with the SEB browser, which restricts access to internal device resources, external websites, unauthorized programs, and keyboard shortcuts, minimizing opportunities for cheating. The device remains active throughout the exam session to ensure continuous monitoring and prevent tampering.

Muse2 Headband: A wearable headband device records the examinee's EEG signal during the exam. This physiological data provides valuable insights into the examinee's cognitive state and is used for both user authentication and cheating detection.

2.2. Monitoring and Control Room

The Monitoring and Control Room houses the following servers:

1. AI Server: This server plays a crucial role in automating the proctoring process. It employs various AI techniques, including facial recognition, object detection, voice detection, and EEG signal analysis, to identify potential cheating attempts. The server continuously analyzes data from the monitoring cameras and the Muse2 headband, flagging suspicious activity for further review by human proctors.

2. LMS Server (Moodle): The Moodle platform serves as the LMS server, managing exam distribution, answer submission, and automated grading. Moodle's integration with the SEB browser provides an additional layer of security by restricting access to unauthorized resources during the exam session. Furthermore, the platform randomizes question sequences to minimize collusion among examinees.

3. Monitoring Server: This central server orchestrates the proctoring process, controlling communication between the AI server and the Moodle server. It grants access to exam questions upon successful user and device authentication, monitors the progress of each examinee, and alerts human proctors when suspicious activity is detected. The Monitoring Server serves as the central hub for controlling and overseeing the entire examination process.

3. System Operation

The proposed e-proctoring system follows a two-phase operational procedure:

3.1. Registration Phase

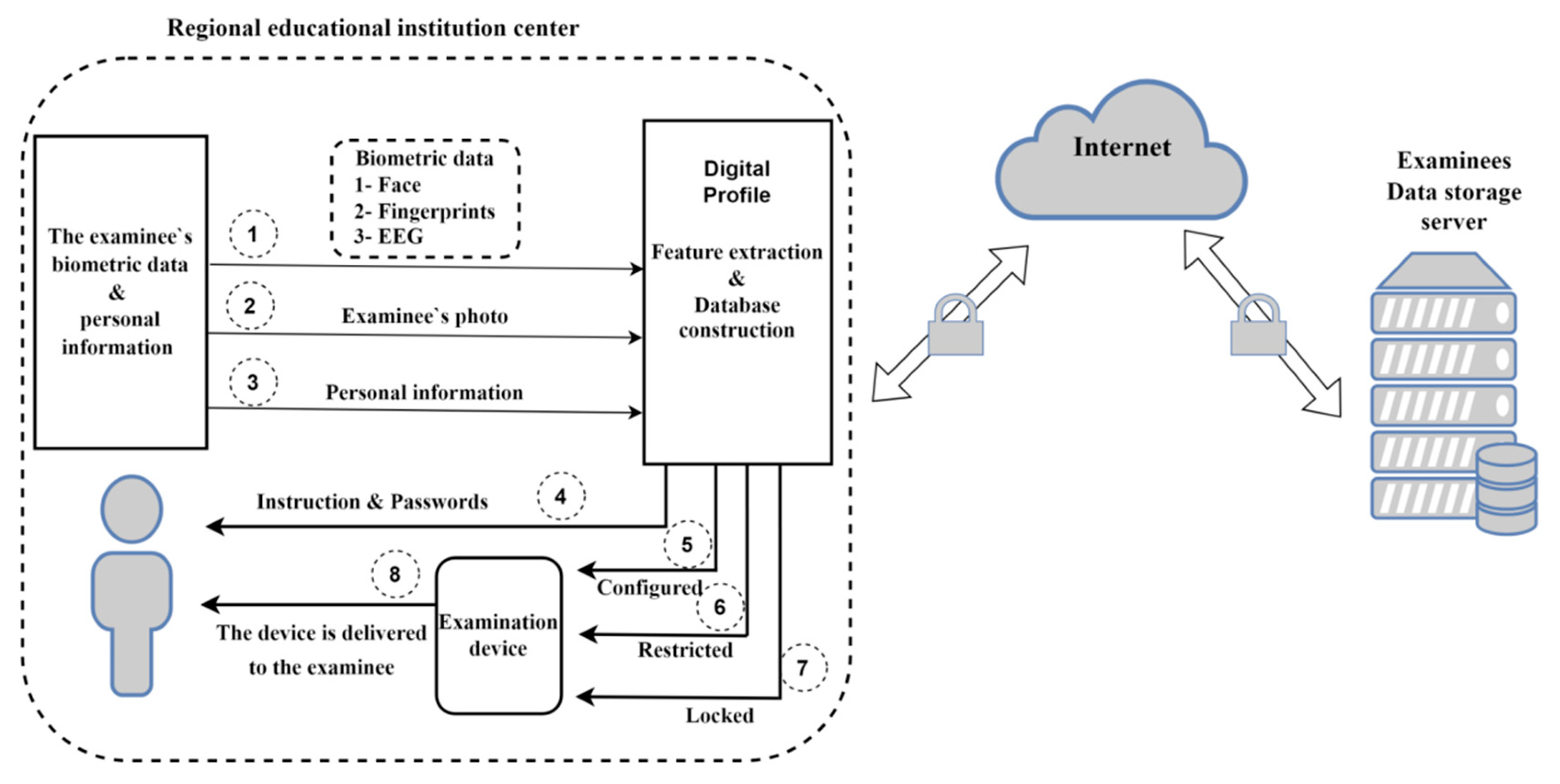

During the registration phase (Figure 2), the candidate creates an electronic profile by providing their name, photo, and biometric EEG data. The examination device is configured with the necessary SEB settings and passwords, and its unique device ID is recorded. The device is then locked and restricted, with instructions for the candidate to maintain its activation until the completion of the exam. This ensures that the device remains under continuous system control, minimizing the risk of tampering or unauthorized modifications.

3.2. Examination Session Phase

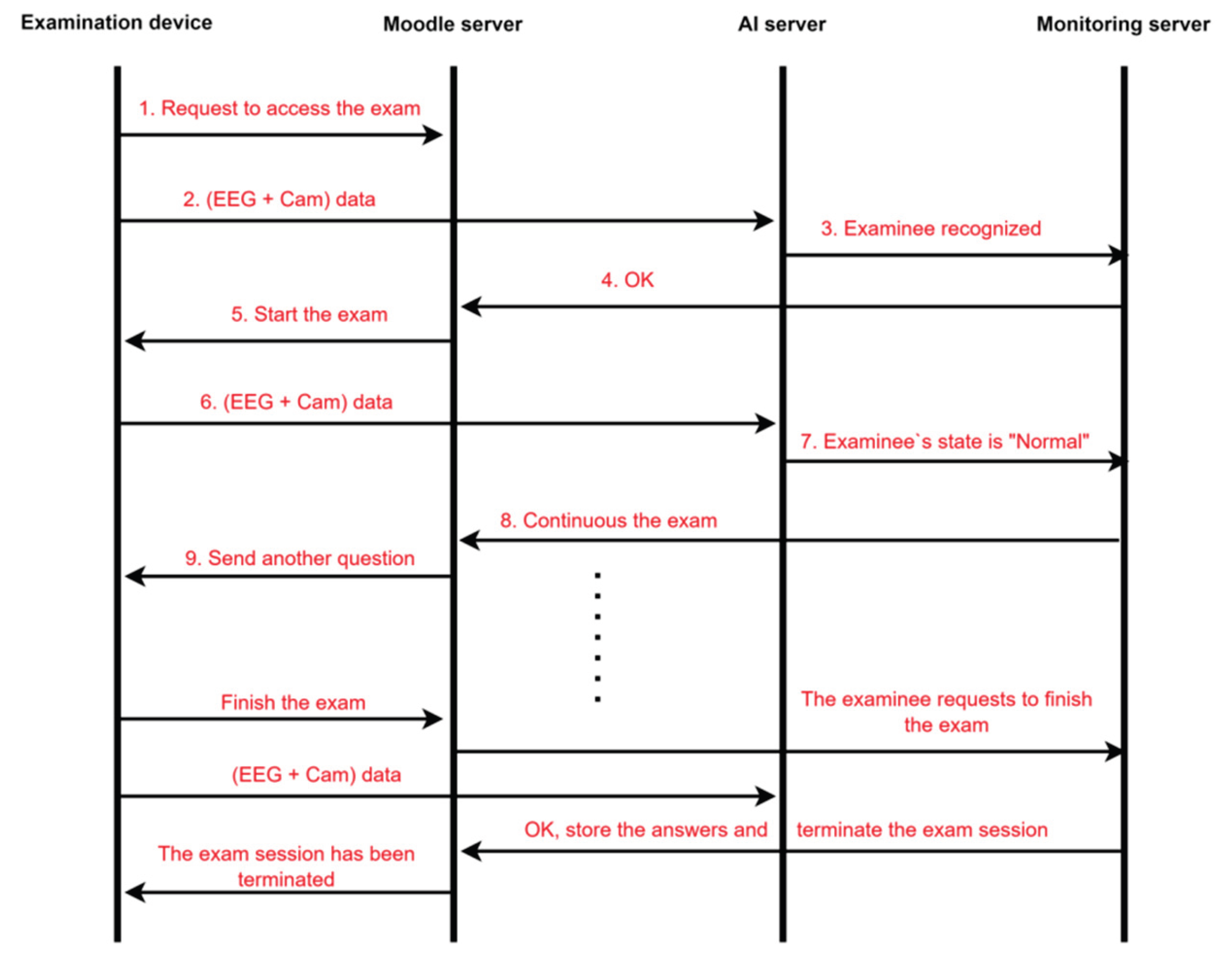

The examination session phase (Figure 3) involves the following steps:

1. Examinee Authentication and Instructions: Upon logging in, the examinee's EEG signal, camera data, and device information are transmitted to the AI server for authentication. The AI server verifies the user's identity based on the recorded EEG signal and facial recognition, ensuring that the registered individual is attempting the exam. Concurrently, the AI server authenticates the examination device using its unique ID and pre-configured SEB settings. After successful authentication, the Monitoring Server grants the examinee access to the exam questions.

2. Questions Answering: The examinee begins answering the exam questions. To further mitigate cheating, only one question is displayed at a time, and entity authentication is performed for each question request. The AI server continues to analyze the EEG signal for potential signs of cheating, while video streams are sent randomly and upon detection of suspicious activity.

3. Exam End Confirmation: To prevent accidental or premature termination, the exam is not officially concluded until the examinee confirms their intention to finish. Once confirmed, the answers are permanently stored and the exam session is closed.

4. Cheating Prevention and Detection Mechanisms

The proposed e-proctoring system employs a dual strategy to counter cheating:

4.1. Cheating Prevention

The integration of the SEB browser with the Moodle platform forms the cornerstone of the cheating prevention mechanism. SEB restricts the exam environment by limiting access to unauthorized resources, disabling keyboard shortcuts, and preventing the use of other applications during the exam session.

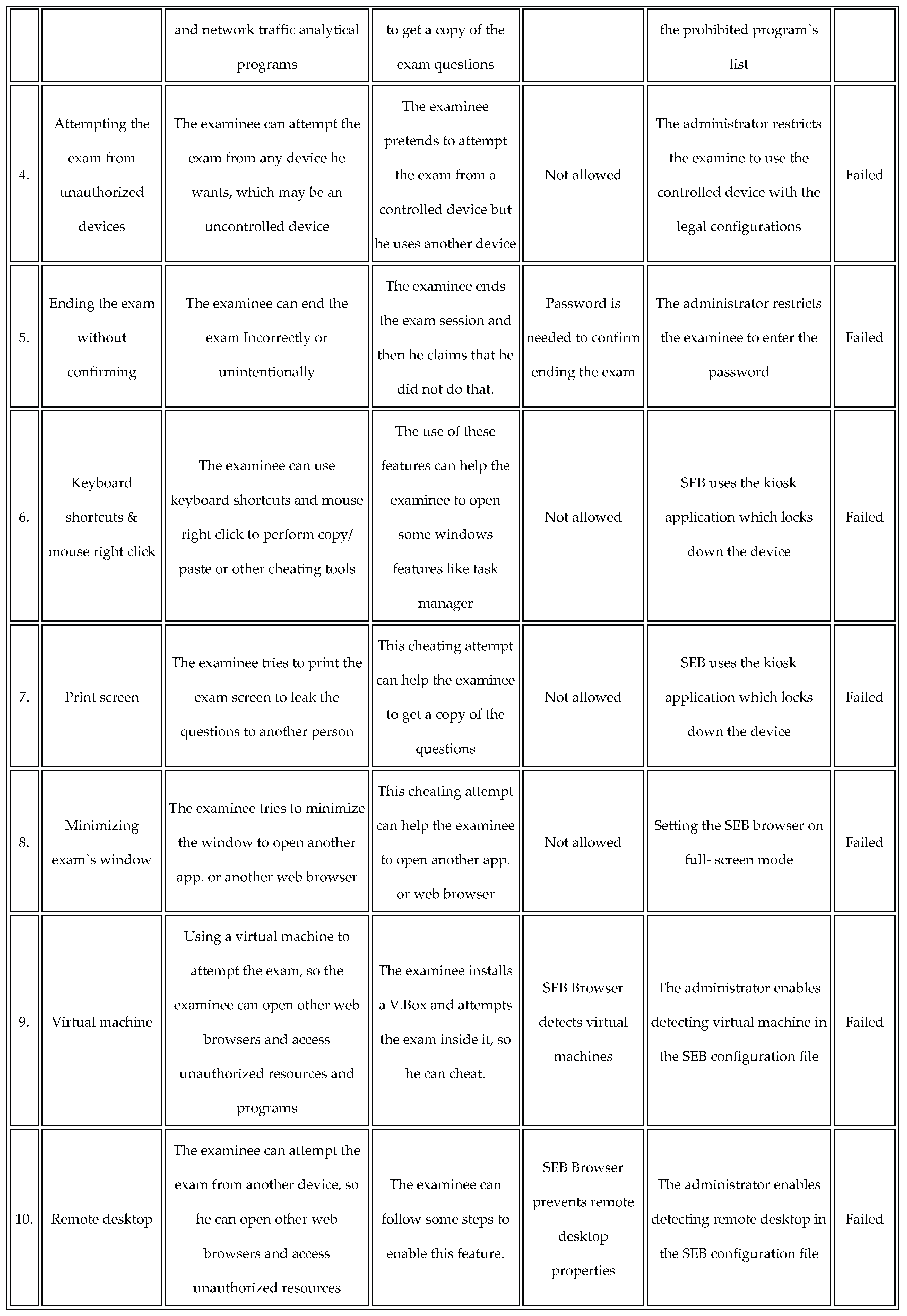

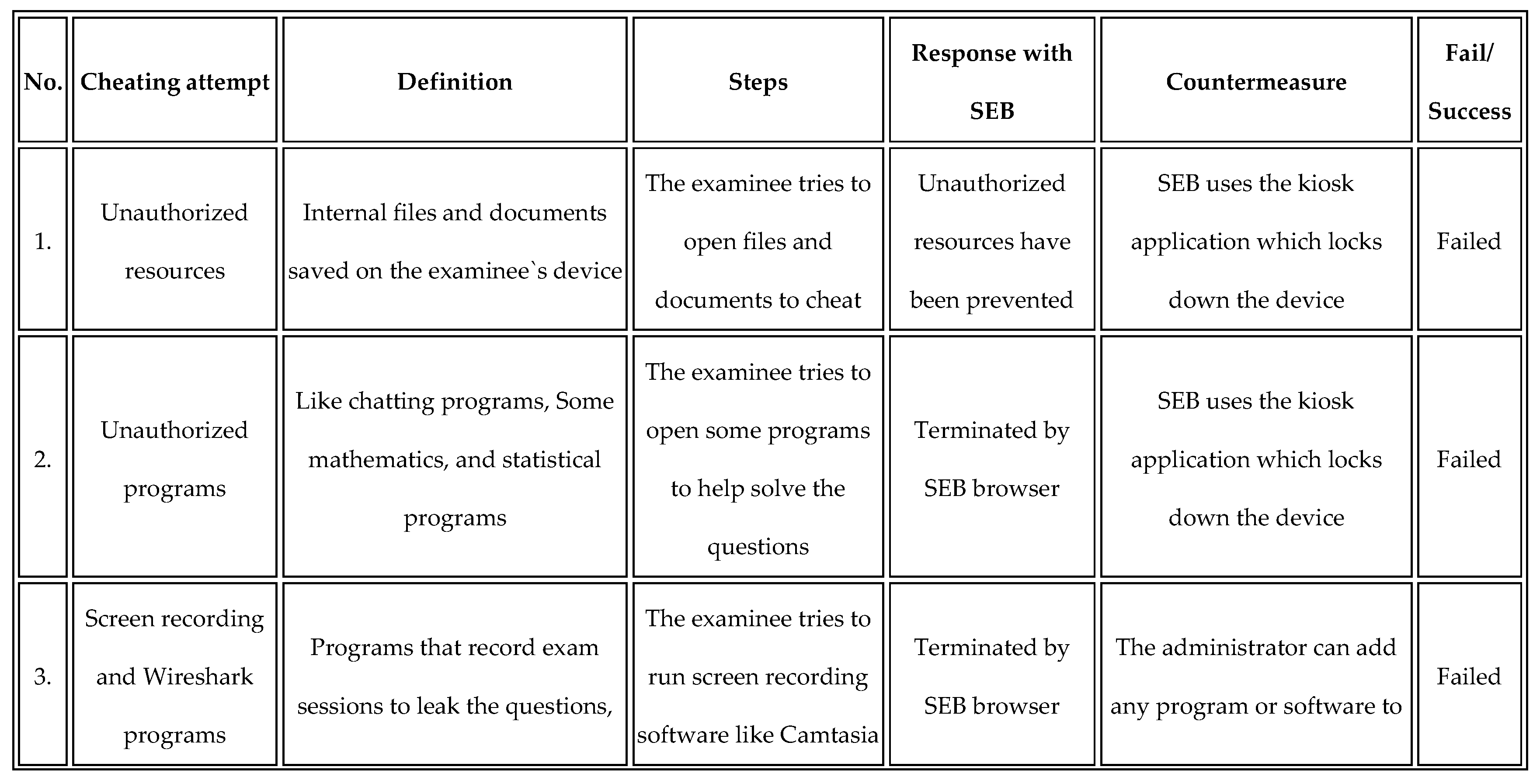

The effectiveness of SEB in mitigating cheating was tested by conducting exams with and without SEB activation. Table 1 summarizes the results of this experiment, showcasing the browser's ability to prevent access to unauthorized resources, block the execution of prohibited programs, and disable various cheating attempts.

4.2. Cheating Detection

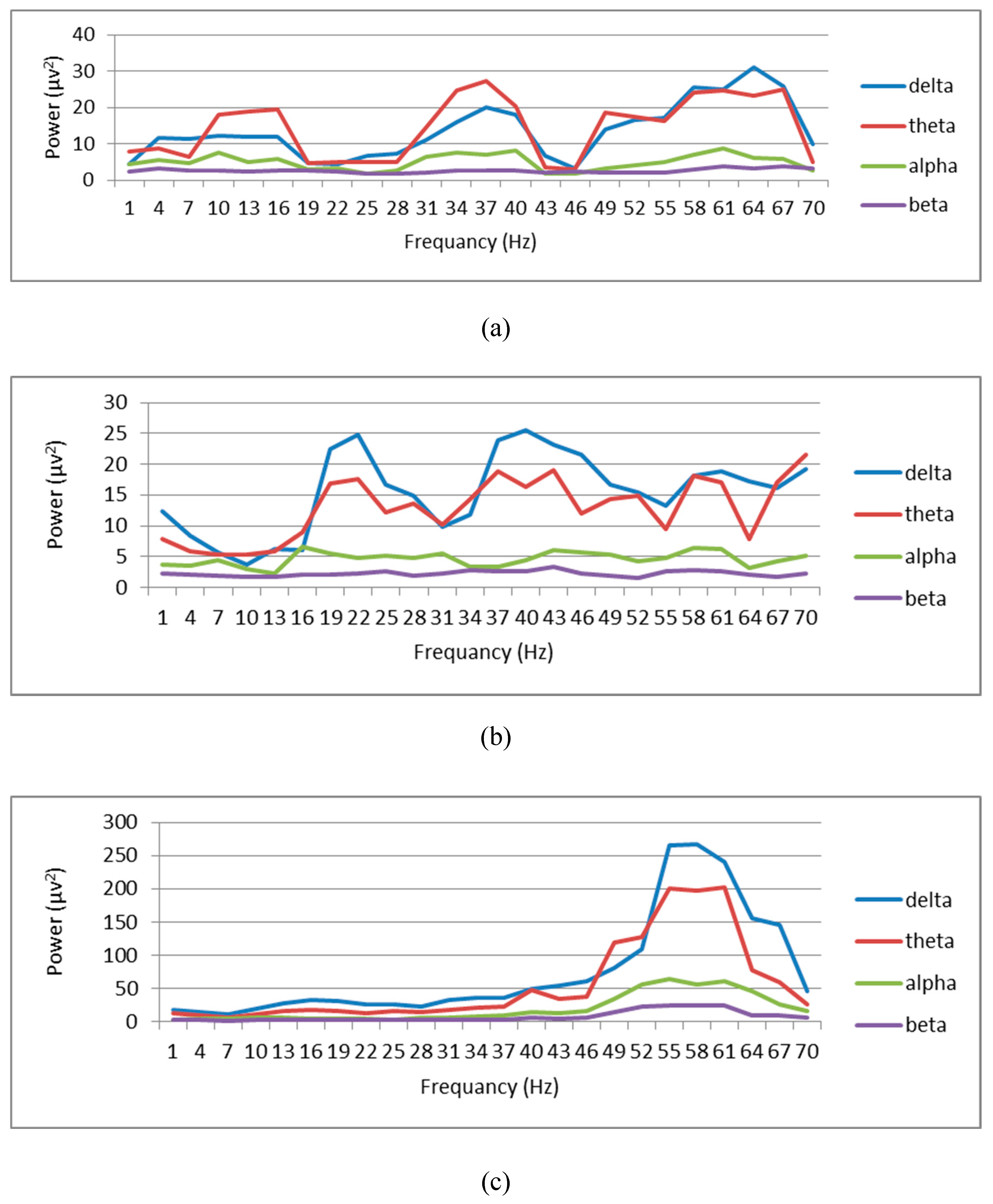

An innovative cheating detection method is implemented through the use of the Muse2 headband device. The device records the examinee's EEG signal during the exam, capturing physiological changes associated with stress. These changes can serve as indicators of potential cheating attempts, as examinees may experience heightened stress when engaging in unauthorized activities.

The recorded EEG data is analyzed using a Convolutional Neural Network (CNN) algorithm. The CNN model was trained on a dataset of EEG signals collected from 15 volunteers while they attempted an experimental electronic exam. The data included recordings under normal conditions and recordings during simulated cheating attempts, allowing the model to learn to differentiate between the two states. Figure 4 shows representative EEG signals for "Normal" and "Abnormal" states.

The trained CNN model classifies the examinee's state during the actual exam session as either "Normal" or "Abnormal." An "Abnormal" classification, indicating potential cheating due to elevated stress levels, triggers an alert to the Monitoring Server, prompting further review by human proctors.

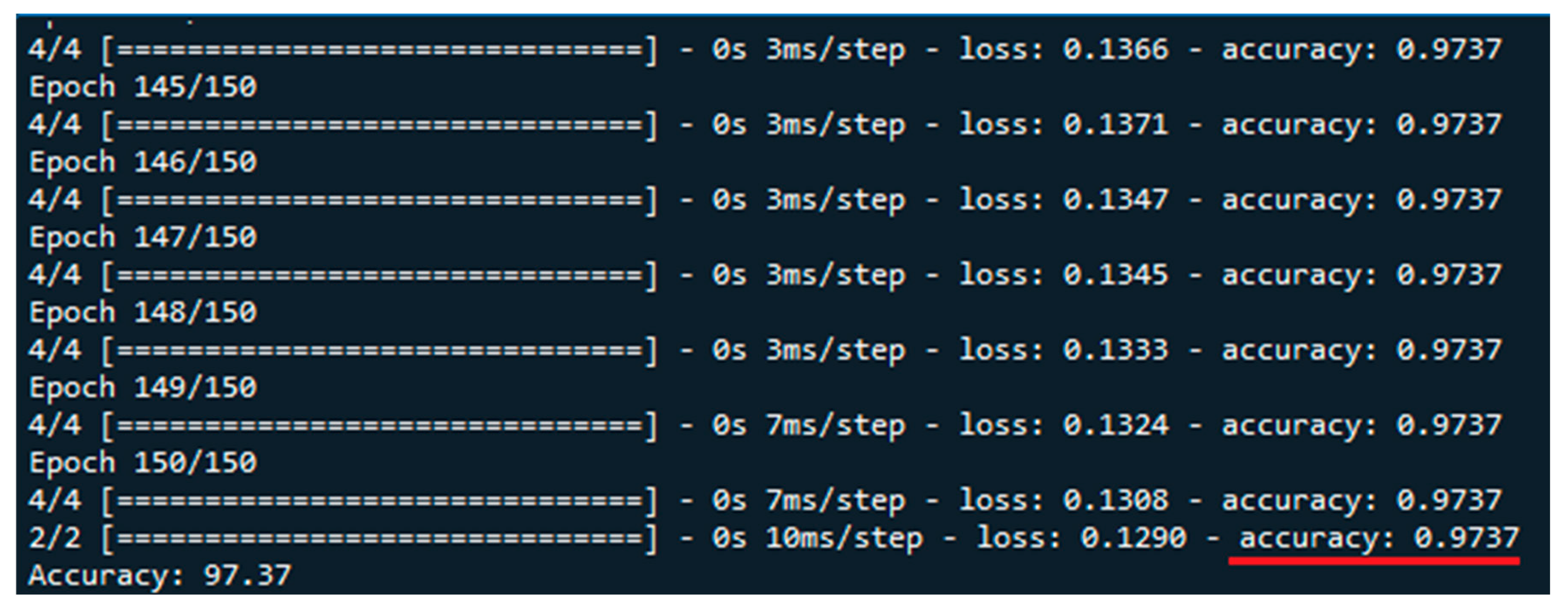

The performance of the CNN model was evaluated using accuracy as the performance metric. Figure 5 displays the achieved accuracies for different EEG signal features, demonstrating the effectiveness of the approach. The system achieved an impressive accuracy of 97.37% for data with a 30-second duration (Table 2), indicating its high sensitivity in detecting abnormal EEG patterns associated with cheating.

5. Cybersecurity Threat Mitigation

5.1. Threat Model

To effectively design a secure e-proctoring system, it is crucial to first identify and analyze potential cybersecurity threats. A threat model was developed to systematically assess vulnerabilities and potential attack vectors. Table 3 outlines the various components of the examination room and the associated breach methods.

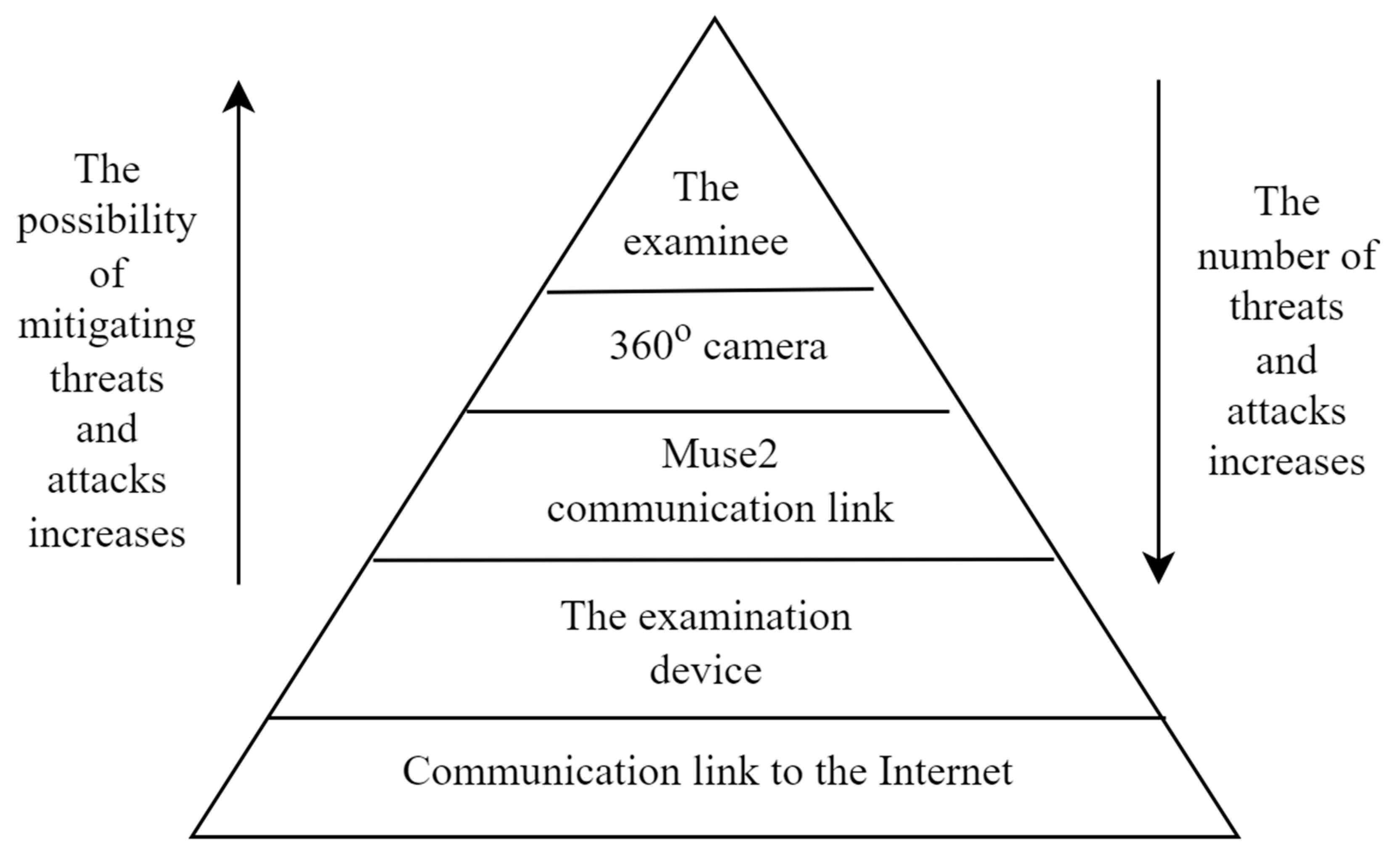

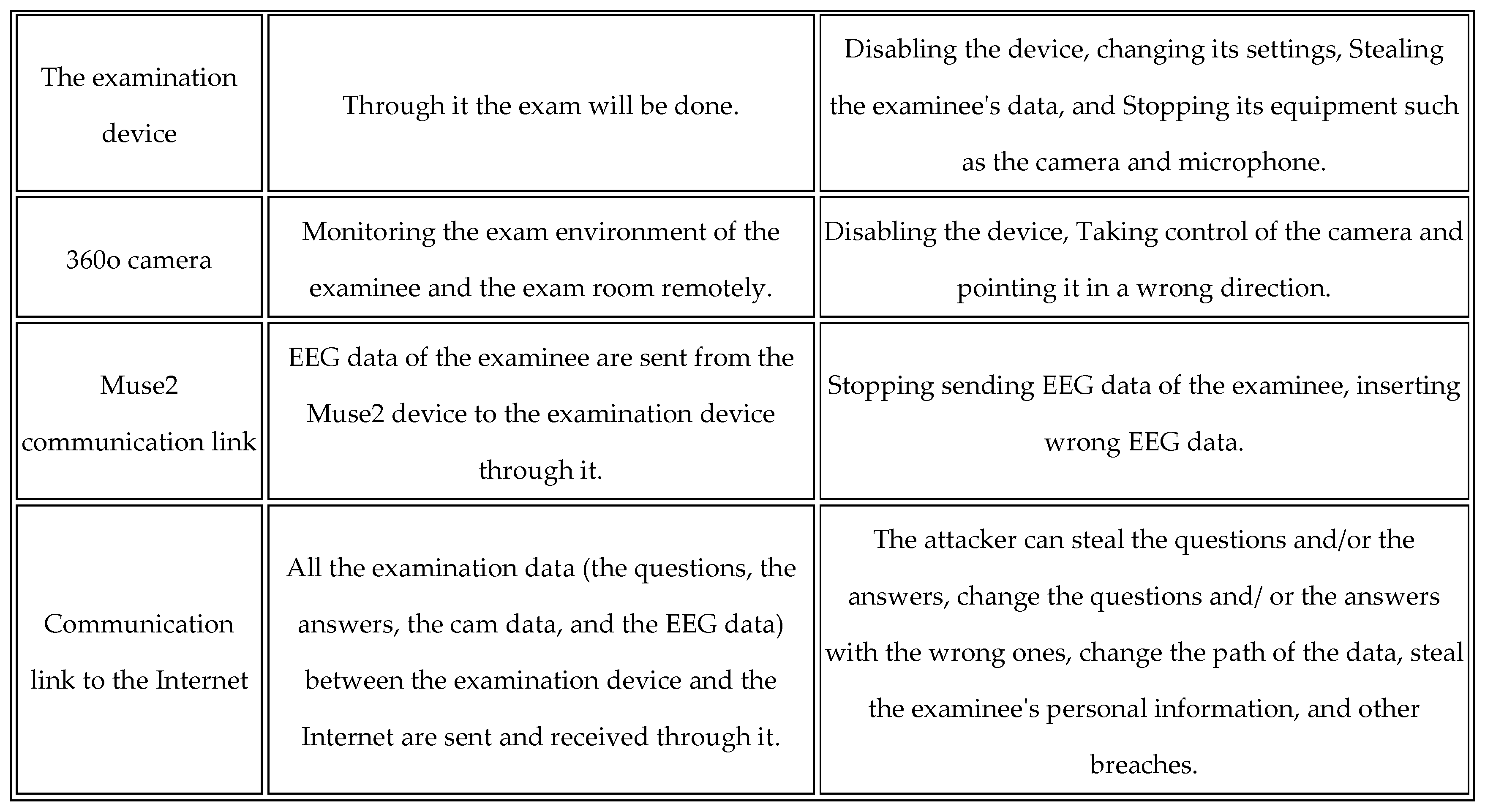

The examination room components were further categorized based on their vulnerability to attacks, creating a hierarchical ordering as shown in Figure 6. This hierarchical model aids in prioritizing security measures and allocating resources to address the most critical vulnerabilities.

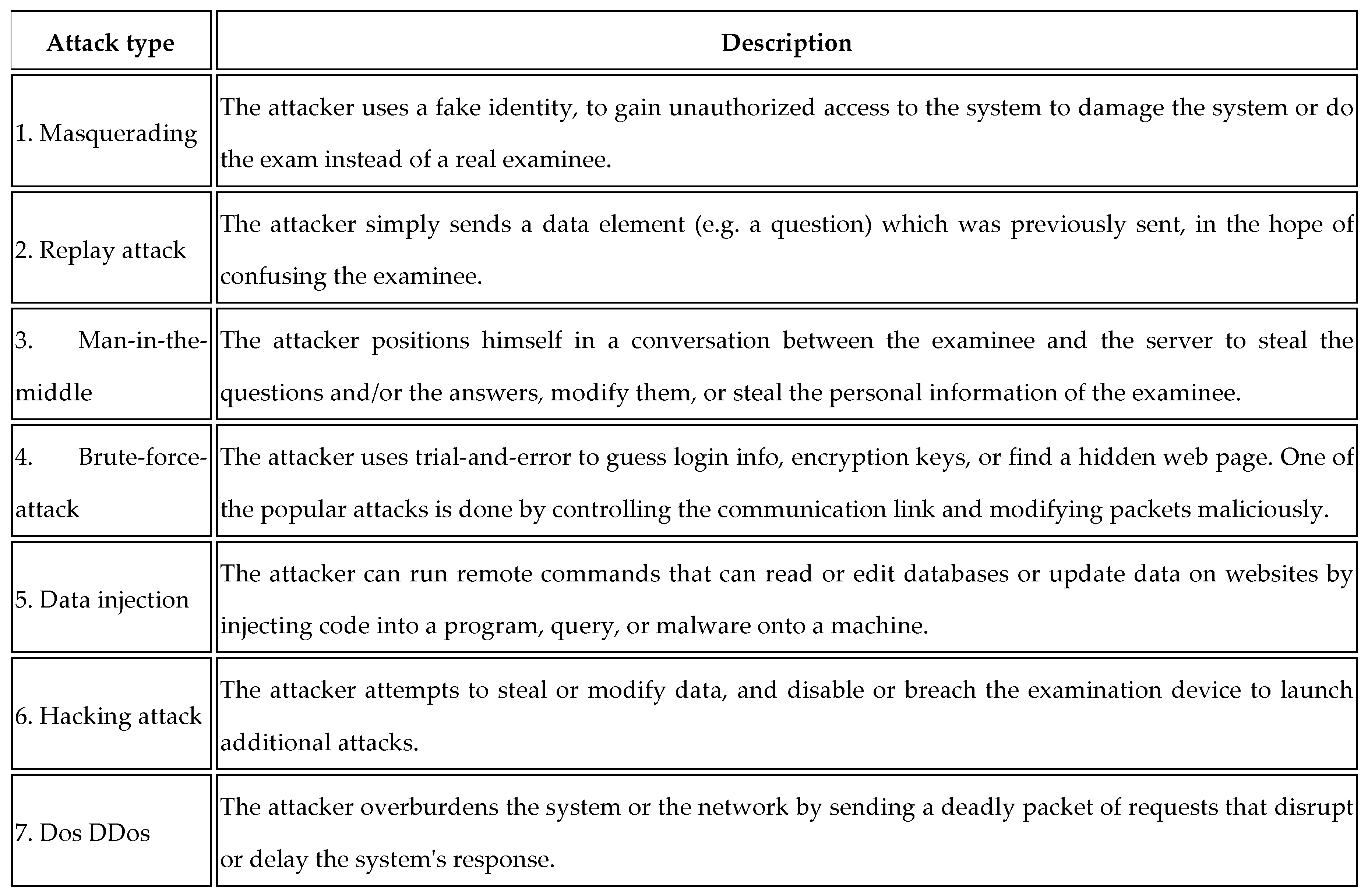

Table 4 lists the potential cyber threats and attacks identified through the threat modeling process, providing a concise description of each attack type.

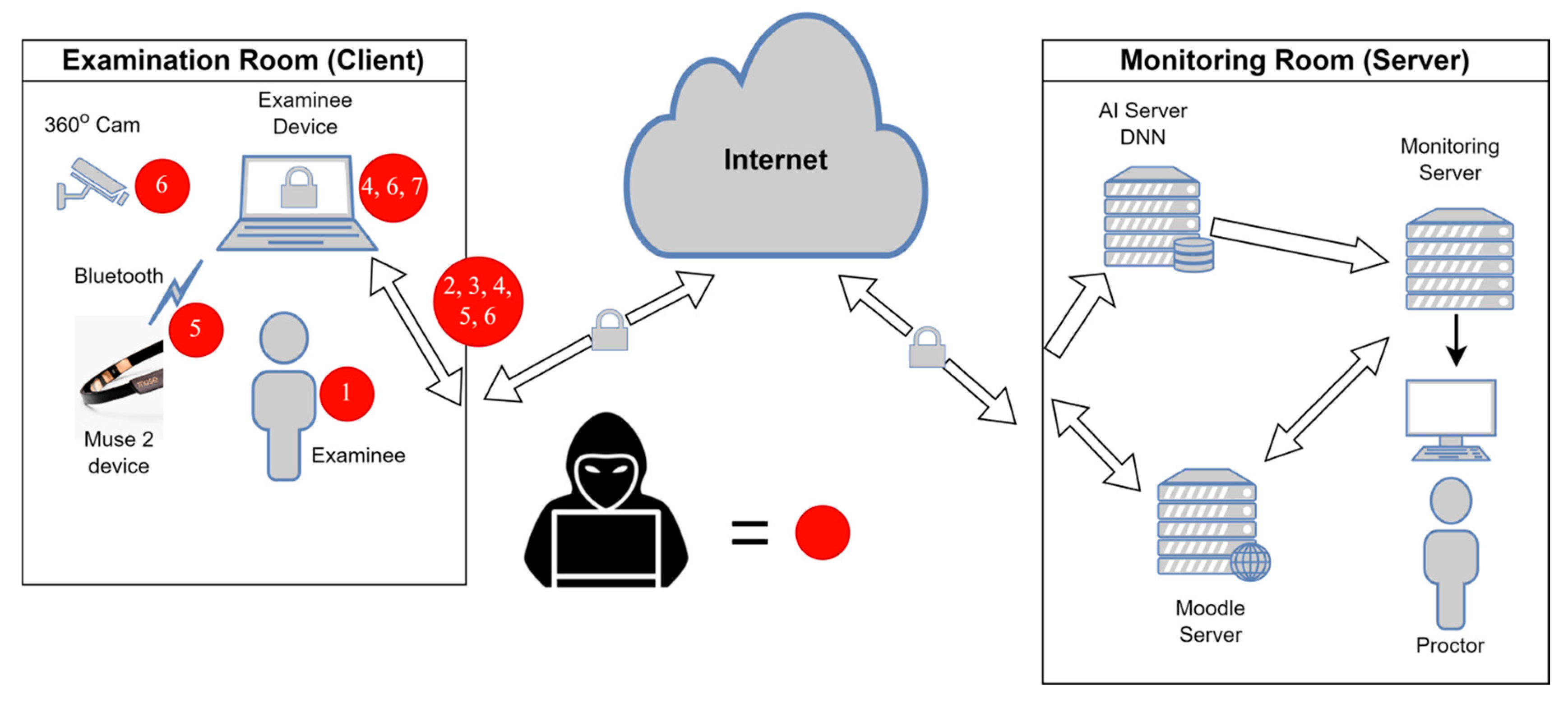

Figure 7 visually depicts the potential attack points within the proposed e-proctoring system, highlighting the vulnerabilities of each component.

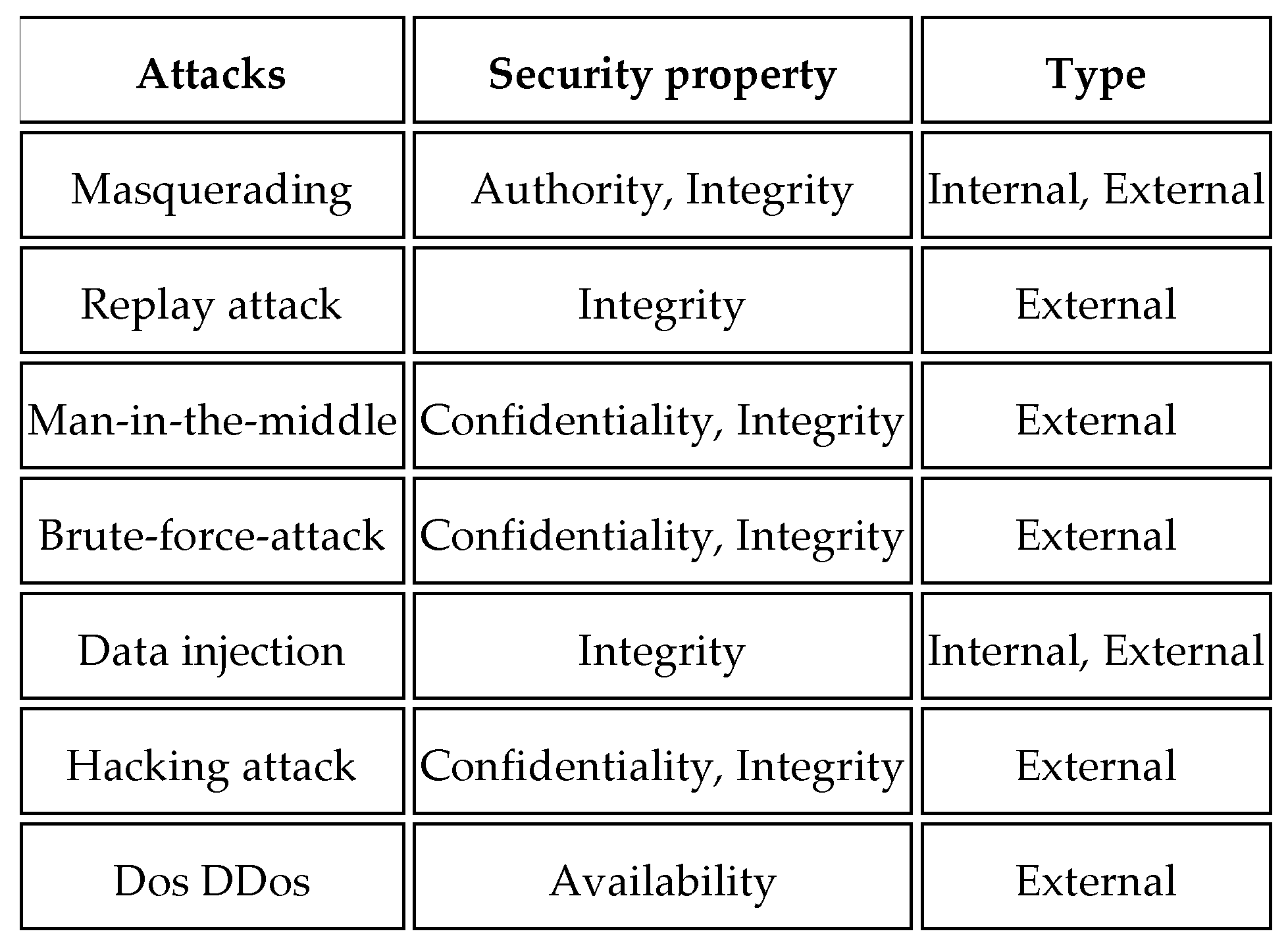

Table 5 maps the identified threats and attacks to the fundamental security principles of Confidentiality, Integrity, Availability, and Authenticity (CIAA). This mapping clarifies which security properties are most likely to be targeted by each attack type, guiding the selection of appropriate countermeasures.

5.2. Security Model

The proposed e-proctoring system incorporates a multi-layered security model to address the identified threats and vulnerabilities. The model comprises the following techniques [26,27,28,29]:

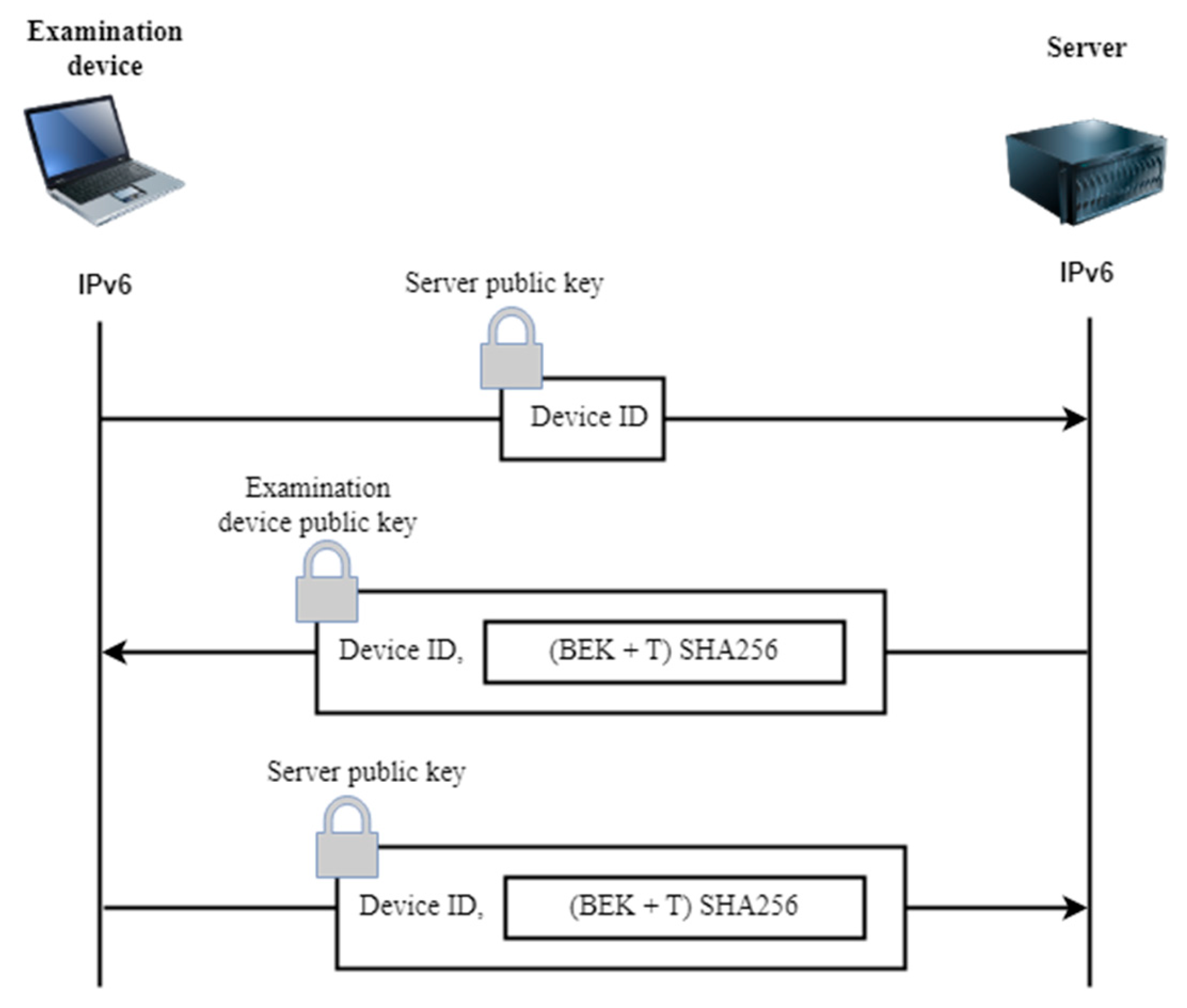

1. Two-way Entity Authentication: To ensure the legitimacy of both communicating parties, a two-way entity authentication mechanism is implemented. This mechanism uses a combination of the SEB's Browser Exam Key (BEK), the device's unique IPv6 address, and a challenge/response protocol (Figure 8). The BEK, generated by hashing SEB files and settings, serves as a unique identifier for the examination device. The IPv6 address ensures network-level identification, while the challenge/response protocol verifies the server's identity and protects against replay attacks. This multi-faceted authentication approach minimizes the risk of unauthorized access and impersonation attempts.

2. Data Encryption and Integrity: Confidentiality and integrity of transmitted data are paramount in a secure e-proctoring system. To protect data in transit, the system employs the IPSec protocol in ESP tunneling mode, providing end-to-end encryption and ensuring data integrity. Specifically, the system utilizes AES encryption, MD5 Hashed Message Authentication Codes (HMAC), and Diffie-Hellman Group 2 key exchange for robust protection against unauthorized access and data tampering.

3. VPN and 4G/5G SIM Card: To further enhance security in unsecured communication channels, the examination device is equipped with a leased 4G/5G SIM card for Internet connectivity and utilizes a VPN tunnel. The dedicated SIM card eliminates the security risks associated with shared WiFi networks, while the VPN provides an additional layer of encryption and anonymizes the device's IP address, safeguarding against man-in-the-middle attacks and other network-based threats.

4. Packet Filtering Software: A signature-based Intrusion Detection System (IDS) is implemented to monitor network traffic in real-time, identifying and blocking malicious packets. The IDS utilizes a database of known attack signatures to detect intrusions and prevent unauthorized access to the system. This proactive approach strengthens network security and helps to mitigate Denial of Service (DoS) and Distributed Denial of Service (DDoS) attacks.

5. Multi-Factor Biometric User Authentication: To ensure continuous authentication throughout the exam session, the system employs multi-factor biometric authentication using both fingerprint and EEG data. Fingerprint authentication provides a robust and widely adopted method for identity verification, while EEG-based authentication leverages the uniqueness of an individual's brainwave patterns. Utilizing both modalities strengthens security and minimizes the risk of impersonation attempts.

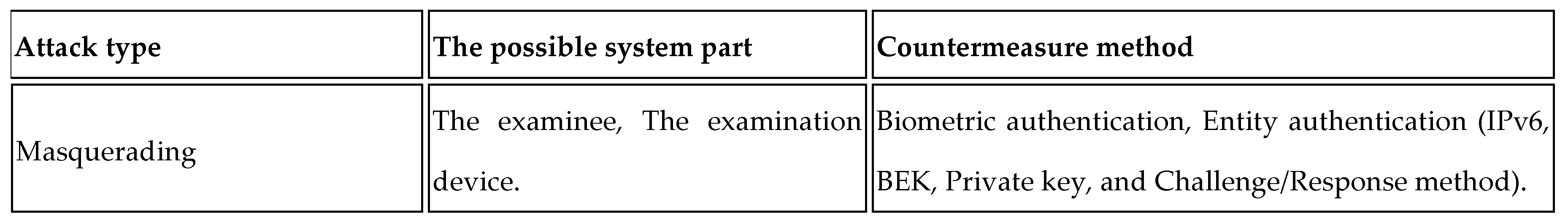

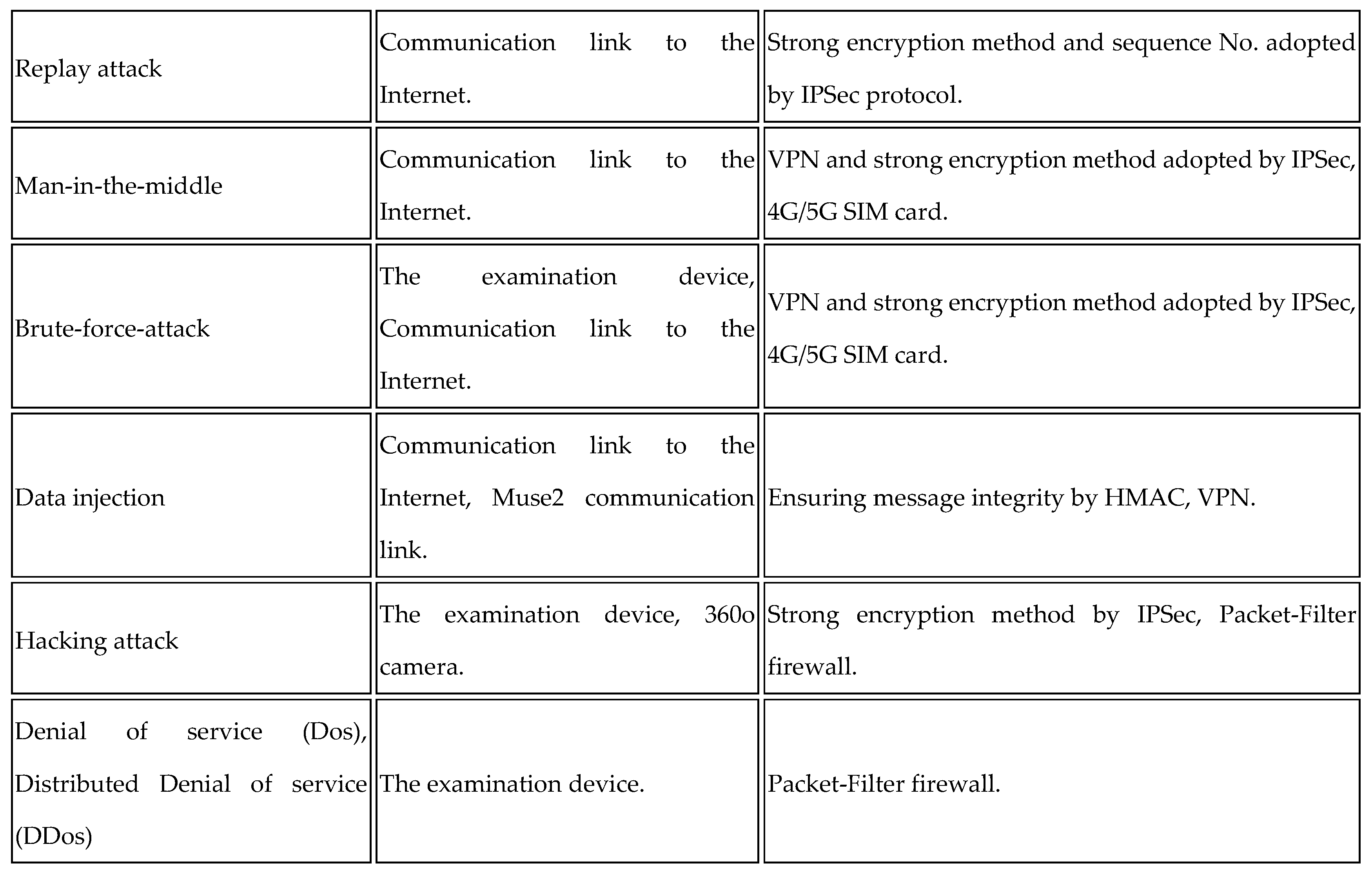

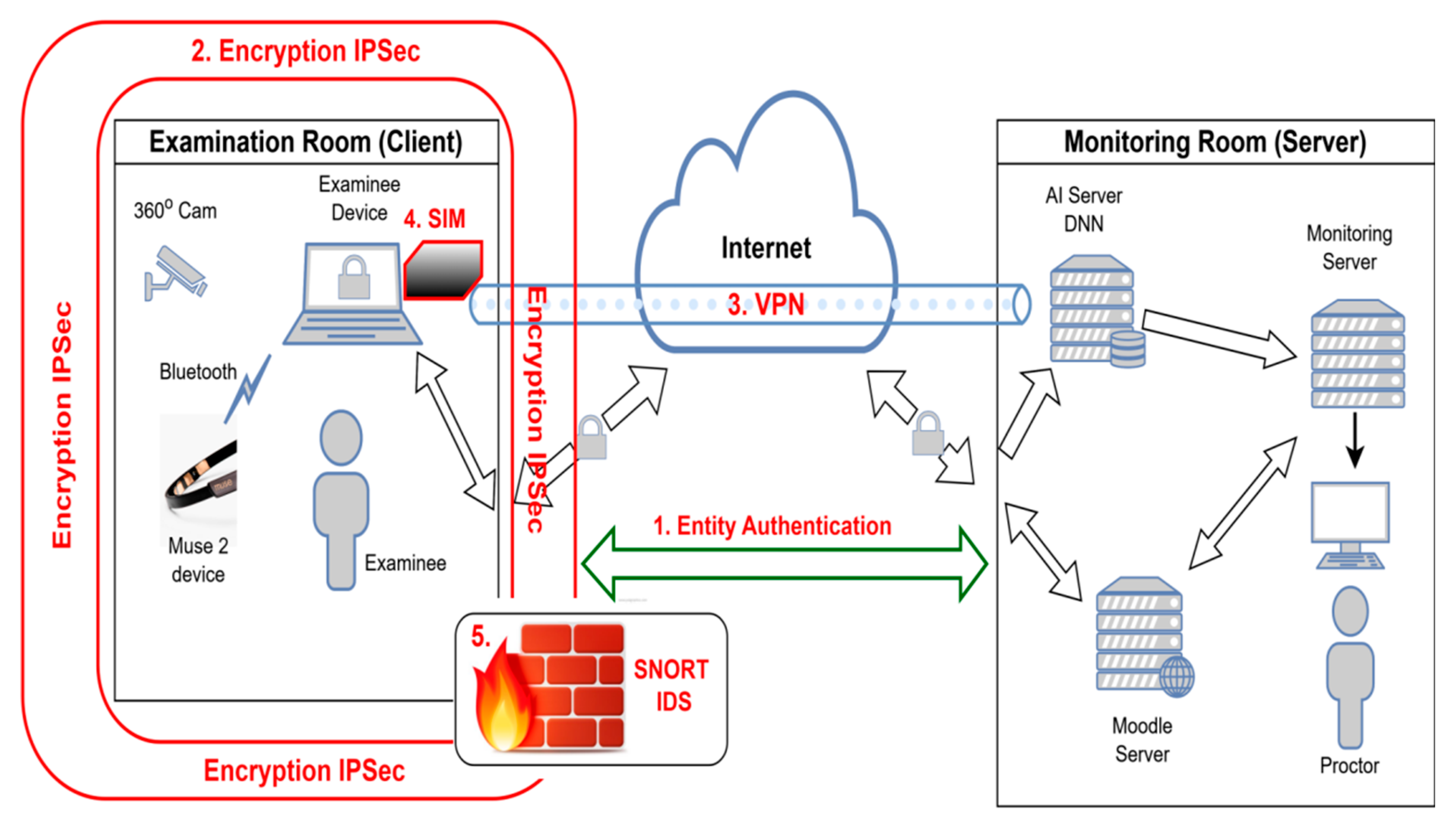

Figure 9 provides a visual representation of the proposed security model, illustrating the integration of various security techniques to protect the e-proctoring system.

5.3. Security Model Evaluation

The proposed security model was rigorously evaluated by simulating various internal and external attack scenarios. Table 6 summarizes the assessment process, outlining the potential attack types, the vulnerable system components, and the corresponding countermeasures.

The evaluation demonstrated the system's ability to effectively counter a wide range of security threats.

6. System Performance Analysis

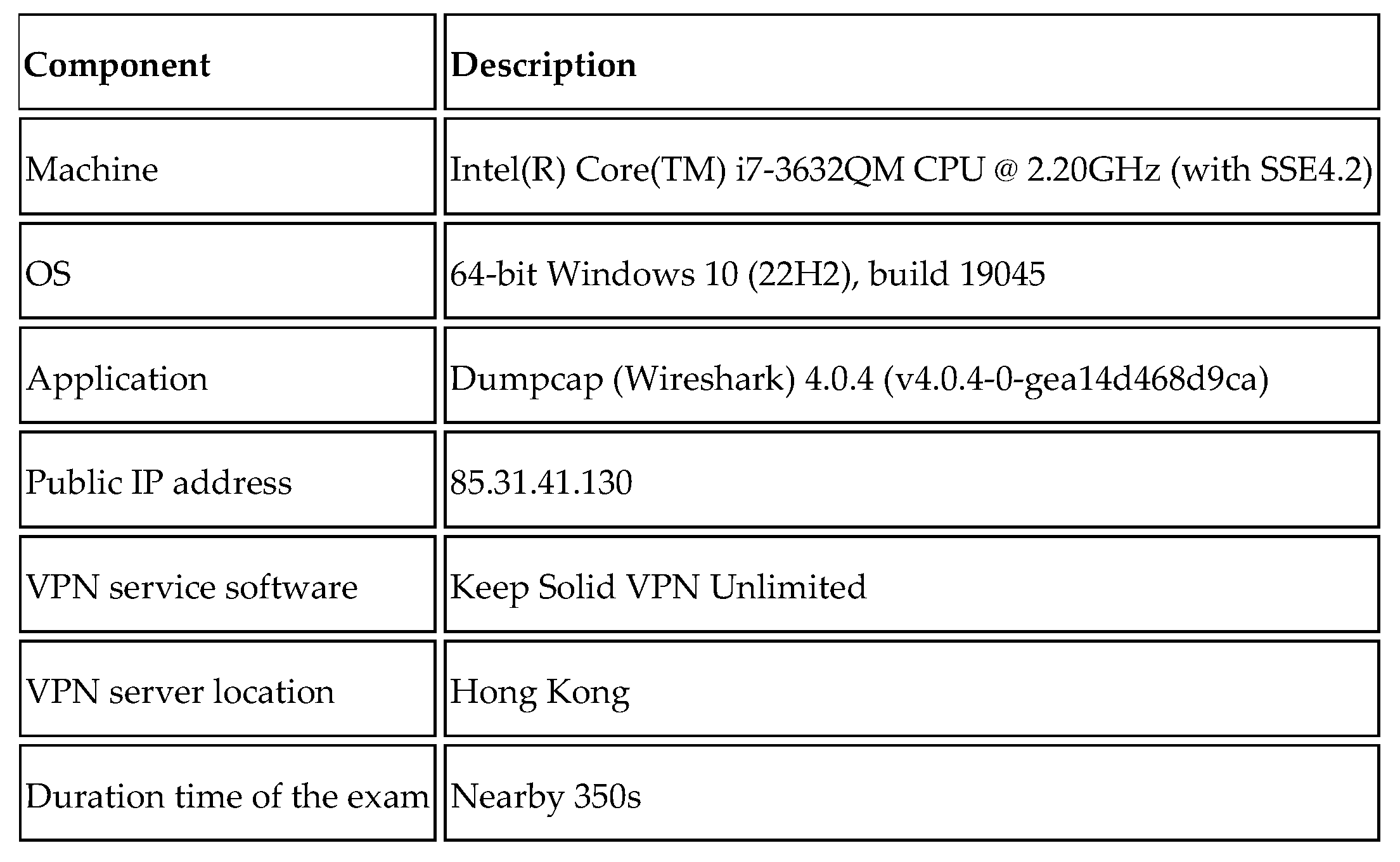

A crucial aspect of any e-proctoring system is its impact on network performance. Excessive latency or reduced data rates can disrupt the exam experience for examinees and hinder the effectiveness of proctoring. To assess the performance of the proposed system, particularly the influence of the VPN connection, an electronic exam was conducted under two scenarios: without a VPN and with a VPN.

The exam consisted of multiple-choice questions, an essay question, and a mandatory file upload, simulating a realistic exam workload. Table 7 details the components and environment used for the performance analysis.

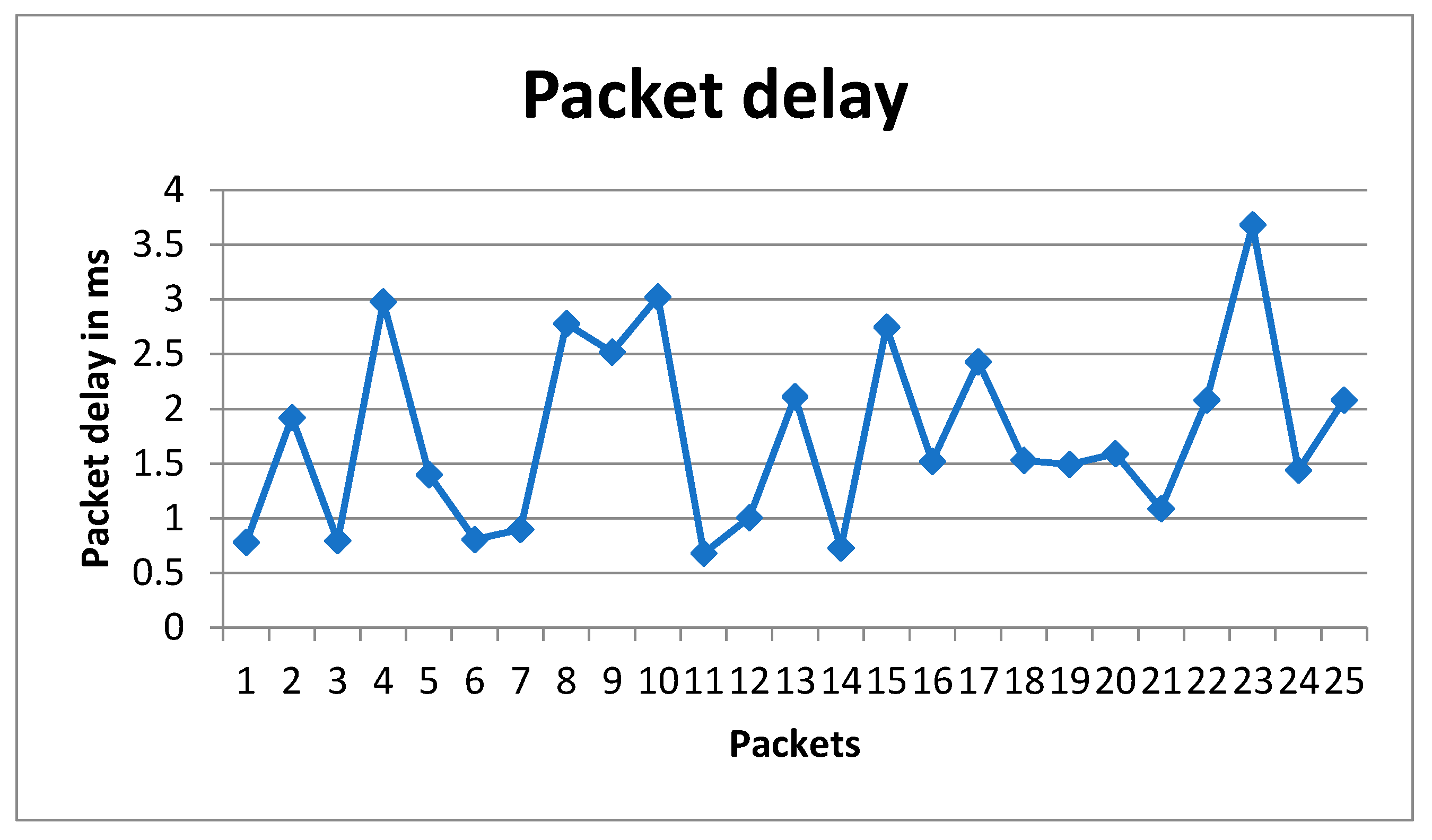

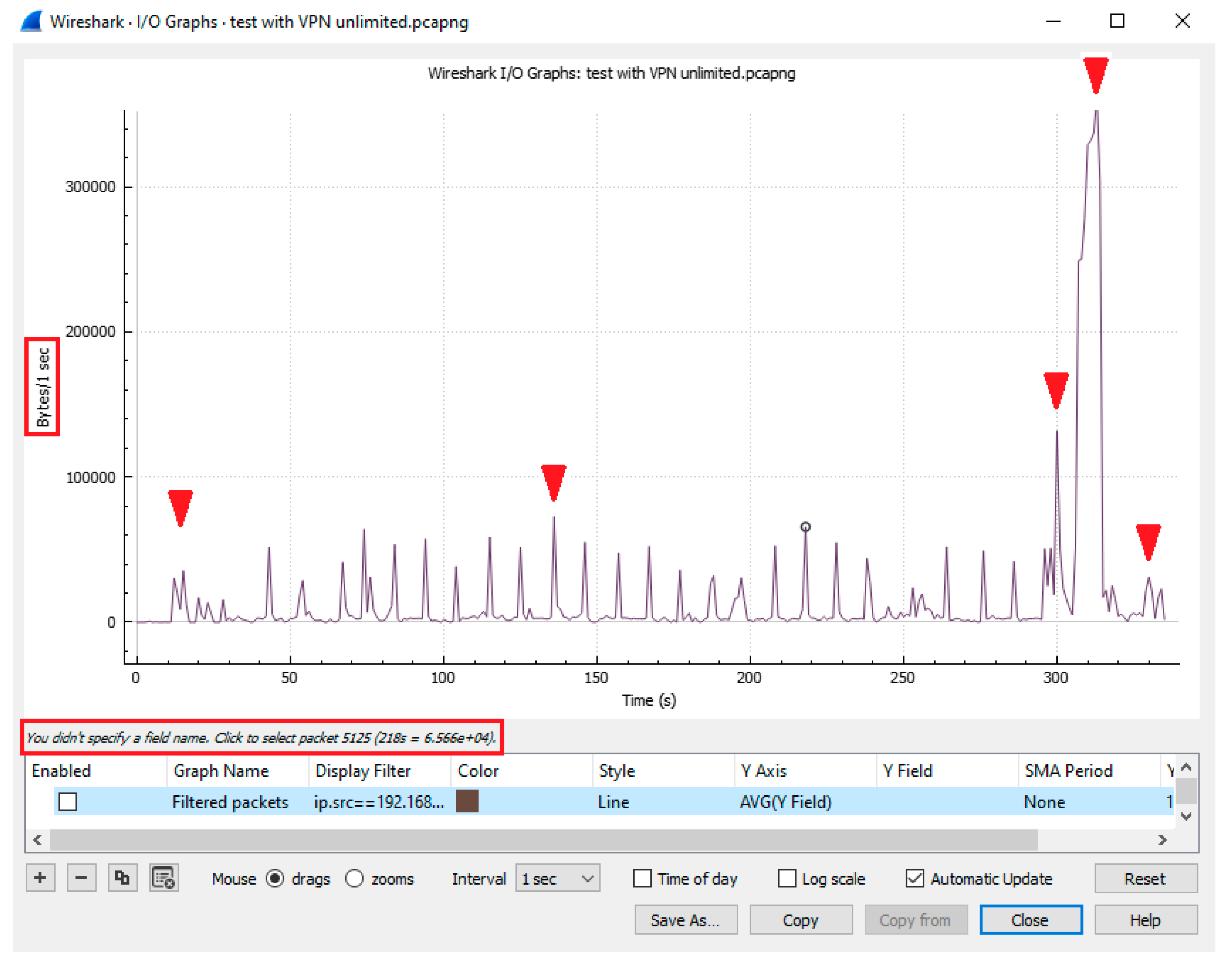

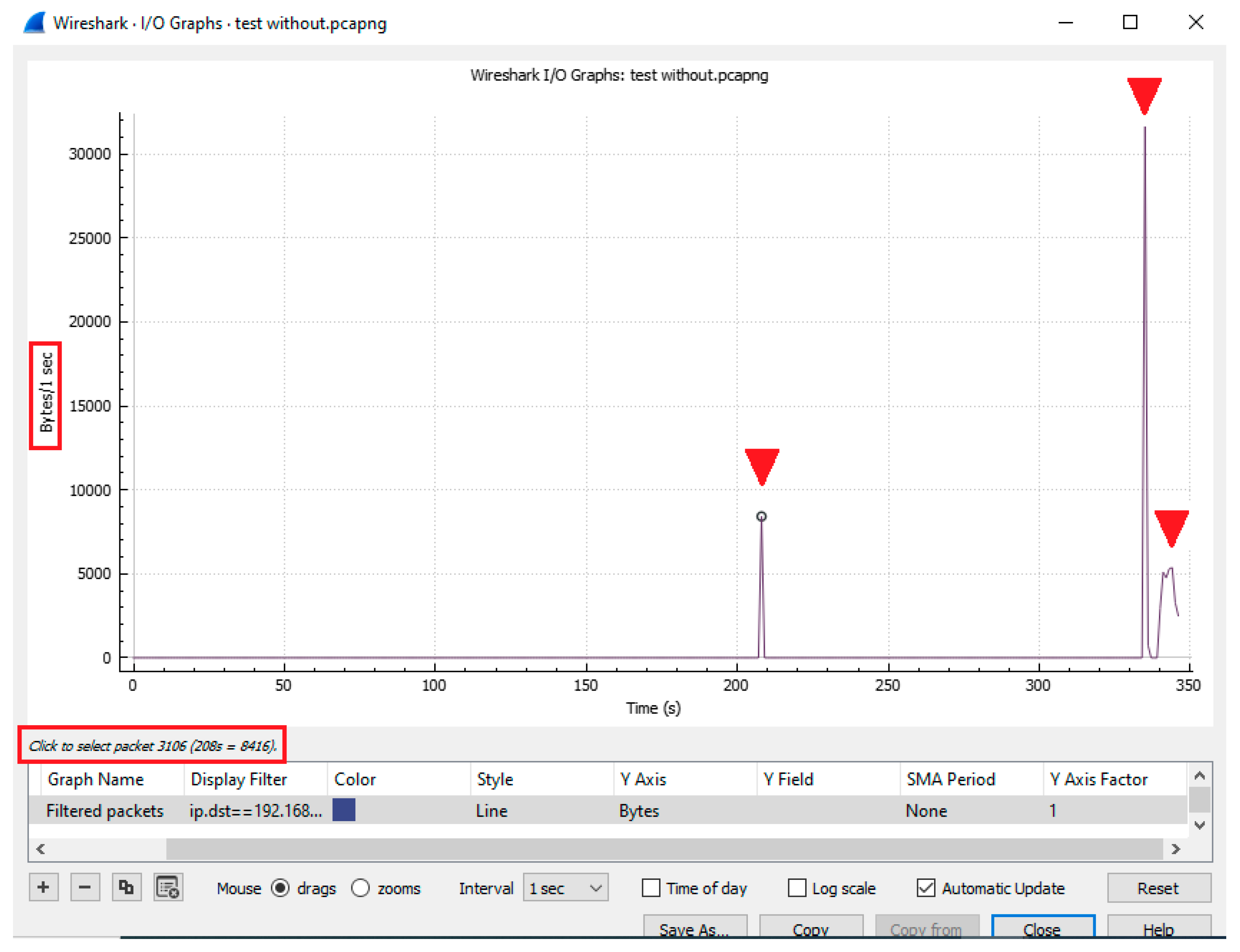

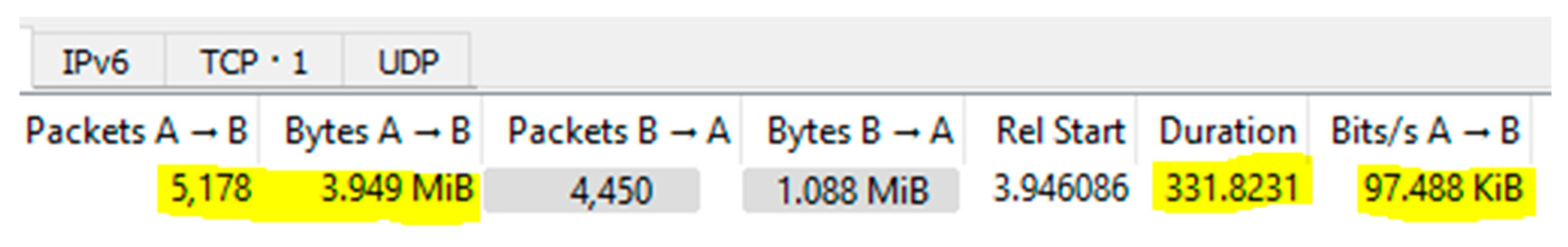

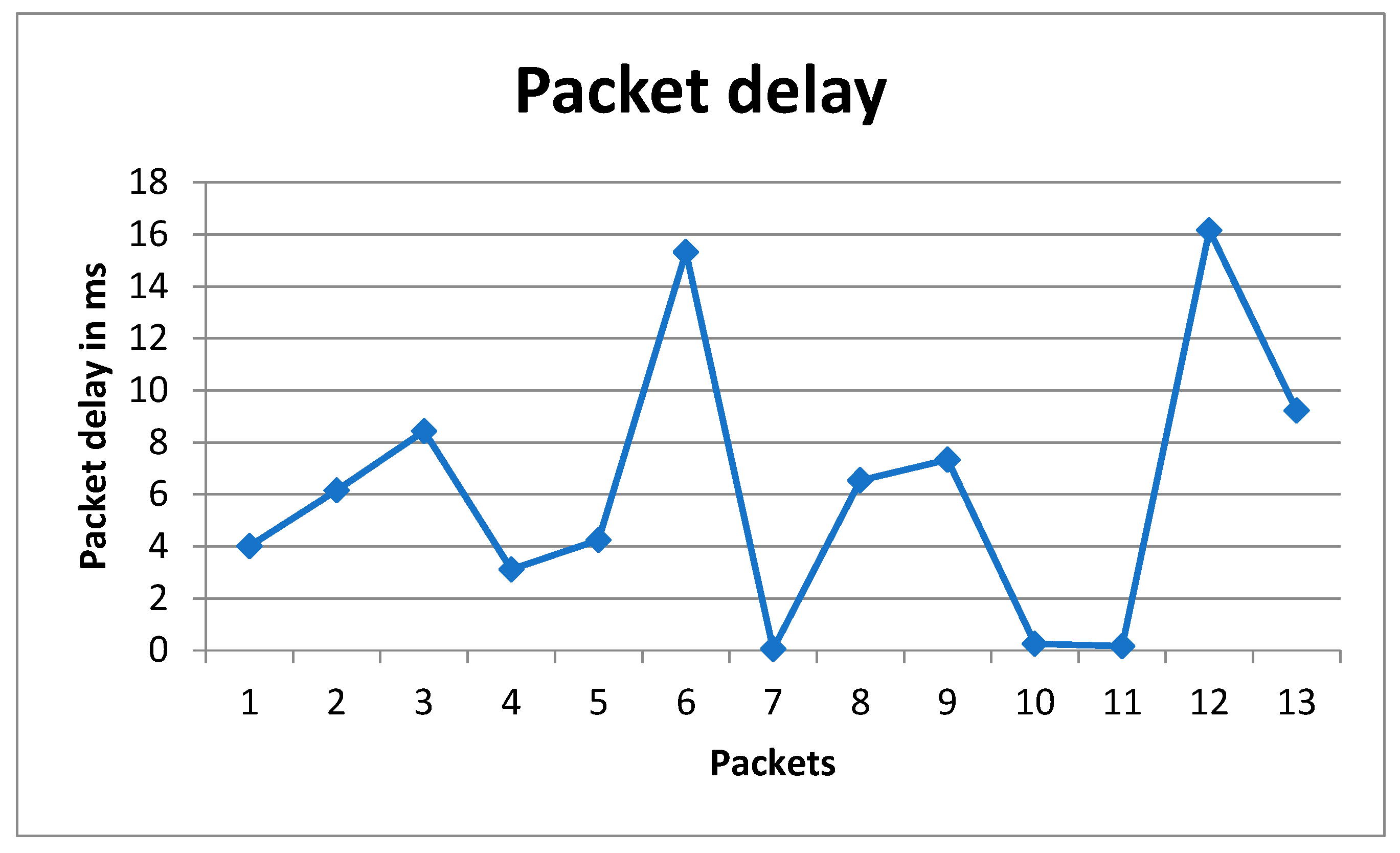

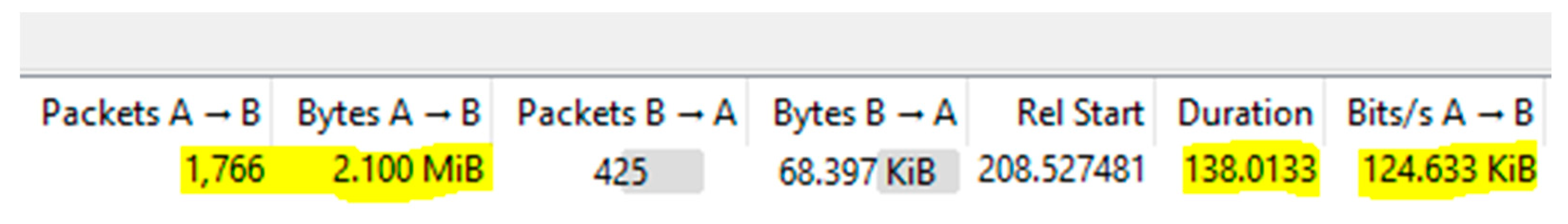

The network metrics analyzed included packet delay, packet lengths, data rate, and throughput. Figure 10 and Figure 11 illustrate the packet delays for the scenarios without and with a VPN connection, respectively. Table 8 and Table 9 present the distributions of packet lengths observed in each scenario. The data rates achieved in both scenarios are depicted in Figure 12 and Figure 13, while Figure 14 and Figure 15 show the throughput patterns. Table 10 summarizes the average values for each network metric in both scenarios.

The analysis revealed that the VPN connection, while adding minimal latency, did not significantly impact the overall network performance. The system maintained high data rates and throughput, even with the additional encryption and routing overhead introduced by the VPN. This demonstrates the feasibility of incorporating robust security measures without compromising the quality of the exam experience for examinees.

7. Proposed Pilot Study and Future Work

To evaluate the effectiveness, usability, and scalability of the proposed intelligent e-proctoring system, a pilot study is planned as a key step in future research. This pilot will serve to validate the system’s core features—particularly its AI-driven cheating detection, wearable EEG-based biometric monitoring, and multi-layered cybersecurity framework—under semi-controlled conditions that simulate real-world online examinations. The results from this study will form the basis for refining the system before broader deployment.

7.1. Objectives of the Pilot Study

The proposed pilot study aims to achieve the following objectives:

• Evaluate the usability and technical robustness of the complete e-proctoring system in a realistic exam setting.
• Measure the reliability of EEG-based cheating detection, with specific focus on detecting abnormal stress patterns during exams.
• Assess the impact of the system’s security components, such as VPN, data encryption, and entity authentication, on overall network performance.
• Collect qualitative feedback from users (students and instructors) regarding ease of use, perceived privacy, and acceptance of wearable technology.

7.2. Proposed Methodology

The study will involve approximately 20–30 volunteer students from the Computer Engineering Department in our University. Participants will be divided into two groups: a control group (standard exam session with no induced cheating) and an experimental group (with pre-defined simulated cheating scenarios such as attempting to use unauthorized resources or intentionally breaking focus).

Each student will be provided with a preconfigured exam device that includes:

• Safe Exam Browser (SEB) installed and locked to a specific Moodle exam session,
• Dual webcams for facial and environmental monitoring,
• A Muse2 EEG headband for real-time cognitive data acquisition,
• Enforced VPN connection over a 4G/5G SIM card.

During the session, the AI server will analyze video streams, facial recognition results, and EEG signals. The CNN model trained on labeled EEG data will attempt to classify brain states as either “Normal” or “Abnormal”, the latter being a potential indicator of cheating behavior.

The exam content will consist of 20 multiple-choice questions and a brief essay question, designed to complete within 30 minutes. SEB will restrict access to system resources, and continuous biometric and network activity logging will be enabled.

7.3. Expected Metrics and Analysis Plan

The following metrics will be collected and analyzed:

• True/False Positive Rates of cheating detection from the EEG classifier.
• Authentication delays, network packet delays, and throughput changes introduced by VPN and encryption layers.
• User feedback on usability and stress levels via post-exam surveys.
• System stability in terms of device crashes, connection losses, and response times under concurrent usage.

Data will be analyzed using standard statistical tools, and results will be compared across the control and experimental groups to evaluate model accuracy and system integrity.

7.4. Anticipated Challenges

The pilot study is expected to highlight several practical and technical challenges:

• EEG Signal Quality Variance: Differences in signal clarity due to improper Muse2 placement or user movement could affect the CNN model’s accuracy.
• False Positives in Stress Detection: Elevated stress may not always indicate cheating. Future iterations of the model may require calibration to distinguish between stress caused by cheating vs. general exam anxiety.
• Privacy Concerns: Continuous biometric monitoring, especially EEG recording, may raise ethical questions that will need to be addressed through user consent, anonymization, and transparency.
• Network Constraints: Running the system on VPN and limited bandwidth may introduce latency, which needs to be minimized for scalability.

These challenges will guide future improvements to both hardware integration and AI model robustness.

7.5. Roadmap for Future Enhancements

Based on the findings of the pilot, the following enhancements are proposed for future development:

• Personalized EEG Baselines: Introduce a pre-exam calibration stage to reduce false alerts by adapting the model to each user’s normal EEG patterns.
• Edge AI Implementation: Shift initial EEG processing and facial analysis to local (on-device) edge modules to reduce bandwidth consumption and improve real-time responsiveness.
• Hybrid Behavioral Monitoring: Integrate additional behavior-based metrics (e.g., eye gaze, voice tone, keystroke rhythm) alongside EEG signals for multi-modal cheating detection.
• Adaptive Security Policies: Develop a security orchestration layer that adjusts VPN and authentication levels dynamically based on threat levels and exam criticality.
• Scalability and Institutional Integration: Conduct large-scale tests involving 100+ users and multiple institutions to validate scalability and promote system standardization.

7.6. Ethical Considerations and Compliance

As part of the future study, an ethical framework will be formalized to ensure compliance with privacy standards and institutional guidelines. This includes:

• Informed consent procedures for biometric data collection.
• Secure storage and anonymization of user data.
• Institutional review board (IRB) approval prior to deployment.

Transparent communication with participants about what data is collected and how it is used will be central to gaining trust and ensuring ethical deployment.

The proposed pilot study will serve as a critical step in transitioning the e-proctoring system from a conceptual framework to a validated, deployable solution. It will allow the research team to evaluate system functionality under realistic conditions, identify improvement areas, and lay the groundwork for wider institutional adoption. Preliminary results and feedback from this study will significantly inform the system’s future evolution, ensuring it balances effectiveness, user experience, and ethical integrity.

8. Conclusion

This paper has presented the design and proposed implementation of a secure, intelligent e-proctoring system that addresses the growing challenges of academic dishonesty and cybersecurity threats in online examinations. By integrating Artificial Intelligence (AI), Internet of Things (IoT) technologies, and wearable EEG-based biometric monitoring into a unified framework, the system aims to ensure academic integrity without compromising user experience or system performance.

The system introduces a multi-layered architecture that combines facial recognition, real-time environmental monitoring, EEG-based stress detection, and robust network security mechanisms—including VPN tunneling, IPSec encryption, and entity authentication protocols. Initial performance evaluations indicate that the system can support these features while maintaining acceptable levels of latency, throughput, and data integrity, even under encrypted network conditions.

The inclusion of EEG signals, captured using the Muse2 wearable headband, presents a novel approach to both examinee authentication and behavioral monitoring. The use of AI-driven classifiers, such as Convolutional Neural Networks (CNNs), demonstrates the feasibility of distinguishing between normal and suspicious cognitive states during exams. The layered security model further strengthens the platform by mitigating a broad spectrum of internal and external cyber threats, as identified through a comprehensive threat model.

Although the system has been conceptually validated and preliminary testing suggests high detection accuracy and system reliability, a more extensive pilot study is planned to rigorously assess its real-world applicability. This future work will focus on usability, signal reliability, ethical concerns, and scalability in institutional settings.

In summary, the proposed system offers a forward-looking solution to the persistent challenges faced by educational institutions in securing online assessments. By leveraging cutting-edge technologies in AI, biometric sensing, and cybersecurity, it contributes a holistic and practical framework for next-generation e-proctoring. Future enhancements and broader deployment can further refine the system, making it a viable candidate for widespread academic and professional examination environments.
