Quantifying the Impact of High Emitters on Vehicle Emissions An Analysis of Ecuador's Inspection and Maintenance Program

1. Introduction

On-road vehicles are a dominant source of air pollution, particularly in urban environments where traffic density is high [1]. The exhaust from cars, trucks, and buses releases a mixture of harmful pollutants that have been linked to significant public health issues, including respiratory and cardiovascular diseases [2,3]. Vehicle inspection and maintenance (I/M) programs are a critical strategy for mitigating the impact of road transport on air quality [4,5]. These programs, implemented in many cities worldwide, mandate periodic checks to ensure vehicles comply with established safety and environmental standards. A primary function of I/M programs is to identify vehicles with high emission levels and require necessary repairs, thereby reducing the overall tailpipe emissions of carbon monoxide (CO), Hydrocarbons (HC), nitrogen oxides (NO_X), and particulate matter (PM). The effectiveness of these programs is rooted in their ability to address the deterioration of emission control systems that occurs over time with vehicle use. Indeed, the purpose is to enforce emission standards on the circulating fleet, contributing to cleaner air in urban areas.

A key challenge in managing vehicular pollution is the disproportionate impact of a small fraction of "high-emitting" vehicles, which can be responsible for approximately half of all harmful pollutants emitted by the entire fleet [6,20]. These high emitters are often older or poorly maintained vehicles whose pollution control systems are malfunctioning, although other reasons including poor manufacture, contaminated fuel and even tampering may contribute [10]. Although emission inventory models like the Vehicular Emissions INventory (VEIN), which often use emission factor databases such as the COmputer Programme to calculate Emissions from Road Transport (COPERT), provide essential, large-scale estimates of vehicular pollution, they may not fully capture the real-world emissions from these high-polluting vehicles [7,8]. Therefore, incorporating data from on-the-ground I/M programs is crucial for refining these models and obtaining a more accurate characterization of a region's emissions profile.

In Ecuador, the vehicle Periodical Technical Inspection and Maintenance (I/M) program, is a mandatory regulatory framework designed to ensure that motor vehicles meet minimum safety and emission standards. The program is under the Resolution 925-ANT-DIR-2019 for Vehicle Technical Inspection Regulations in Ecuador [9]. The annual inspection is mandatory for all vehicles older than two years. The IM evaluates technical aspects, including pollutant emissions, concentrations of CO and HC, mileage, and safety characteristics, affecting gasoline and diesel vehicles. Vehicles that meet all inspection criteria receive a certificate of compliance. If deficiencies are detected, a conditional certificate is issued, requiring corrective repairs and reinspection with up to four attempts permitted. Persistent non-compliance results in the banning of vehicles from circulation. Despite their comprehensive scope, I/M programs around the world exhibit limited effectiveness in detecting and addressing high emitter vehicles, which are often responsible for a disproportionate share of urban air pollution [10].

Ecuador is a country with a growing vehicle fleet and faces significant air quality challenges, particularly in its densely populated urban centers like Quito and Guayaquil [11]. In 2021, Ibarra-Espinosa et al. [7] used the VEIN model to characterize vehicular emissions on a national scale, providing valuable baseline information. As detailed in the accompanying manuscript, these studies relied on COPERT emission factors, corrected for local conditions, to estimate emissions [7], assuming vehicles passing IM. Although Ecuador has a mandatory annual vehicle inspection program, the impact of failures and the prevalence of high-emitters has not been integrated into emission inventories. This new study will build upon the previous work by incorporating data from the I/M program. This will allow for the development of a correction factor to adjust the emission estimations from the VEIN model, accounting for the segment of the fleet that are persistently high emitters and likely responsible for a larger share of pollution. It is hypothesized that this will result in higher, and more realistic emission figures, providing a more accurate tool for policymakers to address air quality management and effectively target emission reduction strategies.

2. Materials and Methods

We obtained the I/M data from 2019 from the Environmental Secretary of Quito, Ecuador. The dataset was analyzed to understand temporal trends over the years. We also studied the distribution statistics. The idea of I/M programs is to advise repairing or removing high emitters vehicles from circulation. However, there is a time before any car can be detected and then repaired depending on the I/M specifications. o, even if the local I/M is highly effective, there is still likely to be a percentage of high emitting cars in circulation at any given time. Here we propose a methodology to correct emission factors accounting for the high emitter cars in the emissions. Since the I/M database includes exhaust measurements of all cars, approved and reproved during a given year, we calculated the emissions ratio of reproved/approved cars by year of use. Then, as we know the number of each type of vehicle, we know the percentage of high emitting vehicles. Then, the final emission factor is weighted against high emitting vehicles and their fleet participation as shown in equation 1:

E = EF*[PERC_A + (IM_R/IM_A)*PERC_R]*VEH*LKM

(1)

where E are the emissions (g), EF emission factors representing vehicles with approved IM. For the purpose of this study, the emission factors come from Ntziachristos and Zamaras [8], available in VEIN. PERC_A and PERC_R are the percentage of the fleet that approves or reproves IM. IM_A and IM_R are the emissions for the approved and reproved vehicles from the IM program. VEH is the number of vehicles in circulation during the period of time, in this case by year. LKM is the distance travelled by the vehicles by year in km. This equation is extended for all the possible combinations of vehicle type, fuel, technology, year of use, deterioration, which are indeed considered when running VEIN. However, equation 1 intends to express a generic formulation.

VEIN is an open-source vehicular emissions model that was developed in Brazil and expanded with methodologies and emission factors from all over the world [19]. As a result, it currently has about 60k downloads. VEIN [12] is an R package which imports spatial features sf R package [13,14] with bindings for GDAL1, GEOS2 and PROJ3 for spatial processing. Furthermore, VEIN also imports the data.table R package [15], which provides an optimized and fast approach to deal with data. VEIN also incorporates Fortran Subroutines with parallel processes to calculate the emissions efficiently.

To account for the effect of high-emitting cars in the emissions we developed two emissions inventories for Ecuador. The base scenario assumes emission factors with normal degradation over time and no high emitters. The second scenario, includes the percentage of the fleet with high emitters. Finally, we perform a characterization of emissions and their comparison. We also included a comparison with road transport sector emissions from two global inventories, EDGAR v8.1 and CEDS v2024_07_08 [16,17].

3. Results and Discussion

3.1. Vehicle Inspection and Maintenance Program (IM)

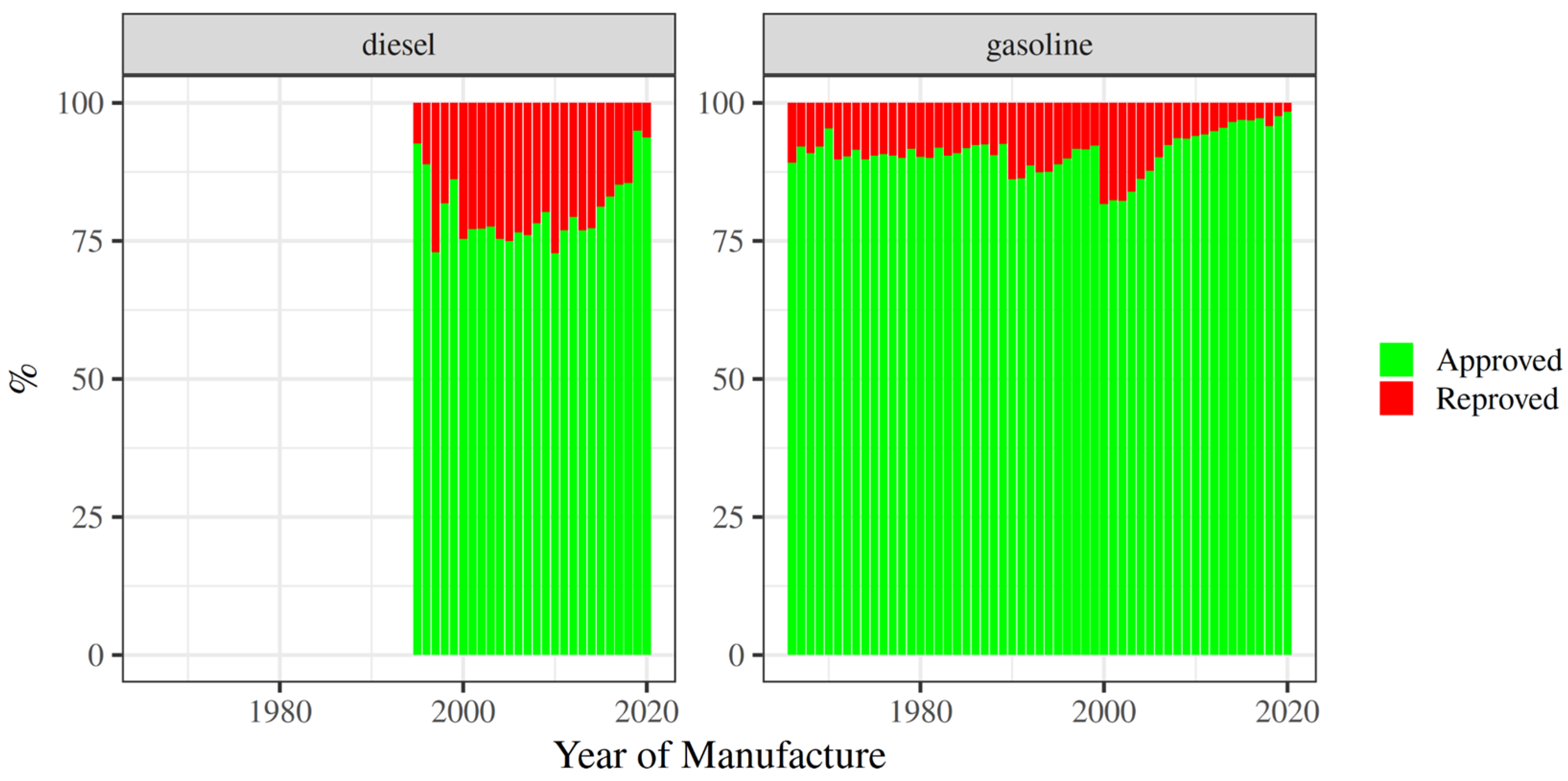

Diesel and gasoline cars show an expected pattern, with a larger proportion of approvals being awarded to newer vehicles, as shown in Figure 1. Data of older vehicles in circulation is very limited, around 0% for diesel lower than 1994 and 0% for gasoline lower than 1965. Hence, we limited gasoline cars between 1965 and 2020, and diesel between 1994 and 2020. The average of approved gasoline vehicles was 91.22% while for the diesel was 81.99%.

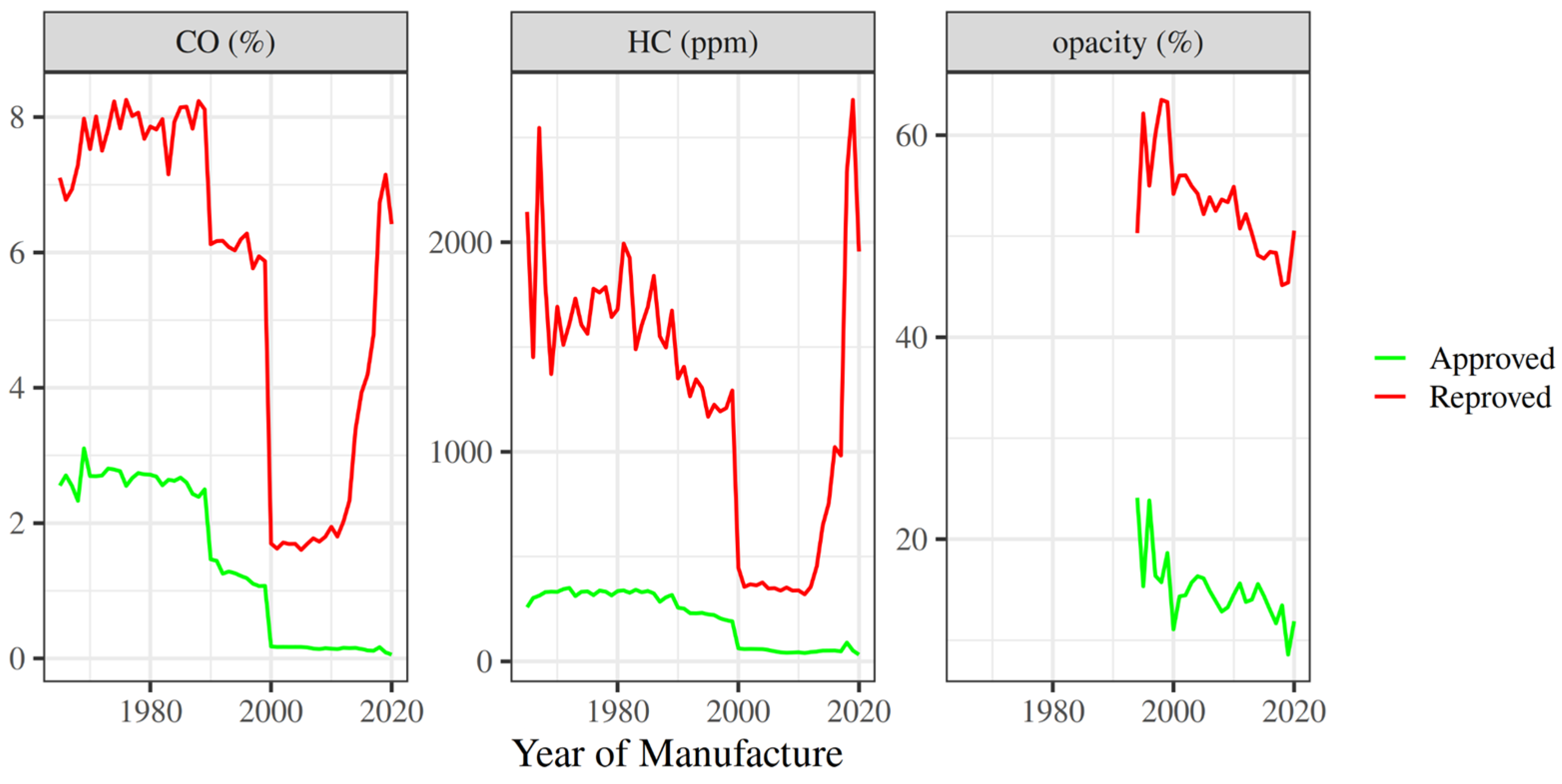

In gasoline vehicles, the CO is measured as a percentage (%), while HC is measured in ppm. In diesel vehicles, opacity is measured as the percentage, which represents the amount of light blocked by the exhaust plume. Therefore, the opacity is a good indicator of particle matter, the darker the plume, the more soot. While there are studies that estimate particle matter from opacity measurements [16], in this study we applied the ratio of reproved to approved as an indicator of particle matter emission factors for high-emitting diesel vehicles. The averaged values by age of CO, HC and opacity is shown in Figure 2, showing higher values for reproved vehicles. Specifically, on average, the ratio reproved/approved for CO, HC and opacity was 3.9, 6.2 and 3.6, respectively. Also, the CO and HC in gasoline vehicles pattern was similar, where the values of reproved vehicles are high in the first years, then drop with about 10 to 20 years of use, climbing again the older the vehicle. The increase in emissions for cars around the year 2000 and older is very likely due to the degradation of emission control systems, like the catalytic converter, over time.

3.2. Emissions Inventory

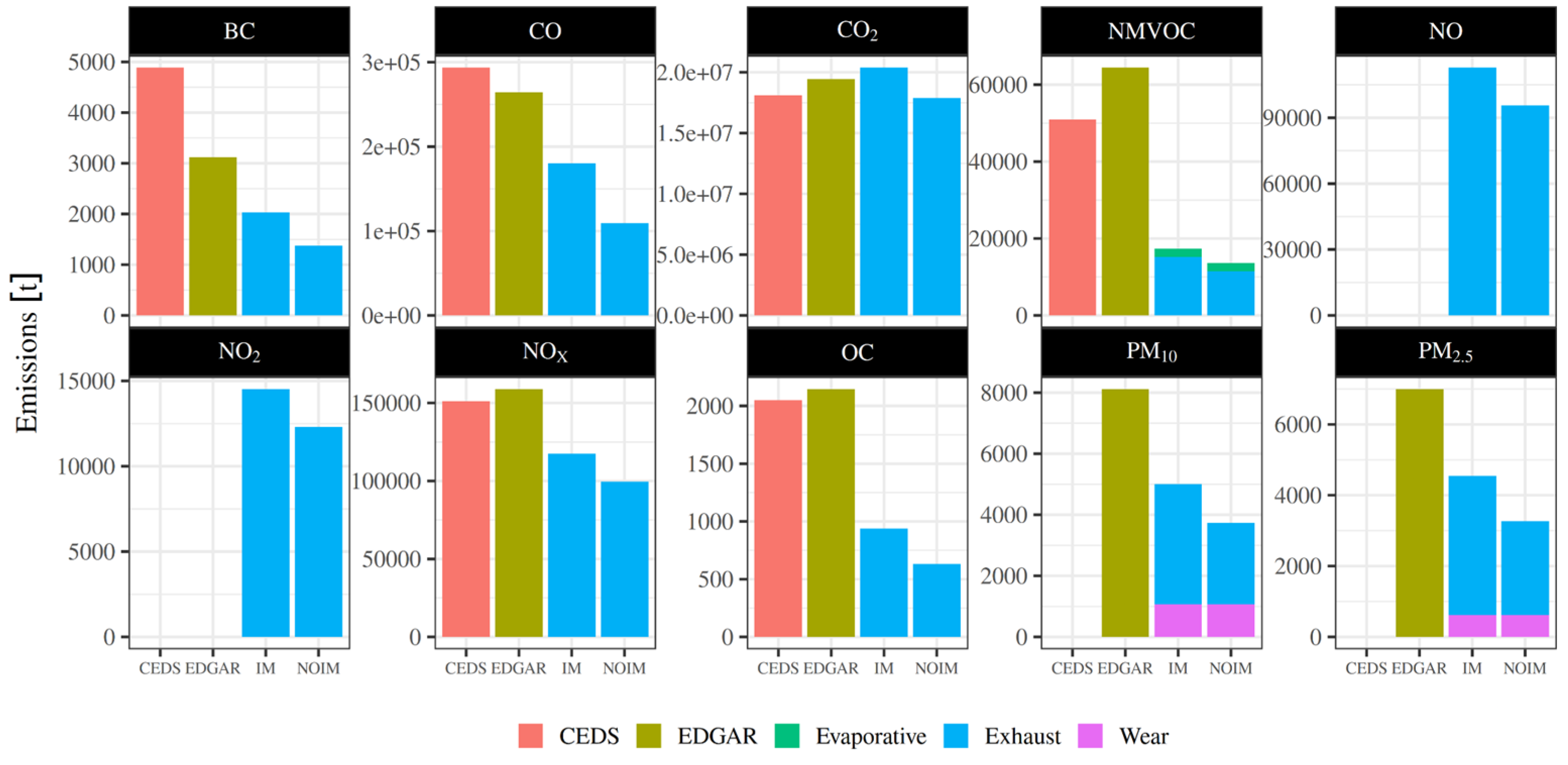

The emissions inventory included a combination of vehicles no older than 40 years, 12 months, 62 types of vehicles, 12 pollutants, 25 regions and two scenarios, resulting in a database of 42 million estimations. The visualization of the emissions by scenario and pollutant is shown in Figure 3. The values in our study are labeled as IM, to account for the effect of high emitters vehicles only available in the IM dataset, and NOIM, which assumes all vehicles would pass the IM program. While less than 10% of gasoline and 20% of diesel vehicles did not pass the IM inspection, their impact on emissions is more significant. The average shows that emissions are 33% higher including high emitters, but the percentage varies greatly for each pollutant. Specifically, the largest increment is 65% for CO, while the smallest change was 14% for CO₂. Regarding CO₂, we also see that our estimation aligns well with literature values. Actually, CO₂ from CEDS is 11% lower and from EDGAR 5% lower than our estimations. However for all the other pollutants, our literature values are higher with most pollutants. For CEDS, BC, CO, NMVOC, NOx and OC are higher than IM in 140%, 63%, 194%, 28% and 119%, while for EDGAR, the same pollutants are 53%, 47%, 272%, 35% and 129%, respectively. Given the agreement with CO₂, which is derived from fossil fuel data, the difference in emissions must be different primarily for emission factors. Also, worth noting here, VEIN can direct estimation of NO and NO₂, applying the methodology of the European Emissions Guidelines [18], which is not accounted for in literature estimations. Our estimations are separated by type, in this way we see that exhaust emissions are the most important for all the pollutants, while evaporative plays a secondary role for NMVOC, same as wear emissions for particulate matter PM₁₀ and PM_2.5.

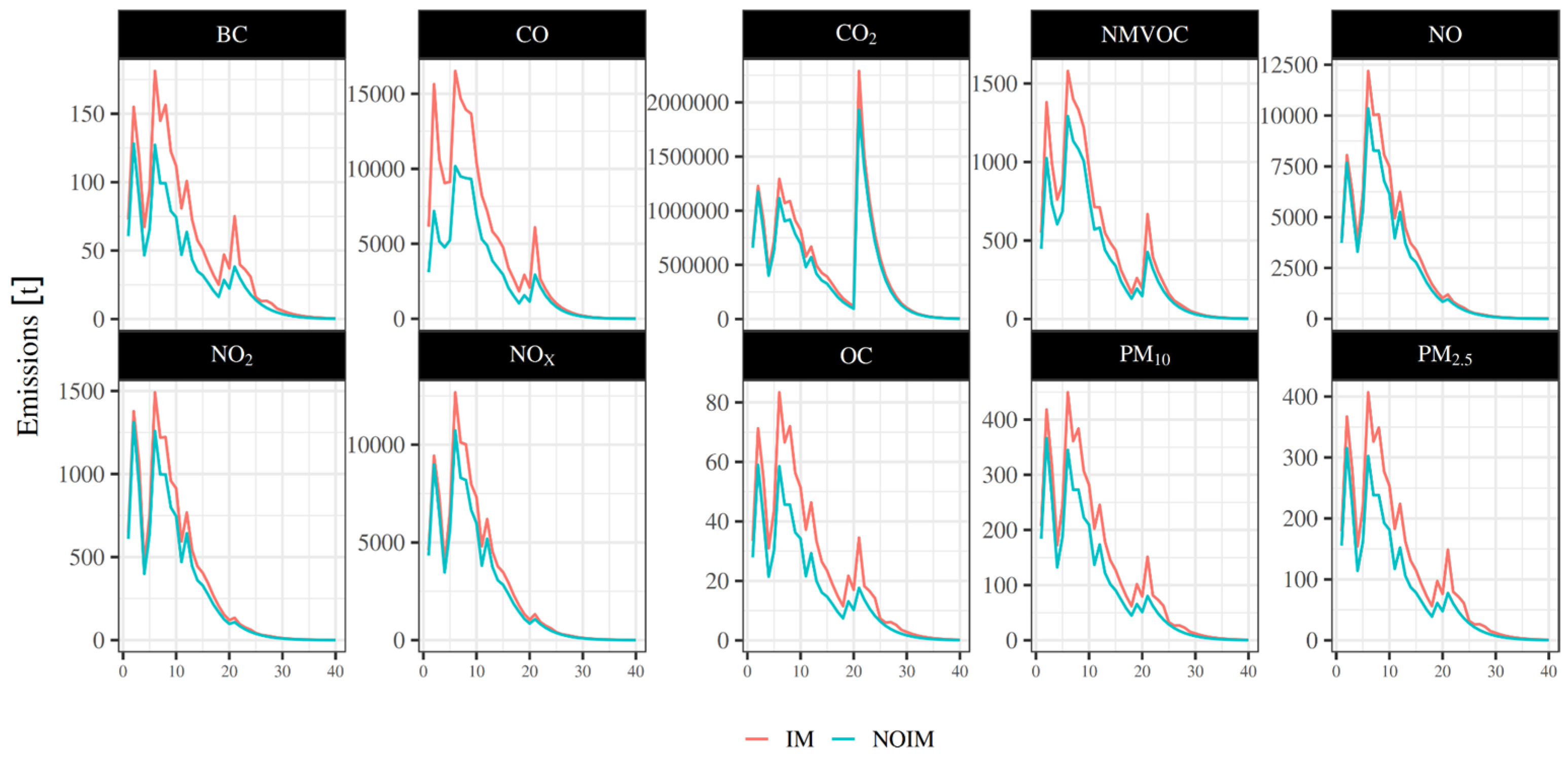

Figure 4 shows the breakdown of total emissions by vehicle age for both the IM and NOIM scenarios. The highest emissions for most pollutants come from vehicles that are between 0 and 10 years old, which is likely because there are more of these newer cars in the fleet. Across almost all pollutants and age groups, the emissions are higher in the IM scenario, which accounts for high-emitting vehicles. This difference is most noticeable for pollutants such as CO, where older vehicles that fail inspection contribute significantly to the total pollution.

4. Conclusions

This study presents a method for improving vehicle emission inventories by using data from Ecuador's Inspection and Maintenance (I/M) program. Including data on vehicles that failed the inspections, allow us to more accurately account emissions from high-emitting vehicles, which are often overlooked in standard models. Our analysis of the I/M data from Quito revealed that while a relatively small percentage of the fleet fails the annual inspection (less than 10% of gasoline vehicles and less than 20% of diesel vehicles), these vehicles emitted significantly more pollutants than passing vehicles. On average, failing vehicles emitted 3.9 times more CO, 6.2 times more HC, and had 3.6 times higher opacity levels compared to vehicles that passed the inspection. Using this information to create a new emissions inventory (the IM scenario), increased total emissions by an average of 33% compared to an inventory that did not account for I/M failures (the NOIM scenario). The impact varied by pollutant, with CO emissions seeing the largest increase at 65%. Our CO₂ estimates were similar to those from global inventories, such as CEDS and EDGAR, suggesting that our basic fleet and activity data are correct. However, our estimates for other pollutants were lower, indicating that the emission factors used in global models may differ from those used locally in Ecuador. Our results also show that failing to include I/M data can lead to a significant underestimation of actual on-road emissions. We also propose that the method presented here offers a way to create more realistic emission figures and provides policymakers with a better tool for developing effective strategies for managing air quality and reducing transportation-related pollution, and assessing the need for more targeted action to address high emitting vehicles specifically.
