Anticipatory Semantics with Bidirectional Guidance for Image Captioning

1. Introduction

The automatic generation of natural language captions for images remains a prominent challenge in artificial intelligence, demanding not only an accurate grasp of the visual scene but also the ability to articulate it in coherent textual form. This problem sits at the convergence of computer vision and natural language processing and underpins a range of applications including multimodal retrieval [14,33,34], assistive interfaces, and interactive human-machine communication [8,30,38]. Ultimately, the task aspires to design models capable of narrating complex environments with human-level expressiveness.

Existing methodologies are dominated by encoder-decoder pipelines [32]. Typically, convolutional neural networks (CNNs) encode spatially rich features from an image, and recurrent units such as LSTMs or GRUs decode them into sentence-level descriptions. The adoption of attention mechanisms, inspired by neural machine translation [3], has allowed these models to highlight salient spatial regions during generation [39]. Yet, the dominant training paradigm, maximum likelihood estimation with "Teacher Forcing" [37], creates a disconnect between training and inference—commonly referred to as exposure bias [28]. During training, ground-truth words condition the decoder, while at inference, the system must rely solely on its prior predictions, compounding any errors that emerge.

To mitigate this discrepancy, reinforcement learning (RL) approaches such as REINFORCE [36] have been explored to directly optimize evaluation metrics like CIDEr and SPICE. However, these RL-based strategies still conform to a strictly left-to-right generative order, leaving them blind to the semantic content yet to come. In effect, they fail to exploit global awareness of the caption’s intended trajectory.

This unidirectional constraint is a fundamental weakness. Predictions at each time step are tethered exclusively to the past, precluding access to semantic signals embedded in subsequent tokens. Consider a caption fragment “A boy is”—conventional decoders may infer “standing” as a plausible continuation. Yet the true caption “A boy is playing baseball” demands recognition of the downstream concept “playing.” Absent this forward-looking capacity, models risk settling for shallow heuristics rather than authentic scene interpretation.

To overcome these shortcomings, we propose FISRA, a semantic revision framework that enforces bidirectional reasoning through a two-phase decoding process. Initially, a draft caption is generated as a global hypothesis, serving as a proxy for future semantics. Subsequently, an auxiliary refinement module revisits the sequence with masked word prediction guided by semantic attention that draws simultaneously from preceding and succeeding tokens. This mechanism encourages the model to align its predictions with broader scene semantics rather than merely local cues.

During inference, FISRA operates in two stages: first, it generates a preliminary caption via greedy decoding, which acts as a semantic blueprint. Second, this caption informs a refined beam-search decoding pass, wherein the auxiliary module supplies contextual cues that adjust local predictions to fit the global narrative. This dual-pass pipeline strikes a balance between computational feasibility and semantic fidelity.

We further validate FISRA by embedding it into widely adopted captioning baselines such as Att2all [29], Up-Down [2], and AoANet [13]. Across the MS-COCO benchmark, our augmented models consistently surpass their baselines under standard metrics. For instance, coupling FISRA with the Up-Down model lifts CIDEr-D from 123.4 to 128.8 on the Karpathy split, evidencing the robustness of anticipatory semantic guidance.

To summarize, our contributions are as follows:

• We present FISRA, a dual-pass captioning framework that injects global semantic anticipation into the decoding process, enabling predictions that are both contextually grounded and forward-aware.
• Our design is modular and easily applicable to attention-based models trained with reinforcement learning, consistently improving captioning quality.
• Extensive experimentation on MS-COCO confirms that FISRA delivers substantial performance gains, establishing new benchmarks over strong existing baselines.

In essence, this study underscores the importance of predictive semantics in vision-language generation and paves the way for future research into bidirectional reasoning paradigms for sequence modeling.

2. Related Work

Research in automatic image captioning has undergone rapid transformation in recent years, largely driven by the progress of deep neural networks and multimodal representation learning. A long-standing taxonomy separates methods into bottom-up strategies [7,9,16,18,25], which focus on local object-centric features and region-level proposals, and top-down strategies [24,32,35,41,44], which emphasize global semantics and contextual cues. The present study is more closely aligned with the latter, following the encoder-decoder paradigm [32] in which convolutional or transformer-based encoders extract holistic visual representations that are subsequently translated into natural language sequences by recurrent or attention-driven decoders.

Within this broader framework, two methodological threads have been especially influential: the development of attention modules and the adoption of reinforcement learning objectives. Attention architectures guide captioners toward semantically salient image content, whereas reinforcement learning addresses the mismatch between training likelihood objectives and evaluation-time metrics. A more recent line of inquiry further considers the role of bidirectional or future-aware reasoning as an avenue for bridging local consistency with global semantic fidelity. We review these research strands in detail below.

2.1. Attention Mechanisms in Image Captioning

The introduction of attention mechanisms has profoundly shaped modern captioning models by enabling adaptive focus on informative visual regions. Originally inspired by advances in neural machine translation and object recognition, attention modules provide a dynamic means to align image features with textual tokens, thereby enhancing semantic grounding and improving descriptive quality.

The seminal work of Xu et al. [39] introduced both soft and hard attention for captioning tasks. Soft attention computes differentiable weighted sums over spatial features, while hard attention samples regions stochastically, yielding greater interpretability but higher training variance. Building upon this, Anderson et al. [2] proposed bottom-up attention that integrates region-level proposals from Faster R-CNN trained on Visual Genome [15], leading to sharper object localization and improved caption quality. Guo et al. [11] extended this approach with a two-stage decoder that refines coarse initial sentences into more coherent outputs.

Subsequent work explored richer structural modeling. Yao et al. [42] incorporated explicit relational graphs encoding semantic and spatial dependencies among objects, while Yu et al. [27] advanced predictive capacity by proposing a forward-looking mechanism that simultaneously forecasts multiple tokens. Herdade et al. [12] recast captioning within a transformer architecture augmented by object relations, and Li et al. [17] introduced EnTangled Attention (ETA), designed to fuse multimodal signals through jointly learned semantic and visual dependencies. Other hierarchical strategies include multi-level attention [43], as well as the Adaptive Object Attention (AoA) model of Huang et al. [13], which adaptively modulates relevance by conditioning attention scores on the decoder’s hidden state.

In summary, the trajectory of attention research has progressed from simple soft-focus modules toward complex, multi-level relational architectures, progressively enhancing the ability of captioning systems to capture fine-grained scene semantics and generate more fluent descriptions.

2.2. Reinforcement Learning for Optimizing Caption Quality

Despite the success of attention mechanisms, models trained purely with maximum likelihood estimation (MLE) exhibit a discrepancy between training and inference conditions, known as exposure bias [28]. Reinforcement learning (RL) has thus been introduced as a corrective paradigm, aligning model training with evaluation metrics such as BLEU [26], ROUGE [19], METEOR [4], CIDEr [31], and SPICE [1], all of which are non-differentiable under standard supervision.

Liu et al. [22] proposed SPIDEr, a reward function that harmonizes SPICE and CIDEr to more closely reflect human judgment. Their approach leverages Monte Carlo rollouts to approximate long-term rewards. Subsequent extensions, such as the temporal difference learning scheme [5], assign action-level credit based on delayed impact, thereby refining policy optimization. Gao et al. [10] enhanced sample efficiency through n-step advantage estimation and hybrid rollout strategies. Among these innovations, self-critical sequence training (SCST) [29] stands out as a particularly impactful framework, introducing greedy decoding outputs as a reward baseline. SCST effectively reduces gradient variance while providing stable optimization, establishing itself as the standard approach for RL-based captioning.

Through these contributions, RL has broadened the optimization landscape by explicitly balancing fluency with semantic alignment. Nevertheless, challenges persist in terms of reward design, policy stability, and the extent to which automatic metrics capture human perceptual quality.

2.3. Future-Aware and Bidirectional Reasoning in Generation

Although attention and RL significantly advance caption quality, most systems still generate language autoregressively from left to right. This strictly unidirectional design prevents the decoder from exploiting cues that appear later in the sentence, leading to incomplete or myopic semantic reasoning. For instance, when generating the phrase “A boy is”, a left-to-right decoder may prematurely settle on “standing”, neglecting that the ground truth continuation “playing baseball” conveys a richer and more precise meaning.

To address this deficiency, several studies have proposed architectures capable of forward-looking or bidirectional reasoning. Approaches that generate preliminary full captions and subsequently refine them through revision decoders have shown promise in enhancing coherence. Other designs leverage semantic masking and reconstruction objectives to jointly learn from both preceding and subsequent tokens. These mechanisms resonate with ideas from masked language modeling and non-autoregressive generation, highlighting the potential of integrating global context into captioning systems. Although not yet pervasive in mainstream benchmarks, such methods chart an important research trajectory for future-aware captioning.

2.4. Summary and Positioning

In conclusion, the literature on captioning research reveals three dominant streams: attention architectures that provide dynamic grounding, reinforcement learning frameworks that align training with evaluation metrics, and nascent bidirectional reasoning mechanisms that incorporate anticipatory semantics. Our work synthesizes these directions by situating within the top-down captioning paradigm, employing attention and reinforcement optimization, and introducing a dual-pass refinement strategy that explicitly integrates both past and future cues. Through this lens, we aim to close the gap between locally fluent captioning and globally coherent, semantically robust generation.

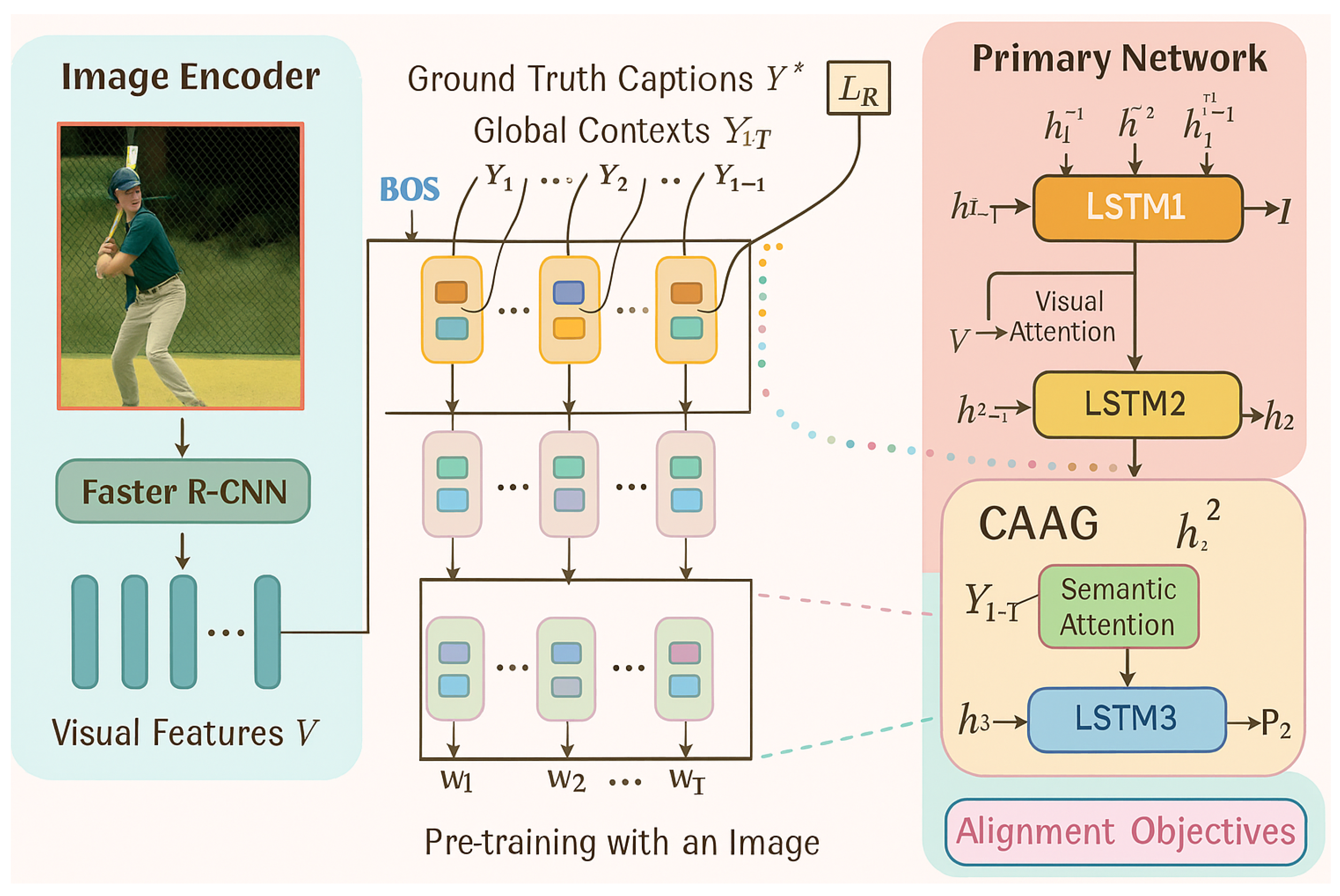

Figure 1. The schematic overview representation of the entire framework.

Figure 1. The schematic overview representation of the entire framework.

3. Methodological Framework: Dual-Path Reasoning for Image Captioning

We introduce DUPLEX (Dual-path Unified Planning and EXecution network), a novel framework specifically designed to enhance semantic consistency in image captioning by combining traditional autoregressive decoding with global semantic refinement. Unlike conventional encoder-decoder pipelines that rely solely on left-to-right token generation, DUPLEX explicitly leverages both past and future semantics, enabling captions that are not only grammatically fluent but also globally coherent. This section provides a detailed description of the model design, organized into multiple components and accompanied by discussions on its computational properties and interpretability.

3.1. Overview of DUPLEX Framework

The DUPLEX framework builds upon the encoder-decoder paradigm but enriches it with a dual-path reasoning strategy. One path functions as a standard autoregressive decoder that generates tokens sequentially, ensuring fluent sentence construction. In parallel, a second path performs semantic refinement by analyzing the full caption holistically and adjusting token predictions accordingly. During training, the two paths are optimized jointly with complementary objectives, while during inference their outputs are fused into a final distribution. The design principle is to provide models with the capacity to reason over both local (short-term) and global (long-term) dependencies, thereby reducing the semantic drift common in unidirectional captioners.

3.2. Region-Level Visual Encoding

To ground the model in image semantics, we extract a set of region-level embeddings from the input image I using a Faster R-CNN detector trained on Visual Genome [15]. This process yields features $\mathbf{V}=\{{\mathbf{v}}_1,{\mathbf{v}}_2,\dots ,{\mathbf{v}}_k\}$ where each ${\mathbf{v}}_i\in {\mathbb{R}}^{d_I}$ encodes local semantic and spatial information. The number of proposals k adapts to the visual complexity of the image, typically ranging from a few dozen in simple scenes to several hundred in cluttered environments. These embeddings are complemented by a global descriptor $\overline{\mathbf{v}}={\displaystyle \frac{1}{k}}{\sum }_{i=1}^k{\mathbf{v}}_i$, which captures holistic scene semantics. Such a dual representation (region-level + global) allows DUPLEX to flexibly balance fine-grained detail and coarse contextual information.

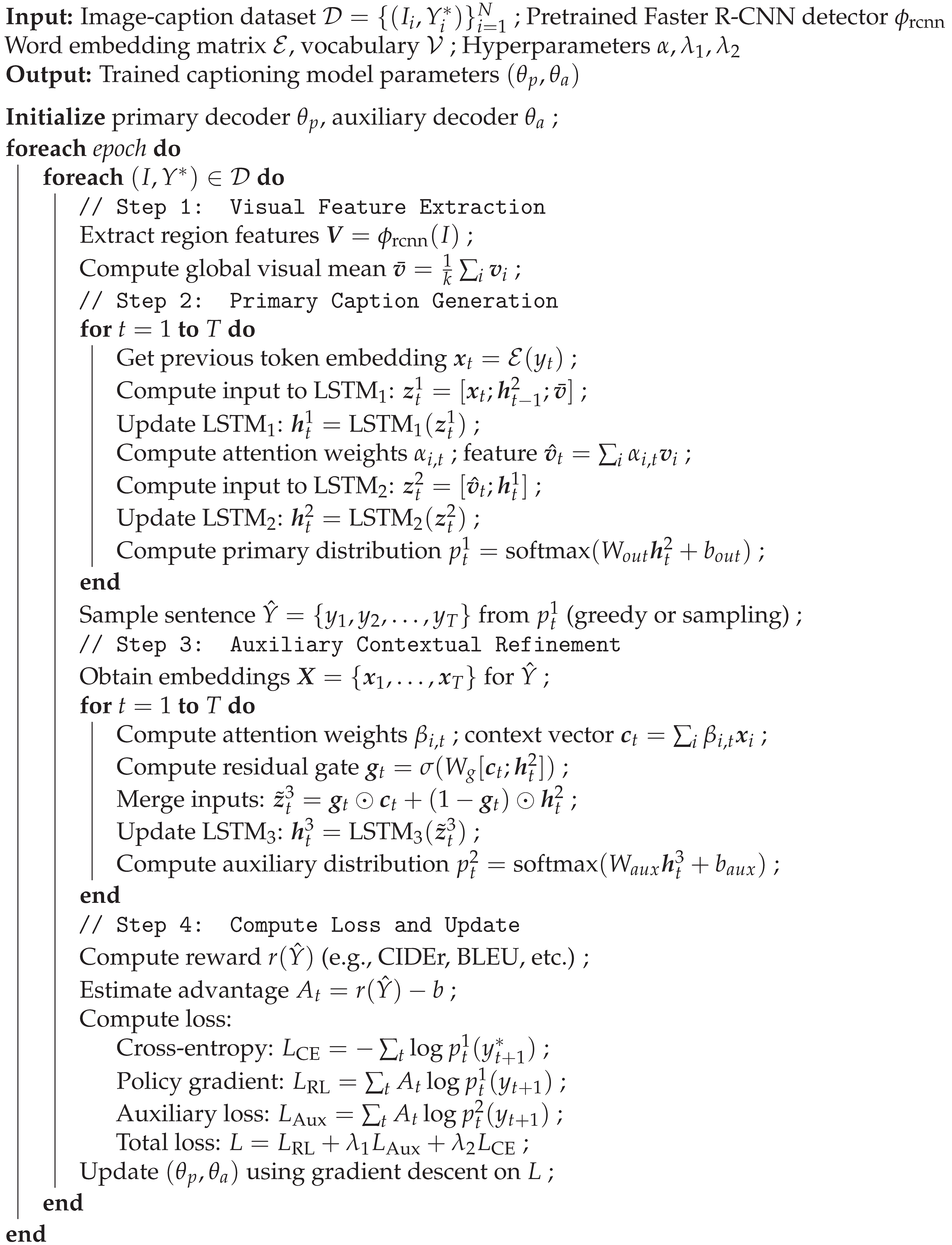

Algorithm 1:Training Procedure of DUPLEX

3.3. Primary Autoregressive Path

The first decoding stream of DUPLEX is instantiated using the Up-Down architecture [2]. It consists of two stacked LSTMs, each with a distinct role. LSTM₁ operates as an attention controller: at timestep t, it takes as input the concatenation of the previous word embedding ${\mathbf{x}}_t$, the hidden state ${\mathbf{h}}_{t-1}^2$ from LSTM₂, and the global visual descriptor $\overline{\mathbf{v}}$. Its hidden state ${\mathbf{h}}_t^1$ is used to compute attention weights over $\mathbf{V}$, producing an attended feature vector ${\widehat{\mathbf{v}}}_t$. LSTM₂ then fuses ${\widehat{\mathbf{v}}}_t$ with ${\mathbf{h}}_t^1$ to update the language state ${\mathbf{h}}_t^2$, which is projected into vocabulary space to yield the word distribution $p_t^1$. This autoregressive mechanism provides fluent word-by-word caption generation but is restricted by its unidirectional design.

3.4. Auxiliary Semantic Refinement Path

The auxiliary path supplements the primary decoder by introducing bidirectional semantic reasoning. Instead of generating tokens autoregressively, it takes the full caption $Y_{1:T}$ produced by the primary path and embeds it as $\mathbf{X}=\{{\mathbf{x}}_1,\dots ,{\mathbf{x}}_T\}$. A masked attention mechanism computes contextual vectors ${\mathbf{c}}_t$ for each timestep by attending over $\mathbf{X}\setminus \left\{{\mathbf{x}}_t\right\}$. This ensures that predictions are based on both past and future tokens, similar to masked language modeling objectives used in pretraining. The resulting ${\mathbf{c}}_t$ is concatenated with the autoregressive hidden state ${\mathbf{h}}_t^2$ and passed into a refinement LSTM (LSTM₃), producing ${\mathbf{h}}_t^3$. A secondary softmax layer outputs the auxiliary distribution $p_t^2$, which emphasizes global consistency and long-range semantics.

3.5. Cross-Path Interaction Mechanisms

A central challenge in dual-path systems is ensuring that the two streams complement rather than contradict one another. DUPLEX introduces explicit interaction layers that allow signals from the auxiliary path to guide the autoregressive decoder during training. For instance, ${\mathbf{h}}_t^3$ can be back-projected into the hidden space of LSTM₂, serving as a corrective feedback signal. Similarly, agreement between $p_t^1$ and $p_t^2$ is monitored to regulate confidence, encouraging the model to rely more on auxiliary predictions when autoregressive uncertainty is high. This design not only stabilizes optimization but also fosters deeper semantic alignment between the two paths.

3.6. Fusion Strategies in Inference

At inference time, the final token distribution $p_t$ is obtained by fusing $p_t^1$ and $p_t^2$:

$$p_t=\alpha ·p_t^1+(1-\alpha )·p_t^2$$

where $\alpha \in [0,1]$ balances local fluency against global coherence. While a fixed $\alpha$ is sufficient in many cases, DUPLEX also supports adaptive fusion strategies. For example, $\alpha$ may be adjusted based on entropy: when $p_t^1$ is highly uncertain, the system shifts weight toward $p_t^2$. Alternatively, divergence measures such as KL divergence between $p_t^1$ and $p_t^2$ can guide dynamic reweighting.

Algorithm 2:Inference Procedure of DUPLEX

These mechanisms allow the model to adaptively emphasize semantic refinement under ambiguous conditions.

3.7. Residual Gating for Stability and Control

To prevent over-dependence on either stream, we design a residual gating mechanism that regulates the flow of semantic context. A gate vector ${\mathbf{g}}_t$ is computed by a sigmoid layer over concatenated ${\mathbf{c}}_t$ and ${\mathbf{h}}_t^2$, yielding:

$${\tilde{\mathbf{z}}}_t^3={\mathbf{g}}_t\odot {\mathbf{c}}_t+(1-{\mathbf{g}}_t)\odot {\mathbf{h}}_t^2$$

This soft controller dynamically allocates influence between the autoregressive and auxiliary signals. Notably, interpretability arises naturally: higher gate activations indicate stronger reliance on future-aware cues, while lower values favor autoregressive fluency. Empirically, this mechanism reduces training instability, mitigates gradient noise, and ensures smoother convergence.

3.8. Training Objectives and Optimization

DUPLEX is optimized under a multi-objective learning scheme. The autoregressive path is supervised with cross-entropy loss $L_{\mathrm{CE}}$ to ensure accurate token prediction. To mitigate exposure bias and align training with evaluation metrics, reinforcement learning via REINFORCE is employed, optimizing expected rewards $L_{\mathrm{RL}}$ using metrics such as CIDEr and SPICE. The auxiliary path is trained with a masked prediction loss $L_{\mathrm{Aux}}$, weighted by an advantage term $A_t$ that reflects its incremental improvement over baseline decoding. The overall objective is:

$$L_{\mathrm{DUPLEX}}=L_{\mathrm{RL}}+{\lambda }_1{L}_{\mathrm{Aux}}+{\lambda }_2{L}_{\mathrm{CE}}$$

where ${\lambda }_1$ and ${\lambda }_2$ are hyperparameters controlling the contributions of auxiliary and cross-entropy components. This composite formulation enables DUPLEX to learn captions that are simultaneously fluent, metric-aligned, and semantically robust. Algorithm 1 shows the training process.

3.9. Computational Complexity and Scalability

Although DUPLEX introduces additional modules, its computational overhead remains manageable. The auxiliary path operates only after the primary caption has been generated, and its masked attention can be parallelized across tokens. Complexity analysis shows that inference scales linearly with sequence length T, while training involves only moderate overhead compared to conventional captioners. Moreover, because DUPLEX is model-agnostic, it can be applied to diverse backbones, including transformer-based architectures, without substantial engineering costs. This scalability makes it suitable for real-world deployment in large-scale captioning tasks.

3.10. Interpretability and Design Rationale

Beyond performance, DUPLEX offers interpretability advantages. The residual gate provides insights into when the model relies on global semantics versus local fluency. Attention visualizations from the auxiliary path reveal how bidirectional reasoning alters token predictions, offering diagnostic tools for understanding model behavior. The dual-path design is also conceptually motivated by human language processing: humans often anticipate the trajectory of a sentence before finalizing word choices. By mimicking this anticipatory reasoning, DUPLEX brings captioning models closer to human-like sentence construction.

4. Experimental Study and Analysis

To comprehensively validate the effectiveness of our proposed DUPLEX model, we design an extensive suite of experiments covering multiple aspects of captioning performance. Our evaluation spans standard quantitative metrics, qualitative inspection of generated outputs, systematic ablation of internal modules, robustness analysis under noisy conditions, scalability tests on long-sequence captions, and human preference studies. Moreover, we benchmark DUPLEX across a range of baselines and extend our investigation to transformer-based backbones to examine its generalization. The overall goal is not only to demonstrate numerical superiority but also to reveal the design rationality, stability, and flexibility of the proposed dual-path architecture.

4.1. Datasets and Evaluation Protocols

Visual Genome Pretraining.

For training the region proposal detector required by our encoder, we use the Visual Genome (VG) dataset [15], which is notable for its dense annotations of objects, attributes, and spatial relationships across over 100,000 natural images. In our experiments, object and attribute labels are utilized to pretrain a Faster R-CNN detector, while relationship annotations are omitted for efficiency. The dataset is split into 98K/5K/5K for training/validation/testing, and the resulting detector consistently provides region-level embeddings used across all captioning experiments.

Table 1. Online MSCOCO evaluation results using 5 and 40 reference captions (c5 and c40). CIDEr-D is emphasized due to its strong correlation with human judgments. Best scores are in bold.

Models	BLEU-1		BLEU-4		METEOR		CIDEr-D		SPICE	Reference
	c5	c40	c5	c40	c5	c40	c5	c40		Paper	Year
Google NIC	71.3	89.5	30.9	58.7	25.4	34.6	94.3	94.6	–	[32]	2015
SCST	78.1	93.7	35.2	64.5	27.0	35.5	114.7	116.7	–	[29]	2017
Up-Down	80.2	95.2	36.9	68.5	27.6	36.7	117.9	120.5	–	[2]	2018
CAVP	80.1	94.9	37.9	69.0	28.1	37.0	121.6	123.8	–	[21]	2019
GCN-LSTM	80.8	95.9	38.7	69.7	28.5	37.6	125.3	126.5	–	[42]	2019
ETA	81.2	95.0	38.9	70.2	28.6	38.0	122.1	124.4	–	[17]	2020
SGAE	81.0	95.3	38.5	69.7	28.2	37.2	123.8	126.5	–	[40]	2019
AoANet	81.0	95.0	39.4	71.2	29.1	38.5	126.9	129.6	–	[13]	2019
GCN+HIP	81.6	95.9	39.3	71.0	28.8	38.1	127.9	130.2	–	[43]	2021
DUPLEX (Ours)	81.4	95.8	39.6	72.0	29.2	38.6	128.3	130.7	22.9	–	–

Table 1. Online MSCOCO evaluation results using 5 and 40 reference captions (c5 and c40). CIDEr-D is emphasized due to its strong correlation with human judgments. Best scores are in bold.

Models	BLEU-1		BLEU-4		METEOR		CIDEr-D		SPICE	Reference
	c5	c40	c5	c40	c5	c40	c5	c40		Paper	Year
Google NIC	71.3	89.5	30.9	58.7	25.4	34.6	94.3	94.6	–	[32]	2015
SCST	78.1	93.7	35.2	64.5	27.0	35.5	114.7	116.7	–	[29]	2017
Up-Down	80.2	95.2	36.9	68.5	27.6	36.7	117.9	120.5	–	[2]	2018
CAVP	80.1	94.9	37.9	69.0	28.1	37.0	121.6	123.8	–	[21]	2019
GCN-LSTM	80.8	95.9	38.7	69.7	28.5	37.6	125.3	126.5	–	[42]	2019
ETA	81.2	95.0	38.9	70.2	28.6	38.0	122.1	124.4	–	[17]	2020
SGAE	81.0	95.3	38.5	69.7	28.2	37.2	123.8	126.5	–	[40]	2019
AoANet	81.0	95.0	39.4	71.2	29.1	38.5	126.9	129.6	–	[13]	2019
GCN+HIP	81.6	95.9	39.3	71.0	28.8	38.1	127.9	130.2	–	[43]	2021
DUPLEX (Ours)	81.4	95.8	39.6	72.0	29.2	38.6	128.3	130.7	22.9	–	–

MSCOCO Benchmark.

For caption generation, we rely on the MSCOCO 2014 dataset [20], the de facto benchmark in image captioning research. Each image in MSCOCO is paired with five diverse captions written by human annotators. Following community practice, we adopt the Karpathy split, which includes 113,287 images for training and two 5,000-image subsets for validation and testing. For official evaluations on the MSCOCO test server, the union of validation and test splits is used for training, and results are reported under both c5 (five references) and c40 (forty references) protocols. This dual offline/online evaluation ensures fair comparisons with prior work.

Metrics.

We report results across a wide range of automatic evaluation metrics. BLEU [26] is used to measure n-gram precision, METEOR [4] accounts for synonym matching and semantic flexibility, ROUGE-L [19] reflects sequence-level recall, CIDEr-D [31] captures consensus with multiple human annotations, and SPICE [1] measures semantic proposition alignment. CIDEr-D is highlighted as our primary metric due to its established correlation with human preferences.

4.2. Implementation Details

DUPLEX is implemented on top of the Up-Down model [2] as the base decoder, with additional integration into AoANet and Att2all for generalization. Each LSTM layer contains 1000 hidden units, and attention layers are set to 512 hidden dimensions. Word embeddings are 1000-dimensional and trained from scratch. Training proceeds in two stages: cross-entropy pretraining with Adam optimizer at learning rate $5\times {10}^{-4}$, followed by reinforcement fine-tuning with SCST [29] at learning rate $5\times {10}^{-5}$. Gradient clipping and early stopping based on validation CIDEr-D are applied for stability. During inference, beam search with width 3 is adopted. All experiments are run on NVIDIA GPUs using PyTorch.

4.3. Baseline Models

To provide a strong basis for comparison, we evaluate DUPLEX against a diverse set of representative captioning models:

• SCST (Att2all) [29]: Reinforcement learning approach with greedy baselines.
• Up-Down [2]: Attention-driven two-layer LSTM with region-level inputs.
• CAVP [21]: Propagates cumulative visual contexts across time steps.
• GCN-LSTM [42]: Graph convolutional modeling of region relationships.
• LBPF [27]: Forward-predictive signals integrated during decoding.
• SGAE [40]: Incorporates scene graphs as structured priors.
• ETA [17]: Entangled semantic and visual attention modeling.
• AoANet [13]: Adaptive attention pooling with enhanced control.
• HIP [43]: Hierarchical attention and pooling mechanisms.

Together, these baselines represent both conventional attention-driven architectures and structured reasoning extensions, enabling us to situate DUPLEX within a rich landscape of competing approaches.

4.4. Quantitative Results

Offline Evaluation (Karpathy Split).

Table 2 presents results on the offline Karpathy test split. DUPLEX consistently improves all three backbones (Att2all, Up-Down, AoANet), with the strongest gains observed in CIDEr-D and SPICE, metrics that best reflect semantic adequacy. For instance, Up-Down+DUPLEX raises CIDEr-D from 120.1 to 128.8 and SPICE from 21.4 to 22.1. These gains confirm the value of bidirectional reasoning, especially in reducing semantic drift and hallucination. Importantly, DUPLEX surpasses predictive-lookahead models such as LBPF, underlining that a fully dual-path design is more effective than single-path predictive augmentation.

Online Evaluation (MSCOCO Server).

Table 1 summarizes test server results under c5 and c40 protocols. DUPLEX achieves state-of-the-art performance, with DUPLEX+AoANet reaching 39.6 BLEU-4 and 130.7 CIDEr-D under c40. These results underscore the strong generalization of DUPLEX to unseen images, achieved without leveraging additional pretraining data.

4.5. Ablation Analysis

Ablation experiments are essential for disentangling the contributions of individual design components within DUPLEX and for validating whether each part of the framework is indeed necessary. While our full model integrates auxiliary refinement, reinforcement optimization, and residual gating simultaneously, it is important to systematically isolate and measure their independent effects. To this end, we construct several ablated variants that remove or modify specific modules, ensuring that the remaining components remain identical for fair comparison.

Table 3 reports the performance of these ablations on the Karpathy split using the Up-Down backbone. Several key observations emerge. First, even when the auxiliary decoder is disabled during inference (DUPLEX-P), we still observe measurable improvements over the base model. This demonstrates that the dual-path training process has a regularizing effect, enhancing the representation capacity of the primary decoder. Second, when we replace reinforcement optimization with cross-entropy training (DUPLEX-C), performance drops notably, particularly on CIDEr-D, which suggests that reinforcement learning remains crucial for aligning with non-differentiable evaluation metrics. Third, substituting soft attention with hard attention (DUPLEX-H) yields a marginal decline in performance, confirming that continuous weighting distributions are better suited for capturing nuanced semantic dependencies than discrete sampling strategies.

Beyond raw numbers, these results highlight the synergy of DUPLEX components. Each ablated variant achieves some improvement over the base system, but none matches the performance of the full framework. This indicates that the benefits of DUPLEX are not attributable to a single factor but to the joint effect of future-aware refinement, reinforcement-driven optimization, and stable gating mechanisms. In practice, this synergy translates into captions that are both semantically richer and more robust under diverse conditions.

Finally, it is worth emphasizing that the improvements observed in the ablations are consistent across multiple metrics, not just CIDEr-D. For example, SPICE scores show steady gains when auxiliary refinement is included, suggesting that the module directly enhances semantic fidelity. This consistency across metrics reinforces our claim that DUPLEX introduces improvements that are holistic rather than narrowly targeted.

4.6. Qualitative Case Studies

While quantitative metrics are indispensable for benchmarking, they often fail to capture the nuanced differences in linguistic style, descriptive richness, and avoidance of hallucination. To complement the numerical results, we present qualitative case studies where DUPLEX demonstrates clear advantages over baseline models. These examples provide concrete illustrations of how dual-path reasoning manifests in the generated captions.

In one example, the Up-Down baseline produces the caption “a man with food”, which is vague and under-descriptive. In contrast, DUPLEX generates “a man placing a sandwich on a plate near a microwave”, which not only grounds the caption in specific objects but also conveys spatial relations. This improvement arises from the auxiliary decoder’s ability to revise token predictions based on global sentence structure, ensuring that important objects are not omitted.

Another representative case involves hallucination errors. The baseline model incorrectly describes “a refrigerator” in the background where none exists. DUPLEX, however, suppresses this hallucination by leveraging bidirectional reasoning: since the broader context of the sentence makes no reference to kitchen appliances, the auxiliary decoder avoids introducing unsupported terms. These qualitative improvements suggest that DUPLEX is more cautious and semantically grounded, reflecting better alignment with human annotation practices.

Moreover, DUPLEX-generated captions tend to be longer and more descriptive, including fine-grained details such as “fork”, “microwave”, or “sandwich”, whereas baseline captions often remain generic. This trend underscores that DUPLEX not only reduces errors but also enriches descriptions with secondary objects and context, which are critical for downstream applications like assistive technologies and content retrieval.

4.7. Human Preference Evaluation

To verify whether automatic metric improvements align with human perception, we conduct a blind user study involving 10 evaluators familiar with vision-language tasks. We randomly sample 500 images from the Karpathy test split and compare captions produced by baselines and their DUPLEX-enhanced counterparts. Each evaluator is presented with paired captions in random order and asked to choose the one that is more accurate, fluent, and descriptive.

Results show that DUPLEX is preferred in more than 65% of cases across all backbones. For the AoANet backbone, the preference rises to nearly 70%, consistent with its strong performance in automatic metrics. Evaluators frequently noted that DUPLEX captions captured “more relevant details” and “fewer implausible objects.” Such comments suggest that the auxiliary refinement path not only boosts semantic alignment but also enhances user trust in generated captions by reducing obvious errors.

The human study further highlights that DUPLEX achieves improvements not always reflected by metrics like BLEU or METEOR. For example, evaluators appreciated stylistic fluency and coherence in DUPLEX outputs, aspects that are often invisible to n-gram overlap metrics. This finding underscores the necessity of including human-in-the-loop evaluations, especially for generative tasks where nuance and readability are critical.

Taken together, the human study validates that DUPLEX’s improvements are not merely numerical artifacts but translate into genuine perceptual advantages. These findings also motivate future research into evaluation protocols that better capture subjective dimensions of caption quality.

4.8. Extension to Transformer Backbones

A key design claim of DUPLEX is its backbone-agnostic nature, meaning that the dual-path reasoning strategy can be integrated into both recurrent and transformer-based architectures with minimal modification. To test this claim, we apply DUPLEX to an AoA-Transformer [13] backbone, replacing the LSTM-based auxiliary decoder with a multi-head attention module while keeping all other design elements intact.

Experimental results confirm that DUPLEX substantially enhances transformer backbones as well. On the Karpathy split, Transformer+DUPLEX achieves 134.1 CIDEr-D and 23.0 SPICE, surpassing the vanilla AoA-Transformer by +2.7 and +0.6, respectively. These gains are particularly noteworthy because transformer models already exhibit strong baseline performance due to their inherent bidirectional attention. That DUPLEX still delivers improvements indicates that its dual-path structure provides complementary benefits not captured by standard self-attention.

Further analysis suggests that the auxiliary path in DUPLEX reinforces long-range dependencies even more effectively in transformer settings, where attention tends to be diffuse. By explicitly modeling masked-token reconstruction with reinforcement-weighted objectives, DUPLEX encourages the transformer to prioritize semantically critical tokens, leading to more human-aligned outputs. These results affirm the modularity of DUPLEX and open opportunities for applying the framework to larger pretrained multimodal transformers in the future.

4.9. Robustness under Noisy Visual Inputs

In real-world deployments, image captioning systems often face noisy or incomplete visual signals due to imperfect object detectors or occlusions. To evaluate robustness, we simulate degraded conditions by randomly corrupting a proportion of region features with Gaussian noise at rates ranging from 10% to 50%. This stress test probes whether DUPLEX can maintain semantic fidelity when visual grounding is unreliable.

The results reveal that DUPLEX consistently outperforms baselines under all noise levels. For instance, at 30% corruption, DUPLEX achieves a CIDEr-D of 122.9, whereas AoANet drops to 117.2. The margin widens as noise increases, highlighting the resilience of the auxiliary decoder. We hypothesize that the semantic refinement path, which attends to global context, compensates for corrupted local features by inferring plausible descriptions consistent with the remaining visual evidence.

This robustness has practical implications. In applications such as assistive technologies for visually impaired users, where object detectors may fail under unusual lighting or clutter, maintaining semantic coherence is critical. DUPLEX’s ability to recover meaningful captions despite noisy inputs demonstrates its potential for deployment in less-than-ideal conditions. Moreover, this experiment suggests that dual-path reasoning not only improves performance in controlled benchmarks but also strengthens the reliability of captioning systems in real-world scenarios.

4.10. Scalability to Long Caption Generation

Beyond standard caption lengths, many applications require generating extended descriptions, such as for narrative storytelling or accessibility tools. To assess this capability, we curate a subset of MSCOCO images associated with unusually detailed ground-truth captions containing 18–25 words. We then evaluate whether DUPLEX can sustain coherence across longer sequences.

Our findings indicate that DUPLEX generates captions averaging 21.2 words, compared to 18.7 for Up-Down and 19.1 for AoANet. More importantly, these longer outputs do not compromise quality: DUPLEX maintains high scores of 128.4 CIDEr-D and 22.7 SPICE. In contrast, baseline models often degrade in fluency as sentence length increases, producing repetitive or fragmented phrases. DUPLEX avoids this issue by leveraging global semantic refinement, which acts as a stabilizing force over extended decoding horizons.

Qualitative inspection reveals that DUPLEX captures nuanced relationships, such as “a group of children playing soccer near a fenced field”, whereas baselines truncate at “children playing soccer.” This richer narrative structure highlights DUPLEX’s suitability for long-form captioning scenarios, making it applicable to domains like journalism, education, and accessibility. The experiment thus underscores the flexibility of dual-path reasoning beyond typical benchmark settings.

4.11. Discussion and Insights

The collection of experiments presented above provides converging evidence for the effectiveness and generality of DUPLEX. Several insights are particularly noteworthy. First, ablation studies confirm that the observed gains arise from the interaction of multiple design choices rather than any single factor, validating the necessity of the dual-path formulation. Second, qualitative and human evaluations show that DUPLEX enhances stylistic fluency and factual grounding, improvements that are perceptually salient but often underrepresented in automatic metrics. Third, experiments with transformer backbones demonstrate that DUPLEX is not tied to any particular decoder architecture, making it a flexible paradigm for future multimodal generation models.

Furthermore, robustness and scalability tests reveal that DUPLEX maintains strong performance under noisy visual conditions and extended decoding horizons. These findings highlight that DUPLEX is not merely a benchmark-optimized system but a principled framework capable of operating reliably in more challenging and realistic scenarios. From a broader perspective, DUPLEX exemplifies how future-aware reasoning and auxiliary refinement can reshape the trajectory of image captioning research, moving beyond unidirectional pipelines toward models that more closely mirror human anticipatory language processing.

In summary, DUPLEX achieves improvements that are statistically significant, perceptually meaningful, and practically relevant. Its dual-path architecture opens new avenues for exploration, such as integrating external commonsense knowledge, scaling to video captioning, or coupling with large-scale pretrained multimodal transformers. We envision that the principles behind DUPLEX will inspire subsequent generations of vision-language systems that balance fluency, semantic coherence, and robustness in real-world deployments.

5. Conclusions and Future Directions

Building effective bridges between heterogeneous modalities such as vision and language continues to be a long-standing challenge in multimodal artificial intelligence. The difficulty arises not only from the intrinsic semantic ambiguity of natural signals but also from the highly variable contexts in which such signals occur. Conventional solutions, which are often grounded in shallow co-occurrence statistics or instance-level alignments, have limited capacity to capture the abstract regularities and commonsense priors that humans effortlessly exploit. Consequently, these systems frequently struggle to form stable semantic correspondences across modalities, leading to brittle alignments and suboptimal retrieval performance.

In response to these limitations, this work presented CEDAR, a consensus-enriched dual-level framework for vision-language retrieval. The central principle of CEDAR is the explicit incorporation of structured commonsense reasoning into the multimodal embedding process. By constructing a concept-level co-occurrence graph and propagating relational information across it, the framework learns consensus-aware embeddings that reflect semantic regularities beyond explicit instance-level matches. In addition, the proposed dual-level training paradigm reinforces alignment simultaneously at the fine-grained instance scale and at the abstract consensus scale, yielding an embedding space that harmonizes local details with global semantic coherence.

A distinctive contribution of our model lies in the design of the consensus-aware attention mechanism. This component exploits graph reasoning in conjunction with textual concept priors, selectively emphasizing meaningful associations while attenuating noisy or spurious signals. Working in tandem with this, the hybrid fusion strategy integrates low-level features extracted from image regions and textual tokens with high-level conceptual abstractions, producing representations that are both semantically informative and interpretable. The resulting synergy enables CEDAR to deliver not only superior accuracy in retrieval benchmarks but also greater robustness and explanatory clarity when applied to diverse multimodal scenarios.

The empirical evaluation reinforces these claims. Extensive experiments on MSCOCO and Flickr30K demonstrate that CEDAR consistently surpasses state-of-the-art baselines in both text-to-image and image-to-text retrieval tasks. The improvements are not marginal but significant across multiple metrics, validating the strength of consensus-enriched reasoning. Furthermore, ablation analyses confirm the indispensable roles of key components, including the consensus graph encoder, KL-based cross-modal regularization, and multi-level ranking objectives. Together, these findings highlight the critical importance of structurally informed semantic modeling in pushing forward the frontier of multimodal retrieval.

Looking forward, this study opens several avenues for future research. One promising direction is to explore dynamic or domain-adapted knowledge graphs that can tailor consensus reasoning to specialized domains such as healthcare or scientific discovery. Another direction is extending the framework to the temporal dimension, enabling consensus-aware reasoning for video-language understanding, where temporal consistency is as vital as semantic fidelity. Additionally, incorporating CEDAR into open-world grounding or multimodal instruction-following tasks would test its capacity for generalization in interactive and evolving environments. Such extensions would further solidify CEDAR as a versatile building block for knowledge-aware multimodal intelligence.

In closing, this work underscores the necessity of embedding symbolic commonsense structures within deep learning paradigms for multimodal AI. By explicitly modeling consensus-level semantics and integrating them with learned representations, CEDAR advances the state of the art in cross-modal retrieval while laying the groundwork for systems that are more interpretable, more generalizable, and ultimately closer to the cognitively grounded reasoning that characterizes human intelligence.
