Continuous Monitoring of Muscle Oxygenation in Endurance Athletes During Incremental Cycling: Experimental Validation of a Wearable Continuous Wave NIRS Sensor Using Frequency Domain Near-Infrared Spectroscopy

1. Introduction

Regular physical activity is essential for improving health, fitness, and physical performance. However, individuals often lack accessible tools to monitor the effectiveness and efficiency of their exercise routines. Current wearable fitness devices primarily track metrics such as heart rate, steps, and estimated caloric expenditure, but these parameters provide limited insight into the actual physiological responses of working muscle during exercise and the related hematological and tissue responses to changing oxygen needs. Additionally, training intensity and adaptation have traditionally been monitored using systemic physiological markers such as heart rate, blood lactate concentration, or oxygen consumption (VO₂). While these parameters provide valuable insights into overall physiological stress, they offer limited information about the specific metabolic changes occurring within the working muscles themselves.

In recent years, there has been growing interest in muscle oxygen saturation (SmO₂) monitoring as a direct, localized, and continuous measurement of muscle metabolism and oxygen kinetics during exercise. SmO₂ represents the balance between oxygen supply and demand within muscle tissue and serves as a valuable indicator of local muscle metabolic activity during physical exertion. Resting muscle oxygen saturation typically ranges from 60-80% in healthy individuals but can vary significantly based on individual factors including training status and disease [1]. During exercise, such as interval training, SmO₂ values generally decrease as oxygen demand exceeds supply, with the magnitude and pattern of these changes varying considerably between individuals based on their physiological state, fitness level, tissue morphology, and type of exercise being conducted (i.e. steady state aerobic exercise versus resistance training).

Near-infrared spectroscopy (NIRS) has emerged as the primary technology for non-invasive assessment of muscle oxygenation [2,3,4]. NIRS technology utilizes light in the 650-900 nm wavelength range to penetrate tissue and measure the diffused light, allowing estimation of tissue absorption and scattering properties [5,6]. By analyzing the absorption spectrum, researchers can calculate the concentrations of oxygenated and deoxygenated hemoglobin and myoglobin, which are used to calculate muscle oxygenation as the ratio of oxygenated hemoglobin and myoglobin to the combined total hemoglobin and myoglobin concentration.

Multiple studies have investigated the relationship between NIRS-derived parameters, including SmO₂, and established training metrics. Research has demonstrated correlations between lactate and VO₂-derived thresholds, and SmO₂ thresholds identified using NIRS technology [7,8]. The metabolic relationship between oxygen delivery to working muscle, oxygen consumption by mitochondria, and the production of substrates such as lactate when oxygen demand outpaces supply, is indicated in the SmO₂ metric when performance is no longer under steady state kinetics and oxygenation economics change. Other investigations have focused on muscle adaptation throughout training cycles by examining changes in oxygenated hemoglobin, deoxygenated hemoglobin, or muscle oxygenation kinetics during specific exercise protocols [9].

These findings collectively support the integration of NIRS technology into athletic training programs for more targeted and personalized exercise prescription, with a higher personal specificity than typical wearable exercise metrics can provide. It is widely understood that LED-based PPG-derived parameters have technological limitations [10], and SmO₂ may prove to be a better performance indicator in some use cases [11]. By identifying individual-specific oxygenation thresholds, coaches and athletes can establish precise and more personalized training zones that correspond to distinct metabolic states, enabling more accurate periodization and load management [12]. Furthermore, real-time muscle oxygenation monitoring allows for immediate adjustment of exercise intensity based on localized metabolic demand rather than relying solely on systemic markers, potentially improving training efficiency and reducing the risk of overtraining [13].

Despite these promising applications, traditional muscle oxygenation has been measured using laboratory-based, fiber coupled NIRS systems, which are expensive, complex to operate, and not suitable for everyday use by the general population or athletes in field settings. The translation of this technology into wearable, wireless formats represents an important advancement that could significantly enhance accessibility and practical application for athletes and coaches, providing real-time feedback during training and competition [14].

To address this technological gap, NNOXX Inc. developed a low cost, wireless, wearable sensor capable of measuring muscle oxygenation and movement acceleration in real-time, with expanded, future capabilities to monitor other hematological parameters [15,16,17]. It applies a novel deep-optics approach to continuous wave NIRS (CW-NIRS), improving the ability to acquire hematological variables in selected tissues of interest. From a technological perspective, the NNOXX device represents a significant technological advancement in making muscle oxygenation monitoring accessible outside laboratory settings.

FDNIRS systems are one of the most reliable, commercially available non-invasive devices used to validate tissue oximeters, including muscle oximeters. This is primarily due to their superior accuracy over other types of non-invasive sensors and their ability to separate absorption and scattering effects in tissue measurements [18]. Multiple commercial wearable muscle oximeters, including the Humon device, have established their validity through comparison against FDNIRS reference systems like the MetaOx, making this approach an accepted standard for device validation in the field [19]. Unlike traditional FDNIRS systems that require complex, expensive frequency-domain hardware and fiber-optic coupling, the NNOXX device employs a custom optical design optimized for low-power operation while maintaining high signal contrast. This continuous wave approach eliminates the need for costly modulated light sources and phase-sensitive detection systems used in FDNIRS. It instead relies on sophisticated algorithms and optimized hardware to extract physiologically relevant information from simpler optical measurements. The device’s engineering specifically addresses the primary limitations of existing muscle oximeters through integrated ambient light shielding, a convex case back optimized for consistent skin coupling, and on-board signal processing.

The device aims to deliver FDNIRS-quality measurements at a fraction of the cost and complexity, making muscle oxygenation monitoring practical for widespread athletic and clinical applications. These innovations could offer users a deeper understanding of their physiological responses to exercise, potentially enhancing the effectiveness and efficiency of their workouts. Further, a portable CWNIRS device that delivers individualized responses to exercise specifically in local working tissue may be invaluable to applications in cardiovascular rehabilitation or similar. By measuring a personalized response to exercise-induced hyperemia and proactive hematological biometrics, exercise prescriptions may be better tailored to a patient’s physiological abilities, improving overall compliance and case management.

This pilot study aimed to validate SmO₂ measurements obtained from the NNOXX One device against a validated laboratory-standard frequency-domain near-infrared spectroscopy (FDNIRS) device. The specific goal was to determine whether the non-invasive NNOXX technology could recover SmO₂ changes within 5% of the changes detected by the benchtop device during an incremental cycling test.

2. Materials and Methods

2.1. Study Design and Participants

The study was conducted at the Optics Laboratory at the Martinos Center, Massachusetts General Hospital (MGH), Building 149, 13^th St., Charlestown, MA. Ten healthy adults between 18 and 50 years of age who self-identified as endurance athletes were recruited to participate in the study. The study was advertised on Rally, and flyers were posted in hospitals, gyms and campuses in the local Boston area. All participants completed a pre-screening eligibility form via RedCap and provided informed consent before participation. Subjects were required to have participated in endurance training a minimum of 3 times per week. Exclusion criteria included cardiovascular contraindications to exercise, movement disorders, neurological disorders and medications that may impact outcomes of the study, history of hematological disorders, respiratory disease, diabetes and other serious chronic conditions, smoking and substance abuse, pregnancy, BMI >30 kg/mg², and poor muscle tone in the legs.

2.2. Devices and Instrumentation

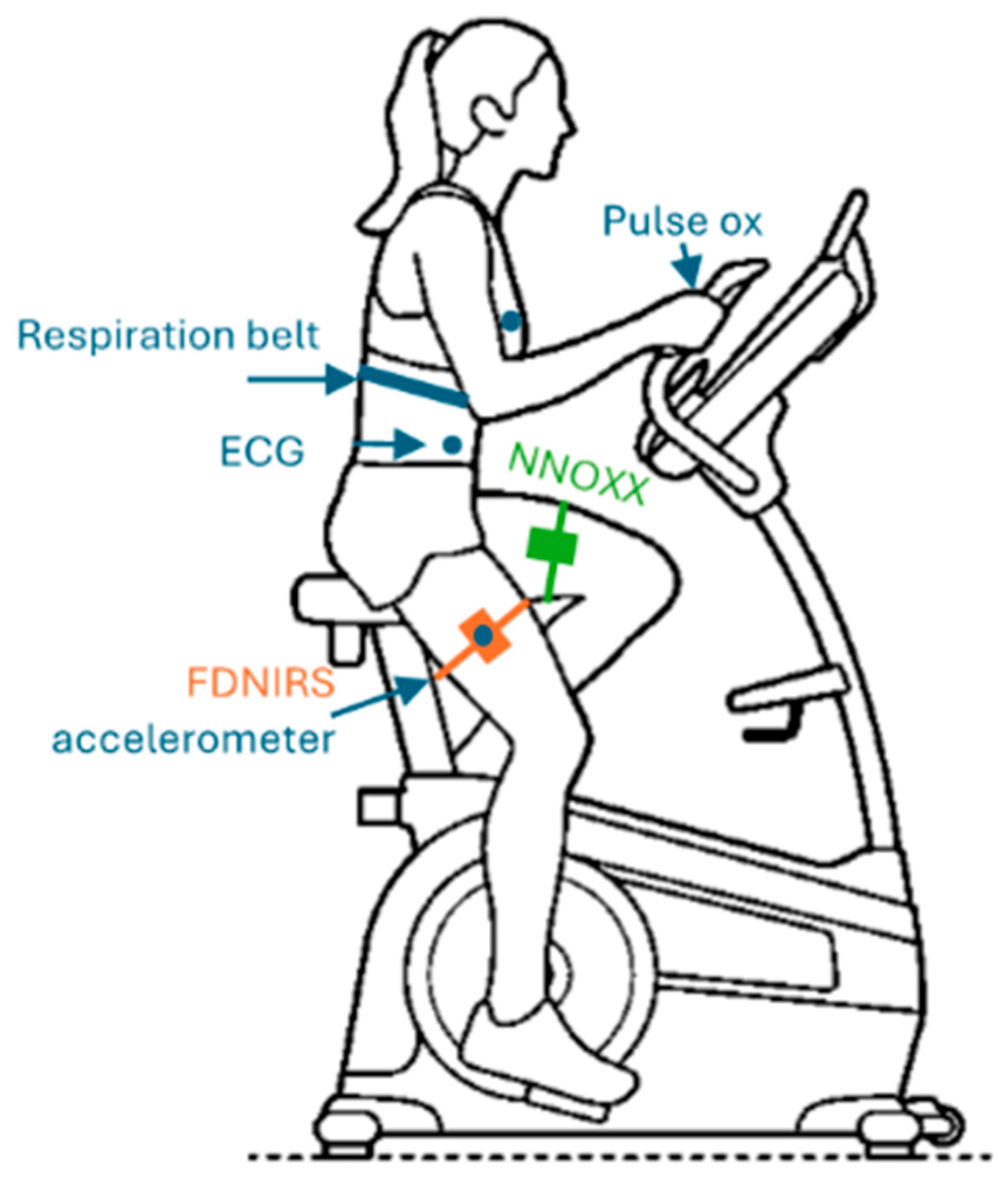

Please refer to Figure 1 for placement of the devices. Two NIRS devices were used to measure changes in muscle hemoglobin saturation:

• NNOXX One: A continuous-wave, wearable wireless NIRS device provided by NNOXX, Inc. This device utilized LEDs in the red-near-infrared spectral region and four photodiodes as detectors, directly mounted in a battery-operated sensor. The LEDs were turned on and off in rapid sequence, ensuring only one illuminated the tissue at any given time. Data acquisition occurred at 50Hz sampling frequency.
• FDNIRS: The MetaOx (ISS Inc.) device, a validated, bench-top combined frequency-domain NIRS and diffuse-correlation spectroscopy system, was used as the reference device [10]. For this study, only the FDNIRS component was utilized. Eight laser diodes with wavelengths ranging from 670 nm to 840 nm delivered light to the subject via optical fiber bundles. The laser diodes operated sequentially with on-times of 0.01-0.02 seconds and power less than 5 mW. Light was detected by four detectors through fiber optic cables arranged in a line on the sensor at different distances from the source fiber. The optical fibers are flexible and plug into 90-degree angle prisms so the fibers lie flat against the body. The prisms were arranged on a rectangular rubber sensor of a size no larger than 60 cm² and the sensor was strapped to the subject’s contralateral leg in a mirrored position to the NNOXX device using bandages. The device was controlled by a laptop via a USB cable, and data was acquired at 100Hz, while the software displayed the acquired data in real time at either 10 or 2 Hz.

Additional physiological parameters were monitored: heart rate via electrocardiogram (ECG); arterial oxygen saturation (SpO₂) via pulse oximetry; respiratory rate, using a respiratory belt; motion via an external accelerometer placed over the FDNIRS optical sensor.

2.3. Experimental Protocol

Each participant attended a single one-hour session at the laboratory. Upon arrival, study personnel provided detailed explanations of the procedures and conducted training for the participant. Baseline vital signs were assessed, including body temperature, blood pressure, systemic arterial oxygen saturation, and heart rate.

The NNOXX One device was attached to the rectus femoris muscle on either the left or right leg (counterbalanced across participants, with five having it attached to the left leg and five to the right), while the FDNIRS optical probe was symmetrically attached to the rectus femoris muscle on the opposite leg. Fibers and cables were routed to the back of the subject up to the ceiling to minimize interference with movement.

The incremental exercise protocol consisted of four distinct stages:

Stage 1: Initial warm-up. Subjects cycled at 100 W for 4 minutes.

Stage 2: Incremental phase. Power output increased every 4 minutes (30 W increments for males, 20 W increments for females).

Stage 3: Termination. Criteria for termination was either voluntary exhaustion or reaching a maximum of 9 increments (370 W for males, 280 W for females).

Stage 4: Cool-down. Subjects cycled at 100 W for 4 minutes.

Both devices continuously recorded data throughout the exercise test. Data from the NNOXX One was acquired using a mobile phone with NNOXX’s mobile app and exported as CSV files. Data from all other devices was acquired using MGH computers.

2.4. Data Analysis

Raw (unprocessed) data from the NNOXX One (50 Hz), along with raw and pre-processed data from the FDNIRS device (200 Hz) and systemic physiology data, were processed for analysis. To enable direct comparison between devices with different sampling frequencies, time series data were temporally aligned by first identifying exercise protocol start and end points using accelerometry data. Next, we normalized the time axis from 0.0 to 1.0 for each complete exercise session, then resampling both the NNOXX One and MetaOx datasets to the matched time points for paired comparisons.

Statistical analyses included two distinct analytical approaches. For individual-subject validation, we calculated correlation coefficients (Pearson’s r) and root mean square differences (RMSD) between the two devices using raw SmO₂ data to assess device agreement on a per-participant basis.

For group-level analysis, we applied Z-score normalization to each subject’s data independently, transforming individual measurements to have a mean of 0 and standard deviation of 1, before pooling data across all subjects. This normalization approach addressed the substantial inter-individual variability in baseline SmO₂ values and physiological ranges due to differences in tissue properties and fitness levels. While individual subject correlations provide valuable insights into device agreement on a per-participant basis, comprehensive validation required assessment of overall performance across the entire study population.

Group-level normalization enabled meaningful comparison between individuals with different physiological fitness levels and tissue characteristics. For example, a highly trained endurance athlete may demonstrate different baseline SmO₂ values, greater absolute ranges of change, and distinct temporal patterns compared to a recreationally fit cyclist. These differences reflect genuine physiological adaptations including enhanced capillary density, improved mitochondrial function, and optimized oxygen extraction efficiency in trained individuals. Additionally, tissue-related factors such as subcutaneous adipose thickness, skin pigmentation, and muscle fiber composition contribute to inter-individual variability in absolute SmO₂ measurements, even when using identical measurement techniques.

Following normalization, we performed a group-level (pooled) correlation analysis. To comprehensively assess the agreement between the NNOXX One and FDNIRS devices, we conducted a Bland-Altman analysis, which is widely recognized as the gold standard statistical method for evaluating the concordance between two measurement techniques. The analysis focuses on the differences between paired measurements plotted against their mean values, providing insights not always apparent from correlation coefficients alone. We also calculated constant bias, proportional bias, and mean bias metrics.

The study was approved by the Mass General Brigham Institutional Review Board (MGB IRB, protocol number 2024P001201). All study data are de-identified.

Generative artificial intelligence (AI) was not used in this paper to generate text, data, or graphics, or to assist in study design, data collection, analysis, or interpretation.

3. Results

Please refer to Table 1 for subject demographics. The original cohort included 10 subjects completing the protocol. Data from 2 subjects were excluded due to device firmware or file corruption.

3.1. Individual Subject Correlations

Strong correlations were observed between the NNOXX One and FDNIRS devices across all eight participants (refer to Table 2). The correlation coefficients (r) ranged from 0.69 to 0.88, with a mean correlation of 0.79. The root mean square difference (RMSD) between devices was 3.5% SmO₂ (1.2% - 7.5%), with most subjects showing differences below 5%.

Time series plots of aligned data from both devices showed similar patterns of SmO₂ changes during the incremental exercise protocol. While some inter-subject variability was observed in baseline values and response magnitudes, the temporal patterns and directional changes were highly consistent between devices within each subject.

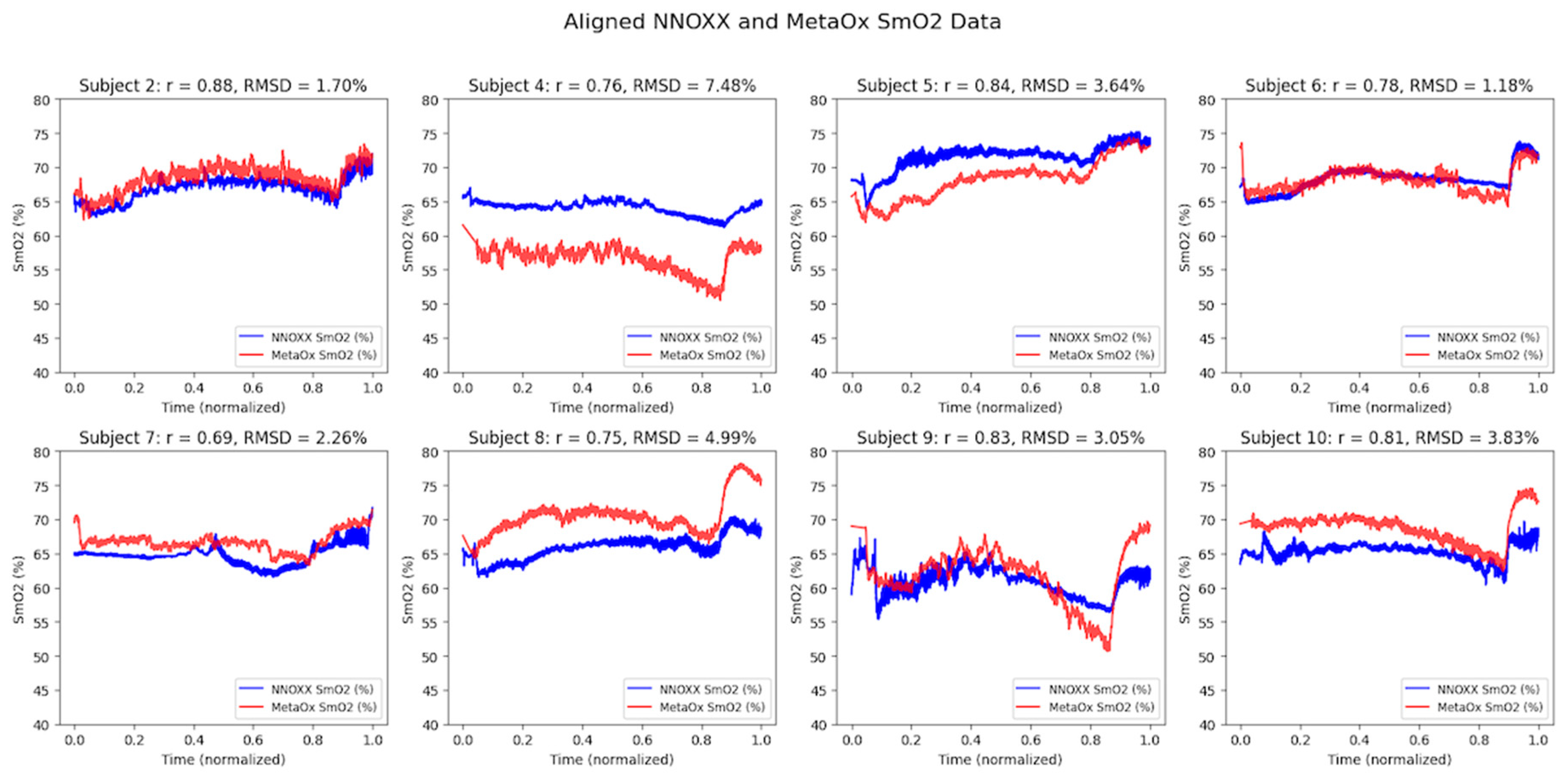

Figure 2. Pairwise comparisons between SmO₂ readings for the NNOXX CW-NIRS and MetaOx FD-NIRS devices for all eight subjects included in the analysis. Results indicate strong consistency between devices within subjects. Time series data were temporally aligned by normalizing the time axis from 0.0 to 1.0 for each complete exercise session, then resampling the NNOXX One and MetaOx datasets to the matched time points for paired comparisons, enabling direct comparison between devices with different sampling frequencies. Inter-device correlations within subjects range from r = 0.69 to r = 0.88 as explained by Table 2.

Figure 2. Pairwise comparisons between SmO₂ readings for the NNOXX CW-NIRS and MetaOx FD-NIRS devices for all eight subjects included in the analysis. Results indicate strong consistency between devices within subjects. Time series data were temporally aligned by normalizing the time axis from 0.0 to 1.0 for each complete exercise session, then resampling the NNOXX One and MetaOx datasets to the matched time points for paired comparisons, enabling direct comparison between devices with different sampling frequencies. Inter-device correlations within subjects range from r = 0.69 to r = 0.88 as explained by Table 2.

3.2. Group-Level Analysis

Z-score normalization transformed each subject’s measurements independently to have a mean of 0 and a standard deviation of 1, allowing for meaningful comparison and aggregation of data across different individuals. This normalization technique was essential because subjects naturally presented different baseline SmO₂ levels and ranges of values throughout the exercise protocol. Without normalization, data from subjects with higher absolute values or greater variability would disproportionately influence the group results, potentially skewing the overall assessment of device agreement. The z-score approach preserved the relative patterns of change within each individual while enabling statistical comparison across the diverse physiological characteristics represented in our study population.

Data was then pooled to calculate a group correlation coefficient. The analysis revealed a strong positive correlation of r = 0.788 between the NNOXX One and FDNIRS measurements. The result indicates a substantial agreement between the two devices at the population level, suggesting that the NNOXX One effectively captures the same physiological signal as the reference FDNIRS device across different individuals.

To further characterize the relationship between the two measurement systems, we calculated several bias metrics:

Constant bias: 0.021 (z-score units) This small positive value indicates a minimal fixed offset between the two devices across all measurements, suggesting that one device does not consistently read higher or lower than the other by a substantial margin.

Proportional bias: -0.199 This negative value indicates that the difference between devices slightly varies depending on the magnitude of the measurement. Specifically, the NNOXX One tends to read slightly higher than the FDNIRS at lower SmO₂ values and slightly lower at higher SmO₂ values. However, the magnitude of this proportional bias is relatively small and unlikely to significantly impact practical applications.

Mean bias: 0.005 (z-score units) This value represents the average difference between all paired measurements. The result is extremely close to zero, further confirming reliable, overall agreement between the devices.

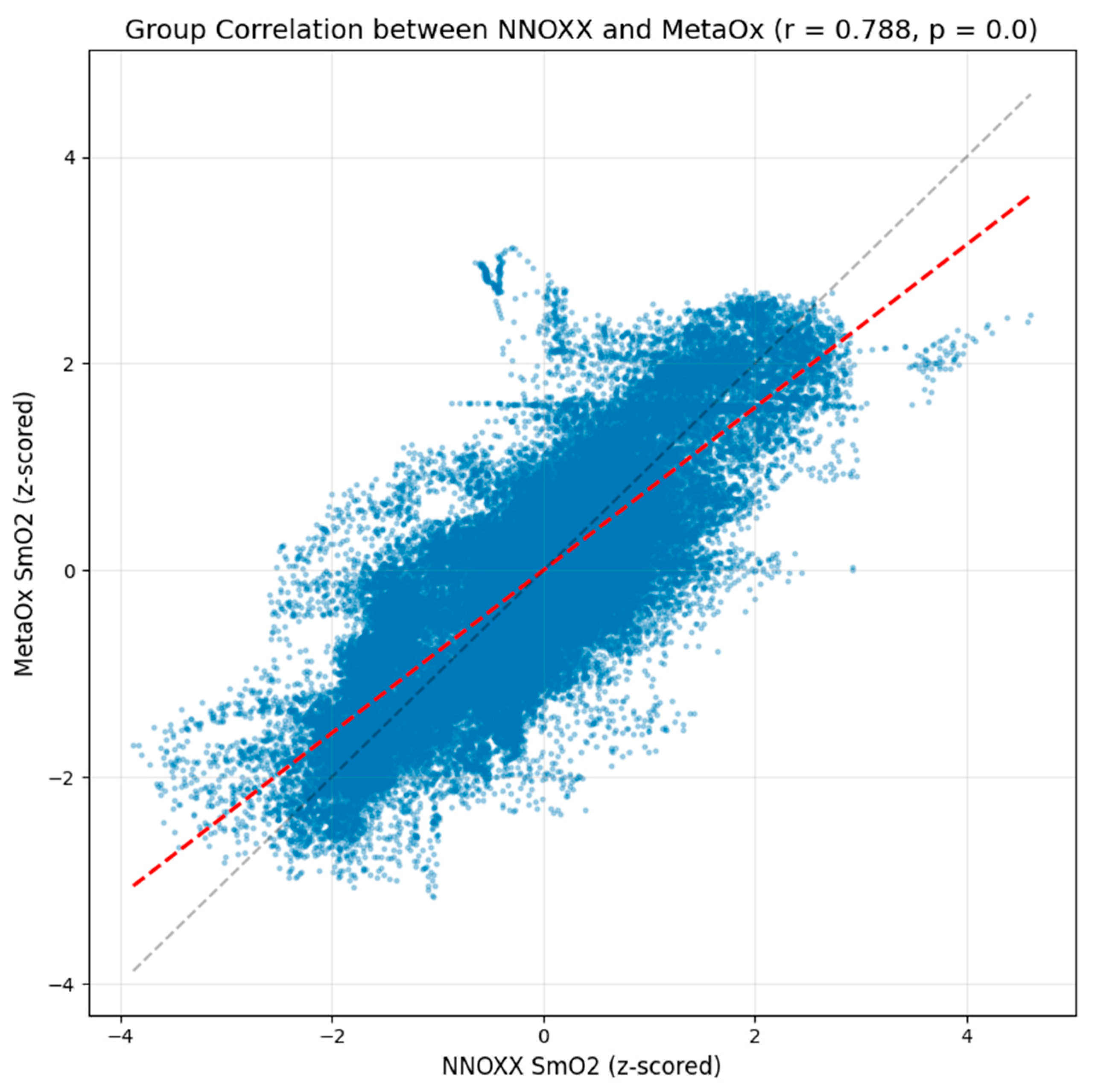

Figure 3 provides a scatter plot of the z-scored NNOXX One measurements against the z-scored FDNIRS measurements. The plot displays a clear positive linear relationship between the two devices with data points clustered along the regression line (red dashed line). The gray dashed line represents the line of perfect agreement (y = x). The deviation between these two lines visualizes the small proportional bias detected in our analysis.

The density of points in the central region of the plot indicates that most measurements fall within typical physiological ranges during the exercise protocol. The spread of data points around the regression line illustrates measurement variability that may be attributed to factors such as small differences in sensor placement, minor temporal misalignments between devices, or inherent limitations of the optical measurement techniques.

3.3. Bland-Altman Analysis

The Bland-Altman analysis (Figure 4) revealed strong agreement between the two devices with the following key metrics:

Mean difference (bias): 0.000 (z-scored data) This value represents the average difference between all NNOXX One and FDNIRS measurements. The zero bias indicates that, on average, there is no systematic difference between the two devices, suggesting neither device consistently overestimates or underestimates SmO₂ relative to the other.

Standard deviation of differences: 0.652 This metric quantifies the spread of the differences between paired measurements. The relatively low value indicates good precision and consistency between the two devices across the measurement range.

Upper limit of agreement: 1.277 This value, calculated as the mean difference plus 1.96 standard deviations, represents the upper boundary within which 95% of the differences between measurements are expected to fall.

Lower limit of agreement: -1.277 Similarly, this value (mean difference minus 1.96 standard deviations) represents the lower boundary of the 95% confidence interval for measurement differences.

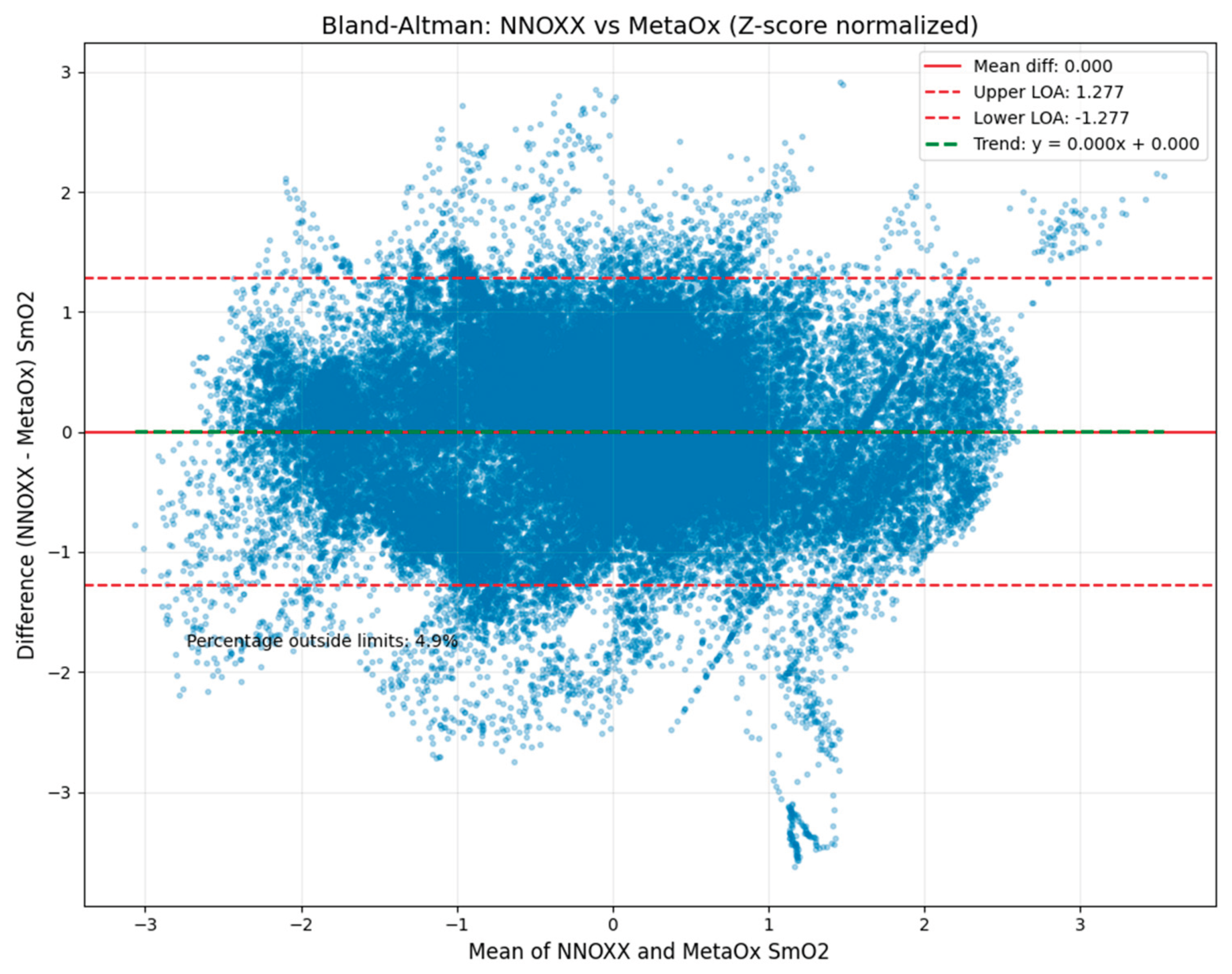

Figure 4 presents the Bland-Altman plot illustrating differences between NNOXX One and FDNIRS measurements (y-axis) plotted against the mean of both measurements (x-axis). The solid red horizontal line represents the mean difference (bias), while the upper and lower dashed red lines indicate the limits of agreement. The green dashed horizontal line represents the trend of the differences across the measurement range.

This analysis indicates that 95% of the differences between measurements were expected to fall between -1.28 and 1.28 in normalized units, which corresponds to approximately -8.1% to 7.6% in SmO₂ units when converted back to the original scale. This range is notably narrow for physiological measurements, particularly for wearable technology, supporting strong agreement between the devices.

Importantly, only 6.6% of all data points fell outside these limits of agreement, which is close to the expected 5% for normally distributed differences. This finding further validates the statistical robustness of our analysis and confirms the consistency of agreement across the measurement range.

A small proportional bias was observed, with a trend line slope of -0.550, indicating that the NNOXX device tended to read slightly higher than the FDNIRS at lower oxygen saturation values and slightly lower at higher values. This pattern may be attributed to differences in the underlying technology (continuous-wave versus frequency-domain NIRS) or variations in the algorithms used to calculate SmO₂. However, this bias was minimal and did not significantly impact the overall agreement between devices.

4. Discussion

This study aimed to validate the NNOXX One wearable sensor against a benchtop reference standard FDNIRS device for measuring muscle oxygen saturation during incremental cycling exercise. The results demonstrated strong correlations and excellent agreement between the two devices, supporting the validity of the NNOXX One for non-invasive, real-time monitoring of tissue oxygen saturation in skeletal muscle.

Overall, the group-level analysis demonstrates that, when appropriately normalized to account for individual differences, the NNOXX One provides SmO₂ measurements that strongly correlate with those from the reference standard FDNIRS device. The individual subject correlations indicate that the NNOXX One captures the same physiological signals as the reference device, despite differences in technology and limb placement. The RMSD values below 5% for most subjects meet our predefined goal of measuring SmO₂ changes within 5% of the reference device. This level of accuracy is remarkable considering the technical challenges associated with wearable optical sensing, including motion artifacts, skin pigmentation variations, and subcutaneous fat layer differences. The results support the validity of the device for capturing the same physiological signals as the reference during incremental exercise.

The Bland-Altman analysis confirmed the strong agreement between devices with minimal bias. The dense cloud of data points around the zero-difference line throughout the physiologically relevant measurement range demonstrates consistent agreement across typical SmO₂ values encountered during incremental exercise. The wider spread of points at the extremes of the measurement range is a common observation in method comparison studies and likely reflects the greater measurement challenges at physiological boundaries. The narrow limits of agreement suggest that the NNOXX One provides clinically meaningful measurements that are comparable to laboratory-grade equipment. The small proportional bias observed could potentially be addressed through calibration adjustments in future iterations of the device. Overall, the Bland-Altman analysis confirms that the NNOXX One provides reliable SmO₂ measurements across the physiological range typically encountered during exercise, supporting its validity for field applications in sports performance monitoring.

The study design, which included simultaneous bilateral measurements during a standardized incremental exercise protocol, allowed for robust comparison while minimizing confounding factors. By testing the devices during actual exercise conditions rather than in resting states alone, we were able to validate performance across a physiologically relevant range of muscle oxygen saturation levels. Further, 70% of the subjects were female (7 out of 10). This lends a unique perspective to the validation outcomes, and comparatively, similar tissue oximeter studies that are typically male dominant.

Several limitations should be acknowledged. First, the sample size of ten participants, with only eight subjects having usable data due to file corruption while downloading raw data from the NNOXX prototype device, while sufficient for an initial validation study, may limit generalizability. Second, all participants were healthy, physically fit individuals. Results may differ in clinical populations or those with altered muscle physiology, as well as variations in adiposity [11,12,13]. Third, measurements were collected only during cycling exercise, which also limits translation of the data to other types of exercise, such as resistance training. Validation during other exercise modalities would strengthen confidence in the device’s versatility across different movement patterns and muscle recruitment strategies. Finally, the sensors were placed on contralateral legs, which introduces potential physiological variation between measurement sites. Muscle oxygenation signals are inherently variable due to multiple factors including device placement precision, local tissue heterogeneity, and subtle differences in muscle fiber recruitment between limbs. Even during symmetrical exercise like cycling, small biomechanical differences between legs, varying degrees of muscle fatigue, and individual anatomical asymmetries can contribute to measurement discrepancies between devices placed on opposite limbs.

Future research should expand validation to diverse populations, including clinical groups and individuals with varying fitness levels. Additional exercise modalities, including asymmetrical movements and resistance training, should be tested to further establish validity across exercise contexts. Longitudinal studies exploring the relationship between muscle oxygenation patterns and training adaptations would help establish the practical utility of this technology for optimizing exercise prescriptions.

5. Conclusion

The NNOXX One wearable sensor demonstrates strong validity for non-invasive measurement of muscle oxygen saturation during exercise when compared to a benchtop reference standard FDNIRS device. With strong correlation coefficients and measurement differences between devices generally below 5%, the device fulfills the predefined criteria for acceptable agreement. The minimal bias and narrow limits of agreement observed in the Bland-Altman analysis further support its reliability.

This validation provides a foundation for the use of wearable muscle oxygenation monitoring in real-world settings, potentially transforming how individuals and athletes monitor and optimize their training, and offers a reliable springboard for further sensor development. By providing accessible insights into muscle metabolism during exercise, this technology may enable more targeted and efficient training strategies, ultimately enhancing performance outcomes and exercise-related health benefits.

Furthermore, the NNOXX One represents a significant advancement in wearable fitness technology, moving beyond basic metrics to provide deeper physiological insights that were previously only available in laboratory settings. This bridge between benchtop performance and real-world applicability opens new possibilities for research, athletic training, and personalized exercise prescription in clinical settings.

6. Patents

• Peikon, E.; Saul, J.; Coles, B. Spectrometry Systems and Methods. 2024
• Stamler, J.S.; Peikon, E. Noninvasive Measurement of Endogenous S-Nitrosothiols. 2024
• Corso, J.L. Computer Implemented Method of Exercise Prescription. 2025
• Peikon, E.; Saul, J.; Coles, B. Spectrometry Systems and Methods. 2025
