How Much Is Too Much? Facing Practical Limitations in Hyper-Heuristic Design for Packing Problems

1. Introduction

Solving combinatorial optimization problems requires finding a subset of items that not only solves the problem but also maximizes or minimizes a quality criterion. Since many of these problems exhibit huge search spaces (which usually grow exponentially with the number of inputs), in most cases, it is unfeasible to conduct an exhaustive exploration of the search space. Consequently, we usually rely on approximated solving methods to deal with such problems. So, we only explore a fraction of the search space, which we consider likely to contain the best solutions. However, we cannot guarantee that the solution found is optimal when using approximated methods.

In this context, approximate methods such as heuristics and metaheuristics have provided interesting and straightforward ways to address these problems [1,2,3]. More recently, hyper-heuristics—heuristics that choose heuristics—have emerged as a valuable solving alternative [4,5]. Hyper-heuristics come in various forms, and many classifications have been proposed [6,7]. For example, based on the learning process, we can classify them as online, where hyper-heuristics learn “on the go" without previous training, and offline, where hyper-heuristics go through a training phase before properly using them. We can also classify hyper-heuristics based on the type of heuristics they choose. In this context, hyper-heuristics can be constructive, where the solving process starts from an empty solution and adds elements to the solution iteratively, or perturbative, where the solving process starts with a complete —and maybe unfeasible— solution that improves through the solving process. Another way to classify hyper-heuristics concerns their internal representation, such as rule-based and fixed-sequence-based hyper-heuristics. With rule-based hyper-heuristics, a system of rules decides which heuristic to apply at a given search moment (defined by its current problem state), resulting in an adaptive sequence of heuristics that solves the instance [8,9]. The process is straightforward: the rule whose condition is closest to the problem state (using Euclidean distance) is the one that fires (it decides which heuristic to apply). For example, in packing problems, applying one heuristic leads to packing one item, which modifies the problem state. The hyper-heuristic repeats this process, selecting a suitable heuristic whenever it attempts to pack an item and stops when the problem is solved. Conversely, in fixed-sequence-based hyper-heuristics, the hyper-heuristic represents a fixed-sequence of heuristics used to solve the instances [10,11,12]. So, the sequence itself determines which heuristics will be used in each decision. A distinctive characteristic of this approach is that it ignores the problem state since the sequence is fixed from the beginning of the search. So, fixed-sequence-based hyper-heuristics also choose one heuristic whenever they attempt to pack an item. However, they ignore the problem state since the next heuristic to apply is already defined within the sequence.

Rule-based and fixed-sequence-based hyper-heuristics have proven reliable under different optimization scenarios, each exhibiting specific pros and cons. For example, rule-based hyper-heuristics adapt to different problem instances, which increases their versatility and applicability on large instance sets. However, they tend to be more complex since they require to define more elements (including a representative set of features that allow for the instance characterization), and their generation process usually requires more resources. On the other hand, fixed-sequence-based hyper-heuristics are easy to produce and interpret because of the few elements to define as part of their generation process. For example, they lack the need to define features that characterize the instances. However, they are limited to smaller instance sets since a fixed sequence of heuristics is unlikely to perform well on many instances without any further adjustment process.

The apparent success of hyper-heuristics in various domains and continual design improvements have led to the common assumption that more complex hyper-heuristic models invariably yield better solutions. This is exemplified by approaches like the squared hyper-heuristic model [13] and recursive hyper-heuristics [14]. However, this assumption may be a fallacy. Simply increasing complexity does not guarantee improved performance, and there may be a point of diminishing returns or even negative impact.

This work explores the feasibility of combining rule-based and fixed-sequence-based hyper-heuristic approaches into a unique and supposedly more powerful hyper-heuristic model. Our proposal defines a hybrid hyper-heuristic as a system of rules where each rule recommends a fixed sequence of heuristics to apply. With this, we aim to verify if such an approach can combine the benefits of both individual approaches. Unfortunately, as we will see later, combining the two models seems to be a step in the wrong direction of hyper-heuristic design.

We have chosen two widespread packing problems to test our proposal: the knapsack problem (KP) [15,16] and the bin packing problem (BPP) [17,18], but we could easily extend it to other problem domains. In both cases, we consider their most straightforward versions. Concerning the KP, the items can only be packed or unpacked, but we cannot split them. Regarding the BPP, we work with its one-dimensional online version. This means the bins and items only have one dimension: the length. Also, because we deal with its online version, we receive only one item at a time, and we cannot change the order in which we receive the items. Of course, the limitations exhibited by our hybrid model in this work should be taken with caution since they might not appear in other instances or problem domains.

We organize the remainder of this document as follows. Section 2 briefly reviews the most relevant works related to our research. Section 3 describes the solution model and its operation. Afterward, the experiments and results can be found in Sect. Section 4. Finally, Sect. Section 5 presents the conclusion and some ideas for future work derived from this investigation.

2. Background and Related Work

Hyper-heuristics represent a family of methods that either create or combine heuristics, attempting to improve the solutions’ quality. They have become popular because of their many implementations and promising results in various problem domains.

Hyper-heuristics have proven a powerful paradigm for tackling complex optimization problems across several domains. Their ability to automate the design and selection of effective heuristics has led to significant advancements in problem-solving. Although a complete survey of hyper-heuristic successes is not feasible here, the following brief overview demonstrates the breadth of their applicability and explains their recent surge in popularity.

Aziz proposed ant colony hyper-heuristics to solve the Traveling Salesman Problem (TSP), claiming that this approach produces reasonable quality solutions across different instances without extensive parameter tuning [19]. Ahmed et al. explored using hyper-heuristics to solve the Urban Transit Route Design problem (UTRP). Their approach consisted of a sequence-based selection method combined with the great deluge acceptance method [20]. Mahmud et al. explored self-adaptive hyper-heuristics to solve the integrated supply chain scheduling problem, where supplier, manufacturer, and batching decisions are simultaneously optimized in response to heterogeneous customer requirements with time window constraints [21]. Guo et al. proposed a general framework for automatically designing shop scheduling strategies based on hyper-heuristics. They summarized various state-of-the-art technical points in the development process [22].

Besides, there are interesting works that bridge machine learning into the realm of hyper-heuristics. Among those works, we can mention the work by Kletzander, where the authors combined reinforcement learning to produce hyper-heuristics on six distinct problem domains [23]; Ortiz et al. and Zárate and Ortiz, who used various machine learning algorithms to produce hyper-heuristics for solving constraint satisfaction problems [24] and the knapsack problem [25], respectively.

Among the many implementations available in the literature, this work focuses on two particular hyper-heuristic models: rule-based and fixed-sequence-based hyper-heuristics.

3. Solution Approach

As mentioned earlier, our solution approach combines rule-based and fixed-sequence-based hyper-heuristics. To do so, we generate rules that recommend sequences of heuristics. This way, we have merged the two hyper-heuristic models into a single unexplored hyper-heuristic model. Thus, our model produces hybrid hyper-heuristics as depicted in Fig. Figure 1. As we can observe, a hybrid hyper-heuristic contains a set of rules. Such rules decide which heuristic sequence to use at a given search moment. Although the sequences within each rule will remain unchanged once a hyper-heuristic is generated, each instance is solved by the iterative application of distinct sequences of heuristics because the different rules fire on each instance. So, the order in which these fixed sequences of heuristics are applied to solve an instance changes from instance to instance according to its features, which determines the rules that fire.

For example, we depict three rules in Fig. Figure 1. Each of these rules has three features that characterize the problem state (the conditions), and for each rule, there is a corresponding three-heuristic sequence to apply (the rule’s action). Please note that the user determines the length of the heuristic sequences. So, if it drops to one, the model behaves as a traditional rule-based hyper-heuristic, where each rule fires a single heuristic as an action.

In our proposal, a genetic algorithm is responsible for producing the hyper-heuristics. The work of Ortiz et al. inspires this genetic algorithm  [26], producing an initially random population of potential hyper-heuristics. These potential heuristics evolve using genetic operators such as selection, crossover, and mutation. After several generations, the genetic algorithm returns the best hyper-heuristic found so far, ready to be used on unseen instances. We provide a pseudo code of how the genetic algorithm works in Algorithm 1.

Algorithm 1:The genetic algorithm used to produce hybrid hyper-heuristics.

Input:   n: population size, $p_c$: crossover rate, $p_m$: mutation rate. Output:   A hybrid hyper-heuristic. 1:  Initialize a random population P containing n potential hyper-heuristics. 2:  Evaluate each potential hyper-heuristic in P. 3: Set the best hyper-heuristic in P as the best hyper-heuristic found so far, $best$. 4: while The process has not reached the maximum number of function evaluations do 5:     Create an empty population $P^{\prime }$. 6:     while The number of hyper-heuristics in $P^{\prime }$ is smaller than n do 7:         Select two parents from P, $H{H}_A$ and $H{H}_B$ using tournament selection of size 3 and produce a copy of each of them ($H{H}_A^{\prime }$ and $H{H}_B^{\prime }$). 8:         With a probability $p_c$, combine $H{H}_A^{\prime }$ and $H{H}_B^{\prime }$ to produce two offspring that override $H{H}_A^{\prime }$ and $H{H}_B^{\prime }$. 9:         With a probability $p_m$, mutate $H{H}_A^{\prime }$. 10:         With a probability $p_m$, mutate $H{H}_B^{\prime }$. 11:         Add $H{H}_A^{\prime }$ and $H{H}_B^{\prime }$ to $P^{\prime }$. 12:     end while 13:     Replace the population: $P=P^{\prime }$ 14:     Evaluate each hyper-heuristic in P. 15:     If the best hyper-heuristic in P is better than the best hyper-heuristic found so far, update $best$. 16: end while 17: Return $best$.

It is critical to mention that our genetic algorithm uses a binary representation (as depicted in Fig. Figure 1), so standard crossover and mutation operators can be used. However, the length of the chromosomes is variable since the genetic algorithm also finds the most suitable number of rules given the instances in the training set. Although the number of rules is variable and defined throughout the evolutionary process, the number of actions is the same for all the rules within the evolutionary process. In other words, the heuristic sequences within each rule’s action are the same length. Thus, the user defines the length of the fixed-sequence-based hyper-heuristics produced by the genetic algorithm.

Since the internal coding within the chromosome is binary, we used a conversion scheme to map such chromosomes into real numbers we could use for the actual rules. For example, in Fig. Figure 1, we represent each feature using five bits, which results in 32 available values. Then, we divided the range $[0,1]$ into 32 discrete steps of 0.${03125}_{10}$ each and multiplied by its corresponding feature value. Thus, ${10010}_2$ (${18}_{10}$) is multiplied by 0.${03125}_{10}$ to get 0.${5625}_{10}\approx$ 0.${563}_{10}$, the value of the first feature in the first rule. In the case of the heuristics, the conversion is straightforward: we just have to convert from base 2 to base 10 to get the index of the heuristic to use.

Whenever an instance is to be solved, we characterize it (by calculating its current features). Then, we calculate the Euclidean distance between the vector of features that characterize the instance to each one of the conditions in the hyper-heuristic. The condition that minimizes the distance is the one that best matches the problem state. Then, we apply the heuristics coded in the action of the winning rule. The approach applies the heuristics in the exact order they appear in the rule. When we use such heuristics to solve the problem partially, the remaining instance exhibits features that differ from the previous ones, making it possible that a different rule may be selected the next time we invoke the hyper-heuristic.

Please note that, in traditional fixed-sequence approaches described for packing problems, the sequences are usually shorter than the number of items in the problem. Thus, the sequences rely on an “extension procedure" that extends the sequence to manage all the decisions to solve the instance. For example, if we use a sequence of three heuristics (${\mathrm{h}}_1$, ${\mathrm{h}}_2$, ${\mathrm{h}}_3$) to solve an instance with nine items, some examples of extension procedures could be to repeat the sequence three times (${\mathrm{h}}_1$, ${\mathrm{h}}_2$, ${\mathrm{h}}_3$, ${\mathrm{h}}_1$, ${\mathrm{h}}_2$, ${\mathrm{h}}_3$, ${\mathrm{h}}_1$, ${\mathrm{h}}_2$, ${\mathrm{h}}_3$) or to apply each heuristic in the sequence three times (${\mathrm{h}}_1$, ${\mathrm{h}}_1$, ${\mathrm{h}}_1$, ${\mathrm{h}}_2$, ${\mathrm{h}}_2$, ${\mathrm{h}}_2$, ${\mathrm{h}}_3$, ${\mathrm{h}}_3$, ${\mathrm{h}}_3$), to mention a few examples. Each one of these strategies comes with pros and cons. However, we require no such procedure in our case because our model applies the rules as often as needed until it packs all the items or decides to stop packing.

3.1. Instance Characterization

For this work, we characterized the instances of the two problem domains using straightforward features. In the case of the KP, we used three features related to the weights and profits of unpacked items, described as follows:

• The average weight of all the unpacked items in the instance.
• The average profit of all the unpacked items in the instance.
• The correlation between the profits and weights of the unpacked items in the instance. To calculate the correlation, we rely on the Pearson correlation coefficient.

Concerning the BPP, we used five features related to the length of the items remaining to pack. These features are described below:

• The average length of all the unpacked items in the instance.
• The scaled standard deviation of all the unpacked items in the instance (with respect to their length).
• The percentage of small size unpacked items (items with a length smaller or equal to 15% of the bin capacity).
• The percentage of medium size unpacked items (items with a length between 15% (non-inclusive) and 30% (inclusive) of the bin capacity).
• The percentage of large size unpacked items (items with a length over 30% of the bin capacity).

We calculate these features dynamically every time the solver must decide which item to pack next. In both domains, the features are scaled to the range $[0,1]$ to facilitate the mapping between features and heuristics. Additionally, we know that other features might be considered to characterize the problem instances. However, we wanted to keep our analysis as simple as possible and compatible with recent studies that have used these or similar sets of features on their corresponding problem domains [25,27].

3.2. The Available Heuristics

Building upon previous research [25,28], we incorporated a set of well-established item-selection heuristics for the KP. These heuristics operate by selecting a single item for potential inclusion in the knapsack using the selection criteria outlined below.

• DEF packs the items in the order in which they appear in the instance (no additional ordering is conducted on them).
• MINW prefers the item with the smallest weight. MINW assumes that leaving the most space for the remaining decisions is likely to maximize the solution’s profit.
• MAXP packs the item with the largest profit first. MAXP follows a greedy approach to fill the knapsack since it assumes that maximizing the profit in each decision is likely to maximize the solution’s profit.
• MAXPW chooses the item that maximizes the profit-to-weight ratio. Although this heuristic also follows a greedy approach, it focuses on the `density’ associated with the profit of an item.

Note that the heuristics for the KP use information from zero (DEF), one (MINW and MAXP), and two (MAXPW) features, thus representing approaches with different levels of complexity.

Regarding the BPP, we have selected four straightforward heuristics [29] that consider information about the open bins in the current problem state to decide where to pack the current item. These heuristics are described as follows:

• FF packs the item in the next available bin where the item fits.
• BF prefers the bin where the item fits the best, so it minimizes the waste. BF assumes that the less space we leave in the bin is better for the overall solution.
• WF packs the item in the bin that maximizes the space once the item is packed. This heuristic attempts to leave the most space in the bin for future items.
• AWF propagates the idea from WF, allowing it to pack the item in the bin with the second most waste derived from packing the item.

Whenever a tie occurs, the first item chosen is always preferred. For the KP, we estimate the quality of the solutions by calculating their profit, which is the sum of the profit obtained over all the instances solved. In this context, the larger the profit, the better the solution. For BPP, we use the bin usage, defined as: $\sum _{i=0}^n{\displaystyle \frac{C_{max}-C_i}{C_{max}}}$, where n is the number of items to pack, $C_{max}$ is the maximum bin capacity and $C_i$ is the current bin capacity. When using bin usage as a metric, a value of 1 indicates that such a bin produces no waste. So, the best possible evaluation we can obtain when solving m instances is m.

3.3. The Instances

For this work, we used synthetic instances generated using the method proposed by Plata et al. [30]. We created these instances through varied configurations to explore diverse scenarios for each problem domain.

For the KP, we generated 900 KP instances split in a training set of 100 instances and a test set of 800. Both sets were designed to be balanced, with each of the four available heuristics being the best performer on approximately 25% of the instances within each set. This balanced distribution ensures a representative evaluation. All 900 instances consist of 100 items each, with weights and profits ranging from 1 to 64 units and a knapsack capacity of 128 weight units.

Regarding the BPP, we generated 1120 BPP instances. These instances were split into two sets: training, with 120 instances and testing, with 1000 instances. As in the case of the KP, we also followed the idea of balancing the instances. So, each heuristic represents the best option in 25% of the instances in each set. All instances consist of 100 items each, with weights ranging from 1 to 64 units and a bin capacity of 128 weight units.

These instances are freely accessible at https://drive.google.com/drive/folders/1BrDdTSpmheUmD8TZSoUcqHnFyvgL2yji?usp=sharing.

4. Experiments and Results

In this experiment, we analyze the impact of heuristic sequence length on the performance of hybrid hyper-heuristics. We evaluated the hyper-heuristics on the training and test sets, systematically varying the length of the heuristic sequences triggered by the rules. Specifically, we generated ten hyper-heuristics designed to select a single heuristic, ten hyper-heuristics designed to select sequences of two heuristics, and up to ten hyper-heuristics designed to select sequences of ten heuristics. To generate each of these hyper-heuristics, we used the GA-based approach described in Sect. Section 3 using the following parameters: 200 individuals in the population, crossover and mutation rate of 0.9 and 0.1, respectively, and 5000 evaluations of the fitness function as stopping criterion. Each run of the genetic algorithm produces one hybrid hyper-heuristic. As a result, we ran the genetic algorithm a total of 100 times per problem domain, i.e. to produce 10 hybrid hyper-heuristics for 10 different sequence lengths for each problem domain.

4.1. Results on the Knapsack Problem

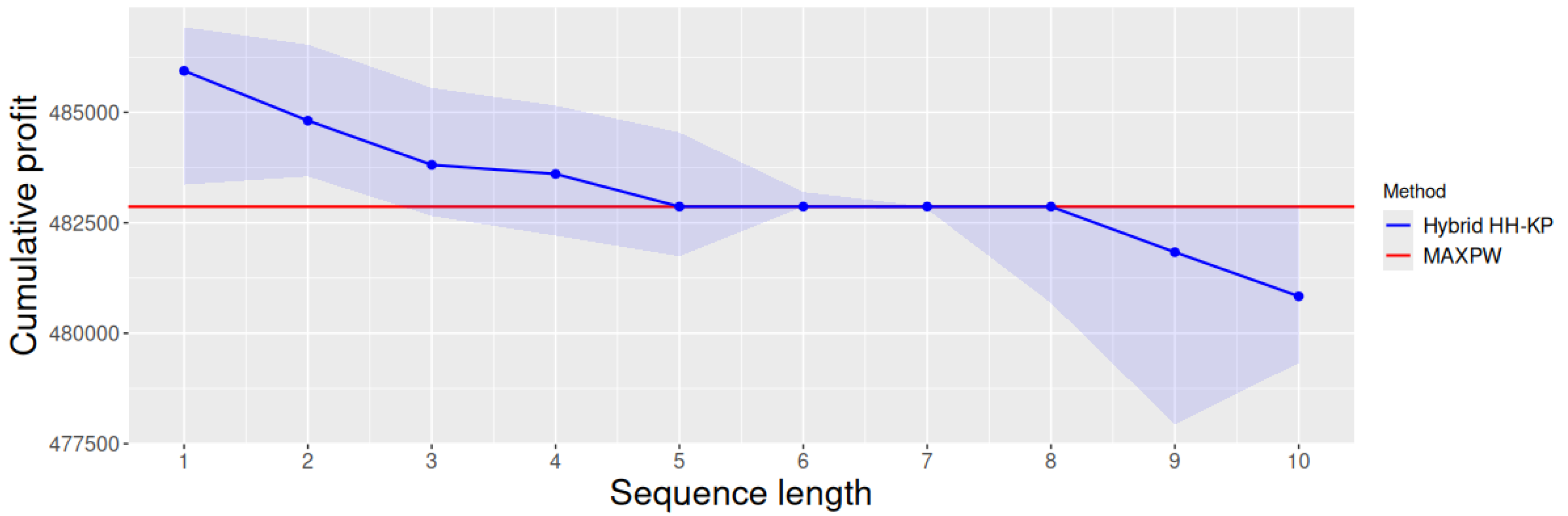

Figure 2 shows the performance of the hybrid hyper-heuristics on the test set, for the KP. There is a fascinating, yet apparently contradictory performance. It seems that, as we increase the length of the sequences, the number of rules that can fire within the hybrid hyper-heuristics, as well as their performance, decreases. These results contradict those that we initially expected. Our idea was that using rules to fire sequences would be similar to providing the hybrid hyper-heuristics with the opportunity to use different heuristic sequences according to the problem state, thus increasing their adaptability. The results show that we were wrong to think that.

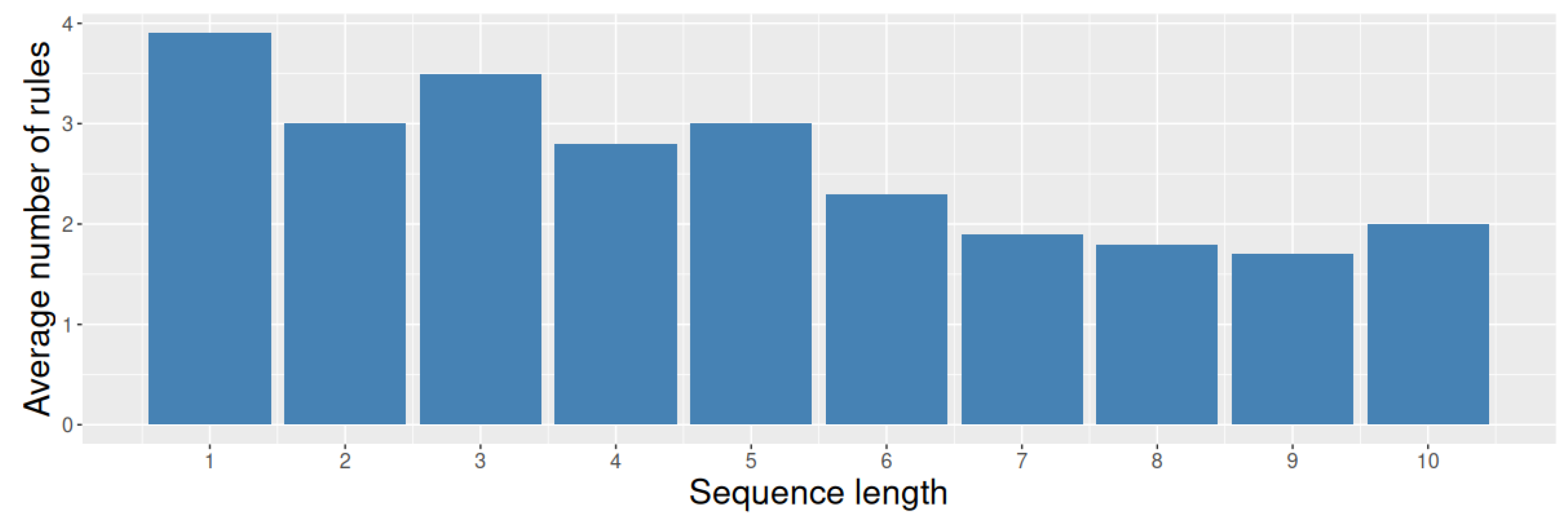

To understand what occurs within the model, we studied the number of rules per hybrid-heuristic, based on the length of the heuristic sequences they can produce. We must recall that, the genetic algorithm decides, through the evolutionary process, the number of rules per hyper-heuristic, but the length of the heuristic sequences is defined by the user. As we can observe from Fig. Figure 3, the number of rules decreases as we increase the length of the heuristic sequences such rules can fire. This is an interesting finding since there is nothing coded within the genetic algorithm that explicitly describes this behavior. It is, to the best of our understanding, an emergent behavior resulting from the evolutionary process under these conditions.

The number of rules per hyper-heuristic provides an interesting opportunity to analyze the sequences’ complexity once such hyper-heuristics solve the instances. When solving a KP instance, we have fewer decisions than items since the knapsack can run out of space before we analyze all the items. So, the number of decisions, $d\le n$, where n is the number of items in the instance. Assuming each rule can fire heuristic sequences of length l, a hybrid hyper-heuristic $hh$ is invoked $d/l$ times when solving a KP instance (every decision packs l items). In this context, the number of rules, r, determines the potential recommendations of the hyper-heuristic every time it is called. In the best case, each rule within the hybrid hyper-heuristic fires a unique sequence of heuristics (assuming no repeated actions within the hyper-heuristic). Under these conditions, the number of different ways a hyper-heuristic can solve an instance is given by $r^{d/l}$. According to the data from Fig. Figure 3 and assuming a constant number of decisions $d=12$ (the average number of items in the solutions generated in this work), a hyper-heuristic that fires only one heuristic per action can generate around $3^{12}=531441$ distinct ways to solve an instance (of course, this would be the behavior of a traditional rule-based hyper-heuristic). When we compare this result against the case of hyper-heuristics with rules that fire sequences of two heuristics, this number drastically decreases to around $4^6=4096$ distinct ways to solve an instance (less than 0.7% the number of options of the previous case). It is clear that, for hyper-heuristics with rules that fire sequences of ten heuristics, the number is ridiculously small, reaching a value around $1^{12/10}=1^{1.2}=1$, which means that such hyper-heuristics basically try to solve all the instances using the same fixed sequence of ten heuristics. This analysis provides a potential answer to why the performance of the hybrid hyper-heuristics decreases as we increase the length of the heuristic sequences the rules can fire.

Although we found that the number of rules decreases as we increase the number of heuristics within the action of such rules, we were also interested in finding the distribution of heuristics used within the rules. Figure 4 shows the proportions of how the hyper-heuristics use the heuristics as part of the sequences they produce. By a quick inspection, we can observe that MAXPW is the most used heuristic within the rules. This behavior is consistent since this heuristic was the most successful when used in isolation. Although the hyper-heuristics also consider other heuristics, their use is somewhat limited compared to MAXPW. It is worth noticing that these results suggest that what matters the most is the order in which these heuristics are applied more than the frequency. For example, in Fig. Figure 4, the sequences of lengths 2 and 10 exhibit similar patterns regarding the frequency of use of MAXPW and MINW. However, their performance is entirely different (see Fig. Figure 2).

4.2. Results on the Bin Packing Problem

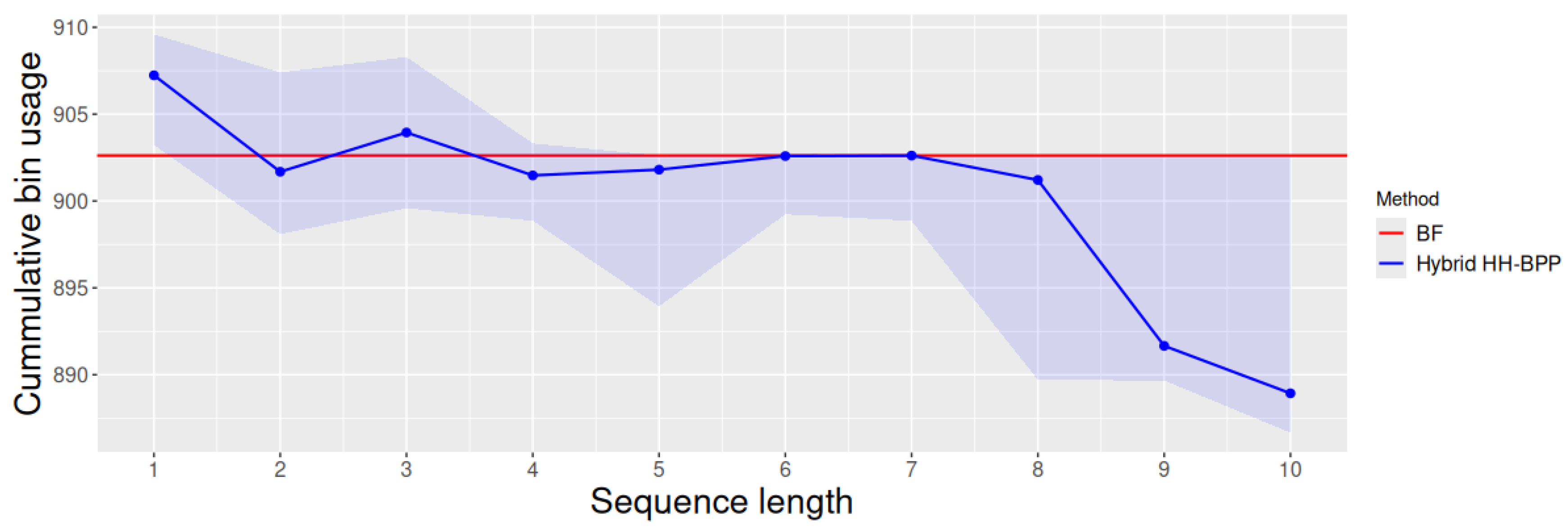

Similar to what we observed in the KP, our experiments for the BPP show a trend where the larger the heuristic sequences the hybrid hyper-heuristics can fire, the worse their performance. Again, from Fig. Figure 5, we can conclude that combining rule-based hyper-heuristics and fixed-sequence-based ones did not work as expected. As in the KP, we expected this combination to provide the hyper-heuristics with additional adaptive capabilities. Instead, they seem to have trouble as we increase the length of the heuristic sequences the rules can fire.

Just as we did when we previously analyzed the impact of the number of rules produced per sequence length for the KP, a similar analysis on the BPP shows results alike. In the case of the BPP, the number of decisions per instance is equal to the number of items within the instance since all of them must be distributed among the bins ($d=n$). Each rule fires heuristic sequences of length l, so we call a hyper-heuristic $hhn/l$ times to solve a BPP instance. If we assume no repeated actions in the rules of $hh$, the number of distinct ways $hh$ can solve the instance is given by $r^{n/l}$, where r is the number of rules within hyper-heuristic $hh$. Based on the results in Fig. Figure 6, a traditional rule-based hyper-heuristic (one that recommends only one heuristic per rule) can generate up to $4^{100}\approx 1.60\times {10}^{60}$ distinct ways to solve an instance. However, when the number of heuristics in the sequence increases to 2, the number of distinct ways the hyper-heuristic can solve an instance drastically decreases to $3^{50}\approx 7.17\times {10}^{23}$. As we increase the length of the heuristic sequences within the rules, we observe how the number of ways to solve the instances rapidly decreases. For example, we have $2^{10}=1024$ options for sequences of ten heuristics. Although this number is larger than what we observed for sequences of length 10 in the KP, it is still small and potentially explains the decrease in the performance of the hybrid hyper-heuristics when we increase the length of the sequences.

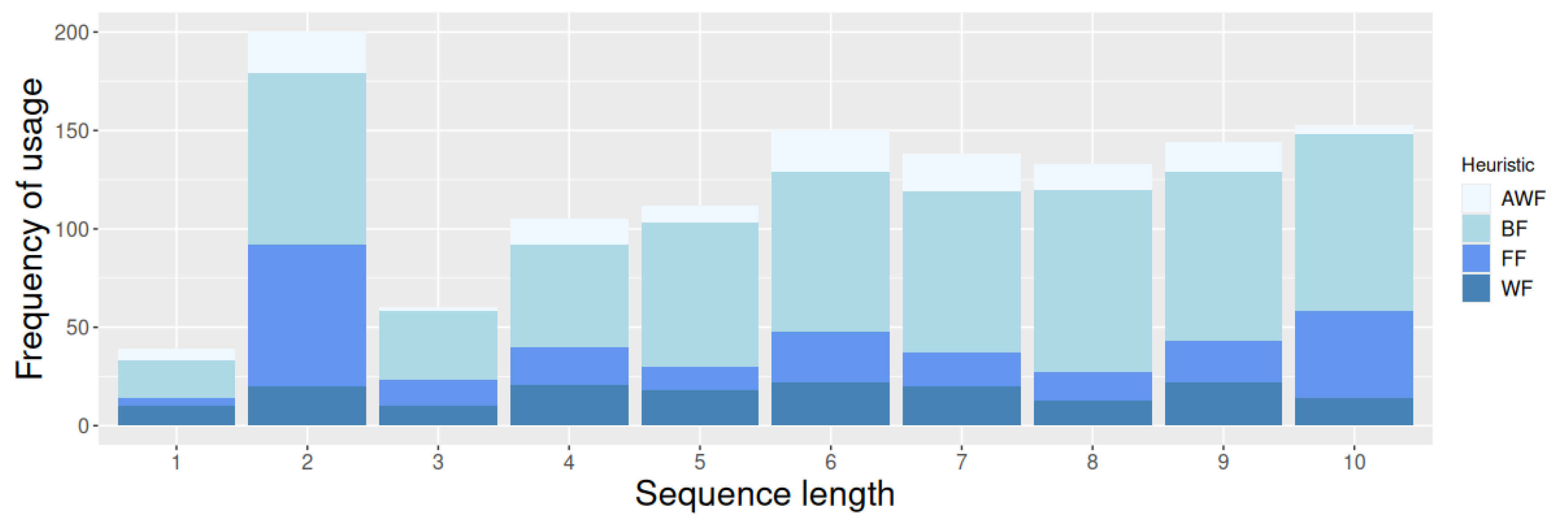

Finally, as we did for the KP, we also analyzed the frequency of heuristics the hyper-heuristics produced for the BPP can fire. Similarly to what we observed for the KP, the most used heuristic in the BPP is BF, which showed the best performance when applied in isolation. Although the patterns for sequences 6 to 10 heuristics are similar, their performance varies significantly. This result supports the idea that how we use the heuristics is more important than how many times we use them.

5. Conclusion and Future Work

As mentioned earlier, our solution approach combines rule-based and fixed-sequence-based hyper-heuristics. To do so, we generate rules that fire sequences of heuristics. This way, we have merged the two hyper-heuristic models into a single unexplored hyper-heuristic model. Thus, our model produces hybrid hyper-heuristics as depicted in Fig. Figure 1. As we can observe, a hybrid hyper-heuristic contains a set of rules. However, this model is unique because these rules decide which sequence of heuristics to use at a given search moment.

The literature has shown some encouraging results regarding various hyper-heuristic models. As described before, rule-based and sequence-based implementations have proven reliable in various scenarios. Our work went beyond the individual success of these two approaches. It explored the feasibility of combining these two approaches into a single one, one that generates hybrid hyper-heuristics that decide on the items to pack by using rules. However, the actions of such rules are heuristic sequences. So, when an action fires, various items may be chosen for packing. Although our results are still preliminary, we observed an unexpected result: using heuristic sequences as actions within the rules decreases the hyper-heuristic performance as the sequences’ length increases. This phenomenon was observed both in the KP and the BPP.

Although our results confirm that some lengths allow for the improvement of the results obtained by MAXPW and BPP (the best heuristics for the instances considered in this work for the KP and the BPP, respectively), we conclude that, at least for the cases studied in this work, it is not a good idea to allow the rules to fire heuristic sequences. Instead, the traditional rule-based model (in which each rule fires a single heuristic) obtained the best results in both the training and test sets for both domains.

How is this possible? We are going to be honest. When we started working on the hybrid hyper-heuristics concept described in this document, we expected to improve existing results. Since almost all ideas regarding hyper-heuristics we had implemented before had succeeded, we were also positive this time. However, despite our efforts, we could not improve our results further. We already explained how the number of rules coded within the hybrid hyper-heuristics might affect their performance when recommending sequences of heuristics. Unfortunately, we have failed to explain why the genetic algorithm tends to reduce the number of rules as we increase the length of the sequences.

We do not consider our results a complete failure since we observed that, in the case of the KP, 56% of the hybrid hyper-heuristics improved on the average result of MAXPW, which was the best individual heuristic for such instances. In the BPP, we can observe a similar result, where 44% of the hybrid hyper-heuristics improved the average result produced by BF. Moreover, we have also confirmed an important lesson: combining solvers that work on an individual level might not always result in a better one. In other words, sometimes, it may be better not to combine.

We must mention that our model, as proposed in this document, exhibits a potential limitation that might be related to its incapacity to improve on the traditional rule-based model. This potential limitation is that the rules within the hybrid hyper-heuristics can only fire sequences of a fixed length. This means all the rules within the hyper-heuristic are forced to fire heuristic sequences with the same length.

However, we want to stress the preliminary nature of this work since it is the first attempt to explore combining these two hyper-heuristic approaches into one. For this reason, future research is rich in opportunities. First, we should explore a different process for optimizing the hyper-heuristics. In this work, we delegated this task to the genetic algorithm. The genetic algorithm is responsible for evolving the rules’ conditions and their corresponding action. Although this seems sufficient when the sequences are short (less than five heuristics), the task becomes more challenging as the sequences’ length increases. Based on these observations, exploring two independent optimization fronts seems natural: one that focuses on finding the regions of the feature space to be affected (the conditions of the rules) and another that improves the sequences that fire for those regions. Another path worth exploring is to include other features and heuristics and extend our analysis to other relevant KP instances. More importantly, future work must validate our preliminary findings and confirm whether hybridization in hyper-heuristics harms the solving process.
