Volume Change Measurements of the Heart and Lungs After Pectus Excavatum Repair

2. Materials and Methods

2.1. Study Design

This study was approved by the Institutional Review Board (NR-IRB 2024-02, approved on April 15, 2024), with a waiver of informed consent granted due to its retrospective design. A retrospective review was conducted on 63 out of 74 patients who underwent PE repair surgery using XI pectus bars between April 2023 and February 2024 at a single center. Exclusion criteria included: 1) patients with a history of prior PE repair resulting in recurrence, 2) patients who underwent alternative pectus bar configurations, such as parallel or cross-bar techniques, and 3) patients with incomplete medical records. All surgeries were performed by the corresponding author (H.J.P). Data collected included demographic information, medications administered, surgical and medical histories, and perioperative data (e.g., operative time, complications, length of hospital stay [LOS], and chest computed tomography [CT] findings). This information was obtained through patient interviews and electronic medical records.

2.2. Surgical Procedures

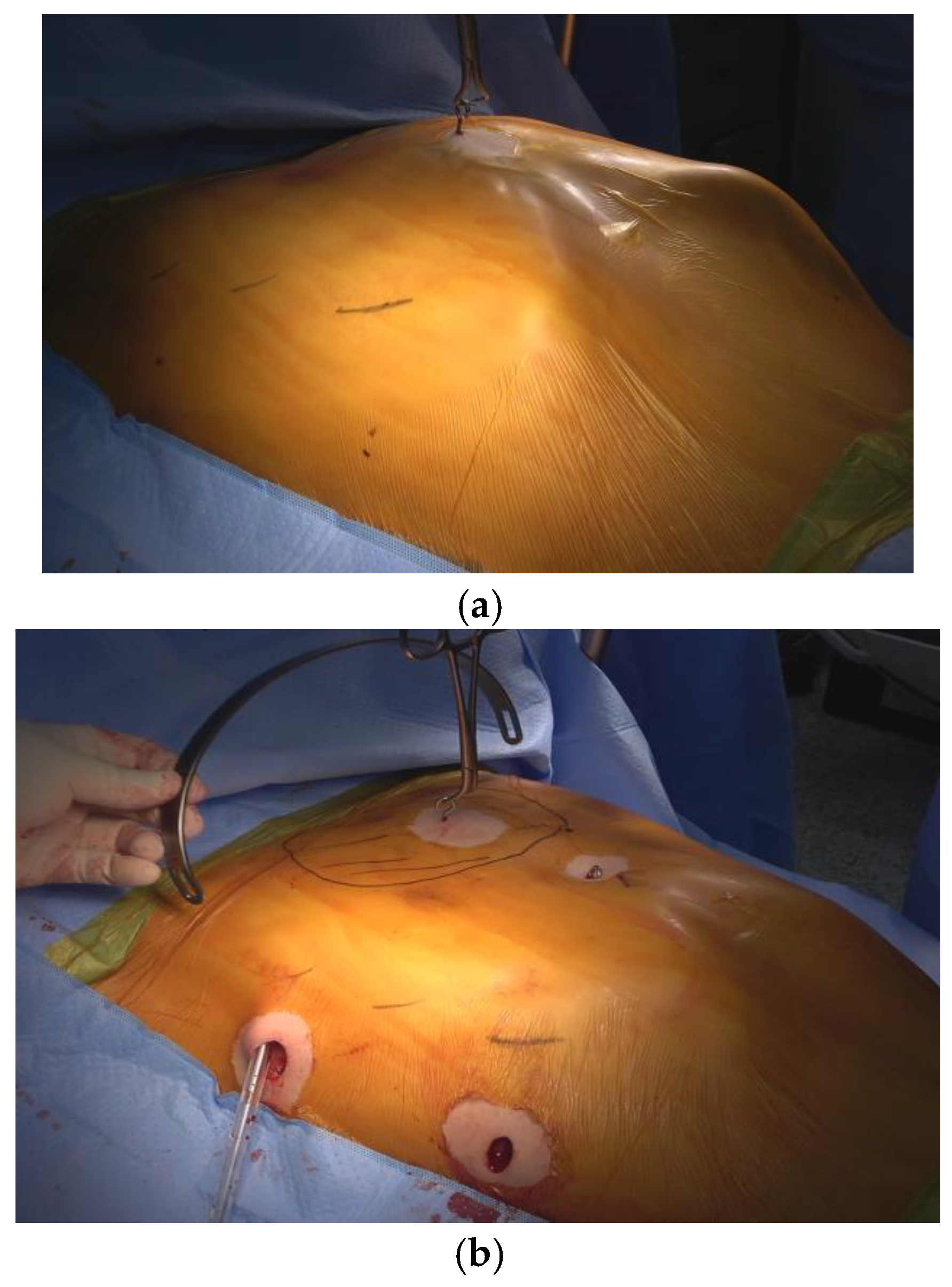

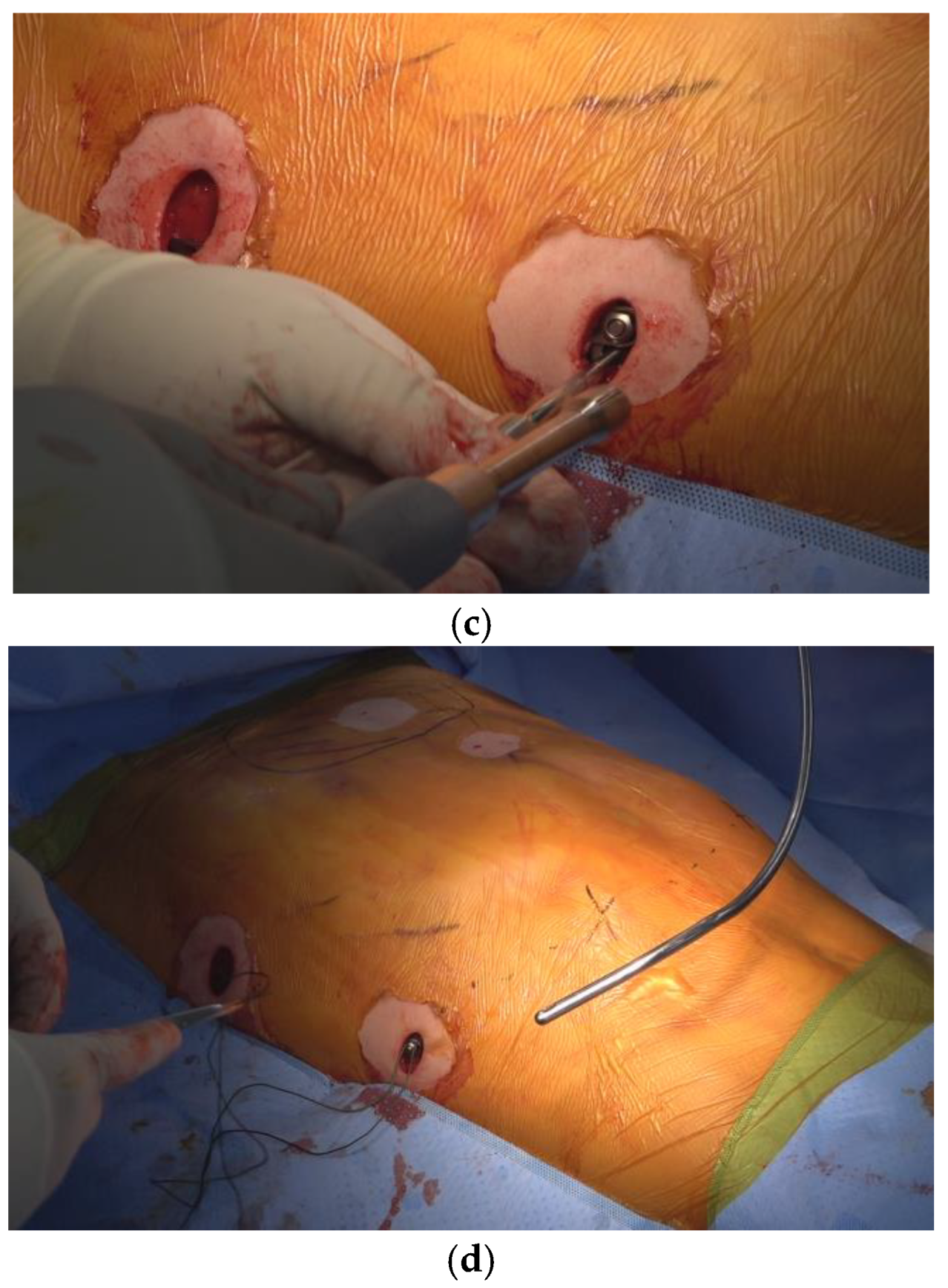

All the repair procedures were performed by a single surgeon at a single center, ensuring consistency in surgical technique, except for the nerve block procedure. Patients were positioned supine with their arms suspended in overhead sling. Bilateral 1.5-cm skin incisions were made along the midaxillary line to create subcutaneous pockets. The operative technique for comprehensive chest wall remodeling consisted of four key steps (Figure 1) [4]:

1) Crane-assisted sternal pre-lifting: This distinctive feature of the novel strategy involves elevating the sternum using a crane to a height beyond the normal level, regardless of the patient's age, chest wall shape, or severity of the deformity. This technique ensures that the power source for the repair is derived entirely from the crane, rather than relying on the pectus bar’s interaction with the chest wall during placement. Prior to the repair, the depressed sternum was fully elevated using the crane to ensure precise positioning of the pectus bars and to minimize the risk of injury to adjacent organs [9,10]. Sternal pre-lifting was achieved with the Easy crane system (PrimeMed, Seoul, Republic of Korea), elevating the chest wall beyond the target height and significantly reducing the need for pectus bar turnover power. The crane was equipped with sternal wiring or sternal screws, forming an integral part of our novel system [4].

2) Introduction of multiple pectus bars configured in an XI shape: Since 2022, our practice has shifted to using multiple pectus bars to overcome the limitations associated with single bar repairs [3]. More recently, the XI bar configuration has become our standard method. This study demonstrated that the XI bar approach provides comprehensive coverage of the anterior chest wall, minimizing significant complications and enhancing repair quality [4].

3) Stabilization of the pectus bar using bilateral bridge plates s: The stabilization of the pectus bars is achieved with bridge plates placed in the subcutaneous plane, which link the bars together using a bolt and nut apparatus. This method has resulted in zero percent bar displacement and avoids the need for invasive intrathoracic procedures [6,11].

4) Chest wall ironing with Flare Buster and Magic String: Despite the use of the XI pectus bars, residual protrusions and costal flares can still occur. To achieve comprehensive chest wall remodeling, we employ a modified sandwich technique using heavy string to mold the chest wall into the desired shape. Rsidual lower costal flares and protuberances were corrected using No. 5 Ethibond strings (Ethicon Inc., Somerville, NJ, USA) through the 'Flarebuster & Magic String' technique [4]

2.3. 3D Synapse Program and Volumetric Measurement

To volumetric measurements, SYNAPSE 3D imaging software (Fujifilm, Tokyo, Japan) was utilized. This program has been validated in prior studies for its ability to provide high-resolution, automated segmentation of anatomical structures from CT images [14,15].

The following steps outline the measurement process in detail:

1) CT data acquisition: data for volume measurements were obtained from preoperative and postoperative Chest CT scans. Preoperative scans were conducted as part of the routine evaluation to establish baseline anatomical and volumetric parameters. Postoperative scans were acquired on the third day following surgery to accurately assess immediate volumetric changes while minimizing the influence of transient postoperative factors, such as edema or inflammation. All scans were performed with a 1 mm slice thickness to ensure high-resolution imaging for precision of volumetric analysis. Imaging was conducted using a multi-detector computed tomography system, ensuring uniformity and consistency across the patient cohort. Non-enhanced CT protocols were utilized to mitigate potential risks associated with contrast agents, particularly considering that the majority of patients were pediatric.

2) Volumetric calculations: SYNAPSE 3D program calculates volume by automatically segmenting anatomical structures based on predefined density thresholds from CT images. The software employs an advanced algorithm that distinguishes cardiac and pulmonary structures by analyzing voxel intensity values and applying a region-growing technique. Following segmentation, a three-dimensional reconstruction of the selected region is generated, and volume is computed by integrating the voxel-based segmentation data. For cardiac volume analysis, the 4-chamber analysis mode was employed to segment the heart. This mode automatically distinguishes the myocardium, left and right atria, and ventricles. The program generates 3D renderings and multiplanar reconstructions, allowing for precise quantification of total cardiac volume. Manual adjustments were performed when necessary to ensure segmentation accuracy. And for pulmonary volume analysis, the lung analysis/airway mode was used to segment pulmonary structures. This mode isolates lung fields and lobes based on density thresholds, effectively differentiating air-filled spaces from surrounding tissues. The software provides both individual lobe volumes and total lung volume.

3) Quality Control, Accuracy, and Reliability of Volumetric MeasurementsTo ensure accurate volumetric assessments, all automated segmentations were independently reviewed by two thoracic surgeons. Discrepancies between automated results and manual evaluations were resolved through consensus, and volume measurements were cross-referenced with anatomical landmarks to validate segmentation reliability. SYNAPSE 3D has been previously validated in comparative studies against manual segmentation and other imaging software, demonstrating high inter-observer and intra-observer reliability [14,15]. The accuracy of volumetric measurements was further enhanced through manual verification and correction by independent experts, ensuring precise delineation of organ boundaries. This automated yet expert-supervised approach facilitates reproducible and objective assessments of postoperative volumetric changes, minimizing interobserver variability and improving the robustness of our study.

2.4. Statistical Analysis

Normally distributed continuous data, skewed data, and categorical data are presented as means (standard deviation [SD]) values, medians (interquartile ranges), and numbers, respectively. Descriptive statistics (number of individuals, mean, SD, median, minimum, maximum, and quartile range) and categorical data were conveyed as subject numbers and percentages, checked for normal distribution and relations, and assessed using analysis of variance or the Kruskal–Wallis test. All computations were performed using standard software (SPSS v. 25.0; IBM Corp., Armonk, NY, USA).

3. Results

A total of 63 patients were enrolled in this study. The baseline characteristics of the study cohort are detailed in Table 1. The mean age of the patients was 16.95 years (range: 11–37 years), with a predominance of male patients (52, 82.54%). The majority of the patients were Asian (96.82%), while the remainder were Caucasian (3.18%). Perioperative characteristics are summarized in Table 2. The chest morphology was symmetric in 40 patients (63.5%) and asymmetric in 23 patients (36.5%).

All patients underwent sternal pre-lifting using the crane, introduction of XI-shaped customized pectus bars, stabilization of the bars with bilateral bridge plates, and chest wall ironing using the flare buster and magic string technique. The mean operative time was 98.57 minutes (range: 65–150 minutes), and there were no intraoperative blood transfusions. Radiological indices, including the HI and DI, significantly decreased postoperatively. The mean difference in the HI was 1.65 (range: 0.53–4.3, p < 0.01), and the mean difference in the DI was 0.85 (range: 0.3–2.23, p < 0.01). Postoperative outcomes, including length of stay and complications, are summarized in Table 3. The mean length of stay was 4.52 days (range: 4–7 days). There were no severe complications such as major bleeding or bar displacement. Postoperative pneumothorax occurred in 8 patients (12.7%), which required no intervention other than the connection of previously inserted small-bore silastic drainage to the digital thoracic drainage system (Thopaz®, Medela, Switzerland). One patient developed a hemothorax, requiring chest tube drainage; two patients had pneumonia; one patient developed a wound seroma; and one patient experienced thoracic outlet syndrome, which resolved spontaneously.

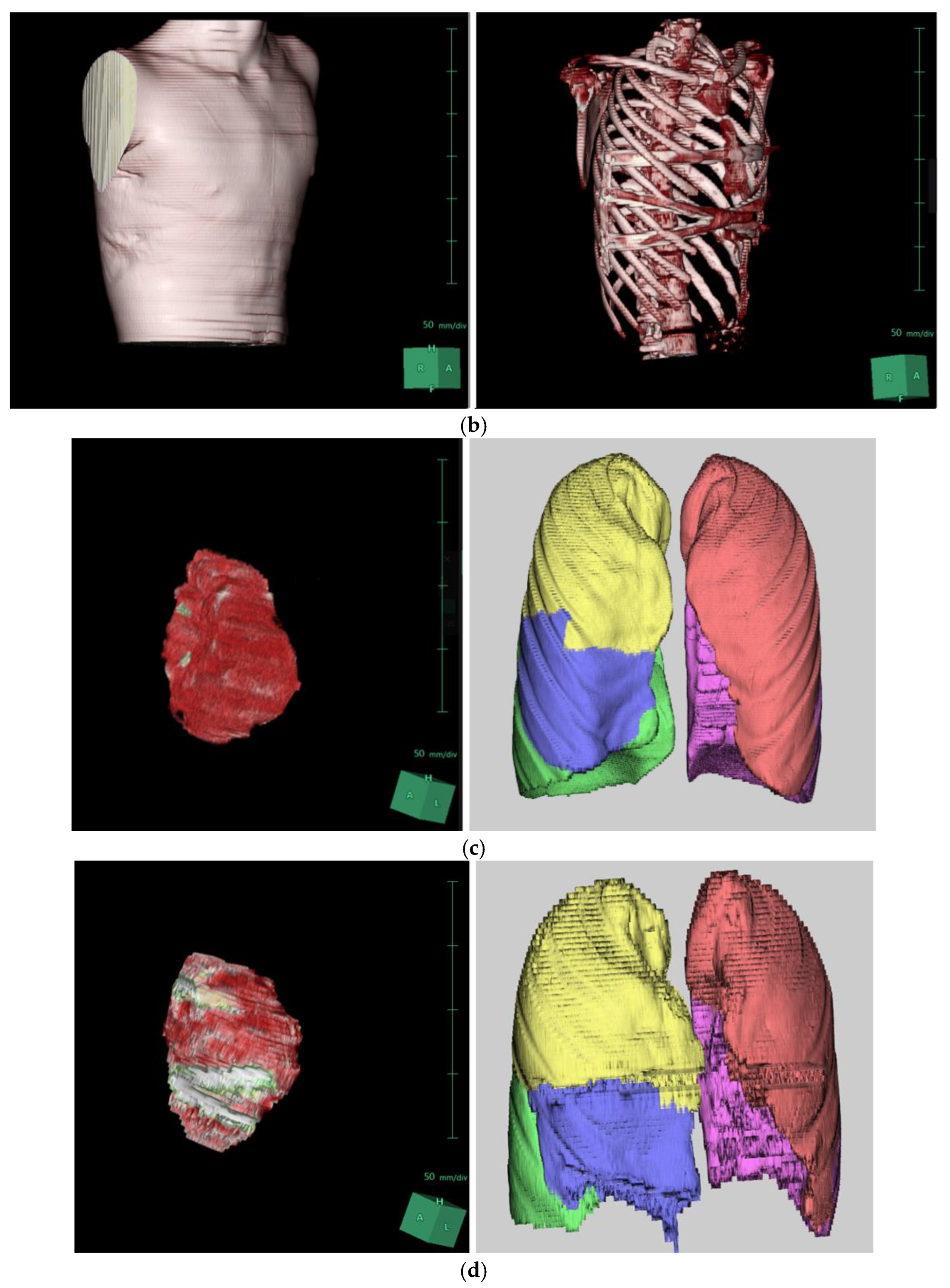

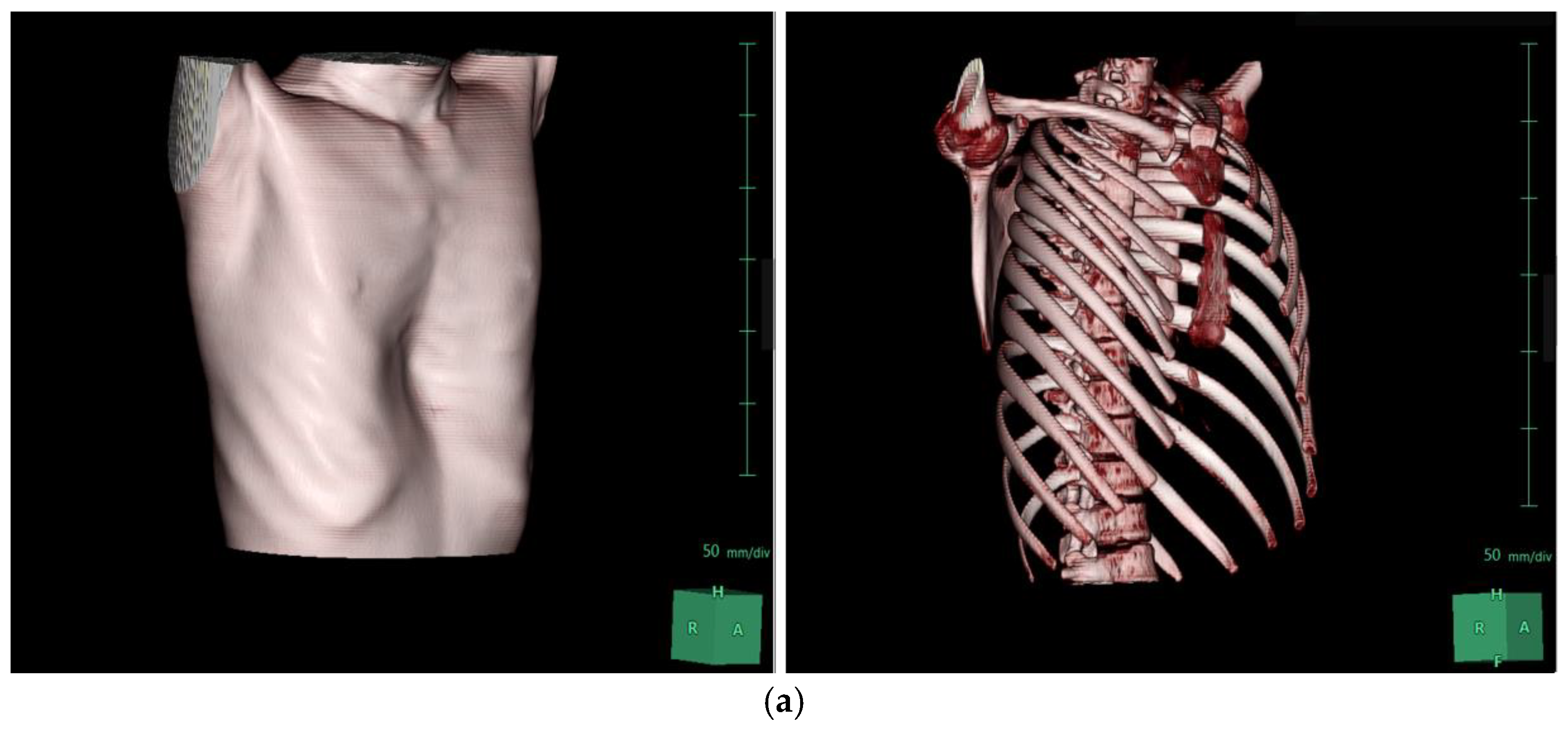

Chest CT scans were analyzed using the Synapse 3D image analysis program, focusing on heart and lung volumes, with results summarized in Table 4. There were no significant changes in lung volumes (total, left, and right) postoperatively. However, cardiac volumes increased from 458.25 ml to 499.13 ml after surgery (p = 0.018), representing an 8.9% increase with a mean difference of 40.89 ml (Figure 2).

4. Discussion

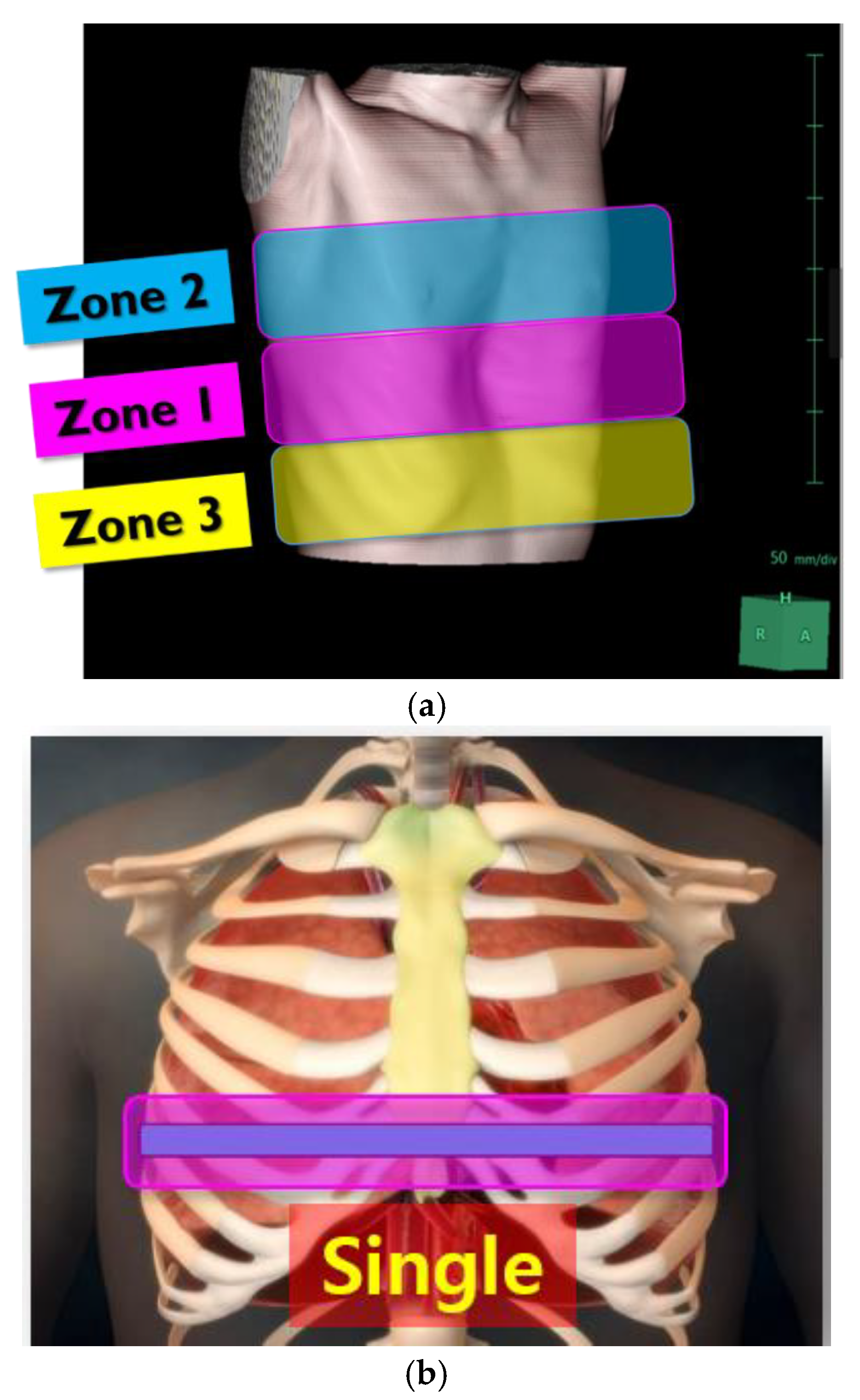

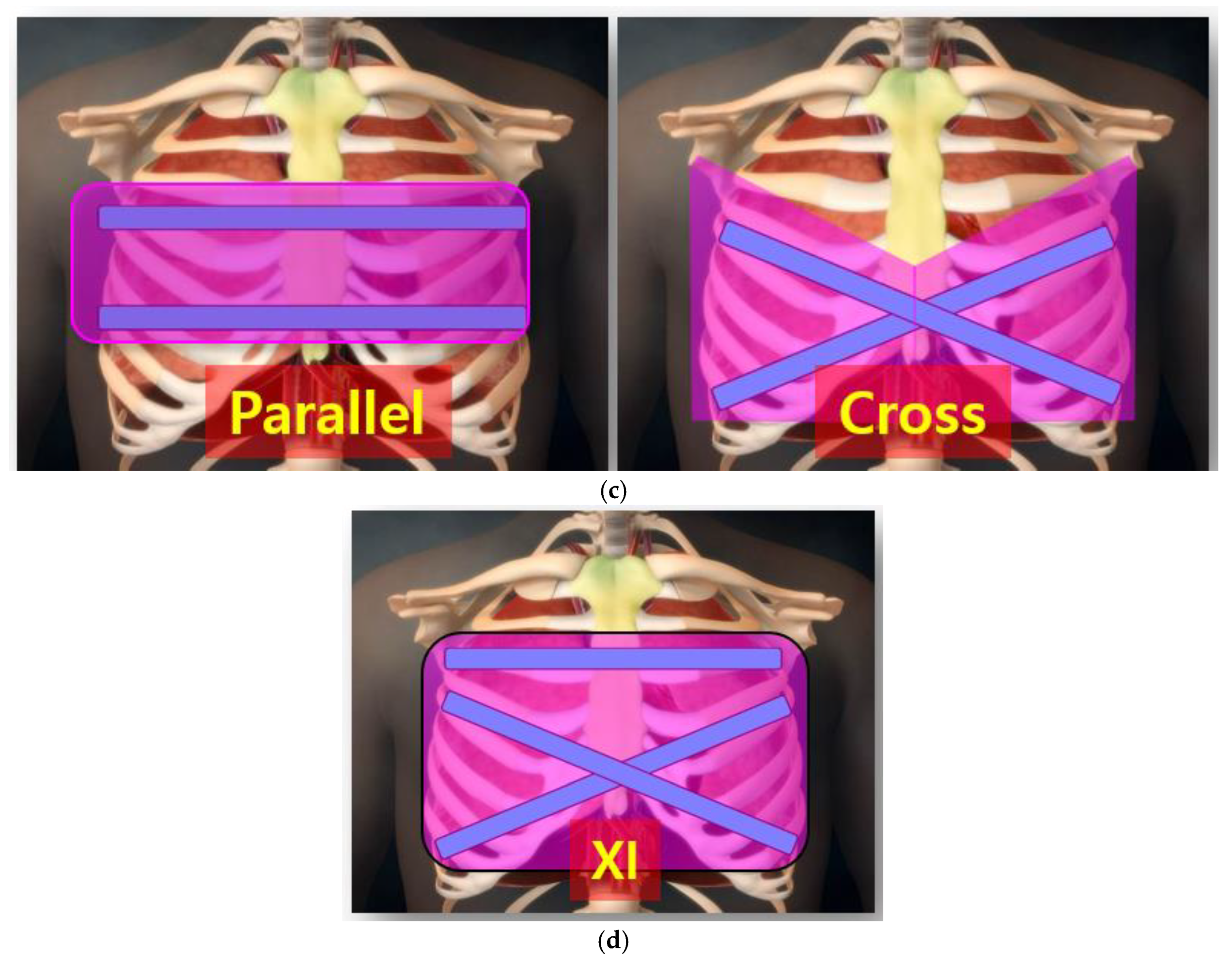

PE repair aims to correct chest wall deformities and mitigate the compression of underlying structures, particularly the heart and lungs. We have been adopting a comprehensive chest wall remodeling approach to restore the thoracic cage to its integral anatomical structure and normal volume. To optimize repair outcomes, our center has categorized chest wall deformities into three zones to guide targeted surgical strategies (Figure 3a). Zone 1 represents the deepest point of the sternum and is the primary focus of repair. Zone 2 encompasses upper chest wall deformities, while Zone 3 includes the lower costal flares and lateral chest wall. Traditional single-bar techniques, such as the Nuss procedure, primarily address Zone 1 (Figure 3b). Double-bar configurations, including parallel and cross-shaped designs, extend coverage to Zones 1 and 2 or Zones 1 and 3, respectively (Figure 3c). However, these approaches often leave parts of the chest wall inadequately corrected. The XI bar configuration, representing an evolution in PE repair techniques, has emerged as a comprehensive solution capable of addressing all three zones (Figure 3d).

By providing robust stabilization and complete remodeling of the anterior chest wall, this technique minimizes the risks of bar dislocation and incomplete correction, which are associated with traditional approaches. Our findings suggest that the XI bar technique delivers consistent outcomes with lower complication rates and greater patient satisfaction, aligning with recent advancements in chest wall repair.

Volumetric analysis offers significant advantages over traditional metrics such as the HI and DI in evaluating the physiological benefits of PE repair. While HI and DI effectively quantify morphological severity, they do not capture direct changes in cardiac and pulmonary volumes, limiting their capacity to assess functional outcomes. Previous studies have highlighted the impact of PE on cardiopulmonary function and the improvements observed post-repair. For instance, Jaroszewski et al. reported notable enhancements in cardiopulmonary performance among adult patients undergoing PE surgery, including increases in right ventricular stroke volume and cardiopulmonary exercise test parameters [16]. Systematic reviews further corroborate these findings, with one study documenting a 36% increase in cardiac output immediately following surgical correction [17]. The SYNAPSE 3D imaging software represents a precise, automated, and reproducible method for volumetric analysis, enabling comprehensive assessments of structural and functional changes post-repair. In this study, SYNAPSE 3D was employed to evaluate changes in cardiac and pulmonary volumes, providing critical insights into the physiological impact of the XI bar technique. Our findings demonstrated a significant 8.9% increase in cardiac volume (p = 0.018) after PE repair, reinforcing the procedure’s effectiveness in alleviating mediastinal compression. This result is consistent with prior research that reported improvements in cardiac function metrics, including stroke volume and ejection fraction, following surgical correction. The increase in cardiac volume observed in this study underscores the importance of addressing the mechanical impact of chest wall deformities.

Conversely, pulmonary volumes showed no significant changes post-repair, consistent with prior studies. This stability suggests that lung parenchyma, due to its inherent compliance and adaptability, is less directly affected by external compression. While volumetric analysis indicates static pulmonary volumes, dynamic measures such as spirometry have demonstrated modest improvements in respiratory function post-repair. This disparity highlights the need for comprehensive assessments that integrate both static and dynamic pulmonary metrics to fully understand the impact of PE repair on lung function.

To our knowledge, this is the first study to investigate volumetric changes in the heart and lungs following PE repair using the XI bar technique. While the findings provide valuable insights, the study has several limitations. First, the sample size was relatively small, which may limit the generalizability of the results. Second, the retrospective nature of the study introduces potential biases. Third, the use of non-enhanced CT scans restricted the ability to analyze volume changes in individual heart chambers or differentiate between cardiac regions. Fourth, artifacts from the pectus bars may have influenced volumetric calculations. Finally, the absence of complementary assessments, such as echocardiograms or cardiopulmonary exercise testing, prevented the establishment of correlations between volumetric changes and functional outcomes.

Future research should focus on addressing these limitations and expanding the scope of volumetric analysis to compare different pectus bar configurations. Longitudinal studies incorporating functional assessments and quality-of-life metrics will further elucidate the clinical relevance of volumetric changes and enhance our understanding of the long-term benefits of PE repair.

5. Conclusions

The repair of PE using the XI pectus bar technique demonstrates a significant increase in cardiac volume, highlighting its efficacy in relieving mediastinal compression. In contrast, pulmonary volumes remain largely unchanged, suggesting that the primary physiological impact of the repair is localized to cardiac structures. These findings underscore the critical role of volumetric assessments in advancing our understanding of the functional benefits associated with PE repair. Future research should aim to establish robust correlations between volumetric changes and long-term functional outcomes, including cardiopulmonary performance and quality-of-life improvements. Such studies will enhance the generalizability of these findings and provide deeper insights into the relationship between volumetric changes and functional metrics, ultimately guiding more comprehensive evaluations of surgical efficacy.
