A Generalized Geometric Theory of Centroid Discriminant Analysis for Linear Classification of Multi-dimensional Data

1. Introduction

Linear classifiers are often favored over nonlinear models, such as neural networks, for certain tasks due to their comparable performance in high-dimensional data spaces, faster training speeds, reduced tendency to overfit, and greater interpretability in decision-making ([1,2]). Notably, linear classifiers have demonstrated performance on par with convolutional neural networks (CNNs) in medical classification tasks, such as predicting Alzheimer’s disease from structural or functional brain MRI images ([3,4]).

These linear classifiers can be categorized into several types based on the principles they use to define the decision boundary or classification discriminant, as described below, where N is the number of samples, and M is the number of features:

• The nearest mean classifier (NMC) ([5]) which is a prototype-based classifier that assigns points according to the perpendicular bisector boundary between the centroids of two groups. This classifier has $O\left(NM\right)$ training time complexity.
• Fisher’s linear discriminant analysis (LDA, specifically refer to Fisher’s LDA in this study) is a variance-based classifier which can be trained in cubic time complexity $O(N{M}^2+M^3)$. While faster implementations like spectral regression discriminant analysis (SRDA) ([6]) claim lower training time complexity, their efficiency depends on specific conditions, such as a sufficiently small iterative term and sparsity in the data. These constraints limit SRDA’s applicability in real-world classification tasks.
• Support vector machine (SVM) ([7]) with a linear kernel is a maximum-margin classifier, which has a training time complexity of $O\left(N^3\right)$. A fast implementation LIBLINEAR ([8]) (denoted as fast SVM) reduces to $O\left(kNM\right)$ by using dual coordinate descent optimization. The iteration count k that depends on the optimization path leads to a quasi-quadratic overall complexity.
• Perceptron ([9]) is a misclassification-triggered ruled-based classifier. Its training time complexity is $O\left(kNM\right)$.
• Logistic regression (LR) ([10]) is a statistics-based classifier. It can be trained using either maximum likelihood estimation (MLE) or iteratively reweighted least squares, with time complexity of $O(N{M}^2+M^3)$ and $O\left(N{M}^2\right)$ respectively.

Among linear classifiers, NMC offers the lowest training time complexity but suffers from limited performance due to its overly simplified decision boundary. Widely used methods such as LDA and SVM are often favored for their strong predictive capabilities. However, these methods can be computationally expensive, particularly for large-scale datasets. Hence, achieving both high scalability and strong predictive performance remains a challenging tradeoff, highlighting the need for new approaches that balance these competing demands.

To address this challenge, this paper makes the following 3 key contributions:

• A geometric theory framework for classifiers: This study introduces a geometric framework, geometric discriminant analysis (GDA), to unify certain linear classifiers under a common theoretical model. GDA leverages a special type of centroid discriminant basis (CDB0), a vector connecting the centroids of two classes, which serves as the foundation for constructing classifier decision boundaries. The GDA framework adjusts the CDB0 through geometric corrections under various constraints, enabling the derivation of classifiers with desirable properties. Notably, we show that: NMC is a special case of GDA, where geometric corrections are not applied to CDB0; linear discriminant analysis (LDA) is a special case of GDA, where the CDB0 is corrected by maximizing the projection variance ratio.
• A high-performance and scalable linear geometric classifier: Building on the GDA framework, we propose centroid discriminant analysis (CDA), a novel geometric classifier that iteratively adjusts the CDB through performance-dependent rotations on two-dimensional planes. These rotations are optimized via Bayesian optimization, enhancing the decision boundary’s adaptability while maintaining scalability. CDA exhibits quadratic training time complexity, outperforming LDA and SVM in terms of scalability and efficiency. Experimental evaluations on 27 real-world datasets, including standard image classification, medical imaging, and chemical property prediction, reveal that CDA consistently outperforms traditional linear methods such as LDA, SVM, and fast SVM in predictive performance, scalability, and stability.
• Nonlinear geometric classification via kernel method: For complex data where linear models are not enough, CDA supports nonlinear classification via kernel method. We demonstrated with challenging image and chemical datasets that kernel CDA improved over linear CDA and outperformed kernel SVM. Nonetheless, while kernel CDA offers greater expressiveness and improved capability, linear CDA remains highly valuable for real-world tasks due to its superior training efficiency, interpretability, and reduced risk of overfitting.

More importantly, we emphasize that CDA not only achieves robust predictive performance but also offers superior computational efficiency. Unlike traditional methods such as LDA and SVM, which typically exhibit cubic time complexity, CDA operates with quadratic complexity in the worst case, resulting in significantly faster runtimes in practice. These advantages make CDA particularly attractive for real-world applications, where scalability, interpretability, and efficiency are essential. As linear classifiers remain widely used across scientific domains for their transparency and speed, CDA represents a valuable advancement for practitioners seeking reliable and computationally lightweight solutions. Lastly, the GDA theory, from which CDA is derived, may inspire new classifiers under the definition of different geometric constraints.

2. Geometric Discriminant Analysis (GDA)

In this study, we propose a generalized geometric theory for centroid-based linear classifiers. In geometry, the generalized definition of centroid is the weighted average of points. For binary classification problem, training a linear classifier involves finding a discriminant (perpendicular to the decision boundary) and a bias. In GDA, we focus on the centroid discriminant basis (CDB) which is defined as the directional vector from the centroid of negative class to that of positive class. Specifically, we focus on a particular discriminant termed as CDB0, which is constructed from centroids with uniform sample weights. GDA theory incorporates all the classifiers whose classification discriminant is CDB0 adjusted by geometric corrections on CDB0, which is described in details in the following using an instance with LDA.

Without loss of generality, assume a two-dimensional space (see Appendix D for any-dimensional proofs). We derive the GDA theory as a generalization of LDA and includes it under a certain geometric constraint. Indeed, Fisher’s LDA is a type of LDA without assuming normal distribution or equal class covariance for variables. In Fisher’s LDA, the linear discriminant (LD) is derived as the maximization of between-class variance to within-class variance:

$$S={\displaystyle \frac{{\sigma }_{\mathrm{b}}^2}{{\sigma }_{\mathrm{w}}^2}}={\displaystyle \frac{{({\mathit{w}}^{\mathrm{T}}{\mathit{\mu }}_1-{\mathit{w}}^{\mathbf{T}}{\mathit{\mu }}_0)}^2}{{\mathit{w}}^{\mathbf{T}}{\mathbf{\Sigma }}_0\mathit{w}+{\mathit{w}}^{\mathbf{T}}{\mathbf{\Sigma }}_1\mathit{w}}}={\displaystyle \frac{{({\mathit{w}}^{\mathbf{T}}{\mathit{\mu }}_1-{\mathit{w}}^{\mathbf{T}}{\mathit{\mu }}_0)}^2}{{\mathit{w}}^{\mathbf{T}}({\mathbf{\Sigma }}_0+{\mathbf{\Sigma }}_1)\mathit{w}}}$$

(1)

where ${\mathit{\mu }}_0$ and ${\mathit{\mu }}_1$ are the means of negative and positive class, ${\mathbf{\Sigma }}_0$ and ${\mathbf{\Sigma }}_1$ are their covariance matrices, $\mathit{w}$ is the projection coefficient. The maximum is obtained when $N\mathbf{\Sigma }{\mathit{w}}_{\mathrm{LD}}={\mathit{\mu }}_1-{\mathit{\mu }}_0$ ([11]):

where ${\mathit{w}}_{\mathrm{LD}}$ is the solution of LDA and N is the total number of samples. $\mathbf{\Sigma }$ is the sum of within-class covariance matrices of each class ${\mathbf{\Sigma }}_0+{\mathbf{\Sigma }}_1$:

$$\mathbf{\Sigma }=\left[\begin{array}{cc}\sigma 0_{xx}^2& \sigma 0_{xy}^2\\ \sigma 0_{yx}^2& \sigma 0_{yy}^2\end{array}\right]+\left[\begin{array}{cc}\sigma 1_{xx}^2& \sigma 1_{xy}^2\\ \sigma 1_{yx}^2& \sigma 1_{yy}^2\end{array}\right]=\left[\begin{array}{cc}{\sigma }_{xx}^2& {\sigma }_{xy}^2\\ {\sigma }_{yx}^2& {\sigma }_{yy}^2\end{array}\right]$$

(2)

Suppose $\mathbf{\Sigma }$ has full rank, then ${\mathit{w}}_{\mathrm{LD}}={\displaystyle \frac{1}{N}}{\mathbf{\Sigma }}^{-1}({\mathit{\mu }}_1-{\mathit{\mu }}_0)\propto {\mathbf{\Sigma }}^{-1}({\mathit{\mu }}_1-{\mathit{\mu }}_0)$. The inverse of the covariance matrix $\mathbf{\Sigma }$ is:

$${\mathbf{\Sigma }}^{-1}={\displaystyle \frac{adj(\mathbf{\Sigma })}{|\mathbf{\Sigma }|}}\propto \left[\begin{array}{cc}{\sigma }_{yy}^2& -{\sigma }_{xy}^2\\ -{\sigma }_{yx}^2& {\sigma }_{xx}^2\end{array}\right]\propto \left[\begin{array}{cc}1& -{\displaystyle \frac{{\sigma }_{xy}^2}{{\sigma }_{yy}^2}}\\ -{\displaystyle \frac{{\sigma }_{yx}^2}{{\sigma }_{yy}^2}}& {\displaystyle \frac{{\sigma }_{xx}^2}{{\sigma }_{yy}^2}}\end{array}\right]$$

(3)

Where $adj(\mathbf{\Sigma })$ is the adjugate of $\mathbf{\Sigma }$. Considering that $|\mathbf{\Sigma }|$ is a scalar, we can neglect it and account only for the matrix part. Let $\Delta \mathit{\mu }={\mathit{\mu }}_1-{\mathit{\mu }}_0={[\Delta {\mu }_x,\Delta {\mu }_y]}^{\mathbf{T}}$, then:

$${\mathit{w}}_{\mathrm{LD}}\propto \left[\begin{array}{cc}1& -{\displaystyle \frac{{\sigma }_{xy}^2}{{\sigma }_{yy}^2}}\\ -{\displaystyle \frac{{\sigma }_{yx}^2}{{\sigma }_{yy}^2}}& {\displaystyle \frac{{\sigma }_{xx}^2}{{\sigma }_{yy}^2}}\end{array}\right]\left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]=\left(\left[\begin{array}{cc}1& 0\\ 0& 1\end{array}\right]+\left[\begin{array}{cc}0& -{\displaystyle \frac{{\sigma }_{xy}^2}{{\sigma }_{yy}^2}}\\ -{\displaystyle \frac{{\sigma }_{yx}^2}{{\sigma }_{yy}^2}}& {\displaystyle \frac{{\sigma }_{xx}^2}{{\sigma }_{yy}^2}}-1\end{array}\right]\right)\left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]$$

$$={\mathit{w}}_{\mathrm{LD}}\propto {[\Delta {\mu }_x,\Delta {\mu }_y]}^{\mathrm{T}}+{\mathit{C}}_{\mathrm{correction}}{[\Delta {\mu }_x,\Delta {\mu }_y]}^{\mathrm{T}}$$

(4)

where ${\mathit{C}}_{\mathrm{correction}}$ is a correction matrix that acts as the second-order term associated with the sum of covariance matrices. Since ${\mathit{w}}_{\mathrm{CDB}0}$ is constructed from centroids with uniform sample weights (i.e., arithmetic means), it can be written as ${\mathit{w}}_{\mathrm{CDB}0}={[\Delta {\mu }_x,\Delta {\mu }_y]}^{\mathrm{T}}/\parallel [\Delta {\mu }_x,\Delta {\mu }_y]\parallel .$ As in the covariance matrix, ${\sigma }_{xy}^2={\sigma }_{yx}^2$, and let $c_{xy}={\sigma }_{xy}^2/{\sigma }_{yy}^2$, $c_{xx/yy}={\sigma }_{xx}^2/{\sigma }_{yy}^2-1$, the linear discriminant in Eq. 4 can be compressed into the following general form (Figure A1a-c, general case):

$${\mathit{w}}_{\mathrm{GD}}={\mathit{w}}_{\mathrm{LD}}\propto \left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]+\left[\begin{array}{cc}0& -c_{xy}\\ -c_{xy}& c_{xx/yy}\end{array}\right]\left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]\propto {\mathit{w}}_{\mathrm{CDB}0}+C_{\mathrm{correction}}{\mathit{w}}_{\mathrm{CDB}0}.$$

(5)

Since from Eq. (4), ${\mathit{w}}_{\mathrm{LD}}$ can be decomposed into the basis ${\mathit{w}}_{\mathrm{CDB}0}$ and a correction on the basis, we write out ${\mathit{w}}_{\mathrm{GD}}$ to indicate that ${\mathit{w}}_{\mathrm{LD}}$ is a geometrical discriminant (GD), a discriminant geometrically modified from ${\mathit{w}}_{\mathrm{CDB}0}$. This geometrical modification can be intuitively interpreted as performing rotations on ${\mathit{w}}_{\mathrm{CDB}0}$.

Starting from Eq. (4), we have the following special cases to consider, which represent different forms of geometrical modification applied to ${\mathit{w}}_{\mathrm{CDB}0}$:

Special case 1. If we assume two variables have the same variance (In experiments, we relax the condition to have similar variance, i.e., ${\sigma }_{xx}^2\approx {\sigma }_{yy}^2$), then $c_{xx/yy}=0$. Eq. (4) becomes (Figure A1, special case 1):

$${\mathit{w}}_{\mathrm{LD}}\propto \left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]+\left[\begin{array}{cc}0& -c_{xy}\\ -c_{xy}& 0\end{array}\right]\left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]\propto {\mathit{w}}_{\mathrm{CDB}0}+{\mathit{C}}_{\mathrm{correction}}{\mathit{w}}_{\mathrm{CDB}0}$$

(6)

From Eq. (6), there are two special cases:

Special case 1.1. If two covariance matrices are similar (${\mathbf{\Sigma }}_0\approx {\mathbf{\Sigma }}_1$), then the following also holds: $c_{xy}={\displaystyle \frac{{\sigma }_{xy}^2}{{\sigma }_{yy}^2}}\approx {\displaystyle \frac{\mathbb{E}\left[(x-{\mu }_x)(y-{\mu }_y)\right]}{{\sigma }_x{\sigma }_y}}=r_{xy}$ where $r_{xy}$ is the Pearson correlation coefficient (PCC) between x and y of the samples in each class. Eq. (6) becomes (Figure A1, special case 1.1):

$${\mathit{w}}_{\mathrm{LD}}\propto \left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]+\left[\begin{array}{cc}0& -r_{xy}\\ -r_{xy}& 0\end{array}\right]\left[\begin{array}{c}\Delta {\mu }_x\\ \Delta {\mu }_y\end{array}\right]\propto {\mathit{w}}_{\mathrm{CDB}0}+{\mathit{C}}_{\mathrm{correction}}{\mathit{w}}_{\mathrm{CDB}0}$$

(7)

Special case 1.1.1. From Eq. (7), if there is no correlation between x and y variables (e.g., $r_{xy}\approx 0$), then the equation becomes (Figure A1, special case 1.1.1), which is equivalent to NMC method except for the bias:

$${\mathit{w}}_{\mathrm{LD}}\propto {[\Delta {\mu }_x,\Delta {\mu }_y]}^{\mathrm{T}}\propto {\mathit{w}}_{\mathrm{CDB}0}$$

(8)

Special case 1.2. From Eq. (6), if two classes are symmetric about one variable, i.e., $\sigma 0_{xy}^2\approx -\sigma 1_{xy}^2\ne 0$, then $c_{xy}={\displaystyle \frac{{\sigma }_{xy}^2}{{\sigma }_{yy}^2}}\approx 0$. In this case, the obtained discriminant is close to the one in Special case 1.1.1 (Figure A1, special case 1.2):

$${\mathit{w}}_{\mathrm{LD}}\propto {[\Delta {\mu }_x,\Delta {\mu }_y]}^{\mathrm{T}}\propto {\mathit{w}}_{\mathrm{CDB}0}$$

(9)

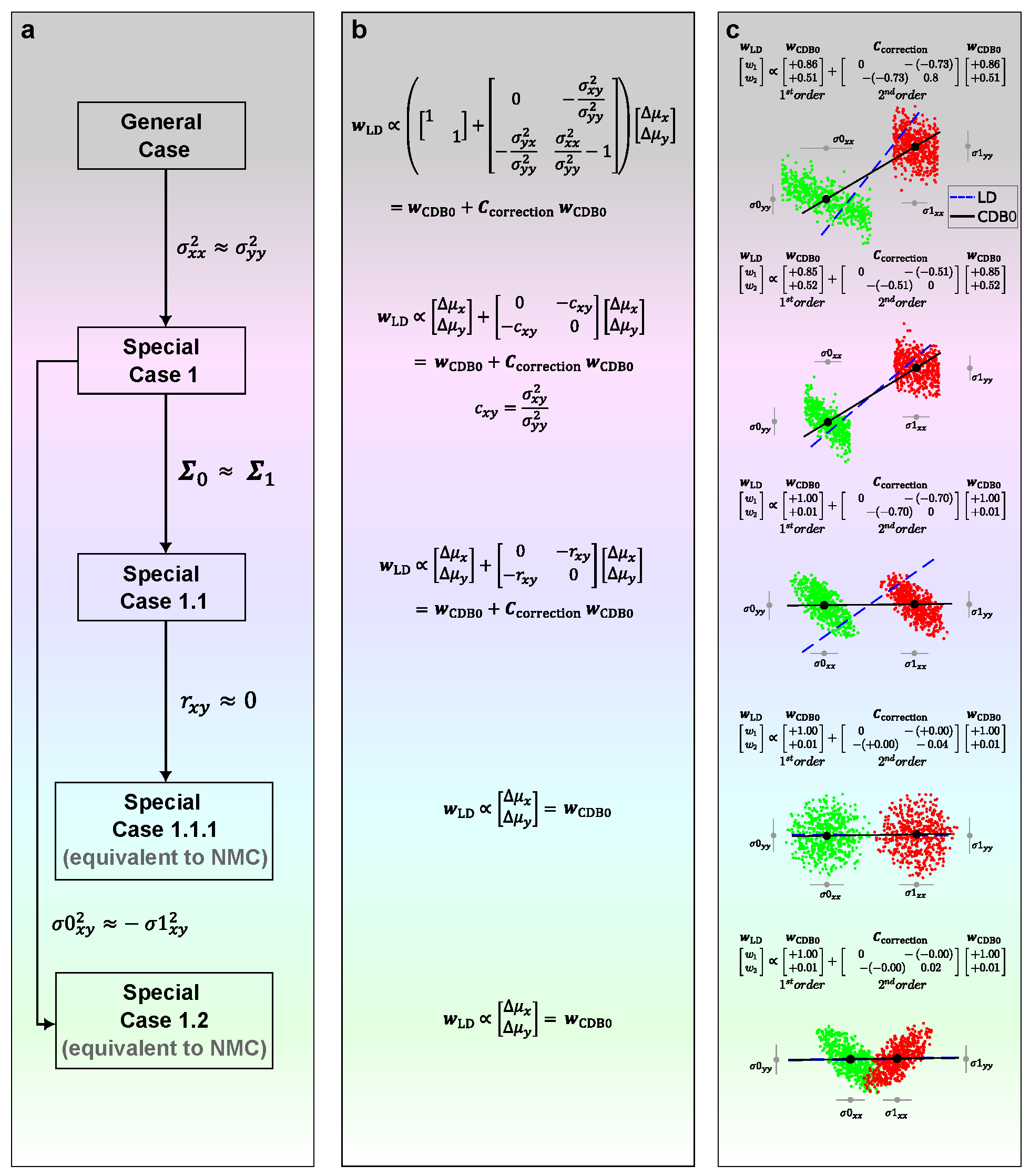

Figure A1c shows how LDA applies geometric modifications to ${\mathit{w}}_{\mathrm{CDB}0}$ as a shape adjustment for different shapes of data. When two covariance matrices are similar (Special case 1.1), the correction term acts only when the variables x and y have a certain extent of correlation and increases with this correlation (Figure A1, the third row). Interestingly, when further assumptions are made that two variables have no correlation (Special case 1.1.1), or when two classes are symmetric about one variable (Special case 1.2), we can see from Eq. (8)-(9) that ${\mathit{w}}_{\mathrm{LD}}$ will approach ${\mathit{w}}_{\mathrm{CDB}0}$, which is indeed what we observe in the last two rows of Figure A1. Videos showing these special cases using 2D simulated data can be found from this link1.

The demonstrations of all these cases for higher-dimensional space are in the Appendix D.

From the above derivation, Eq. (5)-(9) show that the solution of LDA can be represented by ${\mathit{w}}_{\mathrm{CDB}0}$ superimposed with a geometric correction on ${\mathit{w}}_{\mathrm{CDB}0}$, and the geometric correction term is obtained under the constraint of Eq. (1), which solves the maximization of the projection variance ratio. Without loss of generality, the conclusion can be extended to other linear classifiers with different constraints imposed on the geometric correction term, for instance NMC, for which the corrections terms are all to zero.

Here, we propose the generalized GDA theory in which not only the geometric correction term can impose any constraint based on different principles, but also an arbitrary number of correction terms can act together on ${\mathit{w}}_{\mathrm{CDB}0}$ to create the classification discriminant, which is given by:

$${\mathit{w}}_{\mathrm{GD}}={\mathit{w}}_{\mathrm{CDB}0}+{\mathit{C}}_1{\mathit{w}}_{\mathrm{CDB}0}+{\mathit{C}}_2{\mathit{w}}_{\mathrm{CDB}0}+\dots +{\mathit{C}}_n{\mathit{w}}_{\mathrm{CDB}0}$$

(10)

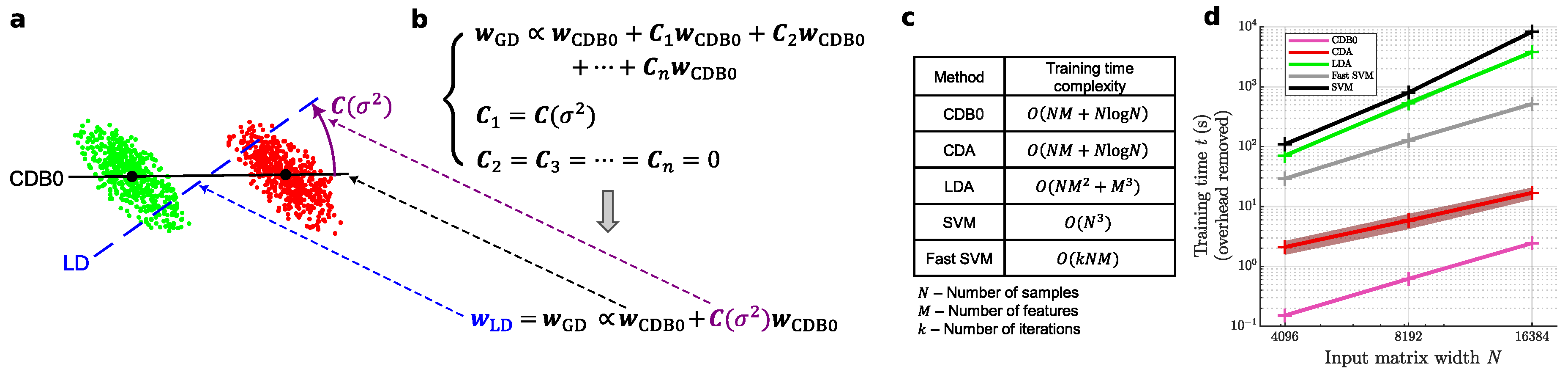

Figure 1 shows that LDA is derived by the general GD equation imposing one variance-based geometric correction in Figure 1b, shown in Figure 1a using an instance of 2d artificial data with specific covariance.

3. Centroid Discriminant Analysis (CDA)

Based on the GDA theory, in this study we propose an efficient geometric centroid-based linear classifier named centroid discriminant analysis (CDA), then introduce the extension to nonlinear classification via kernel method in Section 5. As described by Eq. 10 in the GDA thoery, the model of a geometric classifier can be expressed by the basis CDB0 imposed by geometric corrections on this basis. We first give the conclusion that the final discriminant of CDA after n rotations is in the form ${\mathit{w}}_{\mathrm{CDA}}^{\left(n\right)}={\mathit{w}}_{\mathrm{CDB}0}+{\mathit{C}}_1{\mathit{w}}_{\mathrm{CDB}0}={\mathit{w}}_{\mathrm{GD}}$, where ${\mathit{C}}_1=\mathit{I}-{\prod }^n{\mathit{A}}_{\mathrm{cda}}$ is the geometric correction operator term, $\mathit{I}$ is the identity operator, and ${\mathit{A}}_{\mathrm{cda}}$ is the operator of a single CDA rotation). The complete derivation of CDA in GDA theory can be found in Appendix E.

From the geometric point of view, CDA is built on the basis CDB0 in the GDA theory, then subjected to a series of geometric constraints guiding the rotations of the discriminant CDB in high-dimensional spaces. CDA follows a performance-dependent training that starting from CDB0 involves the iterative calculation of new adjusted centroid discriminant lines whose optimal rotations on the associated 2D planes are searched via Bayesian optimization. The following parts together with Figure A2 describe the CDA workflow, mechanisms and principles in detail.

Performance-associated CDB Classifier: In GDA theory, CDB is defined as the unit vector pointing from the geometric centroid of the negative class to that of positive class. The geometric centroid is defined in a general sense which considers the weights of the data. The space of CDB consists of unit vectors obtained with all possible weights.

Apart from the discriminant line, a bias is further required to realize classification by offering a decision boundary for data projected onto the discriminant. We perform a search for this bias by checking the middle points of every two consecutive sorted projections. Thus, given N samples, there are $N-1$ candidates. We name the best candidate as optimal operating point (OOP) and select OOP according to a performance-score, defined as $(Fscor{e}^{\mathrm{pos}}+Fscor{e}^{\mathrm{neg}}+ACscore)/3$ (see Appendix F for definitions), where pos and neg means evaluating the metric for each class. The performance score is a comprehensive metric that simultaneously considers sensitivity, recall, and specificity, providing a fair evaluation that accounts for biased models trained on imbalanced data, owing to the more conservative AC-score metric ([12]). With this OOP search strategy, any vector in the space of CDB is associated with a performance-score. The OOP search can be performed efficiently in $O\left(N\log N\right)$ time (see Alg. A3 for pseudocode).

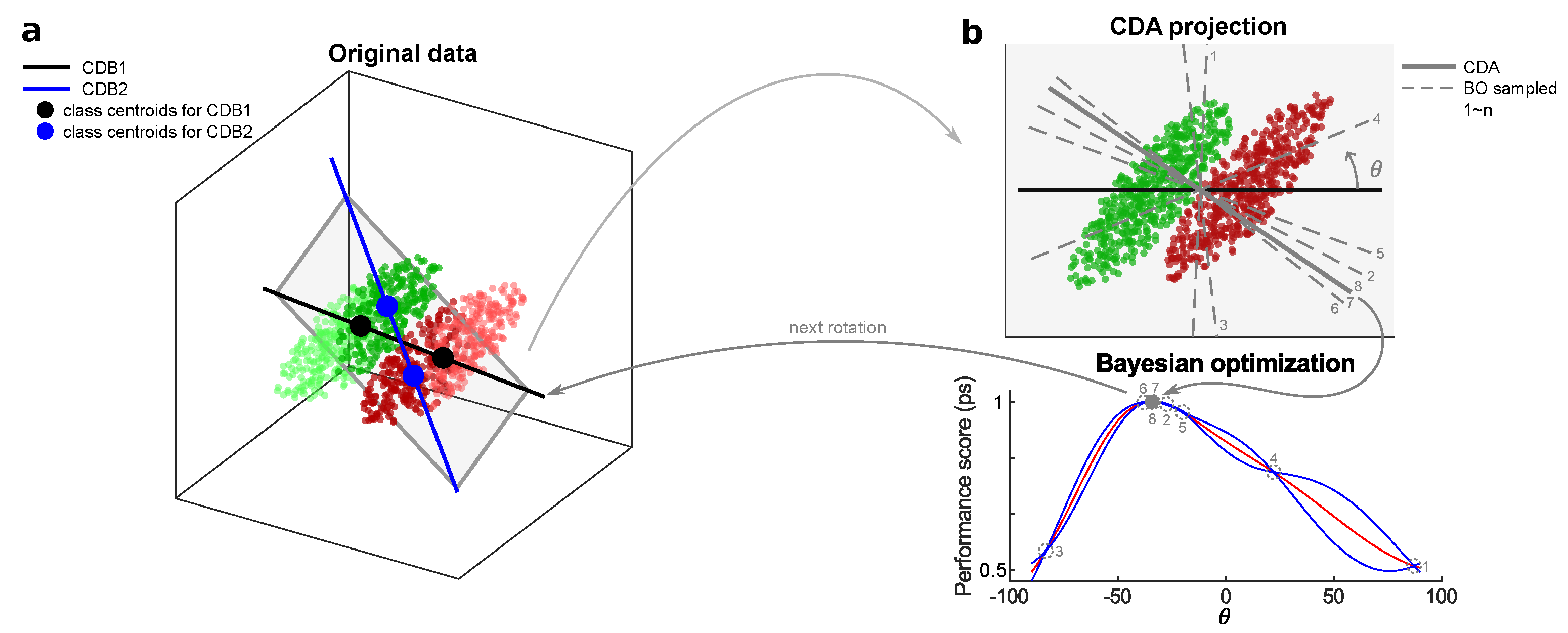

CDA as Consecutive Geometric Rotations of CDB in 2D planes: From the function optimization perspective, binary classification problems can be regarded as maximizing certain performance metrics in multi-dimensional space. However, it is impractical to explicitly find the global optimum. Instead, a feasible technique is to find a path that gradually approaches the region close to the global optimum or suboptimums, and escapes from local minimums as much as possible. Based on this problem formulation, our idea is to start the optimization path from CDB0, continuously rotate the classification discriminant on 2D planes on which there is a high probability of having a classification discriminant with better performance .

To construct such a 2D plane with another vector, a key observation is that the samples, whose projections onto CDB are close to the decision boundary (i.e. OOP), should have more weights, because these samples are prone to overlapping with samples from the other class, causing misclassification. Thus, we compute another CDB using centroids with shifted sample weights toward OOP (see next part). On the plane formed by these two CDBs, the best rotation is found by Bayesian optimization. For clarity, we have the following definition: the first vector in each rotation is termed as CDB1, the second vector in each rotation is termed as CDB2, the CDB searched with the best performance is termed as CDA, and at the end of each rotation CDA becomes CDB1 for the next rotation. CDA rotation is used to refer to this rotation process. Figure A2a shows the diagram for the first CDA rotation, where CDB1 equals to CDB0 calculated using uniform sample weights. The CDA training stops when meeting any of the two criteria: (1) Reach the maximum 50 iterations. (2) the coefficient of variation (CV) of the last 10 performance-score is less than a threshold, indicating that the training has converged (see Alg. A1,A2 and A4 for pseudocode).

Sample Weights Update Strategy: The sample weights shift mechanism is described as follows. Given CDB1 and the associated OOP in each CDA rotation, the distance of all projections to OOP can be obtained by $d_i=|q_i-oop|,\forall i\in \{1,2,\dots ,N\}$, which is then reversed by ${\mathit{d}}_{\mathrm{r}}=|\mathit{d}-min\left(\mathit{d}\right)-max\left(\mathit{d}\right)|$, in align with the purpose that points close to decision boundary should have larger weights. Since only the relative information of sample weights is important, they are L2-normalized and decay smoothly from previous sample weights by $\mathit{\alpha }=\mathit{\alpha }\odot {\mathit{d}}_{\mathrm{r}}/{\parallel \alpha \odot {\mathit{d}}_{\mathrm{r}}\parallel }_2$, where ⊙ indicates the Hadamard (element-wise) product. Specifically, in the first CDA rotation, the CDB1 is obtained with uniform sample weights, which corresponds to CDB0 in the GDA theory.

Bayesian Optimization (BO): The CDA rotation aims to search for a unit vector CDB with the best performance-score, which can be efficiently realized by BO ([13]). BO is a statistical-based technique to estimate the global minimum of a function with as fewer evaluations as possible. CDA leverages this high-efficiency characteristic of BO to achieve fast training. BO itself has the time complexity of $O\left(Z^3\right)$ when it searches a single parameter, where Z is the number of sampling-and-evaluations. CDA employs a strategy that grows BO sampling times from 4 to the maximum 10 with CDA iterations, which are small numbers. (see Appendix C.1). Figure A2b shows an instance of BO working process. Alg. A5 shows the pseudocode for the CDA rotation as the black box function to optimize by BO.

Finalization: Lastly, CDA involves a finalization step, where on the best rotation plane it refines the discriminant line with a null-model statistical test using 100 random CDB lines drawn from the plane (see Appendix. Appendix C.2 and Alg. A6).

Multiclass Prediction: Error-correcting output codes (ECOC) ([14]) is a voting- (or penalizing-) based method to make multiclass predictions from trained binary classifiers. To predict a new sample, multiple scores can be obtained from the set of trained binary classifiers. These scores are interpreted as they either vote for or are against a particular class. Depending on the coding matrix and the loss function chosen, ECOC takes the class with the highest overall reward or lowest overall penalty as the predicted class. In this study, the coding matrix for one-versus-one training scheme is selected, as it creates more linearly separability ([15,16]). For the type of loss function, hinge-loss is chosen, as our internal tests suggested this loss leads to the best classification performance for all tested linear classifiers.

4. Experimental Evidences on Linear Classification of Real Data

In this section, we compared the proposed linear CDA with other linear classifiers. The selected linear classifiers include LDA, SVM and fast SVM, which are widely recognized as state-of-the-art, first-to-try linear classifiers for binary classification tasks. Additionally, we include the baseline method, CDB0 (equivalent to NMC with OOP bias), to quantify the improvements made by CDA over a simplistic centroid-based classification approach. Experiment details are in Appendix I.

4.1. Algorithm Scalability of Linear Classifiers

Training speed and scalability are the most important characteristics as they are the core advantages of linear classifiers. Therefore, we first performed a single-score speed test for linear classifiers using CIFAR10 dataset ([17]), with varying numbers of samples and features by random subsampling and oversampling. Original image data were used and flattened into 1D representations. Figure 1c-d show respectively their theoretical training time complexities and running times with overhead removed (overheads were counted by training on a small $10\times 10$ input data, see Figure A4 for overhead kept). Tests at each data size were repeated five times. In Figure 1d of running time (shaded area represents standard error), CDA was faster than all comparison approaches but the baseline CDB0, in align with their theoretical time complexities in Figure 1c, highlighting CDA’s efficiency that offers fast training times for smaller datasets and superior scalability for very large datasets.

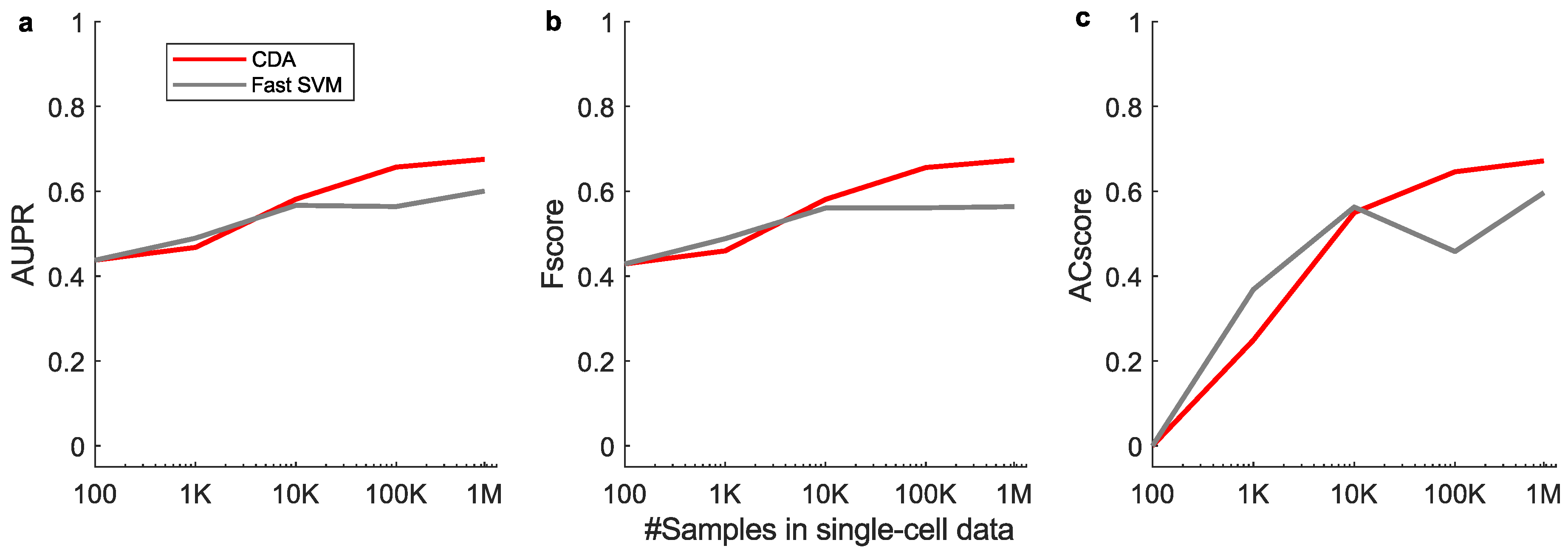

In addition, there are real-world problems where the samples are at million-level in addition to plenty of features, posing a significant challenge to train classifiers in reasonable time. One of these problems is omics data classification such as single-cell sequencing data. We collected the 1.3-million-cell mouse brain dataset ([18]) and took the largest two classes to create a binary classification task (757,526 samples and 27,998 features), with varying number of samples by random subsampling till all samples were included. We compared CDA and fast SVM, which is one of the most efficient and scalable linear SVM, with regard to performance and speed . Original data of sequencing counts were used, and the training and test sets were created using a 4:1 split. The results show that with growing sample sizes, linear CDA outperforms fast SVM not only on classification performance AUROC (Figure 2a and Appendix Figure A3), but also on the single-core training speed (Figure 2b). These results indicate that linear CDA is even more efficient and scalable than the flagship SVM method in efficiency. Hence, CDA as a fast approach has the potential to drive large-scale real-world applications in fields such as biomedicine and autonomous driving.

4.2. Linear Classification Performance on Real Data

We assessed linear classification performance across 27 datasets, including standard image classification ([17,19,20,21,22,23,24,25,26]), medical image classification ([27]), and chemical property prediction tasks ([28]). These datasets represent a broad range of real-world applications and varying data sizes, enabling evaluations for both training speed and predictive performance. Image data were used in their original value flattened to 1d vectors; chemical formula were processed by simplified molecular input line entry system (SMILES) tokenized encoding (see Appendix Table A1). Each dataset was split into a 4:1 ratio for training and test sets. The final model for each method was an unweighted ensemble of the five cross-validated models on the training set.

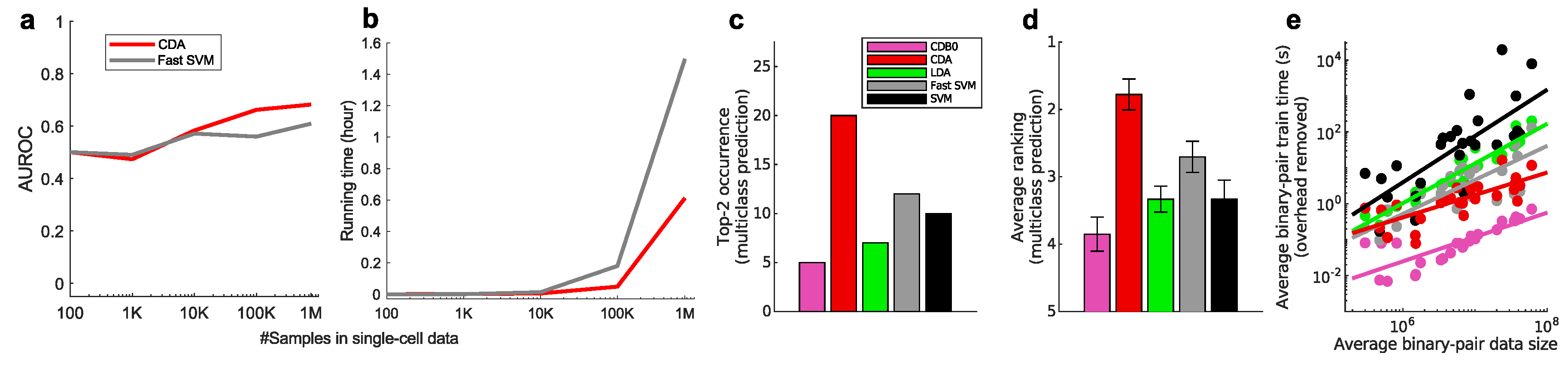

Figure 2c-d show the test set multiclass prediction performance. In Figure 2c, CDA achieved a top-2 occurrence on 20 out of 27 datasets based on AUROC, indicating its stability and competitiveness. Figure 2d shows that CDA achieved the highest average ranking which is 1.78, outperforming LDA and SVM, with statistically significant margins as indicated by standard error bars. See Appendix K-Appendix L for binary classification results, ranking results based on AUPR, Fscore and accuracy, and the complete performance tables.

Figure 2e compares training speed across datasets. Train times per binary-pair were averaged within each dataset after deducting constant overheads unrelated to data size (same manner as above; see Figure A5 for overhead kept). Linear regression of train times and data sizes shows that CDA and CDB0 exhibit the best scalability, followed by fast SVM, LDA, and SVM, consistent with their theoretical complexities. CDA not only improves significantly over CDB0 in performance but also retains similar scalability. This improvement is driven by three key components: generalized centroids with non-uniform weights, sample weight shift strategy, and rotations by Bayesian optimization. The weighted average number of iterations required by CDA per dataset was 29.33 - a small constant that does not contribute to time complexity. In contrast, fast SVM’s iterations increase significantly with more challenging datasets to achieve a reasonable classification performance. Considering the diversity of tested datasets, CDA demonstrates itself as a generic classifier with strong performance and scalability, making it applicable to large-scale classification tasks across various domains.

5. Preliminary Test on Nonlinear Kernel CDA

In scenarios where data have abundant nonlinear relationship, linear classifiers often fall short in performance. To address this problem, models must exploit these nonlinear patterns to enhance expressiveness and improve classification performance. In fact, linear CDA can be naturally extended to a nonlinear variant using kernel method. This generalization requires only minor modifications to the algorithm (see Appendix C.4), meaning that the high computational efficiency of linear CDA is largely retained. The main computational bottleneck lies in the kernel matrix computation, which is a common cost shared by all kernel-based classifiers.

To compare the performance of nonlinear CDA and other nonlinear classifiers, we performed tests on two challenging datasets, image dataset SVHN and chemical property dataset ClinTox (see Appendix. Table A1 for data processing). We choose these datasets because they are difficult to classify with linear classifiers, and we are interested in to what extent can nonlinear classifiers improve over linear ones. We used a subset of SVHN samples (24,000 out of 99,289) due to the time limitation to test with kernel method. We compared linear CDA, nonlinear gaussian CDA (nCDA), linear SVM, nonlinear gaussian SVM (nSVM). For kernel methods, we performed hyperparameter search for the gaussian parameter $\sigma$. The data were divided into train, validation and test set, where on the validation set the hyperparameter was tuned. The training specifics can be found in Appendix I.2. The multiclass test set results (on ClinTox binary results since it is a binary task) in Table 1 show that nonlinear kernel CDA outperforms gaussian SVM and linear methods on both the SVHN subset and ClinTox on all classification metrics. Despite the fact that gaussian CDA improves substantially over linear CDA in tasks such as the SVHN image classification, we emphasize that linear CDA is still very useful and important, with high efficiency and low resource requirement in computation, among other merits.

6. Conclusions and Discussions

Linear classifiers, while inherently simpler, are favored in certain contexts due to their reduced tendency to overfit and their interpretability in decision-making. However, achieving both high scalability and robust predictive performance simultaneously remains a significant challenge.

In this study, the introduction of the Geometric Discriminant Analysis (GDA) framework marks a notable step forward in addressing this challenge. By leveraging the geometric properties of centroids – a fundamental concept in multiple disciplines – GDA provides a unifying framework for certain linear classifiers. The core innovation lies in a special type of Centroid Discriminant Basis (CDB0), which serves as the foundation for deriving discriminants. These discriminants, when augmented with geometric corrections under varying constraints, extend the theoretical flexibility of GDA. Notably, Nearest Mean Classifier (NMC) and Linear Discriminant Analysis (LDA) are shown to be a subset of this broader framework, demonstrating how they converge to CDB0 under specific conditions. This theoretical generalization not only validates the GDA framework but also sets the stage for novel classifier designs.

A key practical contribution of this work is the Centroid Discriminant Analysis (CDA), a specialized implementation of GDA. CDA employs geometric rotations of the CDB within planes defined by centroid-vectors with shifted sample weights. These rotations, combined with Bayesian optimization techniques, enhance the method’s scalability, achieving quadratic time complexity $O(NM+N\log N)$. Across diverse datasets—including standard images, medical images, and chemical property classifications—CDA demonstrated superior performance in scalability, predictive performance, and stability. We emphasize that CDA not merely robustly outperforms existing linear classification methods, but crucially, it achieves this with superior computational efficiency. Specifically, CDA exhibits a quadratic time complexity in the worst-case scenario, compared to the cubic complexity typical of established methods such as LDA and SVM, with significantly shorter runtimes that highlight its practical advantage in real-world applications. These findings hold particular relevance for the broader machine learning community, as linear classifiers remain widely used across numerous scientific domains where interpretability, scalability, and computational efficiency are critical. In such contexts, practitioners often prefer models that are not only robust and fast but also transparent and easy to deploy in real-world decision-making scenarios.

In cases where the data exhibit complex nonlinear structures that linear classifiers cannot adequately capture, linear CDA can be extended to a nonlinear form via kernel methods. This generalization significantly broadens the applicability of CDA by enabling it to handle nonlinear patterns in the data. Together, linear and kernel-based CDA form a complementary toolkit for classification tasks. A practical strategy is to begin with linear CDA to see whether the predictions are satisfying, which offers fast and interpretable results. Our preliminary results also suggest that extending CDA with nonlinear kernels is a promising direction for future research, since the variety of available kernels broadens the opportunity to tailor the mapping of original data onto higher-dimensional spaces according to the specific structure of the data - where it may become more easily separable.

In conclusion, the GDA framework and its CDA implementation represent a paradigm shift in classifier design, combining the interpretability of geometric principles with state-of-the-art computational efficiency. This work not only advances the field of classification but also lays groundwork for innovative approaches to supervised learning.

Appendix C.1. Bayesian Optimization

One factor related to the effectiveness of CDA is the estimation with varying precision in BO. We set the number of BO sampling times to $min(3+rot,10)$ as default parameter during the CDA rotation, where $rot$ is the $rot$-th rotation. During the first few CDA rotations, the BO estimation has relatively less precision. This gives CDA enough randomness to first enter a large region in which there are more discriminants with high performance, under the hypothesis that regions close to global optimum or suboptimum have more high-performance solutions that are more likely to be randomly selected. Starting from this large region, BO precision is gradually enhanced to refine the search in or close to this region in terms of Euclidean distance, and force CDA to converge. The upper limit of 10 CDA rotations still creates a small level of imprecision, in order to make CDA escape from small-size local minimum, to acquire higher performance, and improve training efficiency.

Appendix C.2. Refining CDA with Statistical Examination on 2D Plane

In CDA, the plane associated with the best performance is selected, but it is uncertain whether there are higher-performance discriminants on this plane, since the precision might not be high enough with 10 BO samplings and even lower for less samplings. To determine whether the BO is precise enough, a statistical examination using p-value with respect to null-model is performed. On this best plane, we generate 100 random CDBs, run BO in turn for 10, 20 and to the maximum 30 BO samplings, until the p-value of training performance-score of the BO-estimated CDB with regard to the null model is 0, otherwise using the best random CDB. In this way, we are able to give a confidence level of the BO estimated discriminant in the best CDA rotation plane. Alg. A6 shows the pseudocode for the refining finalization step.

Appendix C.3. Linear CDA Pseudocode

This study deals with a supervised binary classification problem on labeled data $\{\mathit{X},\mathit{y}\}={\{{\mathit{x}}_i,y_i\}}_{i=1}^N$ with N samples and M features. The samples consist of positive and negative class data ${\chi }_1$ and ${\chi }_2$ with sizes $N_1$ and $N_2$, respectively, and the corresponding labels are tokenized as 1 and 0, respectively. The sample features are flattened to 1D if they have higher dimensions, such as image data. The following section introduces CDA in pseudo-code. CDA rotations, BO sampling and p-value computing involve constant numbers, thus, they do not contribute to the time complexity.

Algorithm A1 CDA Main Algorithm (CDA)       $O(NM+N\log N)$

Input: $N\times M$ data matrix $\mathit{X}$, $N\times 1$ labels $\mathit{y}$ Initialize $\alpha ={[1;1;\dots ;1]}^{N\times 1}/\sqrt{N}$       {$O\left(N\right)$} Compute ${\mathit{w}}_{\mathrm{CDB}1}={\displaystyle \sum _{c=1}^2}{(-1)}^{c+1}{\displaystyle \frac{1}{N_c}}{\displaystyle \sum _{{\mathit{x}}_i\in {\chi }_c}}{\alpha }_i{\mathit{x}}_i$       {$O\left(NM\right)$} Normalize ${\mathit{w}}_{\mathrm{CDB}1}={\mathit{w}}_{\mathrm{CDB}1}/{\parallel {\mathit{w}}_{\mathrm{CDB}1}\parallel }_2$       {$O\left(M\right)$} Initialize $p{s}^{*}=0$       {$O\left(1\right)$} for $i=1$ to 50 do    $\alpha =\mathrm{updateSampleWeights}(\mathit{X},\mathit{y},\alpha ,{\mathit{w}}_{\mathrm{CDB}1})$       {$O(NM+N\log N)$}    Compute ${\mathit{w}}_{\mathrm{CDB}2}={\displaystyle \sum _{c=1}^2}{(-1)}^{c+1}{\displaystyle \frac{1}{N_c}}{\displaystyle \sum _{{\mathit{x}}_i\in {\chi }_c}}{\alpha }_i{\mathit{x}}_i$       {$O\left(NM\right)$}    Normalize ${\mathit{w}}_{\mathrm{CDB}2}={\mathit{w}}_{\mathrm{CDB}2}/{\parallel {\mathit{w}}_{\mathrm{CDB}2}\parallel }_2$       {$O\left(M\right)$}    Set $N_{\mathrm{BO}}=min(i+3,10)$       {$O\left(1\right)$ Number of BO sampling}    $({\mathit{w}}_{\mathrm{CDA}},ps)=\mathrm{CdaRotation}({\mathit{w}}_{\mathrm{CDB}1},{\mathit{w}}_{\mathrm{CDB}2},\mathit{X},\mathit{y},N_{\mathrm{BO}})$       {$O(NM+N\log N)$}    if $ps>p{s}^{*}$ then      $({\mathit{w}}_{\mathrm{CDB}1}^{*},{\mathit{w}}_{\mathrm{CDB}2}^{*},p{s}^{*})=({\mathit{w}}_{\mathrm{CDB}1},{\mathit{w}}_{\mathrm{CDB}2},ps)$       {$O\left(M\right)$}    end if    if coefficient of variation of the last 10 $ps$$<0.001$ then      break       {Early stop convergence}    end if    Update ${\mathit{w}}_{\mathrm{CDB}1}={\mathit{w}}_{\mathrm{CDA}}$       {$O\left(M\right)$} end for Compute $({\mathit{w}}_{\mathrm{CDA}},oop)=\mathrm{refineOnBestPlane}({\mathit{w}}_{\mathrm{CDB}1}^{*},{\mathit{w}}_{\mathrm{CDB}2}^{*},\mathit{X},\mathit{y})$       {$O(NM+N\log N)$} Output: ${\mathit{w}}_{\mathrm{CDA}},oop$

Algorithm A2 Update Sample Weights (updateSampleWeights)       $O(NM+N\log N)$

Input: $N\times M$ data matrix $\mathit{X}$, $N\times 1$ labels $\mathit{y}$, $N\times 1$ sample weights $\alpha$, $1\times M$ vector ${\mathit{w}}_{\mathrm{CDB}1}$ Initialize $oop=\mathrm{searchOOP}(\mathit{X},\mathit{w})$       {$O\left(N\log N\right)$} Compute $\mathit{q}=\mathit{X}{\mathit{w}}_{\mathrm{CDB}1}^{\mathrm{T}}$       {$O\left(NM\right)$} Compute $d_i=|q_i-oop|,\forall i\in \{1,2,\dots ,N\}$       {$O\left(N\right)$} Compute ${\mathit{d}}_r=|\mathit{d}-min\left(\mathit{d}\right)-max\left(\mathit{d}\right)|$       {$O\left(N\right)$} Update $\alpha =\alpha \odot {\mathit{d}}_r/{\parallel \alpha \odot {\mathit{d}}_r\parallel }_2$       {$O\left(N\right),\odot$ is Hadamard product} Output:  $\alpha$

Algorithm A3 Search Optimal Operating Point (searchOOP)       $O\left(N\log N\right)$

Input: $N\times 1$ projected points $\mathit{q}$, $N\times 1$ labels $\mathit{y}$ Sort $(\mathit{q},\mathit{y})$       {$O\left(N\log N\right),$ sort according to $\mathit{q}$} Initialize $\mathit{cm}=\mathrm{evaluateMetrics}(\mathit{y},{\left[\begin{array}{c}0;0;\dots ;0\end{array}\right]}^{N\times 1})$       {$O\left(N\right)$ initial confusion matrix} for  $i=1$  to  $N-1$  do    Update $\mathit{cm}=\mathrm{updateCM}(y_i,\mathit{cm})$       {$O\left(1\right)$ scan each label and adjust cm}    Compute $p{s}_i=\mathrm{evaluateMetrics}\left(\mathit{cm}\right)$       {$O\left(1\right)$} end for Compute $idx=arg{max}_{i}p{s}_i$       {$O\left(N\right)$} Compute $ps=max\left(\mathbf{ps}\right)$       {$O\left(N\right)$} Compute $oop={\displaystyle \frac{q_{idx}+q_{(idx+1)}}{2}}$       {$O\left(1\right)$} Output:  $oop,ps$

Algorithm A4 Approximate Optimal Line by BO (CdaRotation)       $O(NM+N\log N)$

Input: $1\times M$ lines ${\mathit{w}}_{\mathrm{CDB}1},{\mathit{w}}_{\mathrm{CDB}2}$, $N\times M$ data matrix $\mathit{X}$, $N\times 1$ labels $\mathit{y}$, total BO iteration $N_{\mathrm{BO}}$ Compute ${\mathit{w}}_{\mathrm{orth}}={\mathit{w}}_{\mathrm{CDB}2}-{\mathit{w}}_{\mathrm{CDB}1}^{\mathrm{T}}{\mathit{w}}_{\mathrm{CDB}2}{\mathit{w}}_{\mathrm{CDB}1}$       {$O\left(M\right)$} Normalize ${\mathit{w}}_{\mathrm{orth}}={\mathit{w}}_{\mathrm{orth}}/{\parallel {\mathit{w}}_{\mathrm{orth}}\parallel }_2$       {$O\left(M\right)$} Estimate $\widehat{\theta }=\mathrm{BayesianOptimization}(\mathrm{evaluateRotation}(\theta ,{\mathit{w}}_{\mathrm{CDB}1},{\mathit{w}}_{\mathrm{orth}},\mathit{X},\mathit{y}),N_{\mathrm{BO}})$, $\theta \in [-{\displaystyle \frac{\pi }{2}},{\displaystyle \frac{\pi }{2}}]${$O(NM+N\log N)$} Compute ${\mathit{w}}_{\mathrm{CDA}}={\mathit{w}}_{\mathrm{CDB}1}cos\widehat{\theta }+{\mathit{w}}_{\mathrm{orth}}sin\widehat{\theta }$       {$O\left(M\right)$} Compute $\mathit{q}=\mathit{X}{\mathit{w}}_{\mathrm{CDA}}^T$       {$O\left(NM\right)$} Get the mean of $(oop,ps)=\mathrm{searchOOP}(\mathit{q},\mathit{y})$ with 5-fold cross-validation       $O\left(N\log N\right)$ Output:  ${\mathit{w}}_{\mathrm{CDA}},oop,ps$

Algorithm A5 Evaluate the Line with Rotation Angle (evaluateRotation)       $O(NM+N\log N)$

Input: Rotation angle $\theta$, $1\times M$ lines ${\mathit{w}}_{\mathrm{CDB}1},{\mathit{w}}_{\mathrm{orth}}$, $N\times M$ data matrix $\mathit{X}$, $N\times 1$ labels $\mathit{y}$ Compute ${\mathit{w}}_{\mathrm{CDA}}={\mathit{w}}_{\mathrm{CDB}1}cos\theta +{\mathit{w}}_{\mathrm{orth}}sin\theta$       {$O\left(M\right)$} Compute $\mathit{q}=\mathit{X}{\mathit{w}}_{\mathrm{CDA}}^T$       {$O\left(NM\right)$} Get mean $ps=\mathrm{searchOOP}(\mathit{q},\mathit{y})$ with 5-fold cross-validation scheme       $O\left(N\log N\right)$ Output:  $ps$

Algorithm A6 Refine on the Best Model (refineOnBestPlane)       $O(NM+N\log N)$

Input: $1\times M$${\mathit{w}}_{\mathrm{CDB}1}$ and its orthogonal vector ${\mathit{w}}_{\mathrm{orth}}$, $N\times M$ data matrix $\mathit{X}$, $N\times 1$ labels $\mathit{y}$ for $i=1$ to 100 do    Randomly choose $\theta \in \left[-{\displaystyle \frac{\pi }{2}},{\displaystyle \frac{\pi }{2}}\right]$       {$O\left(1\right)$}    Compute ${\mathit{w}}_{\mathrm{r}}={\mathit{w}}_{\mathrm{CDB}1}cos\theta +{\mathit{w}}_{\mathrm{orth}}sin\theta$       {$O\left(M\right)$}    Compute $\mathit{q}=\mathit{X}{\mathit{w}}_{\mathrm{r}}^{\mathrm{T}}$       {$O\left(NM\right)$}    Get mean ${(oo{p}_{\mathrm{r}},p{s}_{\mathrm{r}})}_i=\mathrm{searchOOP}(\mathit{q},\mathit{y})$ with 5-fold cross-validation       {$O\left(N\log N\right)$} end for Sort $idx=\mathrm{sortIdx}\left([ps,p{s}_{\mathrm{r}}]\right)$       {$O\left(1\right)$ sort returning position indices} Compute $p=1-{\displaystyle \frac{\left(idx\right(1)-1)}{N_r}}$       {$O\left(1\right)$} Initialize $N_{\mathrm{BO}}=0$ while $p\ne 0$ and $N_{\mathrm{BO}}<30$ do    Increment $N_{\mathrm{BO}}=N_{\mathrm{BO}}+10$    Compute $({\mathit{w}}_{\mathrm{CDA}},oop,ps)=\mathrm{CdaRotation}({\mathit{w}}_{\mathrm{CDB}1},{\mathit{w}}_{\mathrm{CDB}2},\mathit{X},\mathit{y},N_{\mathrm{BO}})$       {$O(NM+N\log N)$}    Sort $idx=\mathrm{sortIdx}\left([ps,{\mathrm{ps}}_r]\right)$       {$O\left(1\right)$ sort returning position indices}    Compute $p=1-{\displaystyle \frac{\left(idx\right(1)-1)}{N_r}}$       {$O\left(1\right)$} end while if  $p\ne 0$  then    Compute $i=arg{min}_{i}p{s}_{\mathrm{r},i}$       {$O\left(1\right)$}    Set $({\mathit{w}}_{\mathrm{CDA}},oop,ps)={({\mathit{w}}_r,oo{p}_{\mathrm{r}},p{s}_{\mathrm{r}})}_i$       {$O\left(1\right)$} end if Output:  ${\mathit{w}}_{\mathrm{CDA}},oop,ps$

Appendix C.4. Nonlinear kernel CDA

The CDA algorithm involves computing the CDBs using the equation provided in Appendix B, Algorithm 1:

$${\mathit{w}}_{\mathrm{CDB}}=\sum _{c=1}^2{(-1)}^{c+1}·{\displaystyle \frac{1}{N_c}}\sum _{{\mathit{x}}_i\in {\chi }_c}{\alpha }_i{\mathit{x}}_i$$

(A1)

Combining this with the normalization step for each CDB:

$${\mathit{w}}_{\mathrm{CDB}}\leftarrow {\mathit{w}}_{\mathrm{CDB}}/{\parallel {\mathit{w}}_{\mathrm{CDB}}\parallel }_2,$$

(A2)

the equation can be rewritten as:

$${\mathit{w}}_{\mathrm{CDB}}={(\alpha \odot \mathit{n}\odot {\mathit{y}}_t·k)}^{\top }\mathit{X}={\mathit{\beta }}^{\top }\mathit{X},$$

(A3)

where $\alpha$ is the vector of sample weights; $\mathit{n}=[1/N_{\mathrm{map}\left(i\right)}]$ for all $i\in \{1,2,\dots ,N\}$ is the weight sum division for each class, and $\mathrm{map}\left(i\right)$ maps sample index i to class index c; ${\mathit{y}}_t={(-1)}^{c+1}$ are the tokenized labels ($+1$ or $-1$); k is the factor to normalize each CDB as a unit vector.

For the rotated CDBs used in Bayesian optimization (Appendix B, Algorithms 4–5), they can be expressed as linear combinations of CDB1 and orthogonalized CDB2, mixing their corresponding $\beta$ vectors. Thus, the sample coefficient $\beta$ is tracked throughout the training process for each CDB.

The data projection can be expressed as:

$$\mathit{q}=\mathit{X}{\mathit{w}}_{\mathrm{CDB}}^{\top }=\mathit{X}{\left({\mathit{\beta }}^{\top }\mathit{X}\right)}^{\top }=\mathit{X}{\mathit{X}}^{\top }\mathit{\beta }$$

(A4)

With this expression, the data projection can incorporate kernel methods to realize nonlinear classification, shown by the following equation.

$$\mathit{q}=Ker(\mathit{X},{\mathit{X}}^{\top })\mathit{\beta }$$

(A5)

In fact, kernel methods implicitly projects data into a high-dimensional space, then applying linear classifiers in the transformed feature space.

Appendix I.1. Linear Classifiers

Linear classifiers compared in this study include LDA, SVM, and fast SVM. Data were input to classifiers in their original values without standardization.

For CDA, the threshold for the coefficient of variation (CV) of performance-score was set to 0.001. 5-fold cross-validation is applied on the OOP search.

For LDA, the MATLAB toolbox function fitcdiscr was applied, with pseudolinear as the discriminant type, which solves the pseudo-inverse with SVD to adapt to poorly conditioned covariance matrices.

For SVM, the MATLAB toolbox function fitcsvm was applied, with sequential minimal optimization (SMO) as the optimizer. The cost function used the L2-regularized (margin) L1-loss (misclassification) form. The misclassification cost coefficient was set to $C=1$ by default. The maximum number of iterations was linked to the number of training samples in the binary pair as $100\times N_{\mathrm{train}}$. The convergence criteria were set to the default values.

For fast SVM, the LIBLINEAR MATLAB mex function was applied. The cost function used the L2-regularized (margin) L1-loss (misclassification) form, and was optimized by dual coordinate descent (DCD). The misclassification cost coefficient was set to $C=1$ by default. A bias term was added, and correspondingly, the data had an additional dimension with a value of 1. The convergence criteria were set to the default values. Training epochs were set to 300 in general tasks and 100 in large-scale single-cell test.

Hyperparameter tuning for LDA, SVM, and fast SVM was disabled, as the goal of this study was to compare linear classifiers fairly in a parameter-free condition. CDA, as well as CDB0, do not require parameter tuning.

Speed tests and performance test were from different computational conditions. To obtain classification performance in a reasonable time span, GPU was enabled for SVM, and multicore was enabled for CDA and LDA. To compare speed fairly, all linear classifiers used single-core computing mode.

Appendix I.2. Nonlinear Classifiers

For the experiments on the nonlinear kernel-based approaches, on SVHN subset and chemical Clintox, the data were first divided into train+validation and test set with 5:1 and 4:1 ratio respectively, then the train+validation set was further divided into train set and validation set with a 4:1 ratio.

The gaussian kernel parameter sigma was tuned on the validation set by Bayesian optimization with 30 sampling. For the tuned gaussian parameter, on SVHN subset gaussian CDA has $coeff=0.2$ and gaussian SVM has $coeff=0.134$; on ClinTox gaussian CDA has $coeff=1.34$ and gaussian SVM has $coeff=68.9$, where in gaussian kernel ${\sigma }^2=coeff\ast \mathrm{median}(\mathrm{pairwiseSquareEuclideanDistance}\left(X_{\mathrm{train}}\right))$.

For CDA, the threshold for the coefficient of variation (CV) of performance-score was set to 0.001. For SVM, libSVM was implemented with L2-regularized (margin) L1-loss (misclassification) cost function and with default misclassification cost coefficient $C=1$.

Appendix K.1. Binary Classification

Figure A6. Binary classification performance on 27 real datasets according to AUROC. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A6. Binary classification performance on 27 real datasets according to AUROC. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

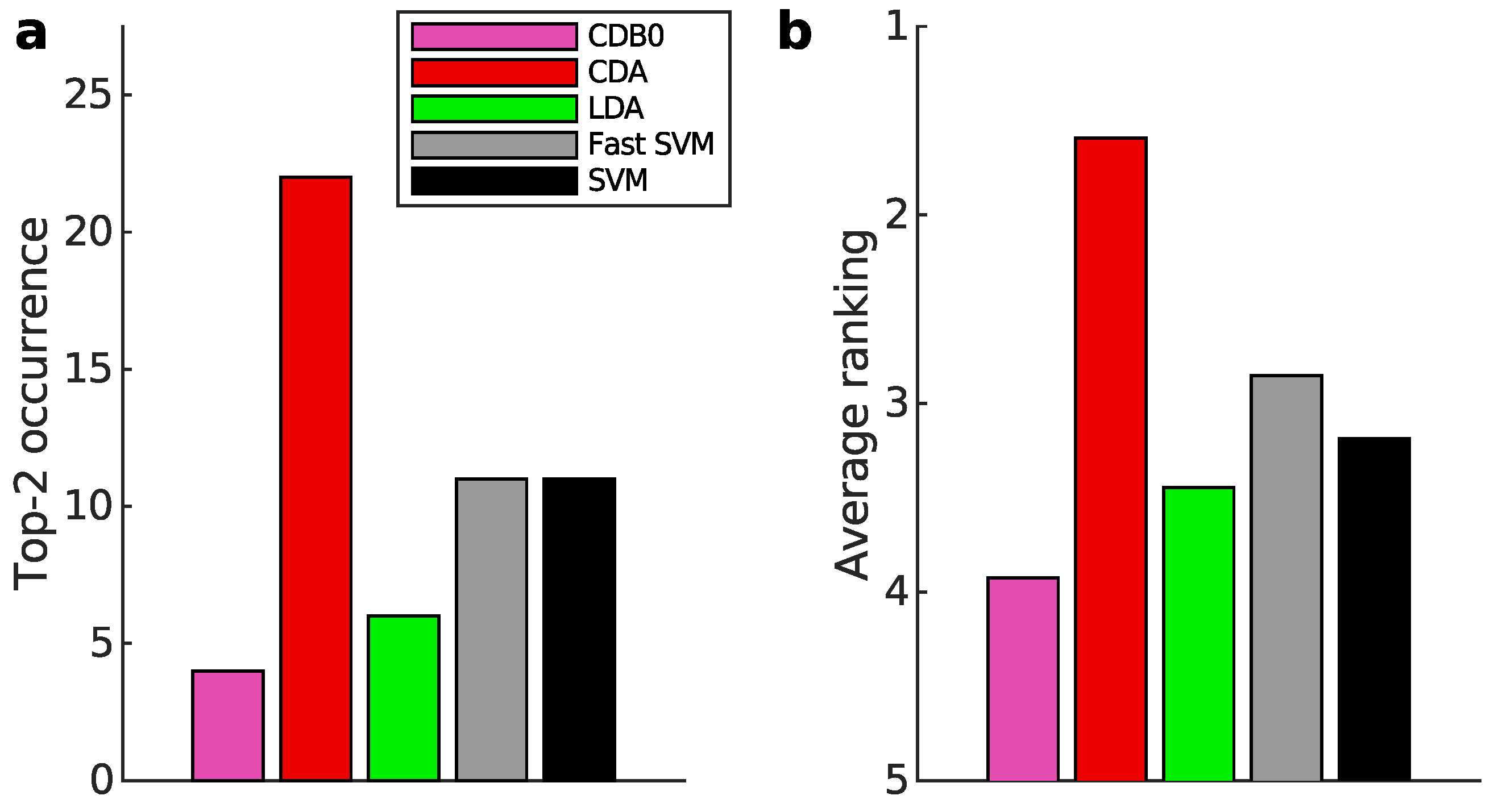

Figure A7. Binary classification performance on 27 real datasets according to AUPR. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A7. Binary classification performance on 27 real datasets according to AUPR. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

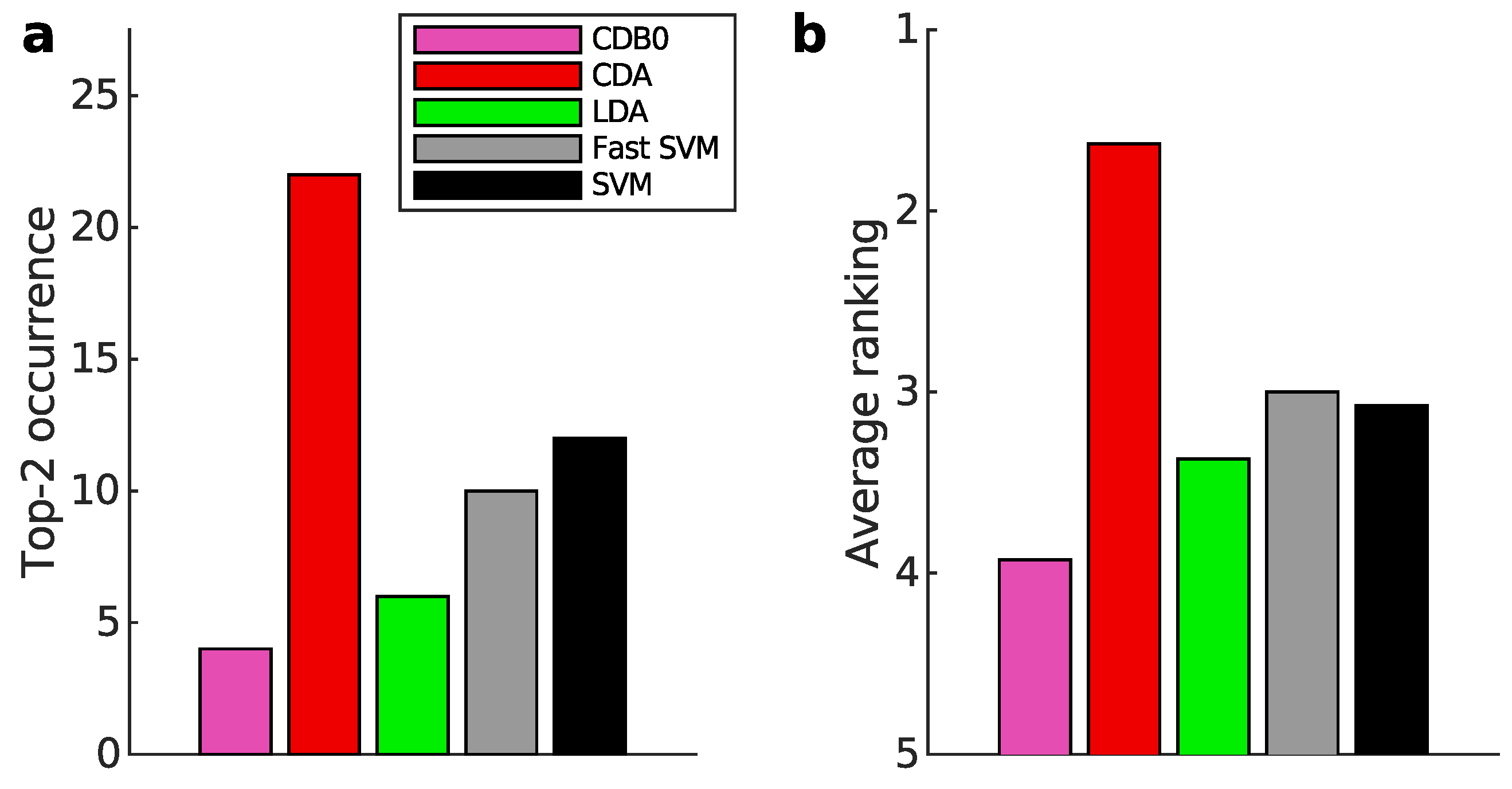

Figure A8. Binary classification performance on 27 real datasets according to F-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A8. Binary classification performance on 27 real datasets according to F-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

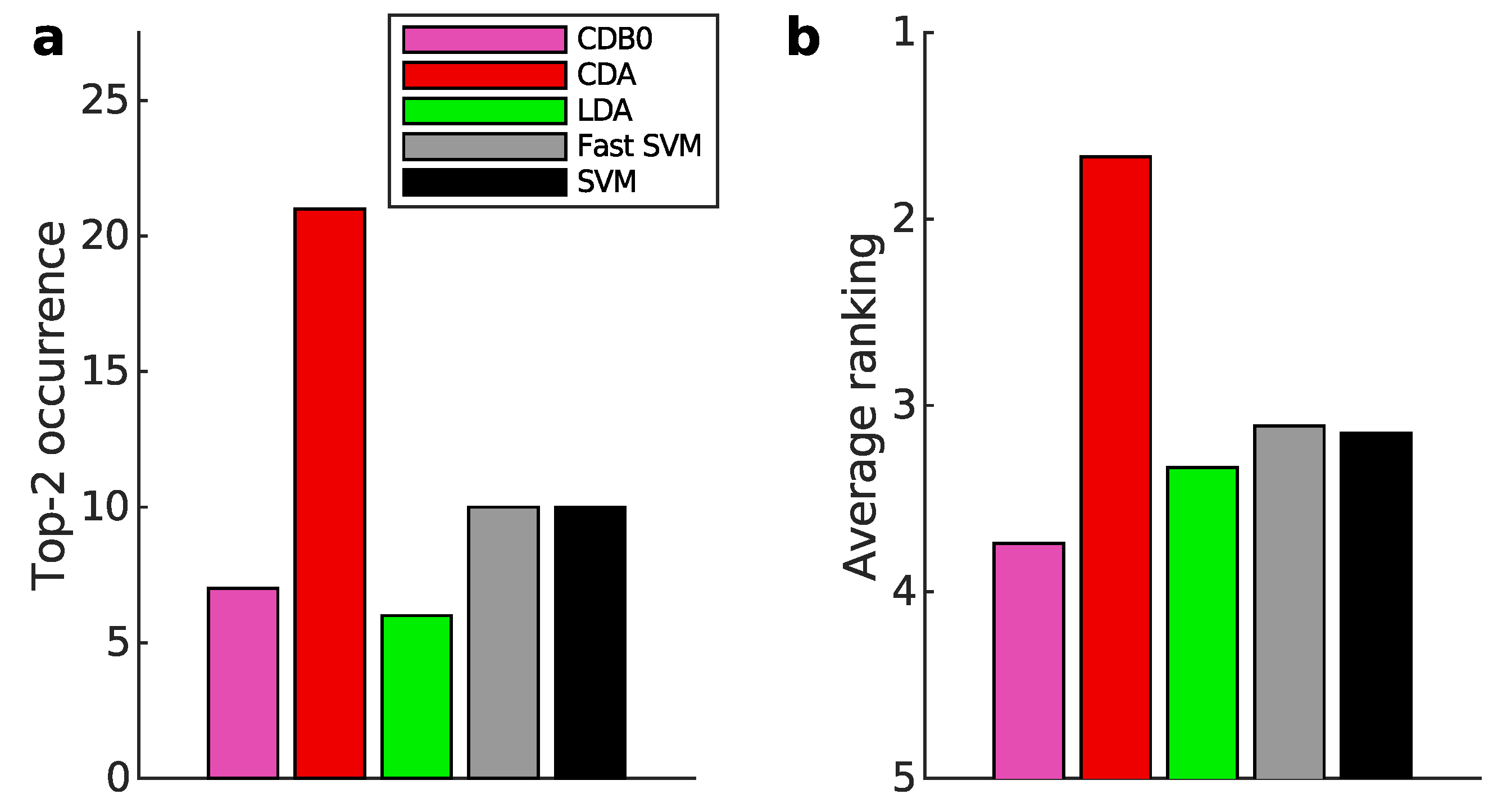

Figure A9. Binary classification performance on 27 real datasets according to AC-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A9. Binary classification performance on 27 real datasets according to AC-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Appendix K.2. Multiclass Prediction

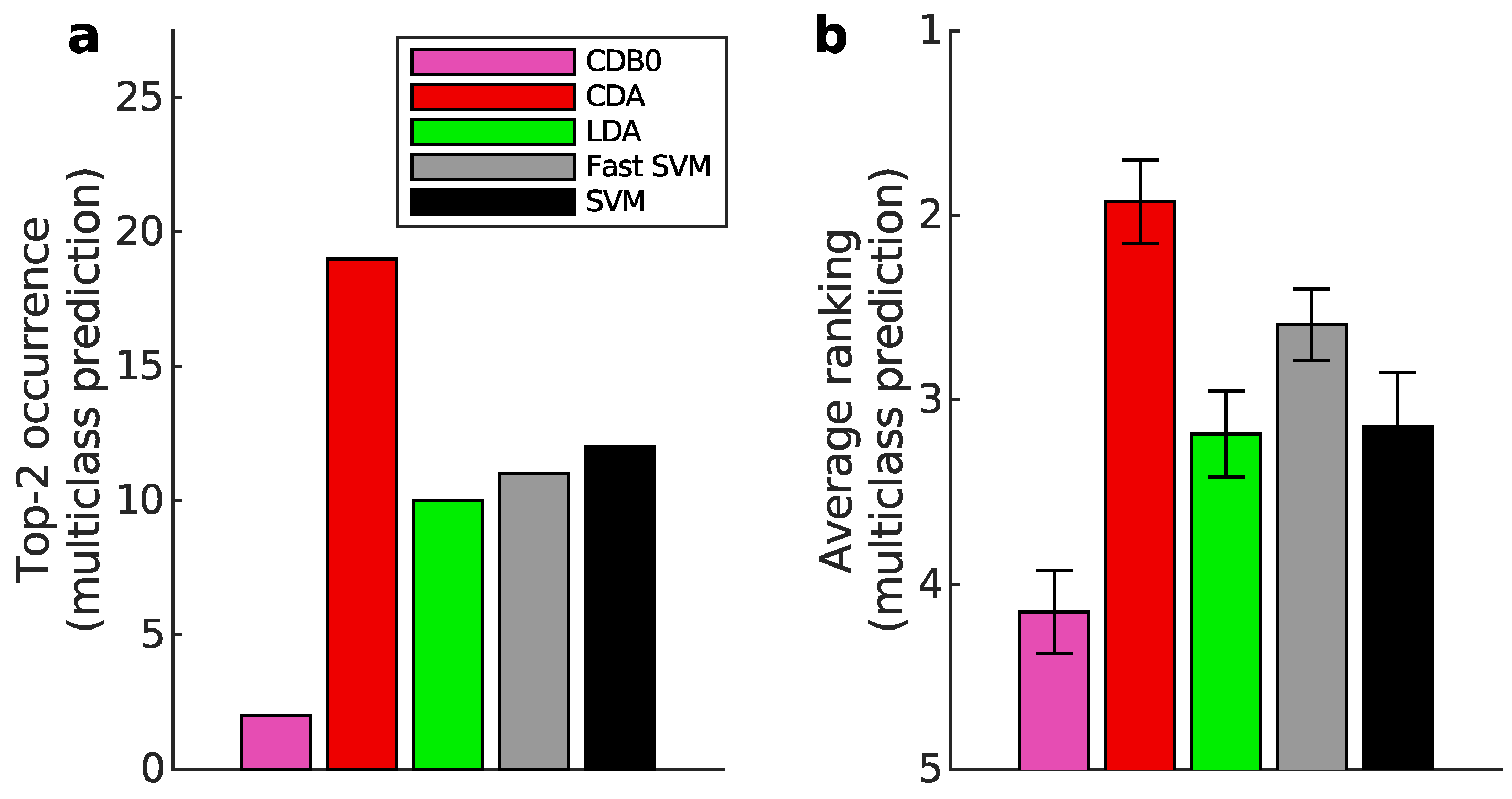

Figure A10. Multiclass prediction performance on 27 real datasets according to AUPR. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A10. Multiclass prediction performance on 27 real datasets according to AUPR. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

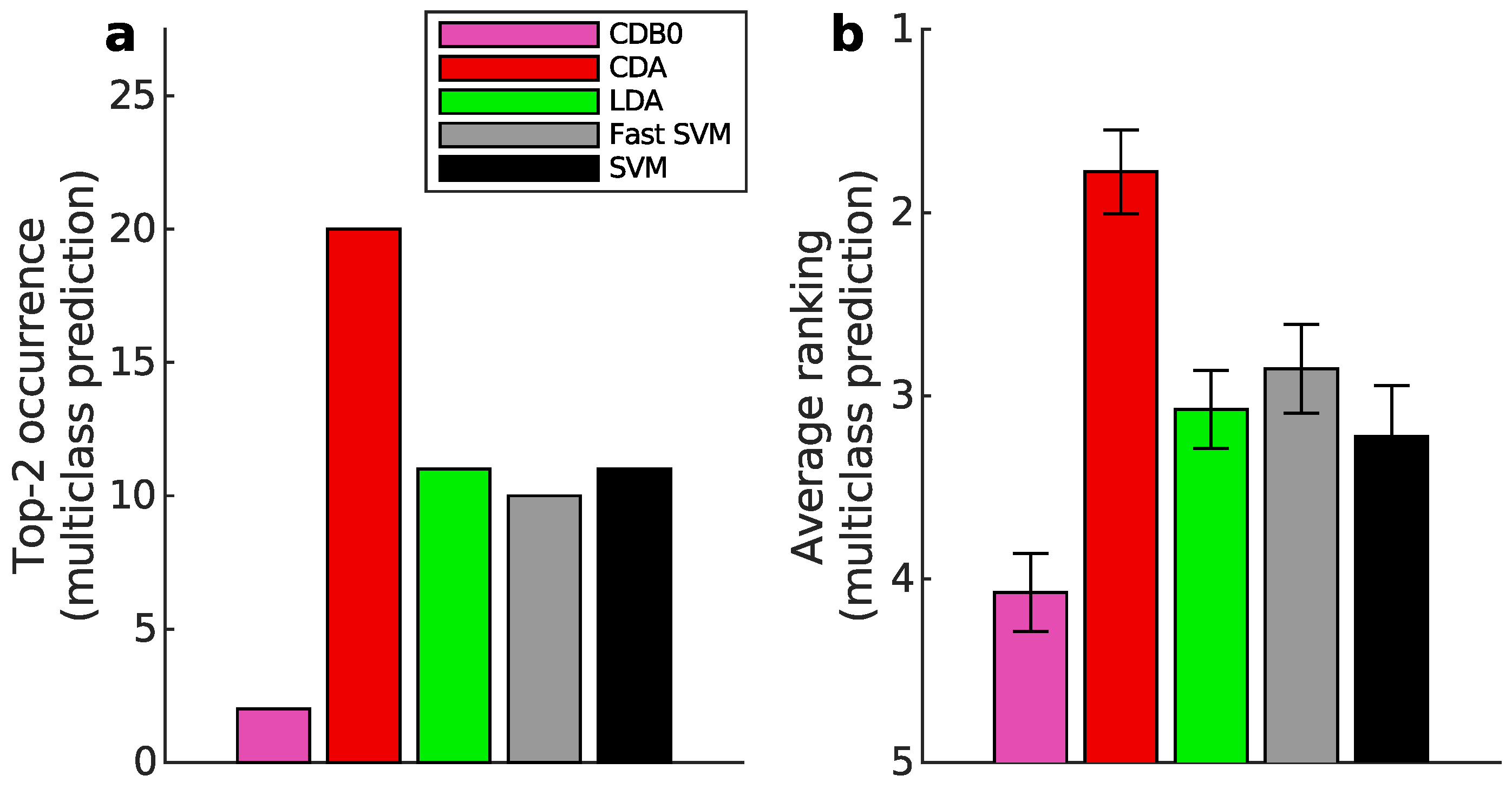

Figure A11. Multiclass prediction performance on 27 real datasets according to F-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A11. Multiclass prediction performance on 27 real datasets according to F-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

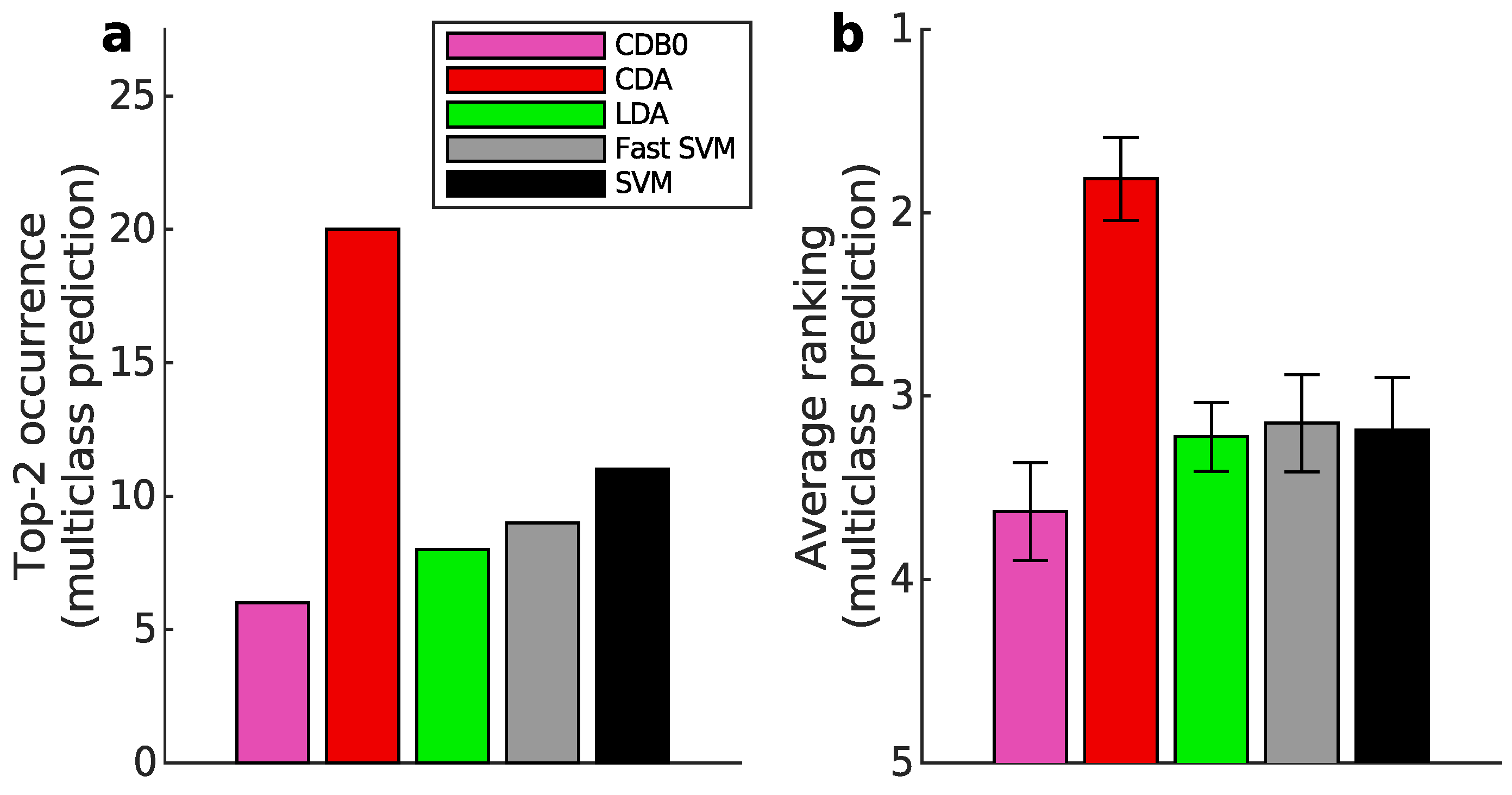

Figure A12. Multiclass prediction performance on 27 real datasets according to AC-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Figure A12. Multiclass prediction performance on 27 real datasets according to AC-score. (a) Top-2 occurrences of algorithms. (b) Average ranking of algorithms. Error bars represent standard errors. CDB0: Centroid Discriminant Basis 0; CDA: Centroid Discriminant Analysis; LDA: Linear Discriminant Analysis; SVM: Support Vector Machine.

Appendix L.1. Binary Classification

Table A2. AUROC (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.982±0.002	0.99±0.002	0.99±0.002
EMNIST	0.928±0.003	0.972±0.001	0.964±0.001	0.97±0.001	0.97±0.001
CIFAR10	0.696±0.01	0.797±0.01	0.741±0.01	0.754±0.01	0.787±0.01
SVHN	0.528±0.003	0.667±0.005	0.555±0.003	0.55±0.004	0.591±0.004
flower	0.703±0.02	0.739±0.02	0.571±0.01	0.71±0.03	0.71±0.03
GTSRB	0.767±0.003	0.972±0.001	0.942±0.002	0.995±0.0004	0.995±0.0004
STL10	0.723±0.02	0.781±0.02	0.667±0.01	0.758±0.02	0.761±0.02
FMNIST	0.937±0.01	0.975±0.006	0.973±0.006	0.976±0.006	0.976±0.006
Medical images
dermamnist	0.682±0.01	0.753±0.02	0.684±0.02	0.676±0.02	0.703±0.02
pneumoniamnist	0.837±0	0.933±0	0.912±0	0.941±0	0.872±0
retinamnist	0.63±0.03	0.662±0.04	0.616±0.02	0.631±0.03	0.61±0.02
breastmnist	0.66±0	0.763±0	0.703±0	0.726±0	0.71±0
bloodmnist	0.89±0.02	0.947±0.01	0.898±0.02	0.951±0.01	0.947±0.01
organamnist	0.897±0.009	0.948±0.008	0.95±0.008	0.928±0.01	0.894±0.02
organcmnist	0.89±0.01	0.925±0.01	0.908±0.01	0.895±0.01	0.886±0.02
organsmnist	0.831±0.01	0.886±0.01	0.866±0.01	0.842±0.02	0.814±0.02
organmnist3d	0.924±0.01	0.957±0.008	0.953±0.008	0.965±0.007	0.7±0.02
nodulemnist3d	0.715±0	0.781±0	0.732±0	0.687±0	0.654±0
fracturemnist3d	0.671±0.06	0.556±0.03	0.525±0.04	0.576±0.007	0.553±0.02
adrenalmnist3d	0.653±0	0.756±0	0.692±0	0.697±0	0.727±0
vesselmnist3d	0.605±0	0.685±0	0.681±0	0.61±0	0.612±0
synapsemnist3d	0.539±0	0.544±0	0.508±0	0.518±0	NaN
Chemical formula
bace	0.621±0	0.705±0	0.684±0	0.618±0	0.61±0
BBBP	0.711±0	0.743±0	0.693±0	0.667±0	0.705±0
clintox	0.65±0	0.575±0	0.543±0	0.517±0	0.508±0
HIV	0.6±0	0.616±0	0.537±0	0.51±0	0.512±0

Table A2. AUROC (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.982±0.002	0.99±0.002	0.99±0.002
EMNIST	0.928±0.003	0.972±0.001	0.964±0.001	0.97±0.001	0.97±0.001
CIFAR10	0.696±0.01	0.797±0.01	0.741±0.01	0.754±0.01	0.787±0.01
SVHN	0.528±0.003	0.667±0.005	0.555±0.003	0.55±0.004	0.591±0.004
flower	0.703±0.02	0.739±0.02	0.571±0.01	0.71±0.03	0.71±0.03
GTSRB	0.767±0.003	0.972±0.001	0.942±0.002	0.995±0.0004	0.995±0.0004
STL10	0.723±0.02	0.781±0.02	0.667±0.01	0.758±0.02	0.761±0.02
FMNIST	0.937±0.01	0.975±0.006	0.973±0.006	0.976±0.006	0.976±0.006
Medical images
dermamnist	0.682±0.01	0.753±0.02	0.684±0.02	0.676±0.02	0.703±0.02
pneumoniamnist	0.837±0	0.933±0	0.912±0	0.941±0	0.872±0
retinamnist	0.63±0.03	0.662±0.04	0.616±0.02	0.631±0.03	0.61±0.02
breastmnist	0.66±0	0.763±0	0.703±0	0.726±0	0.71±0
bloodmnist	0.89±0.02	0.947±0.01	0.898±0.02	0.951±0.01	0.947±0.01
organamnist	0.897±0.009	0.948±0.008	0.95±0.008	0.928±0.01	0.894±0.02
organcmnist	0.89±0.01	0.925±0.01	0.908±0.01	0.895±0.01	0.886±0.02
organsmnist	0.831±0.01	0.886±0.01	0.866±0.01	0.842±0.02	0.814±0.02
organmnist3d	0.924±0.01	0.957±0.008	0.953±0.008	0.965±0.007	0.7±0.02
nodulemnist3d	0.715±0	0.781±0	0.732±0	0.687±0	0.654±0
fracturemnist3d	0.671±0.06	0.556±0.03	0.525±0.04	0.576±0.007	0.553±0.02
adrenalmnist3d	0.653±0	0.756±0	0.692±0	0.697±0	0.727±0
vesselmnist3d	0.605±0	0.685±0	0.681±0	0.61±0	0.612±0
synapsemnist3d	0.539±0	0.544±0	0.508±0	0.518±0	NaN
Chemical formula
bace	0.621±0	0.705±0	0.684±0	0.618±0	0.61±0
BBBP	0.711±0	0.743±0	0.693±0	0.667±0	0.705±0
clintox	0.65±0	0.575±0	0.543±0	0.517±0	0.508±0
HIV	0.6±0	0.616±0	0.537±0	0.51±0	0.512±0

Table A3. AUPR (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.983±0.002	0.990±0.002	0.990±0.002
EMNIST	0.928±0.003	0.972±0.001	0.964±0.001	0.970±0.001	0.970±0.001
CIFAR10	0.697±0.01	0.797±0.01	0.741±0.01	0.762±0.01	0.787±0.01
SVHN	0.528±0.003	0.682±0.006	0.559±0.003	0.577±0.005	0.634±0.006
flower	0.704±0.02	0.741±0.02	0.571±0.01	0.712±0.03	0.712±0.03
GTSRB	0.757±0.003	0.973±0.001	0.934±0.002	0.995±0.0003	0.995±0.0003
STL10	0.724±0.02	0.782±0.02	0.667±0.01	0.759±0.02	0.762±0.02
FMNIST	0.937±0.01	0.975±0.006	0.973±0.006	0.976±0.006	0.976±0.006
Medical images
dermamnist	0.653±0.01	0.743±0.02	0.681±0.02	0.729±0.02	0.695±0.02
pneumoniamnist	0.817±0	0.931±0	0.922±0	0.937±0	0.871±0
retinamnist	0.614±0.03	0.649±0.03	0.612±0.02	0.641±0.02	0.607±0.02
breastmnist	0.653±0	0.759±0	0.690±0	0.743±0	0.706±0
bloodmnist	0.889±0.02	0.947±0.01	0.895±0.02	0.953±0.01	0.947±0.01
organamnist	0.902±0.009	0.950±0.007	0.951±0.008	0.929±0.01	0.895±0.02
organcmnist	0.901±0.009	0.931±0.009	0.908±0.01	0.893±0.01	0.883±0.02
organsmnist	0.839±0.01	0.892±0.01	0.867±0.01	0.840±0.02	0.813±0.02
organmnist3d	0.924±0.009	0.958±0.008	0.954±0.008	0.965±0.007	0.723±0.02
nodulemnist3d	0.7±0	0.771±0	0.745±0	0.695±0	0.637±0
fracturemnist3d	0.663±0.05	0.566±0.02	0.531±0.05	0.583±0.003	0.555±0.02
adrenalmnist3d	0.65±0	0.774±0	0.705±0	0.708±0	0.728±0
vesselmnist3d	0.582±0	0.671±0	0.694±0	0.627±0	0.659±0
synapsemnist3d	0.537±0	0.542±0	0.544±0	0.533±0	NaN
Chemical formula
bace	0.620±0	0.704±0	0.685±0	0.643±0	0.615±0
BBBP	0.701±0	0.747±0	0.734±0	0.712±0	0.714±0
clintox	0.602±0	0.570±0	0.548±0	0.553±0	0.514±0
HIV	0.565±0	0.583±0	0.558±0	0.612±0	0.632±0

Table A3. AUPR (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.983±0.002	0.990±0.002	0.990±0.002
EMNIST	0.928±0.003	0.972±0.001	0.964±0.001	0.970±0.001	0.970±0.001
CIFAR10	0.697±0.01	0.797±0.01	0.741±0.01	0.762±0.01	0.787±0.01
SVHN	0.528±0.003	0.682±0.006	0.559±0.003	0.577±0.005	0.634±0.006
flower	0.704±0.02	0.741±0.02	0.571±0.01	0.712±0.03	0.712±0.03
GTSRB	0.757±0.003	0.973±0.001	0.934±0.002	0.995±0.0003	0.995±0.0003
STL10	0.724±0.02	0.782±0.02	0.667±0.01	0.759±0.02	0.762±0.02
FMNIST	0.937±0.01	0.975±0.006	0.973±0.006	0.976±0.006	0.976±0.006
Medical images
dermamnist	0.653±0.01	0.743±0.02	0.681±0.02	0.729±0.02	0.695±0.02
pneumoniamnist	0.817±0	0.931±0	0.922±0	0.937±0	0.871±0
retinamnist	0.614±0.03	0.649±0.03	0.612±0.02	0.641±0.02	0.607±0.02
breastmnist	0.653±0	0.759±0	0.690±0	0.743±0	0.706±0
bloodmnist	0.889±0.02	0.947±0.01	0.895±0.02	0.953±0.01	0.947±0.01
organamnist	0.902±0.009	0.950±0.007	0.951±0.008	0.929±0.01	0.895±0.02
organcmnist	0.901±0.009	0.931±0.009	0.908±0.01	0.893±0.01	0.883±0.02
organsmnist	0.839±0.01	0.892±0.01	0.867±0.01	0.840±0.02	0.813±0.02
organmnist3d	0.924±0.009	0.958±0.008	0.954±0.008	0.965±0.007	0.723±0.02
nodulemnist3d	0.7±0	0.771±0	0.745±0	0.695±0	0.637±0
fracturemnist3d	0.663±0.05	0.566±0.02	0.531±0.05	0.583±0.003	0.555±0.02
adrenalmnist3d	0.65±0	0.774±0	0.705±0	0.708±0	0.728±0
vesselmnist3d	0.582±0	0.671±0	0.694±0	0.627±0	0.659±0
synapsemnist3d	0.537±0	0.542±0	0.544±0	0.533±0	NaN
Chemical formula
bace	0.620±0	0.704±0	0.685±0	0.643±0	0.615±0
BBBP	0.701±0	0.747±0	0.734±0	0.712±0	0.714±0
clintox	0.602±0	0.570±0	0.548±0	0.553±0	0.514±0
HIV	0.565±0	0.583±0	0.558±0	0.612±0	0.632±0

Table A4. F-score (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.983±0.002	0.99±0.002	0.99±0.002
EMNIST	0.928±0.003	0.972±0.001	0.964±0.001	0.97±0.001	0.97±0.001
CIFAR10	0.696±0.01	0.797±0.01	0.741±0.01	0.747±0.01	0.787±0.01
SVHN	0.523±0.003	0.664±0.005	0.555±0.003	0.51±0.01	0.577±0.006
flower	0.701±0.02	0.738±0.02	0.57±0.01	0.709±0.03	0.709±0.03
GTSRB	0.743±0.003	0.972±0.001	0.931±0.002	0.995±0.0003	0.995±0.0003
STL10	0.722±0.02	0.781±0.02	0.666±0.01	0.756±0.02	0.761±0.02
FMNIST	0.937±0.01	0.975±0.006	0.973±0.006	0.976±0.006	0.976±0.006
Medical images
dermamnist	0.621±0.02	0.736±0.02	0.677±0.02	0.682±0.03	0.692±0.02
pneumoniamnist	0.812±0	0.931±0	0.921±0	0.937±0	0.871±0
retinamnist	0.594±0.02	0.639±0.03	0.61±0.02	0.611±0.04	0.606±0.02
breastmnist	0.651±0	0.759±0	0.684±0	0.739±0	0.705±0
bloodmnist	0.888±0.02	0.947±0.01	0.894±0.02	0.952±0.01	0.946±0.01
organamnist	0.899±0.01	0.949±0.008	0.951±0.008	0.923±0.02	0.893±0.02
organcmnist	0.896±0.01	0.929±0.009	0.908±0.01	0.892±0.02	0.882±0.02
organsmnist	0.834±0.01	0.89±0.01	0.866±0.01	0.834±0.02	0.811±0.02
organmnist3d	0.92±0.01	0.957±0.008	0.953±0.008	0.964±0.007	0.68±0.02
nodulemnist3d	0.695±0	0.769±0	0.743±0	0.694±0	0.622±0
fracturemnist3d	0.651±0.05	0.523±0.03	0.514±0.05	0.577±0.007	0.55±0.02
adrenalmnist3d	0.65±0	0.771±0	0.703±0	0.707±0	0.728±0
vesselmnist3d	0.56±0	0.669±0	0.693±0	0.623±0	0.638±0
synapsemnist3d	0.534±0	0.539±0	0.45±0	0.493±0	NaN
Chemical formula
bace	0.619±0	0.704±0	0.684±0	0.569±0	0.607±0
BBBP	0.699±0	0.747±0	0.718±0	0.691±0	0.713±0
clintox	0.54±0	0.569±0	0.547±0	0.517±0	0.506±0
HIV	0.531±0	0.562±0	0.548±0	0.511±0	0.514±0

Table A4. F-score (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.983±0.002	0.99±0.002	0.99±0.002
EMNIST	0.928±0.003	0.972±0.001	0.964±0.001	0.97±0.001	0.97±0.001
CIFAR10	0.696±0.01	0.797±0.01	0.741±0.01	0.747±0.01	0.787±0.01
SVHN	0.523±0.003	0.664±0.005	0.555±0.003	0.51±0.01	0.577±0.006
flower	0.701±0.02	0.738±0.02	0.57±0.01	0.709±0.03	0.709±0.03
GTSRB	0.743±0.003	0.972±0.001	0.931±0.002	0.995±0.0003	0.995±0.0003
STL10	0.722±0.02	0.781±0.02	0.666±0.01	0.756±0.02	0.761±0.02
FMNIST	0.937±0.01	0.975±0.006	0.973±0.006	0.976±0.006	0.976±0.006
Medical images
dermamnist	0.621±0.02	0.736±0.02	0.677±0.02	0.682±0.03	0.692±0.02
pneumoniamnist	0.812±0	0.931±0	0.921±0	0.937±0	0.871±0
retinamnist	0.594±0.02	0.639±0.03	0.61±0.02	0.611±0.04	0.606±0.02
breastmnist	0.651±0	0.759±0	0.684±0	0.739±0	0.705±0
bloodmnist	0.888±0.02	0.947±0.01	0.894±0.02	0.952±0.01	0.946±0.01
organamnist	0.899±0.01	0.949±0.008	0.951±0.008	0.923±0.02	0.893±0.02
organcmnist	0.896±0.01	0.929±0.009	0.908±0.01	0.892±0.02	0.882±0.02
organsmnist	0.834±0.01	0.89±0.01	0.866±0.01	0.834±0.02	0.811±0.02
organmnist3d	0.92±0.01	0.957±0.008	0.953±0.008	0.964±0.007	0.68±0.02
nodulemnist3d	0.695±0	0.769±0	0.743±0	0.694±0	0.622±0
fracturemnist3d	0.651±0.05	0.523±0.03	0.514±0.05	0.577±0.007	0.55±0.02
adrenalmnist3d	0.65±0	0.771±0	0.703±0	0.707±0	0.728±0
vesselmnist3d	0.56±0	0.669±0	0.693±0	0.623±0	0.638±0
synapsemnist3d	0.534±0	0.539±0	0.45±0	0.493±0	NaN
Chemical formula
bace	0.619±0	0.704±0	0.684±0	0.569±0	0.607±0
BBBP	0.699±0	0.747±0	0.718±0	0.691±0	0.713±0
clintox	0.54±0	0.569±0	0.547±0	0.517±0	0.506±0
HIV	0.531±0	0.562±0	0.548±0	0.511±0	0.514±0

Table A5. AC-score (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.982±0.002	0.99±0.002	0.99±0.002
EMNIST	0.927±0.003	0.972±0.001	0.964±0.001	0.97±0.001	0.97±0.001
CIFAR10	0.694±0.01	0.796±0.01	0.74±0.01	0.725±0.02	0.787±0.01
SVHN	0.524±0.002	0.614±0.004	0.499±0.008	0.352±0.03	0.438±0.02
flower	0.698±0.02	0.733±0.02	0.567±0.01	0.701±0.03	0.7±0.03
GTSRB	0.753±0.003	0.97±0.002	0.941±0.002	0.995±0.0004	0.995±0.0004
STL10	0.72±0.01	0.779±0.02	0.664±0.01	0.75±0.02	0.76±0.02
FMNIST	0.936±0.01	0.975±0.006	0.973±0.006	0.975±0.006	0.976±0.006
Medical images
dermamnist	0.658±0.02	0.72±0.02	0.608±0.04	0.535±0.05	0.654±0.03
pneumoniamnist	0.837±0	0.932±0	0.908±0	0.94±0	0.868±0
retinamnist	0.62±0.03	0.639±0.05	0.567±0.03	0.513±0.07	0.561±0.03
breastmnist	0.641±0	0.751±0	0.698±0	0.682±0	0.691±0
bloodmnist	0.889±0.02	0.946±0.01	0.897±0.02	0.949±0.01	0.947±0.01
organamnist	0.892±0.01	0.946±0.008	0.949±0.008	0.919±0.02	0.882±0.02
organcmnist	0.881±0.01	0.92±0.01	0.907±0.01	0.893±0.02	0.886±0.02
organsmnist	0.822±0.01	0.88±0.01	0.862±0.01	0.833±0.02	0.801±0.02
organmnist3d	0.918±0.01	0.956±0.008	0.952±0.008	0.964±0.007	0.602±0.03
nodulemnist3d	0.707±0	0.773±0	0.693±0	0.636±0	0.651±0
fracturemnist3d	0.668±0.06	0.38±0.1	0.351±0.1	0.491±0.06	0.45±0.08
adrenalmnist3d	0.602±0	0.718±0	0.631±0	0.642±0	0.694±0
vesselmnist3d	0.547±0	0.615±0	0.58±0	0.43±0	0.405±0
synapsemnist3d	0.498±0	0.506±0	0.0612±0	0.189±0	NaN
Chemical formula
bace	0.62±0	0.704±0	0.678±0	0.483±0	0.575±0
BBBP	0.693±0	0.715±0	0.603±0	0.553±0	0.66±0
clintox	0.634±0	0.365±0	0.238±0	0.0869±0	0.0868±0
HIV	0.471±0	0.465±0	0.159±0	0.0407±0	0.0473±0

Table A5. AC-score (Binary Classification Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.957±0.004	0.985±0.002	0.981±0.002	0.985±0.002	0.986±0.002
USPS	0.966±0.005	0.989±0.001	0.982±0.002	0.99±0.002	0.99±0.002
EMNIST	0.927±0.003	0.972±0.001	0.964±0.001	0.97±0.001	0.97±0.001
CIFAR10	0.694±0.01	0.796±0.01	0.74±0.01	0.725±0.02	0.787±0.01
SVHN	0.524±0.002	0.614±0.004	0.499±0.008	0.352±0.03	0.438±0.02
flower	0.698±0.02	0.733±0.02	0.567±0.01	0.701±0.03	0.7±0.03
GTSRB	0.753±0.003	0.97±0.002	0.941±0.002	0.995±0.0004	0.995±0.0004
STL10	0.72±0.01	0.779±0.02	0.664±0.01	0.75±0.02	0.76±0.02
FMNIST	0.936±0.01	0.975±0.006	0.973±0.006	0.975±0.006	0.976±0.006
Medical images
dermamnist	0.658±0.02	0.72±0.02	0.608±0.04	0.535±0.05	0.654±0.03
pneumoniamnist	0.837±0	0.932±0	0.908±0	0.94±0	0.868±0
retinamnist	0.62±0.03	0.639±0.05	0.567±0.03	0.513±0.07	0.561±0.03
breastmnist	0.641±0	0.751±0	0.698±0	0.682±0	0.691±0
bloodmnist	0.889±0.02	0.946±0.01	0.897±0.02	0.949±0.01	0.947±0.01
organamnist	0.892±0.01	0.946±0.008	0.949±0.008	0.919±0.02	0.882±0.02
organcmnist	0.881±0.01	0.92±0.01	0.907±0.01	0.893±0.02	0.886±0.02
organsmnist	0.822±0.01	0.88±0.01	0.862±0.01	0.833±0.02	0.801±0.02
organmnist3d	0.918±0.01	0.956±0.008	0.952±0.008	0.964±0.007	0.602±0.03
nodulemnist3d	0.707±0	0.773±0	0.693±0	0.636±0	0.651±0
fracturemnist3d	0.668±0.06	0.38±0.1	0.351±0.1	0.491±0.06	0.45±0.08
adrenalmnist3d	0.602±0	0.718±0	0.631±0	0.642±0	0.694±0
vesselmnist3d	0.547±0	0.615±0	0.58±0	0.43±0	0.405±0
synapsemnist3d	0.498±0	0.506±0	0.0612±0	0.189±0	NaN
Chemical formula
bace	0.62±0	0.704±0	0.678±0	0.483±0	0.575±0
BBBP	0.693±0	0.715±0	0.603±0	0.553±0	0.66±0
clintox	0.634±0	0.365±0	0.238±0	0.0869±0	0.0868±0
HIV	0.471±0	0.465±0	0.159±0	0.0407±0	0.0473±0

Appendix L.2. Multiclass Prediction

Table A6. AUROC (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.897±0.01	0.963±0.005	0.958±0.006	0.965±0.005	0.966±0.005
USPS	0.914±0.01	0.971±0.004	0.969±0.006	0.974±0.005	0.973±0.005
EMNIST	0.773±0.01	0.896±0.008	0.879±0.009	0.891±0.008	0.892±0.008
CIFAR10	0.599±0.02	0.671±0.02	0.627±0.01	0.641±0.02	0.663±0.02
SVHN	0.522±0.006	0.638±0.01	0.531±0.007	0.536±0.01	0.558±0.01
flower	0.61±0.03	0.666±0.03	0.554±0.02	0.632±0.03	0.632±0.03
GTSRB	0.589±0.01	0.878±0.01	0.821±0.02	0.982±0.003	0.983±0.003
STL10	0.607±0.02	0.655±0.02	0.596±0.02	0.648±0.02	0.653±0.02
FMNIST	0.836±0.03	0.917±0.02	0.92±0.02	0.924±0.02	0.924±0.02
Medical images
dermamnist	0.614±0.03	0.658±0.03	0.588±0.02	0.595±0.03	0.622±0.02
pneumoniamnist	0.837±0	0.933±0	0.912±0	0.941±0	0.872±0
retinamnist	0.575±0.04	0.622±0.04	0.592±0.03	0.596±0.04	0.578±0.03
breastmnist	0.66±0	0.763±0	0.703±0	0.726±0	0.71±0
bloodmnist	0.789±0.04	0.88±0.03	0.817±0.03	0.882±0.03	0.881±0.03
organamnist	0.815±0.03	0.888±0.02	0.885±0.03	0.85±0.04	0.795±0.05
organcmnist	0.809±0.03	0.869±0.03	0.833±0.03	0.811±0.04	0.795±0.04
organsmnist	0.694±0.03	0.761±0.03	0.735±0.03	0.7±0.03	0.681±0.04
organmnist3d	0.867±0.03	0.913±0.02	0.903±0.03	0.924±0.02	0.636±0.03
nodulemnist3d	0.715±0	0.781±0	0.732±0	0.687±0	0.654±0
fracturemnist3d	0.622±0.04	0.518±0.01	0.554±0.04	0.574±0.004	0.554±0.02
adrenalmnist3d	0.653±0	0.756±0	0.9±0	0.928±0	0.947±0
vesselmnist3d	0.605±0	0.685±0	0.681±0	0.61±0	0.612±0
synapsemnist3d	0.539±0	0.544±0	0.508±0	0.518±0	NaN
Chemical formula
bace	0.621±0	0.705±0	0.684±0	0.618±0	0.61±0
BBBP	0.711±0	0.743±0	0.693±0	0.667±0	0.705±0
clintox	0.65±0	0.575±0	0.543±0	0.517±0	0.508±0
HIV	0.6±0	0.616±0	0.537±0	0.51±0	0.512±0

Table A6. AUROC (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.897±0.01	0.963±0.005	0.958±0.006	0.965±0.005	0.966±0.005
USPS	0.914±0.01	0.971±0.004	0.969±0.006	0.974±0.005	0.973±0.005
EMNIST	0.773±0.01	0.896±0.008	0.879±0.009	0.891±0.008	0.892±0.008
CIFAR10	0.599±0.02	0.671±0.02	0.627±0.01	0.641±0.02	0.663±0.02
SVHN	0.522±0.006	0.638±0.01	0.531±0.007	0.536±0.01	0.558±0.01
flower	0.61±0.03	0.666±0.03	0.554±0.02	0.632±0.03	0.632±0.03
GTSRB	0.589±0.01	0.878±0.01	0.821±0.02	0.982±0.003	0.983±0.003
STL10	0.607±0.02	0.655±0.02	0.596±0.02	0.648±0.02	0.653±0.02
FMNIST	0.836±0.03	0.917±0.02	0.92±0.02	0.924±0.02	0.924±0.02
Medical images
dermamnist	0.614±0.03	0.658±0.03	0.588±0.02	0.595±0.03	0.622±0.02
pneumoniamnist	0.837±0	0.933±0	0.912±0	0.941±0	0.872±0
retinamnist	0.575±0.04	0.622±0.04	0.592±0.03	0.596±0.04	0.578±0.03
breastmnist	0.66±0	0.763±0	0.703±0	0.726±0	0.71±0
bloodmnist	0.789±0.04	0.88±0.03	0.817±0.03	0.882±0.03	0.881±0.03
organamnist	0.815±0.03	0.888±0.02	0.885±0.03	0.85±0.04	0.795±0.05
organcmnist	0.809±0.03	0.869±0.03	0.833±0.03	0.811±0.04	0.795±0.04
organsmnist	0.694±0.03	0.761±0.03	0.735±0.03	0.7±0.03	0.681±0.04
organmnist3d	0.867±0.03	0.913±0.02	0.903±0.03	0.924±0.02	0.636±0.03
nodulemnist3d	0.715±0	0.781±0	0.732±0	0.687±0	0.654±0
fracturemnist3d	0.622±0.04	0.518±0.01	0.554±0.04	0.574±0.004	0.554±0.02
adrenalmnist3d	0.653±0	0.756±0	0.9±0	0.928±0	0.947±0
vesselmnist3d	0.605±0	0.685±0	0.681±0	0.61±0	0.612±0
synapsemnist3d	0.539±0	0.544±0	0.508±0	0.518±0	NaN
Chemical formula
bace	0.621±0	0.705±0	0.684±0	0.618±0	0.61±0
BBBP	0.711±0	0.743±0	0.693±0	0.667±0	0.705±0
clintox	0.65±0	0.575±0	0.543±0	0.517±0	0.508±0
HIV	0.6±0	0.616±0	0.537±0	0.51±0	0.512±0

Table A7. AUPR (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.897±0.01	0.963±0.004	0.958±0.005	0.965±0.004	0.966±0.004
USPS	0.918±0.01	0.971±0.005	0.969±0.005	0.974±0.004	0.973±0.005
EMNIST	0.774±0.01	0.896±0.008	0.88±0.009	0.891±0.008	0.892±0.008
CIFAR10	0.6±0.01	0.67±0.01	0.627±0.01	0.64±0.02	0.663±0.02
SVHN	0.528±0.009	0.666±0.01	0.533±0.006	0.546±0.005	0.597±0.005
flower	0.611±0.02	0.665±0.02	0.554±0.02	0.631±0.02	0.632±0.02
GTSRB	0.619±0.01	0.891±0.01	0.805±0.01	0.981±0.003	0.981±0.003
STL10	0.604±0.02	0.653±0.02	0.598±0.02	0.648±0.02	0.651±0.02
FMNIST	0.836±0.03	0.916±0.02	0.92±0.02	0.923±0.02	0.924±0.02
Medical images
dermamnist	0.592±0.02	0.645±0.02	0.603±0.02	0.608±0.03	0.613±0.02
pneumoniamnist	0.817±0	0.931±0	0.922±0	0.937±0	0.871±0
retinamnist	0.568±0.03	0.621±0.04	0.594±0.03	0.589±0.04	0.577±0.03
breastmnist	0.653±0	0.759±0	0.69±0	0.743±0	0.706±0
bloodmnist	0.785±0.04	0.878±0.03	0.818±0.03	0.89±0.03	0.88±0.03
organamnist	0.82±0.03	0.892±0.02	0.889±0.02	0.851±0.03	0.803±0.05
organcmnist	0.818±0.03	0.877±0.02	0.838±0.03	0.811±0.04	0.792±0.04
organsmnist	0.697±0.02	0.764±0.03	0.741±0.03	0.703±0.03	0.688±0.04
organmnist3d	0.867±0.02	0.913±0.02	0.904±0.03	0.924±0.02	0.668±0.04
nodulemnist3d	0.7±0	0.771±0	0.745±0	0.695±0	0.637±0
fracturemnist3d	0.617±0.04	0.526±0.02	0.553±0.04	0.578±0.004	0.555±0.02
adrenalmnist3d	0.65±0	0.774±0	0.911±0	0.939±0	0.949±0
vesselmnist3d	0.582±0	0.671±0	0.694±0	0.627±0	0.659±0
synapsemnist3d	0.537±0	0.542±0	0.544±0	0.533±0	NaN
Chemical formula
bace	0.62±0	0.704±0	0.685±0	0.643±0	0.615±0
BBBP	0.701±0	0.747±0	0.734±0	0.712±0	0.714±0
clintox	0.602±0	0.57±0	0.548±0	0.553±0	0.514±0
HIV	0.565±0	0.583±0	0.558±0	0.612±0	0.632±0

Table A7. AUPR (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.897±0.01	0.963±0.004	0.958±0.005	0.965±0.004	0.966±0.004
USPS	0.918±0.01	0.971±0.005	0.969±0.005	0.974±0.004	0.973±0.005
EMNIST	0.774±0.01	0.896±0.008	0.88±0.009	0.891±0.008	0.892±0.008
CIFAR10	0.6±0.01	0.67±0.01	0.627±0.01	0.64±0.02	0.663±0.02
SVHN	0.528±0.009	0.666±0.01	0.533±0.006	0.546±0.005	0.597±0.005
flower	0.611±0.02	0.665±0.02	0.554±0.02	0.631±0.02	0.632±0.02
GTSRB	0.619±0.01	0.891±0.01	0.805±0.01	0.981±0.003	0.981±0.003
STL10	0.604±0.02	0.653±0.02	0.598±0.02	0.648±0.02	0.651±0.02
FMNIST	0.836±0.03	0.916±0.02	0.92±0.02	0.923±0.02	0.924±0.02
Medical images
dermamnist	0.592±0.02	0.645±0.02	0.603±0.02	0.608±0.03	0.613±0.02
pneumoniamnist	0.817±0	0.931±0	0.922±0	0.937±0	0.871±0
retinamnist	0.568±0.03	0.621±0.04	0.594±0.03	0.589±0.04	0.577±0.03
breastmnist	0.653±0	0.759±0	0.69±0	0.743±0	0.706±0
bloodmnist	0.785±0.04	0.878±0.03	0.818±0.03	0.89±0.03	0.88±0.03
organamnist	0.82±0.03	0.892±0.02	0.889±0.02	0.851±0.03	0.803±0.05
organcmnist	0.818±0.03	0.877±0.02	0.838±0.03	0.811±0.04	0.792±0.04
organsmnist	0.697±0.02	0.764±0.03	0.741±0.03	0.703±0.03	0.688±0.04
organmnist3d	0.867±0.02	0.913±0.02	0.904±0.03	0.924±0.02	0.668±0.04
nodulemnist3d	0.7±0	0.771±0	0.745±0	0.695±0	0.637±0
fracturemnist3d	0.617±0.04	0.526±0.02	0.553±0.04	0.578±0.004	0.555±0.02
adrenalmnist3d	0.65±0	0.774±0	0.911±0	0.939±0	0.949±0
vesselmnist3d	0.582±0	0.671±0	0.694±0	0.627±0	0.659±0
synapsemnist3d	0.537±0	0.542±0	0.544±0	0.533±0	NaN
Chemical formula
bace	0.62±0	0.704±0	0.685±0	0.643±0	0.615±0
BBBP	0.701±0	0.747±0	0.734±0	0.712±0	0.714±0
clintox	0.602±0	0.57±0	0.548±0	0.553±0	0.514±0
HIV	0.565±0	0.583±0	0.558±0	0.612±0	0.632±0

Table A8. F-score (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.896±0.01	0.963±0.004	0.958±0.005	0.965±0.004	0.966±0.004
USPS	0.917±0.01	0.971±0.005	0.969±0.005	0.974±0.004	0.973±0.005
EMNIST	0.773±0.01	0.896±0.008	0.879±0.009	0.891±0.008	0.892±0.008
CIFAR10	0.59±0.01	0.67±0.01	0.627±0.01	0.634±0.02	0.663±0.02
SVHN	0.509±0.006	0.649±0.01	0.529±0.005	0.526±0.006	0.55±0.01
flower	0.599±0.02	0.662±0.02	0.553±0.02	0.629±0.02	0.63±0.02
GTSRB	0.586±0.01	0.886±0.01	0.782±0.01	0.98±0.003	0.98±0.003
STL10	0.601±0.02	0.653±0.02	0.597±0.02	0.646±0.02	0.651±0.02
FMNIST	0.835±0.03	0.916±0.02	0.919±0.02	0.923±0.02	0.924±0.02
Medical images
dermamnist	0.571±0.02	0.639±0.02	0.599±0.02	0.602±0.03	0.61±0.02
pneumoniamnist	0.812±0	0.931±0	0.921±0	0.937±0	0.871±0
retinamnist	0.547±0.04	0.615±0.04	0.592±0.03	0.579±0.04	0.577±0.03
breastmnist	0.651±0	0.759±0	0.684±0	0.739±0	0.705±0
bloodmnist	0.779±0.04	0.877±0.03	0.817±0.03	0.887±0.03	0.88±0.03
organamnist	0.812±0.03	0.889±0.02	0.889±0.02	0.847±0.04	0.798±0.05
organcmnist	0.811±0.03	0.874±0.02	0.837±0.03	0.809±0.04	0.792±0.04
organsmnist	0.685±0.02	0.76±0.03	0.74±0.03	0.698±0.03	0.684±0.04
organmnist3d	0.862±0.02	0.913±0.02	0.903±0.03	0.922±0.02	0.627±0.04
nodulemnist3d	0.695±0	0.769±0	0.743±0	0.694±0	0.622±0
fracturemnist3d	0.601±0.04	0.486±0.02	0.547±0.04	0.575±0.002	0.552±0.02
adrenalmnist3d	0.65±0	0.771±0	0.911±0	0.939±0	0.949±0
vesselmnist3d	0.56±0	0.669±0	0.693±0	0.623±0	0.638±0
synapsemnist3d	0.534±0	0.539±0	0.45±0	0.493±0	NaN
Chemical formula
bace	0.619±0	0.704±0	0.684±0	0.569±0	0.607±0
BBBP	0.699±0	0.747±0	0.718±0	0.691±0	0.713±0
clintox	0.54±0	0.569±0	0.547±0	0.517±0	0.506±0
HIV	0.531±0	0.562±0	0.548±0	0.511±0	0.514±0

Table A8. F-score (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.896±0.01	0.963±0.004	0.958±0.005	0.965±0.004	0.966±0.004
USPS	0.917±0.01	0.971±0.005	0.969±0.005	0.974±0.004	0.973±0.005
EMNIST	0.773±0.01	0.896±0.008	0.879±0.009	0.891±0.008	0.892±0.008
CIFAR10	0.59±0.01	0.67±0.01	0.627±0.01	0.634±0.02	0.663±0.02
SVHN	0.509±0.006	0.649±0.01	0.529±0.005	0.526±0.006	0.55±0.01
flower	0.599±0.02	0.662±0.02	0.553±0.02	0.629±0.02	0.63±0.02
GTSRB	0.586±0.01	0.886±0.01	0.782±0.01	0.98±0.003	0.98±0.003
STL10	0.601±0.02	0.653±0.02	0.597±0.02	0.646±0.02	0.651±0.02
FMNIST	0.835±0.03	0.916±0.02	0.919±0.02	0.923±0.02	0.924±0.02
Medical images
dermamnist	0.571±0.02	0.639±0.02	0.599±0.02	0.602±0.03	0.61±0.02
pneumoniamnist	0.812±0	0.931±0	0.921±0	0.937±0	0.871±0
retinamnist	0.547±0.04	0.615±0.04	0.592±0.03	0.579±0.04	0.577±0.03
breastmnist	0.651±0	0.759±0	0.684±0	0.739±0	0.705±0
bloodmnist	0.779±0.04	0.877±0.03	0.817±0.03	0.887±0.03	0.88±0.03
organamnist	0.812±0.03	0.889±0.02	0.889±0.02	0.847±0.04	0.798±0.05
organcmnist	0.811±0.03	0.874±0.02	0.837±0.03	0.809±0.04	0.792±0.04
organsmnist	0.685±0.02	0.76±0.03	0.74±0.03	0.698±0.03	0.684±0.04
organmnist3d	0.862±0.02	0.913±0.02	0.903±0.03	0.922±0.02	0.627±0.04
nodulemnist3d	0.695±0	0.769±0	0.743±0	0.694±0	0.622±0
fracturemnist3d	0.601±0.04	0.486±0.02	0.547±0.04	0.575±0.002	0.552±0.02
adrenalmnist3d	0.65±0	0.771±0	0.911±0	0.939±0	0.949±0
vesselmnist3d	0.56±0	0.669±0	0.693±0	0.623±0	0.638±0
synapsemnist3d	0.534±0	0.539±0	0.45±0	0.493±0	NaN
Chemical formula
bace	0.619±0	0.704±0	0.684±0	0.569±0	0.607±0
BBBP	0.699±0	0.747±0	0.718±0	0.691±0	0.713±0
clintox	0.54±0	0.569±0	0.547±0	0.517±0	0.506±0
HIV	0.531±0	0.562±0	0.548±0	0.511±0	0.514±0

Table A9. AC-score (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.888±0.01	0.962±0.005	0.956±0.006	0.964±0.005	0.965±0.005
USPS	0.907±0.01	0.97±0.005	0.968±0.007	0.974±0.005	0.973±0.005
EMNIST	0.708±0.02	0.884±0.01	0.863±0.01	0.878±0.01	0.879±0.01
CIFAR10	0.404±0.05	0.562±0.03	0.48±0.03	0.491±0.05	0.548±0.03
SVHN	0.223±0.05	0.478±0.03	0.241±0.04	0.223±0.06	0.247±0.05
flower	0.492±0.07	0.597±0.05	0.417±0.05	0.545±0.05	0.546±0.05
GTSRB	0.296±0.03	0.853±0.02	0.762±0.03	0.981±0.004	0.982±0.004
STL10	0.425±0.05	0.523±0.05	0.413±0.04	0.512±0.05	0.521±0.05
FMNIST	0.801±0.05	0.909±0.02	0.912±0.02	0.916±0.02	0.917±0.02
Medical images
dermamnist	0.439±0.09	0.527±0.07	0.352±0.07	0.348±0.1	0.462±0.06
pneumoniamnist	0.837±0	0.932±0	0.908±0	0.94±0	0.868±0
retinamnist	0.377±0.1	0.506±0.07	0.444±0.08	0.401±0.1	0.407±0.1
breastmnist	0.641±0	0.751±0	0.698±0	0.682±0	0.691±0
bloodmnist	0.742±0.05	0.864±0.04	0.784±0.04	0.865±0.03	0.866±0.03
organamnist	0.771±0.05	0.872±0.03	0.868±0.03	0.814±0.05	0.717±0.08
organcmnist	0.766±0.04	0.848±0.03	0.797±0.04	0.76±0.05	0.733±0.06
organsmnist	0.58±0.06	0.69±0.05	0.653±0.04	0.589±0.06	0.533±0.08
organmnist3d	0.845±0.04	0.902±0.03	0.89±0.03	0.914±0.03	0.434±0.09
nodulemnist3d	0.707±0	0.773±0	0.693±0	0.636±0	0.651±0
fracturemnist3d	0.569±0.09	0.279±0.05	0.425±0.2	0.5±0.07	0.451±0.1
adrenalmnist3d	0.602±0	0.718±0	0.894±0	0.924±0	0.946±0
vesselmnist3d	0.547±0	0.615±0	0.58±0	0.43±0	0.405±0
synapsemnist3d	0.498±0	0.506±0	0.0612±0	0.189±0	NaN
Chemical formula
bace	0.62±0	0.704±0	0.678±0	0.483±0	0.575±0
BBBP	0.693±0	0.715±0	0.603±0	0.553±0	0.66±0
clintox	0.634±0	0.365±0	0.238±0	0.0869±0	0.0868±0
HIV	0.471±0	0.465±0	0.159±0	0.0407±0	0.0473±0

Table A9. AC-score (Multiclass Prediction Performance)

Dataset	CDB0	CDA	LDA	Fast SVM	SVM
Standard images
MNIST	0.888±0.01	0.962±0.005	0.956±0.006	0.964±0.005	0.965±0.005
USPS	0.907±0.01	0.97±0.005	0.968±0.007	0.974±0.005	0.973±0.005
EMNIST	0.708±0.02	0.884±0.01	0.863±0.01	0.878±0.01	0.879±0.01
CIFAR10	0.404±0.05	0.562±0.03	0.48±0.03	0.491±0.05	0.548±0.03
SVHN	0.223±0.05	0.478±0.03	0.241±0.04	0.223±0.06	0.247±0.05
flower	0.492±0.07	0.597±0.05	0.417±0.05	0.545±0.05	0.546±0.05
GTSRB	0.296±0.03	0.853±0.02	0.762±0.03	0.981±0.004	0.982±0.004
STL10	0.425±0.05	0.523±0.05	0.413±0.04	0.512±0.05	0.521±0.05
FMNIST	0.801±0.05	0.909±0.02	0.912±0.02	0.916±0.02	0.917±0.02
Medical images
dermamnist	0.439±0.09	0.527±0.07	0.352±0.07	0.348±0.1	0.462±0.06
pneumoniamnist	0.837±0	0.932±0	0.908±0	0.94±0	0.868±0
retinamnist	0.377±0.1	0.506±0.07	0.444±0.08	0.401±0.1	0.407±0.1
breastmnist	0.641±0	0.751±0	0.698±0	0.682±0	0.691±0
bloodmnist	0.742±0.05	0.864±0.04	0.784±0.04	0.865±0.03	0.866±0.03
organamnist	0.771±0.05	0.872±0.03	0.868±0.03	0.814±0.05	0.717±0.08
organcmnist	0.766±0.04	0.848±0.03	0.797±0.04	0.76±0.05	0.733±0.06
organsmnist	0.58±0.06	0.69±0.05	0.653±0.04	0.589±0.06	0.533±0.08
organmnist3d	0.845±0.04	0.902±0.03	0.89±0.03	0.914±0.03	0.434±0.09
nodulemnist3d	0.707±0	0.773±0	0.693±0	0.636±0	0.651±0
fracturemnist3d	0.569±0.09	0.279±0.05	0.425±0.2	0.5±0.07	0.451±0.1
adrenalmnist3d	0.602±0	0.718±0	0.894±0	0.924±0	0.946±0
vesselmnist3d	0.547±0	0.615±0	0.58±0	0.43±0	0.405±0
synapsemnist3d	0.498±0	0.506±0	0.0612±0	0.189±0	NaN
Chemical formula
bace	0.62±0	0.704±0	0.678±0	0.483±0	0.575±0
BBBP	0.693±0	0.715±0	0.603±0	0.553±0	0.66±0
clintox	0.634±0	0.365±0	0.238±0	0.0869±0	0.0868±0
HIV	0.471±0	0.465±0	0.159±0	0.0407±0	0.0473±0
