Mechanism of the Ikaite Formation in the Modern Sediments of the Kara Sea

1. Introduction

Ikaite (CaCO₃·6H₂O - hexahydrate of calcium carbonate) is a unique mineral that forms at low temperatures during early diagenesis. When the temperature exceeds 6-7 °C, ikaite loses water, resulting in the formation of calcite [1,2,3]. The transformation to calcite often occurs through an intermediate vaterite phase [3,4,5]. The calcite form often preserves the shape of ikaite crystals, forming a pseudomorph known as glendonite [6,7]. This mineral is also known by several other names, including gennoishi, thinolite, jarrovite, White Sea hornlets etc [6,8]. Pseudomorphs of ikaites are commonly used as indicator of past climate cooling, as they can only be found in areas with cold ocean floors [2,8,9,10].

On the other hand, the confirmed presence of methane-derived carbon in the crystal lattice of certain modern ikaites from bottom sediments [4,11,12,13], provides a basis for comparing glendonites enriched in light ¹²C isotope with ancient methane seepage sites [14,15]. In this context, collecting data on the processes that lead to ikaite formation in modern bottom sediments from various environments is essential for understanding both the potential use of these sediments in reconstructing past climate changes and the characteristics of the carbon cycle, especially in Earth’s polar regions.

The bottom sediments of the Kara Sea are one of the most favorable environments for the formation of ikaite, as confirmed by numerous findings of this mineral [12,16,17]. The formation of ordinary anhydrous authigenic carbonates on the Arctic shelf is inhibited, mainly due to the low and sometimes negative temperatures of the bottom water. Single occurrences of such carbonate minerals in the Kara Sea are represented by calcite [18,19].

2. Materials and Methods

Offshore research in the southeastern part of the Kara Sea was conducted on board the R/V Fridtjof Nansen (PINRO) in August 2015. During the coring operation at three different sites (FN-76T, FN-169T, and FN-170T), we discovered ikaite concretions at various depths in the sediment (Figure 1, Table 1). These concretions appeared in the form of rounded "needle-shaped" nodules or as intergrowths of individual crystals. In our work we also used the results of ikaites studies in the Kara Sea, previously published by other researchers [12,20] (Figure 1, Table 1).

The δ¹³С and δ¹⁸О isotopic composition of ikaite, as well as the δ¹³С value of organic carbon (C_org) in sediments, were determined using a Finnigan Delta Plus XP mass spectrometer. Limestone NBS-19 was used as a standard. The δ¹³С values are reported on the VPDB scale, while the δ¹⁸О values are reported in the VPDB scale for carbonates and the VSMOW scale for water.

X-ray diffraction analysis of ikaite was carried out under vacuum conditions using a Rigaku “Ultima IV” diffractometer. The anode material is a standard CuKα X-ray tube. The nominal operating mode of the X-ray source is 40 kV / 35 mA. Scan range 2θ angles from 5° to 85°. Reflected X-ray detector - high-speed energy dispersive detector D-TexUltra. Silicone was added as a standard for peak correction. XRD measurements of ikaite were conducted at intervals of 5 minutes, 20 minutes, 3 days and 30 days, under controlled conditions at 25 °C and a 1 atm pressure (Figure 2). For the sample held for 5 minutes under standard conditions, the rate of XRD measurement was 20° 2 θ per minute. Subsequent measurements were performed at a slower rate of 5° 2 θ per minute.

Thermal XRD-analysis of ikaites was conducted in the temperature range from -30° to +50 °C under vacuum conditions using a research complex based on the Rigaku “UltimaIV” diffractometer equipped with a medium- and low-temperature Rigaku “R-300” attachment. A resistive heater external to the sample was used. The temperature gradient throughout the sample did not exceed ±2.5 °C. The measurement speed was 2°/min, the heating rate was 5°/min. Before each measurement, the sample was kept for an hour at a certain temperature.

The concentrations of rare earth elements in the ikaite and sediment samples were determined using inductively coupled plasma mass spectrometry (ICP-MS), following acid digestion. Measurements were conducted using an ELEMENT 2 mass spectrometer (Thermo Fisher Scientific GmbH) at the Geological Institute of the Russian Academy of Sciences.

3. Results

The sediment cores analyzed (FN-76T, FN-170T and FN-196T) were collected from the southern part of the Kara Sea, under the influence of the Yenisei River (Figure 1). The water depth at the sampling sites varied from 36 to 50 m. The host sediments of all sites were represented by Upper Pleistocene-Holocene sediments, usually of fine-grained composition. These sediments often had a noticeable odor of hydrogen sulfide. Mollusk shells, polychaete tubes, small spottiness and lenses of hydrotroilite were observed in the cores. These features of the sediment are a consequence of reduced conditions.

The ikaite crystals were found at different depths beneath the sea floor and had distinct shapes (Figure 1). At site FN-76T, druses of honey-yellow crystals with diameter of 4-5 cm were observed at a depth of 70 cm below the see floor. Spherical intergrowths of crystals in the sediment range of 65-70 cmbsf were found at the site FN-170T. At the site FN-196T, individual ikaite crystals were sampled at the sediment depth of 90 cmbsf. In all cores, ikaite was found in more compacted clayey sediments than the overlying ones.

The results of XRD measurements indicate that calcite formed 20 minutes after keeping the sample under standard conditions contained a small amount of magnesium in the crystal lattice; its formula can be written as (Mg_0.03, Ca_0.97)CO₃. The XRD analysis revealed that traces of the ikaite phase existed in the sample for at least three days. XRD-measurements taken after 30 days showed the disappearance of reflexes corresponding to ikaite - a complete transformation of ikaite into calcite occurred. The presence of intermediate phases such as vaterite was not detected. It was established earlier that when the temperature differential between formation and breakdown is larger (e.g. > 15 °C), vaterite was observed to form as an intermediate stage, whereas when this differential was < 10 °C, only calcite formed [3,23].

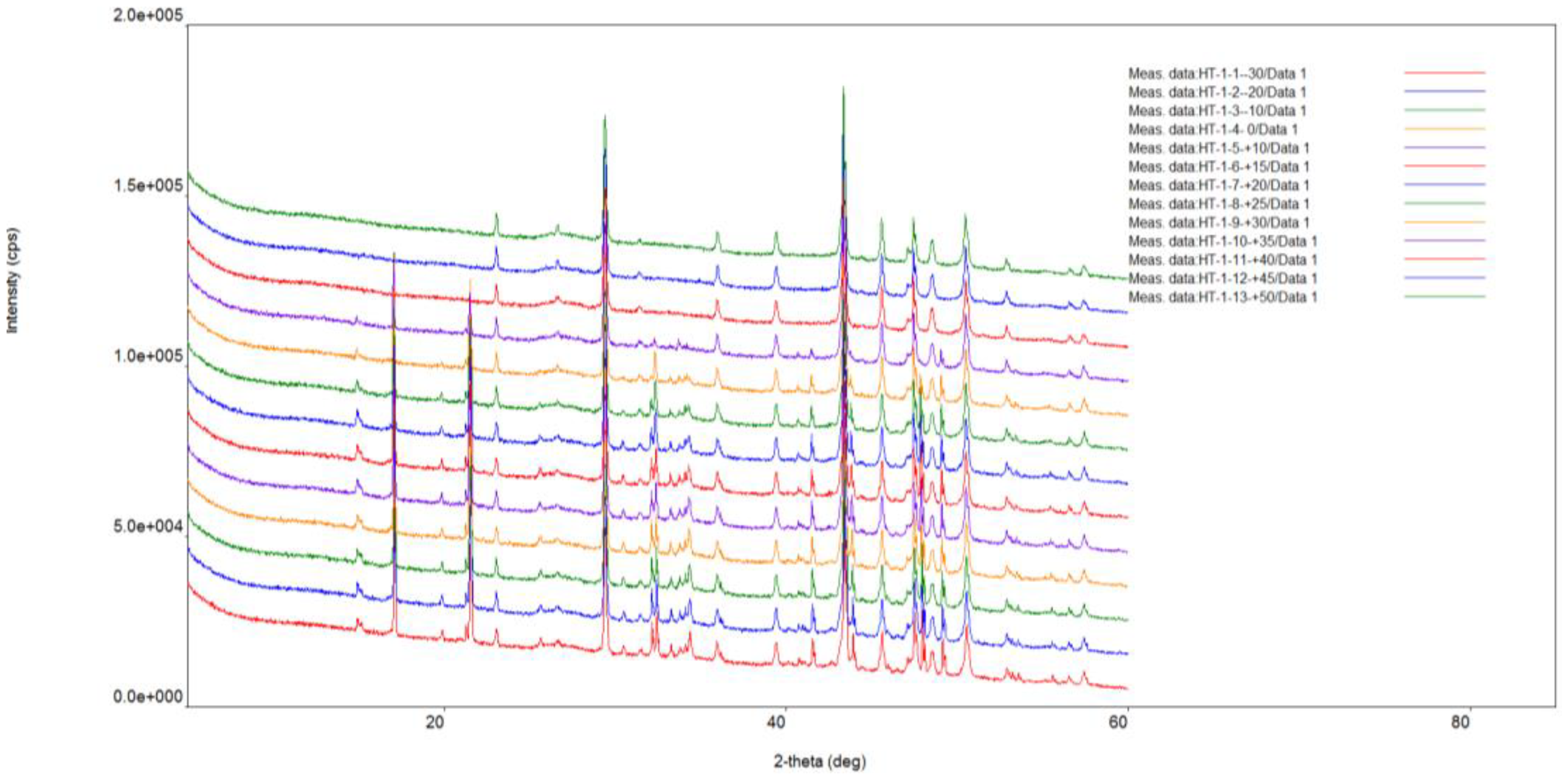

The results of thermal XRD-analysis of the ikaite-calcite transition in the temperature range from -30 °C to +50 °C are shown in Figure 3.

The X-ray diffraction pattern (Figure 3) shows that reflections shift towards larger angles when the sample is heated, indicating that water is being removed from the interlayer space. The peaks of ikaite gradually become less pronounced and eventually disappear completely at a certain temperature. At the same time, an increase in the areas of calcite reflections is observed.

Figure 3. Results of thermal XRD-analysis of ikaite crystal from site FN-76T.

Figure 3. Results of thermal XRD-analysis of ikaite crystal from site FN-76T.

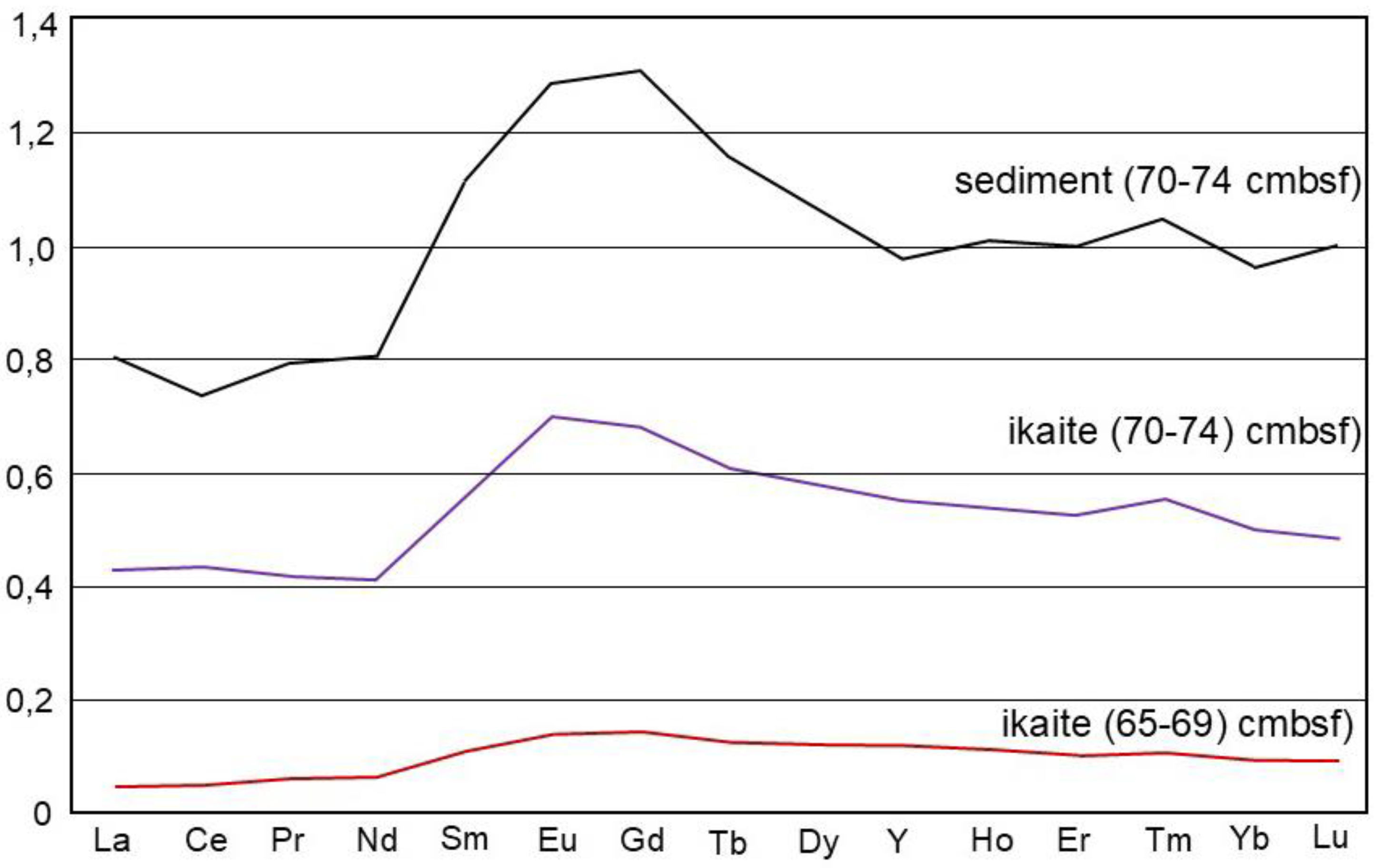

The rare earth elements (REE) concentrations in ikaite and sediment from site FN-169T (Table 2) were normalized to the Post-Archean Australian Shale (PAAS; [24]), with the PAAS-normalized REE data presented in Figure 4. The ikaites are characterized by a luck of Ce anomaly (Ce/Ce* = 0.94 and 1.03), a MREE (Sm-Dy)-bulge, positive Eu anomaly (Eu/Eu* = 1.1 to 1.13), and superchondritic Y/Ho ratios (29 and 28) (Figure 4). The sediment sample has Ce/Ce* and Eu/Eu* values of 0.92 and 1.06, respectively, along with a pronounced MREE-bulge and a Y/Ho ratio of 26.4. The REE content in the ikaite sampled from a depth of 70 cmbsf was significantly higher than in the ikaite from a level of 65 cmbsf (Table 2), suggesting a higher degree of contamination in the former sample with the sedimentary material.

In addition to the ikaite samples collected during our expedition on the R/V Fridtjof Nansen, this mineral has also been found in the Kara Sea several times by other researchers [12,16,17,20,21,22,25]. The first documented discovery of ikaite in the sediments of the Kara Sea was made in 1997 at site 97-24 during a scientific cruise on the R/V "Akademik Boris Petrov" [21]. Small bladed and needle-shaped crystals, less than 2 centimeters in size, as well as twinned crystal intergrowths ranging from 1 to 5 centimeters, were found in the dark gray clay between depths of 5 and 25 cmbsf. Their δ¹³C values ranged from -30 to -28.8‰ VPDB (Table 1) [20,21].

Detailed studies of ikaites collected at two sites during the cruise of the R/V "Akademik Boris Petrov" in 2001 are presented in the paper by [12]. In the sediments from site 01-26, at a sub-bottom depth of 226-230 centimeters, a spherical cluster of small (less than 1 centimeter) bladed ikaite crystal intergrowths were sampled. The cluster was approximately 5 centimeters in diameter. We found a similar sample, although smaller in size, in the sediment of site FN-76T, which is located north of site 01-26 (Figure 1). Not only the morphology, but also the carbon isotope composition of the ikaite samples is similar: - 20.5‰ (in site FN-76T) and -24.0‰ (in site 01-26).

In the sediments from site 01-55 ikaite samples were found at a depth of 135 cmbsf in the form of single crystals and as intergrowths of 2-3 crystals up to 6.5 cm long [12]. Below, at a level of 165 cmbsf, a large pyramid-shaped crystal with size of 4.5 × 12 cm was discovered, along with three smaller crystals. The δ¹³С values of these ikaite samples vary from -42.3 to -40.1‰ VPDB (Figure 1, Table 1). The shape and size of ikaite crystals are likely to be directly influenced by the rates of crystallization. These rates are determined by factors such as temperature, the presence of anhydrous carbonate inhibitors, and the level of supersaturation of pore water with calcium and bicarbonate ions.

Numerous pyramidal ikaite crystals, 2-4 cm long, were found in the sediments at site 03-07, between depth of 175 cmbsf and the base of the section at 320 cmbsf [20]. The δ¹³C values of the ikaites at this site range from -57.3‰ (same as in our site FN-170T) to - 28.8‰ VPDB (Figure 1, Table 1).

The discovery of an intergrowth of honey-yellow ikaite crystals during a cruise on the R/V Geophysic in 1999 (site 0502) was reported in [16]. Unfortunately, no analytical studies have been conducted on this sample.

Most of the ikaite samples are found in the “sea continuation” of the Yenisei River (Figure 1). Only one site with ikaite was found within the zone of influence of the Ob River waters (BR03-07, Figure 1).

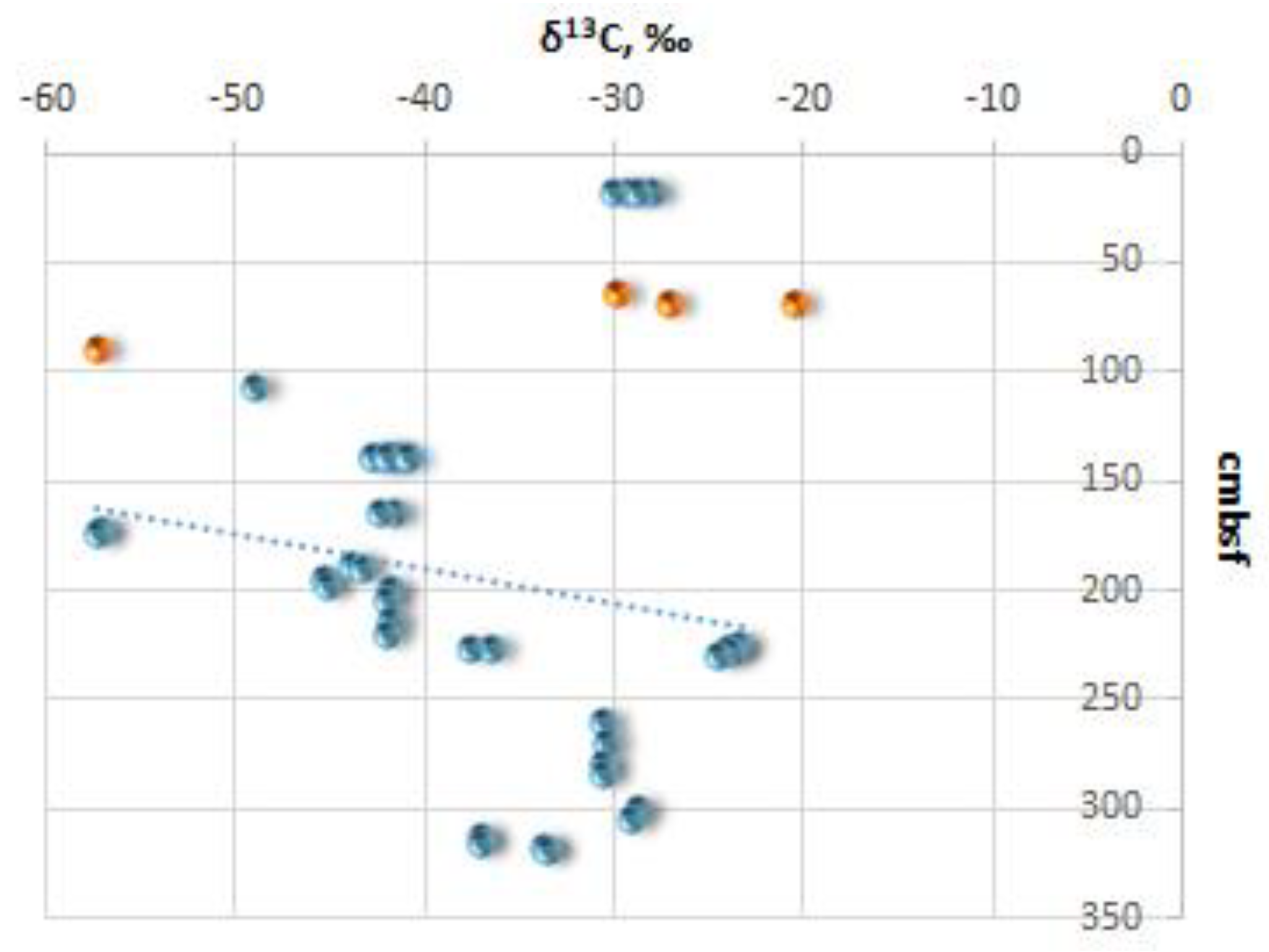

The measured δ¹³С (Figure 5) and δ¹⁸О values of all ikaite samples from the Kara Sea range from -57.3 (site FN-170T) to - 20.5‰ VPDB (site FN-76T) and from -1.3 (site FN-169T) to 1.84‰ (st. 170T) VPDB, respectively (Table 1). It is important to note that the ikaite samples with the highest and lowest carbon isotopic values (δ¹³C) were collected during our expedition on the R/V Fridtjof Nansen. In the sediment samples from site FN-169T we detected the following values: C_org content (1.7...1.84%), C_carb content (0.08%), and δ¹³Сorg (-25.5 ‰) (Table 1).

4. Discussion

Carbon Isotope (δ¹³С) in Ikaite

The variation in δ¹³C values of ikaite samples from the Kara Sea, ranging from -20.5‰ at site FN-76T to -57.3‰ VPDB at sites FN-170T and PB03-07, provides insight into the primary carbon sources involved in the formation of ikaite. Authigenic carbonates with extremely low δ¹³C values typically form in sediments within areas of focused discharge of hydrocarbon fluids. In these areas, isotopically light carbon released during anaerobic methane oxidation enters the crystal lattice of the carbonates. Such anhydrous methane-derived carbonates with an isotope composition as light as -60.1‰ VPDB have also been found in the sediments at site BR00-37 in the Kara Sea [20]. The average isotopic composition of the total organic carbon in the exospheric reservoirs is approximately δ¹³Corg = -22‰ [20]. Therefore, the δ¹³C values of ikaite samples that contain carbon from organic matter are expected to vary around this value. The wide range of δ¹³C values observed in ikaite samples from the Kara Sea can be explained by the different sources of carbon that contributed to their formation. The main sources of carbon were organic matter and methane.

Carbon Mass Balance in Ikaite

Carbon can be incorporated into calcium carbonate hexahydrate in a similar way to that of marine early diagenetic authigenic carbonates [26]. The main sources of dissolved inorganic carbon (DIC) in pore water include: 1) the oxidation of organic matter (OM); 2) anaerobic oxidation of methane (AOM); 3) carbon from the oxidation of methane homologues. However, the real sources of carbon in our ikaite samples could be the first two components mentioned above: oxidized organic matter and AOM. Indeed, hydrocarbon gases in the Late Pleistocene-Holocene ikaites-bearing sediments of the Kara Sea are composed almost entirely of methane [20]. Therefore, the carbon from methane homologues (C²⁺) can be ignored. Thus, the mass fractions of different carbon sources can be calculated using the following simple formula:

$$F_{\mathrm{D}\mathrm{I}\mathrm{C}}=F_{OM}{+F}_{{\mathrm{C}\mathrm{H}}_4}=1,$$

(1)

where F_DIC is the DIC fraction of pore water that ikaite crystallizes from; F_OM is the proportion of carbon released during the oxidation of OM; F_CH4 is the proportion of carbon released during AOM.

Considering the δ¹³C values of each carbon source, we can write the mass balance equation as follows:

$${{F_{\mathrm{D}\mathrm{I}\mathrm{C}}\mathsf{\delta }}^{13}\mathrm{C}}_{\mathrm{D}\mathrm{I}\mathrm{C}}={{F_{OM}\mathsf{\delta }}^{13}\mathrm{C}}_{OM}{+F}_{{\mathrm{C}\mathrm{H}}_4}{{\mathsf{\delta }}^{13}\mathrm{C}}_{{\mathrm{C}\mathrm{H}}_4}$$

(2)

The initial values for the balance calculations (δ¹³C-CH₄ and δ¹³C-C_org values) are presented in Table 1. To calculate the carbon source budget for ikaites from our study sites (FN-76T, FN-169T, and FN-170T), we used the δ¹³C-C_org value measured in sediments from site 169T. During the anaerobic oxidation of organic matter in the sulfate reduction zone, there is minimal isotopic fractionation occurs (e.g. [27]). Therefore, carbon with an isotopic composition close to that of the organic matter enters the pore water. Unfortunately, during the expedition of the R/V Fridtjof Nansen, it was not possible to obtain sufficient methane concentrations to measure δ¹³C-CH₄ values. Therefore, we used data from previous studies on cores containing ikaite from the Kara Sea [12,20]. The minimum δ¹³С value of methane in these cores is -86‰, and the maximum is -78.2‰ VPDB (see Table 1, Table 3). At a temperature of -1.4 °C, the coefficients of carbon isotopic fractionation between ikaite and DIC in pore water are α = 1.001-1.002, as reported by M. Whiticar and E. Suess [28]. This means that the isotopic compositions of their carbon will differ by 1-2‰ (Table 3).

Based on the data provided, we can determine the proportions of different carbon sources in our ikaite samples (Table 3).

Table 3. Proportions of carbon from methane and organic matter in the composition of ikaites.

Ikaite occurrence cmbsf	δ13C-ikaite ‰ VPDB	δ13C-DIC ‰ VPDB	δ13C-CH4 ‰ VPDB	δ13C-Corg ‰ VPDB	CH4 %	OM %
Site FN-76T
70	-20.5	-21.5	-78.2…-86.0	-25.5	0	100
Site FN-169T
65-69 70-74	-29.8 -27.0	-30.8 -28.0			9-10 4-5	90-91 95-96
Site FN-170T
90	-57.3	-58.3			54-62	38-46

Table 3. Proportions of carbon from methane and organic matter in the composition of ikaites.

Ikaite occurrence cmbsf	δ13C-ikaite ‰ VPDB	δ13C-DIC ‰ VPDB	δ13C-CH4 ‰ VPDB	δ13C-Corg ‰ VPDB	CH4 %	OM %
Site FN-76T
70	-20.5	-21.5	-78.2…-86.0	-25.5	0	100
Site FN-169T
65-69 70-74	-29.8 -27.0	-30.8 -28.0			9-10 4-5	90-91 95-96
Site FN-170T
90	-57.3	-58.3			54-62	38-46

All carbon in the crystal lattice of ikaite from site FN-76T originated from the oxidation of organic matter. For site FN-170T, however, methane was the main source of carbon (54-62%) in ikaite. In samples from site FN-169T, most of the carbon was derived from the breakdown of organic matter (90-96%), with only a small amount coming from AOM (4-10%).

Oxygen Isotopes (δ¹⁸O) in Ikaites

The oxygen isotope composition of ikaite's "carbonate part", as well as anhydrous carbonates, is dependent on the δ¹⁸O values of pore waters and crystallization temperature. The measured δ¹⁸О ikaite values vary from -1.3 (site 169T) to 1.84‰ VPDB (site 170T), with a difference of 3.14‰ (Table 1). The bottom temperatures in the area where samples were taken ranged from -1.3 to -1.5 °C. Based on the available data, the theoretical δ¹⁸O value of the pore water from which the ikaite crystallized could be calculated using the following equation, which is commonly used for calcites [29]:

$${{10}^{3}ln}_{Ca{CO}_3-H_{2}O}=18.03\left({10}^3{T}^{-1}\right)-32.42$$

(3)

where α—oxygen isotope fractionation factor, T—temperature in Kelvin.

The theoretical δ¹⁸O values of pore water depends on temperature, and are therefore provided in Table 4 for both bottom temperatures of -1.3 and -1.5 °C. The calculation results indicate that the theoretical δ¹⁸O values of the pore water range from -4.8 to -1.6‰ VSMOW (Table 4). These pore water δ¹⁸O isotopic values approximately correspond to variations in Kara Sea water salinity from -33 to -27‰ [30,31]. This indicates a relatively weak desalination process during the crystallization of ikaites. Variations in the theoretical pore water δ¹⁸O values calculated are likely due to changes in the depth of penetration of river water (mainly from the Yenisei River) into the Kara Sea over time.

REE and Tract Elements

Generally, marine carbonate rocks have their own characteristic REE pattern [32] which are: (1) homogeneous HREE enrichment (2) La positive anomalies and (3) Ce negative anomalies if the carbonate rocks were deposited in oxidizing condition.

Because Ce and Eu have two ions with different electrovalence, they often show anomaly in chemical sedimentary rocks. The negative anomaly of Ce results from the differentiation between Ce³⁺ and adjacent elements due to the oxidation of Ce³⁺ into Ce⁴⁺. In oxidized water, soluble Ce³⁺ oxidizes to into insoluble Ce⁴⁺, which is then fixed within sedimentary particles and organic matter. This reaction causes a loss of Ce in water. Therefore, the redox condition of water during carbonate deposition can be inferred from the enrichment or loss of Ce ion between its atom and adjacent elements (e.g. [33]).

Table 4. Theoretical calculated δ¹⁸O values of pore water in which ikaites crystallized.

Site	δ18O ikaite, ‰ VPDB	δ18O pore water, VSMOW
		t = -1.3 °C	t = -1.5 °C
76t	1.45	-2.0	-2.1
169t	-0.5	-3.9	-4.0
	-1.3	-4.7	-4.8
170t	-1.84	-1.6	-1.7

Table 4. Theoretical calculated δ¹⁸O values of pore water in which ikaites crystallized.

Site	δ18O ikaite, ‰ VPDB	δ18O pore water, VSMOW
		t = -1.3 °C	t = -1.5 °C
76t	1.45	-2.0	-2.1
169t	-0.5	-3.9	-4.0
	-1.3	-4.7	-4.8
170t	-1.84	-1.6	-1.7

Moderate Ce negative anomalies observed in carbonates are consistent with modern seawater [34], and, therefore, provide strong evidence about formation in a seawater environment that was mostly oxygenated. In our study, a minor negative Ce anomaly was recorded in the sample of bottom sediment containing ikaite but was not present in the ikaite samples. The Ce/Ce* values in our ikaites (0,94 and 1,03) likely reflect a redox environment.

Eu positive anomaly is usually caused by the differentiation of Eu³⁺ ions from neighboring elements due to their reduction to Eu²⁺. Eu³⁺ is reduced to Eu²⁺, which reduces the radius of Eu ions and enables Eu ions to substitute Ca²⁺ into the crystal lattice of carbonates. There are Eu and Gd positive anomalies in our samples that are different from Eu/Eu* in modern seawater. The Eu positive anomalies in marine carbonate rocks could not be directly caused by the reduction of seawater, but by the mixing of dust (e.g. continental weathering product), river water or hydrothermal fluid with seawater [32]. Obviously, the latter option is extremely unlikely.

The MREE-bulge (Sm-Dy) observed in ikaite, and sediment samples could likely reflect the presence of organic matter during early diagenesis [35]. Superchondritic Y/Ho ratios of the studied ikaites (28 and 29) reflect a significant input of clastic material during ikaite formation [36].

The Mechanism of Ikaite Formations in the Kara Sea Sediments

An important issue that scientists are actively discussing is why ikaite forms instead of the more thermodynamically stable anhydrous forms of calcium carbonate. It is believed that, in addition to low temperatures, the inhibition of calcite and aragonite is facilitated by the presence of certain chemical compounds in the pore water, such as phosphate ion [12,13,37,38,39,40,41,42], Mg²⁺ [43,44] and amino acids [40]. These compounds may ultimately lead to the formation of ikaite. The results of laboratory experiments have shown that a high Mg²⁺/Ca²⁺ ratio is sufficient to stabilize ikaite, which can be formed without the addition of phosphorus, even at temperatures well above 6-7 °C [23,44,45,46]. However, the solutions used in laboratory experiments to grow ikaite typically have pH values and Mg²⁺ concentrations that are not representative of those found in marine early diagenetic sediments. As a result, these laboratory conditions do not accurately reflect natural environments. Magnesium is the fourth most abundant element in seawater and its role in inhibiting calcite formation has been well known for a long time [47]. However, high concentrations of magnesium in seawater alone are not enough to promote ikaite formation, otherwise it would occur much more frequently. Unstable minerals from basic and ultrabasic rocks may contribute additional magnesium during the early diagenesis. However, their high concentrations in bottom sediments are more the exception than the rule. Although the Yenisei River transports clinopyroxene into the Kara Sea, eroding the basalt-covered Putorana Plateau, the overall amount of heavy minerals in the silt and sand fractions of bottom sediments is typically quite low [48]. Magnesium-containing clay minerals, such as chlorite and montmorillonite, remain stable during the early diagenesis. Their significant destruction occurs at greater depths and higher temperatures, associated with late diagenesis and catagenesis processes. A sharp increase in the Mg²⁺/Ca²⁺ ratio in pore waters within layers containing ikaites is not the cause of their crystallization, but rather a result of this process [42].

An increase in the concentration of phosphate ions in pore waters during early diagenesis is a natural consequence of the decomposition of organic matter. This process is typically driven by microbial activity, which occurs in the sulfate-reducing zone:

(CH₂O)₁₀₆(NH₃)₁₆(H₃PO₄) + 53SO₄^2- → → 106CO₂ + 16NH₃ + 53S^2- + 106H₂O + H₃PO₄,

(4)

The process of anaerobic methane oxidation (AOM) begins when methane enters the sulfate reduction zone, as follows:

CH₄ + SO₄^2- = HCO₃^- + HS^- + H₂O,

(5)

As can be seen from reaction (5), the result of the AOM process is an increase in alkalinity, which contributes to the formation of carbonate nodules. However, this process does not result in the release of magnesium or phosphorus into the pore water. Thus, AOM alone would lead to the formation of anhydrous carbonates, rather than ikaite. This is exemplified by the methane seeps at the bottom of the Laptev Sea, where calcite formations have been observed [49,50,51]. If AOM occurs in combination with the oxidation of organic matter, ikaite may form based on reaction (4), which involves the release of phosphate-ions into the pore water. This is supported by the isotopic analysis of δ¹³C in the ikaite samples we collected, which suggests that often both methane and organic matter contributed to the carbon content of the crystal lattice (Table 3). The balance calculations showed that the percentage of methane carbon in our samples ranged from 0% to 62%, and the percentage of organic carbon ranged from 38% to 100%. This suggests that microbial degradation of organic matter may play a significant role in the formation of ikaite. It is worth noting that the findings of ikaites are typically located in areas where large Siberian rivers discharge into the Kara Sea, as well as further offshore from these zones. Rivers carry large amounts of organic material, which can accelerate diagenetic processes and, consequently, promote the formation of ikaite crystals.

5. Conclusions

The sediments of the Kara Sea contain a significant amount of ikaite, which forms at depths between 10 and 320 cmbsf. Below this level, the ikaite is likely transformed into anhydrous forms of calcium carbonate (Table 1). The findings of these minerals are mainly located in areas along the continuation of the Yenisei (8 sites) and Ob (1 site) Rivers. The primary factor influencing the formation of ikaite crystals is the diagenesis of organic matter. This process results in the release of phosphate ions into the pore water, which stabilizes ikaite. The relationship between river runoff and ikaite formation is likely due to the supply of organic carbon from rivers, which promotes early diagenetic processes. In some cases, a second source of carbon in ikaite may be the process of anaerobic oxidation of methane. The latter can be identified based on the light isotopic composition of carbon (δ¹³C) in ikaite. In areas with intense methane seepage and rapid AOM, the formation of anhydrous calcium carbonate crystals is more likely.
