Decoupling CO₂ Emissions and Economic Growth Across the U.S

1. Introduction

Mitigating global climate change through reduction of greenhouse gas emissions is a challenge of increasing urgency. It is a particular challenge because of the current fundamental interdependence of greenhouse gas emissions with economic production and human development. The primary cause of anthropogenic global climate change is the emission of greenhouse gases (GHGs), most importantly carbon dioxide (CO₂) from fossil-fuel combustion and other industrial processes [1]. A decoupling of CO₂ emissions and the economy, as represented by the Gross Domestic Product (GDP), needs to occur to achieve the global aspirations of combating climate change e.g., [1,2,3]. However, as Haberl et al. [4] note, shifting to renewable energy while sustaining current rates of economic growth may not solve the problem, and “meeting the goals of the Paris Agreement will require new and more effective policies than those deployed so far.”

Reducing greenhouse gas emissions and achieving a low carbon economy will likely involve a reorganization of the patterns and scales of human activity. CO₂ emissions per unit of value added (CO₂/GDP) provides a simple measure to explore this transition. Exploring this measure of decoupling emissions across time and space can provide insights to help guide understanding and decision-making.

While combating climate change has been a global priority for decades, progress on international and national public policy has moved slowly. This has driven subnational actors (such as cities, counties, and provinces), as well as non-state actors (such as corporations and non-government organizations) to enact their own policies to reduce their carbon footprints e.g., [5,6]. It is apparent that relevant and important decision-making occurs at multiple scales. It is also apparent that current broad differences, including inequities, between and within countries provide different incentives and opportunities for improvement among different demographics. Although CO₂/GDP has been mostly explored at the national level, there is a need to explore subnational variability to understand both national and within-country dynamics of the goals and their pursuit. National indicators may mask strong subnational differences, differences that may be meaningful in several ways - such as understanding the spatial disaggregation of national economies or identifying local challenges, ‘successes,’ ‘failures,’ inequities, and/or motivations. There is much insight to be gained by examining the sub-national scale. The linkage of CO₂ emissions and GDP, and their evolution over time at a sub-national scale, should begin to reveal important elements of difference, including equity and social justice.

Products and data are now available to leverage multi-scale earth observations to evaluate indicators such as CO₂/GDP at the national level, but additional tools are needed at the subnational scale to inform regional and local decision makers. This paper explores the subnational distribution of decoupling greenhouse gas emissions in the United States (U.S.). We focus on the U.S. due to the availability of multiple-scale data on CO₂ emissions and GDP. Using CO₂/GDP we identify eight potential patterns of change over time (which we call cases) and investigate where each case is being observed. Insights are provided on the sources of CO₂ emissions and changes in GDP for areas experiencing each case. In section 2 we discuss how we derive our cases, our sources of data, and some key issues of data processing. In section 3 we describe the variability in decoupling at the state and county scales. Section 4 discusses some factors related to this variability, and section 5 draws some brief conclusions.

We use CO₂/GDP as a measure of the decoupling of GHG emissions and economic growth and how this decoupling is proceeding at state and county scales in the U.S. Recent reports from the IPCC [1,7] tell us of the importance of reducing CO₂ emissions and of doing this in a manner that is sensitive to equity and social justice.

2. Materials and Methods

2.1. Decoupling GHG Emissions and Economic Growth - CO₂/GDP

Considering CO₂/GDP as a function of time we can explore trends in the ratio of two related functions, CO₂(t) and GDP(t):

$${\displaystyle \frac{{\mathbf{C}\mathbf{O}}_2\left(\mathbf{t}\right)}{\mathbf{G}\mathbf{D}\mathbf{P}\left(\mathbf{t}\right)}}={\mathbf{C}\mathbf{O}}_2\left(\mathbf{t}\right)\times {\mathbf{G}\mathbf{D}\mathbf{P}\left(\mathbf{t}\right)}^{-1}$$

(1)

Defining the proportional growth of each quantity $\mathit{X}\left(\mathit{t}\right)$ as $\mathit{r}\left(\mathit{X}\right)={\displaystyle \frac{1}{\mathit{X}}}{\displaystyle \frac{\mathit{d}\mathit{X}}{\mathit{d}\mathit{t}}}$ with units of [time]^-1, the counterpart for Eq. 1 for proportional growth rates is

$$\mathbf{r}(\mathbf{C}\mathbf{O}2/\mathbf{G}\mathbf{D}\mathbf{P})=\mathbf{r}\left({\mathbf{C}\mathbf{O}}_2\right)-\mathbf{r}\left(\mathbf{G}\mathbf{D}\mathbf{P}\right)$$

(2)

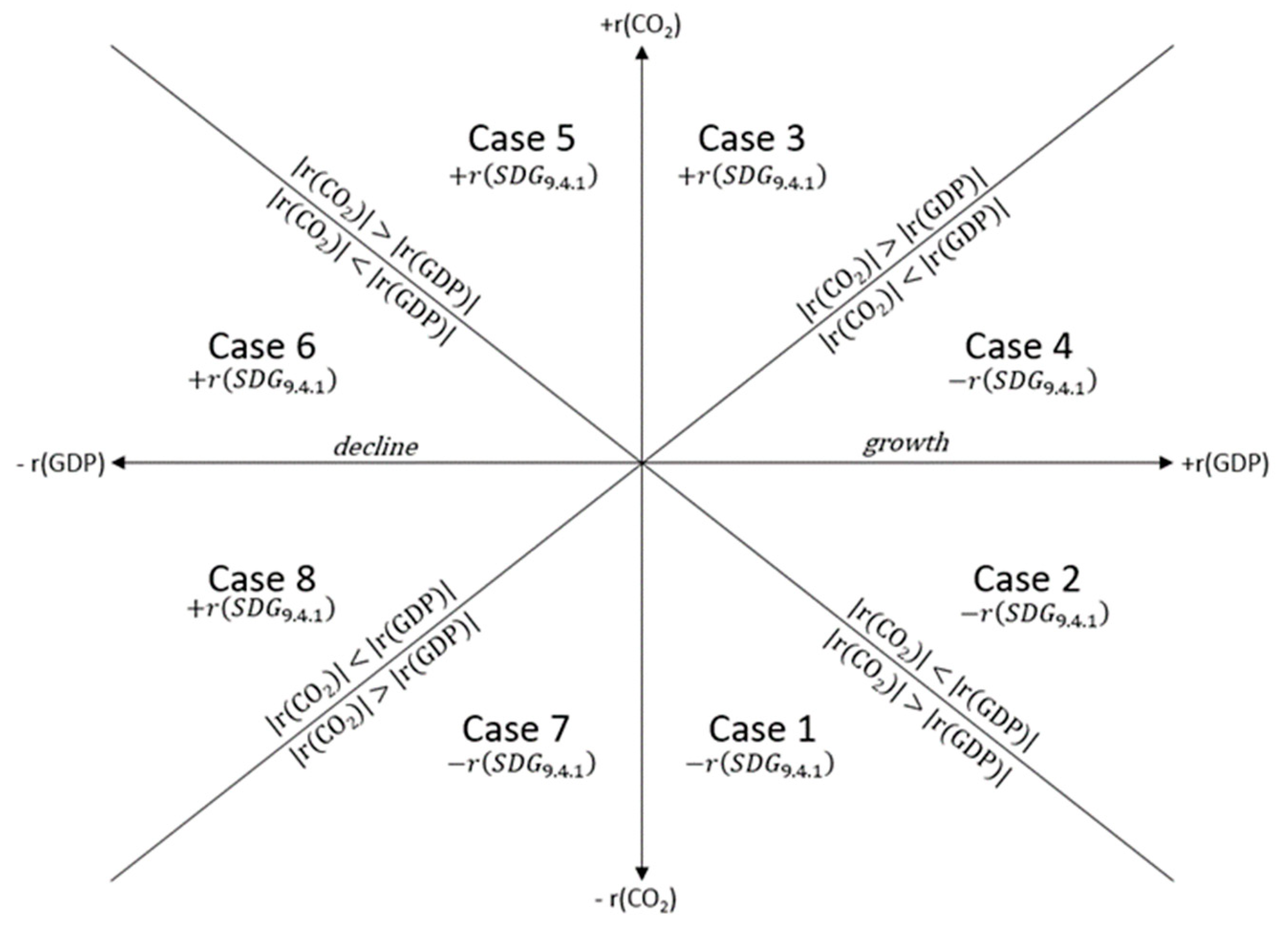

This allows us to categorize trends of CO₂/GDP into eight specific cases (see Table 1 and Figure 1). These 8 cases are defined by the rate and direction of change for $\mathbf{r}\left({\mathbf{C}\mathbf{O}}_2\right)$, $\mathbf{r}\left(\mathbf{G}\mathbf{D}\mathbf{P}\right)$, and $\mathbf{r}\left(\mathbf{C}\mathbf{O}2/\mathbf{G}\mathbf{D}\mathbf{P}\right)$; $\mathbf{w}\mathbf{h}\mathbf{e}\mathbf{r}\mathbf{e} \mathbf{r}(\mathbf{C}\mathbf{O}2/\mathbf{G}\mathbf{D}\mathbf{P})$is defined by the directions and relative magnitudes of $\mathbf{r}\left({\mathbf{C}\mathbf{O}}_2\right)$and $\mathbf{r}\left(\mathbf{G}\mathbf{D}\mathbf{P}\right).$ Ideally CO₂/GDP decreases over time - i.e., there is a decrease in the amount of CO₂ emissions per unit of economic output. This may or may not involve continuing economic growth.

The Organization for Economic Co-operation and Development [8] defines decoupling as “breaking the link between ‘environmental bads’ and ‘economic goods’,” specifically when “the growth rate of an environmental pressure is less than that of its economic driving force (e.g., GDP) over a given period.” Thus, when CO₂/GDP is decreasing, decoupling is occurring (cases 1, 2, and 4 below). Haberl et al. [4] further distinguish between absolute and relative decoupling: “GDP growth coinciding with absolute reductions in emissions or resource use is denoted as ‘absolute decoupling’ as opposed to ‘relative decoupling’, where resource use or emissions increase less so than does GDP.” By focusing on CO₂/GDP we identify a fourth case of decoupling, case 7, where both CO₂ emissions and GDP are decreasing, but emissions are decreasing faster. Cases 3, 5, 6, and 8 are then classified as “not decoupling” as they are not seeing a decrease in the ratio of CO₂ to GDP over time. Shan et al. [9] have used a similar analysis to examine decoupling of CO₂ emissions and GDP for cities in China. The IPCC [1] similarly distinguishes between absolute and relative decoupling. Our cases 1, 2, 4, and 7 all have negative values of CO₂/GDP, and all qualify as decoupling, but the distinctions in terms of the relative values for the changes in CO₂ and GDP are important and we carry forward the distinctions. Likewise, cases 3, 5, 6, and 8 all qualify as not decoupling but we preserve the important distinctions.

Table 1 and Figure 1 show that there are multiple paths to decreasing CO₂/GDP. Absolute decoupling occurs when CO₂ emissions decrease while GDP increases, cases 1 & 2. Relative decoupling occurs in other cases where the change in CO₂/GDP is negative (i.e. more GDP per unit of CO₂), in case 4, where CO₂ emissions are still increasing but at a decreasing rate with respect to GDP and in case 7, where the economy is in decline, but CO₂ emissions are declining faster than GDP. Not decoupling likewise occurs in several combinations. In case 3 the economy is growing, but at the cost of ever-increasing CO₂ emissions. Cases 5 and 6 are in economic decline despite increasing CO₂ emissions. Finally, in case 8, both GDP and CO₂ emissions are declining but GDP is declining faster so that the change in CO₂/GDP is positive and decoupling is not occurring. Table 1 provides a vocabulary to characterize and discuss the eight cases.

2.2. Data on CO₂ Emissions

Data are available on national-level CO₂ emissions from multiple sources. For example, the CDIAC-FF estimates of CO₂ emissions from fossil fuel combustion and cement manufacture provide annual, global measures of anthropogenic CO₂ from all countries for the time period 1751-2019 [10]. Other datasets also provide recent national-level estimates, but with slightly different boundaries of what is or is not included. Datasets may, for example, not include emissions from cement manufacture [11] or may include additional industrial sources of CO₂ [12]. With different system boundaries possible it is important that comparisons across countries or across time use consistent system boundaries for the accounting.

For our analyses at the level of U.S. states we use CO₂ emissions estimates from the U.S. Energy Information Administration for the years 2010-2015 [11]. The EIA obtains emissions estimates based on fuel type (coal, natural gas, petroleum) and does not include emissions from cement manufacture. We have adjusted the state data to account for the difference of the total sum of emissions from all states and the national estimate. The CO₂ emissions estimates are from direct fuel use from all sectors (residential, commercial, industrial, and transportation). The U.S. does not provide uncertainty values for the state-level emissions data, but it is generally expected to be comparable to or slightly larger than the uncertainty of the national estimates which is reported at -2 to +4 %.

To estimate county-level CO₂ emissions, we aggregated data from the Vulcan version 3.0 dataset [13], which provides 1 km x 1 km hourly CO₂ emissions estimates for the United States for the years 2010-2015. Emissions are categorized into ten source sectors and allow us to examine sectoral details to better understand the heterogeneous patterns at the county level: residential, commercial, industrial, electricity production, on-road, non-road, commercial marine vessel, airport, rail, and cement manufacture. For the benefit of graphic display, we have focused on the contiguous U.S. states. The critical Vulcan data that allow construction of CO₂ emissions estimates at the county level are only available for the 2010-2015 interval. The Vulcan estimates of emissions are based on multiple data sources, each with its own uncertainty, so uncertainty at the county level will vary with the mix of emission sources, and uncertainty at the national level is estimated at +/- 8% (13). The state-level Vulcan data are compared to sector and fuel-specific data in the EIA datasets, and the county-level CO₂ emissions data are believed to be sufficiently certain to support meaningful conclusions.

We utilize different CO₂ datasets at different scales to emphasize exploring the construct validity of CO₂/GDP and its eight cases as a useful tool over conserving the numerical consistency across spatial scales. We thus make use of the high accuracy of EIA data at the state level, as well as the analytic freedom afforded by the detailed, sectoral Vulcan data for the county level. Emissions from cement manufacture (which constitute less than 1% of U.S. emissions) are thus not included in the state data. While this affects the numerical values of CO₂/GDP, it has a negligible effect on our area of interest - patterns and trends.

2.3. Data on Economic Output (GDP)

For the U.S., the Department of Commerce, Bureau of Economic Analysis (BEA) [14] maintains data on GDP at the state and county levels. An advantage of confining this analysis to the U.S. is the detailed, multi-scale, spatially explicit data available on GDP and hence the avoidance of having to derive estimates from national or regional data or assumptions on per capita values.

2.4. Methods and Data Processing

Our county level analysis combined Vulcan 3.0 CO₂ emissions data with county-level GDP data from the BEA. Because Vulcan 3.0 quantifies CO₂ emissions at a resolution of 1 km x 1 km per 1 hour, analysis within a geographic information system was used to convert the data to the county and annual level. The complete Vulcan 3.0 dataset was downloaded from the Oak Ridge National Laboratory Data Archive Center. A county boundary shapefile was acquired from the 2019 U.S. Census Bureau TIGER/Line County data file [15]. Both the Vulcan raster files and U.S. County shapefile were imported into Esri’s ArcGIS Pro [16]. The projection of the U.S. County boundaries shapefile was reprojected to the Lambert Conformal Conic 2SP to match the Vulcan 3.0 georeferencing system. Using the Spatial Analyst tool Zonal Statistics as Table [17], the CO₂ emissions estimates were calculated and summarized within the county boundaries provided by the U.S. County boundaries shapefile and reported as a table. Each table contains 3108 records, the total number of counties and county equivalents in the conterminous United States (including 38 independent cities in Virginia). This process was repeated for each of the 6 Vulcan years, as well as for each economic sector.

A table was also created in R for the CO₂/GDP rates of change for both states and counties. This table derived the proportional growth rates for CO_2, GDP, and CO₂/GDP with units of inverse years. This was implemented in the code by taking the log of the ratio between values for 2010 and 2015 for CO₂ emissions and for GDP, which was then divided by five, the time span between the two years. For calculating the CO₂/GDP rates, the difference between the emissions rate and GDP rate was calculated as shown in Equation 2. The output was used to identify which case each state or county belonged in, based on the criteria in Table 1. The absolute and relative rates of change were calculated for the state and county level CO₂/GDP values. The relative change was determined by taking the 2015 value and dividing it by the 2010 value. The absolute change was calculated by taking the difference between the 2010 and 2015 values.

In this analysis the contiguous U.S. was taken to include 3080 counties and county equivalents, including ten of the independent Virginia cities that are not legally included in the counties in which they are geographically embedded (Alexandria, Chesapeake, Hampton, Newport, Norfolk, Portsmouth, Richmond, Roanoke, Suffolk, and Virginia Beach). All 28 of the other independent Virginia cities were processed with the appropriate counties. The District of Columbia was treated as a state comprised of one county.

3. Results

3.1. Decoupling CO₂ Emissions and Economic Growth: Trends of Changing CO₂/GDP in the United States at the State Level

While CO₂/GDP is often reported as a national aggregate, we focus on the substantial differences found at the state and at the county level in the United States, see also [18]. To track changes over time we focus on the period 2010-2015 as this time interval is supported with the high-resolution VULCAN 3.0 CO₂ emissions dataset [13].

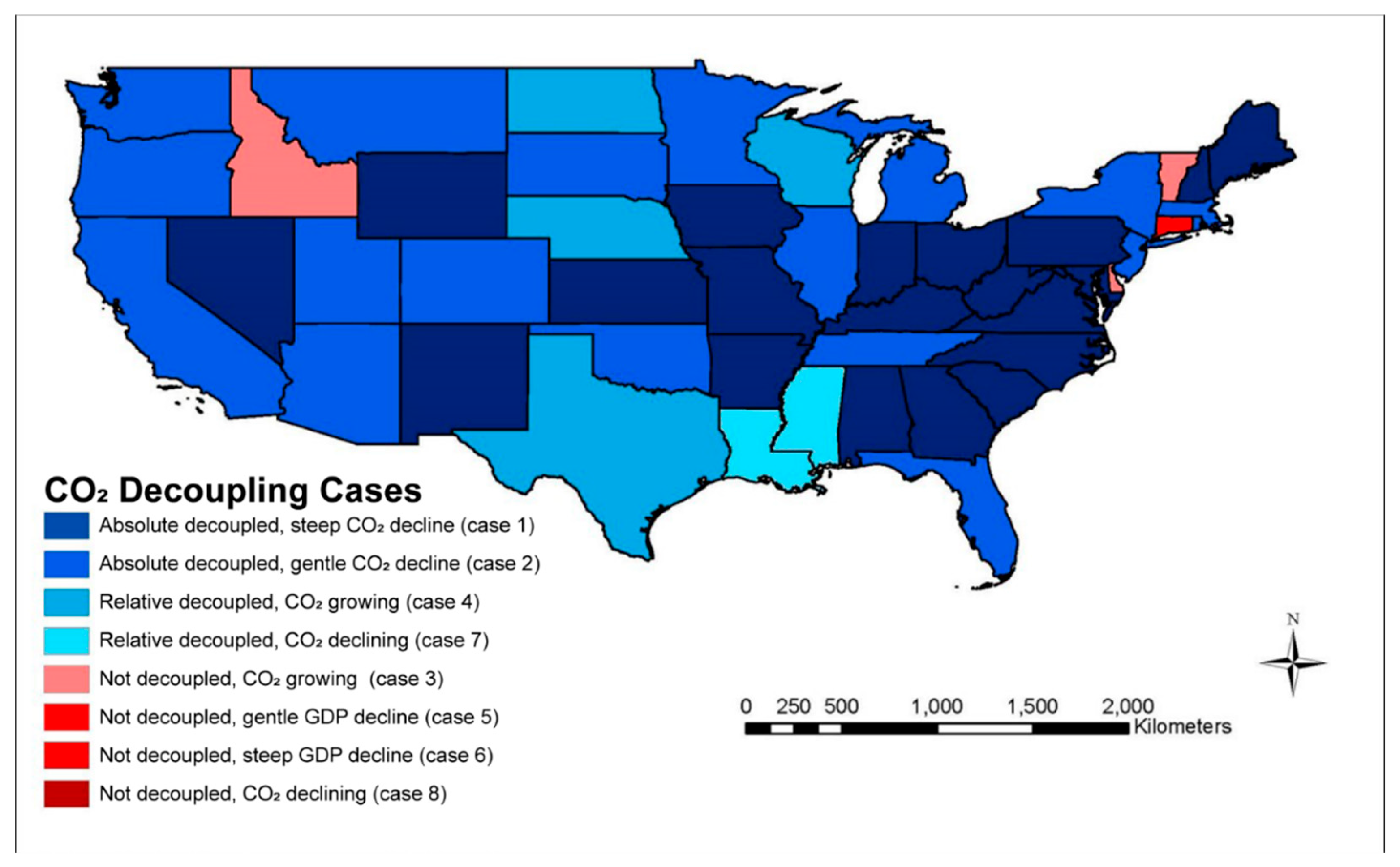

Although the majority of U.S. states (including the District of Columbia, which is absolute decoupling with steep CO₂ decline {case 1}) have shown absolute decoupling of greenhouse gas emissions and GDP (cases 1 and 2), with decreasing CO₂ and increasing GDP (Figure 2 and Table 2), there were 8 states with increasing CO₂ emissions over the 2010 to 2015 period. Delaware had the fastest rate of growth in both CO₂ emissions and CO₂/GDP. Four states (Louisiana, Connecticut, Mississippi, and Alaska) had decreasing GDP during this time period. The cases of not decoupling with CO₂ declining (case 8) and not decoupling with steep GDP decline (case 5) were not observed at the state level and only in Connecticut did CO₂ emissions increase while GDP decreased (case 6).

Georgia showed the fastest rate of increasing GDP and the fastest rate of decreasing CO₂/GDP. States decoupling with steep CO₂ decline were the source of an increased fraction of U.S. total CO₂ emissions despite their decreases in absolute total emissions. Almost 80% of U.S. emissions came from states with increasing GDP and declining CO₂ emissions (cases 1 and 2).

3.2. Decoupling CO₂ Emissions and Economic Growth: Trends of Changing CO₂/GDP in the United States at the County Level

At the county level the spatial distribution of CO₂/GDP cases is complex, with all 8 identified cases represented for the period 2010 to 2015. Approximately one-third of counties in the contiguous United States had growing economies with absolute decoupling of CO₂ emissions and GDP (cases 1 and 2, see Table 3) - whereas almost 80% of the U.S. states exhibited this absolute decoupling (Table 2). Counties with relative decoupling (cases 4 and 7) comprised another one-third of counties and counties not decoupling (cases 3, 5, 6, and 8) comprised the final one-third of counties. Approximately 14% of counties had CO₂ emissions rising despite a declining economy (cases 5 and 6). While 84% of the contiguous states had declining CO₂ emissions, only 53% of the counties did. This shows that national and state-level decreases in CO₂ emissions mask widespread local increases (47% of all counties). Those counties with declining CO₂ emissions (cases 1, 2, 7, and 8) represented 65.8% of emissions from the contiguous U.S. in 2010, and 59.3% in 2015. The counties with decreasing emissions had a gross decrease in emissions of 162.4 Mt CO₂ between 2010 and 2015. The cases with increasing emissions represented a gross increase of 69.3 Mt C, leading to a net decrease of 93.1 Mt C in the contiguous United States.

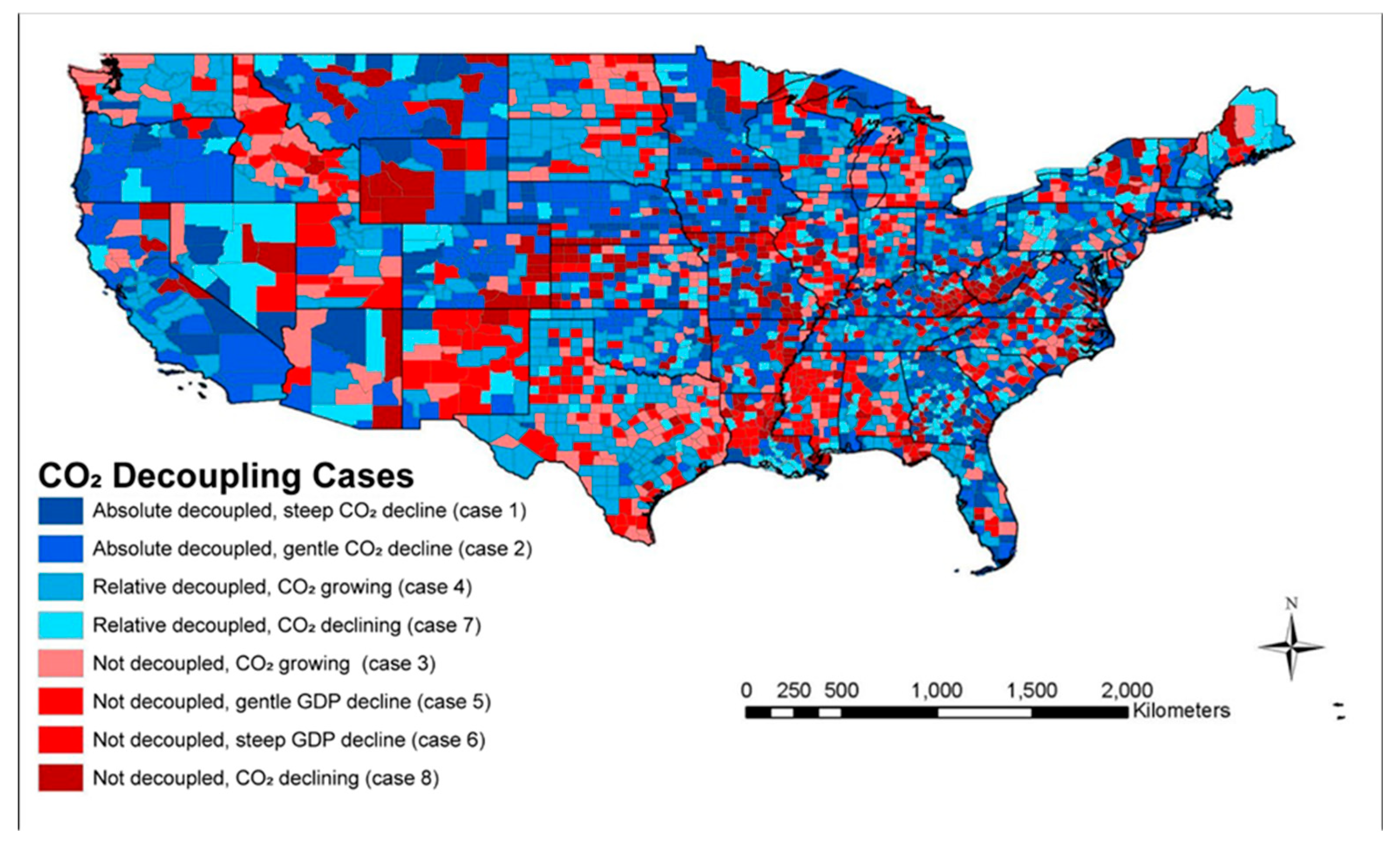

The geographic distribution of the cases at the county level is presented in Figure 3. At this scale, all 8 cases appear broadly across the country. Recognizing that we use different sources for estimates of CO₂ emissions data at the state and county levels, it appears that even for states that are characterized as undergoing absolute decoupling with growing economies, such as Iowa, North Carolina, and West Virginia, each of the 8 cases appears for counties within them. Texas (Relative decoupling with CO₂ growing - case 4) and Mississippi (Relative decoupling with CO₂ declining - case 7) also include counties with all 8 cases. Even though there is only one state with growing CO₂ emissions despite decreasing GDP (cases 5 and 6) (Connecticut), there are over 430 counties nationally with these trends. In some states, a small number of counties with large economies dominate the state-level trend, such as in Chittenden County in Vermont and New Castle County in Delaware, both of which are not decoupling, growing economies (case 3).

Table 4 summarizes the cases in terms of average values and relative annual changes in CO₂ emissions. For the time period 2010 to 2015 counties characterized as not decoupling with CO₂ growing and not decoupling with gentle GDP decline (cases 3 and 5) showed, on average, the largest relative increases in emissions, at 4.49 and 3.28 %/year respectively. Counties with relative decoupling with CO₂ declining (case 7) counties had the largest relative decreases in emissions, at 4.94 %/year, followed by counties with absolute decoupling and steep CO₂ decline (case 1), at 3.92 %/year. Counties from cases 1 and 7 were also the counties with the largest absolute values for average CO₂ emissions. With both of these classes of counties decoupling, this suggests that decoupling in the U.S. as a whole is being driven in significant measure by reducing the emissions from high-emitting counties.

4. Discussion

Having observed the subnational variation in trends of CO₂/GDP, we explore some of the characteristics of the eight different cases identified. We suggest that understanding the causes of subnational variability in decoupling of CO₂ emissions and economic growth is important to understanding our ability to achieve sustainability at a global level. We make a first attempt at exploring this in the U.S. by looking at decoupling at the county level and some of characteristics of the different cases of decoupling, including the sources of emissions by economic sector, the rural-urban continuum, and the concentration of population.

4.1. CO₂ Emissions at the County Level by Economic Sector

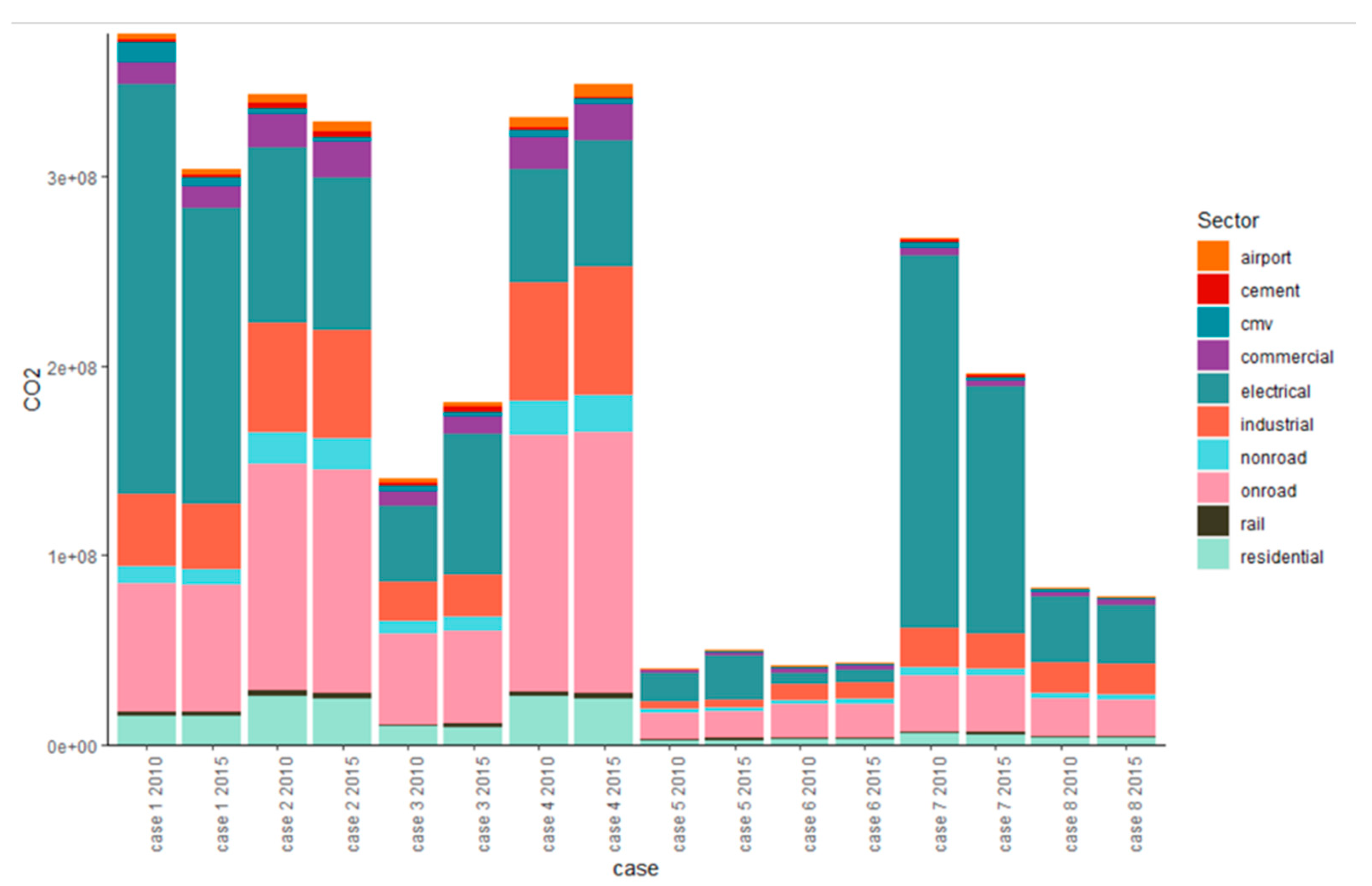

Figure 4 shows the average magnitude of CO₂ emissions from each economic sector for 2010 and 2015, for each of the eight cases of decoupling. Table 5 shows the average emissions change in each sector for each case as a percent and as total megatons of C (MtC). Together Figure 4 and Table 5 show, for example, that for the set of counties with absolute decoupling with steep CO₂ decline (case 1), on average, electrical production was the dominant source of emissions (with over 50 % of the total in both 2010 and 2015) and that emissions from electrical production declined by 28% from 2010 to 2015. Similarly, in the set of counties with absolute decoupling with gentle CO₂ decline (case 2), on average, on-road emissions were the largest contribution, contributing 35% of emissions in each year while declining by 1.1% from 2010 to 2015. On-road emissions increased in counties with relative decoupling with CO₂ growing and in counties not decoupling with CO₂ growing (cases 3 and 4). Whether electricity production or on-road emissions was the dominant contribution to emissions has generally defined whether r(GDP) or r(CO₂) was the dominant factor in the 2010-2015 trend in CO₂/GDP.

Overall, the sector contributing the most to decreases in CO₂ emissions was electricity generation, with a total reduction of 91.9 Mt C from 2010 to 2015. Commercial marine vessels (cmv) were a distant second with a total 10.1 Mt C decrease, however cmv had by far the largest percent change, at -40% from 2010-2015, with rail the second largest percent change at +24%. CO₂ emissions from electricity production, while experiencing the greatest decreasing change, remained the largest source of emissions. The second largest source of emissions, on-road, saw relatively little change from 2010 to 2015. In cases where $\mathbf{r}\left({\mathbf{C}\mathbf{O}}_2\right)$ was the principal driver of change (cases 1, 3, 5, and 7), whether decoupling or not, electricity production was the largest source of emissions. Where on-road emissions were the dominant source, r(CO₂) was not the dominant factor in changing CO₂/GDP. In cases where on-road emissions were the dominant source of emissions, GDP was the principal factor in the evolution of CO₂/GDP (cases 2, 4, and 6). The exception was where there was not decoupling despite declining CO₂ (case 8), where electricity production was the major source of emissions, but GDP was the dominant factor in driving the change in CO₂/GDP (case 8). Almost by definition, most of the CO₂ emission reductions occurred in counties with absolute decoupling with steep CO₂ decline or with relative decoupling with CO₂ declining (cases 1 and 7).

Airport, commercial, and rail-related CO₂ emissions went up, on average, in all cases (with a few exceptions), and residential emissions went down in all cases, which suggests that changes in these sectors are occurring nationwide irrespective of local trajectories in decoupling. The largest increases in emissions were from the commercial sector (notably in three of the four cases with increasing GDP (cases 2, 3 and 4), although the only case with negative values for the commercial sector was for counties with absolute decoupling with steep CO₂ decline (case 1). Industrial sector emissions increased in counties not decoupling with CO₂ growing and relative decoupling with CO₂ growing (cases 3 and 4) counties while decreasing notably in counties with absolute decoupling with steep CO₂ decline and relative decoupling with CO₂ declining (cases 1 and 7). Industrial sector emissions increased by smaller amounts in case 5 and 6 counties while decreasing in case 2 and 8 counties. The industrial sector is perceived as hard to decarbonize and the energy mix has remained relatively unchanged (see [1,19]).

In sum, the set of counties with increasing total emissions of CO₂ from 2010 to 2015, on average, (cases 3, 4, 5, and 6) had increases from both the electric power and industrial sectors while the set of counties with decreasing total emissions (cases 1, 2, 7, and 8) had, on average, decreases from both the electric power and industrial sectors. Note that some of the decrease in CO₂ emissions per unit of electricity generated was offset by increases in total electrical production, especially in case 3 counties (not decoupling with CO₂ growing). However, change in electrical production was still the driving factor in transitioning toward a lower carbon economy [20]. Electricity generation highlights the linkages among counties. Although the CO₂ emissions from the generation will be accounted in one county the product power can be employed in nearby counties. The same is true for emissions from industrial facilities in that the products can be widely employed outside of where the emissions occur. What is being observed now is the availability of technologies to produce electricity with lower CO₂ emissions.

4.2. The Rural-Urban Character of Counties for The Eight Cases of CO₂ Decoupling

A striking observation of the analysis displayed in Figure 3 is the spatial heterogeneity in the pattern of changes in CO₂ decoupling over time. The eight cases for change in CO₂/GDP are all widely observed, and the various cases are observed within a single state and in adjacent counties. These variations reflect the spatial disaggregation of the national economy and have the potential to identify differences in economic activity, local inequities and/or local motivations for addressing the need to decrease CO₂ emissions. The complex heterogeneity reflects intercounty transfers of electricity and of manufactured and agricultural products. It reflects differences in wealth, resources, and opportunity. Over time it will show efforts to combat climate change and that the opportunities, motivations, and cost of mitigating climate change are spatially distributed. We ask whether some of the diversity is related to urban-rural differences and the structure of urban areas.

The rural-urban character of our eight cases (Table 6) is expressed here through the Rural-Urban Continuum Codes (RUCC) of the U.S. Department of Agriculture [21] (see Endnote 1). The RUCC is a classification scheme that distinguishes counties between “metro” (metropolitan) and “non-metro” and classifies metro counties by the population size of the metropolitan area it is a part of and non-metro counties by the degree of urbanization and the adjacency to a metro area. Code 3 to code 4 marks the transition from metro to non-metro counties. The RUCC classification captures both a county’s population and the influence of adjacent metro areas, which can be important when considering local drivers of emissions and GDP. Note that the numbering of non-metro counties alternates between metro-adjacent and non-adjacent as population lowers. Like our decoupling case numbers, RUCC codes are descriptive, not indications of magnitude. RUCC 1 is a county in a metro area of over one million population, RUCC 9 is a county that is completely rural or with population under 2,500.

All eight of the CO₂/GDP cases are found in all nine rural-urban settings. All RUCC codes (except 5) have their highest frequency in CO₂/GDP cases of absolute decoupling with gentle CO₂ decline or relative decoupling with CO₂ growing (cases 2 and 4), the most commonly occurring cases. There is no obvious relationship (Table 6) between rural character and decoupling of CO₂ emissions from economic growth, although 80% of the largest urban areas (RUCC = 1) are decoupling. While there are concentrations one cannot assume, for example, that rural areas consistently exemplify a particular CO₂ per GDP relationship.

4.3. County Population Concentration and the Eight Cases of CO₂ Decoupling

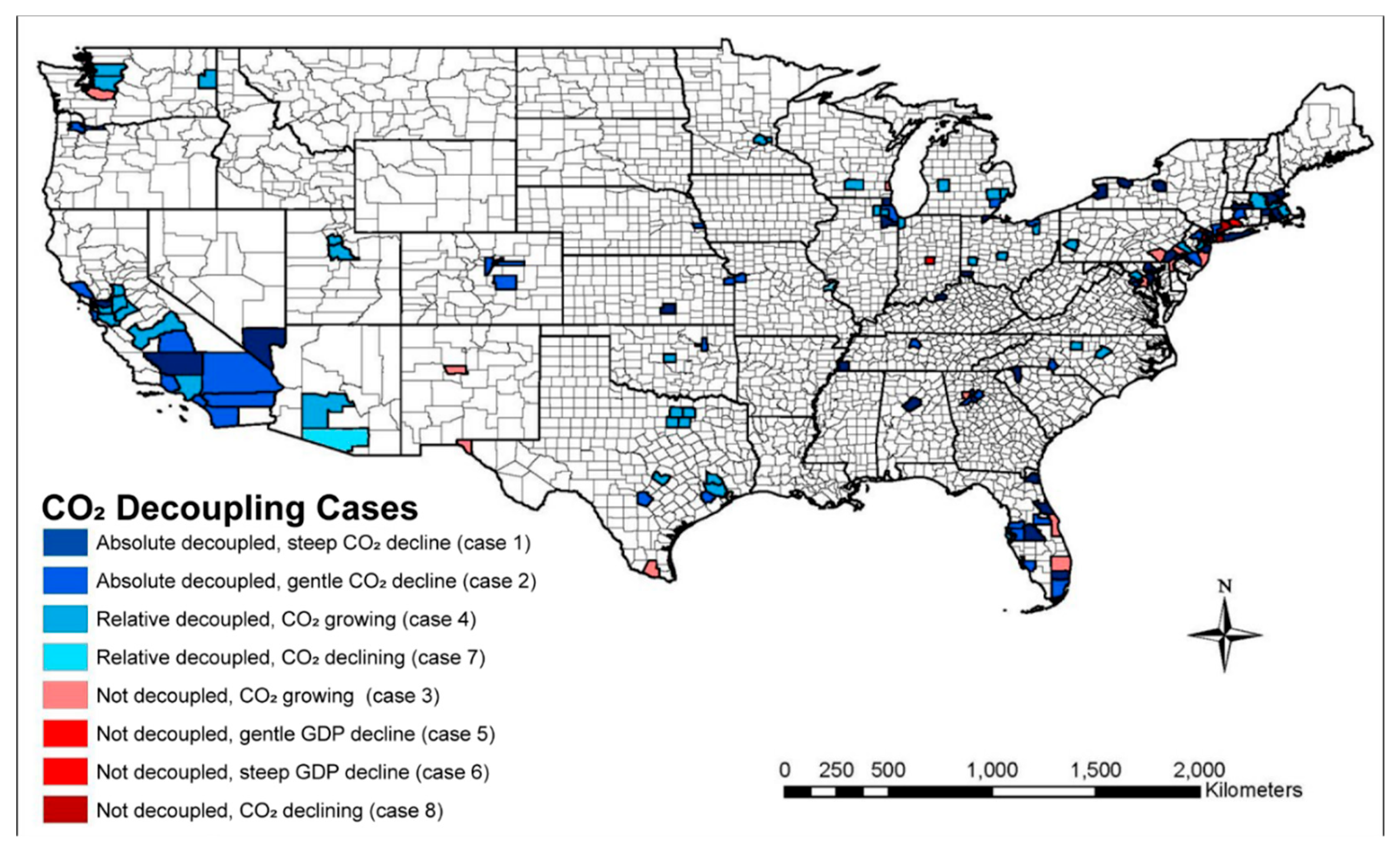

Half of the U.S. population lives in only 146 of the 3080 counties in our study [21] (see Figure 5), meaning that trends and relative changes in CO₂/GDP do not tell the full picture when giving equal weight to every county in the contiguous U.S. The circumstances in these 146 counties do tell the circumstances under which half of the U.S. population is living. Of these 146 counties, only 8 (5%) had decreasing GDP (compared to 34% of all counties) and only 20 (14%) had increasing CO₂/GDP (compared to 35% of all counties). This suggests that large urban areas were indeed disproportionately driving decoupling in the U.S., a potentially important linkage in the relationships among urbanization, population, GDP, and CO₂ emissions.

For contrast, Figure 6 shows the CO₂ decoupling case for the 146 least populous counties. Of these counties 46 (32%) had decreasing GDP and 51 (35%) had CO₂/GDP increasing, both percentages typical of the country as a whole.

5. Conclusions

This study provides a context to characterize the changing relationship and broad heterogeneity in the nature of decoupling between CO₂ emissions and GDP in the United States over the years 2010 to 2015. Sustainable Development Goal Indicator 9.4.1, CO₂/GDP, was adopted by the UN [23,24] in order to examine and monitor the decoupling of CO₂ emissions and economic development at the national level but use at the national level (which shows decoupling in the U.S.) risks missing the insights that are revealed when we examine the indicator at subnational scales. Even at the state level in the U.S. CO₂/GDP suggests homogeneity as 46 states and the District of Columbia showed decoupling of CO₂ emissions and GDP for the period 2010 to 2015 and only eight states showed increasing CO₂ emissions. To the contrary, whereas CO₂ emissions over the 2010 to 2015 interval were reduced broadly, largely from electric power generation, the decoupling of CO₂ emissions and economic development varied widely when examined at the county level. Whereas 90% of states showed decoupling of CO₂ emissions, only 65% of U.S. counties had decoupling of CO₂ emissions and GDP.

We have defined eight cases to characterize the changing relationship between the magnitude and trends of CO₂ emissions and GDP and we show that all eight cases prevail in counties across the country and across the rural-urban landscape. Of 3080 counties and county equivalents in the conterminous U.S., 1024 counties showed an increase in GDP with a decrease in CO₂ emissions (absolute decoupling, our cases 1 and 2). In another 625 counties CO₂ emissions decreased but GDP decreased as well (cases 7 and 8).

Approximately one-third of U.S. counties are not decoupling emissions from economic growth. The data show that decoupling CO₂ emissions from economic growth is currently very sector specific and dominated by the electrical generating sector. Many counties with large CO₂ contributions from electrical generation are experiencing declining CO₂ emissions with continuing economic growth (cases 1, 2, and 4). Counties with rapidly growing emissions from the electrical, industrial, and other sectors are not decoupling whether GDP is growing (case 3) or declining (case 5). Of counties with declining GDP, 431 have emissions increasing (cases 5 and 6) while 625 have emissions declining (cases 7 and 8).

On average, counties in three of our four cases of decoupling were characterized by decreasing emissions from the electricity sector. For cases with decreasing CO₂ emissions there were decreasing emissions in both the electrical and industrial sectors. If CO₂ emissions were growing there was growth in both the industrial and electrical sectors and three of the four cases of not decoupling were characterized by increasing emissions sources in both the electrical and industrial sectors. High emitting counties tended to be decoupling CO₂ emissions from economic growth and reducing emissions. But the heterogeneity is widespread. States that show absolute decoupling of emissions from economic growth still contain counties with increasing emissions and economic decline.

The challenge going forward is to balance economic growth and CO₂ emissions. Decoupling now largely reflects changes in the electrical sector and the electrical sector provides services that extend beyond county boundaries. The needed reductions in emissions will require emissions reductions from the broader economy and carry the risk that reductions in one place are offset by increases elsewhere. The rise in electric transportation could create such a circumstance as emissions from road transport decrease in one county while emissions from electrical generation in another county are stable or increasing. Neither climate goals nor social equity are served by relocating emissions sources across counties, states, or countries.

Although we did not show a systematic relationship between CO₂ decoupling and rural/urban character, for the 124 counties that are home to half of the U.S. population CO₂/GDP was decreasing in 86%. The most striking feature of our characterization of decoupling is the heterogeneity observed at county-level spatial resolution. If a significant decrease in reliance on CO₂ emissions is to occur for the U.S. it will have to involve more geographic areas and a greater involvement across economic sectors.

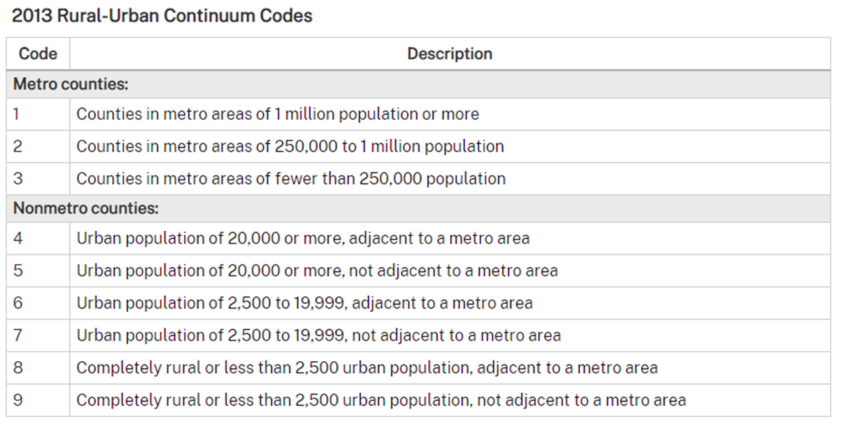

Endnote: Rural-Urban Continuum Codes from the U.S. Department of Agriculture [21].
