AI-Assisted Pilot Fatigue Risk Assessment: Integrating Facial Recognition and Physiological Signal Analysis

A peer-reviewed version of this preprint was published in:
International Journal of Computer Science and Information Technology 2024, 4(1), 312-323. https://doi.org/10.62051/ijcsit.v4n1.38

Submitted:

27 September 2024

Posted:

29 September 2024

You are already at the latest version

Abstract
This study explores the use of Generative Artificial Intelligence (GAI) in assessing pilot fatigue risk by integrating facial recognition and physiological signals with Inertial Measurement Units (IMUs). By leveraging IMU technology's precise, real-time data on movement and combining it with GAI's advanced data analysis capabilities, the study aims to enhance the accuracy of fatigue prediction models. The analysis reveals that while traditional classifiers like Extreme Random Trees and Random Forests offer modest performance, advanced models such as Support Vector Machines and Naive Bayes demonstrate superior recall rates, highlighting their potential to identify true positives. This integration of AI and IMUs offers a promising approach to developing comprehensive, real-time fatigue monitoring systems, improving safety and efficiency in aviation by providing actionable insights and facilitating more effective fatigue management.
Keywords:
Generative AI
;
Inertial Measurement Units (IMUs)
;
Fatigue Risk Assessment
;
Facial Recognition
Subject:
Computer Science and Mathematics  -   Artificial Intelligence and Machine Learning

1. Introduction

In the past two years, a new generation of Generative Artificial Intelligence (GAI) represented by ChatGPT, Sora, etc. has entered the public's attention. This kind of technology is driven by the full integration of big models, big data, and big computing power. With the characteristics of scale, emergence, and versatility, it has made a leap breakthrough in natural language processing, video generation, human-computer interaction, multi-modal integration, and so on, and is considered to be the "singularity" of strong artificial intelligence. When it comes to generative artificial intelligence, the first thing that comes to mind is the ability to generate cool things like conversations, text graphics, and Vincennes videos. Compared with the form of expression, the success of the technical route behind it and the new application ecology brought by it should attract our attention. It can be predicted that GAI will bring structural changes to all walks of life in the future.
As the civil aviation industry is highly informationized and immersed in big data, the technological revolution triggered by GAI undoubtedly provides a new opportunity to accelerate the digital transformation of the industry. This is mainly reflected in three aspects, one is the intelligent analysis of civil aviation professional knowledge, the second is the processing of multi-modal information, and the third is the deepening of human-computer interaction ability. In terms of the analysis of civil aviation professional knowledge, GAI has a strong generalization ability (for example, the core architecture of the GAI Transformer and Diffusion model has stronger data processing and knowledge generalization ability). Due to the outstanding characteristics of the civil aviation industry, such as a wide range of professionals, complicated rules and regulations, etc.
In the past, AI research and development of knowledge in the field of civil aviation faced significant training data gaps and cost-benefit problems. However, GAI can combine internal and external knowledge to carry out transfer learning between the general field and various subfields of civil aviation, to efficiently solve the knowledge learning problem in vertical fields, that is to say, AI can "understand" niche civil aviation professional knowledge. In terms of multimodal information processing, a significant technical trend of GAI is to compatibly combine multiple types or modes of data, such as text, images, video, audio, etc., to make more accurate judgments or predictions about more scenarios, situations, or problems. This capability can meet the common multi-form data association processing requirements in civil aviation services (such as operation control, safety management, etc.). For example, air traffic controllers often have to make comprehensive research and judgment decisions based on voice, image, message, etc.
The application of GAI will help air traffic controllers to comprehensively perceive and respond to unexpected scenarios, and have the ability of "Clearvision, wind ear, and wisdom brain". In terms of man-machine collaborative interaction, GAI's man-machine interaction ability is far more than traditional AI, traditional decision-making AI is more like doing "multiple choice", and GAI is good at doing "short answer". The characteristics of GAI "can prompt and guide" enable it to communicate, learn, and progress "human-machine" and "machine-machine" in a "human-like" way in multiple rounds of human-machine interaction, which can also provide more comprehensive and intelligent auxiliary decision-making for professionals.
It is foreseeable that in the future, with the ability of AI to be embedded in various application scenarios in the industry, civil aviation practitioners will have all kinds of "intelligent assistants" in their work (such as passenger service assistants, aircraft maintenance assistants, etc.), and people and AI will work together to "apply what they learn, promote learning, and learn to use each other". Collins Aerospace and SeeingMachines, a leader in eye tracking and driver safety technology, are working together to develop and implement revolutionary fatigue management technology solutions to improve safety across the aviation industry. These solutions will sense a pilot's fatigue and alertness from their eye movements to better understand the impact of the workload on their flight.

3. Methodology

3.1. Experimental Design

The study employed advanced Inertial Measurement Unit (IMU) technology combined with AI to monitor and predict athletes' fatigue and endurance. The IMU sensors collected high-resolution, real-time data on the movement of 19 athletes during various training sessions. The collected data included triaxial acceleration, angular velocity, and magnetic field direction, which were crucial for analyzing the dynamic changes in athletes' movements. This rich dataset was then used to train and validate several machine learning models, including random forests, gradient boosting machines, and Long Short-Term Memory (LSTM) networks.
By integrating AI with IMU data, the study aimed to develop predictive models that could accurately gauge fatigue levels and endurance. The real-time data acquisition allowed for immediate adjustments to training regimens, optimizing performance and reducing the risk of overtraining. The models demonstrated high accuracy in fatigue prediction, showcasing the potential of data-driven approaches for personalized training adjustments and performance enhancement. The innovative use of IMU technology and AI in this study highlights its capability to provide detailed insights into athletes' physiological responses, contributing significantly to the advancement of sports training methodologies.

3.2. Study and Its Implications

This study introduces a novel training method for athletes that leverages AI and IMU technology to monitor fatigue and endurance levels in real time and adjust training plans accordingly. By comparing various machine learning models, the researchers identified a highly accurate prediction method crucial for preventing overtraining and enhancing performance.
Preprints 119536 g003

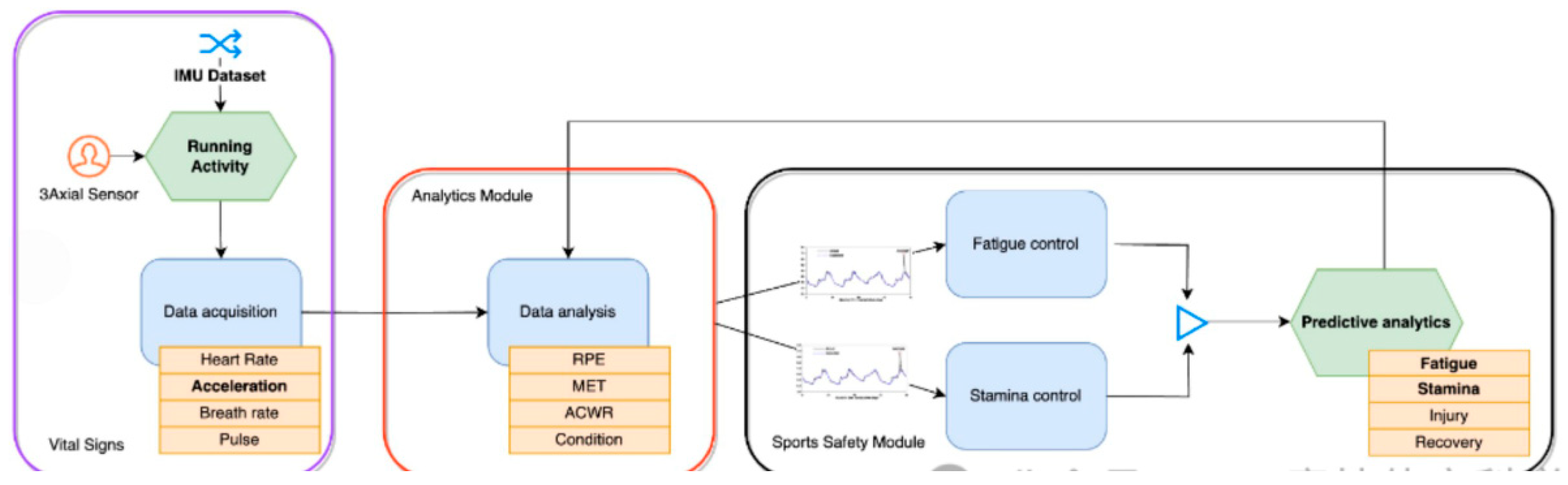

Figure 3. Sports safety approach on specific use case.
Figure 3. Sports safety approach on specific use case.
Preprints 119536 g003
The research not only highlights the potential of AI in sports science but also outlines future technological advancements and underscores the need for ethical and privacy considerations in technology applications. This article opens new perspectives on AI’s role in sports training and offers profound insights into how technology can elevate human performance. We look forward to seeing how AI continues to transform the sports world!

3.3. Experimental Results Summary

Table 5 presents a comparison of various classifiers used in predicting pilot fatigue risk based on facial recognition and physiological signals. Among the classifiers, the （Extreme Trees Classifier） and （Random Forest Classifier） demonstrated moderate accuracy of around 50%, with the Extreme Trees Classifier slightly outperforming in precision. Both models show balanced trade-offs between precision and recall but have room for improvement in specificity and sensitivity. The（Quadratic Discriminant Analysis） classifier, with a lower accuracy of 48.98%, excelled in recall (70.72%), indicating its strength in identifying true positives, although its precision was lower.

3.4. Model Performance Insights

The K-Nearest Neighbor Classifier and Gradient Boosting Classifier showed lower overall performance with accuracies of 48.65% and 47.13%, respectively, highlighting potential issues in fitting the data complexity. Decision Tree Classifier performed competitively with an accuracy of 50.66% and an F1 score of 51.15%, suggesting robustness in this task but not necessarily the most effective for fatigue prediction. Logistic Regression and Linear Discriminant Analysis** both showed high recall (over 63%) but lower precision, reflecting their capability to identify true positives effectively, albeit at the cost of increased false positives.
The Support Vector Machine (Linear Kernel) achieved the highest F1 score of 54.39% due to its high recall of 77.91%, though with lower precision, indicating a preference for identifying true positives over minimizing false positives. The Naive Bayes classifier also performed well in terms of F1 score (52.09%), suggesting it is effective at detecting true positives but may generate more false positives. Notably, the Dummy Classifier showed an impressive F1 score of 67.78% due to its unrealistic perfect recall, which is not useful for practical predictions. These results underscore the need for careful model selection and tuning to balance precision, recall, and overall performance in fatigue risk assessment, ensuring accurate and actionable insights for pilot safety management.
Preprints 119536 g004

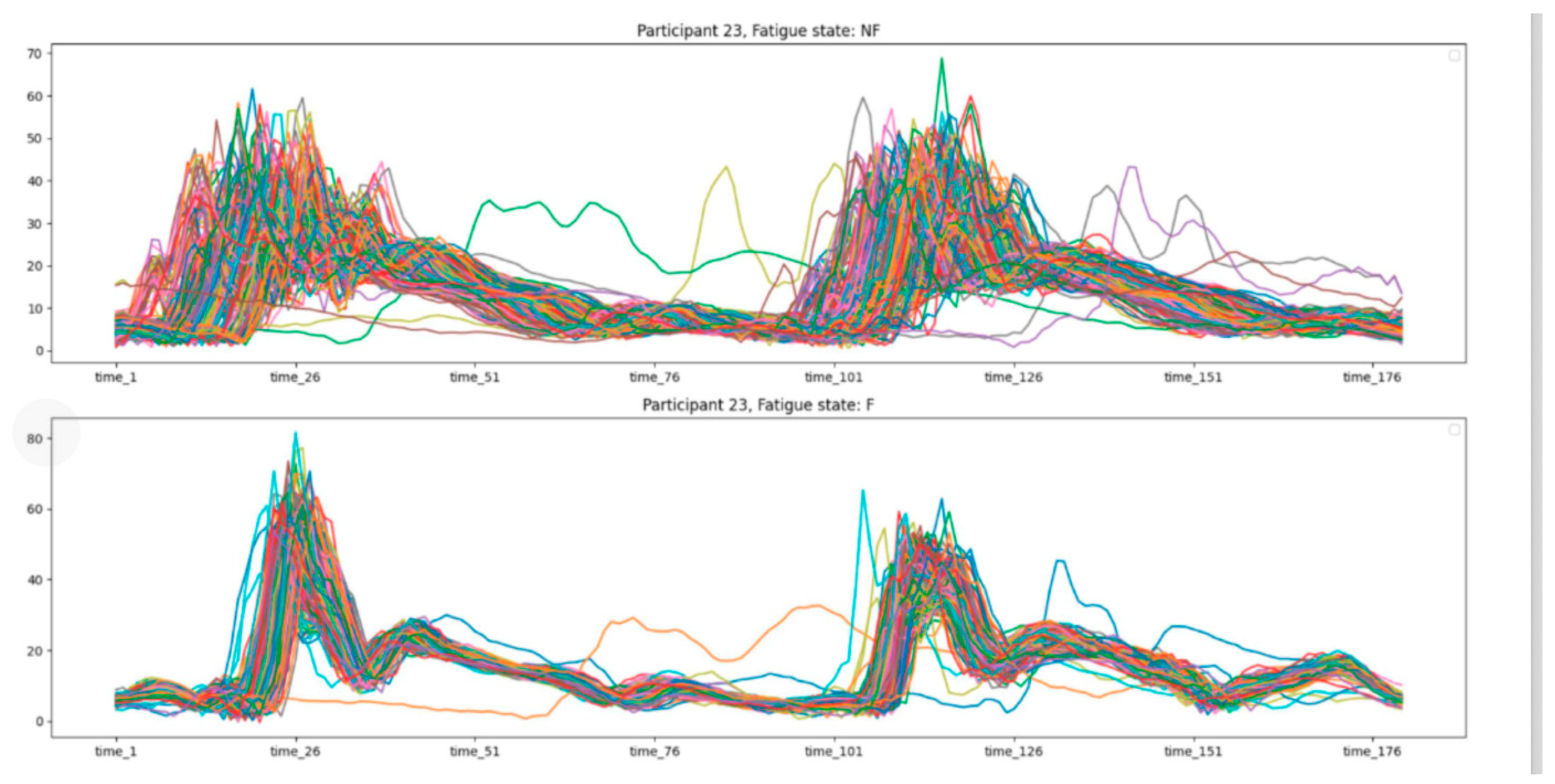

Figure 4. Participant 23 non-fatigue (NF) and fatigiie (1y) states. Details of more participants: Séedata availability statement.
Figure 4. Participant 23 non-fatigue (NF) and fatigiie (1y) states. Details of more participants: Séedata availability statement.
Preprints 119536 g004

3.5. Experimental Discussion

Performance Analysis of Classifiers for AI-Assisted Pilot Fatigue Risk Assessment
The performance results of various classifiers using multivariate time series data generated by Inertial Measurement Units (IMUs) for AI-assisted pilot fatigue and endurance control reveal key insights into their effectiveness and suitability for this specific application.
1. Tree-Based Methods:
- Extreme Random Trees** and Random Forest Classifiers demonstrated modest effectiveness with accuracy slightly above 50%. Both classifiers achieved balanced accuracy and recall rates, but their F1 scores around 50% indicate a need for improvement in specificity and sensitivity. While these models are competent, their performance suggests that they may not be the optimal choice for the nuanced task of fatigue risk assessment in pilots, where higher precision and recall are crucial.
2. Statistical Methods:
- The Quadratic Discriminant Analysis (QDA) Classifier showed lower accuracy but excelled in recall rates, suggesting its strength in identifying true positive cases. This model’s higher F1 score compared to other classifiers with less than 50% accuracy indicates its potential in scenarios where prioritizing high recall is important, such as in early detection of pilot fatigue where catching true positives is critical.
3. Instance-Based and Tree Models:
- K-Nearest Neighbor (KNN) and Decision Tree Classifiers had lower performance metrics compared to tree-based methods. Their lower F1 scores and balanced accuracy-recall rates imply that these models may not be well-suited for the complexity of fatigue and endurance data or may require parameter optimization to improve performance.
4. Gradient Boosting and Linear Models:
- Gradient Boosting Classifier exhibited lower performance, suggesting potential underfitting issues, where the model may be too simplistic for the complex data patterns present in pilot fatigue assessment. Logistic Regression, Linear Discriminant Analysis (LDA), and Ridge Classifiers, being linear models, demonstrated higher recall rates but lower accuracy, indicating a tendency to identify positive cases effectively, albeit with a risk of increased false positives.
5. Boosting and SVM:
- The AdaBoost Classifier showed balanced but modest performance, with accuracy, recall, and F1 scores all around 49%, reflecting its generally adequate performance across metrics. The Light Gradient Boosting Machine exhibited reasonable accuracy but struggled with recall, highlighting its effectiveness in identifying true negatives but needing improvement in detecting true positives.
6. Support Vector Machine (SVM) and Naive Bayes:
- The Support Vector Machine with Linear Kernel achieved the highest F1 score and demonstrated a high recall rate, indicating a strong preference for identifying true positives, albeit with some compromise in accuracy. Similarly, the Naive Bayes Classifier, with its probabilistic approach, prioritized recall, reflected in its relatively high F1 score despite moderate accuracy.
7. Virtual Classifier:
- The **Dummy Classifier** showed high accuracy and F1 scores but its results are misleading because it classifies all instances as positive. This highlights the importance of context when interpreting performance metrics, especially in practical applications like pilot fatigue assessment where real predictive capability is crucial.
In summary, the performance of various classifiers in the context of pilot fatigue risk assessment underscores the need for models that balance precision and recall, and are capable of handling complex data patterns effectively. The insights gained from this analysis can guide the selection and refinement of models to improve the accuracy and reliability of fatigue predictions in aviation settings.

4. Conclusions

In the future, the application of artificial intelligence (AI) in pilot fatigue monitoring is very broad. First, advances in AI technology will facilitate the fusion of multimodal data, making the combination of facial recognition and physiological signal analysis more closely. By integrating data from different sensors, AI is able to provide a more comprehensive, real-time assessment of fatigue. This combination can not only improve the accuracy of detection, but also help adjust the pilot's work and rest schedule in real time, reducing operational errors due to fatigue. In addition, AI will be able to recognize more subtle signs of fatigue and give timely warnings, further improving flight safety.
Secondly, with the development of technology, AI systems will have stronger adaptive capabilities and personalized service capabilities. Future AI models will be able to process more complex behavioral patterns and physiological data, monitor pilots' state changes in real time, and adjust monitoring strategies based on individual differences. This high level of personalized management not only improves the accuracy of monitoring, but also provides pilots with tailor-made fatigue management solutions. In addition, the application of AI in fatigue monitoring will also involve in-depth study of ethical and privacy issues to ensure the security and compliance of data use. Overall, AI will play an increasingly important role in pilot fatigue monitoring, promoting aviation safety management into a new era of intelligence.

References

  1. Chen, Y., Yan, S., Liu, S., Li, Y., & Xiao, Y. (2024, August). EmotionQueen: A Benchmark for Evaluating Empathy of Large Language Models. In Findings of the Association for Computational Linguistics ACL 2024 (pp. 2149-2176).
  2. Chen, Z., Ge, J., Zhan, H., Huang, S., & Wang, D. (2021). Pareto self-supervised training for few-shot learning. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition (pp. 13663-13672).
  3. Feng, Z., Ge, M., & Meng, Q. (2024). Enhancing Energy Efficiency in Green Buildings Through Artificial Intelligence. [CrossRef]
  4. Feng, Z., Ge, M., Meng, Q., & Chen, Y. (2024). Research on Old Building Renovation Strategies by using Green Building Technologies. [CrossRef]
  5. Ge, M., Feng, Z., & Meng, Q. (2024). Urban Planning and Green Building Technologies Based on Artificial Intelligence: Principles, Applications, and Global Case Study Analysis. [CrossRef]
  6. Huang, D., Liu, Z., & Li, Y. (2024). Research on Tumors Segmentation based on Image Enhancement Method. arXiv preprint arXiv:2406.05170. [CrossRef]
  7. Huang, D., Xu, L., Tao, W., & Li, Y. (2024). Research on Genome Data Recognition and Analysis based on Louvain Algorithm. [CrossRef]
  8. Jiang, G., Zhao, S., Yang, H., & Zhang, K. (2024). Research on Finance Risk Management based on Combination Optimization and Reinforcement Learning. [CrossRef]
  9. Jin, Y., Shimizu, S., Li, Y., Yao, Y., Liu, X., Si, H., ... & Xiao, W. (2023). Proton therapy (PT) combined with concurrent chemotherapy for locally advanced non-small cell lung cancer with negative driver genes. Radiation Oncology, 18(1), 189. [CrossRef]
  10. Kumada, H., Li, Y., Yasuoka, K., Naito, F., Kurihara, T., Sugimura, T., ... & Sakae, T. (2022). Current development status of iBNCT001, demonstrator of a LINAC-based neutron source for BNCT. Journal of Neutron Research, 24(3-4), 347-358. [CrossRef]
  11. Lai, S., Feng, N., Sui, H., Ma, Z., Wang, H., Song, Z., ... & Yue, Y. (2024). FTS: A Framework to Find a Faithful TimeSieve. arXiv preprint arXiv:2405.19647. [CrossRef]
  12. Li, B., Jiang, G., Li, N., & Song, C. (2024). Research on Large-scale Structured and Unstructured Data Processing based on Large Language Model. [CrossRef]
  13. Li, B., Zhang, K., Sun, Y., & Zou, J. (2024). Research on Travel Route Planning Optimization based on Large Language Model. [CrossRef]
  14. Li, B., Zhang, X., Wang, X. A., Yong, S., Zhang, J., & Huang, J. (2019, April). A Feature Extraction Method for Daily-periodic Time Series Based on AETA Electromagnetic Disturbance Data. In Proceedings of the 2019 4th International Conference on Mathematics and Artificial Intelligence (pp. 215-219).
  15. Li, S., & Tajbakhsh, N. (2023). Scigraphqa: A large-scale synthetic multi-turn question-answering dataset for scientific graphs. arXiv preprint arXiv:2308.03349. [CrossRef]
  16. Li, S., Lin, R., & Pei, S. (2024). Multi-modal preference alignment remedies regression of visual instruction tuning on language model. arXiv preprint arXiv:2402.10884. [CrossRef]
  17. Li, Y., Matsumoto, Y., Chen, L., Sugawara, Y., Oe, E., Fujisawa, N., ... & Sakurai, H. (2023). Smart Nanofiber Mesh with Locally Sustained Drug Release Enabled Synergistic Combination Therapy for Glioblastoma. Nanomaterials, 13(3), 414. [CrossRef]
  18. Li, Y., Mizumoto, M., Oshiro, Y., Nitta, H., Saito, T., Iizumi, T., ... & Sakurai, H. (2023). A retrospective study of renal growth changes after proton beam therapy for Pediatric malignant tumor. Current Oncology, 30(2), 1560-1570. [CrossRef]
  19. Liu, H., Shen, F., Qin, H., & Gao, F. (2024). Research on Flight Accidents Prediction based Back Propagation Neural Network. arXiv preprint arXiv:2406.13954. [CrossRef]
  20. Liu, H., Xie, R., Qin, H., & Li, Y. (2024). Research on Dangerous Flight Weather Prediction based on Machine Learning. arXiv preprint arXiv:2406.12298.
  21. Luo, H., Li, Y., Song, H., Zhao, K., Li, W., Hong, H., ... & Zhang, Y. (2024). Role of EZH2-mediated epigenetic modification on vascular smooth muscle in cardiovascular diseases: A mini-review. Frontiers in Pharmacology, 15, 1416992. [CrossRef]
  22. Meng, Q., Ge, M., & Feng, Z. (2024). The Integration of Artificial Intelligence in Architectural Visualization Enhances Augmented Realism and Interactivity. [CrossRef]
  23. Nakamura, M., Mizumoto, M., Saito, T., Shimizu, S., Li, Y., Oshiro, Y., ... & Sakurai, H. (2024). A systematic review and meta-analysis of radiotherapy and particle beam therapy for skull base chondrosarcoma: TRP-chondrosarcoma 2024. Frontiers in Oncology, 14, 1380716. [CrossRef]
  24. Nitta, H., Mizumoto, M., Li, Y., Oshiro, Y., Fukushima, H., Suzuki, R., ... & Sakurai, H. (2024). An analysis of muscle growth after proton beam therapy for pediatric cancer. Journal of Radiation Research, 65(2), 251-255. [CrossRef]
  25. Peng, Z. H. A. N. G., Bin-MeiZi, Z. H. A. N. G., Jian-Ke, Z. O. U., & Xiang-Beng, L. I. U. (2018). The Methods, Effects and Mechanism of Priming Attachment Security towards Social Behaviors. Journal of Psychological Science, (3), 615.
  26. Qu, M. (2024). High Precision Measurement Technology of Geometric Parameters Based on Binocular Stereo Vision Application and Development Prospect of The System in Metrology and Detection. Journal of Computer Technology and Applied Mathematics, 1(3), 23-29.
  27. Restrepo, D., Wu, C., Cajas, S. A., Nakayama, L. F., Celi, L. A. G., & Lopez, D. M. (2024). Multimodal Deep Learning for Low-Resource Settings: A Vector Embedding Alignment Approach for Healthcare Applications. medRxiv, 2024-06. [CrossRef]
  28. Shimin, L. E. I., Ke, X. U., Huang, Y., & Xinye, S. H. A. (2020). An Xgboost based system for financial fraud detection. In E3S Web of Conferences (Vol. 214, p. 02042). EDP Sciences.
  29. Shimizu, S., Mizumoto, M., Okumura, T., Li, Y., Baba, K., Murakami, M., ... & Sakurai, H. (2021). Proton beam therapy for a giant hepatic hemangioma: A case report and literature review. Clinical and Translational Radiation Oncology, 27, 152-156. [CrossRef]
  30. Shimizu, S., Nakai, K., Li, Y., Mizumoto, M., Kumada, H., Ishikawa, E., ... & Sakurai, H. (2023). Boron neutron capture therapy for recurrent glioblastoma multiforme: imaging evaluation of a case with long-term local control and survival. Cureus, 15(1). [CrossRef]
  31. Shui, H., Sha, X., Chen, B., & Wu, J. (2024, May). Stock weighted average price prediction based on feature engineering and Lightgbm model. In Proceedings of the 2024 International Conference on Digital Society and Artificial Intelligence (pp. 336-340).
  32. Wang, C., Chen, J., Xie, Z., & Zou, J. (2024). Research on Education Big Data for Students Academic Performance Analysis based on Machine Learning. arXiv preprint arXiv:2407.16907. arXiv:2407.16907. [CrossRef]
Table 5. Contrasting the challenges in sports health with the solutions provided by classic methodsand those provided by AI-assisted approaches.
Table 5. Contrasting the challenges in sports health with the solutions provided by classic methodsand those provided by AI-assisted approaches.
hallenges/Issues Existing Solutions [7,8] Novelties of the AI-Assisted Approach
Fatigue Detection Reliant on subjective measures, such as athlete self-reports and coach observations. AI models predict fatigue objectively before physical symptoms manifest, using physiological data.
Personalization Generic training programs, one-size-fits-all approach with limited personalization. Tailored training regimens adapted to individual physiological responses and recovery profiles.
Real-time Feedback Delayed feedback after training sessions, based on manual data review. Instantaneous feedback during training via wearable tech integration, enabling immediate adjustments.
Injury Prevention Reactive approaches that respond to injuries post-occurrence. Proactive injury risk assessments and preventative suggestions based on predictive analytics.
Training Load Optimization Empirical methods for deciding on training loads often leading to over- or under-training. Data-driven load optimization that continuously adapts to an athlete's current state and needs.
Long-term Monitoring Fragmented data collection with sporadic athlete longitudinal performance testing, lacking continuity. Continuous monitoring and tracking, with detailed historical data analysis.
