Treatment of Vertigo in Meniere’s Disease by Horizontal Semicircular Canal Obstruction via Ear Canal Approach under Otoendoscopy：a Single-Arm Trial

1. Introduction

Meniere’s disease is characterized by recurrent rotatory vertigo, undulating sensorineural hearing loss, and tinnitus with or without a feeling of fullness in the ears [1], which can seriously affect the quality of life. The management of Meniere’s disease primarily focuses on reducing the frequency of attacks, alleviating the severity of symptoms such as vertigo and tinnitus, and minimizing hearing loss. In cases where conservative treatment fails to address persistent and intractable Meniere’s disease, surgical intervention should be considered. The central compensatory mechanism can take effect by surgically modifying the fluctuating excitation differences (bilateral asymmetry) in the bilateral vestibular system to a fixed asymmetry, leading to the resolution of vertigo symptoms. Semicircular canal occlusion (SCO) is a surgical procedure involving the creation of a window in the bony canal of the semicircular canal to obstruct or interrupt the flow of endolymphatic fluid and otolithic stimulation to the cupula using materials such as bone wax, bone chips, peritoneum, biological glue, or laser [2]. In 1990, Parnes et al. [3] first described using a transmastoid approach for lateral semicircular canal occlusion in treating refractory benign paroxysmal positional vertigo (BPPV), and subsequent research has confirmed its efficacy. Given that both Meniere’s disease and BPPV involve vertigo attacks that are partially or fully caused by endolymphatic fluid flow, SCO has been increasingly used in clinical practice for patients with refractory Meniere’s disease in recent years [4]. Endoscopic surgery is a minimally invasive procedure that patients have widely welcomed due to its advantages of reaching the middle ear through the natural entrance of the ear canal and without a noticeable incision [5,6]. This study is the first to perform a horizontal semicircular canal occlusion procedure through the external ear canal approach for the treatment of Meniere’s disease, intending to expand the use of endoscopic techniques in the surgical treatment of vertigo.

2. Materials and Methods

2.1. Clinical Data

The case data were from 4 patients with intractable Ménière’s disease admitted to our hospital from November 2019 to December 2023, including 1 male and 3 female patients, with an average age of (61.75±10.01) years and a disease duration of 2-4 years.

Inclusion criteria: Diagnosis meets the criteria set out in the “Guidelines for Diagnosis and Treatment of Meniere’s Disease (2017)” [7]; Standardized conservative treatment of Meniere’s disease for at least 6 months with frequent episodes of vertigo; Patients have a strong desire for surgical treatment and fully understand and consent to treatment plans and possible risks.

Exclusion criteria: Bilateral Meniere’s disease; Central nervous system disorders or other disorders of the inner ear; Other underlying conditions require long-term use of diuretics, glucocorticoids, etc. This study adheres to the principles of the Helsinki Declaration and has been approved by the Ethics Committee of Tongji Medical College, Huazhong University of Science and Technology (Ethics approval number: [2023]0602-01).

2.2. Surgical Methods

Preoperative preparation is standardized and surgical procedures are standardized according to the endoscopic ear surgery [8]: a. Clean the external ear canal and subcutaneously inject a solution of freshly prepared lidocaine epinephrine in to the external ear canal to reduce bleeding that may occur during the preparation of the tympanic membrane flap; b. Make a U-shaped tympanic membrane flap from the 3 o’clock position in the external auditory canal, with the flap being larger than 180°. (Too small an angle may cause excessive tearing of the external auditory canal tissue when the flap is raised); c. Enter the middle ear cavity and dissect the malleus-incus joint. This step emphasizes the protection of the chorda tympani nerve and the stipe of the malleus; d. Use a curette to scrape off a portion of the lateral wall of the superior drum; e. A U-shaped bone chisel was used to enlarge the depression created by the curette on the lateral wall of the superior eardrum, exposing a sufficient view of the middle ear; f. Expose and dissect the incus-stapes joint; g. Remove the incus; h. Continue scraping off a portion of the inferior wall of the superior drum so that the endoscope view covers the middle and lower part of the superior and posterior drum; i. To expose the semicircular canal, a portion of the canal bone is bored out with a drill to form a window hole, taking care to avoid damage to the membranous semicircular canal; j. The bony semicircular canal window-hole is enlarged by the tip of a hook, and the membranous semicircular canal is exposed; k. After identification of the membranous semicircular canal, subcutaneous tissue from the external auditory canal is used to fill the membranous semicircular canal, pressing it firmly against the opposite bone wall, thus providing complete and permanent occlusion of the semicircular canal; l. Sufficient hemostasis and drying with cotton, sealing the bony semicircular canal with bone wax. It can be covered with absorbent hemostatic material; m. Use small bone chips or bone powder to repair defects in the lateral wall of the mastoid; n. Reset the mastoid process skin flap.

2.3. Postoperative Evaluation

To observe the healing of the ear wound in the patient 2 weeks after the surgery, an MRI of the inner ear membrane labyrinth was performed to observe the degree of occlusion of the horizontal semicircular canal in the operated ear and to assess the success rate of the surgery. The number and severity of vertigo attacks, tinnitus, and ear fullness were queried at 6 months to 2 years post-operative, and the quality of life and efficacy of the treatment were assessed.

3. Results

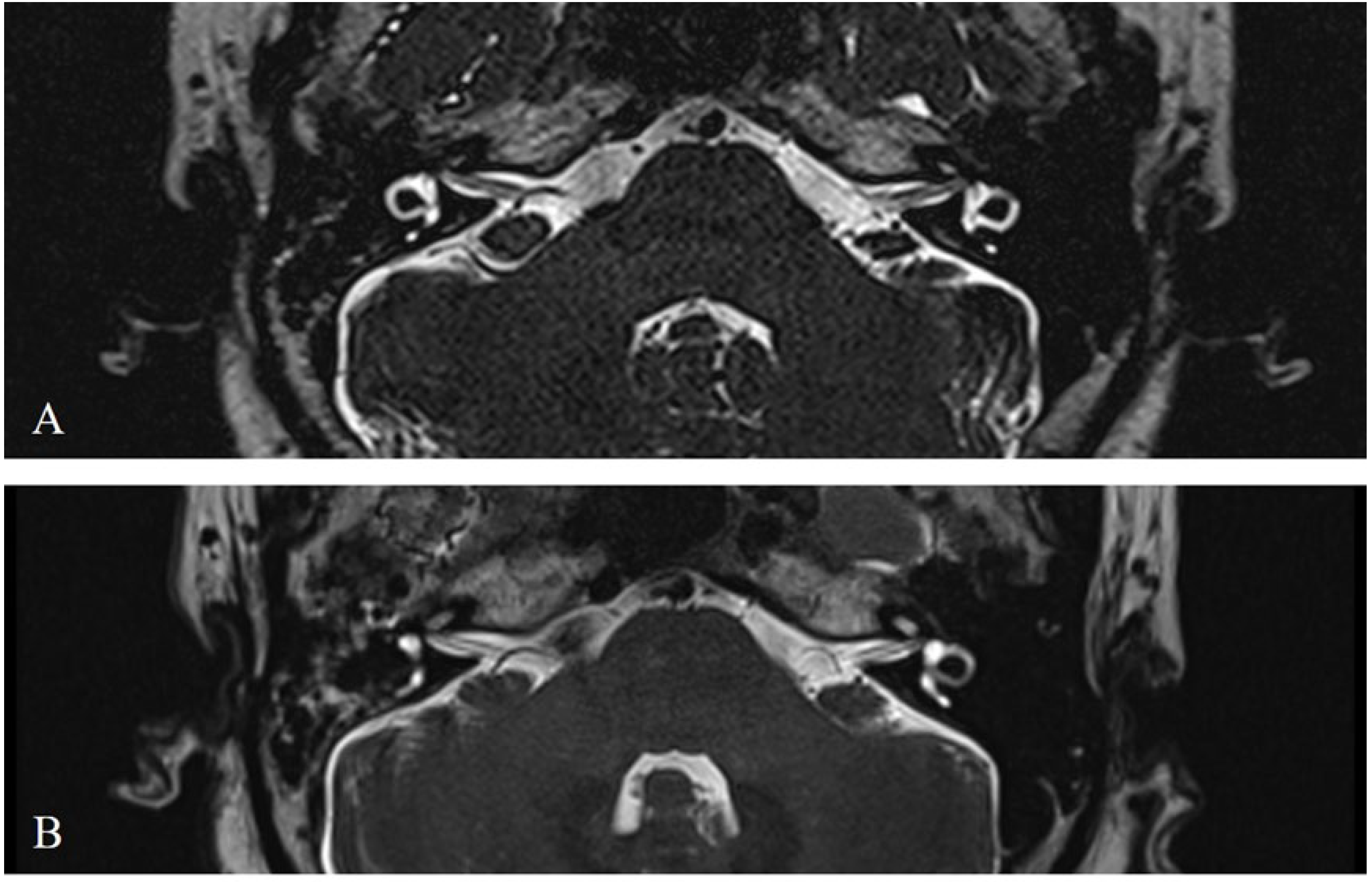

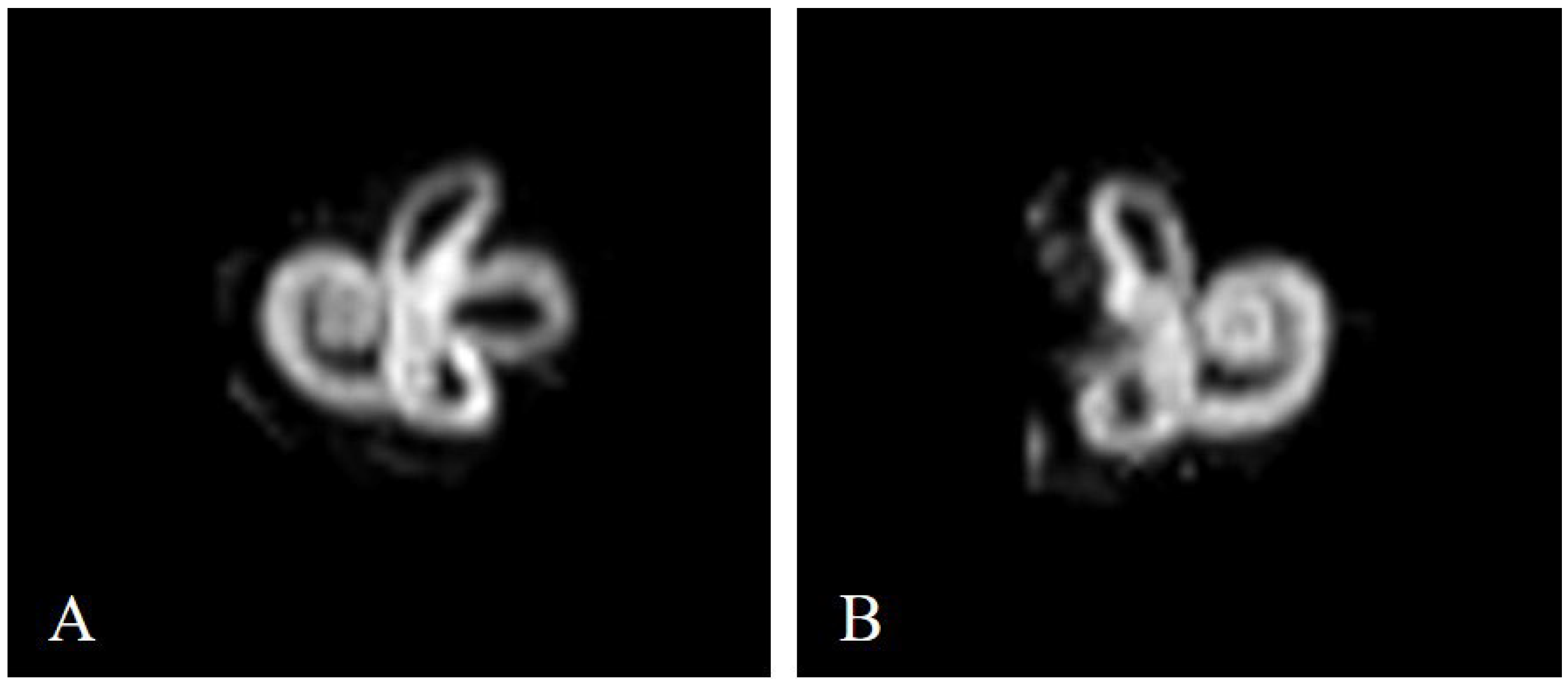

As of June 2024, the follow-up period is 6 months to 2 years, as shown in Table 1. Two weeks postoperatively, the rate of the obstructed horizontal semicircular canal was 100%, as confirmed by imaging studies (Figure 2, Figure 3). No patients experienced local infection, bleeding, severe pain, facial paralysis, or loss of taste in the short-term postoperative complications. Long-term follow-up showed no recurrence of vertigo in all four patients, a control rate of 100%; None of the patients reported progressive hearing loss; postoperative tinnitus improved in 1 case (25%), and the other 3 patients did not report progressive tinnitus; 1 case (25%) of postoperative unsteady walking was observed, and no patient experienced ear discharge, tympanic membrane non-healing, or pain. All patients reported significant improvements in their quality of life and were able to perform daily tasks.

4. Discussion

The SCO is an important advance in the treatment of the vertigo symptoms of Meniere’s disease by partially destroying the semicircular canal, while retaining to a certain extent the functions of the elliptical canal, the spherical canal, and the cochlea. This approach preserves the functions of hearing and otolaryngology. SCO has a smaller incision and a lower risk of hearing loss compared to other procedures [9]. The procedure was relatively simple and the post-operative response was light, significantly better than labyrinthitis and vestibular dissection. The conventional surgical procedure for SCO [10] involves making a skin incision behind the ear to expose and open the mastoid, followed by shaping and opening the mastoid. The horizontal semicircular canal was then located, and its outline was drilled using an electric drill before a micro-diamond drill was used to create a bone window. Subsequently, after opening the window, the peri-venous semicircular canal is identified, and a mixture of bone or tissue mass with fibrin glue is filled into the posterior semicircular canal through the window, compressing the membranous semicircular canal against the opposite bone wall. This leads to the ossification of bone or tissue masses, resulting in permanent complete occlusion of the posterior semicircular canal. Omitting this canal results in the formation of blind ends in the membranous labyrinth, preventing compression or expansion of the periosteum, and thereby controlling vertigo by reducing sensitivity to angular acceleration of the head due to the elimination of vestibular stimulation [11,12]. Several researchers have attempted to modify this surgical approach; Anthony [13] utilized an argon laser for cauterizing bony semicircular canals followed by local fibrosis induced by thermal effect for occluding membranous canals. However, complete occlusion is not guaranteed with this method and there is potential for post-surgery recurrence. In addition, sensorineural hearing loss may result from thermal effects due to laser usage. Similarly, Kartush et al. [14] performed CO2 laser carbonization on membranous semicircular canals via a bone window created on their bony walls using a posterior approach following an incision behind the ear. This led directly to the contraction and obscuration of these canals. While quick and thorough compared to the argon laser method, and safer at the same time, the mastoid approach to horizontal semicircular occlusion often necessitates the significant removal of the mastoid bone during the incision behind the ear, resulting in heightened post-operative reactions including pain and prolonged numbness. Surgery using an ear endoscope eliminates the need for incisions behind the ear or extensive mastoid bone removal. Thus, it offers greater patient acceptance along with the absence of postoperative head wrapping/pain requirements as well as long-term bed rest needs [8].

The criteria for endolymphatic sac decompression via the external auditory canal are aligned with those for the traditional posterior approach, requiring strict adherence before surgery. Most peripheral vestibular disorders respond well to conservative therapies. Corticosteroid injections into the middle ear represent a secondary treatment option for Meniere’s disease; Tympanic injection of gentamicin serves as an intermediate step between secondary and tertiary surgical interventions [15,16]. Surgery may be considered in patients who experience persistent vertigo symptoms, significant impairment of quality of life, and non-responsiveness to medication and other conservative treatments. Surgical indications include stage IV unilateral Meniere’s disease; stage III partial syndrome with failed endolymphatic sac surgery, speech recognition rate below 50%, and a strong preference for surgery [17]. Prior to surgical intervention, it is essential to confirm the diagnosis and affected side, exhaust all conservative treatment options, and engage in individualized discussions during consultation about the benefits and risks of the proposed surgical procedure. The criteria for endolymphatic sac blockage surgery aimed at controlling vertigo must be rigorously controlled. Internationally, several scholars have proposed the development of disease progression prediction models using imaging techniques; Surgery is not recommended if there is a high risk of bilateral progression [18,19]. In addition, surgical intervention becomes more appropriate when the vestibular apparatus of the deaf ear is compromised or useful hearing is absent in the affected ear. It should be noted that this procedure does not improve hearing in general; Therefore, care must be taken to protect the ossicular chain and other structures if residual hearing remains in the affected ear.

This study selectively blocks horizontal semicircular canals for the following reasons. Firstly, the eye movements during vertigo attacks in patients with Meniere’s disease are predominantly horizontal (the vertical component can be ignored). When the anterior and posterior semicircular canals on the same side are simultaneously stimulated, the vertical components of the eye movements are opposite in direction and cancel each other, resulting in weak torsional nystagmus [20]. The eye movements mainly originate in horizontal semicircular canals. Second, blocking horizontal semicircular canals only results in a lower risk of hearing loss compared to blocking multiple semicircular canals. The study found that the probability of further hearing loss in the affected ear was approximately 30 percent after three SCCO procedures, and 23.8 percent and 20 percent, respectively, after two and one SCO procedures [4]. Third, the balance disorder response after horizontal SCO is less severe, and vestibular central compensation can be established more quickly compared to multiple SCO. In addition, the degree of vestibular oculomotor reflex function impairment was similar between the two surgical methods. Compared to unilateral labyrinthectomy, unilateral semicircular canal occlusion can produce a sustained physical stimulus, leading to a significant increase in the excitatory neurotransmitter (glutamate) and neuromodulator (5-HT) concentrations in the ipsilateral vestibular nucleus, thereby altering the balance of excitatory neurotransmitters in the bilateral vestibular system and facilitating vestibular compensation [21,22]. In the case of occlusion of only the horizontal semicircular canal, the duration of the imbalance is short and the time required for vestibular central compensation to build up is shorter and more complete. During follow-up, one patient was found to have significantly improved symptoms of dizziness, but had residual symptoms of unsteady gait. Patients reported feeling as if they were walking on water and had to rely on a cane. Tinnitus and ringing in the ears went away, and hearing remained the same. Upon examination of the patient’s medical history, it was found that the affected ear had not undergone vestibular rehabilitation as directed by the physician after the surgery, which, in addition to the surgical factors, may have been the main cause of the patient’s poor vestibular function. In addition, the patients were older and had more severe symptoms before surgery, which may also have affected vestibular function compensation after surgery. Therefore, precise surgery combined with early vestibular rehabilitation is the way to ensure the effectiveness of the treatment.

5. Conclusions

The transcanal approach with horizontal semicircular canal occlusion under ear endoscope can significantly alleviate vertigo symptoms of Meniere’s disease without damaging hearing, but the effect on tinnitus is unknown. The procedure can significantly improve a patient’s quality of life, but can cause unpredictable balance disorders. By applying endoscopy to the surgical treatment of vertigo, this study broadens the scope of vertigo surgery and enriches the means for individualized and comprehensive treatment of vertigo. Post-operative patients need no head wrap, mild pain, long-term bed rest is not required, and the features of minimal incision, no incision, and rapid recovery are more acceptable to patients. In addition, the indications for this approach are the same as those for the conventional surgical approach. Still, more cases are needed to assess clinical cure rates, prognosis, and adverse reactions. In summary, the endoscopic transcanal approach to horizontal semicircular canal occlusion is safe, effective, easy for patients to accept, and a viable alternative treatment for patients with Meniere’s disease who have been conservatively treated for more than six months and do not have useful hearing.
