Autonomous Planetary Liquid Sampler (APLS) for In-Situ Sample Acquisition and Handling from Liquid Environments

1. Introduction

Water quality monitoring effectively avoids environmental risks and promotes sustainable operation and surveillance of different artificial water infrastructures [1]. Furthermore, water sampling and characterisation are also relevant to investigate different ecological environments, such as oceans, rivers, natural pools, aquaculture sites such as fisheries, water distribution infrastructures in cities, etc. [2,3,4,5,6]. Various parameters can be monitored in a natural or artificial liquid ecosystem, such as the quantity and nature of organic matter in the water sample, pH, salinity, presence and nature of microorganisms, concentration of different dissolved gases, etc. [7]. However, all these independent studies require a preliminary stage where a liquid sample is acquired.

Because of the inherent difficulties of working in this environment, scientific instruments must be durable, affordable, transportable, and fully automated. Given the existing stresses and operation conditions in liquid environments, any deployed technology must comply with stringent mass, volume, and power consumption limits. Liquid samplers should be reusable, and as microbial communities can proliferate in these media, biasing the measurements, the critical parts of the sampling system should be sterilisable. Here, we describe the Autonomous Planetary Liquid Sampler (APLS), which can collect multiple large-volume samples of liquid, operating with liquid temperatures between -10 °C and 60 °C and pressures up to 0.24 MPa (24 m depth below mean sea level on Earth). The primary goal of the APLS is to allow the chemical and microbiological monitoring of natural remote ecosystems on our planet. To avoid cross-contamination between repeated sample collections the instrument shall be sterilisable. Once collected, the samples can be further processed to characterise their physical and chemical properties and the nature of the microbial community using different instruments [8].

This instrument shall collect pristine samples autonomously from brine pools and cold springs from the Arctic and Antarctic regions for its future application to planetary exploration. There is also interest in the long-term monitoring of oceans, measuring variables such as temperature, pressure, salinity, density, tracers, nutrients, isotopes, noble gases, etc., to answer some of the questions about ocean-atmosphere and ocean-ice interactions [9]. The study of eDNA (or environmental DNA) is another exciting prospect in this research that can significantly contribute to characterising the marine biodiversity and opening new pathways to monitoring them [10].

Sampling in liquid media can be even more challenging in some natural extreme environments, such as deep in the ocean or hydrothermal environments. Some existing prototypes use shape memory alloy, which senses high temperatures and actuates the suction mechanism to sample liquids hotter than 80 °C [11]. In contrast, others use a gas-tight isobaric sampler [12,13,14] or a torsion bar to generate the energy required to seal the sample chambers [15]. Some instruments have been designed to collect large-volume liquids at high temperatures and depths [16]. In contrast, others use an osmotically driven continuous liquid sampler [17], based on a flow-through and pressure-tight liquid sampler [18], or use a solid phase microextraction sampler [19], include a serial sampler capable of acquiring multiple deep-sea gas-tight liquid samples [20]. Finally, more recent solutions include a pressure-tight sampler with a metal seal capable of acquiring high-purity liquid samples [21] or Keika Ventures’ Kynar® bags [22,23]. Among these techniques for sampling extreme liquid environments, using a pressure-tight sampler to control and regulate the influx of liquid and avoid leakages has proven to be the most reliable solution at higher operating pressures.

For the samplers mentioned above to be adaptable for a wide range of planetary applications, they must be reusable without needing periodic maintenance. One currently proposed development for future planetary sampling applications is the IceMole, which incorporates a sterilisation function with a 3% hydrogen peroxide (H₂O₂) solution [24]. These design solutions have been tested in similar environments on Earth such as subglacial brine pools within the cold glacier of Blood Falls, McMurdo Dry Valleys, Antarctica [25] and the cold springs in the Canadian Arctic [26,27], which have clear biological potential.

This paper outlines the design choices and proposed methods for extracting, cleaning, and sterilising of the sampling unit. We demonstrated its utility with a pilot prototype tested in the laboratory with a Bacillus subtilis culture. A Simulink model was also developed to support the design and testing phases.

2. Materials and Methods

2.1. Functional Requirements

The main driver for the liquid sampler design was its capability to minimize the environmental impact to support the search for life at different ocean depths and in liquid environments such as rivers, natural pools, artificial pools for fisheries, water distribution infrastructures in cities, etc. Repetitive sampling from different locations or consecutive periods will require cleaning and sterilisation between samples to avoid cross-contamination. The material choice for the systems (especially the tubes) is essential. All parts need heat and pressure resistance and a protective coating to avoid corrosion by salty, acidic, or alkaline waters. Also, the materials selected must be compatible with a pressure-tight system that uses a pressurized noble gas (like helium). Furthermore, utilising and disposing of the cleaning solvent is another challenge. This section addresses these issues and discusses the extraction, cleaning, and sterilisation design choices.

2.2. Extraction

An advanced flow control system is needed to extract and move the liquid samples in precise quantities. This will require a combination of pressure manifolds, valves, and pumps. For the APLS design, considerations for pump selection included lifespan, flow rate, discharge pressure, high precision and reproducibility, compatibility with cleaning and sterilisation options, low temperature operation, heat resistance during sterilisation, chemical resistance against brines and liquids with particles, self-priming, bidirectionality (to aid one pump for both extraction and cleaning processes if necessary), low wear and maintenance. From previous published work, we have estimated the amount of liquid required for biological analysis using DNA extraction and nanopore sequencing to be 300 ml [28]. This amount set the baseline requirement of the sampling time and amount that became the driving factor for the pumping system selection among peristaltic, piston, rotary vane and gear/screw/lobe pumps.

Piston or Rotary Vane pumps would be the best option for sampling in ocean environments. Hydraulic shocks or water hammers are prevalent at ocean depths with pressures up to ~108.6 MPa. The choice of pump needs to decrease the impact and velocity of these shocks. A flexible impeller rotary vane pump is a good option because it can withstand hydraulic shocks better than fixed components. We chose piston pump because it can operate in a wide temperature, pressure, and viscosity range.

Furthermore, this pump type can build pumping pressure faster and deliver high precision sampling. Since the current design does not require backward movement of the liquid, we did not consider the bidirectionality of the pump. The cleaning solvent storage is connected with the pump’s natural direction. This will be discussed in detail in the next section. However, the tubing needs to be flexible and durable to adapt to the vast pressure differences, and the materials used need to endure high pressures and temperatures between -10 °C (sampling liquid) and 150 °C (sterilisation temperature), including ±10 °C margin. Plastic tubing could be a good choice since it offers a vast range of operating temperatures. In addition to the pump, the extraction system would require an inlet filter to remove particles below 1 mm in diameter, a safety pressure regulation system and relief valves. Also, the sensors for monitoring temperature, pressure and flow must be chosen to withstand high pressures. A peristaltic pump might be better and cheaper for a prototype made only for liquid sampling in non-arctic environments on Earth. However, that design choice would require significant changes to adjust to colder liquids.

2.3. Cleaning

The choice of the solvent was the main criterion for the cleaning process. Several alternatives were considered, such as Polar Protic solvents (water, alcohol), Polar Aprotic solvents (Acetone, Acetate) and Non-polar solvents (Chloroform, diethyl ether, Toluene, Hexane). Since most chlorides and iodides are insoluble in water, polar solutes will dissolve better in polar solvents, and non-polar solutes (e.g. hydrocarbons) dissolve better in non-polar solvents, the design choice was confined to the ocean environment, which is predominantly brine. Also, the fact that solubility generally increases with heat was a deciding factor in the design to utilise the heating system of the sterilisation process to aid better dissolution of salts and rinsing with water through the tubes repeatedly to remove residual salts and particles from the internal walls of the pump and other components.

MilliQ water, distilled water, alcohols, and detergents were considered for cleaning solvents. MilliQ water was chosen as the ideal solvent because it has good solubility for salts and other particles that can be carried away through the water movement into a wastewater container or disposed off.

2.4. Sterilisation

The goal was to choose a simple sterilisation and cleaning method that is effective against microorganisms, does not add much mass, poses no hazard, includes easy disposal/storage of residues, and has good cleaning properties, low operation time, and low power consumption requirements.

Several sterilisation options are considered in planetary exploration and in space applications such as: 1) heating to at least 150 °C for 3.2 hours (for 4 to 6 orders of magnitude bioburden reduction) according to the European Cooperation for Space Standardization (ECSS) standards for Dry heat bioburden reduction for flight hardware (ECSS-Q-ST-70-57C), 2) alternatively the usage of chemicals such as H₂O₂, ultraviolet (UV) and gamma rays can also be considered. Heating the whole system from cold operating temperatures to 150 °C will be power-consuming and could damage heat-sensitive materials such as electronics. However, other options of chemicals (Ethylene oxide gas, Nitrogen dioxide gas, Ozone, Hydrogen/Vapourised Hydrogen Peroxide, Peracetic acid, Glutaraldehyde and formaldehyde) are more complex due to safety hazards in the event of leakage. Ultraviolet or gamma rays are also not a viable option since the sources of these radiation forms are not portable, need significant power, and cannot operate efficiently in liquid environments. Finally, the dry heat sterilisation method was chosen for its simplicity, portability, and long-space heritage.

2.5. Other Design Requirements

The cleaning and sterilisation protocols require that all the parts in contact with the liquid be decontaminated and thermal, chemical, ageing resistant materials be used for tubes, pump parts, valves, etc. Suppose sampling from acidic or corrosive liquids; a resistive or anti-corrosive coating will be required. Heating from cold temperatures to 150 °C requires a high-power supply and sound insulation. Also, to demonstrate the sampler in outer space conditions, the prototype must fit the dimensions of the SpaceQ chamber (300 mm x 300 mm x 220 mm), which is a space and Mars simulation environment [29]. The electronic components and any tethers for delivering power and transmitting data must be protected against liquid and the environment (see Table 1). Since after repeated sampling operations, there is a high chance of clogging the internal parts of the sampler; there must be an inbuilt detection system. For example, flow sensors can detect clogging of the sampler by monitoring the drastic reduction in the flow parameter.

When the inlet valve is opened while the sampler is submerged in the high-pressure environment, the resultant hydraulic shock or water hammer can result in erosion, ruptures and failure of tubes, valves, pumps, etc. Therefore, safety and blowoff valves are required to prevent pressure spikes and regulate the system pressure. Other ways to suppress this effect would be by using non-slam check valves, opening and closing the valves slowly, avoiding elbows or loop pipes and using flexible pipe materials.

2.6. Simulink Modelling

A Simulink model of the APLS system for extraction, cleaning, and sterilisation was built to facilitate the application of different design choices for pumps, valves, etc., and to specify the location of the heater mats for efficient sterilisation. The models were quickly adapted for several operation scenarios by changing the components’ parameters. Upon optimisation of the final model parameters, the components for the proof-of-concept prototype were selected. More information about the Simulink model can be found in the supplementary materials.

2.7. APLS Schematic and Proof-of-Concept Prototype

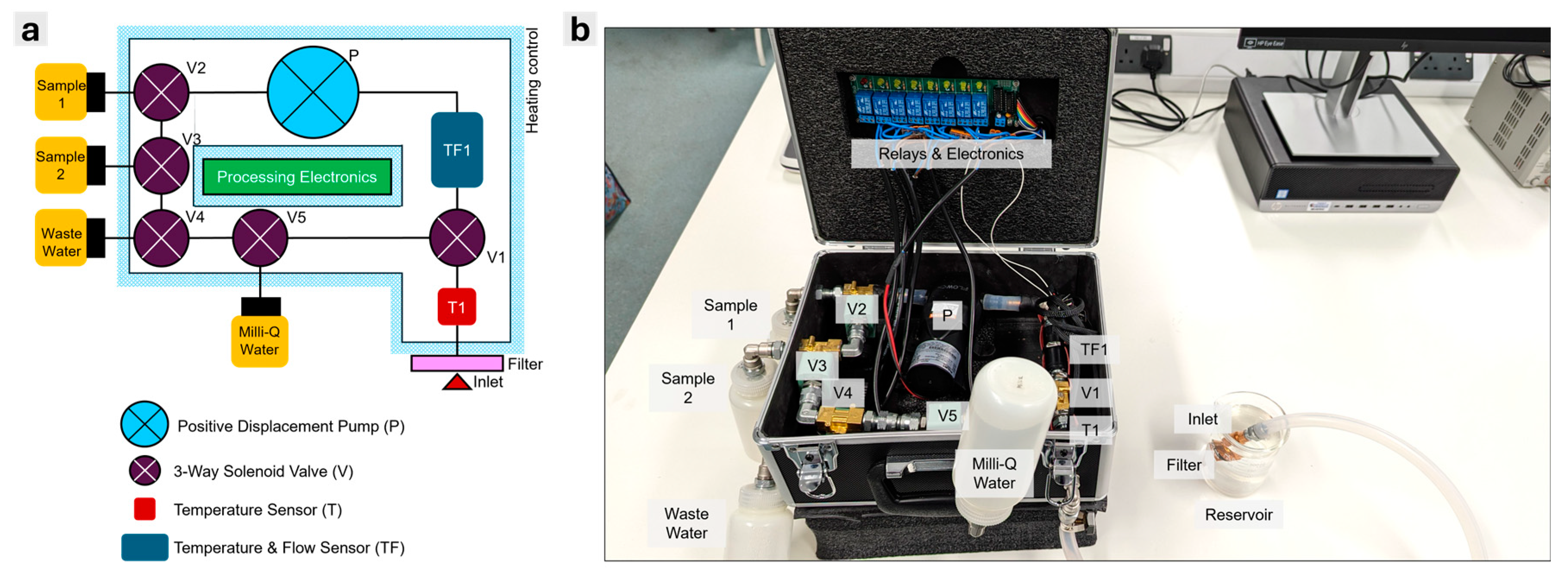

Figure 1 shows the conceptual design of the APLS system and the prototype, which includes a positive displacement pump, P (Diaphragm pump), for extracting the liquid sample and circulating the MilliQ Water for cleaning operation. The current prototype used several COTS (Commercial off-the-shelf) components. We used a 12 V Diaphragm Pump (Flojet RLFP122202A, RS PRO, UK) with 3.8 LPM, self-priming up to 0.8 m and operating pressure up to 2.4 bar (or 0.24 MPa) as a low-cost alternative. 24 V 3-Way Solenoid Valves (ASCO SCG356B466VMS, RS PRO, UK) were used at the Inlet (V1) and for Sample 1 (V2), Sample 2 (V3), Wastewater (V4) and MilliQ Water (V5) for controlling the liquid flow. The inlet temperature is measured with an inline temperature sensor, T1 (10K NTC thermistor, Alphacool, UK), and the system temperature and flow are measured with an inline temperature/flow sensor, TF1 (10K NTC thermistor, Alphacool, UK), at the cleaning loop between V5-V1-V2-V3-V4-V5. This temperature/flow sensor gives the accurate temperature and flow rate reading for each extraction where the flow rate can be converted to the volumetric reading using elapsed time since the pump was switched on. The prototype used ¼ in. stainless steel pipes (316 SS) between all components and ¼ in. silicone flexible tubing at the inlet. 2 x 60 W silicone heater mats were used along the stainless-steel pipes to heat them to the required temperature during the sterilisation operation. At the end of the inlet tube, a filter with a mesh size of 1 mm diameter (Atlas Scientific, USA) was fitted to prevent large particles from entering the system. We also used 250 ml Polypropylene (PP) bottles (RS PRO, UK) for sample, wastewater, and MilliQ water storage. For switching the pump, valves, and heater, an 8-channel relay module was controlled by an ESP32S3 Dev Board with WiFi capability, that can transmit temperature, flow, and pump/valve/heater status data remotely. The circuit diagram, ESP32S3 programmable codes, and remote data visualization tools using Grafana are provided in supplementary materials.

2.8. Cleaning and Sterilisation Validation of APLS with Bacillus subtilis Culture

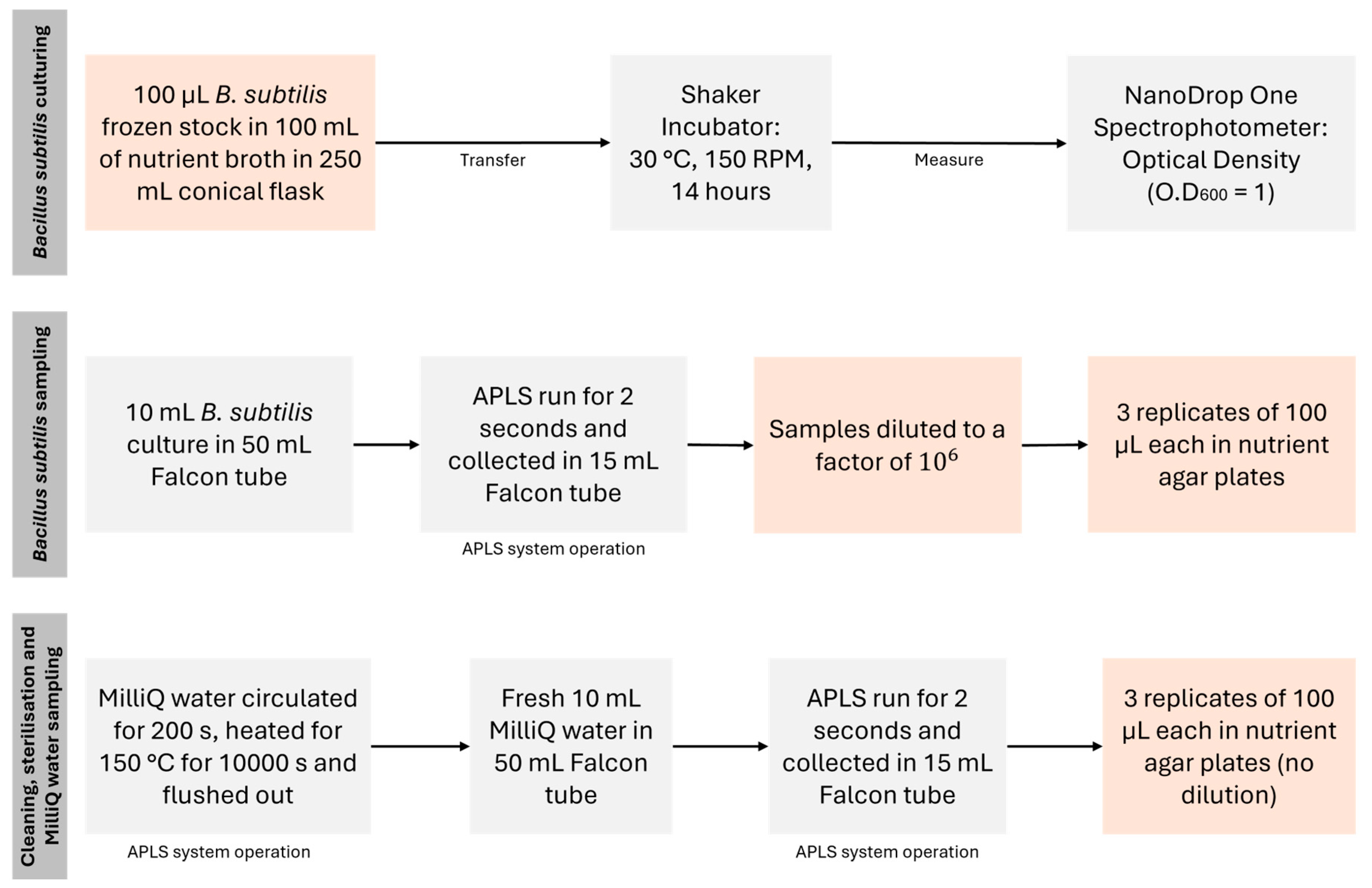

To demonstrate the cleaning and sterilisation efficiency of the APLS, we performed culture-based analysis (colony forming units, CFU) of samples passed through the system; this process is summarised in the scheme of Figure 2. The procedures highlighted by orange blocks were conducted in a Laminar Air Flow cabinet to minimize ambient microbiological contamination. A 10 mL solution of Bacillus subtilis (NCIMB 3610, UK) culture (~O.D600 = 1) was sampled through the inlet of the APLS by running the pump for 2 seconds. This was collected in a sterile 15 mL Falcon tube (Fischer Scientific, UK). After this sampling stage, MilliQ water was circulated and flushed through the system for 200 seconds followed by the dry heat microbial reduction (DHMR) procedure at 150 °C for 10000 seconds. After this sterilisation, a new sample of 10 mL of clean MilliQ water was acquired with the APLS and collected in another sterile 15 mL Falcon tube (Fischer Scientific, UK). The Bacillus subtilis samples were diluted to a factor of 10⁶. Three replicates were taken for culture-based analysis for both Bacillus subtilis and MilliQ samples. In each replicate, 100 µl of the solution was plated in nutrient agar plates (Merck, UK). CFU counts were calculated from the number of colonies formed after 24 hours of incubation at 30 °C.

3. Results and Discussion

The experimental setup for testing the APLS proof-of-concept prototype was run in the laboratory, but the instrument was operated autonomously. The data were logged in the InfluxDB Cloud database (https://eu-central-1-1.aws.cloud2.influxdata.com) and plotted using Grafana (https://www.grafana.com) for real-time visualization and debugging. The instrument is designed so that, by installing a communication unit, all these data can be viewed remotely when operating autonomously.

Here, we elaborate on the prototype’s performance against the functional design requirements. The tests demonstrated the system’s extraction, cleaning, and sterilisation aspects. A typical sampling procedure required 28 s for extracting 250 mL of liquid into the Sample bottle, 5 s for filling the MilliQ water, 25 s for circulation within the system for cleaning and disposal, and 200 s for raising the temperature of the system from ~30 °C ambient laboratory temperature to 150 °C which was maintained for another 3.2 hours for sterilisation for 4 to 6 orders of magnitude of bioburden reduction.

3.1. Extraction

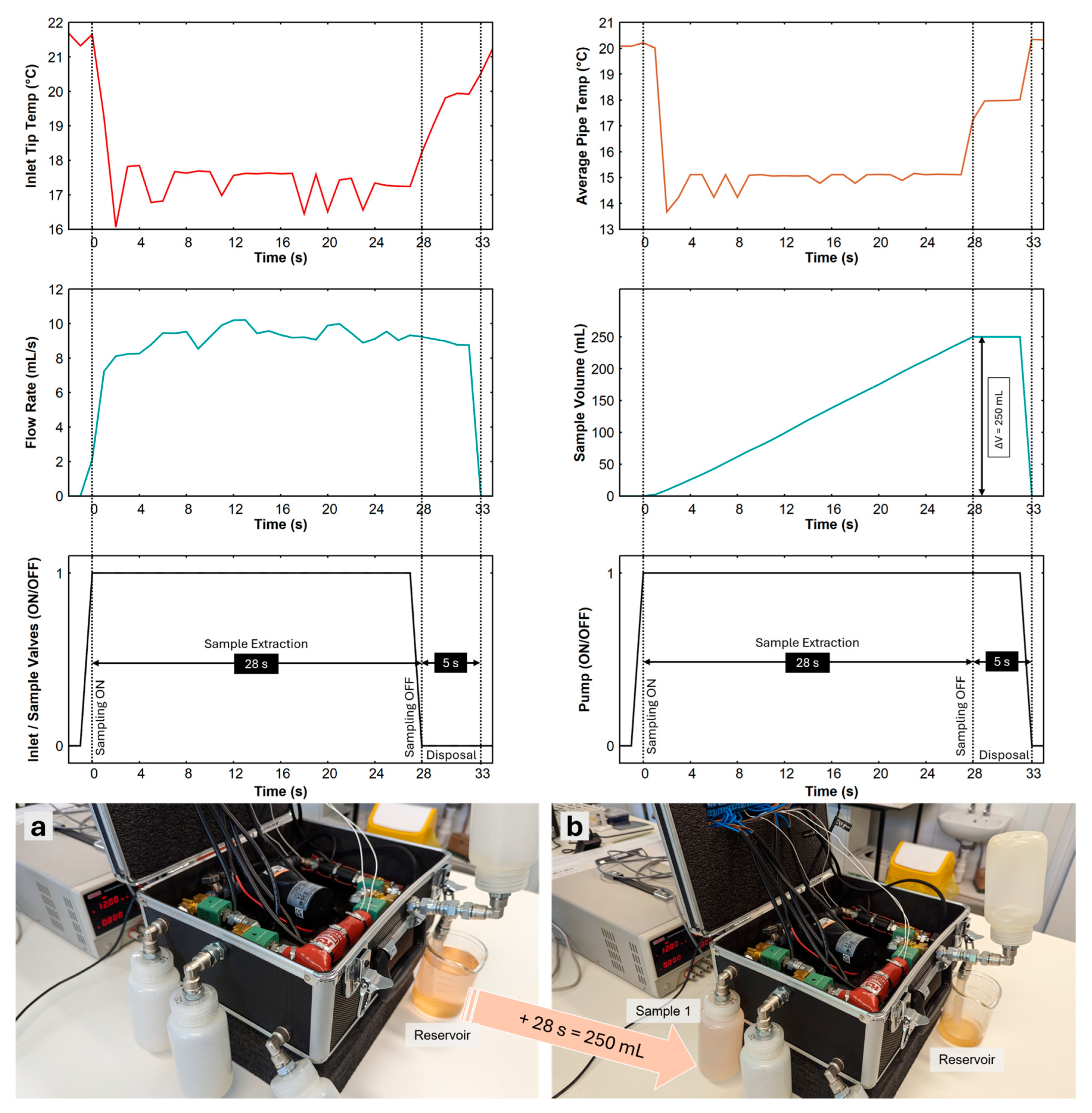

Figure 3 shows the extraction procedure for 28 s for 250 mL of liquid into the Sample 1 bottle at a maximum flow rate of 10.21 mL/s (average = 8.946 mL/s). The inlet tip temperature sensor monitors the liquid body’s temperature, which will help avoid extracting liquid from temperatures below or above a threshold that could damage the tubing and internal systems. Suppose the temperature is within the desirable range, typically between -10 °C and 60 °C for the prototype. In that case, the inlet and sample 1 valves will be opened to create a clear way between the liquid body and the Sample 1 bottle. At this point, the pump was turned ON, and the liquid was extracted for 28 s until the Sample 1 bottle was packed to its limit (250 mL).

3.2. Cleaning

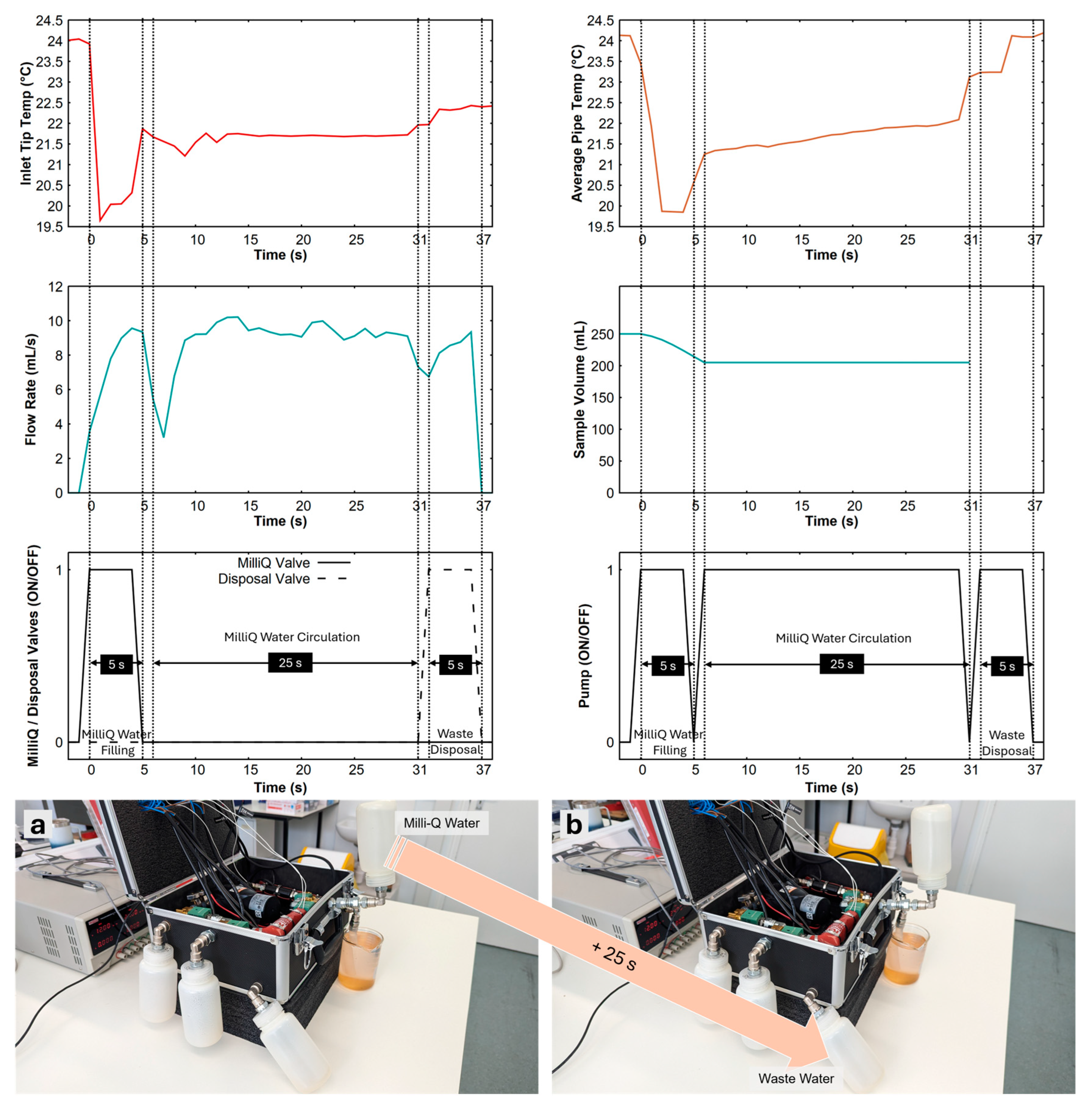

Figure 4 shows the cleaning procedure using MilliQ water. This procedure comprises three steps: filling, circulation, and flushing. Filling the operational part of the tubing circuit takes about 5 seconds. The MilliQ valve was opened for this period, and the pump was turned ON. Note that the inlet and disposal valves are closed at this point. Once the MilliQ water was filled in the system (44.73 mL, calculated based on the average flow rate of pump), the pump was turned ON again for 25 seconds to circulate the MilliQ water, which will help dissolve any contaminants and residues. Closing the inlet valve also helps create a loop within the system to facilitate circulation. After this, the disposal valve was opened while the pump was working to flush out all the filling liquid into the wastewater bottle.

3.3. Sterilisation

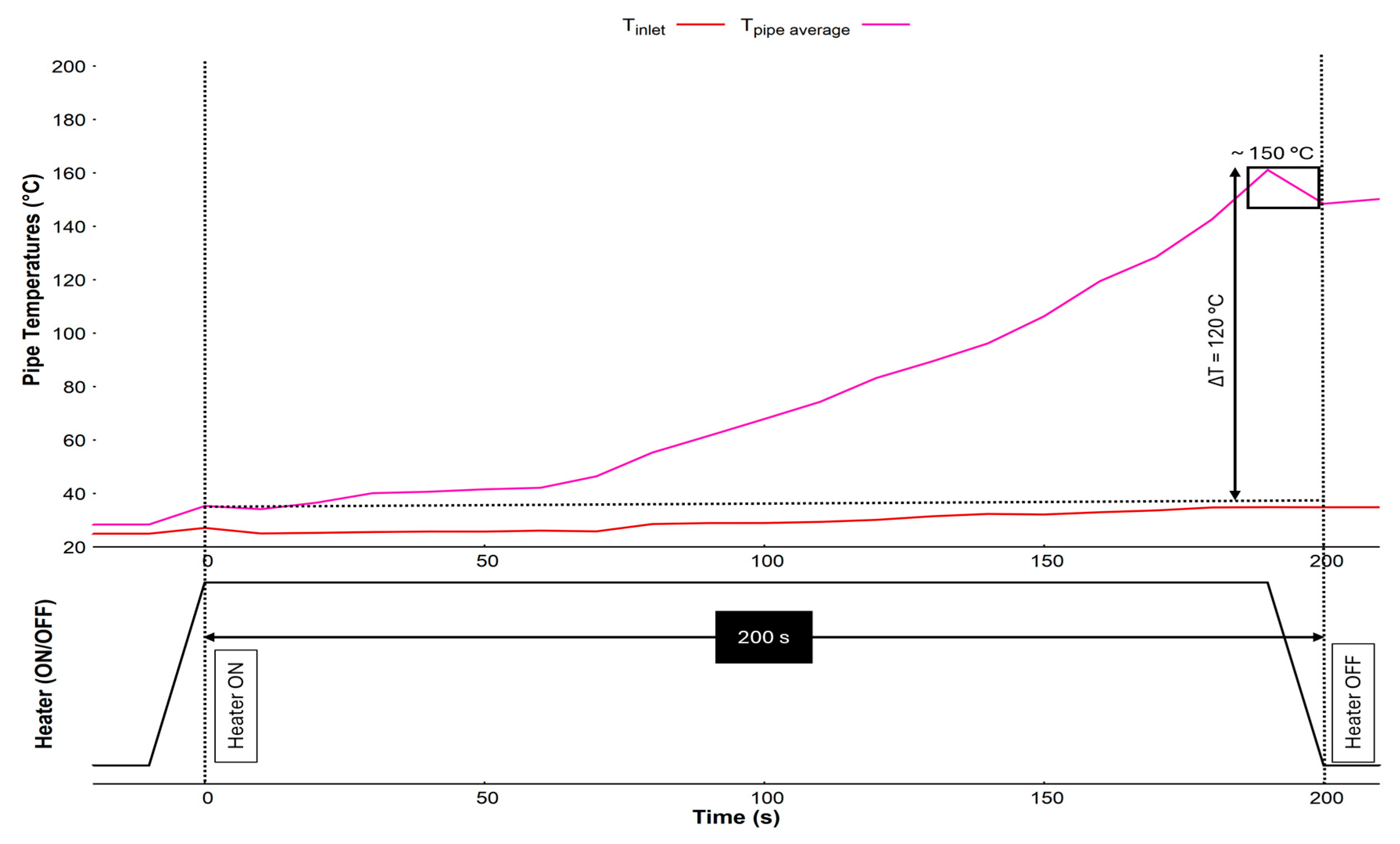

Figure 5 shows the sterilisation procedure using the heater mats. The system has two heater mats equally distributed throughout the length of the tubing. Supplying current through the mats resulted in homogenous conductive heating of the tubing. A temperature difference of ΔT = ~120 °C was achieved during 200 s to raise the temperature to 150 °C. After this, the temperature must be maintained for 3.2 hours required for the dry heat microbial reduction (DHMR) procedure outlined by the ECSS standards. This has been achieved by incorporating PID temperature control. The current prototype did not have a separate heater for the inlet tip, but the residual convective heat was responsible for raising the temperature of the inlet tip by about 10 °C.

3.4. Mass, Power, and Data Budget

As expected, the sterilisation procedure had the highest power demand of up to 50 W (160 Wh) due to the enormous temperature difference required (ΔT = ~120 °C). However, the power budget of a typical sampling cycle was not much more than this value making it reasonable to operate. The current prototype used several COTS (Commercial off-the-shelf) components that added to its size and mass, and the system’s thermal mass. Several parameters were monitored simultaneously for a seamless system operation, including continuous housekeeping data of inlet tip temperature, average pipe temperature and statuses of the pump, heater, and valves at 1 Hz. During the individual operation of the system, supplementary data on the flow rate and volume, along with the individual status of the pump, heater, and valves, were transmitted. For 11 variables of data types int and float, each of 4 bytes data size, a total of 510 KB data was generated for a sampling cycle including extraction, cleaning and sterilisation as mentioned in Table 2.

3.5. Cleaning and Sterilisation Validation of APLS with Bacillus subtilis Culture

CFU counting of the agar plates was done after 24 hours; see Figure 6. Experiments (a) and (c) represent the positive and negative controls. Figure 6a is the resulting culture agar plate for cultivating the diluted Bacillus subtilis liquid sample acquired by the APLS system. This indicates multiple colonies; each is produced after 24 hours by replicating one single initial cell. Figure 6b is the resulting culture agar plate for the cultivation of the MiliQ solution that was circulated through the APLS system after the sterilisation cycle. This indicates that there are no colonies, and thus no viable cells in the system after cleaning and sterilisation at high temperatures. A similar test was run with fresh MiliQ water directly plated on the agar plate, showing no colonies (see Figure 6c).

The results shown in Figure 6 and Table 3 demonstrate no contamination between samples and the effectiveness of the APLS system’s autonomous sterilisation procedure.

4. Conclusions

In this paper, we presented a pilot prototype of the Autonomous Planetary Liquid Sampler (APLS) with pre-programmed autonomous sampling, cleaning, and sterilisation functionalities for liquid bodies with temperatures between -10 ℃ and 60 ℃ and pressure of up to 0.24 MPa (~24 m depth below mean sea level on Earth). We demonstrated its safe and robust operation in a laboratory environment. We have modelled the system using Simulink for extraction, cleaning and sterilisation procedures. Such samplers can be helpful for sample extraction and handling in laboratory setups, as demonstrated during ocean missions and by distributing the raw/processed samples to different downstream analytical instruments. Further work and improving the Technological Readiness Level (TRL) with high-pressure and high-temperature operation could be vital for APLS to be considered a possibility in the upcoming missions to the Ocean Worlds such as Europa, Enceladus, Titan, etc. Meanwhile, the sampler is projected to be useful for Earth’s environmental and ocean science communities.
