Correlations between Symmetry and Frequency of Artificial and Natural Symbols

1. Introduction

In this paper, we will consider a correlation between the symmetry of symbols used in various symbolic systems, both natural and artificial, and their frequency. A symbol is a visual image or sign representing an idea, object, or relationship. A symbolic system is an organized collection of symbols and rules for their use that can carry certain meanings. Examples of artificial symbolic systems are alphabets and numerals, while natural symbolic systems, such as the DNA code, are often found in biological systems.

Alphabets are sets of letters that represent sounds or phonemes of a spoken language. From the semiotic point of view, the type-token distinction of the alphabetic symbols is often made. The type represents a particular letter as a symbol in general, while a token is a particular instance of the letter [1,2]. For example, the word “letter” uses only four types of letters: “l”, “e”, “t”, and “r”. At the same time, it uses six tokens of letters, since the letters “e” and “t” are repeated twice.

Like every set of symbols used for information encoding, an alphabet can possess a certain structure, because elements of alphabets, i.e., letters, have certain relations between themselves. One kind of such relation is statistical relations such as the frequency distribution of symbols. It has been shown by various experimental studies, that the frequency distribution of letters in most texts written in a natural language tends to follow the power or Zipf distribution law [3,4]. Such an observation applies to mentions of letters, i.e., to letters as tokens. Natural structures such as small clusters also tend to be governed by Zipf-like statistical distributions.

Another characteristic of symbols is their graphical complexity. While it is difficult to quantify such elusive quality as complexity, recently attention to the symmetry of alphabetic symbols has been paid. There are various suggestions of what can be behind the symmetry of letters including the mythological concepts behind the horizontal mirror symmetry (e.g., reflecting the symmetry between the earthy and underground worlds) and the role of symmetry in the evolution of the writing system [5,6,7]. The graphical symmetry considerations of symbols apply to letters as types.

Numerals also represent symbolic systems, such as the set of digits 0, 1, … 9. For amazingly many types of data, the statistical distribution of digits is governed by Benford’s law [8,9]. According to this law, which applies to digits from 1 to 9, the frequency of finding a digit decreases with increasing its numeric value. Thus, the chance of finding the digit “1” in any random set of data is about 30.1%, while the chance of finding the digit “9” is only about 4.6%.

We hypothesize that there is a correlation between the statistical frequency of a letter as a token and its symmetry as a type. This is because more frequently used symbols would tend to be either simple or more symmetric. In this paper, we will study symmetry-frequency correlations of two alphabets (Russian and Latin), of several graphical systems of numerals and will compare the results with similar correlations in artificial systems such as small colloidal clusters and ligands.

2. Materials and Methods

2.1. Latin and Russian Alphabets

The capital letters of the Latin alphabet and Cyrillic Russian alphabets were analyzed from the viewpoint of the presence of symmetry groups including the horizontal and vertical mirror symmetry and the central symmetry. The number of symmetry operations (also known is an order of the symmetry group) for English (Latin) and Russian (Cyrillic) capital letters are shown in Table 1.

The frequency data of Latin letters in modern English was obtained from the date available in the literature and summarized in Table 2 for the 26 letters of Latin alphabet [10]. Note that the frequency in texts, frequency in dictionaries, and frequency of the first letter can differ. We relied on the frequency in texts as the most relevant for our study.

The frequency data was obtained from the Russian National Corpus (RNC) and from Wikipedia (https://en.wikipedia.org/wiki/Letter_frequency) [11]. These frequencies are presented in Table 3 for 32 letters of modern Russian alphabet (excluding the letter Ё, which is not used consistently in modern spelling).

2.2. Numerals

We studied four types of numerals belonging to different cultures, namely: (i) modern western numerical digits (often referred to as "Hindu-Arabic numerals") from "1" to "9" (digit "0" was excluded since it is usually not included into Benford’s law), (ii) Roman numerals from "I" to "IX,", (iii) Eastern Arabic numerals from ١ to ٩, and (iv) Chinese numerals, which are also used by many Asian cultures, such as Japanese. Note that for symmetry considerations, certain simplifications were made. Thus, for the digit "1" the form as a vertical line "I" was used, so that the digit is invariant relative to two symmetry operations: the mirror symmetry against the vertical and horizontal lines. The Arabic sign "١" was treated in the same way. The frequency data was obtained from Benford's which states that the leading digit d occurs with the probability

$$P\left(d\right)={\log }_{10}\left(1+{\displaystyle \frac{1}{d}}\right)$$

(1)

This data is summarized in Table 4.

3. Results and Discussion

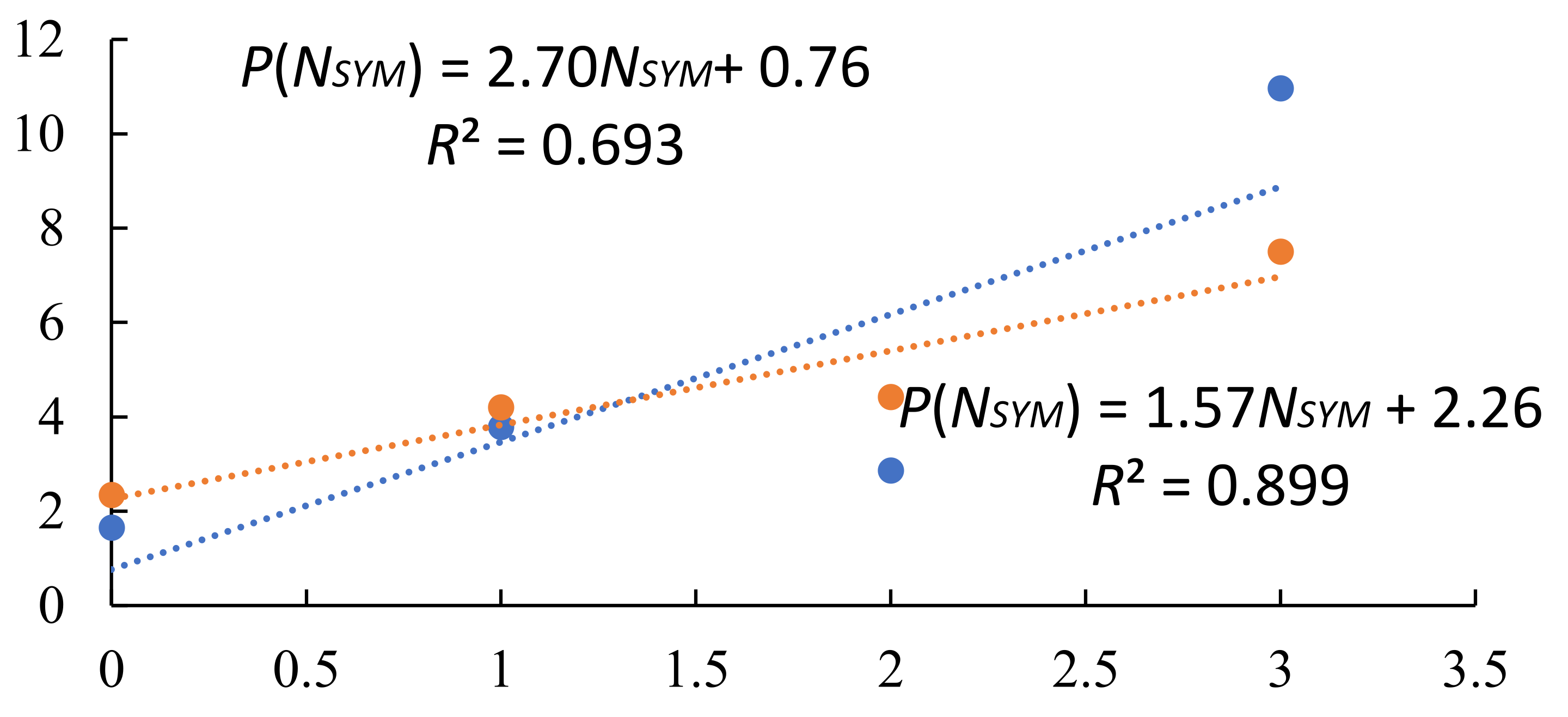

The correlation of the number of symmetry operations ranging from N_SYM =0 to N_SYM =3 (Table 1) and frequencies of letters, P, in English (Table 2) and Russian (Table 3) languages was determined. As one can observe from Figure 1, in both cases more symmetric letters tend to be more frequent.

The linear trend line equation is given by

$$P\left(N_{SYM}\right)=1.57N_{SYM}+2.26\text{(English)}$$

(2)

$$P\left(N_{SYM}\right)=2.7N_{SYM}+0.76\text{(Russian)}$$

(3)

Note that while the slope of the trendline is higher for Russian (2.70 as opposed to 1.57 for English), the coefficient of determination has an opposite trend, $R^2=0.899$ (English) and $R^2=0.693$ (Russian).

In the case of the Russian alphabet, two relatively infrequent but symmetric letters, "Х" and "Ж", constitute outlier points. If these two points are removed, the coefficient of correlation becomes significantly higher, $R^2=0.976$. However, both letters are present already in earliest versions of Cyrillic alphabets in their symmetric forms with "Х" originating from the Greek letter χ and "Ж" being created for the Cyrillic alphabet to represent forms of the verb "жити" ("to live"). Therefore, there is no ground for removing these two letters from the consideration.

A possible explanation of the observed trend is that frequently used letters tended to be simplified, which resulted in more symmetric forms.

In a similar way, the numerals were studied. For the three types of numerals (Table 4), average symmetry was calculated and correlated with Benford's Law frequency (Eq. 1) as summarized in Table 5.

The correlation was found (Figure 2) with the trend line equation given by

$$P\left(\mu \right)=11.34\mu +2.60$$

(4)

And the coefficient of determination $R^2=0.740$. We can conclude that, similarly to alphabets, more frequent numerals tend to be more symmetric.

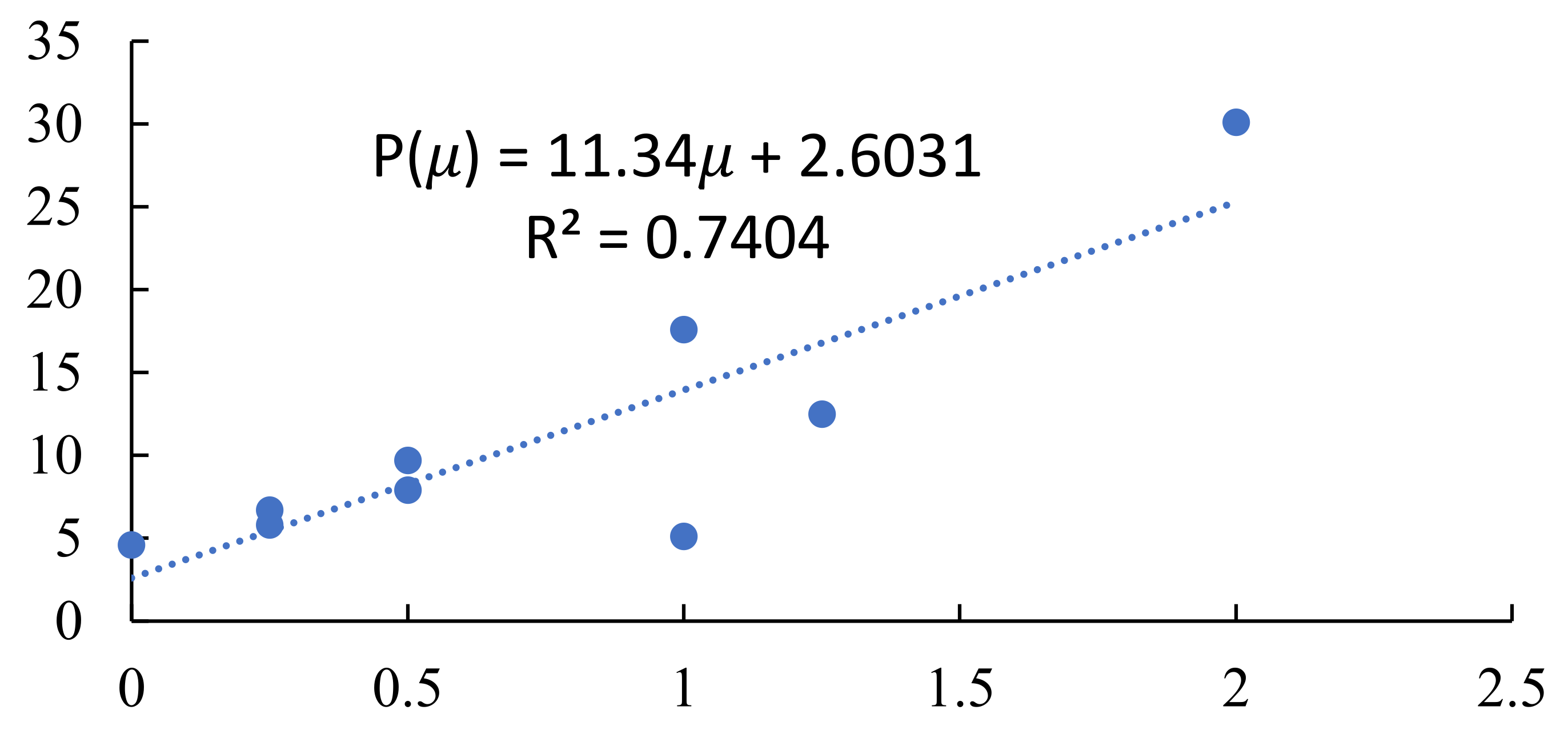

Figure 2. First digit frequency (%) vs. average symmetry parameter µ for numerals.

Figure 2. First digit frequency (%) vs. average symmetry parameter µ for numerals.

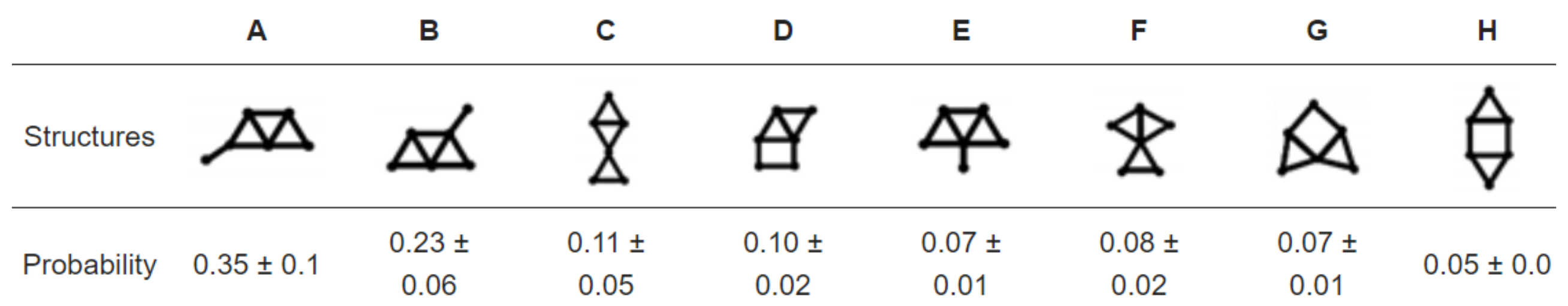

It is interesting to compare artificial symbolic systems – alphabets and numerals – with natural systems such as small colloidal clusters and ligands [12,13,14,15,16]. An example of such system is acoustically levitating small clusters of spherical colloidal particles. For a system of six particles, Perry et al. [14] identified a number of seven-bond and eight-bond configurations. Frequency distributions of these configurations tend to follow the Zipf law (Figure 3). Symmetry of such configurations can be quantified in a similar way to alphabetic and numerical symbols

We calculated the dependency of frequency distribution vs. symmetry for the seven-bond and eight-bond colloidal clusters. The results are presented in Table 6. It is observed that the trend is opposite to the one found with alphabets and numerals. Symmetric structures are less frequent than asymmetric structures. Note that unlike cluster of rigid microparticles, whose interaction is dominated by hardcore repulsion, levitating microdroplet clusters may possess new symmetries absent from rigid clusters. For example, the applicability of the 40-fold, 5-fold, and 7-fold symmetries and mathematical ADE-classification or the so-called simply laced Dynkin diagrams for small levitating droplet clusters has been suggested [13].

An explanation of that is that while in equilibrium, every possible way to build a cluster (having the same binding energy) occurs with the same probability, there are fewer ways of building symmetric clusters. This is considered as an entropic effect, since free energy decreases with increasing entropy according to $\Delta G=\Delta H-T\Delta S$, so that at constant temperature (T=const) and binding energy ($\Delta H=0$), less symmetric configurations are less favorable [17,18].

Another way of interpreting this effect is that symmetric systems have smaller volume of configurational space and consequently smaller mobility. Shityakov et al. studied the ligand-receptor interactions of 1144 ligands, which are candidates for anti-Covid drugs [19]. They investigated the correlation between the Voronoi entropy, a measure of orderliness, of 2D ligand molecules and their affinity to receptors. They showed that less ordered ligands have higher mobility of molecular groups and therefore a higher probability of attaching to receptors.

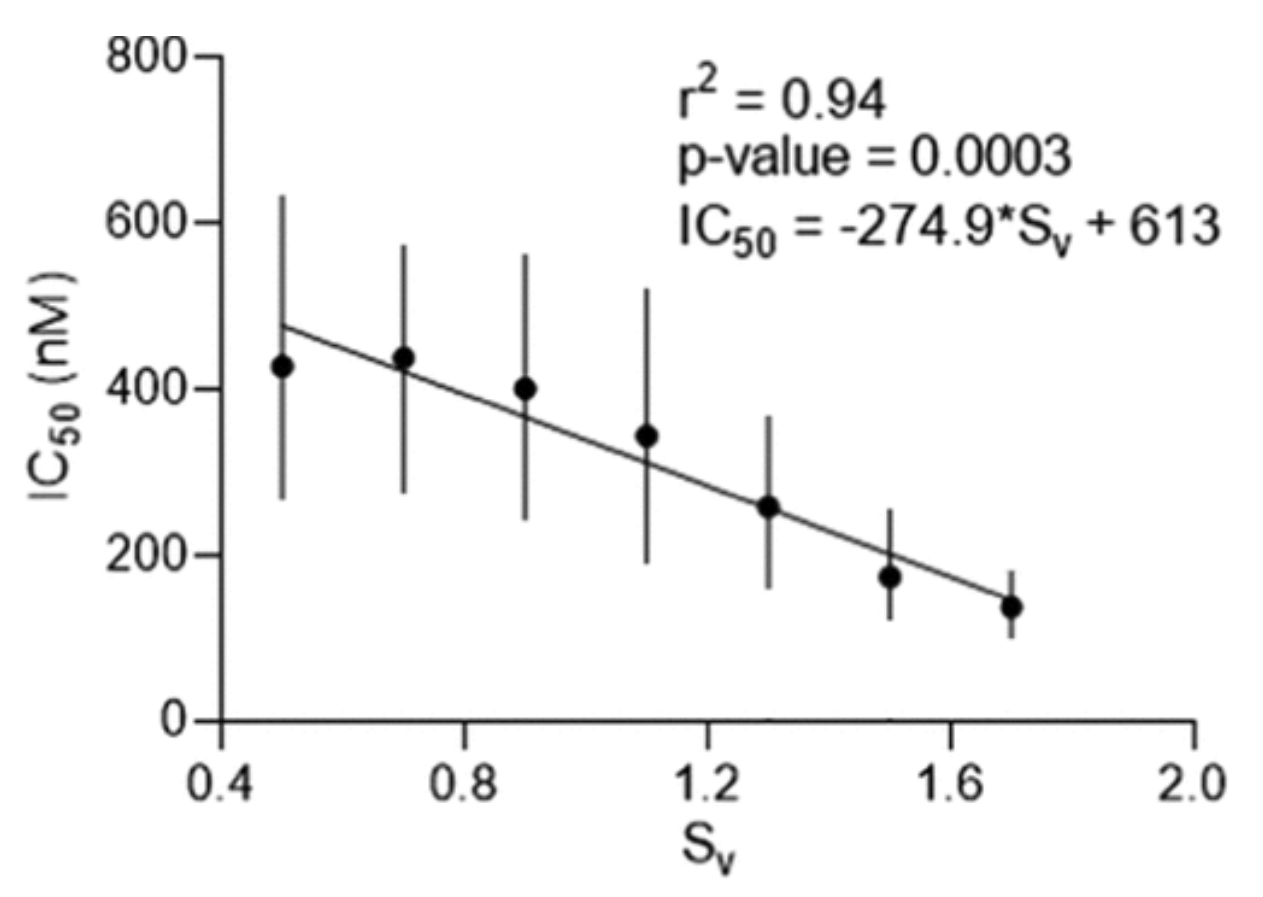

Figure 4. Correlation between the VE and affinity to the SARS-CoV-2 main protease (Mpro) represented by half-maximal inhibitory concentration (IC50), from [17].

Figure 4. Correlation between the VE and affinity to the SARS-CoV-2 main protease (Mpro) represented by half-maximal inhibitory concentration (IC50), from [17].

From these results, we can observe that "symbol-like" natural structures, such as colloidal clusters and ligands tend to behave differently than artificial symbols used by human language. For natural systems, symmetric structures have fewer variants than corresponding non-symmetric structures (or lower entropy), consequently, they are less frequent. In artificial systems of symbols, the trend is opposite: more common symbols are more symmetric to minimize efforts needed to write them.

Every symbol combines two aspects: its form and its meaning. Iconicity is a similarity or analogy between symbols form and meaning [20,21]. In the Chomskian generative linguistics, it was believed that the iconicity is not a significant factor that affects functioning of human language, in particular, that the rules of syntax are independent of semantics ("Autonomy of Syntax") [22]. Contrary to that, Cognitive linguistics establishes that there is influence of semantics upon syntaxis of language. Our study shows properties of a symbol as a type, such as symmetry of its form, and properties of a symbol as a token, such as frequency of use, correlate with each other.

4. Discussion

Distribution of symbols in the texts is not even. Distribution of numerals in the tables of random data follows the Benford law [8,9,24,25,26,27], whereas, the frequency distribution of letters in most texts written in a natural language tends to follow the power law, also called the Zipf distribution law [3,4]. The roots and meaning of the Benford and Zipf law remain debatable; both of laws were criticized recently [28,29,30,31,32]. Undoubtedly, however, that the distribution of numerals and letters in the texts is uneven [33]. We hypothesized that the frequency of appearance of letters and numerals is correlated with the symmetry of their graphic representation. We studied the Latin and Cyrillic letters, modern western numerical digits (often referred to as "Hindu-Arabic numerals"), Roman numerals from "I" to "IX,", Eastern Arabic numerals and Chinese numerals, which are also used by many Asian cultures, such as Japanese. We revealed that the frequency of appearance of letters and numerals in the texts correlates with the symmetry of their graphic forms; namely, symmetrical symbols are more abundant in the texts. Obviously, our research leaves a space for some arbitrariness; indeed the graphic representation of the symbols is variable. At the same time, the revealed tendency is undoubted: more symmetrical symbols are more abundant in the addressed texts. In our future investigations we plan to focus on the following fundamental problems: i) Symbol systems evolve with time [6]; we plan to study the time evolution of the correlation between the symmetry of the symbols and their abundance in the texts; ii) The reason of the revealed correlation remains obscure and it should be investigated.

5. Conclusions

We investigated correlations between letter frequency and symmetry in English and Russian languages. We found a positive correlation (i.e., more symmetric letters are more frequent) in both languages with the coefficients of determination of $R^2=0.899$ (English) and $R^2=0.693$ (Russian). We also studied the correlation between the symmetry of digits and first digit frequency for four different systems of numerals. Again, a positive correlation was observed with the coefficients of determination of $R^2=0.740$. The explanation of these trends may lie in the fact that more frequent symbols are simpler to optimize efforts needed to memorize them and to write them.

For comparison, we studied "symbol-like" 2D colloidal clusters. In such clusters, negative correlations between frequency and symmetry were observed, i.e., more symmetric letters are less frequent with the coefficients of determination of $R^2=0.814$ and $R^2=0.994$. This is explained by the fact that in natural systems more symmetric forms have lower mobility and there are fewer ways of building symmetric clusters than asymmetric ones.

The symmetry-frequency correlations in artificial systems reflect different causation. In human-made systems the frequency of using of a symbol is the driving force which leads to symbols simplification and symmetrizing. In natural system, symmetry leads to lower frequency of occurrence due to the prevalence of non-symmetric configurations over symmetric once.

Our results also indicate that there is a correlation between the symbol as a type and as a token. This is because symmetry is a property of a type, while frequency is a property of a token. We attribute this correlation to the inherent iconicity of symbols.
