Improved Performance of the PMSM Sensorless Control System Based on DTC Strategy and SMC Using Fractional Order and Fractal Dimension Calculus

1. Introduction

Major applications of PMSM include: industrial applications, aerospace applications, electric drives and electric vehicles, computer peripherals and robotics. The growing interest in the widespread use of PMSMs in a very wide variety of applications can be explained both by the fact that PMSMs have a number of advantageous design features, and by the fact that PMSM control systems can be characterised by a wide range of control algorithms with increased flexibility and performance, ranging from their mathematical description to their implementation in embedded systems [1,2,3,4,5].

In terms of overall PMSM control strategies, two strategies can be distinguished, namely the Field Oriented Control (FOC) [6,7] type strategy and the DTC [8,9] type strategy. The FOC type strategy in the classical description contains two tandem control loops, the outer loop for speed and the inner loop for current, and the controllers are of the classical PI controller type. When using the DTC strategy, there are two tandem control loops, the outer one for speed control and the inner one for torque and flow control. As far as the controllers are concerned, in the classical description the speed controller is of the PI type, while the flux and torque controllers are of the hysteresis ON-OFF type. At first sight, the advantages and disadvantages of using the FOC-type strategy vs. the DTC strategy in terms of control algorithm complexity vs. control algorithm computation times are clearly antagonistic. Obviously, the use of hysteresis ON-OFF controllers, which require very short computing times, will inherently introduce small oscillations that must be cancelled out by the outer speed loop controller. Typically, the classical PI-type controller for the outer speed control loop can be an acceptable compromise between the required computation time when implemented in an embedded system and the overall performance of the control system, represented by: response time, settling time, overshoot, steady-state error and speed ripple.

In order to improve this global performance of PMSM control systems, given that PI type controllers provide good performance around global operating points even for relatively small variations of external parameters and disturbances caused in particular by load torque variations, a number of more complex controllers of the following types can be used: adaptive [10], predictive [11], robust [12], fuzzy [13] and neural [14]. Although the performance of these controllers is superior to that of classical PI-type controllers, care must be taken when implementing them in real-time in terms of the trade-off between the computing power of the embedded system and the overall cost of implementation.

A special type of controller can be obtained by using fractional elements. Thus, a number of advanced integer-order controllers can be described by fractional means, with the following control system performance improvements [15,16,17,18,19,20].

A convergent approach to that represented by the control system synthesis is the use of velocity observers to estimate the PMSM rotor speed and possibly other control system characteristic parameters, in the case of the DTC strategy, torque and flux. The use of these observers ensures the sensorless nature of the control system and also contributes to the overall reliability of the PMSM control system through the use of sensors, particularly those using mechanical elements in motion [21,22,23,24].

In addition to the performance indicators described above, an additional one can be introduced, namely the FD of the controlled signal, in this case the FD of the PMSM rotor speed signal. In the papers [25,26], a hypothesis verified by numerical simulations is introduced, namely that more efficient control systems are also characterised by a higher value of the FD [27,28] of the controlled signal.

Taking into account these elements, the paper starts from the PMSM control based on the DTC strategy and presents the improvement of the control system performance in the case of constant reference flux by using PI type fractional controllers, the optimisation of the controller parameters using a computational intelligence algorithm, namely the EOA type algorithm [29,30,31], the synthesis of a speed, torque and flux observer, and in terms of the performance of the control system, the comparison between these control systems uses both the usual performance indicators and the FD of the PMSM speed signal. In the case of a variable reference flux, the speed controller provides the reference for the torque controller, while an SMC controller [32,33] is used to provide the flux reference in both the integer-order and fractional-order FOSMC variants [34,35,36].

The main contributions of this article are as follows:

• Presentation of the PMSM control system based on the DTC strategy;
• Synthesis and implementation of a PMSM control system based on a constant flux DTC strategy and optimisation of PI speed controller parameters using an EOA type algorithm;
• Synthesis and implementation of an observer for estimating PMSM rotor speed, electromagnetic torque and stator flux;
• Synthesis and implementation of a PMSM sensorless control system based on DTC type constant flux strategy using FOMCON toolbox in Matlab for synthesis and implementation of the speed controller in fractional form: FOPI, TID and FO-Lead-Lag;
• Synthesis and implementation of a PMSM sensorless control system based on DTC strategy with variable flux by synthesis and implementation of SMC and FOSMC type controllers to provide stator flux reference;
• Calculation of PMSM speed signal FD for high-end controllers: PI, PI-EOA, FOPI, TID and FO-Lead-Lag for constant flux and SMC and FOSMC for variable flux;
• Comparison of PMSM sensorless control systems based on DTC strategy using high-end controllers: PI, PI-EOA, FOPI, TID and FO-Lead-Lag for constant flux and SMC and FOSMC for variable flux;
• Demonstration of the parametric robustness of the sensorless control system based on the DTC strategy by maintaining the control performance even in the case of a 50% increase in the J parameter, which represents the combined inertia of the PMSM rotor and load;
• Real-time HIL implementation in an embedded system of the proposed PMSM sensorless control system based on a DTC strategy in case of constant flux and variable flux using FOPI, SMC, and FOSMC type controller.

The rest of the paper is presented and structured as follows: Section 2 presents the proposed PMSM sensorless control system using the DTC strategy, while the Matlab/Simulink implementation and numerical simulations for the proposed PMSM sensorless control system using the DTC strategy are presented in Section 3. The real-time implementation and experimental setup are presented in Section 4, and some conclusions and suggestions for future research are presented in the final section.

2. Proposed PMSM Sensorless Control System Using DTC Strategy

The DTC-type control strategy together with the FOC-type control strategy are the most commonly used PMSM control strategies. Each of these control strategies has a number of advantages and disadvantages when compared directly with each other. Therefore, this section presents the DTC strategy based on the PMSM operating equations in the d–q rotating reference frame coordinate system, and Figure 1 shows the block diagram of the DTC strategy. The operating equations are given in relations (1)–(4) [8,9,24].

$$\left[\begin{array}{c}{\psi }_d\\ {\psi }_q\end{array}\right]=\left[\begin{array}{cc}{L}_d& 0\\ 0& L_q\end{array}\right]\left[\begin{array}{c}{i}_d\\ i_q\end{array}\right]+\left[\begin{array}{c}{\lambda }_0\\ 0\end{array}\right]$$

(1)

$$\left[\begin{array}{c}{u}_d\\ u_q\end{array}\right]=R_s\left[\begin{array}{c}{i}_d\\ i_q\end{array}\right]+\left[\begin{array}{cc}{L}_d& 0\\ 0& L_q\end{array}\right]\frac{d}{dt}\left[\begin{array}{c}{i}_d\\ i_q\end{array}\right]+n_p\omega \left[\begin{array}{cc}0& -L_d\\ L_d& 0\end{array}\right]\left[\begin{array}{c}{i}_d\\ i_q\end{array}\right]+n_p\omega \left[\begin{array}{c}0\\ {\lambda }_0\end{array}\right]$$

(2)

$$T_e=\frac{3}{2}{n}_p\left(\left(L_d-L_q\right)i_d{i}_q+{\lambda }_0{I}_q\right)$$

(3)

$$J\dot{\omega }=T_e-T_L-B\omega$$

(4)

In the above relations, the usual notations are used for the inductance L, the stator resistance R_s, the stator flux ψ, the currents i and the voltages u in the coordinate system of the d-q rotating reference frame, plus the mechanical angular speed of the PMSM rotor denoted by ω, the flux linkage denoted by λ₀, the viscous friction coefficient denoted by B, the rotor inertia combined with the load inertia denoted by J. T_e is the electromagnetic torque, T_L is the load torque and the number of PMSM pole pairs is given by n_p.

Figure 1 shows that a two-stage control system is implemented, where the outer stage implements speed control and the inner stage implements torque and flux control via two control loops based on hysteresis ON-OFF controllers. In the case of sensorless control, it is also necessary to synthesise an observer that provides the estimated value of the stator flux, the estimated value of the PMSM rotor speed and the load torque. The main characteristic of this DTC strategy is the use of fast response controllers with reduced design simplicity for the inner loops, while classical PI type controllers generally ensure good performance for the outer loop, maintaining a reduced complexity of real-time implementation.

Based on these aspects, this section presents implementations of control structures that provide improved performance without significantly burdening the hardware/software structure for real-time implementation. Therefore, these types of controllers for outer loop control are presented when the reference stator flux is constant. If the reference stator flux is variable, a separate section presents the implementation of SMC and FOSMC type control structures. The implementation of a flow, speed and torque load observer is also presented in a separate section. In order to compare the performance of the control systems presented, in addition to the classic comparison elements such as response time, settling time and PMSM speed signal ripple, the fractal dimensions (FD) of the control signals, in this case the PMSM speed signal, are also compared.

2.1. PMSM Sensorless Control Based on DTC Strategy Using Constant Flux

In this section, as shown in Figure 2, the classic PI speed controller is replaced by optimally tuned PI controllers using an EOA algorithm and FO controllers: FOPI, TID and FO-Lead-Lag speed controllers respectively. In all these cases the stator reference flux is constant. Throughout this article, the representations of the PMSM operating equations, both in the d−q rotating reference frame coordinate system and in the α−β stationary reference frame coordinate system, prove useful.

In this sense, relation (5) presents a coordinate transformation between the d−q rotating reference frame and the α−β stationary reference frame for the quantities describing the PMSM operating equations [34].

$$\left[\begin{array}{c}{f}_d\\ f_q\end{array}\right]=\left[\begin{array}{cc}\cos {\theta }_e& \sin {\theta }_e\\ -\sin {\theta }_e& \cos {\theta }_e\end{array}\right]\left[\begin{array}{c}{f}_{\alpha }\\ f_{\beta }\end{array}\right]$$

(5)

where: f_α and f_β are the variables in the α−β stationary reference frame, f_d and f_q are the variables in the d−q rotor reference frame.

In relation (5) in the coupling matrix, the electrical angle θ_e is used, whose relation to the mechanical angle θ, which represents the position of the PMSM rotor, is: ${\theta }_e=n_p\theta$.

Using relation (5), the following relations, which describe the operation of the PMSM, can be written in the α−β stationary reference frame coordinate system:

$$\left[\begin{array}{c}{u}_{\alpha }\\ u_{\beta }\end{array}\right]=\left[\begin{array}{cc}R+p{L}_d& {\omega }_e\left(L_d-L_q\right)\\ -{\omega }_e\left(L_d-L_q\right)& R+p{L}_d\end{array}\right]\left[\begin{array}{c}{i}_{\alpha }\\ i_{\beta }\end{array}\right]+\left\{\left(L_d-L_q\right)\left({\omega }_e{i}_d-\frac{d{i}_q}{dt}\right)+{\omega }_e{\lambda }_0\right\}\left[\begin{array}{c}-\sin {\theta }_e\\ \cos {\theta }_e\end{array}\right]$$

(6)

The back-EMF voltages e_α and e_β are defined as follows:

$$\left[\begin{array}{c}{e}_{\alpha }\\ e_{\beta }\end{array}\right]=\left\{\left(L_d-L_q\right)\left({\omega }_e{i}_d-\frac{d{i}_q}{dt}\right)+{\omega }_e{\psi }_f\right\}\left[\begin{array}{c}-\sin {\theta }_e\\ \cos {\theta }_e\end{array}\right]$$

(7)

The time variation of the currents i_α and i_β can be obtained from relation (6) in the following form:

$$\left[\begin{array}{c}\frac{d{i}_{\alpha }}{dt}\\ \frac{d{i}_{\beta }}{dt}\end{array}\right]=\left[\begin{array}{cc}-\frac{R}{L_d}& -\frac{{\omega }_e\left(L_d-L_q\right)}{L_d}\\ \frac{{\omega }_e\left(L_d-L_q\right)}{L_d}& -\frac{R}{L_d}\end{array}\right]\left[\begin{array}{c}{i}_{\alpha }\\ i_{\beta }\end{array}\right]-\left[\begin{array}{cc}\frac{1}{L_d}& 0\\ 0& \frac{1}{L_d}\end{array}\right]\left[\begin{array}{c}{e}_{\alpha }\\ e_{\beta }\end{array}\right]+\frac{1}{L_d}\left[\begin{array}{c}{u}_{\alpha }\\ u_{\beta }\end{array}\right]$$

(8)

Similarly, the time variation of the stator flux in the α−β stationary reference frame can be written as follows:

$$\{\begin{array}{l}\frac{d{\psi }_{\alpha }}{dt}=u_{\alpha }-R{i}_{\alpha }\\ \frac{d{\psi }_{\beta }}{dt}=u_{\beta }-R{i}_{\beta }\end{array}$$

(9)

The expression of the electromagnetic torque T_e in the stationary reference frame α−β is given by the relation (10).

$$T_e=\frac{3n_p}{2}\left({\psi }_{\alpha }{i}_{\beta }-{\psi }_{\beta }{i}_{\alpha }\right)$$

(10)

In an obvious way, relation (11) shows the relationship between the stator flux and its projections in the α−β stationary reference frame and in the d−q rotating reference frame:

$${\psi }^2={\psi }_{\alpha }^2+{\psi }_{\beta }^2={\psi }_d^2+{\psi }_q^2$$

(11)

2.1.1. Equilibrium Optimizer Algorithm

For PI-type controller tuning, in addition to heuristic or classical Ziegler-Nichols tuning [37], superior control system results can be achieved by using computational intelligence algorithms, of which the EOA algorithm is presented below.

Equation (12) shows the operating equation of a PID controller, where the output is u(t) and the input is the error e(t). The tuning parameters of the PID controller are K_p, K_i, and K_d. When using a PI controller, K_d = 0.

$$u(t)=K_{p}e(t)+K_i{\displaystyle \underset{0}{\overset{t}{\int }}e(t)}dt+K_d\frac{de(t)}{dt}$$

(12)

For the PI speed control presented in this section, the tuning parameters are K_p and K_i. They are tuned using an EOA algorithm.

In summary, the operation of an EOA-type algorithm can be described by analogy with the differential equation describing the variation of the concentration C in a volume V, which is equal to the amount of mass entering the system minus the amount of mass leaving the system plus the amount of mass generated within the volume. The following equation can be written (13) [29]:

$$V\frac{dC}{dt}=Q{C}_{eq}-QC+G$$

(13)

where: the rate of change of the mass in the control volume is denoted by $V\frac{dC}{dt}$, the volumetric flow rate into and out of the control volume by Q, the concentration at equilibrium, where there is no generation inside the control volume, by C_eq.

Given$\lambda =\frac{Q}{V}$ equation (13) becomes:

$$\frac{dC}{\lambda C_{eq}-\lambda C+\frac{G}{V}}=dt$$

(14)

The integration of equation (14) gives:

$${\displaystyle \underset{C_0}{\overset{C}{\int }}\frac{dC}{\lambda C_{eq}-\lambda C+\frac{G}{V}}}={\displaystyle \underset{t_0}{\overset{t}{\int }}dt}$$

(15)

Equation (15) gives:

$$C=\lambda C_{eq}+\left(C_0-C_{eq}\right)F+\frac{G}{\lambda V}\left(1-F\right)$$

(16)

where:

$$F=\exp \left(-\lambda (t-t_0)\right)$$

(17)

where: $0\le \lambda \le 1$.

From relation (16) it can be seen that the concentration expression C, which can be considered as the position of a particle in the PSO-type algorithm [35], consists of three terms. The first term is given by the equilibrium concentration C_eq, the second term is given by the current and equilibrium concentration values and the third term is given by the generation rate. In analogy to the PSO-type algorithm, the second term can be used for the direct search part of the algorithm, while the third term can be used for the exploration part of the algorithm. By analogy with the PSO-type algorithm, a population is initialised as in the relation (18).

$$C_i^{initial}=C_{\min }+ran{d}_i\left(C_{\max }-C_{\min }\right);\hspace{1em}i=1,2,\dots ,n$$

(18)

where: $C_i^{initial}$represents the initial concentration vector of the i-th particle, C_min and C_max represents the minimum and maximum values for the dimensions, rand_i is a random vector in the interval of [0,1], and n is the number of particles as the population.

Particles are evaluated to obtain a fitness function that determines equilibrium candidates. The equilibrium candidates are given by the equation (19).

$${\overrightarrow{C}}_{eq.pool}=\left\{{\overrightarrow{C}}_{eq(1)},{\overrightarrow{C}}_{eq(2)},{\overrightarrow{C}}_{eq(3)},{\overrightarrow{C}}_{eq(4)},{\overrightarrow{C}}_{eq(average)}\right\}$$

(19)

The average index of ${\overrightarrow{C}}_{eq(average)}$indicates a particle average value formed, while the pool index of ${\overrightarrow{C}}_{eq.pool}$represents the current selection index.

Equation (17) is modified to equation (20).

$$\overrightarrow{F}=a_{1}sign\left(r-0.5\right)\left(e^{-\overrightarrow{\lambda }t}-1\right)$$

(20)

where: a₁ is a constant value that controls exploration ability. The term $sign(\overrightarrow{r}-0.5)$provides directions for exploitation and exploration.

The generation rate G is given by the relation (21) [29].

$$\overrightarrow{G}={\overrightarrow{G}}_0{e}^{-\overrightarrow{k}\left(t-t_0\right)}$$

(21)

where: G₀ represents the initial value and k indicates a decay constant. For k = λ the final set for G is:

$$\overrightarrow{G}={\overrightarrow{G}}_0{e}^{-\overrightarrow{\lambda }\left(t-t_0\right)}={\overrightarrow{G}}_0\overrightarrow{F}$$

(22)

where:

$${\overrightarrow{G}}_0=GCP\left({\overrightarrow{C}}_{eq}-\overrightarrow{\lambda }\overrightarrow{C}\right)$$

(23)

$$GCP=\{\begin{array}{l}0.5r_1\hspace{1em}{r}_2\ge GP\\ 0\hspace{1em}\hspace{1em}\hspace{0.17em}{r}_1<GP\end{array}$$

(24)

where: r₁ and r₂ represents random numbers in [0,1] and GCP is set to 0.5.

The final tuning equation of the EOA type algorithm is given by the relation (25).

$$\overrightarrow{C}={\overrightarrow{C}}_{eq}+\left(\overrightarrow{C}-{\overrightarrow{C}}_{eq}\right).\overrightarrow{F}+\frac{\overrightarrow{G}}{\overrightarrow{\lambda }V}\left(1-\overrightarrow{F}\right)$$

(25)

In the application presented in this paper, the global optimization criterion used for the EOA type algorithm is an Integral Absolute Error (IAE) criterion:

$$J={\displaystyle \underset{0}{\overset{t}{\int }}\left|e(t)\right|dt}$$

(26)

where: $e(t)={\omega }_{ref}(t)-\omega (t)$, namely the difference between the reference speed and the instantaneous speed of the PMSM rotor.

As a result of implementing this algorithm, the optimal values for tuning the PI controller are obtained. This results in the proposed PI-EOA-type controller shown in Figure 2.

2.1.2. Elements and Notions of Fractional Calculus

For the implementation of the FO-type controllers proposed in Figure 2 (FOPI, TID and FO-Lead-Lag speed controllers), some notions of fractional integration and differentiation are briefly presented. Thus, the non-integer order operator for integration and differentiation is denoted by $a{D}_t^{\alpha }$, where α is the fractional order, and the limits of the interval to which the operator is applied are denoted by a and t. The operator $a{D}_t^{\alpha }$ is shown in relation (27) [15,16,35]:

$$a{D}_t^{\alpha }=\{\begin{array}{c}\frac{d^{\alpha }}{d{t}^{\alpha }}\hspace{1em}\mathrm{Re}(\alpha )>0\\ 1\hspace{1em}\mathrm{Re}(\alpha )=0\\ {\displaystyle {\int }_a^t{(dt)}^{-\alpha }\hspace{1em}\mathrm{Re}(\alpha )<0}\end{array}$$

(27)

The Riemann-Liouville definition of the operator $a{D}_t^{\alpha }$is given by the following relation:

$$a{D}_t^{\alpha }f\left(t\right)=\frac{1}{\Gamma \left(m-\alpha \right)}{\left(\frac{d}{dt}\right)}^m{\displaystyle \underset{\alpha }{\overset{t}{\int }}\frac{f\left(\tau \right)}{{\left(t-\tau \right)}^{\alpha -m+1}}d\tau }$$

(28)

where: $m-1<\alpha <m,\hspace{0.17em}m\in N$; $\Gamma (\cdot )$ – Euler’s gamma function.

The Grünwald-Letnikov definition of the operator $a{D}_t^{\alpha }$is useful in practical applications of numerical representation:

$$a{D}_t^{\alpha }f(t)=\underset{h\to 0}{\lim }\frac{1}{h^{\alpha }}{\displaystyle \sum _{j=0}^{\left[\frac{t-\alpha }{h}\right]}{\left(-1\right)}^j}\left(\begin{array}{c}\alpha \\ j\end{array}\right)f\left(t-jh\right)$$

(29)

where: operator [·] provides the integer part.

Please note that the application of these definitions to the system presented in this article is under initial null conditions [16,17]. Similar to the case of integer order of the operator defined in relation (27), the transfer function for signals with fractional derivative can be defined by applying the Laplace transform. If the orders of the fractional operator s are integer multiples with respect to the proportional order q ($q\in R^{+},\hspace{0.17em}0<q<1,\hspace{0.17em}{\alpha }_k=kq$), the transfer function H(λ) is obtained, expressed by the following relation:

$$H\left(\lambda \right)=\frac{{\displaystyle \sum _{k=0}^m{b}_k{\lambda }^k}}{{\displaystyle \sum _{k=0}^n{a}_k{\lambda }^k}}$$

(30)

where: $\lambda =s^q$.

Based on this, the description of a system in the fractional case can be similar to the transfer function described in relation (30), and a description in the states space as in relation (31).

$$\{\begin{array}{l}{D}^{q}x\left(t\right)=Ax\left(t\right)+Bu\left(t\right)\\ y\left(t\right)=Cx\left(t\right)+Du\left(t\right)\end{array}$$

(31)

The stability of system (31) can be verified by the equation:

$$\left|\arg \left(eig\left(A\right)\right)\right|>q\frac{\pi }{2}$$

(32)

where: $0<q<1$ is the proportional order and eig(A) is the eigenvalue of the associated matrix A.

In terms of numerical implementation by simulation or in real-time, the problem is to approximate fractional FO transfer functions in a given frequency range $\left({\omega }_b,{\omega }_h\right)$ and order N with an integer-order transfer function to obtain an integer-order difference equation that can be directly implemented in a simulation program or an embedded system. This allows Oustaloup recursive filters to be used with$s^{\gamma };\hspace{0.17em}\hspace{0.17em}0<\gamma <1$ [15,16,35]. The form of the integer transfer function used to obtain this approximation is given by the following relation:

$$G_f\left(s\right)=K{\displaystyle \prod _{k=-N}^N\frac{s+{\omega }_k^{\text{'}}}{s+{\omega }_k}}$$

(33)

where: the values of ${\omega }_k^{\text{'}}$, ${\omega }_k$ and K are expressed by equations (34).

$${\omega }_k^{\text{'}}={\omega }_b{\left(\frac{{\omega }_h}{{\omega }_b}\right)}^{\frac{k+N+\frac{1}{2}\left(1-\gamma \right)}{2N+1}};\hspace{0.17em}{\omega }_k={\omega }_b{\left(\frac{{\omega }_h}{{\omega }_b}\right)}^{\frac{k+N+\frac{1}{2}\left(1+\gamma \right)}{2N+1}};\hspace{0.17em}k={\omega }_h^{\gamma }$$

(34)

Another variant of the Oustaloup filter that gives a more accurate conversion is given by relation (35), where the usual values are b = 10 and d = 9.

$$s^{\alpha }\approx {\left(\frac{d{\omega }_h}{b}\right)}^{\alpha }\left(\frac{d{s}^2+b{\omega }_{h}s}{d(1-\alpha )s^2+b{\omega }_{h}s+d\alpha }\right)G_p$$

(35)

where:

$$G_p=K{\displaystyle \prod _{k=-N}^N\frac{s+{\omega }_k^{\text{'}}}{s+{\omega }_k}};\hspace{0.17em}\hspace{0.17em}{\omega }_k={\left(\frac{b{\omega }_h}{d}\right)}^{\frac{\alpha +2k}{2N+1}};\hspace{0.17em}{\omega }_k^{\text{'}}={\left(\frac{d{\omega }_b}{b}\right)}^{\frac{\alpha -2k}{2N+1}}$$

(36)

2.1.3. Fractional Order Speed Controllers for the PMSM Control Using DTC Strategy

Starting from equation (12), after applying the Laplace transform in the complex domain s, we get:

$$U(s)=K_{p}E(s)+K_i\frac{1}{s}E(s)+K_{d}sE(s)$$

(37)

Starting from relation (37), which represents the output of the controller in the complex domain s in the integer case, FO-type controllers can be further described in the fractional case using the notions of fractional computation described above.

• FO-PI Speed Controller for Sensorless PMSM Control System Using DTC Strategy

The most commonly used FO controllers are of the PI^λD^μ type. The description relation in the time domain is given by (38).

$$u(t)=K_{p}e(t)+K_i{D}^{-\lambda }e(t)+K_d{D}^{\mu }e(t)$$

(38)

where: e(t) – signal error.

Applying the Laplace transform to (38) with zero initial conditions gives the following equation, which represents the FO-PI speed controller for the DTC-type sensorless PMSM control system:

$$G_c(s)=K_p+\frac{K_i}{s^{\lambda }}+K_d{s}^{\mu }$$

(39)

where: K_p – the proportional factor; K_i – the integral factor; λ – the integrator order (positive); K_d – the differential factor; μ – the differentiator order. For λ = μ = 1, the result is an integer order PID controller.

• TID Speed Controller for Sensorless PMSM Control System Using DTC Strategy

Another fractional controller similar to the PI^λD^μ controller is the TID controller, which can be described by the following transfer function for PMSM sensorless control system using DTC:

$$G_c(s)=\frac{K_t}{s^{1/n}}+\frac{K_i}{s}+K_{d}s$$

(40)

unde: K_t – tilt gain; n – order of integration of the tilt term; K_i - gain of the integrator term; K_d - gain of the derivator term.

• FO-FO-Lead-Lag Speed Controller for Sensorless PMSM Control System Using DTC Strategy

The general form of the transfer function of a FO-FO-Lead-Lag controller is given by the relation (41):

$$G_c(s)=K_c{\left(\frac{s+\frac{1}{\lambda }}{s+\frac{1}{x\lambda }}\right)}^{\alpha }=K_c{x}^{\alpha }{\left(\frac{\lambda s+1}{x\lambda s+1}\right)}^{\alpha },\hspace{0.17em}0<x<1$$

(41)

where: λ – the fractional order of the FO-FO-Lead-Lag controller.

Note that for α > 0, the FO-FO-Lead-Lag controller has a lead effect, while for α < 0, the FO-FO-Lead-Lag controller has a lag effect.

In relation (41), for $k^{\text{'}}=K_c{x}^{\alpha }$, it is obtained the usual form of the FO-FO-Lead-Lag speed controller:

$$G_c(s)=k^{\text{'}}{\left(\frac{\lambda s+1}{x\lambda s+1}\right)}^{\alpha }$$

(42)

Also, if $k^{\text{'}}=\alpha =1$, $\lambda =K_p/K_i$and x has a very large value (e.g. x > 10000), the FO-FO-Lead-Lag controller transfer function becomes the FO-PI controller transfer function.

This allows greater flexibility in using the FO-FO-Lead-Lag type controller in a control loop and the possibility of obtaining higher performance from the sensorless PMSM control system using DTC strategy.

2.1.4. Observer for the Speed, Electromagnetic Torque, and Flux Estimations

The sensorless nature of the PMSM control system based on the DTC strategy is given by the fact that an observer is used to estimate rotor speed, electromagnetic torque and flux. Starting from equation (9), the expressions for the stator flux $\psi ={\left[\begin{array}{cc}{\psi }_{\alpha }& {\psi }_{\beta }\end{array}\right]}^T$in the α–β stationary reference frame are given in relations (43) and (44).

$$\{\begin{array}{l}{\psi }_{\alpha }={\displaystyle \underset{0}{\overset{t}{\int }}\left(u_{\alpha }-R_s{i}_{\alpha }\right)dt}\\ {\psi }_{\beta }={\displaystyle \underset{0}{\overset{t}{\int }}\left(u_{\beta }-R_s{i}_{\beta }\right)dt}\end{array}$$

(43)

$$\{\begin{array}{l}{\overline{\psi }}_s=\sqrt{{\widehat{\psi }}_{\alpha }^2+{\widehat{\psi }}_{\beta }^2}\\ \angle {\widehat{\psi }}_s=arctg\frac{{\widehat{\psi }}_{\beta }}{{\widehat{\psi }}_{\alpha }}\end{array}$$

(44)

An observer based on equations (45) is used to estimate the stator flux in the α–β stationary reference frame [23,24].

$$\{\begin{array}{l}{\dot{\widehat{\psi }}}_{\alpha }=-R_s{i}_{\alpha }+u_{\alpha }+k_1{\tilde{i}}_{\alpha }+K_{1SMO}sigmoid\hspace{0.17em}({\tilde{i}}_{\alpha })\\ {\dot{\widehat{\psi }}}_{\beta }=-R_s{i}_{\beta }+u_{\beta }+k_2{\tilde{i}}_{\beta }+K_{2SMO}sigmoid\hspace{0.17em}({\tilde{i}}_{\beta })\end{array}$$

(45)

where: ${\widehat{\psi }}_{\alpha }$ and ${\widehat{\psi }}_{\beta }$ – estimated stator flux variables in the α–β stationary reference frame; ${\tilde{i}}_{\alpha }$ and ${\tilde{i}}_{\beta }$ – stator current errors in the α–β stationary reference frame if given in relation (46); k₁, k₂ K_1SMO, and K_2SMO - projected factors (observer gains).

$$\{\begin{array}{l}\tilde{i}{}_{\alpha }=i{}_{\alpha }-\widehat{i}{}_{\alpha }\\ \tilde{i}{}_{\beta }=i{}_{\beta }-\widehat{i}{}_{\beta }\end{array}$$

(46)

Equations (47) are used to estimate the ${\widehat{i}}_{\alpha }$ and ${\widehat{i}}_{\beta }$ stator currents in the α–β stationary reference frame [23,24].

$$\widehat{i}=T^{-1}\left(\widehat{\theta }\right)L^{-1}T\left(\widehat{\theta }\right)\widehat{\psi }+\frac{{\lambda }_0}{L_d}\left(\begin{array}{c}\cos \widehat{\theta }\\ -\sin \widehat{\theta }\end{array}\right)$$

(47)

where: $\widehat{i}={\left[\begin{array}{cc}{\widehat{i}}_{\alpha }& {\widehat{i}}_{\beta }\end{array}\right]}^T$; $\widehat{\psi }={\left[\begin{array}{cc}{\widehat{\psi }}_{\alpha }& {\widehat{\psi }}_{\beta }\end{array}\right]}^T$; $L=\left[\begin{array}{cc}{L}_d& 0\\ 0& L_q\end{array}\right]$; and the transformation matrix $T\left(\widehat{\theta }\right)$ is given by the following relation:

$$T\left(\widehat{\theta }\right)=\left(\begin{array}{cc}\cos \widehat{\theta }& -\sin \widehat{\theta }\\ \sin \widehat{\theta }& \cos \widehat{\theta }\end{array}\right)$$

(48)

Equation (47), explained for the components α and β, can be written as:

$$\{\begin{array}{l}\widehat{i}{}_{\alpha }=\frac{1}{L_d}{\widehat{\psi }}_{\alpha }+\frac{{\lambda }_0}{L_d}\cos (\widehat{\theta })\\ \widehat{i}{}_{\beta }=\frac{1}{L_q}{\widehat{\psi }}_{\beta }-\frac{{\lambda }_0}{L_q}\sin (\widehat{\theta })\end{array}$$

(49)

The PMSM rotor position is estimated using the following relation [23,24]:

$$\widehat{\theta }={\tan }^{-1}\left(\frac{{\widehat{\lambda }}_{\alpha \beta }}{{\widehat{\lambda }}_{\alpha \alpha }}\right)$$

(50)

where:

$$\{\begin{array}{l}{\widehat{\lambda }}_{\alpha \alpha }={\widehat{\psi }}_{\alpha }-L_d{i}_{\alpha }\\ {\widehat{\lambda }}_{\alpha \beta }={\widehat{\psi }}_{\beta }-L_q{i}_{\beta }\end{array}$$

(51)

In relation (45), which describes a sliding mode observer (SMO), the sign function is replaced by the sigmoid function to achieve a smooth transition between +1 and –1.

The definition of the sigmoid function is given by the relation (52).

$$H(x)=\frac{2}{1+e^{-a(x-b)}}-1$$

(52)

where: a = 4 and b = 0 are positive constants.

The graphical representation of the sigmoid function is shown in Figure 3.

The convergence of the observer is demonstrated by choosing a Lyapunov function of the following form:

$$V=\frac{1}{2}\left({\tilde{\psi }}^T{T}^{-1}{L}^{-1}T\tilde{\psi }\right)>0$$

(53)

in which $\tilde{\psi }=\psi -\widehat{\psi }$. After a few calculations, we obtain $\dot{V}<0$, which demonstrates global asymptotic stability [23,24].

To estimate the electromagnetic torque, the following relation is used according to [23,24]:

$${\widehat{T}}_e=\frac{3}{2}{n}_p\left({\widehat{\psi }}_{\alpha }{i}_{\alpha }-{\widehat{\psi }}_{\beta }{i}_{\beta }\right)$$

(54)

Similarly, by deriving equation (50), the PMSM rotor speed estimate is obtained as follows:

$$\widehat{\omega }(k)=\frac{{\widehat{\lambda }}_{a\alpha }\left(k-1\right){\widehat{\lambda }}_{a\beta }\left(k\right)-{\widehat{\lambda }}_{a\beta }\left(k-1\right){\widehat{\lambda }}_{a\alpha }\left(k\right)}{T_s\left({\widehat{\lambda }}_{a\alpha }^2(k)+{\widehat{\lambda }}_{a\beta }^2(k)\right)}$$

(55)

where: T_s – the sampling period, k – the current sampling step.

2.2. PMSM Sensorless Control Based on DTC Strategy Using Variable Flux

If the reference stator flux is not constant, the DTC control strategy is modified to use more complex controllers to obtain ψ_ref. Therefore, Figure 4 shows the block diagram of the PMSM sensorless control system based on the DTC strategy using SMC and FOSMC variable flux controllers.

2.2.1. SMC-type Controller for the PMSM Sensorless Control Based on DTC Strategy Using Variable Flux

Rewriting equations (1)-(4) in the following form [35]:

$$\left(\begin{array}{c}{\dot{i}}_d\\ {\dot{i}}_q\\ \dot{\omega }\end{array}\right)=\left(\begin{array}{ccc}-\frac{R_s}{L}& n_p\omega & 0\\ -n_p\omega & -\frac{R_s}{L}& -\frac{n_p{\lambda }_0}{L}\\ 0& \frac{K_t}{J}& -\frac{B}{J}\end{array}\right)\left(\begin{array}{c}{i}_d\\ i_q\\ \omega \end{array}\right)+\left(\begin{array}{c}\frac{u_d}{L}\\ \frac{u_q}{L}\\ -\frac{T_L}{J}\end{array}\right)$$

(56)

to synthesise an SMC-type controller to control a PMSM, the state variables x₁ and x₂ are selected and described by the following relations:

$$x_1={\omega }_{ref}-\omega$$

(57)

unde: x₁ – speed tracking error.

$$x_2={\dot{x}}_1=\frac{{\omega }_{ref}-\omega }{dt}=-\dot{\omega }$$

(58)

The sliding surface S of the zero error variation is defined in equation (59), and by deriving this equation we obtain equation (60).

$$S=c{x}_1+x_2$$

(59)

$$\dot{S}=c{x}_2+{\dot{x}}_2=c{x}_2-D{\dot{i}}_q$$

(60)

where: the parameter c is positive and adjustable, and $D=\frac{3n_p{\lambda }_0}{2J}$ is obtained from the equations (1)–(3).

Equation (61) shows the condition of the time evolution of the surface S; this condition ensures the control of the response time of the PMSM sensorless control based on the DTC strategy.

$$\dot{S}=-\epsilon \mathrm{sgn}(S)-qS,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\epsilon ,q>0$$

(61)

where: the parameters ε and q are positive and the signum function is denoted by sgn().

The above sgn function is replaced by the sigmoid function defined in relation (52), and this is used in the synthesis of the SMC-type controller in order to reduce the chattering phenomenon characteristic of the structure of this type of controller.

From the above relations, according to the SMC specific methods, we obtain:

$$i_{qref}(t)=\frac{1}{D}{\displaystyle {\int }_0^t\left[c{x}_2+\epsilon H(S)+qS\right]dt}$$

(62)

From equations (9), (10) and (11) the following custom equations can be obtained for the reference values of the electromagnetic torque, the reference current i_qref and the reference value of the stator flux in the usual case where L_d = L_q:

$$i_{qref}=\frac{T_{eref}}{1.5n_p{\lambda }_0}$$

(63)

$${\psi }_{ref}={\lambda }_0^2+{\left(\frac{L_q{T}_{eref}}{1.5n_p{\lambda }_0}\right)}^2$$

(64)

The stability of the PMSM control system based on the DTC strategy using the control law given by equation (62) is demonstrated by selecting a Lyapunov function of the following form:

$$V=\frac{1}{2}{S}^2$$

(65)

The following relation is obtained by calculating the derivative $\dot{V}$:

$$\dot{V}=S\dot{S}=S\left[-\epsilon H(S)-qS\right]=-\epsilon H(S)-q{S}^2$$

(66)

The stability of the system is given by the negativity of the derivative $\dot{V}$.

2.2.2. FOSMC-type Controller for PMSM Sensorless Control Based on DTC Strategy Using Variable Flux

To improve the performance of PMSM sensorless control system based on DTC strategy, the synthesis of a FOSMC type controller is proposed to obtain i_qref and then flux ψ_ref based on relations (63) and (64).

For this purpose, the sliding surface S is selected as follows:

$$S=k_p{x}_1+k_d{D}^{\mu }{x}_1=k_p{x}_1+k_d{D}^{\mu -1}{x}_2$$

(67)

Calculating the derivative of the surface S, we obtain:

$$\dot{S}=k_p{\dot{x}}_1+k_d{D}^{\mu +1}{x}_1=k_p{x}_2+k_d{D}^{\mu -1}{\dot{x}}_2$$

(68)

Based on the descriptive equations of the PMSM mathematical model, the following relation can be written:

$${\dot{x}}_2={\ddot{\omega }}_{ref}-1.5\frac{n_p{\lambda }_0}{J}{\dot{i}}_q+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }$$

(69)

Substituting equation (69) into equation (68) gives:

$$\dot{S}=k_p{x}_2+k_d{D}^{\mu -1}\left({\ddot{\omega }}_{ref}-1.5\frac{n_p{\lambda }_0}{J}{\dot{i}}_q+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }\right)$$

(70)

According to the SMC methods for $\dot{S}=0$, we obtain the following relation:

$$-\epsilon H(S)-qS-k_p{x}_2=k_d{D}^{\mu -1}\left({\ddot{\omega }}_{ref}-1.5\frac{n_p{\lambda }_0}{J}{\dot{i}}_q+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }\right)$$

(68)

Applying the operator $D^{1-\mu }$ to relation (68) to both members, we obtain the following relation:

$$D^{1-\mu }\left(-\epsilon H(S)-qS-k_p{x}_2\right)=k_d\left({\ddot{\omega }}_{ref}-1.5\frac{n_p{\lambda }_0}{J}{\dot{i}}_q+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }\right)$$

(69)

After processing relation (69), we obtain:

$$\frac{1}{k_d}{D}^{1-\mu }\left(-\epsilon H(S)-qS-k_p{x}_2\right)={\ddot{\omega }}_{ref}-1.5\frac{n_p{\lambda }_0}{J}{\dot{i}}_q+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }$$

(70)

By rewriting relation (70), we obtain:

$$1.5\frac{n_p{\lambda }_0}{J}{\dot{i}}_q={\ddot{\omega }}_{ref}+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }-\frac{1}{k_d}{D}^{1-\mu }\left(-\epsilon \hspace{0.17em}H(S)-qS-k_p{x}_2\right)$$

(71)

The current reference i_qref is obtained from equation (71) as follows:

$$i_{qref}(t)=\frac{1}{1.5\frac{n_p{\lambda }_0}{J}}\cdot {\displaystyle \underset{0}{\overset{t}{\int }}\left[{\ddot{\omega }}_{ref}+\frac{1}{J}{\dot{T}}_L+\frac{B}{J}\dot{\omega }-\frac{1}{k_d}{D}^{1-\mu }\left(-\epsilon \hspace{0.17em}H(S)-qS-k_p{x}_2\right)\right]}dt$$

(72)

Then, as in the case of the integer-order SMC-type controller, the reference value of the flux ψ_ref is obtained by using equations (63) and (64).

3. Matlab/Simulink Implementation and Numerical Simulations for the Proposed PMSM Sensorless Control System Using DTC Strategy

In this section, for the values of a PMSM given in Table 1, numerical simulations are performed for the corresponding PMSM control systems according to the cases of DTC strategy controllers presented in Section 2.

3.1. Numerical Simulation for the PMSM Sensorless Control System Based on DTC Strategy Using Constant Flux

The Matlab/Simulink implementation of the PMSM sensorless control based on the constant flux DTC strategy is shown in Figure 5. Therefore, Figure 5 (a) shows the main Simulink model of the sensorless PMSM control based on the DTC strategy, where the speed controllers are: PI, PI-EOA, FOPI, TID and FO-Lead-Lag. The transfer functions obtained for the control of the PMSM, whose parameters are given in Table 1, are presented below. Figure 5 (b) also shows the detail of the Simulink subsystem implementation of the observer for the speed, torque and flux estimation.

For the PI speed controller described in equation (12), in the case of the sensorless PMSM control system based on the constant flux DTC strategy, the tuning parameters obtained by empirical methods are K_p = 0.05 and K_i = 0.91. Using an EOA-type algorithm, the tuning parameters obtained are K_p = 0.03 and K_i = 0.66.

The FOMCON toolbox in Matlab allows the tuning of an FOPI type controller described by equation (39), in the case of PMSM sensorless control based on a constant flux DTC strategy. The values obtained are: K_p = 6.2; K_i = 24; λ = 1,1; K_d = μ = 0, and the FOPI speed controller transfer function becomes:

$$H_{FOPI}(s)=\frac{6.2s^{1.1}+24}{s^{1.1}}$$

(73)

For the closed-loop study of the system consisting of the FOPI controller given in relation (73) and the fixed part given by the PMSM using the FOMCON toolbox in Matlab, the following fractional-order transfer function is obtained:

$$H_{FOPI\_CL}(s)=\frac{17.71s^{1.1}+68.58}{5.44\cdot {10}^{-8}{s}^{4.2}+2.58\cdot {10}^{-5}{s}^{3.2}+0.03s^{2.2}+18.47s^{1.1}+68.56}$$

(74)

The stability of the closed-loop system of the PMSM sensorless control system based on the constant flux DTC strategy and PI speed controller is given by satisfying the condition given by relation (32) and is shown graphically in Figure 6 using the FOMCON toolbox. The analysis of Figure 6 shows that the system is stable. Figure 7 shows the step signal response of the closed loop system when using the FOPI speed controller.

Figure 8 shows the Bode diagram plot of magnitude/frequency and phase/frequency of the closed loop system consisting of the FOPI controller given by relation (73) in the case of PMSM sensorless control system based on DTC strategy using FOPI speed controller at constant flux.

For real-time implementation in an embedded system, it is necessary to obtain the equivalent transfer function of integer order of the transfer function of the FOPI type speed controller given in equation (73) in the fractional form. The equivalent transfer function in the discrete variable z of integer order can be implemented as a recursive equation. The Oustaloup filter is used to approximate the fractional order transfer function with a continuous integer order transfer function. This is done using the FOMCON toolbox for Matlab in the frequency range ω = [10^-2; 10³] rad/s, which contains the common frequencies for the presented application. Figure 9 (a) shows the equivalent transfer function obtained in the s-domain. The equivalent transfer function in the z-domain is obtained using the Tustin substitution. The form of the discrete transfer function obtained is shown in Figure 9 (b).

Based on the second fractional order controller of the PMSM sensorless control system based on the constant flux DTC strategy, i.e. the TID controller described in equation (40), whose tuning parameters are K_t = 0.035, K_i = 0.31, n = 10 and K_d = 0, the following transfer function is obtained:

$$H_{TID}(s)=\frac{0.035s^{0.9}+0.31}{s}$$

(75)

Similar to the case of the FOPI speed controller, using the Oustaloup zpk filter, the integer order results for the TID controller are shown in Figure 10. Therefore, the continuous form is shown in Figure 10 (a) and the discrete form is shown in Figure 10 (b).

For the FO-Lead-Lag speed controller shown in equations (41) and (42), the following transfer function is obtained for the tuning parameters k’ = 300, x = 50, λ = 1,4 și α = 0.11:

$$H_{FO-Lead-Lag}(s)=\frac{3.606\cdot {10}^8}{s^{2.1}+73730s^{1.1}+4.7\cdot {10}^6}$$

(76)

Using the Oustaloup zpk filter, the integer order results for the FO-Lead-Lag type speed controller are shown in Figure 11. Therefore, the continuous form is shown in Figure 11 (a) and the discrete form is shown in Figure 11 (b).

Based on the nominal PMSM parameters in the case of the sensorless control system based on the DTC strategy using PI, PI-EOA, FOPI, TID, and FO-Lead-Lag speed controllers at constant flux, the numerical simulations are presented below.

Graphs of the following parameters of interest are presented for each sensorless control system based on the DTC strategy using speed controllers: Reference speed and estimated PMSM rotor speed, load and electromagnetic torque, stator currents and fluxes in the α–β stationary reference frame. The load torque reference T_L is of 1Nm and the speed reference signal ω_ref used is expressed as a sequence of steps: [400 600 900]rpm→[0 0.1 0.2]s. For the speed, electromagnetic torque and flux estimation observer presented in section 2.1.4, the tuning parameters are: k₁ = 150 and k₂ = 50, K_1SMO = K_2SMO = 0.1.

Figure 12 shows the parameter evolution of the PMSM sensorless control system using the DTC strategy with PI speed controller at constant flux. Note that the response time is tr = 12ms and the settling time is ts = 72ms.

The parameter evolution of the PMSM sensorless control system using the DTC strategy when using the PI-EOA speed controller is shown in Figure 13. In this case, the response time is tr = 9.2ms and the settling time is ts = 30ms. There is a 25% reduction in response time and a reduction in settling time of around 60%.

Using the FOPI speed controller for the PMSM sensorless control system with DTC strategy at constant flux, the evolution of the parameters is shown in Figure 14. This gives a response time tr = 7.9ms and a settling time ts = 15ms. There is a 34% reduction in response time and a 79% reduction in settling time.

Using the TID speed controller for the PMSM sensorless control system with DTC strategy at constant flux, the evolution of the parameters is shown in Figure 15. A response time tr = 5.9ms and a settling time ts = 14.5ms are obtained. There is a 50% reduction in response time and an 80% reduction in settling time.

Using the FO-Lead-Lag speed controller for the PMSM sensorless control system with DTC strategy at constant flux, the evolution of the parameters is shown in Figure 16. This gives a response time tr = 3.2ms and a settling time ts = 9.1ms. There is a 73% reduction in response time and approximately 87% reduction in settling time.

Figure 17 shows the flux space vector trajectory components in the α–β stationary reference frame for the PMSM sensorless control system based on the DTC strategy using the PI speed controller at constant flux.

A comparison of the evolution of the PMSM rotor speed for the sensorless control system based on the DTC strategy using PI, PI-EOA, FOPI, TID and FO-Lead-Lag speed controllers at constant flux is shown in Figure 18. It can be seen that the use of FO type controllers improves the performance of the control system, so the best performance in the comparison presented is obtained by FO-Lead-Lag speed controllers, followed by TID and FOPI speed controllers.

3.2. Numerical Simulation for the PMSM Sensorless Control System Based on DTC Strategy Using Variable Flux

The Matlab/Simulink implementation of the PMSM sensorless control system based on the DTC strategy using variable flux is shown in Figure 19. Therefore, Figure 19 (a) shows the main Simulink model of the PMSM sensorless control system based on the DTC strategy using SMC and FOSMC type controllers. In addition, Figure 19 (b) shows the detail of the Simulink subsystem implementation for the SMC-type controller, and Figure 19 (c) shows the detail of the Simulink subsystem implementation for the FOSMC-type controller. The Matlab/Simulink implementation presented is based on the SMC and FOSMC type controller description equations presented in Section 2.2.

For the numerical simulations performed in Matlab/Simulink using the SMC-type controller described in section 2, the parameters in Eqs. (56)–(66) are as follows: ε = 300, q = 200, and c = 100. For the FOSMC-type controller described in Section 2, equations (67)–(72), the parameters are as follows: k_p = 100, k_d =1, and μ = 0.55.

Using the SMC-type controller for the PMSM sensorless control system with DTC strategy at variable flux, the evolution of the parameters is shown in Figure 20. The response time is tr = 2.3ms and the settling time is ts = 2.3ms. There is an 80% reduction in response time and approximately 96% reduction in settling time compared to the original PI controller performance. In addition, using the FOSMC-type controller for the PMSM sensorless control system with DTC strategy at variable flux, the evolution of the parameters is shown in Figure 21. The response time is tr = 2.2ms and the settling time is ts = 2.2ms. There is an 82% reduction in response time and approximately 97% reduction in settling time compared to the initial performance of the PI controller.

In terms of parametric robustness, Figure 22 shows the parameter evolution of the PMSM sensorless control system using the DTC strategy with the FOSMC variable flux controller, where the J parameter increases by 50% compared to the nominal valueGood dynamic performance is also observed in this case, in the sense that the overshoot is negligible and the steady-state error is less than 0.1%, just as in the case where the J parameter is at the nominal value. Obviously, given the importance of the J parameter, which represents the combined inertia of the PMSM rotor and load, the response time increases to 4ms and the stator currents increase by approximately 20%.

The flux space vector trajectory for the PMSM sensorless control system based on the DTC strategy using the FOSMC variable flux controller is shown in Figure 23, and the evolution of the flux reference for the FOSMC-type controller is shown in Figure 24.

The comparison of the evolution of the PMSM rotor speed for the sensorless control system based on the DTC strategy using SMC and FOSMC variable flux controllers is shown in Figure 25. Note that this comparison is made between SMC and FOSMC type controllers and FO-Lead-Lag controllers, which provide the best performance of the group of controllers presented in the previous section. Thus, the best performance of the PMSM sensorless control system based on the DTC strategy is achieved using the FOSMC-type controller.

3.3. Description of the Fractal Dimension and Calculus for the Speed Signal Controled by Proposed Controllers used in PMSM Sensorless Control Based on DTC Strategy

In order to compare the performance of the PMSM sensorless control system using the DTC strategy in the case of all the controllers presented in the previous sections, the FD of the signal controlled by the control system, in this case the PMSM speed, is proposed as a performance indicator. According to [28], a FD value of the controlled signal is higher if the control system provides better performance.

One of the most widely used methods for calculating the FD of a one-dimensional signal is the box-counting method [28]. It starts with a square in which the signal can fit, and the unit of measurement used below is the side of that square. For numerical reasons, the side of the square is chosen as a power of 2. By iteratively dividing the unit of measurement by 2, the algorithm continues until a value lower than a predetermined threshold is obtained. At each iteration, the division has the expression 1/2k, where k is the current step. On the second axis, the division is in the form of $n_k/2^{2k}$, where n_k is the total number of occupied domains, relative to the scale given by the initial signal. At each iteration, the coordinates of the points M_k(x,y) corresponding to the two axes are maintained, using a Cartesian system in logarithmic coordinates for the representation. The sequence of points M₁, M₂, ...,M_n is calculated iteratively until the stop condition, given by exceeding the selected threshold, is met. It is interesting to calculate the slope of the line closest to points M₁, M₂, ...,M_n, closest in the sense of least squares. The value obtained using the above algorithm represents the FD of the initial signal. The command “[n,r] = boxcount(signal,'slope')” in the Matlab environment is used to obtain the vectors of the two dimensions according to the algorithm described above. The logarithmic coordinates of the M_k points, together with the slope of the line closest to the points obtained by applying the algorithm, where the slope represents the FD of the analysed signal, are obtained by the following Matlab commands: “fd = -diff(log(n))./diff(log(r))” and “['FD = 'num2str(mean(df(1:length(df)))) '+/- 'num2str(std(df(1:length(df))))])”.

For the PMSM with the parameters given in Table 1, the graphical representation of the FD of the speed signal for the PMSM sensorless control system based on the DTC strategy is shown in Figure 26. Thus, for the constant flux case: Figure 26(a) shows the FD of the speed signal for the PI speed controller, Figure 26(b) shows the FD of the speed signal for the PI-EOA speed controller, Figure 26(c) shows the FD of the speed signal for the FOPI speed controller, Figure 26(d) shows the FD of the speed signal for the TID speed controller, and Figure 26(e) shows the FD of the speed signal for the FO-Lead-Lag speed controller. In addition, for the case of a variable flux: Figure 26(f) shows the FD of the speed signal for the SMC-type controller and Figure 26(g) shows the FD of the speed signal for the FOSMC-type controller. It can be seen that the FD of the speed signal increases according to the controllers that bring performance improvements to closed-loop PMSM systems based on the DTC strategy.

The usual performances of the PMSM sensorless control system based on the DTC strategy for the controllers presented in the previous sections are summarised in Table 2. In addition to FD, time response and settling time, the speed ripple is also shown, defined by the following relation [35]:

$${\omega }_{ripple}=\sqrt{\frac{1}{N}{\displaystyle \sum _{i=1}^N{\left(\omega (i)-{\omega }_{ref}(i)\right)}^2}}$$

(77)

where: N – number of samples; ω – PMSM speed; ω_ref – PMSM reference speed.

Also, the usual performance indicators of a control system, namely overshoot and steady state error, have not been included in Table 2 because for all the types of controllers presented, with the exception of the classic PI speed controller, overshoot is negligible and steady state error is less than 0.1%. Improvements in the performance of the PMSM control system based on the DTC strategy are obtained when using a classical PI speed controller, when using an EOA type algorithm and when using FO type controllers, i.e. FOPI, TID, FO-Lead-Lag speed controllers at constant flux. In the case of variable flux, the SMC-type controller and the FO controller, i.e. the FOSMC-type controller, provide the best performance of the PMSM sensorless control system based on the DTC strategy.

4. Real-Time Implementation and Experimental Setup

Section 3 introduced a very important step in the development of a prototype, namely the numerical simulation step. At the numerical simulation stage, generally referred to as Software In the Loop (SIL), both the mathematical model of the controlled process and the mathematical model of the controller run on a host PC, and the execution of the closed-loop simulation program does not overlap with the so-called real-time execution, where there is a correlation between the evolution of the real signals and the speed of display in the monitoring and control software application. At this stage, the controller parameters are adjusted and the performance of the analysed control systems is compared in a safe operating environment. After this stage, there is an option to go through the Processor In the Loop (PIL) stage, where the driven process is still simulated but the controller is real, but the final stage of developing a prototype controller is the Hardware In the Loop (HIL) stage, where the driven process is real and the controller is also implemented in an embedded system [37].

The PMSM sensorless control system based on the DTC strategy presented in this article uses the Matlab/Simulink development environment, which uses the Motor Control Blockset (MCB) and Embedded Coder Support Package (ECSP) toolboxes suitable for Texas Instruments C2000 microcontrollers for its real-time implementation [38,39]. The MCB toolbox provides the ability to implement the proposed control structures in the SIL stage through specialised blocks for real-time implementation in the HIL stage. The ECSP toolbox allows the generation and execution of the corresponding code of the PMSM control algorithm based on the DTC control strategy. The generated code runs on C2000 microcontrollers, specifically the TMS320F28379D microcontroller. [40].

Real-time software blocks perform enhanced pulse width modulator (ePWM) control, serial peripheral interface (SPI) serial communication control, host PC and embedded system communication blocks, digital motor control (DMC) specific blocks, and the IQMath library for optimising code for real-time calculations through fixed-point implementation while maintaining high accuracy. Key features of the TMS320F28379D microcontroller include a 32-bit floating-point Control Law Accelerator (CLA) module that parallels mathematical calculations with the main processor on a 32-bit fixed-point architecture. We also recall that the main processor has a clock frequency of 200MHz, 1MB of flash memory, 16-bit digital-to-analogue converters (DAC), serial communication ports and a general-purpose input/output (GPIO) subsystem [40]. To interface with the TelcoMotion DT4260 PMSM, a 3-phase smart gate driver with current shunt amplifiers & SPI type BOOSTXL-DRV8305 is used, which communicates with the LAUNCHXL-F28379D development board on which the TMS320F28379D main controller is integrated (Figure 27).

Analogous to the software blocks used for the numerical simulations presented in Section 3, Figure 28 shows the main software frames implemented in Matlab/Simulink, which contain software blocks for the real-time implementation of the PMSM sensorless control system based on DTC strategy using PI controllers. Therefore, Figure 28 (a) shows the Simulink model of the main software application for the PMSM sensorless control system using functions from the MCB and ECSP toolboxes. Figure 28 (b) shows the Simulink subsystem implementation of the torque control, and Figure 28 (c) shows the Simulink subsystem implementation of the flux, position and speed of the PMSM observer. In addition, Figure 28 (d) shows the Simulink subsystem implementation of the speed control based on PI-EOA controller.

Following the real-time implementation of the PMSM sensorless control system based on DTC strategy for a series of speed reference signal variations imposed by the real-time monitoring and control software interface implemented in Simulink on the PC host and shown in Figure 29.

The following presents the real-time testing of the proposed sensorless PMSM control system based on the DTC strategy in the constant flux case and in the variable flux case as presented in Section 3, where numerical simulations were performedReal-time performance was obtained by implementing the constant flux PMSM control structure shown in Figure 2 using PI-EOA and FOPI controllers, and the variable flux PMSM control structure shown in Figure 4 using SMC and FOSMC type controllers.

Please note that the controller structures presented in the numerical simulations implemented in Matlab/Simulink are preserved in the real-time implementation, but the 1/s integrators expressed in the continuous domain are equated with integrators in the discrete domain by using a bilinear Tustin transform.

4.1. PMSM Real-Time Sensorless Control System Based on DTC Strategy Using Constant Flux

Using the Simulink model shown in Figure 29, a series of experimental tests were carried out by applying acceleration and deceleration steps to the PMSM rotor speed reference. In the following the graphs obtained for the main parameters of interest of the sensorless PMSM control system based on the DTC strategy are presented. Thus, Figure 30 presents the real-time speed evolution for PMSM sensorless control based on DTC strategy in case of constant flux. Figure 30 (a) shows the real-time speed response in case of using the PI-EOA controller, and Figure 30 (b) shows the real-time speed response in case of using the FOPI controller. It can be seen that the performance of the PMSM sensorless control system based on DTC strategy with PI-EOA controller is very good in real-time implementation. Small inherent differences with the numerical simulations are observed, but from a practical point of view we can say that the control system offers good performance even for applications where high accuracy is required, in this sense an argument is that the steady-state error is less than 0.2%. In addition, the settling time is 70ms and the overshoot is less than 2%, which is good performance for systems implemented in real-time. Improved performance is observed when using the FOPI controller, thus achieving an overshooting of 1% and a settling time of 60ms.

The real-time evolution of the stator currents i_a and i_b is shown in Figure 31 (a) for the case of using the PI-EOA controller, and for the case of using the FOPI controller is shown in Figure 31 (b). A reduction of the current values during the transitory regime is observed when using the FOPI controller in the PMSM control structure.

In addition, graphs of the real-time evolution of some parameters of interest of the control system are presented in the following. Thus, Figure 32 (a) presents the real-time evolutions of flux reference and flux feedback (estimated flux given by flux observer), real-time evolution of electromagnetic torque is shown in Figure 32 (b), and the detail of the real-time evolution of PMSM rotor position is shown in Figure 32 (c).

Graphical representation of the FD of the real-time speed signal for the PMSM sensorless control system based on the DTC strategy in the case of constant flux is presented in Figure 33. Thus, Figure 33(a) shows the FD of the real-time speed signal in case of using PI-EOA controller, and Figure 33(b) shows the FD of the real-time speed signal in case of using FOPI controller.

4.2. PMSM Real-time Sensorless Control System Based on DTC Strategy Using Variable Flux

Similarly to what presented in the previous subsection in this subsection we present the real-time experimental tests performed for the case of the sensorless PMSM control system based on the DTC strategy where the flow is variable and is provided by the two controllers type SMC and FOSMC. By imposing the same series of steps on the reference speed of the PMSM rotor, the graphs obtained for the parameters of interest are presented in order to highlight the control performance. Real-time speed evolution for PMSM sensorless control based on DTC strategy in case of variable flux using SMC-type controller is shown in Figure 34 (a), and using FOSMC-type controller is shown in Figure 34 (b). It is observed in this case of using integer and fractional order SMC-type controllers that the overshooting is practically zero and the settling time is 34.5ms and 33.9ms respectively.

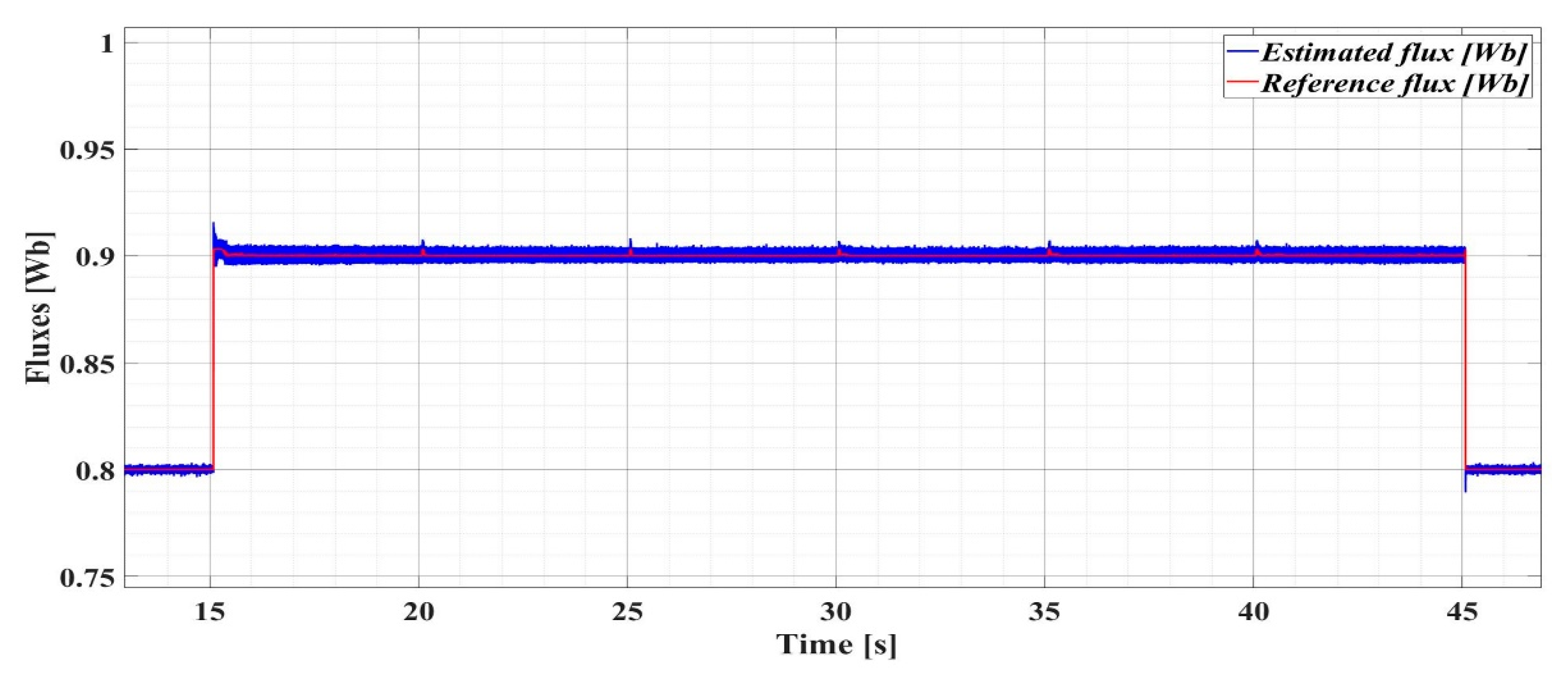

Flux reference and estimated flux real-time evolution PMSM sensorless control system based on DTC strategy using FOSMC-type controller are presented in Figure 35.

The real-time evolution of the stator currents i_a and i_b is shown in Figure 36 (a) for the case of using the SMC-type controller, and for the case of using the FOSMC-type controller is shown in Figure 36 (b).

Graphical representation of the FD of the real-time speed signal for the PMSM sensorless control system based on the DTC strategy in the case of variable flux is presented in Figure 37. Thus, Figure 37 (a) shows the FD of the real-time speed signal in case of using SMC-type controller, and Figure 37 (b) shows the FD of the real-time speed signal in case of using FOSMC-type controller.

The results of the experimental tests performed in real-time are summarized in Table 3, both when using a constant flux and when using a variable flux for the sensorless PMSM control system based on the DTC strategy. The superior performance of SMC-type controllers compared to the classical PI-type controller is observed, as well as the preservation of this hierarchy when using fractional calculus. We point out that in real-time PI-type controllers have better performances in terms of response time, but not in terms of overshooting, settling time, speed signal ripple and FD of controled signal. We also point out that in real real-time the speed signal ripple is lower than in the case of numerical simulations because the number of samples is 1000 in the first case and 10000 in the second case. Regarding the FD of the speed signal, the hypothesis that a better performing controller implies a higher FD value is verified. We point out that in the case of real-time implementations, if the computational power of the embedded system is insufficient, it is possible that complex control algorithms, which in numerical simulations offer better performance than classical PI-type algorithms, may give contrary results. In the case presented in this article the development platform offers superior computational performance so that a biunivocity between the performance obtained in numerical simulations and real-time implementation was obtained. In this case FO type controllers bring improvements over integer type controllers, the best performance being provided by FOSMC-type controllers.
