Enhanced Energy Absorption in Bioinspired Combined TPMS-Gyroid and Walled TPMS-Gyroid Lattice Structure Manufactured via Fused Filament Fabrication (FFF)

This version is not peer-reviewed.

Submitted:

16 March 2024

Posted:

18 March 2024

You are already at the latest version

A peer-reviewed article of this preprint also exists.

Abstract
Bio-inspired gyroid triply periodic minimum surface (TPMS) lattice structures have been the focus of research in automotive engineering because they can absorb a lot of energy and have wider plateau ranges. The main challenge is determining the optimal energy absorption capacity and accurately capturing plastic plateau areas using finite element analysis (FEA). Using nTop's Boolean subtraction method, this study combined walled TPMS gyroid structures with normal TPMS gyroid lattice. This made a composite TPMS-gyroid lattice with relative densities ranging from 14% to 54%. Using the ideaMaker software and the fused deposition modeling (FDM) Raise3D Pro 2 3D printer to print polylactic acid (PLA) bioplastics in 1.75 mm filament made it possible to slice computer aided design (CAD) models and fabricate 36 lattices samples precisely layer by layer technique. Shimadzu 100kN testing equipment was utilized for the mechanical compression experiments. And the validation using finite element analysis (FEA). Further, CTG was examined using a field emission scanning electron microscope (FE-SEM) before and after compression testing. The composite TPMS gyroid lattice showed potential as shock absorbers for vehicles with relative densities of 33%, 38%, and 54%. The Gibson-Ashby model showed that the composite TPMS gyroid lattice deformed mainly by bending, and the size effect was seen when the relative densities were less than 15%. The lattice's relative density had a significant impact on its ability to absorb energy. The research also explored the use of these innovative foam-like composite TPMS-gyroid lattices in high-speed crash box scenarios, potentially enhancing vehicle safety and performance.
Keywords:
Keywords
;
bio-inspired
;
gyroid lattice
;
Boolean subtraction
;
finite element analysis
;
plastic plateau
;
densification
;
energy absorption
;
relative density
;
size effect
Subject:
Engineering  -   Mechanical Engineering

1. Introduction

Lattice structures—especially the Gyroid TPMS lattice, which is based on the triply periodic minimal surface (TPMS)—are becoming more and more popular in fields like biomedical, aerospace, and automotive engineering. This is due to their remarkable mechanical characteristics and adaptability [1,2,3,4,5,6] enhancing both shape and function, the bio-inspired Gyroid TPMS lattice draws its design ideas from nature, such as insect wings [7,8,9,10,11]. These lattices are perfect for distributing stresses and absorbing energy, which are essential for creating robust yet lightweight solutions.
Due to its biodegradability, polylactic acid (PLA) is a desirable material for a variety of applications, including orthopedic bone fixation, surgical sutures, drug delivery systems, and eco-friendly food packaging. PLA also breaks down into non-toxic compounds [12]. Moreover, PLA's application has been extended by recent studies, which take into account its ability to enhance vehicle crashworthiness [13,14].

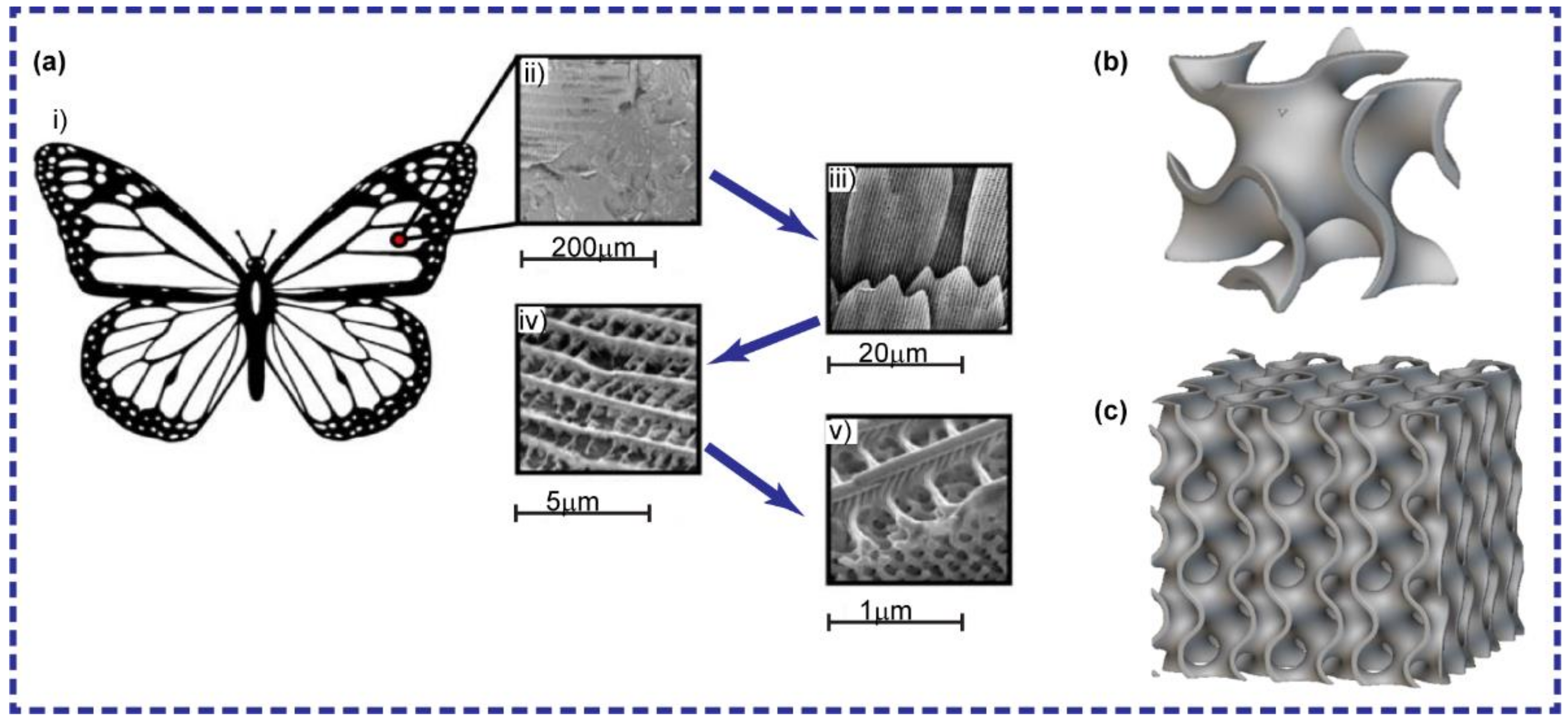

The butterfly wings are a magnificent example of structure matching function. The gyroid TPMS lattice structure (GTLS) was derived from the gyroid-type triply periodic minimum surface (TPMS) structure in this study. This pattern was inspired by the scales on a butterfly's wing (Figure 1a) [10], illustrating how inventive engineering solutions frequently draw inspiration from natural designs. Because they have high stiffness-to-weight ratios and can absorb energy, lattice structures are great for load-bearing and biocompatible uses. Their patterns are repeated and connected [7,15,16,17]. Lattice structures' adaptability in design contributes to their versatility by allowing modification for certain applications [18,19].
In numerous disciplines, the efficacy of lattice structures, which are characterized by repetitive patterns of interconnected elements, has been demonstrated. High stiffness-to-weight ratios and energy absorption capacities are just two of the extraordinary mechanical properties provided by the lattice's inherent porosity and shape [20]. Applications requiring load-bearing capacity and biocompatibility, such as structural engineering, aircraft, and medical implants, significantly benefit from these characteristics. Changing configurational features such as cell size, shape, and arrangement enables lattice structures to be tailored to specific applications [7]. Similar to this research, recent studies have attempted to increase the energy-absorbing capacity of lattice structures by combining two distinct lattice topologies [17]. Using this method, it is possible to construct a composite lattice with superior mechanical properties by combining the advantages of multiple lattices. Previous research has demonstrated the effectiveness of this method in enhancing energy absorption within lattice structures for impact reduction [15]. Such efforts demonstrate the necessity of developing new techniques to enhance the inherent lattice benefits in numerous engineering disciplines. Studies aimed at enhancing the mechanical strength of lattice structures have led to advancements in manufacturing and design [18].
Researchers have used the Gibson-Ashby model to evaluate 3D-printed lattice structures made from materials like polylactic acid (PLA) [21,22,23,24,25]. The interplay between lattice geometry, material properties, and mechanical response controls engineered lattice behaviors.
These advancements enable the production of lattice structures with characteristics that surpass those of conventional engineering materials, paving the way for new ways of exploring lattices [26,27,28,29]. The combinations of two TPMS-gyroid lattice structures and advancements in additive manufacturing techniques has revolutionized lattice fabrication [25,30,31,32].
Their controlled deformation and energy dissipation upon impact has shown that they could be used for shock absorption applications, especially in crash boxes and bumper beams for cars [33,34,35,36,37]. Previous research has verified the effectiveness of lattice-based bumper beams in absorbing impact energy and mitigating vehicle damage [33,34,35]. These applications demonstrate the suitability of lattice structures in regulating the absorption of energy in a variety of scenarios. This work aims to explore the mechanical properties of a newly designed composite Gyroid TPMS lattice that is advanced and bioinspired. This unique lattice combines walled TPMS with normal TPMS gyroid lattices using a Boolean subtraction method.
This study examines how well the lattice works at five different relative densities to further research if it has better mechanical properties than the single TPMS-gyroid and walled TPMS-gyroid lattices. We investigate the nuances of the Gibson-Ashby model, in particular its energy-absorbing ability and deformation behavior. Our new approach provides a comprehensive analysis of the PLA material family by comparing normalized energy absorption efficiency with normalized stress. Using the finite element method, we demonstrate that the stress-strain curve from mechanical compression tests accurately represents the linear elastic, plastic plateau, and densification phases. Our results are used in a real-world scenario utilizing a crash box case study that is built from a composite TPMS gyroid lattice with various relative densities. Our ultimate goal is to further advance the study of bio-inspired lattice structures, specifically enhancing vehicle structural dynamics to increase crashworthiness.

2. Materials and Methods

2.1. Lattice 3D CAD Design

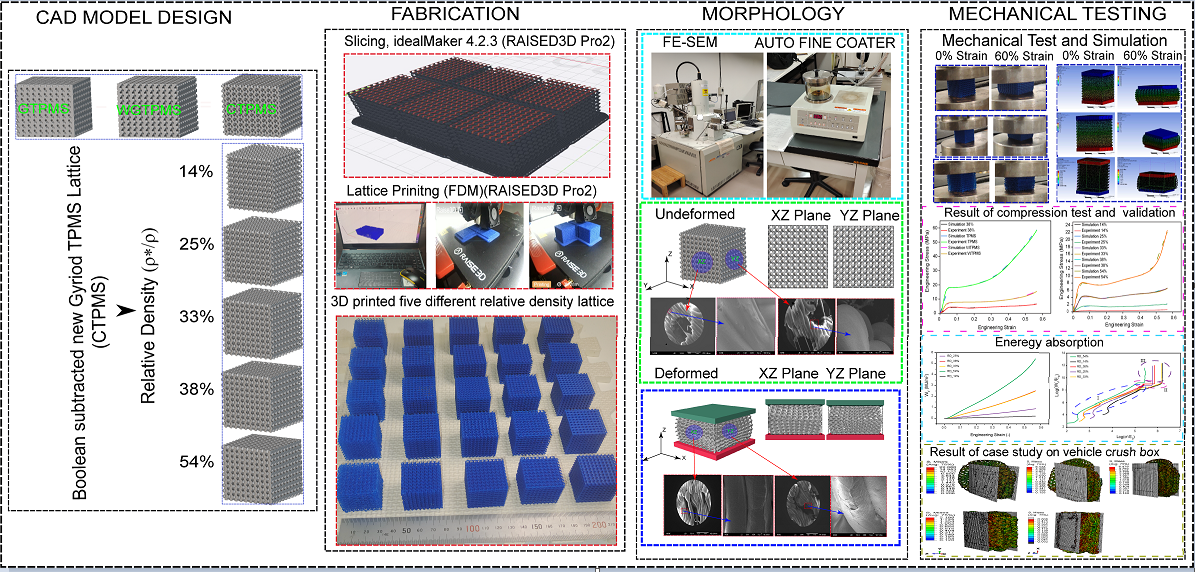

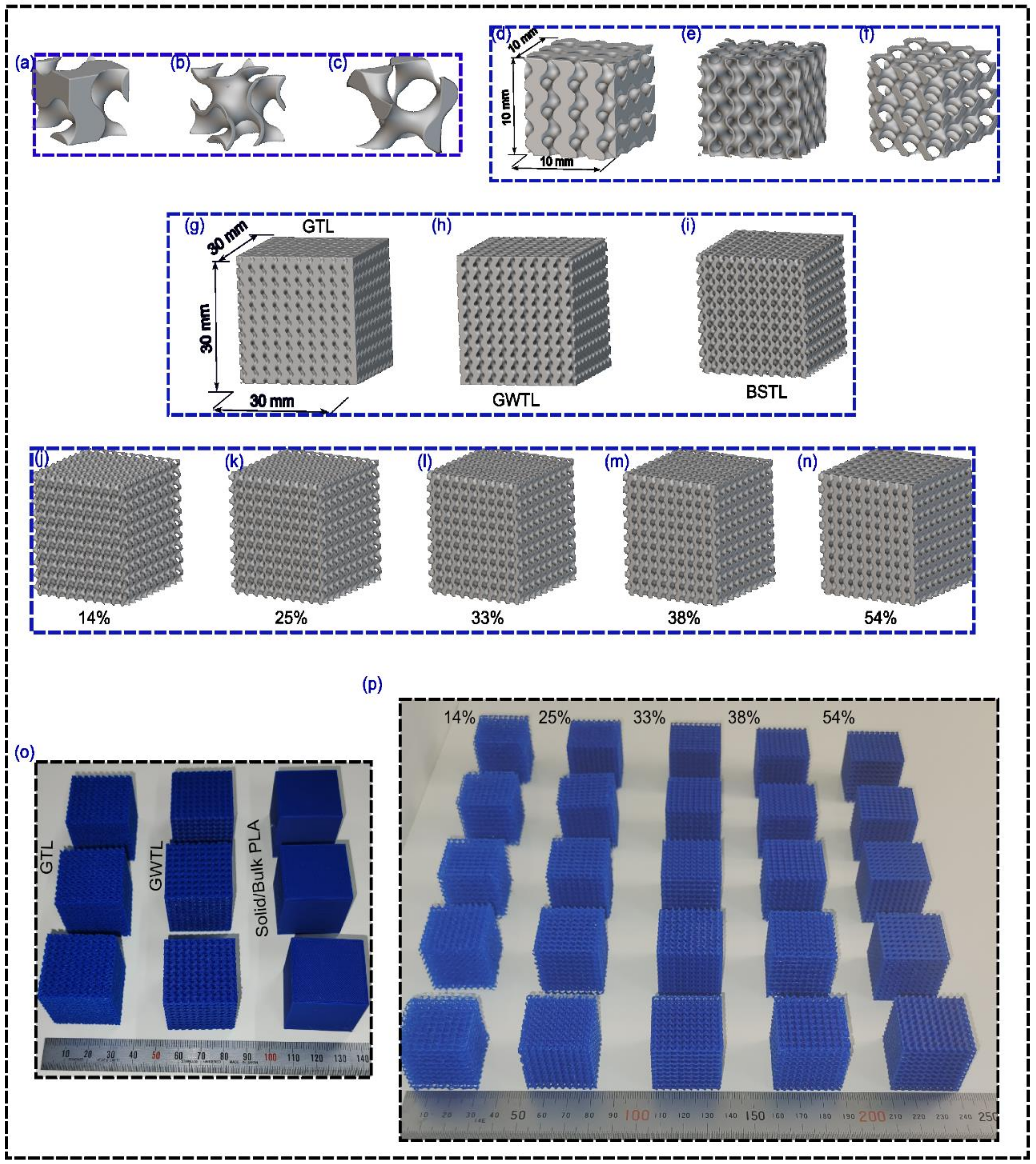

The lattice structure's design began with the creation of a comprehensive 3D CAD model using nTopology's student-licensed software (Figure 2) [38]. The intricate geometry of the TPMS-gyroid composite TPMS lattice was accurately constructed, incorporating the specific parameters necessary for evaluating mechanical performance. The relative densities of the composite lattice were systematically varied to encompass a broad spectrum of potential applications. The lattice design accounted for loading conditions, ensuring that the targeted mechanical parameters were representative of real-world scenarios.

2.2. Lattice Additive Manufacturing

To translate the designed lattice structure into a physical entity, fused deposition modeling (FDM) using a 3D printer was employed. A 1.75mm diameter blue poly acetic acid (PLA) filament was selected as the printing material due to its favorable mechanical properties and compatibility with the manufacturing process. The slicing software 3DRaise was utilized to convert the intricate 3D CAD model into precise print paths, accounting for layer-by-layer deposition to accurately reproduce the lattice design (Figure 2).

2.3. Measurement of Density and Relative Density

The Shimadzu Electronic Balance TW223N Series (Shimadzu Corporation, Kyoto, Japan) was used to accurately measure the density of the 3D-printed PLA-based TPMS gyroid lattice structures. PLA's inherent theoretical density was determined to be 1.24 g/cm³. For increased precision, a set of six measurements were carefully recorded. Both the relative density and the porosity percentage were calculated precisely in accordance with ASTM D792-98 [39,40,41]. To do this, the equations (1), (2), and (3) in the referenced standard were used.
The actual density of composite TPMS gyroid lattice cube is calculated by:
ρ a c t u a l = M C G V C G
The relative density of each composite TPMS Gyroid lattice cube as follows
ρ * = ρ ρ P L A
And then, the porosity of the composite lattice can be calculated as:
P = ρ P L A − ρ ρ P L A = 1 − ρ *
Table 1. Unit cell thickness of constituent gyroid lattice and relative density of corresponding novel lattice.
Table 1. Unit cell thickness of constituent gyroid lattice and relative density of corresponding novel lattice.
Thickness of Sheet TPMS-gyroid (mm) Thickness of Walled TPMS-gyroid (mm) Composite TPMS-gyroid(ρ/𝜌s.)
0.4 1.2 14%
0.3 1.0 25%
0.25 0.75 33%
0.2 0.6 38%
0.1 0.1 54%

2.4. Mechanical Compression of Lattice

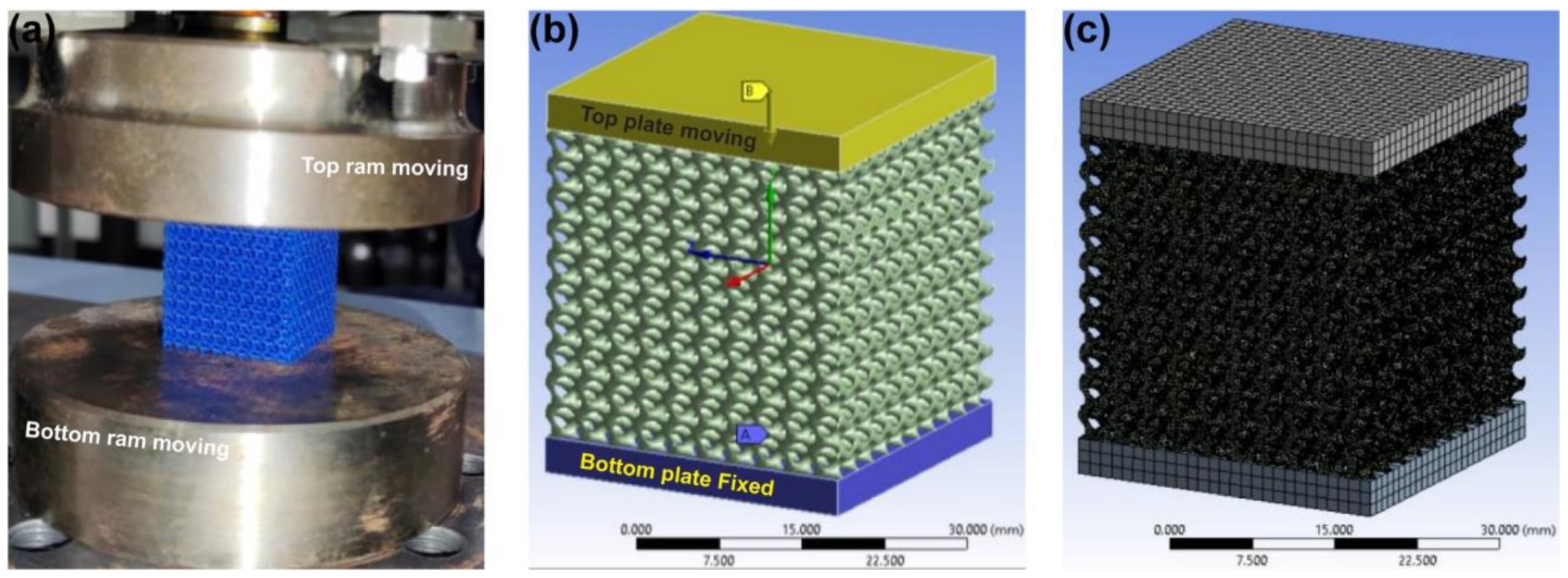

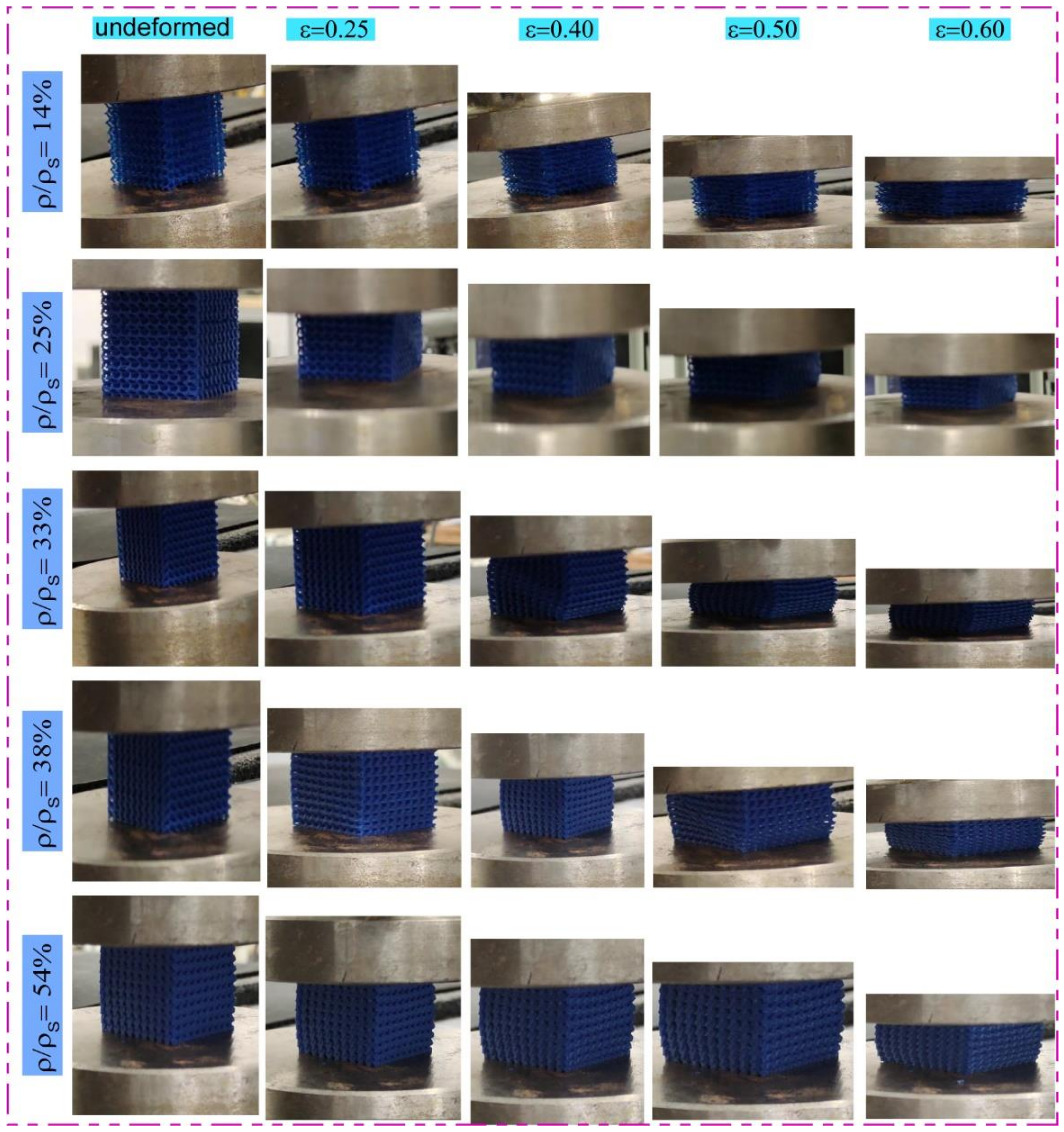

The quasi-static compression load test was conducted on all sample TPMS samples with universal testing machine SHIMADZU AG-100kNXplus equipped with 100kN load cell and with 0.005 -1000mm/min crosshead speed. All the TPMS Samples were compressed between hardened steel plates with flatten surface top and bottom to avoid any small misalignment during compression loading according to ASTM D638-14 [12]. The sample specimens were placed between the moving top plate and fixed bottom plate of the test machine where the compressive strain in this reached up to 60% of the original specimen heights in the building direction, which is the point where the densification dominates. The strain rate utilized for this study was 0.03 mm/sec. All testing data corresponds to at least six repeated experiments. This enabled the determination of peak stress, plateau stress, densification strain, and other vital parameters. The specimens underwent gradual compression until densification, allowing a comprehensive understanding of their deformation behavior and energy absorption capacities.

2.4.1. Gibson-Ashby Model

The parameter 'n' is of considerable importance in characterizing the various forms of deformation that occur within cellular structures [3,42,43,44,45]. The Gibson-Ashby model, a cornerstone in the analysis of cellular materials [46,47,48], establishes critical relationships among a multitude of parameters inherent to cellular structures. These fundamental parameters encompass relative density (𝜌*/𝜌S), plateau strength (σpl), elastic modulus (E), and the strain at the densification point(𝜀D). These intricate relationships, elegantly described by power law equations (4) and (5), offer profound insights into the mechanical characteristics of composite TPMS gyroid lattice structures.
Theoretically, power indices n and m are anticipated to be 1.5 and 2 for structures dominated by bending and emphasizing strength, and 1 for those governed by stretching. A value of "n" equal to or greater than 2 indicates a prioritization of rigidity. 'n' values that fall within the aforementioned range serve as an alternative definition of a mixed mode of deformation.
( E E S ) = C 1 ( ρ * ρ S ) n 1
( σ p l σ y s ) = C 2 ( ρ ρ S ) n 2
The modified Gibson-Ashby model is crucial for applications requiring higher stiffness, like orthopedic surgical scaffolds and vehicle shock absorption systems. It is obtained from combination of equations (4) and (5). It aligns with previous lattice design studies and allows comparison of strength-to-stiffness ratios among different relative density composite TPMS gyroid lattice structures [49,50,51].
( σ p l σ y s ) = C 3 ( E E S ) n 3
The densification strain can be evaluated using:
ε D = 1 − α ( ρ ρ S )

2.5. SEM of Deformed and Undeformed Lattice

The SEM image of newly constructed TPMS lattice with 38% relative density were captured from two different planes XZ and YZ for both before and after compression testing. For such purpose the JSM-7400F field emission scanning electron microscope (FE-SEM) was utilized. The morphology and deformation behavior of 3D printed TPMS-gyroid lattice structure was observed using FE-SEM. Scanning Electron Microscopy (SEM) analysis was conducted on both deformed and undeformed lattice specimens. This microscopic examination provided insights into the microstructural changes induced by mechanical deformation. SEM imaging aided in visualizing lattice distortions, fracture patterns, and any material irregularities arising from the compression testing process. And there are defects from the FDM printing due to printing filament melting rate variations which reduce the mechanical strength.

2.6. Finite Element Analysis (FEA) of Lattice

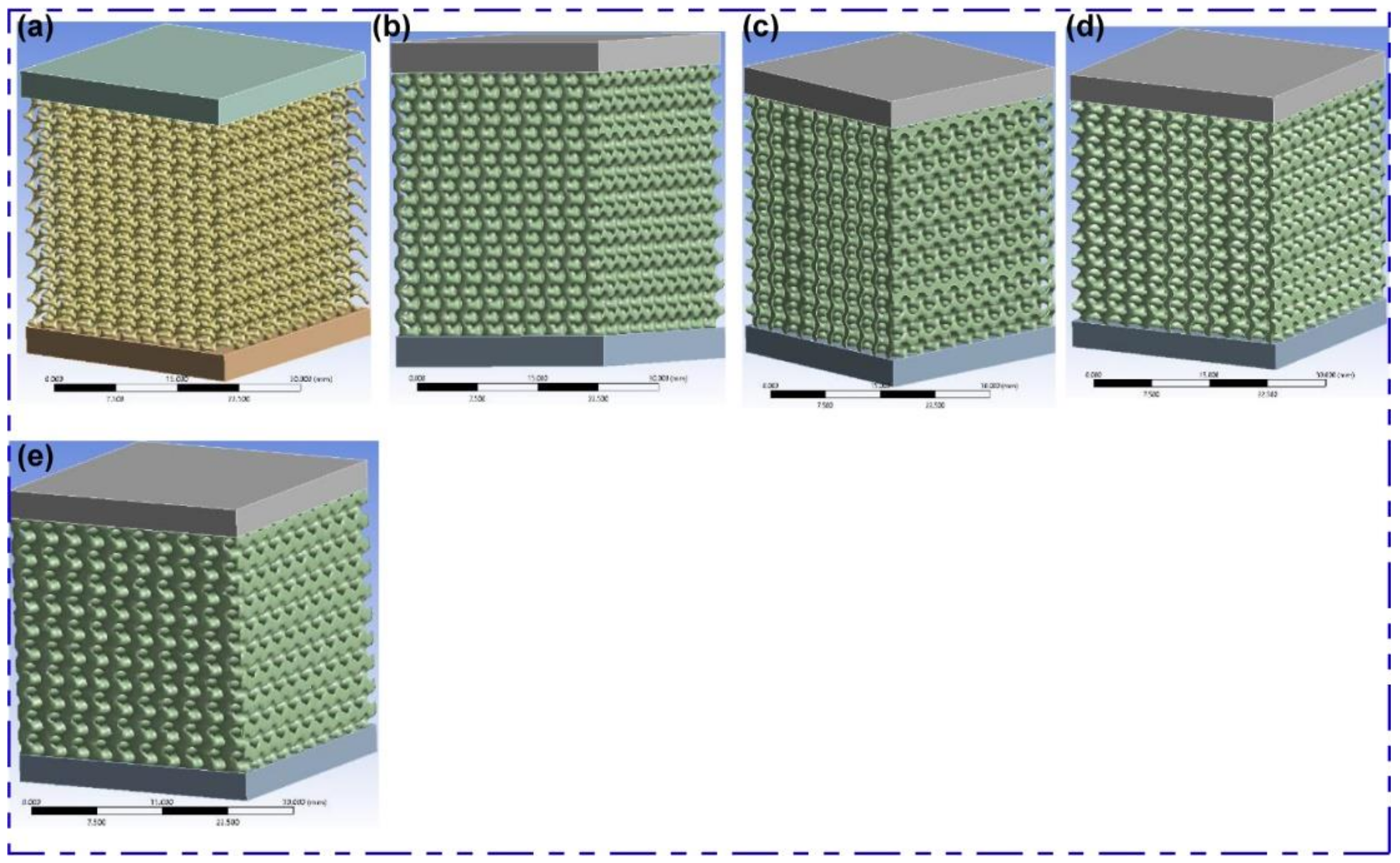

To accurately capture the stress-strain characteristic of the 3D printed TPMS lattice structure a Finite element model (FEM) was developed. In the numerical simulation, the commercial software package ANSYS 2022 was utilized. Following the experimental setting, similar boundary conditions are applied to all FE models. The FE mesh entirely consists of tetrahedrons. Since FEM is approximate solution for the purpose of reducing the numerical error, Ramesh surface, robust tetrahedral mesh, followed by FE volume mesh were applied during FE discretization. Further, to accurately capture the experimental compression scenario from ANSYS Workbench 2022 the LS-DYNA analysis system was used. The TPMS lattice structure has an overall seed size of 0.2mm and different mesh elements for all structures. To better simulate the post-softening (plasticity) behaviors after the lattice yield, multi-linear isotropic hardening model was utilized by supplying the plastic strain and stress in the plastic region. However, the elastic region just needs the young’s modulus and poison’s ratio calculated from experimental result. To corroborate the experimental findings and gain further insights into the mechanical behavior of the bio-inspired gyroid Composite TPMS lattice, Finite Element Analysis (FEA) was conducted. Computational simulations were performed to predict mechanical responses under varying loading conditions. The FEA models were designed to replicate the experimental setup, allowing the extraction of stress-strain relationships and energy absorption characteristics.
The FEA outcomes served as a validation tool for the experimental data and provided a deeper understanding of the composite lattice's intricate mechanical behavior. The FE boundary conditions and the corresponding FE meshing of the sample is shown in Figure 3b,c, respectively. Figure 4 shows the assembly of top and bottom plates with a composite TPMS gyroid lattice utilizing ANSYS space Claim and effortlessly linked into ANSYS LS-DYNA for further dynamic explicit compression analysis.

2.7. Energy Absorption

Extensive research has been conducted on the complex energy absorption properties of a PLA-based composite TPMS gyroid lattice, leveraging key parameters including energy absorption value (WV), energy absorption efficiency (γ), and ideal energy absorption efficiency (γ). In this particular framework, the symbol "WV" represents "energy absorption," and Equation (8) provides a dependable approach to calculating it in relation to volume:
W V = ∫ 0 ε l a t t σ l a t t ( ε l a t t ) d ε l a t t
In this particular case, ε denotes a stochastic strain, σlatt represents stress, and εlatt is the corresponding strain; σ is a function that is dependent on ε [52]. The determination of the optimal energy absorption state in this composite lattice involves consideration of the energy absorption efficiency parameter, which can be mathematically expressed as:
γ = ∫ 0 ε l a t t σ l a t t ( ε l a t t ) d ε l a t t σ l a t t
In this case, γ represents the efficiency of energy absorption by the PLA-based composite gyroid lattice during compression deformation, thereby decreasing the flow stress.
In addition, we include the following concept: ideal energy absorption efficiency (I):
I = ∫ 0 ε l a t t σ l a t t ( ε l a t t ) d ε l a t t σ l a t t ( ε l a t t )
The ratio of the area enclosed by the stress-strain curve of the composite lattice to the rectangular area it encompasses illustrates the ideal energy absorption efficiency at any given strain.
Furthermore, an energy envelope concerning lattice structures composed of PLA materials can be obtained by normalizing the cumulative energy absorption per unit volume of this composite TPMS gyroid lattice by the Young's modulus of its base material and plotting a curve against the normalized stress (which is also divided by the Young's modulus) [53].
It is important to remember that both the normalized stress axis and the normalized energy absorption efficiency axis are logarithmic. This makes it possible to accurately show the complex mechanical properties that these lattice structures exhibit.

2.8. Case Study on Vehicle Crush Box Energy Absorption

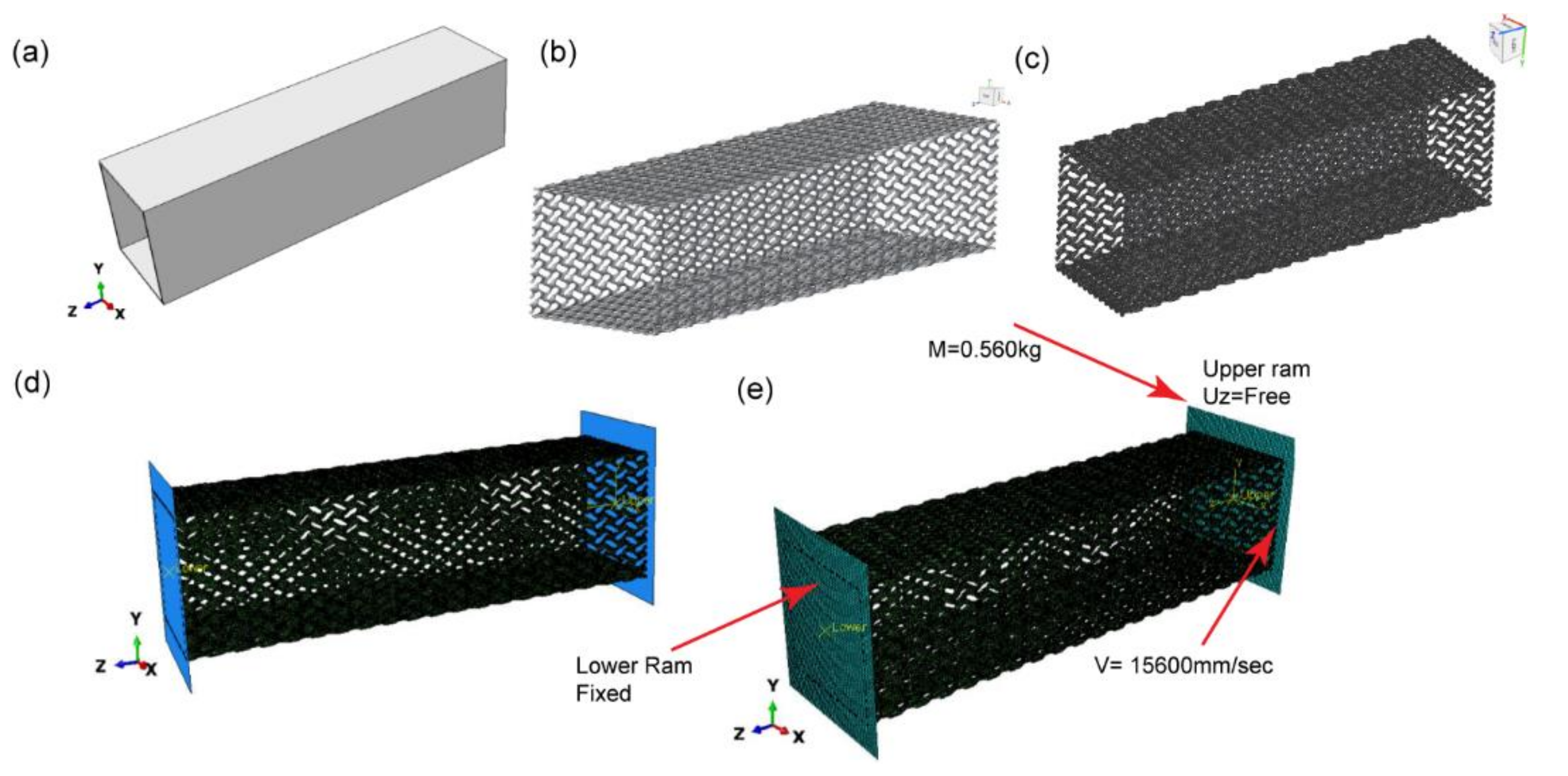

The aim of this case study is to evaluate the composite TPMS-gyroid lattice structure's high-energy absorption capabilities under 15.6 m/s impact scenarios. We classify this as a high-velocity impact because it is significantly faster than the norm of 5–6 m/s. Thus, test results are expected to provide a more reliable indicator of the composite lattice or compression box's resistance in real-world conditions. The implications of the results of mechanical compression experiments on TPMS-gyroid lattice structures with relative densities of 14%, 25%, 33%, 38%, and 54% for enhancing the crashworthiness and safety of automobiles are optimistic. For the purpose of the investigation, a 50 mm × 50 mm × 200 mm square shell-type box with a 1.5 mm thickness was used [54,55], as shown in Figure 5. We properly designed and constructed five TPMS gyroid latticed square crash boxes using nTop software, each of which corresponded to one of the five relative densities examined in this work.

3. Result and Discussions

3.1. Lattice Samples Density and Porosity Measurement

Table 2 illustrates the average values of measured weight, calculated actual densities, calculated relative densities and porosities (volumetric percentage) of FFF-printed PLA TPMS gyroid Lattice samples. The standard deviation is evaluated for the corresponding measured weight and actual densities. The actual densities of printed samples are varying to the theoretical density of 1.24 g/cm3 of PLA. The calculated maximum porosity is 86% for composite TPMS gyroid lattice with the lowest relative density of 14%. Similar to the actual densities, the calculated porosity varies with the measured weight of the sample lattices.

3.2. The Mechanical Properties and Compressive Response

Our results closely support Ashby's theories, showing that an ideal energy absorber has a longer plateau phase in the stress-strain curve, with the plateau stress falling below the protected object's stress threshold [56].

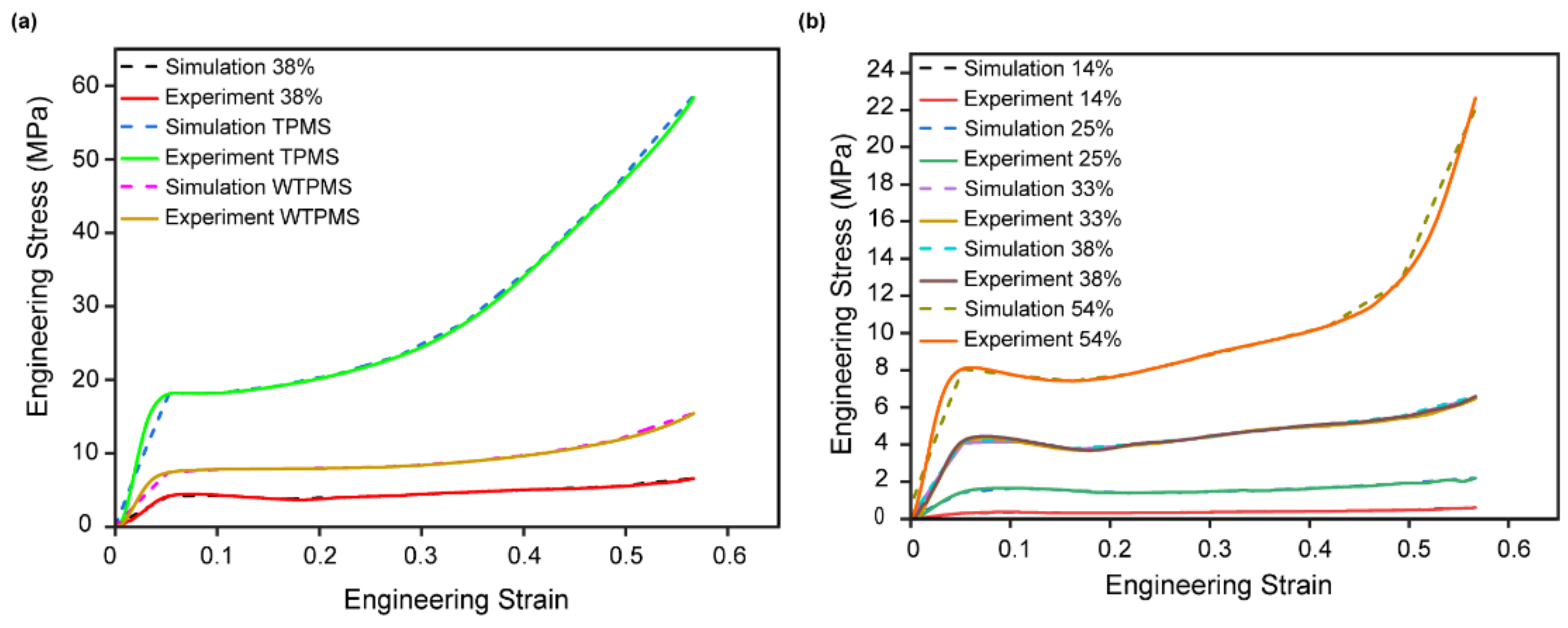

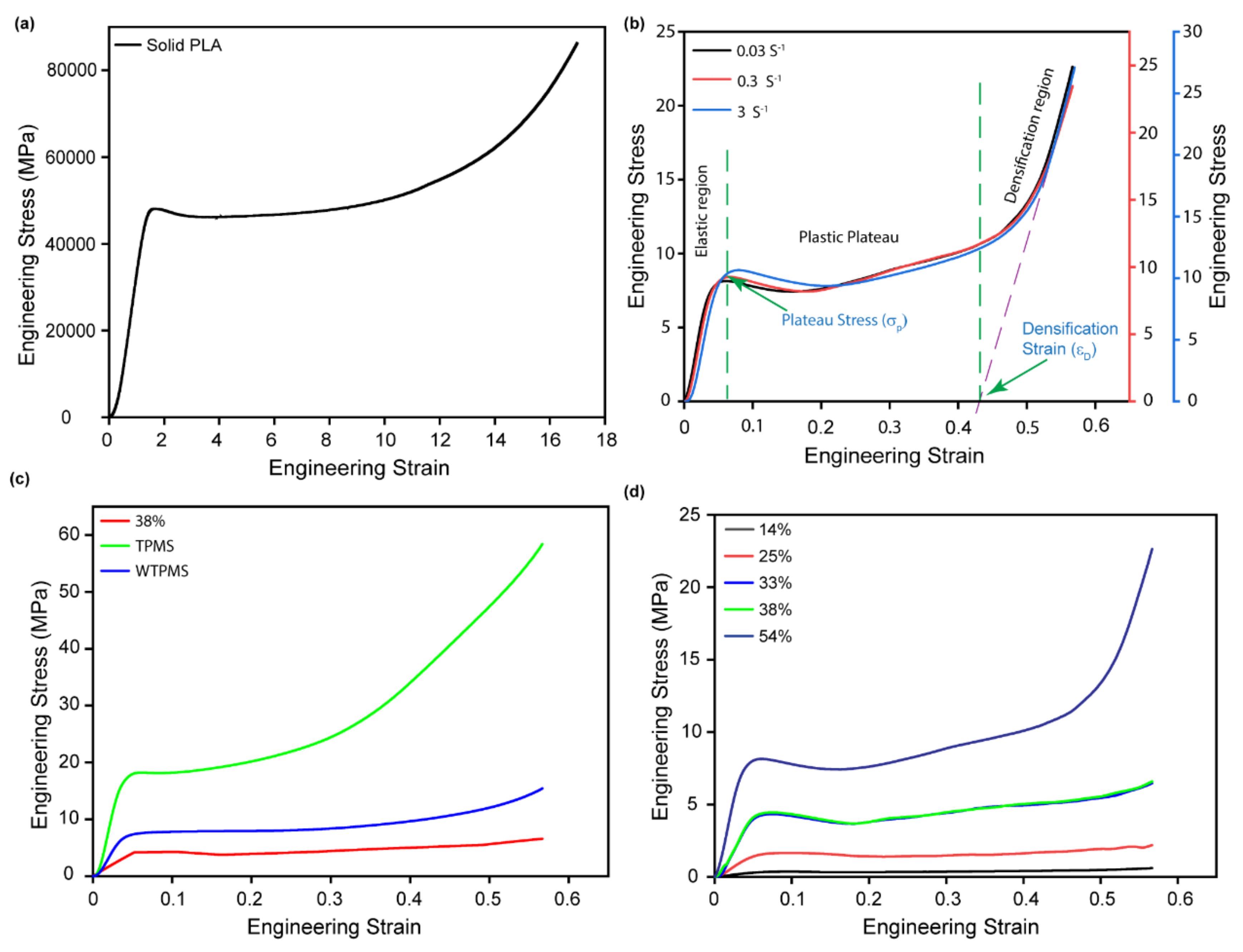

Figure 6a,b present the compressive stress-strain curve of Solid printed PLA TPMS lattice with five different relative density and TPMS lattice type, respectively. The mechanical stress-strain response of the composite TPMS- gyroid lattice with 33% and 38% relative density are approximately overlapped, indicating repeatability. There are three interesting regions were realized for composite TPMS-gyroid with 54% relative density and conventional TPMS lattice resembles to Gibson and Ashby model described in [57,58,59,60,61,62]: a linear elastic region, a plateau region, and a densification region.
There were no significant mechanical properties lost during the collapse scenario, except for composite TPMS-gyroid lattice with relative density lower than 15 % (Figure 5a and Figure 6a,b). This was expected since stiffness is expressed as the ratio of force to displacement and is directly affected by size effect [63]. Figure 7 depicts the results of mechanical compression testing at five different relative densities and five strain stages, with a maximum displacement of 17 mm and a corresponding strain of roughly 60%. Beyond this point, the lattice stops deforming and enters the densification stage. The studied deformation patterns clearly show the elastic, plastic plateau, and final densification properties.

3.3. Plastic Plateau Stress and Young’s Modulus

Young's modulus (the primary axis) and plateau stress (the secondary axis) are shown on a graph in Figure 6a. It shows how these two parameters change for five different relative densities of the composite TPMS gyroid lattice in both mechanical compression and finite element (FE) simulations. The stress vs. strain curves of the composite lattice structures is the source of these mechanical properties. The findings indicate a clear relationship: as the relative density of the composite lattice increases, consequently, the elastic modulus and plateau stress rise. Both simulated and experimental data exhibit this property. The highest and lowest percentage errors, when comparing the Young's modulus between the findings of the simulation and the experiment, are 9.21% and 10.02%, respectively. In contrast, the highest and lowest percentage errors between the simulation and experiment data for the plateau stress are 0.017% and 0.22%, respectively. For the mechanically compressed composite lattice structure, the percentage error in Young's modulus is greater than the percentage error in plateau stress. This indicates that the finite element analysis accurately captured the plastic plateau zones. The current study stands out from previous studies due to successfully capturing all three regions of the engineering stress versus engineering strain curve from mechanical compression testing using the multilinear plasticity hardening model [63,64], as shown in Figure 10a,b.

3.4. Gibson-Ashby Power Fitting Analysis

The relative modulus, derived from both simulations and practical experimentation, exhibits a discernible increase as the relative density rises, as illustrated in Figure 7b. This figure visually succinctly summarizes the findings and emphasizes a clear trend. The experimentally determined parameters for the TPMS Gyroid composite structure are n1 and C1 equals 0.45 and 2.52, respectively. The numerical values of 2.49 for n1 and 0.43 for C1 were produced concurrently by the Finite Element Method (FEM) simulation. Interestingly, there is a clear pattern in the relative modulus divergence between the five different relative density composite Gyroid lattice architectures. A consistent pattern is observed at relative densities of 14% and 25%. In contrast, the relative modulus of the 54% composite TPMS Gyroid structure is nearly five times that of the 14% relative density composite lattice. This substantial mismatch is attributable to the distinctive deformation mode intrinsic to this structure, as illustrated graphically in Figure 8b. As relative density increases, the difference between the relative modulus values derived from experimental and simulated data becomes more noticeable. The experimental and computer-based mechanical compression analyses make it clear that the relative density has a big impact on the relative modulus of the five lattice samples. It is also possible to evaluate the relative plateau strength using data from experiments and finite element analysis (FEA) simulations that are in line with the Gibson-Ashby model. This procedure yields the parameters C2 and m. The experimental data yield the following values for C2 and n2: 1.05, and 2.44, respectively. The simulation data, as displayed in Figure 6b, indicates that the obtained values are 1.04 and 2.47.
The fitting curves exhibit a discernible trend, as illustrated in Figure 8b. Specifically, the relative plateau stress within composite TPMS gyroid structures increases substantially as the relative density rises. An examination of the five composite TPMS gyroid architectures through the comparison of experimental data and finite element analysis (FEA) outcomes yields intriguing findings. Comparing the two techniques at relative densities of 14% and 25%, the relative plateau stresses are virtually identical. As relative density increases, the experimental and FEA simulation results for individual plateau stresses reveal a distinct discrepancy. The relative plateau stress in the experiments is about 0.2 at 54% relative density, which is about 20% higher than the value of 0.18 found in the simulations for the composite Gyroid architecture.
This is an interesting finding. The simulation results and mechanical compression experiment both showed that the relative density had a significant impact on the relative plateau stress of these five composite TPMS gyroid structural types. Our new composite lattice exhibits a bending-dominated deformation mode. And demonstrates similar behavior to an idealized gyroid lattice and ligament-based TPMS. This conclusion is drawn from the observation that the Gibson-Ashby model yields a value of n≥2 when utilized for data fitting that includes both experimental and simulation results. This finding is in line with the results of another previous studies [65,66].
Moreover, Figure 8c represents an intricate relationship between relative plateau strength and relative Young's modulus can be illustrated using the modified Gibson-Ashby model. Through accurate data fitting, precise values of C3 and n3 may be achieved with the help of this graphical depiction. For each of the five composite lattice structures with various relative densities, simulation data and mechanical compression testing effectively verify the graphs that show the relationship between relative plateau stress and relative Young's modulus. The results of experimental testing demonstrate that the values of n3 and C3 are 0.96 and 2.32, respectively. Nevertheless, in the simulation, the corresponding values are 0.96 and 2.20. The experiments and computer models also look at a consistent link between the relative Young's modulus and the relative plateau stress for gyroid lattice structures made of 14% and 25% composite TPMS. The differences in the results between the simulations and the experiments are evident, but they increase in significance by increasing the relative Young's modulus. It is shown that the relative stiffness has a significant effect on the strength ratio of composite lattice structures that are systematically designed utilizing Boolean subtract operations. By using these significant effects, the PLA lattice family's architectural form is modified to max each of the five composite lattice structures with various relative densities, simulation data and mechanical compression testing effectively verify the graphs that show the relationship between relative plateau stress and relative Young's modulus. The results of experimental testing demonstrate that the values of n3 and C3 are 0.96 and 2.32, respectively. Nevertheless, in the simulation, the corresponding values are 0.96 and 2.20. The experiments and computer models also look at a consistent link between the relative Young's modulus and the relative plateau stress for gyroid lattice structures made of 14% and 25% composite TPMS. The differences in the results between the simulations and the experiments are evident, but they increase in significance by increasing the relative Young's modulus. It is shown that the relative stiffness has a significant effect on the strength ratio of composite lattice structures that are systematically designed utilizing Boolean subtract operations. By using these significant effects, the PLA lattice family's architectural form is modified to maximize their energy absorption capacities.

3.5. Microstructure of Undeformed and Deformed Lattice Structure

In Figure 9, we show a series of scanning electron microscopy (SEM) images that show the fine details of fused deposition modeling (FDM)-made composite TPMS-gyroid structures. The two dissimilar states of the structures—their initial, undeformed condition and their transformed state after mechanical compression—are compared in the images below. The visual data show the subtle morphological changes caused by the applied stresses. The visual data were obtained at magnifications of 25X for the undeformed structures and an enhanced 100X for the deformed counterparts. While it's undeniable that additive manufacturing has many benefits over more conventional approaches to manufacturing, there are also some important limitations to avoid in mind. One such limitation is the possibility that the mechanical properties of a product will be affected by the printing parameters executed, which could have a knock-on effect on the final lattice structure. Figure 9 depicts the results obtained from the FE-SEM investigation, which provide important knowledge into these structural modifications. The undeformed SEM picture reveals the presence of non-melted filament-bonded particles and the presence of distinct layers of varied diameters when examine a lattice with a 14% relative density. However, the deformed SEM picture illustrates considerable mechanical property degradation during compression, revealed by fractured layers and significantly deformed holes. In contrast, the deformed SEM image of the 54% relative density lattices shows bending-dominant behavior, where layers display identical bending. The significance of relative density on the mechanical response of the lattice is demonstrated by the present finding. These results emphasize how crucial it is of preserving precise control over printing settings and having an in-depth understanding of how they influence lattice structure and subsequent mechanical performance. Contributing to the scientific community about additive manufacturing and improving the quality and performance of lattice structures is facilitated by such insights.

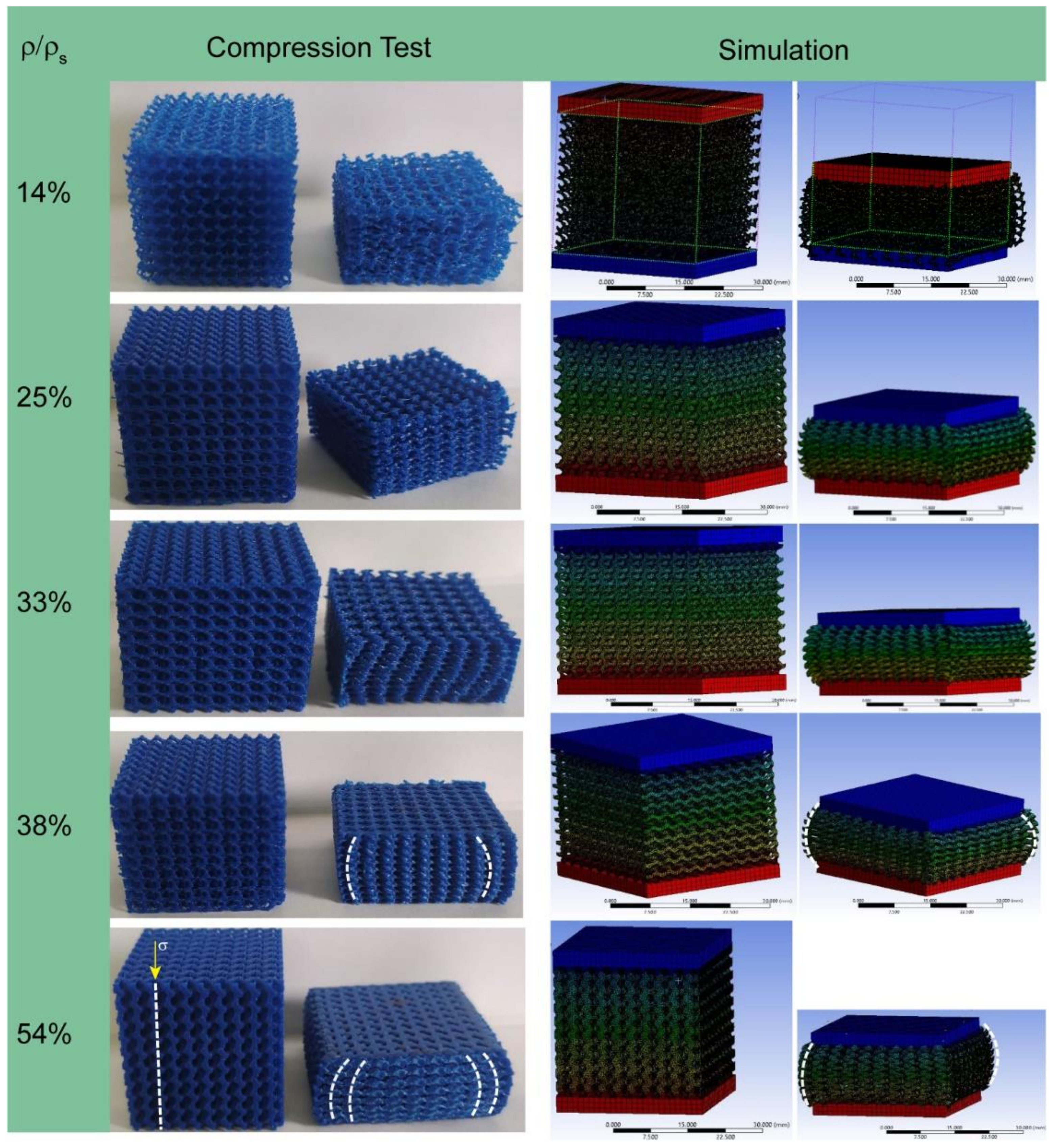

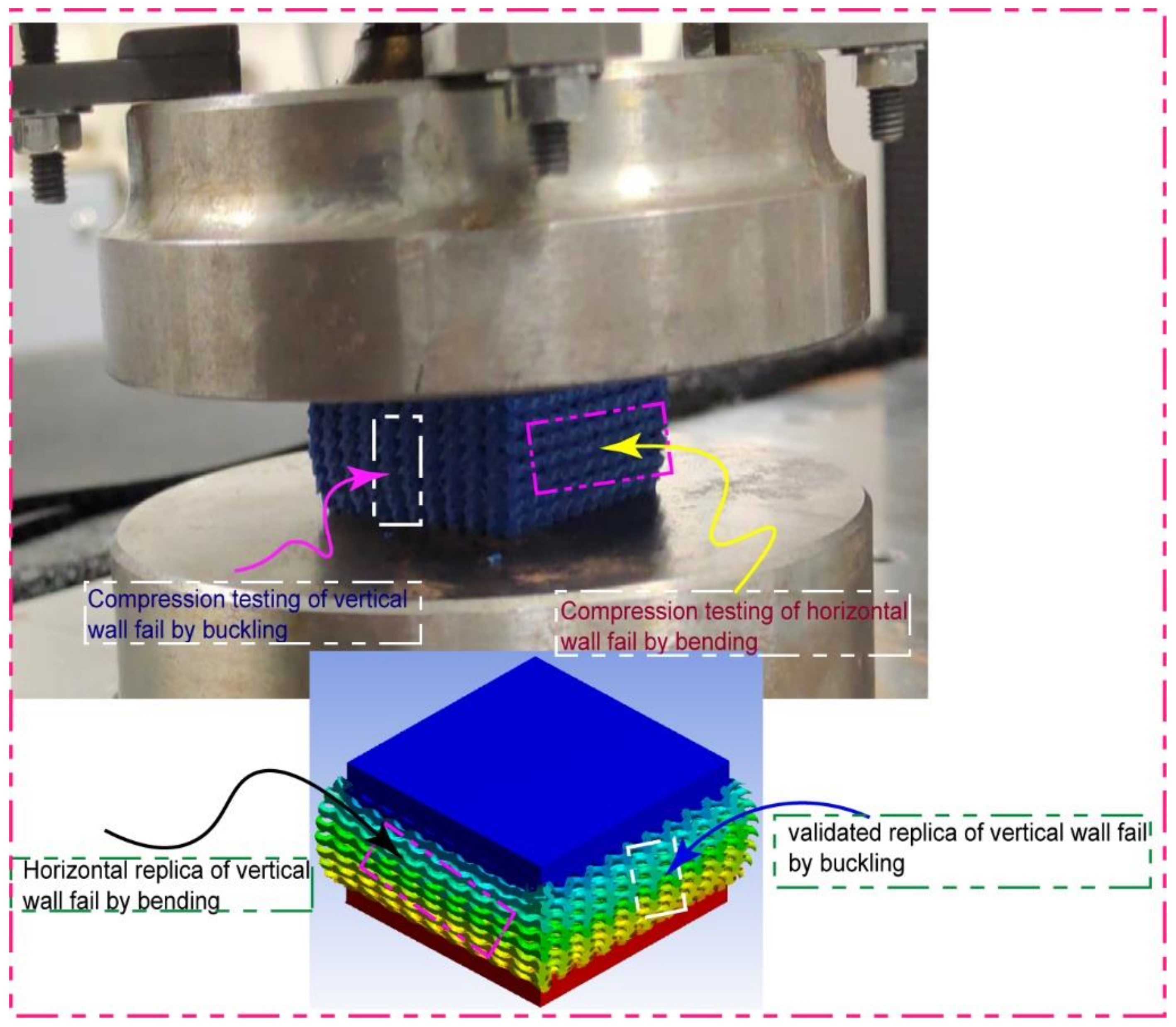

The combined results of mechanical compression tests and Finite Element Method (FEM) compression deformation studies are shown in Figure 10. These show that the composite TPMS gyroid lattice structure fails in two different directions, each with a different cause. The vertical walls collapsing down by buckling and the horizontal walls collapsing down by bending are the two types of failure modes that our technique predicted. This duality in failure behavior endows the innovative lattice structure with unique properties under external compressive pressures, as demonstrated in Figure 10.

3.6. FEM Simulation of Mechanical Compression and Validation of Stress-Strain Curve

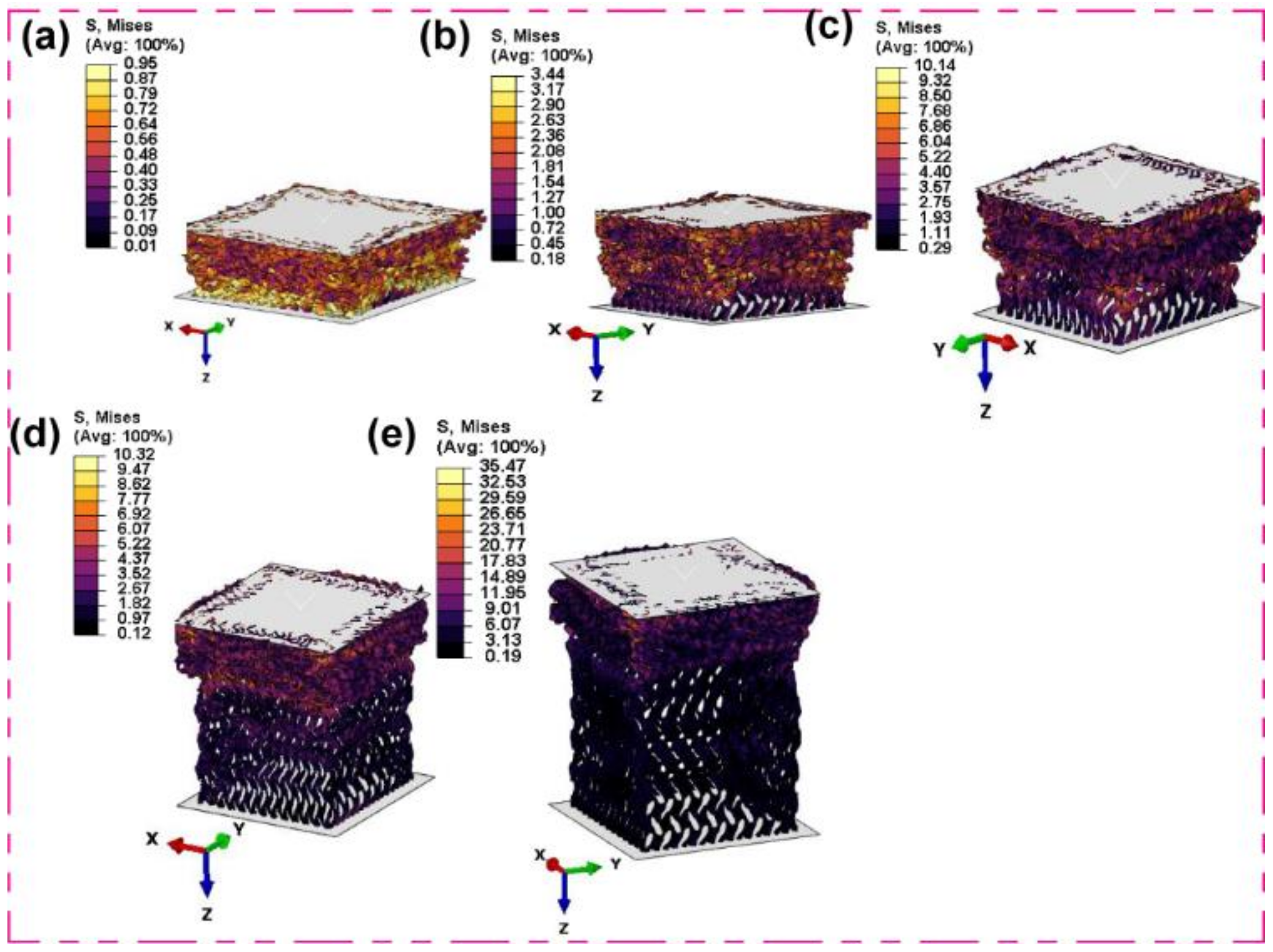

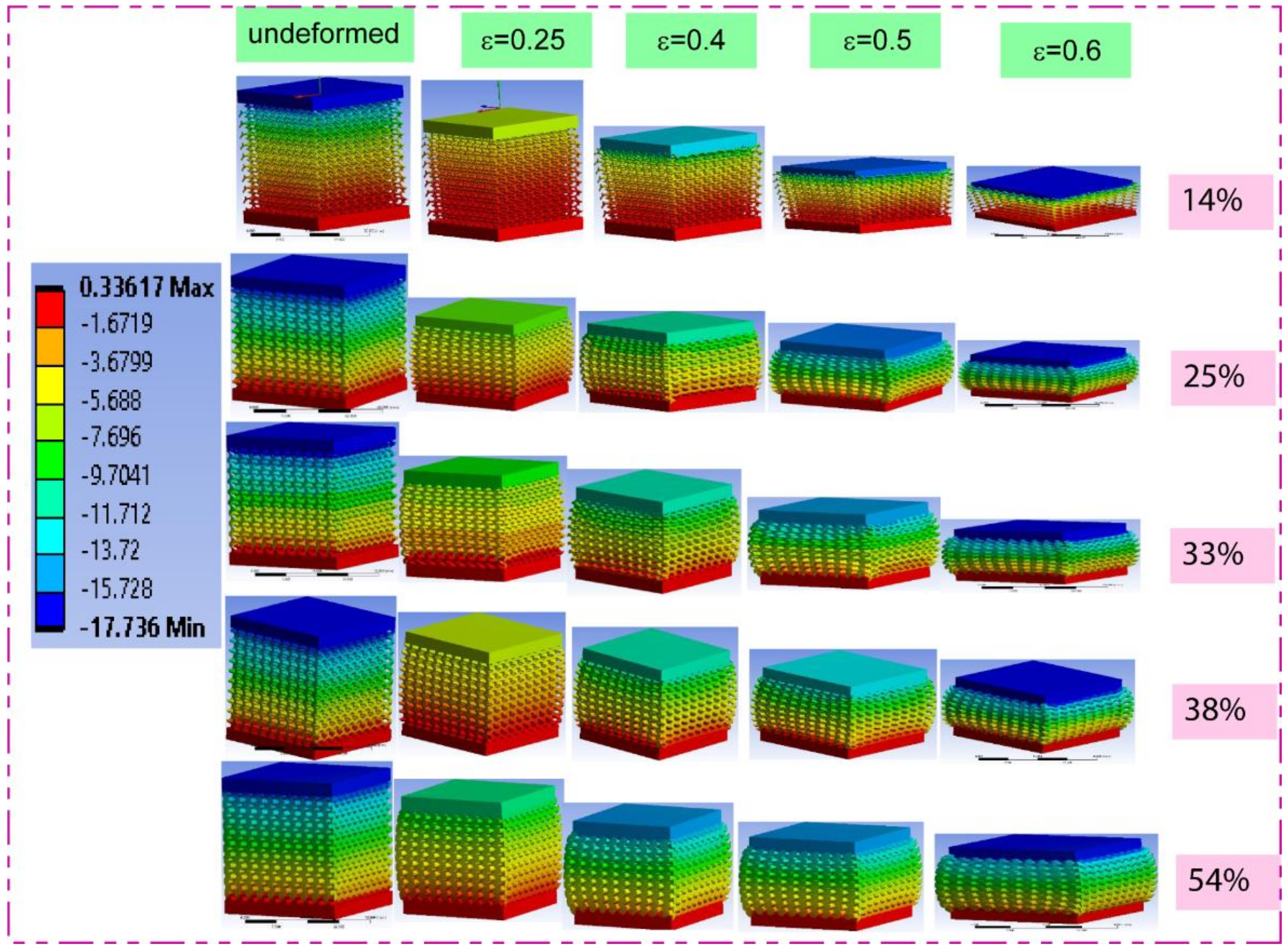

Figure 11 and Figure 12 show how different relative densities affect the mechanical behavior of composite TPMS-gyroid structures. A graphic illustration of how these structures perform under various situations is shown in Figure 13. The figure displays the deformation and failure mechanisms of these structures. Notably, when these lattice structures move from the linear elastic area, local buckling events become visible, mainly at the structures' bottom portions. After the first yielding point, the stress-strain curve significantly reduces due to local buckling. Figure 12 shows that fractures appear in the bottom parts of the composite TPMS-gyroid structures at a strain level of 60%, particularly when the relative density is 14%. Finite Element (FE) simulations further support these findings by demonstrating how, between strain levels of 50% and 60%, a homogeneous deformation pattern is seen throughout all composite lattice structures, often accompanied by self-contacting. These results are important because they provide a further understanding of the reasons for structural failure in composite TPMS-gyroid structures and might lead to improvements in their use in a variety of applications. Figure 12 depicts the results of mechanical compression testing at five different relative densities and five strain stages, with a maximum displacement of 17 mm and a corresponding strain of roughly 60%. Beyond this point, the lattice stops deforming and enters the densification stage. The studied deformation patterns clearly show the elastic, plastic plateau, and final densification properties.

3.7. Energy Absorption

The significance of energy absorption in the testing of materials is crucial. The parameter in question is energy absorption per unit volume of the specimen. In order to effectively represent the degree to which a material can absorb energy during deformation, this measure can often be expressed geometrically by the area confined under the stress-strain curve. It is important to describe the PLA Composite TPMS Gyroid Lattice so that we can figure out how much energy it can hold when it is compressed mechanically.

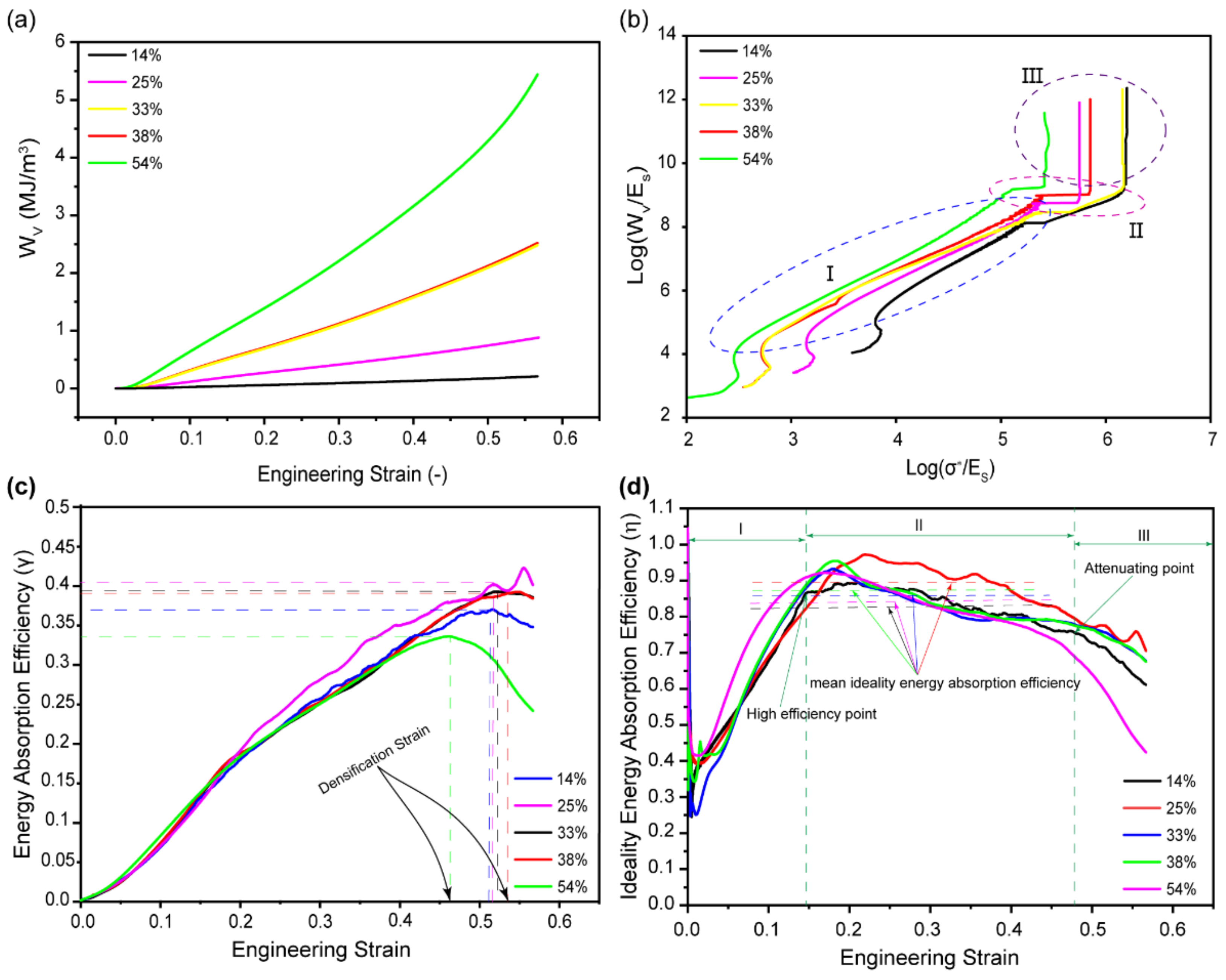

Figure 14a illustrates the correlation between strain and energy absorption at various relative densities. The bioinspired composite TPMS gyroid foam absorbs less energy during the elastic-plastic phase, based on results. This decline is primarily due to the energy absorption mechanism being dependent on pore structure collapse, which is predominantly observed in the plateau region. As strain increases, energy absorption exhibits a linear correlation with strain, which is remarkable. It is possible to see a power function relationship between energy absorption and strain at lower relative densities because this type of biopolymer foam has strain hardening and a high plastic modulus. As densification strain approaches, the energy absorption of the composite lattice foam increases dramatically in response to stress. Energy absorption efficiency and ideal energy absorption efficiency were suggested by previous studies [67,68], as methods to measure the energy absorption characteristics of foam materials for use in their study of various forms of energy absorption capacity. The normalized energy absorption characteristics of the composite TPMS gyroid structures are illustrated in Figure 14b. This graphical representation assigns logarithmic values to two significant ratios: the lattice stress to Young's modulus of solid PLA material (σ*. /Es) and the total energy absorption to the elastic modulus of bulk PLA materials (Wv/Es). The graph contained in this representation illustrates the relationship between strains and the cumulative energy per unit volume.
One can gain a more comprehensive understanding of the different compression phases by implementing these logarithmic modifications. To elucidate the intricate mechanisms underlying energy absorption in diverse architectural configurations, Gibson and Ashby initially introduced the concept that serves as the foundation for the aforementioned mathematical expression [2,20,69,70]. This normalized graphical curve is one of the most effective methods to illustrate how foam structures maximize energy absorption while minimizing stress. Figure 14b depicts three unique zones that give varied information on compression-phase energy absorption characteristics based on altering slopes of the curves. The elastic deformation phase of composite TPMS gyroid structures correspond to Region I. The pictures above show that TPMS Gyroid structures with relative densities of 14% and 25% fail, even though they only absorb a small amount of energy when they are compressed. The reason for this limitation is due to the size effect of the Gibson and Ashby composite gyroid lattices with relative densities of 25%, 38%, and 54%. Based on such findings, this lattice structure seems to be an excellent match for use in impact-resistant applications since it mimics foam structures. models. The entire structural collapse of the composite TPMS gyroid lattice provides a large increase in energy absorption with minimal stress increases as we investigate Region II. This behavior is most noticeable in Composite TPMS Gyroid designs, on the other hand, have steeper curve slopes, indicating a quick rise in cumulative energy absorption even for minor variations in stress. Prominent inflection points demonstrate that composite lattices enter the densification phase in Region III at all five relative densities.
Densification phases are observable even in low-relative-density composite lattices, which were not discernible in the stress-strain curves produced in this investigation. Because of the results, the composite TPMS gyroid lattice, which has normalized energy absorption and stress, seems to be a great model for creating foam structures out of a group of PLA materials that are designed to absorb energy. The complex relationship between strain and energy absorption efficiency across five different relative densities are shown in Figure 14c. This figure makes an evident illustration of the peak energy absorption efficiency, which is characterized by values ranging from 0.34, 0.37, 0.38, 0.39, and 0.43, corresponding to relative densities of 54%, 14%, 33%, 38%, and 25%, respectively. Energy absorption efficiency in PLA composite TPMS gyroid foam, which has these five relative densities, peaks with increasing deformation during mechanical compression and then gradually declines as strain continues to rise. It peaks during the compression deformation phase when strain is increasing and then progressively decreases as strain keeps rising. Nevertheless, when it reaches its maximum within the range of relative densities from 33% to 38%, energy absorption efficiency stays constant, showing remarkable resistance to increasing deformation extents. It's interesting that when the relative density is higher and the strain-hardening effect is amplified at the plateau stage, the presence of larger pore walls leads to a higher plastic modulus. The maximum energy absorption efficiencies correspond to engineering strains of 0.46, 0.51, 0.51, 0.53, and 0.55, respectively. It's interesting that these strain values are a lot like the densification strain on the stress-strain curve. This means that the PLA composite TPMS gyroid foam works best as an energy absorber when all of its pores are compressed.
By expanding our focus to Figure 14d, we look into the interesting range of ideal energy absorption efficiency with respect to strain across a range of relative densities. Figure 10d shows that peak ideal energy absorption efficiencies of 0.90, 0.93, 0.94, 0.955, and 0.97 can be seen across a range of relative densities from 14% to 54%. When these efficiencies are at their peak, the corresponding strain values are 0.21, 0.16, 0.19, 0.18, and 0.23, respectively. A pattern becomes apparent: with decreasing relative densities, the optimum energy absorption efficiency becomes convincingly close to 1. The complex interaction between the plastic modulus and relative density during the plateau phase is what causes this effect. Composite TPMS gyroid PLA foam hardens in amazing ways as relative densities rise, acting a lot like the best materials for absorbing energy when they are compress.

3.7.1. Maximum Energy Absorption and Densification Strain

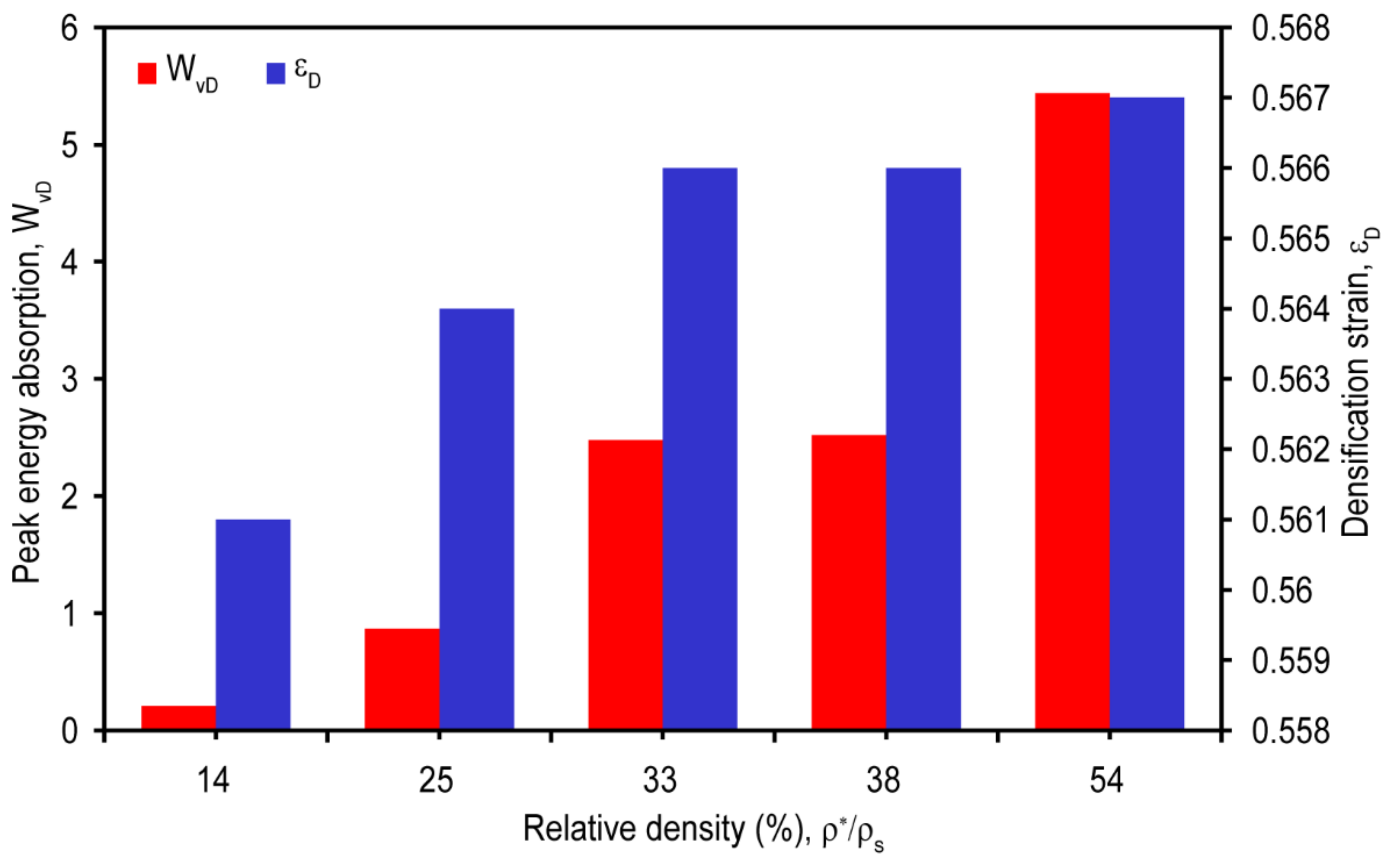

Figure 15 illustrate the peak energy absorbed by the five composite TPMS Gyroid Lattice structure during Mechanical compression and its corresponding densification strain. The composite TPMS Gyroid TPMS with 14% relative density absorbed the lowest energy per volume at 56.05% deformation. This is due to its lowest strength to overcome buckling and bending dominated deformation during mechanical compression. And this result coincides with both SEM and mechanical property result in this study which reinforce clearly that size effect leads to the mechanical property deteriorate of lattice structure below 15% relative density. And 5.54 MJ/ m3, absorbed at 56.70% strain by the composite lattice with 54% relative density.

3.8. Case Study on Composite TPMS Gyroid Latticed Crash Box

Five different relative densities—54%, 38%, 33%, 25%, and 14%—show a latticed crash box that is simulated to occur at an impact speed of 15600 mm/s for 12.5 ms in Figure 16a,b. The accompanying figure makes it easy to see the displacement contour (a) and the Von Mises stress contour (b). The latticed crash box exhibits the maximum displacement at a relative density of 14% and the lowest displacement at a relative density of 54%, as shown in Figure 17. Less dense composite TPMS gyroid latticed crash boxes are less stiff and structurally robust because they distort more under the same impact conditions. On the other hand, Figure 16e demonstrates that the latticed crash box experiences a maximum Von Mises stress at 54% relative density and a minimum at 14% relative density. The Von Mises stress, a measure of a material's yielding tendency, shows that a latticed crash box can withstand higher stresses before deforming. The findings show that at 14% relative density, which is the decrease in threshold in both situations, the mechanical characteristics significantly deteriorate.
This deterioration significantly decreases the effective energy absorption capacity in usage, where energy dissipation is crucial. With their relative densities of 38% and 33%, latticed crash boxes seem to be the ideal choice for this kind of application since they maintain a reasonable balance between displacement and energy absorption. The balance is necessary to store strain energy efficiently without degrading the structure. Looking at composite TPMS gyroid latticed crash boxes under high-speed impact at different relative densities might help us understand how they behave mechanically, especially when it comes to how well they absorb energy. Higher relative densities may be able to handle more stress, but for many energies’ dissipation uses, moderate relative densities of latticed crash boxes are the best balance between being able to handle displacement and stress.
Under velocity impact circumstances, the research investigated the effects of different relative densities on the maximum displacement in the Z direction of the composite TPMS gyroid-latticed crash box (see Figure 17). The results offer important insights into the potential crashworthiness of these novel materials. The maximum displacement at 14% relative density showed considerable deformation capacity under impact loading, ranging from a starting value of 0.0 mm to a peak value of 183.99 mm. Similarly, the displacement changed from 27.83 mm to 170.70 mm at 25% relative density, demonstrating significant deformability. Additionally, the highest displacement peaked at 68.15 mm at 33% relative density and then steadily decreased. At 38% relative density, this trend continued until it reached 68.20 mm, at which point it started to decline further. With a high value of 58.96 mm, the 54% relative density was found to have the lowest maximum displacement. The research examined the effect of different relative densities on the maximum displacement in the Z direction of a composite TPMS gyroid-latticed crash box under velocity impact. The findings provide fascinating insights into the possibilities for increased energy absorption and improved crashworthiness performance. The maximum displacements were much larger at lower relative densities, such as 14% and 25%, showing improved deformability and energy absorption capacity (refer Figure 17). This shows that crash boxes with lower relative densities have a stronger ability to absorb energy during impact incidents. Higher relative densities, such as 38% and 54%, resulted in comparably smaller maximum displacements, suggesting more limited deformation behavior and perhaps reduced energy absorption capability. The influence of relative density and porosity on maximum displacement and energy absorption is obvious. Lower relative densities with higher porosity allow for more widespread deformation and increased energy dissipation, while higher relative densities with lower porosity constrain deformation and may limit energy absorption. In terms of mechanical stiffness, crash boxes with lower relative densities have lower stiffness because they are more deformable, while those with higher relative densities have better stiffness but may lose some energy absorption capabilities. According to the research findings, the crash box with a 25% relative density seems to provide a balanced mix of maximal displacement, energy absorption, and mechanical rigidity. It has a high energy absorption potential while retaining moderate stiffness, making it a good contender for improving crashworthiness in automobile safety applications. Further optimization efforts might concentrate on fine-tuning the relative density within this range in order to achieve the ideal balance of energy absorption and structural stability.

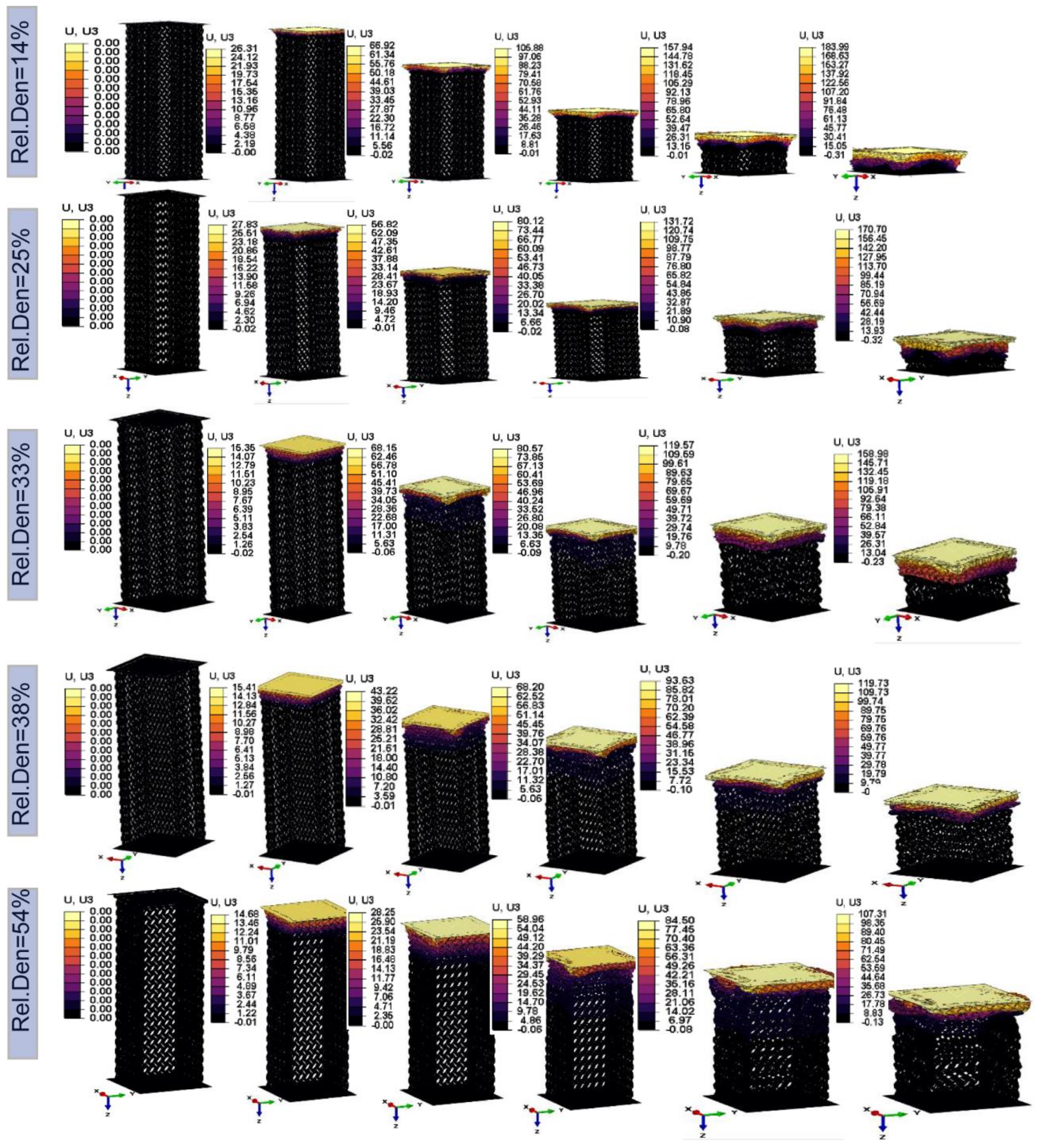

Figure 18a illustrates the dynamic response of latticed crash boxes with different relative densities (14%, 25%, 33%, 38%, and 54%) and discusses the force-versus-displacement behavior under high-speed impacts. The composite TPMS gyroid lattice crash box with a density of 54% has the highest crashing force, while the one with a density of 14% has the lowest. This significant variation illustrates the size effect and the deterioration of mechanical properties with decreasing relative density, especially below 15%.
The force-displacement curves and the stress-strain behavior of the composite TPMS lattice structures explain why the mechanical response is consistent. Also, the long plateau area shows a good bending deformation mode—this is needed to get the best energy absorption with the least amount of changes in load versus deformation.
The aerospace, automotive, and safety sectors will use lattice structures more often as a consequence of these studies, which emphasize the need to consider relative density when designing lattice structures in order to achieve the best possible balance between structural strength and energy absorption efficiency. Furthermore, Figure 18b illustrates the strain energy absorption with time for the same latticed crash boxes for high-speed impacts. The 54% relative density crash box has a considerably shorter densification phase while having a larger strain energy storage capacity than the 33% and 38% relative density crash boxes, which show ideal energy absorption prior to densification. Based on these findings, it seems that medium-relative density lattices are the most reliable and consistent when it comes to absorbing energy, showing optimal performance.
Applications that need efficient energy absorption and structural integrity under impact are indispensable to this performance. Including the force-displacement results, the study's insights into strain energy dynamics provide a whole picture of how latticed crash boxes mechanically behave. These studies highlight the significance of material relative density in attaining the intended mechanical and energy absorption properties and, together, make a significant contribution to the design and implementation of structures that absorb shock in high-impact scenarios.

4. Conclusion

This paper includes an intensive investigation of the mechanical behavior of five different kinds of composite TPMS latticed structures. These structures were designed by combining walled-TPMS and normal TPMS gyroid lattices using the Boolean subtraction technique. After that, they were 3D printed from polylactic acid (PLA) using fused deposition modeling (FDM). The study explores the mechanical properties and energy absorption capabilities under dynamic mechanical compression loading. And examine the stress-strain response and deformation modes at various relative densities. Experimental and numerical simulations are both included in the broad scope of this study. The impacts of five different relative densities (14%, 25%, 33%, 38%, and 54%) on the mechanical characteristics and energy absorption efficiency of the TPMS structures are the most significant findings. The following results reflect the conclusions that have been drawn from the current study.
  • A newly created composite TPMS gyroid lattice, created by Boolean subtraction, exhibits a deformation mode that is primarily bending, which is consistent with idealized gyroid and ligament-based TPMS behaviors.
  • The 54% relative density crash box has a significantly shorter densification phase while having a larger strain energy storage capacity than the 33% and 38% relative density crash boxes, which show ideal energy absorption prior to densification.
  • The findings suggest that the composite TPMS gyroid lattice, with its normalized stress and energy absorption, is an excellent model for fabricating foam structures from a class of PLA materials engineered for energy absorption.
  • Our findings support the Gibson-Ashby model by confirming the significant influence of relative density on the mechanical properties of composite TPMS gyroid lattices. They also emphasize the importance of tailoring lattice architecture to optimize energy absorption capabilities.
  • A comprehensive force-displacement and strain energy-time analysis elucidates the mechanical behavior of latticed crash boxes when subjected to impact. This analysis has significance for the advancement of design and implementation in high-impact scenarios.
  • According to the study, composite TPMS gyroid-latticed crash boxes with lower relative densities outperform in energy absorption and deformability, particularly at 25% density, which provides an optimal balance of displacement capacity and mechanical rigidity, promising improved crashworthiness for automotive safety applications.
In conclusion, this study successfully delineates the boundaries of optimal energy absorption and accurately models plastic plateau regions by combining Mechanical Compression testing with Finite Element Analysis to improve our understanding of the behavior of composite lattice structures built using FDM 3D printing from blue PLA material under stress.
