Comparative Study of a Potent CNS-Permeable RARβ-Modulator, Ellorarxine, in Neuronal Cells In Vitro

1. Introduction

Vitamin A and its derivatives, known as retinoids, are specific modulators for neural differentiation, motor neuron outgrowth and immunology in vertebrates [1,2,3,4]. Retinoids have gained considerable attention in the context of their ability to regulate the gene expression of varieties of encoded enzymes, neurotransmitter transporter proteins and receptors, transcription factors, cell surface receptors and neuropeptide hormones [5]. All-trans-retinoic acid (RA), a metabolite of Vitamin A, performs physiological function by binding to and activating RA receptors (RARs) and retinoid X receptors (RXRs), which each have three subtypes (α, β and γ) with several isoforms [6]. RA translocates across the nuclear membrane through RARs, interacts with retinoic acid response elements (RAREs), and participates in the mechanism of gene regulation [7]. RAR and RXR exhibit broad expression across nearly all tissues especially the brain, although the distribution of each isotype varies [8]. Apart from the genomic effect, retinoids have also been emphasized that have important non-genomic effects, mediating homeostatic synaptic plasticity and neurotransmitter release [9,10].

RARs have been proven to be closely related to neurodegenerative diseases. Studies have shown that in vitamin A-deficient rats, the expression of RARα is inhibited, leading and the deposition of amyloid beta (Aβ) peptide in cerebral blood vessels [11]; RARβ and RXRβ/RXRγ mRNA in the hippocampus are also been downregulated, made young animals with VAD showed cognitive decline as those of aged animals [12]. RARβ is involved in the neuroprotection of striatal medium spiny neurons (spMSNs), a cell type affected in different neuropsychiatric diseases and particularly susceptible to degeneration in Huntington's disease (HD) [13]. Retinoid deficiency or mutations in the RARβ and RXRγ genes are associated with inhibition of spatial learning and memory and the development of depression in animals [14]. RA is often associated with and modulates regions of high neuroplasticity, and in the hippocampus, RA signaling is regulated by the availability of RALDH1 and RALDH2 synthetases and the CYP26B1 catabolic enzyme [15]. Retinoids are critical for long-term potentiation (LTP) and long-term depression (LTD) of neuroplasticity associated with learning and memory, as well as homeostatic synaptic plasticity (HSP) [16]. Retinoids play an important role in preventing neuroinflammatory responses to provide neuroprotection, and retinoids can downregulate the expression of cytokines and inflammatory molecules in microglia [17]. Retinoids also regulate the expression of tyrosine hydroxylase, dopamine β-hydroxylase, and dopamine D2 receptors [18]. Reduced acetylcholine (ACh) in neurodegenerative diseases has also been implicated in RA-mediated reductions in ChAT production and neuronal cell death [19]. The functional neuroprotective effects of synthetic retinoids in neurodegenerative diseases are being widely studied, and some have been developed as potential drugs for the treatment of neurodegenerative diseases and have achieved good results [20,21,22]. Therefore, selective RXR and RAR modulators become one of the promising therapies against neurodegenerative diseases [23].

In this study, we aimed to evaluate the efficacy of a synthetic retinoid (Nevrargenic’s lead drug, RAR modulator, Ellorarxine, also known as DC645 and NVG0645) on neurodegenerative symptoms. C6 is an established cell line derived from rat glioma that can differentiate into astrocyte-like cells, express GFAP under specific conditions, and has been used to culture astrocyte models [24]. SH-SY5Y is a human neuroblastoma cell line that can differentiate into neuron-like cells and can serve as a neuronal model for neurodegenerative diseases [25]. Microglia are related to a series of neurodegenerative diseases (such as attention deficit disorder and Parkinson's disease) and can have neuroprotective or neurotoxic effects [26]. Hence, a human microglial clone 3 cell line (HMC3) is used as a microglial model [27].

2. Results

2.1. Ellorarxine Upregulates the Expression of Cyp26b1 and RARβ

RARs are expressed in a variety of cells, including C6, SH-SY5Y and HMC3. Regulations of RAR-expression regulate cellular functions [28,29,30]. To investigate the regulation of RAR expression by Ellorarxine, immunofluorescence was used to detect the expression of Cyp 26B1 and RARs. The expression level of Cyp26b1 and RARs was determined using the average fluorescence intensity [31].

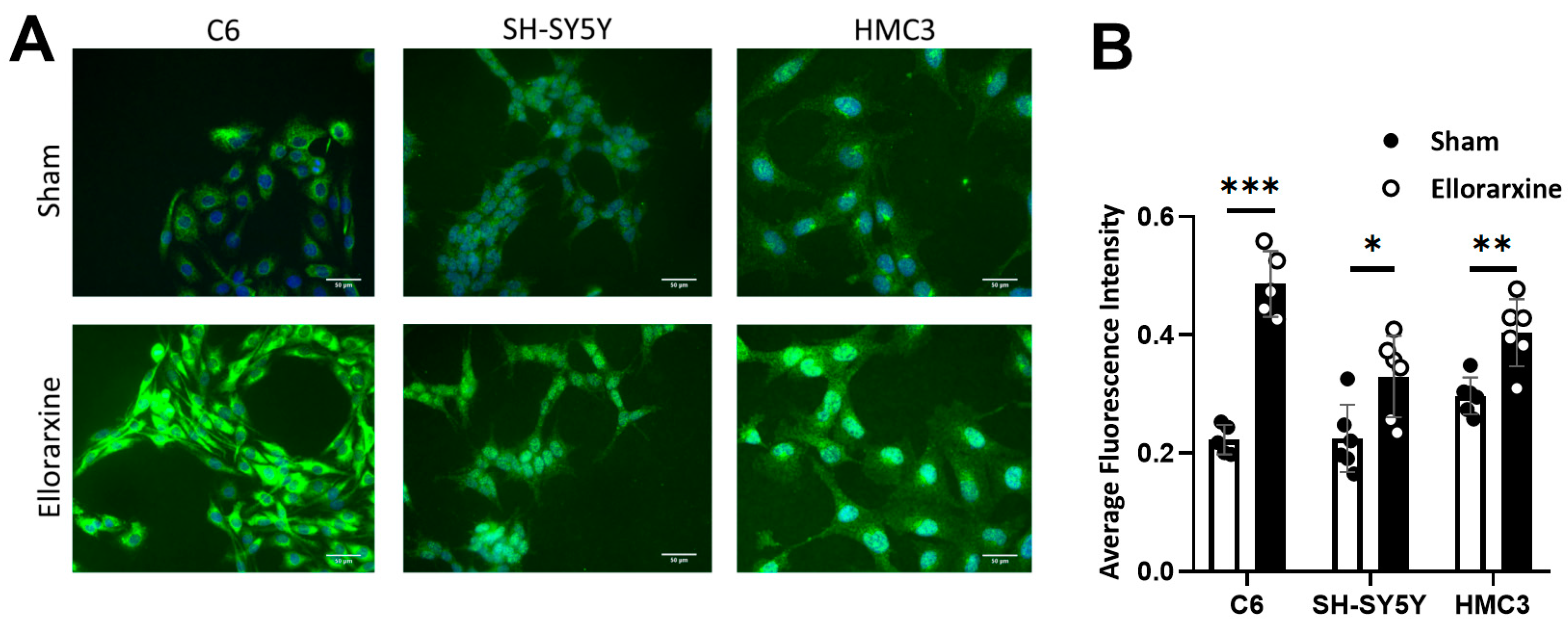

The results showed that Ellorarxine significantly upregulated the expression of Cyp26b1 (Figure 1) (C6: 118%, SH-SY5Y: 47%, HMC3: 36%) and RARβ (C6: 35%, differentiated SH-SY5Y: 71%, HMC3: 46%) , but not RARα or RARγ (Figure 2). The regulation of the distribution of RARα and RARγ by Ellorarxine was more pronounced: Ellorarxine caused RARα in C6 cells to migrate towards the ends of the nucleus (Figure 2A, white arrow), and RARγ in differentiated SH-SY5Y to migrate towards the cell membrane (Figure 2D, yellow arrow).

2.2. Ellorarxine Pretreatment Alleviates Mitochondrial Dysfunction

In cultured neuronal cells, MTT assay, measuring the amount of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium in the cell cytoplasm that converted to MTT formazan, is one of the most commonly used methods to determine mitochondrial viability and activity of NAD-dependent oxidoreductases [32]. To investigate the effect of Ellorarxine on mitochondrial viability, we examined the percentage of mitochondrial viability with or without 4 h Ellorarxine pretreatment of glia, neurons and microglia under oxidative stress or PBS control using an MTT assay. To induce mitochondrial dysfunction, oxidative stress was applied to the cells using 100 mM hydrogen peroxide (H₂O₂).

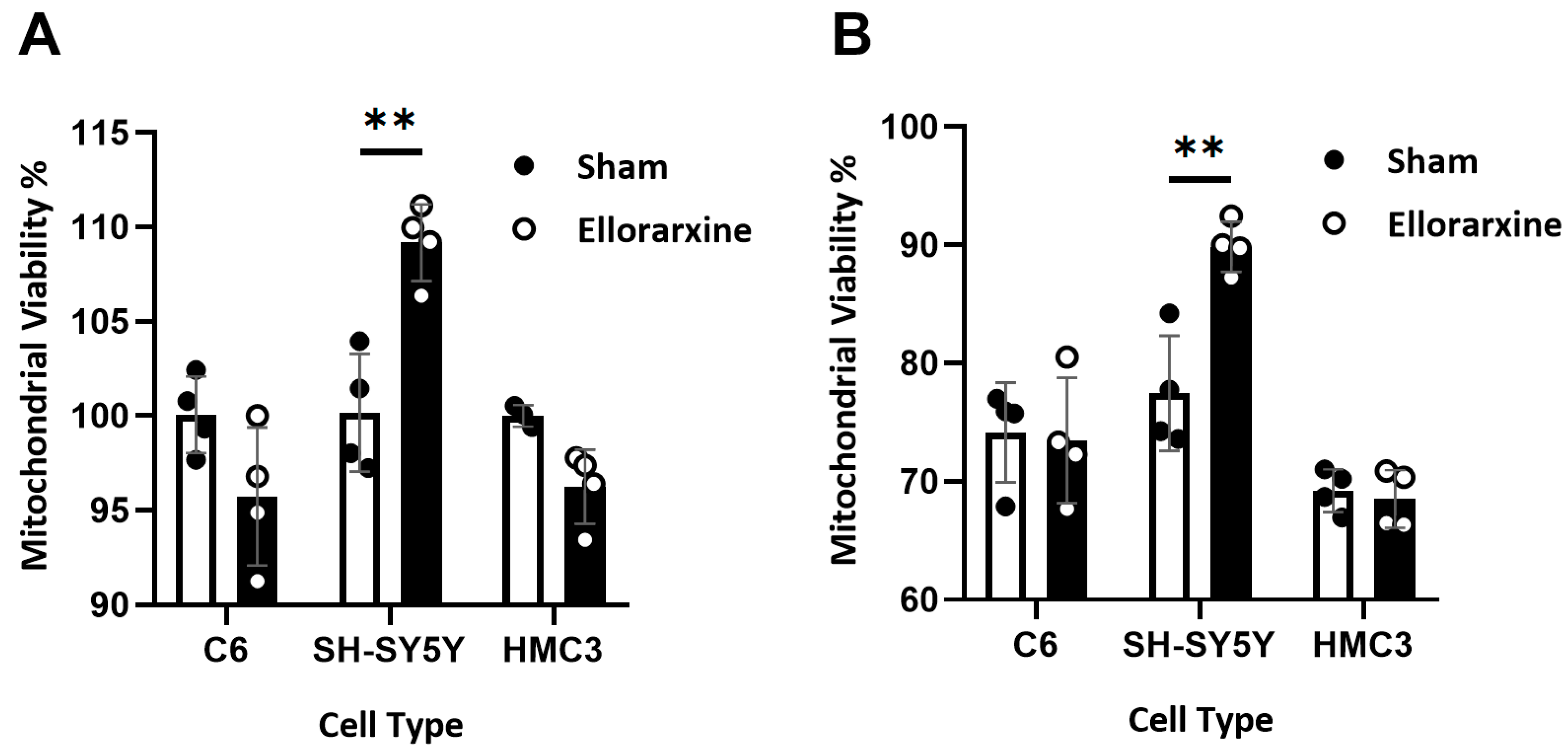

Results showed that Ellorarxine has a significant enhancement effect (10%) on mitochondrial function in SH-SY5Y (Figure 3A). The mitochondrial function after the stress of 100 mM H2O2 with mitochondrial activity being significantly reduced in both cases compared to Figure 3A where mitochondrial dysfunction was induced (Figure 3B). In this case, Ellorarxine had a significant enhancing effect on mitochondrial function in SH-SY5Y by improving mitochondrial viability by 17% (Figure 3B).

2.3. Ellorarxine Pretreatment Reduced Cell Death

LDH assay, measuring lactate dehydrogenase (LDH) release, is more valid for the determination of cell death in cultured neuronal cells than the MTT assay [33]. To investigate the effect of Ellorarxine on cell death, we performed an LDH assay on C6, SH-SY5Y and HMC3 with or without 4 h Ellorarxine pretreatment. To induce cell death, a final concentration of either 200 mM H2O2 or 15 μg/mL of LPS was applied.

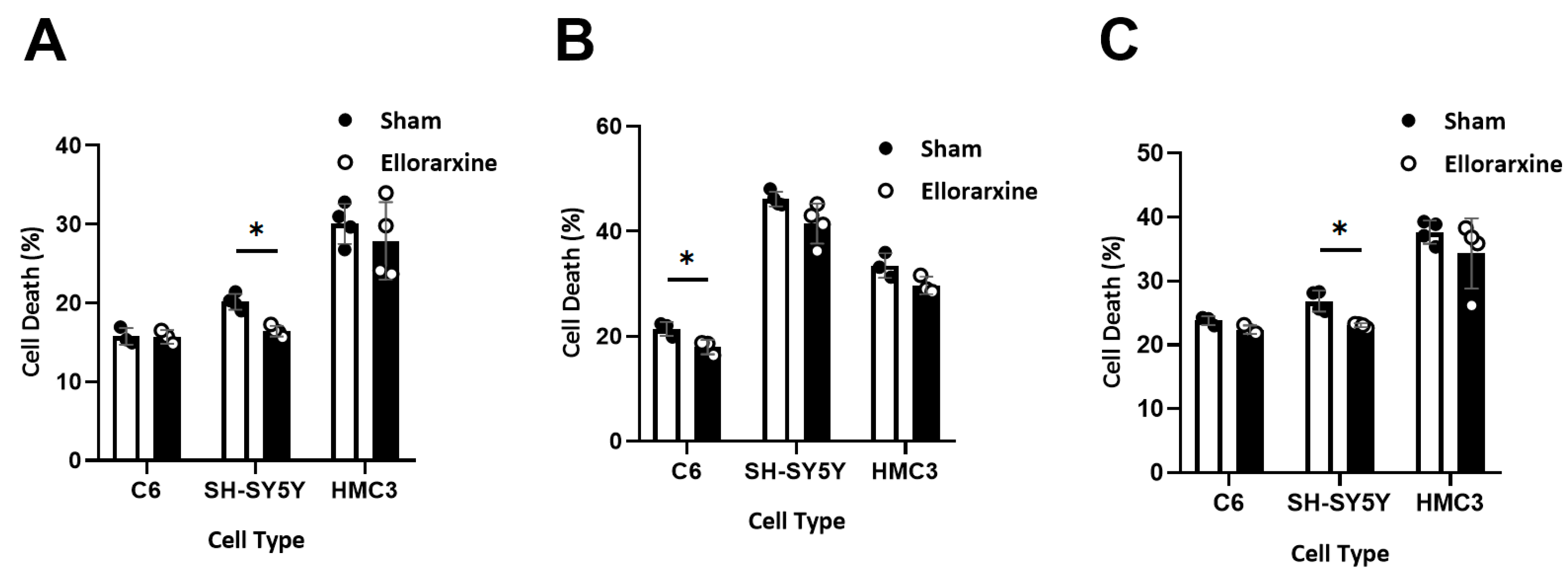

Results showed that Ellorarxine had a significant protective effect of 19% on SH-SY5Y (Figure 4A). The percentage of cell death after the stress of 200 mM H2O2. Ellorarxine significantly protected C6 from death by 10% (Figure 4B). The percentage of cell death after the use of 10 μg/mL LPS. Ellorarxine showed a significant protective effect (14%) on SH-SY5Y (Figure 4C).

2.4. Ellorarxine Pretreatment Modulated Inflammatory Cytokine Release

The enzyme-linked immunosorbent assay (ELISA) can detect the antigens and cytokines accurately and sensitively, which is one of the most widely used cytokine measurement methods [34]. To investigate the effect of Ellorarxine on neuroinflammation, ELISAs were performed on HMC3 with or without 4 h Ellorarxine pretreatment. To induce inflammation, LPS was added to make a final concentration of 10 μg/mL.

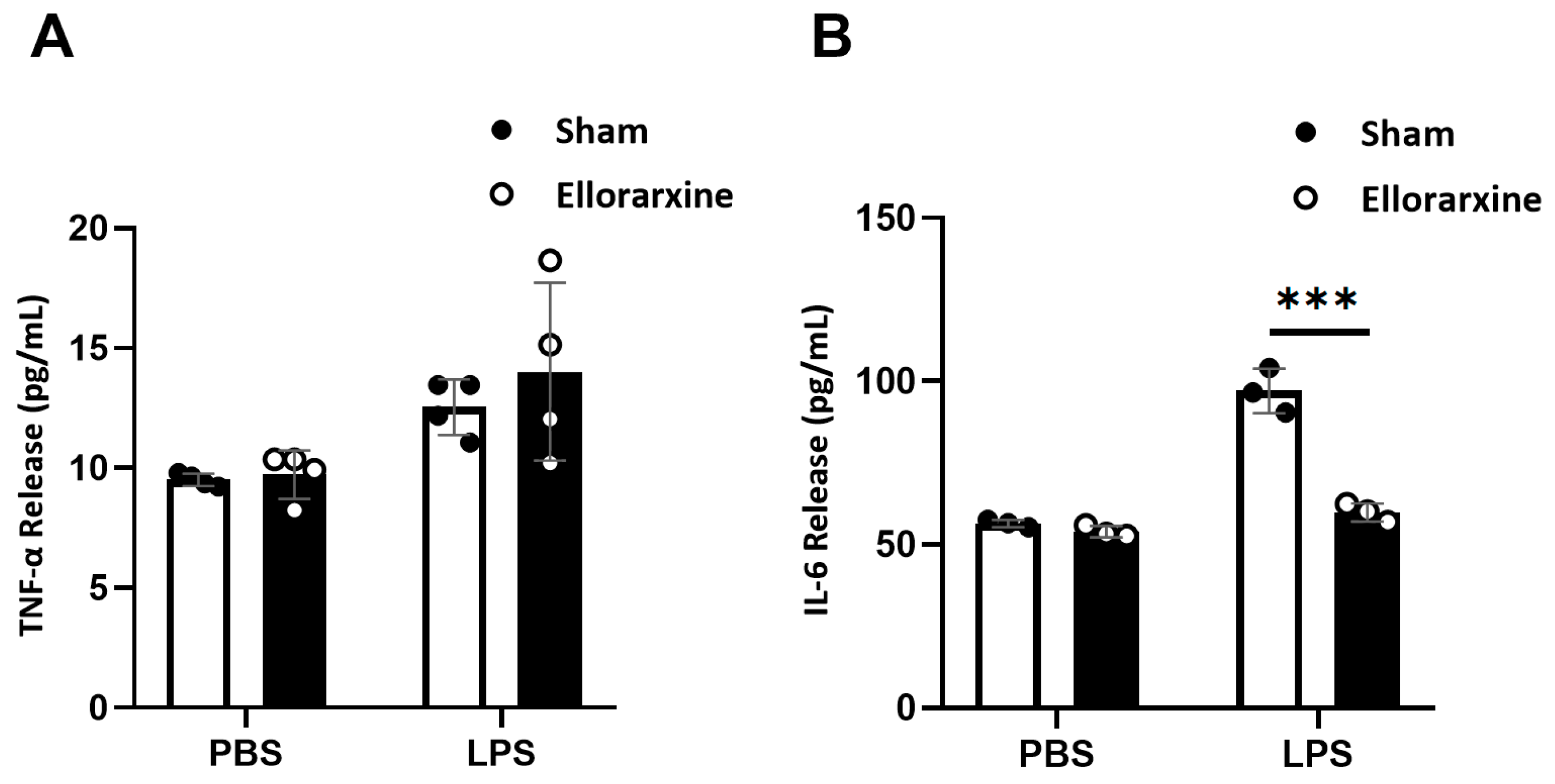

Results showed TNF-α release under 10 μg/mL LPS stress (Figure 5A) and IL-6 release under 10 μg/mL LPS stress (Figure 5B). It shows that Ellorarxine significantly reduced the release of IL-6 by 38.4% (Figure 5B).

2.5. Ellorarxine Treatment Reduced the Number of Senescent Cells

Senescence-associated β-Galactosidase (SA-β-Gal) is one of the most commonly used markers for senescence and has been used in cultured neuronal cells [35,36]. To investigate the anti-senescence effects of Ellorarxine, we treated the cells with 20 mM H2O2 for 24 h before treatment with Ellorarxine. Using SA-β-Gal staining to determine the number of senescent cells.

We found that Ellorarxine post-treatment significantly reduced the proportion of senescent cells by 60% under inflammatory stress (Figure 6B). At the same time, the proportion of senescent cells in the Ellorarxine post-treatment group in the control situation was also reduced, though not statistically significant (Figure 6).

2.6. Ellorarxine Treatment Regulated Cellular Autophagy

The distinctive feature of cellular events during macroautophagic/autophagic induction is characterized by the conjugation of LC3B, a mammalian homolog of Atg8, with phosphatidylethanolamine [37]. To investigate the regulation of autophagy by Ellorarxine, we cultured the cells with DMEM/F12 without serum for 24 h before the Ellorarxine treatment. Immunocytochemical staining was used to determine the expression of LC3BII in the cells. The expression level of LC3BII was determined using average optical density (AOD) [38].

We found that Ellorarxine treatment significantly elevated the level of autophagy in C6, SH-SY5Y and HMC3 in serum-free media (Figure 7D) (C6: 56%, SH-SY5Y: 27%), hence showing that Ellorarxine was able to regulate cellular autophagy.

3. Discussion

Mitochondrial dysfunction plays a causative role in neurodegenerative diseases. Defects in mitochondrial respiratory chain function, oxidative stress, morphology/kinetics, and calcium handling capacity can induce neurodegenerative diseases represented by Parkinson's disease [39,40]. Mitochondrial dysfunction can also induce a variety of motor neurodegenerative diseases [41]. Studies have shown that RARβ plays an important role in controlling neurotransmission, energy metabolism and transcription, and especially in G protein-coupled receptors, cAMP and calcium signaling [42]. Many of the identified RARβ target genes associated with these pathways have been implicated in various neurodegenerative diseases such as Alzheimer's and Parkinson's diseases [43,44]. Studies have shown that loss of RARβ can lead to mitochondrial dysfunction in mice, and that RARβ agonists can prevent mitochondrial failure induced by mitochondrial toxins, and reduce mitochondrial fragmentation and cell death [13,45]. Our results show that Ellorarxine can significantly alleviate mitochondrial dysfunction in neurons induced by oxidative stress. Under control conditions, Ellorarxine can also significantly improve neuronal mitochondrial function. This may be because Ellorarxine can upregulate the expression of RARβ and activate the neuroprotective effect of RARβ. Our immunofluorescence semi-quantitative analysis results showed that Ellorarxine can significantly upregulate the expression of RARβ in three cell types without affecting the expression of RARα and RARγ. This suggests that Ellorarxine exhibits a level of selectivity for RARβ, and therefore, can act as an RARβ agonist to enhance the function of RARβ, thereby exerting a neuroprotective effect [46,47,48]. This may be due to the up-regulation by Ellorarxine of the expression of Cyp26b1. The Cyp26 family of enzymes (CYP26A1, B1 and C1) are key proteins that regulate the internal levels of RA in cells, and retinoids are the only substrates of this enzyme family. Cyp26b1 plays an important role in establishing the RA gradient. The RA metabolite 4-oxo-RA produced by Cyp26b1 catabolism was previously shown to be a potent agonist specifically targeting RARβ [15,49,50,51,52,53]. Therefore, the selectivity of Ellorarxine for RARβ may be derived from this metabolite produced by its hydroxylation of RA.

It is widely recognized that oxidative stress is important in the etiology of several late-onset neurodegenerative diseases [54,55,56]. Oxidative stress is a condition in which the balance between ROS production and antioxidant levels is severely disrupted and results in excessive ROS damage to cells, leading to apoptosis [57,58,59]. In this study, we found that Ellorarxine could significantly reduce the apoptosis of glial cells caused by H2O2 and was statistically insignificant, but showed a tendency to reduce the apoptosis of neuronal cells and microglia. RA has been shown to reduce the sensitivity of various cells to apoptosis caused by oxidative stress [60,61]. Studies have shown that RA protects mesangial cells from H₂O₂-induced apoptosis by inhibiting the activator protein 1 (AP-1) pathway, inhibiting c-fos and c-jun expression and inhibiting c-Jun N-terminal kinase (JNK) [62,63]. It has also been reported that RA reduces apoptosis through the inhibition of oxidative stress and the preservation of superoxide dismutase (SOD) protein levels [60]. RA has been shown to improve the antioxidant defense system [61].

In a variety of neurodegenerative diseases, the inflammatory response triggered by xenobiotics, chemicals and beta-amyloid, etc. is driven by inflammatory and pro-inflammatory cytokines and chemokines (TNF-alpha, IL-6, etc.) [64,65]. Microglia exert neuroprotective or neurotoxic effects depending on the intensity of the stimulus and the extent of the inflammatory response. Excessive cytokine release can overactivate microglia, resulting in neurotoxicity [66]. NF-κB is widely present in mammals and is a key factor in cellular inflammatory responses and neuroprotection. Inhibition of NF-κB activation plays a neuroprotective role in microglia in lipopolysaccharide (LPS)-induced neurodegenerative diseases [67]. RAR in microglia inhibits the NF-κB signalling pathway and suppresses their production. Ellorarxine was able to activate RAR in microglia, modulate microglial function and reduce the production of pro-inflammatory cytokines and chemokines [68,69]. Our results showed that neither TNFα nor IL-6 release was stimulated under baseline conditions from Ellorarxine treatment. This showed a hint that Ellorarxine does not upregulate an acute inflammatory response because these pro-inflammatory cytokines of the innate immune system are unaffected following Ellorarxine treatment. Under LPS exposure conditions, Ellorarxine reduced the production of IL-6 by 40% compared with the control group. At the same time, we found that Ellorarxine can significantly reduce neuronal apoptosis induced by LPS exposure. These results indicate that Ellorarxine can reduce neuroinflammation and provide neuroprotection.

In the normal state, damaged organelles and protein aggregates reach the lysosome through endosomal and autophagosomal delivery, where they are digested and recycled through cellular autophagy [70]. In a variety of neurodegenerative diseases, defects occur at different stages of the autophagic pathway, causing neurons to degenerate due to the accumulation of ubiquitinylated protein aggregates [71,72]. Lysosomal storage disorders are also often characterised by a severe neurodegenerative phenotype. ATRA has been successfully used to treat acute promyelocytic leukemia (APL) and its induced differentiation of the APL cell line NB4 involves the induction of autophagy [73]. Recent studies showed that RA can improve autophagy through depression of the PI3K-Akt-mTOR signaling pathway via RARα [74]. Ellorarxine was able to induce cellular autophagy by activating RARα, enhancing and restoring cellular autophagy function. In the present study, our results showed that Ellorarxine was able to significantly upregulate the autophagy levels of glial cells, neurons and microglia under induced stress conditions.

The pathogenesis of neurodegeneration involves many processes, including protein misfolding and aggregation, abnormalities in kinase signaling pathways, neuronal calcium dysregulation and impaired synaptic transmission [75,76]. Senescence has been identified as one of the important risk factors for common neurodegenerative diseases, Alzheimer's and Parkinson's diseases [77,78]. Unlike the normal programmed terminal differentiation process, senescence is a unique pro-inflammatory fate in which cells acquire a unique secretome of cytokines, chemokines, proteases and growth factors, collectively known as the senescence-associated secretory phenotype (SASP). arious stressors, such as DNA damage, reactive oxygen species (ROS), neuroinflammation, robust mitogenic/oncogenic signaling, loss of specific tumor suppressors, mitotic stress, DNA replication arrest, and chromatin disruption, can lead to cell senescence [79]. Eliminating senescent cells, inhibiting SASP and reversing cellular senescence are effective in modulating neuroinflammatory diseases. These senolytic approaches (mouse models and treatments targeting senescent cells) can eliminate senescent cells, and the accompanying SASP, may have beneficial effects on the development of neurodegeneration in the brain [80,81]. This study found that Ellorarxine can significantly reduce the amount of cell senescence induced by oxidative stress. Although it is not yet certain whether retinoid exposure reduces the number of senescent cells due to reversing cell senescence or eliminating senescent cells, studies have pointed out that combined treatment with vitamin A and quercetin can inhibit the senescence response after acute liver injury. This may be related to the antioxidant and anti-inflammatory effects of vitamin A.

In this study, we mainly found that Ellorarxine protected C6, SH-SY5Y and HMC3 from oxidative stress and neuroinflammation, and reduced the number of senescent cells. Specifically, mitochondrial dysfunction and cell death induced by hydrogen peroxide and LPS in SH-SY5Y and neuroinflammation in HMC3, could be alleviated by Ellorarxine pretreatment. Cellular senescence induced by hydrogen peroxide in C6, and autophagy disorders induced in SH-SY5Y and C6 could be reversed by Ellorarxine treatment.

4. Materials and Methods

4.1. Reagent and Resources

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
Recombinant Anti-Retinoic Acid Receptor alpha antibody [EPR23871-271] (ab275745)	Abcam	https://www.abcam.com/products/primary-antibodies/retinoic-acid-receptor-alpha-antibody-epr23871-271-ab275745.html
Anti-Retinoic Acid Receptor beta antibody (ab5792)	Abcam	https://www.abcam.com/products/primary-antibodies/retinoic-acid-receptor-beta-antibody-ab5792.html
Anti-Retinoic Acid Receptor gamma antibody (ab97569)	Abcam	https://www.abcam.com/products/primary-antibodies/retinoic-acid-receptor-gamma-antibody-ab97569.html
Anti-Cyp26B1 antibody (ab113236)	Abcam	https://www.abcam.com/products/primary-antibodies/cyp26b1-antibody-ab113236.html
Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) (ab150113)	Abcam	https://www.abcam.com/products/secondary-antibodies/goat-mouse-igg-hl-alexa-fluor-488-ab150113.html
Chemicals, peptides, and recombinant proteins
Phosphate buffered saline (P5368-10pak)	Sigma-Aldrich	https://www.sigmaaldrich.com/GB/en/search/p5368-10pak?focus=products&page=1&perpage=30&sort=relevance&term=p5368-10pak&type=product
Triton X-100
BSA
Tween 20
Thiazolyl Blue Tetrazolium Bromide	Sigma-Aldrich	https://www.sigmaaldrich.com/GB/en/search/m2128?focus=products&page=1&perpage=30&sort=relevance&term=m2128&type=product
H2O2
LPS
Critical commercial assays
CytoTox 96® Non-Radioactive Cytotoxicity Assay	Promega	https://www.promega.co.uk/products/cell-health-assays/cell-viability-and-cytotoxicity-assays/cytotox-96-non_radioactive-cytotoxicity-assay/?catNum=G1780
Human IL-6 ELISA Kit (ab178013)	Abcam	https://www.abcam.com/products/elisa/human-il-6-elisa-kit-ab178013.html
Human TNF alpha ELISA Kit (ab46087)	Abcam	https://www.abcam.com/products/elisa/human-tnf-alpha-elisa-kit-ab46087.html
Senescence Cells Histochemical Staining Kit	Sigma-Aldrich	https://www.sigmaaldrich.com/GB/en/search/cs0030-1kt?focus=products&page=1&perpage=30&sort=relevance&term=cs0030-1kt&type=product
VECTASTAIN® Elite® ABC-HRP Kit (Peroxidase, Universal) (PK-6200)	VECTASTAIN	https://vectorlabs.com/products/vectastain-elite-abc-hrp-kit-universal
ImmPACT® DAB Substrate Kit, Peroxidase (HRP) (SK-4105)	VECTASTAIN	https://vectorlabs.com/products/immpact-dab-hrp-substrate
Experimental models: Cell lines
Rat glioma C6 cells
Human neuroblastoma SH-SY5Y cells
Human microglia clone 3 HMC3 cells
Software and algorithms
ZEN software	Zeiss	https://www.zeiss.com/microscopy/en/products/software/zeiss-zen.html
Prism8	GraphPad	https://www.graphpad.com/
ImageJ	LOCI	https://imagej.net/

4.2. Cell Lines and Culture

C6 (rat glioma), HMC3 (human microglial clone 3), and SH-SY5Y (human neuroblastoma) were obtained from Durham University and cultured in Dulbecco’s modified Eagle’s medium (DMEM, Gibco) supple-mented with 10% fetal bovine serum (FBS, Gibco) and 1% Penicillin Streptomycin Solution (Pen-Strep, Lonza) at 37 °C in a humidified 5% CO2 incubator. The growth medium was changed every 2 days. When the culture reached 80% confluence, trypsin-EDTA was added and incubated for 3-5 min to make adherent cells detached. Triturated cells were seeded 1:2 into 24-well plates or T75 flasks for further growth.

4.3. Cell Differentiation

The cells were differentiated by adding retinoic acid (RA) to Dulbecco’s modified Eagle’s medium (DMEM, Gibco) with 1% Penicillin Streptomycin Solution (Pen-Strep, Lonza) to a final concentration of 10 μM, 24 h after subculturing. Cultures were differentiated for 6 days. The medium was changed every 2 days. After being differentiated, cells were cultured under normal conditions for two days to eliminate the effects of RA. Differentiated cultures were used for all the treatments mentioned hereafter [25].

4.4. Preparation of Ellorarxine

Ellorarxine (1mM in DMSO) was synthesized following Nevrargenic’s patent of DC645. and was stored at -20°C. The drug was prepared to 1μM stock solution using dH2O and was stored at 4°C.

4.5. Pre-Treatments

After trypsinization, cells were plated (40000 cells/mL) in 24-well plate chambers and left to grow for 24 hours at 37°C and 5% CO2 before being treated with 10% DMSO (Sham) or 10nM Ellorarxine for 4 hours before being stressed.

4.6. Methyl Thiazolyl-Diphenyl-Tetrazolium Bromide (MTT) Assay

50 μl of 5mg/ml MTT (M2128, Sigma) was added to each well and left to incubate for 4 hours at 37°C and 5% CO2. Subsequently, the media was removed and 200 μl DMSO was added to each well to dissolve the formazan crystals. Finally, 100 μl from each well was transferred to a 96-well tissue culture plate and the absorbance was measured at 595nm, using a microplate reader.

4.7. Lactate Dehydrogenase (LDH) Release Assay

LDH release was measured using CytoTox 96 kit (ADG1781, Promega). 100 μl of the supernatant was taken out of each well and transferred to a 96-well tissue culture plate. 100 μl of the cytotoxicity detection kit LDH solution was added to each well and incubated for 30 minutes in the dark at room temperature. The reaction was stopped by adding 50 μl of stop solution. Subsequently, the optical density was measured at 490nm. This assay was normalised by freezing the remaining plate and later thawing it, then pipetting the contents of each well into Eppendorf tubes, centrifuging those for 10 minutes for the cells to settle down, and then taking out 100μl of the supernatant from each Eppendorf tube and following the same proce-dure as described above. This gave an indication of total LDH and allowed normalisation.

4.8. Enzyme-Linked Immunosorbent Assay (ELISA)

24 hours after stressing the cells, 100μl of the supernatant was collected from each well and ELISA was car-ried out using the Human IL-6 ELISA kit (ab178013, Abcam) and Human TNF-α ELISA kit (ab46087) accord-ing to the manufacturer’s protocol. The standard curve generated was used to calculate concentrations from the absorbance measurements.

4.9. Senescence-Associated β-Galactosidase (SA-β-Gal) Staining

Cells were plated 8000/mL in 6-well (35mm) chambers onto 15mm×15mm coverslips. 24 hours after stressing the cells, Senescence-Associated β-Galactosidase (SA-β-Gal) Staining was carried out using Se-nescence Cells Histostaining Kit (Sigma-Aldrich, CS0030-1KT) according to the manufacturer’s protocol. Cell nuclei were then stained by DAPI. The stained cells were counted and compared to the total number of cells, evaluated by counting the DAPI-stained nuclei.

4.10. Immunocytochemistry Staining

Cells were plated 8000/mL in 6-well (35mm) chambers onto 15mm×15mm coverslips. 24 hours after stressing the cells, immunocytochemistry staining was carried out using the VECTASTAIN Elite ABC Univer-sal Kit (PK-6200) and ImmPACT DAB Substrate Kit, Peroxidase (SK-4105) according to the manufacturer’s protocol.

4.11. Immunofluorescence Staining

Cells were plated 8000/mL in 6-well (35mm) chambers onto 15mm×15mm coverslips. 24 hours after treatment, the cells were fixed in 4% paraformaldehyde (PFA) for 10 minutes at room temperature. Cells were washed three times 5 min with PBS and then blocked in PBS containing 1% bovine serum albumin, 1% fish skin gelatin and 0.3% Triton X-100 at room temperature for 1 h. Then the cells were incubated with primary antibody for 1 h at room temperature. Primary antibodies were diluted as: RARα (1:100, Abcam, ab275745), RARβ (1:100, Abcam, ab5792), RARγ (1:100, Abcam, ab97569), Cyp26B1 (1:200, Abcam, ab113236). Cells were then washed three times 5 min in PBS and incubated with secondary antibodies (Goat Anti-Mouse IgG H&L Alexa Fluor® 488, 1:1000, Abcam, ab150113) for 1.5 h at room temperature. Cells were then washed three times 5min with PBS, and incubated with DAPI (1μg/mL) for 5 minutes at room temperature to stain the DNA for nuclear localization. Fluorescent images were captured by using a Zeiss fluorescent microscope (Zeiss ApoTome).

4.12. Quantification and Statistical Analysis

The semi-quantitative detection of immunofluorescence images and immunocytochemistry images were applied using ImageJ [31,38].

The data were obtained from at least three independent experiments for each experimental condition. Data are expressed as means ± SD. Two-tailed t-tests were used to analyze differences between two groups. p values <0.05 are considered significant. All these analyses were performed using Graphpad Prism 8. Source data used to plot graphs in each panel of main figures and Supplemental Figures are pro-vided in a Microsoft Excel file as Supplemental Material. Key statistical results for each panel of figures are shown in figure legends.

5. Patents

Whiting A, Valentine R, Chisholm DR, McCaffery P, Greig IR, Khatib T (2019) Synthetic retinoids for use in RAR activation. Patent No. GB1903242.4
