Light and Brain: A Clinical Case Depicting the Effects of Light on Brainwaves and Possible Presence of Plasma-Like Brain Energy.

1. Introduction

Light is the opposite of darkness, and it is meaningful to followers of many religions across the world such as the festival of light (Diwali) for Hindus, the candle festival for Buddhists, and as a symbol of God and the first creation (metaphorical light or Nur in Arabic) for the Abrahamic religions. In the academic arena, light is viewed as an electromagnetic force or energy or waves after the great Scottish mathematical physicist James Clerk Maxwell proved for the first time in history the unification of electric (with field) and magnetic (with vortex) force. Scientists view electromagnetic light with its highest speed at approximately 300 000 km/sec as fundamental to our health and life [1,2,3,4,5]. Our most important source of natural light is the sun. The sunlight or white light is in fact composed of visible and invisible light frequency spectrum. The visible light (can be processed by our visual system) has wavelengths from about 380 nanometers (violet) to about 780 nanometers (near infrared). In term of frequency, this corresponds to a band in the vicinity of 400 (near infrared) to 790 (violet) terahertz. This visible band has seven main spectral colors: red, orange, yellow, green, cyan, blue, and violet. With reference to the brain, light can only pass through the eyes to enter the brain. Layers of scalp, cranial bone and meninges form a protective barrier from light. Therefore, one may view the brain as lying inside a black box and behaving as a black body (Figure 1). In sum, it seems like the healthy brain should not be exposed directly to external light. Herein we present some interesting brainwave findings during awake cranial surgery when the brain was shone directly with various wavelengths of light. Our findings may provide strong evidence to further study the details of using light as mode of therapy for neurological disorders in human.

2. Case report: findings during awake brain surgery on marked and rapid brainwave changes when the brain was directly exposed to different wavelengths of light

A 32-year-old man was diagnosed with right insular glioma and underwent awake brain surgery. During surgery, the neurosurgeon used an 8x4 electrocorticographic (ECoG) grid electrode which was laid directly onto the ipsilateral frontal lobe to detect early seizure brainwaves and to assess the state of consciousness of the patient. Surgery was initially started at the right temporal lobe with removal of the tumor until the right hippocampus was exposed (Figure 2). No fluorescent agents were used for the surgery.

At one point during the surgery, the neurosurgeon stopped the tumour debulking and changed the Zeiss OPMI Pentero microscope lighting from switching off the light (the whole operative room was also in darkness with obvious parameters readings only noted on anesthetic machines) to switching on the white (xenon at 30% intensity), blue (at 400 nm wavelength), and finally the near infrared laser light (at 780 nm wavelength for autofocus). The final part consisted of superimposing the laser red light hitting the exposed hippocampus with the background of blue light. The purposes were to assess any peculiar features of tumor area when viewed under these different lights and to note any peculiar features of brainwaves when the brain was shone with these lights. Each phase lasted for a few minutes and was marked on the ECoG screen machine (Figures 3, 4A,A1). These were done in a successive manner without brain or grid disturbance. The brainwave morphological features under these four brain conditions were depicted in Figure 4B–E.

In referring to Figure 4B–E, one should notice the presence of gross morphological differences in terms of brainwave log-power when the brain gets exposed to different lights (pay particular attention to the y-axis power lines of 0.01-red line; 1-black-dashed line and 100-black line uV²/Hz when comparing them). Firstly, the brainwave log-power had different morphology under presence of light as compared to in the darkness or in a black box (B versus C) (note: the brain in a cranium is an analogy to the brain in a black box). Secondly, the brainwave log-power morphology for the brain when directly exposed to blue light (400 nm wavelength) (D) and near infrared light (780 nm wavelength i.e. blue superimposed with laser near infrared light) (E) were different when compared to when it was in a black box (B). Finally, brainwaves of the brain which were exposed to blue light had a contradictory feature when compared to near infrared light exposure (D versus E). The brainwave log-power shifted to lower log-power when exposed to blue light (with its mean power around 1 uV/Hz or a black-dashed line). On the other hand, the brainwave log-power shifted towards higher log-power when the brain was exposed to near infrared light (with its mean log-power lies in between 1 and 100 uV/Hz or in between a black-dashed line and a black line). These differences were obviously noted when compared them to the off-light brainwave log-power-morphology (D and E versus B).

Further detailed analyses were made for the obtained brainwaves. The frequency graph analysis is represented in Figure 5A with brainwave frequency (x-axis) versus brainwave power in uV²/Hz. The 11 to 13 electrodes were analyzed for a frequency spectrum when different lights were shone directly to the exposed brain (Figure 5B–E). As noted in morphological analysis, the brainwave frequency spectrum for the light-exposed brain is also different from an inside black box brain (off the light) (C versus B). There were more alpha (green) and beta (blue) waves present when the brain was exposed to light as compared to off the light. An increment in alpha and beta waves were not only present when the brain was directly exposed to xenon-white light, but also to blue and near infrared lights (D and E versus B). Interestingly, theta (yellow) brainwaves were noted to be markedly reduced when the brain was exposed to any light and delta (red) brainwaves were either reduced (C) or increased (D and E) when exposed to light. In other words, brain which was exposed to either blue or near infrared light tends to have more delta, alpha and beta waves. Another interesting difference between blue and near infrared light direct exposure onto the brain was the emergence of gamma waves when near infrared light was shone to the brain (specifically to the hippocampus) as shown in Figure 6.

3. Discussion

The brain is seen as being protected from the light. The scalp, skull and meningeal layers form barriers for the sun or artificial light from shining on or entering the brain. Therefore, the brain is seen as a black body inside the cranium. The only way for light to enter the brain is through the two eyes. Light that enters the eyes will then be processed further at various anatomical levels: optic nerves, chiasm, tracts, radiations, primary visual area Brodmann 17, secondary visual areas Brodmann 18 and 19, and to other association areas of the brain. Another way light can significantly enter the cranium is when the neurosurgeon performs a craniotomy or decompressive craniectomy (DC or removal of large area of cranial bone) for severely injured brain to relieve raised intracranial pressure. Despite the potential benefit of DC, data from studies demonstrated high incidences of neuropsychological impairments in the long-term follow-up of these DC patients [6,7]. The explanations given for these impairments are reduction in cerebral perfusion, alteration in cerebrospinal fluid (CSF) dynamics and atmospheric-gravity force pressing the microgravity-brain environment [8,9]. Another possible reason is that light could penetrate the scalp relatively easier in DC patients. Exposure to bright sun or artificial light is known to trigger migraine headaches as reported in literature [10,11]. On another note, direct light exposure to the brain has also been reported as having beneficial effects. A study done by Naeser et al. (2014) showed significant improvements in cognitive performances in patients with mild head injury [12]. Lately a significant amount of review articles on photobiomodulation (PBM) have similarly pointed out the benefits on neurodegenerative animal models and cellular studies. The hypothetical mechanisms of PBM offered in their articles are related to the extra synthesis of ATP by mitochondria, diffusion of nitric oxide promoting vasodilation, increase in regional cerebral blood flow in cortical areas, increase in antioxidants, augmentation of brain glymphatic drainage system, and decrease in inflammation [13,14,15,16]. With these notes, our clinical findings, which showed significant alteration in brainwave power and frequency when the brain was exposed directly to various lights concur with the aforementioned positive and negative effects of light onto the brain. The right dose of light intensity (luminosity or fluence), type of light, duration, approach or method for light delivery, and area of the brain receiving the light are some possible factors that determine the effectiveness and complication of the therapy. Since there are no concrete explanations that can be offered to explain the mechanisms of action for PBM, in this article we would like to discuss this in accordance with the physics perspective on possible underlying mechanisms for the ‘fast changes’ in brainwaves when four consecutive light conditions were made during awake brain surgery.

Physics perspective on direct light energy onto the brain

From our earlier discussion, a significant amount of light energy enters the brain via only the eyes. The black box analogy of the cranium disfavors the brain from receiving a significant amount of light. Attenuation of light energy occurs when it passes through layers of the cranium. Therefore, the light resistance property of the cranium may offer a protective mechanism in ensuring optimal brain function. Light is a type of electromagnetic energy that can generate heat energy and exists in duality, it can either be regarded as photons (particles of light) or waves [17]. Certainly, heat generation in the brain is related to its metabolism and information processing [18], and with additional exposure to extra cranial heat energy (light), brain temperature can be altered. Hence, intricate brain temperature regulation is seen as vital for processing information. Temperature regulation of the brain is a dynamic process and thought to follow the thermodynamics principles of energy conservation and flow of energy. Energy conservation is in fact the first law of thermodynamics, which states that energy cannot be created or destroyed, it can only change forms or be transferred from one object to another (quantity of energy). Important to note here that, none of the energy transferring processes are efficient, instead, in each process some of the transferred energy turns into heat. Inside the cranium, heat energy or temperature could possibly be regulated by heat conduction (via blood flow and CSF), convection (via air sinuses and CSF), evaporation (CSF and air sinuses), and radiation (cranial black box). Pertaining to flow of energy or the second law of thermodynamics (quality or directionality of energy) which states that the entropy of any system always increases. Entropy is defined as a measure of thermal energy per unit temperature that is unavailable for doing useful work or entropy is a measurement of disorder or energy spread. Low entropy system has a concentrated energy state, whilst high entropy system has spread-out energy state. It seems fitting with research findings that the deep brain nuclei and brainstem have warmer temperatures than the cortices [19,20,21]. It tells us directionality or gradient of energy flow from low entropy area such as the brainstem (concentrated energy) to high entropy area such as the cortex (spread-out energy). In summary, our arguments which cover two salient points: the cranium as a black box which avoids direct light exposure, and brain thermal homeostasis with thermodynamics principles that regulates brain temperature intricately makes physics as an aspect to consider deeply when discussing brain functions.

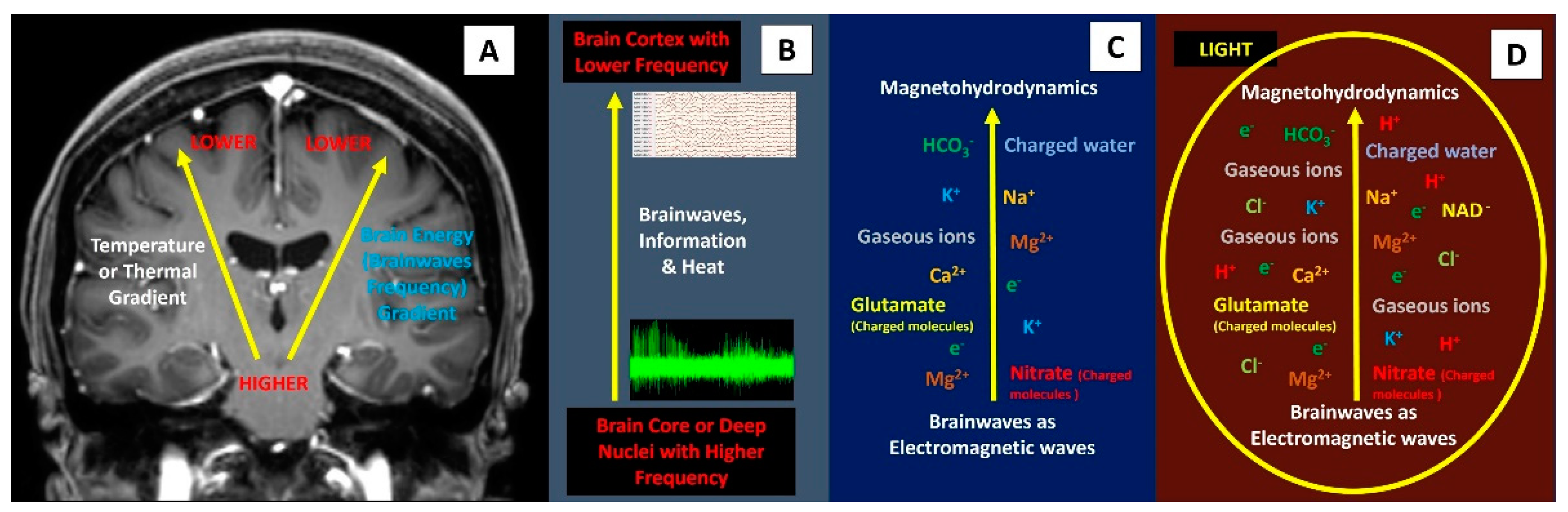

Pertaining to ‘rapid brainwave changes’ when different light was shone onto the brain, the physics perspective on this matter is likely related to production of brain plasma. The term ‘plasma’ was first proposed by the American Nobel laureate chemist and physicist Irving Langmuir, who viewed it as similar to blood plasma. Here, ‘plasma’ refers to the electrified fluid that carries electrons and charged ions (compared to how blood plasma carries the corpuscles or cells). In physics, plasma by definition must contain assembly of mobile charge carriers of a sufficient density. If the charged density is not sufficiently high, their interaction with the electromagnetic field becomes important and the charged component can also be considered as plasma [22]. In principle, plasma is commonly divided into ultra-hot (a thermonuclear reaction plasma such as in the sun), hot or thermal plasma, cold plasma (non-thermal or non-equilibrium plasma which can be generated at room temperature), and ultra-cold plasma. The term for hot or cold plasma is sometimes referred to as being hot if it is nearly fully ionized or cold if only a small fraction of it is ionized. In this context, presence of light inside the cranial black box may have produced or enhanced brain plasma energy which caused fast alteration in brainwaves. To comprehend this notion, let us have a look at the brain extracellular compartment (ECC). As we are aware, the brain interstitial or ECC does have charged ions (such as Na⁺, Cl^-, H⁺, Ca²⁺, K⁺, Mg²⁺), charged molecules or polyatomic ions (HCO₃^-, hyaluronic acid, NAD⁺, acetate, nitrate, nitrite, sulfate, phosphate, aspartate, glutamate, lysine, arginine, etc.), polar solvents (charged water), gaseous ions (abundant presence of CO₂ is easily converted to gaseous ions when electricity or electron movement is applied to them), and electrons (electricity)[23,24,25,26,27]. The interaction of this brain plasma soup with brainwaves (electricity or electron or electromagnetic force) and charged water may result in the formation of magnetohydrodynamics (MHD) or magnetofluid (superfluid) [28,29]. In short, in a slice of alive brain tissue with thousands of neurons, glial cells and interstitial spaces with charged plasma soup, a possible presence of large amount of toroidal electromagnetic waves and poloidal plasma waves may form a more diffuse and widespread rapid energy flow (MHD and perpendicular magnetoacoustics waves) from core to periphery of the brain (Figure 7). Therefore, a first reason to support this perspective (brain also has plasma energy) is a black box feature of the cranium which blocks the light from reaching directly onto the brain and produces additional plasma energy. This idea is further supported by a recent study done by Maccaferri et al. which demonstrated nanoplasmons formation when the light interacts with electrons (electricity) [30]. Our second reason is related to the presence of cortical surface electrons. In 2017, Kiyotaka et al. did a 7-Tesla MRI study of brain cortical surfaces. The unexpected finding was an electron rich layer at glia limitans externa adjacent to CSF cortical cisternal space. Their explanation for the presence of surface electrons adjacent to CSF space was that astrocytes endfeet containing abundant aquaporin-4 (AQP-4) induces glia limitans externa polarization and hence electrons [31]. According to our physics perspective, an interaction between poloidal plasma waves at the cortical surface with water (CSF) may also form abundant electrons as confirmed by physics experiment of which electrons were formed when the plasma interacts with water [28]. Besides, some recent experiments have also shown possible presence of plasma-like energy inside the brain which supports our brain plasma hypothesis and provides explanation for the rapid changes in brainwaves when the light was shone directly to the brain. In 2022, Yidi Zhang et al. have noted two types of wave in the brain, front waves of chemical reactions and travelling waves of neural activity [32]. In 2009 and 2021, Andersen et al. and Drukarch et al. have highlighted the thermodynamics concept for action potential propagation [33,34]. Finally, could the rapid changes in brainwaves when light shone onto the brain be due to the fundamental brain itself? Indeed, the anatomical brain can also be viewed as waves of energy (i.e. duality of a particle: either particle or waves) as highlighted by us on a new perspective to comprehend brain function of which viewing the anatomical brain as package of energy or Quantum brain, rather than particles or an anatomical object (Newtonian brain) [35,36,37].

Photobiomodulation (PBM) and medical application

With our intraoperative findings on the human brain and other clinical-nonclinical findings which showed positive light effect on neurological diseases, further research in this field is highly recommended. It can be a breakthrough in clinical neurosciences whereby light could play a role in the treatment of various neurological diseases. Matters that need to be considered with regards to PBM therapy are the following: 1) area of the brain receiving light therapy – focus onto deep nucleus/small areas or more diffuse onto a large area of the brain such as the prefrontal or orbitofrontal lobe; 2) type of light and its wavelength - such as visible light, ultraviolet light, or infrared light. Concerning infrared light, it was used in depression and was shown to have a promising effect [38]. This clinical finding concurs with our finding in which near infrared light does have higher energy power and gamma waves than others. Thus, (near) infrared light might possibly be used in therapy for depression, blue light for psychosis, and a combination of blue (intensive care stage where electrical seizures may still be present) and infrared (later, in the ward stage when brain energy is low) light for severely head injured patient; 3) light source – coherent or non-coherent light; 4) approaches for light delivery – transcranial, direct onto the brain, or intranasal; 5) fluence or energy density which is calculated by multiplying irradiance (W/cm²) by time (sec), which is defined as the amount of energy per unit of area (J/cm²). Transcranial PBM studies in human have fluences ranging from 10-30 J/cm² [13,39]; 6) operation mode – continuous wave (CW) or pulsed wave (PW) mode. PW mode has demonstrated significant benefits and better biostimulatory effects than the CW mode [40]; finally; 7) treatment duration and repetition.

4. Conclusions

Light has limited access to the brain. Eyes are the only pathway for extracranial light to enter the brain and thus the intracranial space is regarded as a black box. Therefore, the brain is prevented from receiving the light directly and can be regarded as a black body which is in thermodynamic equilibrium with its environment. Nonetheless, based on our and other scientific findings, shining direct light onto the brain may form a definitive therapy for some neurological and neuropsychiatric disorders in view of its capability to alter brainwaves.
