Enhancing Sustainability through Ecosystem Services Evaluation A Case Study of the Mulberry-Dyke and Fish-Pond System in Digang Village

Altmetrics

Downloads

85

Views

27

Comments

0

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

05 January 2024

Posted:

08 January 2024

You are already at the latest version

Alerts
Abstract
This research centers on the Mulberry-Dyke and Fish-Pond System in Digang Village, Huzhou, exem-plifying the traditional cyclic agricultural models of China. The study's objective is to evaluate its integral value concerning agricultural production, ecological environment, and heritage conservation. Employing the Analytical Hierarchy Process (AHP) and Fuzzy Comprehensive Evaluation (FCE) methodologies, we developed a comprehensive evaluation framework comprising 8 dimensions and 29 factors, aimed at assessing the provisioning, regulating, and cultural services of this ecosystem. The findings indicate a robust performance of the ecosystem services in Digang Village's Mulberry-Dyke and Fish-Pond System, with cultural services significantly standing out. In contrast, the regulating services appeared relatively weaker, pinpointing shortcomings in mulberry land management, while the provisioning services demonstrated substantial strength. These insights are pivotal for comprehending the system's ecosystem service values, highlighting areas for managerial improvements, and guiding future assessment and management strategies. This study contributes theoretical insights and empirical experiences for future evaluations of the Mulberry-Dyke and Fish-Pond System's ecosystem services.
Keywords:
Subject: Environmental and Earth Sciences  -   Sustainable Science and Technology

1. Introduction

The Mulberry-Dyke and Fish-Pond System represents a distinctive agroecosystem in China, renowned globally for its pond mud fertilizing mulberry, mulberry leaves nurturing silkworms, silkworm sand feeding fish, and fish manure fertilizing mud—the essence of a highly productive agricultural model [1]. In the face of technological progress, contemporary agricultural practices are increasingly dominated by mechanization and facility implementation [2,3]. This shift has resulted in enhanced agricultural efficiency and expanded operations, making significant contributions to global food production and supply chain development [4]. However, the modern agricultural model, prioritizing economic efficiency, often comes at the cost of substantial energy and resource consumption, posing potential threats to the ecological balance [5,6]. In contrast, traditional circular agriculture not only prioritizes economic gains but also considers ecological preservation and local cultural heritage [7]. The sustainability and ecological principles inherent in this traditional model offer valuable insights for steering the modern agricultural model toward sustainable development.
Ecosystem Services (ES) refer to the advantages that humans obtain from ecosystems, ultimately striving for sustainable human well-being [8,9]. As outlined by the United Nations Millennium Ecosystem Assessment (MA), these services are classified into Provisioning Ecosystem Services (PES), Regulating Ecosystem Services (RES), Cultural Services (CES), and Supporting Ecosystem Services (SES) [10]. The Mulberry-Dyke and Fish-Pond System, as a representative of Chinese agricultural culture, holds significant value across diverse domains, including agricultural production, ecological environment, and cultural heritage preservation. Evaluating the ecosystem services of Mulberry-Dyke and Fish-Pond System provides insights into their comprehensive benefits, encompassing food production, ecosystem regulation, and cultural heritage contributions. This assessment aids management and decision-makers in formulating more scientific and rational agricultural strategies, fostering economically, socially, and environmentally sustainable agricultural development.
Currently, methods for assessing ecosystem services are broadly categorized into two types: valuation-based and material-based assessments [11,12,13]. Valuation-based assessments primarily focus on providing decision-makers with management strategies and grounds for evaluating market values of services, whereas material-based assessments concentrate on investigating the mechanisms behind the formation of ecosystem services. In existing research on the ecosystem services of the Mulberry-Dyke and Fish-Pond System, scholars have employed these two assessment methods. For instance, using the contingent valuation method, a study assessed the value of nine ecosystem services of the Mulberry-Dyke and Fish-Pond System, revealing that its overall service value exceeds that of separate mulberry gardens and fish ponds combined [14]. Additionally, the emergy (embodied energy) method was used to compare different agricultural ecological engineering models of the system [15], production models from various periods [16], and the differences between the dyke-pond system and traditional agriculture [17], thus evaluating the sustainability of the Mulberry-Dyke and Fish-Pond System model. However, these studies have not comprehensively assessed the overall benefits of the system in terms of production, ecology, and culture, necessitating further in-depth research to fully reveal its performance in these areas.
With the aim of addressing the inadequacies in Mulberry-Dyke and Fish-Pond System ecosystem service evaluation methods and indices, this study focused on Digang Village, situated in the core protection area of Mulberry-Dyke and Fish-Pond System in Huzhou. The study established an ecosystem service evaluation system for Mulberry-Dyke and Fish-Pond System based on the PES, RES, and CES categories according to the MA classification of ES. Employing the Analytical Hierarchy Process (AHP) and Fuzzy Comprehensive Evaluation (FCE) methodologies, the study tackled the fuzzy and uncertain aspects in the evaluation process. This comprehensive approach was employed to assess the ecosystem services of Mulberry-Dyke and Fish-Pond System in Digang Village, enabling a judgment on these services. The primary objectives include providing managers with effective strategies, evaluating the ecosystem services of mulberry ponds in the village, and contributing to the existing research on Mulberry-Dyke and Fish-Pond System ecosystem services through assessment.

2. Materials and Methods

2.1. Study Area

The Mulberry-Dyke and Fish-Pond System in Huzhou, Zhejiang Province (37°12′18″N and 120°17′40″E) is situated in the plains on the southern shore of Lake Taihu, characterized by a subtropical climate with an average annual temperature ranging from 17.8°C to 18.2°C and an annual precipitation of 1,348-1,723 mm. Designated as a Globally Important Agricultural Heritage Systems (GIAHS) in 2017. Digang Village, located within Nanxun District of Huzhou, is an important monitoring site for the Mulberry-Dyke and Fish-Pond System, with a total area of about 643 hm², consisting of arable land, garden land, forest land, grassland waters and water facilities land, construction land and other land, of which the area of the Mulberry-Dyke and Fish-Pond System is about 220 hm², and the main agricultural activities in the village are freshwater fish farming and mulberry silkworm cultivation. The most important agricultural species in the system include 2 types of silkworms, 4 types of mulberry trees, 7 types of fish species, and 3 types of fruits and vegetables, with a household population of about 1,141, of which the number of farmers providing heritage tourism services is about 280, and a per capita income of 6,500 yuan for farmers operating agro-cultural heritage. The village has a core conservation area for mulberry-based fish ponds, which covers an area of about 66 hm², of which the mulberry orchards cover an area of about 23-25 hm² and the fish ponds cover an area of about 33-35 hm². The study is based on the village of Dikgang and the core conservation area within the village within this scope.

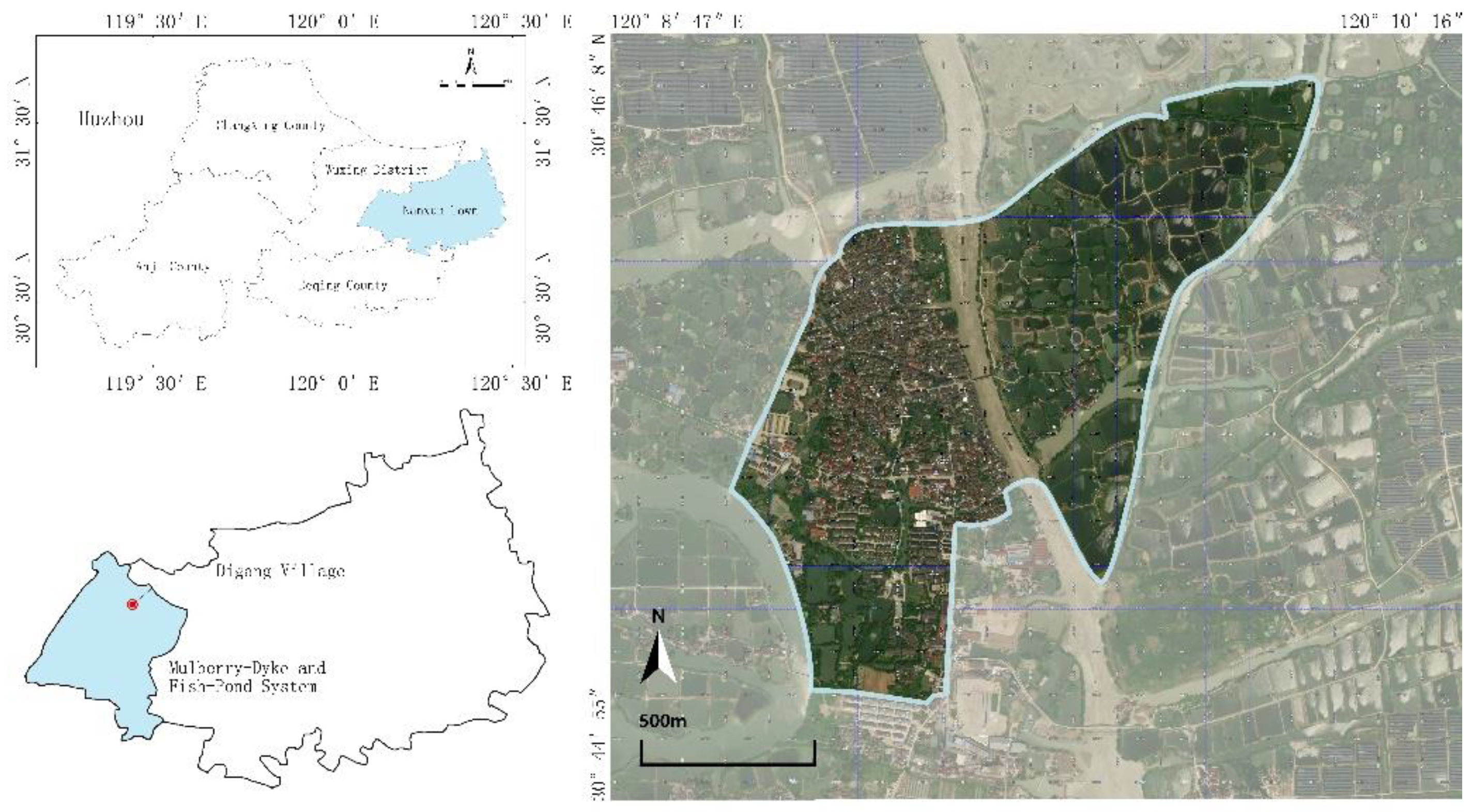

Figure 1. Location of the core conservation area of Mulberry-Dyke and Fish-Pond System in Digang Village, Huzhou, China.
Figure 1. Location of the core conservation area of Mulberry-Dyke and Fish-Pond System in Digang Village, Huzhou, China.
Preprints 95583 g001

2.2. Methodology and Data

2.2.1. Modeling the Valuation of ES

A scientific evaluation index system serves as the prerequisite and foundation for the effective evaluation of ecosystem services in Mulberry-Dyke and Fish-Pond System [18]. In the classification of ES by the MA [10], Provisioning Ecosystem Services (PES) encompass services produced or provided by ecosystems, such as food, fiber, genetic resources, etc. RES are benefits derived from the regulating function of ecosystem processes, including the regulation of atmospheric quality, climate, and the environment, etc. CES refer to non-material benefits obtained from ecosystems. Additionally, supporting services represent a function of ecosystems necessary for the provision of other services. In the context of Mulberry-Dyke and Fish-Pond System, PES, RES, and CES were specifically selected to construct a comprehensive ecosystem service evaluation system.
Building upon existing literature [19,20,21,22,23,24,25], results of discussions with 4 experts in ecology, and an assessment of the operational status of Mulberry-Dyke and Fish-Pond System, the evaluation index system was designed. Given the significance of mulberry harvesting and fish farming densities in these fishponds [26,27,28], the production of mulberries and fish was chosen to characterize the PES. Differences in temperature and humidity between Mulberry-Dyke and Fish-Pond System and downtown Huzhou City, as well as the air quality index of Mulberry-Dyke and Fish-Pond System, were used to characterize the climate regulation value of the RES, and its basal environmental regulation capacity was flanked by the pesticide and fertilizer use in Mulberry-Dyke and Fish-Pond System, thus characterizing the basal environmental regulation value of the RES [29,30,31,32]. CES were characterized with four aspects: aesthetics, education, leisure and entertainment, and cultural heritage [33,34]. The finalized evaluation index system comprises one objective, three guidelines, 8 indicators, and 29 factors. The specific framework of the index system is detailed in Table 1 below.

2.2.2. AHP-FCE Based Ecosystem Service Evaluation model For Mulberry-Dyke and Fish-Pond System

The evaluation model consists of two main parts. First, the Analytical Hierarchy Process (AHP) method is employed to establish the weights for the indicators within the ecosystem service evaluation system for Mulberry-Dyke and Fish-Pond System. Then, the multilevel Fuzzy Comprehensive Evaluation (FCE) method is applied to conduct a comprehensive assessment of the ecosystem services of Mulberry-Dyke and Fish-Pond System. The integrated AHP-FCE evaluation model is outlined as follows:
The evaluation model is divided into 2 parts, firstly, the AHP method is used to determine the weights of the indicators of the ecosystem service evaluation system of Mulberry-Dyke and Fish-Pond System, based on which the multilevel FCE method is used for the comprehensive evaluation of the ecosystem services of Mulberry-Dyke and Fish-Pond System. The evaluation model integrated AHP-FCE method is as follows:
(1) Establishment of evaluation factor domain and evaluation criteria
Establishment of the evaluation factor domain V for ecosystem services in Mulberry-Dyke and Fish-Pond Systems, divided into 5 Levels.
Table 2. The evaluation criteria for the Mulberry-Dyke and Fish-Pond System ecosystem services.
Table 2. The evaluation criteria for the Mulberry-Dyke and Fish-Pond System ecosystem services.
Level Score range Definition
4~5 High ecosystem services
3~4 Relatively high ecosystem services
2~3 General ecosystem services
1~2 Relatively low ecosystem services
0~1 Low ecosystem services
Table 3. Quantitative Factor Assessment Criteria.
Table 3. Quantitative Factor Assessment Criteria.
Criterion Layer Index Layer Factor Layer Level
5 4 3 2 1
B1
Provisioning ecosystem services
C1
Mulberry land production value
D1(t / hm²)
Mulberry leaf production
≥75.00 52.50~75.00 45.00~52.50 37.50~45.00 ≤37.50
D2(t / hm²)
Mulberry fruit production
≥75.00 60.00~75.00 42.00~60.00 36.00~42.00 ≤36.00
C2
Fishpond production value
D3(t / hm²)
Conventional fish farming production
≥90.00 67.50~90.00 45.00~67.50 22.50~45.00 ≤22.50
D4(t / hm²)
Ecological fish farming production
≥45.00 33.80~45.00 22.50~33.80 11.3~22.50 ≤11.30
B2
Regulating ecosystem services
C3
Basal environment regulation value
D5(kg/hm²)
Fertilizer application intensity
<200.00 200.00~250.00 250.00~350.00 350.00~450.00 >450.00
D6(kg/hm²)
Pesticide application intensity
<2.50 2.50~3.00 3.00~4.00 4.00~4.50 >4.50
C4
Climate regulation value
D7 (%)
Relative humidity adjustment range
>4.00 3.00~4.00 2.00~3.00 1.00~2.00 <1.00
D8 (℃)
Average temperature regulation
>4.00 3.00~4.00 2.00~3.00 1.00~2.00 <1.00
D9
Air quality index
<50.00 50.00~100.00 100.00~150.00 150.00~200.00 >200.00
Based on the aforementioned evaluation factor domain V, in conjunction with relevant criteria and references [35,36,37,38], the quantitative factor evaluation standards were established. The data related to mulberry leaf production (D1), mulberry fruit production (D2), Conventional fish farming production (D3), ecological fish production (D4), as well as fertilizer and pesticide usage, were sourced from the Huzhou agricultural science and technology development center academician and expert workstation specializing in Mulberry-Dyke and Fish-Pond System. Additionally, the air quality index (D9) was determined based on China's "Ambient air quality standards" GB3095-2012.
Qualitative data is characterized by five levels of satisfaction (very familiar, quite familiar, moderately familiar, slightly familiar, unfamiliar) to represent the membership degree of evaluation indicators to the evaluation factor domain V.
Table 4. Qualitative Factor Definitions.
Table 4. Qualitative Factor Definitions.
Criterion Layer Index Layer Factor Layer Definition
B3
Culture ecosystem services
C5
Aesthetics value
D10 Plant landscape richness Hierarchical sense of trees, shrubs, and ground cover vegetation; diversity of species.
D11 Seasonal changes in the landscape Seasonal changes in trees, shrubs, and ground cover vegetation, including both woody and herbaceous plants.
D12 Overall harmony The overall sense of harmony within the village, formed by the cultural landscapes, streets, alleys, architecture, and vegetation within the village.
D13 Water clarity The condition of water bodies in the environment.
D14 Leveling and hardening of road surface Whether the road conditions are in accordance with the environment, including within the village and inside the Mulberry-Dyke and Fish-Pond System, with visual comfort as the criterion.
C6
Education value
D15 Fish and mulberry culture education The educational significance or value brought by fish-mulberry culture and the research-oriented activities centered around it.
D16 Humanistic tradition The existing stories of prominent individuals, their spirit, and character within the village that possess propagational and educational significance.
D17 Cultural propaganda and exhibition The educational significance or value brought by the promotion and display of folk culture.
D18 Religious culture propaganda The spiritual connotations brought by the religious culture atmosphere, as well as the level of understanding and acceptance of it.
C7
Leisure and entertainment value
D19 Location conditions The accessibility of the village's geographical location, transportation convenience, and natural environment.
D20 Sanitary conditions Environmental hygiene conditions.
D21 Tourism infrastructure Basic infrastructure including toilets, signage, parking spaces, medical service facilities, etc.
D22 Agricultural Diversity Experience Diverse experiences provided by agricultural products such as freshwater fish, mulberry leaf tea, fruits, rice, sesame oil, etc., based on the raw materials produced in Digang Village, which are either processed or directly sold.
D23 Experience the diversity of tourism products Satisfy diversified tourism needs by visiting Digang Village.
D24 Visual and psychological perception Experiences of visual and psychological sensations brought about by exploring Digang Village.
C8
Cultural heritage value
D25 Village architectural style Whether the architectural style within the village conforms to the characteristics of the Jiangnan water town and rural farming.
D26 Village Traditional customs Whether traditional folk customs within the village are fully preserved, whether the atmosphere of folk customs is good, and whether they have distinctive features.
D27 Ancient bridges and other historical and cultural features The distinctiveness of cultural landscapes such as ancient bridges, celebrity memorial halls, and the scenic beauty of Nantiao.
D28 Food culture characteristics The distinctiveness of Di Gang cuisine, exemplified by the Chen family's dishes and local snacks.
D29 Fish and mulberry culture characteristics The distinctive features of the fish-mulberry culture.
(2) Determination of weight values
Applying the AHP method to determine the weights of each index. Comparisons are made pairwise among indicators at the same level to construct a judgment matrix. The normalization of weight values and weight vectors is then accomplished through relevant calculation formulas. The weight vector set is obtained through the verification steps [39,40].
(3) Constructing the affiliation matrix
Determine the membership degree of the evaluated object to the evaluation factor domain and obtain the fuzzy relationship matrix. In this study, the membership degree of quantitative data to the evaluation factor domain was determined through a trapezoidal function, and the membership degree of qualitative data to the evaluation factor domain was obtained through statistical analysis [41].
(4) Obtaining a composite score for the overall goal
Building on the aforementioned analysis, the overall goal composite score (F) was calculated using the weighted average method, expressed as F = W·R.
Where W represents the weight vector set, and R represents the membership matrix.

2.2.3. Data

Table 5. Quantitative Data Acquisition.
Table 5. Quantitative Data Acquisition.
Name Unit Data Data sources
Mulberry land production t/hm² 75.00 Huzhou Agricultural Science and Technology Development Center Academician and Expert Workstation
Mulberry fruit production t/hm² 75.00
Conventional fish farming production t/hm² 90.00
Ecological fish farming production t/hm² 45.00
Fertilizer consumption t 4.00
Pesticide consumption CNY 34500.00
Change in relative humidity (July-September 2022) % -1.42 Internal level meteorological information of Huzhou Municipal Meteorological Bureau
Change in average temperature (July-September 2022) -0.42
AQI / 64.90 http://www.weather.com.cn/
Data related to Mulberry-Dyke and Fish-Pond System in 2022 were collected through various methods, including interviews, questionnaires, field trips, and applications. The quantitative indicators were primarily sourced from the Huzhou agricultural science and technology development center academician and expert workstation. This data encompassed mulberry and fish production, as well as the quantities of fertilizers and pesticides used. Air quality index data were obtained from the weather network (http://www.weather.com.cn/). Qualitative indicators were gathered through a one-to-one questionnaire survey conducted with tourists and villagers engaged in activities at Digang Village Mulberry-Dyke and Fish-Pond System. A total of 109 questionnaires were initially collected, with 100 valid questionnaires selected after screening to exclude those completed in less than 2 minutes.

3. Results

3.1. AHP Weight for Each Indicator

Five experts and scholars specializing in ecosystem services research and planning and design of Digang Village were invited to provide judgments and weights. All tables passed the consistency test (see Appendix A), and the results are presented in Table 6.
At the guideline level (Table 6), it is evident that CES (B3) play a crucial role in influencing the overall ecosystem services of Mulberry-Dyke and Fish-Pond System, commanding a weight share of 0.51. Within CES (B3), the value of aesthetics, education, leisure and entertainment, and cultural heritage across four aspects contributes to this weight. Notably, the value of cultural heritage (C8) emerges as a significant influencing factor for CES (B3).
In the index layer (Table 6), the cultural heritage value (C8) holds the highest weight at 0.17, underscoring its significance as the primary manifestation of the ecosystem services of Mulberry-Dyke and Fish-Pond System. Notably, cultural heritage value (C8) is most profoundly influenced by factors such as food culture characteristics (D28) and fish and mulberry cultural characteristics (D29). Following closely, the fishpond production value (C1) is of considerable importance, with a weight share of 0.17. Its significance is primarily influenced by Ecological fish farming production (D4). Additionally, climate regulation value (C4), leisure and entertainment value (C7), and educational value (C6) exhibit comparable importance, with weight shares of 0.15, 0.13, and 0.12, respectively. Conversely, the remaining indicators—basal environmental regulation value (C3), mulberry land production value (C1), and aesthetic value (C5)—have weight shares of less than 0.0900. This suggests that the value contributed by the ecosystem services of Mulberry-Dyke and Fish-Pond System predominantly revolves around five aspects: cultural heritage, fishpond production, climate regulation, leisure and entertainment, and education. These indicators exert the most significant influence on the ecosystem services of Mulberry-Dyke and Fish-Pond System, warranting particular attention.
In the factor layer (Table 6), 8 indicators—Ecological fish farming production (D4), air quality index (D9), mulberry fruit production (D2), fish and mulberry culture education (D15), food culture characteristics (D28), Conventional fish farming production (D3), fish and mulberry culture characteristics (D29), and fertilizer application intensity (D5)—collectively account for a weight share of 0.51. Among these, Ecological fish farming production (D4) carries the highest weight at 0.1155, underscoring its paramount importance. This implies that these eight indicators are pivotal factors influencing the evaluation, and the ecosystem services of Mulberry-Dyke and Fish-Pond System emphasize production capacity and content related to fish and mulberry culture.

3.2. Fuzzy Comprehensive Evaluation and Results

Refer to Appendix B for the calculation process. According to the principle of the maximum affiliation function of the FCE method, the affiliation degrees of ecosystem services of Mulberry-Dyke and Fish-Pond System are as follows: high level: 0.44, relatively high level: 0.32, general level: 0.10, relatively low level: 0.03, and low level: 0.11. The weighted average result is calculated as [0.44, 0.32, 0.10, 0.03, 0.11] × [5, 4, 3, 2, 1] = 3.97, indicating that the ecosystem services of Mulberry-Dyke and Fish-Pond System belong to the relatively high level. Multiply the membership degrees of each criterion, index, and factor by the normalized weights of each layer, as shown in Figure 2.
The evaluation results of the indicators at the normative level are presented in Figure 2a. Both PES (B1) and CES (B3) exhibit high performance, predominantly at the high and relatively high levels. In contrast, RES (B2) demonstrate a comparatively lower performance, mainly at the relatively low and low levels.

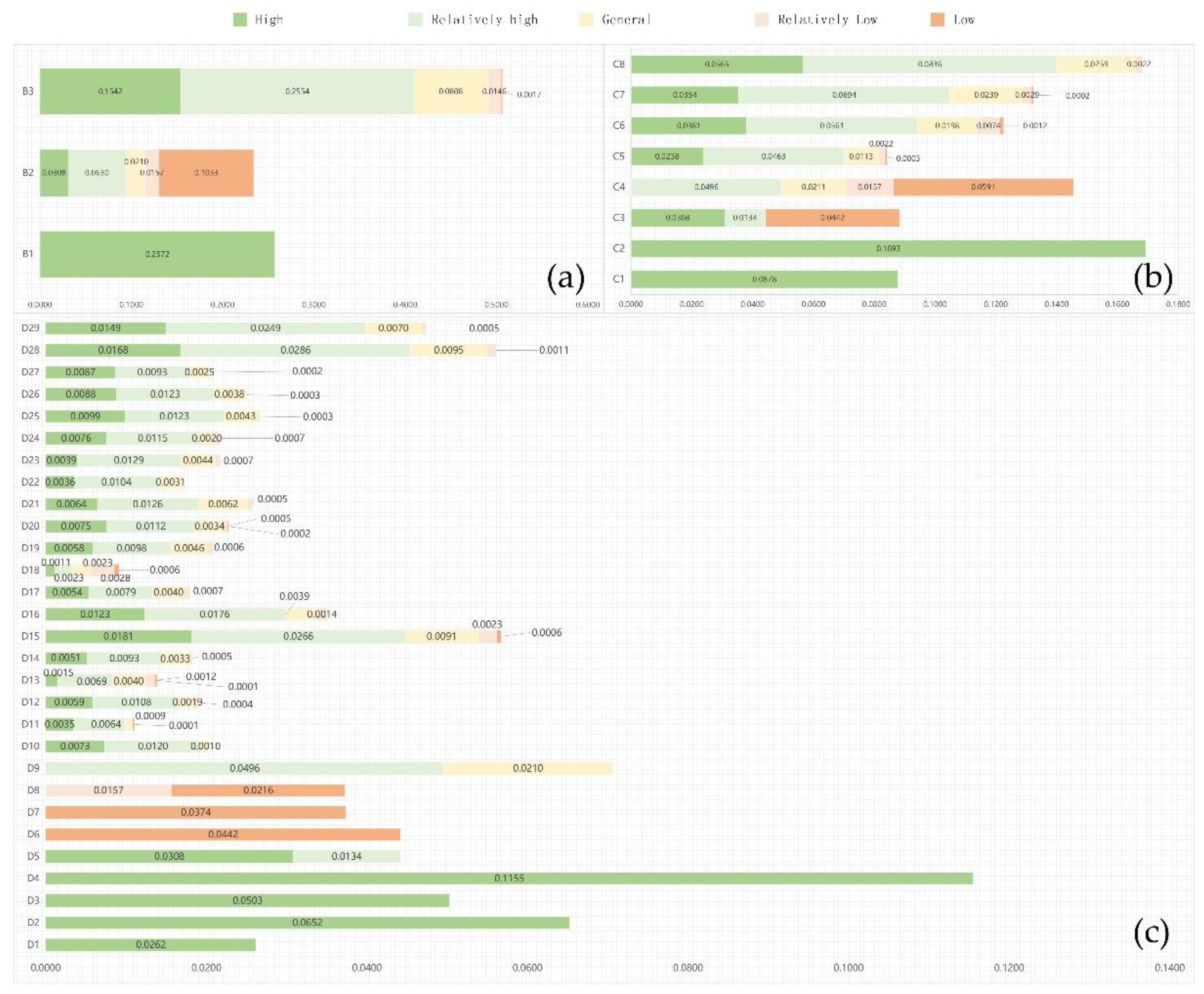

The evaluation results at the indicator and factor levels are depicted in Figure 2b,c. Notably, the four indicators related to the production value of mulberry land (C1) and fishponds (C2) excel, predominantly at the high level. This suggests that the production capacity of mulberry leaves, mulberry fruits, black carp, and eco-fish in Mulberry-Dyke and Fish-Pond System is robust. On the other hand, the basal environmental regulation value (C3) and climate regulation value (C4) exhibit lower performance, largely at the relatively low and low levels. This is primarily influenced by factors such as the intensity of pesticide application (D6), relative humidity regulation (D7), and average temperature regulation (D8). These results indicate deficiencies in pesticide use and the regulation of humidity and temperature in Mulberry-Dyke and Fish-Pond System. In contrast, the evaluation results for the four values of aesthetic value (C5), educational value (C6), leisure and entertainment value (C7), and cultural heritage value (C8) demonstrate a high degree of affiliation to high and relatively high, signifying high performance in these aspects. Among the five main values of ecosystem services in Mulberry-Dyke and Fish-Pond System, the climate regulation value (C4) is at the low level, indicating an important aspect that requires improvement. However, the top eight indicators in the factor hierarchy largely perform at the high or relatively high levels, suggesting a positive role in promoting the ecosystem services of Mulberry-Dyke and Fish-Pond System.
Table 7. Matrix of Quantitative Factor Memberships.
Table 7. Matrix of Quantitative Factor Memberships.
Factor Layer Membership Matrix
5 4 3 2 1
D1 Mulberry leaf production 1.0000 0.0000 0.0000 0.0000 0.0000
D2 Mulberry fruit production 1.0000 0.0000 0.0000 0.0000 0.0000
D3 Conventional fish farming production 1.0000 0.0000 0.0000 0.0000 0.0000
D4 Ecological fish farming production 1.0000 0.0000 0.0000 0.0000 0.0000
D5 Fertilizer application intensity 0.6970 0.3030 0.0000 0.0000 0.0000
D6 Pesticide application intensity 0.0000 0.0000 0.0000 0.0000 1.0000
D7 Relative humidity adjustment range 0.0000 0.0000 0.0000 0.0000 1.0000
D8 Average temperature regulation 0.0000 0.0000 0.0000 0.4200 0.5800
D9 Air quality index 0.0000 0.7020 0.2980 0.0000 0.0000
Table 8. Matrix of Qualitative Factor Memberships.
Table 8. Matrix of Qualitative Factor Memberships.
Factor Layer Membership Matrix
5 4 3 2 1
D10 Plant landscape richness 0.3600 0.5900 0.0500 0.0000 0.0000
D11 Seasonal changes in the landscape 0.3200 0.5900 0.0800 0.0000 0.0100
D12 Overall harmony 0.3100 0.5700 0.1000 0.0200 0.0000
D13 Water clarity 0.1100 0.5000 0.2900 0.0900 0.0100
D14 Leveling and hardening of road surface 0.2800 0.5100 0.1800 0.0300 0.0000
D15 Fish and mulberry culture education 0.3200 0.4700 0.1600 0.0400 0.0100
D16 Humanistic tradition 0.3500 0.5000 0.1100 0.0400 0.0000
D17 Cultural propaganda and exhibition 0.3000 0.4400 0.2200 0.0400 0.0000
D18 Religious culture propaganda 0.1200 0.2500 0.2500 0.3100 0.0700
D19 Location conditions 0.2800 0.4700 0.2200 0.0300 0.0000
D20 Sanitary conditions 0.3300 0.4900 0.1500 0.0200 0.0100
D21 Tourism infrastructure 0.2500 0.4900 0.2400 0.0200 0.0000
D22 Agricultural Diversity Experience 0.2100 0.6100 0.1800 0.0000 0.0000
D23 Experience the diversity of tourism products 0.1800 0.5900 0.2000 0.0300 0.0000
D24 Visual and psychological perception 0.3500 0.5300 0.0900 0.0300 0.0000
D25 Village architectural style 0.3700 0.4600 0.1600 0.0100 0.0000
D26 Village Traditional customs 0.3500 0.4900 0.1500 0.0100 0.0000
D27 Ancient bridges and other historical and cultural features 0.4200 0.4500 0.1200 0.0100 0.0000
D28 Food culture characteristics 0.3000 0.5100 0.1700 0.0200 0.0000
D29 Fish and mulberry culture characteristics 0.3000 0.5500 0.1400 0.0100 0.0000

4. Discussion

4.1. Optimized Management Strategy for Mulberry-Dyke and Fish-Pond System Based on AHP-FCE Approach

In our assessment of the Mulberry-Dyke and Fish-Pond System's ecosystem services, we discovered that the RES (B2) did not achieve high or moderately high levels. Furthermore, the distribution of membership degrees for these services revealed a pronounced bipolar trend, seemingly linked to the interplay among indicators D5 to D9. Specifically, indicators D5 and D6 reflected the growth conditions of mulberry trees to a certain extent, while the area and condition of the mulberry land directly influenced indicators D7, D8, and D9. Consequently, the outcomes for D5, D7, and D8 suggested deficiencies in the management of mulberry lands, underlining the necessity for enhanced professional support in this domain. Reduction and judicious use of pesticides could significantly bolster the regulating service capability of the system, thereby elevating the air quality index. On another front, CES (B3) emerged as a significant determinant of the system's ecosystem services. This underscores a growing public demand for recreational and cultural facets of the Mulberry-Dyke and Fish-Pond System. Notably, correlations between C5 and C7, as well as C6 and C8, were observed. Thus, reinforcing the key influencers in these aspects is expected to amplify the system's cultural service capacity. Strategic measures include diversifying plant arrangements, augmenting the overall cohesion of the system, enhancing tourism infrastructure, fortifying comprehensive environmental management, and intensively exploring the cultural and historical essence of fish and mulberry practices, along with promoting their unique gastronomical and cultural attributes. Moreover, the factor layer for B3 predominantly concentrated at a higher level, with a minority at high and average levels, potentially reflecting the evaluators' ambiguity and unclear understanding of related issues. Therefore, contrasting high and average level numerical differences could be more indicative, possibly unveiling divergences in opinions about indicator quality. Hence, indicators such as D13, D18, D19, D21, D22, and D23 merit close attention.
When exploring ecosystem services in multifunctional landscapes such as Sankey's fishponds, we must consider the multifunctionality between services and their trade-offs. According to the existing literature [42,43,44], ecosystem services are not always mutually reinforcing, but may be mutually constraining in some cases. Therefore, when planning, constructing and managing Mulberry-Dyke and Fish-Pond System, we should not simply seek to maximize a single service, but need to consider the balance among services in an integrated manner. The current assessment suggests that there may be some trade-offs between regulating services and provisioning and cultural services. In particular, it is foreseen that continued enhancement of cultural services will contribute to the diversification of the landscape of Mulberry-Dyke and Fish-Pond System, the enrichment of recreational facilities, and the improvement of public spaces. However, such changes may also lead to over-intervention in the environment of the Mulberry-Dyke and Fish-Pond System and consequently management neglect in the maintenance of vegetation and water bodies, thus affecting the effectiveness of regulating services. In the future management of Mulberry-Dyke and Fish-Pond System, we need to weigh the relationship between its ecological benefits and management costs among services.

4.2. Effectiveness of the AHP-FCE Method for Ecosystem Service Assessment in Mulberry-Dyke and Fish-Pond System

Relative to existing modeling approaches like InVEST and IMAGE, renowned for their efficacy in large-scale ecosystem service evaluations, these technologies adopt a modular design and scenario-based data input. They are adept at simulating and forecasting various future possibilities, furnishing quantitative outcomes for stakeholders balancing multiple ecosystem services [45,46]. Nonetheless, these models demand high data quality and volume, making them less suitable for addressing uncertainties, fuzziness, and data gaps in small-scale ecosystem service studies. Contrarily, the AHP-FCE method emerges as a more apt solution for such challenges, producing results that are more comprehensible and interpretable, thereby fostering societal engagement and the inclusion of stakeholder perspectives [47]. This is particularly evident in evaluations of ecosystems where cultural services are prominent, as the AHP-FCE method effectively mirrors public sentiments on the value of cultural services. Our findings underscore the pivotal role of cultural services within the ecosystem services of the Mulberry-Dyke and Fish-Pond System, concurrently highlighting managerial issues, resonating with prior research [14,48,49]. The increasing importance of the Mulberry-Dyke and Fish-Pond System's conservation and management is underscored by climate changes and land use transformations in the Nanxun District [48]. The AHP-FCE method facilitates the provision of a holistic evaluation indicator system and diagnostic techniques for the future progression of the system's ecosystem services. Moreover, this approach presents a viable resolution to the ambiguities encountered in ecosystem service assessments.

4.3. Future Improvement Directions of AHP-FCE Method for Ecosystem Service Valuation of Mulberry-Dyke and Fish-Pond System

This evaluation system still offers opportunities for refinement, and future improvements are suggested for enhancing the assessment of ecosystem services in Mulberry-Dyke and Fish-Pond System. Proposed directions for future enhancement include adjusting indicators based on local planning and development reports, scientific research findings, and selectively adding or reducing specific indicators to enhance the scientific rigor of the evaluation system. The monitoring system can be upgraded by accounting for the ratio of base ponds, tallying base crops, and subcategorizing aquatic crops cultivated in fish ponds. Additionally, the inclusion of quantitative indicators, such as monitoring soil and water quality, can enhance the overall robustness of the evaluation system. It is recommended to extend the temporal scope of data collection beyond the year 2022 to provide a more comprehensive understanding of the development status of Mulberry-Dyke and Fish-Pond System. Long-term research efforts will be crucial for gaining insights into the dynamic changes and trends within these ecosystems.

5. Conclusions

This study undertook a thorough evaluation of the ecosystem services of the Mulberry-Dyke and Fish-Pond System in Digang Village, Huzhou, utilizing the Analytical Hierarchy Process (AHP) and Fuzzy Comprehensive Evaluation (FCE). Our findings illuminate the paramount role of cultural services within the ecosystem services of the system, particularly emphasizing the substantial impact of cultural heritage values. In contrast, the underperformance of regulating services unveils gaps in mulberry land management and upkeep. These outcomes underscore the necessity to prioritize cultural heritage conservation and enhance regulating services in future management strategies.
The study not only proposes a scientifically robust method for assessing the ecosystem services of the Mulberry-Dyke and Fish-Pond System but also lays a solid foundation for decision-makers to devise more informed and rational management strategies. Additionally, by revealing the significance of cultural services and identifying the areas needing improvement in regulating services, this research charts new pathways for the sustainable development and ecological protection of the Mulberry-Dyke and Fish-Pond System. These findings hold substantial relevance for fostering the sustainable evolution of agricultural ecosystems in economic, social, and environmental dimensions.

Appendix A

Table A1. A-B Judgment Matrix and Weights.
Table A1. A-B Judgment Matrix and Weights.
Ecosystem Service Assessment of Mulberry-Dyke and Fish-Pond System Provisioning Ecosystem Services B1 Regulating Ecosystem Services B2 Culture Ecosystem Services B3 Normalized Weights
Provisioning ecosystem services B1 1 1 1/2 0.2247
Regulating ecosystem services B2 1 1 1/5 0.1655
Culture ecosystem services B3 2 5 1 0.6098
λ m a x = 3.0940 C I = 0.0470 R I = 0.5200 ∑=1
C R = 0.9040 Satisfying the consistency test
Table A2. Weight Table of Index layer in Provisioning Ecosystem Services B1.
Table A2. Weight Table of Index layer in Provisioning Ecosystem Services B1.
Provisioning Ecosystem Services B1 Mulberry land Production Value C1 Fishpond Production Value C2 Normalized Weights
Mulberry land production value C1 1 1 0.5000
Fishpond production value C2 1 1 0.5000
λ m a x = 2.0000 C I = 0.0000 R I = 0.0000 ∑=1
C R = 0.0000 Satisfying the consistency test
Table A3. Factor Layer Weights in Provisioning Ecosystem Services B1.
Table A3. Factor Layer Weights in Provisioning Ecosystem Services B1.
Criterion Layer Index Layer Factor Layer Factor Layer Weight Coefficient
Provisioning ecosystem services B1 Mulberry land production value C1 Mulberry leaf production D1 0.5000
Mulberry fruit production D2 0.5000
Fishpond production value C2 Conventional fish farming production D3 0.5000
Ecological fish farming production D4 0.5000

Appendix B

C 1 M u l b e r r y   l a n d   p r o d u c t i o n   v a l u e = w i · R M u l b e r r y   l a n d   p r o d u c t i o n   v a l u e = ( 0.2869 , 0.7131 ) 1.0000 0.0000 1.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 = ( 1.0000 , 0.0000 , 0.0000 , 0.0000 , 0.0000 )
C 2 F i s h p o n d   p r o d u c t i o n   v a l u e = w i · R F i s h p o n d   p r o d u c t i o n   v a l u e = ( 0.3033 , 0.6967 ) 1.0000 0.0000 1.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 = ( 1.0000 , 0.0000 , 0.0000 , 0.0000 , 0.0000 )
C 3 B a s a l   e n v i r o n m e n t   r e g u l a t i o n   v a l u e = w i · R B a s a l   e n v i r o n m e n t   r e g u l a t i o n   v a l u e = 0.5000 , 0.5000 0.6970 0.3030 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 1.0000 = ( 0.3485 , 0.1515 , 0.0000 , 0.0000 , 0.5000 )
C 4 C l i m a t e   r e g u l a t i o n   v a l u e = w i · R C l i m a t e   r e g u l a t i o n   v a l u e = ( 0.2574 , 0.2568 , 0.4859 ) 0.0000 0.0000 0.0000 0.0000     0.0000 0.0000 1.0000 0.0000 0.4200 0.5800 0.0000 0.7000     0.3000 0.0000 0.0000 = ( 0.0000 , 0.3411 , 0.1448 , 0.1078 , 0.4063 )
C 5 A e s t h e t i c s   v a l u e = w i · R A e s t h e t i c s   v a l u e = 0.2478 0.1330 0.2309 0.1664 0.2221 T 0.3600 0.5900 0.3200 0.5900     0.0500 0.0000 0.0000 0.0800 0.0000 0.0100 0.3100 0.5700 0.1000 0.1100 0.5000 0.2900 0.2800 0.5100 0.1800     0.0200 0.0000 0.0900 0.0100 0.0300 0.0000 = ( 0.2838 , 0.5526 , 0.1343 , 0.0262 , 0.0030 )
C 6 E d u c a t i o n   v a l u e = w i · R E d u c a t i o n   v a l u e = 0.4771 0.2952 0.1512 0.7656 T 0.3200 0.4700 0.3500 0.5000     0.1600 0.0400 0.0100 0.1100 0.0400 0.0000 0.3000 0.4400 0.1200 0.2500     0.2200 0.0400 0.0000 0.2500 0.3100 0.0700 = ( 0.3105 , 0.4575 , 0.1612 , 0.0607 , 0.0101 )
C 7 L e i s u r e   a n d   e n t e r t a i n m e n t   v a l u e = w i · R L e i s u r e   a n d   e n t e r t a i n m e n t   v a l u e = 0.1606 0.1753 0.1979 0.1314 0.1679 0.1668 T 0.2800 0.4700 0.2200 0.3300 0.4900 0.1500 0.2500 0.4900 0.2400     0.0300 0.0000 0.0200 0.0100 0.0200 0.0000 0.2100 0.6100 0.1800 0.1800 0.5900 0.2000 0.3500 0.5300 0.1900     0.0000 0.0000 0.0300 0.0000 0.0300 0.0000 = ( 0.2685 , 0.5260 , 0.1814 , 0.0223 , 0.0018 )
C 8 C u l t u r a l   h e r i t a g e   v a l u e = w i · R C u l t u r a l   h e r i t a g e   v a l u e = 0.1500 0.1402 0.1155 0.3146 0.2798 T 0.3700 0.4600 0.1600 0.3500 0.4900 0.1500 0.4200 0.4500 0.1200     0.0100 0.0000 0.0100 0.0000 0.0100 0.0000 0.3000 0.5100 0.1700 0.3000 0.5500 0.1400     0.0200 0.0000 0.0100 0.0000 = ( 0.3314 , 0.5040 , 0.1515 , 0.0131 , 0.0000 )
B 1 P r o v i s i o n i n g   e c o s y s t e m   s e r v i c e s = w i · R P r o v i s i o n i n g   e c o s y s t e m   s e r v i c e s = ( 0.3556 , 0.6444 ) 1.0000 0.0000 1.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 = ( 1.0000 , 0.0000 , 0.0000 , 0.0000 , 0.0000 )
B 2 R e g u l a t i n g   e c o s y s t e m   s e r v i c e s = w i · R R e g u l a t i n g   e c o s y s t e m   s e r v i c e s = ( 0.3786 , 0.6214 ) 0.3485 0.1515 0.0000 0.3411 0.0000 0.0000 0.5000 0.1448 0.1078 0.4063 = ( 0.1319 , 0.2693 , 0.0900 , 0.0670 , 0.4418 )
B 3 C u l t u r e   e c o s y s t e m   s e r v i c e s = w i · R C u l t u r e   e c o s y s t e m   s e r v i c e s = 0.1616 0.2335 0.2549 0.3500 T 0.2838 0.5526 0.3105 0.4575     0.1343 0.0262 0.0030 0.1612 0.0607 0.0101 0.2685 0.5260 0.3314 0.5040     0.1814 0.0223 0.0018 0.1515 0.0131 0.0000 = ( 0.3028 , 0.5066 , 0.1586 , 0.0287 , 0.0033 )
A E c o s y s t e m   s e r v i c e   a s s e s s m e n t   o f   m u l b e r r y b a s e d   f i s h p o n d s = w i · R E c o s y s t e m   s e r v i c e   a s s e s s m e n t   o f   m u l b e r r y b a s e   f i s h p o n d s = ( 0.5091 , 0.2338 , 0.2572 ) 0.3028 0.5066 0.1319 0.2693     0.1586 0.0287 0.0033 0.0900 0.0670 0.4418 1.0000 0.0000     0.0000 0.0000 0.0000 = ( 0.4422 , 0.3209 , 0.1018 , 0.0303 , 0.1050 )

References

  1. Li, B.; Yuan, X.; Xiao, H.; Chen, Z. Design of the dike-pond system in the littoral zone of a tributary in the Three Gorges Reservoir, China. Ecological Engineering 2011, 37, 1718–1725. [Google Scholar] [CrossRef]
  2. Liu, Y.; Ma, X.; Shu, L.; Hancke, G.P.; Abu-Mahfouz, A.M. From Industry 4.0 to Agriculture 4.0: Current Status, Enabling Technologies, and Research Challenges. IEEE Transactions on Industrial Informatics 2021, 17, 4322–4334. [Google Scholar] [CrossRef]
  3. Garrett, R.D.; Cammelli, F.; Ferreira, J.; Levy, S.A.; Valentim, J.; Vieira, I. Forests and Sustainable Development in the Brazilian Amazon: History, Trends, and Future Prospects. Annual Review of Environment and Resources 2021, 46, 625–652. [Google Scholar] [CrossRef]
  4. Khan, N.; Ray, R.L.; Sargani, G.R.; Ihtisham, M.; Khayyam, M.; Ismail, S. Current Progress and Future Prospects of Agriculture Technology: Gateway to Sustainable Agriculture. Sustainability 2021, 13. [Google Scholar] [CrossRef]
  5. Nie, J.; Kiminami, A.; Yagi, H. Exploring the Sustainability of Urban Leisure Agriculture in Shanghai. Sustainability 2022, 14. [Google Scholar] [CrossRef]
  6. Chabert, A.; Sarthou, J.-P. Conservation agriculture as a promising trade-off between conventional and organic agriculture in bundling ecosystem services. Agriculture, Ecosystems & Environment 2020, 292. [Google Scholar] [CrossRef]
  7. Xia, X.; Ruan, J. Analyzing Barriers for Developing a Sustainable Circular Economy in Agriculture in China Using Grey-DEMATEL Approach. Sustainability 2020, 12. [Google Scholar] [CrossRef]
  8. Costanza, R. Ecosystem services: Multiple classification systems are needed. Biological Conservation 2008, 141, 350–352. [Google Scholar] [CrossRef]
  9. Mao, D.; He, X.; Wang, Z.; Tian, Y.; Xiang, H.; Yu, H.; Man, W.; Jia, M.; Ren, C.; Zheng, H. Diverse policies leading to contrasting impacts on land cover and ecosystem services in Northeast China. Journal of Cleaner Production 2019, 240. [Google Scholar] [CrossRef]
  10. Reid, W.V.; Mooney, H.A.; Cropper, A.; Capistrano, D.; Carpenter, S.R.; Chopra, K.; Dasgupta, P.; Dietz, T.; Duraiappah, A.K.; Hassan, R. Ecosystems and human well-being-Synthesis: A report of the Millennium Ecosystem Assessment; Island Press: 2005.
  11. Kuhn, T.K.; Oinonen, S.; Trentlage, J.; Riikonen, S.; Vikström, S.; Burkhard, B. Participatory systematic mapping as a tool to identify gaps in ecosystem services research: insights from a Baltic Sea case study. Ecosystem Services 2021, 48. [Google Scholar] [CrossRef]
  12. Liu, D.; Tang, R.; Xie, J.; Tian, J.; Shi, R.; Zhang, K. Valuation of ecosystem services of rice–fish coculture systems in Ruyuan County, China. Ecosystem Services 2020, 41. [Google Scholar] [CrossRef]
  13. Jin, G.; Chen, K.; Liao, T.; Zhang, L.; Najmuddin, O. Measuring ecosystem services based on government intentions for future land use in Hubei Province: implications for sustainable landscape management. Landscape Ecology 2020, 36, 2025–2042. [Google Scholar] [CrossRef]
  14. Wang, J.; Zhou, Y.; Meng, L.; Yang, L.; He, Y.; Huang, L. Evaluation on Service alue of Mulberry-base Fishpond Ecosystem in Huzhou. Science of Sericulture 2018, 44, 0615–0623. [Google Scholar] [CrossRef]
  15. Lu, H.; Peng, S.; Lan, F.; Chen, P. Energy value evaluation of dike-pond agro-ecological engineering modes. CHINESE JOURNAL OF APPLIED ECOLOGY 2003, 14, 1622–1626. [Google Scholar] [CrossRef] [PubMed]
  16. Gu, X.; Wang, Y.; Shi, K.; Ke, F.; Ying, S.; Lai, Q. Emergy-Based Sustainability Evaluation of the Mulberry-Dyke and Fish-Pond System on the South Bank of Taihu Lake, China. Sustainability 2022, 14. [Google Scholar] [CrossRef]
  17. Yue, J.; Yuan, X.; Li, B.; Ren, H.; Wang, X. Emergy and exergy evaluation of a dike-pond project in the drawdown zone (DDZ) of the Three Gorges Reservoir (TGR). Ecological Indicators 2016, 71, 248–257. [Google Scholar] [CrossRef]
  18. Spencer, C.; Robertson, A.; Curtis, A.J.J.o.E.M. Development and testing of a rapid appraisal wetland condition index in south-eastern Australia. Journal of Environmental Management 1998, 54, 143–159. [Google Scholar] [CrossRef]
  19. Gu, X.; Wu, H.; Shen, X.; Wu, Y.; Lou, J.; Lai, Q. Intertemporal Analysis on Input-Output Efficiency of the Mulberry-Dyke and Fish-Pond by the South Bank of Taihu Lake. Science of Sericulture 2020, 46, 0221–0232. [Google Scholar] [CrossRef]
  20. Vecco, M. A definition of cultural heritage: From the tangible to the intangible. Journal of Cultural Heritage 2010, 11, 321–324. [Google Scholar] [CrossRef]
  21. Dongmei, H.Y.Z.T.X. Evaluation on Cultural Value of Traditional Villages and Differential Revitalization: A Case Study of Jiaozuo City, Henan Province. ECONOMIC GEOGRAPHY 2020. [Google Scholar] [CrossRef]
  22. Li, X.; Pan, Y.; Shi, C.; Guo, Y. Research on Protection and Construction of Historical Village Landscape Based On AHP-FCE Model Evaluation. Journal of Northwest Forestry University 2022, 37, 257–265. [Google Scholar] [CrossRef]
  23. Min, J.; Pan, T.; Kumar, V. Landscape Evaluation of Forest Park Based on Analytic Hierarchy Process. Mathematical Problems in Engineering 2022, 2022, 1–9. [Google Scholar] [CrossRef]
  24. Wu, H.; Ye, M.; Lou, J.; Wang, L.; Yin, Y.; Zhang, Z. Status and Planning for Ecosystem Conservation of Mulberry-Dyke and Fish-Pond System in Huzhou, China. Bulletin of Sericulture 2017, 48, 40–42. [Google Scholar]
  25. Liu, J.; Shen, S. Globally Important Agricultural Cultural Heritage Mulberry-Dyke and Fish-Pond System in Huzhou Research on Systematic Protection and Tourism Development. Modernizing Agriculture 2020, 2020, 57–60. [Google Scholar]
  26. Chen, C.; Huang, G.; Ye, Y.; Zhao, L.; Jin, L.; Liu, X. Change and ecological restoration of the dike-pond system in the Pearl River DeltaA case study of four villages in Foshan City. Resources Science 2021, 43, 328–340. [Google Scholar] [CrossRef]
  27. Roy, J.; Terrier, F.; Marchand, M.; Herman, A.; Heraud, C.; Surget, A.; Lanuque, A.; Sandres, F.; Marandel, L. Effects of Low Stocking Densities on Zootechnical Parameters and Physiological Responses of Rainbow Trout (Oncorhynchus mykiss) Juveniles. Biology (Basel) 2021, 10. [Google Scholar] [CrossRef] [PubMed]
  28. Peng, Y.; Wu, H.; Lou, J.; Wang, L. Mulberry Cultivation and Management Technology of Mulberry-Dyke and Fish-Pond System in Huzhou, Zhejiang, China. Bulletin of Sericulture 2021, 52, 37–38. [Google Scholar]
  29. Tong, L.; Mao, X.; Song, X.; Wei, X.; Tang, W.; Deng, Y.; Yu, H.; Deng, Z.; Xiao, F.; Zhou, H.; et al. PSR-BP Neural Network-Based Health Assessment of the Huangshui Plateau Urban Wetlands in China. Frontiers in Ecology and Evolution 2022, 10. [Google Scholar] [CrossRef]
  30. Fang, X.-S.; Liu, S.; Chen, W.-Z.; Wu, R.-Z. An Effective Method for Wetland Park Health Assessment: a Case Study of the Guangdong Xinhui National Wetland Park in the Pearl River Delta, China. Wetlands 2021, 41. [Google Scholar] [CrossRef]
  31. Das, S.; Pradhan, B.; Shit, P.K.; Alamri, A.M. Assessment of Wetland Ecosystem Health Using the Pressure–State–Response (PSR) Model: A Case Study of Mursidabad District of West Bengal (India). Sustainability 2020, 12. [Google Scholar] [CrossRef]
  32. Hamback, P.A.; Dawson, L.; Geranmayeh, P.; Jarsjo, J.; Kacergyte, I.; Peacock, M.; Collentine, D.; Destouni, G.; Futter, M.; Hugelius, G.; et al. Tradeoffs and synergies in wetland multifunctionality: A scaling issue. Sci Total Environ 2023, 862, 160746. [Google Scholar] [CrossRef]
  33. Costanza, R.; d'Arge, R.; Groot, R.d.; Farber, S.; Grasso, M.; Hannon, B.; Limburg, K.; Naeem, S.; O'Neill, R.V.; Paruelo, J.; et al. The value of the world's ecosystem services and natural capital Nature: International weekly journal of science. 1997, 387. [CrossRef]
  34. Fish, R.; Church, A.; Winter, M. Conceptualising cultural ecosystem services: A novel framework for research and critical engagement. Ecosystem Services 2016, 21, 208–217. [Google Scholar] [CrossRef]
  35. Xu, H.; Zhou, L.; Cheng, Q. Stdy on ecosvstem healh evaluation and risk assessment for linghekou wetlands based on a PSR model. ACTA ECOLOGICA SINICA 2017, 37, 8264–8274. [Google Scholar] [CrossRef]
  36. Yang, J.; Li, W.; Xia, J.; Zhang, S.; Li, X.; Liang, F. Studies on the ecological characteristics of different varieties of mulberry trees. Science of Sericulture 2003, 29, 120–124. [Google Scholar] [CrossRef]
  37. Zhu, C. Effects of urban lake wetland on temperature and humidity: a case study of Wuhan City. ACTA ECOLOGICA SINICA 2015, 35, 5518–5527. [Google Scholar] [CrossRef]
  38. Feng, Q.; Liu, J.; Han, L.; Wen, C.; Hu, F. Study on Wetland Ecosystem Health Evaluation of Poyang Lake National Wetland Park. Journal of Hydroecology 2016, 37, 48–54. [Google Scholar] [CrossRef]
  39. Saaty, T.L.; Vargas, L.G. Models, methods, concepts & applications of the analytic hierarchy process; Springer Science & Business Media: 2012; Volume 175.
  40. Saaty, T.L. Time dependent decision-making; dynamic priorities in the AHP/ANP: Generalizing from points to functions and from real to complex variables. Mathematical and Computer Modelling 2007, 46, 860–891. [Google Scholar] [CrossRef]
  41. Wu, X.; Hu, F. Analysis of ecological carrying capacity using a fuzzy comprehensive evaluation method. Ecological Indicators 2020, 113. [Google Scholar] [CrossRef]
  42. Mouchet, M.A.; Paracchini, M.L.; Schulp, C.J.E.; Stürck, J.; Verkerk, P.J.; Verburg, P.H.; Lavorel, S. Bundles of ecosystem (dis)services and multifunctionality across European landscapes. Ecological Indicators 2017, 73, 23–28. [Google Scholar] [CrossRef]
  43. Hölting, L.; Jacobs, S.; Felipe-Lucia, M.R.; Maes, J.; Norström, A.V.; Plieninger, T.; Cord, A.F. Measuring ecosystem multifunctionality across scales. Environmental Research Letters 2019, 14. [Google Scholar] [CrossRef]
  44. Manning, P.; van der Plas, F.; Soliveres, S.; Allan, E.; Maestre, F.T.; Mace, G.; Whittingham, M.J.; Fischer, M. Redefining ecosystem multifunctionality. Nat Ecol Evol 2018, 2, 427–436. [Google Scholar] [CrossRef] [PubMed]
  45. Caro, C.; Marques, J.C.; Cunha, P.P.; Teixeira, Z. Ecosystem services as a resilience descriptor in habitat risk assessment using the InVEST model. Ecological Indicators 2020, 115. [Google Scholar] [CrossRef]
  46. Zhao, Y.; Liu, Z.; Wu, J. Grassland ecosystem services: a systematic review of research advances and future directions. Landscape Ecology 2020, 35, 793–814. [Google Scholar] [CrossRef]
  47. Wang, G.; Xiao, C.; Qi, Z.; Meng, F.; Liang, X. Development tendency analysis for the water resource carrying capacity based on system dynamics model and the improved fuzzy comprehensive evaluation method in the Changchun city, China. Ecological Indicators 2021, 122. [Google Scholar] [CrossRef]
  48. Santoro, A.; Yu, Q.; Piras, F.; Fiore, B.; Bazzurro, A.; Agnoletti, M. From Flood Control System to Agroforestry Heritage System: Past, Present and Future of the Mulberry-Dykes and Fishponds System of Huzhou City, China. Land 2022, 11. [Google Scholar] [CrossRef]
  49. Pang, Y.; Wang, L.; Wu, H.; Lou, J.; Zhu, Y. Effect and Thinking of Protection Work of Mulberry Fish PondSvstem in Huzhou, Zhejiang. Bulletin of Sericulture 2022, 53, 1–6. [Google Scholar] [CrossRef]
Figure 2. Assessment results for each layer. The values shown in the figure are the affiliation functions for each criterion, indicator, and factor layer.
Figure 2. Assessment results for each layer. The values shown in the figure are the affiliation functions for each criterion, indicator, and factor layer.
Preprints 95583 g002
Table 1. Ecosystem Service Assessment of Mulberry-Dyke and Fish-Pond System.
Table 1. Ecosystem Service Assessment of Mulberry-Dyke and Fish-Pond System.
Target Layer Criterion Layer Index Layer Factor Layer
A
Ecosystem service assessment of Mulberry-Dyke and Fish-Pond System
B1
Provisioning ecosystem services
C1
Mulberry land production value
D1 Mulberry leaf production
D2 Mulberry fruit production
C2
Fishpond production value
D3 Conventional fish farming production
D4 Ecological fish farming production
B2
Regulating ecosystem services
C3
Basal environment regulation value
D5 Fertilizer application intensity
D6 Pesticide application intensity
C4
Climate regulation value
D7 Relative humidity adjustment range
D8 Average temperature regulation
D9 Air quality index
B3
Culture ecosystem services
C5
Aesthetics value
D10 Plant landscape richness
D11 Seasonal changes in the landscape
D12 Overall harmony
D13 Water clarity
D14 Leveling and hardening of road surface
C6
Education value
D15 Fish and mulberry culture education
D16 Humanistic tradition
D17 Cultural propaganda and exhibition
D18 Religious culture
C7
Leisure and entertainment value
D19 Location conditions
D20 Sanitary conditions
D21 Tourism infrastructure
D22 Agricultural Diversity Experience
D23 Experience the diversity of tourism products
D24 Visual and psychological perception
C8
Cultural heritage value
D25 Village architectural style
D26 Village traditional customs
D27 Ancient bridges and other historical and cultural features
D28 Food culture characteristics
D29 Fish and mulberry culture characteristics
Table 6. Ecosystem Service Weight Table.
Table 6. Ecosystem Service Weight Table.
Criterion Layer Normalized Weights Indicator Layer C-Layer Weight Normalized Weights Factor Layer D-Layer Weight Normalized Weights Rank
B1 0.2572 C1 0.3556 0.0878 D1 0.2869 0.0262 14
D2 0.7131 0.0652 3
C2 0.6444 0.1693 D3 0.3033 0.0503 6
D4 0.6967 0.1155 1
B2 0.2338 C3 0.3786 0.0884 D5 0.5000 0.0442 9
D6 0.5000 0.0442 8
C4 0.6214 0.1454 D7 0.2574 0.0374 10
D8 0.2568 0.0373 11
D9 0.4859 0.0706 2
B3 0.5091 C5 0.1616 0.0838 D10 0.2478 0.0204 22
D11 0.1330 0.0109 28
D12 0.2309 0.0190 23
D13 0.1662 0.0137 26
D14 0.2221 0.0183 24
C6 0.2335 0.1226 D15 0.4771 0.0567 4
D16 0.2952 0.0351 12
D17 0.1512 0.0180 25
D18 0.0766 0.0091 29
C7 0.2549 0.1320 D19 0.1606 0.0208 20
D20 0.1753 0.0228 17
D21 0.1979 0.0257 15
D22 0.1314 0.0171 26
D23 0.1679 0.0218 18
D24 0.1668 0.0217 19
C8 0.3500 0.1706 D25 0.1500 0.0267 13
D26 0.1402 0.0250 16
D27 0.1155 0.0206 21
D28 0.3146 0.0561 5
D29 0.2798 0.0498 7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

Subscribe

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
