Antibody Dependent Enhancement (ADE) of Infection into Macrophages Validates the Importance of HERV-K102 Particle Production for Pandemic Preparedness

1. Introduction

1.1. Single cell RNA (scRNA) Sequencing has Revealed the Importance of Innate Immunity Macrophages

Single cell RNA (scRNA) sequencing has substantially revolutionized the ability to gauge cell fate and developmental programs such as for immune cells in sickness and in health [1,2].

For example, an initial investigation involving 39 cancer types and about 18,000 tumors unexpectantly determined in 2015 that the gamma-delta2 (γδ2) T cells and/or other innate T cells were frequently correlated with protection against many although not all cancers [3]. This discrimination was largely based on the expression of KLRB1 (CD161) on these innate T cells. KLRB1 is a lectin-like receptor that binds Galactose -a-(1,3) Galactose which is a carbohydrate marker of non-human cells and where humans have IgM against this moiety [4]. On the other hand, FOXM1 considered a marker of poor prognosis tended to identify neutrophil populations within many cancers.

More recently, using scRNA sequencing, M1-like pro-inflammatory macrophages have been implicated in remission from acute myeloid leukemia [5], and as correlates of protection in patients with lung cancers [6].

In addition, via scRNA sequencing, monocytes/macrophages have been identified as essential to a reduced risk of SIV/SHIV acquisition in non-human primate (NHP) animal studies and were implicated in the partial vaccine efficacy against HIV-1 infection demonstrated in the RV144 trial [7]. At a more detailed level, the induction of hypoxia with inflammasome activation in CD14 monocytes has been associated with a decreased risk of SIV_mac251 acquisition in non-human primate (NHP) models [8]. It should be appreciated that hypoxia and inflammasome activation results in foam cell formation in M1-like proinflammatory macrophages [9]. Accordingly, it appears, pro-inflammatory foamy macrophages provide protection against HIV-1 acquisition, a conclusion reached earlier on entirely different evidence [10,11].

Macrophages although long considered the central orchestrator of both innate and adaptive immunity, are primarily associated with innate immunity, the antigen non-specific arm of the immune system involving interferon responses and intrinsic pathogen detection systems termed pattern recognition receptors (PRRs). Dendritic cells that are the antigen presenters for adaptive immune responses are derived from a separate set of bone marrow progenitors, called the Common Lymphoid Progenitors (CLPs). Instead, macrophages (and monocytes) are derived from the Common Myeloid Progenitors (CMPs) which then generate the Granulocyte-Macrophage Progenitors (GMPs) and the Megakaryocyte-Erythroid Progenitors (MEPs) [12]. Accordingly, discussions of monocytes in the blood or macrophages in the tissues refer and pertain to innate immunity.

1.2. The Clue of Antibody Dependent Enhancement (ADE) of Infection into Macrophages

Historically a major line of evidence emphasizing the importance of macrophages in the control of infectious diseases and outcomes has been the concept of antibody dependent enhancement (ADE) of infection into monocyte/macrophages. Disease escalation involving antibodies that mediate the enhanced infection of macrophages through Fc receptors was first documented for dengue in 1967. Since that time ADE has been observed for various viral infections [13] such as Japanese encephalitis virus (JEV), HIV-1, Ross River virus, West Nile virus (WNV), Ebola virus, respiratory syncytial virus (RSV), feline infectious peritonitis virus (FIPV), porcine reproductive and respiratory syndrome virus (PRRSV), measles, SARS-CoV, MERS-CoV, and now SARS-CoV-2 [14]. Most notably, it has been suggested that COVID-19 disease progression from moderate to severe commonly relates to ADE mediated infection of SARS-CoV-2 into monocytes/macrophages [14] (which will be examined and validated in more detail below). This view is however, in direct contrast to the narrative promoted by scientists and clinicians at the Welcome Center for Human Genetics and Pandemic Sciences Institute along with workers employed at the UK Health Security Agency who profess that ADE has not been observed clinically during COVID-19 infection [15].

Despite the controversy in opinion, incontrovertible evidence had emerged that even before the COVID-19 vaccines were authorized for emergency use that demonstrated IgG antibodies to spike protein were not protective but instead were associated with progression to more severe COVID-19 disease including death during natural infection [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30]. Despite this unanimous finding, three papers claimed exceptions to the consensus finding based on assumptions about neutralizing activity [31,32,33]. However, these could be discounted based on technical grounds. All three excursions were based on neutralizing antibody data generated from pseudotyped virus produced in human 293T cells rather than live SARS-CoV-2 virus grown and tested in the non-human, green monkey cell line, Vero cells. As virus pseudotyped in human cells likely carries human innate immunity target antigens, the authors did not address and exclude the possibility that the neutralization they observed was due to innate neutralizing antibodies rather than those reactive with spike protein.

As also noted by Ricke [14], the main problem which led to more severe disease during natural infection was that the onset of IgG to spike protein preceded the clearance of SARS-CoV-2 by the innate immune system [34,35,36,37,38]. This earlier onset leading to more severe disease was also documented previously for spike IgG antibody to SARS-CoV-1 [39,40]. In contrast when SARS-CoV-2 was neutralized or cleared from the upper respiratory tract before the onset of spike specific IgG in the blood, this invariably resulted in mild COVID-19 disease [41].

The problem of ADE following vaccination particularly for RNA viruses is believed in part to reflect the rapidity at which new variants are generated in the host following the introduction of antibodies to spike protein that can and do readily select for new variants. For example, in immunosuppressed high-risk individuals it took 10 days on average for a neutralizing monoclonal antibody, bamlanivimab to spike protein to generate escape mutants and establish a rebound viremia [42]. Fortunately, in many instances but not all patients studied, convalescent plasma was able to provide recovery presumably related to innate neutralizing antibodies and other innate humoral immune mechanisms found in plasma.

Perhaps more importantly, a growing body of evidence implies for natural infection unless the case of COVID-19 was severe/critical, there were few IgG1 or IgG3 antibodies to spike RBD in the nasal secretions and none in the saliva [43,44]. However, with the second dose of COVID-19 vaccines (mRNA or virus vectored), these dangerous IgG1/3 antibodies to spike protein capable of mediating ADE were commonly detected at high levels in the upper respiratory tract (URT) [43,44]. Thus, the global mass vaccination with COVID-19 vaccines not only greatly increased the likelihood of the emergence of variants, but led to increased transmission and infection rates, all of which would and did prolong the pandemic beyond May 2021 [45].

Given the importance of the selection of SARS-CoV-2 variants and increased infection rates as salient proof of ADE, which in turn validates that the macrophage provides the most important correlate of protection against COVID-19, data supporting each of these statements will be briefly discussed.

1.3. Evidence from Canada for Selection of SARS-CoV-2 Variants Correlating with Vaccination Milestones

For both the Pfizer and Moderna mRNA COVID-19 vaccines, it was about 14 days after the second dose of vaccines, when the IgG antibodies to spike protein became significantly detectable in most individuals [46,47]. Also, it was known that the first dose which provoked trained innate immunity induced heterologous protection against all-cause mortality. Negative excess all-cause mortality was clearly demonstrated in countries especially those that postponed the second dose (Canada [48] and the UK) at the time that the first dose was administered [49]. For the USA a study of seven integrated health care organizations in the USA demonstrated that heterologous protection against non-COVID-19 mortality was induced upon the first dose and which was not appreciably altered upon receiving the second dose, at least for the first 7.5 months of the vaccination campaign [50].

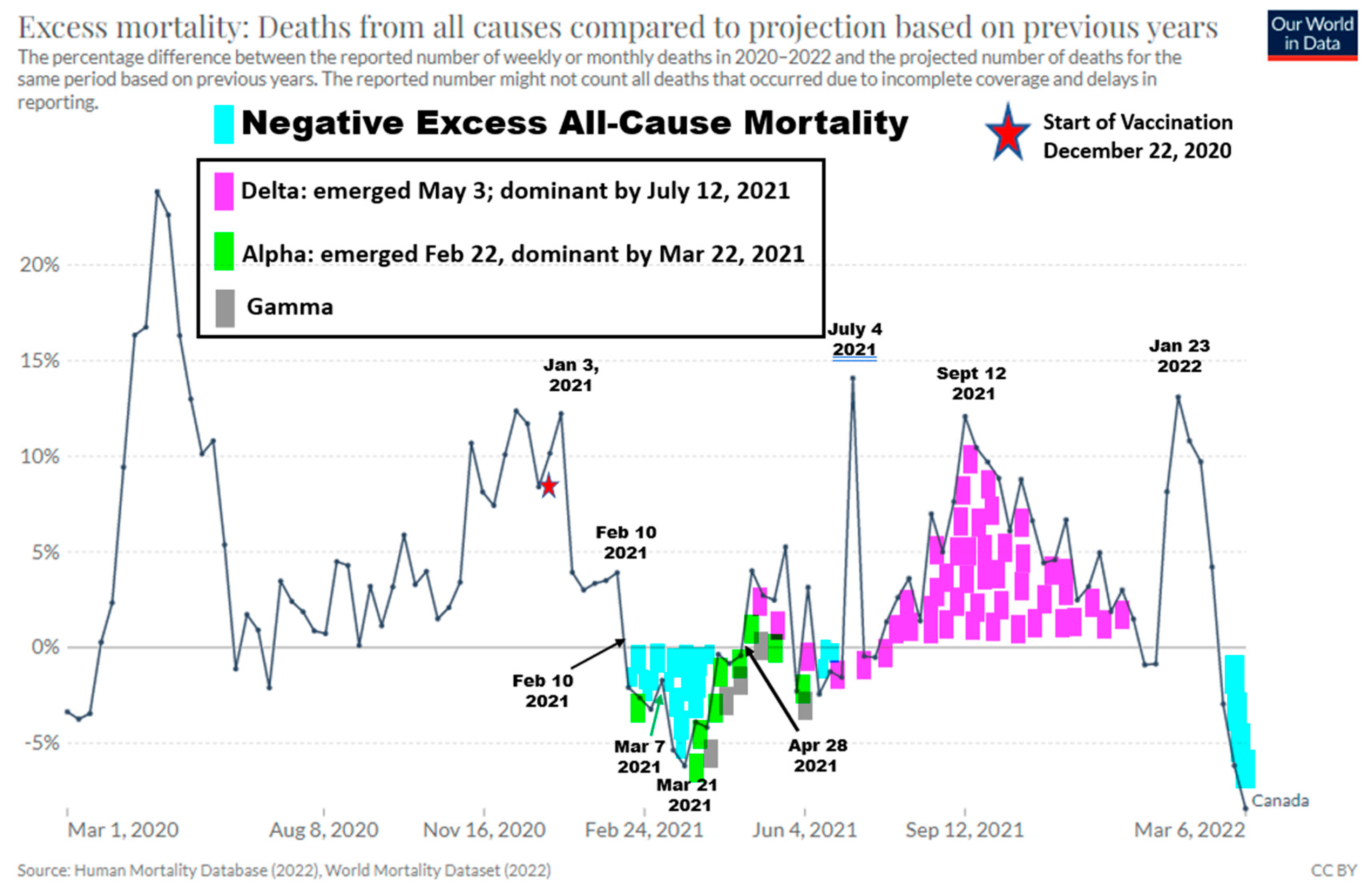

In Canada, the selection of variants (initial emergence or when the variant became dominant) was observed [51] either: a) when the percentage of the eligible population who received two doses over those who had only received one dose exceeded 0.5 (Table 1) or b) when the negative excess all-cause mortality (heterologous protection against all-cause mortality comparing 2021 to the average for 2015 to 2019) reversed direction and started to trend positive (Figure 1). In either case these parameters are alternative ways of looking at the relative impact of the induction of dangerous spike specific IgG1/3 by the second dose relative to the heterologous protection by trained innate immunity of the first dose. Both sets of parameters examine and reflect ADE. As detailed elsewhere [51], and reproduced here by the author, when the second dose to first dose ratio exceeded 0.5, this was associated with the initial emergence of the alpha variant and was also associated with the dominance of the delta variant (Table 1.). Conversely, when the negative excess all-cause mortality reversed direction (ie., the heterologous protection of trained innate immunity against mortality became less, Figure 1) this correlated with the alpha variant becoming dominant and with the initial emergence of the delta variant.

Table 1. The two over one dose ratios for COVID-19 vaccination in Canada: December 22, 2020 to August 1, 2021 (from Our World in Data [49]).

DATE	% At Least One Dose	% Two Doses	% One Dose	Two / One RATIO	EVENTS	NOTES
22-Dec	0.071	None	0.071	N/A
29-Dec	0.19	None	0.19	N/A
03-Jan	0.3	None	0.30	N/A		EACM Decreases
10-Jan	0.84	0.1	0.74	0.135
17-Jan	1.5	0.6	0.9	0.667		EACM temporarily flattened
24-Jan	2.03	0.15	1.88	0.080
31-Jan	2.3	0.3	2	0.150
07-Feb	2.4	0.47	1.93	0.244
08-Feb	2.4	0.5	1.9	0.263
10-Feb	2.5	0.6	1.9	0.316		Enters Neg EACM
14-Feb	2.59	0.81	1.78	0.455
21-Feb	2.9	1.1	1.8	0.611
22-Feb	3	1.2	1.8	0.667	Alpha Emerges
25-Feb	3.2	1.3	1.9	0.684
26-Feb	3.4	1.4	2	0.700
27-Feb	3.5	1.4	2.1	0.667	NACI Intervention around Feb 27
28-Feb	3.63	1.41	2.22	0.635
07-Mar	4.85	1.52	3.33	0.456		Uptick in Neg EACM
08-Mar	5.1	1.6	3.5	0.457
11-Mar	5.67	1.59	4.08	0.390
14-Mar	6.5	1.6	4.9	0.327
15-Mar	6.8	1.6	5.2	0.308
21-Mar	8.83	1.7	7.13	0.238		Lowest Neg EACM (Nadir)
22-Mar	9.2	1.7	7.5	0.227	Alpha Dominates
28-Mar	11.81	1.81	10	0.181		Uptick in Neg EACM
04-Apr	15.07	1.92	13.15	0.146
11-Apr	19.04	2.19	16.85	0.130		Uptick in Neg EACM
18-Apr	24	2.5	21.5	0.116
19-Apr	25	2.5	22.5	0.111
25-Apr	29.18	2.75	26.43	0.104
26-Apr	30	2.8	27.2	0.103
28-Apr	31	2.9	28.1	0.103		Exit Neg EACM
02-May	33.58	3.05	30.53	0.100	Delta Emerges
03-May	34	3.1	30.9	0.100
09-May	39	3.4	35.6	0.096
16-May	45	3.8	41.2	0.092
17-May	46	3.9	42.1	0.093	Max Alpha at 59%
23-May	51	4.05	46.95	0.086
30-May	56.69	5.45	51.24	0.106
02-Jun	58.8	6.11	52.69	0.116
11-Jun	63.87	10.82	53.05	0.204
14-Jun	64.86	13.11	51.75	0.253
20-Jun	66.29	18.85	47.44	0.397
26-Jun	67.38	26.47	40.91	0.647
04-Jul	68.31	35.02	33.29	1.052		50% of the Eligible Receive 2nd Dose
12-Jul	69.27	44.33	24.94	1.777	Delta Dominant
19-Jul	69.99	50.61	19.38	2.611		50% Fully Vaccinated
25-Jul	71	55	16	3.438
01-Aug	71	59	12	4.917

NACI = National Advisory Committee on Immunization (Canada). EACM=Excess All-Cause Mortality. Neg= negative N/A=not applicable. Max Alpha at 59% means the maximal portion of the sequenced variants was recorded at 59 percent. Note. All of the data provided [49] is freely available for both academic and commercial use under Creative Commons Attribution 4.0 (CC‐BY 4.0) licence terms.

Table 1. The two over one dose ratios for COVID-19 vaccination in Canada: December 22, 2020 to August 1, 2021 (from Our World in Data [49]).

DATE	% At Least One Dose	% Two Doses	% One Dose	Two / One RATIO	EVENTS	NOTES
22-Dec	0.071	None	0.071	N/A
29-Dec	0.19	None	0.19	N/A
03-Jan	0.3	None	0.30	N/A		EACM Decreases
10-Jan	0.84	0.1	0.74	0.135
17-Jan	1.5	0.6	0.9	0.667		EACM temporarily flattened
24-Jan	2.03	0.15	1.88	0.080
31-Jan	2.3	0.3	2	0.150
07-Feb	2.4	0.47	1.93	0.244
08-Feb	2.4	0.5	1.9	0.263
10-Feb	2.5	0.6	1.9	0.316		Enters Neg EACM
14-Feb	2.59	0.81	1.78	0.455
21-Feb	2.9	1.1	1.8	0.611
22-Feb	3	1.2	1.8	0.667	Alpha Emerges
25-Feb	3.2	1.3	1.9	0.684
26-Feb	3.4	1.4	2	0.700
27-Feb	3.5	1.4	2.1	0.667	NACI Intervention around Feb 27
28-Feb	3.63	1.41	2.22	0.635
07-Mar	4.85	1.52	3.33	0.456		Uptick in Neg EACM
08-Mar	5.1	1.6	3.5	0.457
11-Mar	5.67	1.59	4.08	0.390
14-Mar	6.5	1.6	4.9	0.327
15-Mar	6.8	1.6	5.2	0.308
21-Mar	8.83	1.7	7.13	0.238		Lowest Neg EACM (Nadir)
22-Mar	9.2	1.7	7.5	0.227	Alpha Dominates
28-Mar	11.81	1.81	10	0.181		Uptick in Neg EACM
04-Apr	15.07	1.92	13.15	0.146
11-Apr	19.04	2.19	16.85	0.130		Uptick in Neg EACM
18-Apr	24	2.5	21.5	0.116
19-Apr	25	2.5	22.5	0.111
25-Apr	29.18	2.75	26.43	0.104
26-Apr	30	2.8	27.2	0.103
28-Apr	31	2.9	28.1	0.103		Exit Neg EACM
02-May	33.58	3.05	30.53	0.100	Delta Emerges
03-May	34	3.1	30.9	0.100
09-May	39	3.4	35.6	0.096
16-May	45	3.8	41.2	0.092
17-May	46	3.9	42.1	0.093	Max Alpha at 59%
23-May	51	4.05	46.95	0.086
30-May	56.69	5.45	51.24	0.106
02-Jun	58.8	6.11	52.69	0.116
11-Jun	63.87	10.82	53.05	0.204
14-Jun	64.86	13.11	51.75	0.253
20-Jun	66.29	18.85	47.44	0.397
26-Jun	67.38	26.47	40.91	0.647
04-Jul	68.31	35.02	33.29	1.052		50% of the Eligible Receive 2nd Dose
12-Jul	69.27	44.33	24.94	1.777	Delta Dominant
19-Jul	69.99	50.61	19.38	2.611		50% Fully Vaccinated
25-Jul	71	55	16	3.438
01-Aug	71	59	12	4.917

NACI = National Advisory Committee on Immunization (Canada). EACM=Excess All-Cause Mortality. Neg= negative N/A=not applicable. Max Alpha at 59% means the maximal portion of the sequenced variants was recorded at 59 percent. Note. All of the data provided [49] is freely available for both academic and commercial use under Creative Commons Attribution 4.0 (CC‐BY 4.0) licence terms.

Accordingly, these tight correlations indicate a high likelihood that the COVID-19 vaccines through ADE mechanisms were causally related to selection of the alpha and delta variants. In further substantiation of this notion, the global selection of immune escape variants did not appreciably occur until the COVID-19 vaccines were introduced [49]. For clarification, the initial emergence of the alpha variant which occurred by December 2020 in the UK could have reflected that over 600,000 UK residents had taken part in vaccine clinical trials. Presumably the use of neutralizing monoclonal antibodies to spike protein and/or use of convalescent plasma may have also contributed to the earlier emergence of the alpha variant in the UK. Conversely, Canada did not participate in mRNA vaccine clinical trials. This enabled an assessment of both the emergence of the alpha and delta variants associated with mass immunization.

There is additional published data supporting the above conclusions that the COVID-19 vaccines were likely causally related to the selection of variants. SARS-CoV-2 variants sequenced from the two-dose vaccinated when compared with the unvaccinated had significantly higher percentages of immune escape variants as well as variants associated with higher infectivity [53]. In a separate report, boosted innate immunity (the first 6 days after the second dose) showed 100% vaccine effectiveness (VE) from April 2021 to August 2021 while during the same period the VE for adaptive immunity (7 days or longer after the second dose) declined from 78 % to 48% as determined in a large integrated health system in the USA [[54]: see their Supplemental Table 5c]. The latter findings are consistent with the notion that the neutralizing antibodies of innate immunity can provide sterilizing or lasting herd immunity against SARS-CoV-2, whereas adaptive immunity neutralizing antibodies cannot. In other words, as expected due to ADE, adaptive immunity vaccines particularly producing IgG1 and IgG3 antibodies to spike protein are not very useful and likely harmful to control a pandemic.

1.4. Vaccination Increased SARS-CoV-2 Symptomatic Infection Rates in the UK Putatively by ADE

In the UK most COVID-19 vaccines administered were the Pfizer-BioNTech mRNA COVID-19 vaccines. UK data consistent with the increased risk of symptomatic infection in the two dose COVID-19 vaccinated over the unvaccinated (unadjusted rates per 100,000) were first revealed in the 40 + age group [55]. This correlated with the onset of the dominance of the delta variant starting with the September 9, 2021, Week 36 Report (reporting for the previous 4-week interval) released by Public Health England. It should be noted that the UK authorities did not release informative data concerning these risks prior to September 9, 2021 [55].

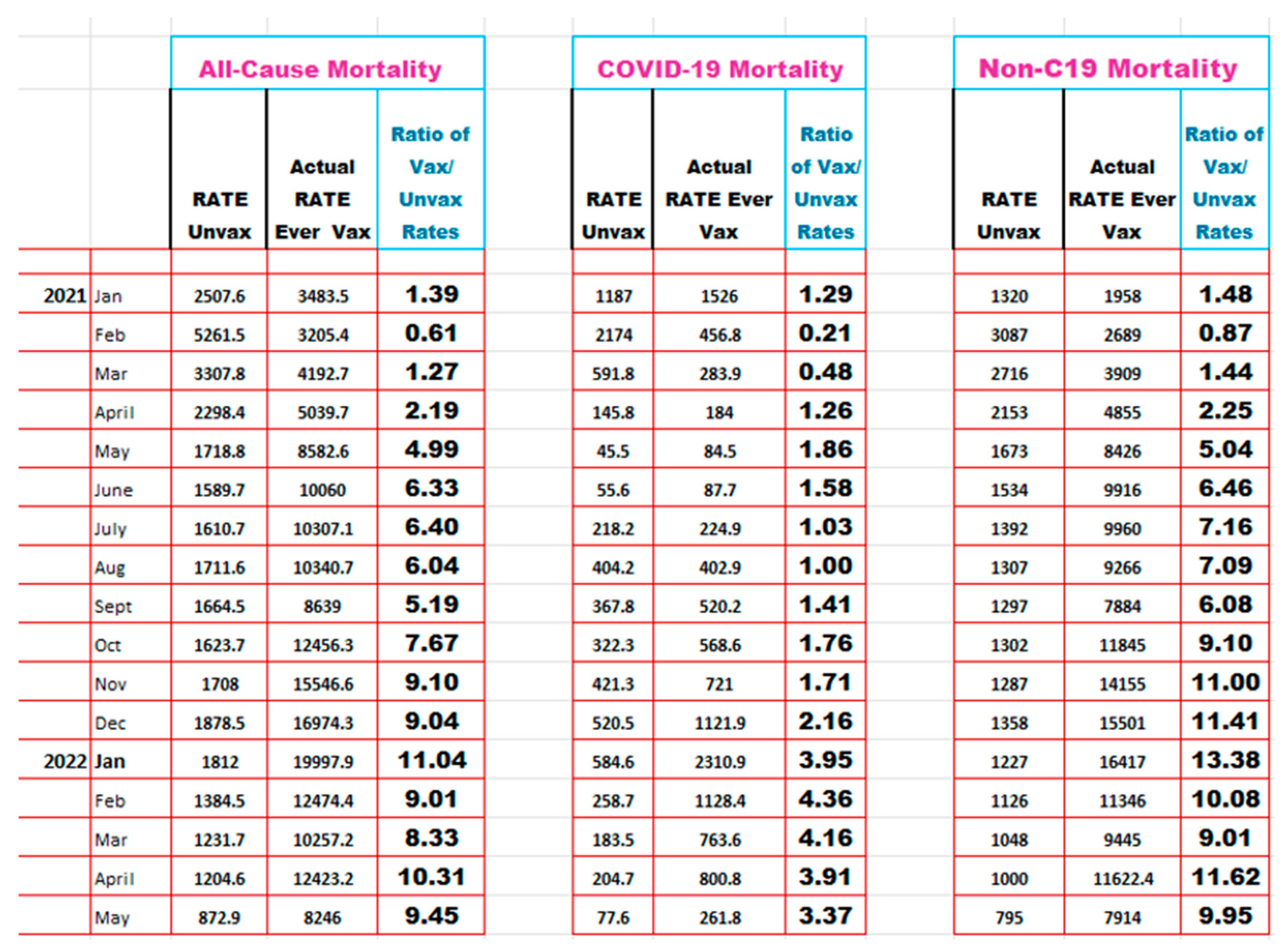

Over time these weekly vaccine surveillance reports [55] indicated that as the vaccines were rolled out to younger and younger age groups the increased risk of infection in the fully vaccinated (per 100,000) over unvaccinated affected younger and younger age groups, showing a cause-and-effect trend. For example, by week 41, reported on October 14, 2021, the fully vaccinated 30 + were additionally at increased risk. By week 50 reported on December 16, 2021, the 18+ age groups were at increased risks. This is consistent with ADE in the URT enhancing symptomatic infections in the vaccinated over the unvaccinated.

Vaccination which increases the risks of symptomatic infection particularly in the younger age groups who are generally at very low or insignificant risk (when compared to those over 65) clearly is the opposite goal of the intended public health measure of mass vaccination. This dilemma was predictable based on the known characteristics of ADE and the multitude of reports that universally showed the IgG antibodies to spike protein correlated with COVID-19 disease progression [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30] especially when they emerged prior to the clearance of SARS-CoV-2 [35,36,37,38,39,40,42] by innate immunity [41].

However due to extreme transmissibility of the omicron SARS-COV-2 variants witnessed in January 2022 and after where the results of home testing were not reported to government authorities, the UKHSA reports on infection risk of the vaccinated over the unvaccinated ceased after the end of March 2022. By the last report on March 24, 2022, [56] the risk of symptomatic infection in the vaccinated over the unvaccinated (unadjusted rates per 100,000) had reached 4.0- fold in the 30-39 age group which indicated the increased risks of infection related to vaccination were not trivial (Figure 2). As a rule of thumb in medical science, anything over 1.20-fold could be clinically significant.

In the USA, Shrestha et al demonstrated that increasing doses of the COVID-19 shots were associated with an increasing risk of COVID-19 symptomatic infection in health care workers at the Cleveland Clinic [57], in agreement with and as an extension of the UK government findings. Although it has been reported that there is an isotype switch following the third COVID-19 vaccine dose where the IgG1/3 antibodies in the blood to the spike protein are converted to largely IgG4 [58] which does not contribute to ADE, clearly this does not occur in the URT where risk of infection/transmission continues to escalate at 3 or more doses (Figure 2). Note by March 2022 most of the UK ever vaccinated had already received the third dose by December 2021 [49].

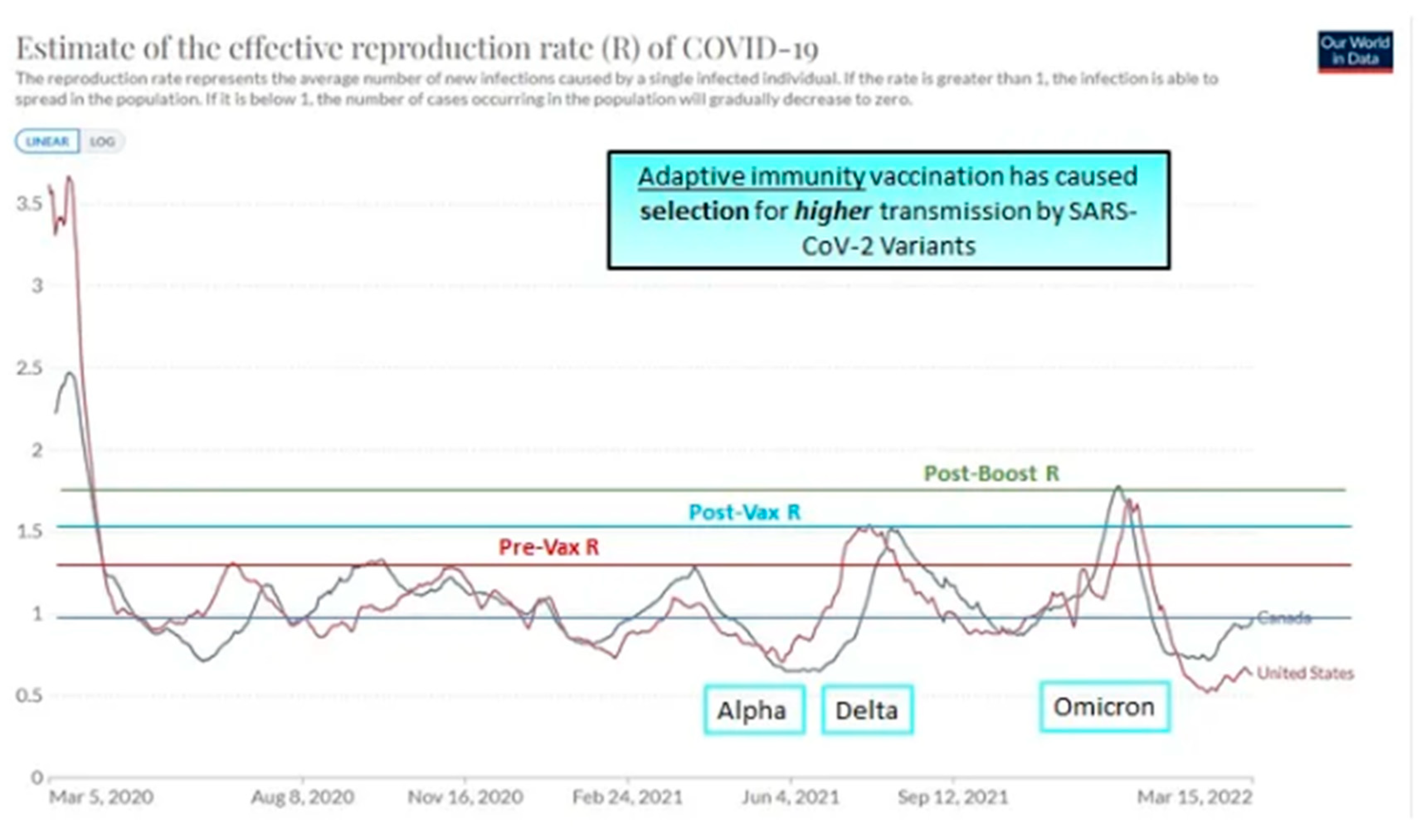

Indeed, as captured by ‘Our World in Data’ [49] the population of Canada and the United States as a whole, exhibited an increase in the reproductive rate (transmission reproductive rate) associated with the second and more so, the third dose associated also with the selection of variants (Figure 3). These findings corroborate the notion that the problem of ADE with the adaptive immunity spike vaccines leading to the selection of variants and higher infectivity was in fact, experienced globally.

1.5. From First Principles Adaptive Immunity is Not Able to Control Emerging Pathogens or Pandemics

Adaptive immunity antibodies particularly to spike protein would serve to prolong the pandemic by introducing new waves and making the newer selected variants more transmissible and more infectious. In addition, there are other fundamental reasons as to why adaptive immunity mechanisms are not well suited to handling pandemics or emerging pathogens. The adaptive response to a pathogen never seen before requires at least 14 to 21 days before levels of IgG antibody peak in most individuals [41]. Many pathogens can kill the host before the adaptive system ramps up. For SARS-CoV-2 the time to death was commonly pegged at 10 days [59]. Thus, from first principles, it is clear innate immunity which is the first line of defense, would and does play a pivotal role in COVID-19 disease outcomes, but adaptive immunity cannot and in fact may jeopardize the critical innate immunity via ADE.

Accordingly, adaptive immunity vaccines such as the COVID-19 vaccines were intrinsically doomed to worsen rather than improve outcomes both at the individual and population level. This is because of the problem of ADE, which would increase transmissibility and lengthen the duration of the pandemic. As mentioned, the well anticipated problems of ADE were ignored and remarkably ‘swept under the rug’ [15] by public health and regulatory agencies around the world.

The ADE of SARS-CoV-2 in the URT, involved classical FCGR2A expression in macrophages which were labelled as the interferon responsive macrophages [60]. None of the 5 types of macrophages in the URT nasopharyngeal swab samples expressed ACE2 nor TMPRSS2 indicating entry of SARS-CoV-2 into macrophages most likely related to ADE. Many groups have indicated that macrophages in the lungs of severe COVID-19 patients but not those with mild or moderate disease are infected with SARS-CoV-2 where again ACE2 and/or TMPRSS2 are not expressed [61,62,63,64,65,66]. This corroborates the notion of SARS-CoV-2 entry into macrophages by ADE causing disease progression. In a very comprehensive study Ren et al [61] uncovered in the lower respiratory tract (LRT), a novel type of ADE involving a switch from the ACE2: spike interaction to basigin (BSG): spike. This focused the infections on the macrophages and other immune cells and away from lung epithelial cells. In the URT, macrophages which were judged to be sebocytes (specialized lipid body negative foamy macrophages) lost expression of BSG upon their activation and as mentioned appeared to instead use the classical FCGR2A for ADE mediated entry of SARS-CoV-2 [60]. Thus, there are two types of ADE associated with SARS-CoV-2 infection, classical in the URT and a novel switch type in the LRT involving BSG.

1.6. Aims of the Review

Given the importance of ADE as an impediment to the development of safe and effective vaccines against emerging and pandemic viruses including SARS-CoV-2, it is important to understand what is so special about the M1-like, proinflammatory foamy macrophages and to elucidate how they generate a potent virus-anti-virus (heterologous) response. Human endogenous retrovirus K102 (HERV-K102) replication produces particles in M1-like macrophages and generates a foamy appearance when the particles bud into vacuoles (Figure 4) [10,11,67]. We were first to suggest HERV-K102 is a replication competent live virus both in vitro and in vivo [10,67] and provided evidence that its replication may protect against HIV-1 acquisition ie., generates sterilizing immunity [10,67]. Other virologists have also unwittingly isolated HERV-K HML-2 DNA containing particles at the same low levels and frequencies from HIV-1 infected patients [68] in direct support of our findings as discussed elsewhere [11]. The goals of the present paper is to ask what host innate immunity mechanisms are abrogated by ADE infection into macrophages and why does this cause and determine progression to more severe disease. Answers to these questions are relevant to all-cause mortality and thus human survival and so, are needed for preparation for future pandemics.

2. The HERV-K102 Protection System of Pro-inflammatory M1-like Foamy Macrophages

2.1. HERV-K102 is a Type 1 HERV-K HML-2 Group Member

HERV-K102 also named ERVK-7, is a member of the HERV-K (HML-2) group consisting of about 91 full length human endogenous retroviruses in the human genome [70]. HML-2 represents the most biologically active and most recently acquired of the 10 HERV-K groups in humans [71]. The letter K refers to the use of lysine-transfer RNA used to prime reverse transcription.

In the HML-2 group, there are two types of HML-2, those with (type 2) and without (type 1) a 292 nucleotide base pair region between the polymerase gene (pol) and envelope (env) genes [71]. The significance of this difference is yet to be determined. This sequence encodes Rec protein which results from an alternatively spliced transcript and is analogous to the Rev protein in HIV-1 and the Rex protein in HTLV used for encapsidation of proviral genomes in their particles [71]. HERV-K102 is a type 1 and lacks this region. The absence of Rec such as in HERV-K102 has led to the false notion that it is unlikely to be replication competent and thus has been largely ignored by virologists. However, the unconventional and non-pathogenic (foamy) spumaretroviruses also lack this domain yet remain fully replication competent [72]. Remarkably HERV-K102 has been shown to be replication competent in in vitro [10] and in vivo [11,67]. As might be anticipated, HERV-K102 fortunately exhibits all the hallmarks of the non-pathogenic category of retroviruses namely the spumaretroviruses [10,67]. Moreover, its replication has been associated with protection against HIV-1 acquisition in an HIV-1 exposed seronegative (HESN) cohort (Figure 5) [10] cementing the notion that HERV-K102 replication is not pathogenic but protective.

2.2. HERV-K102 as the Elusive Foamy Retrovirus of Humans

Spumaretroviruses, commonly referred to as foamy viruses, are complex retroviruses belonging to the subfamily Spumaretrovirinae in the family Retroviridae. Foamy viruses are unconventional non-pathogenic retroviruses belonging to the oldest of virus phylogenies estimated at 400 million years old [72,73]. Simian foamy retroviruses have been co-evolving with their primate hosts for over 60 million years [74] implying they provide major benefits to the host. While foamy viruses have been described in many species examined, until the documentation that replication competent HERV-K102 had all the hallmarks of foamy viruses [10], the foamy virus of humans had remained elusive. In other words, our research group was the first to identify that humans indeed have a protector foamy virus, namely HERV-K102 encoded on chromosome 1, at 1q22.

It should be clarified that in the literature there has been reference to a human foamy virus (HFV) which was isolated from a human nasopharyngeal cell line. However, this virus originated in chimpanzees and when this was discovered it was therefore renamed Prototype Foamy Virus (PFV) as by this time it had been well characterized [72,73].

As mentioned, HERV-K102 has all the salient features of foamy viruses as exemplified by comparison with PFV [see extensive list in Supplemental Materials in reference [10]]. First and foremost, when the virus replicates in macrophages (Figure 4) particles accumulate in vacuoles giving the cells a foamy cell appearance which is the primary tell-tale sign of foamy viruses [72]. Another telltale sign of foamy viruses is that their genomes begin with “tgtg” which relates to how the genomes integrate into genomic DNA. Another distinguishing feature of foamy viruses is that the genomes are cDNA [75] which has been clearly demonstrated for HERV-K102 [67]. Rather than reverse transcribing upon entry into cells as is known for orthoretroviruses (the pathogenic retroviruses), instead foamy viruses reverse transcribe upon exit from cells [72,73,75] and so have a reverse life cycle to the orthoretroviruses. This could provide foamy viruses with a replication advantage over the orthoretroviruses which would be important for protecting the host. In addition, PFV is capable of multiple integrations in myeloid cells up to 20-fold [76] and multiple integrations into genomic DNA have also been demonstrated for HERV-K102 in vivo (Figure 5)[10] and in vitro (unpublished observations).

Somewhat unexpectantly, and despite their non-pathogenic nature, foamy viruses such as PFV can undergo cytopathic infections in some fibroblast cell lines but not others [72,73]. This was also demonstrated for HERV-K102 particles (Figure 6). In fact, it turns out PFV is oncolytic meaning it causes cell lysis when it replicates in tumor cells [77] while it merely integrates in normal cells. PFV infection also induces cell death in HIV-1 and HTLV infected cells [78] implying foamy retroviruses may help provide immune surveillance against cancers as well as virally infected cells. Along these lines, it has been suggested that foamy viruses seem to have a peculiar relationship with or companionship with lentiviruses particularly in primates [72,73]. Thus, as suspected, foamy retroviruses do perform an important role defending the host, which may help explain its co-evolution with the host [74]. However, it remains to be directly demonstrated if in fact HERV-K102 particles are oncolytic or induce lysis in virus infected cells.

The cell attachment receptor for PFV has been identified as heparan sulphate [80] which is the same for HERV-K HML-2 [81] and which is widely expressed on cells. This explains the broad spectrum of permissive cells for foamy viruses and is consistent with their potentially protective nature broadly against viral infections and tumors.

2.3. Sebocytes of Sebaceous Glands Lining the Mucosa Were Discovered to Produce HERV-K102 Particles

Another fascinating aspect of foamy viruses is that when they transmit to a new host, they replicate solely in the non-proliferating sebocytes of sebaceous glands and thus are deposited to the exterior mucosa causing no harm to the host [73]. An examination of hematoxylin and eosin-stained sections of sebaceous glands (Figure 7) [82] reveals sebocytes have the exact same morphology as the M1-like foamy macrophages producing the HERV-K102 particles (Figure 4). A search of the expressed genes of sebocytes as available through GEO Profiles [83] revealed both in vitro [84] and in vivo [85] sebocytes are positive for the major antigens of M1-like foamy macrophages [86,87,88] including: CD14, CD16, CD68, CD163, WDR74, TNFSF10; for myeloid specific enhancers SPI1 and CEBPB [88] which are also trained innate immunity enhancers [89,90]; for genes involved in foam cell formation (NR1H3, LDLR, SQLE, EGFR, HIF1A, BSG, SREBF1/2, PPARG, CD36) which are also implicated in the induction of trained innate immunity [90,91,92,93,94,95,96]; for genes involved in the expression of HERV-K102 full length proviral genomes (IRF1, NFKB1, VDR, IFNGR1/2, NR3C1 +/-MIF) [97,98,99], and genes associated with a novel day 6-7 apoptosis mechanism triggered in the cytoplasm (DNASE2, LAMP1, LCN2 and MX1) [92,100]. Not only do macrophages that are M1 polarized express high levels of HERV-K102 proviral transcripts [99] but ERVK-7 (HERV-K102) was constitutively expressed in sebocytes [84]. Thus, sebocytes are in fact programmed and phenotypically the same as M1-like foamy macrophages, and they respond the same way as macrophages do both in vitro [101] and in vivo [60], except they constitutively express and release HERV-K102 particles. There is no doubt that sebocytes are specialized M1-like foamy macrophages that line the mucosa. This discovery makes it very plausible that the HERV-K102 protector system is in fact the first line of defense against infectious agents anticipating them in the mucosa and so, is critical to infectious disease outcomes.

2.4. The Origins of HERV-K102 Also Provides a Major Clue to Its Purpose

Accumulating phylogenetic evidence is consistent with a potential role of HERV-K HML-2 in limiting invasion of the human genome by orthoretroviruses [102]. Ancestral HML-2 elements emerged about 10.3 million years ago (Mya) [102]. There has been a striking decline of insertions of ERVs in the last 10 million years (My) in the genomes of all sequenced hominids (great apes and gibbons), but not in old world monkeys (baboons and macaques), particularly regarding HERV-H [102]. HERV-H makes up 88% of all the ERV integrations into the human genome in the last 30 My and became extinct over the past 10 My. HERV-H is a gamma retrovirus, which integrated around 45 to 60 Mya and has about 962 copies in the human genome [103]. HERV-K, with 10 groups in the clade, only one of which is HML-2, on the other hand, entered the genome of ancestral catarrhines about 32 to 44 Mya, after the split from New World monkeys and before the split of hominids from the Old-World monkeys [104]. The sister lineages of HERV-K in most other catarrhines appear to have become extinct. Most remarkably, the HERV-K HML-2 group in humans is the only HERV-K that has continued to replicate since the origin of the catarrhines [102]. HERV-K102 is a member of the bioactive HERV-K HML-2 group and as mentioned appears to be the only known replication competent member both in vitro and in vivo [10,67]. Accordingly, since phylogenetic evidence supports an association of HERV-K HML-2 activity with protection against integration of orthoretroviruses, this substantiates the notion that modern day HERV-K102 particles, along with expression of proteins/transcripts from other HML-2 elements, might help prevent HIV-1 acquisition and provide sterilizing immunity (Figure 5).

2.4.1. On the Curious Origins of HERV-K102 in Humans

Somewhat ironically, humans apparently acquired the HERV-K102 defense mechanism from the same source of the modern HIV-1 pandemic strain; namely, chimpanzees [105], possibly between 500,000 and up to 2 Mya [70,106]. The Homo-Pan split has been estimated at 6.6 Mya [104] or earlier at 7-8 Mya [106].

As mentioned, the HERV-K HML-2 elements originated in primates about 10.3 Mya and the CERV-K102 sequence (DQ112149), which is 97% identical to HERV-K102, was estimated to have integrated into chimpanzees at a non-orthologous position about 10 (+/- 3.3) Mya [105].

Lentiviruses like HIV-1 may have been active in primates since the divergence of chimpanzees and humans [107,108]. Moreover, it has been suggested the ancestor to HIV-1 may have arisen in chimpanzees about 4 Mya [109]. Since it has been reported that subsets of chimpanzees with chronic HIV-1 infection showed progression analogous to humans, including greater expression of CD38 in CD8+ HLA-DR+ T cells [110], this raises the notion that an HERV-K102 ancestor, as a potential antidote for HIV-1 infection may have been selected through evolution in chimpanzees before it was acquired by humans. The genus Homo arose about 2 Mya [111]. Accordingly, it is possible over about a 2-million-year window or longer, the HERV-K102 ancestor may have adapted to an HIV-1 like ancestor lentivirus(es) in chimpanzees prior to its acquisition by humans. Indeed, there is genetic evidence from a 5 amino acid deletion fixed in a human orthologue of tetherin, that humans may have been afflicted by a lentivirus presence long before HIV-1, perhaps about 800,000 years ago, which may have caused changes in innate immune genes in humans [112]. Thus, the phylogenetic evidence raises the notion that HERV-K102 as a replication competent HERV-K HML-2 foamy retrovirus, may have evolved specific mechanisms to limit HIV/lentivirus replication and genome invasion in chimpanzees before being acquired in humans. Indeed, a high level of segmental duplication related to telomere like repeats, particularly at 1q21 to 1q22 in the human genome (ie., HERV-K102 is located at 1q22) have been shown to be a causative factor in primate genome evolution [113]. This finding may further substantiate the role of HERV-K102 as being critical to hominin and Homo sapiens’ survival and thus evolution.

Neanderthals and Denisovans appear to have lost HERV-K102 at the orthologous chromosome position at 1q22 (Figure 8) and both went extinct. As mentioned, the Homo species which includes Neanderthals and Denisovans, arose about 2 million years ago [111]. The divergence of Neanderthal from anatomically modern humans (AHM) had been estimated at 550 to 760 thousand years before present (TYBP) but the mitochondrial DNA assessment suggests divergence only occurred around 400 TYBP [114]. Also, from sequencing of the Y chromosome, Denisovans split about 700 TYBP from AMH, and Neanderthal from AMH around 370 TYBP [115] implying first the divergence of Denisovans and then Neanderthals. That the Neanderthal genome contains a few more nucleotides surrounding the deleted HERV-K102 at 1q22 than the Denisovans (Figure 8) may or may not be consistent with Denisovans separating earlier from AMH while Neanderthal split later.

It should be noted that the earliest modern human remains in Europe so far discovered was about 45,000 years ago [116]. Thus, at the time of HERV-K102 acquisition the common ancestor would have resided in Africa, and this makes it plausible that HERV-K102 may have been acquired from chimpanzees known to live in Africa but not Europe. The finding by Compton et al. [112] referenced above implicates an exposure to chimpanzee lentiviruses around the same time, consistent with co-mingling of humans and chimpanzees at that time that HERV-K102 crossed over and into humans. Whether lentivirus played a role in the loss of HERV-K102 in the extinct hominins and/or in their extinction remains to be determined.

Nevertheless, RNA virus epidemics likely played some role in the demise of the extinct hominins as adaptively introgressed Neanderthal genes in humans frequently feature innate immunity genes against RNA viruses [117] or immune pathways against pathogens [118]. As well, innate immune reactions with pathogens affected human evolution between 0.6 and 2 Mya [111]. Consistent with a notion of a superior innate defense system of humans versus other interacting hominins was the finding of successful admixture between humans and Neanderthals but only when the female was human. This was deduced by showing mitochondrial DNA carried from the egg (ie., female) in humans contained no introgressed Neanderthal genes [119]. However, it should be appreciated that there may have been other reasons for this one-way admixture aside from innate immunity. Nevertheless, it is tempting to speculate that at least in part, the HERV-K102 protection system may have contributed to the survival of Homo sapiens over Neanderthals given the known selection pressure from RNA viral epidemics at the time of admixture.

In summary, the phylogenetic history suggests HERV-K102 may have first co-evolved in chimpanzees to protect against lentiviruses prior to being acquired by the Homo species. The remarkable observation that HERV-K102 replication was associated with sterilizing immunity to HIV-1 in the HIV-1 exposed seronegative sex trade workers (HESN) which manifested as protection against HIV-1 acquisition (Figure 5) [10] becomes much more plausible and thus, credible.

2.5. Evidence for a Role of HERV-K HML-2 Activation in Innate Immunity

The HERV-K HML-2 group was discovered by hybridizing the cloned region of the reverse transcriptase of the Syrian hamster intracisternal A particles against a human cDNA genomic library [120]. Not long after, Lower et al, described the detection of antibodies to HERV-K HML-2 envelope (Env) in 45 % of patients with testicular cancers, 26 % of patients with lymphomas, 70 % of HIV-1 patients, and 38 % of pregnant women but in only 3% of normal healthy blood donors [121]. Since the antibodies that were found in 60 % of patients with germ cell tumors disappeared upon resection [122], these early observations were first to imply HERV-K HML-2 activity likely contributed to innate immune surveillance against tumors and pathogens. As a potential follow-up to antibodies to HERV-K HML-2 Env associated with pregnancy, HERV-K particles were subsequently identified as isolated from human placenta [123]. By 2015, Grow et al, discovered HML-2 was reactivated in human preimplantation embryos and pluripotent cells (including particles) to protect against exogenous viral infections [124]. For example, they also demonstrated that the Rec protein of type 2 HML-2 group members was found to induce IFITM1 which guides exogenous viruses into the lysosome for their destruction [124].

As a side note, these findings of the activation of HERV-K HML-2 elements during early days of conception further substantiate the possibility that the HERV-K102 particles likely played a role generating successful progeny when females of the mating admixture between Neanderthals and AMH were of human origin [119].

Presumptive evidence for HERV-K102-like particle production like Figure 4, had been published prior to our discovery. Morgan and Bodsky in 2004 described these immature HERV-K particles which budded into vacuoles in megakaryocytes in patients with essential thrombocytopenia [125]. An unknown virus appeared to be budding from the cell surface of the megakaryocytes suggesting a viral infection may have led to the induction of HERV-K immature particles putatively in the Common Myeloid Progenitor (CMP) that macrophages and megakaryocytes share [12]. Presumably, the release of the particles from the megakaryocytes would have also been through cell apoptosis, and this lysis and loss of megakaryocytes presumably would have resulted in thrombocytopenia.

The electron microscopy images of the megakaryocytes [125] also revealed the cytoplasmic ‘leopard spots’ that congregated around the vacuoles as was shown for HERV-K102 replication in the foamy macrophages (Figure 4, blue arrow in the right bottom image). These aggregates represent the telltale signature of the pre-assembly of Env with the Gag protein outside of vacuoles which is characteristic of non-pathogenic spumaviruses [69]. The pathogenic orthoretroviruses do not require the presence of Env for particle production explaining their proclivity for pseudotyping and their lack of the formation of ‘leopard spots’. On the other hand, foamy retroviruses cannot be pseudotyped [69,72,73].

Our group was first to identify and demonstrate that HERV-K102 particles were commonly and, in many instances, highly induced by viruses in vivo. The levels frequently reached 10¹² particles per ml of plasma although not in HIV-1 infected patients [10,11,67]. It was only more recently that others have confirmed that HERV-K102 full length transcripts are strongly induced upon M1-like polarization of macrophages but not when M2-like polarizing protocols were used [99]. In HIV-1 patients there seemed to be direct antagonism with HERV-K102 replication where on average there may have been only 8,200-8,300 DNA containing particles per ml of plasma and about 70 % of HIV-1 patients scoring positive [11,67,68].

Further data implying a role of HERV-K activation in innate immunity host defenses was the finding of Morozov et al [126] that the transmembrane region of HERV-K HML-2 Env suppressed adaptive immunity reactivity such as the Concanavalin-A T cell proliferative response. Along similar lines we found that PHA and IL-2 added to the IMDM media inhibited foam cell formation in the cultured cord blood mononuclear cells of Figure 4 (unpublished data). Thus, innate immunity downregulates adaptive mechanisms and the converse is also true as would be expected.

Moreover, the HERV-K HML-2 envelope transmembrane region peptides strongly induced proteins related to M1-pro-inflammatory macrophages as assessed in peripheral blood mononuclear cells (PBMCs) [126]. These cytokines and chemokines included IL-1α/β, IL-6, IL-8, CCL2-5, PLAUR, G-CSF, TNFRSF1B and MMP1. Interestingly, the latter is a zinc dependent protease involved in the breakdown of the extracellular matrix, but which interestingly, also binds and inactivates the Tat protein of HIV-1. In addition, by microarray analysis of expressed genes, Morozov et al, demonstrated mRNA of various genes associated with M1-polarization were upregulated while those for M2-polarization [87] were downregulated [126]. An exception was that CXCL10, a chemokine of M1-polarized macrophages was found to be downregulated in the M1 macrophages. Interestingly in the list of down-regulated genes, HS3ST2 a heparan sulfate (glucosamine) 3-O-sulfotransferase 2 was also downregulated potentially implying a reduced entry of HERV-K102 particles in cells that might express HERV-K Env and/or HERV-K102 particles.

2.5.1. The ‘Virus-Antivirus Properties’ Associated with HERV-K HML-2 Activity

The full gamut of how the expression of HERV-K HML-2 RNA and proteins along with HERV-K102 particles may contribute to innate immunity and protect the host in an antigen non-specific manner has not yet been realized. We have only seen the tip of the iceberg of the novel ‘virus-antivirus responses’ driven by expression of HERV-K HML-2 proteins/transcripts.

The ones that have been identified in addition to those already mentioned include the following: i) the protease of HML-2 may cut exogenous viruses in the wrong places, reducing their infectivity [127], ii) HERV-K18 but not HERV-K102 Env may pseudotype the lentivirus HIV-1 reducing its ability to target and reduce certain cell populations such as CD4 T cells [128], iii) HERV-K HML-2 Gag interferes with HIV-1 Gag again reducing infectivity [129,130], and of primary clinical significance, while many pathogenic viruses including SARS-CoV-2 may block or delay the initial interferon response of the host [131,132], iv) HERV-K102 particles could upon infection of cells and release of their genomes and particle contents into the cytoplasm trigger innate PRRs including the RIG-1/MDA5/MAVS system, and/or the cGAS-STING response [133,134,135] to regain the protective interferon and other anti-viral responses through alternative pathways. This feature of how HERV-K HML-2 endogenous elements may trigger innate PRRs to amplify interferon and other anti-viral responses has been called “viral mimicry”[136].

Additionally, there is some evidence to suggest that HERV-K LTR elements may serve as enhancers for nearby immune response genes [136]. Moreover, it is not likely a coincidence that HERV-K LTR enhancers that bind the transcription factors STAT1 and IRF1 response elements which are induced by gamma interferon (IFN-γ) are located in the vicinity of interferon (type I) stimulated genes (ISGs) [99]. Thus, HERV-K elements may serve to convert the IFN-γ response to the type I innate immunity interferon response [99,136] which may be useful when an adaptive immunity response such as virus-specific antibodies might jeopardize the survival of the host by ADE.

The fact that HERV-K102 is replication competent and can quickly replicate itself reaching 2.55 x 10¹¹ particles per ml of plasma from zero in about 84 hours [11], indicates there can be a massive early induction and release of HERV-K102 to ensure the interferon and other innate antiviral responses prevail. In this regard, there is already evidence that HERV-K102 genomic sequences amplify the cGAS-STING response in COVID-19 patients resulting in mild disease [137].

By examining scRNA sequencing data involving the activation of human macrophages with the TEcount and Telescope software packages Russ et al. [99], were able to determine that with M1 polarization in response to LPS (TLR4) and IFN-γ proinflammatory signaling, HERV-K102 activation comprised the majority of HML-2 transcripts in direct substantiation of our work [10,11,67]. Moreover, the transcription factors Stat 1 and IRF1 critical for HERV-K102 induction by IFN-γ bound to a region called “LTR12F” which resides just upstream of the 5’ LTR of HERV-K102. Genes subsequently induced by HERV-K102 expression in M1 macrophages included via cGAS: IRF1, IRF8, SOCS3, and ICAM1; via ISREs: MX1, ISG15, IFIT1-3, USP18, OAS1-3, OASL, and ISG20; and via cGAS and ISRE: STAT1/2, IRF9, IFITM1, BST2, TAP1, SOCS1, IFI35, HLA-G, ZC3HAV1, AIM2, and TRIM69 [99]. Many of these genes are interferon stimulated genes and confirms the finding of HERV-K102 in amplifying the critical type I interferon response in vivo [136]. Furthermore, in a humanized mouse model of mild COVID-19 disease it was reported that macrophages somehow were able to amplify the interferon response critical to recovery [138].

Russ et al [99] also reported that VDR response elements and the glucocorticoid receptor response elements along with response elements for NFKB1 and IRF-1 are contained within the 5’ LTR of HERV-K102. Others have previously reported the response elements for these and other inflammatory transcription factors in the 5’ LTR of HERV-K102 [97,98].

2.6. The Concept of Innate T and B Cell Responses Against HERV-K102 Envelope

The team of F. Wang-Johanning and G.L. Johanning started their legacy of investigating the expression of HERV-K102 transcripts and proteins in common cancers with reports starting in 2001 [139] in breast cancers and lasting up until 2017. In their seminal report which used northern blots, full length sequences referred to as proviral transcripts and spliced env transcripts were detected in the cancer samples and cell lines. Sequencing of these transcripts revealed type 1 HERV-K102 was strongly induced. Two years later using RT-PCR they published that both type 1 and type 2 HERV-K HML-2 env transcripts were detected in breast cancers and were induced in breast cancer cell lines when treated with estrogen and progesterone [140]. That the 5’ LTR contains response elements for these hormones was known at the time of initial sequencing of HERV-K HML-2 [120].

In 2008 this team published a comprehensive examination of the host immune response to the expression of HERV-K102 Env. About 88% of breast cancer tumors had detectable HERV-K102 Env by immunohistology which was not detected in normal breast tissue [141]. As well about 79% of the breast cancer patients and 5 % of the normal healthy controls displayed IgG antibody to HERV-K102 Env. Furthermore, they investigated T cell responses to HERV-K102 Env surface unit antigens and found T cells proliferated and produced interferon gamma. During in vitro stimulation of PBMCs from breast cancer patients, an M1 like macrophage and a T helper 1 cytokine response were generated. T cell cytotoxic lymphocytes (CTLs) that lysed targets expressing HERV-K protein were found in breast cancer patients but not normal healthy controls [141]. This was the first time that the immunogenicity of HERV-K102 antigens had been investigated for T cell responses.

A most remarkable finding was subsequently reported by Wang-Johanning et al in 2012 [142]. In this report they showed in vitro, a single-chain variable fragment (sc-Fv) monoclonal antibody (MAb that lacked the FC domain) which reacted with HERV-K102 Env surface unit was able to directly trigger apoptosis in the breast cancer cells without the need for complement or accessory cells such as those involved in antibody mediated cytotoxicity. They confirmed that in breast cancer cells, HERV-K102 Env was directly wired to the host cell apoptosis machinery involving CIDEA, TP53, and caspase 3 and caspase 7 pathways [142].

On the heels of the Wang-Johanning et al success, interest in addressing T cell and B cell responses turned to HIV-1 patients. A T cell clone from an HIV-1 elite suppressor (an HIV-1 infected person able to control HIV-1 replication in vivo and maintain near zero levels of HIV-1 in serum without pharmaceutical intervention) recognized a peptide in HML-2 Env that was 100% identical in sequence to HERV-K102. This T cell clone was able to clear human cells infected with various monkey and human orthoretroviruses [143] showing innate T cells provide heterologous (antigen non-specific) protection against cells infected with various viruses. However, this group was not able to identify a linear peptide sequence of HERV-K102 Env surface unit where antibodies from sera from HIV-1 patients were strongly or more commonly reactive over healthy controls [144]. They did discover antibodies to the transmembrane region of HERV-K102 Env albeit of unknown significance.

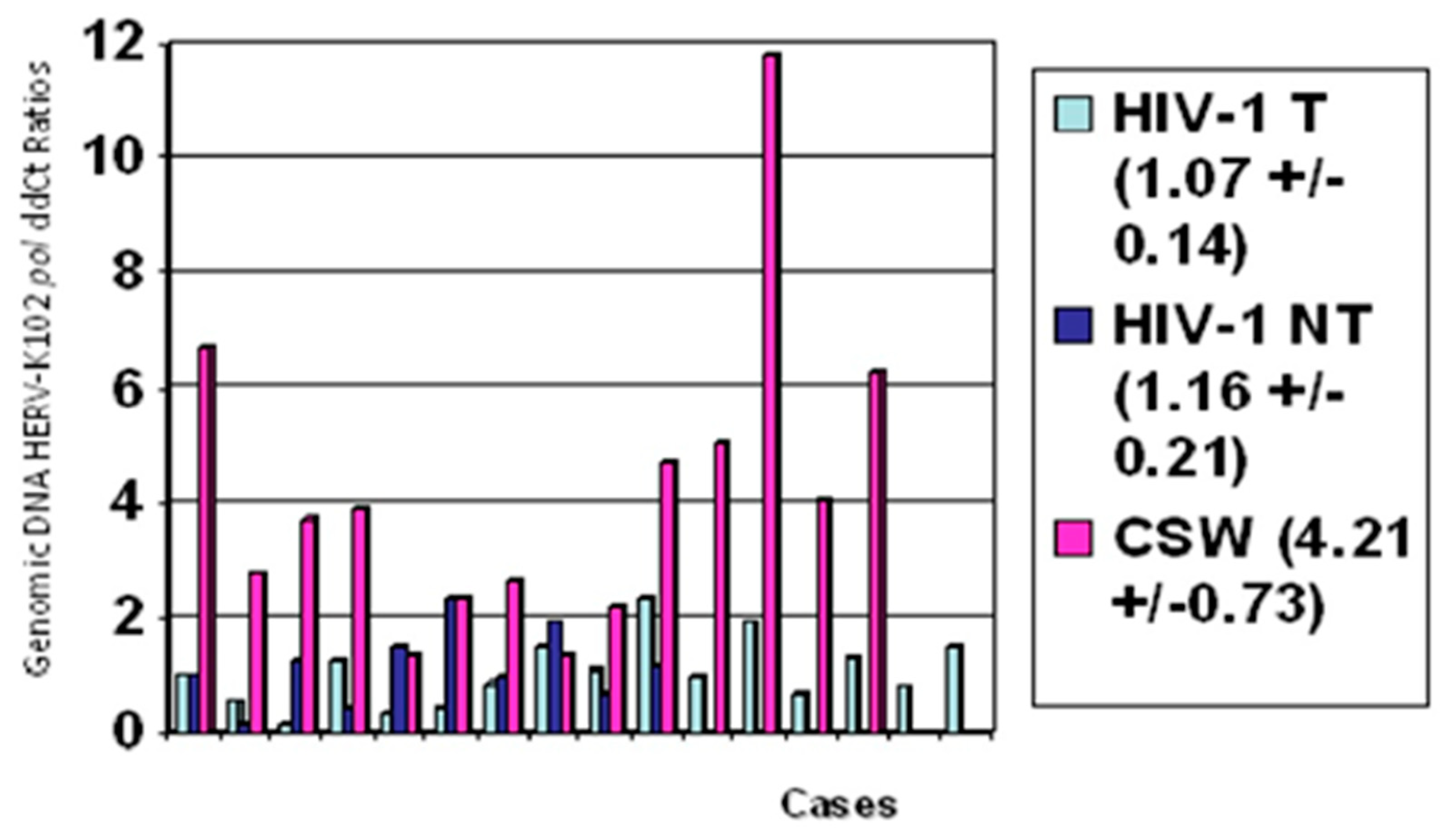

In our hands we were able to determine that HIV-1 patients had significantly higher levels of antibodies to HERV-K102 surface unit peptides ML-4 and ML-5 than those with other viral infections and a higher percentage of positive reactivity (80% and 70% of the HIV-1 patients were positive for their reactivity, respectively) [67]. This was similar to that reported in breast cancers [141]. While only 1/51 healthy normal controls (2%) were judged to be positive by peptide ELISA, these were very weak and only marginally positive reactions.

We had developed a very sensitive real time quantitative PCR HERV-K102 pol ddCt method performed on DNA isolated from plasma that contained an internal probe in pol to validate a true pol amplified fragment signal [67]. Moreover, unlike traditional PCRs because we measured the relative increase in plasma of a HERV-K102 pol signal over genomic equivalents detected with an 18S RNA probe this enabled a built-in validation that the isolation of DNA and PCR methods were working. With this method which was compared with a mean ddCt ratio of 0.88 +/-0.37 for 30 normal healthy controls, it was determined that 28/37 (75.7%) of HIV-1 patients were positive for HERV-K102 particles. However, 96 % of the HIV-1 patients had a positive PCR and/or a positive serological test meaning HERV-K102 activation by these criteria was almost universal [67].

2.6.1. The Concept of SELECT Epitopes Reactive to Innate Antibodies to HERV-K102 Env

The ML-4 and ML-5 peptides had been preselected for their immunogenicity, selectivity for HERV-K102 sequences and their likelihood of being cryptic on the HERV-K102 particles [67]. We were concerned that antibodies to the cell surface HERV-K102 protein (P61567 Env) expressed on the surface of tumor cells or virally infected cells which represents the product of a splice variant [139,140], should not react with HERV-K102 particles. Otherwise, these protector antibodies would be self-defeating.

The particle associated type 1 Env encoded in the proviral transcript (P63135 Pol-Env) contains KRASTE which is absent in the type 2 Env. The ML4 sequence (KRASTEMVTPVTWMDN)[67] included the additional KRASTE leader sequence common to type 1 but not type 2 envelopes. It was possible that the addition of KRASTE could alter the conformation of the ML4 Env peptide on particles for example rendering the MVTPVTWMDN cryptic. The ML5 peptide (LETRDCKPFYTIDLNSS) [67] has a cysteine amino acid in the middle of the peptide sequence meaning depending on the conformation, the antibody binding site might be obscured by a di-sulphide bridge. It also contains an N-glycosylation site (i.e., the NxS/T motif) which could also help render the ML5 sequence cryptic such as on particles. According to Alpha-Fold software [145,146] the conformation of P61567 is quite distinct from P63135 (Figure 9).

As a side note, the fact that HERV-K102 uniquely has both the spliced Env protein sequence and a Pol-Env protein sequence associated with particles, provides further evidence substantiating that only HERV-K102 forms particles and could be replication competent.

We were not able to detect reactions of our affinity purified rabbit ML4 or ML5 antiserum with the foamy macrophages in Figure 4 by flow cytometry even when the cells were permeabilized (unpublished data). However, these antisera labelled proteins by western blotting and stained intracellular particles by immunohistology on paraffin embedded samples of the foamy macrophages [10]. Thus, positive reactions involving HERV-K102 particles were only obtained when the particle proteins had been denatured. This suggested that the ML4 and ML5 epitopes were likely cryptic on the HERV-K102 particles as had been anticipated.

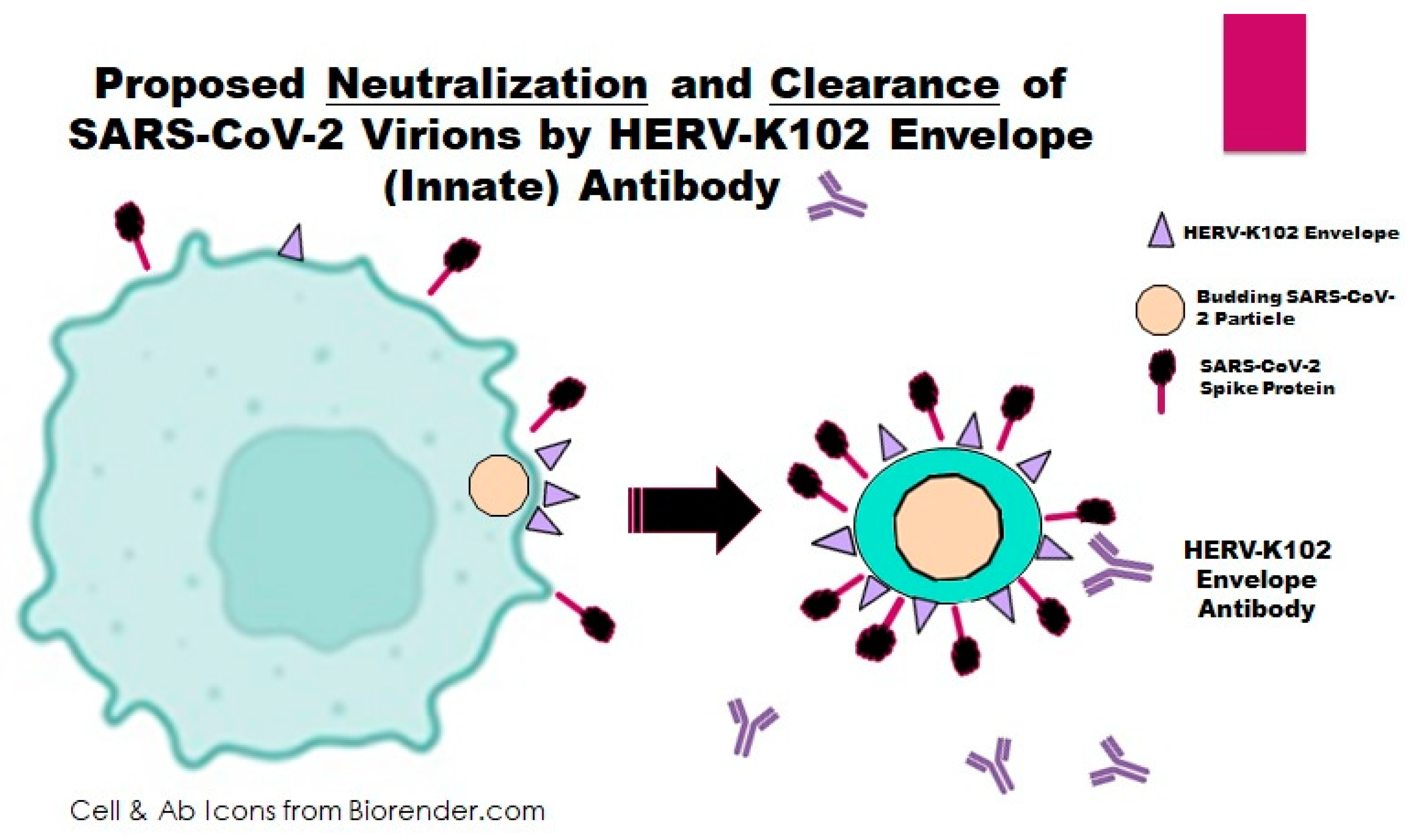

As shown in Figure 10, viruses that bud from the cell surface of human cells, the so-called enveloped viruses like HIV-1 and SARS-CoV-2 (that cloak themselves in the plasma membranes of cells), pick up HERV-K102 Env in the process meaning their virions carry HERV-K102 Env. Thus, antibodies to HERV-K102 Env are most probably neutralizing antibodies that can clear and inactivate exogenous virions as well as lyse virally infected cells. One of the earliest investigations of the SARS-CoV-2 pandemic had established in mild disease that innate immunity neutralized and cleared SARS-CoV-2 from the URT prior to the onset of the spike-specific antibodies [41]. Therefore, the innate immunity SARS-CoV-2 neutralizing antibodies likely involve at least in part, antibodies to HERV-K102 Env.

Accordingly, it is tempting to speculate that monoclonal (sc-Fv) antibodies reactive with epitopes found on the P61567 HERV-K102 cell surface Env but not the particle associated P63135 pol-env, such as the ML4 and ML5 peptide sequences, could be used as novel treatments for viral infections especially against emerging and pandemic enveloped viruses. Although many of the monoclonal antibodies against spike protein may have selected for new variants causing progression of disease and/or lost activity with the onset of immune escape variants [42], there is little risk of this here as it is not the virus which encodes HERV-K102 Env and thus, there would be no viral selection. Moreover, these antibodies may also be useful for cancer patients especially those more recently diagnosed with “turbo cancer”. Turbo cancers is a colloquial term used to describe cancers arising in individuals who have been injected with the mRNA gene therapy vaccines and where progression is rapid and/or onset is in a much younger population [148].

The concept that the SARS-CoV-2 virions produced in human cells may carry HERV-K102 Env is quite intriguing. Arru et al [149] described peptides corresponding to HERV-K102 Env surface unit peptide sequences that were able to induce TNF-α in T cells (the 19-37 peptide) that is, without the requirement for MHC. Also, the 19-37 and the 109-126 peptides of HERV-K102 induced IL-6, IFN-γ, CCL2 and CCL3 in B cells. This suggests innate T cells may be activated by HERV-K102 Env protein along with presumably innate B cells. Innate T cells include NKT cells, the mucosal associated invariant T (MAIT) cells and the γδ T cells [150].

Recall that Morozov et al [126] showed that the transmembrane region of HERV-K HML-2 Env strongly induced M1-activation cytokines and chemokines but not those for M2 when tested on PBMCs. When taken together these results imply that wherever the ‘enveloped’ exogenous virus goes, because it carries HERV-K102 Env, it will activate the HERV-K102 protector system (M1-like proinflammatory foamy macrophages and the innate T and B cells) providing yet another viral anti-virus mechanism. This virus-anti-virus mechanism reveals nature to be quite ingenious with redundancy for innate immune activation relating to viral invasion.

While HERV-K HML-2 Env when expressed on tumor cells or virally infected cells appears to be an autoantigen that marks the cell for destruction, interestingly in neurons, the oppositive may be the case.

Bhat et al suggested that HERV-K HML-2 Env increased neuronal cellular viability and prevented neurotoxicity mediated by HIV-1 Vpr [151]. In contrast in amyotrophic lateral sclerosis (ALS) Garcia-Montojo et al reported that HML-2 Env protein expression in neurons was neurotoxic, but that antibodies to Env protected against neurodegeneration. Furthermore, these antibody levels correlated with survival times of patients with ALS [152]. Interestingly, TDP-43 (gene card TARDBP) accumulation which is associated with neuropathology in ALS, also induced HERV-K102 Env expression [153]. Clearly more work is needed to resolve these discrepancies as HERV-K102 Env and/or the IgG are protective in breast and other cancers [154].

2.7. Epigenetic Control of HERV-K102 Expression and Trained Immunity

Systemic lupus erythematosus (SLE) is an autoimmune disease involving autoreactive T and B cells, immune complex disease, a systematic activation of type I interferon, and neutrophil activation with the formation of neutrophil extracellular traps (NETs). The strong induction of HERV-K102 Env RNA in whole blood (with minor contributions by HERV-K18, HERV-K106, and HERV-K115) was found in female SLE patients but not male [155]. HML-2 RNA expression correlated with a lack of epigenetic silencing and where the antibody (largely IgG2) to HERV-K102 correlated with higher interferon I ISG expression [155]. HERV-K HML-2 regulation is through epigenetic control whereby DNA methylation and repressive histone methylation suppress ERV expression. The repressive marks are maintained by the kruppel-associated box domain-zinc finger protein (KRAB-ZFP)-TRIM28 complex and human silencing complex (HUSH). Accordingly, HERV-K102 expression correlated inversely with TRIM28 expression [155].

The epigenetic control of HERV-K102 expression is a segue into a discussion on trained (innate) immunity.

The term trained immunity (TI) was first coined by Professor Mihai Netea and colleagues in 2011 to describe the enhancement of a secondary innate immunity response after a primary infection or vaccination [156]. Unlike adaptive immunity, TI lacks specificity for any pathogen-specific antigens and thus, invariably involves heterologous protection or cross-protection against unrelated pathogens. TI was initially invoked to explain how vaccination with the live Bacillus Calmette–Guérin (BCG) vaccine (attenuated Mycobacterium bovis) in West Africa decreased childhood mortality from several different pathogens including tuberculosis. The protection furnished by the BCG vaccine was mediated by macrophages. Since in humans, macrophages cannot replicate (unlike mice), this has led to the concept of central TI in the hematopoietic stem and progenitor cells (HSPCs) [157,158,159]. Accordingly, TI involves peripheral (monocytes-macrophages) and central (myeloid HSPCs) compartments. Most notably the memory aspect of TI involves a metabolic switch to glycolysis and epigenetic changes. These involve changes in the histone methylation and acetylation in chromatin providing access to macrophage lineage and inflammatory genes [159].

TI refers to a short-term enhancement (usually 3 to 12 months) of the release of cytokines (TNF-α, IL-1β, IL-6) from M1-like macrophages upon rechallenge but which is also associated with enhanced heterologous anti-microbial and anti-tumor activity in vivo. How TI in proinflammatory macrophages relates to enhanced pathogen and tumor control in vivo remains to be fully elucidated, however. As well, recent evidence indicates TI in macrophages occurs with or without the induction of inflammatory cytokines [160,161] presenting somewhat of a conundrum for the functional definition of TI.

Commonly used inducers of trained immunity include microbial products such as beta glucan and muramyl dipeptide, but also oxLDL, uric acid, the BCG vaccine, other live vaccines, and/or exposures to viruses [159]. The differences in epigenetic marks by the different TI inducers are reviewed elsewhere [162]. The myeloid specific enhancers SPI1 and CEBPB [88] are in fact trained immunity specific enhancers [89,90].

The metabolic and epigenetic changes associated with TI are mediated via the Akt/mTOR/HIF-1a pathway [89,163] but where insulin resistance promotes an anti-inflammatory M2-like phenotype [164,165]. Glycolysis drives the PI3K/Akt/mTOR/HIF-1α pathway [169]. In M1 macrophages activation leads to the accumulation of succinate in the Krebs cycle which leads to the stabilization of the transcription factor (TF) HIF-1α which induces the transcription of glycolysis genes [163]. In contrast M2 macrophages primarily use oxidative phosphorylation.

TI associates with the induction of glycolysis which is similar to the Warburg effect described for tumors. At the risk of being an oversimplification, a reason why glycolysis is needed for tumorigenesis (the Warburg effect) is so the mitochondria can produce the substrate acetyl-CoA/citrate (from glycolysis) needed for cholesterol production through the mevalonate pathway [166]. Replenishing of the cell surface membrane and other membranes in the cell via higher cholesterol production would be needed in order to support tumor proliferation. Indeed, mevalonate initiates DNA synthesis and cell proliferation [166]. In human monocyte derived macrophages, which incidentally do not proliferate, excess cholesterol would be needed and utilized instead for foam cell formation pertaining to the replication of the protector foamy virus HERV-K102. Hence, glycolysis is linked to TI to support the generation of foam (HERV-K102 particles and vacuoles) during macrophage training.

TI involves foam cell formation in M1 macrophages [93]. Most notably the mevalonate (cholesterol) pathway is needed for TI in the monocyte/macrophage lineage as statins which inhibit HMG-CoA reductase (HMGCR) block TI induction [94]. Trained macrophages uptake lipids such as oxLDL through OLR1 to form foam cells and produce high levels of TNF-α, IL-6, IL-8, and IL-18 upon secondary challenge [167] associated with glycolysis [96,168]. Interestingly, SARS-COV-2 infection disrupts the mevalonate pathway [169] showing that it directly targets foam cell formation and thus, trained immunity and thus, HERV-K102 particle production.

Hypoxia inducible factor 1 alpha (HIF-1α) plays a key role in initiating and promoting the formation of foam cells in macrophages [170]. NF-κβ1 which induces the inflammatory response in macrophages is required for the transcription of HIF-1α [171]. A critical role of HIF-1α in foam cell formation in macrophages was demonstrated by the inhibition of foam cell formation by small interfering RNAs against HIF-1α [172]. Thus, it is very clear TI critically involves the induction of foam in M1-like proinflammatory macrophages related to NF-κβ1 and HIF-1α expression.

The PI3K/Akt/mTOR pathway plays a role in autophagy, apoptosis, metabolism and cell growth but is commonly hyperactivated in tumors where it contributes to malignant potential [173]. It is also hyperactivated upon SARS-CoV-2 infection such as in the hepatocellular cell line Huh7 associated with ERBB2 hyperactivity and alpha-fetoprotein (AFP) mRNA and protein expression [174 and Prof. Ujjwal Neogi, personal communication]. In macrophages, this pathway is used by the epidermal growth factor receptor (EGFR) to generate foam cell formation [175,176]. For example, gene deletion of EGFR in macrophages in murine models limits the production of IL-6 and TNF-α, reduces lipid uptake by reducing the expression of the scavenger receptor CD36 and inhibits the development of atherosclerosis which involves foamy macrophages [177]. Similarly for human macrophages, the EGFR is activated by TLR4 and disruption of TLR4 or EGFR reduced inflammation and foam cell formation [175,176,177]. Triggering TLR4 activates HIF-1α, IRF1, VDR, S100A9 and NR3C1 (the glucocorticoid receptor) while downregulating PPARG and IFNGR1 [178]. EGFR antagonists were also shown to block oxLDL induction of inflammation and foam cell formation with down-regulation of IL-6 and TNF-α [177].

It should be noted that while the PI3K/Akt/mTOR pathway induces foam cell formation associated with basigin (BSG/CD147) expression in macrophages such as induced by oxLDL, interfering with NFκβ1 does not block foam cell formation [91]. This means the inflammatory component such as by NFκβ1 is not an absolute requirement for TI as has been recently noted by others [160,161]. Perhaps foam cell formation involving HERV-K102 particle production in foamy macrophages would better define and capture the essence of TI.

Recent evidence shows that upon LPS and IFN-γ triggering of the M1 phenotype, AFP transfection into MO macrophages co-induces CD163 and IL-10 which are considered markers of M2 [179]. However, CD163, IL-10 and the MI/M2 phenotype characterize the foamy macrophages illustrated in Figure 4 which exhibit high levels of vacuoles and particles [86]. This may further substantiate the role of AFP in the training of macrophages associated with foam cell formation.

As mentioned, drivers of myeloid differentiation are the TFs SPI1 and CEBPB [88] which also drive TI [89,90]. SpI1 is considered a pioneering transcription factor (also called lineage determining transcription factors) that opens up the chromatin in this case for macrophage differentiation which enables inflammation TFs to bind to response elements in the appropriate genes [180]. Macrophage inflammation involves networks of signal transducer and activator of transcription (STAT) factors, interferon response factors (IRFs) and NF-κβ TFs [180]. Monocytes exposed to LPS and interferon gamma (IFN-γ) undergo classical M1-like (pro-inflammatory) macrophage activation with upregulation of SPI1, IRF1, IRF5, IRF8, STAT1, STAT2 and NF-κβ1. The alternative activation with IL4 and IL13 generates M2-like (anti-inflammatory) cells featuring SPI1, IRF4, STAT6, KDM6B, PPARγ, PPARδ, and CEBPB [180]. However, PPARγ plays an important role in the differentiation of monocyte to foamy macrophages [181] and CEBPB is a TI enhancer. Accordingly, the macrophages conferring TI express M1 and M2-like markers including CEBPB and PPARG which are associated with foam cell formation. As just mentioned, AFP expression may also contribute to M2 marker expression in the inflammatory M1-like macrophages.

It is noteworthy that IRF1 and NF-κβ1 bind to two interferon stimulated response elements (ISREs) in the promoter of HERV-K102 which is found in the 5’ long terminal repeat (LTR) [97,98]. TNF-α is a potent activator of canonical NF-κβ1 transcription factor activity while IFN-γ and TNF-α synergize to activate IRF1. Indeed, newer evidence confirms that M1 polarization of macrophages in humans explicitly in response to IFN-γ signalling is promoted via HERV-K102 expression [99]. More recently the key role of IFN-γ in TI induction in vivo in response to BCG vaccination was affirmed by scRNA sequencing [167].

In summary, TI critically involves EGFR/TLR4 induced foam cell formation in M1-like proinflammatory macrophages. LPS which triggers TLR4 along with IFN-γ induces M1-like proinflammatory foamy macrophages which is strongly associated with HERV-K102 proviral induction [99]. The evidence is incontrovertible that it is HERV-K102 replication in macrophages which generates trained (innate) immunity.

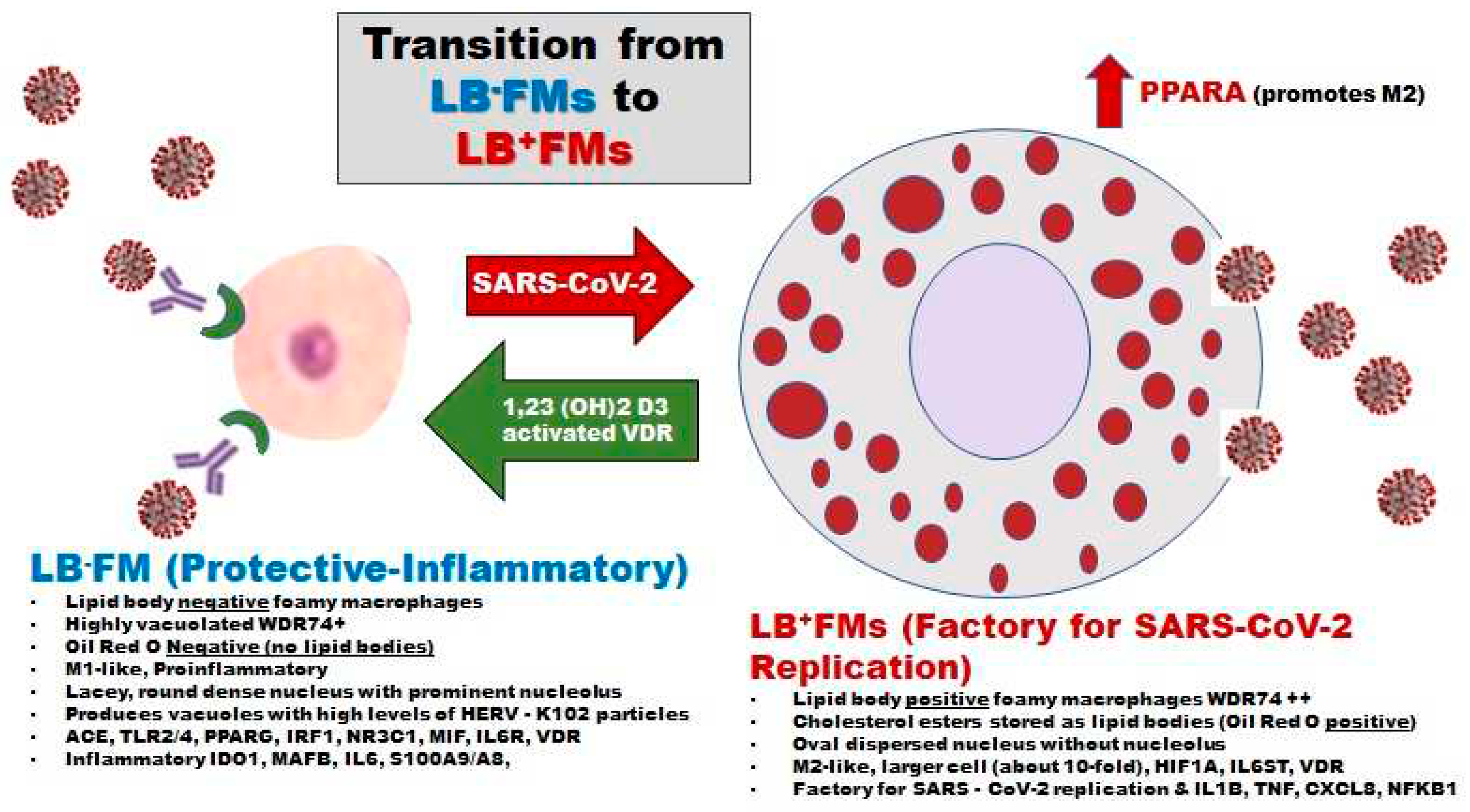

Figure 11 provides an illustration of the main cellular players involved in the HERV-K102 protector system and their targets. Thus, it is probable that TI heterologous protection extends to the innate T and B cells that recognize HERV-K102 Env. Indeed, Ren et al indicated that T and B cells were also infected by SARS-CoV-2 associated with COVID-19 severity and that BSG, TFRC (transferrin receptor) and interferon stimulated genes (ISGs) correlated with SARS-CoV-2 viral RNA in the different cell types [61]. BSG is an alternative or secondary receptor for SARS-CoV-2 entry into cells [182] and antibodies to BSG (CD147) block SARS-CoV-2 infection in vitro [182,183] and in vivo in BSG humanized mice [183]. The notion that SARS-CoV-2 specifically interacts with BSG was corroborated when the amino acids involved in mutual binding were mapped [184]. Curiously, in the PBMCs, CEBPB and SPI1 (trained immunity enhancers thought to be specific to M1-like foamy macrophages ) were also expressed in virus positive T cells and B cells [61]. This might imply that the innate T and B cells which express BSG may share some of the trained immunity programming of foamy macrophages.

In summary, HERV-K HML-2 activation and HERV-K102 particle production in foamy macrophages constitute a ‘virus-anti-virus response’ analogous to fighting fire with fire. Not only does the ‘virus mimicry’ aspect help to amplify the interferon response through PRRs but innate T cells and antibodies that recognize HERV-K102 Env expressed on the surface of virus-infected cells are generated which kill virus infected cells. Indeed, in a twisted turn of events it seems HERV-K102 Env expressed on the SARS-CoV-2 virions may alternatively stimulate M1-macrophages as well as innate T cell and B cell activation. Most significantly, the innate antibodies to HERV-K102 Env are postulated to neutralize and clear SARS-CoV-2 in mild cases as reported by Wolfel et al [41]. This feature helps to explain how boosting of innate immunity in the first 6 days following the second dose (before the adaptive IgG antibodies to spike protein are made) can be associated with sterilizing immunity (100 % VE) [54] which is probably related to a recall or memory release of the antibody to HERV-K102 Env.

2.8. When Things Go Wrong with the HERV-K102 Protector System: Immunosenescence

It is equally important to discuss what happens when the HERV-K102 system fails and under what circumstances.

Clinical research concerning the study of putative HERV-K102/foamy macrophage immune parameters based on plasma amino acid profiling algorithms performed at Immune System Management led to the publication of the new immunosenescence paradigm (of macrophages) in 2015 [185]. The new paradigm was then separately validated for cardiovascular disease [186].

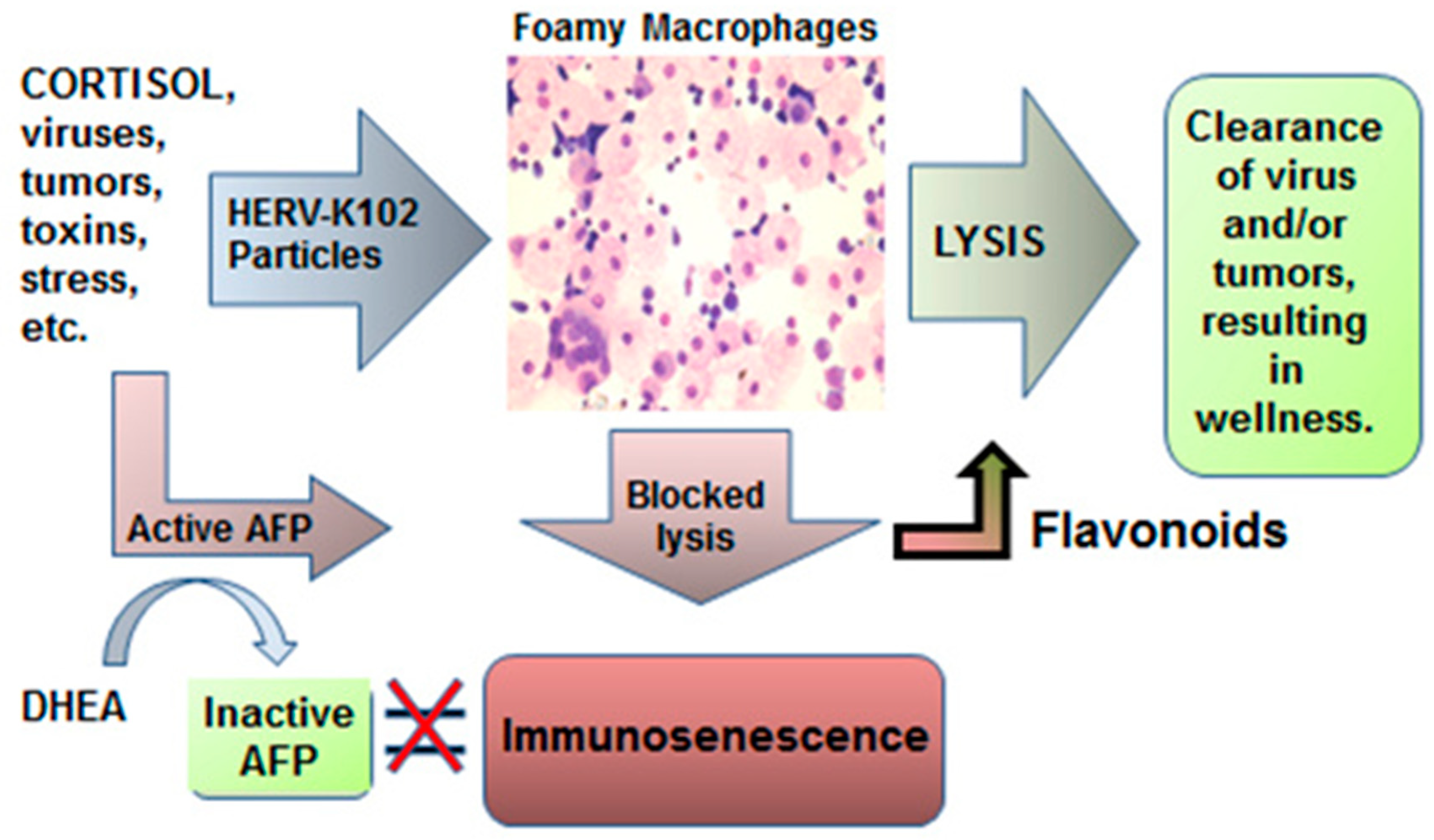

In brief, the new immunosenescence paradigm (of macrophages) was simply defined as the failed lytic release of HERV-K102 particles from the foamy macrophages (Figure 12) which was causally related to alpha-fetoprotein (AFP) activity. The 67 kD AFP receptor which mediates the effects of AFP in macrophages was identified and characterized by 1991 [187]. In addition, active AFP or the AFP agonist monoclonal antibodies to the 67 kD AFPr blocked apoptosis in human macrophages [187,188]. Since dehydroepiandrosterone (DHEA) binds and inactivates AFP [185] and it was established that cortisol induces AFP expression in humans [189], meant that as DHEA levels declined with age (faster in males) the cortisol/DHEA ratio would increase placing the host at higher risk of immunosenescence of macrophages and thus, disease. Most notably, high cortisol and low DHEA are commonly associated with chronic disease initiation and progression. For example, after adjustment for age, the cortisol/DHEAS ratio correlated with all-cause, cancer and non-cancer mortality as shown in a prospective study of 4255 Vietnam army veterans over 15 years and where higher cortisol/DHEA ratios were associated with increased risk of death [190].

As shown in Figure 12 cortisol is proposed to also induce HERV-K102 expression to generate the foamy macrophages as its LTR contains glucocorticoid response elements [97,98,99]. Oddly, it appears high dose dexamethasone may not induce HERV-K HML-2 such as tested in a breast cancer cell line [192]. However, whether methylprednisolone would induce these protector transcripts should be investigated since dexamethasone failed to reverse the SARS-CoV-2 interference of the IFN type 1 and IFN-γ innate responses while methylprednisolone did [193,194]. Moreover, methylprednisolone was associated with a much lower number needed to treat (nnt=5) indicating higher proficiency. Alternatively, macrophage migration inhibitory factor (MIF) which is known to counteract the anti-inflammatory effects of glucocorticosteroids, and which was inducible at low levels of dexamethasone but suppressed at higher levels [195], potentially might additionally influence HERV-K102 proviral expression in macrophages secondary to corticosteroids. However, the differences between dexamethasone and methylprednisolone activation of HERV-K102 particle production requires further evaluation.

Critically, when AFP binds its receptor, it triggers a negative signal which abrogates any incoming signal whether it is for apoptosis, differentiation, proliferation, activation, adherence etc. [187]. AFP is well established to be intrinsically immunosuppressive, but this was corroborated with AFP agonistic monoclonal antibodies to the 67 Kd AFP receptor [187]. By the time the 67 kD AFP receptor becomes expressed, the macrophages are already expressing and releasing the pro-inflammatory cytokines, TNF-α, IL-1β and IL-6. Thus, AFP prevents the ability to downregulate the expression of pro-inflammatory cytokines. Immunosenescence involves immunosuppression, a simultaneous pro-inflammatory state and apoptosis resistance, all mediated by AFP binding to its receptor [187,188]. Accordingly, the use of anti-inflammatories which are immunosuppressive, would only contribute to the problem of immunosenescence of macrophages and would not address the cause of disease: namely, AFP activity. Only AFP antagonists such as zinc, DHEA (or better, 7-keto-DHEA which cannot be converted to sex hormones), genistein, and more recently ivermectin [191], are able to prevent and reverse immunosenescence. It is well appreciated that therapies can be curative if they target the cause of disease such as immunosenescence by AFP antagonists rather than just treating symptoms of disease such as inflammation with anti-inflammatories (which are immunosuppressive).

3. Effects of ADE on the Launch of the Critical HERV-K102 Protector System in M1-like Foamy Macrophages

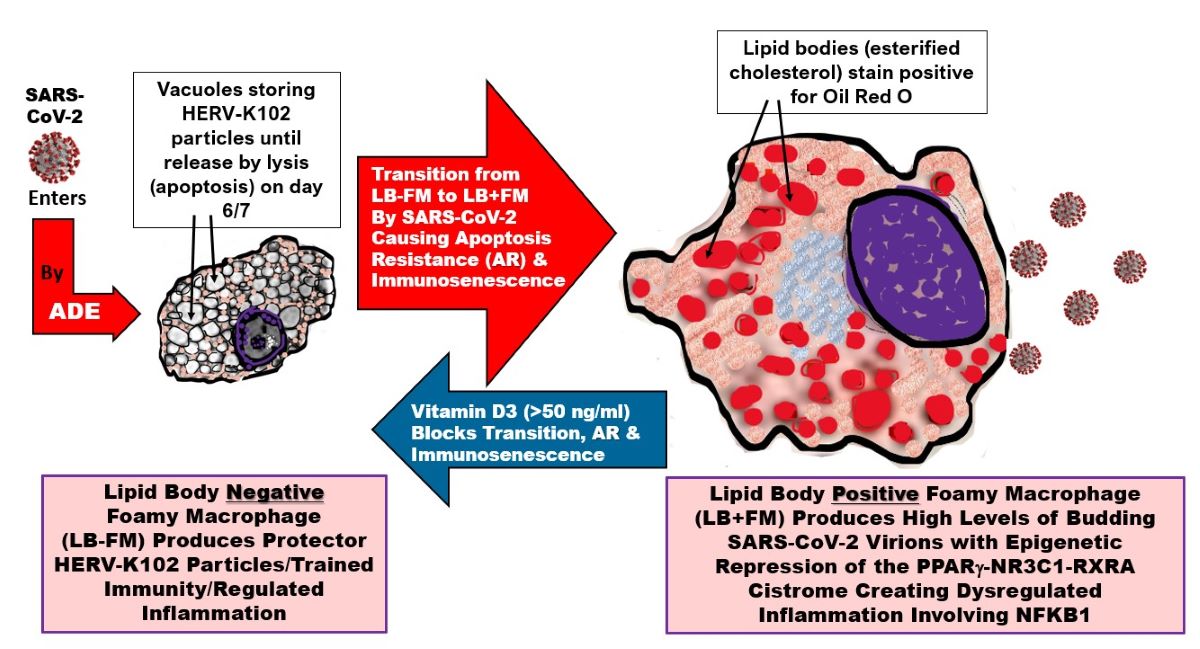

Figure 13 attempts to illustrate the harm of ADE mediated entry of SARS-CoV-2 into the M1-like foamy macrophages that produce the HERV-K102 particles [10,67,99]. First, the entry of SARS-CoV-2 into the monocytes/macrophages causes them to convert to M2-like polarized macrophages with lipid bodies [196] and would no longer express HERV-K102 transcripts [99]. Second, the S2 component of the spike protein interferes with p53 and BRCA which blocks apoptosis [197]. In this state of apoptosis resistance, SARS-CoV-2 is able to replicate and release virions by budding through the plasma membrane [196]. Apoptosis resistance means any HERV-K102 particles made are not being released by lysis, and so SARS-CoV-2 entry into M1-like macrophages directly and indirectly causes immunosenescence. Also p53 down modulates AFP [198] so the loss of p53 function would mean more AFP would be expressed again contributing to immunosenescence.

However, in the presence of adequate vitamin D3, the conversion of the M1-like lipid body negative foamy macrophages to the M2-like lipid body positive foamy macrophages [196] would not occur [165]. Second, as demonstrated in a Mycobacterium tuberculosis model involving macrophages, the addition of vitamin D3 upregulated the genes known to mediate M1-like polarization and HERV-K102 induction, including CD14, IL-8, IRG1 and CD163 expression, as well as foam cell formation [200]. While the mRNA for VDR was unaltered, the addition of Vitamin D3 nevertheless strongly induced VDR protein [200]. Thus, due to the presence of VDR response elements in the 5’ LRT, HERV-K102 expression and M1-like polarization [99] are likely maintained by vitamin D3.

It should be noted that Ren et al [61] established that of the 63 identified different cell types in bronchioalveolar lavage fluid (BALF) specimens, only the CD14+CD16+ monocytes and their progeny, the WDR74 positive macrophages (putatively producing HERV-K102 particles based on differentially expressed transcription factors) had highly activated VDR. In BALF, the WDR74 macrophages which were not induced in healthy uninfected controls were critical to recovery from mild-moderate COVID-19 but were lost with progression to severe disease consistent with ADE. The progenitors of the WDR74 macrophages the CD14+CD16+ (intermediate type) monocytes that are present in the BALF of healthy controls were similarly induced in progression to and recovery from moderate disease. Although they were depleted with progression to severe disease, they were highly activated in those who recovered. Autopsies of patients who died from COVID-19 revealed the inflammatory monocytes in lung samples expressed macrophage-associated markers such as CD68 and CD163 [66] suggestive of emergency myelopoiesis. Thus, while the WDR74 macrophages per se did not promote recovery from severe COVID-19 their temporary expedited replacements (inflammatory macrophages) did. Interestingly, in the BALF, the γδ2 T cells, which were present in healthy uninfected controls and expanded with progression and recovery from moderate disease, remained depleted during progression to severe disease and during recovery [61].

In view of the above it is not surprising that optimal levels of vitamin D3 of at least 50 ng/ml of serum could prevent the onset of COVID-19 severity, as recently concluded from a systematic review and meta-analysis [201]. In addition to the prevention of COVID-19 mortality with >50 ng/ml vitamin D3 in plasma, SARS-CoV-2 infection could be prevented, and hypertension averted [202]. The latter implies vitamin D3 prevents or reverses immunosenescence raising the possibility that vitamin D3 might indirectly antagonize AFP activity. Moreover, the risk of death from myocardial infarction, cancer, type 2 diabetes, Alzheimer’s disease, and more generally, all-cause mortality could be significantly decreased with vitamin D levels above 50 ng/ml [202]. These findings corroborate the notion that the HERV-K102 protective innate system that launches in M1-like foamy macrophages [99] which is strongly favored by optimal vitamin D3 levels plays a major role in human survival at the individual and population levels, including phylogenetically (Figure 8).

4. Incontrovertible Evidence for ADE As an Impediment to the Safety and Effectiveness of the Adaptive Immunity COVID-19 Vaccines

In Table 2 the UK monthly mortality rate data released by the Office for National Statistics (ONS) on July 6, 2022 [203], has been recompiled into meaningful summaries of ratios of vaccinated mortality rates per 100,000 person-years over the same for the unvaccinated by month for all ages (14 plus), and categorized by all-cause, COVID-19 specific and non-COVID-19 mortality ratios covering January 1, 2021, to May 31, 2022. For this, the individual rates per 100,000 person years for each subcategory of vaccination and duration were separately added up to provide a total as the total for the ever vaccinated provided by the ONS appeared manipulated. Apparently, deaths before 2 weeks following an immunization dose had been reclassified as unvaccinated as articulated by Fenton et al [204] and which ONS confirmed on January 20, 2023 [205].

Upon examination of Table 2, first one notes that the only month in which the all-cause mortality showed vaccination benefit over risk was in February 2021 (ratio of ever vaccinated rates over unvaccinated of 0.61) but not in any other month from January 1, 2021, to May 31, 2022. Overall, the all-cause mortality test for risk versus benefit for the entire period was 6.37 with a p value of 0.0001 meaning that there were over six-fold higher all-cause deaths per 100,000 person years in the vaccinated over the unvaccinated which was highly significant. This also matched the results of the randomized clinical trials where none of the COVID-19 vaccines met the requirement for a statistically significant benefit over risk as demonstrated on all-cause mortality [206]. So overall the risks of COVID-19 vaccination did outweigh the benefits for the entire UK population measured over January 1, 2021 to May 31, 2022 with the exception of February 2021.

In February 2021 but not at any other time in the mass vaccination campaign in the UK, the benefit of vaccination surprisingly outweighed the risks. However, upon closer examination the reason for the benefit over risk in February 2021 was because of those vaccinated by the end of February 2021, 95.6 % had only received the first dose of vaccine but not yet the second (only 531,525 had received the second dose or about 4.4 % of the 11,976,296 vaccinated mostly elders) [207]. Recall that the first dose did not generate spike-specific IgG antibodies [46,47] but was known to generate heterologous protection against non-COVID-19 mortality [50]. In other words, it was the trained (innate) immunity that offered protection against COVID-19 mortality in February 2021 in England. The reason why boosters were needed every 3-6 months was because i) trained immunity is temporary usually lasting 3 to 12 months and ii) the mRNA vaccines caused high levels of spike protein to be produced over a long period of time including inside monocytes for up to 15 months after the last dose [208]. Through S2 interference with p53 [197], this would have created immunosenescence (Figure 12) abrogating trained innate immunity including protection against all-cause mortality even without infection by SARS-CoV-2.

Indeed, since in January 2021 the all-cause mortality test was 1.39, it could be reasonably argued that the COVID-19 vaccines should have been removed from the global market by the first week in February 2021 for which Dr. Peter McCullough concurred based on the data in Table 2 [209]. By a year later in February 2022, the all-cause mortality risk versus benefit ratio for the COVID-19 vaccines grew to a ratio of 11.04. This indicated with time the risk of mortality associated with the COVID-19 vaccines was becoming far worse rather than better. Thus, it is very clear from this comprehensive population data of England that the vaccines were not very good at saving lives from COVID-19, except for February 2021. The fact that the non-COVID-19 mortality rates in the vaccinated were exceptionally higher than the unvaccinated (Table 2) provides irrefutable proof that the Pfizer-BioNTech COVID-19 mRNA vaccine was unacceptably toxic and deadly [210]. There were high proportions of sudden death following vaccination linked to myocarditis as determined through autopsies for the mRNA COVID-19 vaccines [211,212], abnormal clotting [210] as well as the issue of COVID-19 vaccine associated ‘turbo cancers’[148].

It is doubtful that the spike-specific IgG antibodies could have helped anyone survive because they caused progression of disease [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,34,35,36,37,38]. The UK population mortality results in Table 2 strongly corroborate and endorse this point that ADE was and remains a serious problem for disease caused by COVID-19 vaccines. This data further corroborates the evidence cited earlier about immune escape variant selection and a higher risk of infection all pertaining to ADE. Despite the notion that the third mRNA vaccine dose was associated with conversion of the spike-specific IgG1/3 which promoted ADE, to the spike-specific IgG4 which does not mediate ADE [58], it is possible that: i) this conversion did not occur in the URT and, ii) the lipid nanoparticles may have inadvertently targeted myeloid phagocytic cells regardless [208].

5. Future Directions

The notion of developing innate immunity vaccines particularly for pandemic preparedness is not new given the general lack of success for adaptive immunity vaccines related to the problem of ADE. Aside from BCG vaccines which enhance trained immunity, others are trying to further optimize trained immunity vaccines such as IMM-101 which involves heat killed Mycobacterium obuense. This vaccine induces M1 polarization of macrophages [213] and thus would induce HERV-K102 particle production [99]; and may promote the Vγ9Vδ2 T cells which help protect against SARS-CoV-2 [213] as well as cancers [3]. Indeed, in addition to identifying M1-like foamy macrophages in recovery from COVID-19 [61], several papers have directly confirmed the role of HERV-K102 proviral expression or Env antibodies in recovery from COVID-19 [137,147,214,215]. In addition, HERV-K HML-2 elements played a role in recovery from COVID-19 in children [216] and others have provided indirect evidence for HERV-K102 activation in recovery [217,218].

In terms of pandemic planning, the safest, most practical, and most effective means to prevent severe disease from pandemic viruses (and intracellular pathogens like Mycobacterium tuberculosis) is to top up the vitamin D3 levels by supplements and when possible, by suntanning. In addition, the benefits of 15-minute daily exposures to near infrared rays for 7 days on COVID-19 recovery included a faster: i) reduction in the systolic and diastolic blood pressure, ii) reduction in neutrophils and leukocytosis, and iii) increased lymphocytes [219]. Note that the earlier normalization of hypertension by near infrared light exposures indicates a faster reversal of the immunosenescence caused by SARS-CoV-2 which would greatly benefit the host and diminish all-cause mortality.

Public health authorities need to provide free annual vitamin D3 testing (and retesting when indicated). They need to provide encouragement to go outdoors, suntan and to closely monitor serum vitamin D3 levels. People can also reduce their risks of pandemic severity by employing various lifestyle improvements of maintaining an ideal weight, no or low sugar exposures, avoiding trans fats, being outdoors, exercising, reducing stress, and maintaining a normal blood pressure. In addition to Vitamin D3 and a multi-vitamin supplement, AFP antagonists such as zinc, genistein, 7 keto-DHEA (only legal in the USA) could be taken daily as a prophylactic. For those who may be at higher risk of poor outcomes, ivermectin which may also be an AFP antagonist [191] should be used for early treatment along with other measures of the early treatment protocols [193,220]. Note as mentioned, methylprednisolone is preferred over dexamethasone as dexamethasone failed to reverse the SARS-CoV-2 interference of the IFN type 1 and IFN-γ innate responses while methylprednisolone did [193,194]. Interestingly, it had been previously reported that high dose dexamethasone does not induce HERV-K102 transcripts in vitro [192].

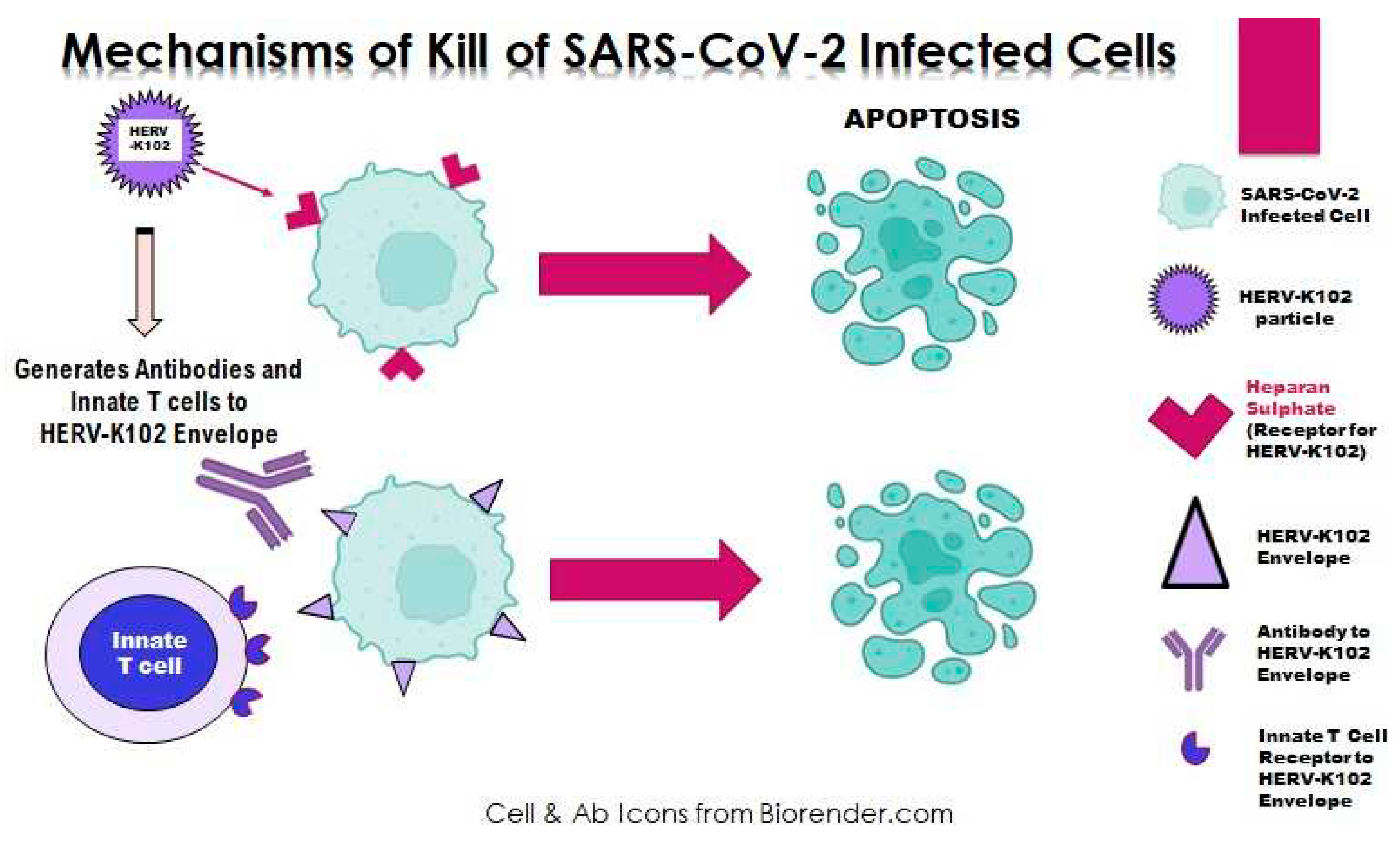

Finally, it is proposed that monoclonal sc-Fv antibodies that recognize the cell surface HERV-K102 Env (P61567 Env protein) but not the Env on HERV-K102 particles (P63135 Pol-Env protein), may provide novel therapeutics not only against pandemic viruses but also cancers. Unlike the monoclonal antibodies to the spike protein, here there is little concern for loss of monoclonal antibody effectiveness related to the emergence of viral variants (Figure 10 and Figure 11).

6. Summary and Conclusions

Many novel findings of relevance to understanding the adverse effects of ADE on survival of humans to pandemic viruses are uncovered in this treatise.

First, overwhelming evidence strongly implies that HERV-K102 particle production in M1-like proinflammatory macrophages constitutes the core attributes of trained (innate) immunity related to epigenetic changes and glycolysis in macrophages. Accordingly, ADE mediated infection of macrophages abrogates this potent protector mechanism and thus, it seems many human pathogens target HERV-K102. Second, for the first time, it is clarified that sebocytes in sebaceous glands that line the mucosa are specialized lipid body negative foamy macrophages that constitutively produce and release HERV-K102 particles by lysis. This validates that the HERV-K102 protector response is not only critical but always active at the front lines constituting critical host defense. Third, how trained (innate) immunity may generate a reduction in all-cause mortality (by reversing immunosenescence of macrophages which is causally related to chronic disease [185,186]) has been suggested. Fourth, a novel virus-anti-virus innate response has been uncovered and expanded upon which reveals how the body attempts to overcome pathogen mediated down-modulation of the protective interferon innate immunity response. This is by ‘virus mimicry’ [136] amplified by high replication of HERV-K102 particles which enter normal cells and then integrate into the cell’s genome additionally ‘arming the genome’ with extra copies. Fifth, a more comprehensive explanation of how optimal blood levels of vitamin D3 can promote survival against pandemic viruses, as well as reduce all-cause mortality, is revealed, and involves the preservation of the HERV-K102 protection system of M1-like foamy macrophages. Six, novel evidence is provided implying the HERV-K102 protection system may be germane to overall human survival given the loss of HERV-K102 at the orthologous chromosomal positions in the extinct hominins. Finally, not only do HERV-K102 and/or M1-like macrophages appear to mediate recovery from mild-moderate COVID-19 disease, but it was previously reported that HERV-K102 high replication and integration was associated with resistance to HIV-1 acquisition [10] providing evidence of sterile immunity against pandemic viruses.

All in all, the evidence shows that pandemic enveloped RNA viruses like SARS-CoV-2 and/or HIV-1 target HERV-K102 particle production in foamy macrophages. Presumably the pre-activation of HERV-K102 particle production (which likely occurs more frequently in children) such as by innate vaccines, the reversal /prevention of immunosenescence in adults, especially elders, and maintaining vitamin D3 levels over 50 ng/ml would be main strategies to help prepare for the next pandemic.

On the other hand, there may be one additional strategy to prepare for the next pandemic. In a direct comparison of viral evolution, SARS-CoV-2 was found to be adapted to humans upon its emergence whereas SARS-CoV-1 was not [221] suggesting a lab-leak versus zoonotic source (respectively) of these coronavirus pandemics. Allegedly, the Wuhan Institute of Virology could have serial passaged a SARS-CoV-2 progenitor virus through humanized mice using the new model published in October 2019 by Baric and colleagues [222]. These along with other arguments [223] strengthen the notion of a lab-leak source of SARS-CoV-2 including the notion presented here that SARS-CoV-2 targets a protection system only found in humans. This implies there was selection within the human immune system prior to release. Thus, a primary way to help deal with pandemics would be by banning gain-of-function virology research which in the USA, the House has recently approved [224].

With the evidence presented here which validates the problem of ADE for the COVID-19 pandemic along with the extraordinary toxicity of the mRNA technology and to a lesser extent virus-vector vaccines, the use of adaptive immunity vaccines against pandemic viruses should be entirely avoided at all costs. Whether adaptive immunity vaccines against pandemic pathogens should be banned outright remains to be determined.

7. Patents

The Public Health Agency of Canada (PHAC) does not allow patents to be assigned to inventors to prevent conflicts of interest. Patent applications for the discovery of the replicative activity of HERV-K102 in vivo and in vitro and that this replication may be associated with innate immunity protection against pandemic viruses, were filed in the USA (March 2005), Canada (March 2005), and worldwide (March 2006). All patent applications have since been abandoned. Anyone is therefore able to use the technology without liability of patent interference.

• Cdn Patent Application 2,501,301 March 18, 2005: Patent number CA 2673395 issued October 22, 2013 for screening methods.
• US Patent Application 60/663,263 March 21, 2005: Patent 7,964,341 issued June 21, 2011 for screening methods.
• PCT Application CA2006/000397 March 20, 2006: PCT: WO 2006/096985
