Evaluation of In Vitro and Anti-inflammatory Activity of Products Containing a Breath Mask and Filter Based on Polyurethane and Polyvinylidene Fluoride Nanofibers

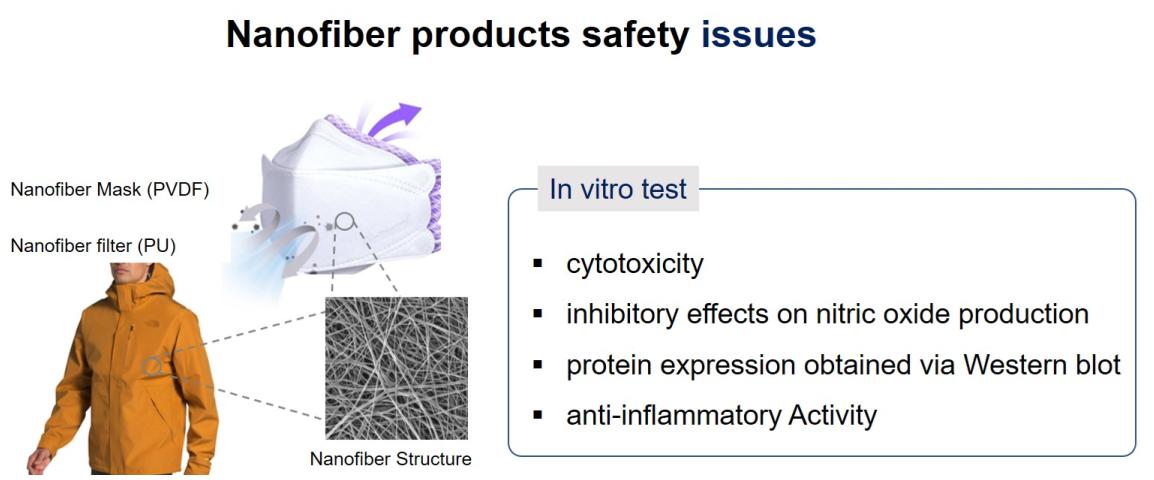

1. Introduction

Nanoparticles have diameters ranging from 1–100 nm, which are larger than atoms and smaller than cells. The nanoparticles are a very small unit, approximately 1/100,000 the size of human hair [1,2]. Thus, an identical material in the nano-size acquires unique properties such as increased strength or electrical conductivity. Nanomaterials can readily alter the electrochemical properties on their surfaces, and using this, a diversity of nanomaterials can be fabricated according to the purpose of use [3,4]. Thus, they have been applied in a variety of fields from chemical materials to automobiles, information and communications technology, environmental energy and biomedicine. Although nanomaterials are useful in daily life with their unique properties, the same properties have given rise to nanohazards. Owing to their small size, nanomaterials can more easily penetrate the human body and induce toxicity with a greater probability [5,6,7,8,9,10]. The diagnosis of safety is critical because the cytotoxic potential of nanomaterials may vary according to various changes in physicochemical properties. Nanofibers (NFs) defined as a type of nanomaterials comprise organic polymers in a 2D membrane form [11].

The most representative method for fabricating nanoscale NFs is electrospinning, which is a technique developed in the early 20th century that has been most notably applied in the filtration industry [12]. Electrospinning is a simple and rapid high-performance technique used for fabricating NFs using polymers. The technique applies a strong electromagnetic force at ~20–30 kV for ionizing a polymer solution. The device has a polymer solution on one side and its opposite charge on the other so that a narrow jet of polymer solution called Taylor cone is formed because polymer solutions tend to migrate towards opposite charge, which leads to the formation of 1D fibers in nanoscale diameters. The formation of a membrane with large surface areas and porosity can be applied in high-performance filters, sensor components, biomaterials, and electrode separators [13,14,15,16,17,18,19,20,21,22,23]. However, a standard method for verifying the effects of the currently manufactured and commercialized NF products on the human body and determining potential hazards is lacking, and only few studies have investigated the host response at the interface generated when NFs enter and accumulate in the human body. This raised the need for research on evaluating the safety of NF products.

This study conducted a cytotoxicity assay using a cell line for validation prior to clinical trials for determining the effects of wearing a mask containing NFs on the human respiratory system [24,25]. A cytotoxicity assay is a biological assessment of safety for determining nontoxic biocompatible compounds. An in vitro analysis precedes an in vivo analysis based on rapid results and reproducibility, and in vitro assays are widely used as a pre-validation test with advantages of reduced number of animals in subsequent animal studies and increased clinical accessibility such as defining the concentrations of compounds. Cytotoxicity assays are a type of biological assessments and screening tests, whereby cellular growth, regeneration, and morphological changes are examined and evaluated. Among the various evaluation methods, the MTT assay with its wide spectrum of use has been applied for testing the cytotoxicity in this study.

Inflammation is a natural biological response to human tissue damage induced by various stimuli from infection to chemical substances and immune responses. Macrophages play central roles in inflammatory responses, and through their phagocytosis, cytotoxicity, and cell killing ability, they play a key role in the defense mechanism of the host. Lipopolysaccharides (LPSs) are generated in the cell walls of Gram-negative bacteria with a powerful ability to induce inflammatory cytokines [26,27]. The LPS activity increases the production of inflammatory mediators such as nitric oxide (NO), tumor necrosis factor-α (TNF-α), interleukin (IL), prostaglandin (PG), and leukotriene. LPS-activated RAW 264.7 macrophages are widely used in exploring anti-inflammatory materials. Upon LPS stimulation, RAW 264.7 cells increase the secretion of cytokines such as IL-1β, IL-6, TNF-α, and NO. The production of NO employs nitric oxide synthase (NOS) and L-arginine substrate. The important roles of NOS includes the control of vascular tone, neurotransmission, microbial removal, and homeostatic mechanisms. Inducible NOS (iNOS) is expressed upon stress or via inflammatory cytokines such as IL-1β, IL-6, and TNF-α; these cytokines activate macrophages and act as mediators for inducing acute and chronic inflammatory responses. Therefore, controlling such inflammatory cytokines and various mediators is critical for developing drugs for various inflammatory diseases, although they may also be key targets in creating anti-inflammatory materials.

This study verified the safety of the commercialized PVDF and PU NFs in currently available filters and masks. To this end, NFs were collected from sample products, and their physical properties were evaluated using Fourier transform infrared (FT-IR) and Raman spectroscopy. Cytotoxicity assay and anti-inflammatory investigation were conducted for a safety evaluation. The results confirm the anti-inflammatory effects of NF products and present the potential applicability of NFs as functional materials. These results provide basic data that can be applied to several different fields.

2. Materials and Methods

2.1. Materials

Electrospun polyvinylidene difluoride (PVDF or PVDF NFs) for a breath mask and PU (or PU NFs) for the breathable water-proof membrane was purchased from Lemon Corporation (Gumi, Korea). The physical properties are summarized in Table 1. All samples were air dried prior to characterization.

2.2. Fourier-Transform Infrared Spectroscopy

FT-IR spectra analysis was conducted using a Perkin Elmer Spectrum II (Manufacturer Model, Location) for confirming the structural analysis of the PVDF NFs and PU NFs. The FTIR spectra were obtained from KBr pellets, and they were made by mixing KBr powder and the sample at a ratio of about 100:1 using agate induction so that it is well dispersed, and then, making a pellet by applying pressure on a pellet molding apparatus. The sample was analyzed in the range of 4000–400cm⁻¹ to confirm the presence of the characteristic peaks of the PVDF and PU NFs and the changes in peak positions and shapes.

2.3. Raman Spectroscopy

Raman spectra were recorded with a Bruker IFS 100 Fourier transform Raman spectrometer equipped with an air-cooled Nd:YAG laser source (514.5 nm) with an output power of 30−200 mW and a Ge detector cooled by liquid nitrogen. A laser beam with 200 mW power, as monitored at the base of a quartz plate supporting PVDF and PU NFs, was used for Raman measurement.

2.4. Cell Viability

The commercially available research materials necessary for the study include reagents such as 3-(4,5-dimethythiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT), dimethyl sulfozide (DMSO), LPS, recombinant human TNF-α (rhTNF-α), and ELISA reader (BioTek). The dissolution was most efficient in DMSO when PU and PVDF NFs were tested in several solvents. Therefore, DMSO stocks with varying concentrations of PU and PVDF NFs (0.5, 1, 5, and 10 μg/mL) were prepared, and an equal amount of each stock was used in the cellular assay. The human immortalized keratinocyte cell line (HaCaT) was widely used in skin physiology and differentiation studies. Further, HaCaT cells were obtained from a government research center and the experiment was conducted with relatively short (~10) passages [28]. The Raw 264.7 (RAW) cell line is derived from BALB/c mice infected with Abelson leukemia virus, which is popular as a monocyte/macrophage model [29]. RAW cells were obtained from the Korean Cell Line Bank (KCLB), and cells with short (~10) passages were applied in the experiment. The two types of cells were cultured in Dulbecco’s Modified Eagle’s medium (DMEM) containing 10% fetal bovine serum (FBS) and 1% antibiotics (10,000 μg/mL streptomycin and 10,000 units/mL penicillin) in a 37℃, 5% CO₂ incubator. The cells were passaged every two to three days.

An MTT assay was conducted to measure cell viability. In an MTT assay, which relies on the ability of the dehydrogenase in cellular mitochondria to convert tetrazolium, a soluble, yellow substrate, into insoluble, blue-violet formazan, the absorbance indicates the amount of reduced formazan in proportion to the number of cells in each well. Cells in the MTT assay were seeded at 1−2 × 10⁵/mL by counting only the viable cells after the treatment with 0.4% trypan blue. A hemacytometer was used in cell counting. At confluency < ~80%, the cells were treated with NFs and LPS or TNF-α. After a 24 h culture, 40 μL of the culture solution was removed and 40 μL of 5 mg/mL MTT reagent was added for a 3 h culture [30]. The cells were dissolved in 40 μL of DMSO in a shaker for ~20 min after completely removing the supernatant. The absorbance was measured at 590 nm using an ELISA reader. Triplicate measurements were conducted for all test groups, and statistical significance was tested using Student’s t-test with the level of significance set at p < 0.05 [31].

2.5. Inhibitory Effects on Nitric Oxide (NO) Production

The mouse macrophages RAW 264.7 cells were cultured in DMEM (HyClone, PA, USA) containing 10 % heat-inactivated FBS (HyClone, PA, USA) and 100 U/mL penicillin/streptomycin (HyClone, PA, USA) in a 37 ℃, 5 % CO₂ incubator.

The level of NO₂ present in the culture solution was measured using the Griess reagent to measure the amount of NO produced from RAW 264.7 cells. After seeding RAW 264.7 cells in a 6-well plate at 5 × 10⁵ cell/well, the cells were cultured in a 37 ℃ 5% CO₂ incubator for 24 h. Next, the cells were washed twice with 1 × PBS and treated with 1 μg/mL of LPS with the exception of the control group. After 1 h, the cells were treated with varying concentrations of samples solutions, and the supernatant was collected after a 24 h culture. An equal amount of the Griess reagent was added for a 10 min reaction in a 96-well plate, and the absorbance was measured at 540 nm. The inhibitory effects on NO production were expressed as the rate of reduction in absorbance for the sample and nonsample groups.

2.6. Western Blot

RAW 264.7 cells were seeded in a 6-well plate at 5 × 10⁵ cell/well and stabilized through 24 h culturing to examine the iNOS and COX-2 activities. The cells were treated with 1 μg/mL of LPS and subsequently with culture medium with varying concentrations of NFs after removing the medium. After a 24 h culture, the medium was removed and the cells were washed twice with PBS. Then, the cells were dissolved in 100 μL of a 10 mL solution of radio-immunoprecipitation assay (RIPA) buffer with complete mini 1 tab, followed by 20 min centrifugation at 4 ℃ and 16,110 × g. The resulting supernatant was quantified using a BCA protein assay kit and 20 μL of the collected proteins were electrophoresed using 10% SDS-PAGE. The separated proteins were transferred to the PVDF NFs and left in a blocking buffer (5% skim milk in TBST) at 25℃ for 1 h. The diluted primary antibodies of iNOS, COX-2, and β-actin were applied at 4 ℃ overnight followed by three times washing with tris-buffered saline and tween 20 (TBST) in 10 min intervals. The secondary antibodies, anti-rabbit for iNOS and COX-2, and anti-mouse for β-actin, were diluted at 1:1,000 for a 2 h reaction at room temperature. The bands were identified and quantified using an LAS 4,000 device after three times washing with TBST.

3. Results and Discussion

3.1. Spectroscopic Investigation of Electrospun PVDF and PU Nanofibers

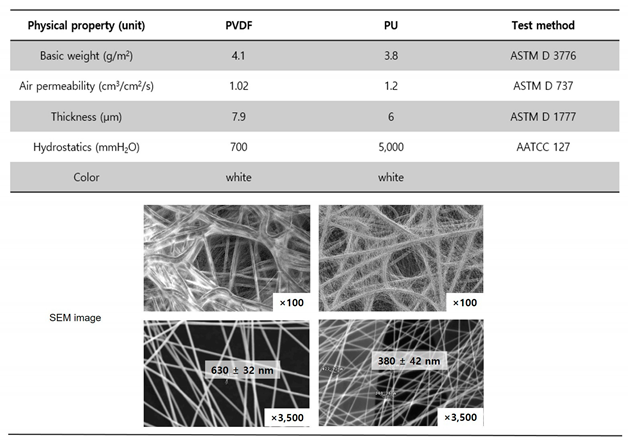

Table 1 lists the physical properties of the two different NFs used in this study. PVDF and PU NFs were analyzed using FT-IR and Raman spectroscopy to suggest two methods for evaluating the level of NFs dissociating from a NF product and entering the human body through the respiratory tract or other routes. Every molecule vibrates at a unique frequency. Applying light at a frequency equivalent to the vibration frequency of the molecule increases the vibration to cause special phenomena including absorption or significant scattering of light. In other words, the identity of the molecule can be deduced if such special phenomena are detected upon applying light at a specific frequency to a given molecule. Figure 1 shows the PVDF and PU NF particles after grinding and the comparison between each respective reference line.

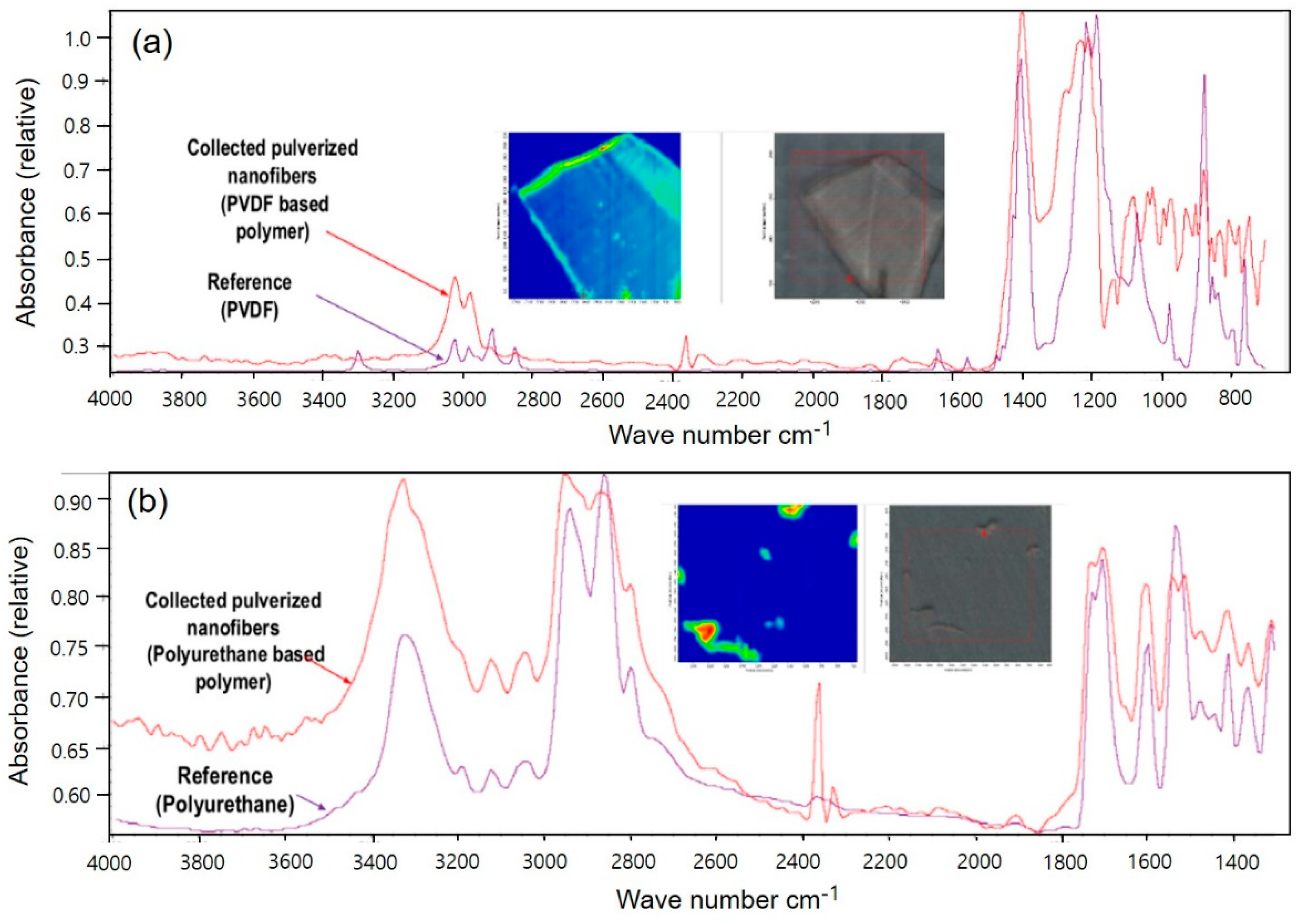

For PVDF, the most representative peaks were as follows: The characteristic absorption band of PVDF α-phase at 1,072 cm⁻¹ and β-phase at 1,403 cm⁻¹ (Figure 1A). The bands at 552 and 840 cm⁻¹ are assigned to CF₂ bending and that at 796 cm⁻¹ is assigned to the CF₂ skeletal vibrational mode. The bands at 796 and 839 cm⁻¹ are attributed to CH₂ rocking. Splitting the band around 1,180 cm⁻¹ results in stretching vibrations of CF [32,33,34]. Figure 1B shows the presence of the NH, C=O, C=C, and C-N peaks at 3,290, 1,704, 1,521, and 1,600 cm^–1, respectively, for PU.

The peaks of NF particles exhibit similar vibration behaviors to the reference peaks, as confirmed. In addition, a Raman spectrometer is used as the optical device for evaluating nanoparticles.

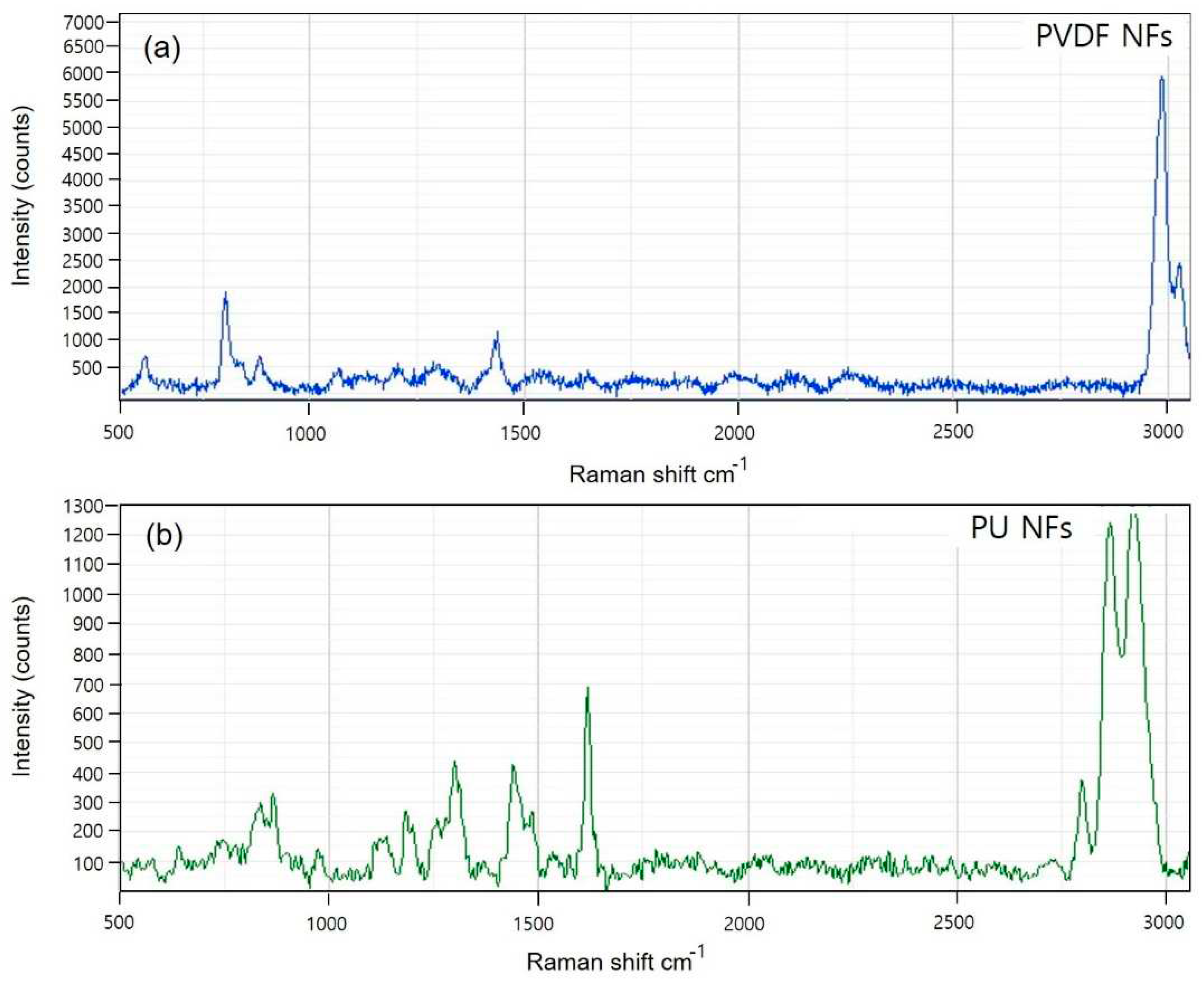

Figure 2 shows the Raman spectra for PVDF and PU. The PVDF spectra (Figure 2A) shows that the crystal form is the α-phase or form II characterized by chain conformation. PVDF modes are observed at 480 and 611 cm⁻¹. These modes are caused by CF₂ vibrations. The modes at 513 cm⁻¹ attributed to the CF₂ bending vibration and higher intensity band at 840 cm⁻¹ caused by out-of-phase combination of the CH₂ rocking and CF₂ stretching modes [35]. These modes are β-phase or form I of PVDF, and they are typical for the all-trans conformation of the PVDF chains. The all-trans conformations are attributed to the strain induced by swelling in the amorphous regions. The Raman spectrum of PU (Figure 2B) is characterized by three main urethane peaks: the C=O stretching vibration at 1,620 cm⁻¹ and the N single-bond H stretching and C single-bond H bending vibrations at 1,450 and 1,320 cm⁻¹, respectively. The specific peaks of PVDF and PU NFs were identical to the reference peaks, and the potential use of the device in analyzing the dissociating nanoparticles was verified.

3.2. Anti-Inflammatory Activity Investigation of PVDF and PU NFs

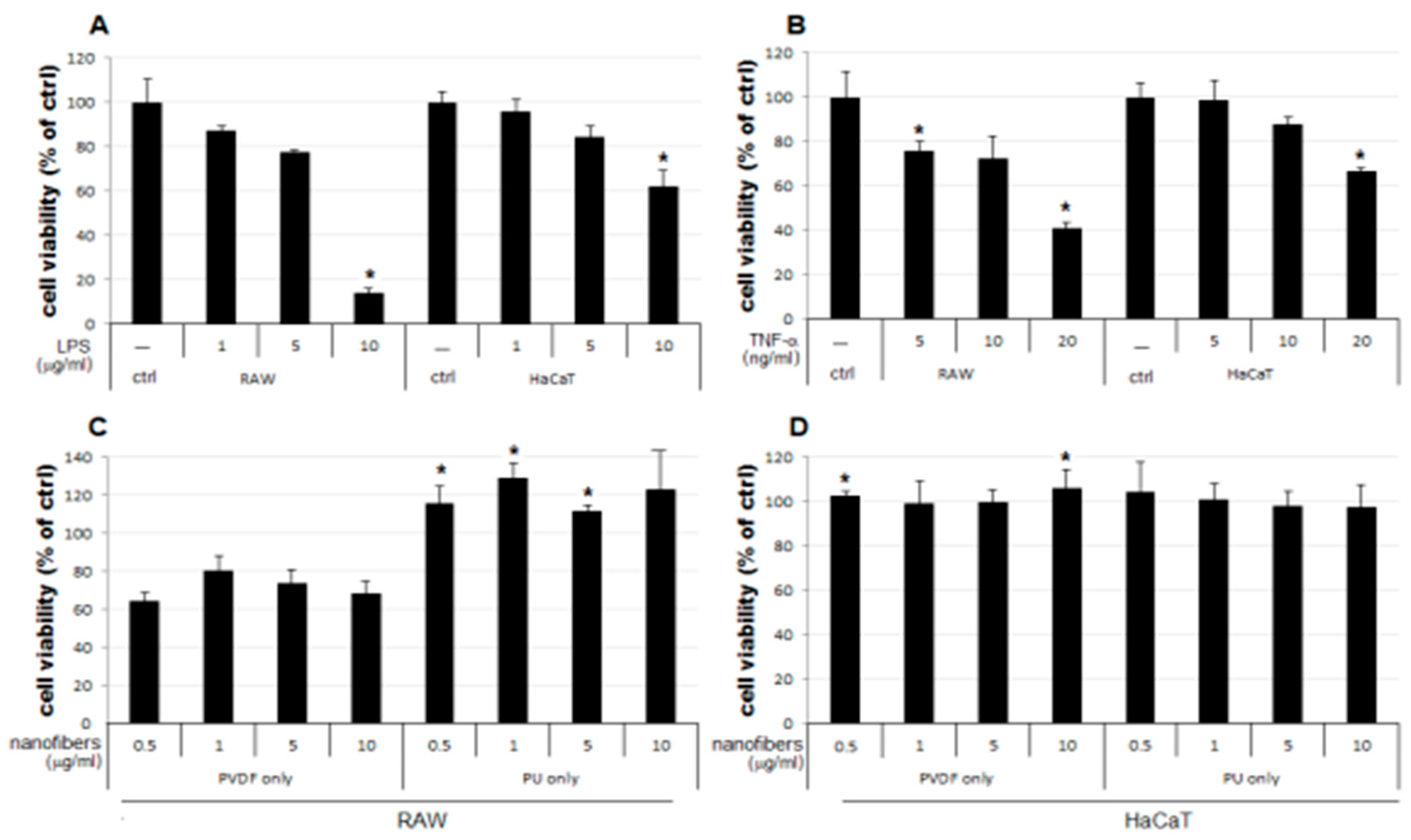

The result of the MTT assay demonstrated a concentration-dependent reduction in the LPS-treated groups of the two cells lines used as the positive control, compared to the that of the control group (ctrl) (Figure 3A). The LPS 5 μg/mL group showed a reduction to 77% and 84% growth in RAW and HaCaT cells, respectively, compared to that of the control. Therefore, 5 μg/mL was set as the level of LPS stimulation in subsequent experiments for examining changes in cell viability upon simultaneous treatment with NFs. No notable change in cellular growth is observed for HaCaT cells treated only with NFs (Figure 3D). In contrast, RAW cells treated only with PVDF NFs showed reduced cell viability, and those treated only with PU NFs showed significant overgrowth (Figure 3C). Groups treated with TNF-α as another positive control display the concentration-dependent reduction in cell viability (Figure 3B). As shown in Figure 3, the RAW cells treated only with PU NFs exhibit a higher level of cell viability compared to that for the control, whereas cells treated simultaneously with LPS and PU NFs exhibit a trend of further decrease in cell viability compared to those treated only with LPS. A significant concentration-dependent reduction in cell viability is observed for cells treated with LPS and PVDF NFs (Figure 4A). The viability of RAW cells decreases significantly upon treatment with 5 and 10 μg/mL of PVDF NFs following the treatment with TNF-α; however, the difference in comparison with the cells treated with only PVDF NFs is not significant (Figure 4C). The treatment with 1, 5, and 10 μg/mL of PU NFs significantly increases the cell viability compared to the cells treated with TNF-α only (Figure 4C). For HaCaT cells, slightly increased or similar cell viability is observed across most concentrations of NFs compared to cells treated only with LPS or TNF-α (Figure 4B,D).

LPS is a component of the outer membrane of Gram negative bacteria, and it is a well-known endotoxin that induces iNOS. This enzyme is responsible for producing various inflammatory cytokines and NO in macrophages, and it can increase the secretion of pro-inflammatory cytokines such as TNF-α, IL-1β, and IL-6 by stimulating macrophages or monocytes. Further, TNF-α is a cytokine produced in macrophages, lymphocytes, and leukocytes; it is not produced in a normal state, whereas its synthesis and secretion occur upon the stimulation of macrophages. The formation of NO plays a key role in the killing of bacteria or removal of tumors; however, the inflammatory response including edema and vascular permeability to NO produced by iNOS has been shown to promote inflammation. The genetic expression of proinflammatory proteins such as TNF-α, IL-1β, and IL-6 are regulated via the activation of nuclear factor kappa-light chain-enhancer of the activated B cells (NF-κB), which is a known transcription factor involved in inflammatory responses. NF-κB plays a crucial role in inflammatory responses by regulating the activation of iNOS. Assuming PU NFs play an inhibitory role in the synthesis of NO—a key mediator in LPS-mediated inflammation in RAW cells—it is necessary to determine changes in the amounts of cytokines that mediate inflammation (TNF-α, IL-1β, and IL-6) as inflammatory markers and verify changes in the amounts of iNOS and NF-κB proteins through Western blot analysis.

In this study, changes in cell viability upon the treatment with NFs were examined using RAW and HaCaT cells, following the LPS- or TNF-α-induced inflammatory response. The results are summarized as follows:

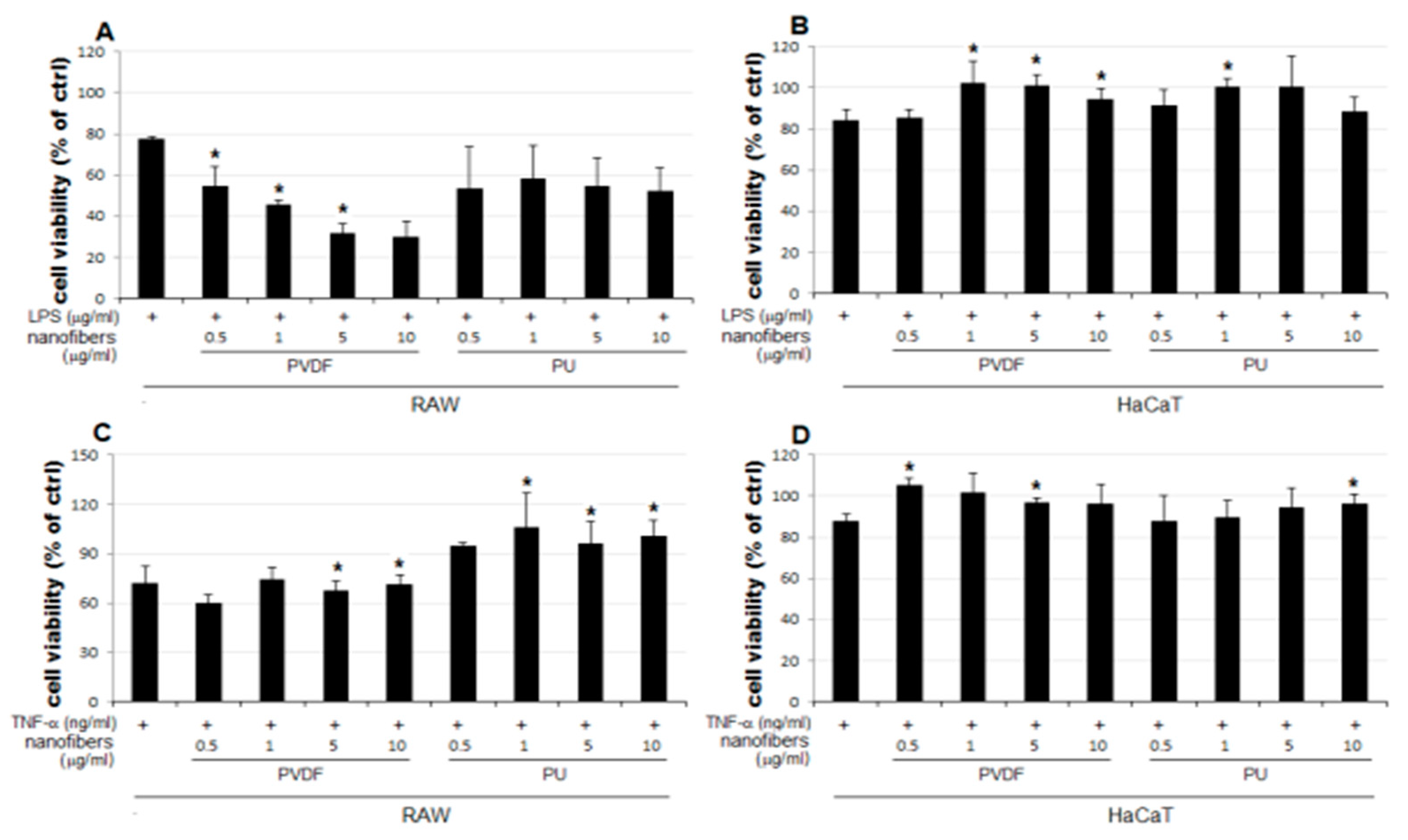

1. The cell viability is not significantly affected in HaCaT cells treated only with NFs (Figure 4D). The cell viability increases in cells simultaneously treated with LPS or TNF-α and PU or PVDF NFs (Figure 4B,D).

2. The cell viability decreases to 64−80% in RAW cells treated only with PVDF NFs (Figure 4C). For RAW cells, the simultaneous treatment with LPS or TNF-α and PVDF NFs led to a fall in cell viability. A significant reduction is observed upon simultaneous treatment with LPS and PVDF NFs in a concentration-dependent manner (Figure 4A).

3. The cell viability is at an excessive level in RAW cells treated with only PU NFs, whereas the simultaneous treatment with LPS and PU NFs does not increase cell viability (Figure 4A). Cells treated with TNF-α and PU NFs simultaneously show a significant increase in cell viability compared to those treated with only TNF-α (Figure 4B).

3.3. Inhibitory Effects of PVDF and PU NFs on Nitric Oxide Production

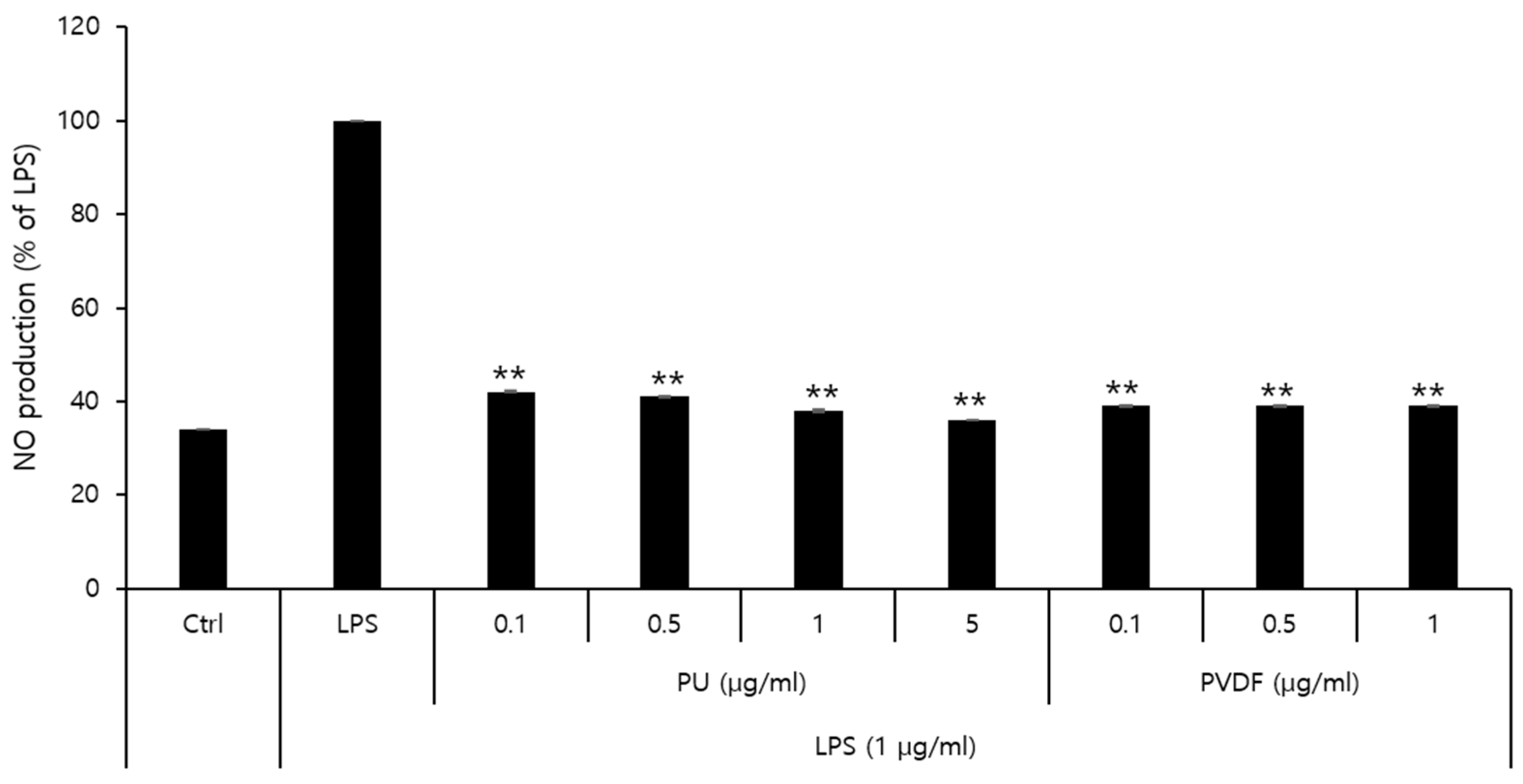

The effects of PU and PVDF NFs on NO production and their roles in inflammatory responses were determined. The MTT cytotoxicity assay demonstrated that the viability of RAW 264.7 cells decreased to 80% or lower after treatment with 5 μg/mL of PVDF NFs or 10 μg/mL of PU NFs. Thus, the final concentration of NO was set at 1 μg/mL and 5 μg/mL for PVDF and PU NFs, respectively. As shown in Figure 5, the level of NO expression in the LPS-treated group is higher compared to that of the control, whereas cells treated with PU or PVDF NFs exhibit reduced NO expression. The level of NO production was 38.0% at 5 μg/mL of PU NFs and 39.4% at 1 μg/mL of PVDF NFs, which indicated a 61.9% and 60.5% reduction, respectively. Inhibitory effects of PU and PVDF NFs on inflammatory responses were confirmed in RAW 264.7 cells. The safety of PU NFs was higher considering the low cell viability at low concentrations (0.1−1 μg/mL) of PVDF NFs in the previous cytotoxicity result.

3.4. Inhibitory Effects of PU NFs on iNOS and COX-2 Protein Expression

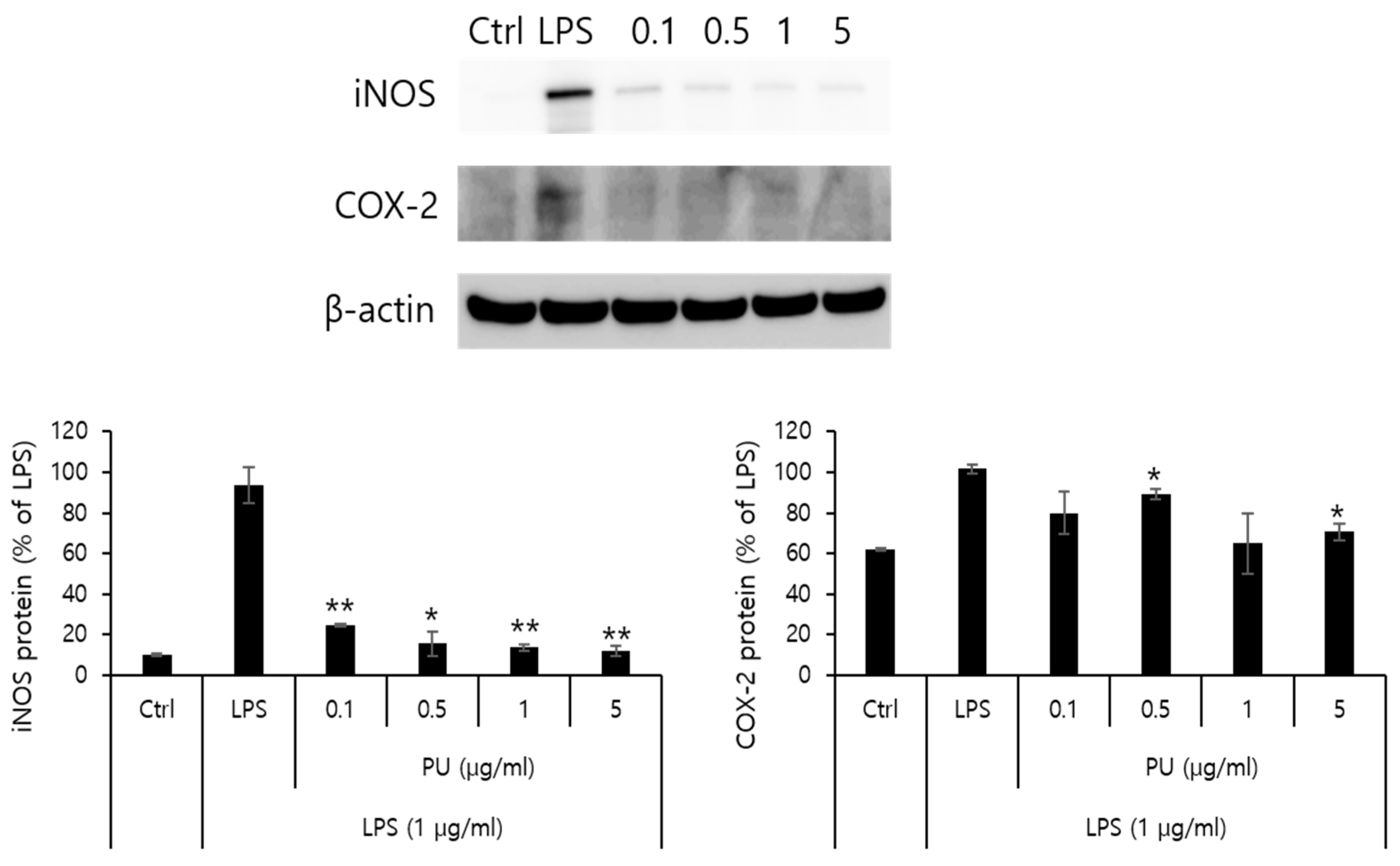

NO is an inflammatory marker synthesized by NOS using L-arginine. Three types of NOSs are present: endothelial NOS, neuronal NOS, and iNOS. The formation of NO by iNOS has an important pathological role. Another inflammatory marker, cyclooxygenase (COX), is an enzyme that converts arachidonic acid into prostaglandins. COX-1 and COX-2 with different patterns exist in different cells. Although COX-1 is involved in normal physiological functions in normal cells, COX-2 is expressed in the areas of inflammatory responses. Further, PGE₂ produced by COX-2 is an inflammatory mediator of pain and fever with a role in inflammatory and immune responses. This is closely related with angiogenesis. Western blot analysis was conducted to measure the inhibitory effects on the protein expression of iNOS and COX-2 as inflammatory markers. The macrophage RAW 264.7 cells were treated with varying concentrations (0.1, 0.5, 1, and 5 μg/mL) of PU NFs. The inhibitory effects on the protein expression after 24 h are measured and shown in Figure 6. The positive control was β-actin from a house keeping gene, whose expression rarely varies according to cell type or environment. Figure 6 shows that the protein expression of iNOS increased by LPS in RAW 264.7 cells decreased markedly to 24.6, 15.7, 13.6, and 12.1% after treatment with PU NFs at 0.1, 0.5, 1, and 5 μg/mL, respectively, in a concentration-dependent manner. At the same concentrations, the protein expression of COX-2 decreased to 79.8, 89.1, 64.9, and 70.6%, and the inhibition of protein expression was significant compared to the cells treated with LPS.

4. Conclusion

NFs were collected from the available products and the potential use of FT-IR and Raman spectroscopy in NF evaluation was tested to verify the safety of PVDF and PU NFs in commercialized filters and masks. The cytotoxicity assay and anti-inflammatory investigation were used for the safety evaluation. The nanohazards were evaluated in accordance with the verified anti-inflammatory effects using NF products. The results are listed below:

• The cell viability is unaffected in HaCaT cells treated with only NFs (Figure 4D). The cell viability increased in cells simultaneously treated with LPS or TNF-α and PU or PVDF NFs.
• The treatment with PU and PVDF NFs was effective in inhibiting the expression of inflammatory mediators in RAW 264.7 cells.
• The LPS-induced iNOS expression in RAW 264.7 cells decreased after treatment with PU NFs at 0.1, 0.5, 1, and 5 μg/mL, indicating a high level of inhibition in a concentration-dependent manner. The inhibition of COX-2 expression was observed at equal concentrations, whereas the level of inhibition was higher compared to cells treated with LPS.
