1. Introduction
Lithium ferrite (LiFe
5O
8) has drawn widespread attention of research because of its remarkable physical properties, such as high saturation magnetization, high Curie temperature, large electric resistivity, low loss at high frequencies, and good chemical and thermal stability [
1,
2], which make it have potential application in components of microwave device and spintronics [
3,
4]. LiFe
5O
8 has the inverse spinel structure, where the tetrahedral sites are occupied by Fe
3+, and the octahedral sites are shared by Li
+ and the rest Fe
3+ in a ratio of 1:3 (denoted as Fe[Li
0.5Fe
1.5]O
4). The antiparallel aligned magnetic spin between the Fe
3+ distributing at tetrahedral sites and octahedral sites leads to a high magnetic moment of 2.5 µB per formula unit [
1,
5]. Compared to the bulk material, spinel thin films exhibit microstructural variations such as the presence of planar defects, which can alter the electrical and magnetic structures of the films [
6,
7]. Thus, research efforts concentrating on the growth, structure, property, and applications of the spinel thin films have proliferated over the last decades [
8,
9,
10].
Generally, during the film deposition process, many degrees of freedom can be used to modify the structural and physical properties of the film [
11,
12,
13]. Among them, changing the film thickness is a common method to manipulate the strain state of the film [
14,
15]. Particularly, tuning strain states not only cause the formation of oriented domains [
16,
17], but also lead to the different density of antiphase boundaries in spinel films [
18,
19], which influence the magnetic properties of the films consequently [
20]. Moreover, enhanced magnetic moments are present in ultrathin films (e.g., NiFe
2O
4 and CoFe
2O
4) prepared on spinel-type MgAl
2O
4 substrates [
21,
22,
23]. In contrast, there are limited investigations on the microstructural characteristic and magnetic behavior of LiFe
5O
8 films with different thickness prepared on perovskite-type substrates that are widely used as substrates for growing functional films in device application.
In the present work, the microstructural and magnetic properties of LiFe5O8 films with two different thicknesses prepared on SrTiO3 substrates have been investigated by aberration-corrected (scanning) transmission electron microscopy ((S)TEM) and superconducting quantum interference device (SQUID). The twin boundaries (TBs), orientation domains, and interface dislocation in the films have been determined by high-angle annular dark-field (HAADF) imaging. The magnetic properties of the films have been characterized by magnetization measurement in a SQUID magnetometer, and the effect of film thickness and structure defects on the magnetic properties of the LiFe5O8 films has been discussed.
3. Results and discussions

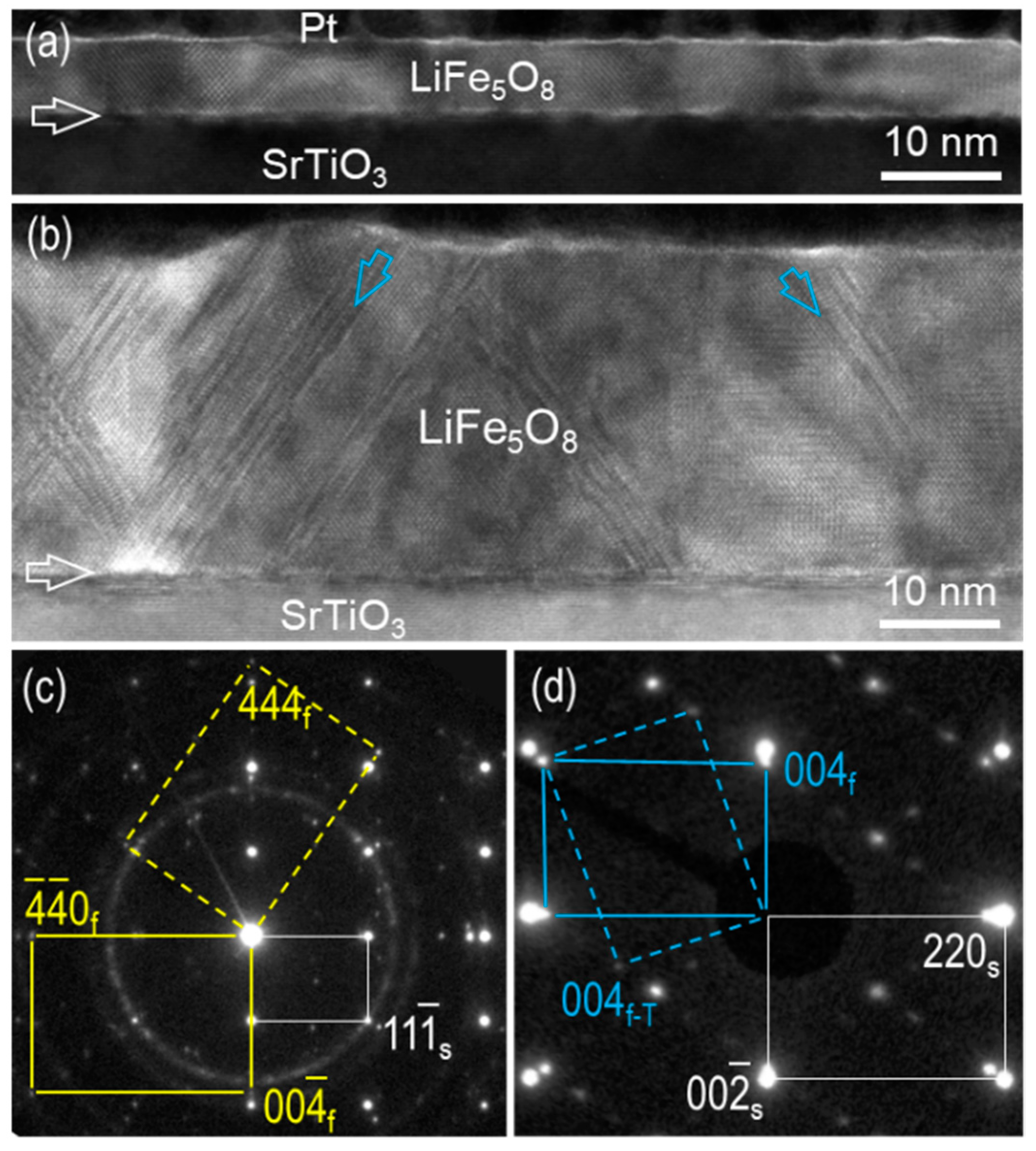

Figure 1a and 1b are the low-magnification bright-field (BF) TEM images of LiFe
5O
8 thin film on SrTiO
3(001) substrates with a thickness of 7.5 nm and 30 nm, respectively. The film-substrate interfaces are marked by horizontal arrows. The contrast variation within the film can be discerned in both films. In
Figure 1b, the oblique contrast lines shown by blue arrows are apparent.
Figure 1c and 1d display the corresponding selected area electron diffraction (SAED) pattern of the heterostructure in Figure 1a and 1b, respectively, recorded along the [10] zone axis of SrTiO
3. In
Figure 1c, apart from the diffraction spots of the SrTiO
3 substrate, two sets of diffraction spots from the LiFe
5O
8 film can be distinguished, resulting in two film-substrate orientation relationships (ORs) as [10](001)
film//[10](001)
substrate (cube-on-cube) and [10](111)
film//[10](001)
substrate. Considering the four-fold symmetry of the SrTiO
3(001) substrate surface, there exists an equivalent OR having a 90° in-plane orientation relation to the latter OR. In
Figure 1d, the LiFe
5O
8 film adopts the cube-on-cube OR with the substrate. Instead of forming crystalline orientation domains in the 7.5-nm-thick film, there present some {111} TBs in the 30-nm-thick film. Taking the lattice parameter of SrTiO
3 substrate (0.3905 nm) as the calibration standard [
24], the in-plane and out-of-plane lattice parameter of the 7.5-nm-thick film is calculated to be 0.8319 nm and 0.8353 nm, respectively. Similarly, in-plane and out-of-plane lattice parameter of the 30-nm-thick film is calculated to be 0.8301 nm and 0.8359 nm, respectively. Both films are under the compressive strain along the in-plane direction [
10].
In order to further investigate the microstructure and strain relaxation behaviors, high-resolution HAADF-STEM experiments have been performed.

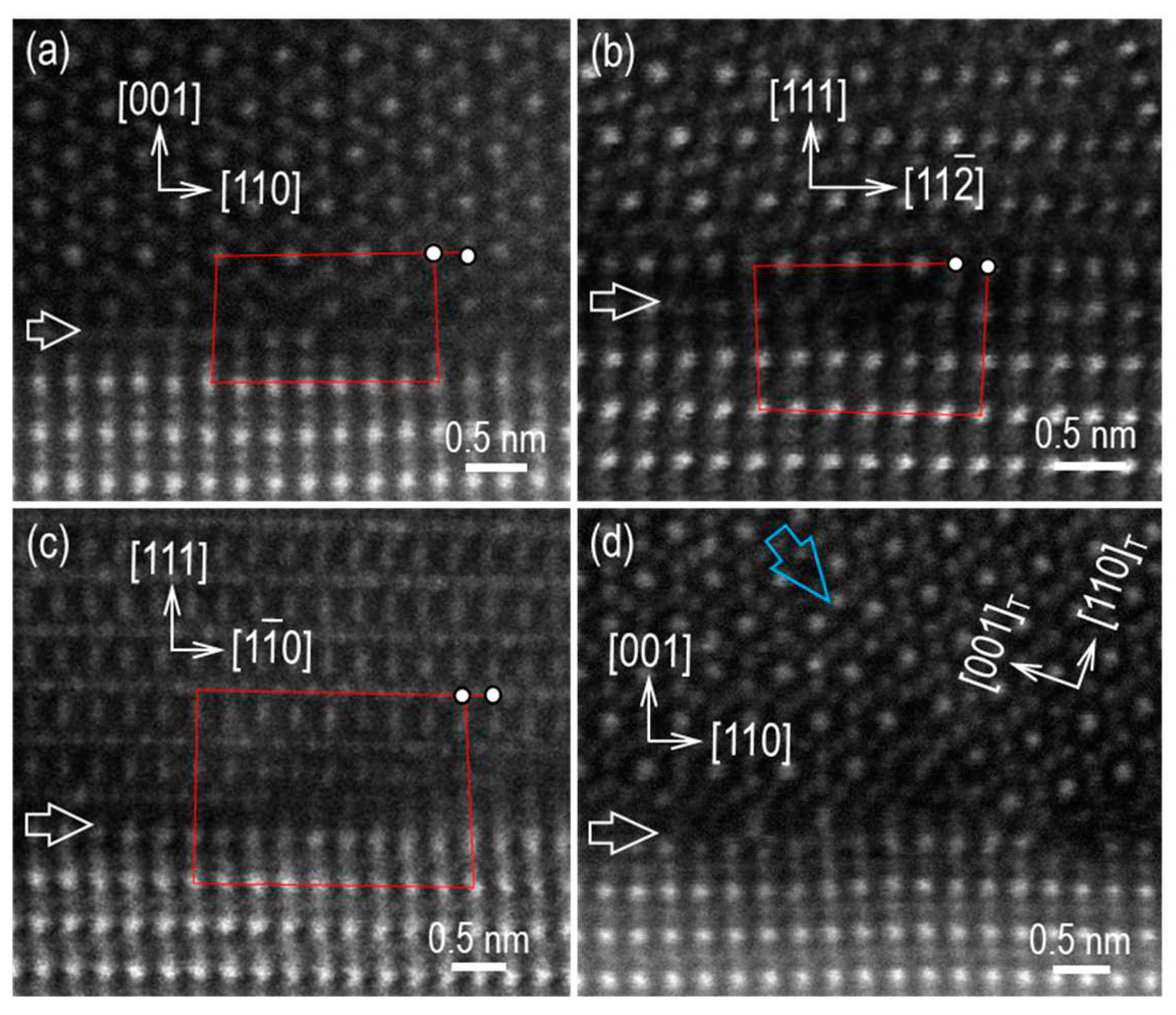

Figure 2a–c are the atomic-resolution HAADF-STEM images showing the interfaces of the 7.5-nm-thick film, viewed along [10] zone axis of the SrTiO
3 substrate. Misfit dislocations form at the interface in both heterostructures. For the grain with the cube-on-cube OR (
Figure 2a), the projected Burgers vector of misfit dislocations can be determined as (a
f/4)[110] (a
f is the lattice parameter of LiFe
5O
8). For the [10](111)
film//[10](001)
substrate OR, the misfit dislocations occur at the interfaces, as shown in
Figure 2b,c. The projected Burgers vectors are determined to be (a
f/8)[11] and (a
f/4)[10], respectively. In contrast, for the heterostructure of the 30-nm-thick film on the SrTiO
3(001) substrate, only a number of {111} TBs appear within the LiFe
5O
8 film as demonstrated in
Figure 2d.
Additionally, for the heterostructure of the 7.5-nm-thick film prepared on SrTiO
3(001) substrate, the occurrence of two types of film-substrate ORs would form a columnar grain structure in the film. The coalescence of these grains inevitably leads to the formation of grain boundaries (GBs).

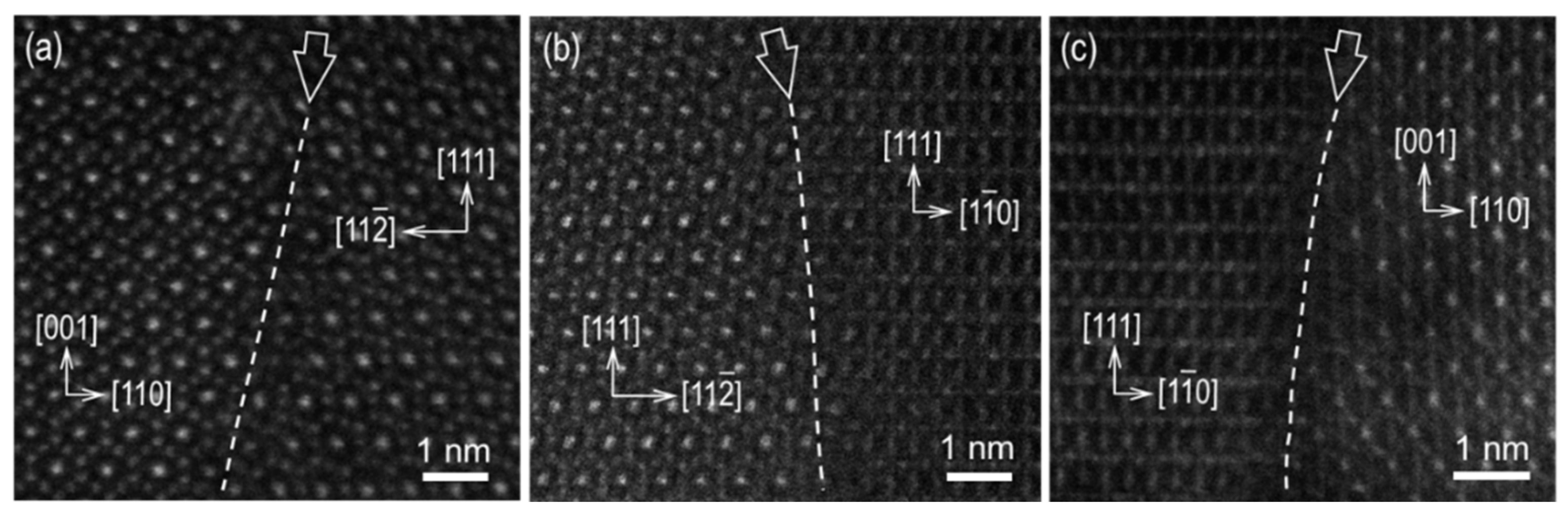

Figure 3a–c are the HAADF-STEM images containing such GBs. The boundaries appear curved through the film as traced by white dashed lines. It should be emphasized that there is no secondary phase or obvious element segregation at the boundaries.
In the LiFe5O8/SrTiO3 heterostructure, the lattice mismatch is calculated to be about +6.2% for cube-on-cube epitaxy, using the formula [(af-2as)/2as]*100%. For the LiFe5O8(111)/SrTiO3(001) epitaxy, the lattice mismatch along [110]f direction is the same as that of the cube-on-cube epitaxy, whereas the film-substrate lattice mismatch along [11]f direction is much large. According to our experimental results, the strain relaxation behaviors are essentially different for the LiFe5O8 films with different thicknesses prepared on SrTiO3(001) substrates. The appearance of oriented grains and misfit dislocations releases the compressive strain in the 7.5-nm-thick film on SrTiO3 substrate. In contrast, the formation of a high density of twins within the film mainly contributes to the strain relaxation in the 30-nm-thick film.
The magnetic properties of the LiFe
5O
8 films have been characterized by the magnetic hysteresis loops using the SQUID system. The effect of pure SrTiO
3 substrate has been carefully eliminated.
Figure 4a,b present the M-H hysteresis loops measured along in-plane and out-of-plane directions of 7.5-nm- and 30-nm-thick film separately. The in-plane saturation magnetization (Ms) of the 7.5-nm-thick film is about 535 emu/cc and the out-of-plane Ms is 443 emu/cc. Both values are significantly higher than that of bulk LiFe
5O
8 (2.5 µB/formula unit ~ 320 emu/cc) [
5]. The in-plane and the out-of-plane Ms of the 30-nm-thick film are about 194 emu/cc and 137 emu/cc, respectively. The in-plane and out-of-plane coercive fields (Hc) of the 7.5-nm-thick film are about 71 Oe and 142 Oe, respectively, which are smaller than that of the 30-nm-thick film (217 Oe and 166 Oe). Our measurement of the magnetic properties shows apparent thickness dependence of LiFe
5O
8 thin films prepared on SrTiO
3(001) substrates.
The enhancement of the magnetic moment and the decrease of the coercive field has been reported in thinner spinel films, e.g., NiFe
2O
4 and CoFe
2O
4 [
21,
22,
23] and LiFe
5O
8 on MgAl
2O
4 substrates [
10]. The anomalous cation distribution among the tetrahedral and octahedral sites of the spinel structure has been invoked to account for this phenomenon [
14,
21]. In our LiFe
5O
8 thin films, no chemical modulation or second phase has been observed during TEM investigations, ruling out the anomalous Fe
3+ distribution as the origin of the enhanced Ms. Thus, the most likely factor responsible for the thickness-dependent magnetic properties is the strain state and the microstructure of the film. For the inverse spinel structure materials, the compressive strain favors the in-plane orientation of the magnetization [
22,
25]. Moreover, the magnetic coupling across the nonstoichiometric twin boundaries (TBs) in spinel is antiferromagnetic [
7]. Although strain relaxations occur in our LiFe
5O
8 films, the tetragonal lattice distortions appear in both films under compressive strain, resulting in anisotropic magnetization in the both films. Additionally, the appearance of a high density of antiferromagnetic TBs [
26] in the 30-nm-thick film can lower the Ms of the film. In contrast, the oriented GBs are dominant in the 7.5-nm-thick film, which may enhance the Ms of the film owing to the magnetic coupling at the interfaces [
9,
17]. Overall, varying thicknesses of the LiFe
5O
8 films on SrTiO
3(001) substrate can effectively modify the microstructural and magnetic properties of the film.
