A Study on the Measuring Methods of Websites Security Risk Rate

A peer-reviewed version of this preprint was published in:
Applied Sciences 2023, 14(1), 42. https://doi.org/10.3390/app14010042

Submitted:

14 September 2023

Posted:

15 September 2023

You are already at the latest version

Abstract
Static and dynamic analysis of website security risks is generally used for website security meas-urements. The website security measurements method recently proposed includes similarity hash-based website security risk analysis and machine learning-based website security risk anal-ysis. In this study, a method that can be performed through information disclosed on the Internet was proposed to measure the risk of a website. DNS information, IP information, and website history information are required to measure the risk of a website. In addition, global traffic rank-ing, malicious code distribution history, and HTTP access status can be checked in the website history information. In this study, information related to the security risk of websites in a total of 2,000 domains was collected and analyzed in 1,000 normal and malicious domains. Through the experiment results, 11 open information collection items were selected to measure the security risk of the website. This study presented the possibility of using public information collection to measure website security risk.
Keywords:
;  ;

1. Introduction

Recently, cases of personal information infringement accidents and DDoS attacks that steal personal information after infecting the user's PC by distributing malicious codes to Internet users are increasing. Hackers have been exploiting security vulnerabilities such as cross-site scripts, SQL injections, and security configuration errors to steal personal information.
Among the various channels for distributing malicious code, the number of cases of distributing malicious code using vulnerabilities in websites and user PCs continues to increase. The homepage, which can infect a user's PC with malicious code, is divided into a distribution site that directly hides the malicious code and a hidden stopover so that it can be automatically connected to the distribution site. After opening a malicious code distribution site, the attacker hacked the website of the destination and inserted the distribution site URL to infect the malicious code by inducing the visitor to access the destination to the distribution site without knowing. Detection of stopovers is becoming increasingly difficult because they mainly target websites with high user visits, such as portals, blogs, and bulletin boards, and obfuscate and conceal malicious code within the stopover hacked by the attacker [1]. As a result, there is an increasing de-mand for measuring the security threat of websites. Static and dynamic analysis of website security risks is generally used to analyze website security risks [2]. Similar hash-based website security risk analysis and Machine Learning-based website security measurement methods have recently been proposed [3]. Additionally, website security measurement technology mainly aims at inspection speed, zero-day malicious code analysis possibility, and accuracy of analysis results.
In this study, a method was proposed to collect and measure information disclosed on the Internet to measure the risk of a website. DNS information, IP information, and website history information are re-quired to measure the risk of a website. The website history information can be checked for global traffic rankings, malicious code distribution history, and HTTP access status. In addition, public information col-lection on a website can be used to measure the security risk of a website. Existing cybersecurity intelligence analysis utilizes commercial services from antivirus companies. However, in this study, we conducted a study to measure cyberthreats by collecting only OSINT information for public purposes.

3. Suggested method of website risk information collection

This study proposes collecting information disclosed online to measure website risk. In order to measure the risk of a website, DNS information, IP information, and website history information are required. The website history information may be based on global traffic ranking, malicious code distribution history, and HTTP access status. This study proposed a three-step plan to collect the published website risk information.

3.1. Technique of web Site risk information collection

A method for collecting public information for measuring the risk of malicious code is presented as follows. As shown in [Figure 5], risk measurement information for the website can be collected through the website DNS information after inquiring Whois in step 1. Then, in step 2, website IP information can be collected through Whois inquiry. The third step is to collect website history information, which can collect Amazon Alexa inquiries, Google Virustotal, and HTTP response codes.

3.2. Technique Analyze of website risk information collection

Table 2 shows that the website risk information collection can collect 13 items. Through DNS information, it can check the risk of the website according to the country, registrant, registration date, end date, and registered agent information. It is essential whether the IP country, IP allocation agency, DNS country, and IP country are the same through IP information. Among the website history information, if the global track pick ranking is low, the security risk is high, and the number of malicious code occurrences increases. In addition, the more recent the occurrence date, the higher the risk. If the HTTP response code is not accessible to the website, the risk can be assumed to increase.

3.3. How to collect website risk disclosure information

3.3.1. Web Site DNS Information Collection

Information for determining the risk of a website can collect essential information through DNS. As shown in Figure 6, the country, registrar, registration date, end date, registration agent, and name server information are collected through Whois queries. It is to be able to check in advance whether the website is dangerous through basic information. Collecting DNS public information on the website through Whois queries is possible through a string for each keyword when inquiring Whois. For example, to extract a do-main country, it can extract it using "Registrant Country".

3.3.2. Collecting website IP information

Information for determining the risk of a website may collect basic information through IP. As shown in [Figure 7], country, allocation agency, and country comparison information through Whois queries were collected. Collecting public information about the website IP through whois queries is possible. Collecting public information on the website IP through Whois queries is possible through a string for each keyword when inquiring Whois. For example, IP country extraction can be extracted using "country".

3.3.3. Collection of website history information

Websites with many Internet users invest a lot in security infrastructure to protect users at the corporate level. Therefore, the Ranking of website user traffic becomes basic information that can determine whether there is a security risk. As shown in Figure 8, global website ranking information can be collected through Amazon's Alexa Traffic Rank service. As shown in [Figure 8], the Amazon Alexa Rank public information does not identify real-time security threats, but it does show similarities to websites that have been the focus of security incidents. Additionally, you can collect global website ranking information.
As shown in Figure 9, global traffic ranking information was collected through the Alexa Traffic Rank API.
Alexa Traffic Rank API Search
In order to measure the security risk of a website, it is essential to have a history of malicious code distribution on the website. In this study, malicious code distribution history information provided by Google Virustotal was used. As shown in [Figure 10], information on the number and timing of malicious code distribution on the website can be collected by linking with the Google Virustotal API.
Virustotal API
Attackers often open a website quickly to spread malicious code and then delete the website. Alternatively, collecting status information on the website is essential because it may be operated only when malicious code is distributed. As shown in [Figure 11], HTTP status codes are a way to check the risk of a website's availability in real-time. For example, a status code of 200 is normal, while a 404 status code is unavailable and does not provide availability. If the HTTP status code is 0, the risk of the website increases as it does not operate the web server.

4. Experiment

This study conducted experiments on 1,000 regular domains and 1,000 domains classified as malicious code dissemination or phishing websites in 2021. As a result, information related to 2,000 website security risks was collected and analyzed. This paper presents the results of an experiment to measure the risk of a website using only OSINT information for public interest purposes..

4.1. Results of Website Domain Security Risk Measurement

To collect public information, we configured an experimental environment by connecting DNS and IP public websites and linked APIs for reputation research. The difference between the information collected for 1,000 regular domains and 1,000 malicious domains is as follows. As shown in <Table 3>, among the unknown items in the collection of domain information, the domain registration date (regular 12%, malicious 66%), the domain termination date (regular 11%, malicious 66%), the domain registration agent (regular 10%, malicious 65%), and the domain name server (10%, malicious 65%). It was confirmed that the four collection items are information that needs to be collected for domain security risk. However, domain countries (64% regular, 75% malicious) and domain registrants (62% regular, 77% malicious) were found to have low discrimination among the unknown items.

4.2. The security risk measurement results of the website IP

The security risk measurement results of the website IP are as follows. As shown in Table 4, among the unknown items in the collection of IP information, the results of IP countries (regular 12%, malicious 48%), IP allocation agencies (regular 12%, malicious 48%), and DNS and IP countries comparison (regular 4%, malicious 48%).

4.3. The security risk measurement results of Website reputation inquiry

As shown in Table 5, the security risk measurement results of the Website reputation inquiry are as fol-lows. Among the unknown items in the collection of reputation information, the Global Traffic Rank (13% regular, 89% malicious), the number of malicious codes (96%, 1% malicious), the date of occurrence of malicious codes (96%, 1% malicious), and HTTP Response Code (11% regular, 59% malicious). In partic-ular, when the number of malicious codes and the date of occurrence are usual, it was confirmed that the higher the unknown number, the lower the risk.

4.4. Expected effect

As shown in <Table 6>, public information collection is used to measure website security risk. Domain countries and domain registrants were not adopted as items that were difficult to distinguish between nor-mal and malicious. Domain registration date, domain termination date, domain registration agent, domain name server, IP country, IP allocation agency, DNS-IP country comparison, Global Traffic Rank, and HTTP Response code showed that the higher the Unknown ratio, the higher the risk. It was confirmed that the risk of malicious code occurrence and malicious code occurrence date decreased as the Unknow ratio decreased. As a result of this study, 11 items were found to increase the accuracy of risk measurement in public information on the website. We presented experimental results showing that it is possible to collect basic information about publicly available websites and check them for maliciousness.

5. Conclusion

Recently, malicious code distribution using vulnerabilities in websites accessed by many users has been increasing. Accordingly, the importance of measuring the security risk of websites is increasing. Static and dynamic analysis of website security risks is generally used to analyze website security risks.
The website security risk measurement's technology mainly aims at inspection speed, zero-day malicious code analysis possibility, and accuracy of analysis results.
The main method of measuring website security threats is reputation research based on the record of previous security incidents. It is classified into dynamic checks that check malware by accessing the user's terminal environment and static checks that check malware detection patterns.
This study proposed a method that can be collected through information disclosed on the Internet in measuring website risk. DNS, IP, and website history information are required to measure website risk. The website history information can be checked for global traffic rankings, malicious code distribution history, and HTTP access status.
This study proposed a three-step plan to collect the published website risk information. First, this study experimented with collecting and analyzing information related to 2,000 website security risks on 1,000 regular domains and 1,000 domains that were distributed malicious code or classified as phishing websites in 2021. In order to measure the security risk of the website through the experimental results, 11 items for collecting public information with high accuracy and meaningful results are proposed. This study collected basic information on OSINT, a publicly available website, and checked whether it is malicious. Fanally, This study confirmed the possibility of big data analysis of OSINT in the future.

References

  1. Kuyoung Shin, Jinchel Yoo, Changhee Han, et al., "A study on building a cyber attack database using Open Source Intelligence(OSINT)", Convergence Security Journal 19(2), pp. 113-133, 2019.
  2. Kim, KH. , Lee, DI., Shin, YT. (2018). Research on Cloud-Based on Web Application Malware Detection Methods. In: Park, J., Loia, V., Yi, G., Sung, Y. (eds) Advances in Computer Science and Ubiquitous Computing. CUTE CSA 2017 2017. Lecture Notes in Electrical Engineering, vol 474. Springer, Singapore. [CrossRef]
  3. Yong-Joon Lee, Se-Joon Park, and Won-Hyung Park,“Military Information Leak Response Technology through OSINT Information Analysis Using SNSes”, Security and Communication Networks, 2022. [CrossRef]
  4. G. Tan, P. Zhang, Q. Liu, X. Liu, C. Zhu, and F. Dou, "Adaptive Malicious URL Detection: Learning in the Presence of Concept Drifts," 2018 17th IEEE International Conference on Trust, Security and Privacy in Computing and Communications/ 12th IEEE International Conference on Big Data Science and Engineering (TrustCom/BigDataSE), New York, NY, USA, 2018, pp. 737-743. [CrossRef]
  5. K. Nandhini, and R. Balasubramaniam, "Malicious Website Detection Using Probabilistic Data Structure Bloom Filter," 2019 3rd International Conference on Computing Methodologies and Communication (ICCMC), Erode, India, 2019, pp. 311-316. [CrossRef]
  6. T. Shibahara, Y. Takata, M. Akiyama, T. Yagi, and T. Yada, "Detecting Malicious Websites by Integrating Malicious, Benign, and Compromised Redirection Subgraph Similarities," 2017 IEEE 41st Annual Computer Software and Applications Conference (COMPSAC), Turin, Italy, 2017, pp. 655-664. [CrossRef]
  7. Himanshu Mishra, Ram Kumar Karsh, and K. Pavani, “Anomaly-Based Detection of System-Level Threats and Statistical Analysis,” Smart Computing Paradigms: New Progresses and Challenges, 2019, pp 271–279. [CrossRef]
  8. Nayeem Khan, Johari Abdullah, Adnan Shahid Khan, "Defending Malicious Script Attacks Using Machine Learning Classifiers", Wireless Communications and Mobile Computing, vol. 2017, Article ID 5360472, 9 pages, 2017. [CrossRef]
  9. M. Husak and J. Kaspar, “towards Predicting Cyber Attacks Using Information Exchange and Data Mining,” in 2018 14th International Wireless Communications Mobile Computing Conference(IWCMC), 2018.
  10. Singhal, U. Chawla, and R. Shorey, "Machine Learning & Concept Drift based Approach for Malicious Website Detection," 2020 International Conference on COMmunication Systems & NETworkS (COMSNETS), Bengaluru, India, 2020, pp. 582-585. [CrossRef]
  11. Torres, J.M. Comesaña, C.I. García-Nieto, P.J. "Machine learning techniques applied to cyber security",Int.J.Mach.Learn.Cybern.2019.
  12. D. Liu, and J. Lee, "CNN Based Malicious Website Detection by Invalidating Multiple Web Spams," in IEEE Access, vol. 8, pp. 97258-9 7266, 2020. [CrossRef]

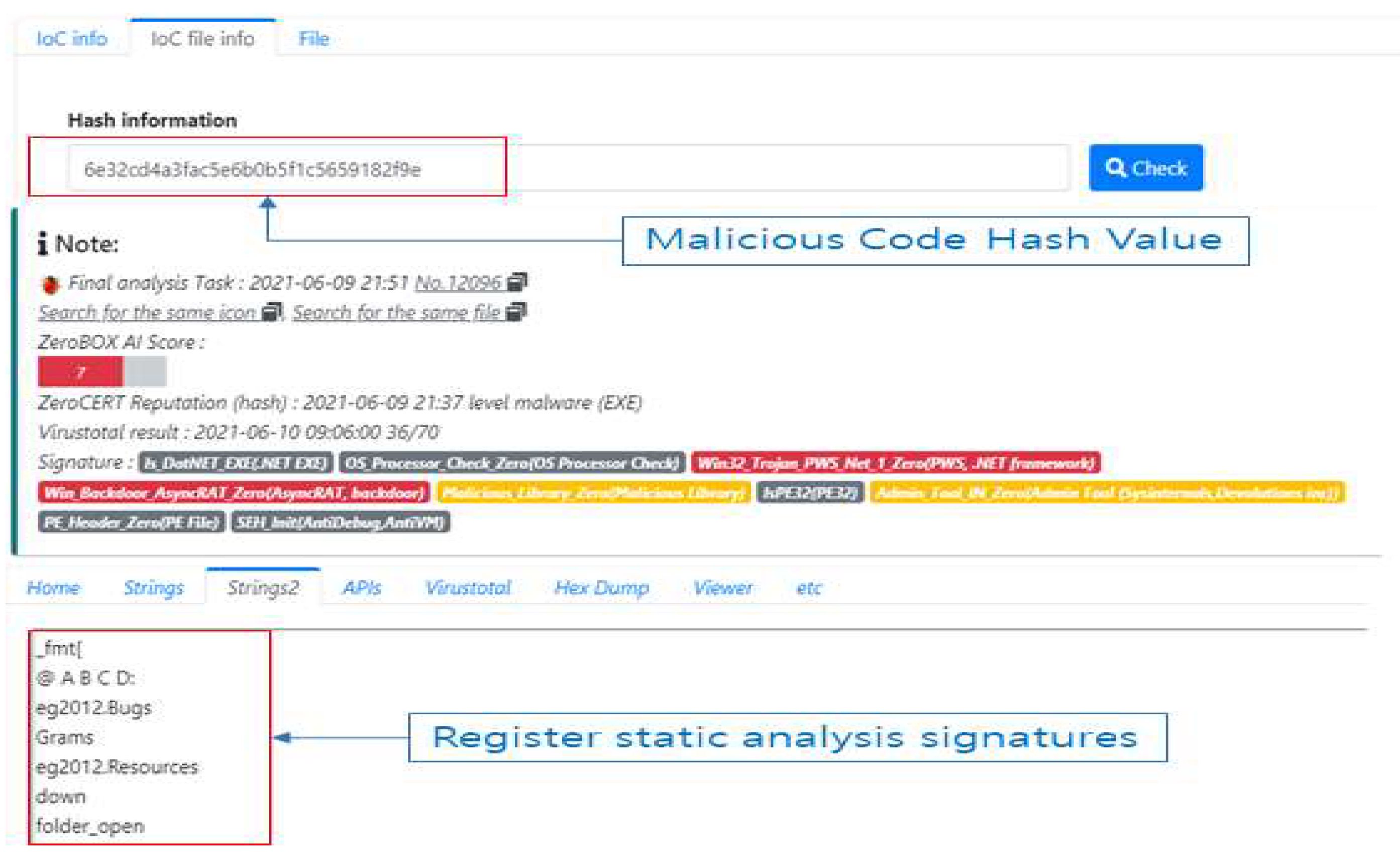

Figure 1. Register website security threat static analysis pattern.
Figure 1. Register website security threat static analysis pattern.
Preprints 85105 g001

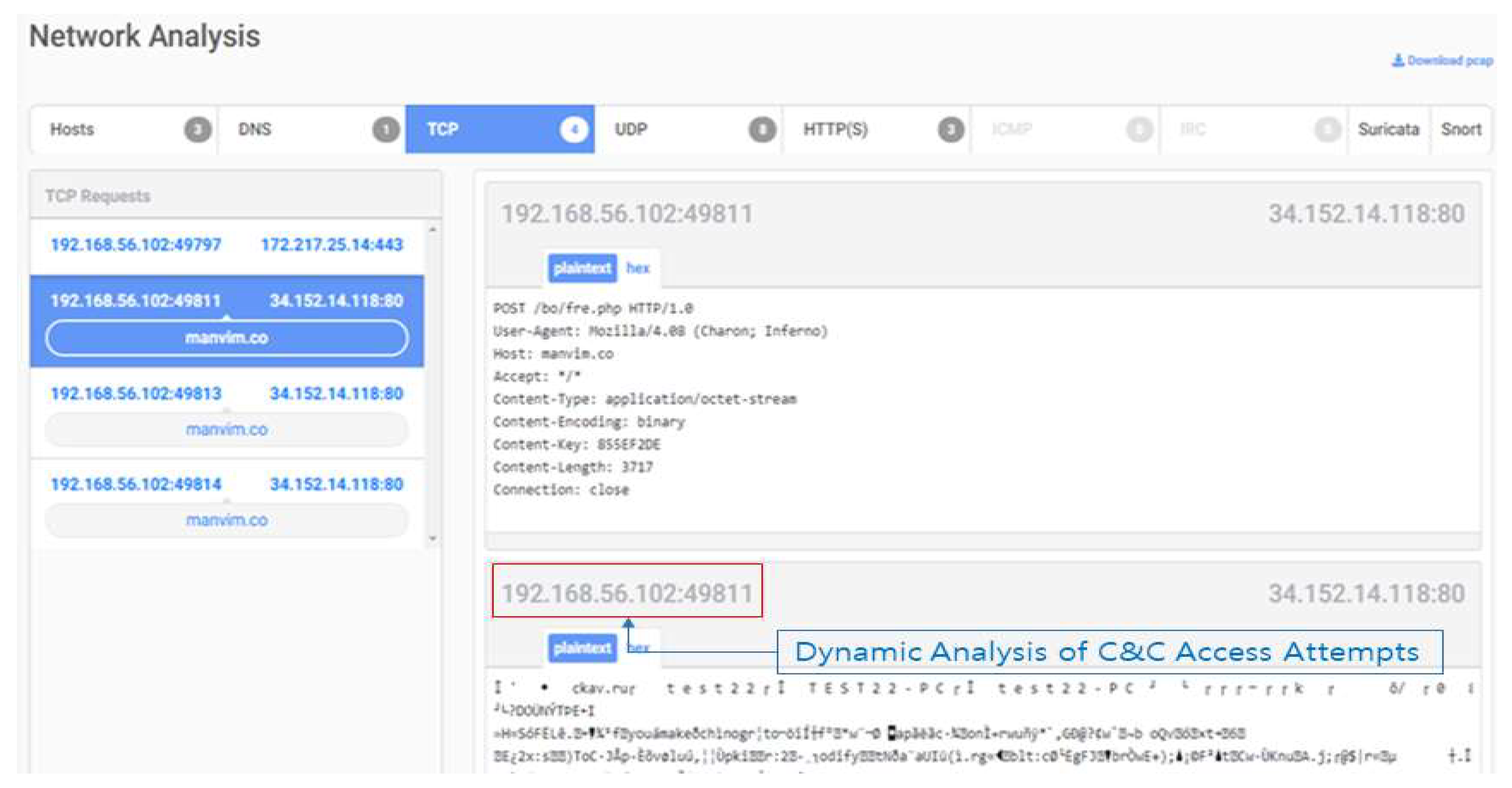

Figure 2. Dynamic Analysis of Security Threats on Website.
Figure 2. Dynamic Analysis of Security Threats on Website.
Preprints 85105 g002

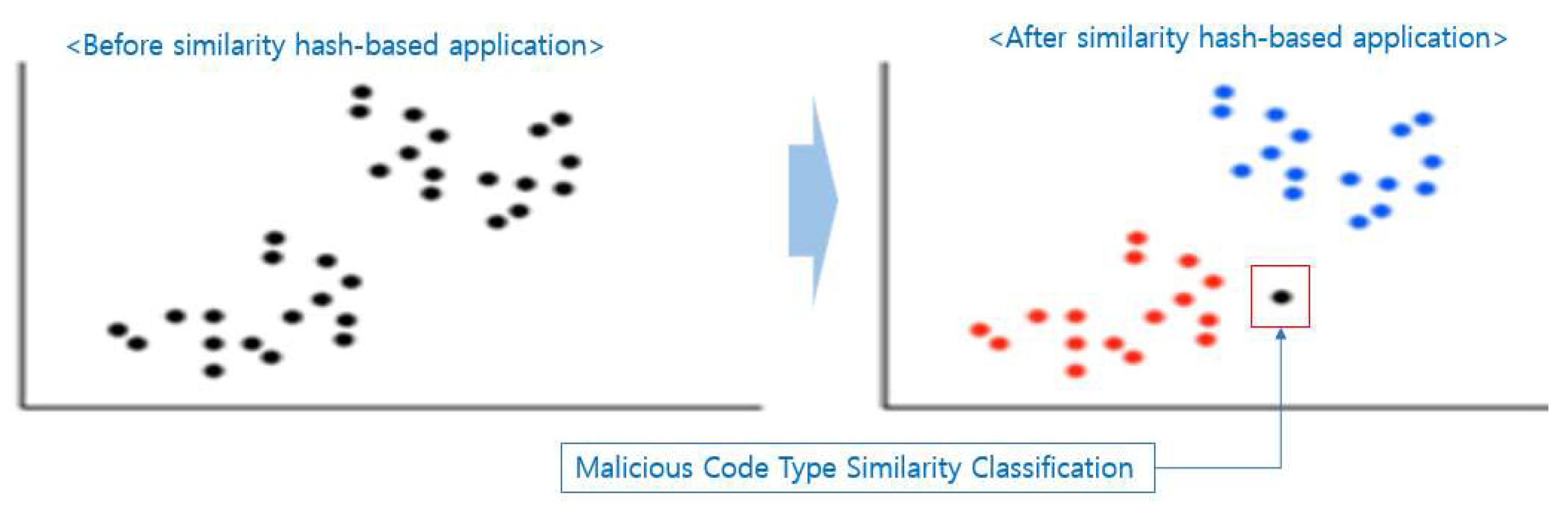

Figure 3. Security Threat Analysis of Web Sites Based on Similarity Hash.
Figure 3. Security Threat Analysis of Web Sites Based on Similarity Hash.
Preprints 85105 g003

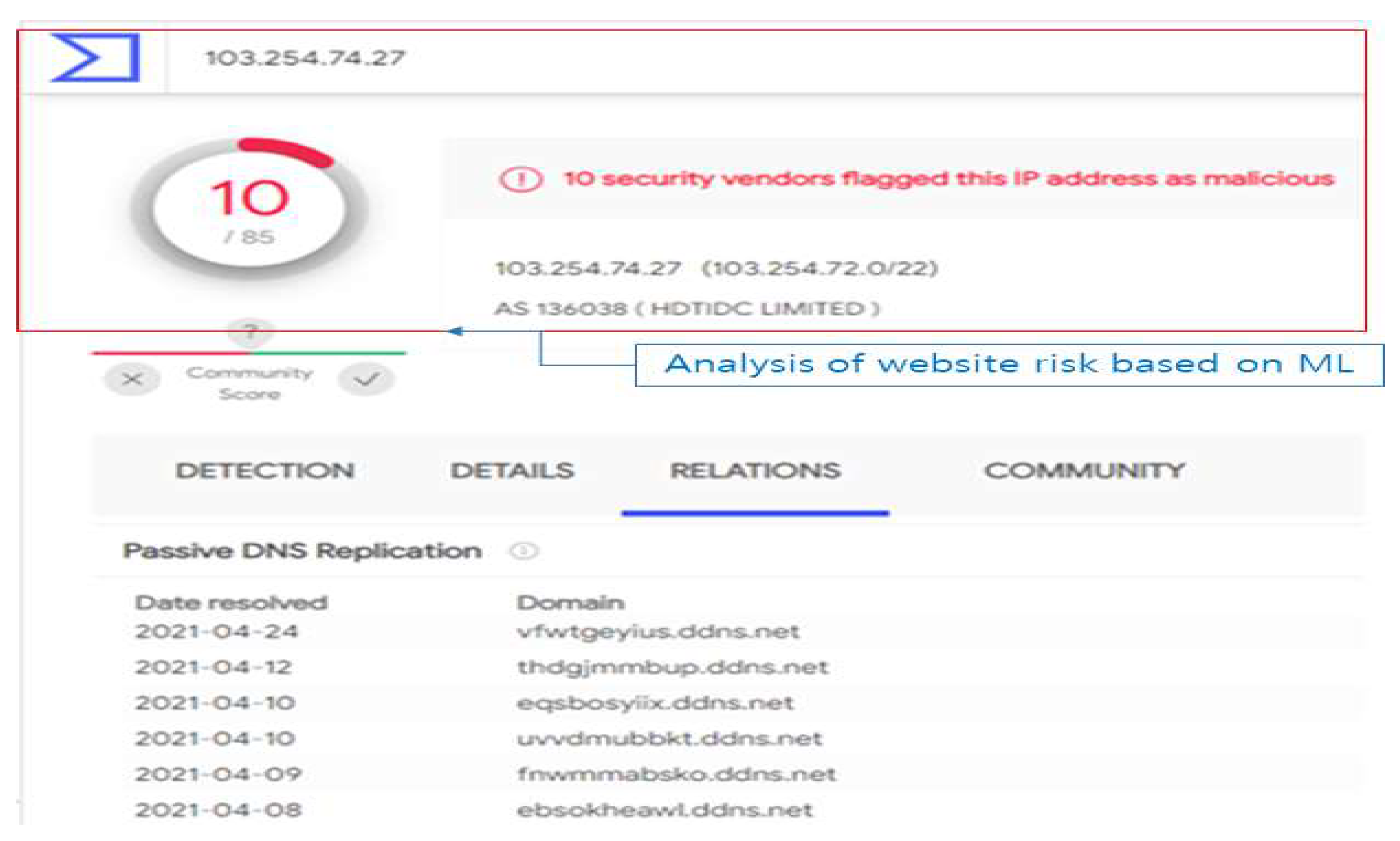

Figure 4. Check website security risk using ML.
Figure 4. Check website security risk using ML.
Preprints 85105 g004

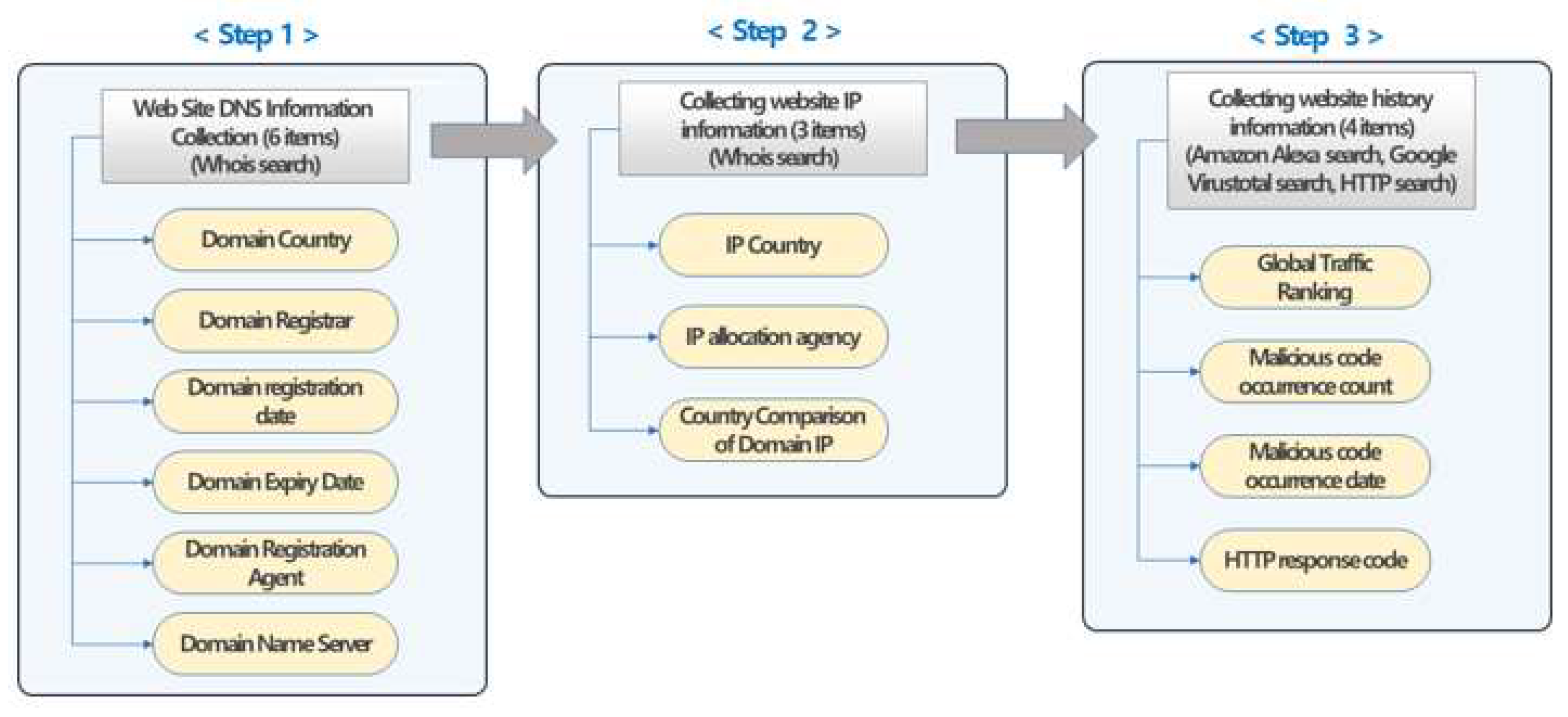

Figure 5. Collection Technique of Website Risk Information.
Figure 5. Collection Technique of Website Risk Information.
Preprints 85105 g005

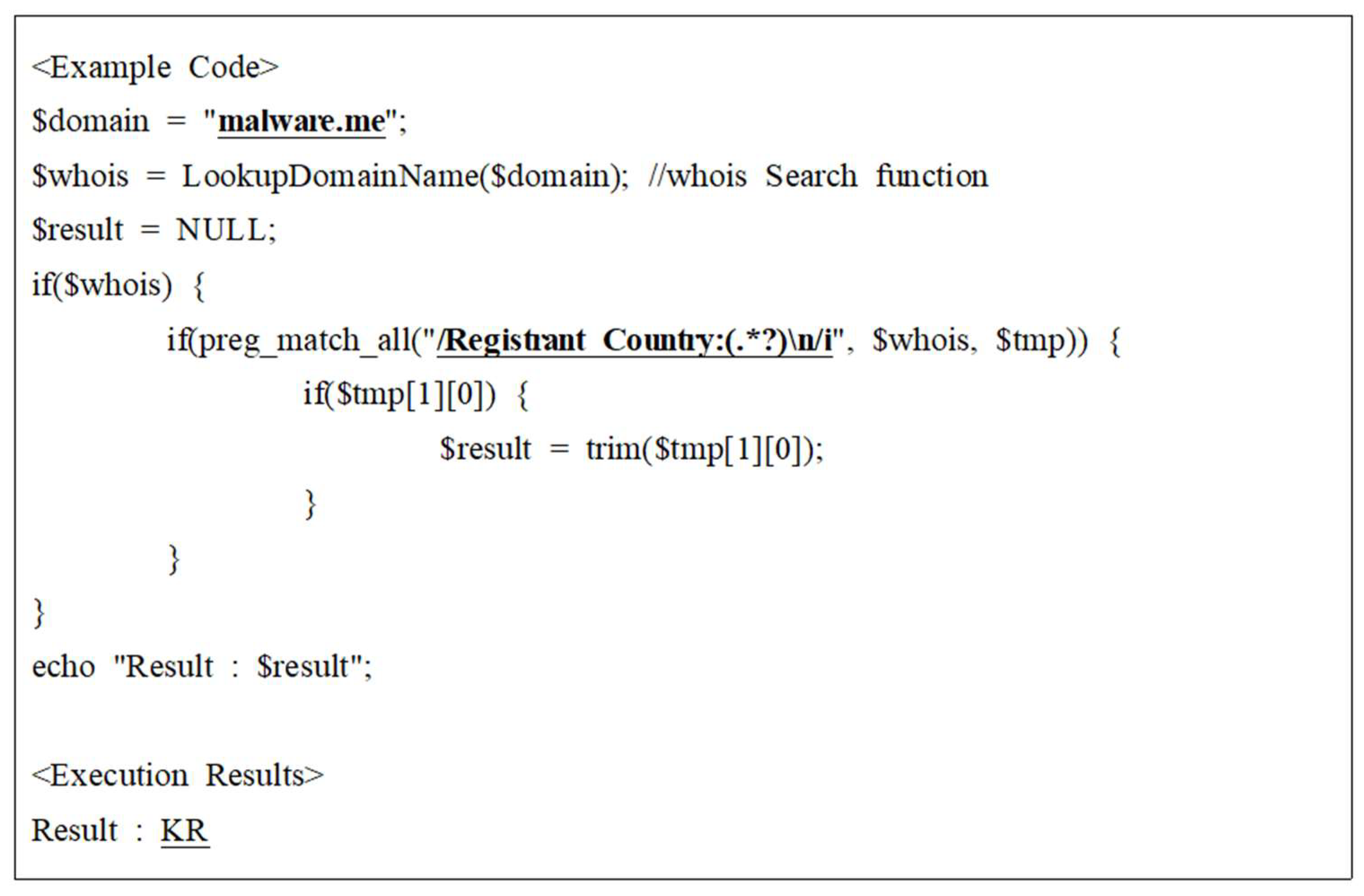

Figure 6. Collecting Domain Country Information with Whois DNS search.
Figure 6. Collecting Domain Country Information with Whois DNS search.
Preprints 85105 g006

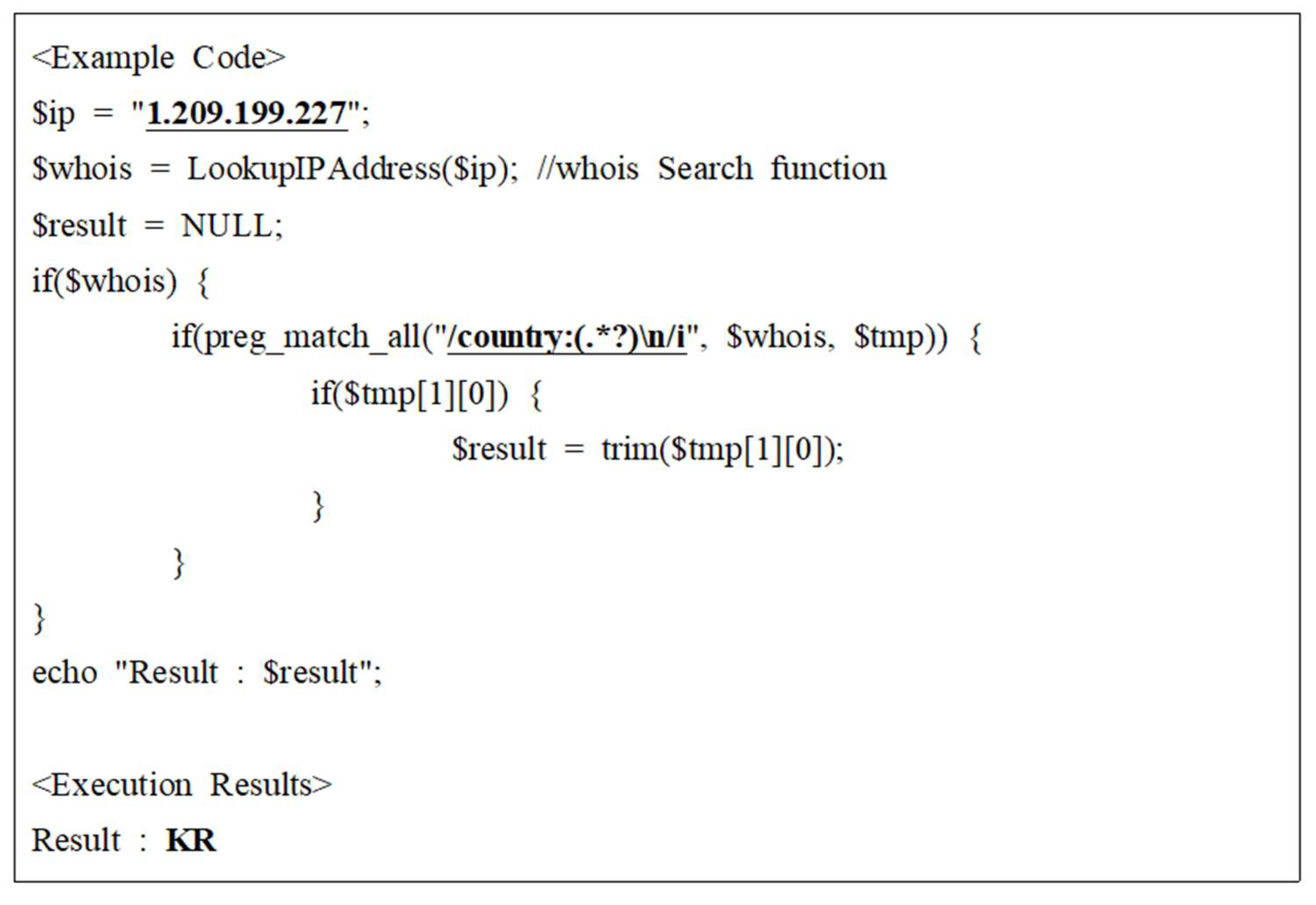

Figure 7. IP country information collection via Whois DNS search.
Figure 7. IP country information collection via Whois DNS search.
Preprints 85105 g007

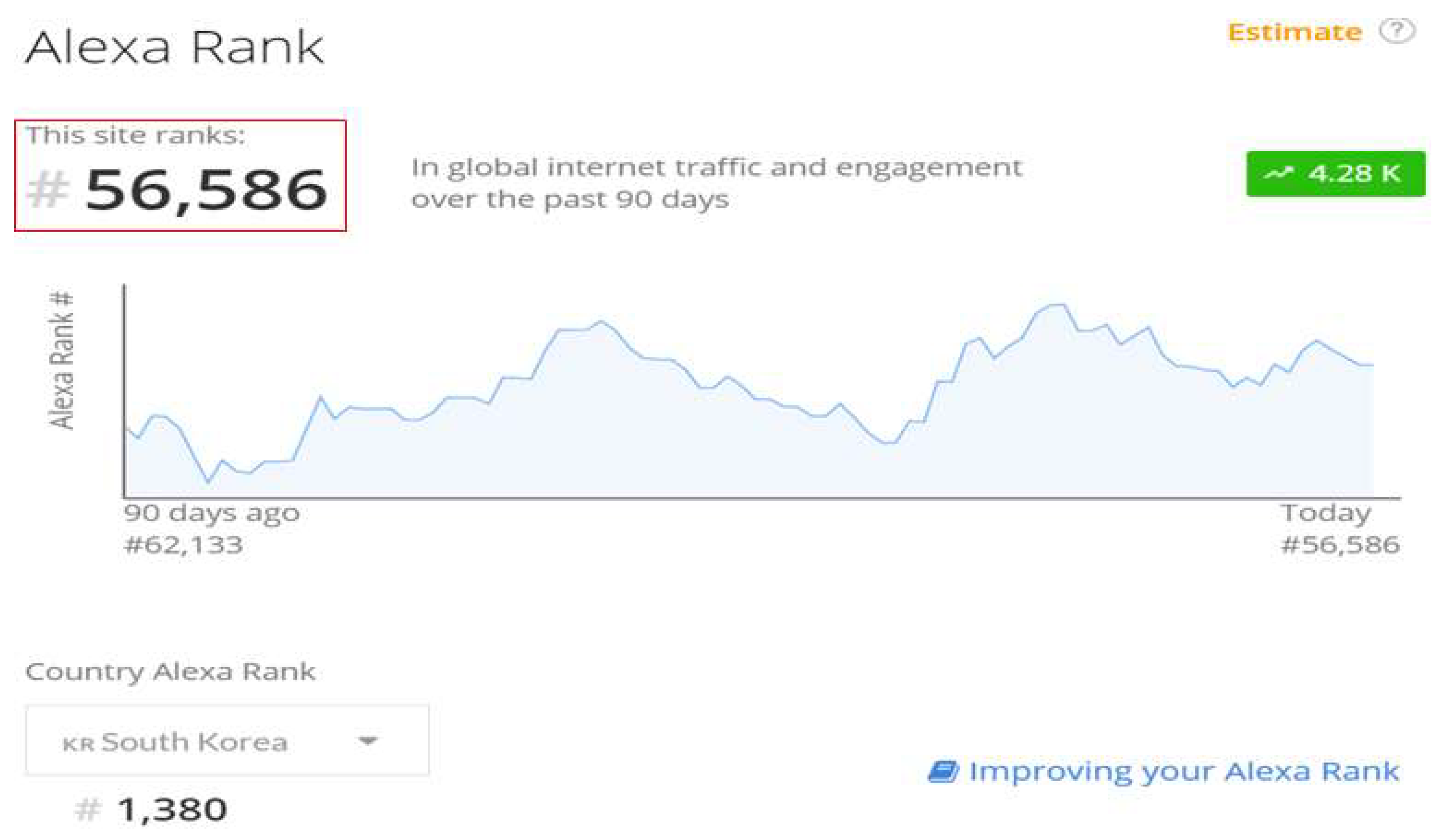

Figure 8. Alexa Traffic Rank Search Results.
Figure 8. Alexa Traffic Rank Search Results.
Preprints 85105 g008

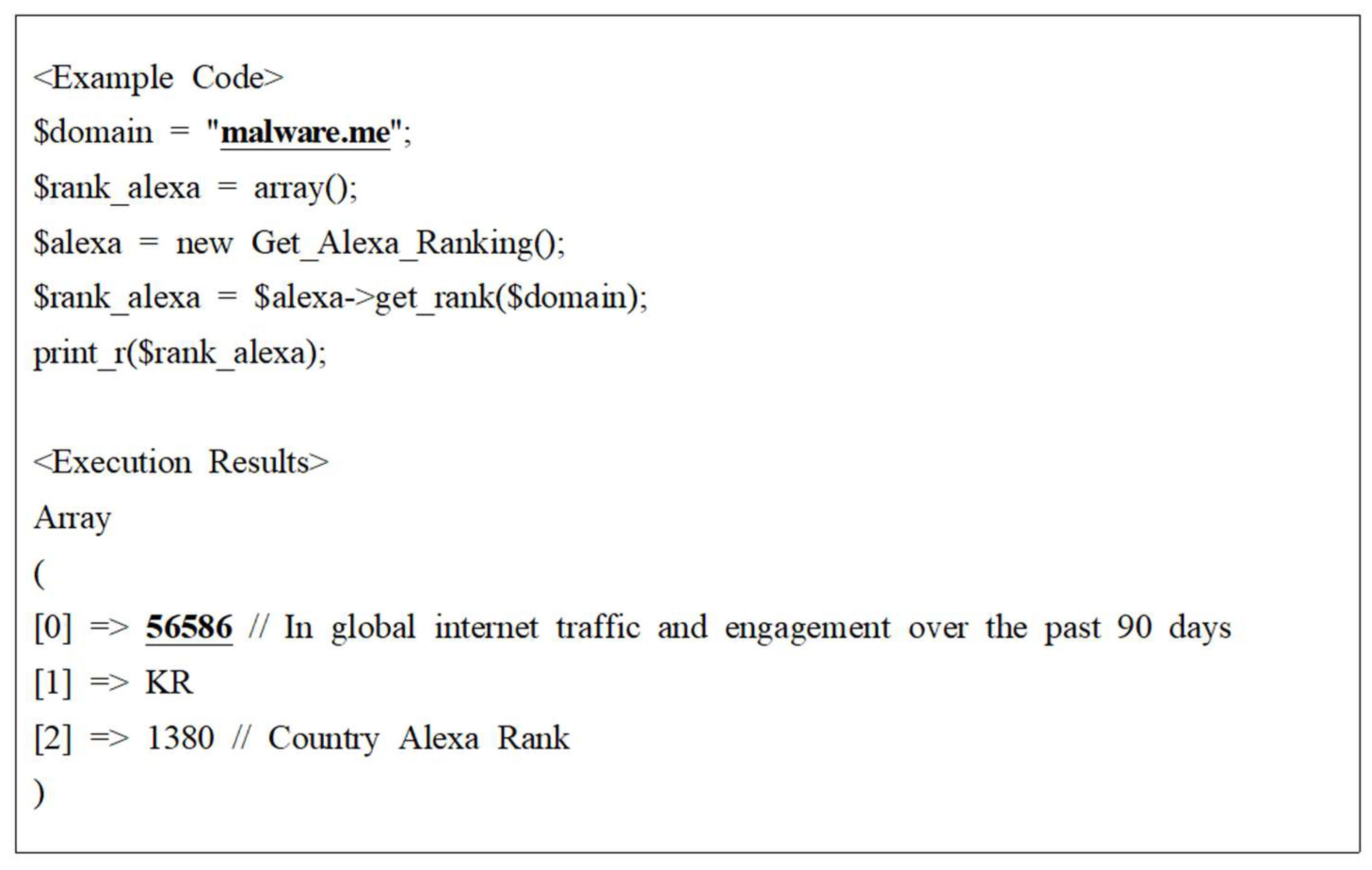

Figure 9. Gathering Global Traffic Ranking Information Through Amazon.
Figure 9. Gathering Global Traffic Ranking Information Through Amazon.
Preprints 85105 g009

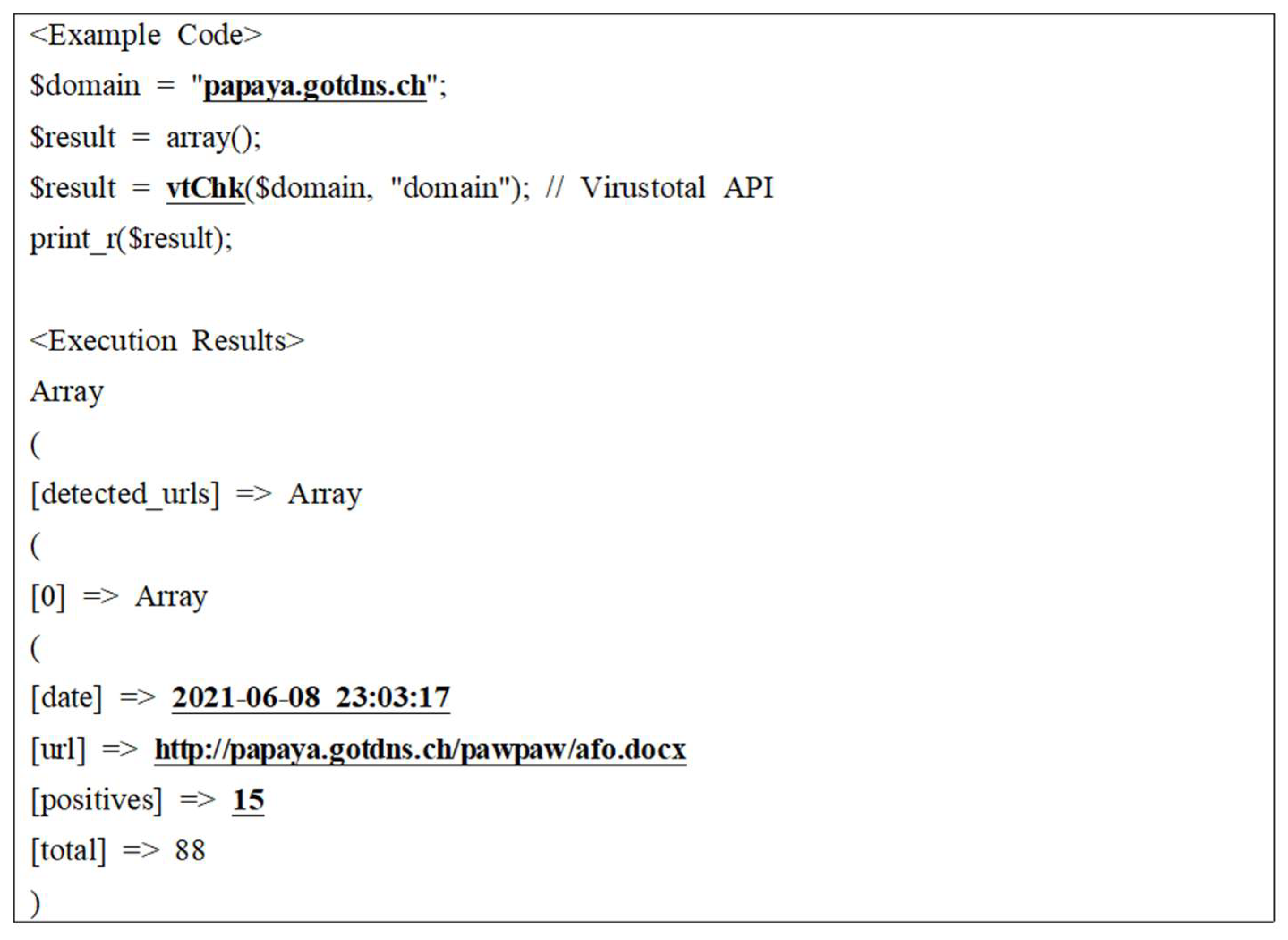

Figure 10. Collection of Malicious Web Site history information through.
Figure 10. Collection of Malicious Web Site history information through.
Preprints 85105 g010
Figure 11. Gathering Web Site HTTP Status Code Information.
Figure 11. Gathering Web Site HTTP Status Code Information.
Preprints 85105 g011
Table 1. Comparison of analysis techniques on website security risk.
Table 1. Comparison of analysis techniques on website security risk.
Comparison item Static analysis Dynamic Analysis Similarity Hash Analysis ML Learning
Analysis
Inspection method Check website sources by registering malicious code patterns Access websites from virtualized PCs to analyze risk behavior Check the similarity of malicious code data sets for hash values and files collected on the website ML learning of malicious code and healthy files to predict risk to files collected on the website
Inspection technology Web Crawling Virtualized PC Malicious Code Dataset
similarity hash
Malicious code, regular code ML learning
Inspection speed high speed low speed high speed high speed
Zero Day Detection Unable to check Inspection available Inspection available Inspection available
Accuracy Good Good Middle Good
Table 2. Collection information for website security risk measurement.
Table 2. Collection information for website security risk measurement.
No. Contents of Collection Informations of Collection Methods of Collection
1 Domain Country -Registrant Country
2 Domain Registrar -Registrant Name
-Registrant Organization
-Registrant
Whois Search
3 Domain registration date -Creation Date
-Registered Date
-Registered on
4 Domain Expiry Date -Expiry Date
-Expiration Date
-Expiration Date
5 Domain Registration Agent -Authorized Agency
-Registrar
-Organisation
6 Domain Name Server -Name Server
-Host Name
7 IP Country -country Whois Search
8 IP allocation agency -organization
-netname
9 Country Comparison - Country Comparison of Domain and IP
10 Global Traffic Rank -Global Traffic Rank Search Amazon Alexa Search
11 Number of occurrences -Malicious code occurrence count Google Virustotal Search
12 Time of occurrence -Malicious code occurrence date
13 HTTP Response code -Checking website access status HTTP response code Search
Table 3. Results of Website Domain Information Collection.
Table 3. Results of Website Domain Information Collection.
No. Contents of Collection Extraction Keyword
regular website malicious website
7 IP Country - unknown 12%
- TOP
5∙ KR(387)
∙ US(341)
∙ AU(42)
∙ CN(31)
∙ DE(9)
- unknown 48%
- TOP
5∙ US(230)
∙ AU(53)
∙ RU(25)
∙ NL(21)
∙ GB(21)
8 IP allocation agency - unknown 12%
- TOP
5∙ IRT-KRNIC-KR(389)
∙ IRT-APNIC-AP(100)
∙ Google LLC(82)
∙ Cloudflare, Inc(62)
∙ RIPE Network Centre(48)
- unknown 48%
- TOP
5∙ IRT-APNIC-AP(153)
∙ RIPE Network Centre(123)
∙ Cloudflare, Inc(53)
∙ Internet Assigned Authority(13)
∙ Google LLC(12)
9 Country Comparison - unknown 4%
- FALSE 67%
- TRUE 29%
- unknown 45%
- FALSE 53%
- TRUE 2%
Table 4. The Information Collection Results of Web Site IP.
Table 4. The Information Collection Results of Web Site IP.
No. Contents of Collection Extraction Keyword
regular website malicious website
7 IP Country - unknown 12%
- TOP
5∙ KR(387)
∙ US(341)
∙ AU(42)
∙ CN(31)
∙ DE(9)
- unknown 48%
- TOP
5∙ US(230)
∙ AU(53)
∙ RU(25)
∙ NL(21)
∙ GB(21)
8 IP allocation agency - unknown 12%
- TOP
5∙ IRT-KRNIC-KR(389)
∙ IRT-APNIC-AP(100)
∙ Google LLC(82)
∙ Cloudflare, Inc(62)
∙ RIPE Network Centre(48)
- unknown 48%
- TOP
5∙ IRT-APNIC-AP(153)
∙ RIPE Network Centre(123)
∙ Cloudflare, Inc(53)
∙ Internet Assigned Authority(13)
∙ Google LLC(12)
9 Country Comparison - unknown 4%
- FALSE 67%
- TRUE 29%
- unknown 45%
- FALSE 53%
- TRUE 2%
Table 5. The information collection results of website reputation inquiry.
Table 5. The information collection results of website reputation inquiry.
No. Contents of Collection Extraction Keyword
regular website malicious website
10 Global Traffic Rank - unknown 13%
- TOP
5∙ 1(18)
∙ 13(8)
∙ 233(5)
∙ 11(4)
∙ 572(3)
- unknown 89%
- TOP
5∙ 369628(9)
∙ 2645(4)
∙ 6942(3)
∙ 2149797(3)
∙ 6722(3)
11 Malicious code occurrence count - unknown 96%
- TOP
5∙ 1(23)
∙ 2(4)
∙ 460(1)
∙ 29(1)
∙ 7(1)
- unknown 1%
- TOP
5∙ 1(825)
∙ 2(76)
∙ 3(38)
∙ 4(17)
∙ 5(9)
12 Malicious code occurrence date - unknown 96%
- TOP
5∙ 2021.03.28(1)
∙ 2021.03.27(1)
∙ 2020.01.13(1)
∙ 2018.09.20(1)
∙ 2018.07.27(1)
- unknown 1%
- TOP
5∙ 2021.01.13(6)
∙ 2021.01.11(6)
∙ 2021.01.18(5)
∙ 2021.01.11(5)
∙ 2021.01.14(5)
13 HTTP
Response code
- unknown 11%
- TOP
5∙ 301(488)
∙ 302(198)
∙ 200(126)
∙ 400(19)
∙ 403(17)
- unknown 59%
- TOP
5∙ 200(165)
∙ 301(134)
∙ 302(48)
∙ 403(35)
∙ 404(12)
Table 6. Results of public information utilization experiment for measuring website security risk.
Table 6. Results of public information utilization experiment for measuring website security risk.
Search Contents Website Security Risk Utilization of Public Information
Contents of Collection Unknown significant Unknown
rate
risk
regular malicious
Domain
Information
⚫ Domain Country 64% 75% × - -
⚫ Domain Registrar 62% 77% × - -
⚫ Domain registration date 12% 66%
⚫ Domain Expiry Date 11% 66%
⚫ Domain Registration Agent 10% 66%
⚫ Domain Name Server 10% 66%
IP Information ⚫ IP Country 12% 48%
⚫ IP allocation agency 12% 48%
⚫ Country Comparison of DNS and IP 4% 45%
Reputation
Information
⚫ Global Traffic Rank 13% 89%
⚫ Malicious code occurrence count 96% 1%
⚫ Malicious code occurrence date 96% 1%
⚫ HTTP Response code 11% 59%
