Morphological Reconstruction of a Critical Size Bone Defect in the Maxillofacial Region Using Modified Chitosan in Rats with sub-Compensated Type I Diabetes Mellitus

1. Introduction

Polycationic polysaccharide polymer chitosan creates a solid frame of wound coating, enters into physical synthesis with natural anionic polymers, provides antibacterial and antitoxic effects in bone cavity, is a building material and regulator of the formation of highly organized regeneration of connective tissue, non-toxic, highly biocompatible material, completely biodegrades in the wound cavity with the transition to gel mass. Sodium alginate is a polyanionic polysaccharide polymer, forms a strong electrostatic (physical) structure with chitosan, biodegrades, is non-toxic, highly compatible with biological tissues, is a building material for bone wound regeneration, creates chemical equilibrium when included in the composition of medicinal products, increases the elasticity of the polymer structure.

In the presence of a modified chitosan polyelectrolyte complex, early signs of angiogenesis and the formation of a new bone are recorded, starting from 7 days after the experimental formation of a bone defect [1]. Filling of an extensive bone cavity with chitosan ascorbate-alginate sodium-hydroxyapatite (CH-SA-HA) containing quaternized chitosan (CH), sodium salt of alginic acid (SA) and nano-structured hydroxyapatite (HA) showed that by the end of the 4th week, 80% closure of the defect was recorded on the tomogram, and after 8 weeks - 100%. 10 weeks after the injury, there are no signs of a bone defect. The analysis registers dense bone corresponding to the density of healthy bone. The bone density in the experimental group was 810-1050 HU for the spongy substance, for the compact part - 1300-1500 HU, which is higher than in the control group.

It is known that with prolonged hyperglycemia, low bone regeneration and inflammatory response are caused by excessive formation of reactive oxygen species (ROS) and the formation of active cytokine expression with the growth of tumor necrosis factor (TNF), IL-1ß, IL-6 and IL-18 [2,3,4,5]. Lack of insulin, hyperglycemia, accumulation of glycation end products (AGE) support systemic chronic inflammation with microvascular damage. The combination of these factors violates the architecture and biomechanical properties of bone [6,7], changes the ratio of the main mineral component of hydroxyapatite and the organic component – collagen type I [8]. Overproduction of peroxides means differentiation and proliferation of osteoclasts [9,10,11]. Deactivation of catalase increases the concentration of H2O2 in osteoclasts, reduces the expression of antioxidant enzymes and repeatedly accelerates the differentiation, survival of osteoclasts and their proliferation [12]. On the contrary, bone resorption is accompanied by apoptosis of osteoblasts [13,14,15], a decrease in their differentiation and activity [16,17,18]. Such pathophysiological shifts in periodontal tissues weaken the girder structure of mineralized bone [6,19,20,21]. The initial formation of coarse fibrous connective tissue undergoes lysis as a result of collagenolytic activity of fibroblasts [22]. The prolonged inflammatory process in diabetes mellitus is accompanied by the accumulation of glycated products that cross-stitch collagen fibers in both the trabecular and cortical bones [23]. This process to deterioration of the mechanical properties of the bone [24], significantly complicates bone regeneration, especially in the presence of a bone cavity of critical size. Morphological analysis indicates the destruction of the alveolar bone in the periapical and furcal regions, an increase in the areas of accumulation of osteoclasts with signs of bone lysis [25].

A characteristic morphological sign of reduced bone regeneration is a decrease in the thickness of the bone trabecula against the background of a drop in the level of osteoblast marker – osteocalcin [26,27], alkaline phosphatase (alkaline phosphatase) and insulin-like growth factor (IGF-1). The rate of reduction of the bone callus in which cartilage is formed, the rate of cartilage resorption in the bone defect [28], the size of the newly formed bone [29] and the rate of formation of the vascular network [30] should be considered as important morphological signs of the state of bone regeneration in the analysis of the defect, requiring calculation in morphometric analysis. Hypertrophy of adipocytes in the bone marrow, a decrease in their perfusion and filling of the bone marrow with adipose tissue are morphological signs of the mesenchymal germ switching from osteoblast production to adipocyte production [31,32].

Natural polysaccharides as chitosan and sodium alginate are considered promising materials for closing the bone cavity of critical size today. These materials are the best when used for bone regeneration [33,34,35,36,37]. The similarity of the molecular structure of chitosan, sodium alginate, chondroitin and hyaluronic acids, heparin sulfate, mutual improvement of their own biological properties in relation to tissue regeneration dictates the need to create copolymers with high regenerative capacity [38].

The high molecular weight of the polymer and the high positive charge reduce the degradation rate of the matrix base, which is sufficient to eliminate the bone cavity of critical size. The molecular and functional similarity with highly hydrated glycosaminoglycans (GAG) of connective tissue, the ability of anionic chemical groups (SO3, COOH-, OH-) to quaternize the chitosan molecule and collapse it to nanoscale, thereby increasing the penetrating ability through the tissue compartment, gives reason to use a polyelectrolyte chitosan complex to eliminate a bone cavity of critical size [1.39]. A very small size of the polyelectrolyte complex enhances platelet adhesion, which stimulates the functions of osteogenic cells [40], good contact of the polymer gel with the newly formed and maternal bone [41]. This reconstruction of chitosan can activate the proliferation of vascular endothelium, endothelization of the walls of the bone cavity and the polysaccharide structure itself, trigger proliferation and differentiation of osteoblasts. The task when using a biodegradable three-dimensional frame is to maintain the function and control the degradation of the polymer in the bone tissue until the full formation of a new bone. To stimulate bone neoplasm in diabetes mellitus and increase tissue strength, it is recommended to include hydroxyapatites in the complex [42,43,44]. Nano-sized hydroxyapatite, that ensures the strength of bone tissue, is located between bundles of collagen fibers in the form of parallel oriented plates and increases the synthesis of its own bone tissue. The inclusion of hydroxyapatite in the chitosan matrix is designed not only to enhance the strength characteristics of the implant, but also for the early formation of native bone [45].

The inclusion of angiogenic and osteogenic growth factors in the chitosan matrix accelerates the formation of a full-fledged bone. For example, preliminary studies have shown that the addition of the low-molecular-weight serum growth factor "adhelon" to the collagen-chitosan structure increases the inclusion of 3H-thymidine in the primary culture of proliferating mouse fibroblasts cultured on various substrates for 16 hours [46].

The end result of molecular transformations is a decrease in the induction of osteoclastogenesis molecules with a decrease in bone lysis zones and an increase in the volume of newly formed bone surrounding polysaccharide implants.

The inclusion of alginate and hydroxyapatite in chitosan stimulates the growth of angiogenesis factors (VEGF, CD31) in osteoblast precursors and mature osteoblasts against the background of an increase in the amount of collagen in the newly formed bone. The result of molecular transformations is the active differentiation of osteoblast precursors, the formation of a large mass of osteocytes filling a bone defect of critical size, microvascular endotheliocytes in the Havers channels [1]. For the hydration of chitosan molecules and the survival of osteoblasts, ascorbic acid is also included [47].

The concept of the study is based on the ability to form an early osteogenic reaction in the maxillofacial region using modified polysaccharides, despite the active development of diabetes mellitus and the presence of a critical size bone defect.

Thus, to confirm the formation of conditions for intensive formation of young bone in diabetes mellitus, early covering of bone beams with a mass of osteoblasts, the formation of havers channels with a high content of endotheliocytes, the authors of the work used a polyelectrolyte complex based on quaternized high-molecular chitosan with an additional degree of amination and a degree of deacetylation of 95%. The interest is a detailed morphological analysis of the bone cavity under the conditions of filling using a polysaccharide design.

2. Materials and Methods

The work was performed following ethical principles established by the European Convention for the Protection of Vertebrate Animals used for Experimental and Other Scientific Purposes (Strasbourg, 18 March 1986, adopted on 15 June 2006). All manipulations with the animals were performed following the regulations specified in the Guide for the Care and Use of Laboratory Animals (National Research Council, 2011). The work was approved: complex scientific theme No. 01201362513 (2013/01/01 – 2021/01/01) "Fundamental and applied scientific and technical developments of nano-level biopolymer structures and technologies for their production for use in cell and tissue engineering in socially significant human diseases"; Section "Dentistry": Obtaining, testing and introduction into clinical practice of cell substrates for direct implantation into hard and soft tissues of the periodontium in order to reconstruct the tissues of the maxillofacial region, eliminate the causes of the formation of degeneration zones and the formation of periodontolysis zones; Research topic: "Restoration of the structure of the bone tissue of the maxillofacial region using polysaccharide polymers with extensive traumatic defects in conditions of sub-compensated diabetes mellitus." Bioethical Commission for Working with Animals by the Ethics Committee of the Voino-Yasenetsky Krasnoyarsk State Medical University of the Ministry of Health Russian Federation (Protocol No2 of 10/28/2019).

2.1. Composition and production of modified chitosan

Gel mass "CS-SA-HA" containing 2% solution of chitosan ascorbate (CS) (dissolution of the polymer in ascorbic solution acid in a ratio of 1: 1.5) with a molecular weight of 695 kDa and a degree of deacetylation of 95% (a special purified chitosan obtained in Vostok -Bor-1, Dal'negorsk, Russia; Specifications (No 9289-067-004721224-97), including, per 1 g of dry chitosan ascorbate, 100 mg of sodium chondroitin sulfate (Sigma), 100 mg of sodium hyaluronate (Sigma), 2,5-5 mg of heparin sulfate (Russia, Pharm.Art. (No 42-1327-99), 110 mcg \ g serum growth factors in cattle "adgelon" (SLL "Endo-Pharm-A", Moscow region, Schcholkovo, Russia, Specifications (No 113910- 001-01897475-97), 4% sodium alginate (SA) (Pharm.Art. No 42-3383-97 or Specifications (No 15-544-83; Arkhangelsk algal plant. Co), including 50% amorphous hydroxyapatite (HA) (5-20 nm, Russia, Pharm.Art. (No 42-3790- 99 or GOST 12.1.007-76), in the ratio of chitosan ascorbate and sodium alginate 1:1 [48].

7.2 grams of chitosan is added to the prepared solution of ascorbic acid (Pharm.Art. No 42-2668-95) with stirring at a temperature of + 20-25 °C, the mass is stirred for 4-5 hours until the chitosan is completely dissolved. Aqueous solutions of sodium salts of chondroitin sulfuric acid, hyaluronic acid, and heparin are successively add equal volumes to the resulting 4% chitosan solution with constant slow stirring using a magnetic stirrer in a total volume equal to the volume of chitosan ascorbate. The introduction of each subsequent ingredient is carried out only after homogeneous mixing of the previous one with the chitosan gel. As a result, 2% chitosan polyionic complex is obtained. Next, 4% aqueous solution (gel) of sodium alginate is prepared, 50% (by dry weight) of hydroxyapatite is added. The finished chitosan solution is thoroughly mixed with the sodium alginate solution using a high-speed mixer [49].

The gel mass is spillt into 2 ml vials, placed in a LZ-45 Frigera (Czech Republic) sublimation unit) at a plate temperature of +20±5°С. The mixture is frozen to a temperature of -40 ±3°С. Freezing time is 3-4 hours, then the chamber is put under vacuum to a residual pressure of 133 Pa (1 mm Hg), after which the process of drying the product begins due to the supply of heat from the coolant to the frozen product through heating plate surface. The sublimation process is carried out at a residual pressure of 44.3 to 133 Pa (0.33 to 1 mm Hg) and a coolant temperature of 45±5°C. The temperature of the product should not exceed +50°С. The complete drying cycle of the product is 8 ±2 hours. Vials with lyophilized mass are hermetically sealed and gamma sterilization is carried out at a radiation dose of 5-7 kGy.

2.2. Animal characterization and modeling of type I diabetes mellitus in rats

For the study, white female Wistar rats (supplier LLC BioTech, Moscow, weight 250 g, age 3 months at the beginning of the experiment) were used. The studies included 5 groups of animals, 10 rats in each group: group 1 (control No.1, healthy animals, comparative analysis, regeneration of the bone cavity under a blood clot); group 2 (control No.2, animals with a model of sub-compensated diabetes mellitus, regeneration of the bone cavity under a blood clot); group 3 (control No.3, animals with a model of sub-compensated diabetes mellitus, regeneration of the bone cavity when filling a bone defect with a lyophilized collagen sponge, type-I polymer, product purity 99%; "Bioactive collagen", SLL "LAONA LAB" certificate of conformity No.POCC RU.PK 08. H00305; Technical conditions 10.11.60-001-64516066-2017; Test reports No.D0317m dated 11.28.2017; No.D0516 dated 11.28.2017 (Joint-Stock Scientific Society "Perfumetest" testing center); group 4 (control No.4, healthy animals, regeneration of the bone cavity when filling with lyophilized CH-SA-HA mass); group 5 (experienced group, animals with a model of sub-compensated diabetes mellitus, regeneration of the bone cavity during filling of a bone defect with a lyophilized mass of CH-SA-HA [1]. In each group, during morphological analysis, peripheral zones remote from the bone cavity were identified and a comparative analysis of bone regeneration in the central and peripheral zones was performed.

Destruction of pancreatic beta cells was achieved with a single subcutaneous injection of pure alloxan hydrate (C₄H₂O₄N₂·3H₂O; Mm 196.17, Chemapol, Praha) at a dose of 35 mg/rat against a preliminary 48 hour fast.

Peripheral blood sugar levels were determined using an EasyTouch GCHb (Netherlands) glucometer. The period of observation of animals after the development of type I diabetes mellitus was 30 days. After the steady development of the state of hyperglycemia for 10 days at a peripheral blood sugar level above 10 mmol/l, after modeling, daily subcutaneous insulin administration at a dose of 2 ME was added (Biosulin P soluble human genetically engineered; Open Joint Stock Company Pharmstandard-UfaVITA, Russia).

2.3. The conditions of animal detention

The conditions of biological test systems in the CDI CI correspond to Guide for the Care and Use of Laboratory Animals, 8th edition, 2011, NRC, USA. The managing of animals in individually ventilated cells from polysulfone Sealsafe, 461×274×228 mm (production TECHNIPLAST.P. A.). The rooms, which contain biological test systems, controlled temperature (18-24ºC), humidity (30-70%), illumination (12/12 h), the multiplicity of air (XII without recirculation). Control of climatic parameters is carried out in accordance with the SOP "control of climatic parameters in the premises of the vivarium." Distribution of feed and water is carried out at a fixed time, the change of litter is once a week in accordance with the SOP "preparation of cells for biological test systems. Marking. Change of bedding, feed, water".

2.4. Modeling defects of the critical size in rats

Under general intramuscular anesthesia with a mixture of Zoletil 100 at a dose of 3 mg/rat and Rometar at a dose of 0.5 mg/rat, under aseptic conditions, the skin in the lower jaw was treated with an alcohol solution of chlorhexidine, an incision was made in the inferior alveolar process region, 1.5-2 cm long, The masseter muscle was bluntly separated along with the periosteum, the bone was exposed in the angle area (Figure 1). On the alveolar process, using a drill and a spherical bur, a rounded three-walled defect 4x5x4 mm in size was created (Figure 1). During surgical intervention the bone was “cooled” with an aqueous solution of chlorhexidine using boron. The cavity of the bone defect was drained with tampons and filled with CH-SA-HA lyophilic mass, collagen sponge or auto-blood clot. The defect was closed with periosteum, the skin was sutured with separate 5.0 monofilament sutures. The wound was treated with an alcohol chlorhexidine solution.

2.5. Postoperative period

Within 3 days after the intervention, the animals received Tramadol anesthetic solution 0.2 mg 2 times daily. During the first 24 hours, animals were admitted to water. Feeding was performed 24 hours after the intervention solely with a mixture of "Polyproten-nephro" based on Supra-760 protein, USA) (SLL "Protenpharma", Russia) for 3 days. Drug support was provided with a broad-spectrum antibiotic (ceftriaxone at a dose of 8 mg/rat). Animals were kept in a postoperative room with ultraviolet air sterilization and forced fine cleaning system circulation. The skin sutures were removed on the 7th day after the intervention.

2.6. Morphological analysis of bone tissue

The lower jaws were subjected to decalcification in a solution based on the disodium salt of ethylene-diamine-tetra-acetic acid (EDTA) until completely softened. The composition of the decalcifying solution: 250 g of EDTA was used per 1000 ml of distilled water with the addition of 50 ml of 40% sodium hydroxide solution. For the manufacture of histological preparations, blocks were cut out from the lower jaws of rats containing the area of a postoperative bone defect. The preparations after dehydration in ascending concentrations of alcohols were embedded in paraffin blocks. Using a MicroTec CUT4050 microtome, serial sections (20-25 sections) were made in the transverse plane (relative to the animal's body) through the entire area of the bone defect. In addition, 2-3 cuts were made along the periphery of the bone defect. The prepared sections with a thickness of 4-5 µm were stained with hematoxylin-eosin (H-E). The sectioning procedure is shown schematically (Figure 2).

The morphological study was carried out on an Olympus BX45 microscope with an Olympus DP 25 attachment for photo-video documentation and the Cell^D software package, as well as with scanning histological preparations in a FLASH 250 3D HISTECH histoscanner (Hungary). Plain microscopy was performed in direct and polarized light of the area of the postoperative bone defect and the peripheral zone with an assessment of the histoarchitectonics of the bone tissue. A semi-quantitative assessment was performed to determine the nature of the distribution of foreign material in the bone cavity, the cellular reaction was studied, as well as the state of the soft tissue component. Histomorphometric evaluation was performed on digital micrographs, which were obtained using the software "Cell^D" and "NIS-Elements Document", while morphometric measurements were performed in the program "JMicroVision 1.2.7". Digital histological sections obtained as a result of scanning micropreparations in a histoscanner were evaluated using the CaseViewer Ver.2.3 Build 2.3.9.99276 3D HISTECH software (Hungary).

For an objective histological assessment of bone tissue repair, criteria with a standardized nomenclature were used [49]:

• BV - volumetric density of bone tissue, the percentage ratio of the volume occupied by bone structures to the total volume of the histological section
• BTT - thickness of bone trabeculae (mm), the criterion stipulates that the bone trabecula is a thin plate, measurements were taken between the edges of the bone trabecula (5-8 measurements in relation to each trabecula with the calculation of the median)
• ITS - intertrabecular spaces (mm), the distance between the edges of the cancellous bone trabeculae, the calculation is made in accordance with the so-called parallel plate model: BV minus BTT
• OBS - osteoblastic surface of bone trabeculae, the percentage ratio of the surface of bone trabeculae occupied by osteoblasts to the total bone surface
• OS - osteoid surface of bone trabeculae, the percentage ratio of the surface of bone trabeculae occupied by osteoid to the total bone surface, was assessed by polarized light microscopy
• ES - eroded (osteoclastic) surface of bone trabeculae, the percentage ratio of the surface of bone trabeculae with the formation of gaps to the total bone surface, includes the surface occupied by osteoclasts
• TBS - total bone surface
• FS - free surface of bone trabeculae, the percentage of the non-eroded surface of bone trabeculae and the surface not occupied by osteoblasts, osteoclasts to the total bone surface

The assessment of histomorphometric parameters was performed in the area of the applied postoperative lower jaw bone defect, as well as in the area connected to the bone defect (3 mm from the edge of the bone defect). When analyzing the histomorphometric parameters of bone tissue in the periphery region of the bone defect, the authors did not divide the measurements into groups depending on the type of implanted material. Pilot studies did not show the significance of the influence of the implanted material type in the area of the bone defect on the average (median) histomorphometric values and the nature of the distribution of variable values in the peripheral area. Thus, the histomorphometric values of the peripheral area constituted an additional control group. The number of histological sections of each study group corresponded to the sensitivity (1-β) - p=0.75-0.8 (75-80%) for the estimated mean and standard deviation. The presented threshold value was chosen by taking into account the relatively small sizes of the studied samples. In this context, it should be noted that it is admissible to study small sample sizes, given that the relatively low sensitivity of such samples can be compensated for by more pronounced differences [50]. Thus, the presented acceptable sensitivity (1-β) in the used samples was compensated by a relatively low threshold value of the error of the first kind (α) – p=0.01.

2.7. Statistical analysis

Statistical analysis of data and creation of graphic illustrations were carried out using the free software computing environment "R, version 4.2.1" and the programming language "R". The assessment of the obtained variables in relation to compliance with the normal (Gaussian) distribution was carried out on the basis of the Shapiro-Wilk test, as well as on the basis of the graphical method (Quantile-Quantile plot). Most of the variables obtained obeyed the normal distribution law, and the cases of deviation of the variables from the normal distribution were not pronounced.

For variables deviating from the normal distribution, the following methods of data transformation were used to achieve compliance with the normal distribution: with right-sided (positive) skewness, square roots were taken from the obtained values, and in the case of left-sided (negative) skewness, the formula was used - $\sqrt{\mathbf{m}\mathbf{a}\mathbf{x}\left(\mathbf{х}+1\right)-\mathbf{х}}$, where “X” is the value obtained. Descriptive statistics of the obtained data were presented as median, 25% and 75% quartiles (Me[Q1;Q3]). During the choosing statistical tests for assessing the type I error (α) and the sensitivity of the criterion (1-β), parametric methods of statistical analysis were used: one-way analysis of variance (ANOVA), for paired comparisons of independent variables, Welch's t-test was used, for multiple comparisons, we used Bonferroni amendment. The presented variants of assessments were carried out taking into account the equality of variances, the variables under study, as well as taking into account the level of sensitivity of the criteria not lower than p=0.75. To assess the error of the first kind, taking into account the small volume of the studied samples, the threshold value p=0.01 was used.

3. Results

3.1. Morphological of the bone cavity walls in the induced type I diabetes mellitus development

The state of hyperglycemia in rats for 30-40 days leads to noticeable changes in the mechanisms of bone formation under conditions of regeneration of a bone cavity of a critical size. Multiple sections of bone tissue make it possible to obtain reliably distinguishable results for almost all morphometric criteria both directly in the area of surgical intervention and on the periphery of the mandible bone. The results of a low activity of osteogenesis processes are demonstrated during self-reconstruction of a bone cavity of a critical size against the background of diabetes mellitus (control 2). Characteristic signs of weak regeneration after 30 days of surgical intervention are low total bone area and trabecular thickness in combination with a wide eroded surface and multiple lacunae, poor osteoblastic reaction in combination with extensive proliferation of connective tissue and single signs of the formation of centers of bone beams. Late formation of bone trabeculae is combined with a large free surface area and low cell load (Figure 3,Table 1).

Comparative analysis of the BV parameter of the interest zone between healthy animals (control 1) withdrawn from the experiment at week 4 and animals with sub-compensated diabetes mellitus (control 2), which showed a significant predominance of this parameter in healthy animals, both in the area of the jaw defect (in all possible variants of intergroup comparisons), and in the peripheral zone (P<0.01).

Comparison of the thickness of the bone trabeculae of the interest area between healthy animals and animals with sub-compensated diabetes mellitus, withdrawn from the experiment at week 4, showed significantly higher BTT values in healthy animals, both in the jaw defect area and in the peripheral zone (p<0.01). Sizes comparison of the inter-trabecular spaces of the interest area between healthy animals (control 1) and animals with sub-compensated diabetes mellitus (control 2), showed significantly lower rates of ITS in healthy animals both in the bone defect area (for all possible variants of intergroup comparisons) and in the peripheral zone (P<0.01)). OBS in the jaws defect region of healthy rats (control 1) after 4 weeks of the experiment was significantly higher than the analogous variable with sub-compensated diabetes mellitus animals (control 2) in all possible comparisons between the available groups (P<0.01). The values of free surfaces in the peripheral zone of animals with sub-compensated diabetes mellitus were significantly higher (p<0.01) in comparison with a similar variable in the jaw defect region in healthy animals (Table 1). Thus, induced type I diabetes mellitus in rats leads, 4 weeks after the creation of a critical size bone defect, to distinct morphological disorders of osteogenesis both in the surgical intervention area and in the lower jaw peripheral zone. Such disorders are characterized by activation of the osteoclastic reaction and erosion of the bone walls, inhibition of the osteoblastic reaction during the bone trabeculae formation, and an increase in free bone surfaces depleted in cell mass of various functional directions. The presence of type I diabetes mellitus in rats contributes to a slowdown in the rate of bone tissue regeneration in the lesion compared to healthy animals.

3.2. Regeneration of the bone cavity in healthy animals when filling with CH-SA-HA

Panoramic microscopy of the bone cavity walls of a group of healthy animals 4 weeks after surgical intervention with implantation of "CH-SA-HA" was characterized by a noticeable predominance of the bone component in the formed defect area of the lower jaw, while a larger proportion of the bone beams surfaces was free from cells (Figure 4). On polarization microscopy, the bone trabeculae had a characteristic ordered and compact, fibrous structure with a typical laminar yellow-green osteoid glow (Figure 5).

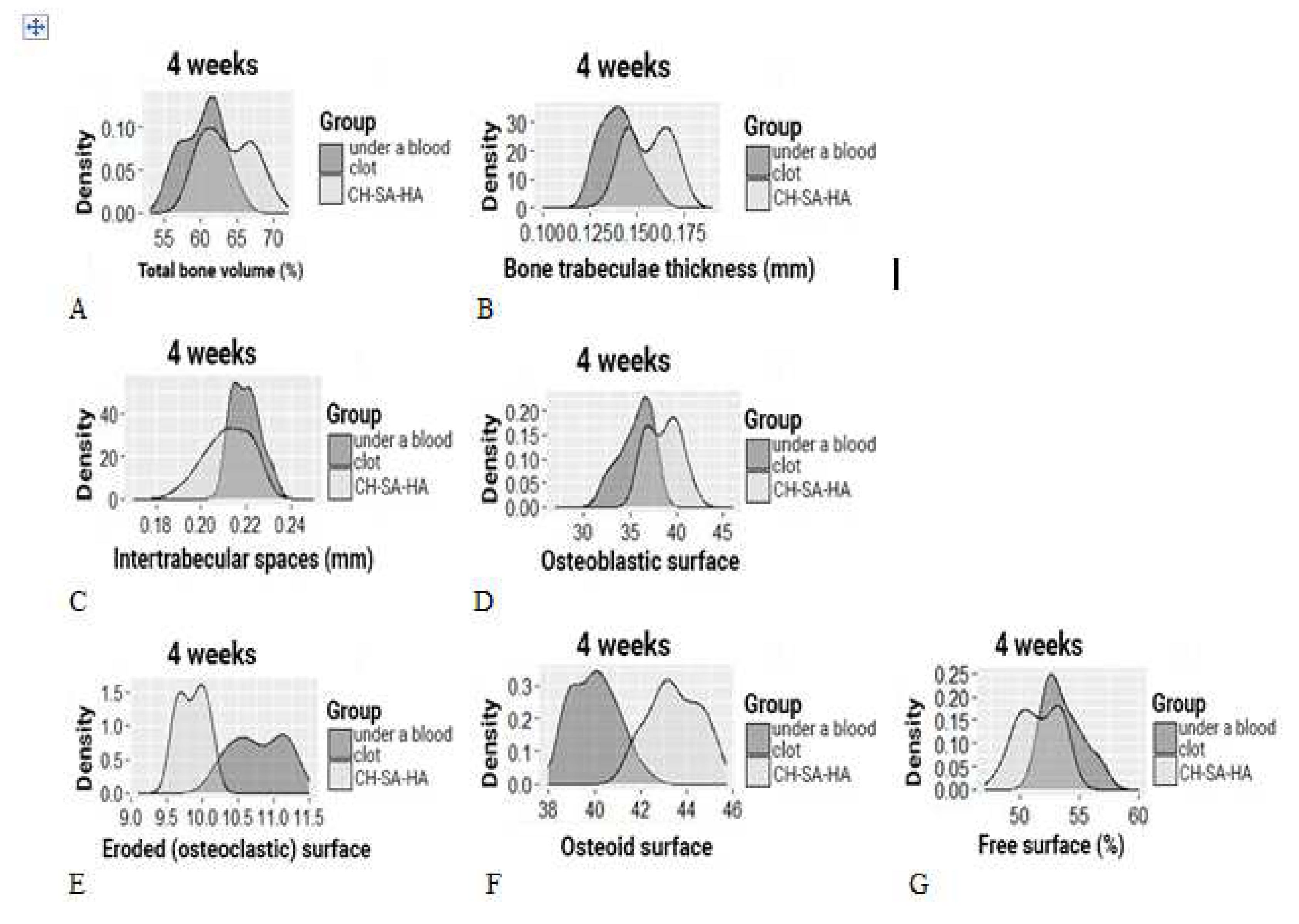

The distribution nature of the studied variable BV of bone tissue in the area of the postoperative defect and in the peripheral zone corresponded to normal, which was confirmed by the Shapiro-Wilk tests (p>0.05), as well as by visual graphic evaluation (Figure 6A).

Based on one-way analysis of variance, a significant influence of the group membership factor (P<0.01) on the variable value of BV was noted. At the 4-week period, BV values in control 4 (CH-SA-HA) in the area of the postoperative defect were significantly higher (P<0.01) compared to control 1 (under the blood clot)(Figure 6A). The parameters of BV in the peripheral zone of control group 4 significantly exceeded those of control group 4 in the bone defect area with implanted bioconstruction (P<0.01)(Table 1). In the central zone of the bone defect, signs of activation of the osteoblast reaction, the formation of mature connective tissue and the structure of the cortical plate were recorded (Figure 7).

The nature of the distribution of the bone trabecula thickness (BTT) in all the obtained samples corresponded to the Gaussian distribution, which was confirmed by Shapiro-Wilk tests (P>0.05), as well as visual graphical assessment (Figure 6B). Based on one-way analysis of variance, a significant effect of the group membership factor after 4 weeks of the experiment (P<0.01) on the BTT variable was noted (Table 1). Pairwise comparisons of the BTT parameters in the area of the bone defect between groups of control 1 and control 4 animals using the Welch T-test did not reveal significant differences (P>0.1). There were significant differences (P<0.01) between the BTT values of the bone defect zone and the periphery zone in control group 1 at 4 weeks.

The type of distribution of variable intertrabecular spaces (ITS) did not differ from normal, which was confirmed by Shapiro-Wilk tests (p>0.05), as well as by visual-graphic assessment (Fig. 6C). One-way statistical analysis (ANOVA) with three subgroups: controls 1 and 4 (peripheral and central zones of the bone defect) showed a significant influence (p<0.01) of the group membership factor in each experimental group. Paired comparisons between control groups 1 and 4 revealed significantly lower ITS values in the implanted biopolymer group (p<0.01). The ITS indicator in control 4 did not change when comparing the central and peripheral zones of the defect (Table 1). An analysis of the correlations connections BTT and ITS between the obtained results of an objective and histomorphometric study in the presented time interval of the experiment showed that there are no significant relationships in the control group 1 and control 4 (P>0.1). The obtained results indirectly indicate the asymmetry of the distribution of these parameters relative to each other under conditions of reparative regeneration of bone tissue. Similar results were obtained when comparing other variables (P>0.05). Histomorphometric parameters of BV, BTT and ITS, which characterize regenerative processes both in the area of the bone defect and in the peripheral zone, demonstrate variable values with opposite vectors. However, the three-dimensional picture of the distribution of these values over the 4-week period of the experiment is disordered, and no significant differences in the distribution were found.

The distribution nature of the variable OBS in all samples did not differ from normal, which was confirmed by Shapiro-Wilk tests (P>0.05). 4 weeks after filling the bone cavity with the CH-SA-HA construct (control 4), the formation of bone beams covered with multiple osteoblasts is recorded, single osteoclast cells are characteristic (Figure 8 and Figure 9). In control 1, a reaction of active bone lysis is characteristic, a high number of osteoclasts on the bone beams (Figure 10). It should be noted that during this period in control group 4, along with the active proliferation of osteoblasts on the walls of the bone cavity (Table 1), there is simultaneously a rapid release of bone beams and the formation of intertrabecular spaces with free surfaces (Figure 11).

At 4 weeks, the OBS values in control group 4 remain higher compared to control group 1 and are 5.4 times higher than the osteoblast surface at the periphery of the bone defect (P<0.01) (Table 1). Thus, the values of the continuous variable OBS in the group with implanted biopolymer "CH-SA-HA" were significantly higher compared to both control 1 and in comparison with the peripheral zone of control group 4 animals (P<0.01)(Figure 6D).

The distribution of the histomorphometric criterion for assessing bone tissue "volume of eroded surface" (ES) in most of the formed samples did not differ from the normal one, which is shown in the graph (Figure 6E), as well as in the Shapiro-Wilk test (P> 0.05).

Pairwise comparisons using the Welch T-test 1 month after the formation of the bone cavity in control group 1 showed a significant (P<0.01) effect of the group factor on the variable value of ES. The area of bone beams of osteoclasts significantly exceeded that in the control group 4 (P<0.01). The volume of lacunar surfaces in the peripheral zone was significantly less than in the area of the bone defect (P<0.01).

The stereometric parameter of bone tissue covered with osteoid was assessed by polarizing microscopy and recorded on the basis of a homogeneous yellow-green glow on the surface of the bone beams (Figure 5). The distribution of the presented variable in all samples did not differ from normal, which is clearly demonstrated by the graphic image (Figure 6F), as well as the Shapiro-Wilk test (P> 0.05).

In pairwise comparisons between healthy control groups 1 and 4, significant differences (P<0.01) were noted at 4 weeks of follow-up, with higher values in the CH-SA-HA biopolymer implanted group. When comparing the volume of the osteoid surface of the peripheral region with the area of the bone defect with the implanted biopolymer, significantly lower values were noted in the indicated period of the experiment (Table 1).

The stereometric criterion "free surface" of bone trabeculae not occupied by osteoblasts and osteoclasts (in percent) was calculated by simply subtracting the indicators of eroded and osteoblastic surfaces from the total bone surface index. The distribution of the variable was consistent with a Gaussian distribution in all samples, as evidenced by the free surface density plot (Figure 6G) and the Shapiro-Wilk test (P>0.05). The values of the variable "free surface" with elements of descriptive statistics are shown in Table 1.

Correlation analysis between histomorphometric variables characterizing the surfaces of bone trabeculae did not show significant relationships (P>0.1).

Thus, filling a bone cavity of a critical size in the maxillofacial region with the help of the CH-SA-HA construct in healthy rats leads to the early formation of a spongy and compact bone neoformation signs. The activity of bone formation significantly exceeds the results in control group 1 in healthy animals.

3.3. Regeneration of the bone cavity walls using a collagen sponge

Implantation of a collagen sponge into the bone cavity compensates for gross violations of regeneration indicators compared to control group 2.

Bone filling with collagen sponge in rare cases, it manifests itself as a pronounced reaction from the bone marrow, which is characterized by the predominance of intermediate and mature forms of cells of the granulocytic germ. The trabecular structure of the bone cavity walls in animals with collagen sponge implantation is characterized by extensive fields of the free surface. Signs of incomplete resorption of the foreign body are characteristic among the dense and massive connective tissue (Figure 12).

However, after 4 weeks of surgical intervention in control 3, an active cellular inflammatory response persists around the collagen implant (Figure 13).

Nevertheless, implantation of a collagen sponge into a large bone cavity significantly activates new bone formation compared to the low activity in control 2. Such a high activity is manifested by the results of all evaluation criteria. Along with the high value of BV 56.4[55.3;57.7](p <0.01), the BTT and ITS values are significantly increased, especially the large area covered by osteoblasts 32.9[31.1;34.8]( p <0.01) and high activity of signs formation of mature compact bone tissue – 30.2[28.9;31.8](p <0.01). At the same time, during this period of bone repair, the activity of its osteoclastic resorption was significantly reduced - 11.2[10.0;12.1](p<0.01) and the free surface volume - 56.1[54.0;57.8](p<0.01)(Table 1).

3.4. Bone defect regeneration in animals with sub-compensated diabetes mellitus under CH-SA-HA implantation

In microscopic examination of a bone defect in animals with subcompensated diabetes mellitus, signs of inflammatory infiltration in the actual walls of the defect and in the peripheral zone are usually not recorded. The histoarchitectonics of the zone of peripheral bone tissue in the animals of the study group was characterized by an ordered arrangement of bone beams with a predominance of free surfaces (Figure 14).

In the study group of animals (group 5), in the peripheral zone of the jaws was detected a pronounced reaction from the bone marrow, characterized by the predominance of intermediate and mature forms of the granulocytic germ (Figure 15).

In the area of the postoperative defect in the studied group of animals, there was a predominance of the bone component, represented by the structures of spongy bone (Figure 16). Bone trabeculae in the area of the postoperative defect did not have a clear spatial orientation. Most of the surfaces of the bone beams were free from cells, however, in some fields of view, flattened and cubic osteoblasts were detected on the surfaces, as well as a few osteoclasts with the formation of lacunae of varying severity. In the area of the jaw defect, areas of bone marrow formation with a predominance of intermediate and mature forms of the granulocytic germ were revealed.

The results of the study show that the use of the CH-SA-HA construct in diabetes mellitus creates a high efficiency of bone regeneration and significantly compensates for the level of osteogenesis. As can be seen, in the graphic images below (Figure 17), the nature of the distribution of the obtained variables is similar to the normal distribution. One-way analysis of variance, conducted between variables with equal variances, established the significance of the group membership influence in relation to each histomorphometric variable (p<0.01).

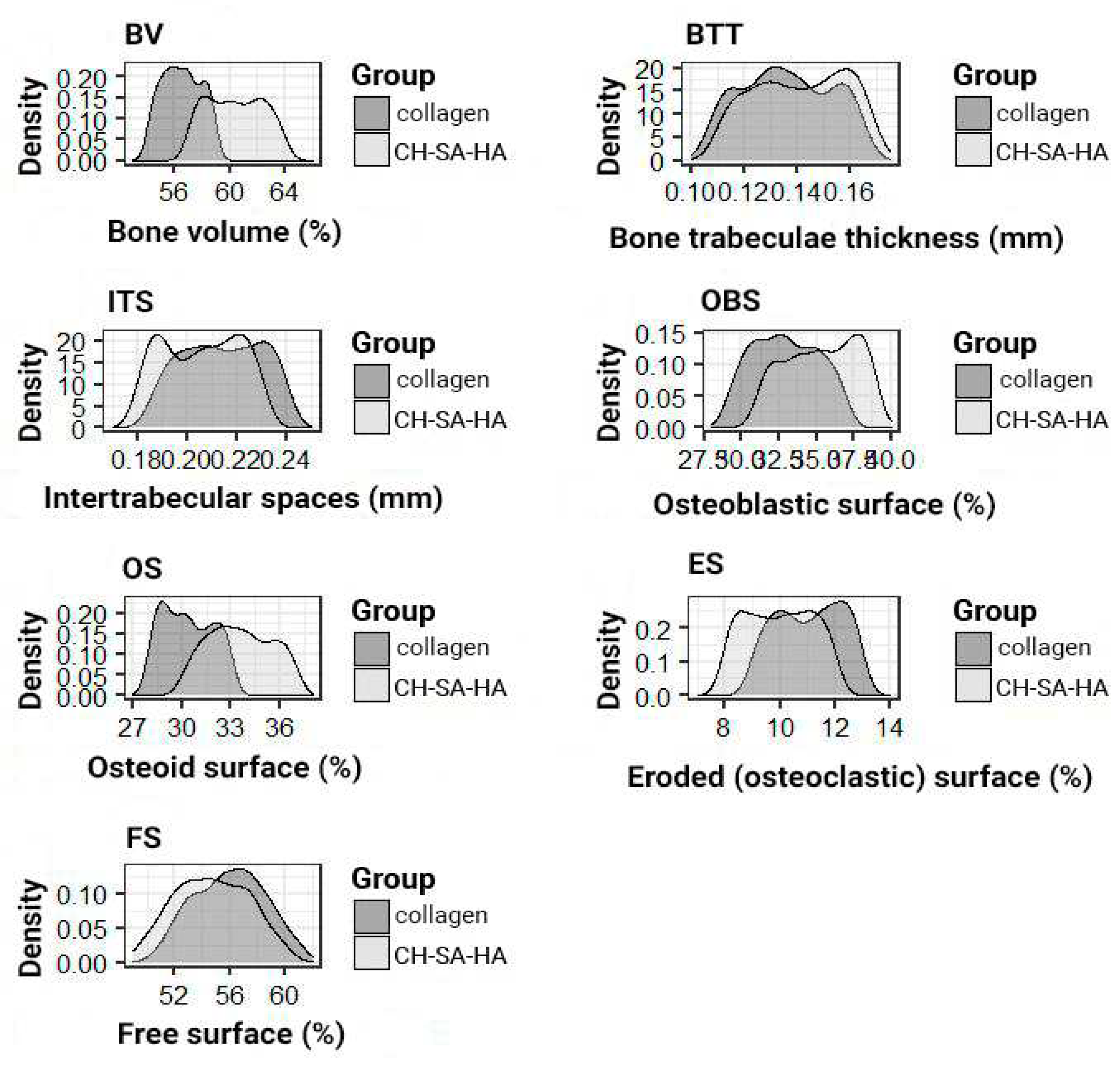

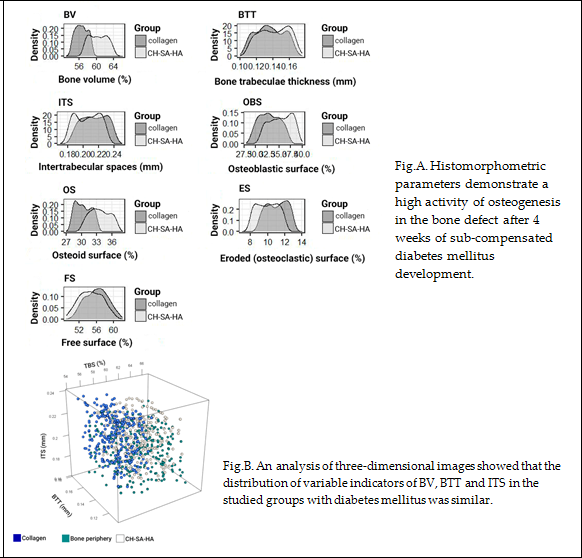

The results of a comparative morphometric analysis of the bone cavity in control 3 and the experimental group of animals showed a great advantage in implantation of the proposed CH-SA-HA construct. All morphometric criteria used in this study indicate more active osteogenesis 4 weeks after surgical intervention (Table 1). When compared with the group of healthy animals (control 1), it can be stated that the process of osteogenesis compensation when using the CH-SA-HA construct in sub-compensated diabetes mellitus is at a fairly high level. It is important to note that, with the development of an active inflammatory process in the model of diabetes mellitus in rats, the peripheral zone of the bone defect (at a distance of 3 mm from the bone cavity), despite its isolation from the bone cavity and completely different numerical characteristics of bone structures, actively reacts in the form of a total decrease in the level of osteogenesis (Table 1, columns 7 and 8).

4. Conclusion

The proposed model of induced type I diabetes mellitus in rats leads, 4 weeks after the creation of a critical size bone defect, to distinct morphological disorders of osteogenesis both in the surgical intervention area and in the lower jaw peripheral zone. Such disorders are characterized by activation of the osteoclastic reaction and erosion of the bone walls, inhibition of the osteoblastic reaction during the bone trabeculae formation, and an increase in free bone surfaces depleted in cell mass of various functional directions. The presence of type I diabetes mellitus in rats contributes to a slowdown in the rate of bone tissue regeneration in the lesion compared to healthy animals, as in cases with the implanted CH-SA-HA biopolymer. Implantation of a polyelectrolyte polysaccharide complex based on modified chitosan "CH-SA-HA" in the lower jaw region of a formed critical size bone defect in healthy rats and rats with induced type I diabetes mellitus promotes a significantly faster rate of bone tissue repair. The best results of the inflammatory process resolving and restoring the bone were obtained in the absence of diabetes mellitus and cavity reconstruction using the CH-SA-HA complex as early as 4 weeks after surgical intervention. The use of a lyophilized collagen sponge based on type I collagen for the purpose of bone cavity reconstruction reliably indicates the activation of bone formation, despite the lower rates compared to the results of using the CH-SA-HA complex, and can be used in combination with modified chitosan.

5. Discussion

Significance of the obtained results in the perspective of revealing the mechanisms of osteogenesis. The results of the study showed that the dynamics of bone formation disorders under conditions of hyperglycemia during an attempt to reconstruct of a critical size bone defect in the maxillofacial region indicates the fundamental possibility of osteogenesis activation when using structures based on modified polysaccharides. It seems appropriate to address the issue of creating specialized technologies and technical means in relation to obtaining osteogenic matrices for direct transplantation into bone tissue defects. Attention should be paid to the processes of managing the start of early osteogenesis through primary early critical local angiogenesis in the maxillofacial region. The choice of the optimal carrier for the culture of osteogenic cells is one of the key stages in the creation of a tissue-engineered equivalent of bone tissue. The absence of a well-perfused module in the affected area in the early stages after extensive bone tissue trauma, the lack of the ability of synthetic materials that do not contain growth factors and osteogenic cells to cover large of a critical size bone defects [51] is one of the main problems of long-term restoration of the integrity of spongy and compact bones. The state of hyperglycemia already 4-5 weeks after the modeling of sub-compensated diabetes mellitus causes gross changes in the formation of spongy and compact bones, to a greater extent in the surgical intervention area and, to a lesser extent, on the periphery of the inflammation process.

Hyperglycemia and bone formation processes. In hyperglycemia, low bone regeneration and periodontal loss are conditioned by superoxidation (O^-2) in the mitochondrial electron transport chain [52,53,54,55]. The activity of membrane-bound NADPH oxidase generates high concentrations of hydrogen peroxide (H₂O₂) in organelles. It is known that the overproduction of peroxides leads through the activation of the signaling pathway of the mRNA of blood plasma: the receptor-activator of nuclear factor-ligand-kappa-B (RANKL) to the differentiation and proliferation of osteoclasts [56,57,58]. An increase in the osteoclasts H²O² concentration reduces the expression of antioxidant enzymes and accelerates the differentiation and survival of osteoclasts. Such events weaken the mineralized bone beams structure [59,60]. Proliferation of osteoclasts means a process of impaired ossification [61], activation of pro-apoptotic genes and osteoblast apoptosis. This leads to erosion and weakening of the bone beams [62,63,64]. It has been established that the development of periodontitis against the background of diabetes mellitus is accompanied by a high level of IL-1β, TNF-α, MCP-1 chemokine and prostaglandin E2, which cause and prolong osteoclast-mediated bone resorption [65].

Attention should be paid to the creation of conditions for early endothelialization of the matrix, translation of the vascular endothelium from the walls of the bone cavity into the structure. The formation of micro-vessels is the basis for the physiologically active process of bone formation [66]. So, early local angiogenesis means an early start of osteogenesis mechanisms. Tight contact of the initially cell-free copolymer matrix with spongy and compact plates of the bone cavity with a certain filling of polymers with angiogenesis products triggers the process of matrix endothelization. Thus, early endothelialization of the artificial matrix is the primary task and will mean oriented sprouting of precursors or specialized cells, as well as signaling molecules of intercellular interaction, and, as a result, an active process of early osteogenesis [67]. The present studies have shown that, despite the successful solution of the issue of early bone formation, the first stage of the process of reconstruction of the vasculature remains insufficiently understood from the point of view of the contact interaction mechanism between the vascular endothelium and artificial or natural polymers. It is known that stimulation of proliferation and translation of vascular endothelium occurs outside the vascular wall into the tissue compartment [68,69]. If polymer matrices are used, during the degradation of which nanoparticles are formed, this enhances the efficiency of vector molecules delivery to cells and leads to over expression of angiogenesis molecules, enhances endothelial recruitment and new formation of blood micro-vessels [70]. Thus, angiogenesis occurs earlier than new bone formation [71]. Using this postulate, it should be clarified that the formation of micro-vessels in the matrix body is also an earlier stage of reconstruction, followed by osteogenesis [68,72,73]. At the same time, one of the important conditions for the rapid integration of a building structure is, in addition to degradation, high biocompatibility, the manifestation of its own angiogenic qualities, the ability to block polysaccharide and protein structures on the microbial cell surface that provide transmembrane transport, and the ability to block pain conduction on somatic cells. Modern approaches to solving the problem of vascularization also include the introduction of angiogenic and osteogenic growth factors into the injury zone based on a biodegradable polymer framework, which plays the role of not only a depot for dislocation of growth factors, but also a program for their long-term elution as a result of a certain rate of polymer biodegradation. Dosed elution of growth factors from a modern polysaccharide matrix forms new capillaries [74]. The initial start of endothelialization ends with the rapid filling of the cell-free matrix with the vascular network. The osteoblastic and osteoclastic microenvironment of the vascular implant stimulates the rapid formation of spongy and compact bone from the periphery to the center of the implant. It is very important that the artificially created vascular network does not regress after the complete utilization of the implant. Uncovering the mechanisms of the initial stages of angiogenesis will solve the problem of critical early osteogenesis.

The role of collagen in the reconstruction of a bone defect in combination with polysaccharides (chitosan, alginate). As shown by the present studies, collagen is able to improve the morphological and histological characteristics of the bone in the maxillofacial region in animals with induced diabetes mellitus. However, it is known that the use of pure collagen is not designed to directly activate angiogenesis. The inclusion of chitosan in the collagen complex triggers the formation of the vascular network [75]. Additional inclusion of growth factors or other protein molecules in the framework of collagen and chitosan copolymer is used not only to implement the direct functions of signaling molecules, but also to improve the binding of properties of materials [76,77]. In connection with this conclusion, it can be assumed that the collagen-chitosan copolymer is a promising material for the reconstruction of large bone defects. The addition of a standard apatite component to the chitosan base, which is used for plasty in the maxillofacial region in patients [78,79], as well as the use of an intermediate product of the bone apatite base, octacalcium phosphate (Ca₈H₂(PO₄)₆ ·5H₂O), found in human dentin, is an attempt to obtain a higher activity of inclusion in the early process of bone regeneration and an improved alternative to autologous bone grafting [80]. It is fair to clarify that the same regularity is also revealed when the alginate-hydroxyapatite framework is combined with poly-lactic acid [81,82], ethyl-cellulose, and poly(Ɛ-caprolactone) [83]. In general, the introduction of additional natural polysaccharide polymers into the structure leads to obtaining not only excellent mechanical strength, but, which is very important, to the active implementation of cellular functions such as adhesion, proliferation and differentiation. For example, a composite scaffold consisting of a chitosan, alginate, hydroxyapatite combination, and cellulose nanocrystals possesses such properties, which is especially valuable for bone tissue engineering.

Attention should be paid to the use of sulfated polysaccharides, such as heparin, in the study in the preparation of the functional copolymer. Three sulfate groups in the heparin molecule allow large rigid linear polymers to be transformed into nanosized globules, which predetermines their high mobility in living animal tissues [84. It is noteworthy that along with the high specific affinity of heparin for growth factors, for example, bFGF [85], the presence of a mechanism of active electrostatic interaction between the negatively charged heparin sulfate groups and the positively charged amino acid residues of the growth factor leads to an increase in binding affinity [86]. An additional positive feature of the heparin use is the fact that its low molecular weight allows loading a large amount of polysaccharide into a large carrier molecule. An important role in the binding of heparin and growth factor is played by hydrogen bonds and van der Waals packing [87]. Such a polymer network becomes resistant to enzymatic hydrolysis. The high affinity of heparin for growth factors ensures high protein loading. The higher the growth factor loading, the higher the effect of angiogenesis. It is very important that such a technology for incorporating a growth factor with a good final functional result can be applied by conjugation of two or more polysaccharides. The heparin introduction into high-molecular scaffolds on alginate and chitosan based has good mechanical properties, non-toxicity, low immunogenicity and is able to regulate the degradation rate [88].

The role of modified chitosan in the bone cavity reconstruction. Studies have shown that modified chitosan without diabetes can significantly improve the histomorphological characteristics of the bone cavity walls in the maxillofacial region. It is known that the use of a chitosan membrane as a single polymer leads to the formation of new bone and cementum in single-wall intraosseous defects in large experimental animals [89]. The combined use of biopolymers in one structure is designed for the mutual penetration of individual polymers with the hydrogel networks formation, which creates reinforcement of the structure and is considered one of the best technologies for obtaining a composite with high mechanical properties [90]. Such reinforcement was performed in the work of Bolshakov IN et al., when type 1 collagen [91] was introduced into the modified chitosan structure. Such a structure was implanted in a mechanical complete rupture of the spinal cord in rats. The initial cell-free collagen-chitosan construct (Fig. 18A) was actively filled with inflammatory infiltrate cells and neuronal progenitors within 1-20 weeks after injury (Fig. 18B,C). Maintaining the rigidity of the scaffold and its simultaneous degradation for 20 weeks allowed the animals to maintain a viable specialized cell mass with signs (Fig. 18D) of good blood supply. Such active filling of the cell mass of collagen-chitosan construction led to almost complete restoration of the spinal cord conduction system with demonstration of motor, sensory and vegetative functions.

Similar combined meshes are known, which were used in our work, with the inclusion of alginate and chitosan [92] or hyaluronic acid [93,94] in the design for the purpose of bone tissue bioengineering. The low penetrating ability of chitosan as an independent molecule through the inflammatory tissue compartment can be significantly increased by creating a complex polyelectrolyte structure, which leads to the densification of the polymer to nanosizes. Previous experimental work on the preparation of chitosan complexes with sulfated polysaccharides showed the ability of polyelectrolyte complexes to undergo globular conformation and transform into nanosizes [84]. It has been established that, upon passing from pH 1.55 to pH 3.5, the size of nanoparticles decreases from 200-220 nm to 48-52 nm due to a pH-dependent change in the conformational state of the molecule. Most likely, in the environment of the stratified epithelium of the oral cavity, where the pH is close to 5.5, the nanometer scale of molecular sizes is a fundamental factor for the chitosan use. The design, which contains high purity and deacetylated chitosan, sodium chondroitin sulfate, sodium hyaluronate, heparin sulfate, sodium alginate, amorphous hydroxyapatite in certain weight ratios, is designed for early stimulation of bone formation. It is known that a nanosized surface, in comparison with a micro-sized one, is a stimulus for the proliferation of endothelial cells and osteogenic cells [95]. It is important to note that a high degree of deacetylation of the chitosan matrix plays an important role both in terms of structure degradation and in the degree of its endothelization [67]. An important intermediate goal when introducing a polyelectrolyte construct into a bone cavity of a critical size is to increase the efficiency of the polysaccharide implant structures contact with the bone walls and microvascular bed of the bone in a shorter time after the intervention. The goal is achieved due to the fact that a nanogel mass of chitosan-alginate-hydroxyapatite (CH-SA-HA) is introduced into large cavities. These studies are an example of experimental modeling of the real situation of protection of “small molecules in aggressive environments, for example, the oral cavity, and is directly related to solving the problem of targeted medicinal substances’ transportation fixed on chitosan.

The use of a combination of chitosan with an alginate–hydroxyapatite framework [96,97,98,99] stabilizes the gel matrix due to the formation of polyelectrolyte complexes. The complexes are formed as a result of a weak interaction of oppositely charged chemical groups of COO^- alginate and NH₃⁺ of chitosan. In addition, NH₃⁺ groups can interact with PO₄^3- hydroxyapatite groups, linking the framework together and forming a more compact structure. At the same time, porosity and degradation rate decrease, and mechanical stability increases. If we are talking about the destruction of periodontal tissues in the experiment, then the filling of a bone defect with a chitosan complex with a polyanionic structure [100] leads to inhibition of the apical migration of the epithelium and active formation of new bone and cementum. Thus, there is a need to use such constructs to close critical bone defects in diabetes mellitus, given the well-known scientific findings that reveal the mechanisms of activation of osteogenesis and angiogenesis. Biodegradable polysaccharide biopolymers as the main substrates for self-regulation, as well as for the purpose of overexpression of osteogenic and angiogenic growth factors, activation of mesenchymal stem cells, osteoblast precursors, and vascular endothelial cells can be considered as promising constructs in the treatment of a specific inflammatory process in the periodontium. Solving this problem is a complex project, since systemic impairment of bone formation in diabetes mellitus affects extracellular, transcellular, and intracellular mechanisms associated with osteoinduction and osteoconduction. The complexity of the regulation of the cytokine storm and the development of osmotic and oxidative stress in cells with the accumulation of peroxides requires the use of complex building structures for contact with the maternal bone that can interfere with the processes of osteoclast activation, bone resorption, osteomalacia, and prolonged inflammation in the periodontal zone. In this regard, polysaccharide biopolymers, such as chitosan or alginate, are very promising for bone bioengineering. They can independently or in the presence of exogenous growth factors increase the quality and volume of mineralization, the formation of bone beams with a large mass of osteoblasts and osteoids, and increase the total number of osteocytes in the newly formed bone. It has been established that in the presence of chitosan, alginate in combination with nano-hydroxyapatite in vitro and in vivo system, the growth of angiogenesis factors (VEGF, CD31) in osteoblast precursors and mature osteoblasts is detected early, the amount of collagen I in the zone of the newly formed bone with high serum bone alkaline activity phosphatase (BAP). The active proliferation of osteoblast precursors, the formation of a large mass of osteocytes filling a bone critical size defect, microvascular endotheliocytes in Haversian canals confirm the wide functional nature of modified chitosan implants in relieving the inflammatory process in induced diabetes mellitus.
