Stabilization of Hydroxy-α-Sanshool by Antioxidants Present in the Genus Zanthoxylum

1. Introduction

The Japanese pepper (sansho, Zanthoxylum piperitum) has been used as a spice and traditional medicine in Japan since ancient times. Wakayama in central Japan cultivates the variety Budo Sansho, which accounts for 60–70% of Japan's sansho production. The harvest of ripened sansho fruits is mainly conducted from the second half of July to the first half of August. After harvesting, the fruits are dried, and the seeds are removed. The resulting dried pericarps are preserved for later use. Half of the dried pericarps is utilized as spices, and the other half as herbal medicine. For manufacturing herbal medicines, boiling water extract of the pericarps is dried and mixed with maltose; this powder is mainly used in medicines like Daikenchuto (TU-100) [1,2].

Sansho has a long history as a spice, and in recent years, its pungent taste accompanied with numbness has led to a boom in its production. The pungent taste of Japanese peppers arises from sanshools. To date, 13 types of sanshools have been identified in the genus Zanthoxylum [3]. Among them, hydroxy-α-sanshool (HαS) is the main compound in Japanese and Chinese pepper (Huajiao, Sichuan peppercorn, Zanthoxylum bungeanum) [3,4,5,6]. Terpenes, such as citronellal, geraniol, and geranial, are the major fragrance components [7].

For using sansho as a spice or for preparing its extract, it is necessary to grind the pericarp. The pungency, aroma, and color tone of the dried pericarps of sansho are relatively stable at room temperature. However, when the pericarp is ground into a powder, the taste and aroma quickly disappear. Moreover, the intensity of the aroma and the tingling taste of huajiao are not stable [8]. The tendency of sanshool to decompose when powdering sansho pericarp suggests that the pericarp contains substances or conditions that stabilize sansho. HαS has been reported to easily hydrolyze and oxidize under normal storage conditions [8,9]. Sanshools are long-chain polyunsaturated amides. Therefore, it is conceivable that the instability of sanshools may be due to the oxidation of the polyunsaturated chain or amide hydrolysis under acidic conditions. We selected antioxidants reported to be present in the genus Zanthoxylum, and measured their stabilizing activity against sanshools using a screening system.

2. Materials and Methods

2.1. Sansho and Chemicals

Zanthoxylum piperitum fruits (variety name: Budo Sansho, product of Wakayama Prefecture, Japan) were harvested from Kainan, Wakayama, Japan. Ripened fruits were dried in a drier at 40 and 50 °C for 6 h each, and then at 60 °C for 2 h. Upon drying, the fruit got split and the pericarp was separated by sieving off the seeds. HαS and hydroxyl-β-sanshool (HβS) were obtained from MedChemExpress (Monmouth Junction, NJ, USA). Hydroxyl-ε-sanshool (HεS) was purchased from MuseChem (Fairfield, NJ, USA). Hydroxyl-γ-sanshool (HγS) was obtained from Chengdu Biopurify Phytochemicals Ltd. (Sichuan, China). HPLC-grade acetonitrile, α-tocopherol (α-Toc), 2,2,5,7,8-pentamethyl-6-chromanol, gallic acid monohydrate, phytol ((2E,7R,11R)-3,7,11,15-tetramethyl-2-hexadecen-1-ol), and ascorbic palmitate were purchased from Fujifilm-Wako Chemicals (Tokyo, Japan). 2-Hydroxybenzoic acid (salicylic acid), 4-hydroxy benzoic acid (PHBA), ethyl gallate, propyl gallate, 4-hydroxy-3-methoxybenzoic acid (vanillic acid), hydroxyquinone, and 3,4-dihydroxybenzoic acid (protocatechuic acid) were purchased from Tokyo Chemical Industry (Tokyo, Japan). Quercetin, naringenin, hesperetin, caffeic acid, p-coumaric acid, and ferulic acid were purchased from Sigma Aldrich (St. Louis, MO, USA). All other chemicals were of analytical grade.

2.2. Preparation of Segment Membrane

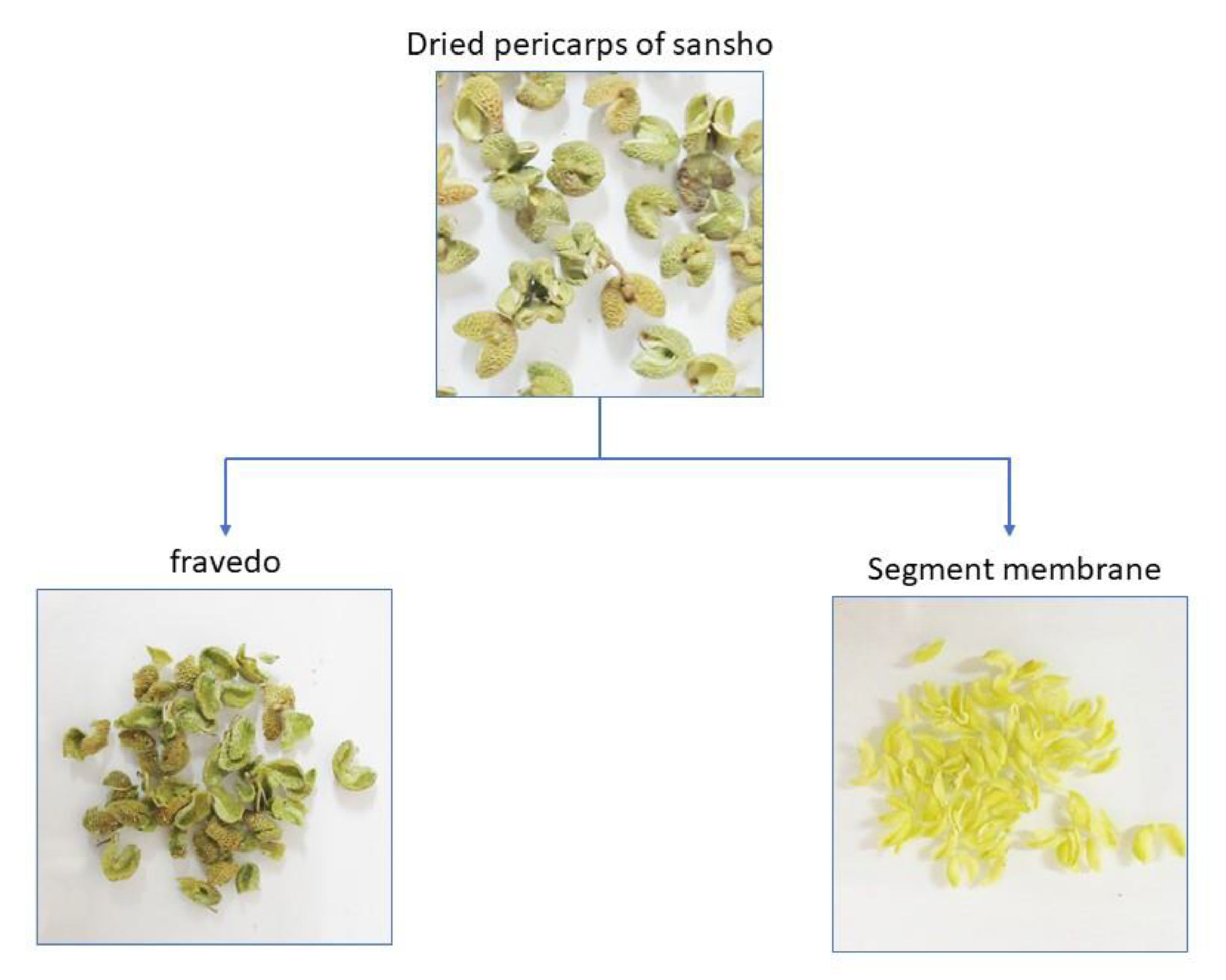

The pericarp of sansho consists mainly of flavedo and segment membranes (Figure 1). The segment membranes are located between the pericarp and seeds, and are attached to the inside of the pericarp. After separating the flavedo and segment membranes by placing the pericarp in a mortar and holding it down with a pestle, the membranes were peeled off from the pericarp using tweezers. The isolated segment membranes were ground in a laboratory mill (LM-PLUS, Osaka Chemical Co., Ltd.) and passed through a sieve with 250 μm pores to obtain powdered segment membranes.

2.3. Accelerated Test of HαS-Stabilizing Activity

Segment membrane powder (0.4 g) was suspended in 8 mL of ethanol, and the suspension was mixed by vortexing. The suspension was centrifuged at 2,000 ×g for 2 min and the supernatant was recovered. The content in 1 mL of the supernatant was approximately 2.5 μmol. Two milliliter of the supernatant and 2 mL of an ethanolic solution of candidate antioxidant were mixed in a 10 ml Spitz tube and incubated in an oil bath at 70 °C. The amount of HαS in the sample on day 7 of incubation was measured using HPLC. All accelerated tests were performed in triplicate. The ratio of the amount of HαS on day 7 of incubation to the amount on day 0 was calculated and expressed as the survival rate (%).

2.4. HPLC and LC-MS

HPLC was performed on a Shimadzu LC-2010 instrument (SHIMADZU, Kyoto, Japan). All samples were injected into an InertSustainSwift C18 4.6 × 250 mm column (GL Sciences, Tokyo, Japan). The analytes were eluted with mixed solvent A (30% acetonitrile): B (80% acetonitrile) at a flow rate of 1.0 mL/min. The conditions were as follows: 0 min: 0% B; 35 min: 45% B; 50 min: 100% B; 51 min: 0% B; 55 min: 0% B. All analyses were performed at 40 °C and the absorbance of eluate was monitored at 270 nm. Liquid chromatography–mass spectrometry (LC-MS) was performed by electrospray ionization (ESI)-MS in a positive mode using a Bruker micrOTOF^TM ESI-TOF mass spectrometer (Bruker Corporation, Billerica, MA, USA) interfaced with an Agilent 1200 HPLC system (Agilent Technologies, Inc., Santa Clara, CA, USA). A portion of the sample was loaded onto an Inertsil ODS-3 (2.1 × 150 mm) column. Separation was achieved by elution with a mixture of solvents A (30% acetonitrile) and B (80% acetonitrile) at a flow rate of 1.0 mL/min. The conditions were as follows: 0 min: 0% B; 35 min: 45% B; 50 min: 100% B; 51 min: 0% B; 55 min: 0% B. All analyses were performed at 40 °C and the absorbance of eluate was monitored at 270 nm.

2.5. Quantitation of HαS and HβS

HαS and HβS were quantitated using HPLC. Calibration curves were prepared using different concentrations of HαS and HβS standards to derive a relationship between the peak area and concentration.

2.6. Quantitation of Tocopherol

Analysis of α-, β-, γ-, and δ-tocopherols was performed using HPLC by Japan Food Research Laboratories (Suita, Osaka, Japan).

3. Results

3.1. Sansho Harvest Season

Sansho fruits are harvested in three seasons in the central prefecture of Wakayama, Japan (Table 1). The unripe fruits are harvested in May. The seeds of these fruits have not yet hardened, and the whole fruit is used for Tsukudani (a preservable food, boiled in soy sauce). Ripe fruits are harvested from the second half of July to the first half of August. After drying, they are used as raw materials for herbal medicines and spices. In September, the sansho fruit turns red and is harvested as fully ripened sansho pepper, which is also used as a spice. However, in Wakayama Prefecture, the amount of fully ripened fruit harvested is extremely small. Therefore, ripened fruits were used in this study.

3.2. HPLC and LC/MS of Ethanol Extracts of Pericarps

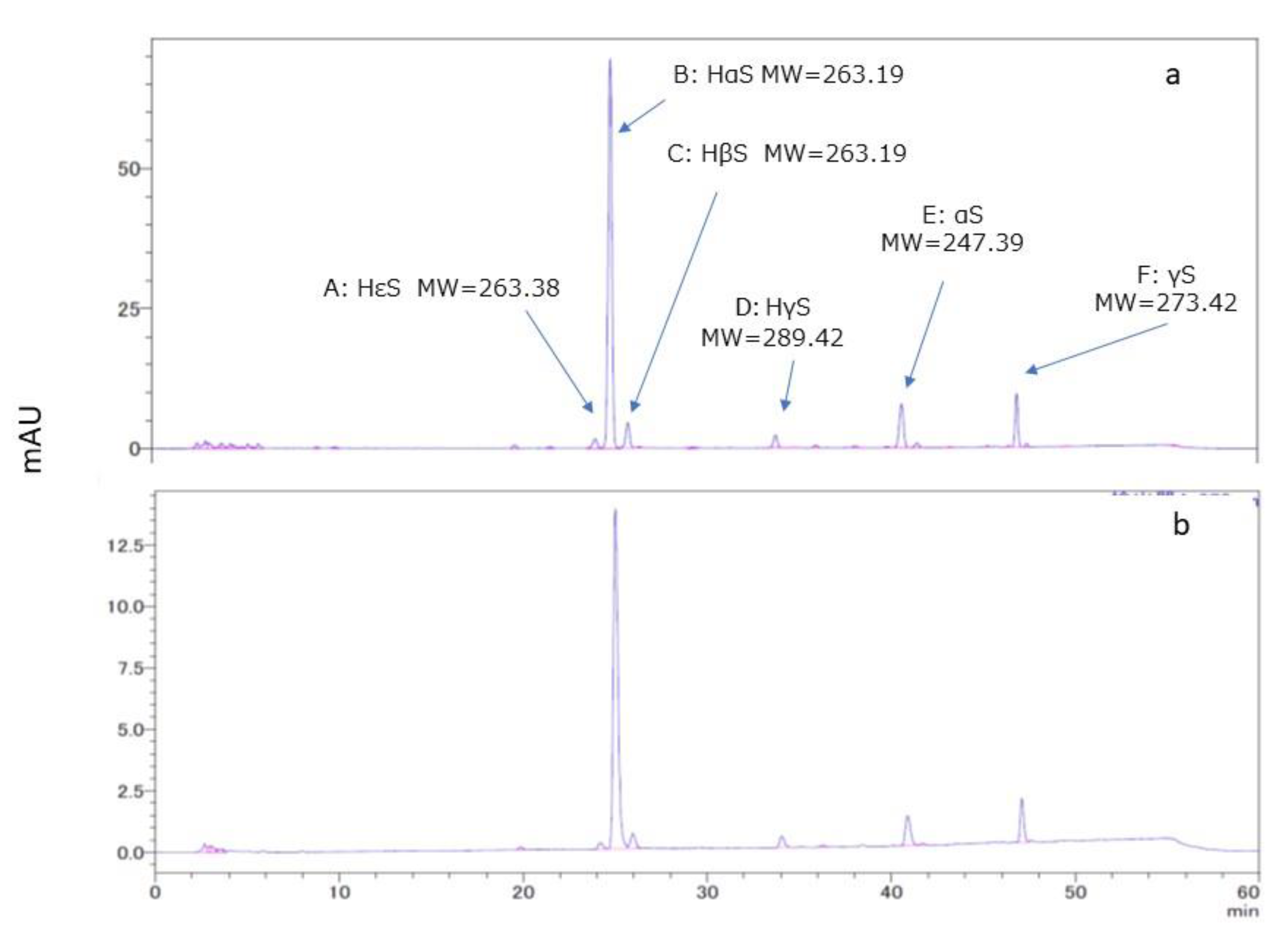

A chromatogram of the ethanolic extract of pericarp is shown in Figure 2a. Several peaks were observed in the chromatogram. Of these, peaks A, B, C, and D were found to be of HεS, HαS, HβS, and HγS respectively, by comparison with the standard sanshools. In addition, MS analysis was performed for peaks B, E, and F. Peak B compound had the elemental composition of C16H26NO2 (M+H⁺) based on high-resolution LC-MS/MS (ESI, positive mode) data. The LC-MS data for peaks E and F indicated elemental compositions of C16H26NO (M+H⁺) and C18H28NO (M+H⁺), respectively. The molecular weights of the three major peaks B, E, and F were 263.1958, 247.3758, and 273.4131, respectively. Peaks B, E, and F were believed to be for HαS, α-sanshool (αS), and γ-sanshool (γS). From HPLC of references performed under the same conditions [10,11,12], we assumed that peaks E and F might be for αS and γS, respectively.

3.3. Effect of Alcohol Concentration on Extraction Amount of HαS and Its Stability

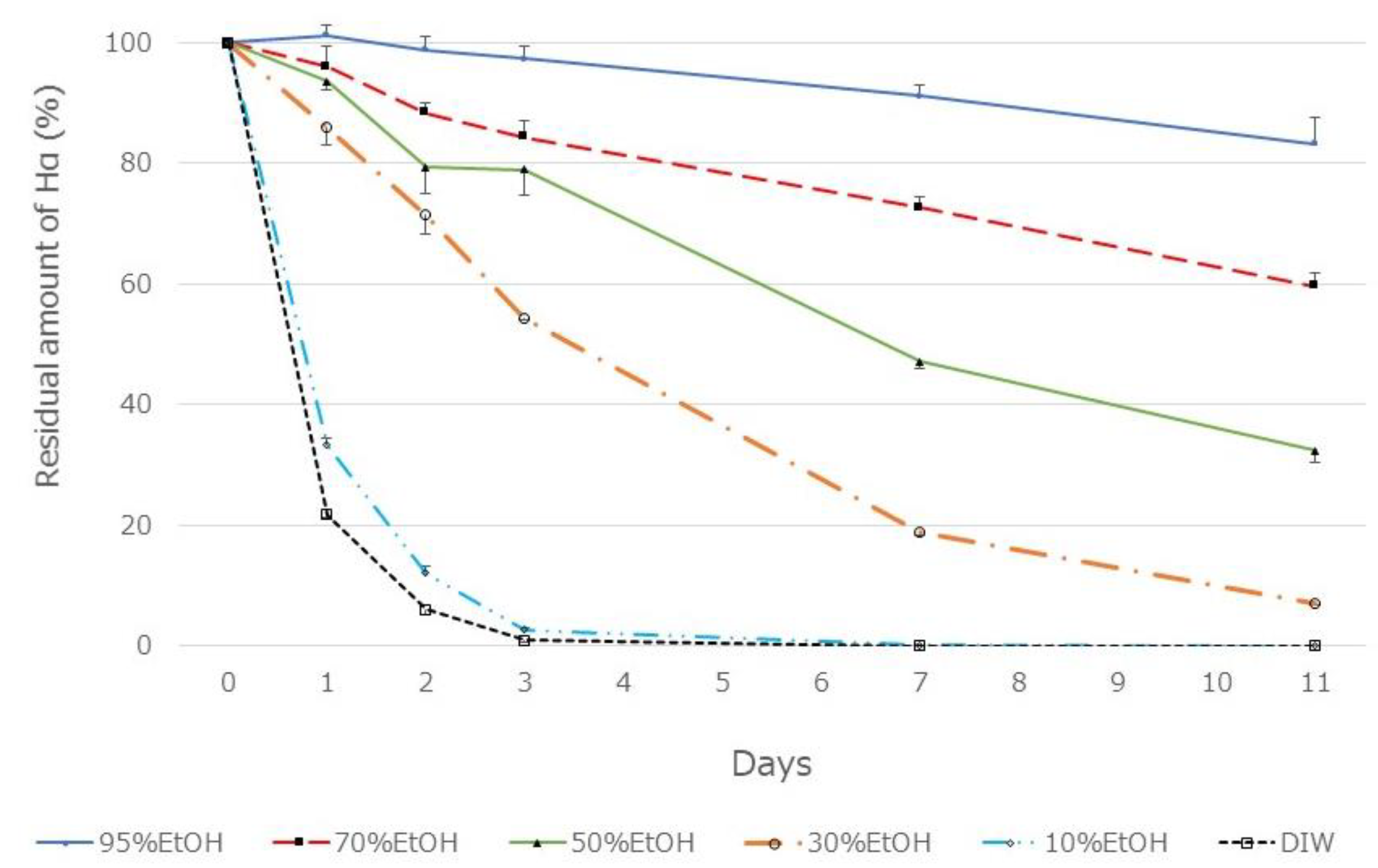

The pericarp powder (0.4 g) was suspended in aqueous ethanol solutions of various concentrations (20 mL). After vigorous mixing for 5 min at about 20 °C, the mixture was centrifuged at 2,000 ×g for 2 min and the supernatant was recovered. The amount of HαS in each supernatant was measured using HPLC. As shown in Figure 3, the amount of HαS extracted was constant when the ethanol concentration was up to 50% but decreased with a decrease in ethanol concentration to 50% or less. Furthermore, when these extracts were incubated at 70 °C, the instability of HαS increased with increasing proportion of water in the eluate (Figure 4). These results indicated that the HαS stabilizer, thought to be present in the pericarp, is soluble in ethanol.

3.4. Comparison of the Stability of HαS in Ethanolic Extracts of Pericarp and Segment Membranes

HαS stabilizer was found to be present in sansho pericarp, was apparently extracted with ethanol. Therefore, to search for stabilizing substances, we considered it necessary to build a system that minimized contamination of stabilizers derived from sansho. We collected segment membranes attached to the inside of the pericarps and prepared their ethanolic extract. The amount of HαS in the segment membrane was approximately 5 mg/g dry weight, which was equivalent to approximately 1/20 of that in the pericarp. As shown in Figure 2b, the HPLC chromatogram of the ethanolic extracts of segment membranes was similar to that of the ethanol extract of the pericarp.

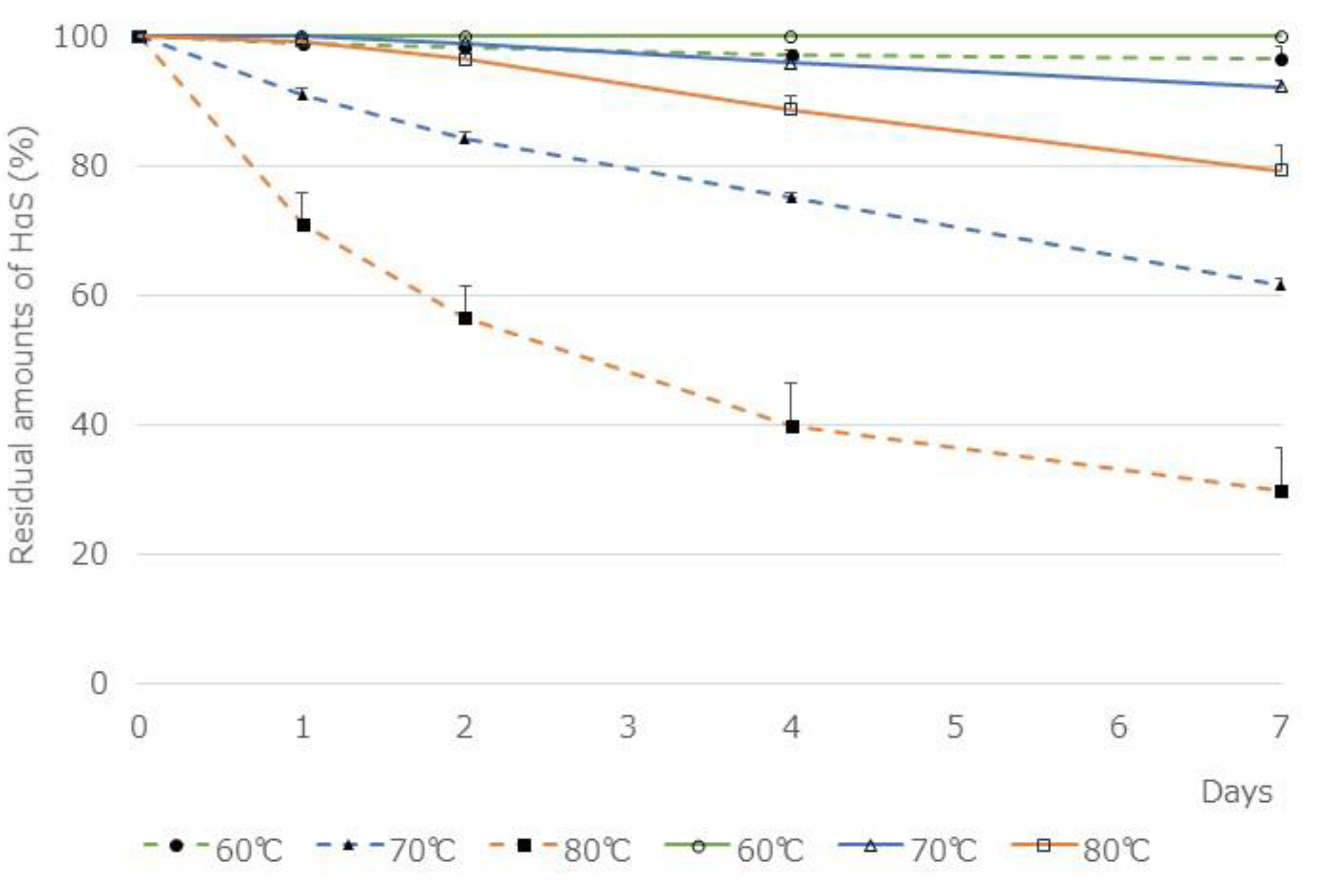

The two ethanolic extracts were incubated at 60, 70, and 80 °C for 1 week and the residual amounts of HαS in them was compared (Figure 5). The amount of HαS in 95% ethanolic extract of the segmented membranes was reduced to 61.5 ± 4.65% in 7 days at 70 °C. On the contrary, the amount of HαS in the ethanolic extract of pericarps was maintained above 90% at 70 °C. Furthermore, because the segment membranes contain less chlorophyll and polyphenols, the influence of these substances on the assay system is believed to be weakened. Therefore, by adding various candidate antioxidants to the ethanolic extract of the segment membranes, we investigated their HαS-stabilizing activity.

3.5. HαS-Stabilizing Activity of Antioxidant Vitamin

Tocopherol is a fat-soluble antioxidant vitamin. Hisatomi et al. reported that the α-Toc content in the pericarp of sansho is 35 mg/100 g, which is approximately 11.7 times that in seeds [13]. In the pericarp of Budo sansho, we found that α-Toc content was 10.7 mg/g of dry weight and that β-, γ-, and δ-tocopherol were not present. Using a screening system, we attempted to examine the HαS-stabilizing activity of α-Toc. As shown in Figure 6, α-Toc exhibited a superior HαS-stabilizing activity even at a low concentration. As α-Toc contains a phenolic-chromanol ring linked to a saturated isoprenoid side chain (phytol), we also examined HαS-stabilizing activity of 2,2,5,7,8-pentamethyl-6-chromanol and phytol was examined. 2,2,5,7,8-Pentamethyl-6-chromanol showed excellent HαS-stabilizing activity, but phytol did not show any such activity (Figure 6). It is suggested that the antioxidant activity of 2,2,5,7,8-Pentamethyl-6-chromanol in α-Toc is related to the HαS-stabilizing activity. β-carotene is a red-orange pigment that is abundant in plants and has antioxidant properties. It is expected that β-carotene is also present in the sansho pericarp. However, because β-carotene is almost insoluble in ethanol, its effects were not confirmed in this study.

Ascorbic acid is a well-known water-soluble antioxidant vitamin normally present in plants. However, because it is insoluble in ethanol, the HαS-stabilizing activity of ascorbic acid could not be investigated using our assay system, and we believe that it is not a stabilizer of HαS. Ascorbic palmitate is an ester formed from ascorbic acid and palmitic acid, which is hydrolyzed into fat-soluble ascorbic acid and is used as a food additive. We investigated the HαS-stabilizing activity of ascorbic acid using ascorbic palmitate. It showed the highest HαS-stabilizing activity at approximately 2 mM, and the activity decreased at higher concentrations (Figure 6).

3.6. HαS-Stabilizing Activity of Phenolics

Many phenolic acids, including hydroxycinnamic acid, flavonoids, lignans, and coumarins, have been reported to be present in the genus Zanthoxylum [13,14,15,16,17,18,19]. We investigated the HαS-stabilizing activity of several of these compounds using our screening system. The HαS-stabilizing activities of mono-hydroxybenzoic acids (salicylic acid, PHBA, and vanillic acid), di-hydroxybenzoic acid (protocatechuic acid), and tri-hoxybenzoic acid (gallic acid, ethyl gallate, and sodium gallate) are shown in Figure 7. 　

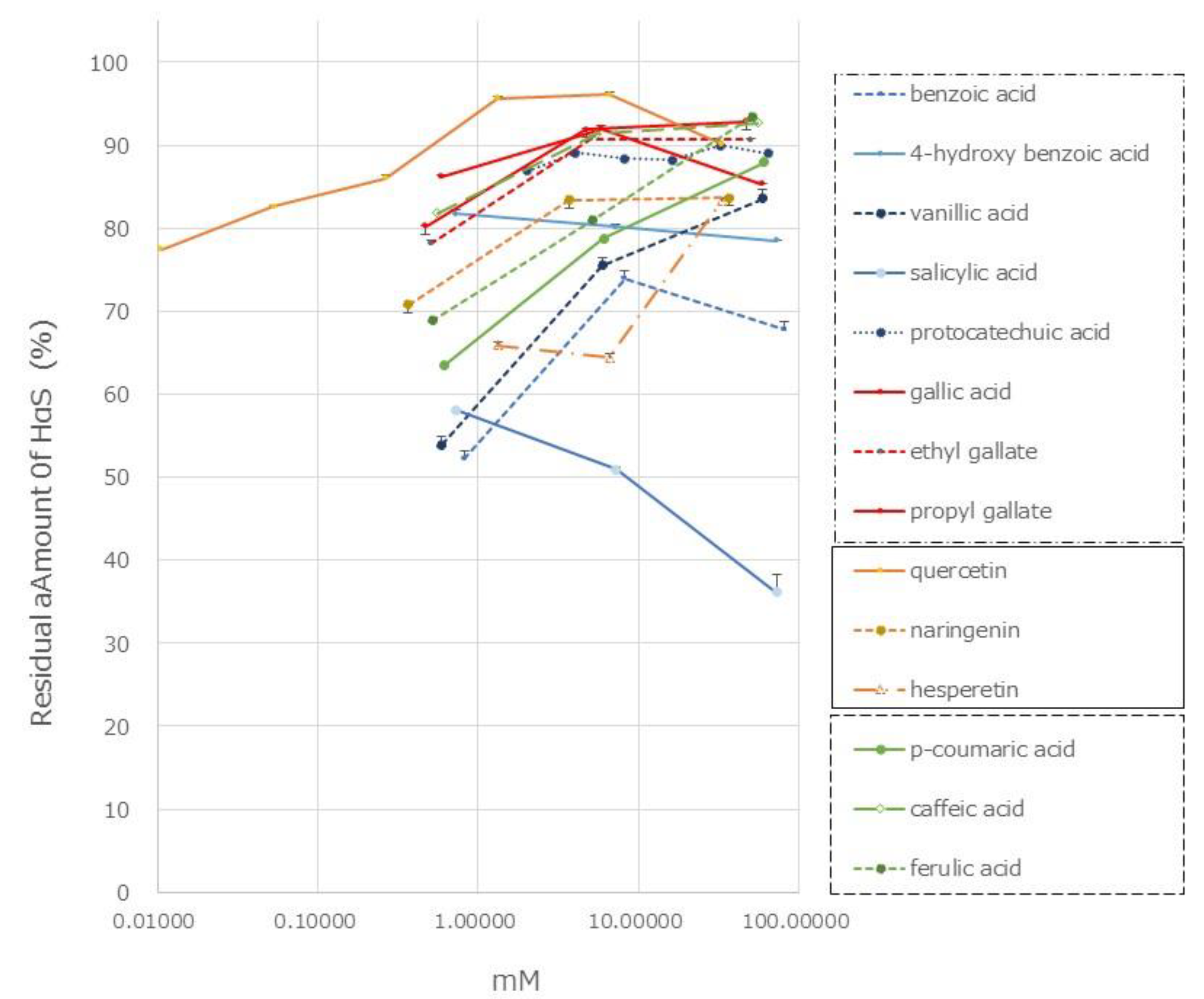

Gallic acid and its related compounds showed high HαS-stabilizing activity at low concentrations (Figure 7). This was followed by protocatechuic acid, PHBA, and vanillic acid. As the number of phenolic hydroxy groups per molecule increased, the HαS-stabilizing activity increased. Among the mono-hydroxybenzoic acids, there was a difference in the HαS-stabilizing activity. The acidity of each of the three selected compounds differed; the pKa values of salicylic acid, PHBA, and vanillic acid are 2.97, 4.54, and 4.51, respectively. The acidity of mono-hydroxybenzoic acids appeared to affect the stability of HαS. Butylated hydroxyanisole (BHA) and butylated hydroxytoluene (BHT) are synthetic lipophilic compounds, chemically derived from phenol. Owing to their antioxidant properties, they have been widely used as preservatives in edible oils. Because there is only one phenolic hydroxyl group in these two compounds, the sanshool-stabilizing effect is weak (data not shown).

Hydroxycinnamic acids are widely distributed in plants. The HαS-stabilizing activity of caffeic acid was found to be higher than that of p-coumaric and ferulic acids (Figure 7). Caffeic acid has two phenolic hydroxyl groups, whereas p-coumaric acid and ferulic acid have only one each. Flavonoids are also widely distributed in plants and have been reported from genus Zanthoxylum [7,13,14,15,16,17,18,19]. We examined the HαS-stabilizing activities of quercetin, naringenin, and hesperetin. Quercetin showed a high HαS-stabilizing activity at a concentration ≥0.1 mM (Figure 7). The HαS-stabilizing activity of quercetin, which has five hydroxyl groups in its structure, exceeded those of naringenin and hesperetin with two hydroxyl groups each. Arbutin, a sugar-containing hydroquinone, has been reported to be present in Zanthoxylum piperitum [14]. Considering the insolubility of arbutin in ethanol, we did not attempt to investigate its HαS-stabilizing activity. Hydroquinone, the aglycone portion of arbutin, has two hydroxyl groups attached to the benzene ring at the para-position and may act as a reducing agent. In preliminary tests, hydroquinone showed weak HαS-stabilizing activity (data not shown).

3.7. Effect of pH on the Stability of HαS

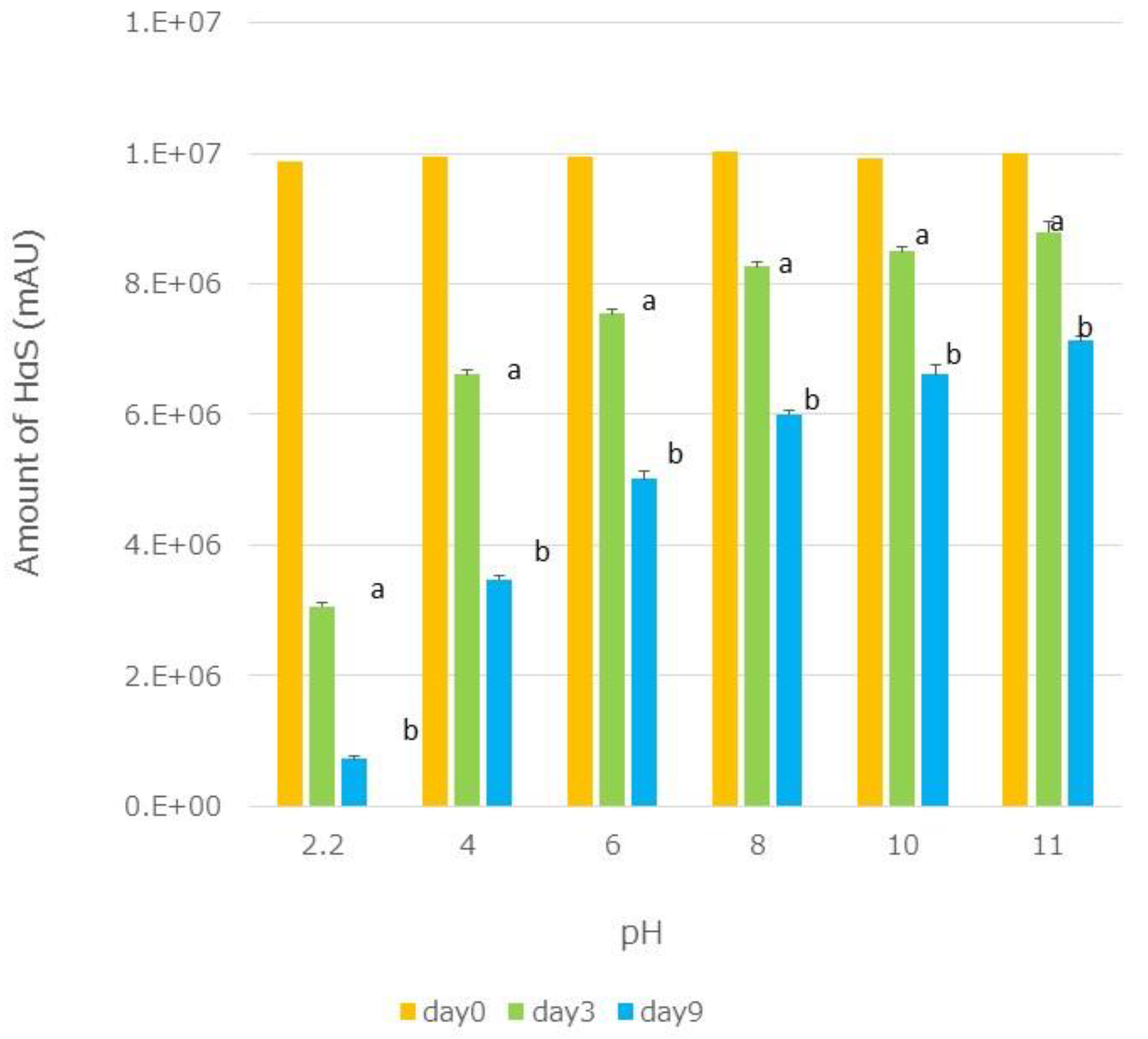

Ethanolic extracts of segmented membranes were mixed with the same volume of Britton–Robinson buffer (pH 2.2–12) [20]and the mixtures were incubated at 70 °C. On days 3 and 9, the HαS content in each mixture was assayed. A significant decrease in the HαS content was observed with sanshools degrading under acidic conditions (Figure 8).

4. Discussion

In this study, several compounds with stabilizing activity for HαS, which is the main pungent substance sansho, were found. Among these, α-Toc was found to substantially stabilize HαS in sansho pericarp. This appears to be one of the reasons for the abundance of α-Toc in sansho pericarp, which is an amphiphilic compound present in cell membranes. α-Toc, which is synthesized in chloroplasts and is present in cell membranes, plays an important role in preventing lipid oxidation [19,21]. The three-dimensional arrangement of α-Toc in lipid bilayer membranes in cell membranes has been studied [22]. Sanshools are amphiphilic compounds with fat-soluble fatty acid side chains and a hydrophilic amide moiety. The two compounds share common structural features. We speculate that sanshools may be present in the cell membrane or chloroplast lamellae of pericarp cells in close proximity to α-Toc. Further research on the interaction between α-Toc and sanshools and their locations in the cells is required.

Some phenolic compounds reported in Zanthoxylum exhibited high HαS-stabilizing activity. However, because these compounds are believed to be bound to sugars and organic acids, which makes them hydrophilic, they are difficult to access HαS. Therefore, we believe that they are not involved in the stabilization of HαS in the pericarp. Furthermore, the concentration of phenolic compounds, which are effective in stabilizing HαS, was much higher than that of α-Toc; it may, therefore, be difficult to practically use these phenolic compounds.

Capsaicin, present in red pepper (Capsicum annuum L.), and piperine, present in black pepper (Piper nigrum L.) are N-alkylamides [23]. These substances are responsible for the hot sensation of these peppers. Because these compounds are relatively stable, red and black peppers are used as spices and medicines worldwide. However, sanshools are easily oxidized when exposed to air and become extremely unstable, particularly when purified. Therefore, sansho and huajiao have been used only in a limited area of the world, although they provide another trigeminal sensation called tingling. Huajiao is often used in the form of chili oil, in which the pericarp is soaked in vegetable oil. The shelf life is relatively longer because the sanshools gradually elute from the pericarp, and when in the oil, they do not come in direct contact with air, or coexist with antioxidants, such as tocopherol derived from vegetable oils. However, further food processing is difficult in the presence of chili oil. If sanshools can be stabilized, sansho and huajiao could be used in a variety of processed and functional foods, and in pharmaceuticals.

Recent investigations have revealed various pharmacological activities of HαS, including stimulation of the digestive system, strong salivating effects through the activation of TRPV, and activation of somatosensory neurons through the inhibitory activity against two-pore potassium channels (KCNK3, KCNK9, and KCNK18) [24,25]. HαS is also being investigated as a local anesthetic. HαS has potential for the treatment of diseases and in healthcare. Therefore, for further pharmacological research or development of the medicinal uses of sanshools, it is important to identify the conditions or substances that stabilize sanshools. Methods for the synthesis of sanshools have also been reported [26,27,28], and the pure products, thus obtained, can be used; however, their stability is likely to be even more important.

Echinacea is a popular herbal medicine in Western countries that has been used to treat colds and influenza [29,30]. However, its usefulness in clinical trials has been questioned [30]. There are various reasons for this. Liu and Murphy suggested that the stability of N-alkylamide, which is one of the active ingredients of Echinacea, poses a problem, and its content is not guaranteed for each preparation [31]. Echinacea purpurea contains eight isobutylamides, all of which are susceptible to oxidative degradation and are very similar to sanshools. They found that phenolic acids in Echinacea prevented the degradation of these isobutylamides depending on the experimental conditions [31]. It is believed that the degradation of N-alkylamides is prevented to some extent by the antioxidant action of these phenolic acids. However, because N-alkylamides are vulnerable to acids, further stability can be expected using α-Toc.

5. Conclusions

We constructed a system for stabilizing substances in sanshools and found that α-Toc exhibits excellent activity. Stabilization of sanshools can be employed for developing new sansho products that exploit their excellent functionality.

6. Patents

TM is named an inventor on a patent (Takahiko Mitani and Takashi Tsuchida, Patent JP, 6630880, B).
